Schematic and parts book for Kenmore 116.35623400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

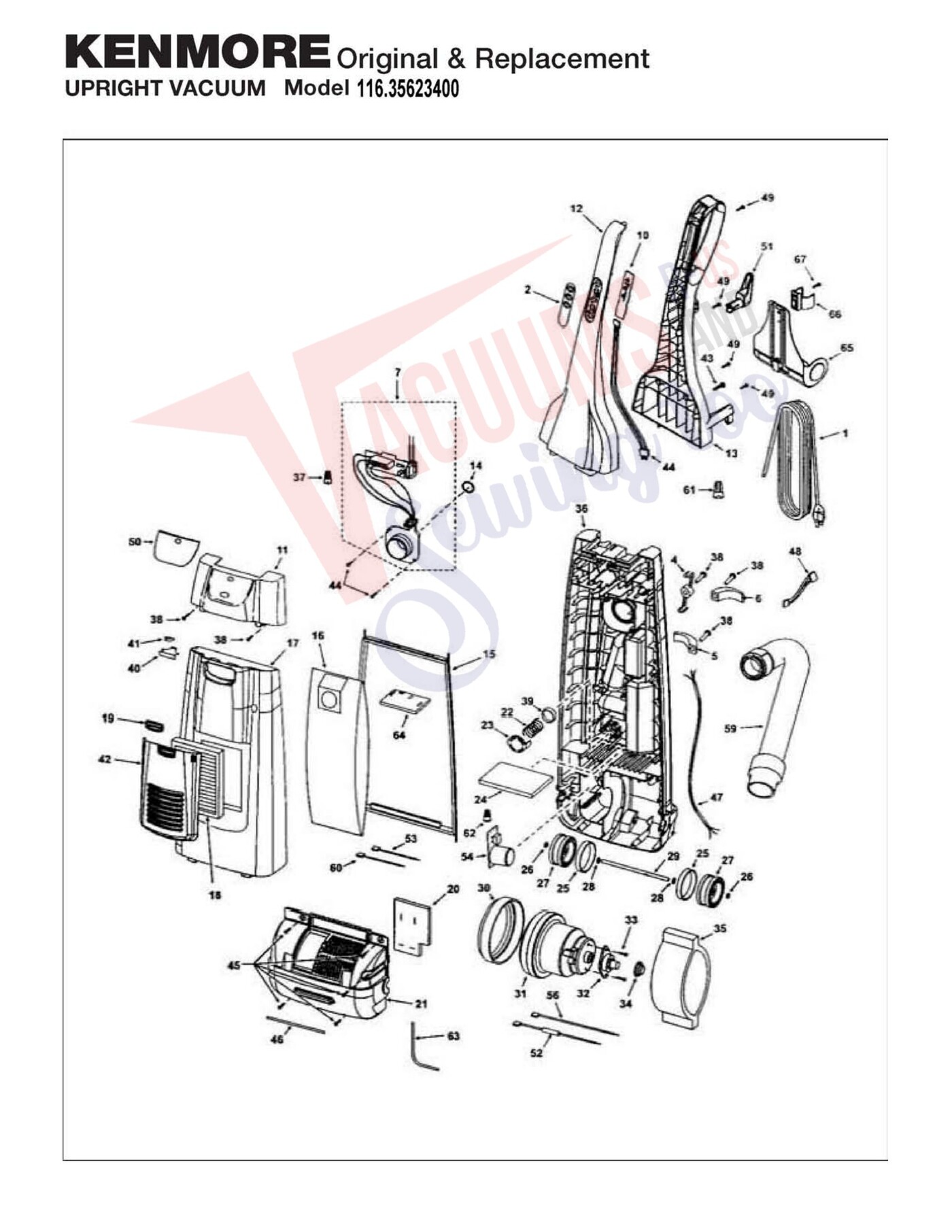

| # | Part image | Description | SKU | Price |
| 1 |  | Power Cord For: kenmore | KC97EBZXZV06 | $51.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | HANDLE SWITCH LABEL | KC31TCJYZ000 | Not Available |
| 4 | Not Available | HOLDER | 4370400 | Not Available |
| 5 | Not Available | HOLDER HOSE | 4370399 | Not Available |
| 6 | Not Available | HOLDER WAND | 4370392 | Not Available |
| 7 | Not Available | PCB ASSEMBLY | KC88GCJYZ000 | Not Available |
| 10 | No Image | SWITCH, PCB 116.36622500 Part Number: KC86WCJYZ000 for Kenmore | KC86WCJYZ000 | $29.48Read more |
| 11 | Not Available | COVER SWITCH | KC03ECJNZC04 | Not Available |
| 12 | Not Available | HANDLEA | KC22BCJNZC04 | Not Available |
| 13 | Not Available | HANDLE B | KC23BCJNZV07 | Not Available |
| 14 | Not Available | SUCTION INLET PACKING | 4370575 | Not Available |
| 15 | Not Available | PACKING DUSTCONTAINER | 4370428 | Not Available |
| 16 |  | kenmore type U 3 PackDVC bags | KER1468 | $7.65Read more |
| 17 | Not Available | COVER DUST | KC60KAXCZCU4 | Not Available |
| 18 | Not Available | FILTER SEARS NO. 20-86889 | KER-1800 | Not Available |
| 19 | Not Available | LATCH FILTERCOVER | 4370416 | Not Available |
| 20 | Not Available | FILTER EXHAUST | 4370405 | Not Available |
| 21 | Not Available | CASE MOTOR | KC09FBFEZC04 | Not Available |
| 22 | Not Available | SPRING PROTECTOR | 4370407 | Not Available |
| 23 | Not Available | COVER PROTECTOR | 4370408 | Not Available |
| 24 |  | Replacement Vacuum Filters for Kenmore CF2 Progressive Upright Vacuum Cleaners 2 pack | KER1820 | $6.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Compatible alternateFilter - Foam - Kenmore Cf-2 - 2Pk
Fits In The Door - Upright Filter For: kenmore More Product Details | 910 | $6.08Add to cart Special order — allow 2-4 weeks. |
| 25 | Not Available | CUSHION RUBBER | 4370240 | Not Available |
| 26 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | WHEEL, REAR 116.35622401 Part Number: 4370177 for Kenmore | 4370177 | $35.84Read more |
| 28 | Not Available | WASHER | 4369562 | Not Available |
| 29 | Not Available | SHAFT WHEEL | 4369561 | Not Available |
| 30 | Not Available | SUPPORT RUBBER MOTOR (FRONT) | KC02FCJYZ000 | Not Available |
| 31 | No Image | MOTOR, 116.35623400 Part Number: KC92FCJYZ000 for Kenmore | KC92FCJYZ000 | $143.04Read more |
| 32 | Not Available | FLANGE MOTOR | KC25SCJYZ000 | Not Available |
| 33 | Not Available | SCREW FLANGE | KXTN4+16FFY | Not Available |
| 34 | Not Available | SUPPORT RUBBER MOTOR (REAR) | 4370404 | Not Available |
| 35 | Not Available | SUPPRESSOR NOISE | 8174919 | Not Available |
| 36 | Not Available | COMPARTMENT DUST | KC40KCJRZV07 | Not Available |
| 37 | Not Available | WIRE NUT LARGE (3) | 4370199 | Not Available |
| 38 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | PROTECTOR | 4370429 | Not Available |
| 40 | Not Available | LATCH DUST COVER | 4370403 | Not Available |
| 41 | Not Available | SPRING LATCH | 4369097 | Not Available |
| 42 | Not Available | COVER FILTER | KC41KCJNZCU4 | Not Available |
| 43 | Not Available | SCREW HANDLE | 4370420 | Not Available |
| 44 | Not Available | PLUG MALE CONNECTOR ASSEMBLY | KC68ECJPZ000 | Not Available |
| 45 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | PACKING MOTOR CASE (ADHESIVE BACK) | 4370430 | Not Available |
| 47 | Not Available | WIRE CORD | KC37GCJPZ000 | Not Available |
| 48 | Not Available | PLUG FEMALE CONNECTOR ASSEMBLY | KC68ECHBZ000 | Not Available |
| 49 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | PLATE ORNAMENTAL | KC21TCJYZ000 | Not Available |
| 51 | Not Available | CORD HOOK | KC53EZAZV07 | Not Available |
| 52 | Not Available | LEADWIRE FUSE | 8175040 | Not Available |
| 53 | Not Available | LEADWIRE RED | KC48GCJRZ000 | Not Available |
| 54 | Not Available | PCB ASSEMBLY | KC85VCJYZ000 | Not Available |
| 56 | Not Available | WIRE LEAD | 8191771 | Not Available |
| 59 | Not Available | HOSE UNIT | 8191827 | Not Available |
| 60 | Not Available | LEAD WIRE BLACK/WHITE STRIPE | KC48GCJSZ000 | Not Available |
| 61 | Not Available | WIRE NUT LARGE (2) | 4370199 | Not Available |
| 62 | Not Available | WIRE NUT (4) | 8174824 | Not Available |
| 63 | Not Available | BODY PACKING | KC40AARSZ000 | Not Available |
| 64 | Not Available | MICROCONTROLLER PCB | KC89VCJYZ000 | Not Available |
| 65 | Not Available | HANDI-MATE JR CADDY | KC66PBPKZV06 | Not Available |
| 66 | Not Available | LOCKING CLIP | KC82DCJRZV06 | Not Available |

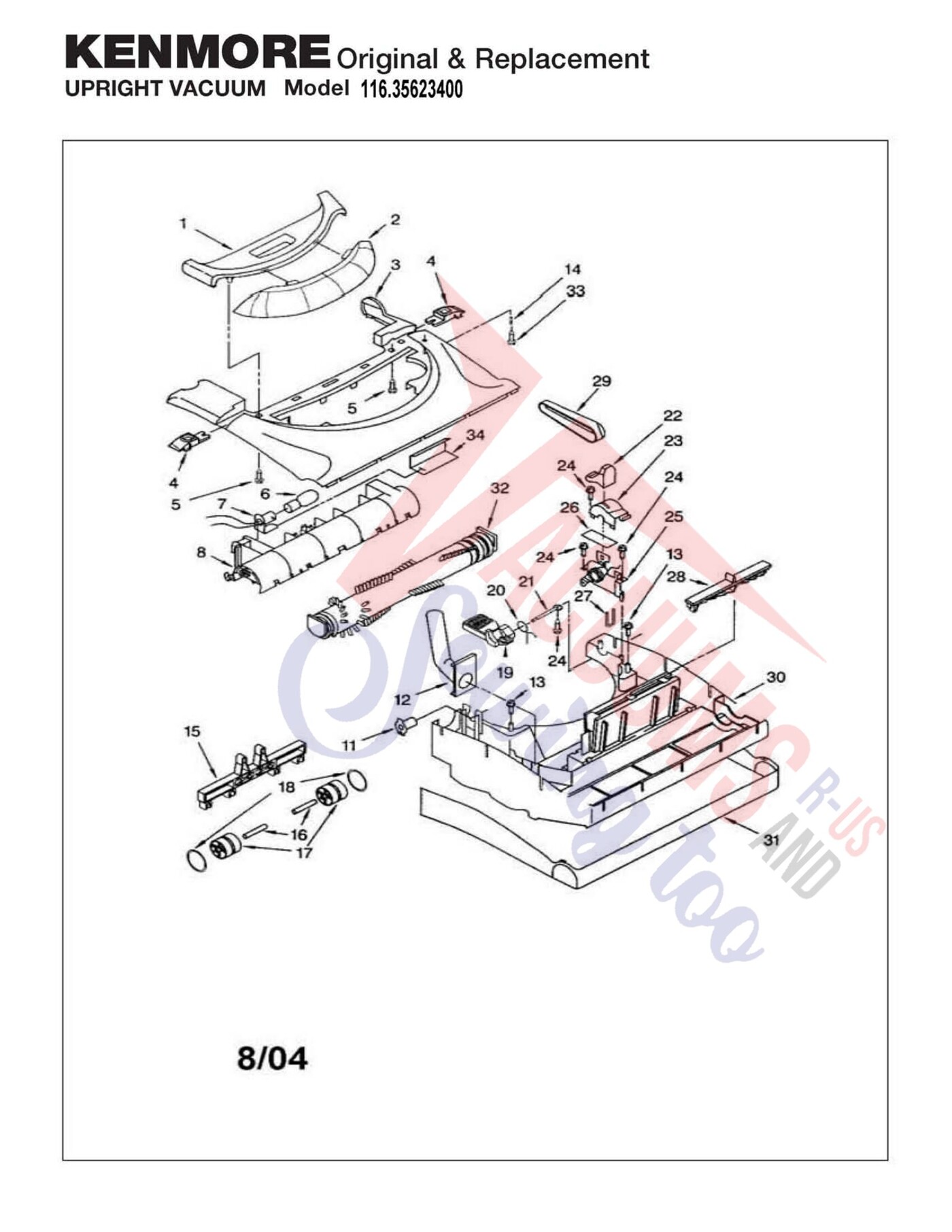

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COVER LIGHT | KC24HAVPZCU4 | Not Available |
| 2 | Not Available | WINDOW | 4370410 | Not Available |
| 3 | Not Available | HOUSING NOZZLE | KC01ABCSZCU4 | Not Available |
| 4 | Not Available | LATCH NOZZLE LEFTSIDE | KC08DAMAZC04 | Not Available |
| 4A | Not Available | LATCH NOZZLE RIGHTSIDE | KC08DAMBZC04 | Not Available |
| 5 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | BULB LIGHTSEARS NO.20-5240 | FA-3515 | Not Available |
| 7 | Not Available | SOCKET BULB | 4370771 | Not Available |
| 8 | No Image | COVER, 116.39512991 Part Number: 8174976 for Kenmore | 8174976 | $57.18Read more |
| 11 | Not Available | SHAFT PLASTIC | 4369527 | Not Available |
| 12 | Not Available | PIPE NOZZLE | 4370263 | Not Available |
| 13 | Not Available | SCREW RETAINING | 4369606 | Not Available |
| 14 | Not Available | GUARD BELT | 4370425 | Not Available |
| 15 | Not Available | CAM HEIGHTADJUSTMENT | 4369543 | Not Available |
| 16 | Not Available | SHAFT WHEEL | 4369499 | Not Available |
| 17 | No Image | WHEEL, CAM 116.31189100 Part Number: 4370182 for Kenmore | 4370182 | $44.18Read more |
| 18 | No Image | WHEEL, CAM Part Number: 4370183 for Kenmore | 4370183 | $26.89Read more |
| 19 | Not Available | PEDAL | 4370394 | Not Available |
| 20 | No Image | SPRING, HANDLE RELEASE 116.33613300 Part Number: 4370258 for Kenmore | 4370258 | $18.42Read more |
| 21 | Not Available | SHAFT PEDAL | 4370259 | Not Available |
| 22 | Not Available | COVER PEDAL PAD | 4370260 | Not Available |
| 23 | Not Available | COVER BELT | KC43SAMAZC04 | Not Available |
| 24 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | SHIFTER BELT | 4370393 | Not Available |
| 26 | Not Available | NOZZLE PACKING | 4370544 | Not Available |
| 27 | Not Available | COVER BELT | 4369535 | Not Available |
| 28 | Not Available | KNOB HEIGHTADJUSTMENT | 4369542 | Not Available |
| 29 | Not Available | BELTSEARS NO. 20-5275 | PR-1015 | Not Available |
| 30 | Not Available | LOWER PLATEASSEMBLY | 8174966 | Not Available |
| 31 | Not Available | GUARD FURNITURE | 8174967 | Not Available |
| 32 | Not Available | AGITATORASSEMBLY | KC84RCKVZ000 | Not Available |
| 33 | Not Available | SCREW BELTGUARD | 8191810 | Not Available |
| 34 | Not Available | REFLECTOR NOZZLE | KC22HCJNZ000 | Not Available |

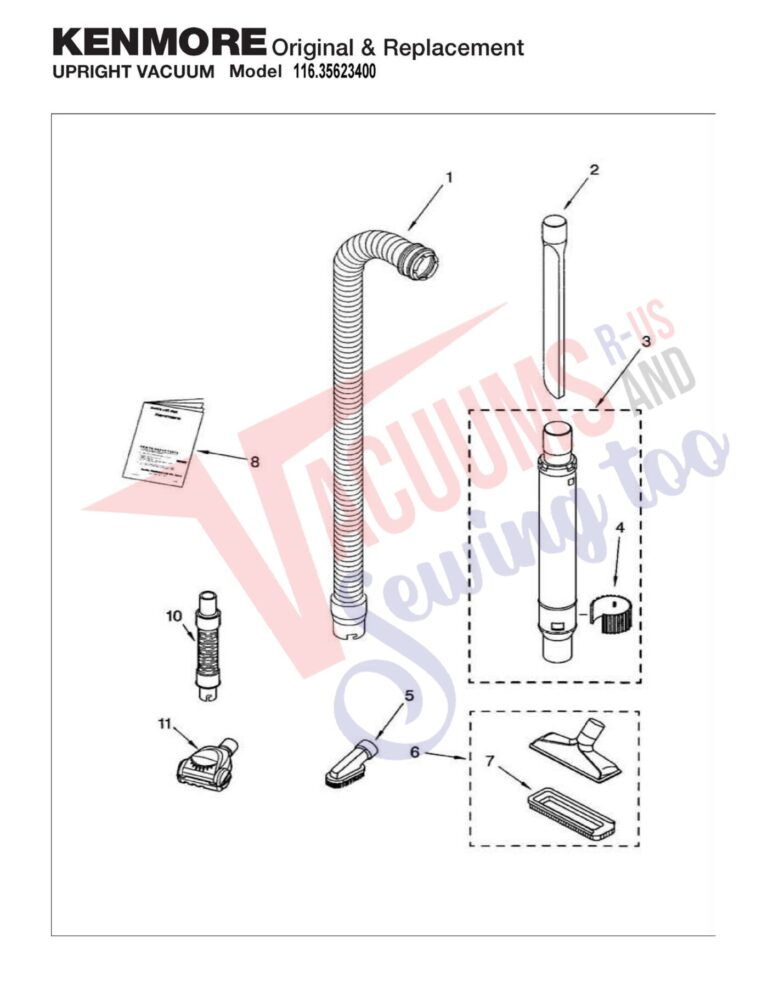

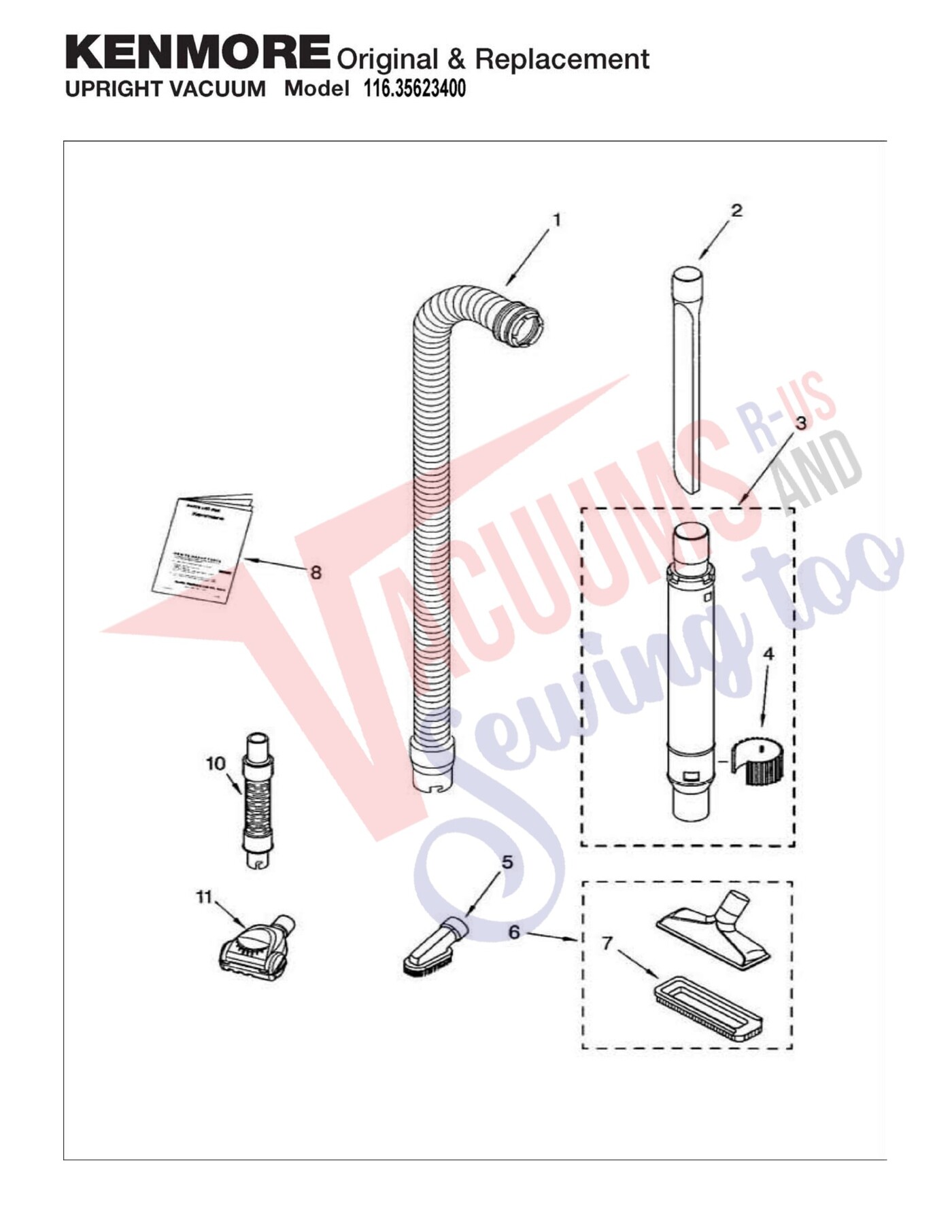

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOSE UNIT | 8191827 | Not Available |
| 2 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 3 | Not Available | WAND TELESCOPIC | 4370414 | Not Available |
| 4 | Not Available | REGULATOR SUCTION | 4368996 | Not Available |
| 5 | Not Available | BRUSH DUSTING | 4368681 | Not Available |
| 6 | No Image | BRUSH, FLOOR 116.31913101 Part Number: 4368609 for Kenmore | 4368609 | $37.10Read more |
| 7 | Not Available | HOLDER BRUSH | 4368610 | Not Available |
| 8 | Not Available | MANUAL OWNERS | KC01ZCJYZ0U0 | Not Available |
| 8A | Not Available | LIST REPAIR PARTS | KC40ZCJYZ0U0 | Not Available |
| 8B | Not Available | WIRING LABEL | KC30ZCJYZ000 | Not Available |
| 10 | Not Available | HOSE EXTRA BONUS | 8191898 | Not Available |
| 11 | Not Available | HANDI MATE JR. | 8192024 | Not Available |
