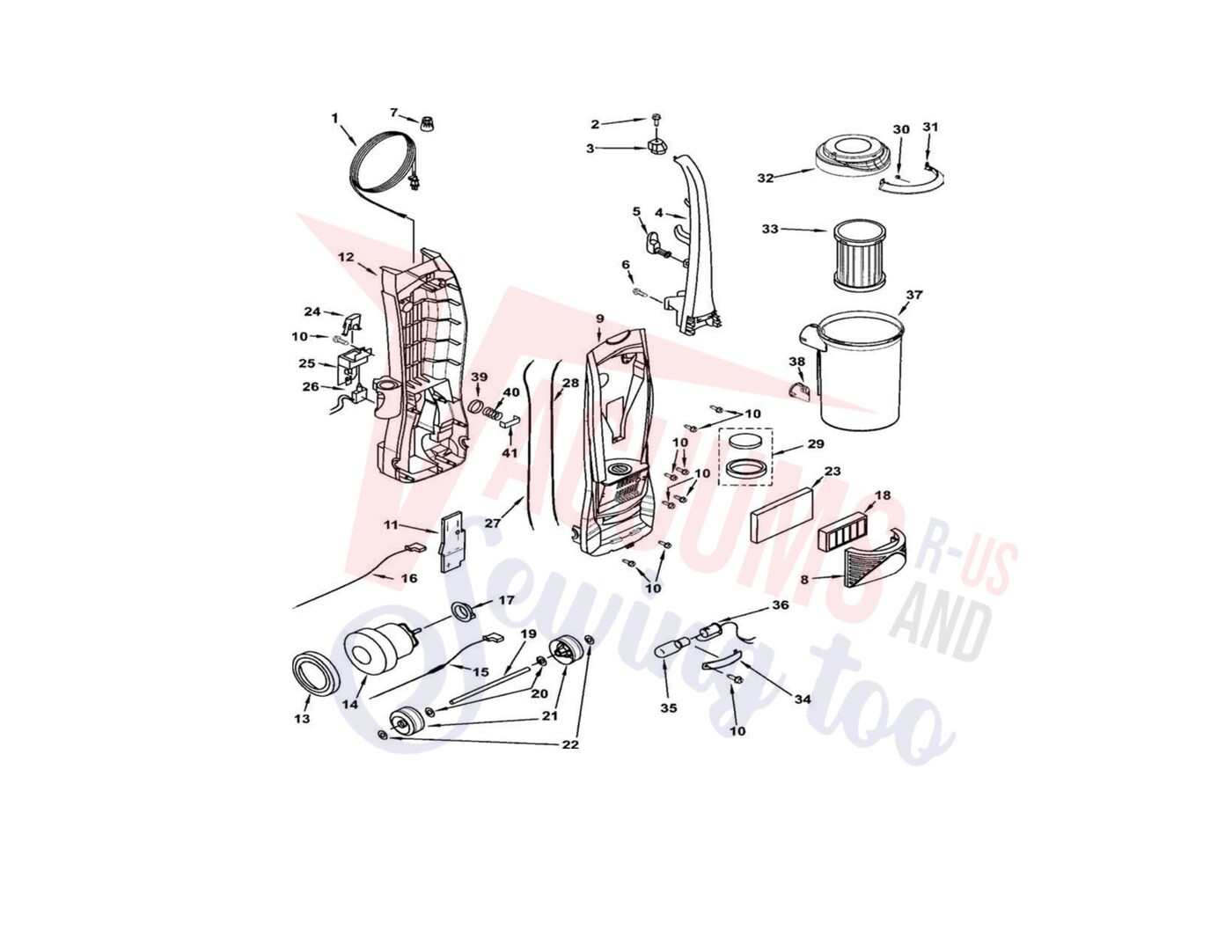

Schematic and parts book for Kenmore 116.34721401 Upright missing base. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cord power | 4370763 | Not Available |
| 2 | Not Available | Screw handle cap mounting | 4370790 | Not Available |
| 3 | Not Available | Cap handle | 4370799 | Not Available |
| 4 | Not Available | Handle | 4370798 | Not Available |
| 5 | Not Available | Hook upper cord storage | 4370785 | Not Available |
| 6 | Not Available | Screw mounting | 4370779 | Not Available |
| 7 | Not Available | Connector wire (2) | NLA | Not Available |
| 8 | No Image | COVER, FILTER 116. 34720400 Part Number: 8192407 for Kenmore | 8192407 | $51.74Read more |
| 9 | Not Available | Cover dust | KC60KCJUZR19 | Not Available |
| 10 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Packing rear cover | 8191890 | Not Available |
| 12 | Not Available | Compartment dust | KC88KCJUZV07 | Not Available |
| 13 | Not Available | Motor support (rubber) | KC02FCHPZ000 | Not Available |
| 14 | No Image | MOTOR, SUCTION 116.34721401 Part Number: 8192146 for Kenmore | 8192146 | $234.08Read more |
| 15 | Not Available | Lead wire assembly | 8191589 | Not Available |
| 16 | Not Available | Lead wire (motor ) | 8191904 | Not Available |
| 17 | Not Available | Motor support rear | KC03FCJUZ000 | Not Available |
| 18 | Not Available | Frame | 8192105 | Not Available |
| 19 | Not Available | Shaft rear wheel | 4369561 | Not Available |
| 20 | Not Available | Washer wheel | 4369562 | Not Available |
| 21 | Not Available | Wheel | 4369563 | Not Available |
| 22 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Filter sears no. 20-86889 | KER-1800 | Not Available |
| 24 | Not Available | Button on - off | 4370764 | Not Available |
| 25 | Not Available | Cover switch | 4370762 | Not Available |
| 26 |  | Switch, Blk Circular Step on 2-Leads 116.29219800 Part Number: 4370761 for Kenmore | 4370761 | $29.33Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Lead wire (white) | 8191893 | Not Available |
| 28 | Not Available | Lead wire (black) | 8191894 | Not Available |
| 29 | Not Available | Filter | 8191579 | Not Available |
| 30 | No Image | SPRING, 116.32729200 Part Number: 8191592 for Kenmore | 8191592 | $20.45Read more |
| 31 | Not Available | Handle | 8191557 | Not Available |
| 32 | Not Available | Handle lid | 8192107 | Not Available |
| 33 |  | Kenmore DCF-1 and DCF-2 HEPA Filter | WP10260 | $18.85Add to cart |
| 34 | Not Available | Window | 4370772 | Not Available |
| 35 |  | Bulb, Double Pole 505-1CR Part Number: 1650 S for Kirby | 1650S | $18.06Read more |
| 36 | Not Available | Bulb socket | KC93HCJUZ000 | Not Available |
| 37 | Not Available | Case filter assembly | KC42KCHFZBUU | Not Available |
| 38 | Not Available | Valve grommett | 8191569 | Not Available |
| 39 | Not Available | Latch dust cover | 4370429 | Not Available |
| 40 | Not Available | Spring protector | 4370808 | Not Available |
| 41 | Not Available | Cover protector | 4370408 | Not Available |
