Schematic and parts book for Kenmore 116.33913301 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

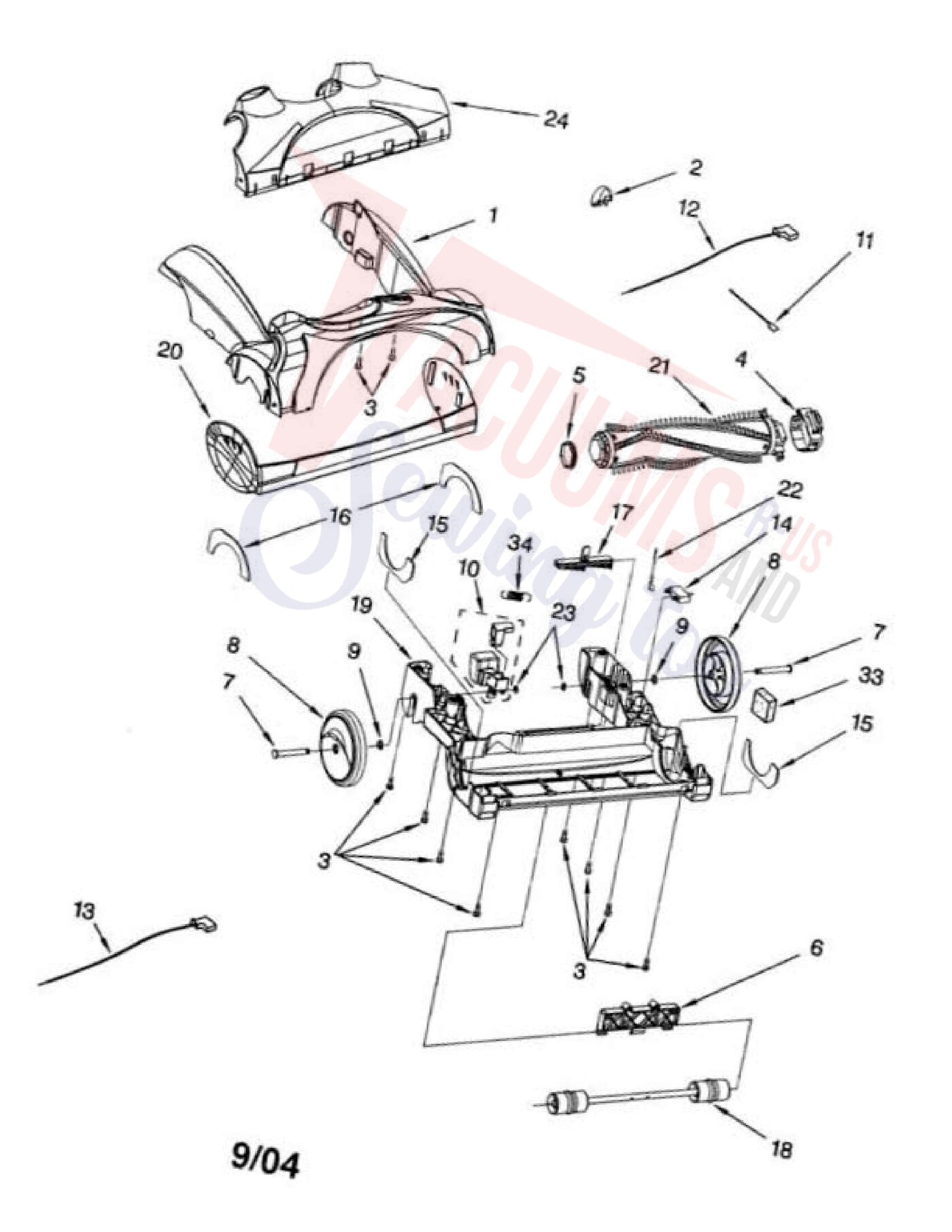

| 1 | Not Available | NOZZLE | 8192629 | Not Available |
| 2 | Not Available | LEVER HEIGHT ADJUST | 8192235 | Not Available |
| 3 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | SUPPORT RUBBER (RIGHT) | 8192221 | Not Available |
| 5 | Not Available | SUPPORT RUBBER (LEFT) | 8174908 | Not Available |
| 6 | Not Available | ACTUATOR HEIGHT ADJUSTMENT | 8192231 | Not Available |
| 7 | Not Available | SUPPORTER WHEEL | 8192224 | Not Available |
| 8 | Not Available | WHEEL | 8192225 | Not Available |
| 9 | Not Available | WASHER | 681384 | Not Available |
| 10 | Not Available | PEDAL KIT | 8192228 | Not Available |
| 11 | Not Available | PROTECTOR THERMAL | 8192229 | Not Available |
| 12 | Not Available | WIRE LEAD (BLUE) | 8192240 | Not Available |
| 13 | Not Available | WIRE LEAD (BROWN) | 8192239 | Not Available |
| 14 | Not Available | PROTECTOR OVERLOAD | 8192237 | Not Available |
| 15 | Not Available | FELT LOWER (2) | 8192232 | Not Available |
| 16 | Not Available | FELT UPPER (2) | 8192233 | Not Available |
| 17 | Not Available | KNOB HEIGHT ADJUSTMENT | 8192234 | Not Available |
| 18 | Not Available | NOZZLE ROLLER ASSEMBLY | 8192230 | Not Available |
| 19 | Not Available | LOWER PLATE | 8192223 | Not Available |
| 20 | Not Available | GUARD FURNITURE | 8192238 | Not Available |
| 21 | Not Available | AGITATOR ASSEMBLY | 8192219 | Not Available |
| 22 | Not Available | WIRE LEAD | 8174896 | Not Available |
| 23 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | UPPER BODY UNIT | 8192630 | Not Available |
| 33 | Not Available | FILTER | 8174912 | Not Available |
| 34 | Not Available | SPRING PEDAL | KC23DBKHZ000 | Not Available |
| # | Part image | Description | SKU | Price |

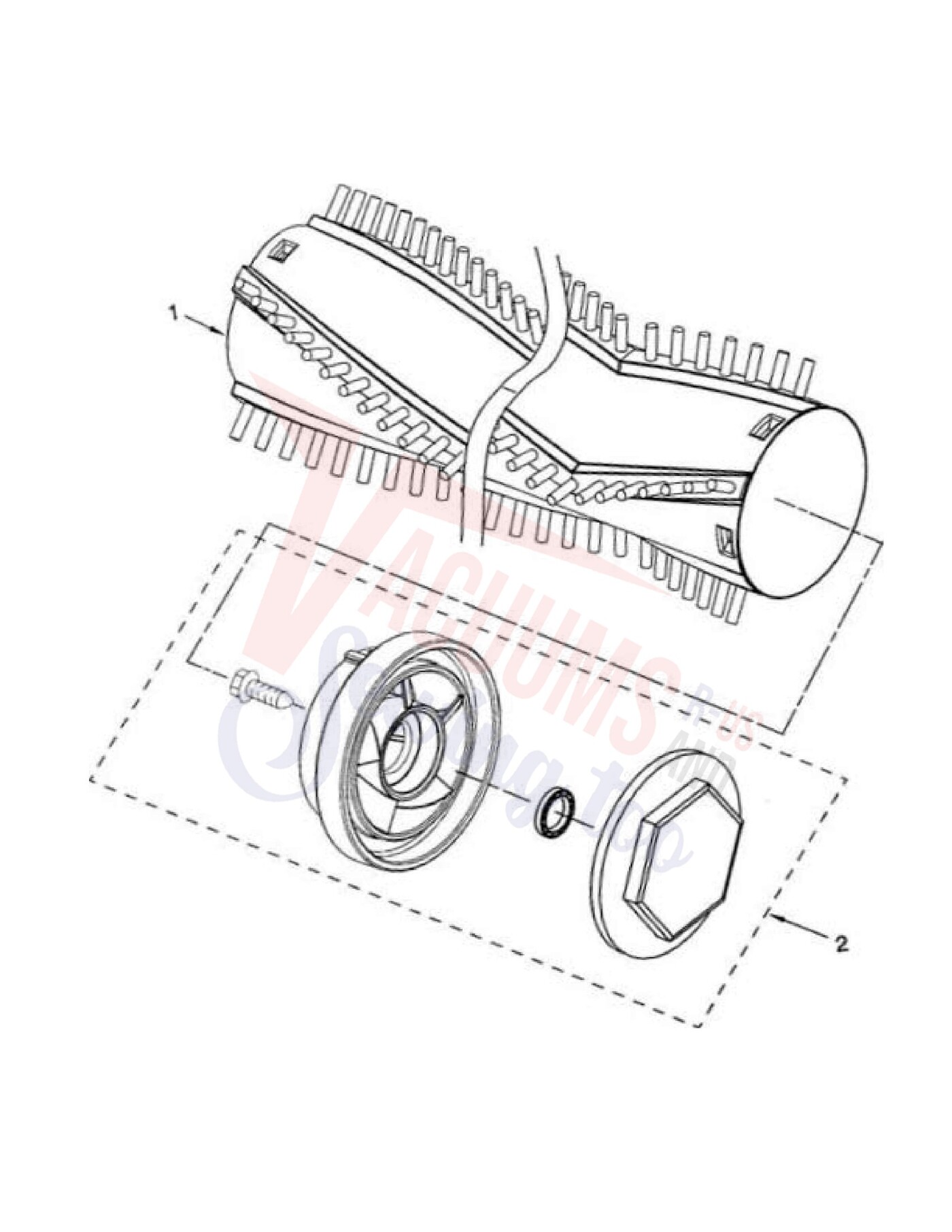

| 1 | Not Available | AGITATOR | 8192292 | Not Available |
| 2 | Not Available | END CAP UNIT | 8192279 | Not Available |
| # | Part image | Description | SKU | Price |

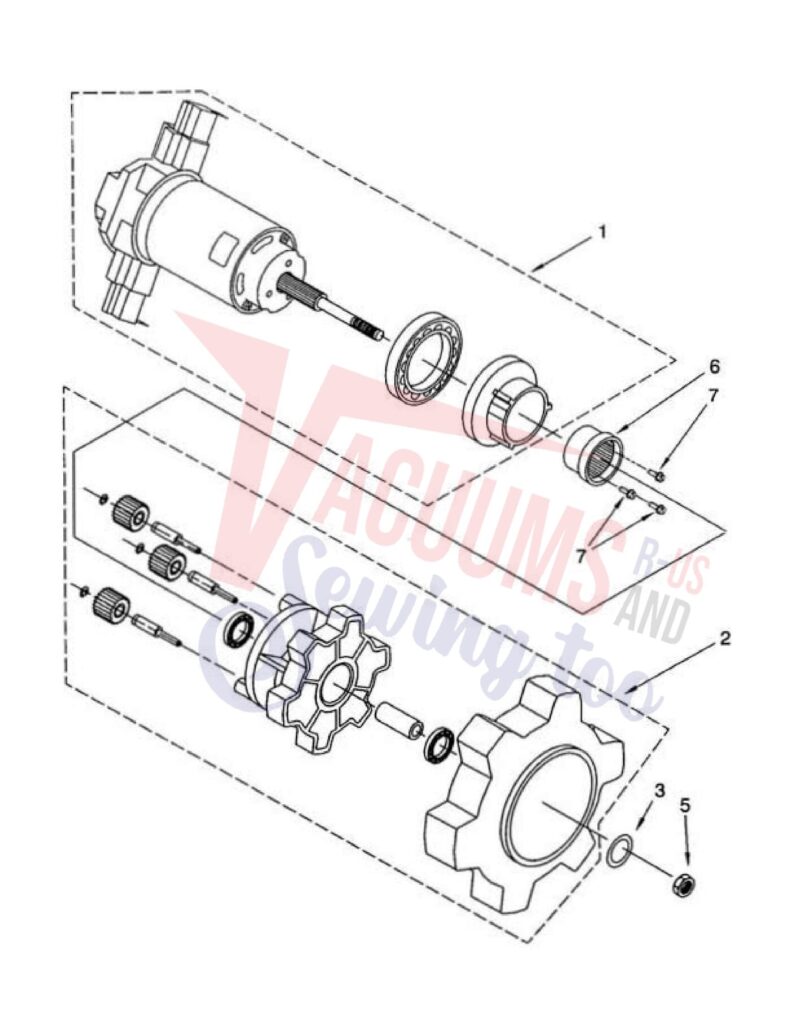

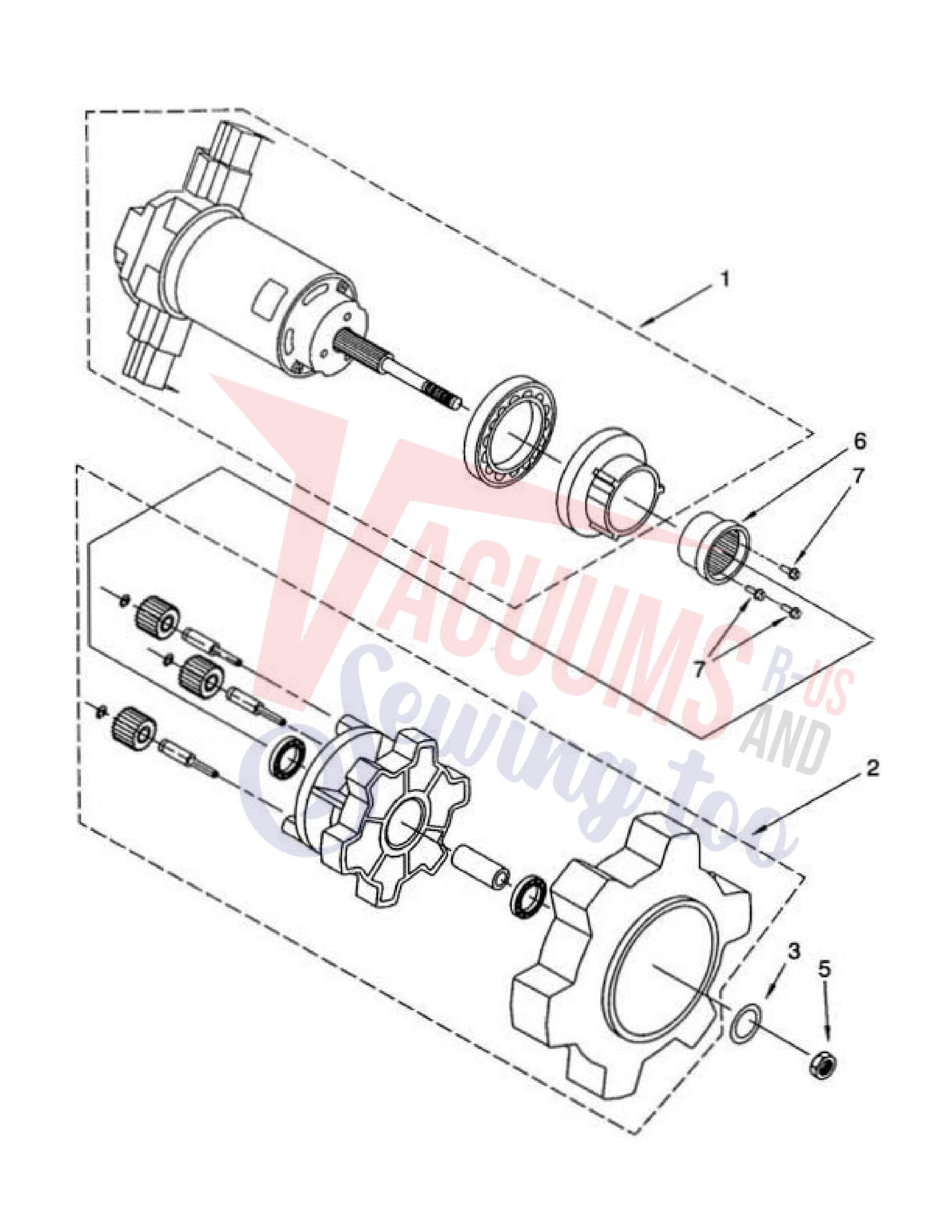

| 1 | No Image | MOTOR, BRUSHROLL 116. 36932503 Part Number: 8192267 for Kenmore | 8192267 | $364.50Read more |
| 2 | Not Available | GEAR UNIT | 8174927 | Not Available |
| 3 | Not Available | WASHER | 8174928 | Not Available |
| 5 | Not Available | NUT | 8192278 | Not Available |
| 6 | Not Available | INTERNAL GEAR | 8174945 | Not Available |
| 7 | Not Available | SCREW (3) | 8174944 | Not Available |
| # | Part image | Description | SKU | Price |

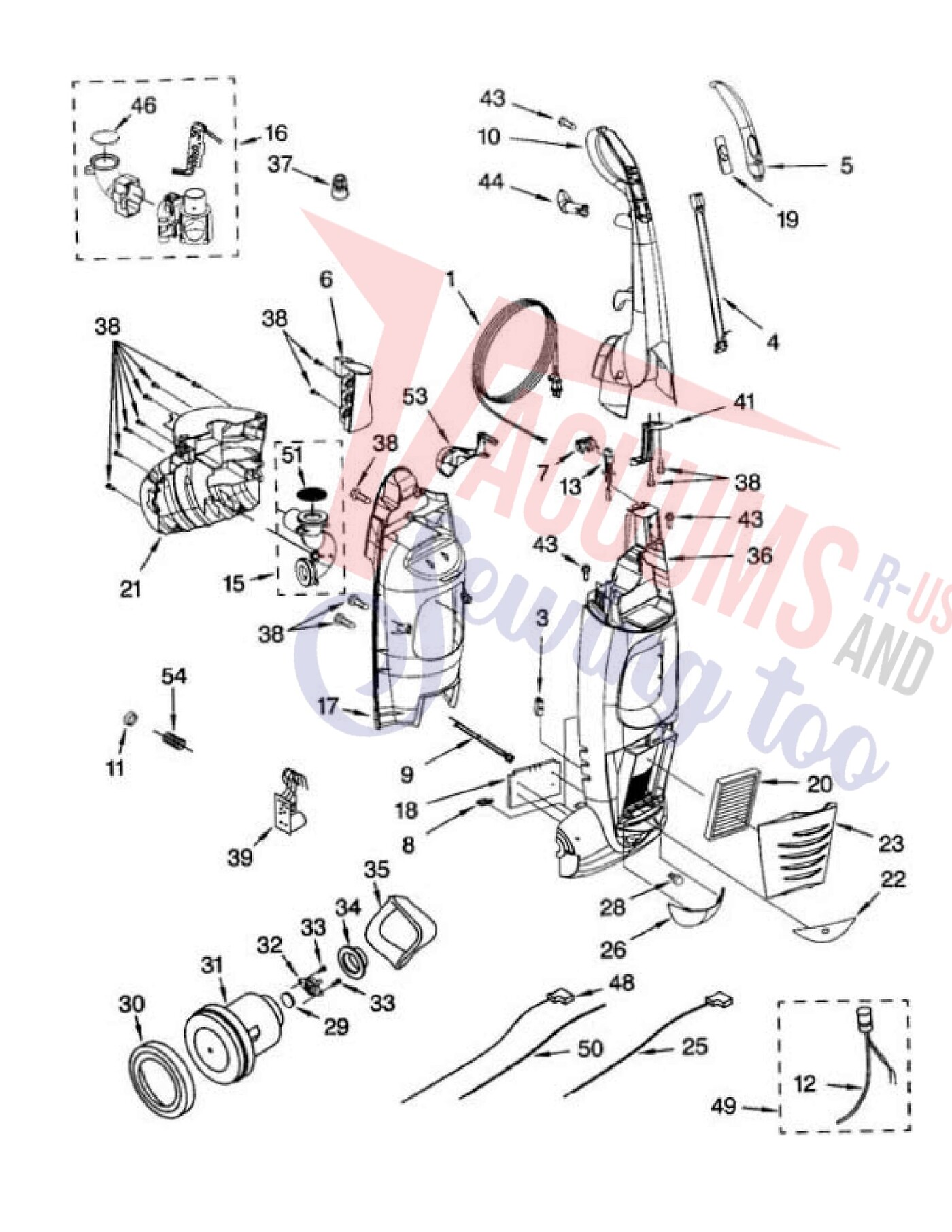

| 1 | Not Available | CORD POWER | 8192251 | Not Available |
| 3 |  | Switch, Push Button Handle Elite 11631150310 Part Number: 4368653 for Kenmore | 4368653 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | LEAD WIRE | 8192254 | Not Available |
| 5 | No Image | COVER, HANDLE 116. 32912200 Part Number: 8192256 for Kenmore | 8192256 | $33.85Read more |
| 6 | Not Available | HOLDER WAND | 8192214 | Not Available |
| 7 | Not Available | HOLDER | 8192209 | Not Available |
| 8 | Not Available | SLIDE SWITCH | 8192211 | Not Available |
| 9 | Not Available | SOCKET BULB | 8192217 | Not Available |
| 10 | Not Available | HANDLE | 8192631 | Not Available |
| 11 | Not Available | PROTECTOR | 4370806 | Not Available |
| 12 | Not Available | TUBE ADAPTER | 4370677 | Not Available |
| 13 | Not Available | WIRE LEAD BODY | 8192208 | Not Available |
| 15 | Not Available | COVER UNIT MOTOR | 8192655 | Not Available |
| 16 | Not Available | BODY UNIT FRONT | 8192656 | Not Available |
| 17 | Not Available | COVER DUST | 8192215 | Not Available |
| 18 | No Image | FILTER, MOTOR FOAM Part Number: 8192210 for Kenmore | 8192210 | $11.13Read more |
| 19 | Not Available | KNOB SWITCH | KC04EBKHZCU4 | Not Available |
| 20 | Not Available | FILTER EXHAUST SEARS NO.20-86889 | KER-1800 | Not Available |
| 21 | Not Available | CASE MOTOR | 8192657 | Not Available |
| 22 | Not Available | LABEL SENSOR | 8192258 | Not Available |
| 23 | Not Available | FILTER COVER | 8192445 | Not Available |
| 25 | Not Available | LEAD WIRE MOTOR | 8191904 | Not Available |
| 26 | Not Available | LENS LIGHT | 8192259 | Not Available |
| 28 | Not Available | BULB LIGHT SEARS NO.20-5248 | FA-3515 | Not Available |
| 29 | Not Available | SEAL MOTOR | KC53MAKEZ000 | Not Available |
| 30 | Not Available | SUPPORT RUBBER MOTOR (FRONT) | 4370248 | Not Available |
| 31 | Not Available | MOTOR FAN | KC92FBEM1000 | Not Available |
| 32 | Not Available | FLANGE MOTOR | KC25SCDBZ000 | Not Available |
| 33 | Not Available | SCREW FLANGE | KXTN4+16FFY | Not Available |
| 34 | Not Available | SUPPORT RUBBER MOTOR (REAR) | 4370265 | Not Available |
| 35 | Not Available | SUPPRESSOR NOISE | 8174919 | Not Available |
| 36 | Not Available | COMPARTMENT DUST | 8192632 | Not Available |
| 37 | Not Available | NUT WIRE (6) | SS-3270 | Not Available |
| 38 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | PCB ASSEMBLY | 8174935 | Not Available |
| 41 | Not Available | SUPPORTER HANDLE | 8192252 | Not Available |
| 43 | Not Available | SCREW HANDLE | 4370790 | Not Available |
| 44 | Not Available | HOOK CORD STORAGE | 8192658 | Not Available |
| 46 | Not Available | PACKING INLET GUIDE | 8192264 | Not Available |
| 48 | Not Available | LEAD WIRE ASSEMBLY | 8175040 | Not Available |
| 49 | Not Available | INDICATOR LIGHT ASSEMBLY | 4370741 | Not Available |
| 50 | Not Available | LEAD WIRE WHITE | 8192218 | Not Available |
| 51 | Not Available | SECONDARY FILTER | 8192504 | Not Available |
| 53 | Not Available | DUST BOX FASTENER | 8192220 | Not Available |
| 54 | Not Available | SPRING PROTECTOR | 8191800 | Not Available |
| # | Part image | Description | SKU | Price |

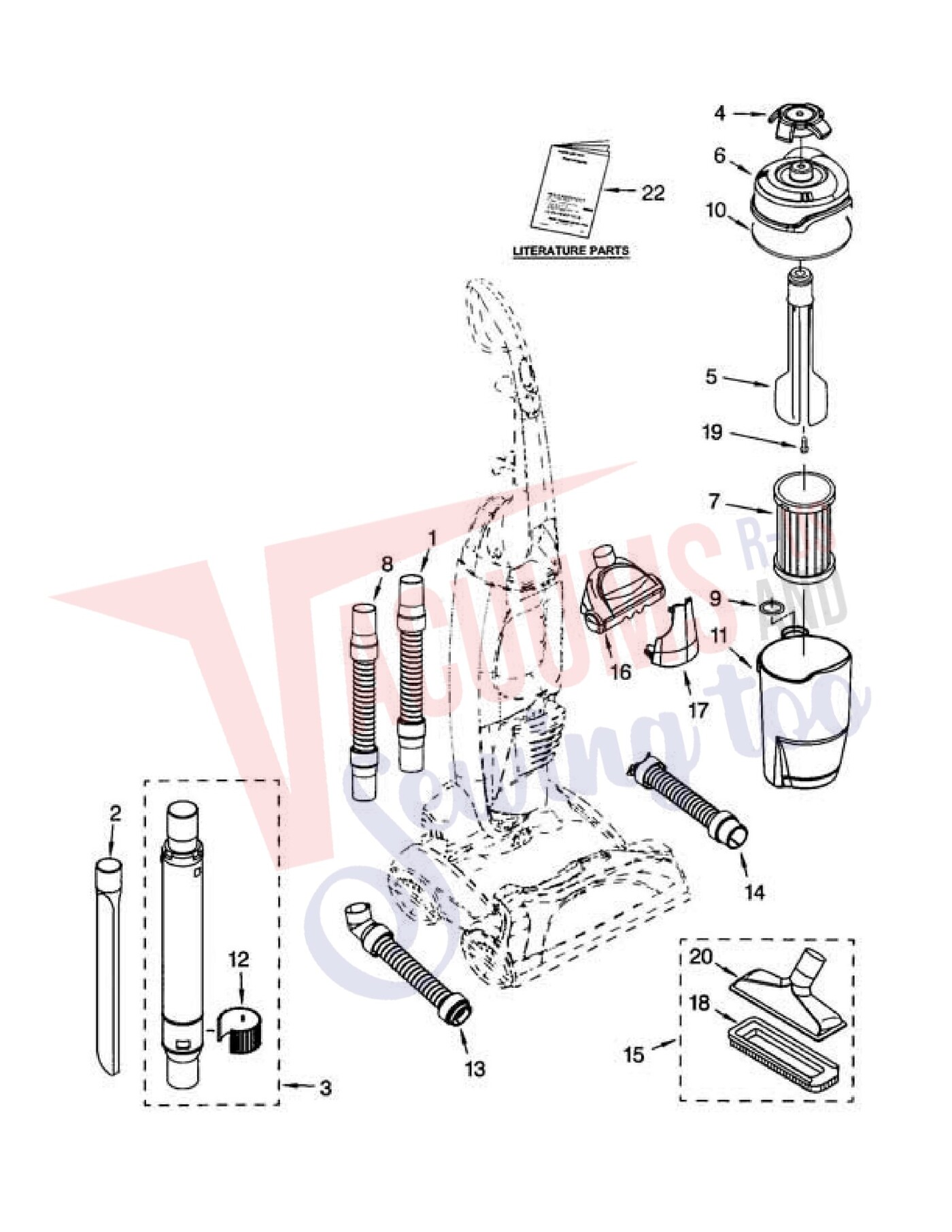

| 1 | Not Available | HOSE FLEXIBLE | 8192226 | Not Available |
| 2 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 3 | Not Available | WAND TELESCOPIC | 4370414 | Not Available |
| 4 | Not Available | KNOB | 8192241 | Not Available |
| 5 | Not Available | CAM KNOCKING | 8192242 | Not Available |
| 6 | Not Available | LID DUST BOX | 8192243 | Not Available |
| 7 |  | Kenmore DCF-1 and DCF-2 HEPA Filter | WP10260 | $18.85Add to cart |
| 8 | Not Available | HOSE SEARS NO. 20-52581 | 8191834 | Not Available |
| 9 | Not Available | PACKING HANDLE | 8192246 | Not Available |
| 10 | Not Available | SEAL | 8192245 | Not Available |
| 11 | Not Available | BOX DUST | 8192495 | Not Available |
| 12 | Not Available | REGULATOR SUCTION | 4368996 | Not Available |
| 13 | Not Available | HOSE ASSEMBLY NOZZLE | 8192248 | Not Available |
| 14 | No Image | HOSE, LOWER 116.32734201 Part Number: 8192249 for Kenmore | 8192249 | $54.48Read more |
| 15 | Not Available | BRUSH COMBO | 8192260 | Not Available |
| 16 | Not Available | HANDI - MATE JR | 8192024 | Not Available |
| 17 | Not Available | COVER TOOL STORAGE | 8192575 | Not Available |
| 18 | Not Available | BRUSH HOLDER TUFTED | 8192261 | Not Available |
| 19 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | BRUSHFABRIC | 8192294 | Not Available |
| 22 | Not Available | MANUAL OWNERS | KC01ZBZUZ0U0 | Not Available |
| 22A | Not Available | LIST SERVICE PARTS | KC40ZCGR10U0 | Not Available |
