Schematic and parts book for Kenmore 116.33612300 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

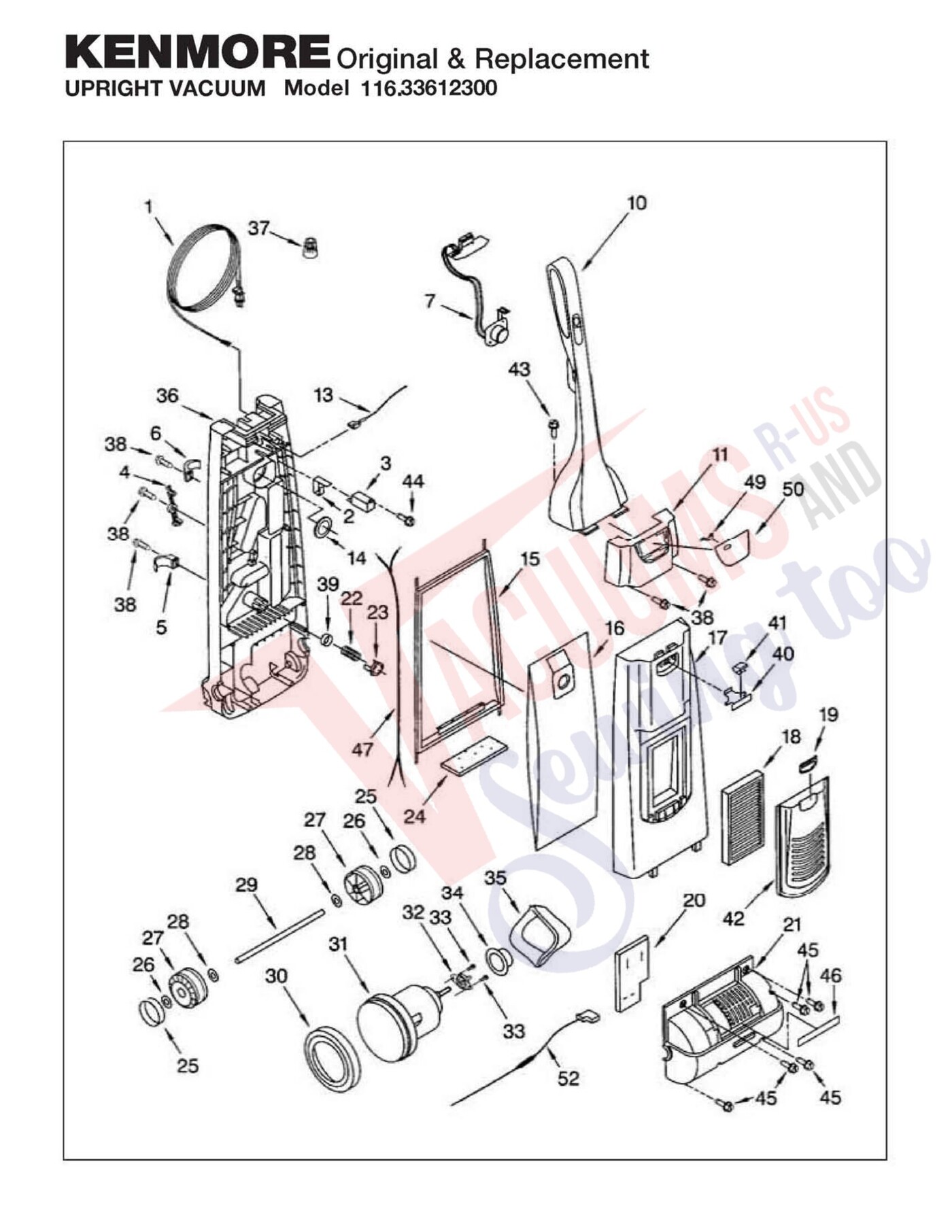

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cord power | 8192561 | Not Available |
| 2 | Not Available | Lever on-off switch | 4370396 | Not Available |
| 3 |  | Switch, Push Button Handle Elite 11631150310 Part Number: 4368653 for Kenmore | 4368653 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Holder | 4370400 | Not Available |
| 5 | Not Available | Holder hose | 4370399 | Not Available |
| 6 | Not Available | Holder wand | 4370392 | Not Available |
| 7 | Not Available | Pcb assembly | 8191534 | Not Available |
| 10 | Not Available | Handle assembly (complete) | 8192562 | Not Available |
| 11 | Not Available | Cover switch | 8192563 | Not Available |
| 13 | Not Available | Wire black lead | 4370427 | Not Available |
| 14 | Not Available | Suction inlet packing | 4370575 | Not Available |
| 15 | Not Available | Packaging dust container | 4370428 | Not Available |
| 16 | Not Available | Dust bag sears no. 20-50690 | KER-1468A | Not Available |
| 17 | Not Available | Cover dust | 8192564 | Not Available |
| 18 | Not Available | Filter sears no. 20-86889 | KER-1800 | Not Available |
| 19 | Not Available | Latch filter cover | 4370416 | Not Available |
| 20 | Not Available | Filter exhaust | 8191637 | Not Available |
| 21 | Not Available | Case motor | 8192565 | Not Available |
| 22 | Not Available | Spring protector | 4370407 | Not Available |
| 23 | Not Available | Cover protector | 4370408 | Not Available |
| 24 |  | Secondary Filter
86884 For: kenmore | 4370432 | $16.01Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Cushion rubber | 4370240 | Not Available |
| 26 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | WHEEL, REAR 116.35622401 Part Number: 4370177 for Kenmore | 4370177 | $35.84Read more |
| 28 | Not Available | Washer wheel | 4369562 | Not Available |
| 29 | Not Available | Shaft rear wheel | 4369561 | Not Available |
| 30 | Not Available | Support rubber mount (front) | 4370404 | Not Available |
| 31 | No Image | MOTOR, MAIN SUCTION 116.33612300 Part Number: 8191638 for Kenmore | 8191638 | $143.04Read more |
| 32 | No Image | MOTOR, FLANGE 116. 34612300 Part Number: 4370266 for Kenmore | 4370266 | $74.10Read more |
| 33 | Not Available | Screw belt guard | 8191785 | Not Available |
| 34 | Not Available | Support rubber motor (front) | 4370265 | Not Available |
| 35 | Not Available | Supporessor noise | 4369569 | Not Available |
| 36 | Not Available | Compartment dust | 8191914 | Not Available |
| 37 | Not Available | Wire Nut | SS-3270 | Not Available |
| 38 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Latch dust cover | 4370429 | Not Available |
| 40 | Not Available | Latch dust cover | NLA | Not Available |
| 41 | Not Available | Spring latch | 4369097 | Not Available |
| 42 | Not Available | Cover filter | 8192566 | Not Available |
| 43 | Not Available | Screw handle | 4370420 | Not Available |
| 44 | Not Available | Screw motor case mounting | 4370280 | Not Available |
| 45 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Packing motor case (adhesive back) | NLA | Not Available |
| 47 | Not Available | Wire cord | 4370465 | Not Available |
| 49 | Not Available | Indicator lens | 4370570 | Not Available |
| 50 | Not Available | Plate ornamental | 8192567 | Not Available |
| 52 | Not Available | Lead wire assembly | 8191589 | Not Available |

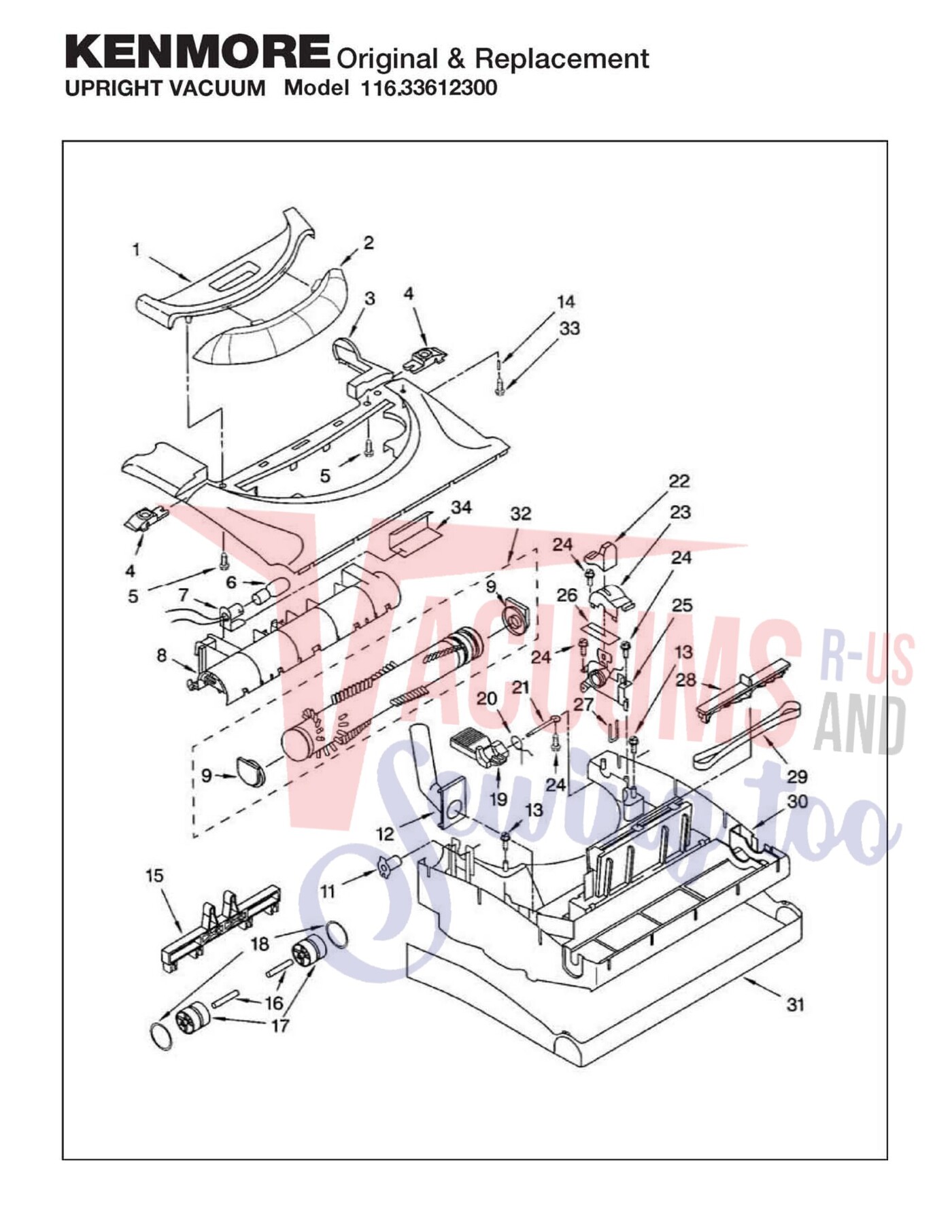

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cover light | 8191879 | Not Available |
| 2 | Not Available | Window | 4370410 | Not Available |
| 3 | Not Available | Housing nozzle | 8192557 | Not Available |
| 4A | Not Available | Latch nozzle right side | NLA | Not Available |
| 4 | Not Available | Latch nozzle left side | NLA | Not Available |
| 5 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Bulb light sears no. 20-5240 | FA-3515 | Not Available |
| 7 | Not Available | Socket bult | 4369526 | Not Available |
| 8 | No Image | COVER, 116.39512991 Part Number: 8174976 for Kenmore | 8174976 | $57.18Read more |
| 9 | Not Available | Bearing holder | 8192018 | Not Available |
| 11 | Not Available | Shaft wheel | 4369527 | Not Available |
| 12 | Not Available | Bearing nozzle | 4370263 | Not Available |
| 13 | Not Available | Screw retaining | 4369606 | Not Available |
| 14 | Not Available | Wheel | 4370425 | Not Available |
| 15 | Not Available | Cam height adjustment | 4369543 | Not Available |
| 16 | Not Available | Shaft roller (2) | 4369499 | Not Available |
| 17 | No Image | WHEEL, CAM 116.31189100 Part Number: 4370182 for Kenmore | 4370182 | $44.18Read more |
| 18 | No Image | WHEEL, CAM Part Number: 4370183 for Kenmore | 4370183 | $26.89Read more |
| 19 | Not Available | Pedal | 4370394 | Not Available |
| 20 | No Image | SPRING, HANDLE RELEASE 116.33613300 Part Number: 4370258 for Kenmore | 4370258 | $18.42Read more |
| 21 | Not Available | Shaft pedal | 4370259 | Not Available |
| 22 | Not Available | Cover foot pedal | 4370260 | Not Available |
| 23 | Not Available | Cover belt | NLA | Not Available |
| 24 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | Shifter belt | 8195180 | Not Available |
| 26 | Not Available | Nozzle packing | 4370544 | Not Available |
| 27 | Not Available | Guard belt | 4369535 | Not Available |
| 28 | Not Available | Sliding knob height adjustment | 4369542 | Not Available |
| 29 | Not Available | Belt sears no. 20-5275 | PR-1015 | Not Available |
| 30 | Not Available | Lower plate assembly | 8174966 | Not Available |
| 31 | Not Available | Guard furniture | 8174967 | Not Available |
| 32 |  | Brushroll, 116.35725400 U-Shape End Caps Part Number: 8192015 for Kenmore | 8192015 | $126.02Read more |
| 33 | Not Available | Screw 8-24 x 1 (2) | 8191810 | Not Available |
| 34 | Not Available | Reflector nozzle | 4370433 | Not Available |

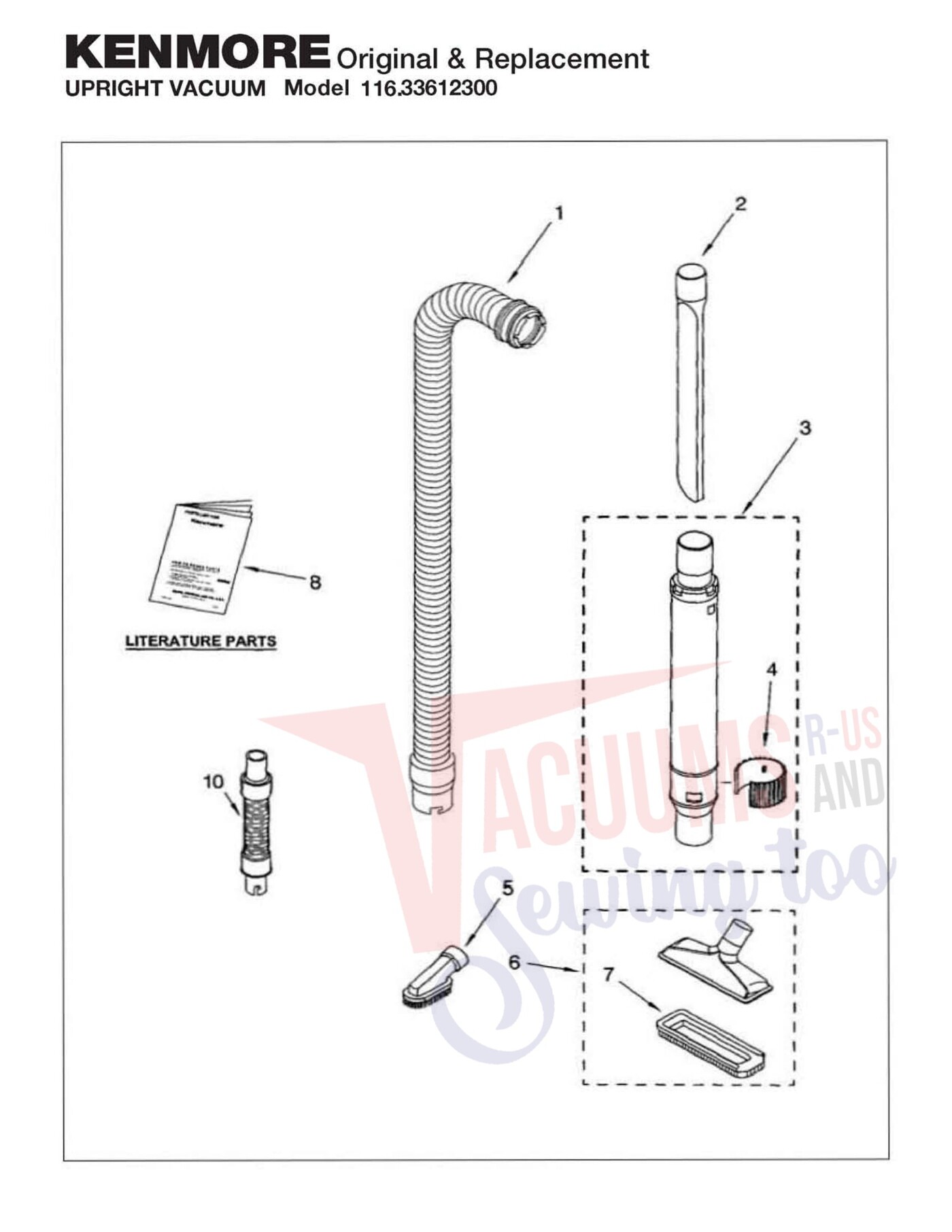

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOSE, UPRIGHT TOOL ON BOARD UPRIGHT GRAY Part Number: 4370401 for Kenmore | 4370401 | $152.88Read more |
| 2 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 3 | No Image | WAND, TELESCOPIC 116. 35923500 Part Number: 4369868 for Kenmore | 4369868 | $75.42Read more |
| 4 | Not Available | Regulatory suction | 4368996 | Not Available |
| 5 | Not Available | Brush combination | 4368681 | Not Available |
| 6 | No Image | BRUSH, FLOOR 116.31913101 Part Number: 4368609 for Kenmore | 4368609 | $37.10Read more |
| 7 | Not Available | Holder brush | 4368610 | Not Available |
| 10 | Not Available | Hose unit | 8191834 | Not Available |
