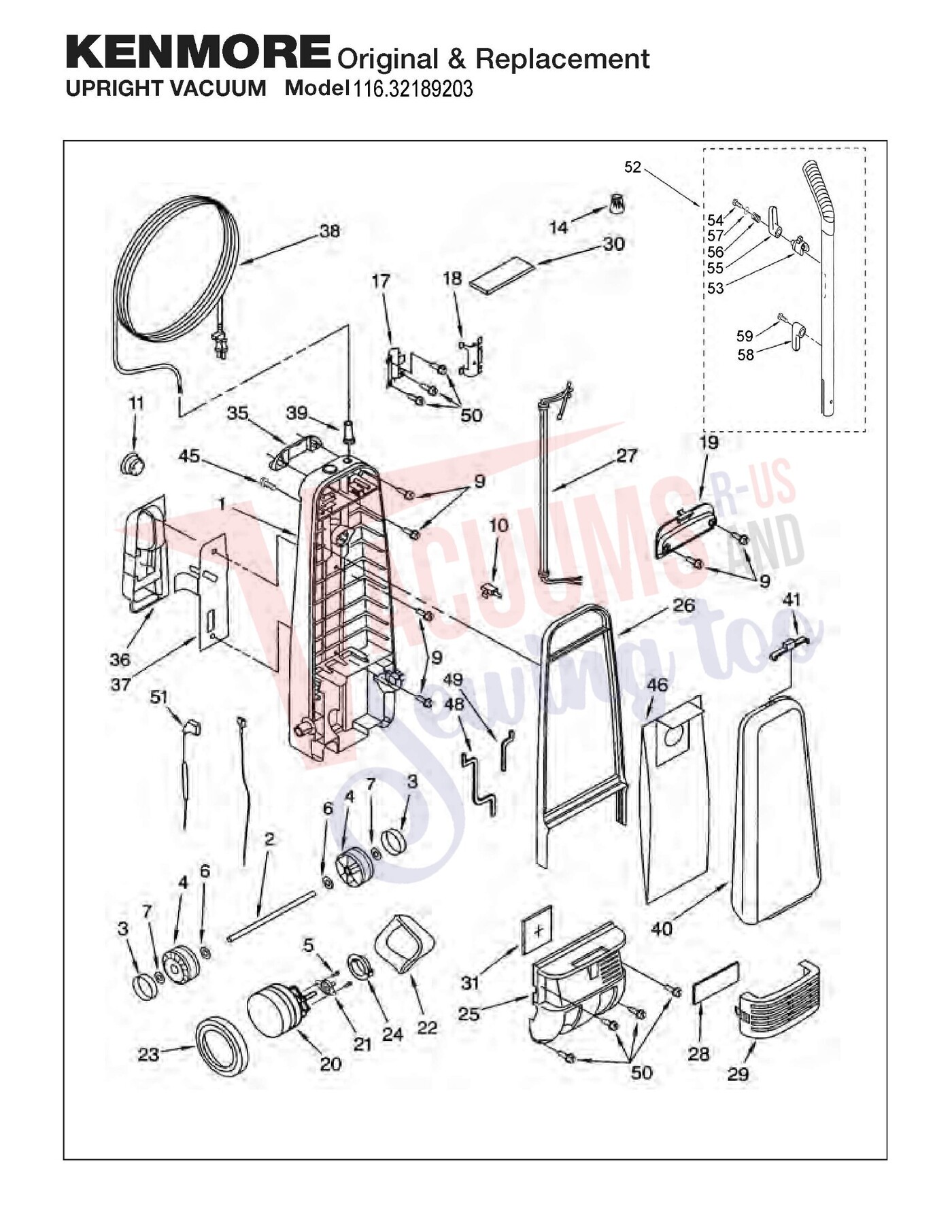

Schematic and parts book for Kenmore 116.32189203 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Compartment dust | 8192068 | Not Available |
| 2 | Not Available | Shaft rear wheel | 4369561 | Not Available |
| 3 | Not Available | Cushion rubber | 4370240 | Not Available |
| 4 | No Image | WHEEL, REAR 116.35622401 Part Number: 4370177 for Kenmore | 4370177 | $35.84Read more |
| 5 | Not Available | Screw-taptite | 4370264 | Not Available |
| 6 | Not Available | Washer wheel | 4369562 | Not Available |
| 7 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | On-off switch | 4369051 | Not Available |
| 11 | Not Available | Protector assembly | 4370085 | Not Available |
| 13 | Not Available | Wire lead black | NLA | Not Available |
| 14 | Not Available | Connector wire | SS-3270 | Not Available |
| 17 | Not Available | Fitting handle | NLA | Not Available |
| 18 | Not Available | Supporter handle | 4368661 | Not Available |
| 19 | Not Available | Cover switch | 4369923 | Not Available |
| 20 | No Image | MOTOR, MAIN SUCTION 116. 32189203 Part Number: 4370270 for Kenmore | 4370270 | $130.02Read more |
| 21 | No Image | MOTOR, FLANGE 116. 34612300 Part Number: 4370266 for Kenmore | 4370266 | $74.10Read more |
| 22 | Not Available | Supporessor noise | 4369569 | Not Available |
| 23 | Not Available | Support rubber motor | 4370248 | Not Available |
| 24 | Not Available | Support rubber motor | 4370265 | Not Available |
| 25 | Not Available | Housing motor | 4370241 | Not Available |
| 26 | Not Available | Bumper | NLA | Not Available |
| 27 | Not Available | Cord connection | 4368748 | Not Available |
| 28 | Not Available | Filter electrostatic | 8192069 | Not Available |
| 29 | Not Available | Cover front filter | 4369056 | Not Available |
| 30 | Not Available | Filter secondary | 4368671 | Not Available |
| 31 | Not Available | Filter exhaust | 4368672 | Not Available |
| 35 | Not Available | Handle carrying | 4370510 | Not Available |
| 36 | Not Available | Tray attachment | 4370511 | Not Available |
| 37 | Not Available | Plate support | 4370173 | Not Available |
| 38 | No Image | CORD, MAIN POWER 116. 32189203 Part Number: 4369726 for Kenmore | 4369726 | $84.11Read more |
| 39 | Not Available | Protector rubber | 4369058 | Not Available |
| 40 | Not Available | Cover dust | NLA | Not Available |
| 41 | Not Available | Cover button | 4369064 | Not Available |
| 45 | Not Available | Screw handle | 4368718 | Not Available |
| 46 |  | kenmore type U 3 PackDVC bags | KER1468 | $7.65Read more |
| 48 | Not Available | Packing motor case | 4368606 | Not Available |
| 49 | Not Available | Packing right | 4368607 | Not Available |
| 50 | Not Available | Screw | 4148999 | Not Available |
| 51 | Not Available | Lead Wire Ass'y | 4370978 | Not Available |
| 52 | Not Available | Handle Ass'y | 4369065 | Not Available |
| 53 | Not Available | Cord Hook Base | 4369068 | Not Available |
| 54 | Not Available | Screw | 4368938 | Not Available |
| 55 | Not Available | upper Cord Hook | 4369068 | Not Available |
| 56 | Not Available | Cord Hook Spring | 4368713 | Not Available |
| 57 | Not Available | Waher | 4368714 | Not Available |
| 58 | Not Available | :Lower Cord Hook | 4369068 | Not Available |
| 59 | Not Available | Screw | 4370188 | Not Available |

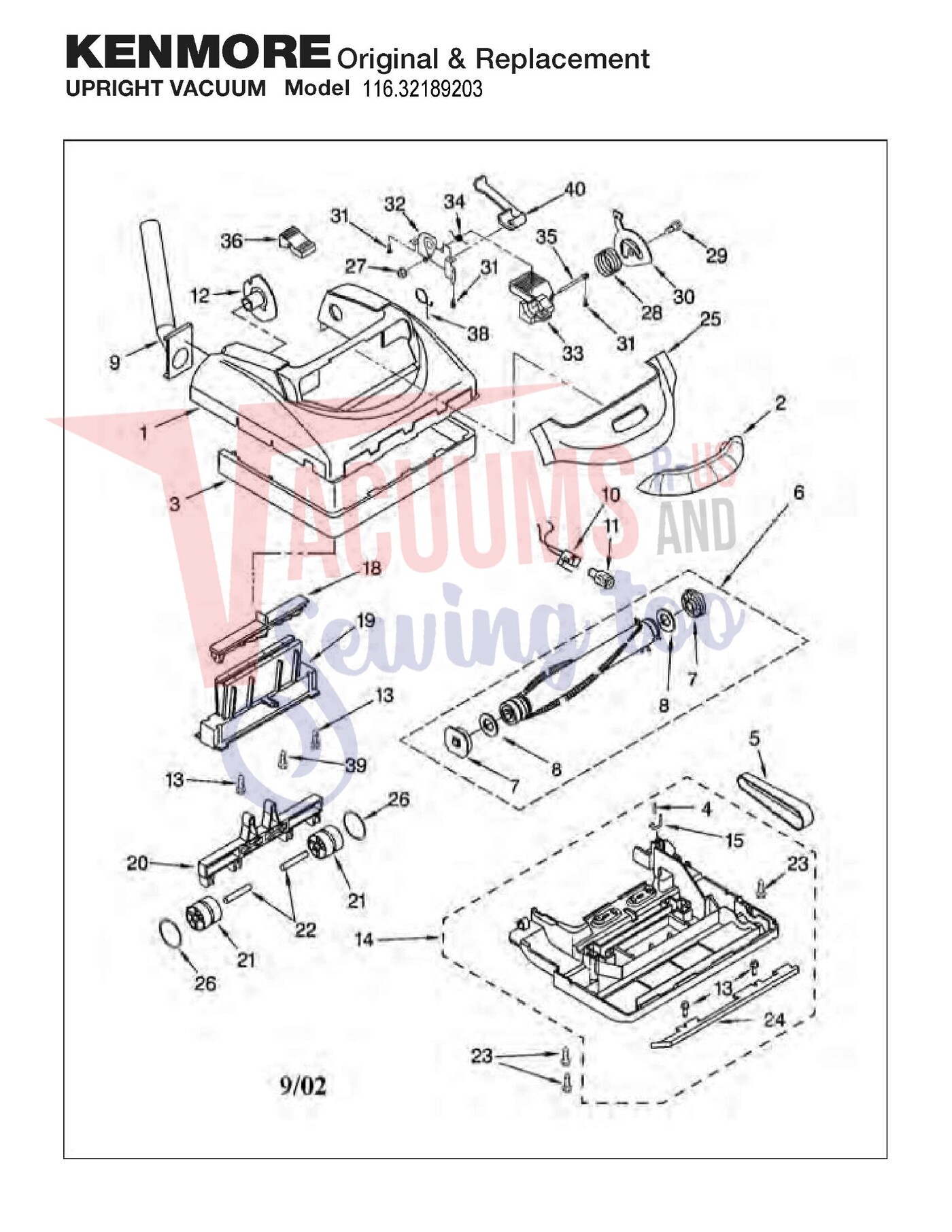

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle housing | 8192066 | Not Available |
| 2 | Not Available | Window | 4370410 | Not Available |
| 3 | No Image | BUMPER, UPRIGHT 116. 39189990 Part Number: 4370382 for Kenmore | 4370382 | $27.37Read more |
| 4 | Not Available | Spring pedal | 4370274 | Not Available |
| 5 | Not Available | Belt sears no. 20-5275 | PR-1015 | Not Available |
| 6 |  | BRUSHROLL, 116.31189100 Part Number: 8192391 for Kenmore | 8192391 | $151.69Read more |
| 7 | Not Available | Bearing holder | 8192392 | Not Available |
| 8 | Not Available | Spacer (felt washer) | 8192393 | Not Available |
| 9 | Not Available | Bearing nozzle | 4370263 | Not Available |
| 10 | Not Available | Socket bult | 4369526 | Not Available |
| 11 | Not Available | Bulb light sears no. 20-5240 | FA-3515 | Not Available |
| 12 | Not Available | Shaft wheel (as of 5/16/08) | 4369527 | Not Available |
| 13 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Lower plate | 8192067 | Not Available |
| 15 | Not Available | Cover belt | 4370273 | Not Available |
| 18 | Not Available | Sliding knob height adjustment | 4369542 | Not Available |
| 19 | Not Available | Support slider | 4370073 | Not Available |
| 20 | Not Available | Cam height adjustment | 4369543 | Not Available |
| 21 | No Image | WHEEL, CAM 116.31189100 Part Number: 4370182 for Kenmore | 4370182 | $44.18Read more |
| 22 | Not Available | Shaft roller (2) | 4369499 | Not Available |
| 23 | Not Available | Screw motor case mounting | 4370280 | Not Available |
| 24 | Not Available | Body lower plate | 4370835 | Not Available |
| 25 | Not Available | Cover light | 8191879 | Not Available |
| 26 | No Image | WHEEL, CAM Part Number: 4370183 for Kenmore | 4370183 | $26.89Read more |
| 27 | Not Available | Nut/lock washer | NLA | Not Available |
| 28 | Not Available | Spring | 4370253 | Not Available |
| 29 | Not Available | Screw shoulder | NLA | Not Available |
| 30 | Not Available | Pedal assembly | 8195180 | Not Available |
| 31 | Not Available | Screw relay | NLA | Not Available |
| 32 | Not Available | Frame | 4370256 | Not Available |
| 33 | Not Available | Pedal | 4370394 | Not Available |
| 34 | No Image | SPRING, HANDLE RELEASE 116.33613300 Part Number: 4370258 for Kenmore | 4370258 | $18.42Read more |
| 35 | Not Available | Shaft pedal | 4370259 | Not Available |
| 36 | Not Available | Cover foot pedal | 4370260 | Not Available |
| 38 | Not Available | Spring shifter | NLA | Not Available |
| 39 | Not Available | Screw motor case mounting | 4370280 | Not Available |
| 40 | Not Available | Spring | 4370285 | Not Available |

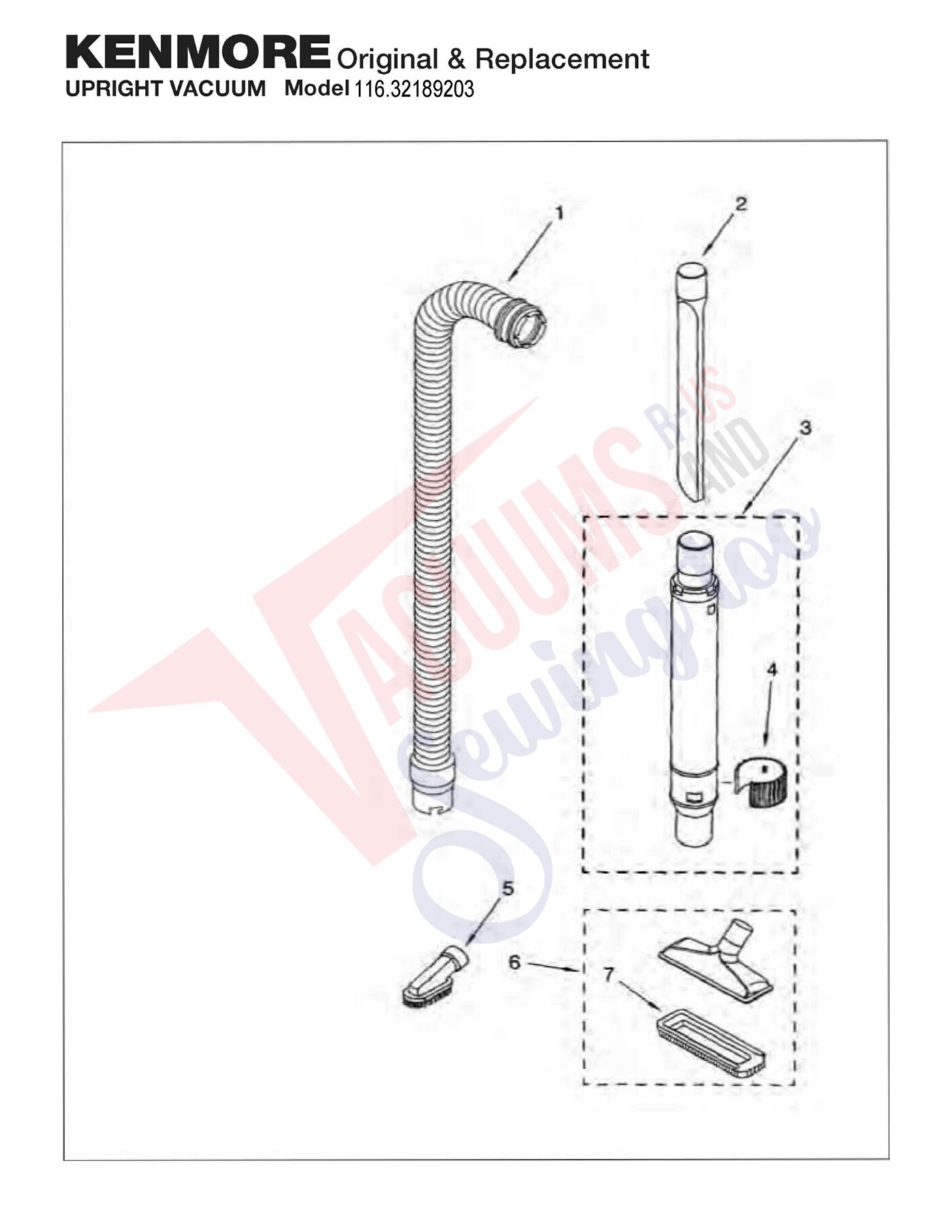

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hose flexible | 8191584 | Not Available |
| 2 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 3 | No Image | WAND, TELESCOPIC 116. 35923500 Part Number: 4369868 for Kenmore | 4369868 | $75.42Read more |
| 4 | Not Available | Regulatory suction | 4368996 | Not Available |
| 5 | Not Available | Brush combination | 4368681 | Not Available |
| 6 | No Image | BRUSH, FLOOR 116.31913101 Part Number: 4368609 for Kenmore | 4368609 | $37.10Read more |
| 7 | Not Available | Holder brush | 4368610 | Not Available |
