Schematic and parts book for Kenmore 116.31912103 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

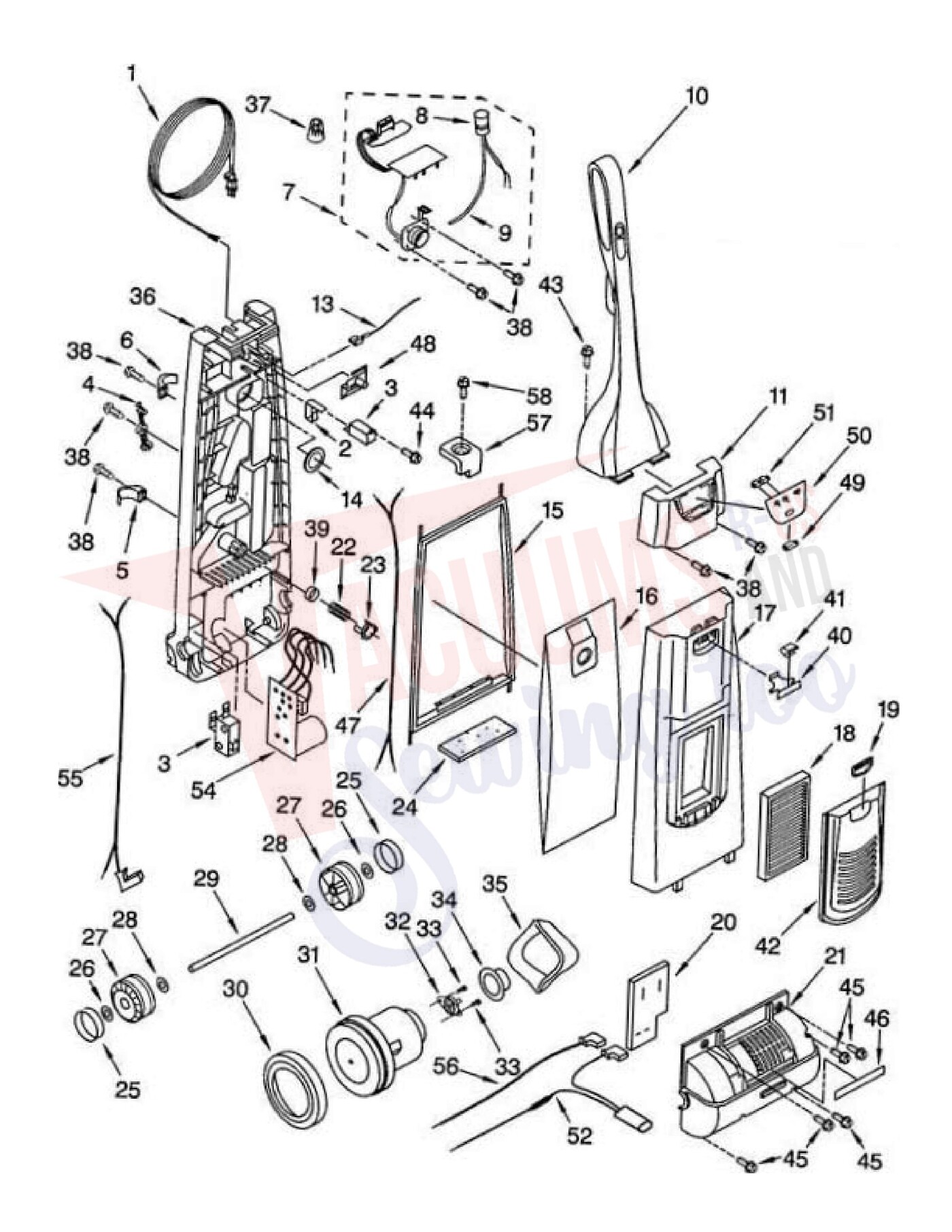

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CORD POWER | 4370467 | Not Available |
| 2 | Not Available | LEVER ON-OFF SWITCH | 4370396 | Not Available |
| 3 |  | Switch, Push Button Handle Elite 11631150310 Part Number: 4368653 for Kenmore | 4368653 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | HOLDER | 4370400 | Not Available |
| 5 | Not Available | HOLDER HOSE | 4370399 | Not Available |
| 6 | Not Available | HOLDER WAND | 4370392 | Not Available |
| 7 | Not Available | PCB ASSEMBLY | 4370573 | Not Available |
| 8 | No Image | SWITCH, HANDLE 116. 38912891 Part Number: 4370574 for Kenmore | 4370574 | $39.18Read more |
| 9 | Not Available | TUBE VAC SWITCH | 4151985 | Not Available |
| 10 | Not Available | HANDLE ASSEMBLY (COMPLETE) | 8174923 | Not Available |
| 11 | Not Available | COVER SWITCH | 8174925 | Not Available |
| 13 | Not Available | WIRE BLACK LEAD | 4370427 | Not Available |
| 14 | Not Available | SUCTION INLET PACKING | 4370575 | Not Available |
| 15 | Not Available | PACKING DUST CONTAINER | 4370428 | Not Available |
| 16 | Not Available | DUST BAG (SEARS NO. 20-50690) | KER-1468A | Not Available |
| 17 | Not Available | COVER DUST | 8174921 | Not Available |
| 18 | Not Available | FILTER (SEARS NO. 20-86889) | KER-1800 | Not Available |
| 19 | Not Available | LATCH FILTER COVER | 4370416 | Not Available |
| 20 | Not Available | FILTER EXHAUST | 4370405 | Not Available |
| 21 | Not Available | CASE MOTOR | 8174920 | Not Available |
| 22 | Not Available | SPRING PROTECTOR | 8191765 | Not Available |
| 23 | Not Available | COVER PROTECTOR | 4370408 | Not Available |

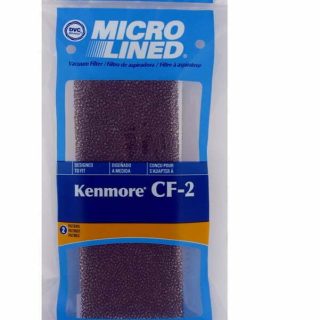

| 24 |  | Replacement Vacuum Filters for Kenmore CF2 Progressive Upright Vacuum Cleaners 2 pack | KER1820 | $6.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Compatible alternateFilter - Foam - Kenmore Cf-2 - 2Pk
Fits In The Door - Upright Filter For: kenmore More Product Details | 910 | $6.08Add to cart Special order — allow 2-4 weeks. |
| 25 | Not Available | CUSHION RUBBER | 4370240 | Not Available |
| 26 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | WHEEL, REAR 116.35622401 Part Number: 4370177 for Kenmore | 4370177 | $35.84Read more |
| 28 | Not Available | WASHER | 4369562 | Not Available |
| 29 | Not Available | SHAFT WHEEL | 4369561 | Not Available |
| 30 | Not Available | SUPPORT RUBBER MOTOR (FRONT) | 4370265 | Not Available |
| 31 | No Image | MOTOR, 116.30912000 Part Number: 8174917 for Kenmore | 8174917 | $187.52Read more |
| 32 | Not Available | FLANGE MOTOR | 8174918 | Not Available |
| 33 | Not Available | SCREW FLANGE | 4370284 | Not Available |
| 34 | Not Available | SUPPORT RUBBER MOTOR (REAR) | 4370404 | Not Available |
| 35 | Not Available | SUPPRESSOR NOISE | 8174919 | Not Available |
| 36 | Not Available | COMPARTMENT DUST | 8174915 | Not Available |
| 37 | Not Available | NUT WIRE (4) | 4368522 | Not Available |
| 38 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | PROTECTOR | 4370429 | Not Available |
| 40 | Not Available | LATCH DUST COVER | 4370403 | Not Available |
| 41 | Not Available | SPRING LATCH | 4369097 | Not Available |
| 42 | Not Available | COVER FILTER | 8175063 | Not Available |
| 43 | Not Available | SCREW HANDLE | 4370420 | Not Available |
| 44 | Not Available | SCREW SWITCH MOUNTING | 4370280 | Not Available |
| 45 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | PACKING MOTOR CASE (ADHESIVE BACK) | 4370430 | Not Available |
| 47 | Not Available | WIRE CORD | 4370465 | Not Available |
| 48 | Not Available | KNOB SENSOR | 4370569 | Not Available |
| 49 | Not Available | INDICATOR LENS | 4370570 | Not Available |
| 50 | Not Available | PLATE ORNAMENTAL | 8174916 | Not Available |
| 51 | Not Available | L E D LENS | 4370572 | Not Available |
| 52 | Not Available | THERMAL PROTECTOR UNIT | 8174934 | Not Available |
| 54 | Not Available | PCB ASSEMBLY | 8174935 | Not Available |
| 55 | Not Available | WIRE LEAD | 8174936 | Not Available |
| 56 | Not Available | WIRE LEAD | 8174933 | Not Available |
| 57 | Not Available | LOCKING CAM | 8174943 | Not Available |
| 58 | Not Available | SCREW | 8174944 | Not Available |

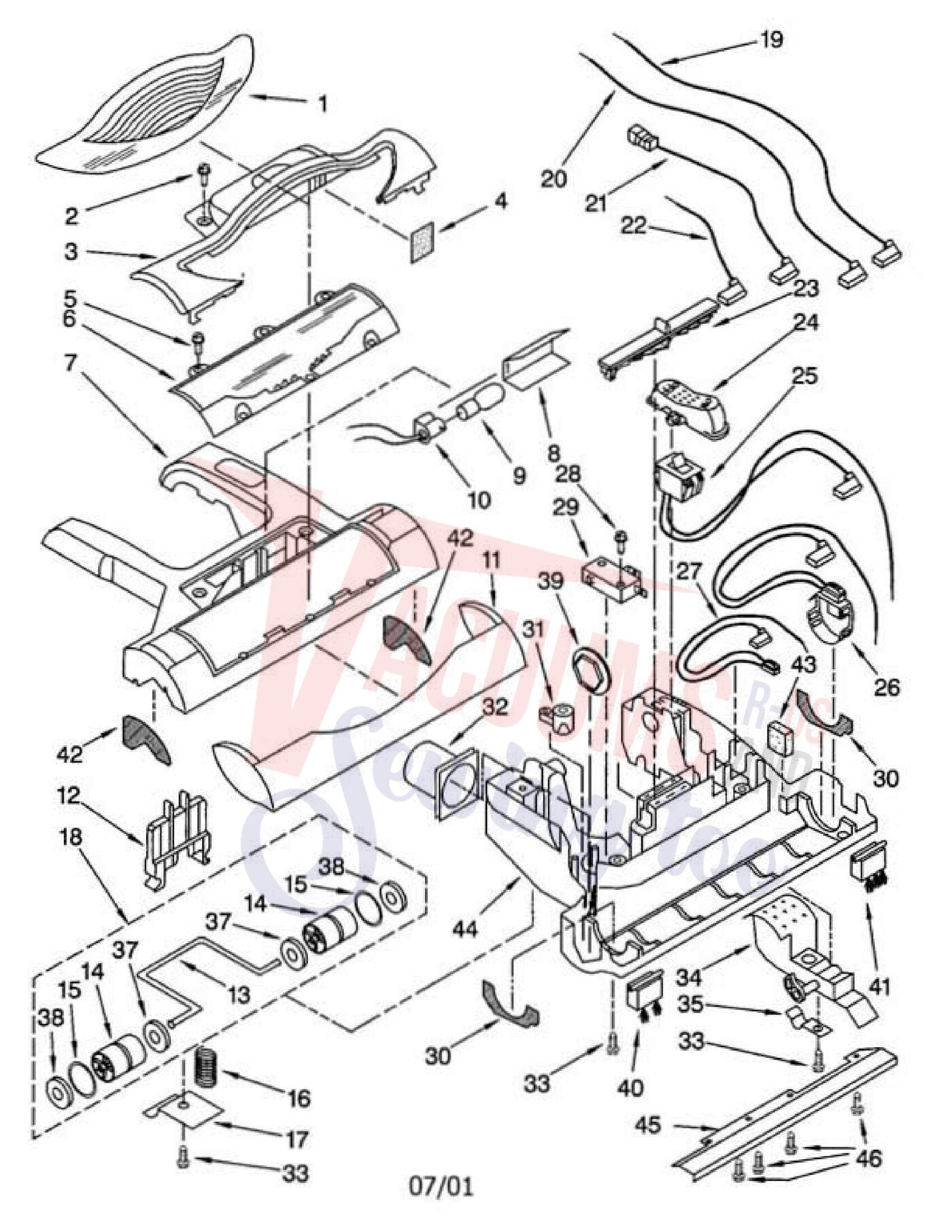

| # | Part image | Description | SKU | Price |
| 1 | Not Available | WINDOW | 8174882 | Not Available |
| 2 | Not Available | SCREW | 8174914 | Not Available |
| 3 | Not Available | COVER LIGHT | 8174883 | Not Available |
| 4 | Not Available | FILTER LIGHT COVER | 8174884 | Not Available |
| 5 | Not Available | SCREW | 4368879 | Not Available |
| 6 | Not Available | COVER NOZZLE | 8174885 | Not Available |
| 7 | Not Available | HOUSING NOZZLE | 8174886 | Not Available |
| 8 | Not Available | REFLECTOR NOZZLE | 8174887 | Not Available |
| 9 | Not Available | BULB LIGHT (SEARS NO. 20-5240) | FA-3515 | Not Available |
| 10 | Not Available | SOCKET BULB | 8174888 | Not Available |
| 11 | Not Available | GUARD FURNITURE | 8174889 | Not Available |
| 12 | Not Available | CAM HEIGHT ADJUSTMENT | 8174890 | Not Available |
| 14 | Not Available | WHEEL (NON-SERVICE) | 4370425 | Not Available |
| 15 | No Image | WHEEL, CAM Part Number: 4370183 for Kenmore | 4370183 | $26.89Read more |
| 16 | Not Available | SPRING | 8174891 | Not Available |
| 17 | Not Available | PLATE WHEEL SUPPORT | 8174892 | Not Available |
| 18 | Not Available | NOZZLE ROLLER UNIT | 8174893 | Not Available |
| 19 | Not Available | LEAD WIRE MOTOR (BROWN) | 8174894 | Not Available |
| 20 | Not Available | LEAD WIRE MOTOR (BLUE) | 8174895 | Not Available |
| 21 | Not Available | LEAD WIRE | 8174896 | Not Available |
| 22 | Not Available | LEAD WIRE | 8174897 | Not Available |
| 23 | Not Available | KNOB SLIDING HEIGHT ADJUSTMENT | 8174898 | Not Available |
| 24 | Not Available | SWITCH BUTTON | 8174899 | Not Available |
| 25 | Not Available | SWITCH ON/OFF | 8174900 | Not Available |
| 26 | Not Available | THERMAL PROTECTOR SET | 8174901 | Not Available |
| 27 | No Image | SWITCH, RESET 116. 31913100 Part Number: 4369704 for Kenmore | 4369704 | $34.80Read more |
| 28 | Not Available | SCREW | 8174903 | Not Available |
| 29 | | Switch, Push Button Handle Elite 11631150310 Part Number: 4368653 for Kenmore | 4368653 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | LOWER FELT | 8174904 | Not Available |
| 31 | Not Available | LEVER SWITCH | 4368716 | Not Available |
| 32 | Not Available | PIPE NOZZLE | 8174905 | Not Available |
| 33 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Pedal, Gray Handle Release Kenmore Upright Part Number: 8174906 for Kenmore | 8174906 | $7.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | PLATE PEDAL | 8174907 | Not Available |
| 36 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | WASHER (NON-SERVICE) | NLA | Not Available |
| 38 | Not Available | SPRING ROUND NO. 5/16 (NON SERVICE) | NLA | Not Available |
| 39 | Not Available | SUPPORT RUBBER MOTOR (LEFT) | 8174908 | Not Available |
| 40 | Not Available | BRUSH "B" | 8174910 | Not Available |
| 41 | Not Available | BRUSH"A" | 8174909 | Not Available |
| 42 | Not Available | FELT UPPER | 8174911 | Not Available |
| 43 | Not Available | FILTER | 8174912 | Not Available |
| 44 | Not Available | LOWER PLATE | 8174913 | Not Available |
| 45 | Not Available | WIPER | 8191759 | Not Available |
| 46 | Not Available | SCREW | 4369085 | Not Available |

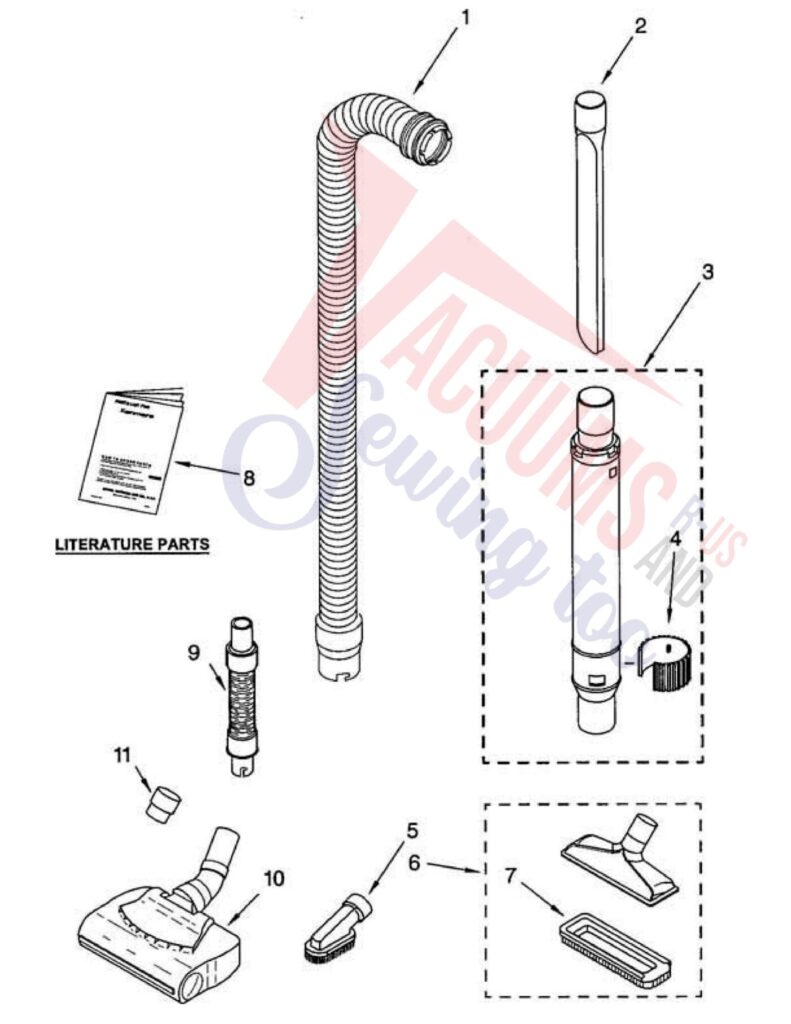

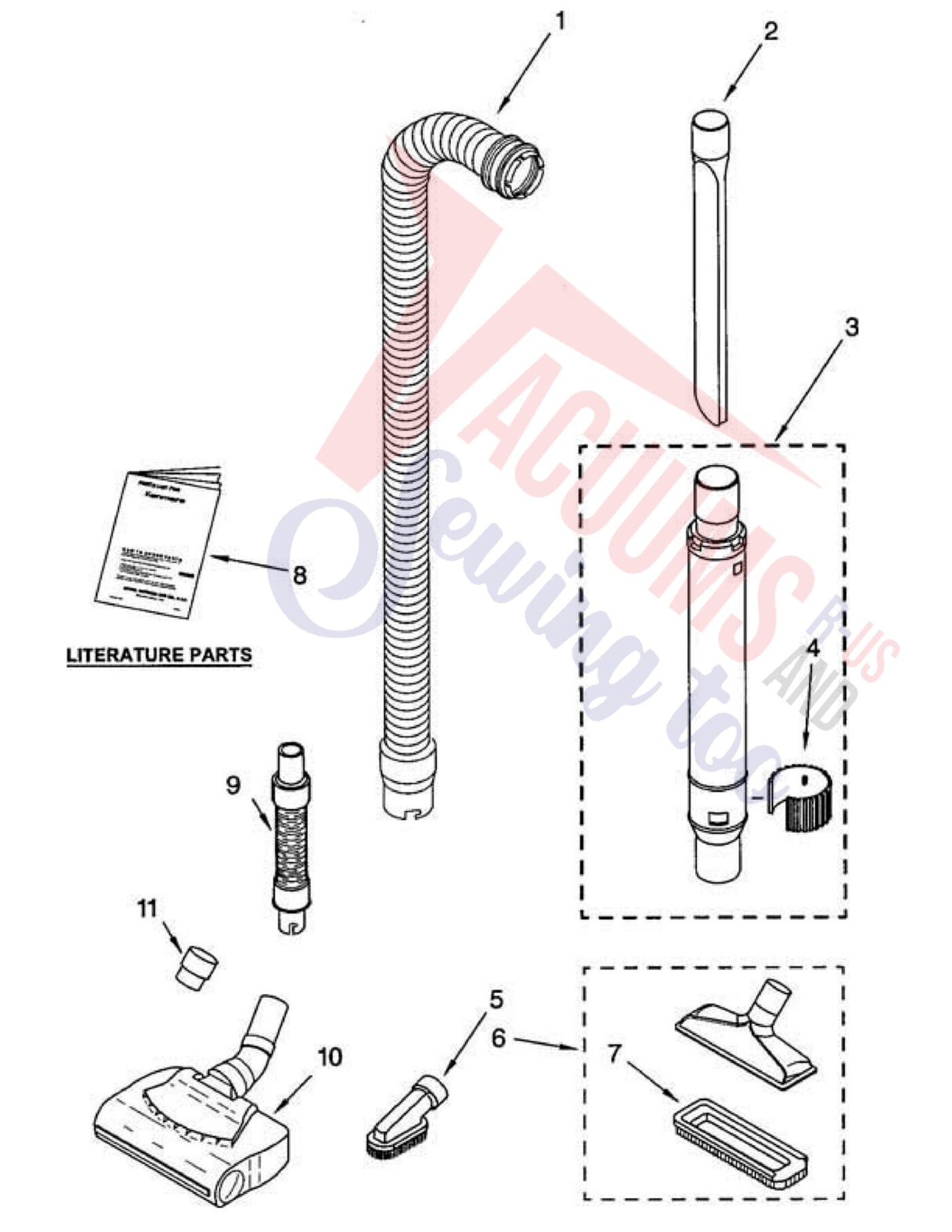

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOSE, UPRIGHT TOOL ON BOARD UPRIGHT GRAY Part Number: 4370401 for Kenmore | 4370401 | $152.88Read more |
| 2 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 3 | Not Available | WAND TELESCOPIC | 4370414 | Not Available |
| 4 | Not Available | REGULATOR SUCTION | 4368996 | Not Available |
| 5 | Not Available | BRUSH DUSTING | 4368681 | Not Available |
| 6 | No Image | BRUSH, FLOOR 116.31913101 Part Number: 4368609 for Kenmore | 4368609 | $37.10Read more |
| 7 | Not Available | HOLDER BRUSH | 4368610 | Not Available |
| 8 | Not Available | MANUAL OWNERS | LIT8175058 | Not Available |
| 8A | Not Available | LIST REPAIR PARTS | LIT8191754 | Not Available |
| 9 | Not Available | HOSE UNIT | 4370824 | Not Available |
| 10 | Not Available | HANDI-MATE JR. | 8195132 | Not Available |
| 11 | Not Available | ADAPTER TUBE | 4369670 | Not Available |

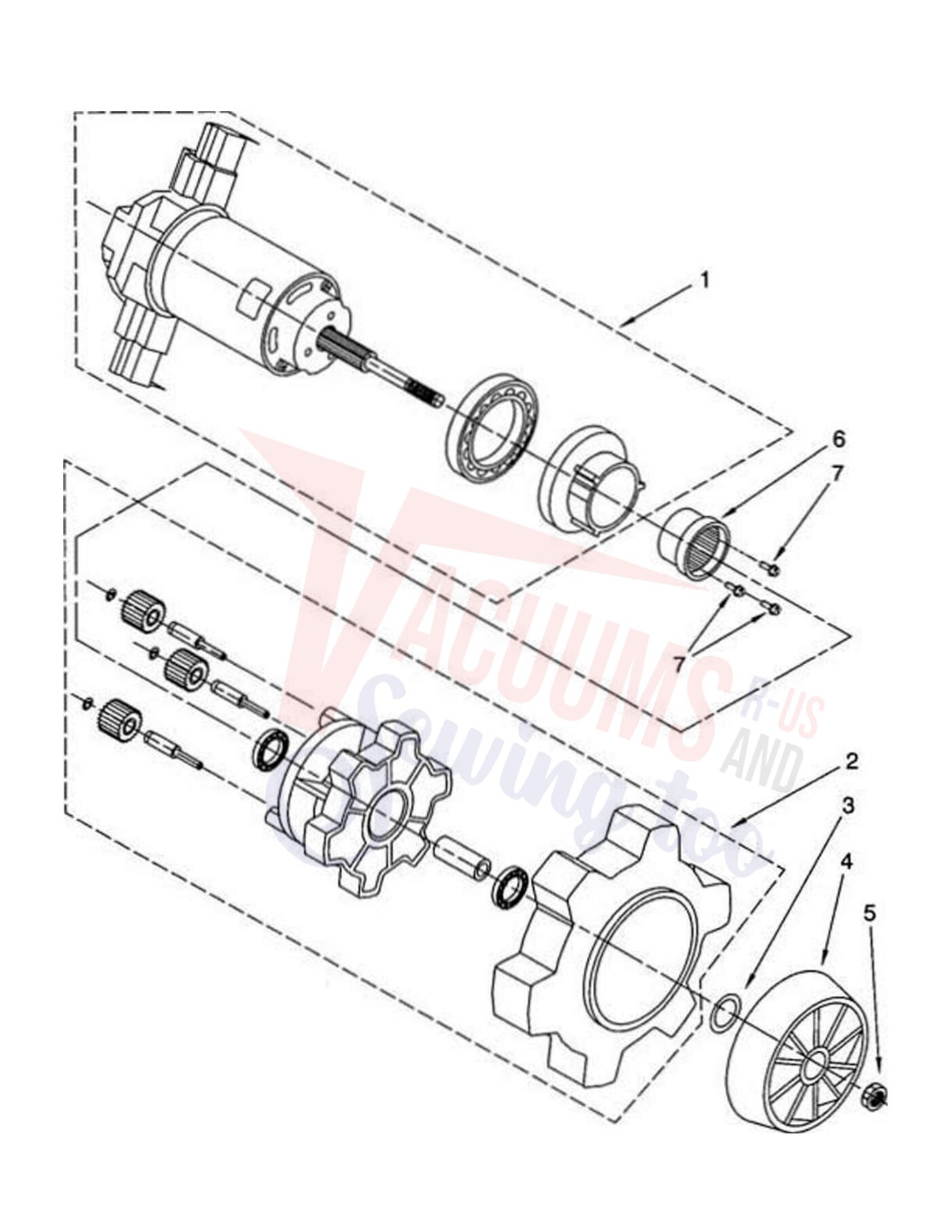

| # | Part image | Description | SKU | Price |
| 1 | Not Available | MOTOR ASSEMBLY | 8174926 | Not Available |
| 2 | Not Available | GEAR UNIT | 8174927 | Not Available |
| 3 | Not Available | WASHER | 8174928 | Not Available |
| 4 | Not Available | FAN | 8174929 | Not Available |
| 5 | Not Available | NUT | 8174930 | Not Available |
| 6 | Not Available | INTERNAL GEAR | 8174945 | Not Available |
| 7 | Not Available | SCREW (3) | 8174944 | Not Available |
