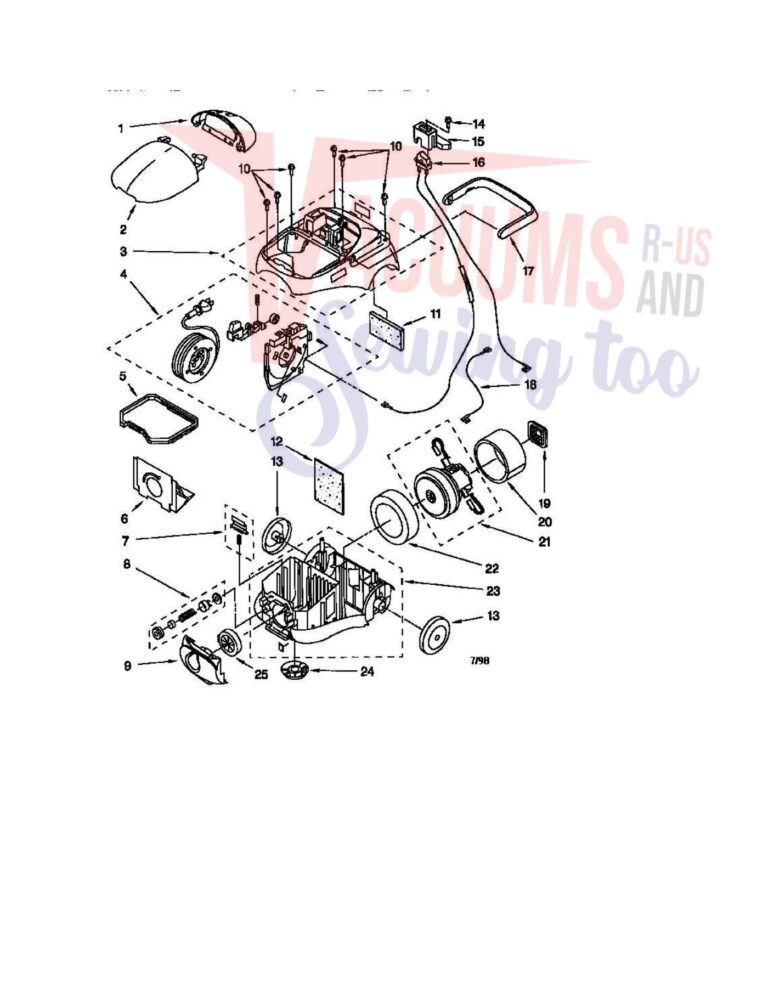

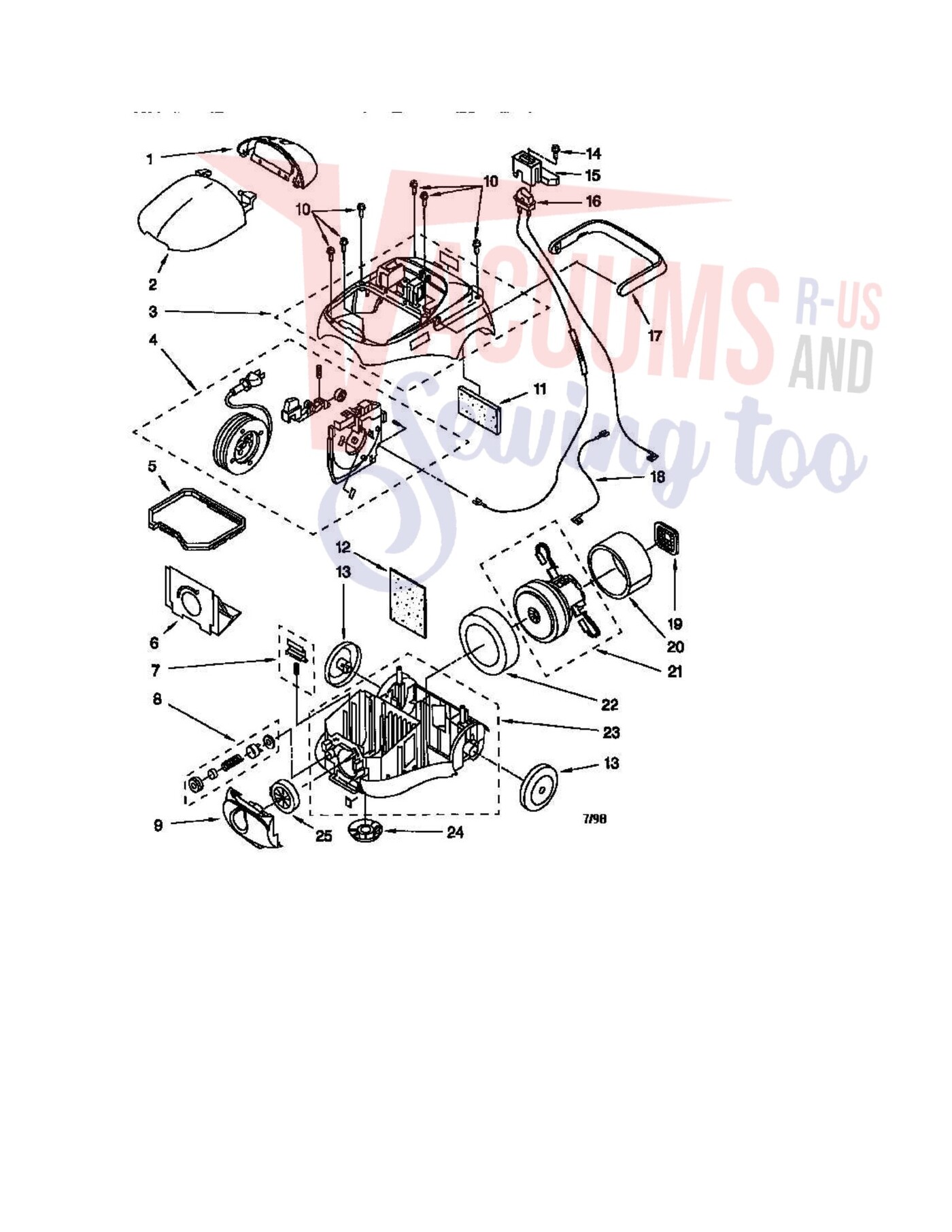

Schematic and parts book for Kenmore 116.28075890 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | PLATE INDICATOR | 4370435 | Not Available |
| 2 | Not Available | COVER DUST | 4370436 | Not Available |
| 4 | Not Available | CORD REEL PARTITION UNIT | 4370442 | Not Available |
| 5 | Not Available | PACKING DUST COVER | 4370449 | Not Available |
| 6 | Not Available | BAG DUST SEARS NO. 20-50570 (AVAILABLE AT ANY SEARS RETAIL STORE) | KER-1457 | Not Available |
| 7 | Not Available | BAG SUPPORT KIT | 4370454 | Not Available |
| 8 | Not Available | PROTECTOR UNIT | 4370451 | Not Available |
| 9 | Not Available | COVER FRONT | 4370452 | Not Available |
| 10 | Not Available | SCREW | 4368641 | Not Available |
| 11 | Not Available | FILTER OUTLET | 4370441 | Not Available |
| 12 | Not Available | FILTER | 4370448 | Not Available |
| 13 | Not Available | WHEEL | 4370455 | Not Available |
| 14 | Not Available | SCREW | 4369085 | Not Available |
| 15 | Not Available | COVER SWITCH | 4370438 | Not Available |
| 16 | Not Available | MAIN SWITCH UNIT | 4370437 | Not Available |
| 17 | Not Available | HANDLE | 4370747 | Not Available |
| 18 | Not Available | WIRE YELLOW LEAD | 4370443 | Not Available |
| 19 | Not Available | SUPPORT RUBBER MOTOR (REAR) | 4370444 | Not Available |
| 20 | Not Available | SUPPRESSOR NOISE | 4370445 | Not Available |
| 21 | Not Available | MOTOR | 4370446 | Not Available |
| 22 | Not Available | SUPPORT RUBBER MOTOR | 4370447 | Not Available |
| 23 | Not Available | LOWER BODY UNIT | 4370456 | Not Available |
| 24 | Not Available | CASTER UNIT | 4370457 | Not Available |
| 25 | Not Available | GROMMET VALVE | 4370453 | Not Available |
| 33 | Not Available | UPPER B BOODDYY U UNNITIT | KKEE-44337700774488 | Not Available |

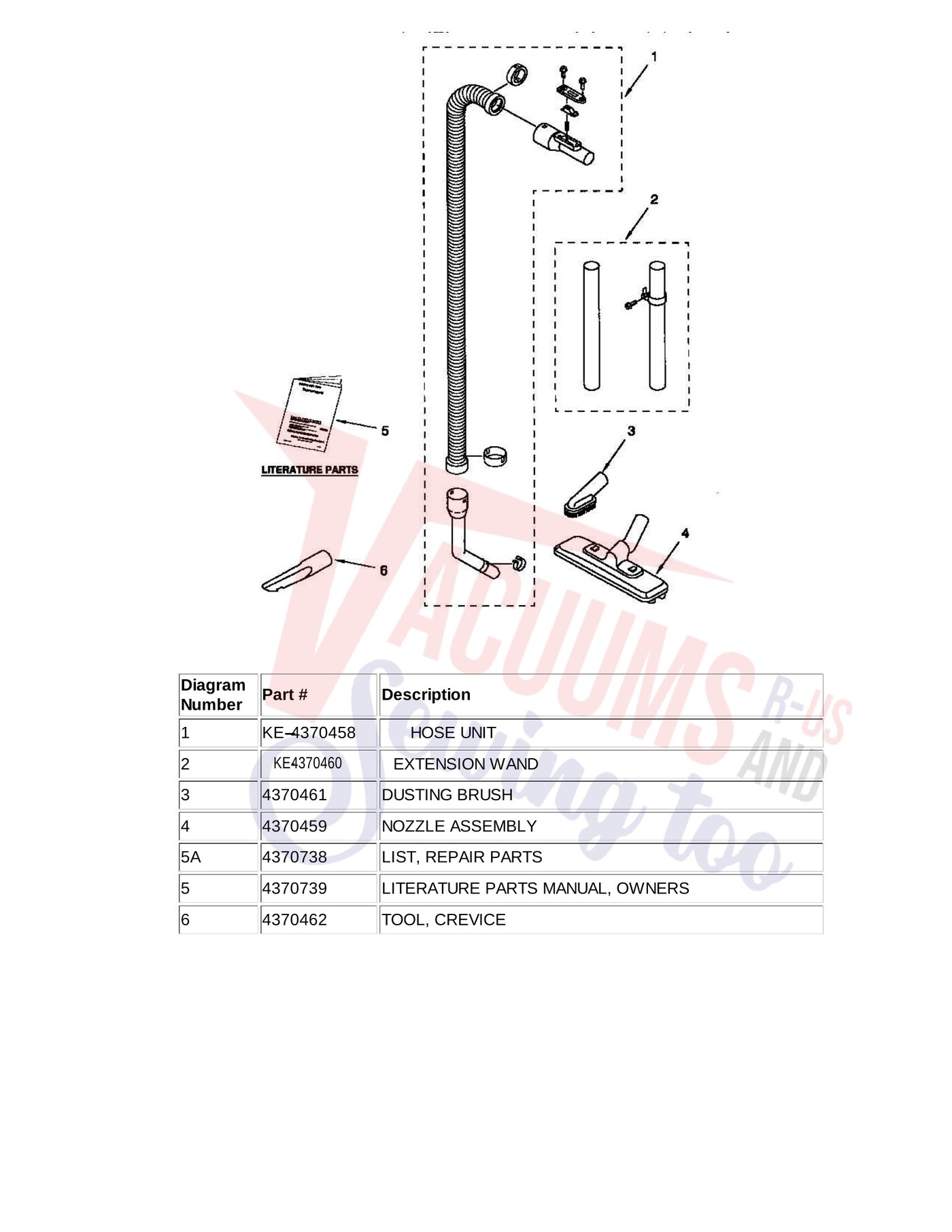

| # | Part image | Description | SKU | Price |
| 2 | Not Available | EXTENSION WAND | 4370460 | Not Available |
| 3 | Not Available | DUSTING BRUSH | 4370461 | Not Available |
| 4 | Not Available | NOZZLE ASSEMBLY | 4370459 | Not Available |
| 5 | Not Available | LITERATURE PARTS MANUAL OWNERS | 4370739 | Not Available |
| 5A | Not Available | LIST REPAIR PARTS | 4370738 | Not Available |
| 6 | Not Available | TOOL CREVICE | 4370462 | Not Available |
