Schematic and parts book for Kenmore 116.2748490 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

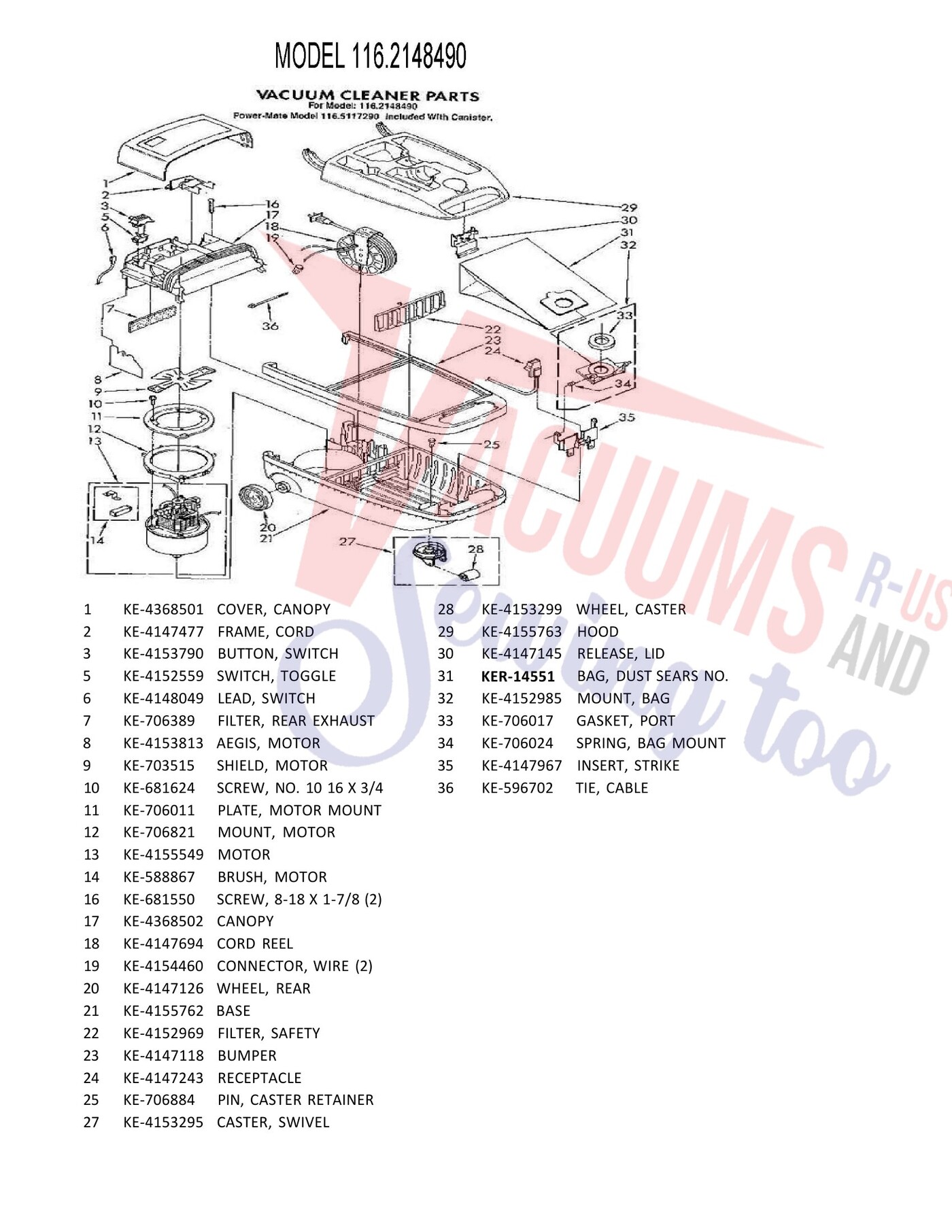

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COVER CANOPY | 4368501 | Not Available |
| 2 | Not Available | FRAME CORD | 4147477 | Not Available |
| 3 | Not Available | BUTTON SWITCH | 4153790 | Not Available |
| 5 | Not Available | SWITCH TOGGLE | 4152559 | Not Available |
| 6 | Not Available | LEAD SWITCH | 4148049 | Not Available |
| 7 | Not Available | FILTER REAR EXHAUST | 706389 | Not Available |
| 8 | Not Available | AEGIS MOTOR | 4153813 | Not Available |
| 9 | Not Available | SHIELD MOTOR | 703515 | Not Available |
| 10 | Not Available | SCREW NO. 10 16 X 3/4 | 681624 | Not Available |
| 11 | Not Available | PLATE MOTOR MOUNT | 706011 | Not Available |
| 12 | Not Available | MOUNT MOTOR | 706821 | Not Available |
| 13 | Not Available | MOTOR | 4155549 | Not Available |
| 14 | Not Available | BRUSH MOTOR | 588867 | Not Available |
| 16 | Not Available | SCREW 8-18 X 1-7/8 (2) | 681550 | Not Available |
| 17 | Not Available | CANOPY | 4368502 | Not Available |
| 18 | Not Available | CORD REEL | 4147694 | Not Available |
| 19 | Not Available | CONNECTOR WIRE (2) | 4154460 | Not Available |
| 20 | No Image | WHEEL, 116.2639081 Part Number: 4147126 for Kenmore | 4147126 | $31.62Read more |
| 21 | Not Available | BASE | 4155762 | Not Available |
| 22 | Not Available | FILTER SAFETY | 4152969 | Not Available |
| 23 | Not Available | BUMPER | 4147118 | Not Available |
| 24 | Not Available | RECEPTACLE | 4147243 | Not Available |
| 25 | Not Available | PIN CASTER RETAINER | 706884 | Not Available |
| 27 | Not Available | CASTER SWIVEL | 4153295 | Not Available |
| 28 | Not Available | WHEEL CASTER | 4153299 | Not Available |
| 29 | Not Available | HOOD | 4155763 | Not Available |
| 30 | Not Available | RELEASE LID | 4147145 | Not Available |
| 31 | Not Available | BAG DUST SEARS NO. | KER-14551 | Not Available |
| 32 | No Image | BAG, MOUNTING RED PLASTIC Part Number: 4152985 for Kenmore | 4152985 | $26.18Read more |
| 33 | No Image | GASKET Part Number: 706017 for Kenmore | 706017 | $10.60Read more |
| 34 | Not Available | SPRING BAG MOUNT | 706024 | Not Available |
| 35 | Not Available | INSERT STRIKE | 4147967 | Not Available |
| 36 | Not Available | TIE CABLE | 596702 | Not Available |

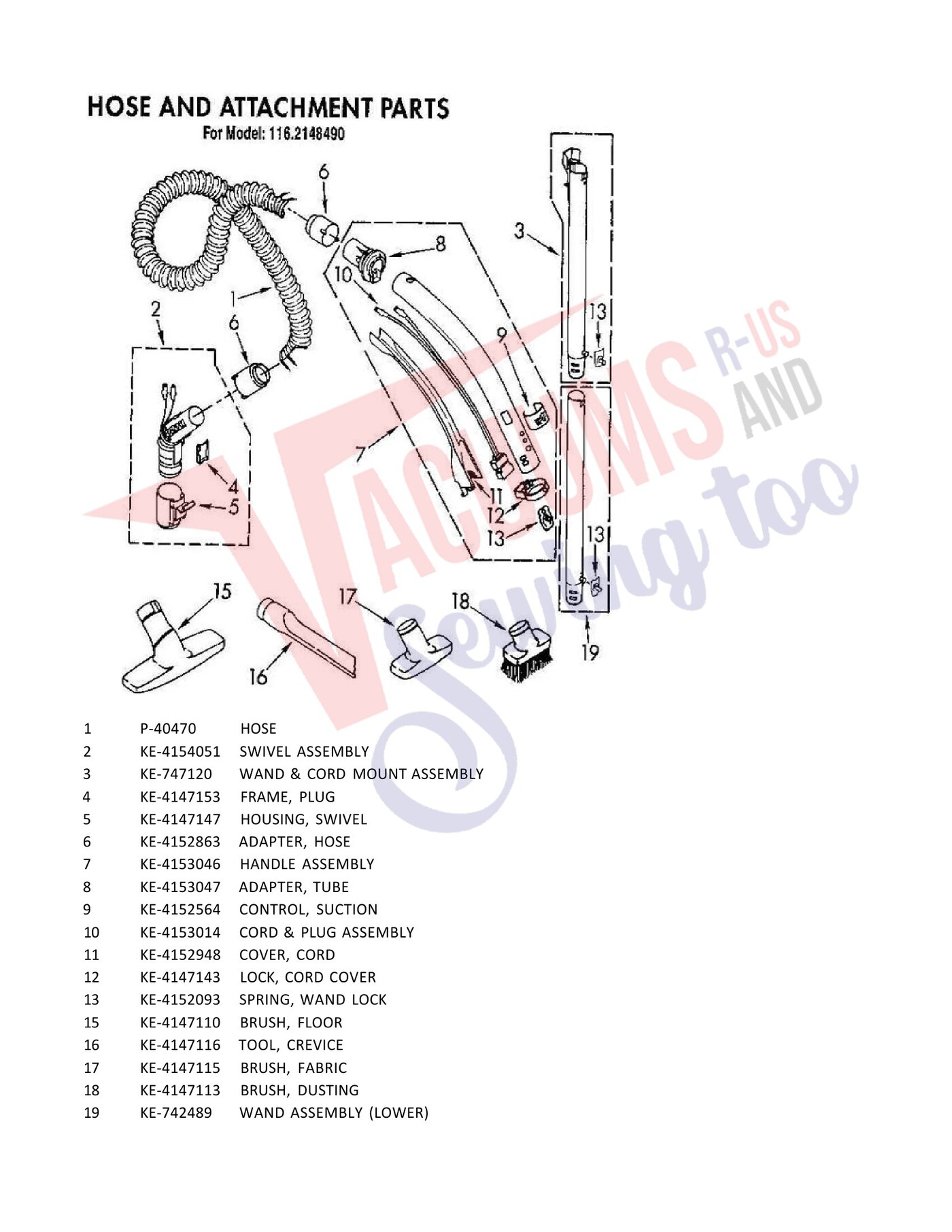

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HOSE | 40470 | Not Available |
| 2 | Not Available | SWIVEL ASSEMBLY | 4154051 | Not Available |
| 3 | Not Available | WAND & CORD MOUNT ASSEMBLY | 747120 | Not Available |
| 4 | Not Available | FRAME PLUG | 4147153 | Not Available |
| 5 | Not Available | HOUSING SWIVEL | 4147147 | Not Available |
| 6 | Not Available | ADAPTER HOSE | 4152863 | Not Available |
| 7 | Not Available | HANDLE ASSEMBLY | 4153046 | Not Available |
| 8 | Not Available | ADAPTER TUBE | 4153047 | Not Available |
| 9 | Not Available | CONTROL SUCTION | 4152564 | Not Available |
| 10 | Not Available | CORD & PLUG ASSEMBLY | 4153014 | Not Available |
| 11 | No Image | COVER, HOSE HANDLE WIRE 116.2140190 Part Number: 4152948 for Kenmore | 4152948 | $14.78Read more |
| 12 | Not Available | LOCK CORD COVER | 4147143 | Not Available |
| 13 | Not Available | SPRING WAND LOCK | 4152093 | Not Available |
| 15 | Not Available | BRUSH FLOOR | 4147110 | Not Available |
| 16 | Not Available | TOOL CREVICE | 4147116 | Not Available |
| 17 | Not Available | BRUSH FABRIC | 4147115 | Not Available |
| 18 | Not Available | BRUSH DUSTING | 4147113 | Not Available |
| 19 | Not Available | WAND ASSEMBLY (LOWER) | 742489 | Not Available |
