Schematic and parts book for Kenmore 116.265126 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

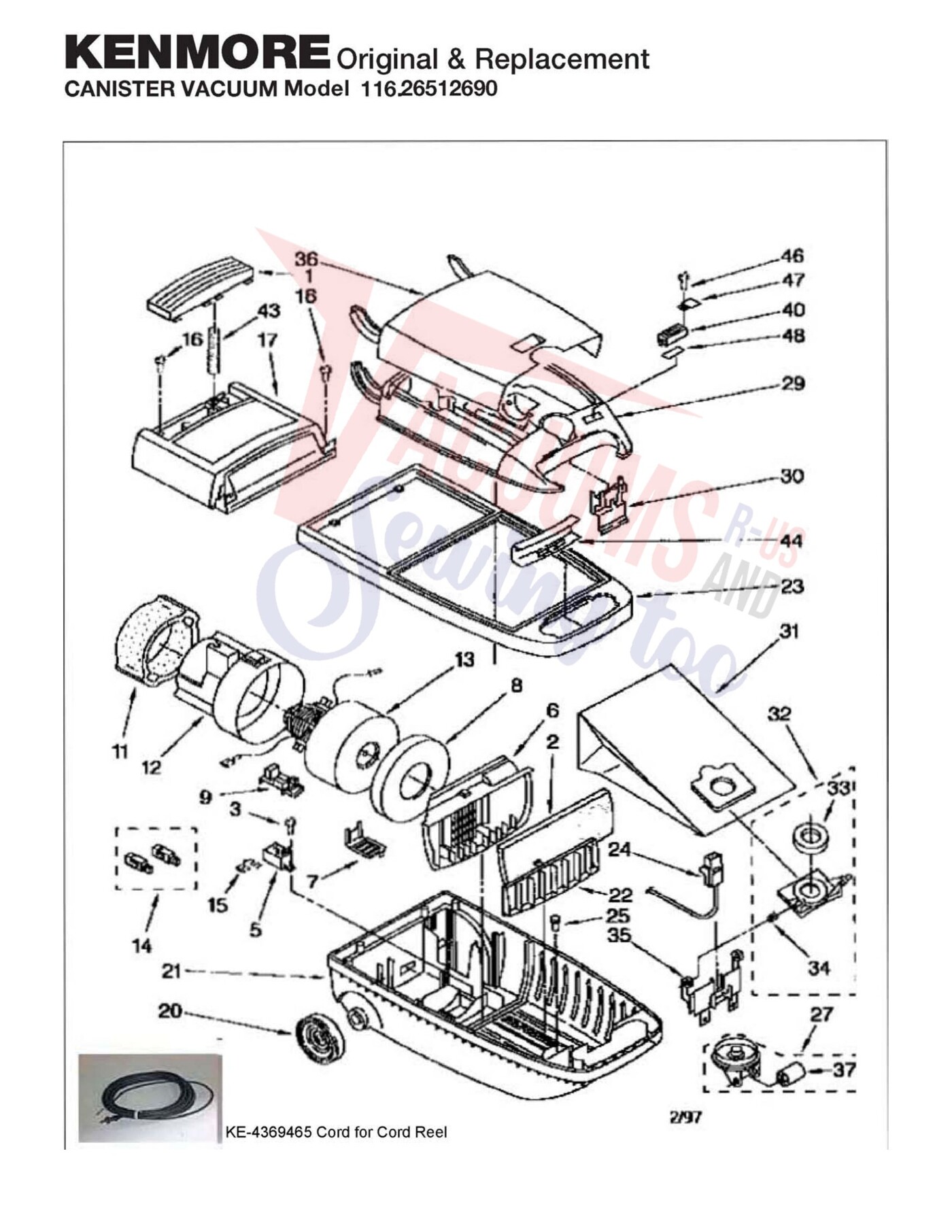

| 1 | No Image | PEDAL, CORD RETURN Part Number: 4369308 for Kenmore | 4369308 | $17.59Read more |
| 2 | No Image | Filter, Premotor W/O Frame Electrostatic Canister Part Number: 4370059 for Kenmore | 4370059 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Screw 6-20 x 3/8 (2) | 4368879 | Not Available |
| 5 | Not Available | Relay motor | 4152600 | Not Available |
| 6 | Not Available | Wall bulkhead | 4370653 | Not Available |
| 7 | Not Available | Cap cord cover | 8195164 | Not Available |
| 8 | Not Available | Seal impeller | KS4154151 | Not Available |
| 9 | Not Available | Cover relay | 4370554 | Not Available |
| 11 | Not Available | Filter motor (final) | 4368991 | Not Available |
| 12 | Not Available | Seal motor | 4370063 | Not Available |
| 13 | No Image | MOTOR, SUCTION 116.26512690 Part Number: 4369338 for Kenmore | 4369338 | $222.86Read more |
| 14 | Not Available | Brush motor (2) | 676200 | Not Available |
| 15 | Not Available | Terminal | 4152677 | Not Available |
| 16 | Not Available | Screw (4) | 4148999 | Not Available |
| 17 | Not Available | Cover canopy | 4370127 | Not Available |
| 20 | Not Available | Wheel cover | 4156434 | Not Available |
| 21 | No Image | BASE, TANK 116.26512690 Part Number: 4369176 for Kenmore | 4369176 | $114.91Read more |
| 22 | Not Available | Filter safety | KS4152969 | Not Available |
| 23 | Not Available | Bumper | NLA | Not Available |
| 24 | Not Available | Harness receptacle (incl. 26) | 4369361 | Not Available |
| 25 | Not Available | Pin coaster retainer | 706884 | Not Available |
| 27 | Not Available | Caster swivel | 4369683 | Not Available |
| 29 | Not Available | Hood | NLA | Not Available |
| 30 | Not Available | Latch hood | 4147145 | Not Available |
| 31 | Not Available | Paper Bag | KER-14551 | Not Available |
| 32 |  | Bag Mt. & Gasket Assy For: kenmore | 4369956 | $16.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | GASKET Part Number: 706017 for Kenmore | 706017 | $10.60Read more |
| 34 | Not Available | Spring bag moount | 706024 | Not Available |
| 35 | Not Available | Insert strick | 4147967 | Not Available |
| 36 | Not Available | Lid tool cover | 8195166 | Not Available |
| 37 | Not Available | Wheel caster | 4153299 | Not Available |
| 40 | Not Available | Light performance indicator | 4368878 | Not Available |
| 43 | Not Available | Spring cord rewind | 744258 | Not Available |
| 44 | Not Available | Grip handle | 4155620 | Not Available |
| 46 | Not Available | Screw 6-20 x 3/8 (2) | 4368879 | Not Available |
| 47 | Not Available | Bracket performance indicator | NLA | Not Available |
| 48 | Not Available | Packing performance indicator | 4368704 | Not Available |
| # | Part image | Description | SKU | Price |

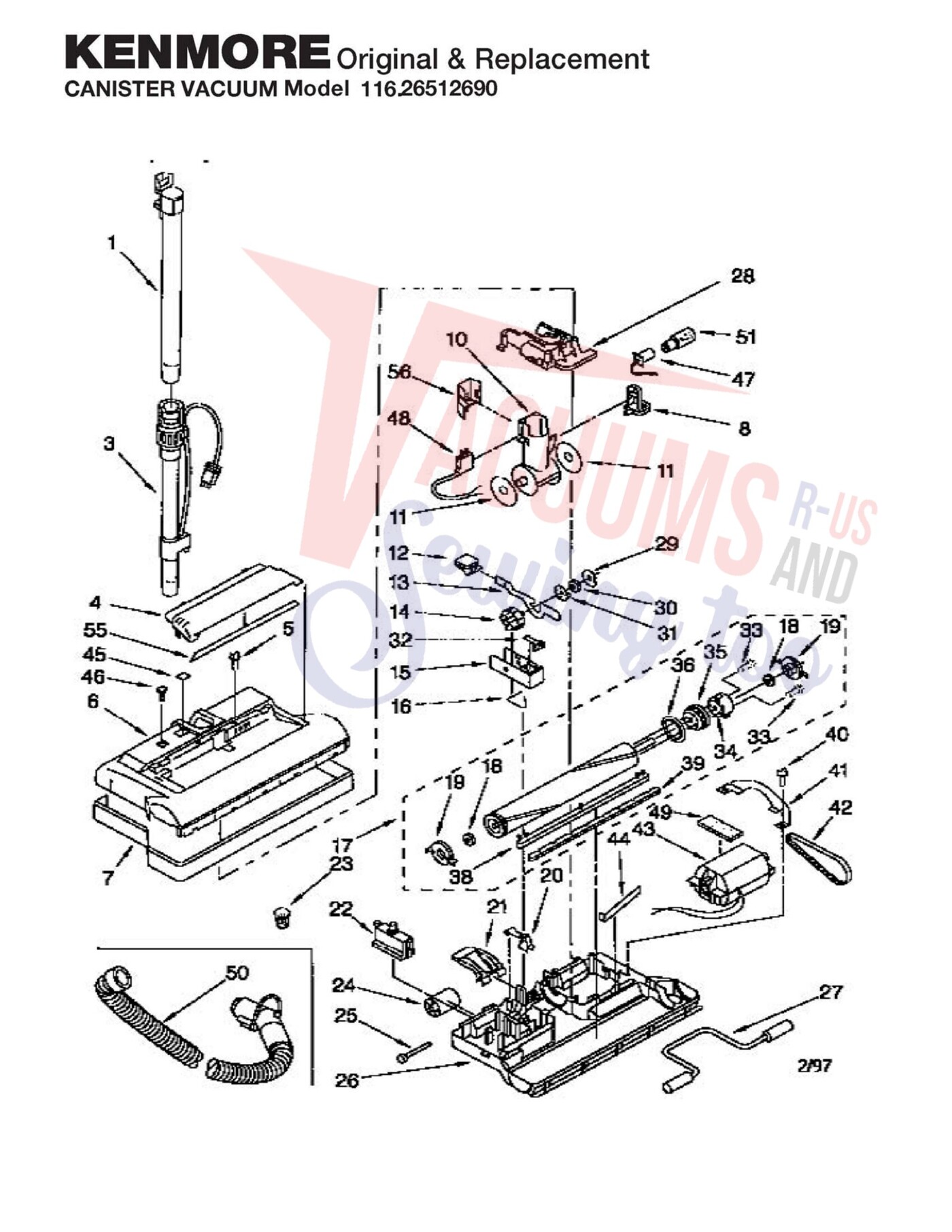

| 1 | Not Available | Upper Wand | 50043 | Not Available |
| 3 | Not Available | Lower Wand and cord | 50051 | Not Available |
| 4 | Not Available | Housing bulb (includes no. 55) | 4369824 | Not Available |
| 5 | Not Available | Screw 8-18 x 1-7/8 | 488839 | Not Available |
| 6 | Not Available | Nozzle | 4369823 | Not Available |
| 7 | Not Available | Bumper | 747222 | Not Available |
| 8 | No Image | PEDAL, WAND Part Number: 8191503 for Kenmore | 8191503 | $19.43Read more |
| 10 | Not Available | Swivel | 4368991 | Not Available |
| 11 | Not Available | Seal swivel bearing (2) | 742019 | Not Available |
| 12 | Not Available | Pad foot pedal | 4150826 | Not Available |
| 13 | Not Available | Indicator lever | 4370720 | Not Available |
| 14 | Not Available | Indicator cam | 588543 | Not Available |
| 15 | Not Available | Indicator block | 8191506 | Not Available |
| 16 | Not Available | Spring assist | 725775 | Not Available |
| 17 | Not Available | Brush assembly | NLA | Not Available |
| 18 | Not Available | Washer metal (12 x 1/2) (2) (incl. 18) | 681424 | Not Available |
| 19 | Not Available | Bearing and housing assembly (2)(includes no. 18) | 676195 | Not Available |
| 20 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Release handle | 4148391 | Not Available |
| 22 | Not Available | Protector overload | 8191614 | Not Available |
| 23 | Not Available | Connector wire (2) | SS-3270 | Not Available |
| 24 | Not Available | Roller nozzle (2) | 747117 | Not Available |
| 25 | Not Available | Shaft roller (2) | 742006 | Not Available |
| 26 | No Image | BASE, NOZZLE 116.54212404 Part Number: 4370013 for Kenmore | 4370013 | $79.51Read more |
| 27 |  | Front Axle Assy For: kenmore | KS744029 | $15.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Cap swivel | 8191518 | Not Available |
| 29 | Not Available | Washer thrust | 722909 | Not Available |
| 30 | Not Available | Washer spring | 725635 | Not Available |
| 31 | Not Available | Catch indexing | 588543 | Not Available |
| 32 | Not Available | Ratchet catch | 742016 | Not Available |
| 33 | Not Available | Screw type 25 no. 6 pan (2) | 681605 | Not Available |
| 34 | Not Available | End brush tufted | 742509 | Not Available |
| 35 | Not Available | Brush sprocket | 742506 | Not Available |
| 36 | Not Available | Brush sprocket flange | 742031 | Not Available |
| 38 | Not Available | Beater brush (2) | 676194 | Not Available |
| 39 | Not Available | Bar beater | 743419 | Not Available |
| 40 | Not Available | Screw 8-18 x 5/8 (2) | STD610805 | Not Available |
| 41 | Not Available | Motor bridge | 705093 | Not Available |
| 42 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 43 | Not Available | Motor (Sears no. KC90FCAL100) | 60518 | Not Available |
| 44 | Not Available | Spring motor adjustment | 742002 | Not Available |
| 45 | Not Available | Lens height adjuster | 4369687 | Not Available |
| 46 | Not Available | Extension button | 4369982 | Not Available |
| 47 | Not Available | Socket bulb | 747096 | Not Available |
| 48 | No Image | CORD, PN 116.26512690 Part Number: KS4151701 for Kenmore | KS4151701 | $45.58Read more |
| 49 | Not Available | Gasket motor hose assembly | 747156 | Not Available |
| 50 | Not Available | Hose Ass'y | 40473 | Not Available |
| 51 | Not Available | Bulb | FA-3515 | Not Available |
| 55 | Not Available | Lens light | KS747286 | Not Available |
| # | Part image | Description | SKU | Price |

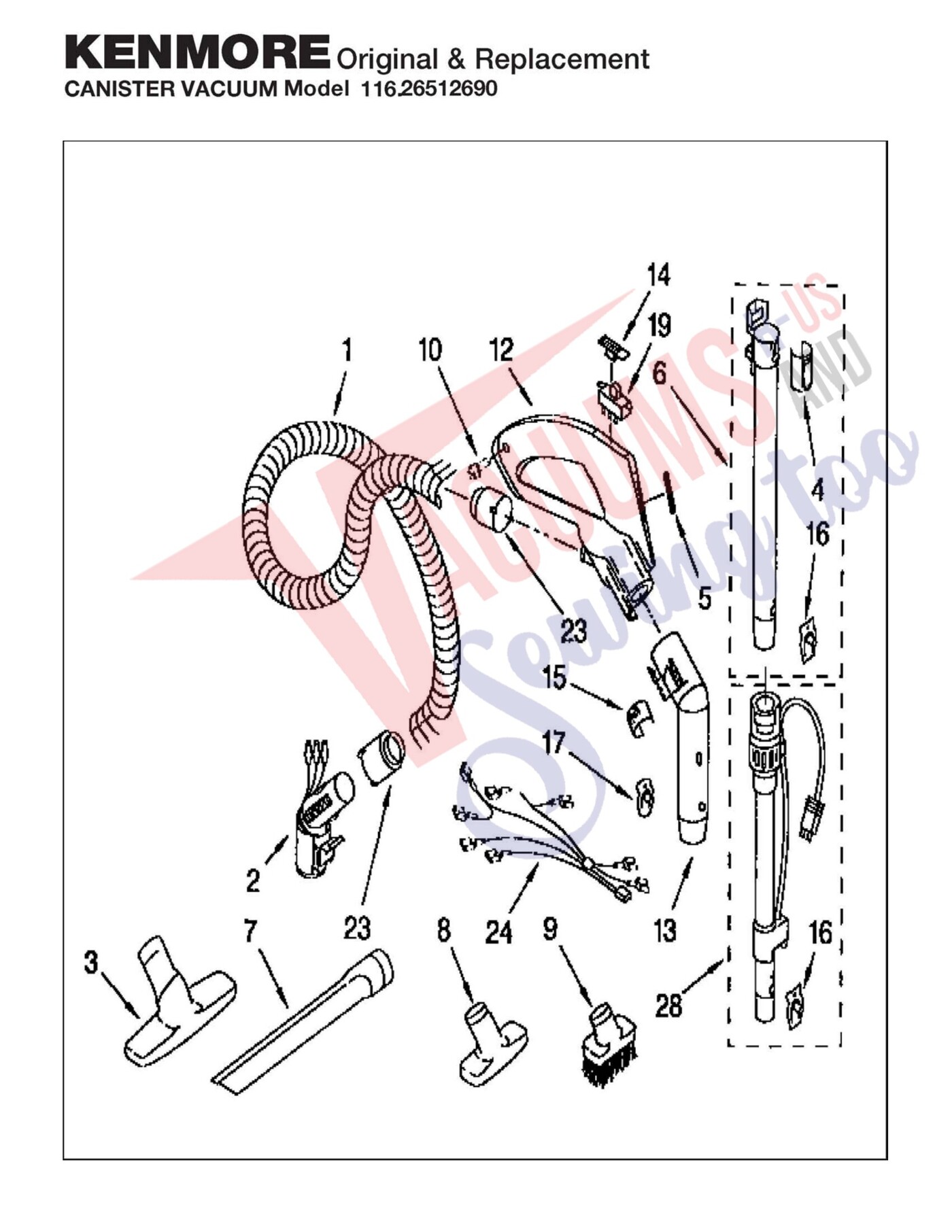

| 1 | No Image | HOSE, 116.2591290 Part Number: 4369467 for Kenmore | 4369467 | $75.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Swivel assembly | 4370563 | Not Available |
| 3 | Not Available | Brush floor | 747151 | Not Available |
| 4 | Not Available | Quick release (upper wand) | 4149957 | Not Available |
| 5 | Not Available | Label handle | 4370653 | Not Available |
| 7 | Not Available | Tool. crevice | 4147116 | Not Available |
| 8 |  | UPHOLSTERY NOZZLE, POWER TEAM Part Number: 5265 for Kenmore | 5265 | $30.21Read more |
| 9 |  | Dusting Brush Accessory Pack For: kenmore | 5264 | $35.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Screw 6-20 x 3/8 (2) | 4368879 | Not Available |
| 12 | Not Available | Handle assembly | 4370065 | Not Available |
| 13 |  | Tube - Center For: kenmore | 4370612 | $48.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Slide switch (nos. 17 20) | 4369113 | Not Available |
| 15 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Spring Assy. For: kenmore | 569318 | $2.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Spring Assy. For: kenmore | 569318 | $2.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Switch, Harness & Switch Wiring Kit MC-V9658 Part Number: 676480 for Kenmore | 676480 | $87.08Read more |
| 23 | Not Available | Adapter hose (2) | 4370051 | Not Available |
| 24 | Not Available | Harnesss wiring | 4369353 | Not Available |
| 28 |  | Wand, Blk/Metal Lower W/Cord/Bttn Lock Ken Canstr Part Number: 4369395 for Kenmore | 4369395 | $62.91Add to cart |
