Schematic and parts book for Kenmore 116.25914505 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

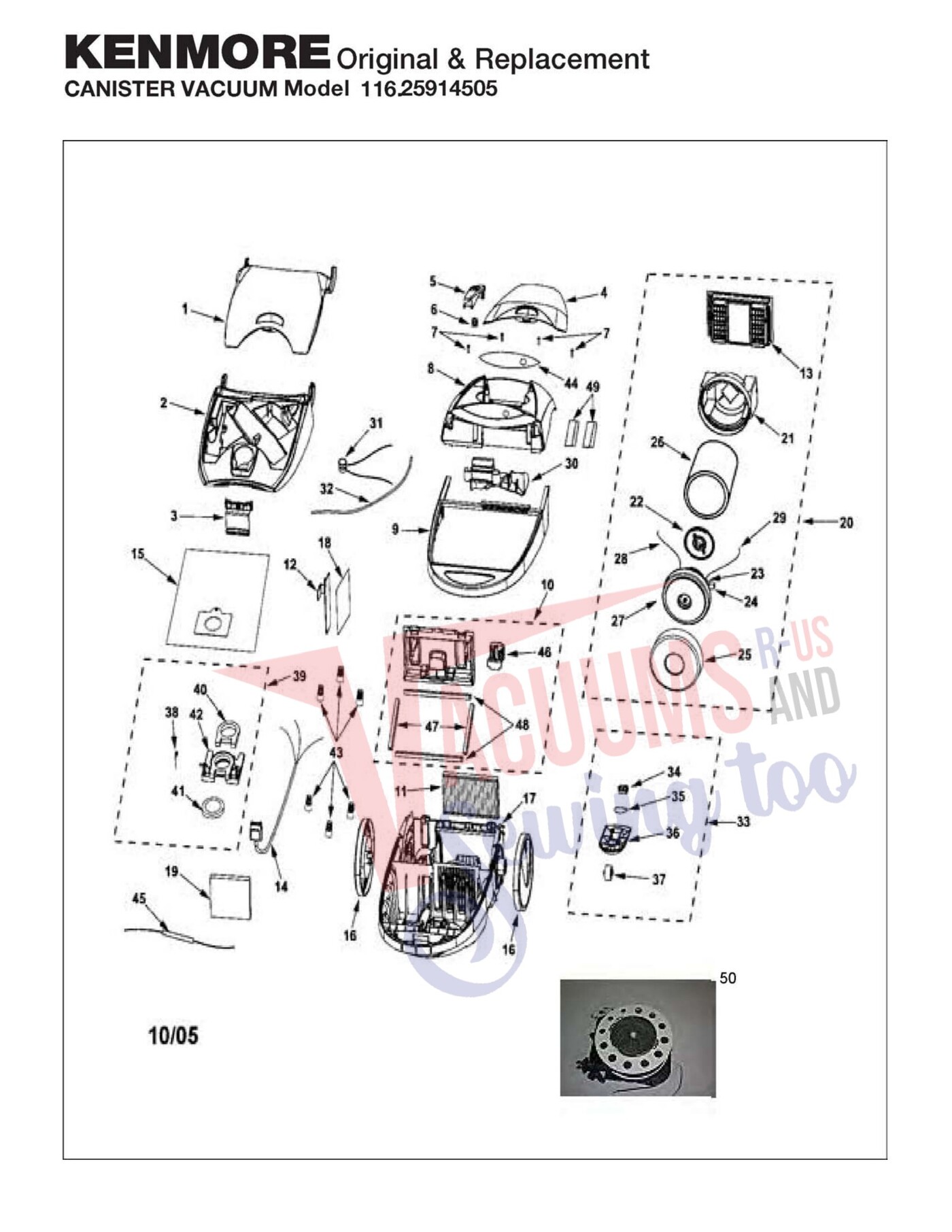

| 1 | Not Available | Tool storage cover | KC74PBZTZVU | Not Available |
| 2 | Not Available | Dust cover | KC60KCPSZMUB | Not Available |
| 3 |  | Latch - Hood For: kenmore | KC01DBZTZV07 | $18.32Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Tool storage cover | KC74PCPSZVUU | Not Available |
| 5 | No Image | PEDAL, CORD REWIND 116.25512500 Part Number: KC46NBZTZV06 for Kenmore | KC46NBZTZV06 | $14.43Read more |
| 6 | No Image | SPRING, CORD REWIND 116.25512500 Part Number: KS744258 for Kenmore | KS744258 | $17.45Read more |
| 7 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Canopy | KC48HCPSZM0B | Not Available |
| 9 | Not Available | Furniture guard | KC31ABZTZV06 | Not Available |
| 10 | No Image | COVER, EXHAUST FILTER 116.25914503 Part Number: KC41KCPTZV06 for Kenmore | KC41KCPTZV06 | $82.96Read more |
| 11 | Not Available | Exhaust filter (hepa) sears no. 20-86889 | KER-1800 | Not Available |
| 12 | Not Available | P.c.b. assembly | KC89VBZP2000 | Not Available |
| 13 | Not Available | Filter supporter | KC32FCPSZV07 | Not Available |
| 14 | Not Available | Receptacle assembly 3-wire | KC90EBZTZV06 | Not Available |
| 15 | Not Available | Dust bag (hepa) sears no. 20-50557 | KER-14551A | Not Available |
| 16 | No Image | WHEEL, 116.25513506 Part Number: KC99CBZNZV07 for Kenmore | KC99CBZNZV07 | $20.17Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Lower body | KC03ABZT5V07 | Not Available |
| 18 | Not Available | Cooling guide | KC41FBZPZ000 | Not Available |
| 19 | No Image | FILTER, SECONDARY 116.25512500 Part Number: 8175084 for Kenmore | 8175084 | $17.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Motor assembly | KC90FCVSZV07 | Not Available |
| 21 | Not Available | Motor enclosure | KC10GCPSZ000 | Not Available |
| 22 | Not Available | Motor support rubber rear | KC03FBZTZ000 | Not Available |
| 23 | Not Available | Screw | NLA | Not Available |
| 24 | Not Available | Brush motor (2) | 4370655 | Not Available |
| 25 | Not Available | Motor support rubber front | KC02FCUMZ000 | Not Available |
| 26 | Not Available | Suppressor noise | 4370683 | Not Available |
| 27 | No Image | MOTOR, MAIN 116.35922500 Part Number: KC92FCJNZ000 for Kenmore | KC92FCJNZ000 | $190.92Read more |
| 28 | Not Available | Lead wire black | KC38GATMZ000 | Not Available |
| 29 | Not Available | Lead wire assembly | KC43GAUYZ000 | Not Available |
| 30 | Not Available | Upper body | KC02ABZTZV06 | Not Available |
| 31 | Not Available | Indicator light switch (includes illus. 9) | 4370741 | Not Available |
| 32 | Not Available | Adapter tube vac switch | 4370677 | Not Available |
| 33 |  | Caster Unit For: kenmore | KC95CBZTZV06 | $29.21Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Counter weight | KC12CBZTZ000 | Not Available |
| 35 | Not Available | Rubber cushion | KC41ABZTZV00 | Not Available |
| 36 | Not Available | Caster supporter | KC34CBZTZV06 | Not Available |
| 37 |  | Caster Unit-Titan/Kenmore Canister For: titan | 4370691 | $26.55Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Spring bag mount | KS706024 | Not Available |
| 39 |  | Bag Supporter Assembly For: kenmore | KC11KAKTZR01 | $10.88Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Gasket bag mount. | 4370689 | Not Available |
| 41 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Special order: ships in 2 to 4 weeks |
| 42 | Not Available | Bag mount | KC10KAKTZR01 | Not Available |
| 44 | Not Available | Ornamental plate | KC21TCPSZ000 | Not Available |
| 45 | Not Available | Lead wire assembly | 4370978 | Not Available |
| 46 | Not Available | Latch | KC15KCPSZV07 | Not Available |
| 47 | Not Available | Body packing | KC19ACPSZ000 | Not Available |
| 48 | Not Available | Body packing | KC19ACPTZ000 | Not Available |
| 49 | Not Available | Rear packing | KC06LCPSZ000 | Not Available |
| 50 |  | Cord Reel Assy
28Ft For: kenmore | 8195114 | $68.38Read more |
| 50 |  | Available Pre OwnedPre-owned Kenmore Progressive Cord Reel - 8195114 More Product Details | 8195114R | $49.99Add to cart |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Socket bulb | 4370721 | Not Available |
| 2 |  | Window For: kenmore | KC21HBZTZ000 | $16.28Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Window cover (height adjustment) | 4369687 | Not Available |

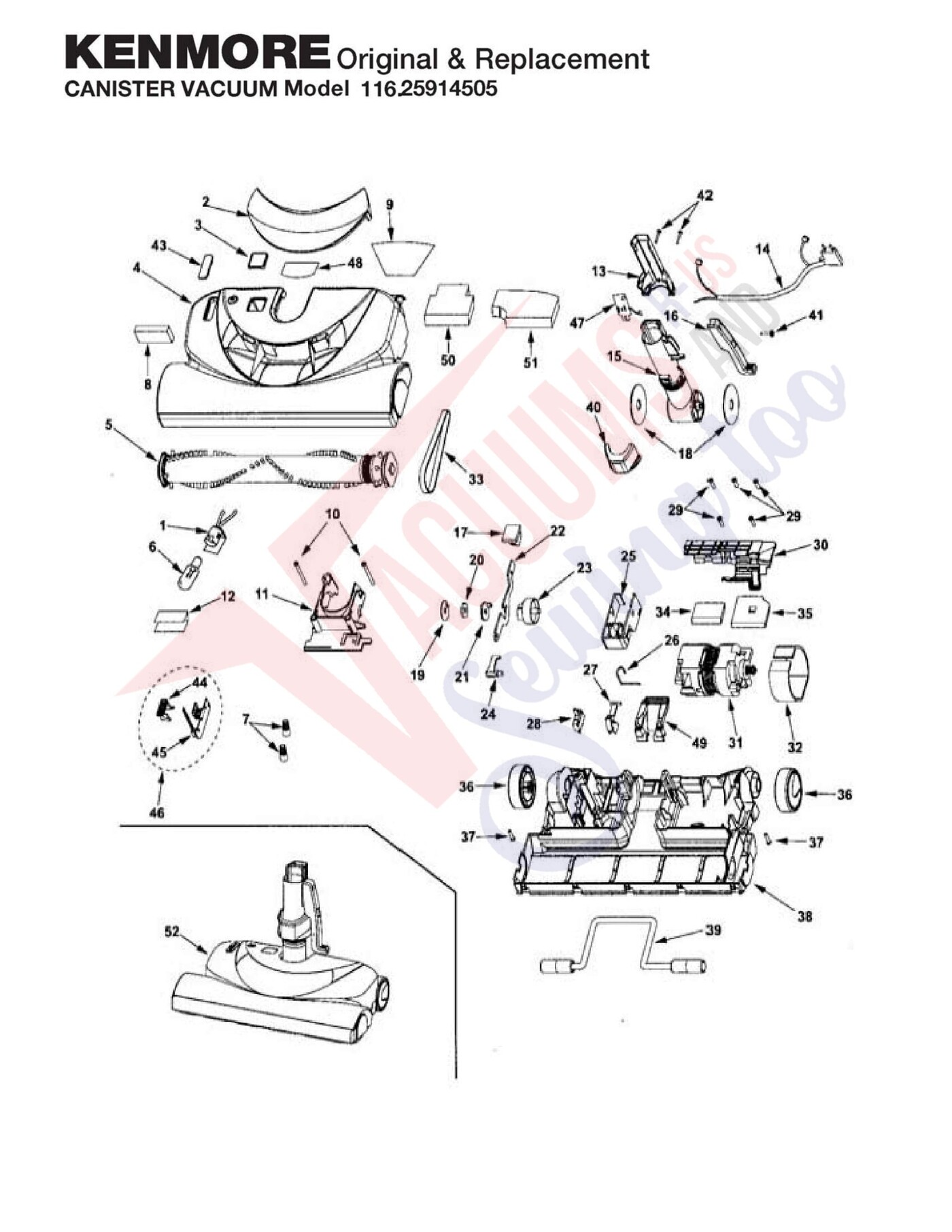

| 4 | Not Available | Nozzle housing | KC99RBZRZMUB | Not Available |
| 5 |  | Brushroll, 116.51612001 W/Ball Brg Sq End Caps Part Number: 8192535 for Kenmore | 8192535 | $128.50Read more |
| 6 | Not Available | Light bulb (sears no. 20-5240) | FA-3515 | Not Available |
| 7 | Not Available | Connector wire | SS-3270 | Not Available |
| 8 | No Image | FILTER, INTAKE/EXHAUST PN 116.55813503 Part Number: 4370713 for Kenmore | 4370713 | $4.21Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Compatible alternateSecondary Filter Foam
On Power Nozzle For: kenmore More Product Details | 591004161 | $4.22Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Reflector nozzle | KC84HBZTZ000 | Not Available |
| 10 | Not Available | Screw | KS681550 | Not Available |
| 11 | No Image | COVER, SWIVEL CAP PN 116.57915701 Part Number: KC25QAKTZV07 for Kenmore | KC25QAKTZV07 | $31.34Read more |
| 12 | Not Available | Window reflector | KC22HBZTZ000 | Not Available |
| 13 | Not Available | Cover rear | 4370717 | Not Available |
| 14 | Not Available | Lead wire "a" | KC67VAXEZV06 | Not Available |
| 15 | Not Available | Swivel | KC92PCREZ000 | Not Available |
| 16 | Not Available | Pedal quick release | 8195108 | Not Available |
| 17 | Not Available | Pad foot pedal | 4370577 | Not Available |
| 18 |  | Kenmore Swivel Seal | KS742019 | $16.81Read more |
| 19 | Not Available | Washer thrust | KS722909 | Not Available |
| 20 | Not Available | Washer | KS725635 | Not Available |
| 21 | Not Available | Catch indexing | KS722955 | Not Available |
| 22 | Not Available | Indicator level | 4370720 | Not Available |
| 23 | Not Available | Cam indicator | KS747291 | Not Available |
| 24 | Not Available | Ratchet catch | KS742016 | Not Available |
| 25 |  | Indicator Block Assembly For: kenmore | KC83MAKSZV06 | $20.30Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Spring assist | 725775 | Not Available |
| 27 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Overload protector | KC76FAXEZ000 | Not Available |
| 29 | Not Available | Screw | KS681297 | Not Available |
| 30 | Not Available | Motor cap | KC26FCPSZ000 | Not Available |
| 31 |  | Motor-Kenmore Power Nozzle - Grooved For: kenmore | KC90FCBJZ000 | $73.50Read more |
| 32 | Not Available | Motor gasket | KS747156 | Not Available |
| 33 |  | Kenmore Serpentine Belt | KER1080 | $9.99Add to cart |
| 34 | Not Available | Packing motor (front) | KC75ACPSZ000 | Not Available |
| 35 | Not Available | Packing motor (rear) | KC13BCPSZ000 | Not Available |
| 36 |  | Wheel, Rear P/N 116.25812503 2Pk Part Number: KC99CBZTZV07 for Kenmore | KC99CBZTZV07 | $25.48Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Lower plate | KC03RBZT2V07 | Not Available |
| 39 |  | Front Axle Assy For: kenmore | KS744029 | $15.28Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Front cover | 4370967 | Not Available |
| 41 | Not Available | Screw motor case mounting | 4370280 | Not Available |
| 42 | Not Available | Screw 8-24 x 1 (2) | 4368551 | Not Available |
| 43 | Not Available | Window dirt sensor | 4369981 | Not Available |
| 44 | Not Available | P.c.b. supporter | KC23KBZTZU00 | Not Available |
| 45 | Not Available | P.c.b dirt sensor | KC87GBZR1000 | Not Available |
| 46 | Not Available | Dirt sensor unit | KC87GBZR2000 | Not Available |
| 47 | Not Available | Pcb "b" unit | 4369985 | Not Available |
| 48 | Not Available | Reflector | KC84HCPSZ000 | Not Available |
| 49 |  | Pedal, Red Handle Release Power-Mate/Canister Part Number: KC47AGJ3R01 for Kenmore | KC47AGJ3R01 | $4.95Read more |
| 50 | Not Available | Body packing right nozzle | KC39ACPSZ000 | Not Available |
| 51 | Not Available | Body packing left nozzle | KC40ACPSZ000 | Not Available |
| 52 | No Image | Nozzle Power, Black PowerMate 116.25914503 Part Number: KC50XBZRZU01 for Kenmore | KC50XBZRZU01 | $458.86Read more |
| # | Part image | Description | SKU | Price |

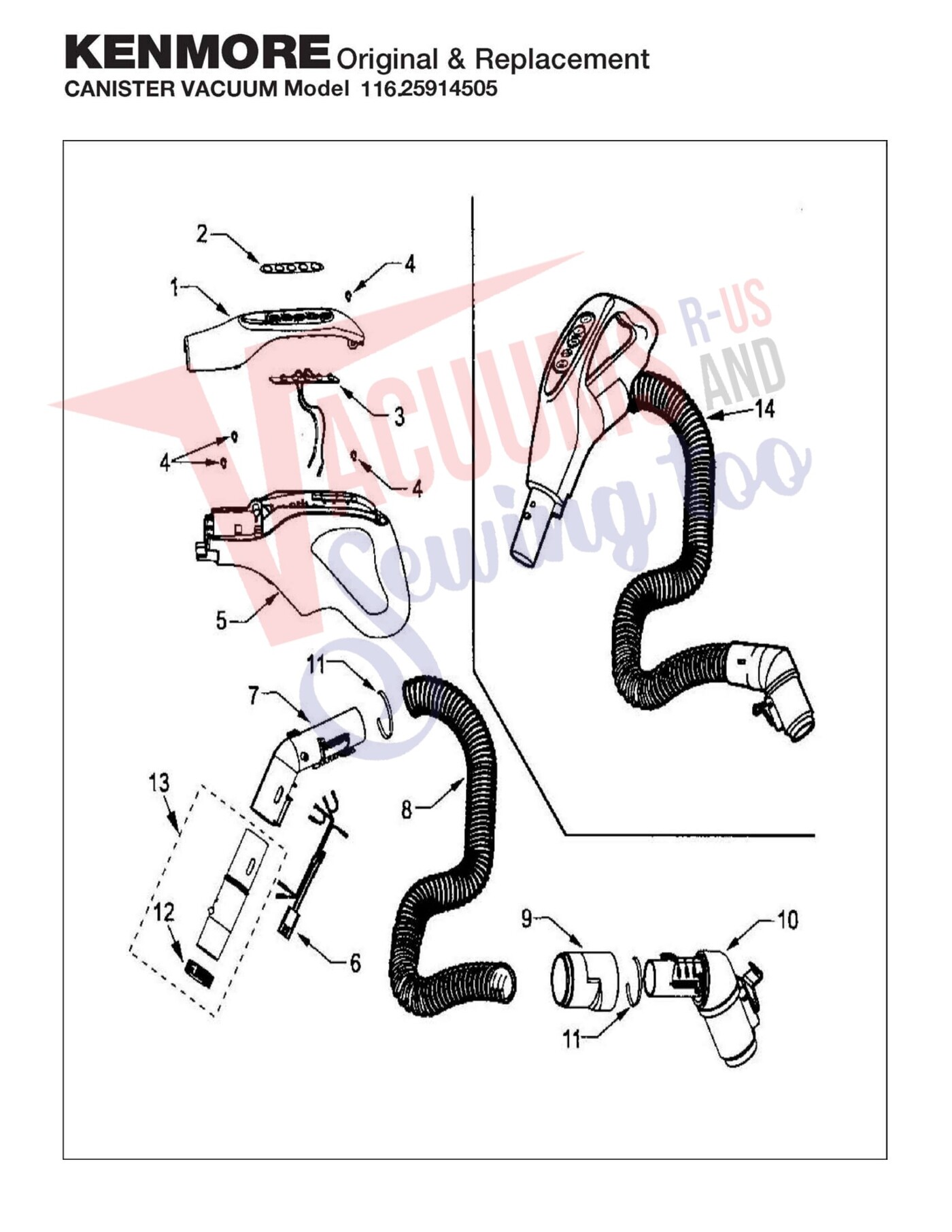

| 1 | Not Available | Switch case | KC68GBZPZV07 | Not Available |
| 2 | Not Available | Electronic label | KC31TBZPZ000 | Not Available |
| 3 | Not Available | P.c.b. assembly | KC87GBZNZ000 | Not Available |
| 4 | Not Available | Screw knocking cam | 4369085 | Not Available |
| 5 |  | Handle Assy For: kenmore | KC93BBZTZV06 | $36.16Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Wire harness | KC37GBZPZV06 | Not Available |
| 7 | Not Available | Curved wand | KC30PATM1V06 | Not Available |
| 8 | No Image | HOSE, 116.22813200 Part Number: 4370560 for Kenmore | 4370560 | $64.26Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Connection Pipe Assembly For: kenmore | KC92PBZTZV06 | $51.73Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Hose packing | KC04RATMZ000 | Not Available |
| 12 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Stub tube assembly | KC56PCPSZV06 | Not Available |
| 14 | Not Available | Hose assembly | KC94PCPSZV07 | Not Available |
