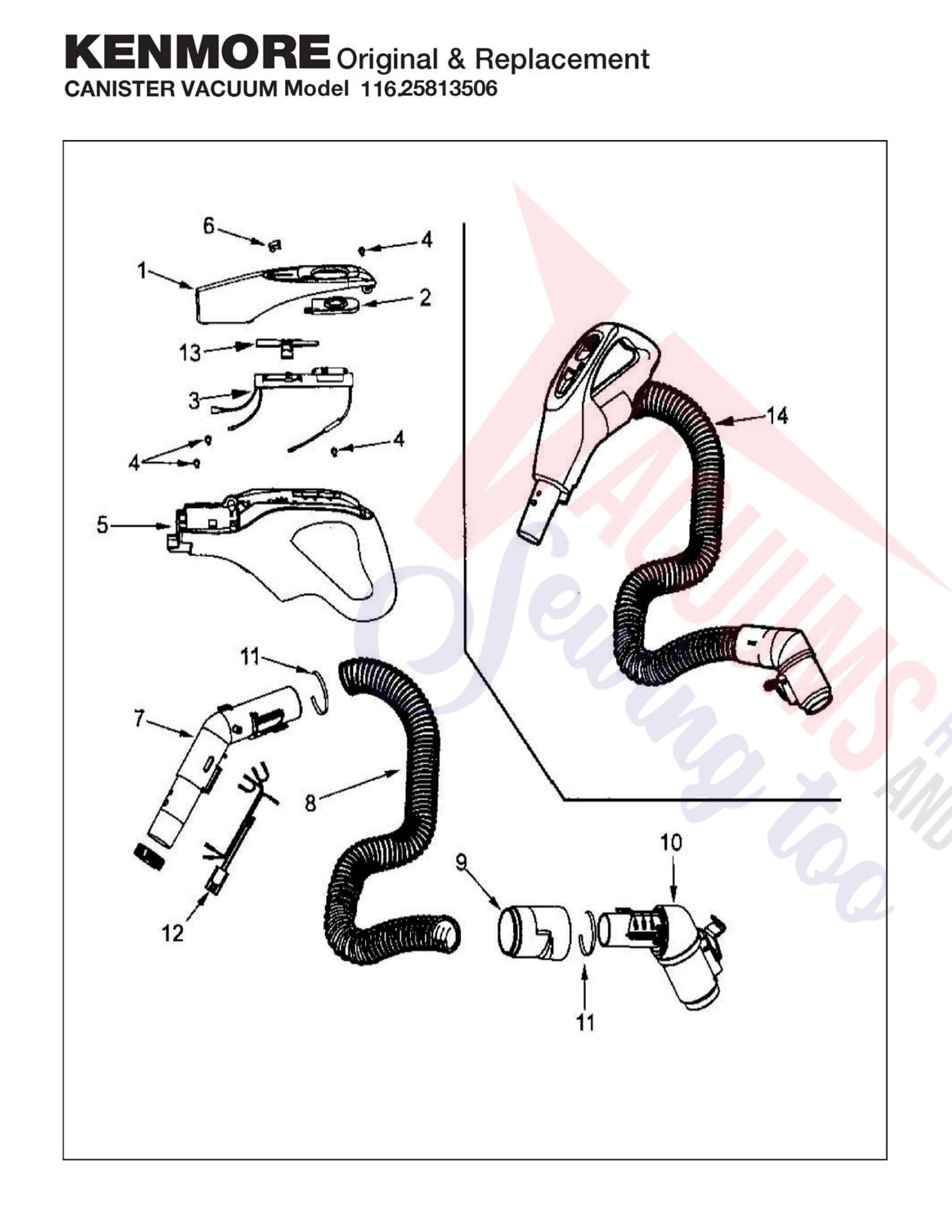

Schematic and parts book for Kenmore 116.25813506 Hose. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Switch case | KC68GBZRZVU7 | Not Available |
| 2 | Not Available | Sliding knob | KC02UBZRZVU6 | Not Available |
| 3 | Not Available | P.c.b. assembly (slide pot) | KC87GBZPZ000 | Not Available |
| 4 | Not Available | Screw knocking cam | 4369085 | Not Available |
| 5 |  | Handle Assy For: kenmore | KC93BBZTZV06 | $36.16Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Order Key #5 | NLA | Not Available |
| 7 | Not Available | Curved pipe unit | 8174838 | Not Available |
| 8 | No Image | HOSE, 116.22813200 Part Number: 4370560 for Kenmore | 4370560 | $64.26Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Connection Pipe Assembly For: kenmore | KC92PBZTZV06 | $51.73Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Hose packing | KC04RATMZ000 | Not Available |
| 12 |  | Wire Harness2 Wire For: kenmore | KC37GBZRZV06 | $17.58Add to cart |
| 13 | Not Available | Actuator support | KC02UBZNZV06 | Not Available |
| 14 | Not Available | Hose Ass'y | KC94PBZRZV07 | Not Available |
