Schematic and parts book for Kenmore 116.25615500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

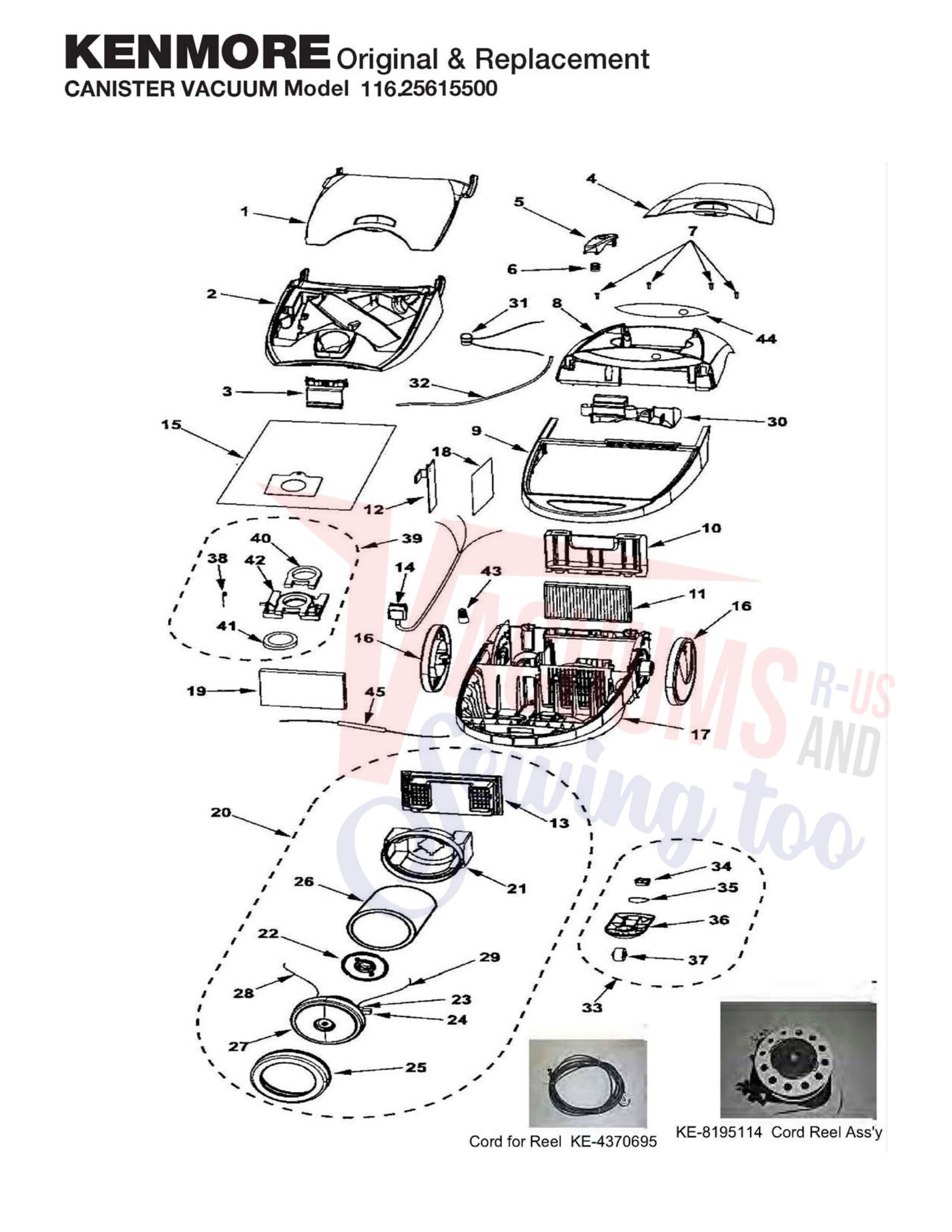

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Tool storage cover deco | KC74PCPNZWUH | Not Available |
| 2 | Not Available | Dust cover deco | KC60KCPMZWUH | Not Available |
| 3 |  | Latch - Hood For: kenmore | KC01DBZTZV07 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | COVER, TOOL 116.55615500 Part Number: KC74PCPMZWUH for Kenmore | KC74PCPMZWUH | $134.44Read more |
| 5 | No Image | PEDAL, CORD REWIND 116.25512500 Part Number: KC46NBZTZV06 for Kenmore | KC46NBZTZV06 | $14.43Read more |
| 6 | No Image | SPRING, CORD REWIND 116.25512500 Part Number: KS744258 for Kenmore | KS744258 | $17.45Read more |
| 7 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Canopy | KC48HBZTZWUH | Not Available |
| 9 | Not Available | Furniture guard | KC31ABZTZV06 | Not Available |
| 10 | No Image | COVER, FILTER 116. 24614400 Part Number: KC41KBZTZV06 for Kenmore | KC41KBZTZV06 | $27.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Exhaust filter (hepa) sears no. 20-86889 | KER-1800 | Not Available |
| 12 | Not Available | P.c.b. assembly | KC86WBZRZ000 | Not Available |
| 13 | Not Available | Filter supporter | KC32FBZT1V07 | Not Available |
| 14 | Not Available | Receptacle assembly 3-wire | KC90EBZTZV06 | Not Available |
| 15 | Not Available | Dust bag (hepa) sears no. 20-50557 | KER-14551A | Not Available |
| 16 | No Image | WHEEL, 116.25513506 Part Number: KC99CBZNZV07 for Kenmore | KC99CBZNZV07 | $20.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Lower body | KC03ABZT4V07 | Not Available |
| 18 | Not Available | Cooling guide | KC41FBZPZ000 | Not Available |
| 19 | No Image | FILTER, SECONDARY 116.25512500 Part Number: 8175084 for Kenmore | 8175084 | $17.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | MOTOR, MAIN 116.25512500 Part Number: KC90FBZTZV07 for Kenmore | KC90FBZTZV07 | $87.65Read more |
| 21 | Not Available | Motor enclosures | KC10GBZTZV07 | Not Available |
| 22 | Not Available | Motor support rubber rear | KC03FBZTZ000 | Not Available |
| 24 | Not Available | Brush motor (2) | 4370655 | Not Available |
| 25 | Not Available | Motor support rubber front | KC02FCPSZ000 | Not Available |
| 26 | Not Available | Suppressor noise | 4370683 | Not Available |
| 27 | No Image | MOTOR, 116.35912401 Part Number: KC92FBEMZ000 for Kenmore | KC92FBEMZ000 | $219.72Read more |
| 28 | Not Available | Lead wire black | KC38GATMZ000 | Not Available |
| 29 | Not Available | Lead wire assembly | KC43GAUYZ000 | Not Available |
| 30 | Not Available | Upper body | KC02ABZTZV06 | Not Available |
| 31 | Not Available | Indicator light switch (includes illus. 9) | 4370741 | Not Available |
| 32 | Not Available | Adapter tube vac switch | 4370677 | Not Available |
| 33 |  | Caster Unit For: kenmore | KC95CBZTZV06 | $29.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Counter weight | KC12CBZTZ000 | Not Available |
| 35 | Not Available | Rubber cushion | KC41ABZTZV00 | Not Available |
| 36 | Not Available | Caster supporter | KC34CBZTZV06 | Not Available |
| 37 |  | Caster Unit-Titan/Kenmore Canister For: titan | 4370691 | $26.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Spring bag mount | KS706024 | Not Available |
| 39 |  | Bag Supporter Assembly For: kenmore | KC11KAKTZR01 | $10.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Gasket bag mount | KC03LAKTZ000 | Not Available |
| 41 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Bag mount | KC10KAKTZR01 | Not Available |
| 43 | Not Available | Wire Nut | SS-3270 | Not Available |
| 44 | Not Available | Ornamental plate | KC21TBZTZ000 | Not Available |
| 45 | Not Available | Lead wire assembly | 4370978 | Not Available |

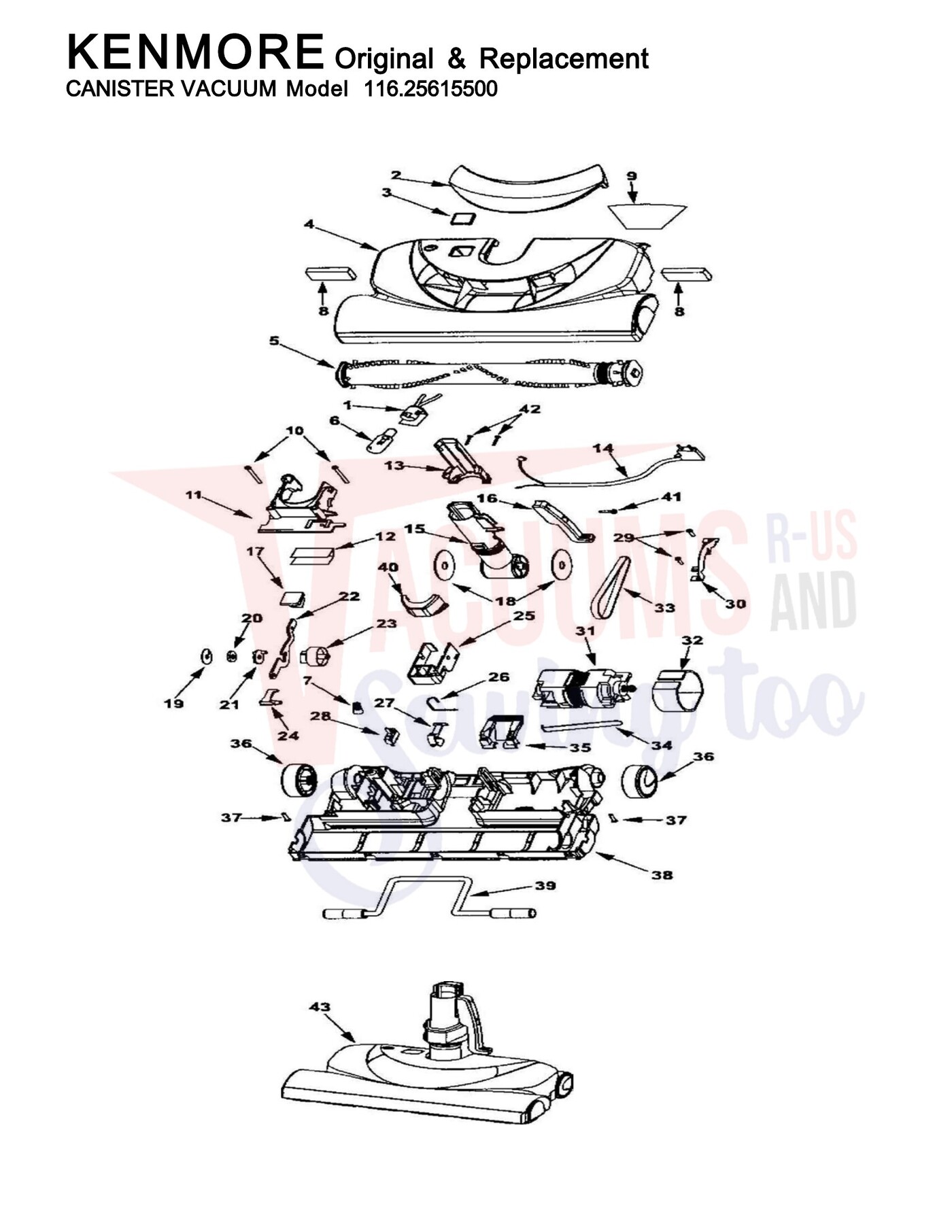

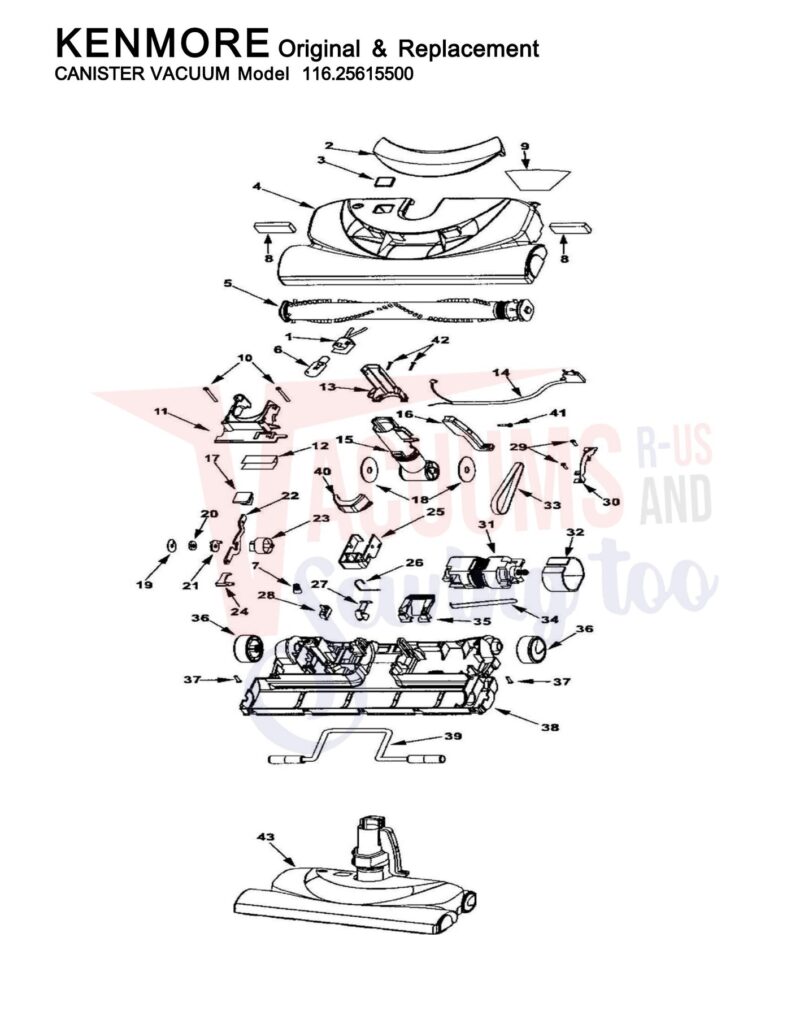

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Socket bulb | 4370721 | Not Available |
| 2 |  | Window For: kenmore | KC21HBZTZ000 | $16.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Window cover (height adjustment) | 4369687 | Not Available |
| 4 | Not Available | Nozzle housing | KC99RCPMZWUH | Not Available |
| 5 |  | Brushroll, 116.51612001 W/Ball Brg Sq End Caps Part Number: 8192535 for Kenmore | 8192535 | $128.50Read more |
| 6 | Not Available | Light Bulb | FA-3515 | Not Available |
| 7 | Not Available | Wire Nut | SS-3270 | Not Available |
| 8 | No Image | FILTER, INTAKE/EXHAUST PN 116.55813503 Part Number: 4370713 for Kenmore | 4370713 | $4.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Compatible alternateSecondary Filter Foam
On Power Nozzle For: kenmore More Product Details | 591004161 | $4.22Add to cart Special order — allow 2-4 weeks. |
| 9 | Not Available | Reflector nozzle | KC84HBZTZ000 | Not Available |
| 10 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | COVER, SWIVEL CAP PN 116.57915701 Part Number: KC25QAKTZV07 for Kenmore | KC25QAKTZV07 | $31.34Read more |
| 12 | Not Available | Window reflector | KC22HBZTZ000 | Not Available |
| 13 | Not Available | Cover rear | 4370717 | Not Available |
| 14 |  | Kenmore powerhead short power cord | KC67VCMWZV06 | $54.99Read more |
| 15 | Not Available | Swivel | KC92PCREZ000 | Not Available |
| 16 | Not Available | Pedal quick release | 8195108 | Not Available |
| 17 | Not Available | Pad foot pedal | 4370577 | Not Available |
| 18 |  | Kenmore Swivel Seal | KS742019 | $16.81Read more |
| 19 | Not Available | Washer thrust | KS722909 | Not Available |
| 20 | Not Available | Washer | KS725635 | Not Available |
| 21 | Not Available | Catch indexing | KS722955 | Not Available |
| 22 | Not Available | Indicator level | 4370720 | Not Available |
| 23 | Not Available | Cam indicator | KS747291 | Not Available |
| 24 | Not Available | Ratchet catch | KS742016 | Not Available |
| 25 | Not Available | Indicator block | KS83MAKSV06 | Not Available |
| 26 | Not Available | Spring assist | 725775 | Not Available |
| 27 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Overload protector | KC76FAXEZ000 | Not Available |
| 29 | Not Available | Screw | KS681297 | Not Available |
| 30 | Not Available | Motor bridge | KS705093 | Not Available |
| 31 |  | Motor-Kenmore Power Nozzle - Grooved For: kenmore | KC90FCBJZ000 | $73.50Read more |
| 32 | Not Available | Motor gasket | KS747156 | Not Available |
| 33 |  | Kenmore Serpentine Belt | KER1080 | $9.99Add to cart |
| 34 | Not Available | Spring motor adjustment | KS742002 | Not Available |
| 35 |  | Pedal, Red Handle Release Power-Mate/Canister Part Number: KC47AGJ3R01 for Kenmore | KC47AGJ3R01 | $4.95Read more |
| 36 |  | Wheel, Rear P/N 116.25812503 2Pk Part Number: KC99CBZTZV07 for Kenmore | KC99CBZTZV07 | $25.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Lower plate | KC03RBZT2V07 | Not Available |
| 39 |  | Front Axle Assy For: kenmore | KS744029 | $15.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Front cover | 4370967 | Not Available |
| 41 | Not Available | Screw motor case mounting | 4370280 | Not Available |
| 42 | Not Available | Screw 8-24 x 1 (2) | 4368551 | Not Available |

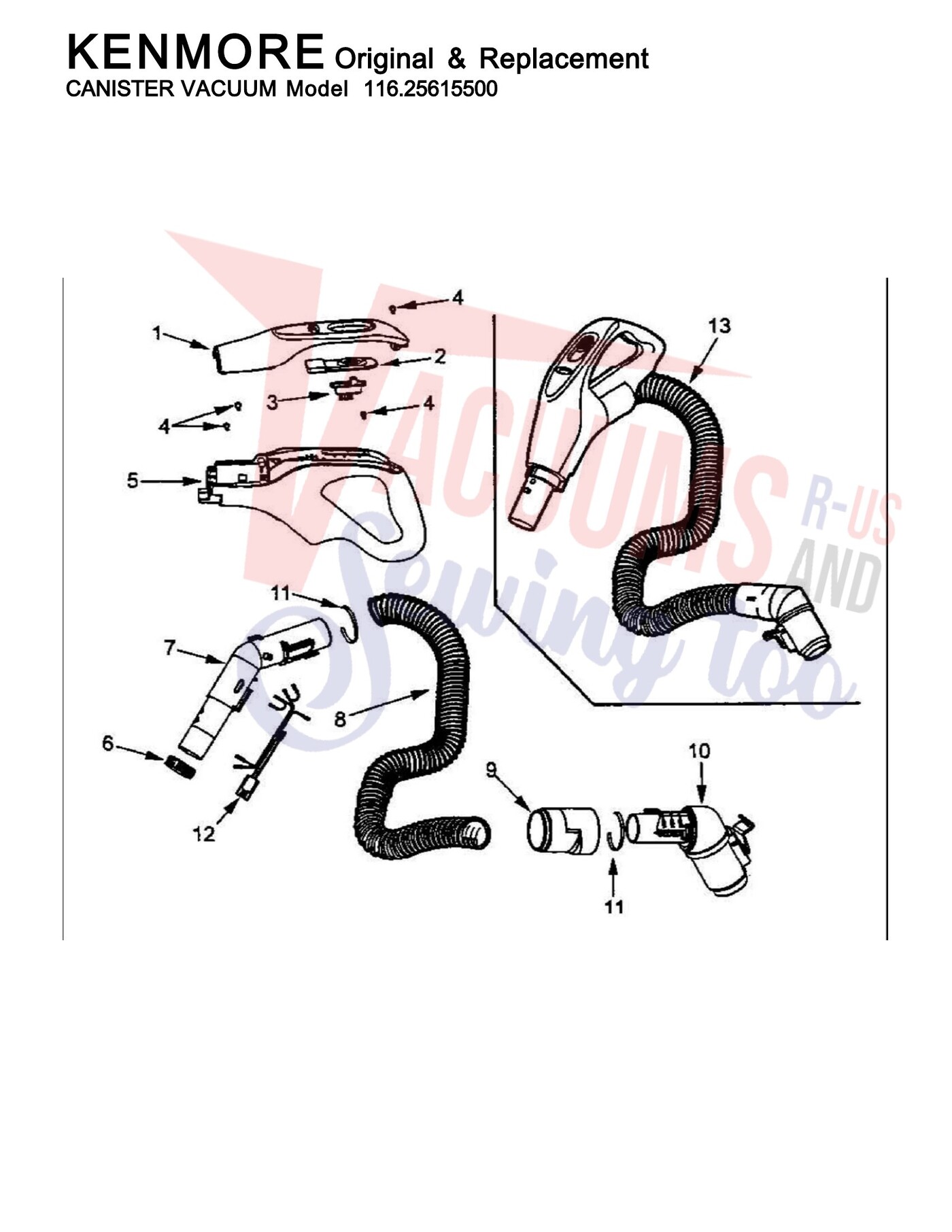

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Switch case | KC68GBZTZV07 | Not Available |
| 2 | Not Available | Sliding knob | KC02UBZTZVU6 | Not Available |
| 3 | No Image | SWITCH, 3 POSITION 116.25512500 Part Number: 8191600 for Kenmore | 8191600 | $53.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Screw knocking cam | 4369085 | Not Available |
| 5 |  | Handle Assy For: kenmore | KC93BBZTZV06 | $36.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tube - Center For: kenmore | 4370612 | $48.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | HOSE, BLANK W/O ENDS 116.20512003 Part Number: 4370588 for Kenmore | 4370588 | $77.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Connection Pipe Assembly For: kenmore | KC92PBZTZV06 | $51.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hose packing | KC04RATMZ000 | Not Available |
| 12 | Not Available | Wire hanrness | KC37GBZTZV06 | Not Available |
| 13 |  | no longer available sub for sku 591006123 Kenmore Canister Vacuum Hose 3 Wire + 3 Position - 6ft | KC94PBZTZV07 | $153.99Read more |
| 13 |  | Compatible alternateHose, Assembly Part Number: 591006123 for Kenmore More Product Details | 591006123 | $100.66Add to cart |

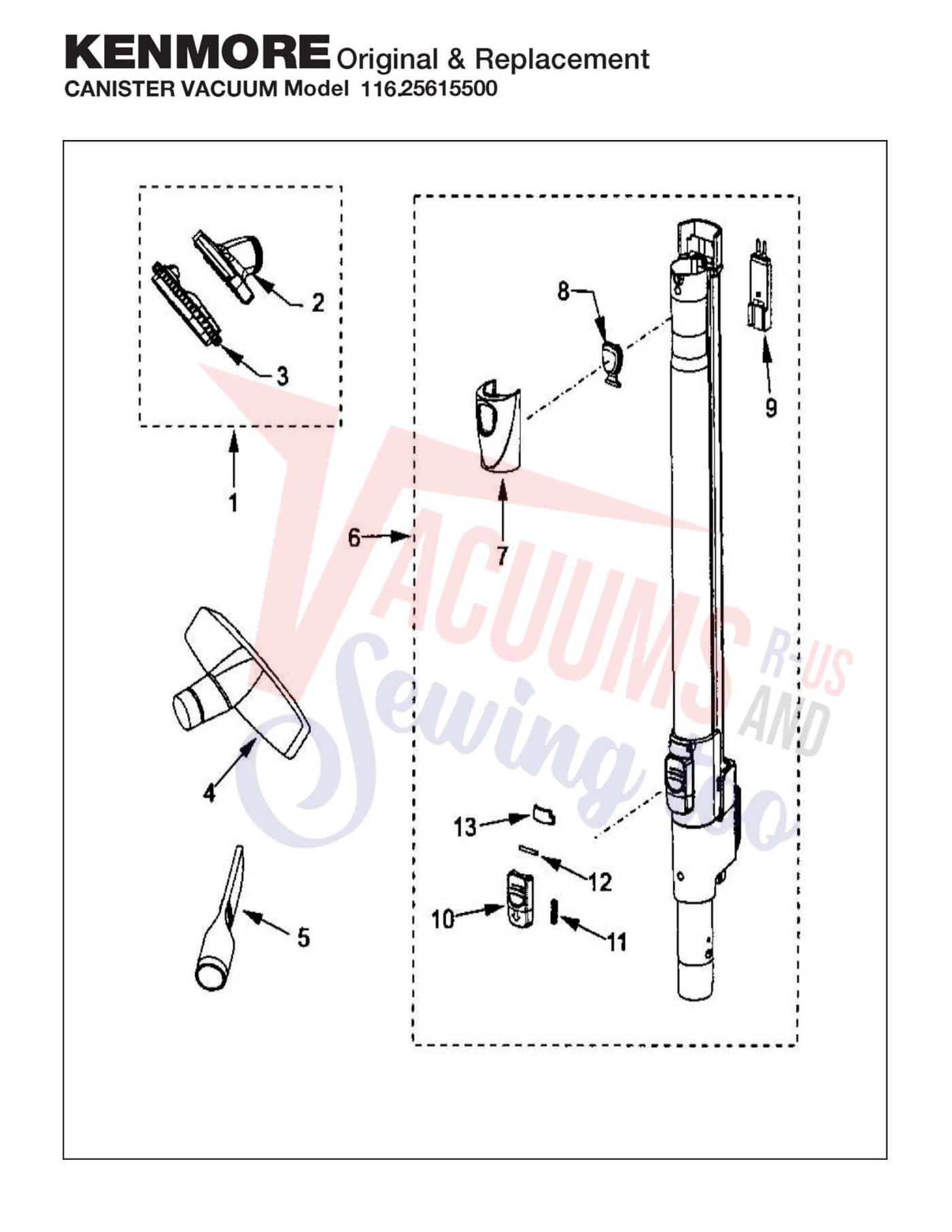

| # | Part image | Description | SKU | Price |
| 1 |  | UPHOLSTERY NOZZLE, POWER TEAM Part Number: KC63RBZTZV07 for Kenmore | KC63RBZTZV07 | $64.06Read more |
| 2 | No Image | UPHOLSTERY BRUSH, KENMORE POWER TEAM 116.25512500 Part Number: KC62RBZTZV07 for Kenmore | KC62RBZTZV07 | $50.01Read more |
| 3 | No Image | DUSTING BRUSH, POWER TEAM Part Number: KC94QBZTZV07 for Kenmore | KC94QBZTZV07 | $62.22Read more |
| 4 | No Image | BRUSH, FLOOR KENMORE POWER TEAM CANISTER Part Number: 4370614 for Kenmore | 4370614 | $46.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | CREVICE TOOL, POWER TEAM 116.24212400 Part Number: 8175100 for Kenmore | 8175100 | $25.72Read more |
| 6 |  | Kenmore Vacuum Telescopic Electric Wand for Canisters - 8192377, KC99PCPMZV06, KC99PCPSZV06 | KC99PCPMZV06 | $70.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Quick release upper | KC70QCPMZV06 | Not Available |
| 8 | Not Available | Quick release button | KC13DCPMZV06 | Not Available |
| 9 |  | Cover, Black Plastic Fuse Wand 116.25615500 Part Number: 8191782 for Kenmore | 8191782 | $43.81Read more |
| 10 | Not Available | Sliding knob | KC57HASMZV07 | Not Available |
| 11 | No Image | SPRING, TELESCOPIC WAND 116.28615801 Part Number: KC65DASMZ000 for Kenmore | KC65DASMZ000 | $9.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Sliding pin | KC27UASMZ000 | Not Available |
| 13 | Not Available | Pipe cover | KC06QASMZV06 | Not Available |
