Schematic and parts book for Kenmore 116.2561290 Incomplete tools head cord reel only. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

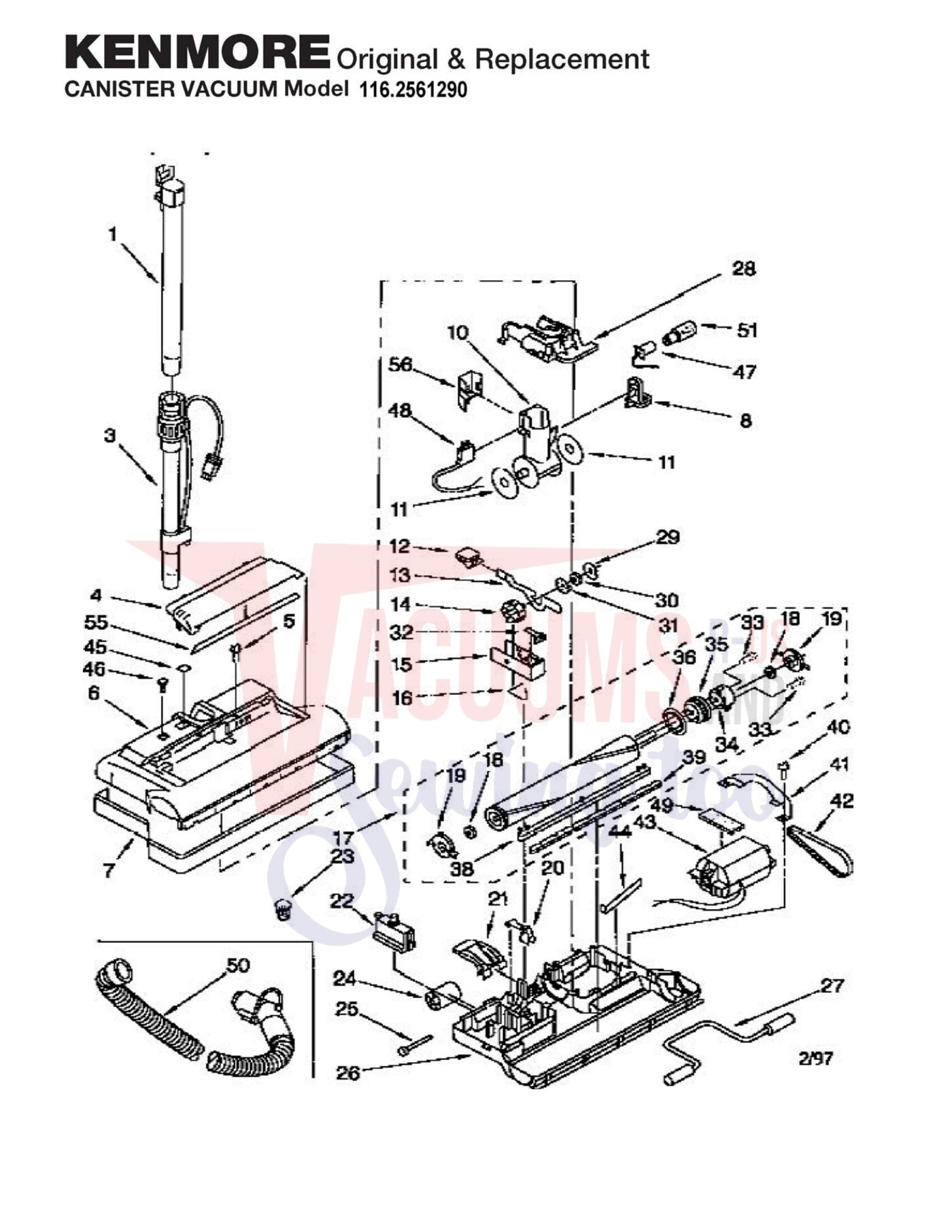

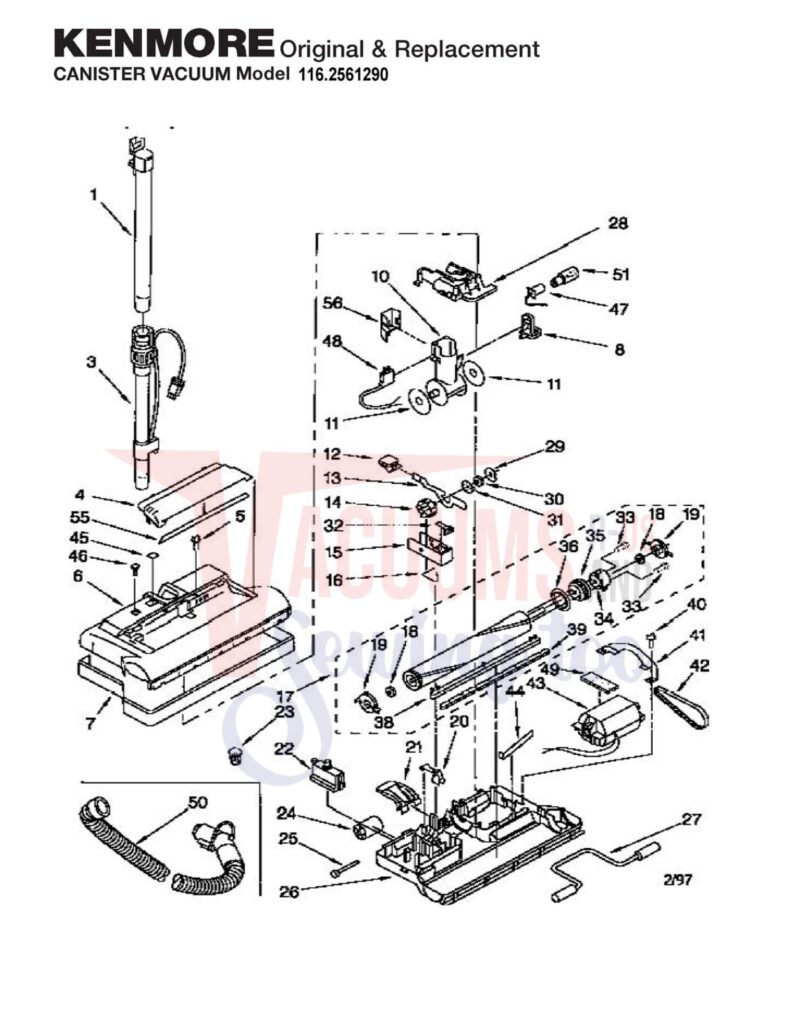

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Wand | 50043 | Not Available |
| 3 | Not Available | Lower Wand and cord | 50051 | Not Available |
| 4 | Not Available | Housing bulb (includes no. 55) | 4369824 | Not Available |
| 5 | Not Available | Screw 8-18 x 1-7/8 | 488839 | Not Available |
| 6 | Not Available | Nozzle | 4369823 | Not Available |
| 7 | Not Available | Bumper | 747222 | Not Available |
| 8 | No Image | PEDAL, WAND Part Number: 8191503 for Kenmore | 8191503 | $19.43Read more |
| 10 | Not Available | Swivel | 4368991 | Not Available |
| 11 | Not Available | Seal swivel bearing (2) | 742019 | Not Available |
| 12 | Not Available | Pad foot pedal | 4150826 | Not Available |
| 13 | Not Available | Indicator lever | 4370720 | Not Available |
| 14 | Not Available | Indicator cam | 588543 | Not Available |
| 15 | Not Available | Indicator block | 8191506 | Not Available |
| 16 | Not Available | Spring assist | 725775 | Not Available |
| 17 | Not Available | Brush assembly | NLA | Not Available |
| 18 | Not Available | Washer metal (12 x 1/2) (2) (incl. 18) | 681424 | Not Available |
| 19 | Not Available | Bearing and housing assembly (2)(includes no. 18) | 676195 | Not Available |
| 20 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Release handle | 4148391 | Not Available |
| 22 | Not Available | Protector overload | 8191614 | Not Available |
| 23 | Not Available | Connector wire (2) | SS-3270 | Not Available |
| 24 | Not Available | Roller nozzle (2) | 747117 | Not Available |
| 25 | Not Available | Shaft roller (2) | 742006 | Not Available |
| 26 | No Image | BASE, NOZZLE 116.54212404 Part Number: 4370013 for Kenmore | 4370013 | $79.51Read more |
| 27 |  | Front Axle Assy For: kenmore | KS744029 | $15.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Cap swivel | 8191518 | Not Available |
| 29 | Not Available | Washer thrust | 722909 | Not Available |
| 30 | Not Available | Washer spring | 725635 | Not Available |
| 31 | Not Available | Catch indexing | 588543 | Not Available |
| 32 | Not Available | Ratchet catch | 742016 | Not Available |
| 33 | Not Available | Screw type 25 no. 6 pan (2) | 681605 | Not Available |
| 34 | Not Available | End brush tufted | 742509 | Not Available |
| 35 | Not Available | Brush sprocket | 742506 | Not Available |
| 36 | Not Available | Brush sprocket flange | 742031 | Not Available |
| 38 | Not Available | Beater brush (2) | 676194 | Not Available |
| 39 | Not Available | Bar beater | 743419 | Not Available |
| 40 | Not Available | Screw 8-18 x 5/8 (2) | STD610805 | Not Available |
| 41 | Not Available | Motor bridge | 705093 | Not Available |
| 42 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 43 | Not Available | Motor (Sears no. KC90FCAL100) | 60518 | Not Available |
| 44 | Not Available | Spring motor adjustment | 742002 | Not Available |
| 45 | Not Available | Lens height adjuster | 4369687 | Not Available |
| 46 | Not Available | Extension button | 4369982 | Not Available |
| 47 | Not Available | Socket bulb | 747096 | Not Available |
| 48 | No Image | CORD, PN 116.26512690 Part Number: KS4151701 for Kenmore | KS4151701 | $45.58Read more |
| 49 | Not Available | Gasket motor hose assembly | 747156 | Not Available |
| 50 | Not Available | Hose Ass'y | 40473 | Not Available |
| 51 | Not Available | Bulb | FA-3515 | Not Available |
| 55 | Not Available | Lens light | KS747286 | Not Available |

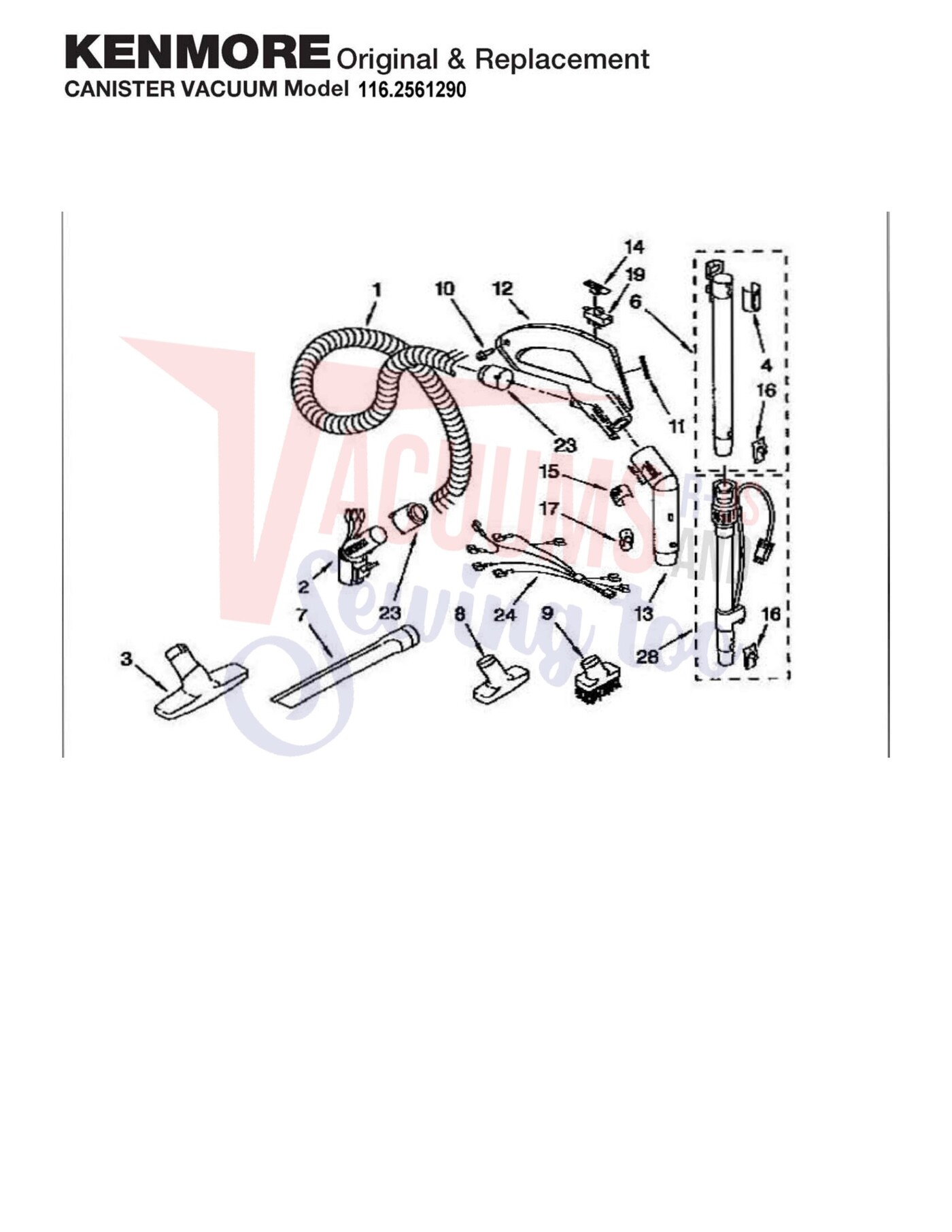

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOSE, 116.2591290 Part Number: 4369467 for Kenmore | 4369467 | $75.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | SWIVEL ASSEMBLY | 4369106 | Not Available |
| 3 | Not Available | BRUSH FLOOR | 747151 | Not Available |
| 4 | Not Available | RELEASE QUICK | 4149957 | Not Available |
| 6 | Not Available | WAND AND CORD MOUNT ASSEMBLY | 4370011 | Not Available |
| 7 | Not Available | TOOL CREVICE | 4147116 | Not Available |
| 8 | Not Available | BRUSH FABRIC | 4147115 | Not Available |
| 9 | Not Available | BRUSH DUSTING | 4147113 | Not Available |
| 10 | Not Available | SCREW NO. 10 | 4368879 | Not Available |
| 11 | Not Available | PLATE HANDLE | 4369330 | Not Available |
| 12 | Not Available | HANDLE RIGHT HAND | 4369112 | Not Available |
| 12A | Not Available | HANDLE LEFT HAND | 4369111 | Not Available |
| 13 | Not Available | TUBE CENTER (INCLUDES ILLUS. NO. 17) | 4369114 | Not Available |
| 14 | Not Available | SLIDE SWITCH | 4369113 | Not Available |
| 15 | Not Available | CONTROL SUCTION | 4147159 | Not Available |
| 16 | Not Available | SPRING WAND LOCK | 725419 | Not Available |
| 17 | Not Available | SPRING WAND LOCK | 4152093 | Not Available |
| 19 | Not Available | SWITCH 3-POSITION | 4369108 | Not Available |
| 23 | Not Available | ADAPTER HOSE (2) | 4152863 | Not Available |
| 24 | Not Available | HARNESS WIRING | 4369353 | Not Available |
| 28 | Not Available | WAND ASSEMBLY (LOWER) | 4370012 | Not Available |

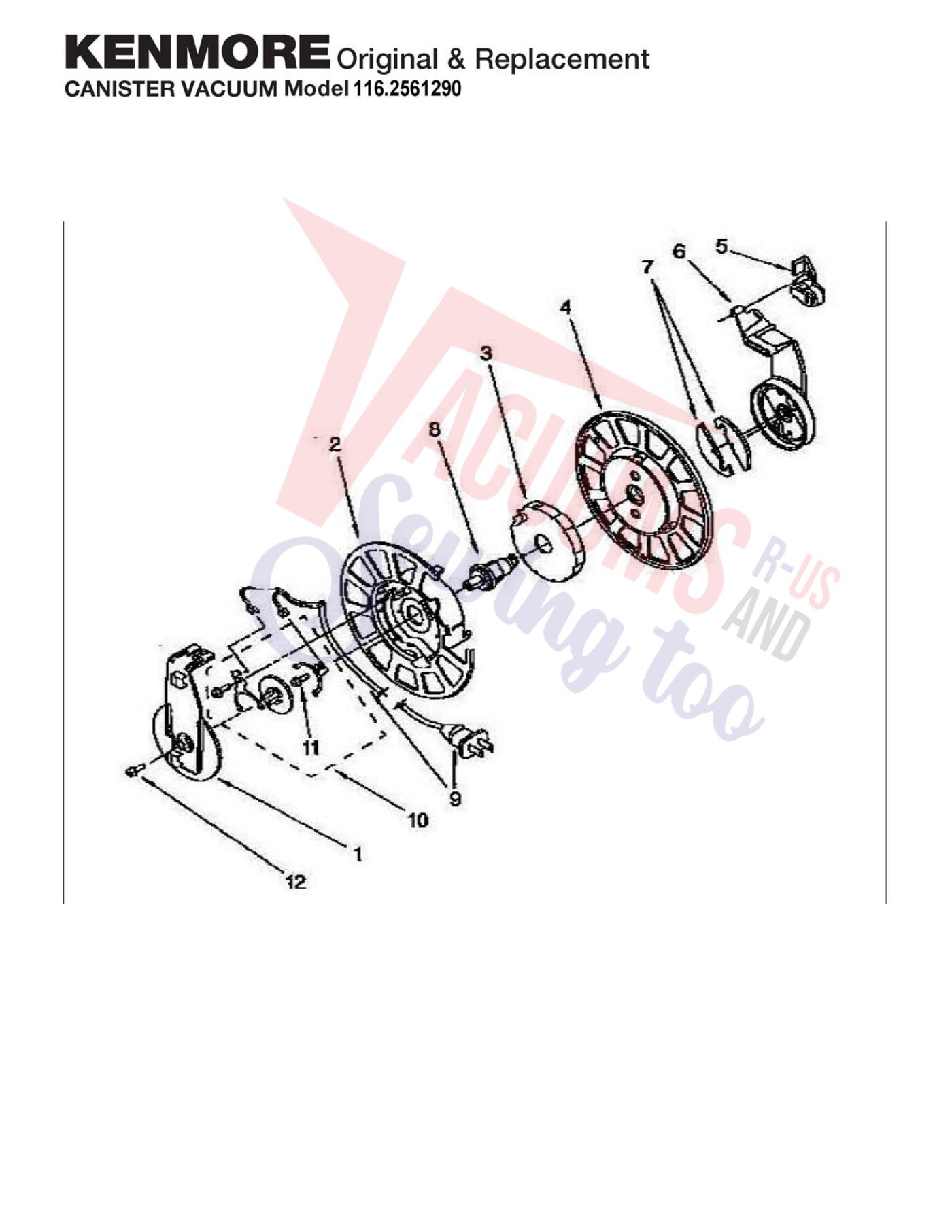

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BRACKET CONTACT BLOCK | 4152380 | Not Available |
| 2 | Not Available | MAIN BODY | 4152226 | Not Available |
| 3 | Not Available | SPRING AND KEEPER | 4149917 | Not Available |
| 4 | Not Available | FLANGE | 4149336 | Not Available |
| 5 | Not Available | YOKE AND BRAKE ASSEMBLY | 4152612 | Not Available |
| 6 | Not Available | BRACKET SPEED CONTROL | 4155598 | Not Available |
| 7 | Not Available | GOVERNOR WEIGHTS (2) | 4149369 | Not Available |
| 8 | Not Available | HUB | 4369312 | Not Available |
| 9 | No Image | CORD, CORD REEL 116.2651269 Part Number: 4369465 for Kenmore | 4369465 | $62.92Read more |
| 10 | Not Available | CONTACT DISC ASSEMBLY | 4152682 | Not Available |
| 11 | Not Available | SCREW (2) | 595294 | Not Available |
| 12 | Not Available | SCREW | 780343 | Not Available |
