Schematic and parts book for Kenmore 116.25512500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

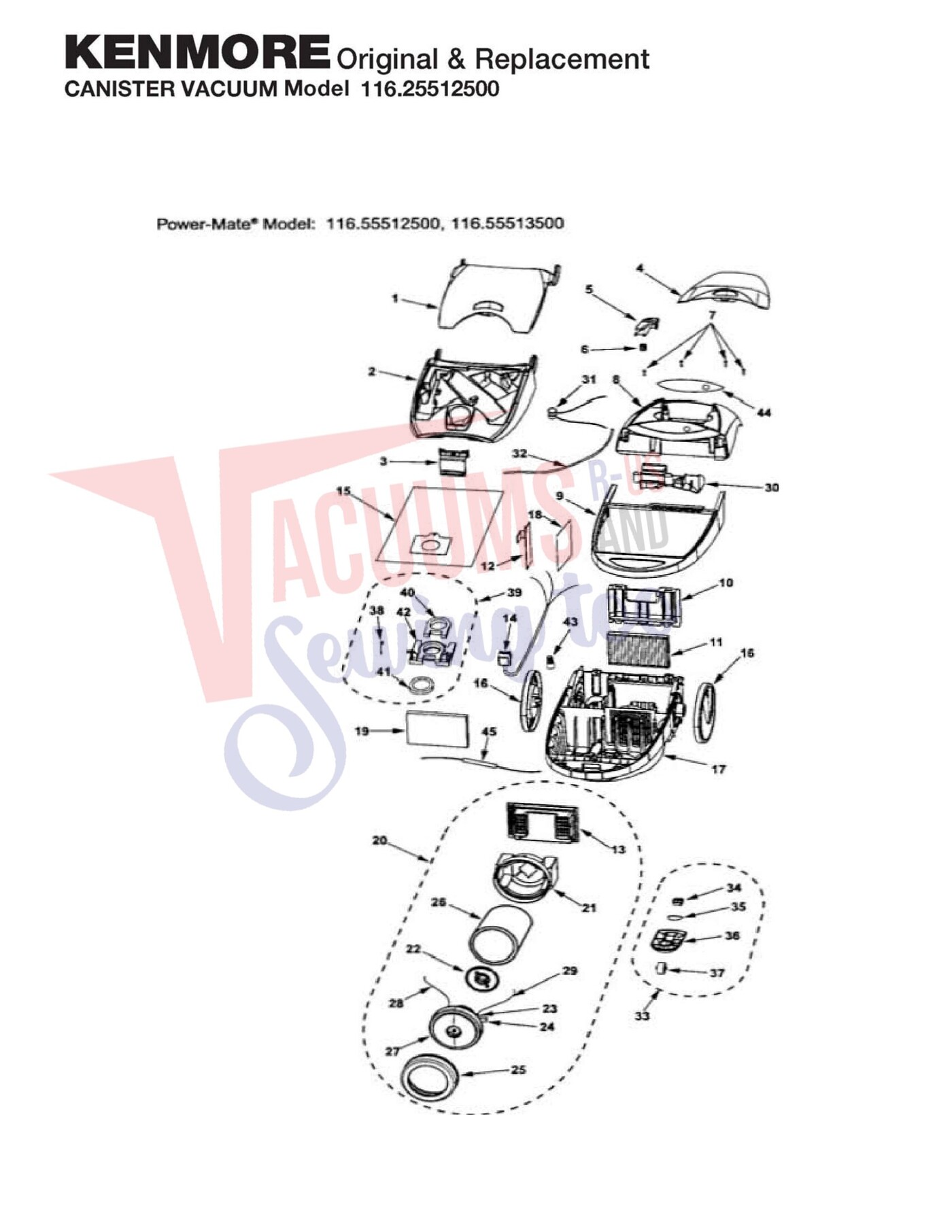

| 1 | Not Available | Tool storage cover deco | KC74PBZTZRUX | Not Available |
| 2 | Not Available | Dust cover deco | KC60KBZTZRUW | Not Available |
| 3 |  | Latch - Hood For: kenmore | KC01DBZTZV07 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | COVER, REAR TOOL STORAGE 116.25512506 Part Number: KC74PBZRZRUX for Kenmore | KC74PBZRZRUX | $137.81Read more |
| 5 | No Image | PEDAL, CORD REWIND 116.25512500 Part Number: KC46NBZTZV06 for Kenmore | KC46NBZTZV06 | $14.43Read more |
| 6 | Not Available | Spring cord rewind | 744258 | Not Available |
| 7 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Canopy | KC48HBZTZR0W | Not Available |
| 9 | Not Available | Furniture guard | KC31ABZTZV06 | Not Available |
| 10 | No Image | COVER, FILTER 116. 24614400 Part Number: KC41KBZTZV06 for Kenmore | KC41KBZTZV06 | $27.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Exhaust filter (hepa) sears no. 20-86889 | KER-1800 | Not Available |
| 12 | Not Available | P.c.b. assembly | KC86WBZRZ000 | Not Available |
| 13 | Not Available | Filter supporter | KC32FBZT1V07 | Not Available |
| 14 | Not Available | Receptacle assembly 3-wire | KC90EBZTZV06 | Not Available |
| 15 | Not Available | Dust bag (hepa) sears no. 20-50557 | KER-14551A | Not Available |
| 16 | No Image | WHEEL, 116.25513506 Part Number: KC99CBZNZV07 for Kenmore | KC99CBZNZV07 | $20.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Lower body | KC03ABZT4V07 | Not Available |
| 18 | Not Available | Cooling guide | KC41FBZPZ000 | Not Available |
| 19 | No Image | FILTER, SECONDARY 116.25512500 Part Number: 8175084 for Kenmore | 8175084 | $17.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | MOTOR, MAIN 116.25512500 Part Number: KC90FBZTZV07 for Kenmore | KC90FBZTZV07 | $87.65Read more |
| 21 | Not Available | Motor enclosures | KC10GBZTZV07 | Not Available |
| 22 | Not Available | Motor support rubber rear | KC03FBZTZ000 | Not Available |
| 23 | Not Available | Screw motor brush (not serviced use old) | NLA | Not Available |
| 24 | Not Available | Brush motor (2) | 4370655 | Not Available |
| 25 | Not Available | Motor support rubber front | KC02FCPSZ000 | Not Available |
| 26 | Not Available | Suppressor noise | 4370683 | Not Available |
| 27 | No Image | MOTOR, 116.35912401 Part Number: KC92FBEMZ000 for Kenmore | KC92FBEMZ000 | $219.72Read more |
| 28 | Not Available | Lead wire black | KC38GATMZ000 | Not Available |
| 29 | Not Available | Lead wire assembly | KC43GAUYZ000 | Not Available |
| 30 | Not Available | Upper body | KC02ABZTZV06 | Not Available |
| 31 | Not Available | Indicator light switch (includes illus. 9) | 4370741 | Not Available |
| 32 | Not Available | Adapter tube vac switch | 4370677 | Not Available |
| 33 |  | Caster Unit For: kenmore | KC95CBZTZV06 | $29.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Counter weight | KC12CBZTZ000 | Not Available |
| 35 | Not Available | Rubber cushion | KC41ABZTZV00 | Not Available |
| 36 | Not Available | Caster supporter | KC34CBZTZV06 | Not Available |
| 37 |  | Caster Unit-Titan/Kenmore Canister For: titan | 4370691 | $26.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Spring bag moount | 706024 | Not Available |
| 39 |  | Bag Supporter Assembly For: kenmore | KC11KAKTZR01 | $10.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Gasket bag mount | KC03LAKTZ000 | Not Available |
| 41 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Bag mount | KC10KBZTZR01 | Not Available |
| 43 | Not Available | Connector wire | SS-3270 | Not Available |
| 44 | Not Available | Ornamental plate | KC21TBZTZ000 | Not Available |
| 45 | Not Available | Lead wire assembly | 4370978 | Not Available |
| # | Part image | Description | SKU | Price |

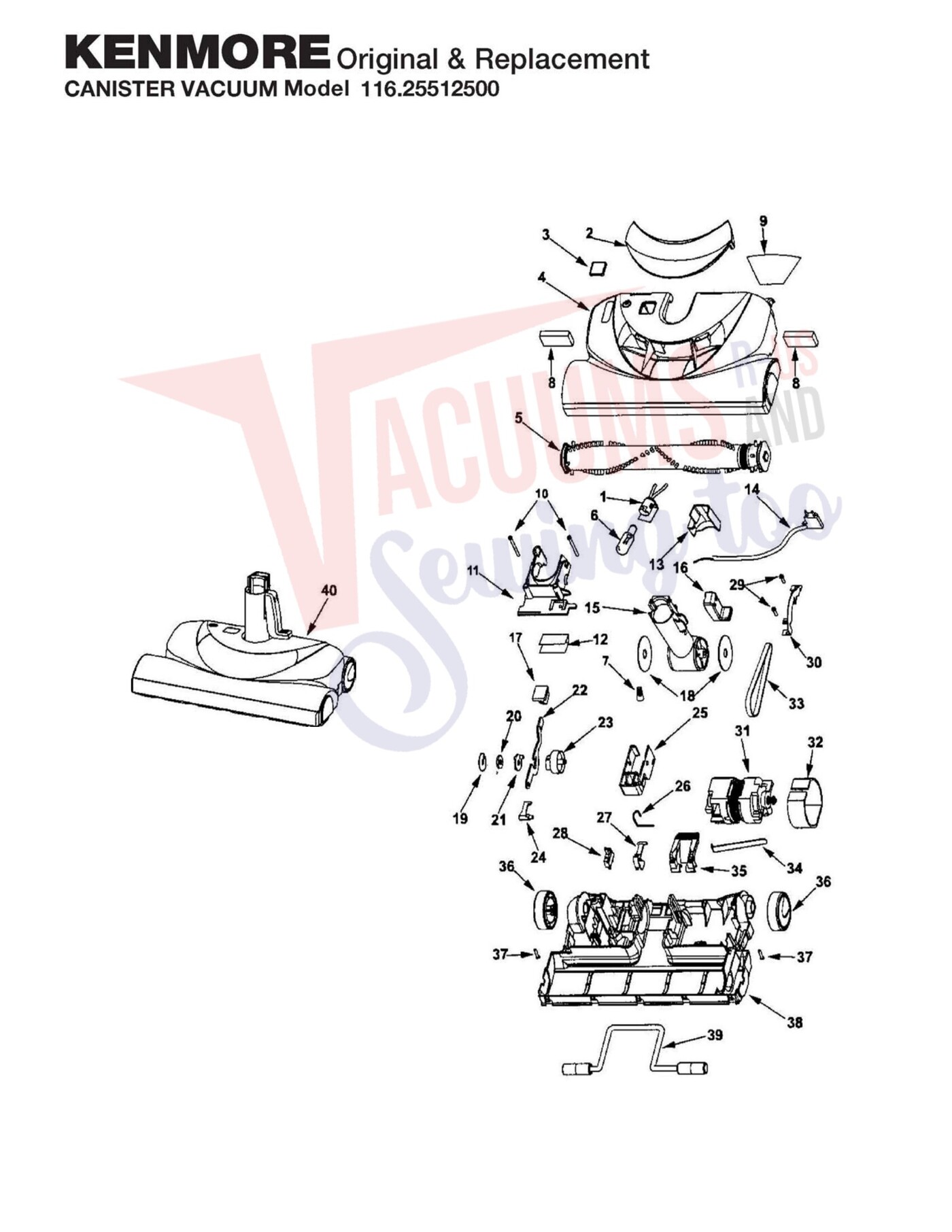

| 1 | Not Available | Socket bulb | 4370721 | Not Available |
| 2 |  | Window For: kenmore | KC21HBZTZ000 | $16.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Window cover (height adjustment) | 4369687 | Not Available |
| 4 | No Image | HOUSING, NOZZLE Part Number: KC99RBZTZRUW for Kenmore | KC99RBZTZRUW | $116.20Read more |
| 5 |  | Brushroll, 116.51612001 W/Ball Brg Sq End Caps Part Number: 8192535 for Kenmore | 8192535 | $128.50Read more |
| 6 | Not Available | Light bulb (sears no. 20-5240) | FA-3515 | Not Available |
| 7 | Not Available | Connector wire (2) | SS-3270 | Not Available |
| 8 | No Image | FILTER, INTAKE/EXHAUST PN 116.55813503 Part Number: 4370713 for Kenmore | 4370713 | $4.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Compatible alternateSecondary Filter Foam
On Power Nozzle For: kenmore More Product Details | 591004161 | $4.22Add to cart Special order — allow 2-4 weeks. |
| 9 | Not Available | Reflector nozzle | KC84HBZTZ000 | Not Available |
| 10 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | COVER, SWIVEL CAP PN 116.57915701 Part Number: KC25QAKTZV07 for Kenmore | KC25QAKTZV07 | $31.34Read more |
| 12 | Not Available | Window reflector | KC22HBZTZ000 | Not Available |
| 13 |  | COVER, PLUG, 116.55512500 Part Number: 8175168 for Kenmore | 8175168 | $8.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Kenmore cord short cord for kenmore powerhead with L bend | KC64EAWBZV06 | $30.44Add to cart |
| 15 |  | Swivel Neck-Kenmore Canister/Pan 973
Small Neck For: kenmore | KS4153196 | $12.66Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | PEDAL, HANDLE RELEASE 116.25512500 Part Number: 8195147 for Kenmore | 8195147 | $8.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Pad foot pedal | 4370577 | Not Available |
| 18 |  | Kenmore Swivel Seal | KS742019 | $16.81Read more |
| 19 | Not Available | Washer thrust | KS722909 | Not Available |
| 20 | Not Available | Washer | KS725635 | Not Available |
| 21 | Not Available | Catch indexing | KS722955 | Not Available |
| 22 | Not Available | Indicator level | 4370720 | Not Available |
| 23 | Not Available | Cam indicator | KS747291 | Not Available |
| 24 | Not Available | Ratchet catch | KS742016 | Not Available |
| 25 |  | Indicator Block Assembly For: kenmore | KC83MAKSZV06 | $20.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Spring assist | 725775 | Not Available |
| 27 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Overload protector | KC76FAXEZ000 | Not Available |
| 29 | Not Available | Screw | KS681297 | Not Available |
| 30 | Not Available | Motor bridge | KS705093 | Not Available |
| 31 |  | Motor-Kenmore Power Nozzle - Grooved For: kenmore | KC90FCBJZ000 | $73.50Read more |
| 32 | Not Available | Motor gasket | KS747156 | Not Available |
| 33 |  | Kenmore Serpentine Belt | KER1080 | $9.99Add to cart |
| 34 | Not Available | Spring motor adjustment | KS742002 | Not Available |
| 35 |  | Pedal, Red Handle Release Power-Mate/Canister Part Number: KC47AGJ3R01 for Kenmore | KC47AGJ3R01 | $4.95Read more |
| 36 |  | Wheel, Rear P/N 116.25812503 2Pk Part Number: KC99CBZTZV07 for Kenmore | KC99CBZTZV07 | $25.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Lower plate | KC03RBZT2V07 | Not Available |
| 39 |  | Front Axle Assy For: kenmore | KS744029 | $15.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | Pro Assy (Power-Mate) For: kenmore | KC50XBZTZU01 | $238.57Read more |
| # | Part image | Description | SKU | Price |

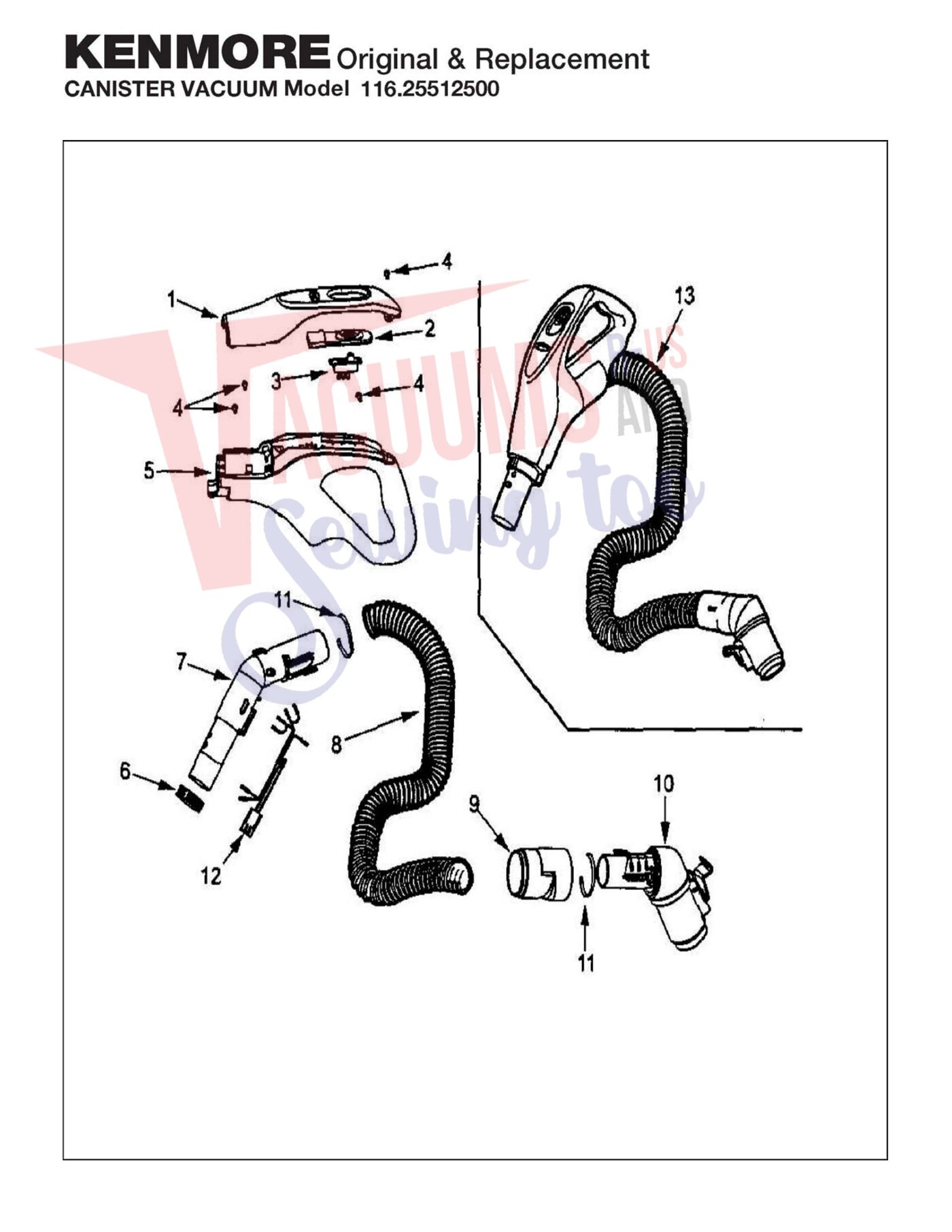

| 1 | Not Available | Switch case | KC68GBZTZV07 | Not Available |
| 2 | Not Available | Sliding knob | KC02UBZTZVU6 | Not Available |
| 3 | No Image | SWITCH, 3 POSITION 116.25512500 Part Number: 8191600 for Kenmore | 8191600 | $53.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Screw knocking cam | 4369085 | Not Available |
| 5 |  | Handle Assy For: kenmore | KC93BBZTZV06 | $36.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tube - Center For: kenmore | 4370612 | $48.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | HOSE, 3-WIRE 116.23513302 Part Number: 8192774 for Kenmore | 8192774 | $72.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Connection Pipe Assembly For: kenmore | KC92PBZTZV06 | $51.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hose packing | KC04RATMZ000 | Not Available |
| 12 | Not Available | Wire hanrness | KC37GBZTZV06 | Not Available |
| 13 | No Image | HOSE, KENMORE POWER TEAM 116.25512500 Part Number: KC94PCPJZV07 for Kenmore | KC94PCPJZV07 | $316.62Read more |
| # | Part image | Description | SKU | Price |

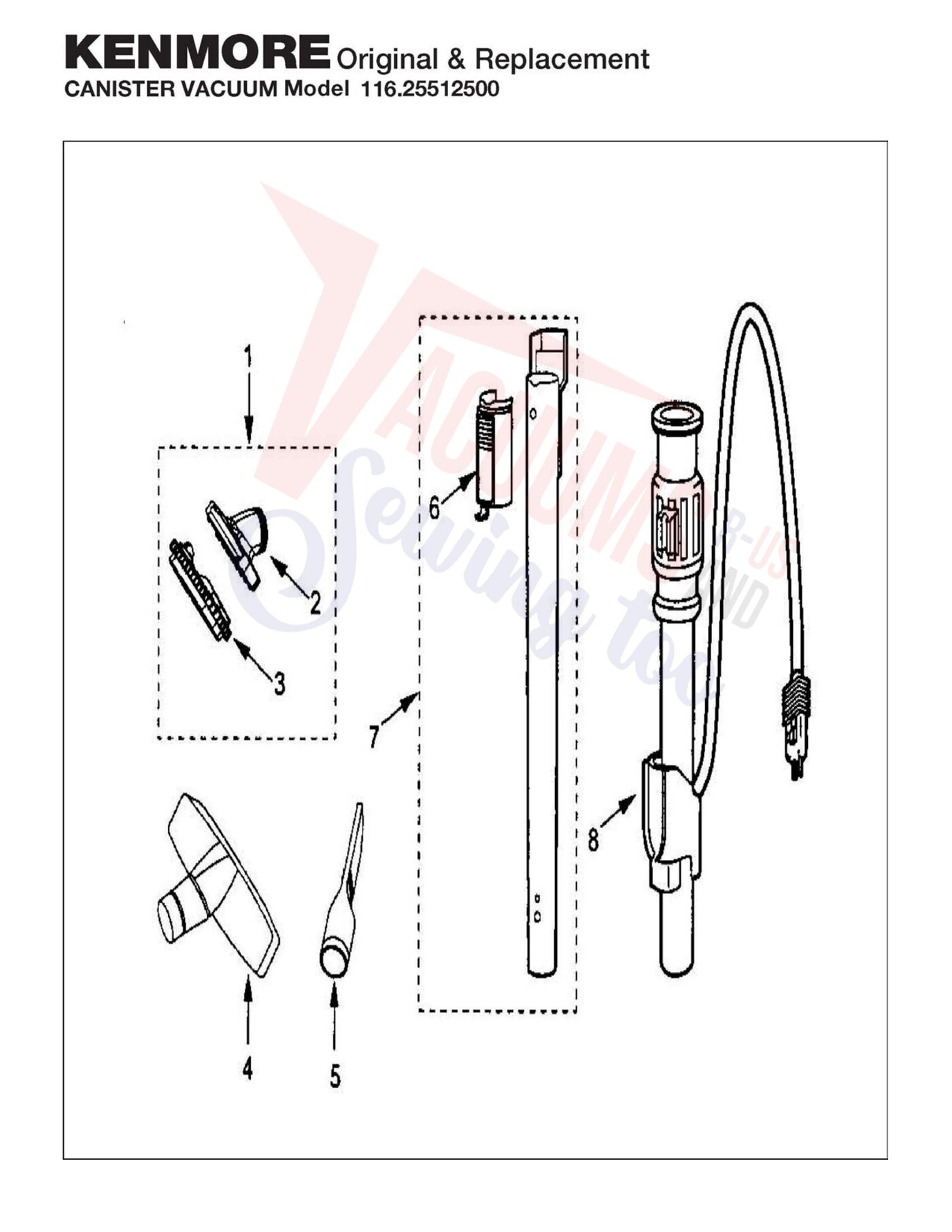

| 1 |  | Combination Brush For: kenmore | KC63RCMVZV06 | $38.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | UPHOLSTERY BRUSH, KENMORE POWER TEAM 116.25512500 Part Number: KC62RBZTZV07 for Kenmore | KC62RBZTZV07 | $50.01Read more |
| 3 | Not Available | Dusting brush | KC94QCMVZV06 | Not Available |
| 4 |  | Floor Brush
9 Inches For: kenmore | 4370358 | $31.11Read more |
| 5 | Not Available | Tool crevice | 282728 | Not Available |
| 6 |  | Quick Release For: kenmore | 8192063 | $21.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | WAND, UPPER POWER TEAM 116.25512500 Part Number: 8192064 for Kenmore | 8192064 | $69.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Wand Assembly-Kenmore Canister - 20 Inch Wand
30 Inch Cord - Upper Wand Is 47-1920-67 For: kenmore | KC99PBZTZV06 | $60.63Read more |
| # | Part image | Description | SKU | Price |

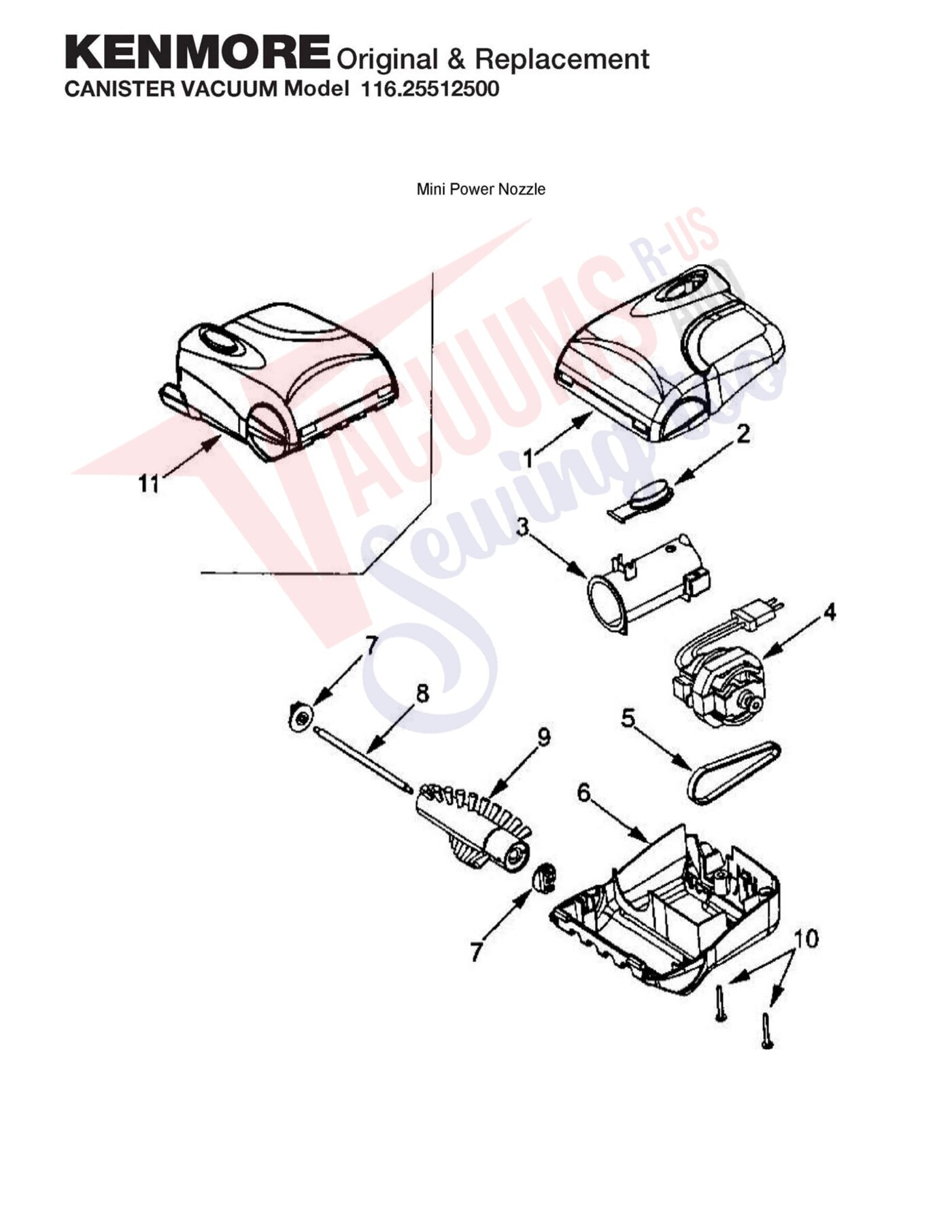

| 1 | Not Available | Nozzle | 8192006 | Not Available |
| 2 | Not Available | Release button | 8192009 | Not Available |
| 3 | Not Available | Tube locking motor | 8192008 | Not Available |
| 4 | Not Available | Motor (not available) | NLA | Not Available |
| 5 |  | Belt,Kenmore Drive 116.C85PBPK0V022 Part Number: 8192011 for Kenmore | 8192011 | $26.52Read more |
| 6 | No Image | BASE, 116.53612300 Part Number: 8192007 for Kenmore | 8192007 | $35.48Read more |
| 7 | Not Available | Brush end cap (2) | 8192016 | Not Available |
| 8 | Not Available | Dowel shaft | 8192017 | Not Available |
| 9 | No Image | BRUSHROLL, 116.23613300 POWER MATE STAIR TOOL Part Number: 8192013 for Kenmore | 8192013 | $29.58Read more |
| 10 | Not Available | Screw 8-24 x 1 (2) | 4368551 | Not Available |
| 11 | Not Available | Power-mate jr (complete assembly) | 52040 | Not Available |
