Schematic and parts book for Kenmore 116.2521290 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

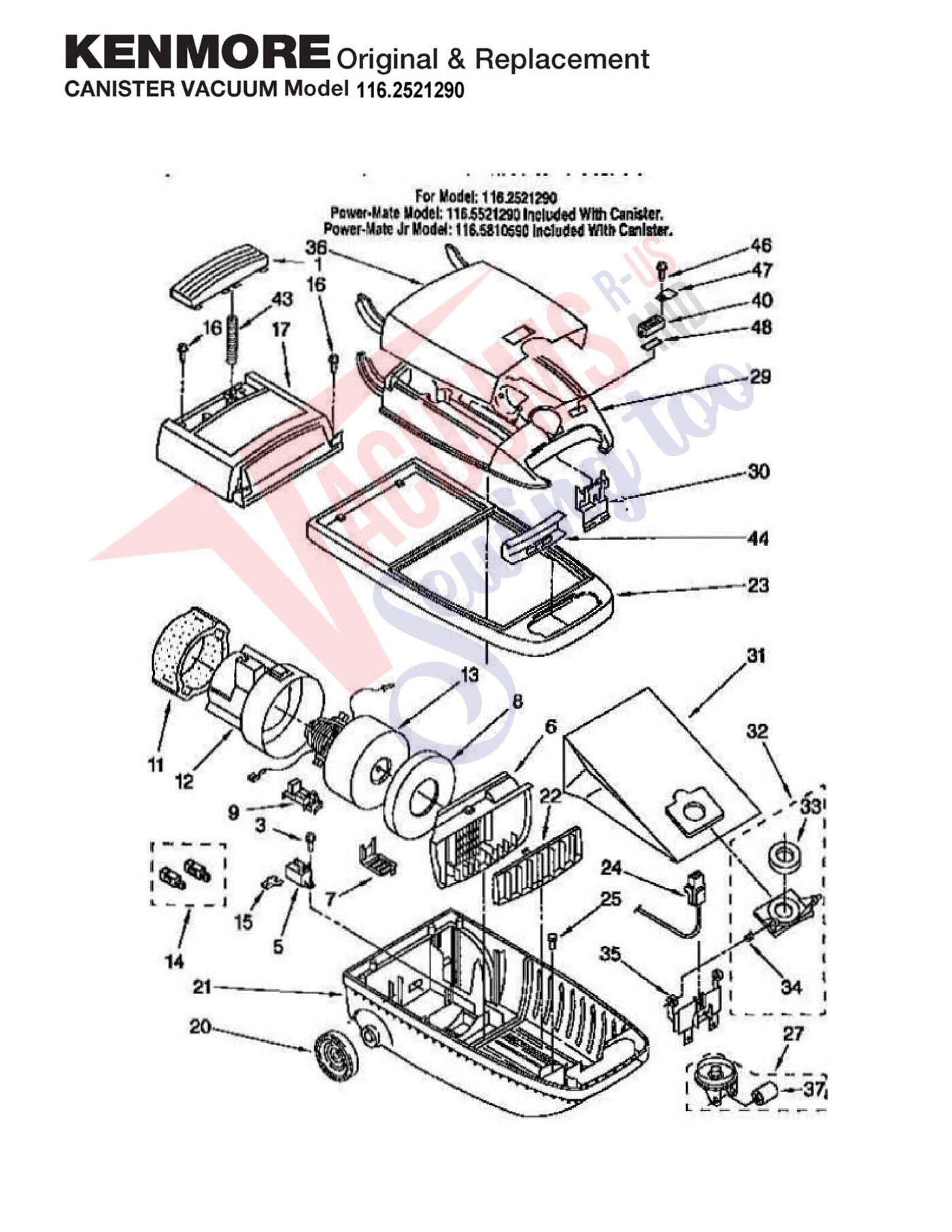

| 1 | No Image | PEDAL, CORD RETURN Part Number: 4369308 for Kenmore | 4369308 | $17.59Read more |
| 3 | Not Available | SCREW 6-20 X 3/8 (2) | 4368879 | Not Available |
| 5 | Not Available | RELAY MOTOR | 4152600 | Not Available |
| 6 | Not Available | WALL BULKHEAD | 4156461 | Not Available |
| 7 | Not Available | CAP CORD COVER | 4153294 | Not Available |
| 8 | Not Available | SEAL IMPELLER | 4154151 | Not Available |
| 9 | Not Available | COVER RELAY | 4153099 | Not Available |
| 11 | Not Available | FILTER MOTOR (REAR) | 4368991 | Not Available |
| 12 | Not Available | SEAL MOTOR | 4151404 | Not Available |
| 13 | Not Available | MOTOR | 4368506 | Not Available |
| 14 | Not Available | BRUSH MOTOR (2) | 588867 | Not Available |
| 15 | Not Available | TERMINAL | 4152677 | Not Available |
| 16 | Not Available | SCREW 8-18 X 3/4 (4) | 4148999 | Not Available |
| 17 | Not Available | COVER CANOPY | 4369846 | Not Available |
| 20 | Not Available | WHEEL REAR | 4156434 | Not Available |
| 21 | No Image | BASE, 116.2521290 Part Number: 4369175 for Kenmore | 4369175 | $111.56Read more |
| 22 | Not Available | FILTER SAFETY | 4152969 | Not Available |
| 23 | Not Available | BUMBER | 4155588 | Not Available |
| 24 | Not Available | HARNESS RECEPTACLE | 4369361 | Not Available |
| 25 | Not Available | PIN CASTER RETAINER | 706884 | Not Available |
| 27 | Not Available | CASTER SWIVEL | 4369683 | Not Available |
| 29 | Not Available | HOOD | 4369365 | Not Available |
| 30 | Not Available | LATCH HOOD | 4155627 | Not Available |
| 31 | Not Available | BAG DUST SEARS NO. 20-50558 | KER-14551 | Not Available |
| 31A | Not Available | UPGRADE 3M FILTRATE VAC BAG DIV 20 SCE | KER-14551A | Not Available |
| 32 | Not Available | MOUNT BAG | 4155800 | Not Available |
| 33 | No Image | GASKET Part Number: 706017 for Kenmore | 706017 | $10.60Read more |
| 34 | Not Available | SPRING BAG MOUNT | 706024 | Not Available |
| 35 | Not Available | INSERT STRIKE | 4147967 | Not Available |
| 36 | Not Available | LID TOOLCOVER | 4153082 | Not Available |
| 37 | Not Available | WHEEL CASTER | 4369684 | Not Available |
| 40 | Not Available | INDICATOR UNIT | 4368878 | Not Available |
| 43 | Not Available | SPRING CORD LOCK | 744258 | Not Available |
| 44 | Not Available | GRIP HANDLE | 4155620 | Not Available |
| 46 | Not Available | SCREW #10 | 4368879 | Not Available |
| 47 | Not Available | BRACKET | 4156363 | Not Available |
| 48 | Not Available | PACKING INDICATOR | 4368704 | Not Available |
| # | Part image | Description | SKU | Price |

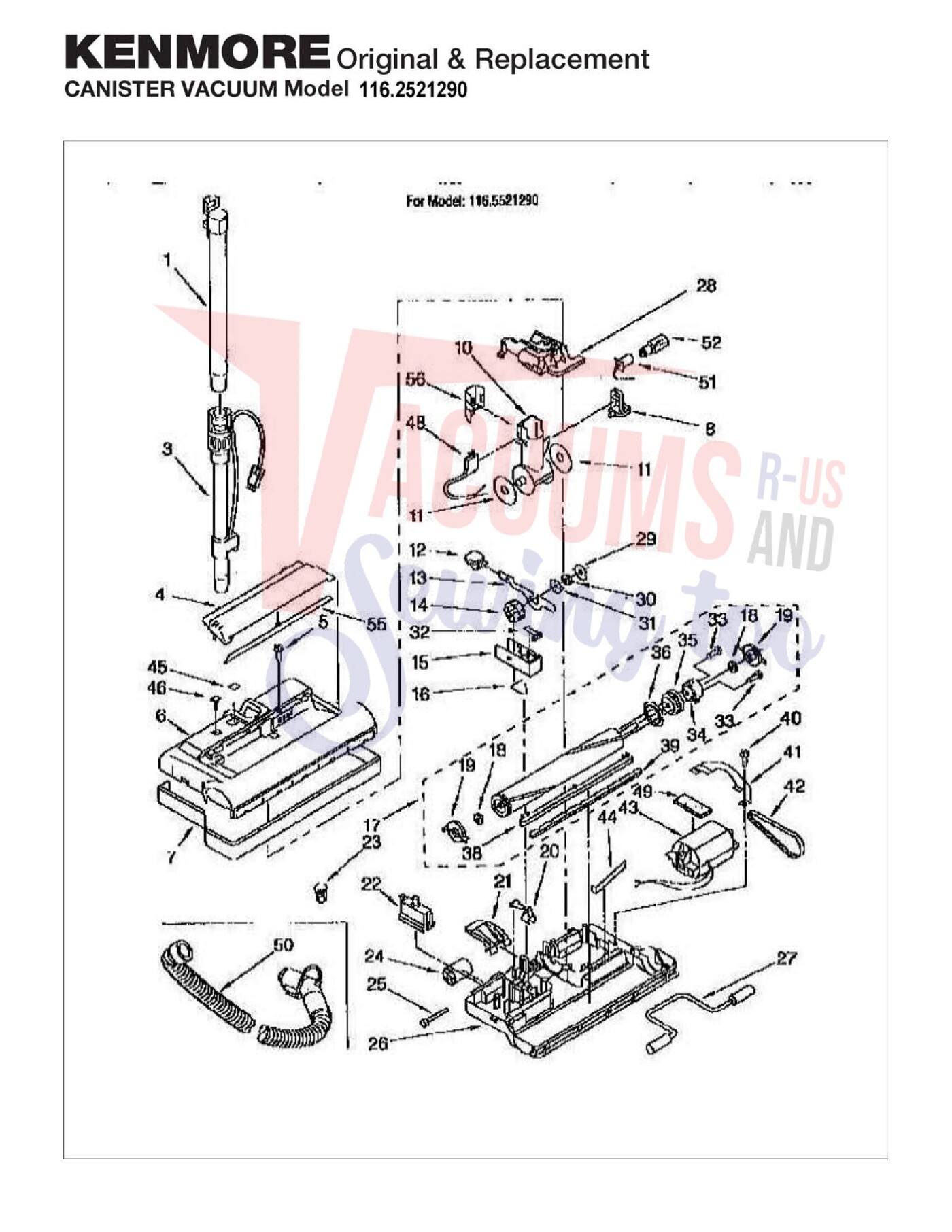

| 1 | Not Available | WANDANDCORD UPPER | 747264 | Not Available |
| 3 | Not Available | WAND AND CORD LOWER | 4369370 | Not Available |
| 4 | Not Available | HOUSING BULB | 4369848 | Not Available |
| 5 | Not Available | SCREW 8-18 X 1-7/8 (2) | 681550 | Not Available |
| 6 | Not Available | NOZZLE | 4370066 | Not Available |
| 7 | Not Available | BUMPER | 4155587 | Not Available |
| 8 | Not Available | FOOT PEDAL | 4153195 | Not Available |
| 10 | Not Available | SWIVEL | 4156162 | Not Available |
| 11 | Not Available | SWIVEL SEAL (2) | 742019 | Not Available |
| 12 | Not Available | PAD FOOT PEDAL | 747280 | Not Available |
| 13 | Not Available | INDICATOR LEVER | 747287 | Not Available |
| 14 | Not Available | INDICATOR CAM | 747291 | Not Available |
| 15 | Not Available | INDICATOR BLOCK | 742015 | Not Available |
| 16 | Not Available | SPRINGASSEIST | 725775 | Not Available |
| 17 | Not Available | BRUSH ASSEMBLY | 742454 | Not Available |
| 18 | Not Available | WASHER METAL (12 X 1/2) (2) | 681424 | Not Available |
| 19 | Not Available | BEARING AND HOUSING ASSEMBLY (2) (INCL. ILLUS. 18) | 743395 | Not Available |
| 20 | Not Available | LIFTER | 742013 | Not Available |
| 21 | Not Available | HANDLE RELEASE | 4369930 | Not Available |
| 22 | Not Available | OVERLOAD PROTECTOR | 742332 | Not Available |
| 23 | Not Available | WIRE CONNECTOR | 4368522 | Not Available |
| 24 | Not Available | ROLLER REAR (2) | 747117 | Not Available |
| 25 | Not Available | REARAXLE (2) | 742006 | Not Available |
| 26 | Not Available | BASE | 4369752 | Not Available |
| 27 | Not Available | FRONTAXLE ASSEMBLY | 744029 | Not Available |
| 28 | Not Available | SWIVELCAP | 4153145 | Not Available |
| 29 | Not Available | WASHERTHRUST | 722909 | Not Available |
| 30 | Not Available | WASHER | 725635 | Not Available |
| 31 | Not Available | CATCH INDEXING | 722955 | Not Available |
| 32 | Not Available | RATCHET CATCH | 742016 | Not Available |
| 33 | Not Available | SCREW TYPE 25 NO. 6 PAN (2) | 681605 | Not Available |
| 34 | Not Available | END BRUSHTUFTED | 742509 | Not Available |
| 35 | Not Available | BRUSH SPOCKET | 742506 | Not Available |
| 36 | Not Available | BRUSH SPROCKET FLANGE | 742031 | Not Available |
| 38 | Not Available | BEATER BRUSH (2) | 742030 | Not Available |
| 39 | Not Available | BAR BEATER | 742029 | Not Available |
| 40 | Not Available | SCREW 8-18X5/8(2) | 681297 | Not Available |
| 41 | Not Available | MOTOR BRIDGE | 705093 | Not Available |
| 42 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 43 | Not Available | MOTOR | 4369501 | Not Available |
| 44 | Not Available | MOTOR ADJUSTMENT SPRING | 742002 | Not Available |
| 45 | Not Available | LENS HEIGHTADJUSTER | 4370060 | Not Available |
| 46 | Not Available | EXTENSION BUTTON | 4155355 | Not Available |
| 47 | Not Available | SOCKET BULB | 747096 | Not Available |
| 48 | Not Available | CORDAND PLUG | 4151701 | Not Available |
| 49 | Not Available | GASKET MOTOR | 747156 | Not Available |
| 50 | Not Available | HOSEASSEMBLY | 4369750 | Not Available |
| # | Part image | Description | SKU | Price |

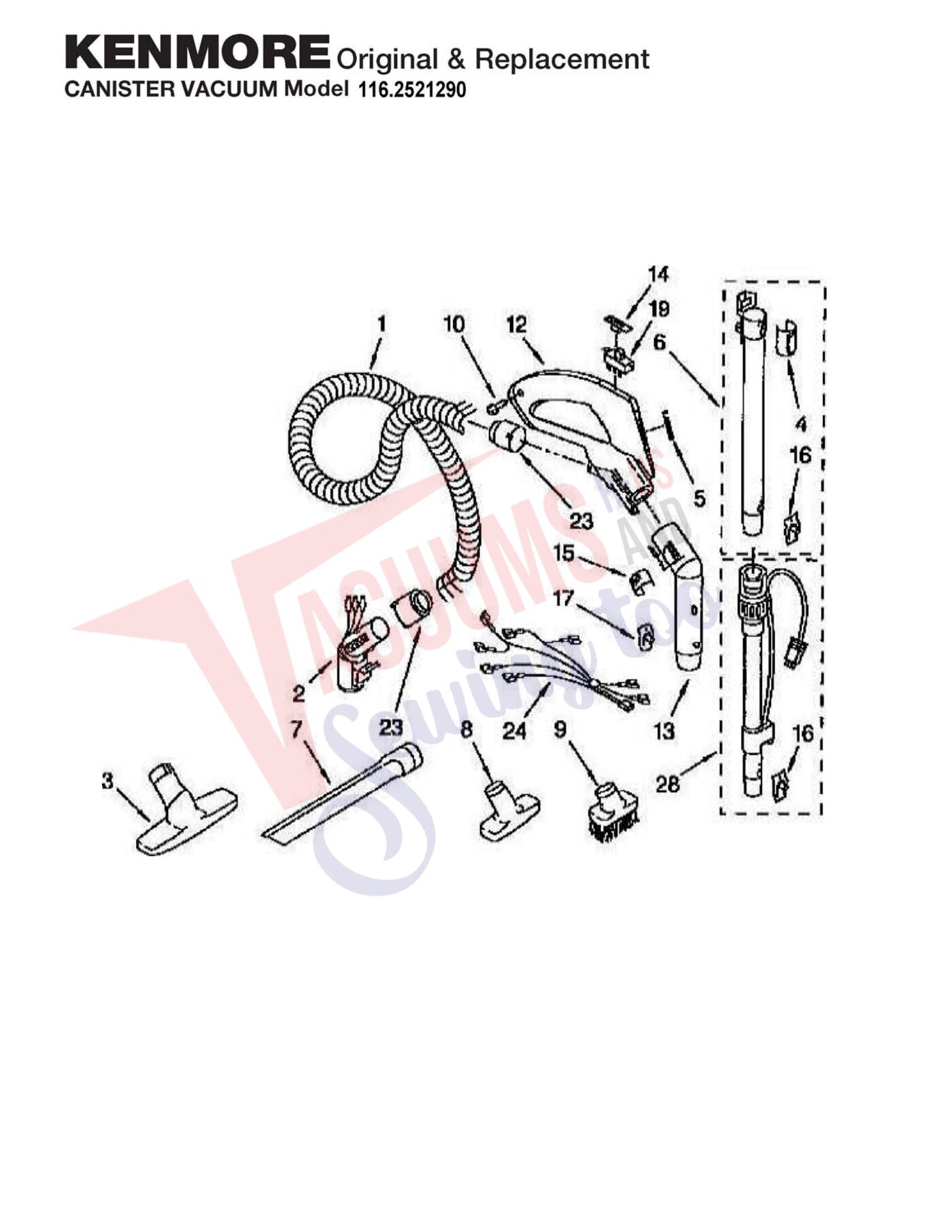

| 1 | Not Available | HOSE | 4369750 | Not Available |
| 2 | Not Available | SWIVELASSEMBLY | 4369106 | Not Available |
| 3 | Not Available | BRUSH FLOOR | 747151 | Not Available |
| 4 | Not Available | RELEASE QUICK | 4149957 | Not Available |
| 5 | Not Available | LABEL HANDLE | 4369330 | Not Available |
| 6 | Not Available | MOUNT ASSEMBLY WAND AND CORD | 747264 | Not Available |
| 7 | Not Available | TOOL CREVICE | 4147116 | Not Available |
| 8 | Not Available | BRUSH FABRIC | 4147115 | Not Available |
| 9 | Not Available | BRUSH DUSTING | 4147113 | Not Available |
| 10 | Not Available | SCREW #10 | 4368879 | Not Available |
| 12 | Not Available | HANDLE RIGHT HAND | 4369112 | Not Available |
| 12A | Not Available | HANDLE LEFTHAND | 4369111 | Not Available |
| 13 | Not Available | TUBE CENTER | 4369114 | Not Available |
| 14 | Not Available | SLIDE SWITCH | 4369113 | Not Available |
| 15 | Not Available | CONTROL SUCTION | 4147159 | Not Available |
| 16 | Not Available | SPRING WAND LOCK | 725419 | Not Available |
| 17 | Not Available | SPRING WAND LOCK | 4152093 | Not Available |
| 19 | Not Available | SWITCH 3-POSITION | 4369108 | Not Available |
| 23 | Not Available | ADAPTER HOSE (2) | 4152863 | Not Available |
| 24 | Not Available | HARNESS WIRING | 4369353 | Not Available |
| 28 | Not Available | WAND ASSEMBLY (LOWER) | 4369370 | Not Available |
| # | Part image | Description | SKU | Price |

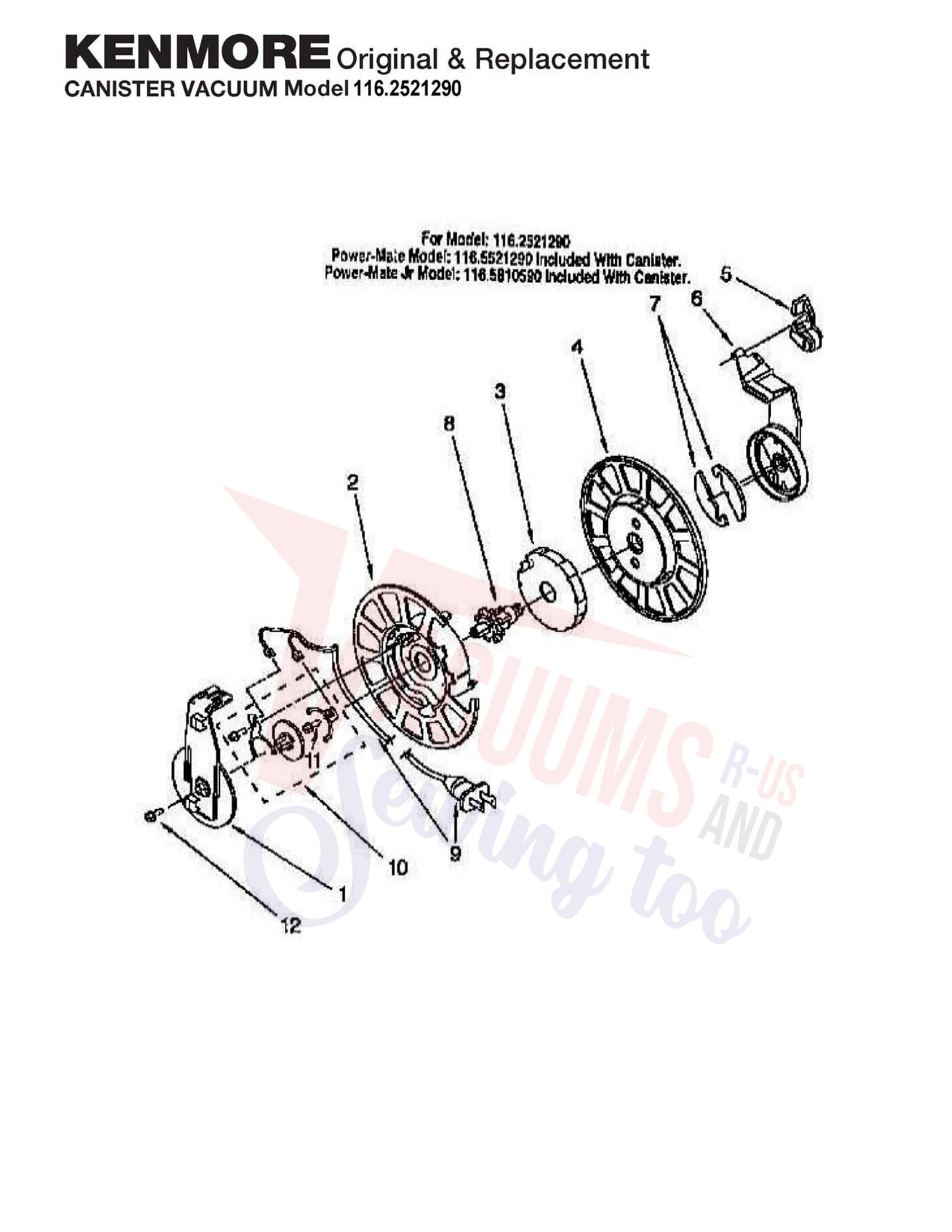

| 1 | Not Available | BRACKET CONTACT BLOCK | 4152380 | Not Available |
| 2 | Not Available | MAIN BODY | 4152226 | Not Available |
| 3 | Not Available | SPRINGAND KEEPER | 4369019 | Not Available |
| 4 | Not Available | FLANGE | 4149336 | Not Available |
| 5 | Not Available | YOKE AND BRAKE ASSEMBLY | 4152612 | Not Available |
| 6 | Not Available | BRACKET SPEED CONTROL | 4155598 | Not Available |
| 7 | Not Available | GOVERNORWEIGHTS (2) | 4149369 | Not Available |
| 8 | Not Available | HUB | 4369312 | Not Available |
| 9 | Not Available | POWERCORD | 4369362 | Not Available |
| 10 | Not Available | CONTACT DISCASSEMBLY | 4152682 | Not Available |
| 11 | Not Available | SCREW (2) | 595294 | Not Available |
| 12 | Not Available | SCREW | 780343 | Not Available |
