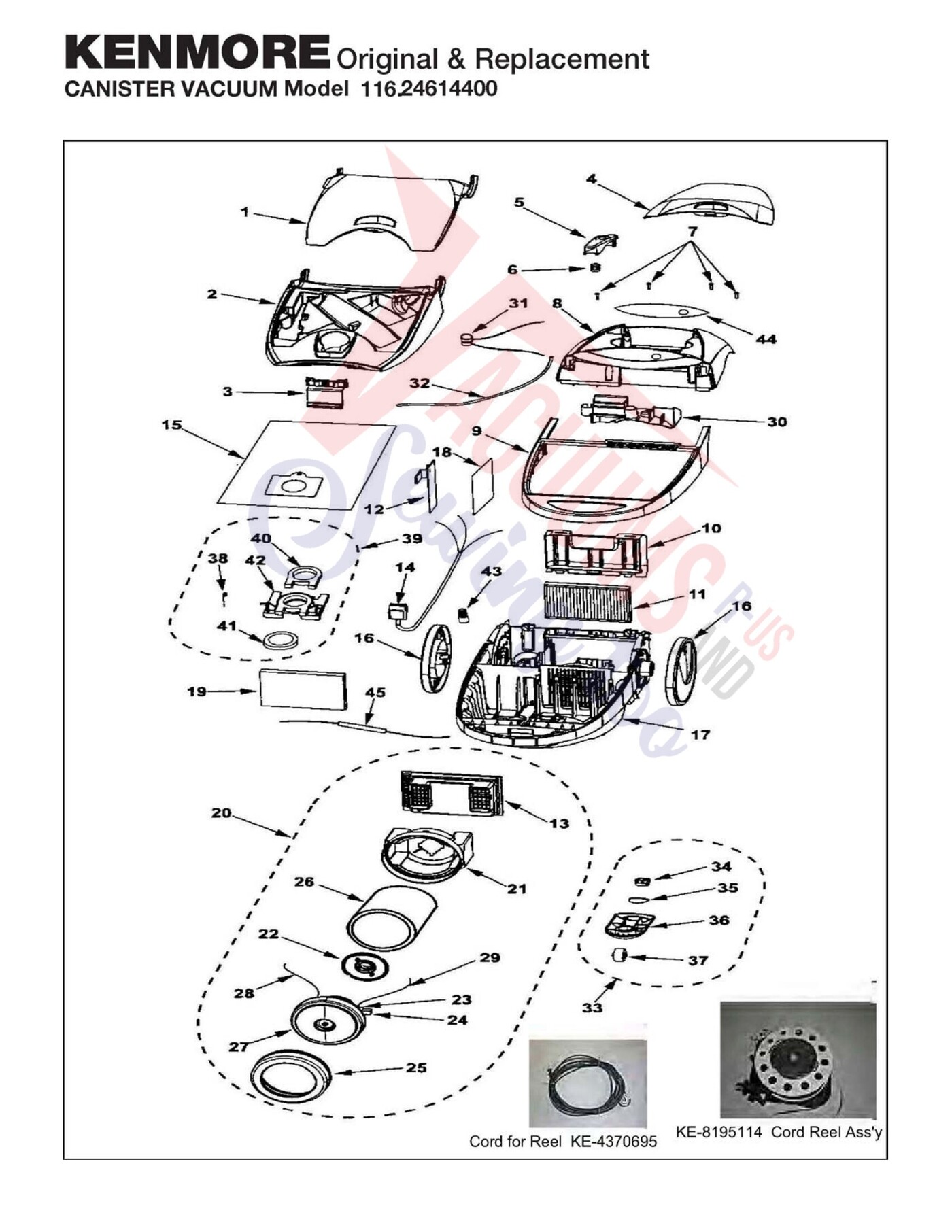

Schematic and parts book for Kenmore 116.24614400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Tool storage cover deco | KC74PCPNZWUH | Not Available |
| 2 | Not Available | Dust cover deco | KC60KCPMZWUH | Not Available |
| 3 |  | Latch - Hood For: kenmore | KC01DBZTZV07 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | COVER, TOOL 116.55615500 Part Number: KC74PCPMZWUH for Kenmore | KC74PCPMZWUH | $134.44Read more |
| 5 | No Image | PEDAL, CORD REWIND 116.25512500 Part Number: KC46NBZTZV06 for Kenmore | KC46NBZTZV06 | $14.43Read more |
| 6 | No Image | SPRING, CORD REWIND 116.25512500 Part Number: KS744258 for Kenmore | KS744258 | $17.45Read more |
| 7 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | Canopy | KC48HBZTZWUH | Not Available |
| 9 | Not Available | Furniture guard | KC31ABZTZV06 | Not Available |
| 10 | No Image | COVER, FILTER 116. 24614400 Part Number: KC41KBZTZV06 for Kenmore | KC41KBZTZV06 | $27.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Exhaust filter (hepa) sears no. 20-86889 | KER-1800 | Not Available |
| 12 | Not Available | P.c.b. assembly | KC86WBZRZ000 | Not Available |
| 13 | Not Available | Filter supporter | KC32FBZT1V07 | Not Available |
| 14 | Not Available | Receptacle assembly 3-wire | KC90EBZTZV06 | Not Available |
| 15 | Not Available | Dust bag (hepa) sears no. 20-50557 | KER-14551A | Not Available |
| 16 | No Image | WHEEL, 116.25513506 Part Number: KC99CBZNZV07 for Kenmore | KC99CBZNZV07 | $20.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Lower body | KC03ABZT4V07 | Not Available |
| 18 | Not Available | Cooling guide | KC41FBZPZ000 | Not Available |
| 19 | No Image | FILTER, SECONDARY 116.25512500 Part Number: 8175084 for Kenmore | 8175084 | $17.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | MOTOR, MAIN 116.25512500 Part Number: KC90FBZTZV07 for Kenmore | KC90FBZTZV07 | $87.65Read more |
| 21 | Not Available | Motor enclosures | KC10GBZTZV07 | Not Available |
| 22 | Not Available | Motor support rubber rear | KC03FBZTZ000 | Not Available |
| 24 | Not Available | Brush motor (2) | 4370655 | Not Available |
| 25 | Not Available | Motor support rubber front | KC02FCPSZ000 | Not Available |
| 26 | Not Available | Suppressor noise | 4370683 | Not Available |
| 27 | No Image | MOTOR, 116.35912401 Part Number: KC92FBEMZ000 for Kenmore | KC92FBEMZ000 | $219.72Read more |
| 28 | Not Available | Lead wire black | KC38GATMZ000 | Not Available |
| 29 | Not Available | Lead wire assembly | KC43GAUYZ000 | Not Available |
| 30 | Not Available | Upper body | KC02ABZTZV06 | Not Available |
| 31 | Not Available | Indicator light switch (includes illus. 9) | 4370741 | Not Available |
| 32 | Not Available | Adapter tube vac switch | 4370677 | Not Available |
| 33 |  | Caster Unit For: kenmore | KC95CBZTZV06 | $29.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Counter weight | KC12CBZTZ000 | Not Available |
| 35 | Not Available | Rubber cushion | KC41ABZTZV00 | Not Available |
| 36 | Not Available | Caster supporter | KC34CBZTZV06 | Not Available |
| 37 |  | Caster Unit-Titan/Kenmore Canister For: titan | 4370691 | $26.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Spring bag mount | KS706024 | Not Available |
| 39 |  | Bag Supporter Assembly For: kenmore | KC11KAKTZR01 | $10.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Gasket bag mount | KC03LAKTZ000 | Not Available |
| 41 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | Bag mount | KC10KAKTZR01 | Not Available |
| 43 | Not Available | Wire Nut | SS-3270 | Not Available |
| 44 | Not Available | Ornamental plate | KC21TBZTZ000 | Not Available |
| 45 | Not Available | Lead wire assembly | 4370978 | Not Available |
| # | Part image | Description | SKU | Price |

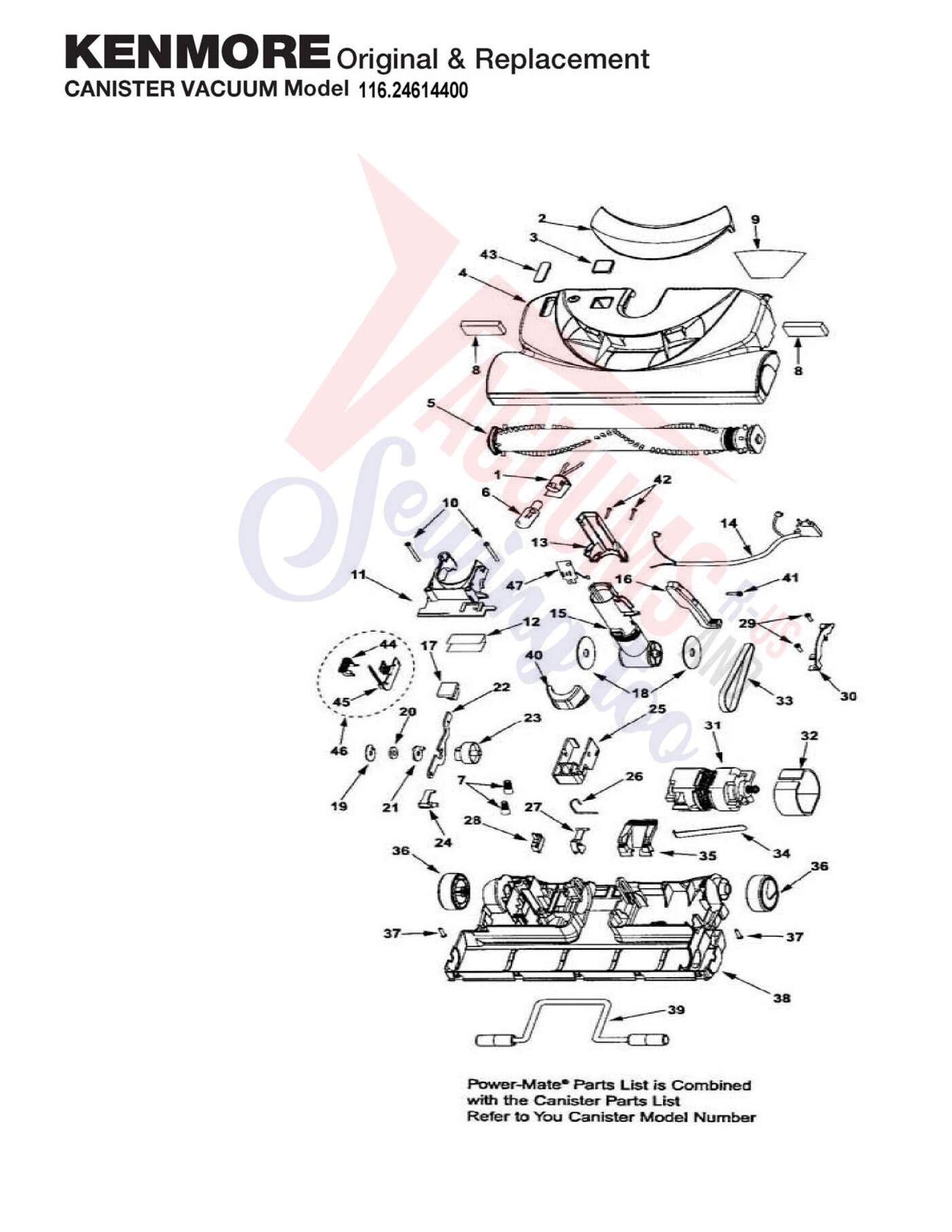

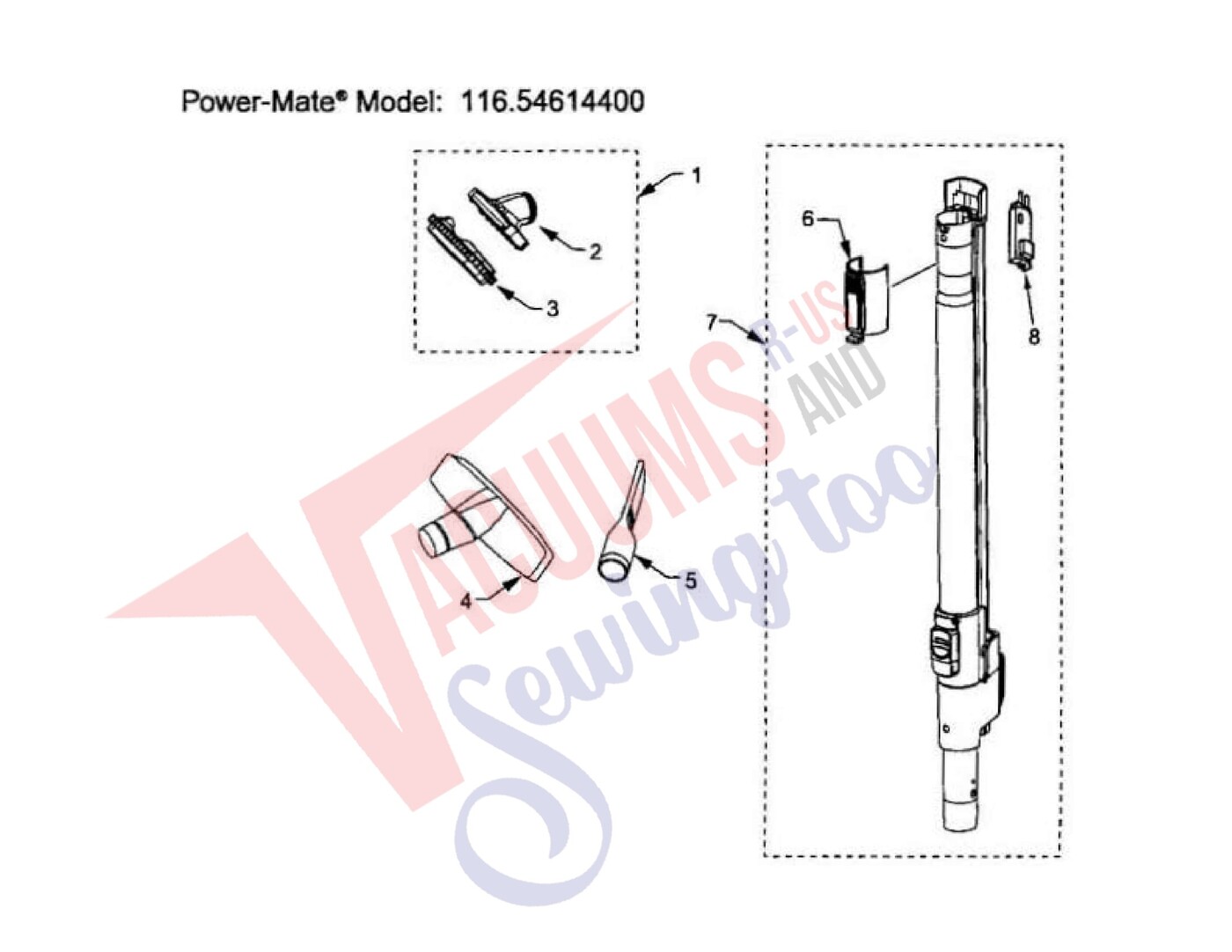

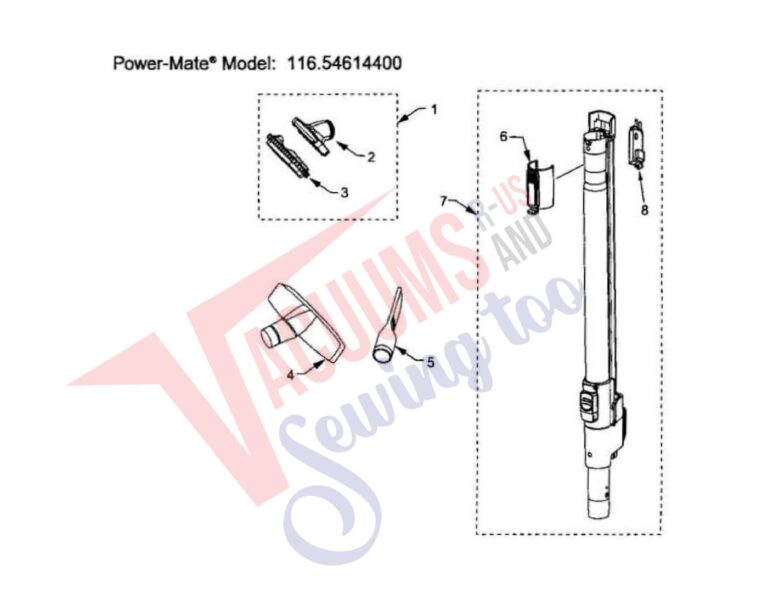

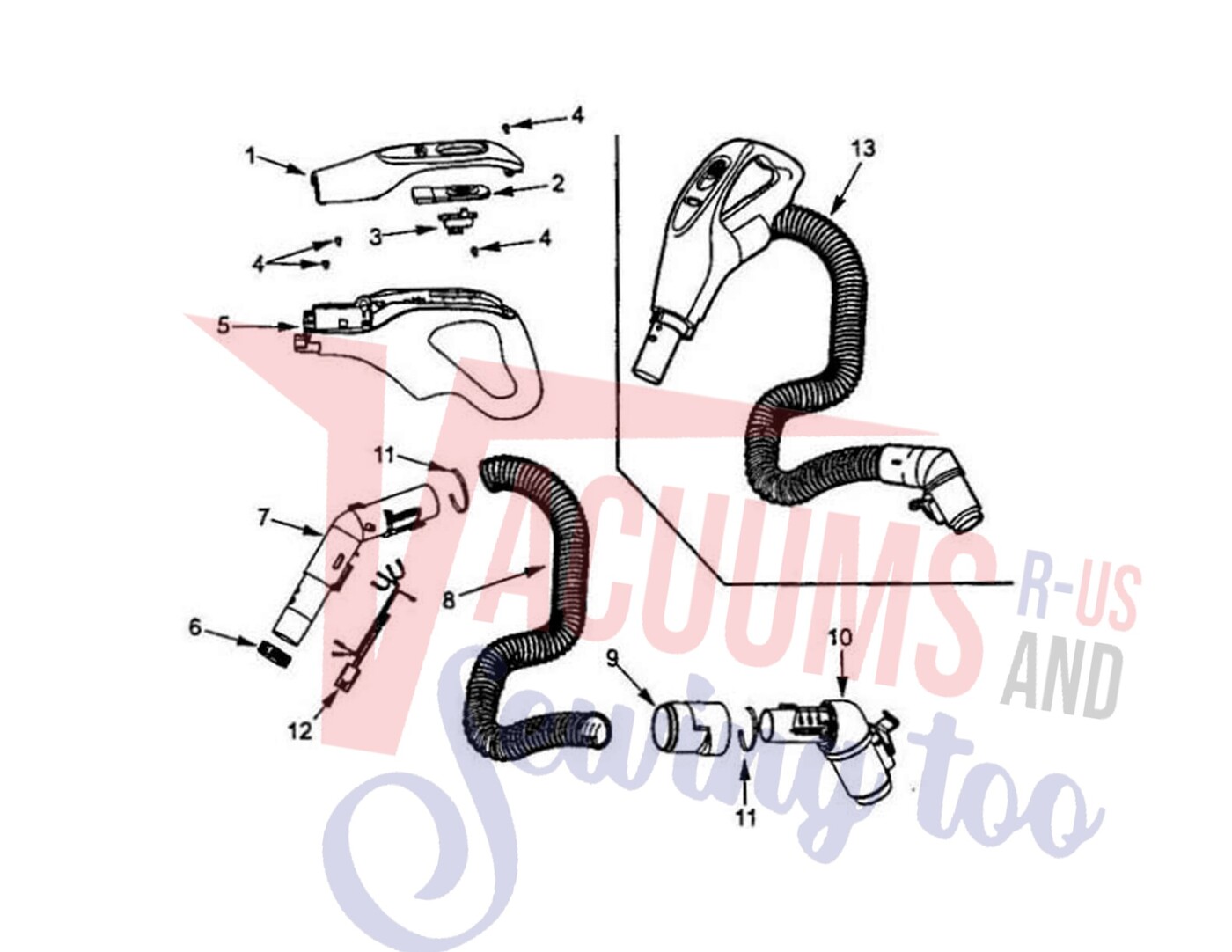

| 1 | Not Available | BULBSOCKET | 4370721 | Not Available |
| 2 |  | Window For: kenmore | KC21HBZTZ000 | $16.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | INDICATOR WINDOW | 4369687 | Not Available |
| 4 | Not Available | NOZZLE HOUSING | KC99RBZRZBUZ | Not Available |
| 5 |  | Brushroll, 116.51612001 W/Ball Brg Sq End Caps Part Number: 8192535 for Kenmore | 8192535 | $128.50Read more |
| 6 | Not Available | LIGHT BULB (SEARS NO.20-5240) | FA-3515 | Not Available |
| 7 | Not Available | WIRE CONNECTOR | 4368522 | Not Available |
| 8 | No Image | FILTER, INTAKE/EXHAUST PN 116.55813503 Part Number: 4370713 for Kenmore | 4370713 | $4.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Compatible alternateSecondary Filter Foam
On Power Nozzle For: kenmore More Product Details | 591004161 | $4.22Add to cart Special order — allow 2-4 weeks. |
| 9 | Not Available | REFLECTOR NOZZLE | KC84HBZTZ000 | Not Available |
| 10 | Not Available | SCREW | KS681550 | Not Available |
| 11 | No Image | COVER, SWIVEL CAP PN 116.57915701 Part Number: KC25QAKTZV07 for Kenmore | KC25QAKTZV07 | $31.34Read more |
| 12 | Not Available | WINDOW REFLECTOR | KC22HBZTZ000 | Not Available |
| 13 | Not Available | REAR COVER | 4370717 | Not Available |
| 14 | Not Available | LEAD WIRE "A" | KC67VAXEZV06 | Not Available |
| 15 | Not Available | SWIVEL | KC92PBEY1V06 | Not Available |
| 16 | Not Available | PEDAL QUICK RELEASE | 8195108 | Not Available |
| 17 | Not Available | PAD FOOT PEDAL | 4370577 | Not Available |
| 18 |  | Kenmore Swivel Seal | KS742019 | $16.81Read more |
| 19 | Not Available | WASHER THRUST | KS722909 | Not Available |
| 20 | Not Available | WASHER | KS725635 | Not Available |
| 21 | Not Available | CATCH INDEXING | KS722955 | Not Available |
| 22 | Not Available | INDICATOR LEVER | 4370720 | Not Available |
| 23 | Not Available | CAM INDICATOR | KS747291 | Not Available |
| 24 | Not Available | RATCHET CATCH | KS742016 | Not Available |
| 25 |  | Indicator Block Assembly For: kenmore | KC83MAKSZV06 | $20.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | SPRINGASSIST | 725775 | Not Available |
| 27 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | OVERLOAD PROTECTOR | KC76FAXEZ000 | Not Available |
| 29 | Not Available | SCREW | KS681297 | Not Available |
| 30 | Not Available | MOTOR BRIDGE | KS705093 | Not Available |
| 31 |  | Motor-Kenmore Power Nozzle - Grooved For: kenmore | KC90FCBJZ000 | $73.50Read more |
| 32 | Not Available | MOTOR GASKET | KS747156 | Not Available |
| 33 |  | Kenmore Serpentine Belt | KER1080 | $9.99Add to cart |
| 34 | Not Available | MOTORSPRING | KS742002 | Not Available |
| 35 |  | Pedal, Handle Release 116.23612300 Part Number: KC47AGJ3V06 for Kenmore | KC47AGJ3V06 | $7.79Add to cart |
| 36 |  | Wheel, Rear P/N 116.25812503 2Pk Part Number: KC99CBZTZV07 for Kenmore | KC99CBZTZV07 | $25.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Bottom Plate, PowerMate Part Number: KC03RBZT1V07 for Kenmore | KC03RBZT1V07 | $55.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | FRONTAXLE ASSEMBLY | 744029 | Not Available |
| 40 | Not Available | FRONT COVER | 4370967 | Not Available |
| 41 | Not Available | SCREW | 4370280 | Not Available |
| 42 | Not Available | SCREW | 4368551 | Not Available |
| 43 | Not Available | DIRTSENSORWINDOW | 4369981 | Not Available |
| 44 | Not Available | P.C.B. SUPPORTER | KC23KBZTZU00 | Not Available |
| 45 | Not Available | P.C.B. DIRTSENSOR | KC87GBZTZ000 | Not Available |
| 46 | Not Available | DIRTSENSOR UNIT | KC87GBZR2000 | Not Available |
| 47 | Not Available | P.C.B. UNIT | 4369985 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | UPHOLSTERY NOZZLE, POWER TEAM Part Number: KC63RBZTZV07 for Kenmore | KC63RBZTZV07 | $64.06Read more |
| 2 | No Image | UPHOLSTERY BRUSH, KENMORE POWER TEAM 116.25512500 Part Number: KC62RBZTZV07 for Kenmore | KC62RBZTZV07 | $50.01Read more |
| 3 | No Image | DUSTING BRUSH, POWER TEAM Part Number: KC94QBZTZV07 for Kenmore | KC94QBZTZV07 | $62.22Read more |
| 4 | No Image | BRUSH, FLOOR KENMORE POWER TEAM CANISTER Part Number: 4370614 for Kenmore | 4370614 | $46.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | CREVICE TOOL, POWER TEAM 116.24212400 Part Number: 8175100 for Kenmore | 8175100 | $25.72Read more |
| 6 |  | Quick Release For: kenmore | 8192063 | $21.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | EXTENSION WAND | 4370972 | Not Available |
| 8 |  | Cover, Black Plastic Fuse Wand 116.25615500 Part Number: 8191782 for Kenmore | 8191782 | $43.81Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | SWITCH CASE | KC68GBZTZU01 | Not Available |
| 2 | Not Available | SLIDING KNOB | KC02UBZTZVU6 | Not Available |
| 3 | No Image | SWITCH, 3 POSITION 116.25512500 Part Number: 8191600 for Kenmore | 8191600 | $53.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | SCREW | 4369085 | Not Available |
| 5 |  | Handle Assy For: kenmore | KC93BBZTZV06 | $36.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tube - Center For: kenmore | 4370612 | $48.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | HOSE, BLANK W/O ENDS 116.20512003 Part Number: 4370588 for Kenmore | 4370588 | $77.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Connection Pipe Assembly For: kenmore | KC92PBZTZV06 | $51.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | HOSE PACKING | KC04RATMZ000 | Not Available |
| 12 | Not Available | WIRE HARNESS | KC37GBZTZV06 | Not Available |
| 13 | Not Available | HOSE ASSEMBLY | KC94PBZTZU01 | Not Available |
| # | Part image | Description | SKU | Price |

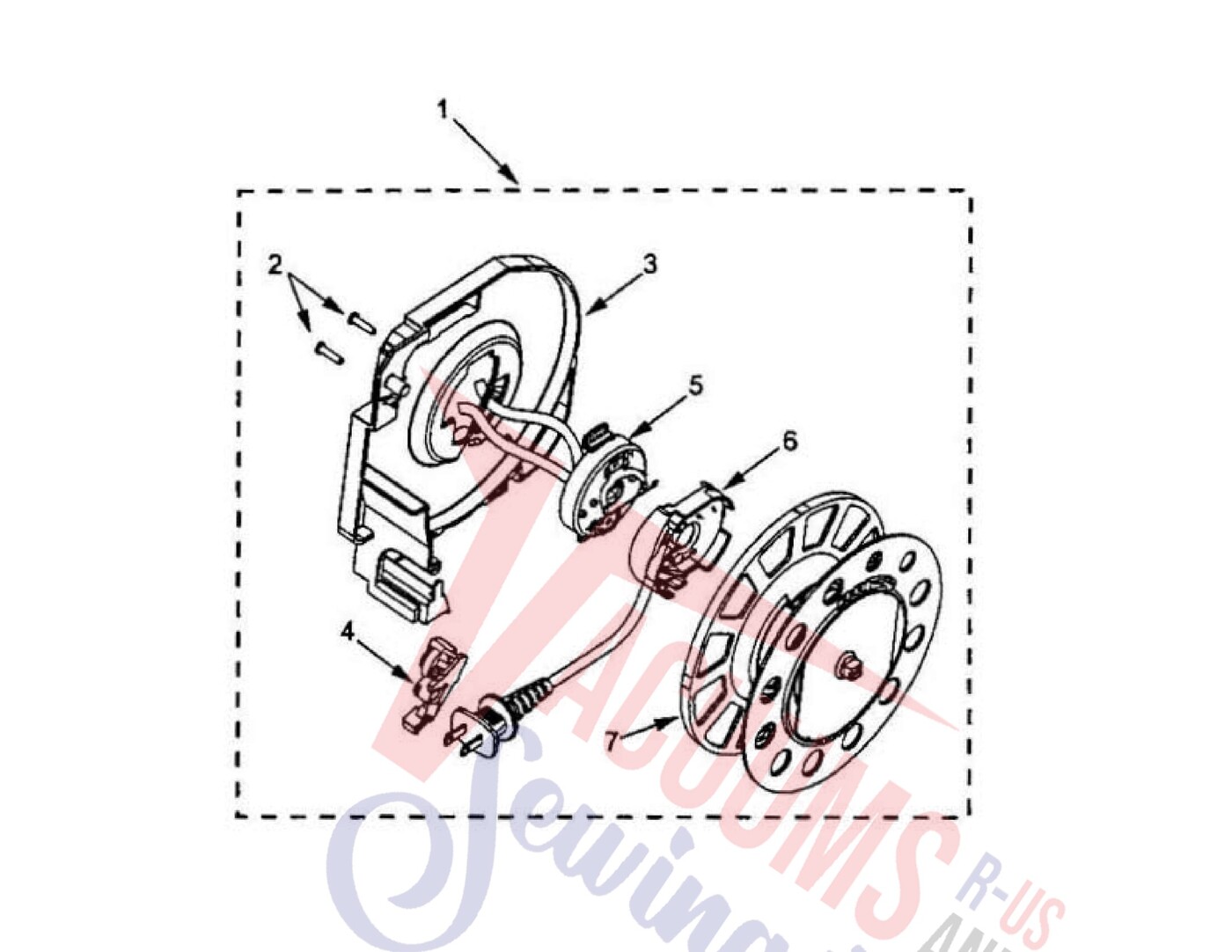

| 1 |  | Cord Reel Assy
28Ft For: kenmore | 8195114 | $68.38Read more |
| 1 |  | Available Pre OwnedPre-owned Kenmore Progressive Cord Reel - 8195114 More Product Details | 8195114R | $49.99Add to cart |
| 2 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | BRACKET CORD REEL | 8175266 | Not Available |
| 4 | Not Available | BRAKE LEVER UNIT | 4370692 | Not Available |
| 5 | Not Available | CONTACT BASE | 4370924 | Not Available |
| 6 | No Image | CORD, MAIN POWER 116. 28813203 Part Number: 4370695 for Kenmore | 4370695 | $173.03Read more |
| 7 | Not Available | CORD REEL HUB ASSEMBLY | 8175267 | Not Available |
| # | Part image | Description | SKU | Price |

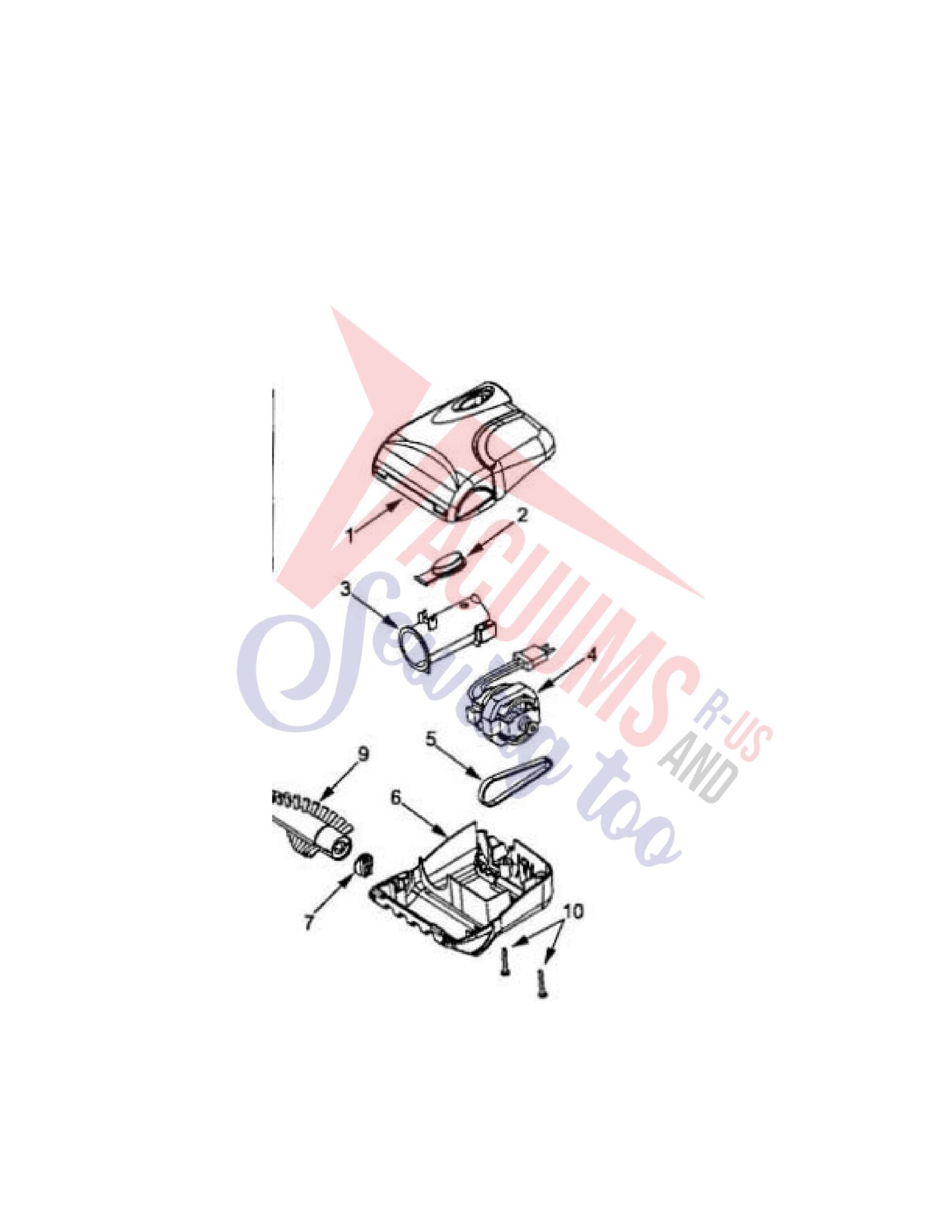

| 1 | Not Available | NOZZLE | 8192006 | Not Available |
| 2 | Not Available | RELEASE BUTTON | 8192009 | Not Available |
| 3 | Not Available | LOCKING TUBE | 8192008 | Not Available |
| 4 | Not Available | MOTOR (NOT AVAILABLE) | N/A | Not Available |
| 5 |  | Belt,Kenmore Drive 116.C85PBPK0V022 Part Number: 8192011 for Kenmore | 8192011 | $26.52Read more |
| 6 | No Image | BASE, 116.53612300 Part Number: 8192007 for Kenmore | 8192007 | $35.48Read more |
| 7 | Not Available | BRUSH END CAP | 8192016 | Not Available |
| 8 | Not Available | DOWEL SHAFT | 8192017 | Not Available |
| 9 | No Image | BRUSHROLL, 116.23613300 POWER MATE STAIR TOOL Part Number: 8192013 for Kenmore | 8192013 | $29.58Read more |
| 10 | Not Available | SCREW | 4368551 | Not Available |
| 11 | Not Available | POWER MATE JR (COMPLETE ASSEMBLY) | 4369133 | Not Available |
