Schematic and parts book for Kenmore 116.2435081 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

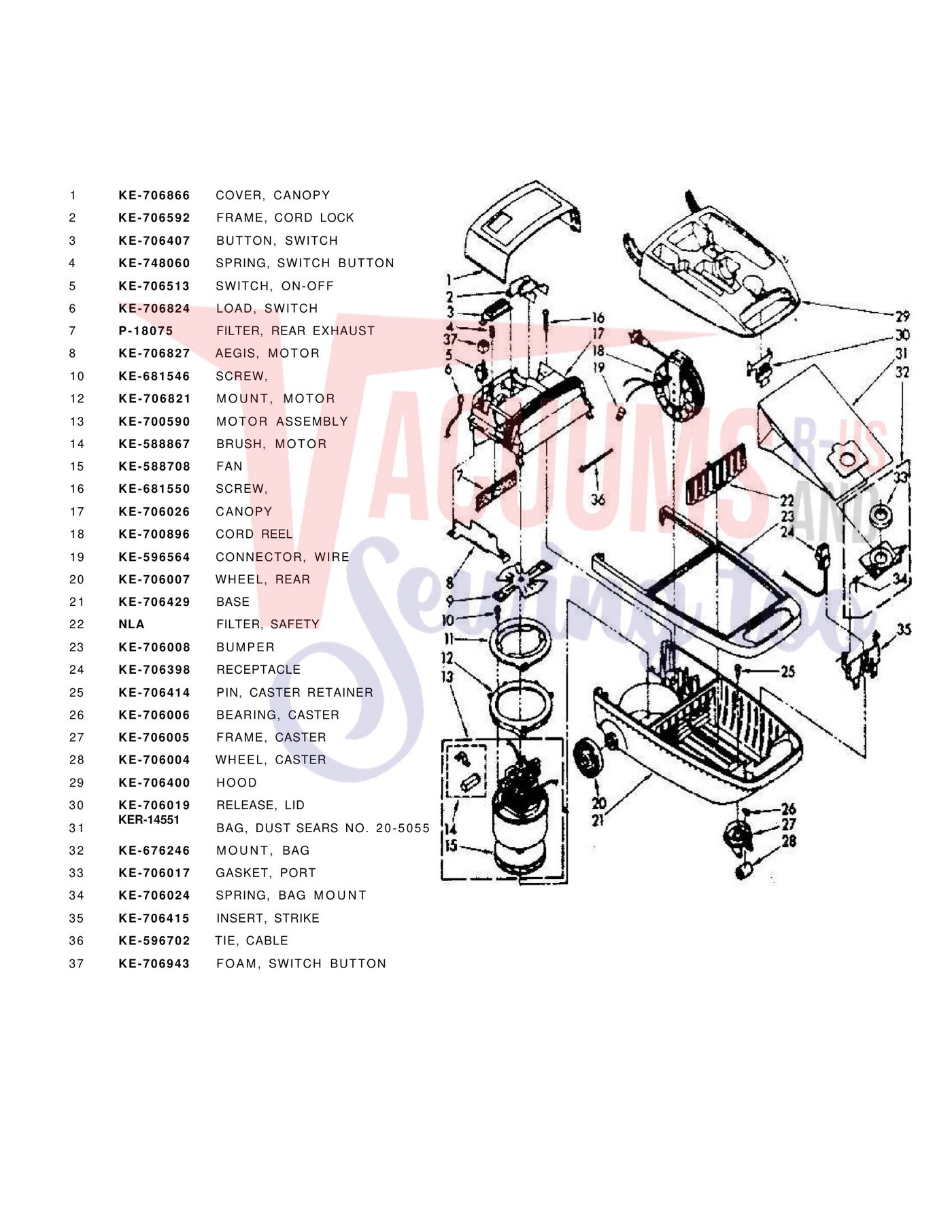

| # | Part image | Description | SKU | Price |
| 1 | Not Available | COVER CANOPY | 706866 | Not Available |
| 2 | Not Available | FRAME CORD LOCK | 706592 | Not Available |
| 3 | Not Available | BUTTON SWITCH | 706407 | Not Available |
| 4 | Not Available | SPRING SWITCH BUTTON | 748060 | Not Available |
| 5 | Not Available | SWITCH ON-OFF | 706513 | Not Available |
| 6 | Not Available | LOAD SWITCH | 706824 | Not Available |
| 7 | Not Available | FILTER REAR EXHAUST | 18075 | Not Available |
| 8 | Not Available | AEGIS MOTOR | 706827 | Not Available |
| 10 | Not Available | SCREW | 681546 | Not Available |
| 12 | Not Available | MOUNT MOTOR | 706821 | Not Available |
| 13 | Not Available | MOTOR ASSEMBLY | 700590 | Not Available |
| 14 | Not Available | BRUSH MOTOR | 588867 | Not Available |
| 15 | Not Available | FAN | 588708 | Not Available |
| 16 | Not Available | SCREW | 681550 | Not Available |
| 17 | Not Available | CANOPY | 706026 | Not Available |
| 18 | Not Available | CORD REEL | 700896 | Not Available |
| 19 | Not Available | CONNECTOR WIRE | 596564 | Not Available |
| 20 | Not Available | WHEEL REAR | 706007 | Not Available |
| 21 | Not Available | BASE | 706429 | Not Available |
| 22 | Not Available | FILTER SAFETY | NLA | Not Available |
| 23 | Not Available | BUMPER | 706008 | Not Available |
| 24 | Not Available | RECEPTACLE | 706398 | Not Available |
| 25 | Not Available | PIN CASTER RETAINER | 706414 | Not Available |
| 26 | Not Available | BEARING CASTER | 706006 | Not Available |
| 27 | Not Available | FRAME CASTER | 706005 | Not Available |
| 28 | Not Available | WHEEL CASTER | 706004 | Not Available |
| 29 | Not Available | HOOD | 706400 | Not Available |
| 30 | Not Available | RELEASE LID | 706019 | Not Available |
| 32 | Not Available | MOUNT BAG | 676246 | Not Available |
| 33 | No Image | GASKET Part Number: 706017 for Kenmore | 706017 | $10.60Read more |
| 34 | Not Available | SPRING BAG MOUNT | 706024 | Not Available |
| 35 | Not Available | INSERT STRIKE | 706415 | Not Available |
| 36 | Not Available | TIE CABLE | 596702 | Not Available |
| 37 | Not Available | FOAM SWITCH BUTTON | 706943 | Not Available |
| # | Part image | Description | SKU | Price |

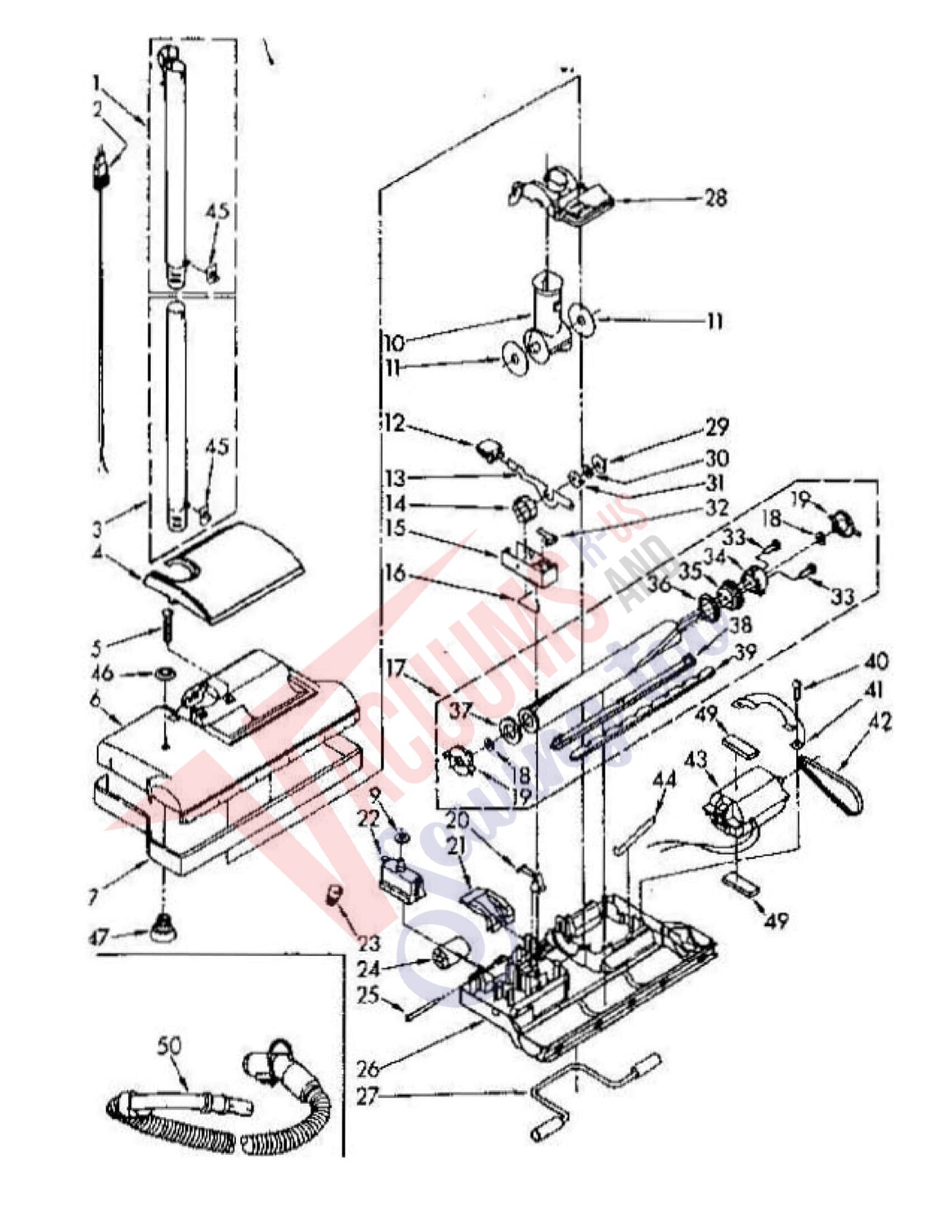

| 1 | Not Available | WAND & CORD MOUNT ASSEMBLY | 742772 | Not Available |
| 2 | Not Available | CORD & PLUG | 743131 | Not Available |
| 3 | Not Available | WAND ASSEMBLY (LOWER) | 742488 | Not Available |
| 4 | Not Available | COVER NOZZLE | 743638 | Not Available |
| 5 | Not Available | SCREW 8-18 X 1-7/8 (2) | 681550 | Not Available |
| 6 | Not Available | NOZZLE | 743626 | Not Available |
| 7 | Not Available | BUMPER | 742767 | Not Available |
| 9 | Not Available | SEAL OVERLOAD | 742968 | Not Available |
| 10 | Not Available | SWIVEL | 742758 | Not Available |
| 11 | Not Available | SWIVEL SEAL (2) | 742019 | Not Available |
| 12 | Not Available | PAD FOOT PEDAL | 742763 | Not Available |
| 13 | Not Available | INDICATOR LEVER | 742017 | Not Available |
| 14 | Not Available | INDICATOR CAM | 725725 | Not Available |
| 15 | Not Available | INDICATOR BLOCK | 742015 | Not Available |
| 16 | Not Available | SPRING ASSIST | 725775 | Not Available |
| 17 |  | Agitator Unit For: kenmore | 8192670 | $71.43Read more |
| 18 | Not Available | WASHER METAL (12 X 1/2) (2) | 681424 | Not Available |
| 19 | Not Available | BEARING & HOUSING ASSEMBLY (2) (INCLUDES KEY 18) | 743395 | Not Available |
| 20 | Not Available | LIFTER | 742013 | Not Available |
| 21 | Not Available | HANDLE RELEASE | 742755 | Not Available |
| 22 | Not Available | OVERLOAD PROTECTOR | 742332 | Not Available |
| 23 | Not Available | WIRE CONNECTOR | 596564 | Not Available |
| 24 | Not Available | ROLLER REAR (2) | 742765 | Not Available |
| 25 | Not Available | REAR AXLE (2) | 742006 | Not Available |
| 26 | Not Available | BASE | 743037 | Not Available |
| 27 | Not Available | FRONT AXLE ASSEMBLY | 744029 | Not Available |
| 28 | Not Available | SWIVEL CAP | 742760 | Not Available |
| 29 | Not Available | WASHER THRUST | 722909 | Not Available |
| 30 | Not Available | WASHER | 725635 | Not Available |
| 31 | Not Available | CATCH INDEXING | 722955 | Not Available |
| 32 | Not Available | RATCHET CATCH | 742016 | Not Available |
| 33 | Not Available | SCREW TYPE 25 #6 PAN (2) | 681605 | Not Available |
| 34 | Not Available | END BRUSH TUFTED | 742509 | Not Available |
| 35 | Not Available | BRUSH SPROCKET | 742506 | Not Available |
| 36 | Not Available | BRUSH SPROCKET FLANGE | 742031 | Not Available |
| 37 | Not Available | STRING GUARD | 742172 | Not Available |
| 38 | Not Available | BEATER BRUSH | 742030 | Not Available |
| 39 | Not Available | BEATER BAR | 742029 | Not Available |
| 40 | Not Available | SCREW 8-18 X 5/8 (2) | 681297 | Not Available |
| 41 | Not Available | MOTOR BRIDGE | 742422 | Not Available |
| 42 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 43 | Not Available | MOTOR ASSEMBLY | 60520 | Not Available |
| 44 | Not Available | MOTOR ADJUSTMENT SPRING | 742002 | Not Available |
| 45 | Not Available | SPRING WANDLOCK | 725419 | Not Available |
| 46 | Not Available | BEZEL | 741261 | Not Available |
| 47 | Not Available | SWITCH GUIDE | 741260 | Not Available |
| 49 | Not Available | GASKET MOTOR (2) | 742782 | Not Available |
| # | Part image | Description | SKU | Price |

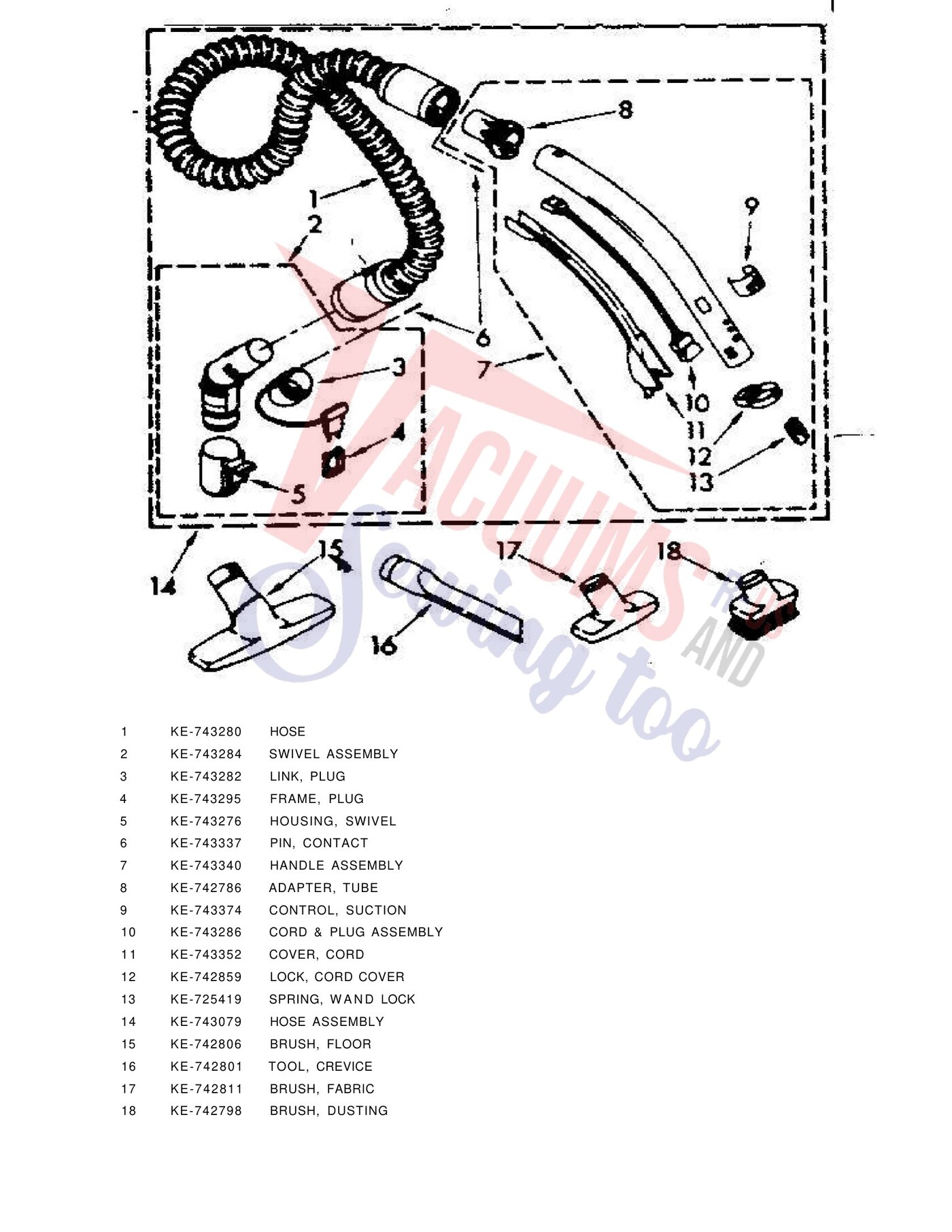

| 1 | Not Available | HOSE | 743280 | Not Available |
| 2 | Not Available | SWIVEL ASSEMBLY | 743284 | Not Available |
| 3 | Not Available | LINK PLUG | 743282 | Not Available |
| 4 | Not Available | FRAME PLUG | 743295 | Not Available |
| 5 | Not Available | HOUSING SWIVEL | 743276 | Not Available |
| 6 | Not Available | PIN CONTACT | 743337 | Not Available |
| 7 | Not Available | HANDLE ASSEMBLY | 743340 | Not Available |
| 8 | Not Available | ADAPTER TUBE | 742786 | Not Available |
| 9 | Not Available | CONTROL SUCTION | 743374 | Not Available |
| 10 | Not Available | CORD & PLUG ASSEMBLY | 743286 | Not Available |
| 11 | Not Available | COVER CORD | 743352 | Not Available |
| 12 | Not Available | LOCK CORD COVER | 742859 | Not Available |
| 13 | Not Available | SPRING WAND LOCK | 725419 | Not Available |
| 14 | Not Available | HOSE ASSEMBLY | 743079 | Not Available |
| 15 | Not Available | BRUSH FLOOR | 742806 | Not Available |
| 16 | Not Available | TOOL CREVICE | 742801 | Not Available |
| 17 | Not Available | BRUSH FABRIC | 742811 | Not Available |
| 18 | Not Available | BRUSH DUSTING | 742798 | Not Available |
