Schematic and parts book for Kenmore 116.24212400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

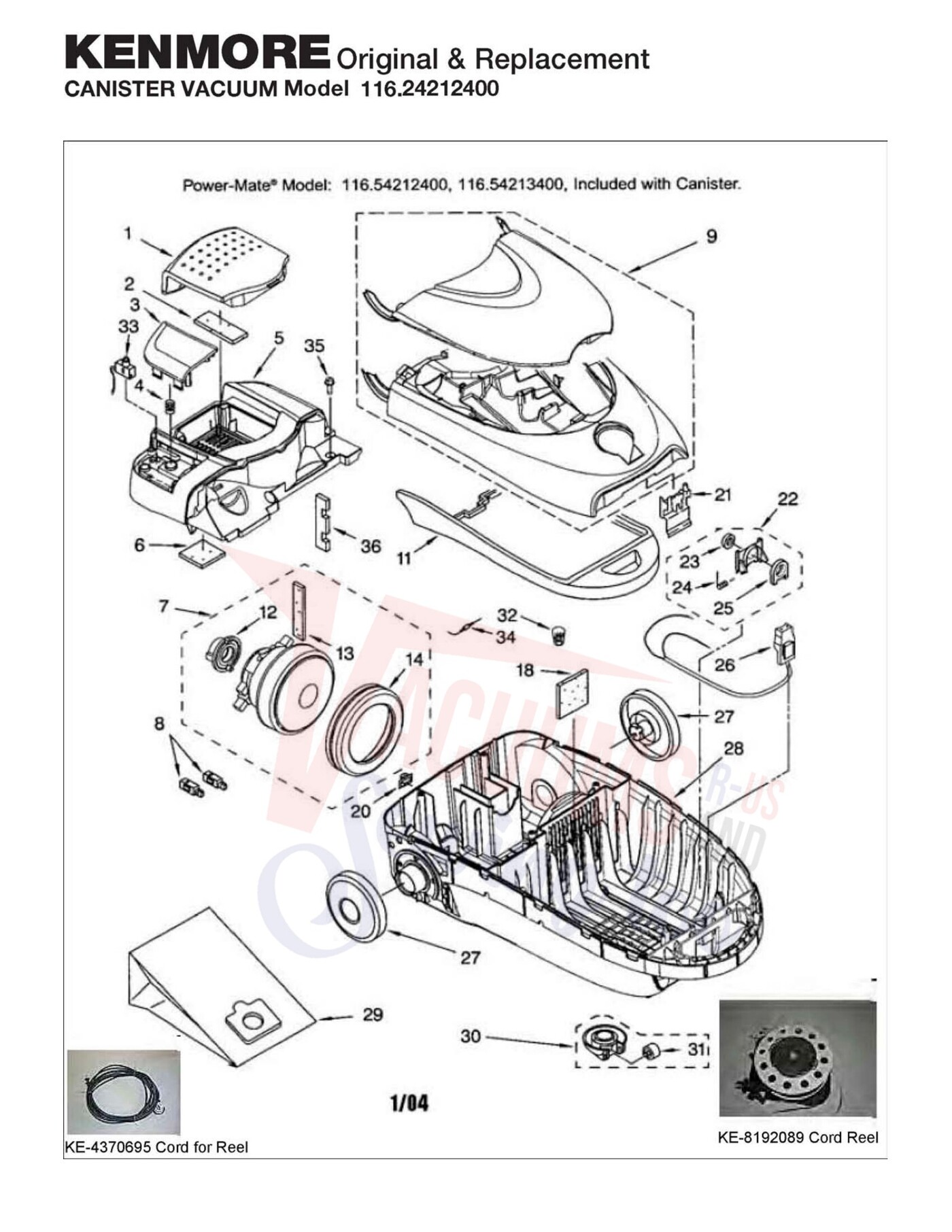

| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, FILTER HEPA 116. 22312202 Part Number: 8175093 for Kenmore | 8175093 | $42.72Read more |
| 2 |  | Kenmore EF-2 HEPA Filter - 471194 | KER1805 | $10.99Add to cart |
| 3 | Not Available | Button power on/off | KC46NAXVZP07 | Not Available |
| 4 | Not Available | Spring cord button | 8175183 | Not Available |
| 5 | Not Available | Canopy assembly | KC90QBPJZP07 | Not Available |
| 6 |  | Kenmore Exhaust Filter | 8175172 | $11.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | MOTOR, MAIN SUCTION 116. 24212400 Part Number: 8175220 for Kenmore | 8175220 | $198.26Read more |
| 8 | Not Available | Brush motor (2) | 4370655 | Not Available |
| 9 | Not Available | Dust box unit (includes tool lid) | KC85KCHZZPU7 | Not Available |
| 11 | Not Available | Guard furniture | 8191983 | Not Available |
| 12 | Not Available | Support motor rubber (rear) | 8175182 | Not Available |
| 13 | Not Available | Suppressor noise | 8174919 | Not Available |
| 14 | Not Available | Support motor rubber (front) | 8175085 | Not Available |
| 18 | No Image | FILTER, SECONDARY 116.25512500 Part Number: 8175084 for Kenmore | 8175084 | $17.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Hook cord | 4369356 | Not Available |
| 21 | Not Available | Latch hood | 8175094 | Not Available |
| 22 |  | Bag Mount For: kenmore | 4370617 | $18.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Spring bag moount | 706024 | Not Available |
| 25 | Not Available | Gasket bag mount. | 4370689 | Not Available |
| 26 | Not Available | Receptacle 2- wire | 8175144 | Not Available |
| 27 | No Image | WHEEL, REAR Part Number: 8192663 for Kenmore | 8192663 | $25.44Read more |
| 28 | Not Available | Base lower body | 8192664 | Not Available |
| 29 | Not Available | Dust bag sears no. 20-50558 | KER-14551 | Not Available |
| 30 | Not Available | Caster roller unit | 4370690 | Not Available |
| 31 |  | Caster Unit-Titan/Kenmore Canister For: titan | 4370691 | $26.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Wire Nut | SS-3270 | Not Available |
| 33 |  | Switch, Blk Circular Step on 2-Leads 116.29219800 Part Number: 4370761 for Kenmore | 4370761 | $29.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Lead wire assembly | 8175041 | Not Available |
| 35 | Not Available | Screw thread cutting (4) | 4148999 | Not Available |
| 36 | Not Available | Noise suppressor | 8175181 | Not Available |

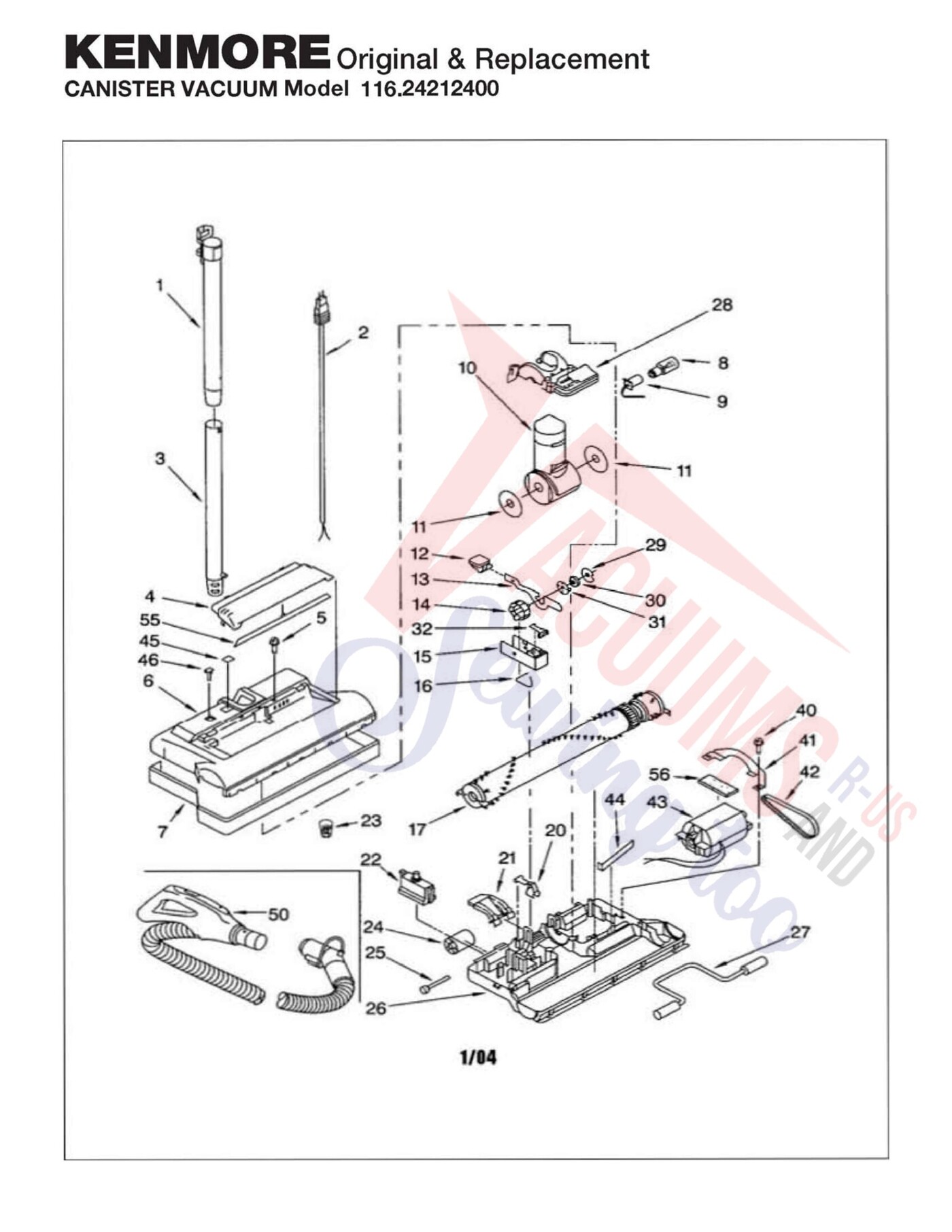

| # | Part image | Description | SKU | Price |
| 1 | No Image | WAND, UPPER KENMORE POWER TEAM 116.24212400 Part Number: 4370473 for Kenmore | 4370473 | $54.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | CORD, POWER NNOZZLE LONG 116.54212400 Part Number: 8192034 for Kenmore | 8192034 | $85.69Read more |
| 3 |  | Wand, Metal Lower Kenmore Power Team Part Number: 4370489 for Kenmore | 4370489 | $49.24Read more |
| 4 | Not Available | Cover power head | KC24HAURZPU7 | Not Available |
| 5 | Not Available | Screw 8-18 x 1-7/8 | 488839 | Not Available |
| 6 | Not Available | Nozzle | KC02RBPJZPU7 | Not Available |
| 7 | Not Available | Bumper | 4155587 | Not Available |
| 8 | Not Available | Bulb | FA-3515 | Not Available |
| 9 | Not Available | Socket bulb | 8175250 | Not Available |
| 10 |  | Swivel (65607) For: kenmore | KS4155049 | $26.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Seal swivel bearing (2) | 742019 | Not Available |
| 12 | Not Available | Pad foot pedal | 4370577 | Not Available |
| 13 | Not Available | Indicator level | 4370720 | Not Available |
| 14 | Not Available | Indicator cam | 588543 | Not Available |
| 15 | Not Available | Indicator block | 8191506 | Not Available |
| 16 | Not Available | Spring assist | 725775 | Not Available |
| 17 |  | Agitator Unit For: kenmore | 8192670 | $71.43Read more |
| 20 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Pedal, Handle Release 116.23612300 Part Number: KC47AGJ3V06 for Kenmore | KC47AGJ3V06 | $7.79Add to cart |
| 22 | Not Available | Protector overload | 8175256 | Not Available |
| 23 | Not Available | Wire Nut | SS-3270 | Not Available |
| 24 | No Image | WHEEL, PN 116.59312990 Part Number: 4370364 for Kenmore | 4370364 | $19.14Read more |
| 25 | Not Available | Shaft roller (2) | 742006 | Not Available |
| 26 | Not Available | Base | 8175103 | Not Available |
| 27 |  | Front Axle Assy For: kenmore | KS744029 | $15.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Swivel cap | KC25QRDZP07 | Not Available |
| 29 | Not Available | Washer thrust | NLA | Not Available |
| 30 | Not Available | Washer spring | 725635 | Not Available |
| 31 | Not Available | Catch indexing | 588543 | Not Available |
| 32 | Not Available | Ratchet catch | 742016 | Not Available |
| 40 | Not Available | Screw 8-18 x 5/8 | STD610805 | Not Available |
| 41 | Not Available | Motor bridge | 705093 | Not Available |
| 42 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 43 | Not Available | Motor | KC90FCAL1000 | Not Available |
| 44 | Not Available | Spring motor adjustment | 742002 | Not Available |
| 45 | Not Available | Window cover (height adjustment) | 4369687 | Not Available |
| 46 | Not Available | Bezel | 8191505 | Not Available |
| 50 | Not Available | Hose assembly | 8175196 | Not Available |
| 55 | Not Available | Lens light | KS747286 | Not Available |
| 56 | Not Available | Gasket motor hose assembly | 747156 | Not Available |

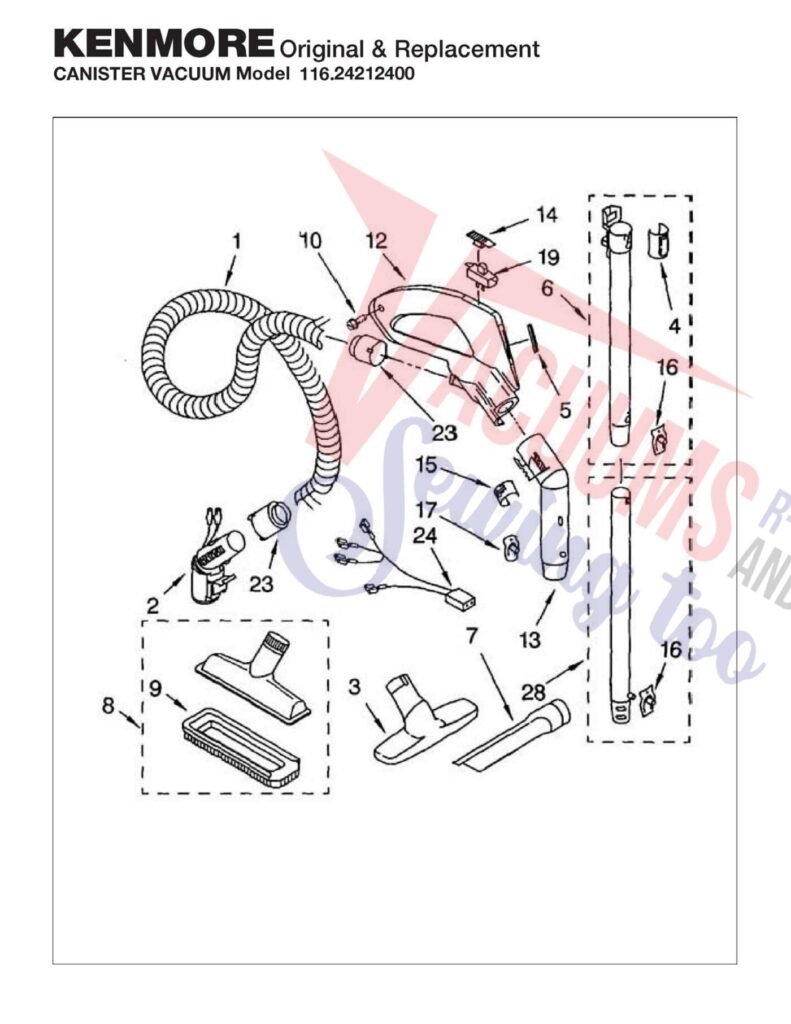

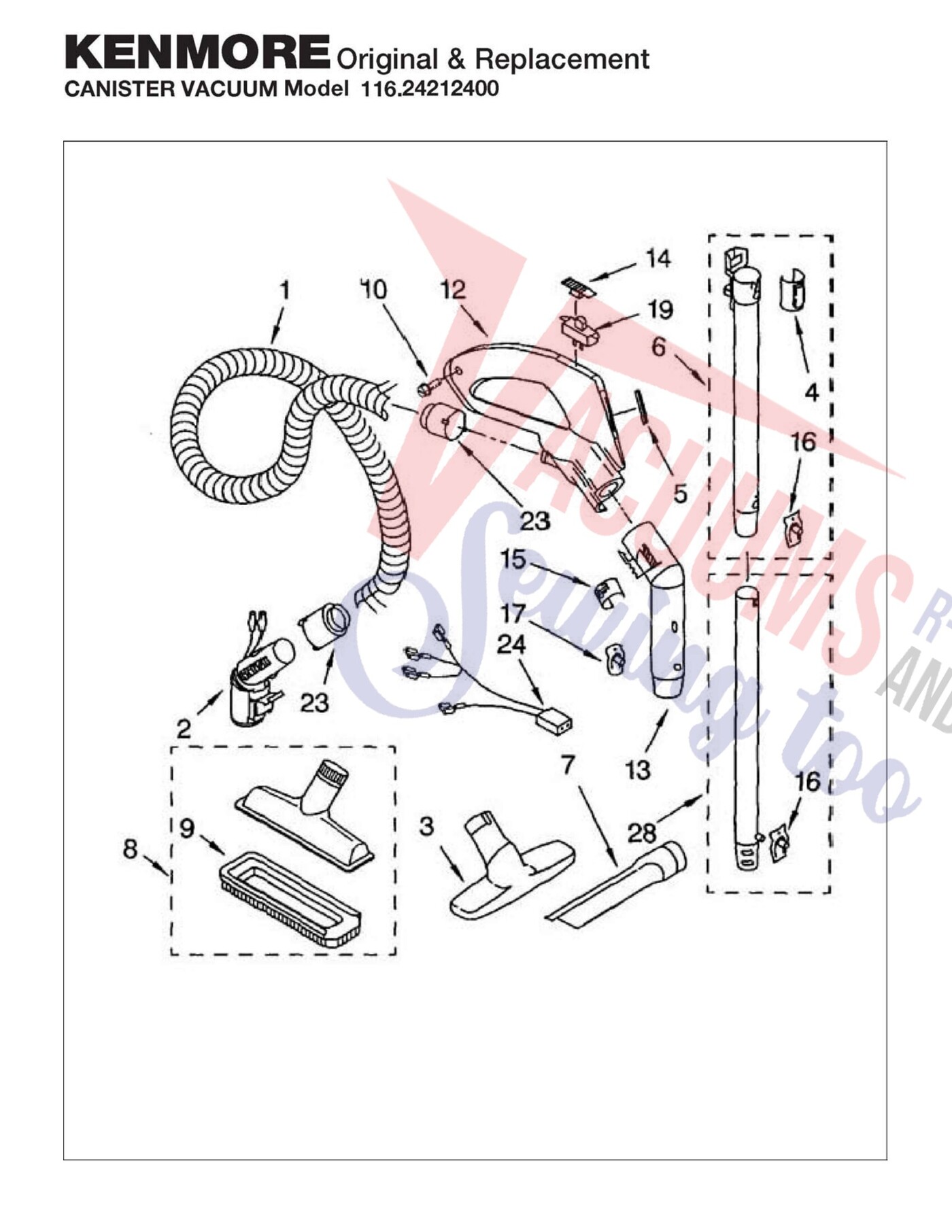

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOSE, 116.26212605 Part Number: 4370993 for Kenmore | 4370993 | $77.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Swivel Assy For: kenmore | 4370366 | $66.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Brush floor | 4370140 | Not Available |
| 4 | Not Available | Release quick (upper) | 8191628 | Not Available |
| 5 | Not Available | Label handle | 4370939 | Not Available |
| 6 | No Image | WAND, UPPER KENMORE POWER TEAM 116.24212400 Part Number: 4370473 for Kenmore | 4370473 | $54.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | CREVICE TOOL, POWER TEAM 116.24212400 Part Number: 8175100 for Kenmore | 8175100 | $25.72Read more |
| 8 | Not Available | Brush combination | 8175098 | Not Available |
| 9 | Not Available | Brush Insert | 8175099 | Not Available |
| 10 | Not Available | Screw knocking cam | 4369085 | Not Available |
| 12 | Not Available | Handle assembly | 4370994 | Not Available |
| 13 | Not Available | Tube center | 4370996 | Not Available |
| 15 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Spring Assy. For: kenmore | 569318 | $2.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Spring Assy. For: kenmore | 569318 | $2.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Switch two-position | 4369245 | Not Available |
| 23 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Wire Harness- 2 Pos Pc For: kenmore | 4370928 | $43.71Read more |
| 28 | | Wand, Metal Lower Kenmore Power Team Part Number: 4370489 for Kenmore | 4370489 | $49.24Read more |
