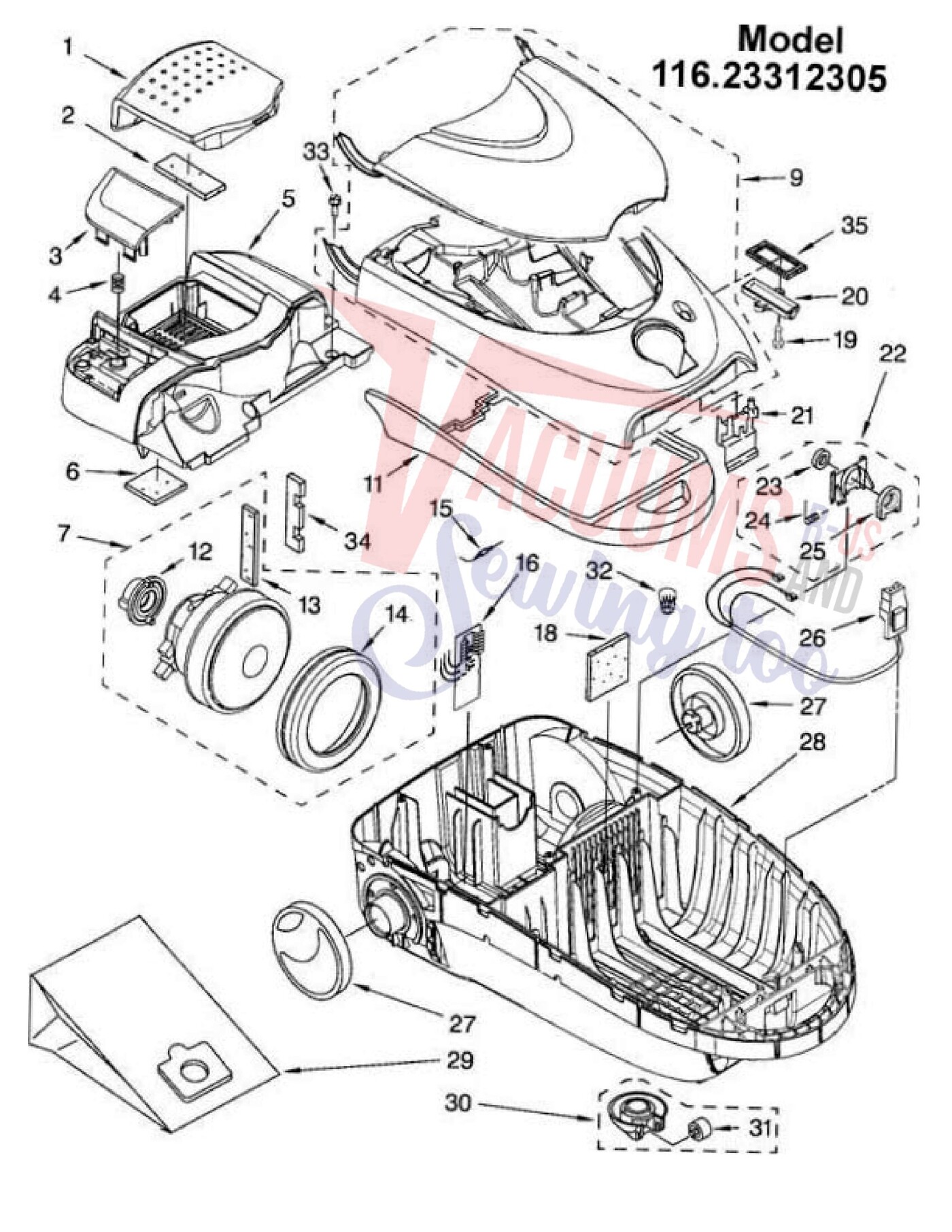

Schematic and parts book for Kenmore 116.23312305 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | COVER, FILTER HEPA 116. 22312202 Part Number: 8175093 for Kenmore | 8175093 | $42.72Read more |
| 2 |  | Kenmore EF-2 HEPA Filter - 471194 | KER1805 | $10.99Add to cart |
| 3 | Not Available | BUTTON POWER CORD REWIND | 8192035 | Not Available |
| 4 | Not Available | SPRING CORD BUTTON | 8175183 | Not Available |
| 5 | Not Available | CANOPY ASSEMBLY | 8192036 | Not Available |
| 6 |  | Kenmore Exhaust Filter | 8175172 | $11.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | MOTOR FAN | KC92FCWWZ000 | Not Available |
| 9 | Not Available | DUST BOX UNIT (INCLUDES TOOL LID) | 8192149 | Not Available |
| 11 | Not Available | GUARD FURNITURE | 8175090 | Not Available |
| 12 |  | Support - Motor Rear-Titan T8000 Bagless Canister For: titan | 8175133 | $5.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | FILTER MOTOR | 8174919 | Not Available |
| 14 | Not Available | SUPPORT RUBBER FRONT MOTOR | KC02FCUNZ000 | Not Available |
| 15 | Not Available | LEAD WIRE | 8175041 | Not Available |
| 16 | Not Available | P.C.B ASSEMBLY | KC86WBZRZ000 | Not Available |
| 18 | Not Available | FILTER SECONDARY (SEARS NO. 20-86883) | KER-1815 | Not Available |
| 19 | Not Available | SCREW | 4368879 | Not Available |
| 20 | Not Available | INDICATOR UNIT | 8175096 | Not Available |
| 21 | Not Available | LATCH HOOD | 8175094 | Not Available |
| 22 |  | Bag Mount For: kenmore | 4370617 | $18.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | SPRING BAG MOUNT | 706024 | Not Available |
| 25 | Not Available | GASKET BAG MOUNT | 4370689 | Not Available |
| 26 | Not Available | RECEPTACLE 3-WIRE | 4370608 | Not Available |
| 27 |  | Wheel-Kenmore Rear
5 1/2 Inch For: kenmore | 4370702 | $8.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | BASE LOWER BODY | 8192706 | Not Available |
| 29 | Not Available | DUST BAG (SEARS NO. 20-50558) | KER-14551 | Not Available |
| 30 | Not Available | CASTER ROLLER UNIT | 4370690 | Not Available |
| 31 |  | Caster Unit-Titan/Kenmore Canister For: titan | 4370691 | $26.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | NUT WIRE | 4154460 | Not Available |
| 33 | Not Available | SCREW CANOPY MOUNTING | 4148999 | Not Available |
| 34 | Not Available | NOISE SUPPRESSOR | 8175181 | Not Available |
| 35 | Not Available | PACKING INDICATOR | 4368704 | Not Available |
| # | Part image | Description | SKU | Price |

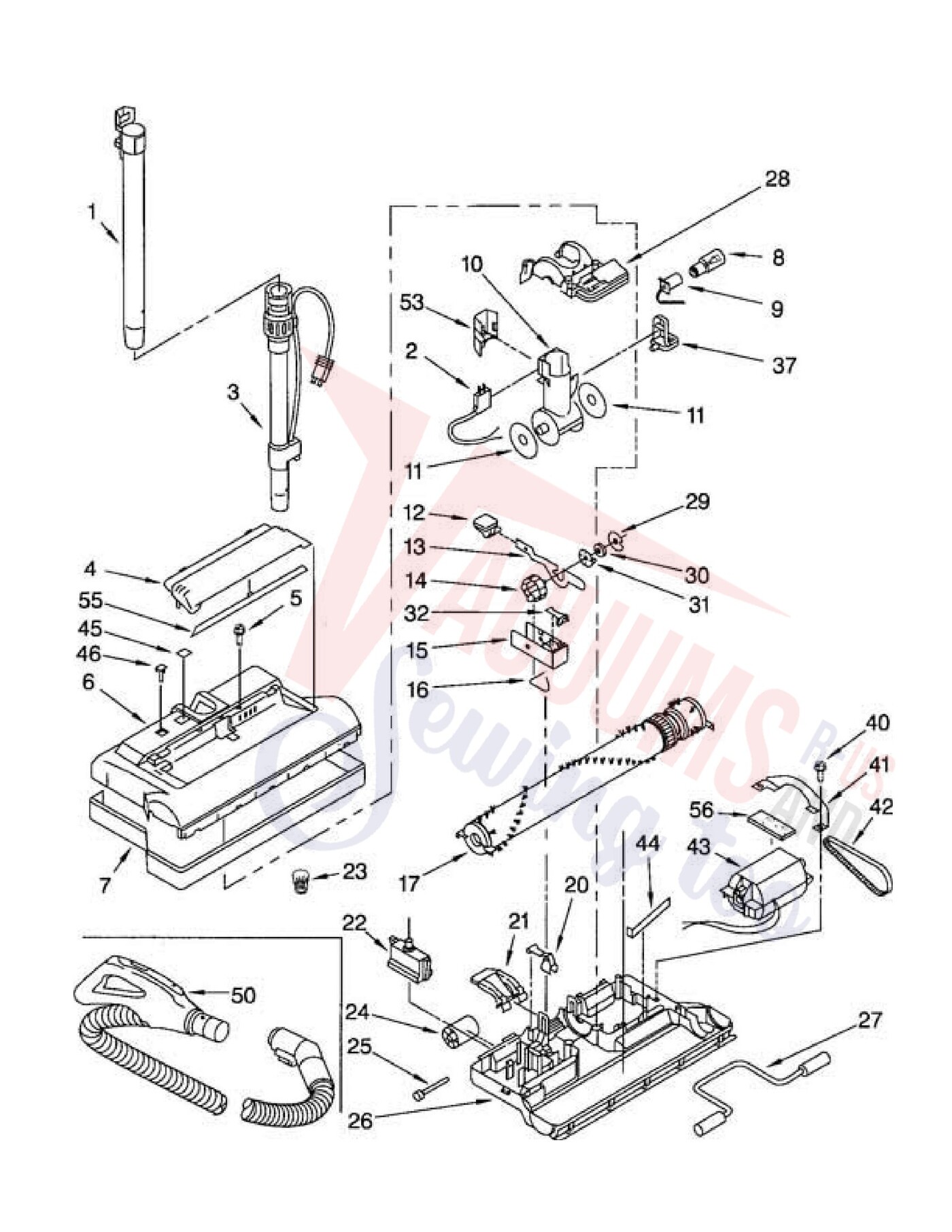

| 1 | Not Available | WAND (UPPER) | 5010-1 | Not Available |
| 2 | Not Available | CORD AND PLUG | 8175251 | Not Available |
| 3 | Not Available | WAND (LOWER) | 5001-1 | Not Available |
| 4 | Not Available | COVER POWER HEAD | 8192040 | Not Available |
| 5 | Not Available | SCREW 8-18 X 1-7/8 (2) | 681550 | Not Available |
| 6 | Not Available | NOZZLE | 8192041 | Not Available |
| 7 | Not Available | BUMPER | 4155587 | Not Available |
| 8 | Not Available | BULB LIGHT (SEARS NO. 20-5240) | FA-3515 | Not Available |
| 9 | Not Available | SOCKET BULB | 8175250 | Not Available |
| 10 | Not Available | SWIVEL | 4153196 | Not Available |
| 11 | Not Available | SWIVEL SEAL (2) | 742019 | Not Available |
| 12 | Not Available | PAD FOOT PEDAL | 4370577 | Not Available |
| 13 | Not Available | INDICATOR LEVER | 4370720 | Not Available |
| 14 | Not Available | INDICATOR CAM | 747291 | Not Available |
| 15 | Not Available | INDICATOR BLOCK | 742015 | Not Available |
| 16 | Not Available | SPRING ASSIST | 725775 | Not Available |
| 17 |  | Motor 10 Amp Part Number 20.085 for Cleanmax Models CMC-QD | 20085 | |
| 20 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Pedal, Handle Release 116.23612300 Part Number: KC47AGJ3V06 for Kenmore | KC47AGJ3V06 | $7.79Add to cart |
| 22 | Not Available | OVERLOAD PROTECTOR | 8175256 | Not Available |
| 23 | Not Available | WIRE CONNECTOR | 4154460 | Not Available |
| 24 | No Image | WHEEL, PN 116.59312990 Part Number: 4370364 for Kenmore | 4370364 | $19.14Read more |
| 25 | Not Available | REAR AXLE (2) | 742006 | Not Available |
| 26 | Not Available | BASE | 8175103 | Not Available |
| 27 | Not Available | FRONT AXLE ASSEMBLY | 744029 | Not Available |
| 28 | Not Available | SWIVEL CAP | 8191625 | Not Available |
| 29 | Not Available | WASHER THRUST | 722909 | Not Available |
| 30 | Not Available | WASHER | 725635 | Not Available |
| 31 | Not Available | CATCH INDEXING | 722955 | Not Available |
| 32 | Not Available | RATCHET CATCH | 742016 | Not Available |
| 37 |  | PEDAL, HANDLE RELEASE 116.25512500 Part Number: 8195147 for Kenmore | 8195147 | $8.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | SCREW 8-18 X 5/8 (2) | 681297 | Not Available |
| 41 | Not Available | MOTOR BRIDGE | 705093 | Not Available |
| 42 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 43 | Not Available | MOTOR | 60518 | Not Available |
| 44 | Not Available | MOTOR ADJUSTMENT SPRING | 742002 | Not Available |
| 45 | Not Available | LENS HEIGHT ADJUSTMENT | 4369687 | Not Available |
| 46 | Not Available | BUTTON EXTENSION | 4370941 | Not Available |
| 50 |  | Hose, Electric With Ends Canister 116.26312605 Part Number: 8192775 for Kenmore | 8192775 | $145.98Add to cart |
| 53 |  | COVER, PLUG, 116.55512500 Part Number: 8175168 for Kenmore | 8175168 | $8.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | Not Available | LENS LIGHT | 747286 | Not Available |
| 56 | Not Available | GASKET MOTOR | 747156 | Not Available |
| # | Part image | Description | SKU | Price |

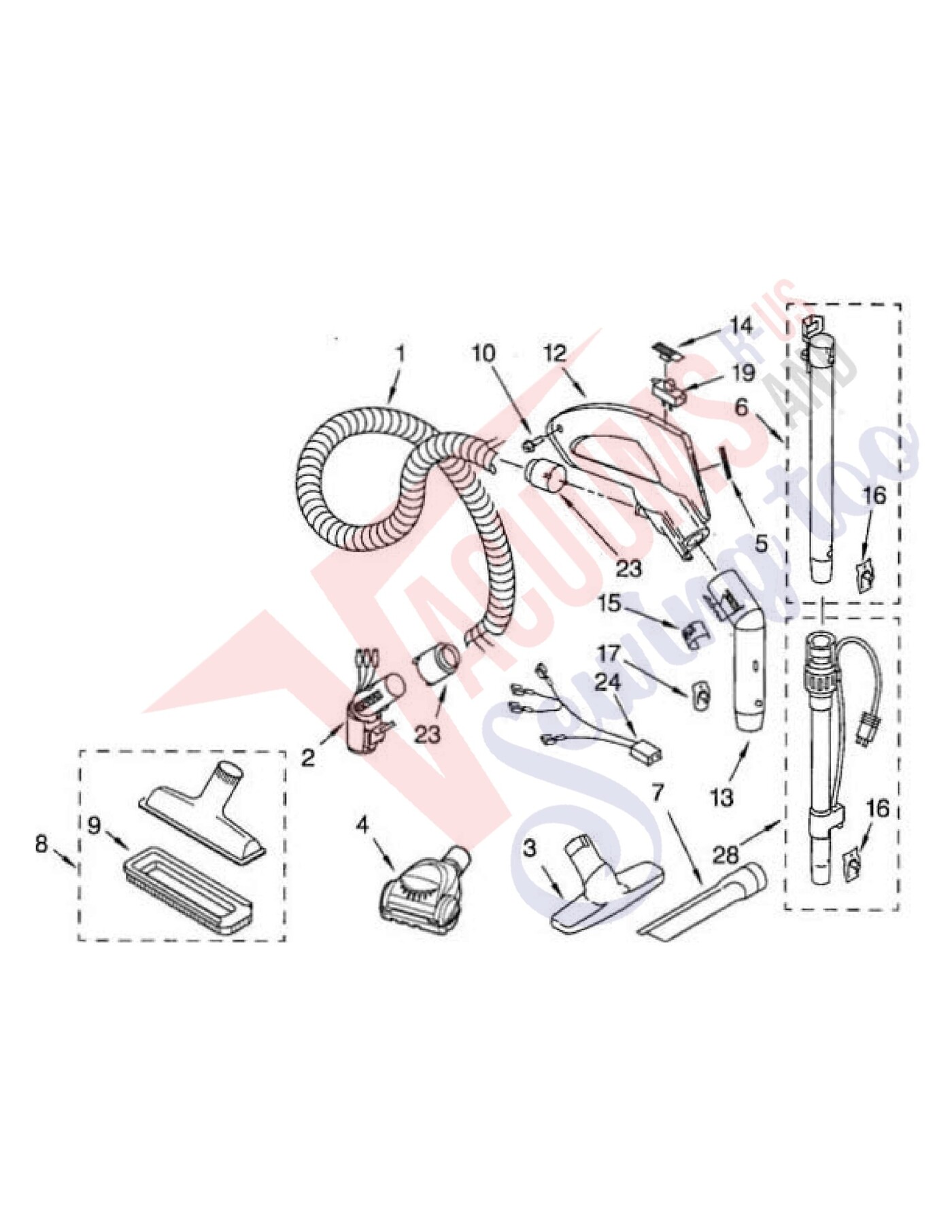

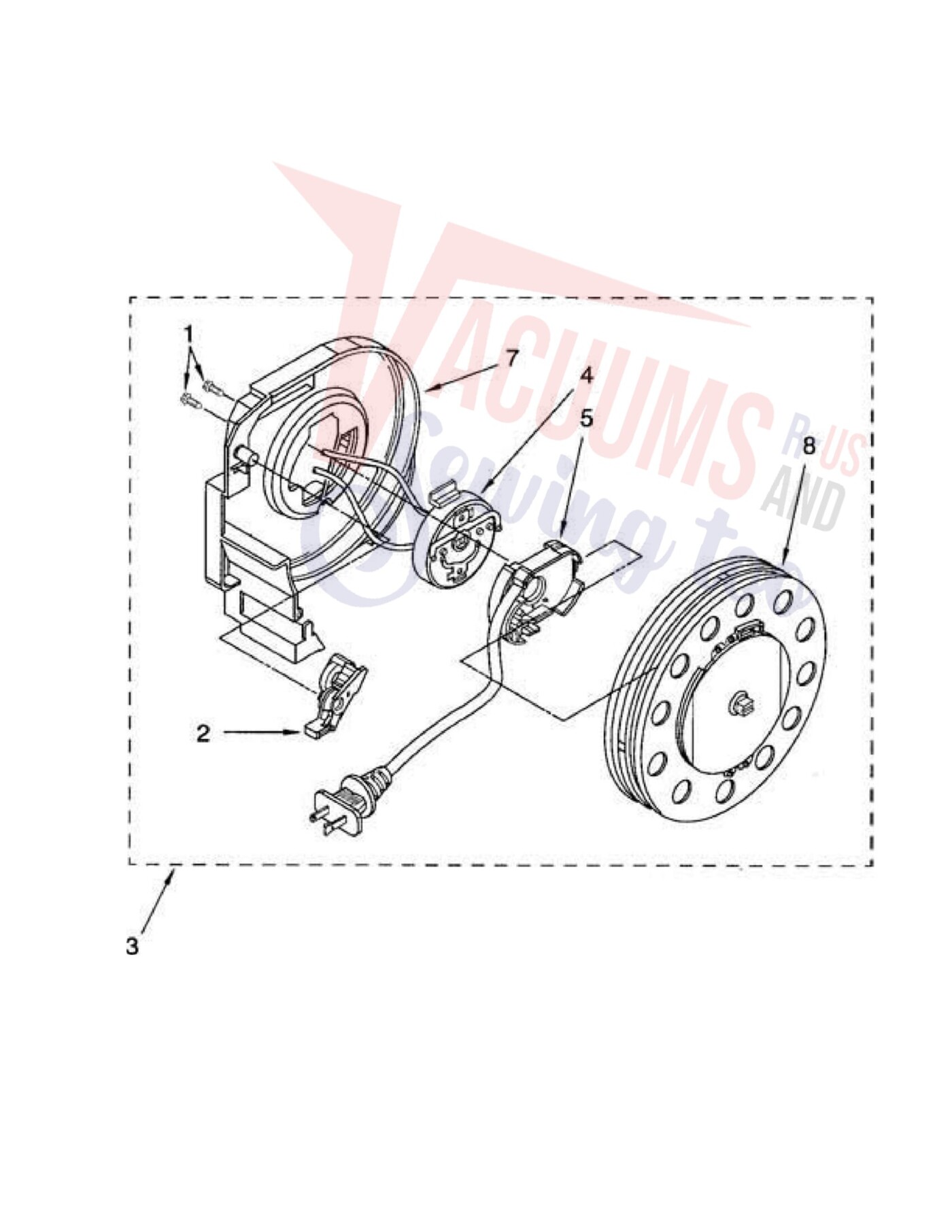

| 1 | No Image | HOSE, 3-WIRE 116.23513302 Part Number: 8192774 for Kenmore | 8192774 | $72.81Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | SWIVEL ASSEMBLY | 4370563 | Not Available |
| 3 |  | Floor Brush
9 Inches For: kenmore | 4370358 | $31.11Read more |
| 4 | Not Available | HANDI-MATE JR. | 8192024 | Not Available |
| 5 | Not Available | LABEL HANDLE | 4370939 | Not Available |
| 6 | No Image | WAND, UPPER 116.20512003 Part Number: 4370619 for Kenmore | 4370619 | $68.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | CREVICE TOOL, POWER TEAM 116.24212400 Part Number: 8175100 for Kenmore | 8175100 | $25.72Read more |
| 8 | Not Available | BRUSH COMBINATION | 8175098 | Not Available |
| 9 | Not Available | HOLDER BRUSH | 8175099 | Not Available |
| 10 | Not Available | SCREW #10 | 4369085 | Not Available |
| 12 |  | Handle Grip Set Only - No Switch/Harness For: kenmore | 4370663 | $57.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | TUBE CENTER | 4370996 | Not Available |
| 14 | No Image | COVER, SWITCH 116. 22512201 Part Number: 8195146 for Kenmore | 8195146 | $11.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | SPRING WAND LOCK | 725419 | Not Available |
| 17 | Not Available | SPRING WAND LOCK | 4152093 | Not Available |
| 19 | Not Available | SWITCH 3-POSITION | 4369108 | Not Available |
| 23 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Wire Harness- 2 Pos Pc For: kenmore | 4370928 | $43.71Read more |
| 28 | Not Available | WAND (LOWER) | 4370623 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | BRAKE LEVER UNIT | 4370692 | Not Available |
| 3 | Not Available | CORD REEL (COMPLETE) | 8192087 | Not Available |
| 4 | Not Available | CONTACT BASE | 4370924 | Not Available |
| 5 | Not Available | CONTACT DISK ASSEMBLY RINGS (POWER CORD) | 8192088 | Not Available |
| 7 | Not Available | BRACKET CORD REEL | 8175105 | Not Available |
| 8 | Not Available | HUB ASSEMBLY CORD REEL | 8175016 | Not Available |
