Schematic and parts book for Kenmore 116.22813203 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

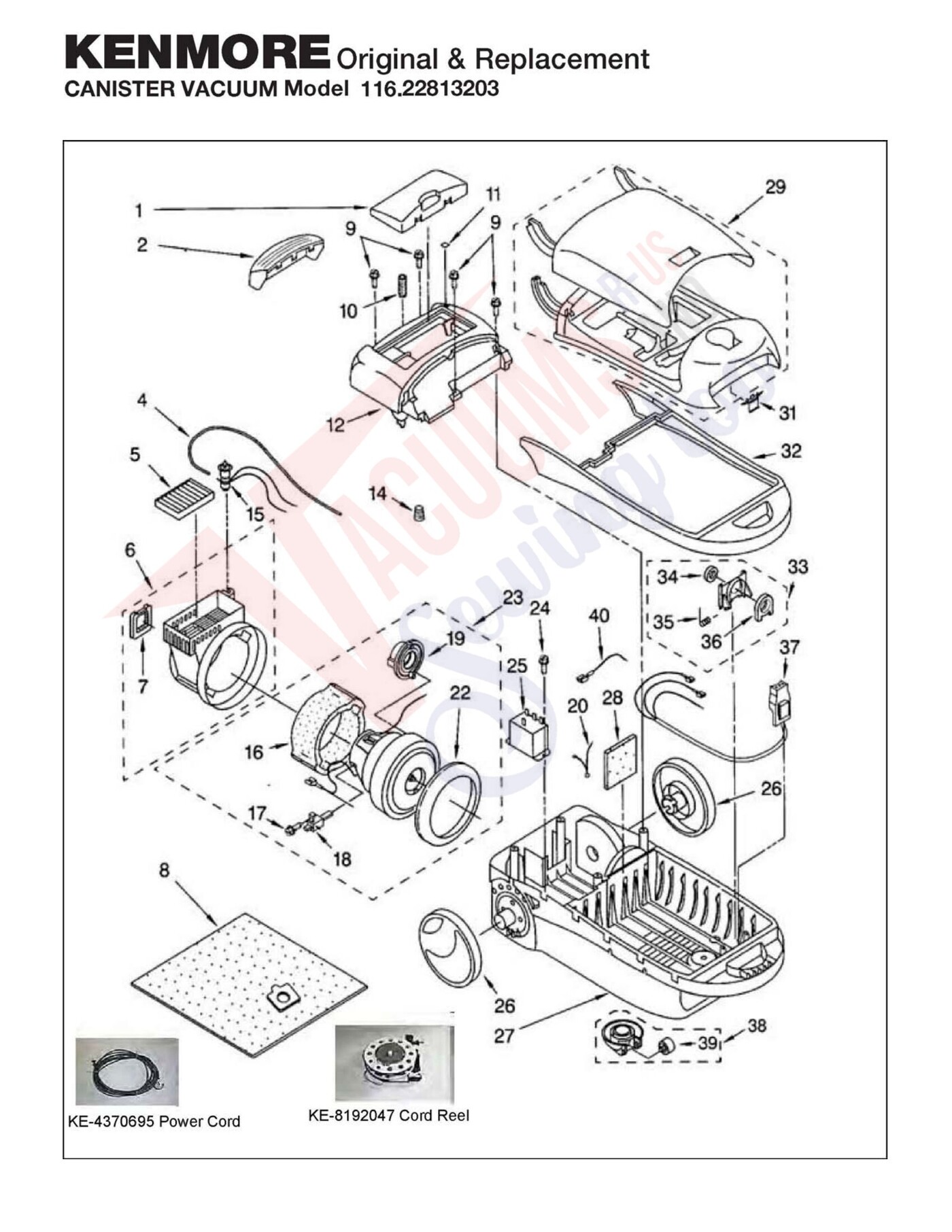

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cover filter | 8191748 | Not Available |
| 2 | Not Available | Button cord rewind | 4370675 | Not Available |
| 4 | Not Available | Adapter tube vac switch | 4370677 | Not Available |
| 5 |  | Kenmore EF-2 HEPA Filter - 471194 | KER1805 | $10.99Add to cart |
| 6 | Not Available | Enclosures motor | 8175262 | Not Available |
| 7 | Not Available | Support motor rubber (rear) | 4370679 | Not Available |
| 8 | Not Available | Dust bag sears no. 20-50557 | KER-14551A | Not Available |
| 9 | Not Available | Screw thread cutting (4) | 4148999 | Not Available |
| 10 | Not Available | Spring cord rewind | 744258 | Not Available |
| 11 | Not Available | Lens | 4151920 | Not Available |
| 12 | Not Available | Canopy | 8191749 | Not Available |
| 14 | Not Available | Wire Nut | SS-3270 | Not Available |
| 15 | Not Available | Indicator light switch (includes illus. 9) | 4370741 | Not Available |
| 16 | Not Available | Suppressor noise | 4370683 | Not Available |
| 17 | Not Available | Screw motor brush (non-service) (reused old part) | NLA | Not Available |
| 18 | Not Available | Brush motor (2) | 8175087 | Not Available |
| 19 |  | Support - Motor Rear-Titan T8000 Bagless Canister For: titan | 8175133 | $5.42Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Lead wire assembly | 8174980 | Not Available |
| 22 | Not Available | Support motor rubber (front) | 8175085 | Not Available |
| 23 | No Image | MOTOR, MAIN SUCTION 116. 22813203 Part Number: 8191786 for Kenmore | 8191786 | $210.66Read more |
| 23 |  | Available Pre OwnedPre-owned Kenmore Intuition Motor Assembly with Housing More Product Details | KE8191786R | $109.00Add to cart |
| 24 | Not Available | Screw relay | NLA | Not Available |
| 25 | Not Available | Relay. motor | 8174981 | Not Available |
| 26 |  | Wheel-Kenmore Rear
5 1/2 Inch For: kenmore | 4370702 | $8.93Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Base lower body | 8175264 | Not Available |
| 28 |  | Kenmore Kit Secondary Filter (electrostatic)2 Pack | 86883 | $38.96Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Compatible alternateKenmore Foam Filter Kit Type CF-1 CF1 - Includes Two Filters More Product Details | 46230702 | $7.07Add to cart |
| 29 | Not Available | Dust box assembly (includes tool cover) | 8191750 | Not Available |
| 31 | Not Available | Buckle closure | 4370687 | Not Available |
| 32 | Not Available | Guard furniture | 4370615 | Not Available |
| 33 |  | Bag Mount For: kenmore | 4370617 | $18.19Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Special order: ships in 2 to 4 weeks |
| 35 | Not Available | Spring bag mount | 706024 | Not Available |
| 36 | Not Available | Gasket bag mount. | 4370689 | Not Available |
| 37 | Not Available | Receptacle 3- wire | 4370608 | Not Available |
| 38 | Not Available | Caster roller unit | 4370690 | Not Available |
| 39 | Not Available | Caster roller | 8175108 | Not Available |
| 40 | Not Available | Lead wire assembly | 8191751 | Not Available |

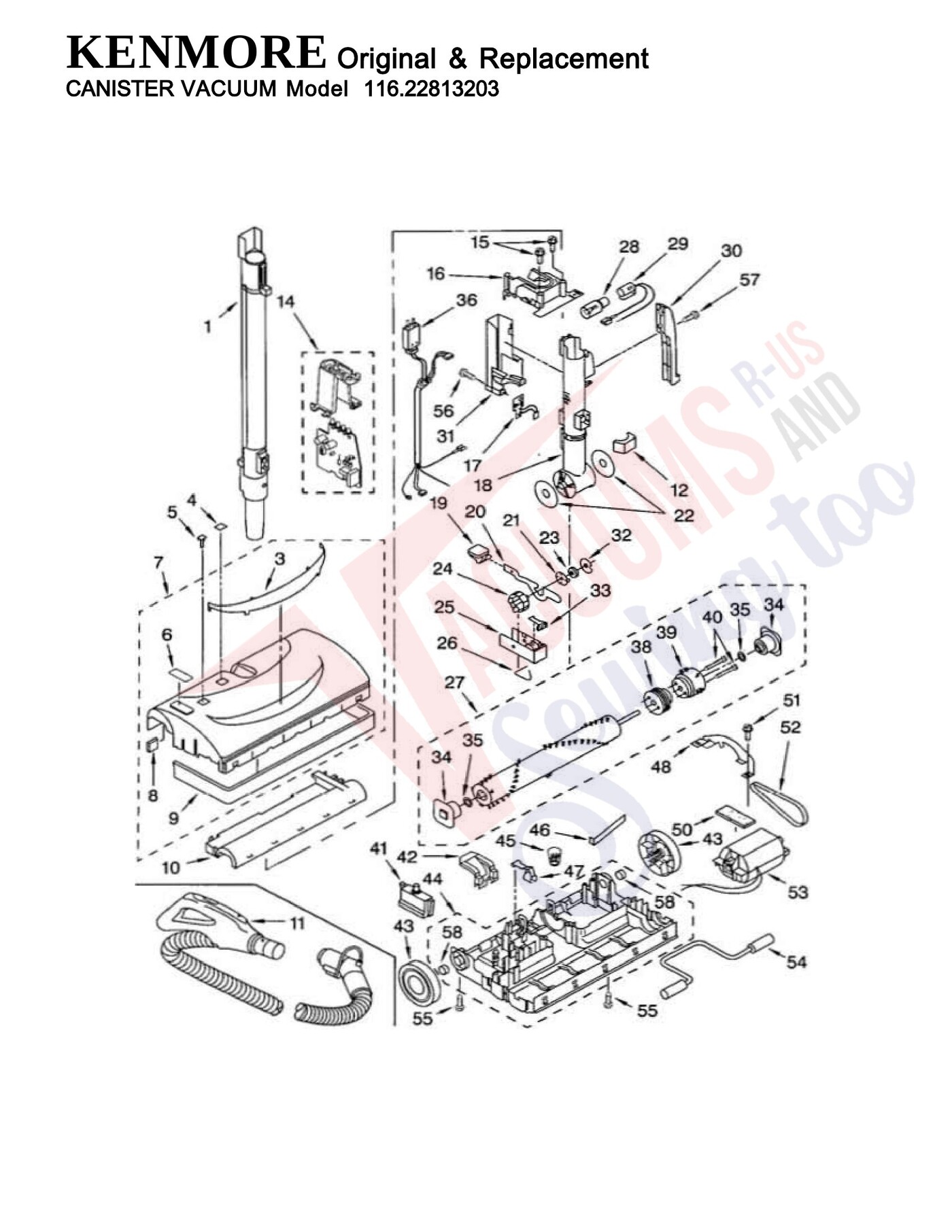

| # | Part image | Description | SKU | Price |
| 1 |  | Kenmore Vacuum Telescopic Electric Wand for Canisters - 8192377, KC99PCPMZV06, KC99PCPSZV06 | KC99PCPMZV06 | $70.86Read more |
| 3 |  | Window Cover For: kenmore | 4370711 | $17.58Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Window cover (height adjustment) | 4369687 | Not Available |
| 5 | Not Available | Button extension | 8191505 | Not Available |
| 6 | Not Available | Window dirt sensor | 4369981 | Not Available |
| 7 | Not Available | Floor nozzle upper unit (includes illus. 3 8 | 8192159 | Not Available |
| 8 | No Image | FILTER, INTAKE/EXHAUST PN 116.55813503 Part Number: 4370713 for Kenmore | 4370713 | $4.21Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Compatible alternateSecondary Filter Foam
On Power Nozzle For: kenmore More Product Details | 591004161 | $4.22Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Guard furniture | 4370714 | Not Available |
| 10 | Not Available | Cover agitator | 4370715 | Not Available |
| 11 | Not Available | Hose assembly | 8191753 | Not Available |
| 12 | Not Available | Front cover | 4370967 | Not Available |
| 14 | Not Available | Pcb assembly | 4370649 | Not Available |
| 15 | Not Available | Screw | 488839 | Not Available |
| 16 | Not Available | Swivel cap thermal unit | 8192160 | Not Available |
| 17 | Not Available | Pcb "b" unit | 4369985 | Not Available |
| 18 | Not Available | Swivel | KC92PCREZ000 | Not Available |
| 19 | Not Available | Pad foot pedal | 4370577 | Not Available |
| 20 | Not Available | Indicator level | 4370720 | Not Available |
| 21 | Not Available | Catch indexing | 588543 | Not Available |
| 22 | Not Available | Seal swivel bearing (2) | 742019 | Not Available |
| 23 | Not Available | Washer spring | 725635 | Not Available |
| 24 | Not Available | Cam indicator | 588543 | Not Available |
| 25 | Not Available | Indicator block | 8191506 | Not Available |
| 26 | Not Available | Spring assist | 725775 | Not Available |
| 27 |  | Brushroll, 116.51612001 W/Ball Brg Sq End Caps Part Number: 8192535 for Kenmore | 8192535 | $128.50Read more |
| 28 | Not Available | Bulb | FA-3515 | Not Available |
| 29 | Not Available | Socket bulb | 4370721 | Not Available |
| 30 | Not Available | Pedal quick release | 8195108 | Not Available |
| 31 | Not Available | Cover rear | 4370717 | Not Available |
| 32 | Not Available | Washer thrust | NLA | Not Available |
| 33 | Not Available | Ratchet catch | 742016 | Not Available |
| 34 | Not Available | Bearing assembly | 4370532 | Not Available |
| 35 | Not Available | Washer metal (12 x 1/2) (2) (incl. 18) | 681424 | Not Available |
| 36 | Not Available | Lead wire "a" unit | 8175252 | Not Available |
| 38 | Not Available | Pulley agitator | 8175122 | Not Available |
| 39 | Not Available | End brush tufted | 8175101 | Not Available |
| 40 | Not Available | Screw type 25 no. 6 pan (2) | 681605 | Not Available |
| 41 | Not Available | Protector overload | 8192206 | Not Available |
| 42 |  | Pedal, Handle Release 116.23612300 Part Number: KC47AGJ3V06 for Kenmore | KC47AGJ3V06 | $7.79Add to cart |
| 43 |  | Wheel, SINGLE WHEEL Rear Power Nozzle 116.22612203/3203 2Pk Part Number: 4370724 for Kenmore | 4370724 | $13.18Add to cart |
| 44 |  | BOTTOM PLATE, PN 116.22812203 Part Number: 8192161 for Kenmore | 8192161 | $102.94Read more |
| 45 | Not Available | Connector wire | SS-3270 | Not Available |
| 46 | Not Available | Spring motor adjustment | 8192162 | Not Available |
| 47 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Special order: ships in 2 to 4 weeks |
| 48 | Not Available | Motor bridge | NLA | Not Available |
| 50 | Not Available | Gasket motor hose assembly | 747156 | Not Available |
| 51 | Not Available | Screw (2) | STD610805 | Not Available |
| 52 | Not Available | Belt sears no. 20-5201 | 1000 | Not Available |
| 53 | No Image | MOTOR, POWER NOZZLE 116. 22813203 Part Number: 8192482 for Kenmore | 8192482 | $183.36Read more |
| 54 |  | Front Axle Assy For: kenmore | KS744029 | $15.28Add to cart Special order: ships in 2 to 4 weeks |
| 55 | Not Available | Screw (2) | STD610805 | Not Available |
| 56 | Not Available | Screw 8-24 x 1 (2) | 4368551 | Not Available |

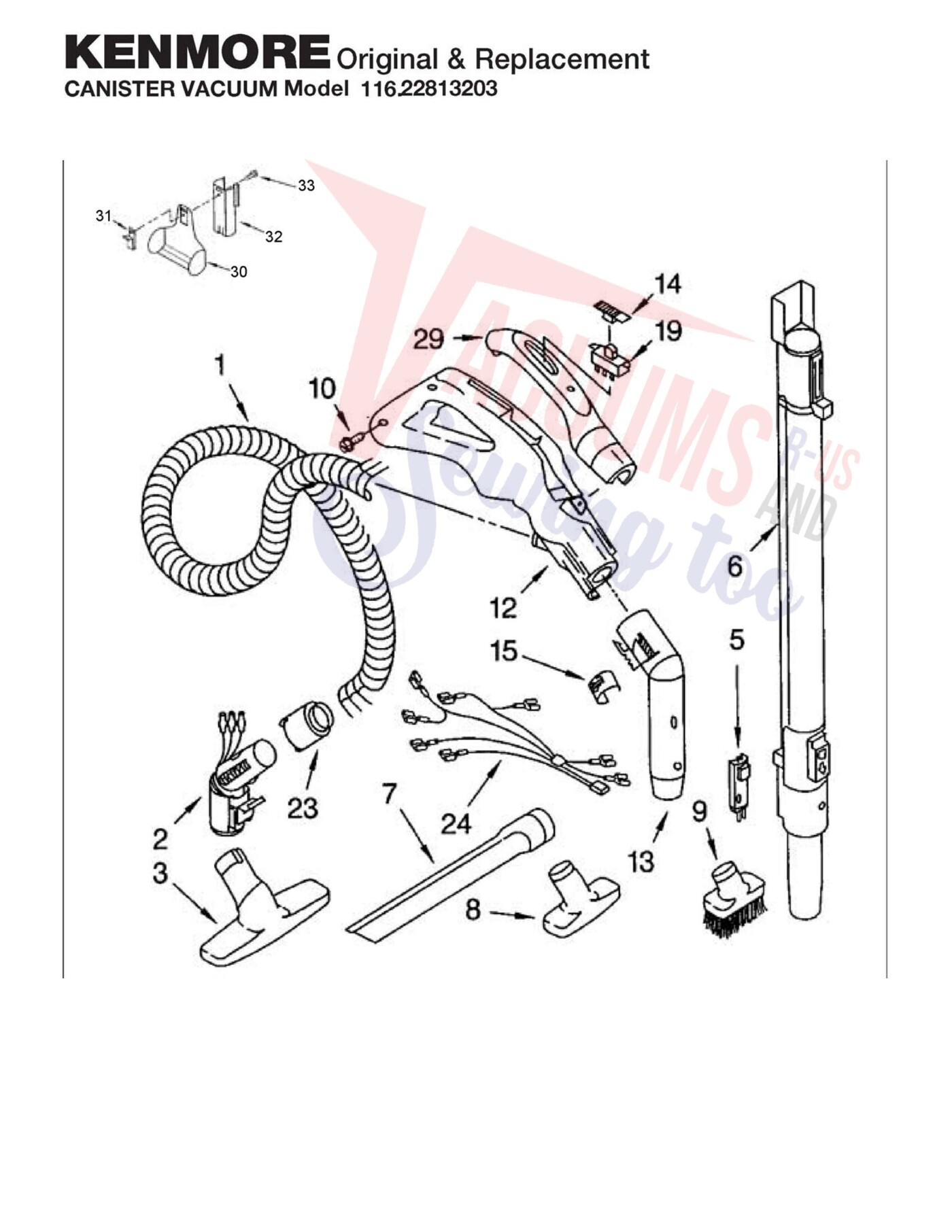

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOSE, 116.22813200 Part Number: 4370560 for Kenmore | 4370560 | $64.26Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Swivel assembly (3 prong) | 4370563 | Not Available |
| 3 | No Image | BRUSH, FLOOR KENMORE POWER TEAM CANISTER Part Number: 4370614 for Kenmore | 4370614 | $46.53Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Cover, Black Plastic Fuse Wand 116.25615500 Part Number: 8191782 for Kenmore | 8191782 | $43.81Read more |
| 6 | | Kenmore Vacuum Telescopic Electric Wand for Canisters - 8192377, KC99PCPMZV06, KC99PCPSZV06 | KC99PCPMZV06 | $70.86Read more |
| 7 |  | CREVICE TOOL, POWER TEAM CANISTER Part Number: 4370333 for Kenmore | 4370333 | $36.88Read more |
| 8 | No Image | UPHOLSTERY TOOL, POWER TEAM CANISTER Part Number: 4370707 for Kenmore | 4370707 | $66.51Read more |
| 9 |  | DUSTING BRUSH, POWER TEAM CANISTER Part Number: 4370559 for Kenmore | 4370559 | $44.33Read more |
| 10 | | DUSTING BRUSH, POWER TEAM CANISTER Part Number: 4370559 for Kenmore | 4370559 | $44.33Read more |
| 12 |  | Handle Grip Assembly For: kenmore | 4370913 | $31.04Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Tube - Center For: kenmore | 4370612 | $48.38Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Slide container | 4370914 | Not Available |
| 15 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | SWITCH, 3 POSITION 116.25512500 Part Number: 8191600 for Kenmore | 8191600 | $53.86Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Wiring Harness-Kenmore Canister For: kenmore | 4370561 | $50.92Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Case switch | 8191693 | Not Available |
| 30 | Not Available | Tool Caddy | 8192071 | Not Available |
| 31 | Not Available | Clip | 8192072 | Not Available |
| 32 | Not Available | Holder | 8192073 | Not Available |
| 33 | Not Available | Screw | 4368879 | Not Available |
