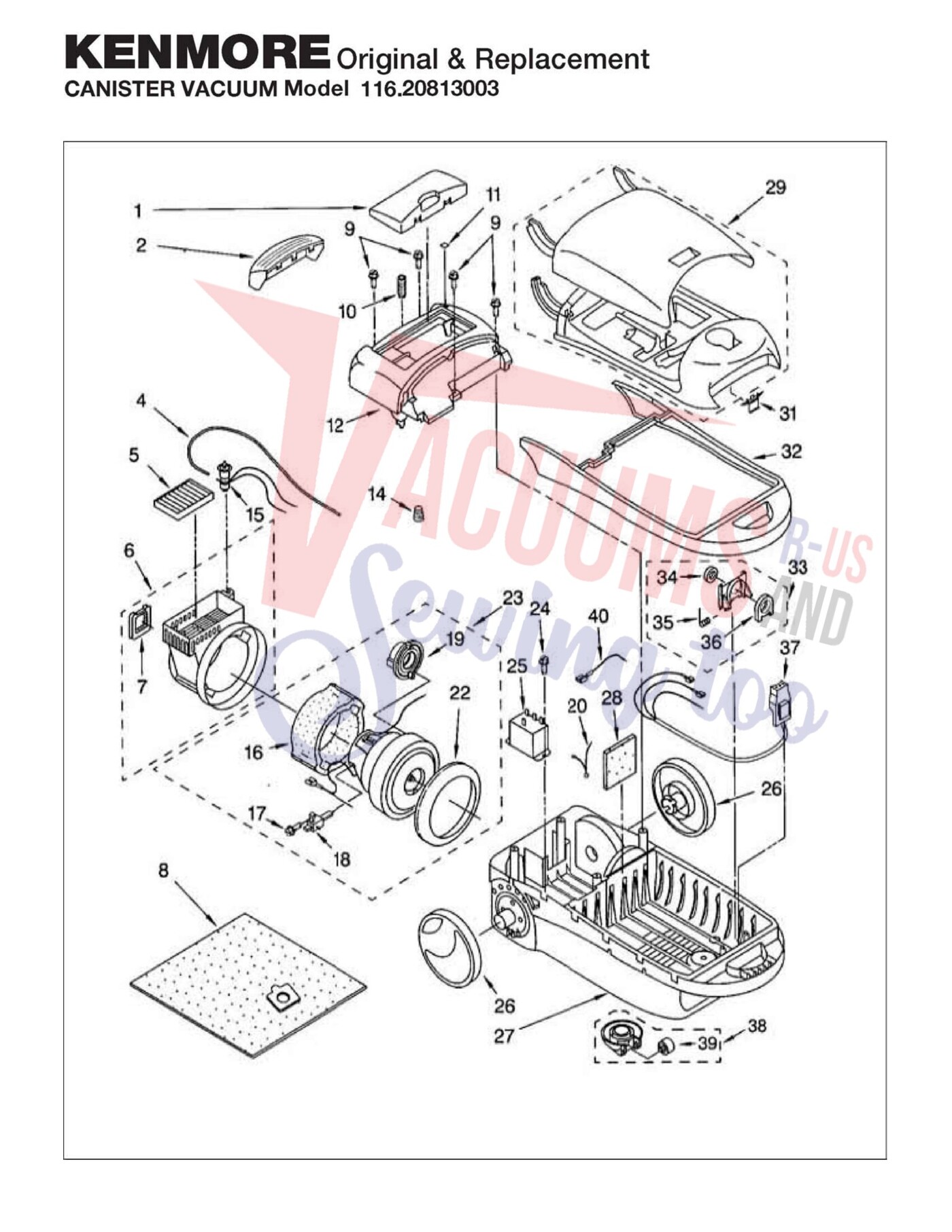

Schematic and parts book for Kenmore 116.20813003 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cover filter | 8191748 | Not Available |
| 2 | Not Available | Button cord rewind | 4370675 | Not Available |
| 4 | Not Available | Adapter tube vac switch | 4370677 | Not Available |
| 5 |  | Kenmore EF-2 HEPA Filter - 471194 | KER1805 | $10.99Add to cart |
| 6 | Not Available | Enclosures motor | 8175262 | Not Available |
| 7 | Not Available | Support motor rubber (rear) | 4370679 | Not Available |
| 8 | Not Available | Dust bag sears no. 20-50557 | KER-14551A | Not Available |
| 9 | Not Available | Screw thread cutting (4) | 4148999 | Not Available |
| 10 | Not Available | Spring cord rewind | 744258 | Not Available |
| 11 | Not Available | Lens | 4151920 | Not Available |
| 12 | Not Available | Canopy | 8191749 | Not Available |
| 14 | Not Available | Wire Nut | SS-3270 | Not Available |
| 15 | Not Available | Indicator light switch (includes illus. 9) | 4370741 | Not Available |
| 16 | Not Available | Suppressor noise | 4370683 | Not Available |
| 17 | Not Available | Screw motor brush (non-service) (reused old part) | NLA | Not Available |
| 18 | Not Available | Brush motor (2) | 8175087 | Not Available |
| 19 |  | Support - Motor Rear-Titan T8000 Bagless Canister For: titan | 8175133 | $5.42Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Lead wire assembly | 8174980 | Not Available |
| 22 | Not Available | Support motor rubber (front) | 8175085 | Not Available |
| 23 | No Image | MOTOR, MAIN SUCTION 116. 22813203 Part Number: 8191786 for Kenmore | 8191786 | $210.66Read more |
| 23 |  | Available Pre OwnedPre-owned Kenmore Intuition Motor Assembly with Housing More Product Details | KE8191786R | $109.00Add to cart |
| 24 | Not Available | Screw relay | NLA | Not Available |
| 25 | Not Available | Relay. motor | 8174981 | Not Available |
| 26 |  | Wheel-Kenmore Rear
5 1/2 Inch For: kenmore | 4370702 | $8.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Base lower body | 8175264 | Not Available |
| 28 |  | Kenmore Kit Secondary Filter (electrostatic)2 Pack | 86883 | $38.96Add to cart Product is special order please allow 2-4 weeks for delivery. |

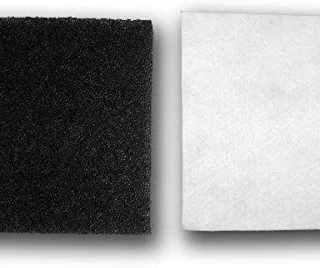

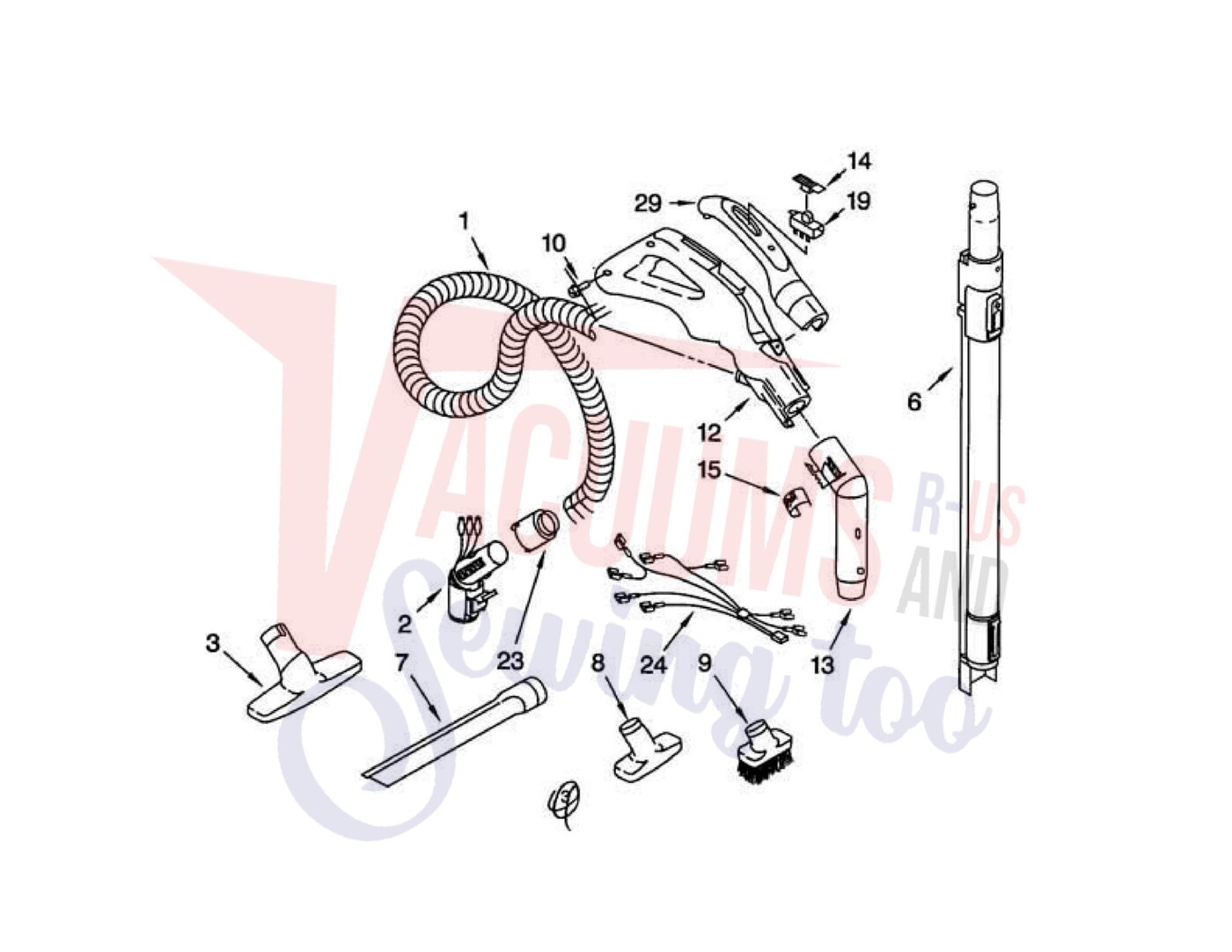

| 28 |  | Compatible alternateKenmore Foam Filter Kit Type CF-1 CF1 - Includes Two Filters More Product Details | 46230702 | $7.07Add to cart |
| 29 | Not Available | Dust box assembly (includes tool cover) | 8191750 | Not Available |
| 31 | Not Available | Buckle closure | 4370687 | Not Available |
| 32 | Not Available | Guard furniture | 4370615 | Not Available |
| 33 |  | Bag Mount For: kenmore | 4370617 | $18.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | SEAL, BAG MOUNT CANISTER 116.20612003 Part Number: 4370688 for Kenmore | 4370688 | $17.85Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Spring bag mount | 706024 | Not Available |
| 36 | Not Available | Gasket bag mount. | 4370689 | Not Available |
| 37 | Not Available | Receptacle 3- wire | 4370608 | Not Available |
| 38 | Not Available | Caster roller unit | 4370690 | Not Available |
| 39 | Not Available | Caster roller | 8175108 | Not Available |
| 40 | Not Available | Lead wire assembly | 8191751 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | WAND EXTENSION (TELESCOPING) | 4370972 | Not Available |
| 3 |  | Window Cover For: kenmore | 4370711 | $17.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | WINDOW COVER (HEIGHT ADJ.) | 4369687 | Not Available |
| 5 | Not Available | BUTTON EXTENSION | 4370940 | Not Available |

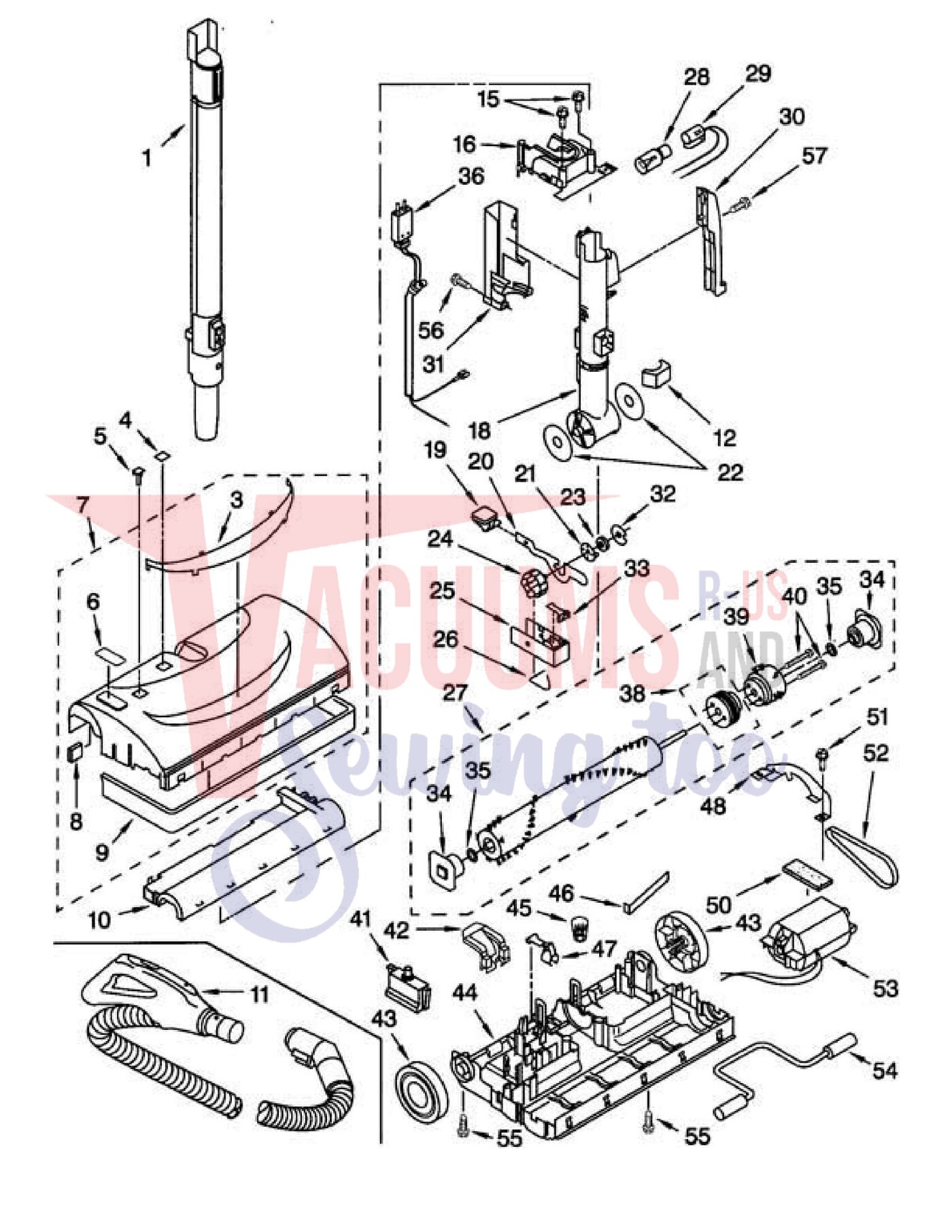

| 7 | Not Available | FLOOR NOZZLE UPPER UNIT (INCLUDES ILLUS. 3 8 AND 9) | 8195148 | Not Available |
| 8 | No Image | FILTER, INTAKE/EXHAUST PN 116.55813503 Part Number: 4370713 for Kenmore | 4370713 | $4.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Compatible alternateSecondary Filter Foam
On Power Nozzle For: kenmore More Product Details | 591004161 | $4.22Add to cart Special order — allow 2-4 weeks. |
| 9 | Not Available | GUARD FURNITURE | 4370714 | Not Available |
| 10 | Not Available | COVER AGITATOR | 4370715 | Not Available |
| 11 | Not Available | HOSE ASSEMBLY | 8174957 | Not Available |
| 12 | Not Available | FRONT COVER | 4370967 | Not Available |
| 15 | Not Available | SCREW | 681550 | Not Available |
| 16 | Not Available | SWIVEL CAP THERMAL UNIT | 4370918 | Not Available |
| 18 | Not Available | SWIVEL | 8195109 | Not Available |
| 19 | Not Available | PAD FOOT PEDAL | 4370577 | Not Available |
| 20 | Not Available | INDICATOR LEVER | 4370720 | Not Available |
| 21 | Not Available | CATCH INDEXING | 722955 | Not Available |
| 22 | Not Available | SWIVEL SEAL | 742019 | Not Available |
| 23 | Not Available | WASHER | 725635 | Not Available |
| 24 | Not Available | CAM INDICATOR | 747291 | Not Available |
| 25 | Not Available | INDICATOR BLOCK | 742015 | Not Available |
| 26 | Not Available | SPRING ASSIST | 725775 | Not Available |
| 27 | No Image | BRUSHROLL, 116.51875100 Part Number: 8175121 for Kenmore | 8175121 | $105.05Read more |
| 28 | Not Available | BULB SEARS NO. 20-5240 | FA-3515 | Not Available |
| 29 | Not Available | SOCKET BULB | 8175249 | Not Available |
| 30 | Not Available | PEDAL QUICK RELEASE | 8195108 | Not Available |
| 31 | Not Available | COVER REAR | 4370717 | Not Available |
| 32 | Not Available | WASHER THRUST | 722909 | Not Available |
| 33 | Not Available | RATCHET CATCH | 742016 | Not Available |
| 34 | Not Available | BEARING UNIT | 4370532 | Not Available |
| 35 | Not Available | WASHER | 681424 | Not Available |
| 36 |  | Cord, Powermate Part Number: 8175253 for Kenmore | 8175253 | $48.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | PULLEY AGITATOR | 8175122 | Not Available |
| 39 | Not Available | END BRUSH TUFTED | 8175101 | Not Available |
| 40 | Not Available | SCREW (2) | 681605 | Not Available |
| 41 | Not Available | PROTECTOR OVERLOAD | 8175256 | Not Available |
| 42 | Not Available | HANDLE RELEASE PEDAL | 4370578 | Not Available |
| 43 |  | Wheel, SINGLE WHEEL Rear Power Nozzle 116.22612203/3203 2Pk Part Number: 4370724 for Kenmore | 4370724 | $13.18Add to cart |
| 44 | Not Available | FLOOR NOZZLE LOWER | 4370725 | Not Available |
| 45 | Not Available | WIRE NUT | 4368522 | Not Available |
| 46 | Not Available | SPRING MOTOR ADJUSTMENT | 742002 | Not Available |
| 47 |  | Lifter For: kenmore | 4370726 | $12.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | Not Available | MOTOR BRIDGE | 705093 | Not Available |
| 50 | Not Available | MOTOR GASKET | 747156 | Not Available |
| 51 | Not Available | SCREW (2) | 681297 | Not Available |
| 52 | Not Available | BELT SEARS NO. 20-5201 | 1000 | Not Available |
| 53 | Not Available | MOTOR | 8175246 | Not Available |
| 54 | Not Available | FRONT AXLE ASSEMBLY | 744029 | Not Available |
| 55 | Not Available | SCREW (2) | 681297 | Not Available |
| 56 | Not Available | SCREW | 4368551 | Not Available |
| 57 | Not Available | SCREW | 4370779 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | HOSE, BLANK W/O ENDS 116.20512003 Part Number: 4370588 for Kenmore | 4370588 | $77.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | PIPE CONNECTION | 4370563 | Not Available |
| 3 | No Image | BRUSH, FLOOR KENMORE POWER TEAM CANISTER Part Number: 4370614 for Kenmore | 4370614 | $46.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | WAND EXTENSION (UPPER AND LOWER) | 4370972 | Not Available |
| 7 |  | CREVICE TOOL, POWER TEAM CANISTER Part Number: 4370333 for Kenmore | 4370333 | $36.88Read more |
| 8 | No Image | UPHOLSTERY TOOL, POWER TEAM CANISTER Part Number: 4370707 for Kenmore | 4370707 | $66.51Read more |
| 9 |  | DUSTING BRUSH, POWER TEAM CANISTER Part Number: 4370559 for Kenmore | 4370559 | $44.33Read more |
| 10 | Not Available | SCREW HANDLE | 4369085 | Not Available |
| 12 | Not Available | HANDLE ASSEMBLY | 8174837 | Not Available |
| 13 |  | Tube - Center For: kenmore | 4370612 | $48.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | SLIDING KNOB | 4370914 | Not Available |
| 15 |  | Suction Control For: kenmore | 4370593 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | SWITCH SLIDE | 4369108 | Not Available |
| 23 |  | Hose Connection Cover For: kenmore | 4370325 | $14.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Wiring Harness-Kenmore Canister For: kenmore | 4370561 | $50.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | SWITCH CASE | 4370915 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | BRAKE LEVER UNIT | 4370692 | Not Available |

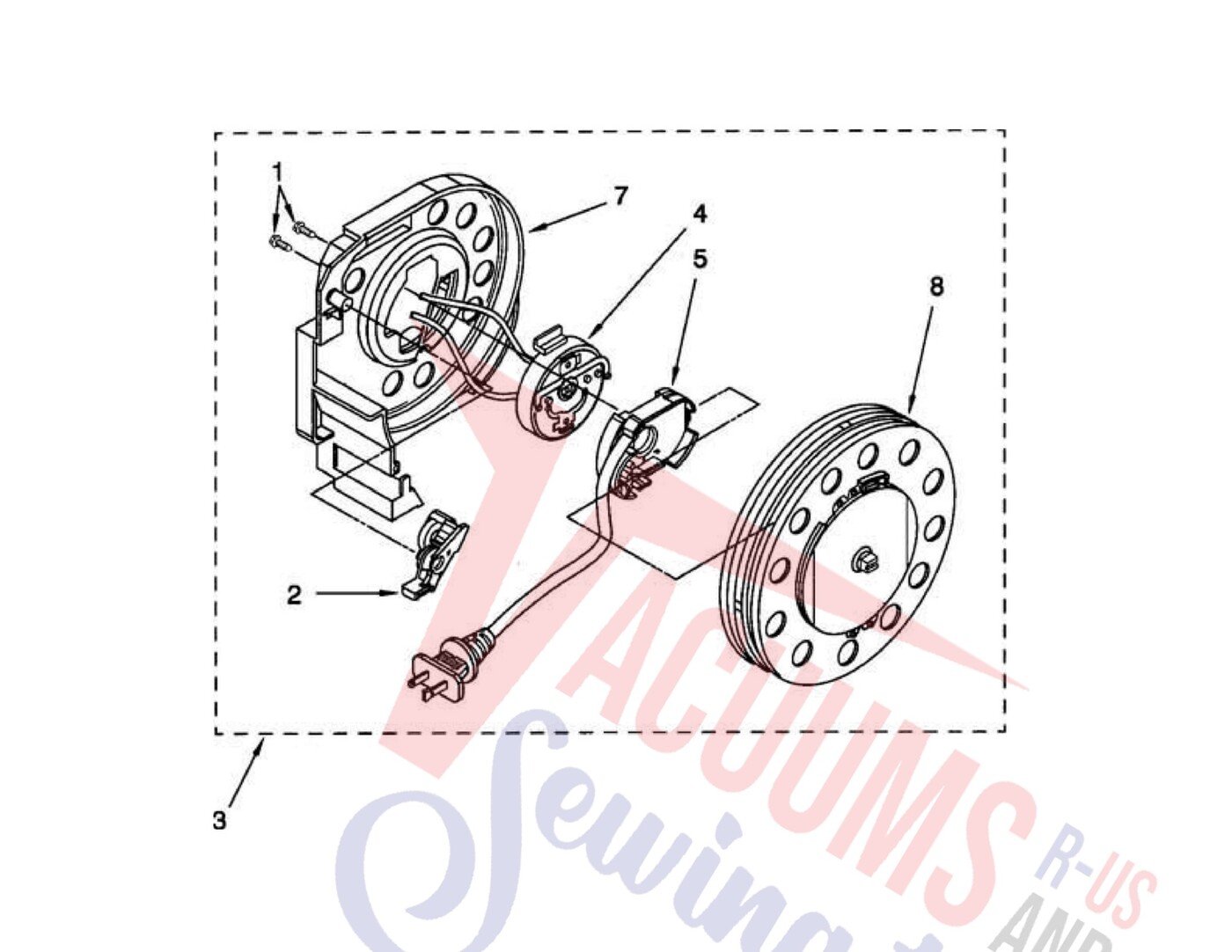

| 3 |  | Cord Reel Assy
28Ft For: kenmore | 8195114 | $68.38Read more |
| 3 |  | Available Pre OwnedPre-owned Kenmore Progressive Cord Reel - 8195114 More Product Details | 8195114R | $49.99Add to cart |
| 4 | Not Available | CONTACT BASE | 4370924 | Not Available |
| 5 | No Image | CORD, MAIN POWER 116. 28813203 Part Number: 4370695 for Kenmore | 4370695 | $173.03Read more |
| 7 | Not Available | BRACKET CORD REEL | 8175266 | Not Available |
| 8 | Not Available | CORD REEL HUB ASSEMBLY | 8175267 | Not Available |
