Schematic and parts book for Janome S750 V2, S-750 S750 V2, S-750. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

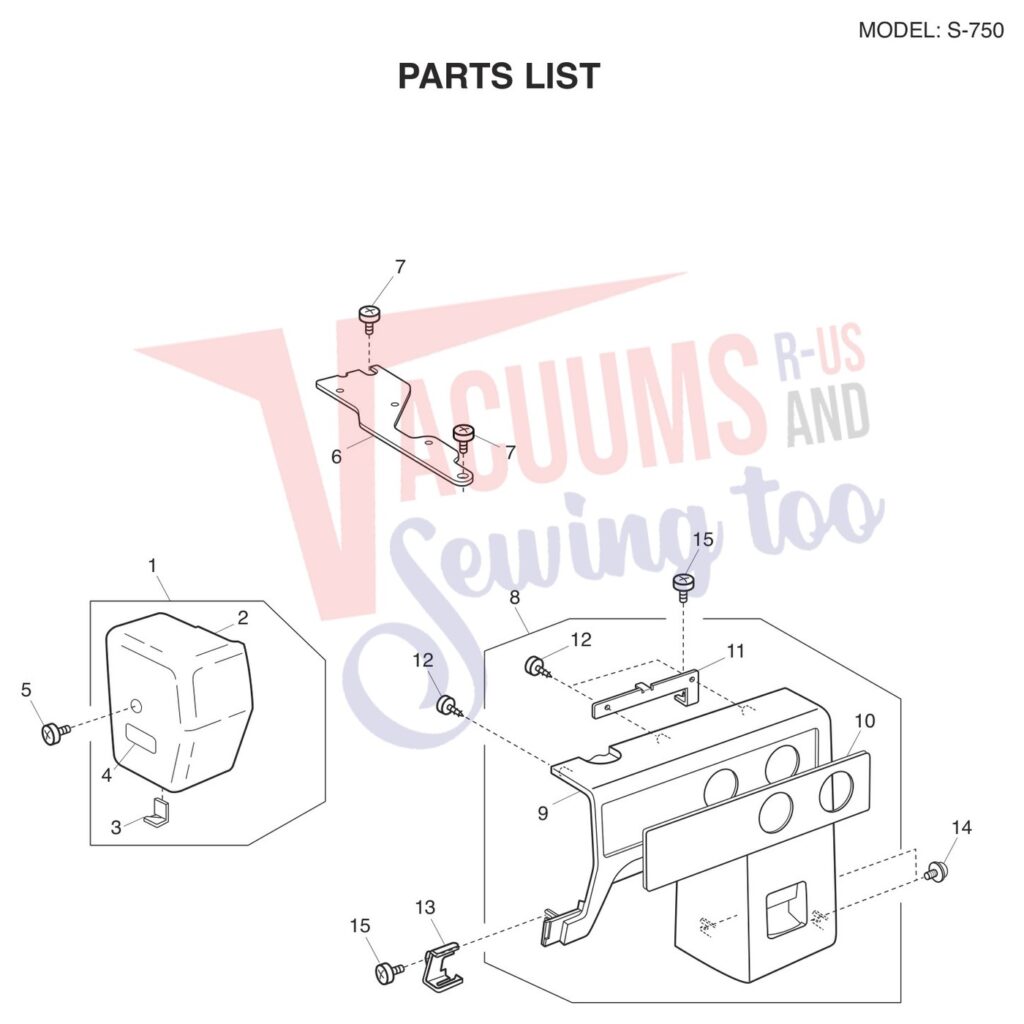

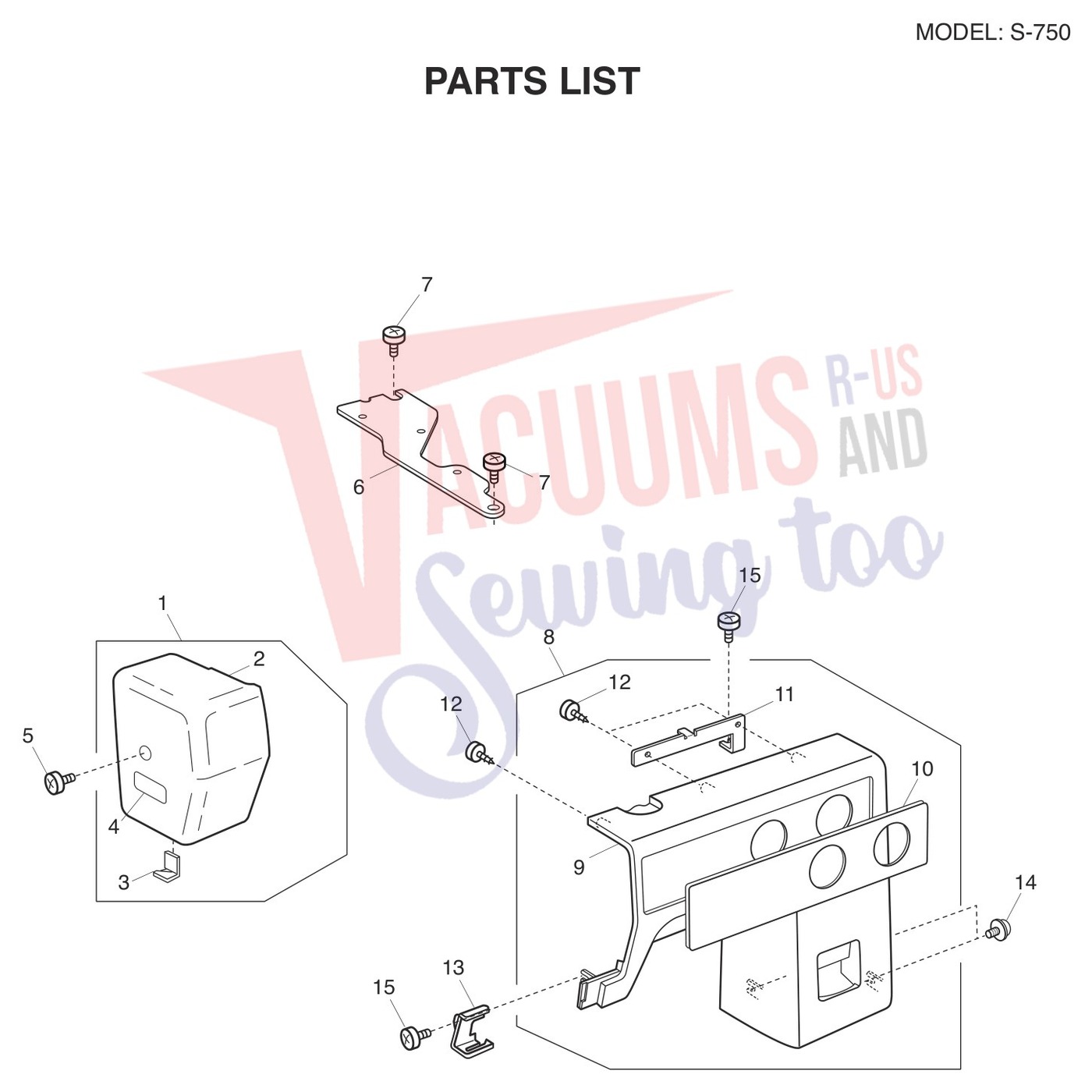

| # | Part image | Description | SKU | Price |
| 1 | No Image | Face Plate (Unit) | 749638304 | $28.83Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Face plate sewing machine part or accessory For Janome Models: 712T | 749009506 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SET SCREW 4X12 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000170507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Top cover set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749003005 | $1.80Read more |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | FRONT PANEL UNIT FOR S-750 sewing machine part or accessory For Janome Models: S-750 | 749626000 | $34.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Front cover sewing machine part or accessory For Janome Models: S750 | 749039402 | $35.17Read more |
| 10 | | Ornamental plate sewing machine part or accessory For Janome Models: S750 | 749055002 | $8.38Read more |
| 11 | | Front cover set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749042006 | $2.00Read more |
| 12 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | THREAD GUIDE PLATE S750 sewing machine part or accessory For Janome Models: 712T, LR1612-1622, NH... | 738034001 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

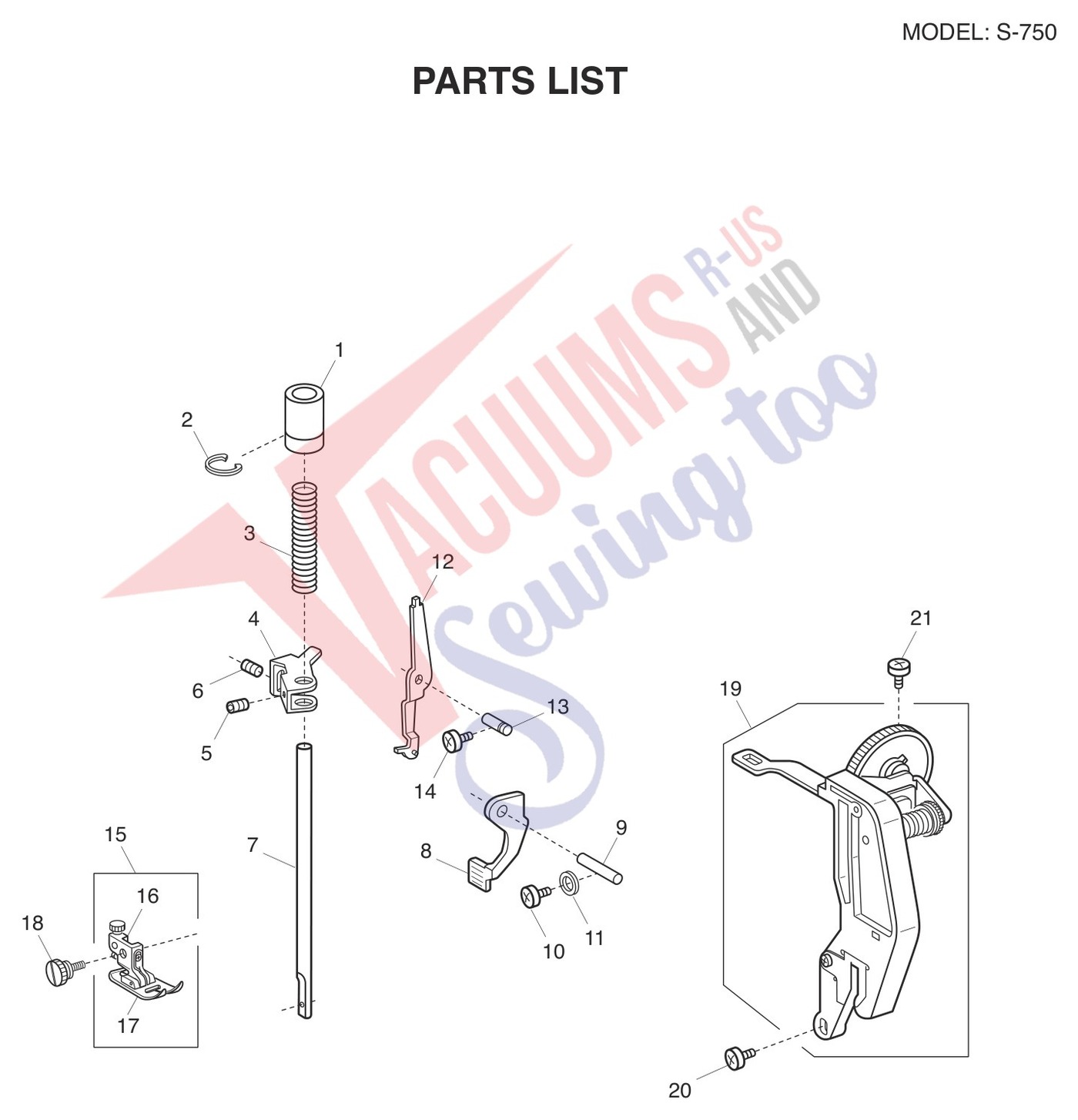

| # | Part image | Description | SKU | Price |
| 1 | | Presser bar bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040,... | 802021007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Snap ring 5103-37 sewing machine part or accessory For Janome Models: 712T, MC200E, MC350E, S-750... | 000032609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Presser bar spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 730026006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | PRESSER BAR BRACKET 6000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822069009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Presser Bar for Memory Craft 6000, 5500 and 5001 sewing machine part or accessory For Janome Mode... | 102801008 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | PRESSER FOOT LIFTER 639 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 652145007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer sewing machine part or accessory For Janome Models: 3160QDC, 405, 415, 419S, 423S, 712T, D... | 000072302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Thread tension release lever sewing machine part or accessory For Janome Models: NEFB12 SRV | 738018009 | $2.07Read more |
| 13 |  | Thread tension release lvr pin sewing machine part or accessory For Models: , MC8900 Horizon , ... | 652042003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | ZZ FOOT -820506007 | 820557003 | Not Available |
| 16 |  | Genuine Janome/Elna Standard Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC... | 804509000 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Zig Zag Foot A (top load 7mm) sewing machine part or accessory For Janome Models: 2040, HF3022, 6... | 820506007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | TENSION UNIT S750 sewing machine part or accessory For Janome Models: 712T, S-750 | 749501101 | $28.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

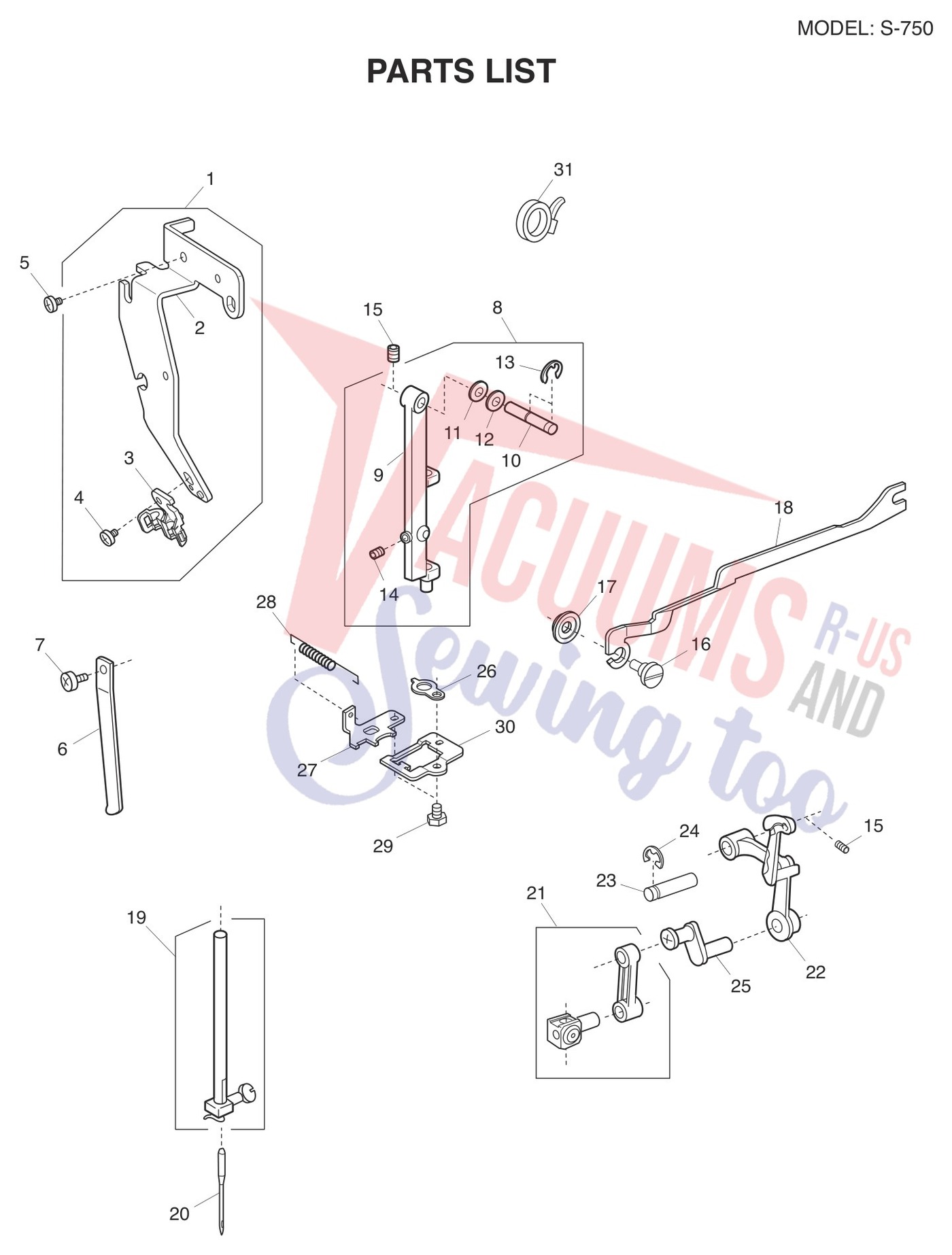

| # | Part image | Description | SKU | Price |
| 1 | No Image | Led Set Plate (Unit) | 749648008 | $15.21Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Led Set Plate | 749217004 | $10.98Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | LED holder sewing machine part or accessory For Elna Models: EL864 | 508143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749646109 | $19.60Read more |
| 9 | | Needle bar supporter sewing machine part or accessory For Janome Models: NEFB12 SRV | 749075008 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Needle bar supporter pin sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 735144006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | ZIG ZAG ROD sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2118S, 2139N, 2139... | 735119002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle Bar Unit sewing machine part or accessory For Janome Models: 712T, S-650, S-750, Necchi FB12 | 732502018 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | NEEDLE BAR CONN. STUD UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA... | 680504005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | NEEDLE BAR CRANK PIN-DISCONTIN sewing machine part or accessory For Janome Models: 712T, 808A, S-... | 732505000 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Supporter guide plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749058005 | $0.92Read more |
| 27 | | Supporter stopper sewing machine part or accessory For Janome Models: NEFB12 SRV | 803008001 | $1.40Read more |
| 28 | | Supporter stopper spring sewing machine part or accessory For Janome Models: NEFB12 SRV | 732064002 | $0.92Read more |
| 29 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Needle bar supporter adjusting plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 803069000 | $2.00Read more |
| 31 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

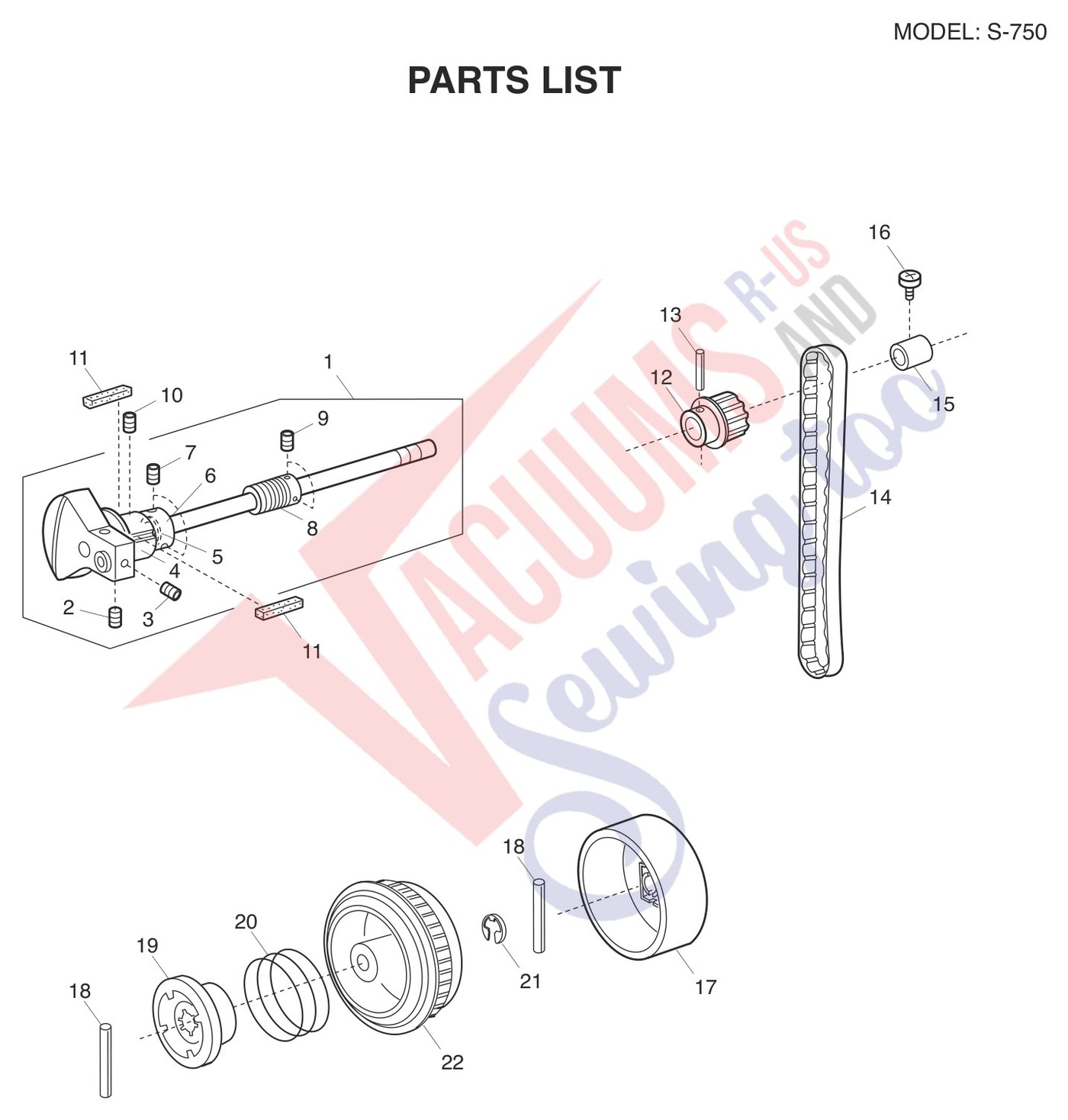

| # | Part image | Description | SKU | Price |
| 1 | No Image | Upper Shaft (Unit) | 749642219 | $38.54Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Upper shaft front bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 732025001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 8 | | Worm sewing machine part or accessory For Janome Models: 2222 V2 | 660113001 | $3.80Read more |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Upper shaft timing gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4... | 756017004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Timing Belt | 733008012 | $14.68Read more |
| 15 | | UPPER SHAFT REAR BUSHING S650 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 732003003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Hand wheel sewing machine part or accessory For Janome Models: 7330, AQS2009, DC4030, HF8077, JP7... | 844077008 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Clutch ring sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 661020003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Belt wheel sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 661019009 | $4.60Add to cart Special order: ships in 2 to 4 weeks |

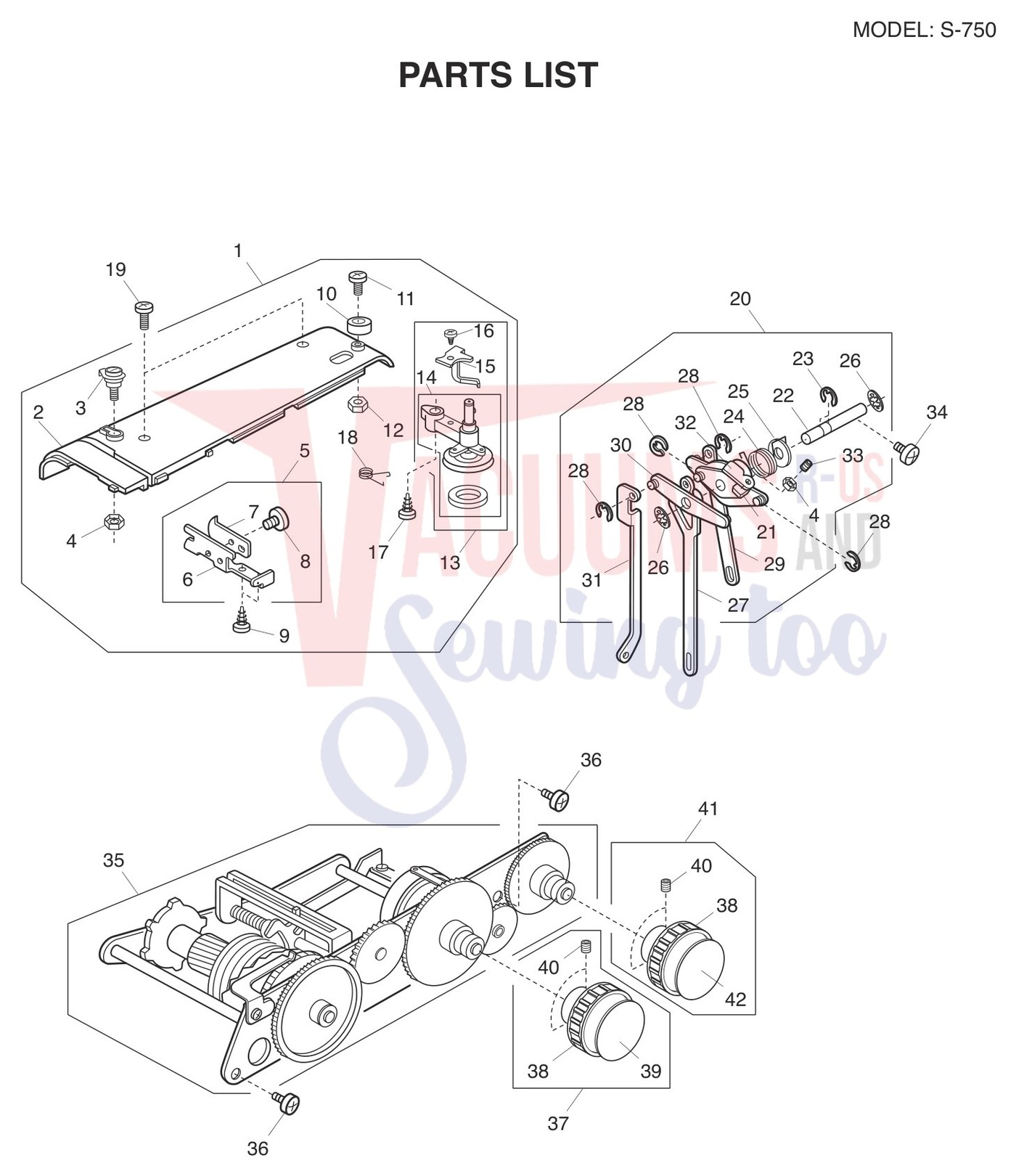

| # | Part image | Description | SKU | Price |
| 1 | No Image | Top Cover (Unit) | 749628013 | $47.52Read more |
| 2 | | Top cover sewing machine part or accessory For Janome Models: NEFB12 SRV | 749006008 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Top cover thread guide (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749602000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Top cover thread guide sewing machine part or accessory For Janome Models: NEFB12 SRV | 749005007 | $2.00Read more |
| 7 | | Thread guide support plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749007009 | $0.80Read more |
| 8 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Setscrew 3x10 sewing machine part or accessory For Janome Models: 1110DX, 334, 4045LX, 4045NX, 41... | 000149002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Bobbin Winder Stopper Screw sewing machine part or accessory For Janome Models: 2003P, 2018S, 203... | 000103107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Bobbin Winder Stopper | 749641001 | $18.59Read more |
| 14 |  | Bobbin Winder Unit for Model S750 sewing machine part or accessory For Janome Models: 712T, S-750... | 728501003 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Clutch Lever | 749201005 | $2.75Read more |
| 16 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Setscrew 4 x 12 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, AQS2009, H... | 000109103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | BOBBIN WINDER ARM SPRING sewing machine part or accessory For Janome Models: 712T, JA1504-1512, J... | 735015007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Setscrew 4x30 sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC8... | 000103222 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Feed regulating arm (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749607005 | $22.31Read more |
| 21 | | Feed regulating arm sewing machine part or accessory For Janome Models: NEFB12 SRV | 749059006 | $2.99Read more |
| 22 | | Feed regulator shaft sewing machine part or accessory For Janome Models: NEFB12 SRV | 749016001 | $0.80Read more |
| 23 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Feed regulating body spring | 803134007 | Not Available |
| 25 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Feed rod sewing machine part or accessory For Janome Models: NEFB12 SRV | 732043005 | $1.38Read more |
| 28 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 29 | | Reverse stitch rod sewing machine part or accessory For Janome Models: NEFB12 SRV | 738025009 | $0.92Read more |
| 30 | | Drop link sewing machine part or accessory For Janome Models: NEFB12 SRV | 749017002 | $2.40Read more |
| 31 | | Drop link rod sewing machine part or accessory For Janome Models: NEFB12 SRV | 749018003 | $1.60Read more |
| 32 | | Feed regulating plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 736012007 | $3.60Read more |
| 33 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | ZIGZAG MECHANISM UNIT S750 sewing machine part or accessory For Janome Models: 712T, S-750, Necch... | 749609007 | $82.20Add to cart |
| 36 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | SELECTOR DIAL S750 sewing machine part or accessory For Janome Models: S-750 | 749611105 | $7.20Add to cart |
| 38 |  | Dial sewing machine part or accessory For Janome Models: NEFB12 SRV | 749037008 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | Stitch Pattern Indicator Plate | 749038102 | $1.37Read more |
| 40 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | FEED DIAL S750 sewing machine part or accessory For Janome Models: S-750 | 749612106 | $7.20Add to cart |
| 42 | | Feed length indicator plate sewing machine part or accessory For Janome Models: S750 | 749040107 | $1.37Read more |

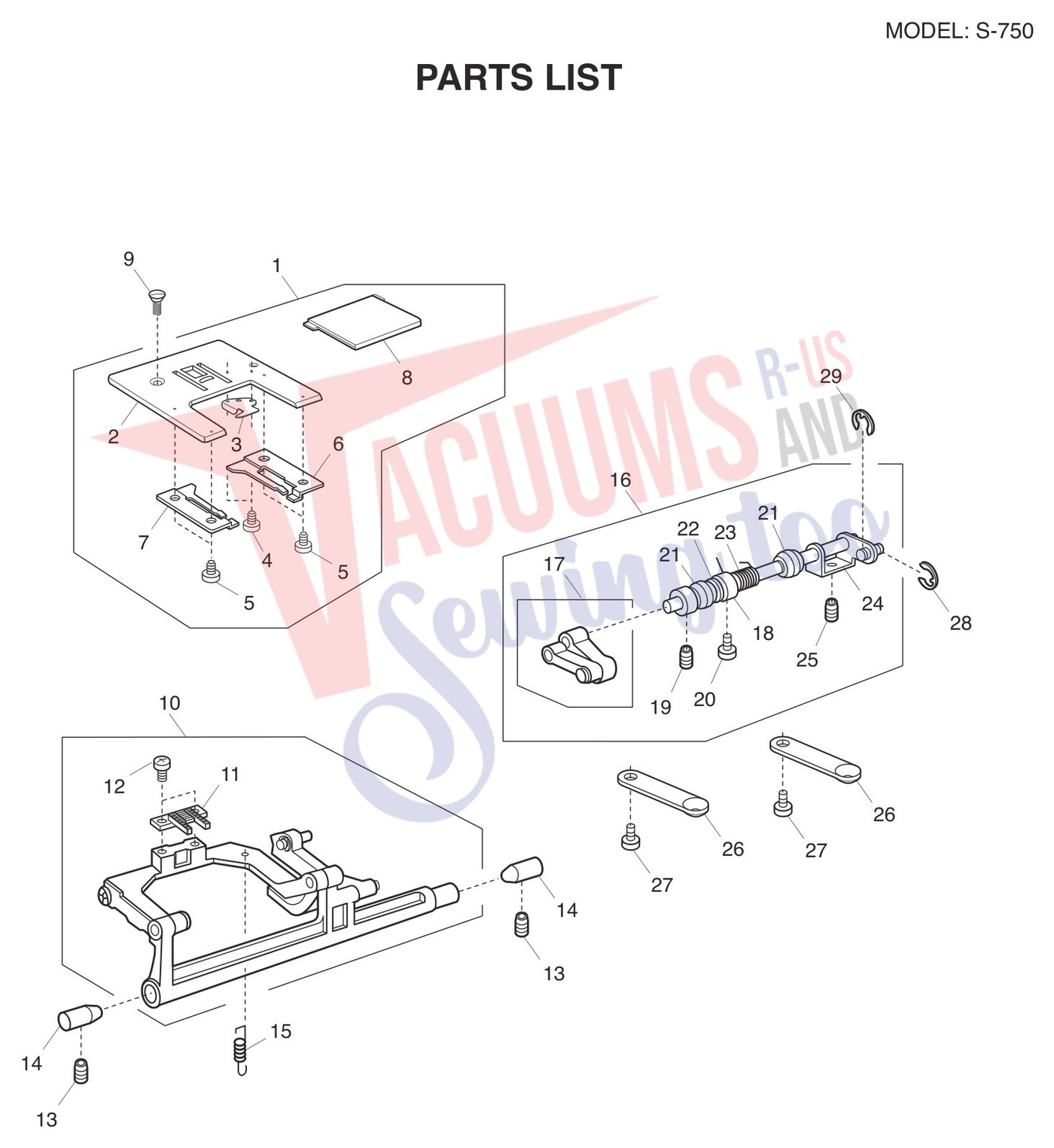

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate Unit sewing machine part or accessory For Janome Models: 712T, S-750, Necchi FB12 | 732619606 | $20.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749008103 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Rotation Stopper | 822003027 | $2.11Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Slide Plate Holder (right) for School Model S-650 sewing machine part or accessory For Janome Mod... | 732015008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Slide Plate Holder (left) for School Model S-650 sewing machine part or accessory For Janome Mode... | 732014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SLIDE PLATE FOR S650 sewing machine part or accessory For Janome Models: 712T, S-750, Necchi FB12 | 732126003 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Feed Rock Shaft (Unit) | 732633101 | $62.62Read more |
| 11 | | Feed dog sewing machine part or accessory For Janome Models: Jem Gold Plus | 654050000 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 14 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Feed shaft (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749606004 | $20.47Read more |
| 17 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Setscrew 4x8 sewing machine part or accessory For Janome Models: NEFB12 SRV | 000069605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Feed shaft bushing sewing machine part or accessory For Janome Models: NEFB12 SRV | 732039008 | $1.38Read more |
| 22 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Feed Regulator Spring | 650088016 | $0.95Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Feed shaft set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 732038007 | $1.40Read more |
| 25 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | BUSHING HOLDING PLATE FOR S650 sewing machine part or accessory For Janome Models: 712T, 808A, 80... | 732035004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 29 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

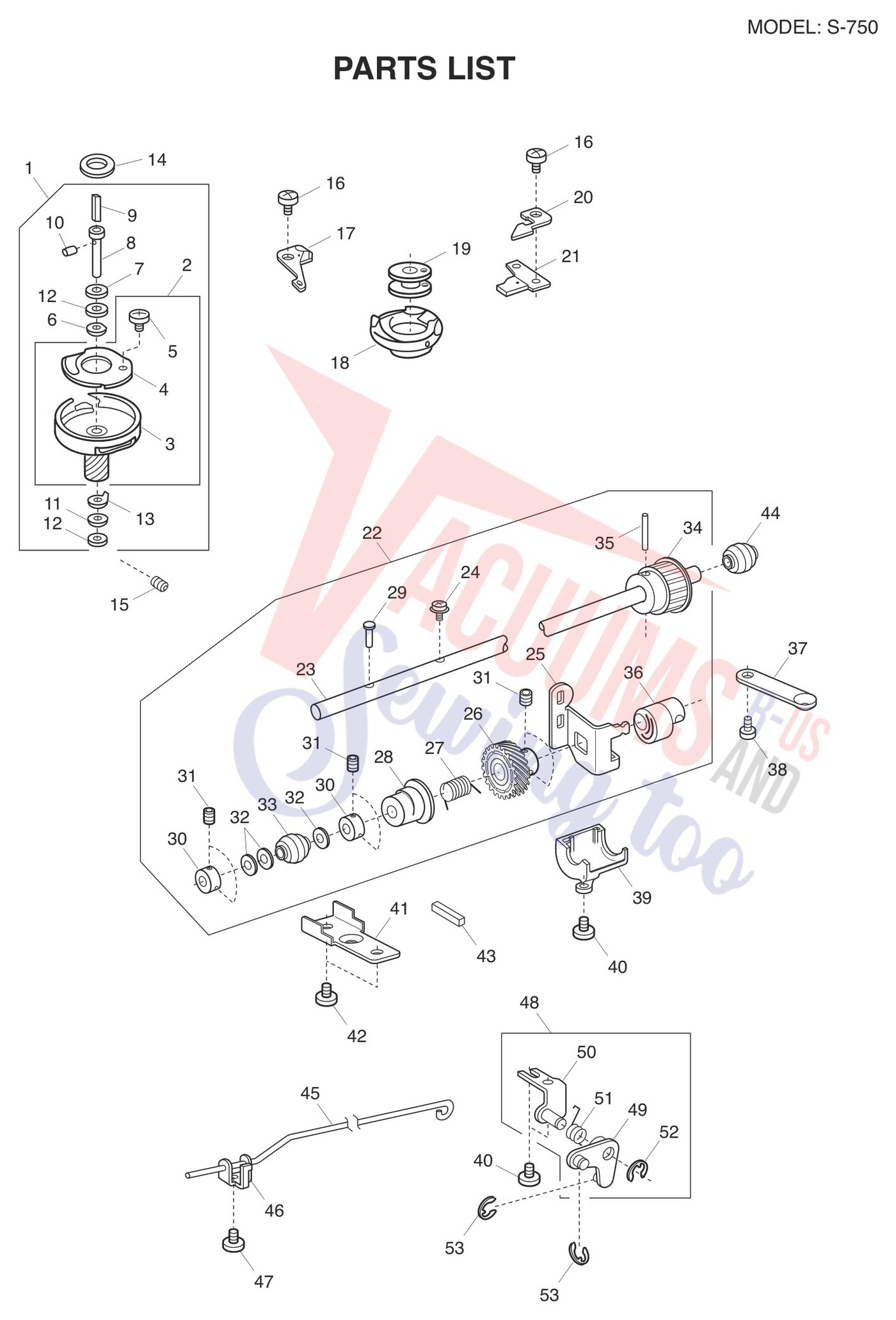

| 1 | | Genuine Janome/Elna Hook (unit) For: S750 | 502691108 | $52.80Read more |
| 2 |  | Hook body (unit) sewing machine part or accessory For Janome Models: NQM2016 | 660536004 | $34.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hook body (unit) sewing machine part or accessory For Elna Models: ELSTAR | 508514001 | $31.00Read more |
| 4 | | Hook bottom plate sewing machine part or accessory Hook bottom plate | 508137006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Magnet set plate sewing machine part or accessory For Janome Models: 4300QDC-B | 508139008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer sewing machine part or accessory For Janome Models: 4300QDC-B | 508118001 | $0.40Read more |
| 8 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Stopper sewing machine part or accessory For Janome Models: 712T, 808A, S-650, S-750, Necchi FB12 | 627179013 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Stopper Shield Plate sewing machine part or accessory For Janome Models: 712T, 808A, S-650, S-750... | 732099006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Lower Shaft (Unit) | 732610113 | $40.13Read more |
| 23 | | Lower shaft sewing machine part or accessory For Janome Models: NEFB12 SRV | 732032001 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set screw with flange 3X14 sewing machine part or accessory For Janome Models: 6260QC, 712T, DC40... | 000149600 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Lower shaft supporter plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 803133006 | $2.00Read more |
| 26 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Lower shaft bushing sewing machine part or accessory For Janome Models: NEFB12 SRV | 732034106 | $2.07Read more |
| 34 | | Lower shaft gear sewing machine part or accessory 650073007 Lower shaft gear | 650073007 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Genuine Janome/Elna Feed cam For: EL660 | 823026122 | $2.99Read more |
| 37 | | BUSHING HOLDING PLATE FOR S650 sewing machine part or accessory For Janome Models: 712T, 808A, 80... | 732035004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Gear Box Cover for School Models S650 and S750 sewing machine part or accessory For Janome Models... | 732036005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | Not Available | Bushing Holder (Left) | 749014009 | Not Available |
| 42 | | Setscrew 5x5 sewing machine part or accessory For Janome Models: NEFB12 SRV | 000198202 | $0.20Read more |
| 43 | | Felt sewing machine part or accessory For Janome Models: NEFB12 SRV | 749212009 | $0.69Read more |
| 44 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 45 | No Image | Drop Link Rod (2) | 749109002 | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Drop set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 732052007 | $1.38Read more |
| 47 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Drop link (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749608006 | $5.98Read more |
| 49 | | Drop link sewing machine part or accessory For Janome Models: NEFB12 SRV | 749020008 | $2.60Read more |
| 50 | | Link set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749022000 | $1.40Read more |
| # | Part image | Description | SKU | Price |

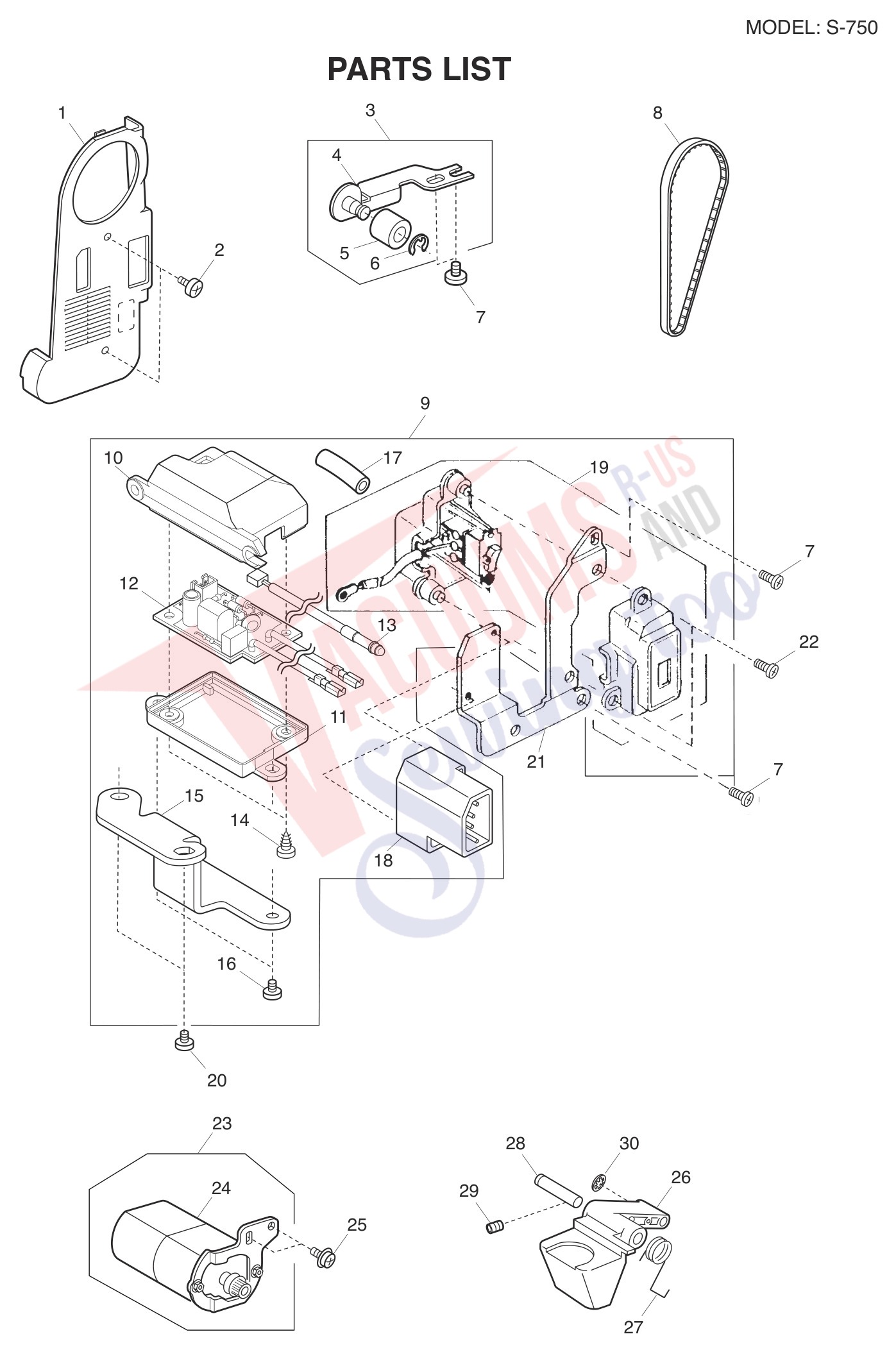

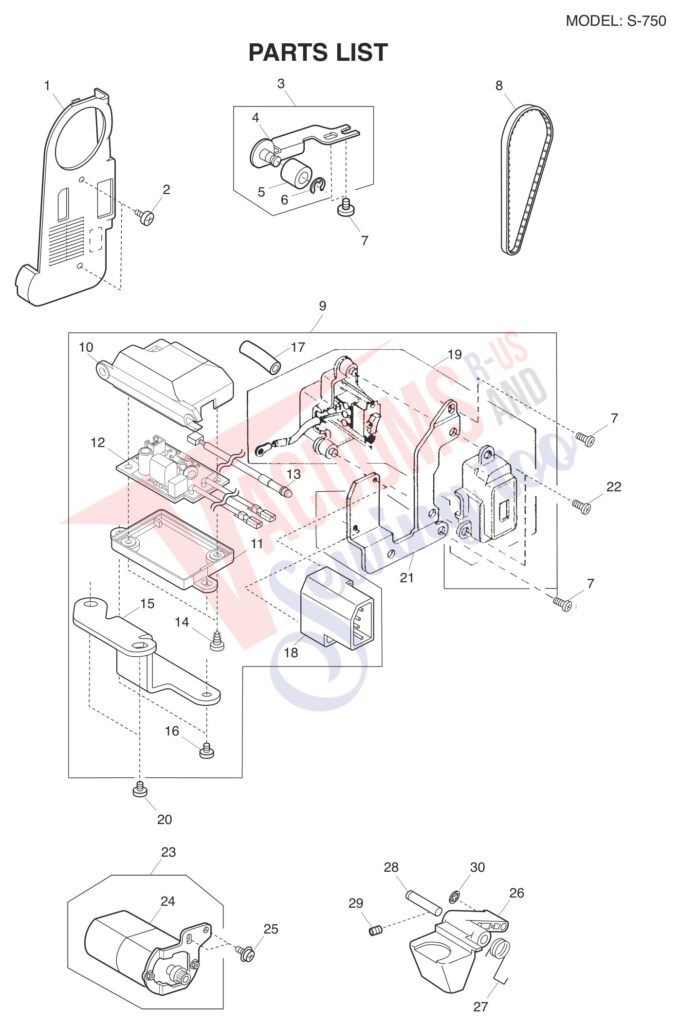

| 1 | No Image | Belt Cover | 749004408 | $8.98Read more |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Idler (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749605003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Idler base sewing machine part or accessory For Janome Models: NEFB12 SRV | 749013008 | $1.80Read more |
| 5 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Timing Belt | 803079117 | $6.76Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | C Board Unit (W Led Switch) | 749649009 | $98.42Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | C Board Case | 795181115 | $3.17Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Printed circuit board C case cover sewing machine part or accessory 795182002 Printed circuit boa... | 795182002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Machine Socket Circ Bord | 508512021 | $17.00Read more |
| 13 | No Image | Led Light | 508515301 | $5.60Read more |
| 14 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | C Board Case Set Plate | 749218005 | $4.75Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Tube sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 798065007 | $184.80Read more |
| 18 |  | Machine Socket Unit for Model S-750 sewing machine part or accessory For Janome Models: S-650, S-... | 732514002 | $20.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Switch Case (Unit) | 732516118 | $59.14Read more |
| 20 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Machine socket set plate sewing machine part or accessory For Janome Models: NEFB12 SRV | 749056003 | $3.60Read more |
| 22 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Motor (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749629003 | $68.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Motor | M1064A | $88.35Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | REVERSE BUTTON sewing machine part or accessory For Janome Models: 712T, S-750, Necchi FB12 | 749019004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | REVERSE BUTTON SPRING sewing machine part or accessory For Janome Models: 712T, JA1504-1512, LR16... | 736014009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | REVERSE BUTTON HINGE PIN sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 736015000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | HEXAGON SOCKET SET SCREW 5X10 sewing machine part or accessory For Janome Models: 712T, LR1612-16... | 000112707 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

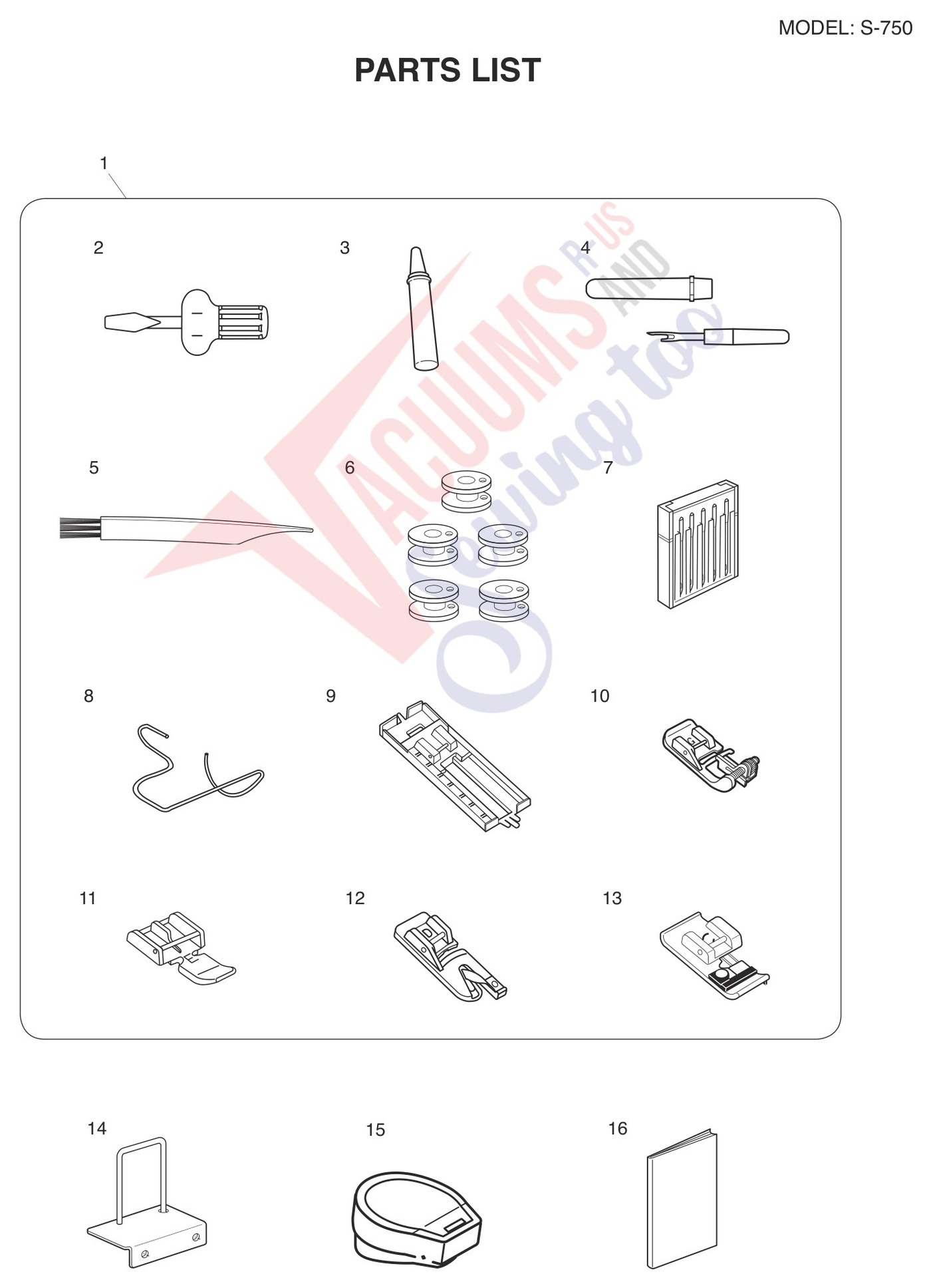

| 1 | | Standard accessories (unit) sewing machine part or accessory For Janome Models: NEFB12 SRV | 749870207 | $57.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 3 | | Oil sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1110DX, 360, 3... | 741814003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 7 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Finger Guard | 687803008 | Not Available |
| 9 |  | Buttonhole Foot (sliding 5mm top load) sewing machine part or accessory For Janome Models: DX502,... | 732802000 | $11.50Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Rolled Hemmer Foot for Janome | 820809014 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Overlock Foot C (top load) | 820804019 | Not Available |
| 14 |  | Spool Pin Unit sewing machine part or accessory For Janome Models: 712T, S-750 | 367511407 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Foot Controller | 003C1030 | $85.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Instruction Book for S750 sewing machine part or accessory For Janome Models: S-750 | 749800206 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
