Schematic and parts book for Janome QMPSTITCHER-20, prostitcher 20 QMPSTITCHER-20,prostitcher 20. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

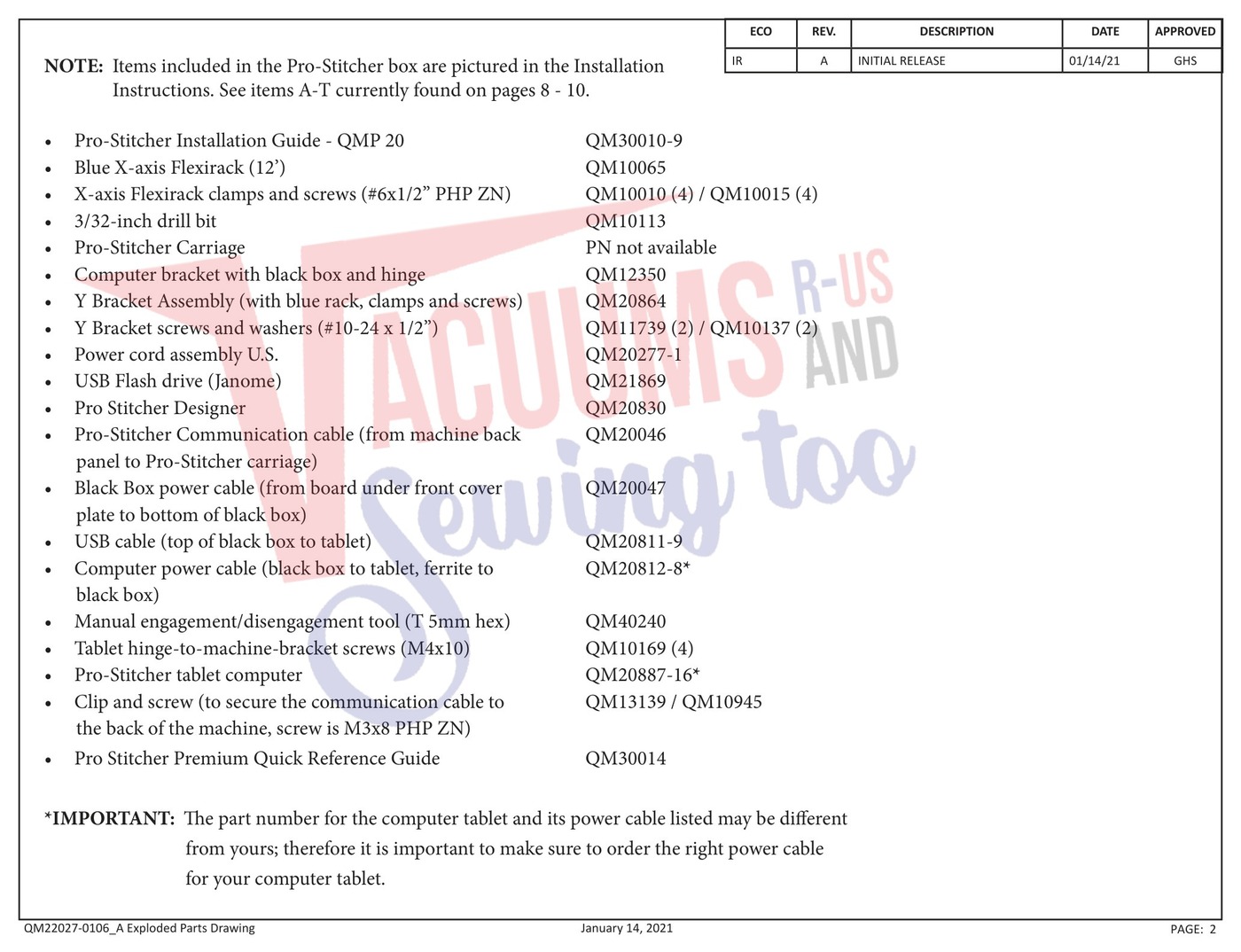

| 1 |  | Pro-Stitcher Installation Guide - QMP 20 sewing machine part or accessory For Janome Models: QMPS... | QM30010-9 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | PS FLEXIRACK 1.0, 20 DEG | QM10065 | Not Available |
| 3 | | PS FLEXIRACK CLAMP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10010 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW #6 X 1/2 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10015 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | 3/32-inch drill bit sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10113 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Computer bracket with black box and hinge sewing machine part or accessory For Janome Models: QMP... | QM12350 | $992.77Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Y Bracket Assembly (with blue rack, clamps and screws) sewing machine part or accessory For Janom... | QM20864 | $242.88Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SCREW-10-24X1/2 SKC ZN* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM11739 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | WASHER #10 FLAT ZN* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10137 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Power cord assembly U.S sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20277-1 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | USB Flash drive (Janome) sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM21869 | $119.13Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Pro Stitcher Designer sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20830 | $1,335.84Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Pro-Stitcher Communication cable (from machine back panel to Pro-Stitcher carriage) sewing machin... | QM20046 | $182.16Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Black Box power cable (from board under front cover plate to bottom of black box) sewing machine ... | QM20047 | $48.36Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | USB cable (top of black box to tablet) sewing machine part or accessory For Janome Models: QMPSTI... | QM20811-9 | $79.42Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Computer power cable (black box to tablet, ferrite to black box) sewing machine part or accessory... | QM20812-8 | $70.77Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Manual engagement/disengagement tool (T 5mm hex) sewing machine part or accessory For Janome Mode... | QM40240 | $71.50Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | SCREW-M4X10 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10169 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Pro-Stitcher tablet computer sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20887-16 | $1,299.00Read more |
| 20 |  | CLIP-P STYLE NYLON 3/16” sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13139 | $1.00Read more |
| 21 | | SCREW-M3X8 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10945 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Pro Stitcher Premium Quick Reference Guide sewing machine part or accessory For Janome Models: QM... | QM30014 | $52.10Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

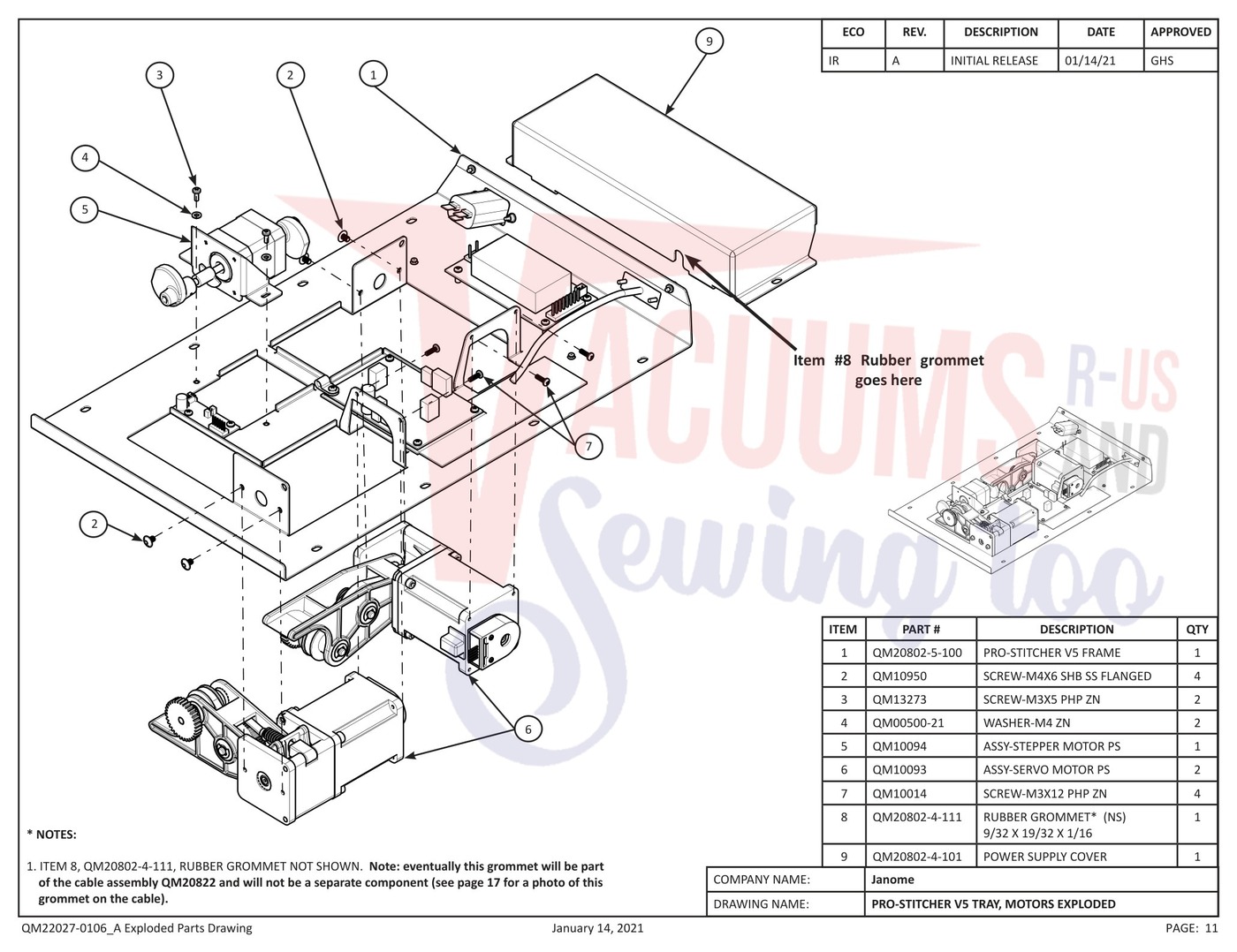

| 1 | | PRO-STITCHER V5 FRAME sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-5-100 | $360.40Read more |
| 2 | | SCREW-M4X6 SHB SS FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10950 | $8.05Read more |
| 3 | | SCREW-M3X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13273 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WASHER M3 sewing machine part or accessory For Janome Models: QM00512 | QM00500-21 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | ASSY-STEPPER MOTOR PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10094 | $89.80Read more |
| 6 | | ASSY-SERVO MOTOR PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10093 | $1,887.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW- M3 X 12 PHP ZN* sewing machine part or accessory For Janome Models: QMPRO16 | QM10014 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | RUBBER GROMMET* (NS) 9/32 X 19/32 X 1/16 sewing machine part or accessory For Janome Models: QMP... | QM20802-4-111 | $0.00Read more |
| 9 |  | POWER SUPPLY COVER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-101 | $133.58Add to cart Special order: ships in 2 to 4 weeks |

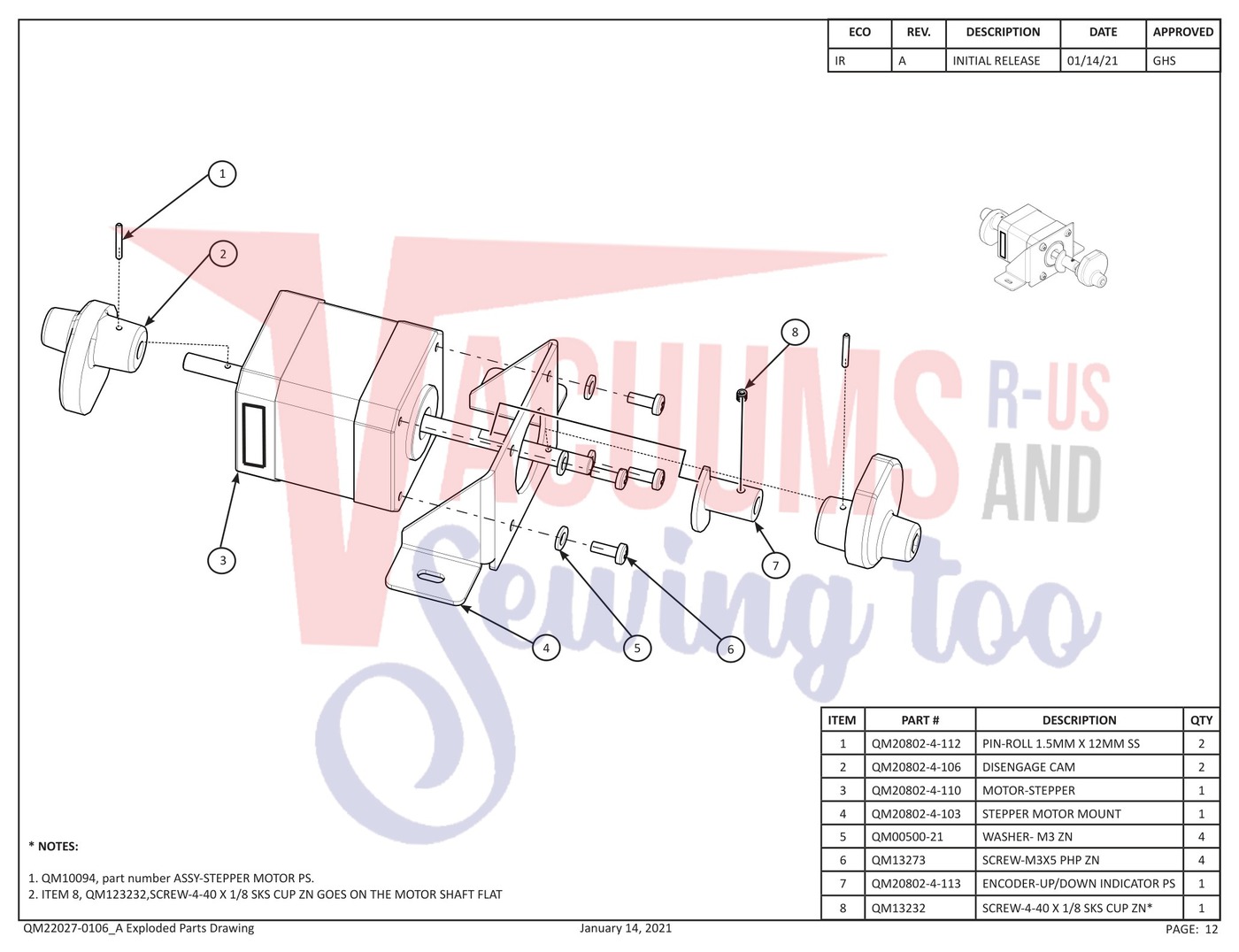

| # | Part image | Description | SKU | Price |
| 1 |  | PIN-ROLL 1.5MM X 12MM SS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-112 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | DISENGAGE CAM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-106 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | MOTOR-STEPPER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-110 | $57.60Read more |
| 4 |  | STEPPER MOTOR MOUNT sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-103 | $64.55Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER M3 sewing machine part or accessory For Janome Models: QM00512 | QM00500-21 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SCREW-M3X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13273 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | ENCODER-UP/DOWN INDICATOR PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-113 | $65.12Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SCREW-4-40 X 1/8 SKS CUP ZN* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13232 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

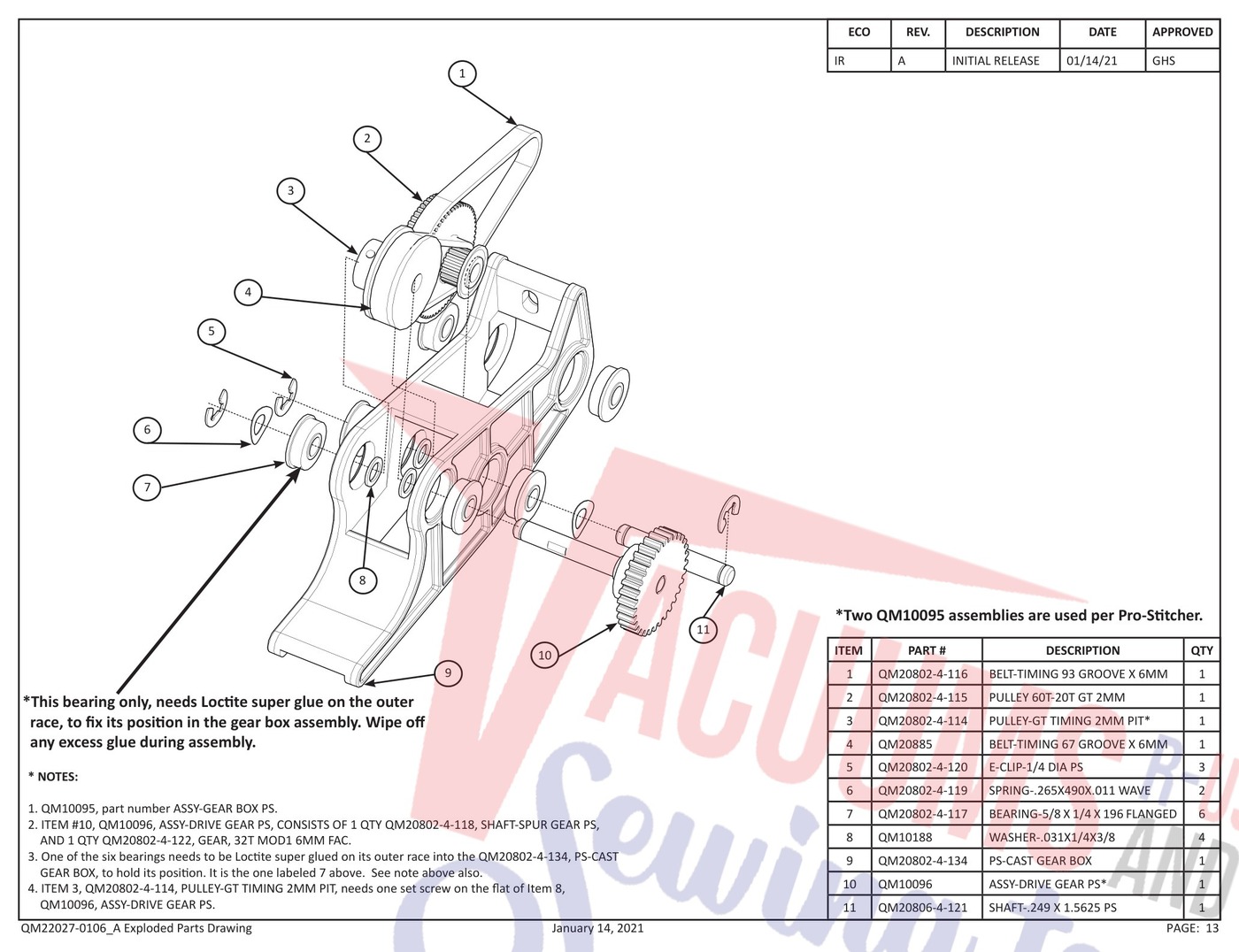

| # | Part image | Description | SKU | Price |
| 1 |  | BELT-TIMING 93 GROOVE X 6MM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-116 | $29.78Read more |
| 2 |  | PULLEY 60T-20T GT 2MM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-115 | $99.28Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | PULLEY-GT TIMING 2MM PIT* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-114 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | BELT-TIMING 67 GROOVE X 6MM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20885 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | E-CLIP-1/4 DIA PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-120 | $0.60Read more |
| 6 |  | SPRING-.265X490X.011 WAVE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-119 | $19.86Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | BEARING-5/8 X 1/4 X 196 FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-117 | $64.58Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | WASHER - .031 X 1/4 X 3/8 sewing machine part or accessory WASHER - .031 X 1/4 X 3/8 | QM10188 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | PS-CAST GEAR BOX sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-134 | $47.20Read more |
| 10 | | ASSY-DRIVE GEAR PS* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10096 | $120.77Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Shaft-.249X1.5625 Ps | QM208024121 | $52.83Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

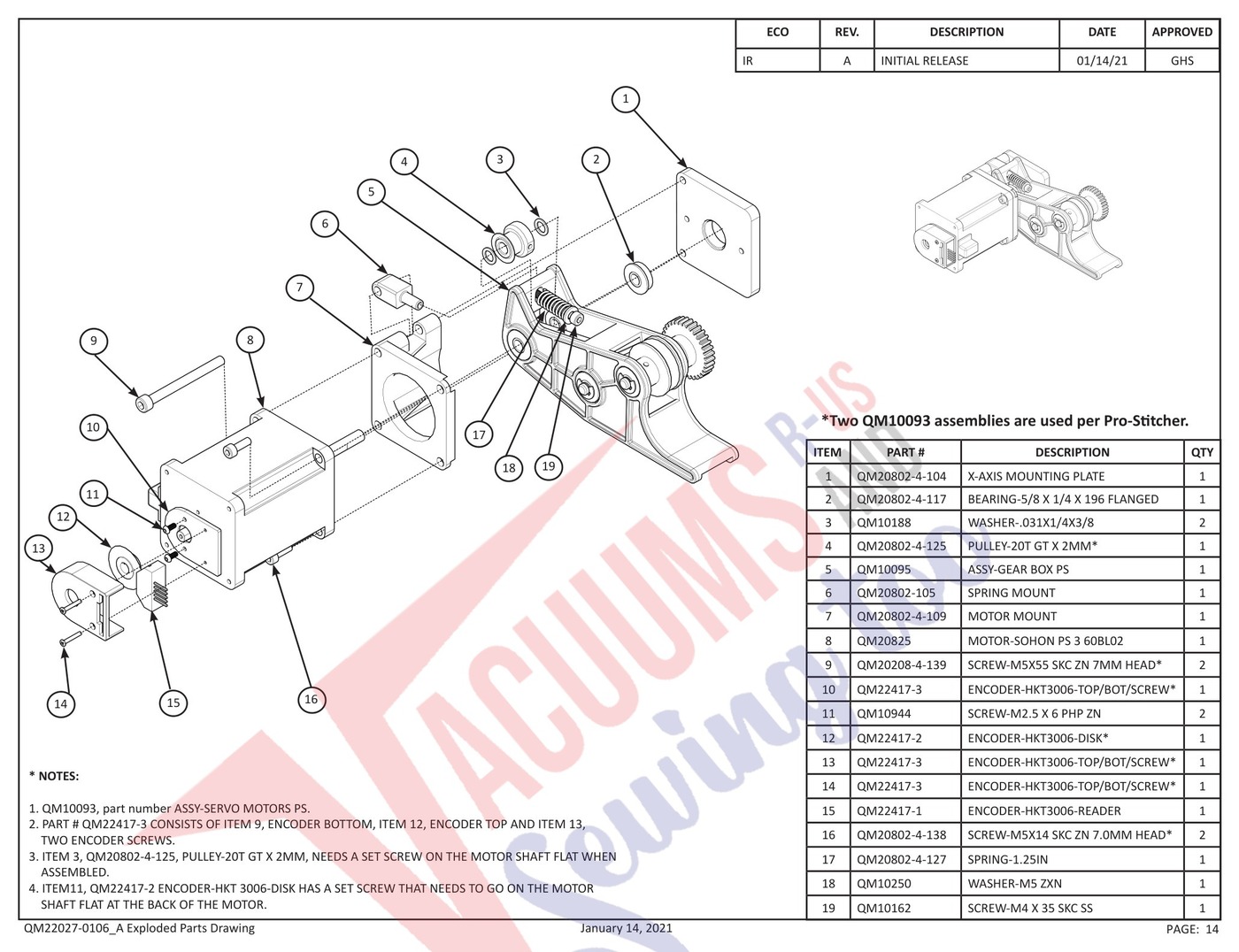

| 1 |  | X-AXIS MOUNTING PLATE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-104 | $7.01Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | BEARING-5/8 X 1/4 X 196 FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-117 | $64.58Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | WASHER - .031 X 1/4 X 3/8 sewing machine part or accessory WASHER - .031 X 1/4 X 3/8 | QM10188 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | PULLEY-20T GT X 2MM* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-125 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | ASSY-GEAR BOX PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10095 | $836.40Read more |
| 6 |  | Spring Mount | QM208024105 | $9.93Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | MOTOR MOUNT sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-109 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | MOTOR-SOHON PS 3 60BL02 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20825 | $626.20Read more |
| 9 | Not Available | SCREW-M5X55 SKC ZN 7MM HEAD* | QM20802-4-139 | Not Available |
| 10 |  | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SCREW-M2.5 X 6 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10944 | $0.40Read more |
| 12 |  | ENCODER HKT3006-DISK sewing machine part or accessory For Janome Models: QMPRO16 | QM22417-2 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | ENCODER HKT3006-READER sewing machine part or accessory For Janome Models: QMPRO16 | QM22417-1 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | SCREW-M5X14 SKC ZN 7.0MM HEAD* | QM20802-4-138 | Not Available |
| 17 |  | SPRING-1.25IN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-127 | $22.31Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | WASHER M5 sewing machine part or accessory For Janome Models: QM00512 | QM10250 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SCREW-M4 X 35 SKC SS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10162 | $2.60Read more |
| # | Part image | Description | SKU | Price |

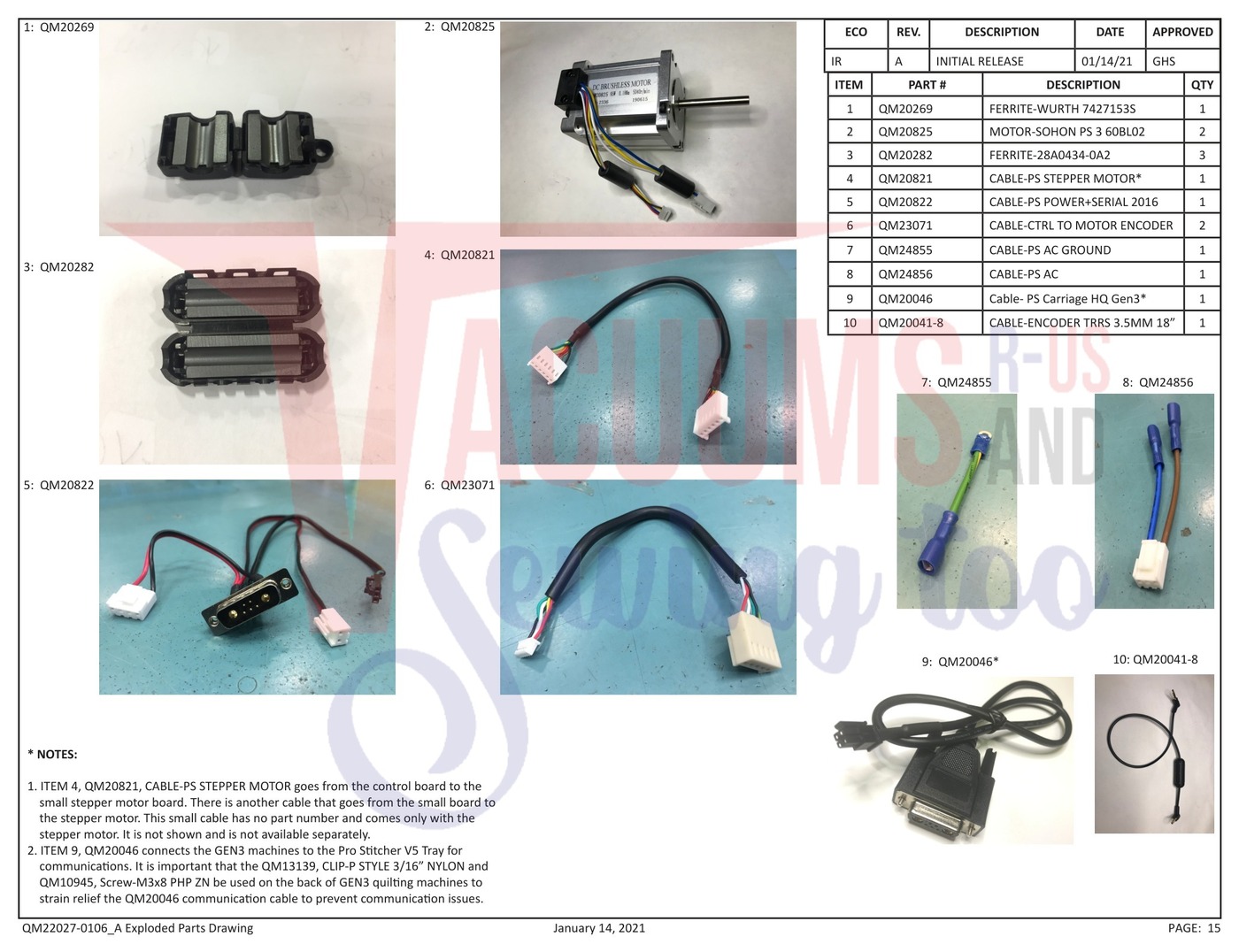

| 1 | | FERRITE-WURTH 7427153S sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20269 | $19.78Read more |
| 2 | | MOTOR-SOHON PS 3 60BL02 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20825 | $626.20Read more |
| 3 | | FERRITE-28A0434-0A2 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20282 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | CABLE-PS STEPPER MOTOR* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20821 | $21.60Read more |
| 5 | | CABLE-PS POWER+SERIAL 2016 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20822 | $107.40Read more |
| 6 | | CABLE-CTRL TO MOTOR ENCODER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM23071 | $21.60Read more |
| 7 |  | CABLE-PS AC GROUND sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24855 | $9.93Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | CABLE-PS AC sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24856 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Pro-Stitcher Communication cable (from machine back panel to Pro-Stitcher carriage) sewing machin... | QM20046 | $182.16Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | CABLE-ENCODER TRRS 3.5MM 18” sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20041-8 | $44.72Add to cart Special order: ships in 2 to 4 weeks |

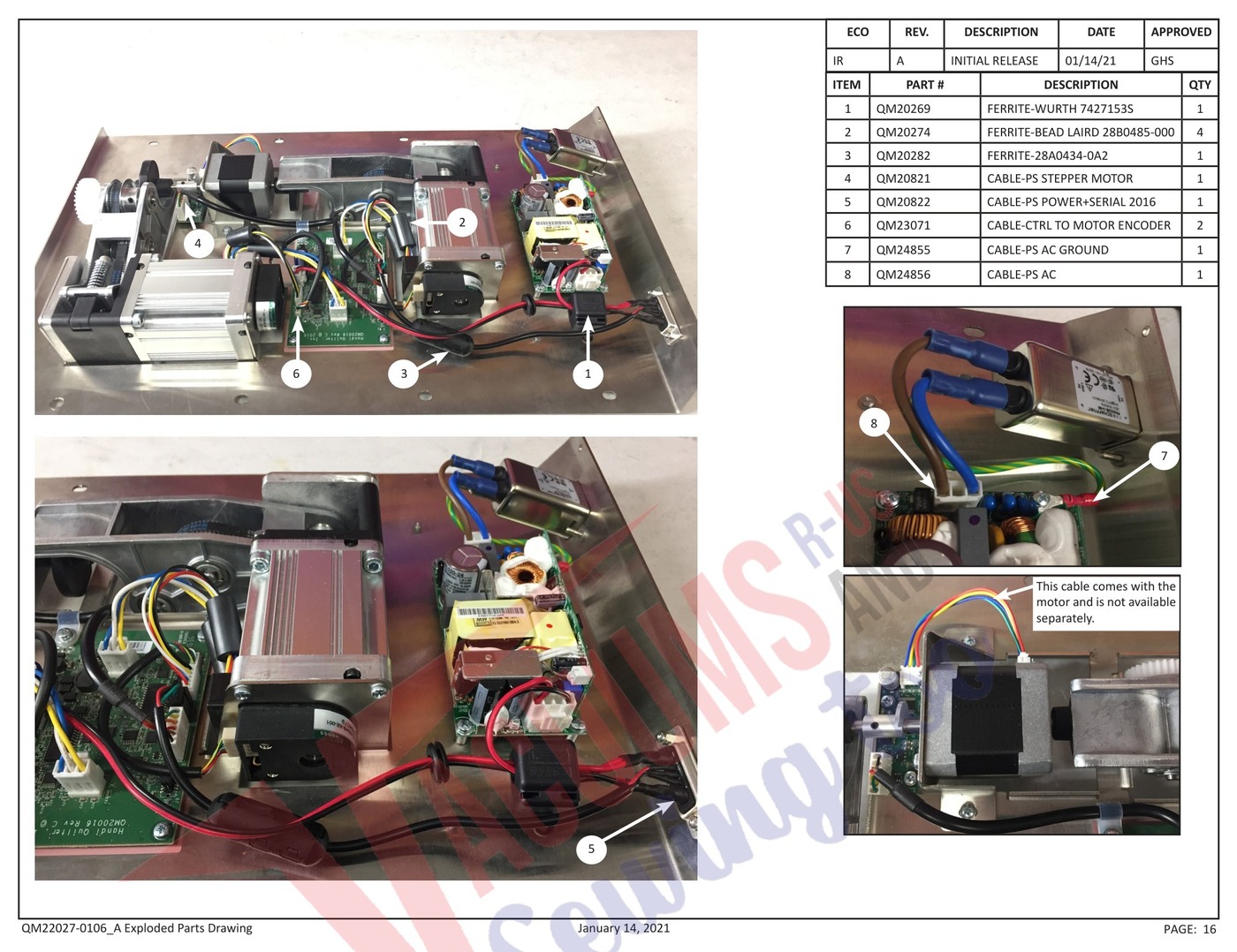

| # | Part image | Description | SKU | Price |
| 1 | | FERRITE-WURTH 7427153S sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20269 | $19.78Read more |
| 2 | | FERRITE-BEAD LAIRD 28B0485-000 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20274 | $2.99Read more |
| 3 | | FERRITE-28A0434-0A2 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20282 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | CABLE-PS STEPPER MOTOR* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20821 | $21.60Read more |
| 5 | | CABLE-PS POWER+SERIAL 2016 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20822 | $107.40Read more |
| 6 | | CABLE-CTRL TO MOTOR ENCODER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM23071 | $21.60Read more |
| 7 | | CABLE-PS AC GROUND sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24855 | $9.93Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | CABLE-PS AC sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24856 | $40.99Add to cart Special order: ships in 2 to 4 weeks |

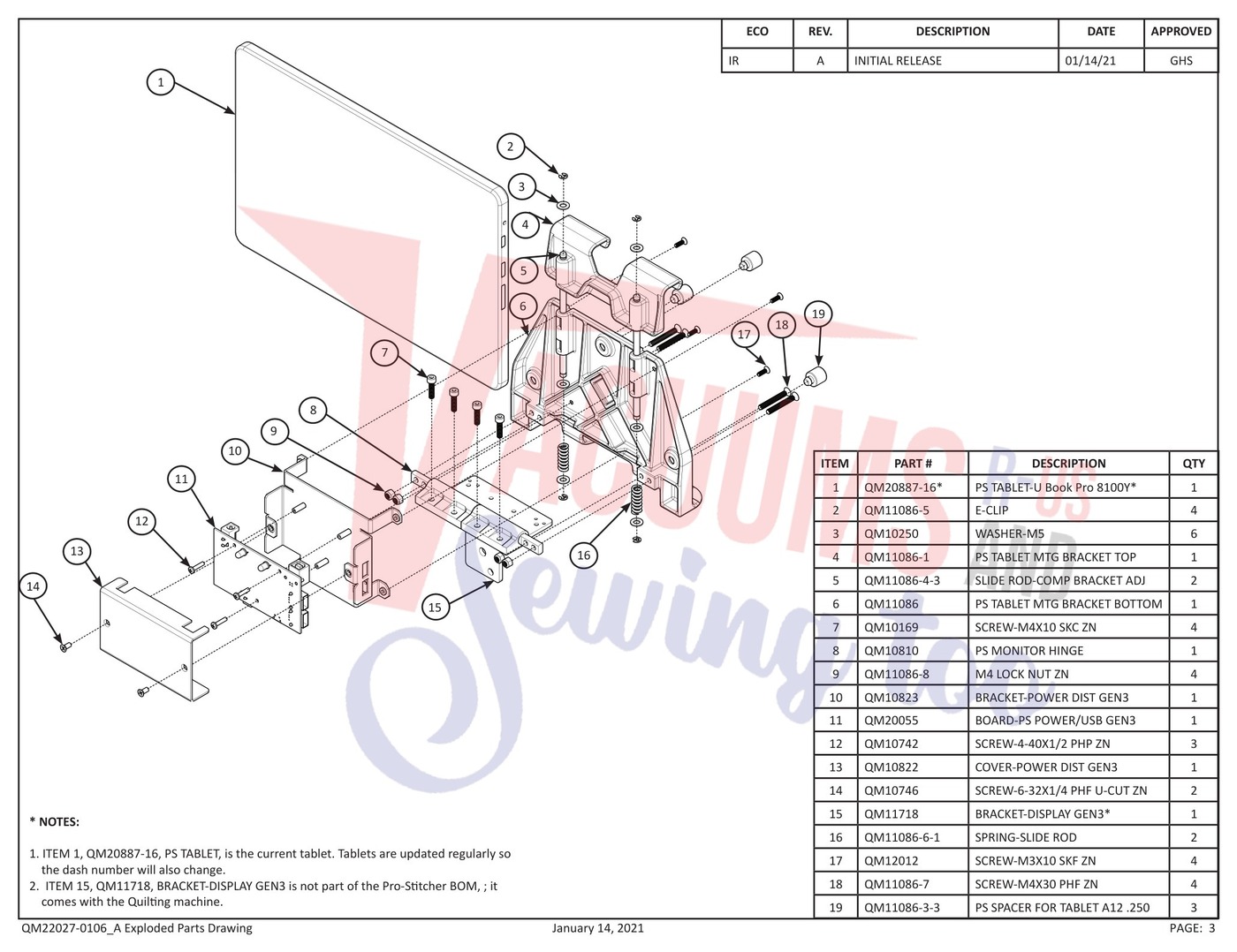

| # | Part image | Description | SKU | Price |
| 1 | | Pro-Stitcher tablet computer sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20887-16 | $1,299.00Read more |
| 2 |  | E-CLIP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM11086-5 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | WASHER M5 sewing machine part or accessory For Janome Models: QM00512 | QM10250 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | PS TABLET MTG BRACKET TOP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM11086-1 | $19.86Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | SLIDE ROD-COMP BRACKET ADJ | QM11086-4-3 | Not Available |
| 6 | No Image | Ps Tablet Mtg Bracket Bottom | QM11086 | $27.32Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-M4X10 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10169 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | PS MONITOR HINGE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10810 | $333.96Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | M4 LOCK NUT ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM11086-8 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | BRACKET-POWER DIST GEN3 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10823 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | BOARD-PS POWER/USB GEN3 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20055 | $546.48Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SCREW-4-40 X 1/2 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10742 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | COVER-POWER DIST GEN3 | QM10822 | Not Available |
| 14 |  | SCREW-6-32X1/4 PHF U-CUT ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10746 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | BRACKET-DISPLAY GEN3* sewing machine part or accessory For Janome Models: QMPRO20VERSA-ST | QM11718 | $38.71Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | SPRING-SLIDE ROD | QM11086-6-1 | Not Available |
| 17 |  | SCREW-M3X10 SKF ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM12012 | $0.40Read more |
| 18 |  | SCREW-M4X30 PHF ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM11086-7 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | PS SPACER FOR TABLET A12 .250 | QM11086-3-3 | Not Available |
| # | Part image | Description | SKU | Price |

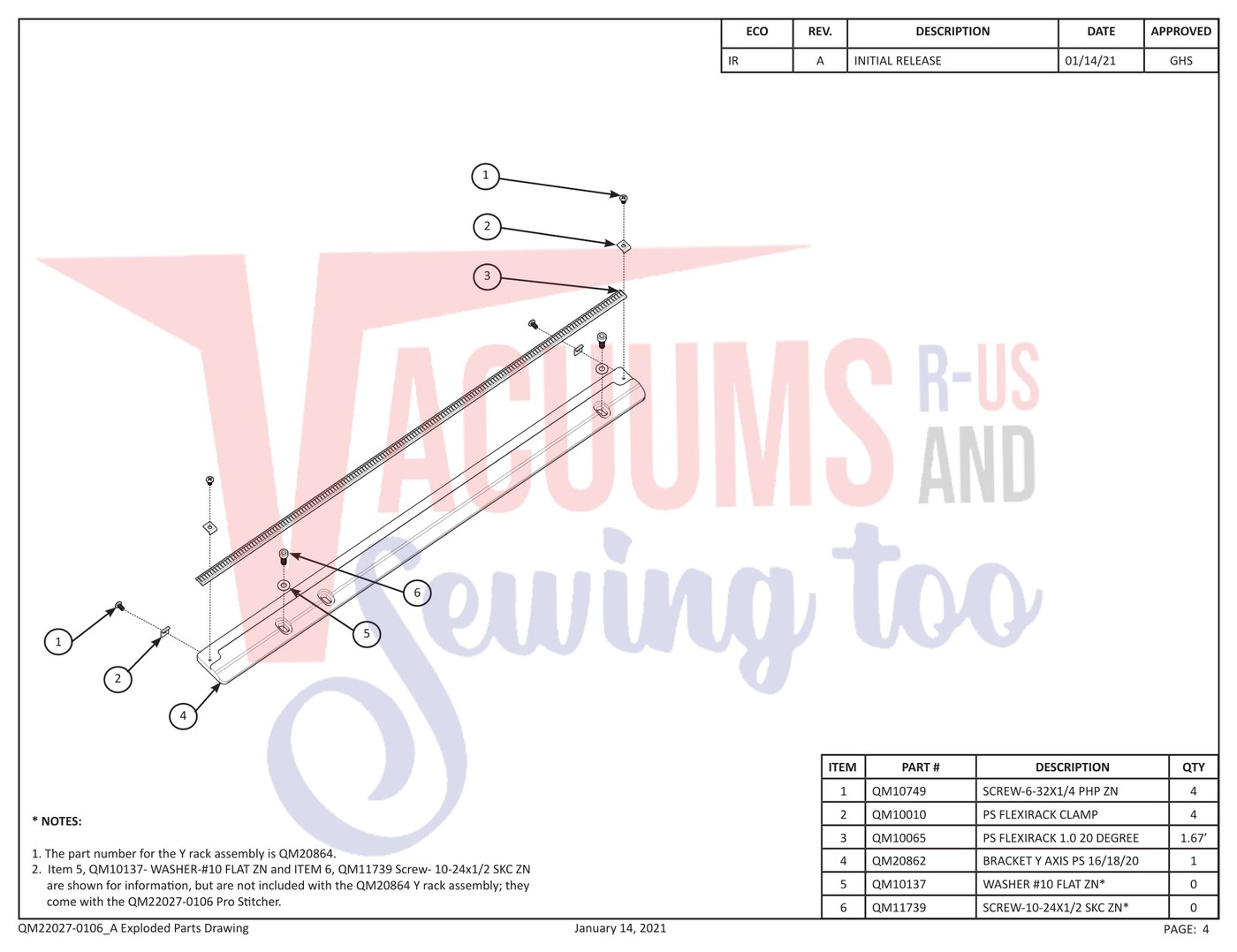

| 1 |  | SCREW-6-32X1/4 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10749 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | PS FLEXIRACK CLAMP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10010 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | PS FLEXIRACK 1.0, 20 DEG | QM10065 | Not Available |
| 4 |  | BRACKET Y AXIS PS 16/18/20 sewing machine part or accessory For Janome Models: QMPSTITCHER-20, Pr... | QM20862 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER #10 FLAT ZN* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10137 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SCREW-10-24X1/2 SKC ZN* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM11739 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

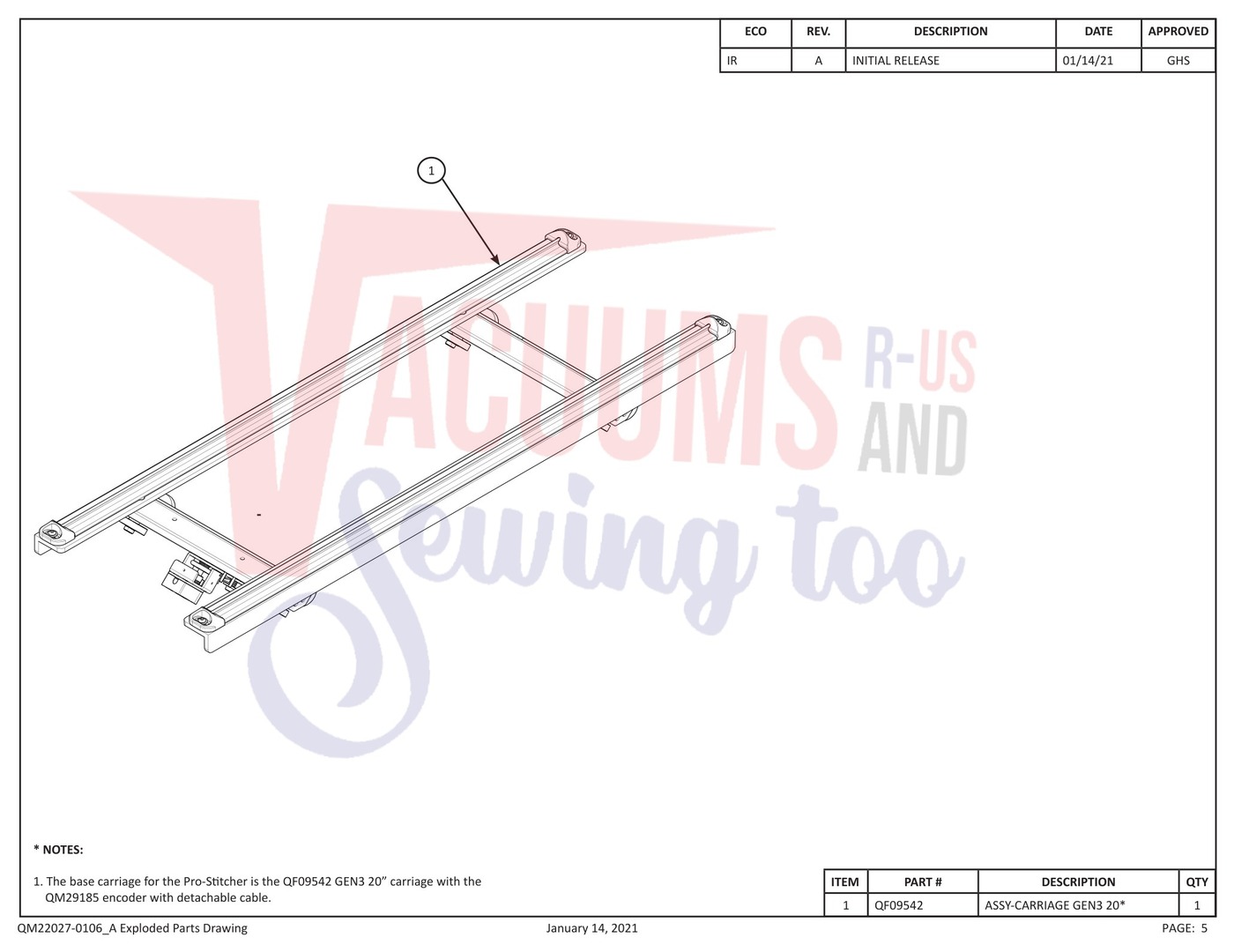

| 1 | Not Available | ASSY-CARRIAGE GEN3 20* | QF09542 | Not Available |

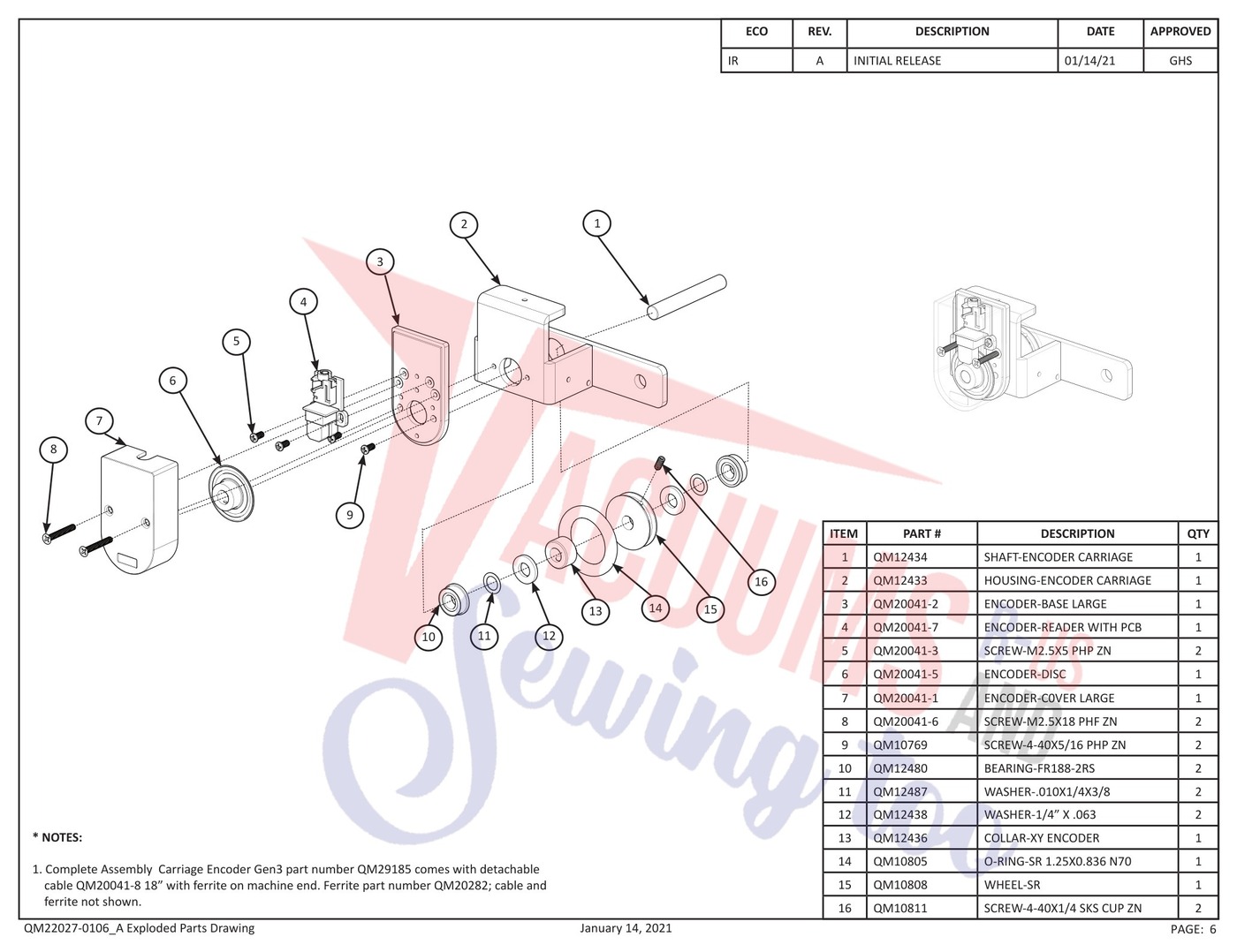

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SHAFT-ENCODER CARRIAGE | QM12434 | Not Available |
| 2 | Not Available | HOUSING-ENCODER CARRIAGE | QM12433 | Not Available |
| 3 | Not Available | ENCODER-BASE LARGE | QM20041-2 | Not Available |
| 4 | Not Available | ENCODER-READER WITH PCB | QM20041-7 | Not Available |
| 5 | | SCREW-M2.5X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20041-3 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | ENCODER-DISC | QM20041-5 | Not Available |
| 7 | Not Available | ENCODER-C0VER LARGE | QM20041-1 | Not Available |
| 8 | | SCREW-M2.5X18 PHF ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20041-6 | $2.28Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SCREW-4-40 X 5/16 PHP ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM10769 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | BEARING-FR188-2RS | QM12480 | Not Available |
| 11 |  | WASHER- .01 X 1/4 X 3/8 sewing machine part or accessory WASHER- .01 X 1/4 X 3/8 | QM12487 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | WASHER-1/4” X .063 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM12438 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | COLLAR-XY ENCODER | QM12436 | Not Available |
| 14 |  | O-Ring SR sewing machine part or accessory Work with QMPRO18 encoders | QM10805 | $12.30Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | WHEEL-SR | QM10808 | Not Available |
| 16 | Not Available | SCREW-4-40X1/4 SKS CUP ZN | QM10811 | Not Available |

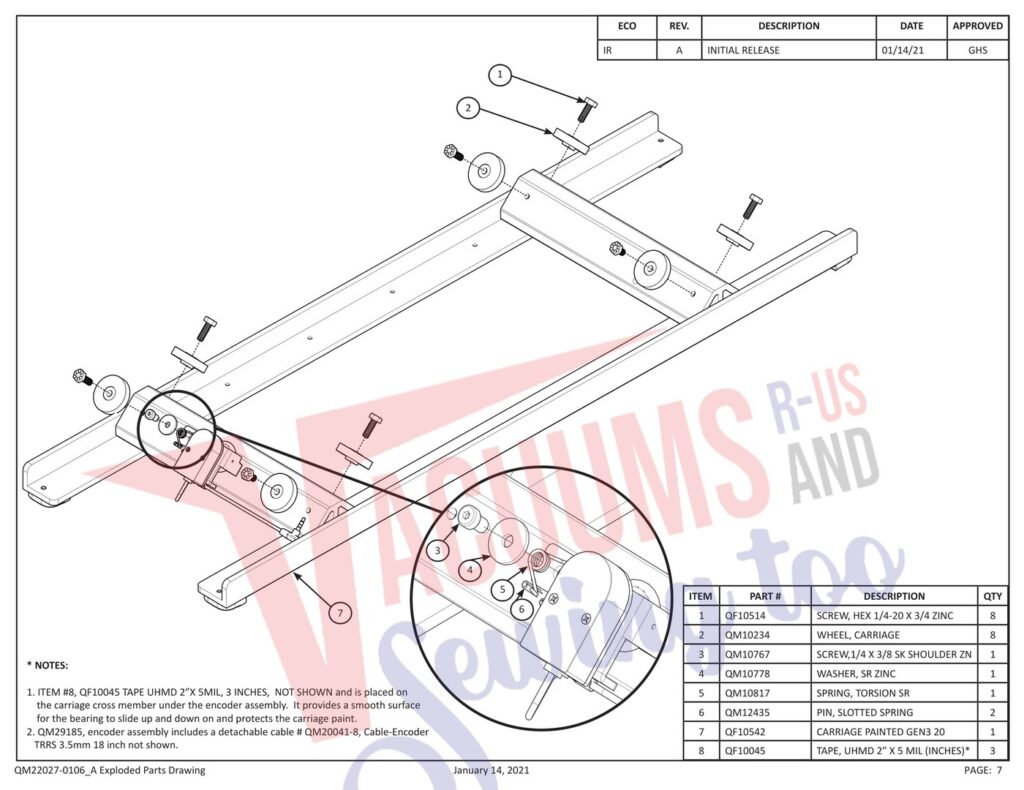

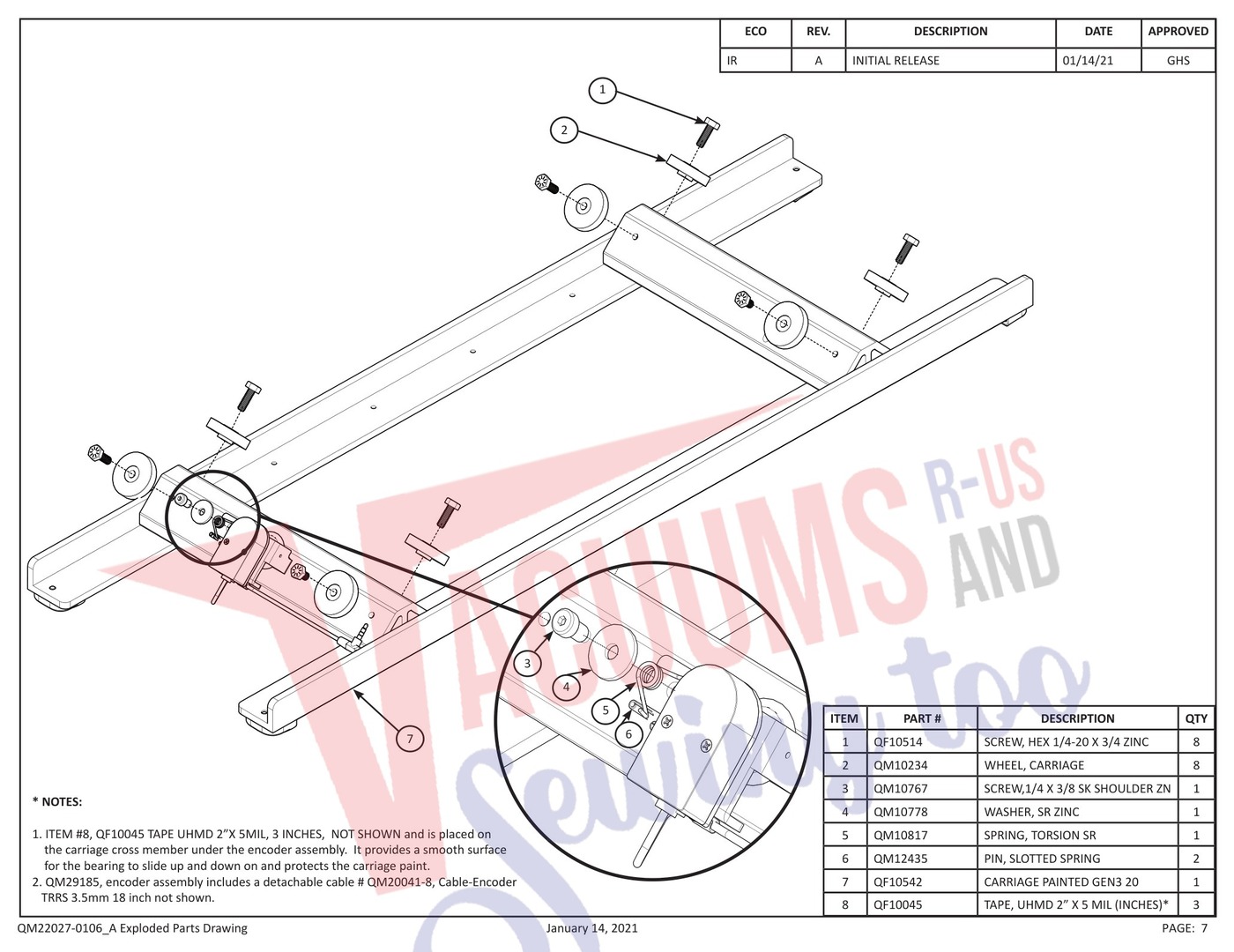

| # | Part image | Description | SKU | Price |

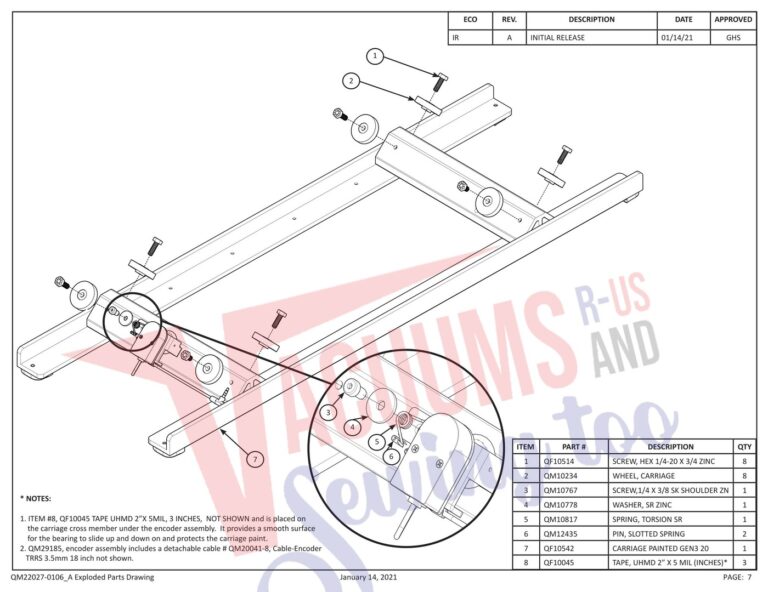

| 1 |  | SCREW, HEX 1/4-20 X 3/4 ZINC sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QF10514 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | WHEEL, CARRIAGE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10234 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Screw 1/4 X 3/8 Shoulder Skt | QM10767 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WASHER, SR ZINC sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10778 | $4.01Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Spring, Torsion, Sr | QM10817 | $14.94Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | PIN, SLOTTED SPRING sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM12435 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | CARRIAGE PAINTED GEN3 20 | QF10542 | Not Available |
| 8 | Not Available | TAPE, UHMD 2” X 5 MIL (INCHES) | QF10045 | Not Available |

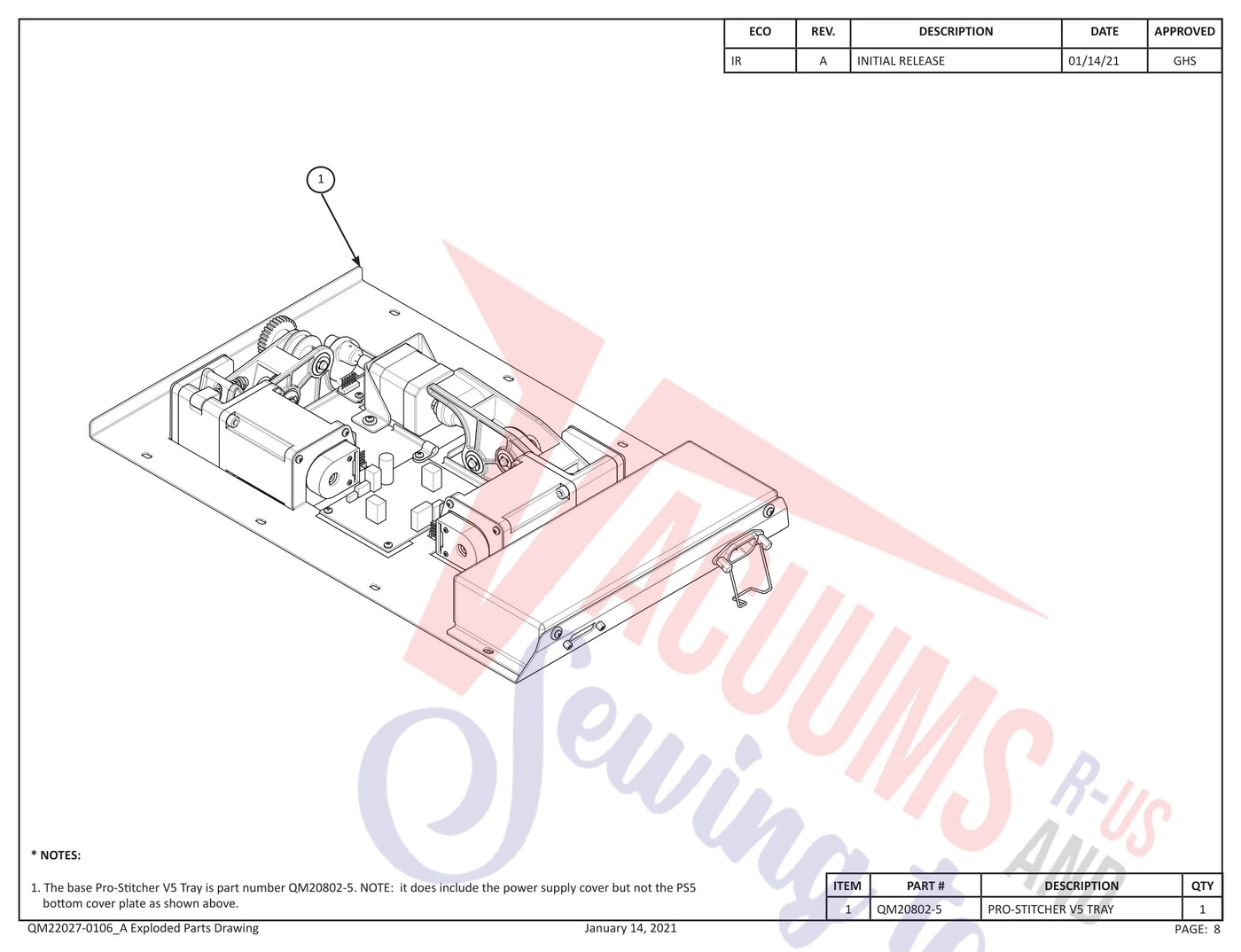

| # | Part image | Description | SKU | Price |
| 1 | No Image | Pro-Stitcher Ps5 Tray | QM208025 | $7,590.00Add to cart Special order: ships in 2 to 4 weeks |

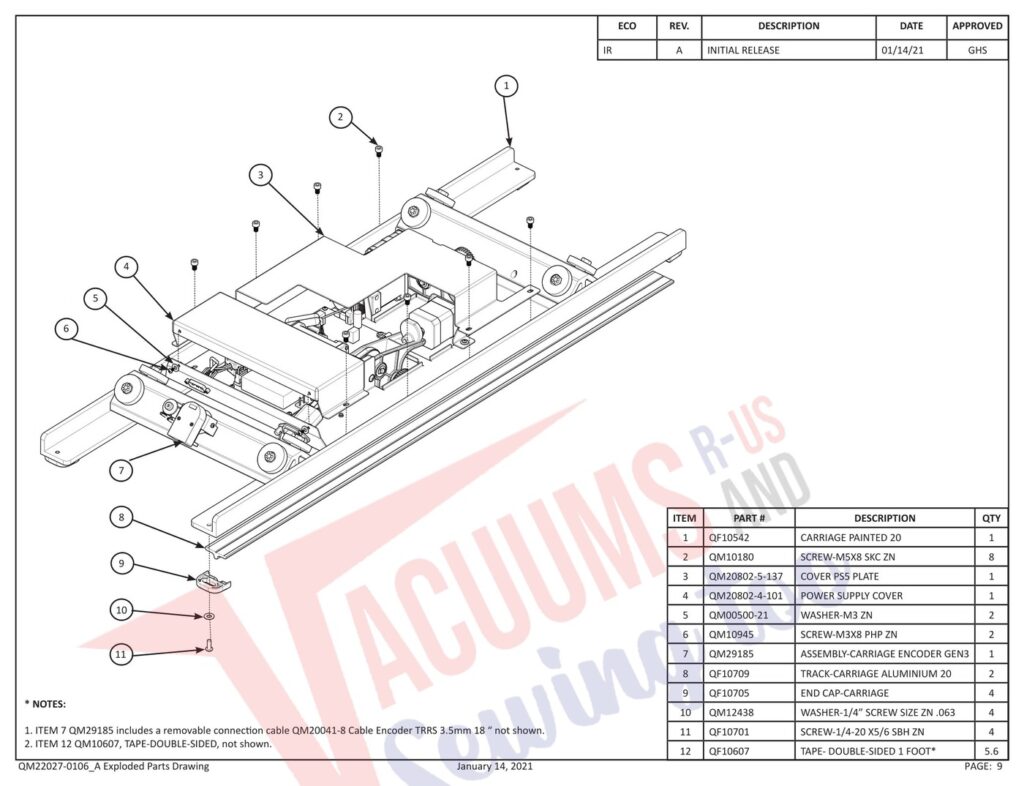

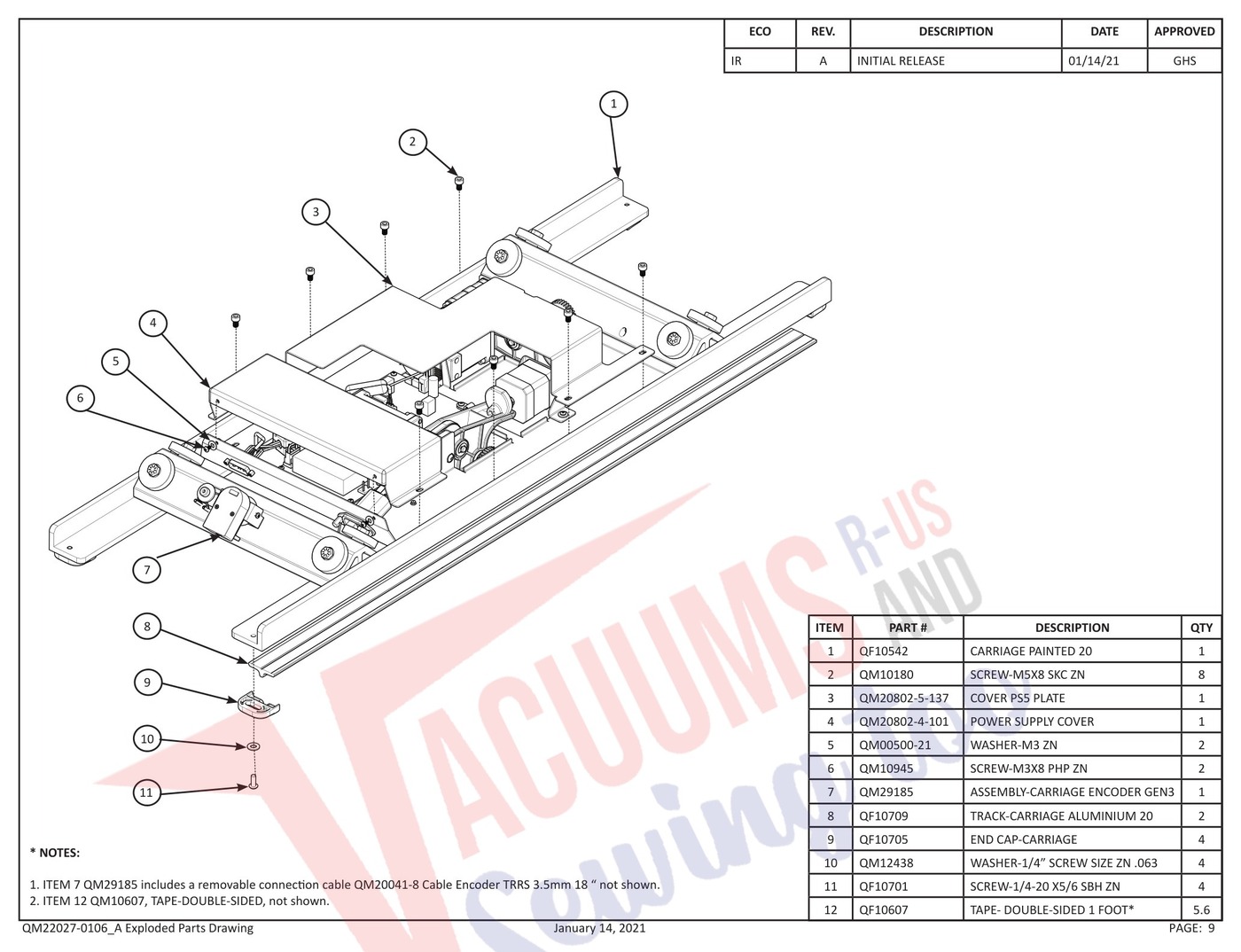

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CARRIAGE PAINTED GEN3 20 | QF10542 | Not Available |
| 2 |  | SCREW-M5X8 SKC ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10180 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | COVER PS5 PLATE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-5-137 | $94.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | POWER SUPPLY COVER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-101 | $133.58Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER M3 sewing machine part or accessory For Janome Models: QM00512 | QM00500-21 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SCREW-M3X8 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10945 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ASSEMBLY-CARRIAGE ENCODER GEN3 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM29185 | $273.24Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | TRACK-CARRIAGE ALUMINIUM 20 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QF10709 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | END CAP-CARRIAGE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QF10705 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | WASHER-1/4” X .063 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM12438 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | SCREW-1/4-20 X5/6 SBH ZN | QF10701 | Not Available |
| 12 |  | TAPE- DOUBLE-SIDED 1 FOOT* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QF10607 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | PRO-STITCHER V5 FRAME sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-5-100 | $360.40Read more |

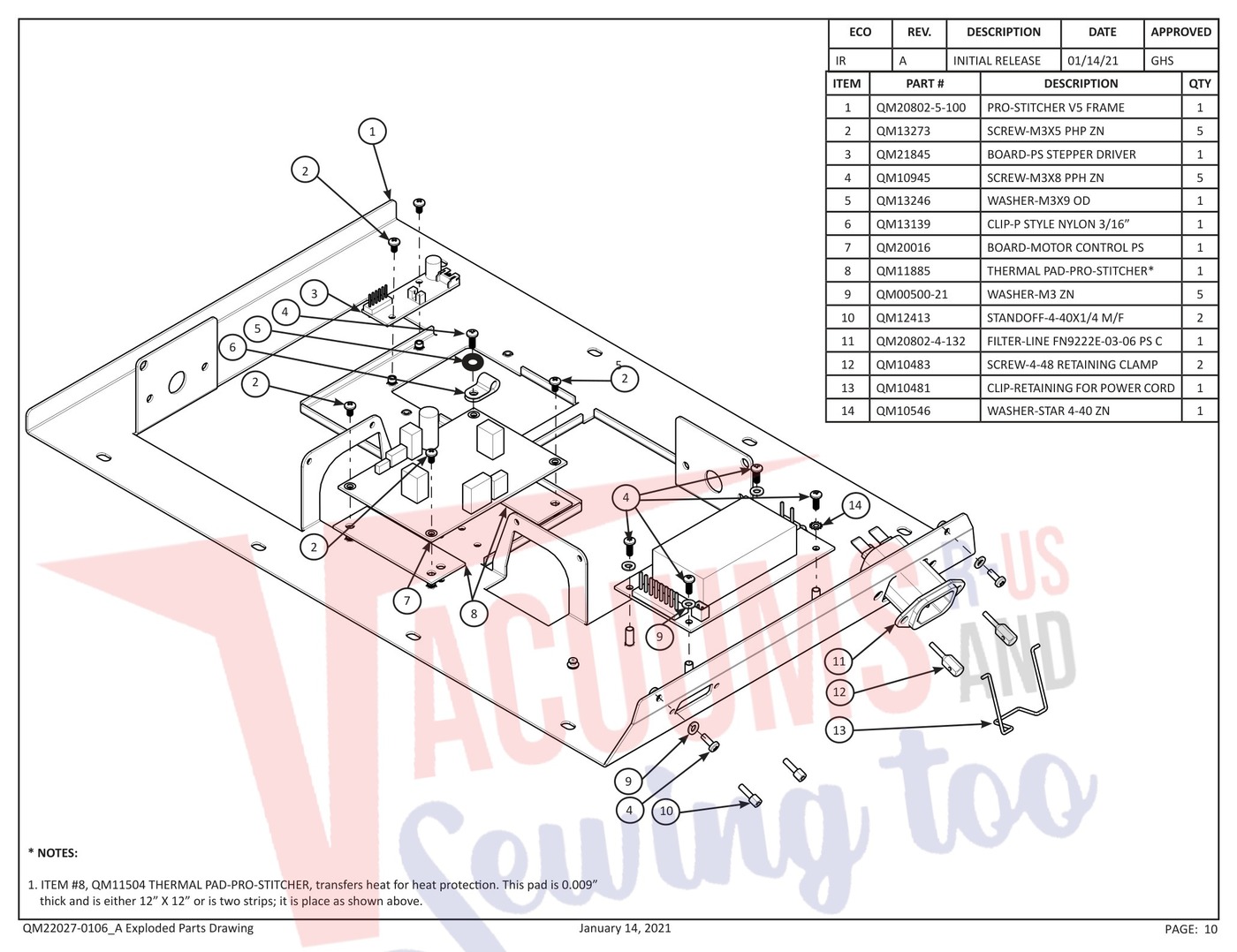

| 2 | | SCREW-M3X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13273 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | BOARD-PS STEPPER DRIVER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM21845 | $182.16Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M3X8 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10945 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER-M3X9 OD sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13246 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | CLIP-P STYLE NYLON 3/16” sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13139 | $1.00Read more |
| 7 |  | BOARD-MOTOR CONTROL PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20016 | $1,535.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | THERMAL PAD-PRO-STITCHER* | QM11885 | Not Available |
| 9 | | WASHER M3 sewing machine part or accessory For Janome Models: QM00512 | QM00500-21 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | STANDOFF-4-40X1/4 M/F sewing machine part or accessory For Janome Models: QMPROVERSA | QM12413 | $5.19Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | FILTER-LINE FN9222E-03-06 PS C sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-132 | $84.43Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SCREW-4-48 RETAINING CLAMP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10483 | $16.39Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | CLIP-RETAINING FOR POWER CORD sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10481 | $19.86Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | WASHER-STAR 4-40 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10546 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
