Schematic and parts book for Janome QMPRO16, Quiltmaker aster pro 16 QMPRO16, Quiltmaker pro 16. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

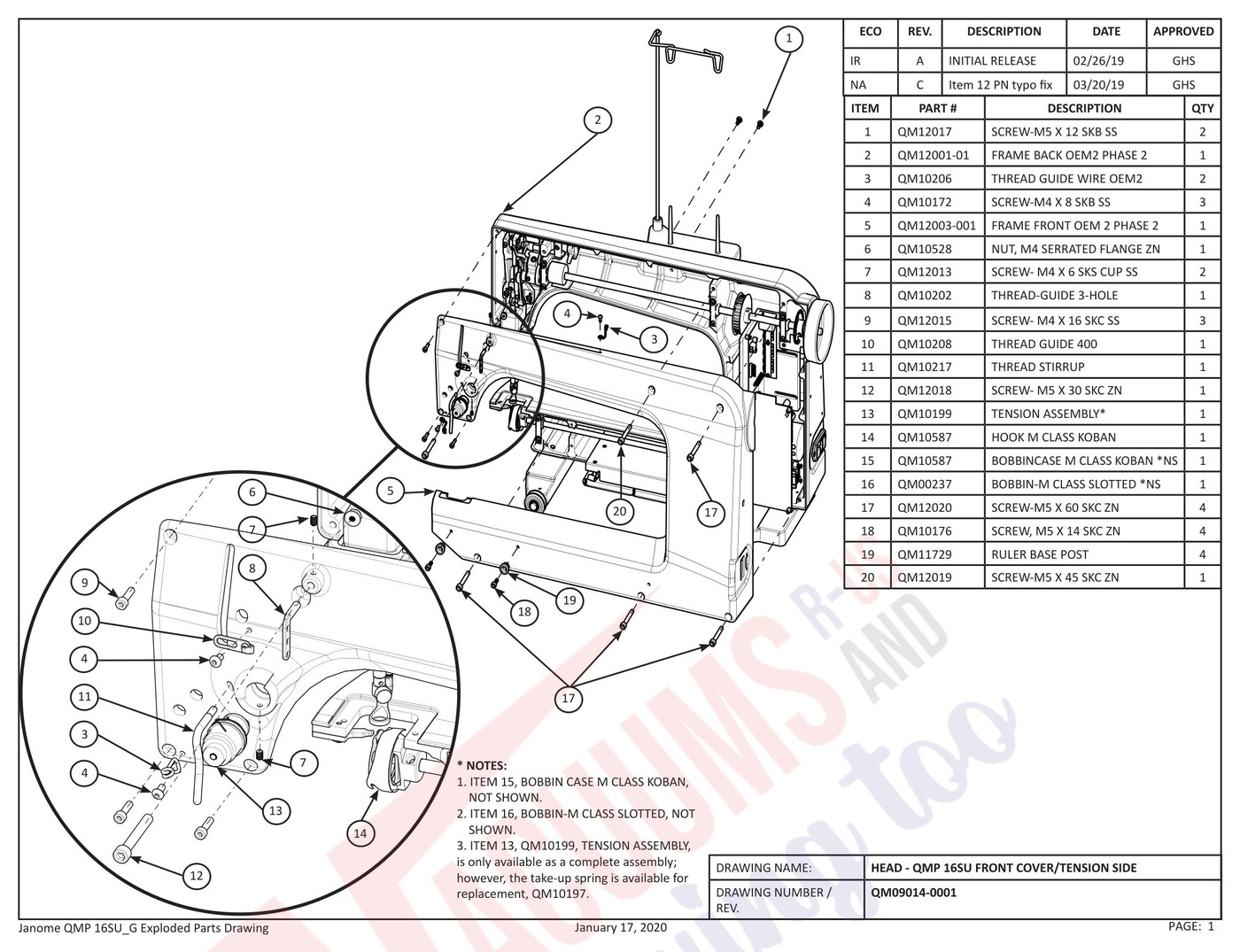

| # | Part image | Description | SKU | Price |
| 1 |  | SCREW-M5 X 12 SKB SS sewing machine part or accessory | QM12017 | $0.80Read more |
| 2 | No Image | Frame Back Oem2 Phase 2 | QM1200101 | $1,366.20Read more |
| 3 |  | THREAD GUIDE WIRE OEM2 sewing machine part or accessory For Janome Models: QMPRO16 | QM10206 | $27.32Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SCREW-M4X8 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10172 | $0.40Read more |
| 5 | | FRAME FRONT OEM 2 PHASE 2 sewing machine part or accessory For Janome Models: QMPRO16 | QM12003-01 | $906.89Read more |
| 6 |  | NUT-M4 SERRATED FLANGE ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10528 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SCREW-M4X8 SKS CUP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM12013 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | THREAD GUIDE THREE HOLE sewing machine part or accessory For Janome Models: QMPROVERSA | QM10202 | $23.04Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SCREW- M4 X 16 SKC SS sewing machine part or accessory For Janome Models: QMPRO16 | QM12015 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | THREAD GUIDE 400 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10208 | $18.04Read more |
| 11 |  | THREAD STIRRUP sewing machine part or accessory For Janome Models: QMPROVERSA | QM10217 | $11.40Read more |
| 12 |  | SCREW- M5X30 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM12018 | $2.28Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | TENSION ASSEMBLY sewing machine part or accessory TENSION ASSEMBLY | QM10199 | $114.15Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Bobbin Case M Class | QM10587 | $182.16Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Bobbin Case M Class | QM10587 | $182.16Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | BOBBIN M CLASS SLOTTED sewing machine part or accessory BOBBIN M CLASS SLOTTED | QM00237 | $10.02Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SCREW-M5 X 60 SKC ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM12020 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | SCREW, M5 X 14 SKC ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM10176 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | RULER BASE POST sewing machine part or accessory For Janome Models: QMPRO16 | QM11729 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | SCREW-M5X45 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM12019 | $2.28Add to cart Special order: ships in 2 to 4 weeks |

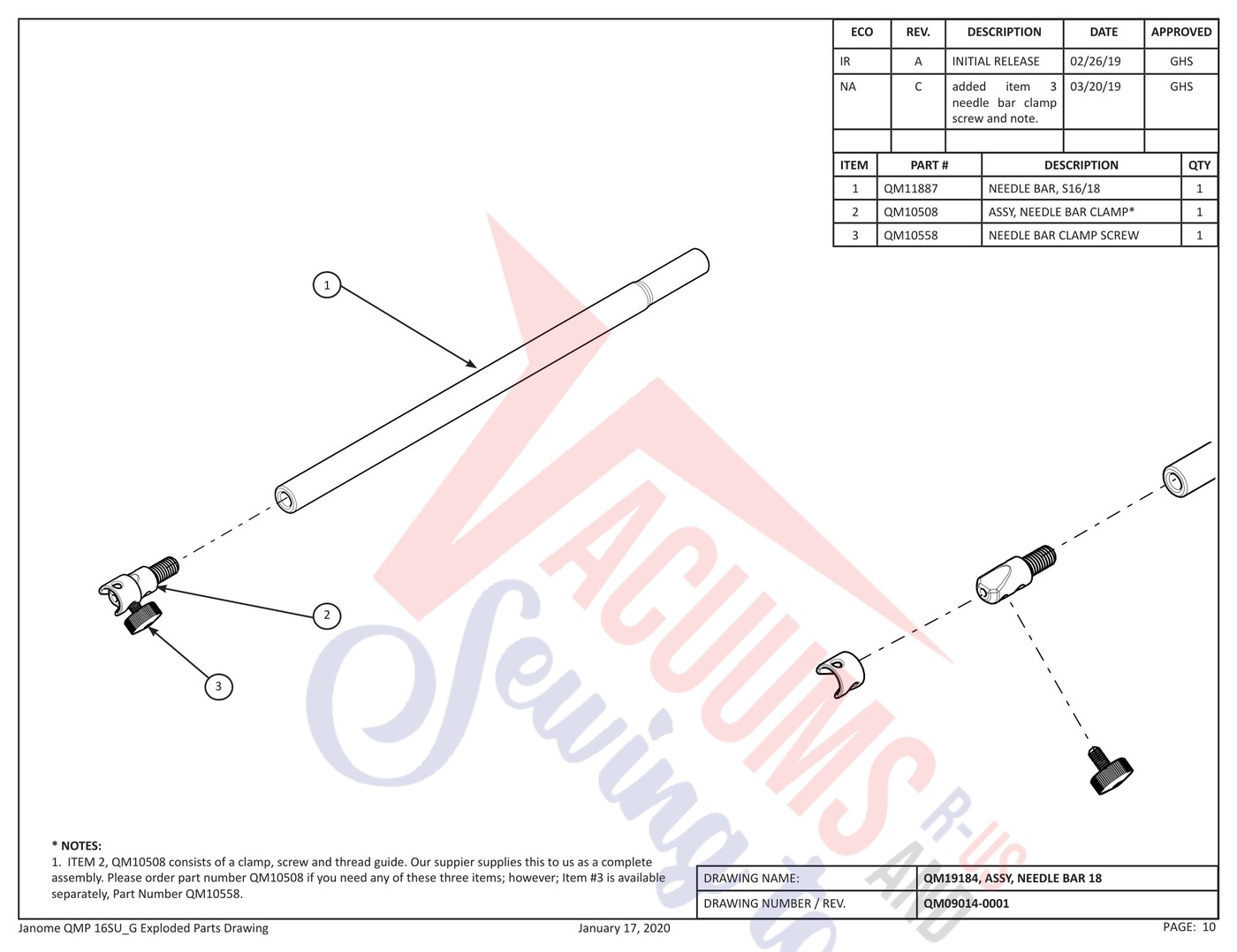

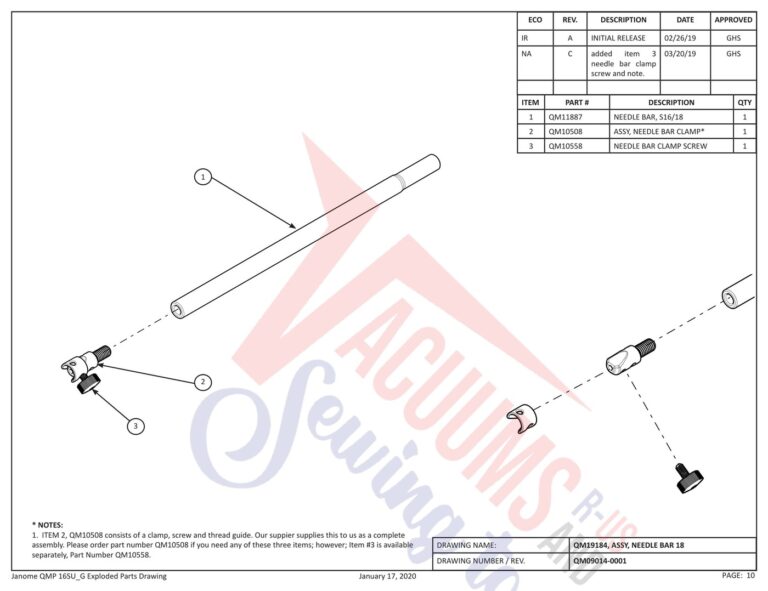

| # | Part image | Description | SKU | Price |
| 1 | | NEEDLE BAR, S16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM11887 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | ASSY-NEEBLE BAR CLAMP sewing machine part or accessory ASSY-NEEBLE BAR CLAMP | QM10508 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SCREW M3 X .5 X 6MM NBC sewing machine part or accessory | QM10558 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

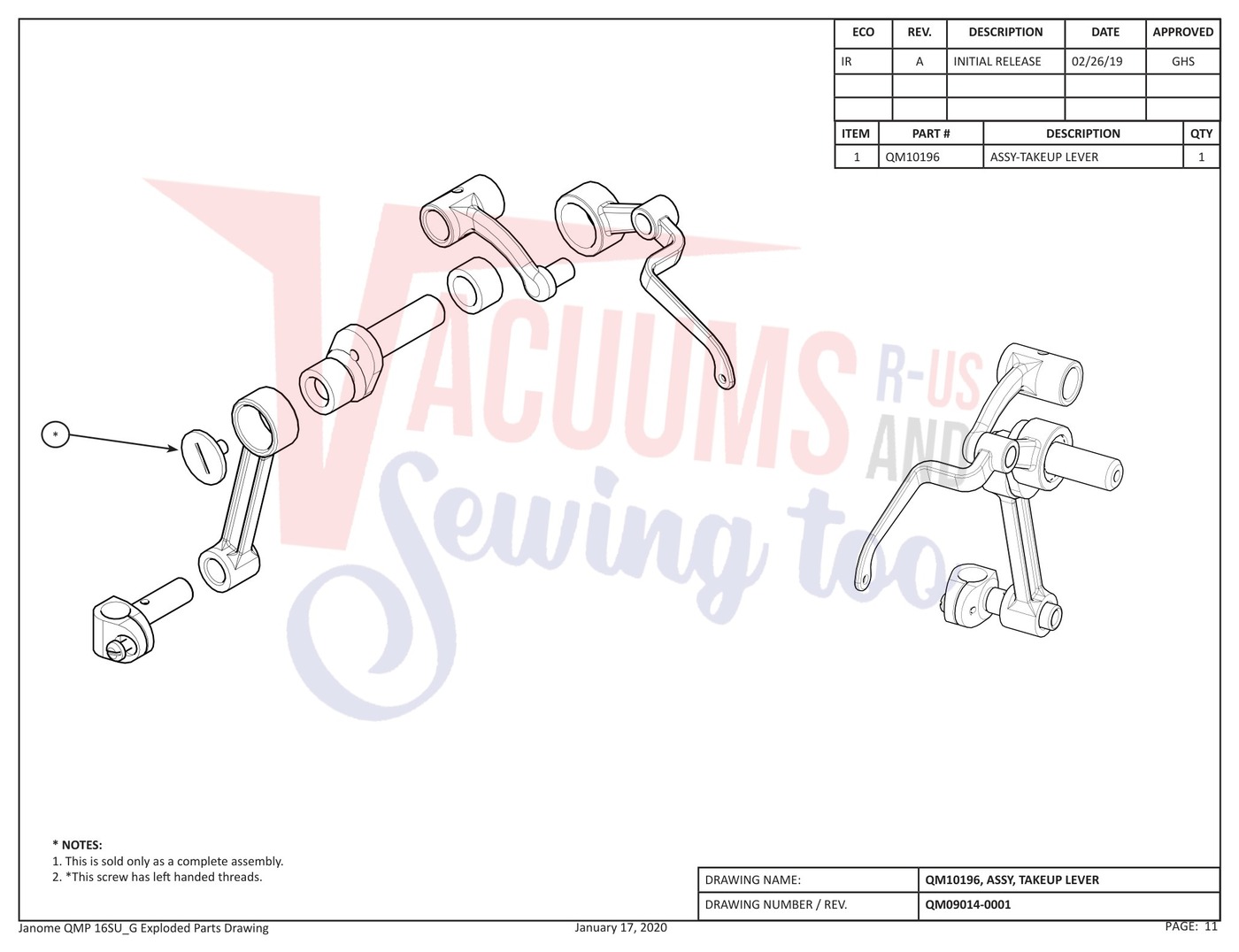

| 1 |  | Take Up Lever Assy Rev.A | QM10196 | $496.20Add to cart Special order: ships in 2 to 4 weeks |

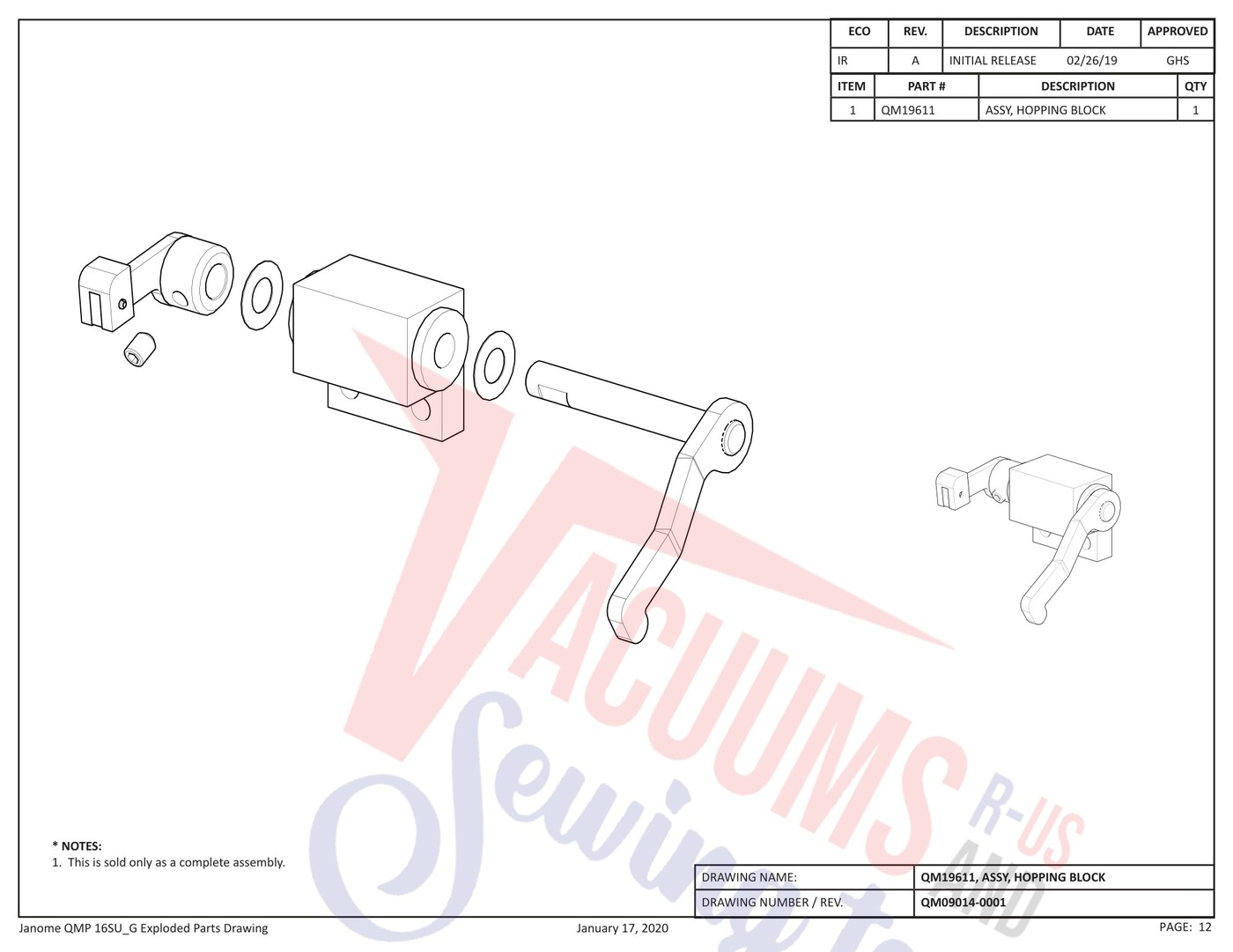

| # | Part image | Description | SKU | Price |

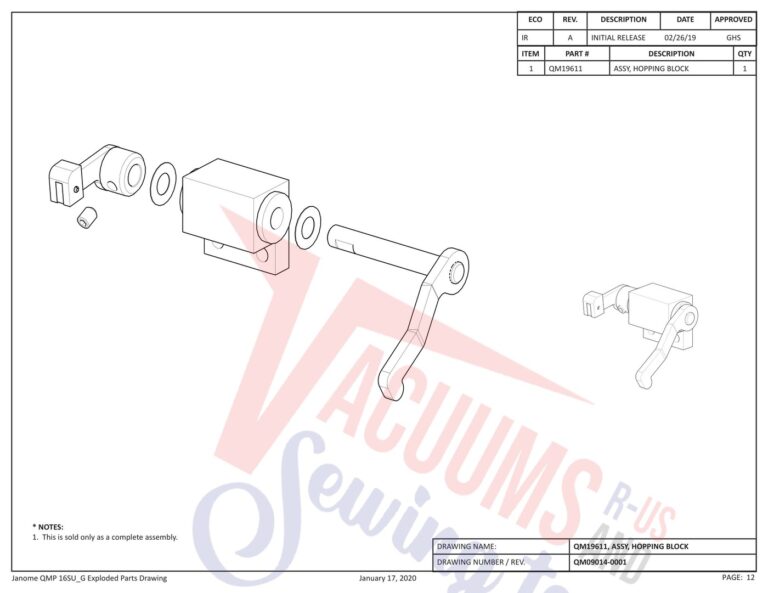

| 1 |  | ASSY-HOPPING BLOCK sewing machine part or accessory For Janome Models: QMPROVERSA | QM19611 | $271.86Read more |

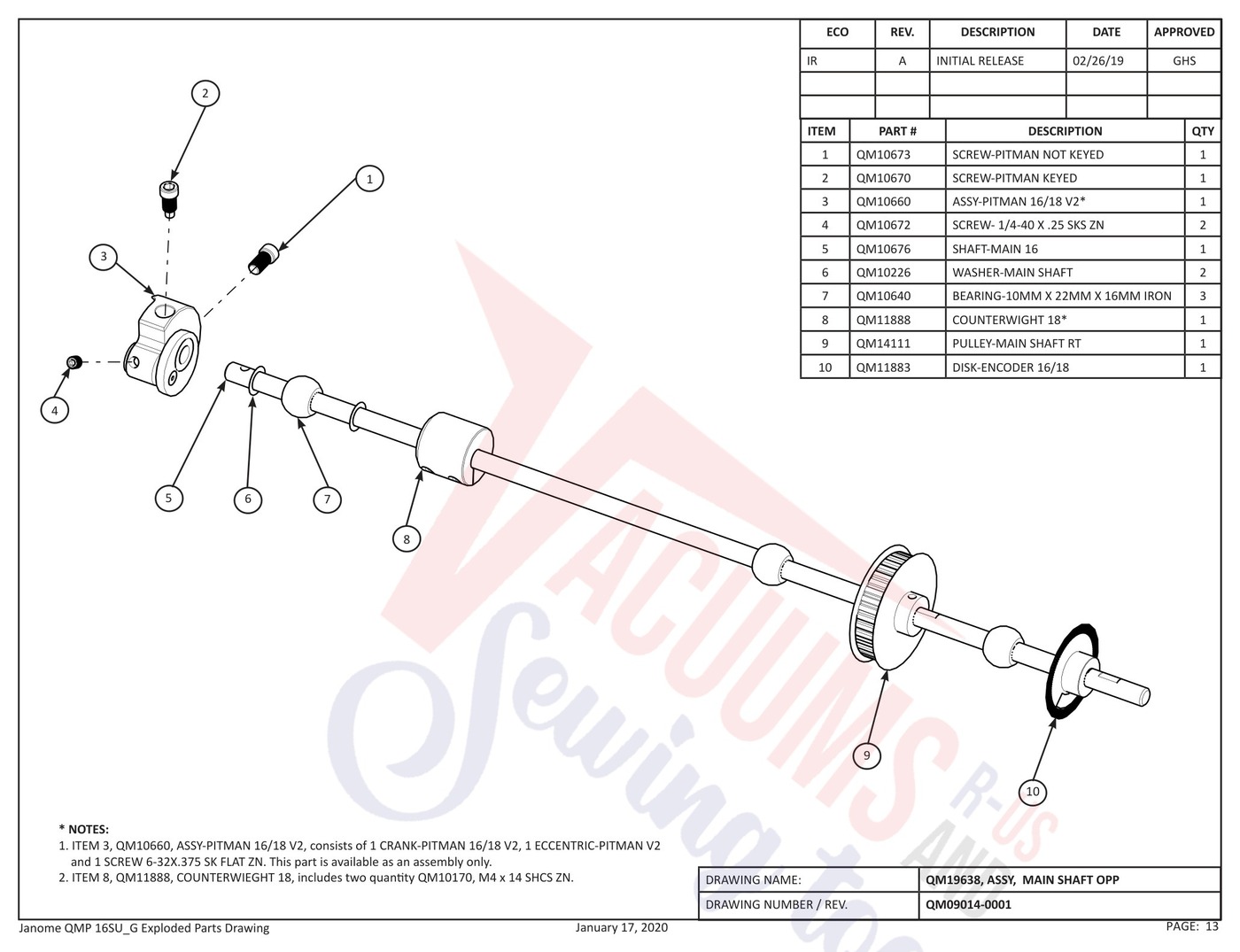

| # | Part image | Description | SKU | Price |
| 1 |  | SCREW-PITMAN NOT KEYED sewing machine part or accessory For Janome Models: QMPROVERSA | QM10673 | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW-PITMAN KEYED sewing machine part or accessory For Janome Models: QMPROVERSA | QM10670 | $14.48Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | ASSY-PITMAN 16/18 V2* sewing machine part or accessory For Janome Models: QMPROVERSA | QM10660 | $133.58Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW- 1/4-40 X .25 SKS ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10672 | $1.37Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SHAFT-MAIN 16 sewing machine part or accessory For Janome Models: QMPRO16 | QM10676 | $112.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER-MAIN SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM10226 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | BEARING-10MM X 22MM X 16MM IRON sewing machine part or accessory For Janome Models: QMPROVERSA | QM10640 | $36.89Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | COUNTERWEIGHT 18* sewing machine part or accessory For Janome Models: QMPROVERSA | QM11888 | $27.60Read more |
| 9 | | PULLEY-MAIN SHAFT RT sewing machine part or accessory For Janome Models: QMPRO16 | QM11411 | $109.24Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Janome Disk Encoder 16/18 | QM11883 | $55.83Add to cart Special order: ships in 2 to 4 weeks |

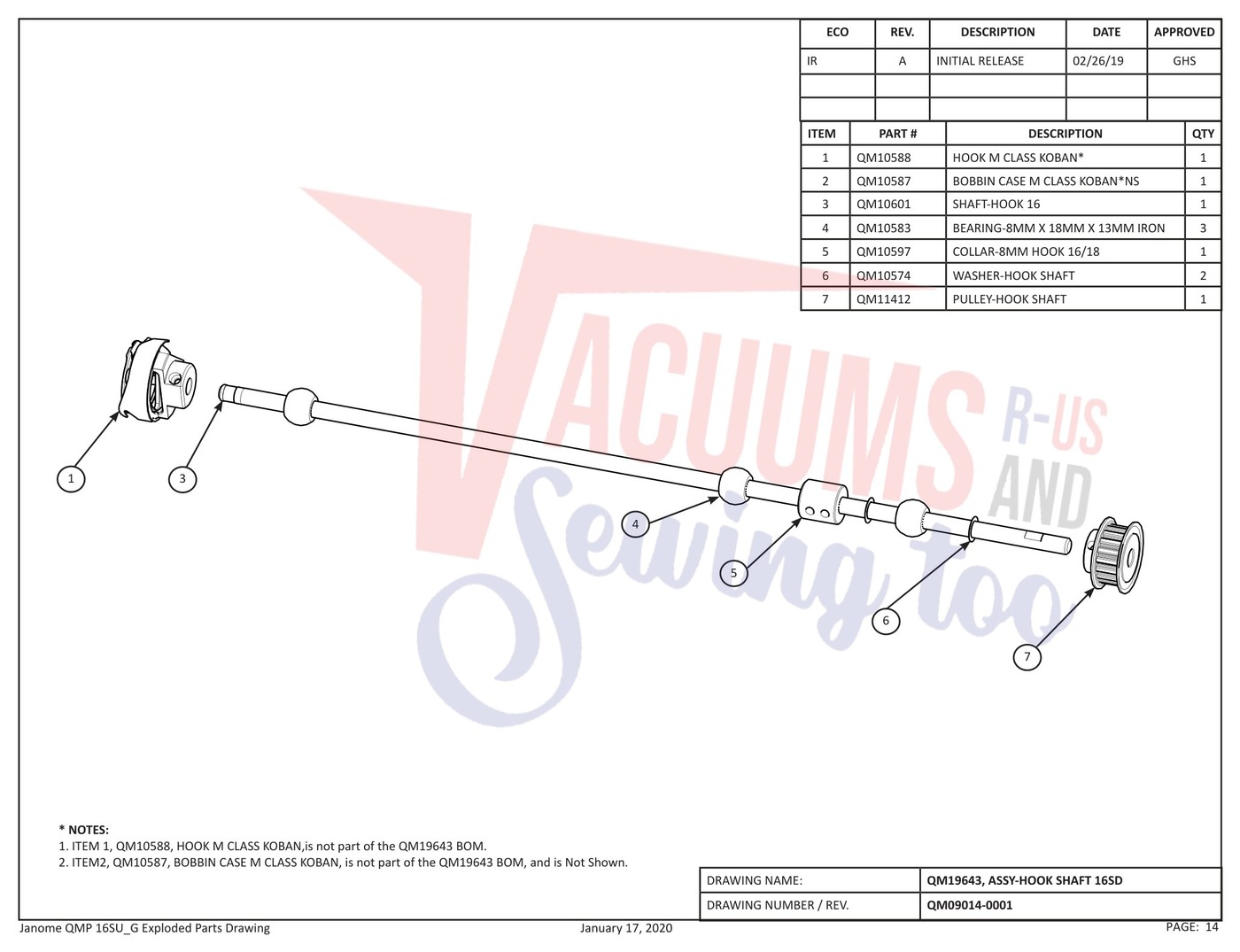

| # | Part image | Description | SKU | Price |
| 1 | | BOBBIN HOOK M CLASS KOBAN sewing machine part or accessory BOBBIN HOOK M CLASS KOBAN | QM10588 | $496.39Read more |
| 2 | No Image | Bobbin Case M Class | QM10587 | $182.16Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SHAFT-HOOK 16 sewing machine part or accessory For Janome Models: QMPRO16 | QM10601 | $267.17Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | BEARING-8MM X 18MM X 13MM IRON sewing machine part or accessory For Janome Models: QMPROVERSA | QM10583 | $22.68Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | COLLAR-8MM HOOK 16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10597 | $27.69Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER-HOOK SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM10574 | $1.40Read more |
| 7 |  | PULLEY-HOOK SHAFT sewing machine part or accessory For Janome Models: QMPRO16 | QM11412 | $59.57Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | TENSION ASSEMBLY sewing machine part or accessory TENSION ASSEMBLY | QM10199 | $114.15Add to cart Special order: ships in 2 to 4 weeks |

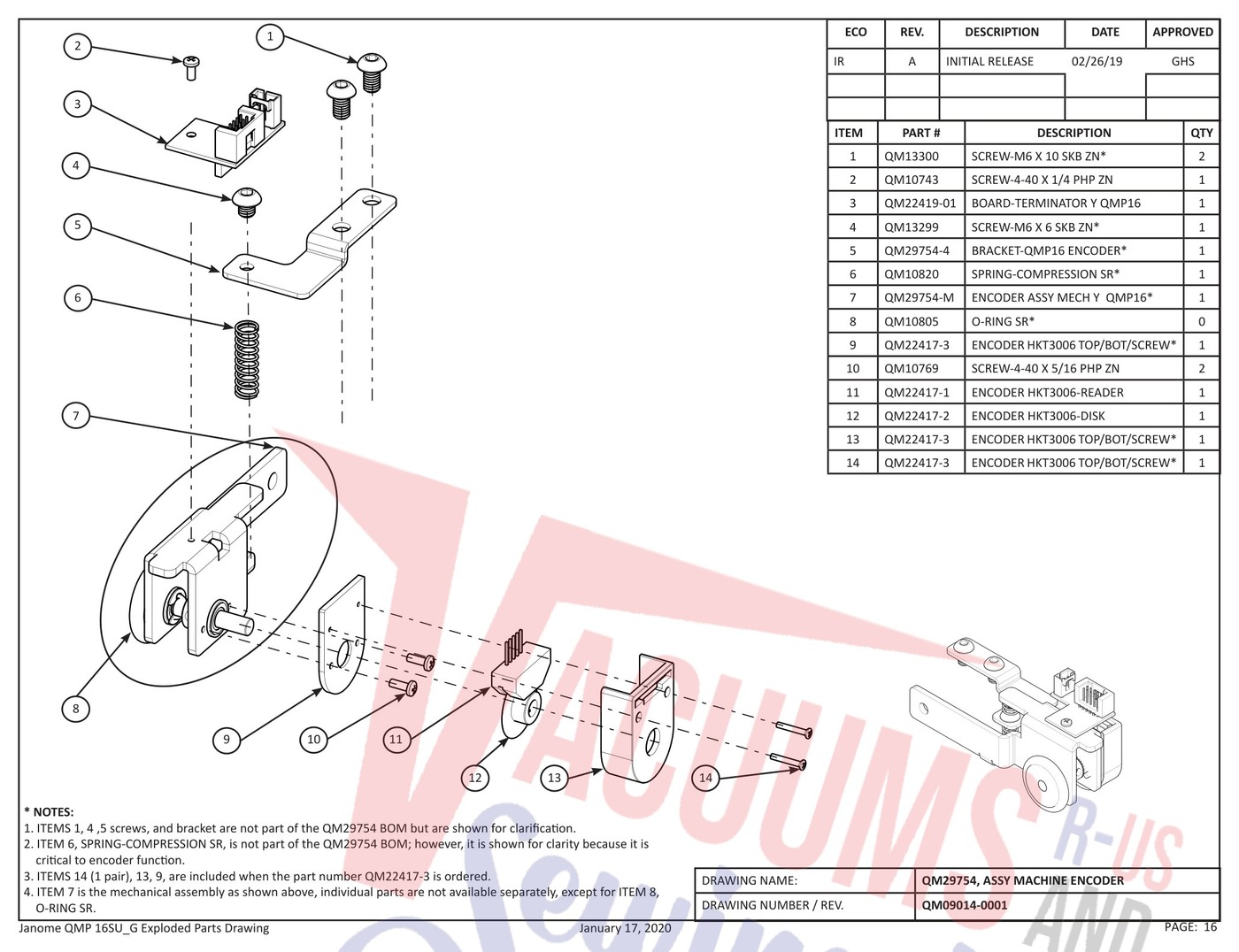

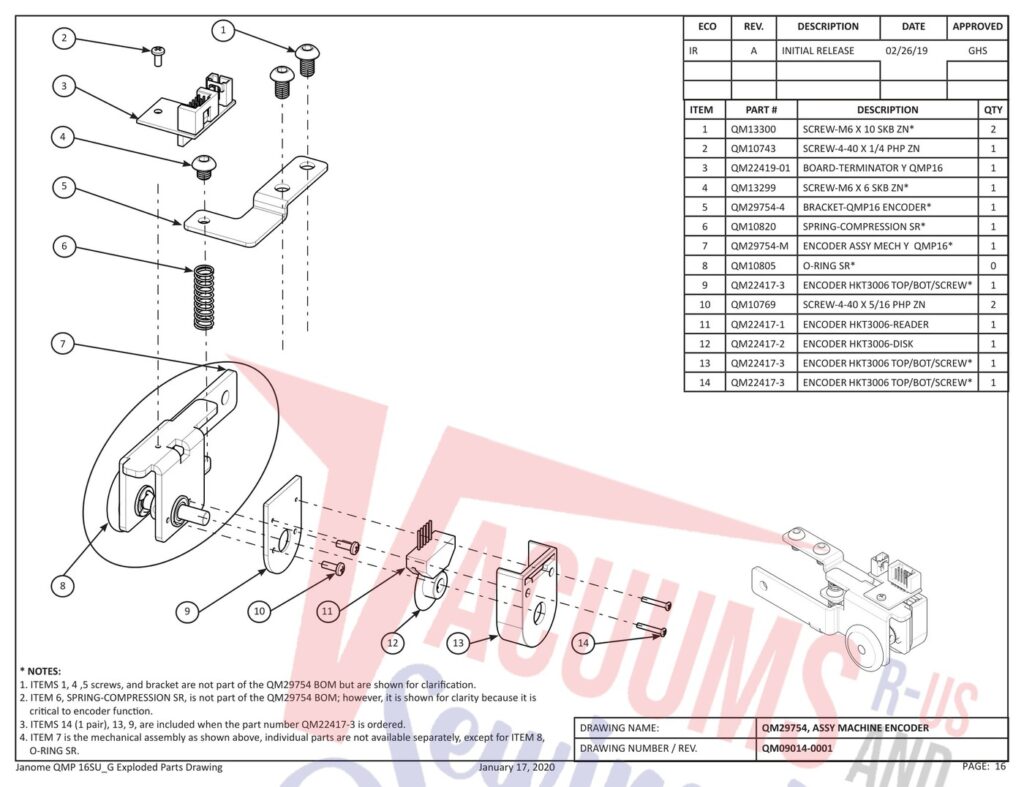

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw-M6 X 10 Skb Zn* | QM13300 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW-4-40 1/4 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10743 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | BOARD-TERMINATOR Y QMP16 | QM22419-01 | Not Available |
| 4 | No Image | Screw-M6 X 6 Skb Zn | QM13299 | $3.73Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Bracket-Qmp16 Encoder* | QM297544 | $87.98Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Compression Spring Sr | QM10820 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Encoder Assy Mech Y Qmp16* | QM29754M | $99.28Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | O-Ring SR sewing machine part or accessory Work with QMPRO18 encoders | QM10805 | $12.30Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SCREW-4-40 X 5/16 PHP ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM10769 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | ENCODER HKT3006-READER sewing machine part or accessory For Janome Models: QMPRO16 | QM22417-1 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | ENCODER HKT3006-DISK sewing machine part or accessory For Janome Models: QMPRO16 | QM22417-2 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |

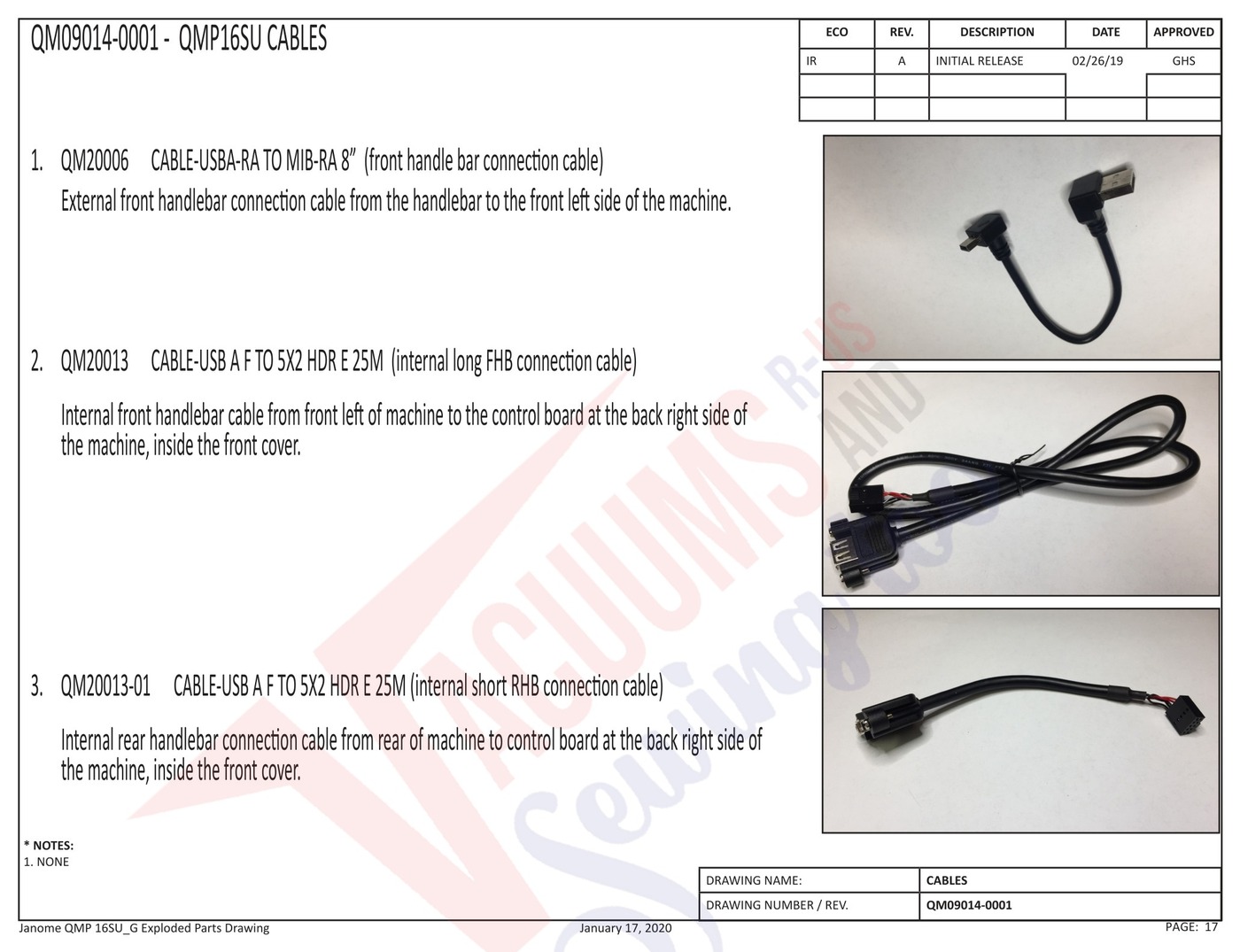

| # | Part image | Description | SKU | Price |
| 1 | No Image | Cable-Usba-Ra To Mib-Ra 8” | QM20006 | $34.79Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Cable-Usb A F To 5X2 (Front) | QM20013 | $53.74Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Cable-Usb A F To 5X2 (Rear) | QM2001301 | $73.68Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

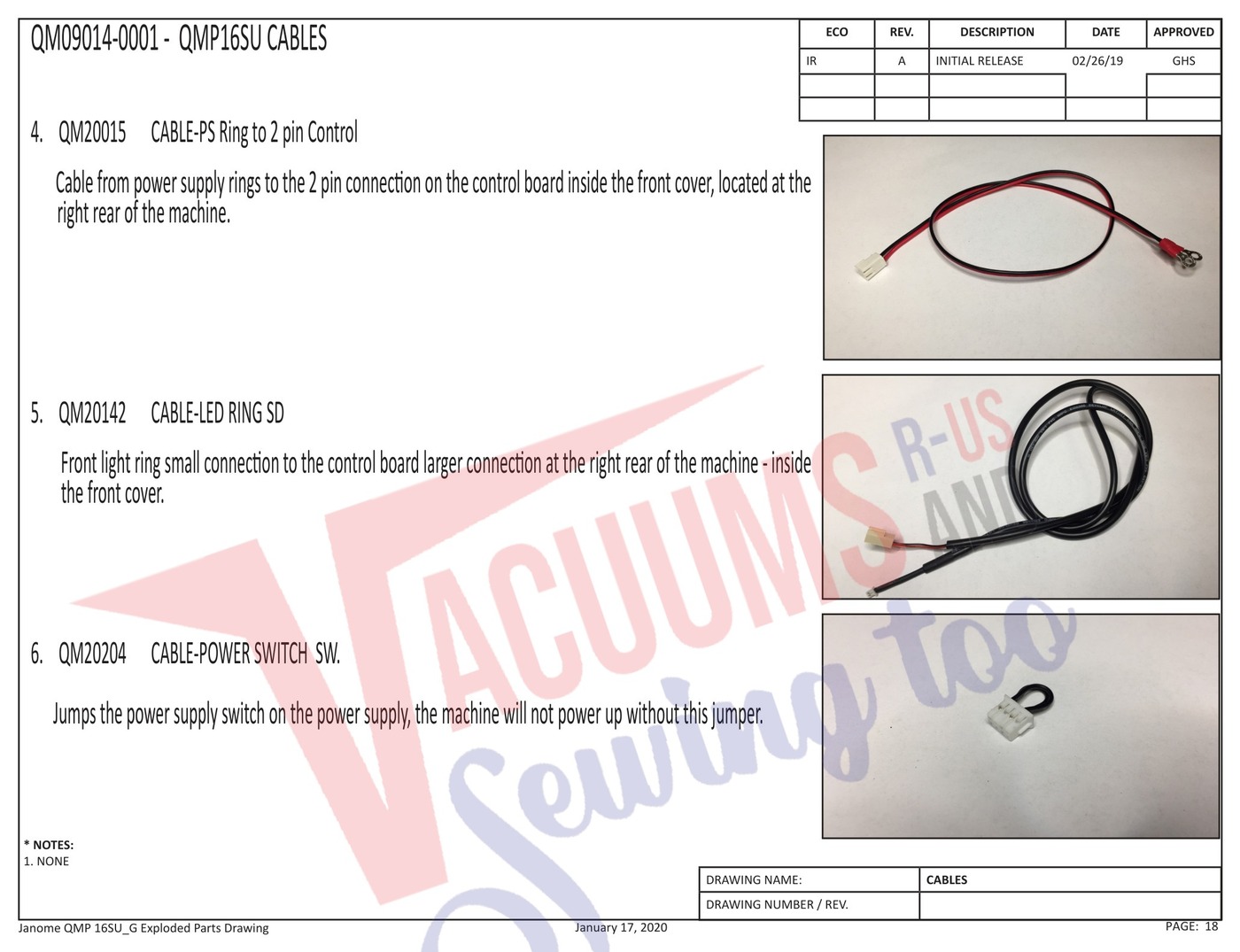

| 1 |  | CABLE-PS RING-TO 2 PIN CTRL *NS sewing machine part or accessory For Janome Models: QMPRO16 | QM20015 | $37.25Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CABLE-LED RING SD sewing machine part or accessory For Janome Models: QMPRO16 | QM20142 | $44.26Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | CABLE-POWER SWITCH SWEET sewing machine part or accessory For Janome Models: QMPROVERSA | QM20204 | $10.38Add to cart Special order: ships in 2 to 4 weeks |

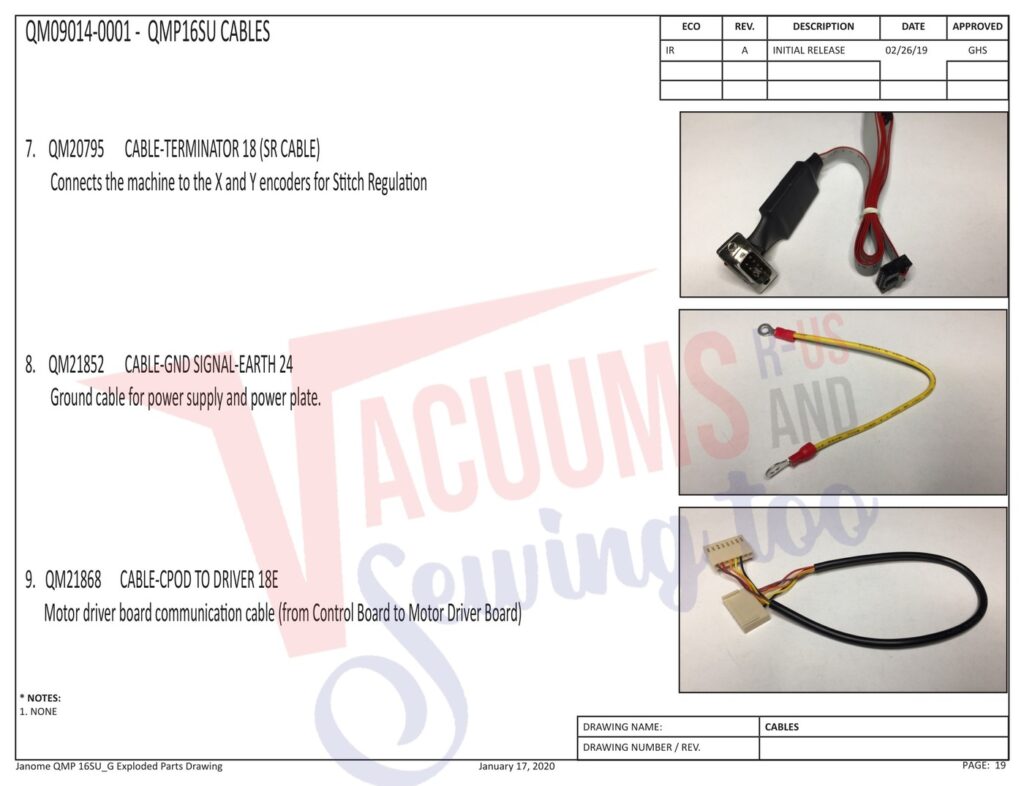

| # | Part image | Description | SKU | Price |

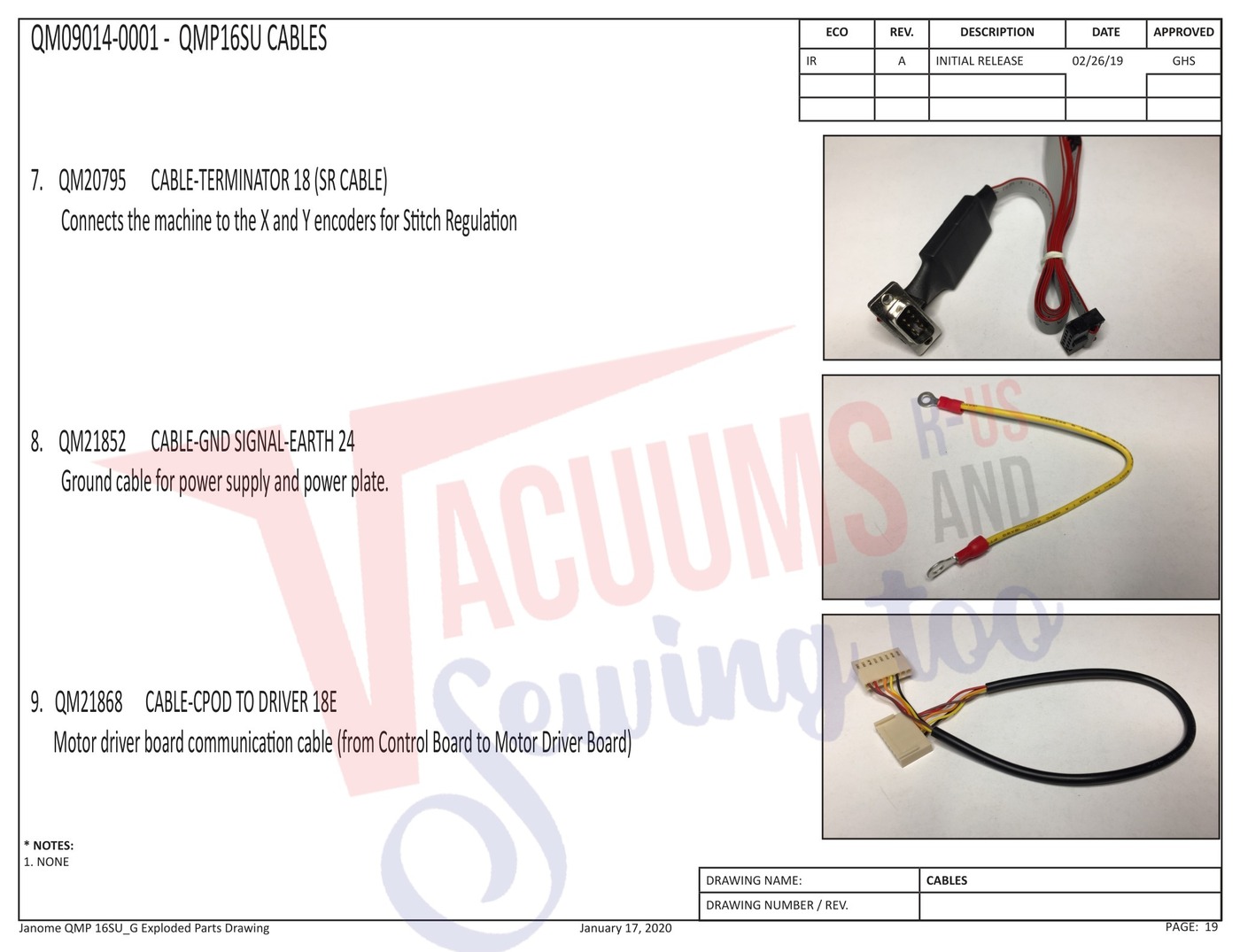

| 1 | No Image | Cable Terminator 18 Rev.B | QM20795 | $54.65Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | CABLE-GND SIGNAL-EARTH 24 sewing machine part or accessory For Janome Models: QMPROVERSA | QM21852 | $20.49Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | CABLE-C-POD TO DRIVER 18E*NS sewing machine part or accessory For Janome Models: QMPROVERSA | QM21868 | $89.38Add to cart Special order: ships in 2 to 4 weeks |

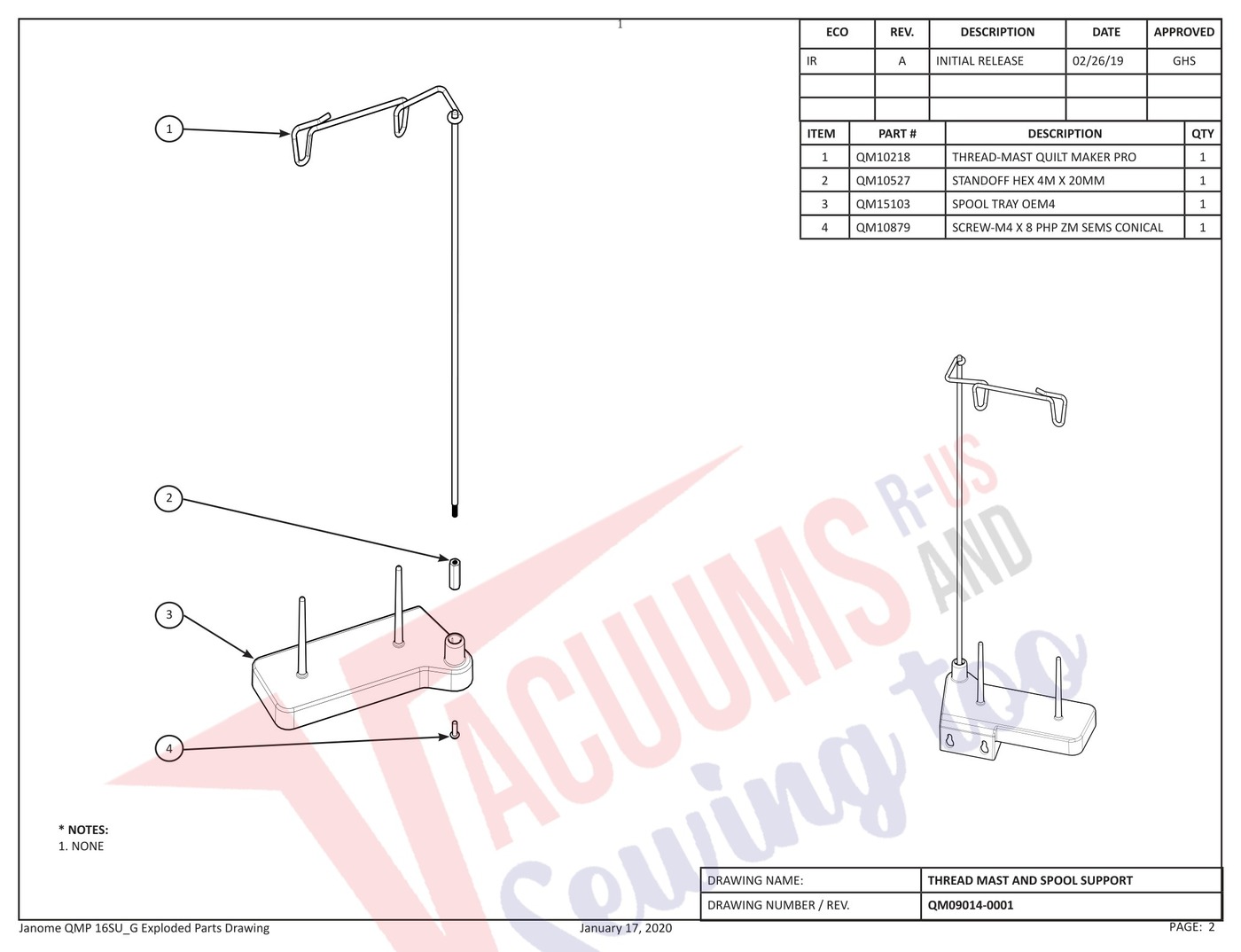

| # | Part image | Description | SKU | Price |
| 1 | | THREAD-MAST QUILT MAKER PRO sewing machine part or accessory For Janome Models: QMPROVERSA | QM10218 | $94.30Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | STANDOFF HEX 4M X 20MM sewing machine part or accessory For Janome Models: QMPROVERSA | QM10257 | $9.92Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SPOOL TRAY OEM4 sewing machine part or accessory For Janome Models: QMPROVERSA | QM15103 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SCREW-M4 X 8 PHP ZN SEMS CONICAL sewing machine part or accessory For Janome Models: QMPROVERSA | QM10879 | $2.28Add to cart Special order: ships in 2 to 4 weeks |

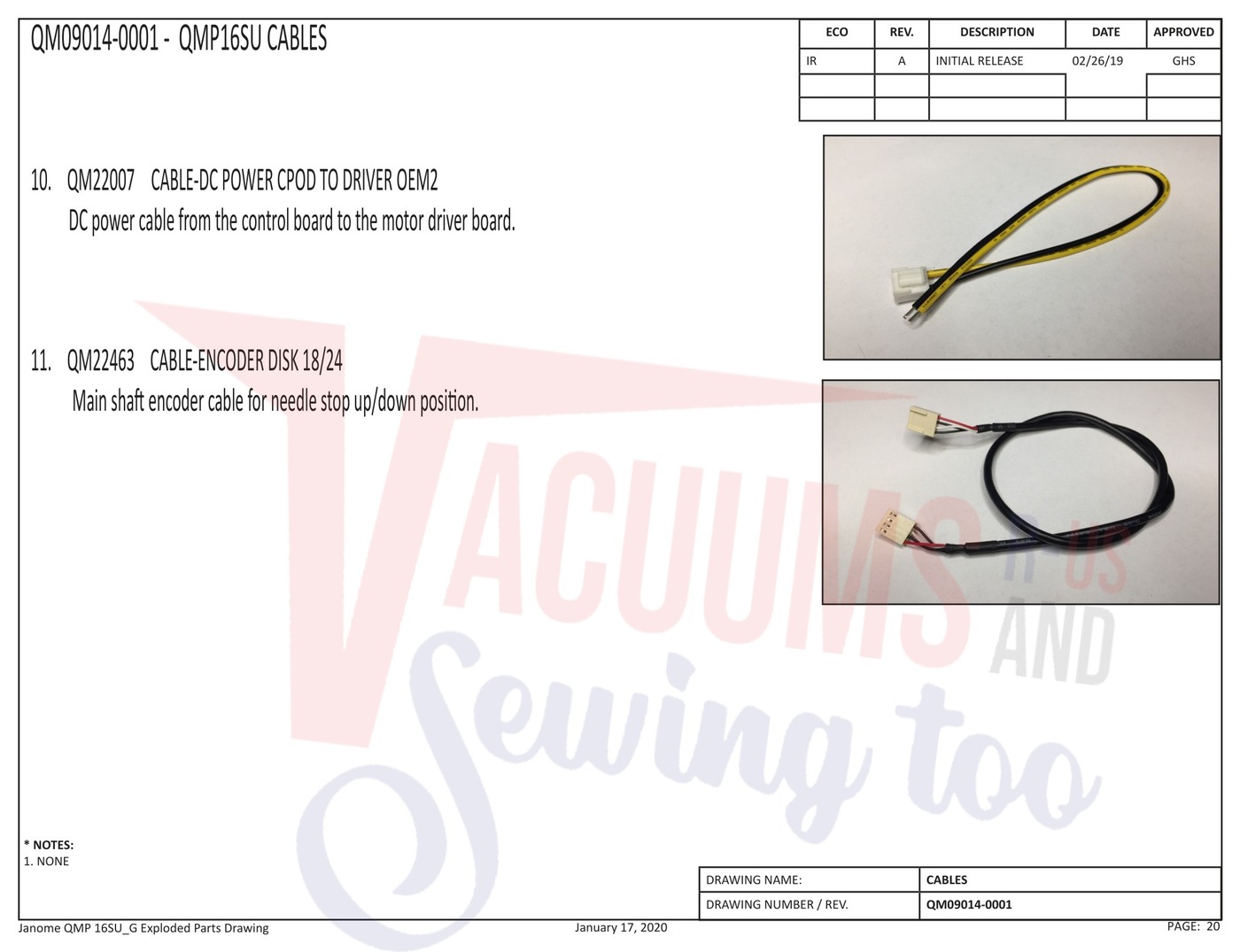

| # | Part image | Description | SKU | Price |

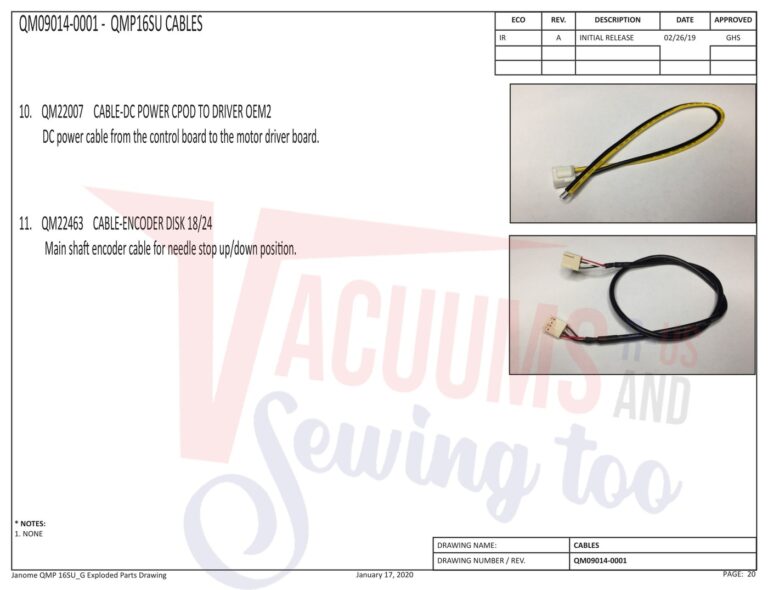

| 1 |  | CABLE-DC POWER CPOD TO DRIVER OEM2 sewing machine part or accessory For Janome Models: QMPRO16 | QM22007 | $69.49Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CABLE-ENCODER DISK 18/24 sewing machine part or accessory For Janome Models: QMPROVERSA | QM22463 | $11.20Add to cart Special order: ships in 2 to 4 weeks |

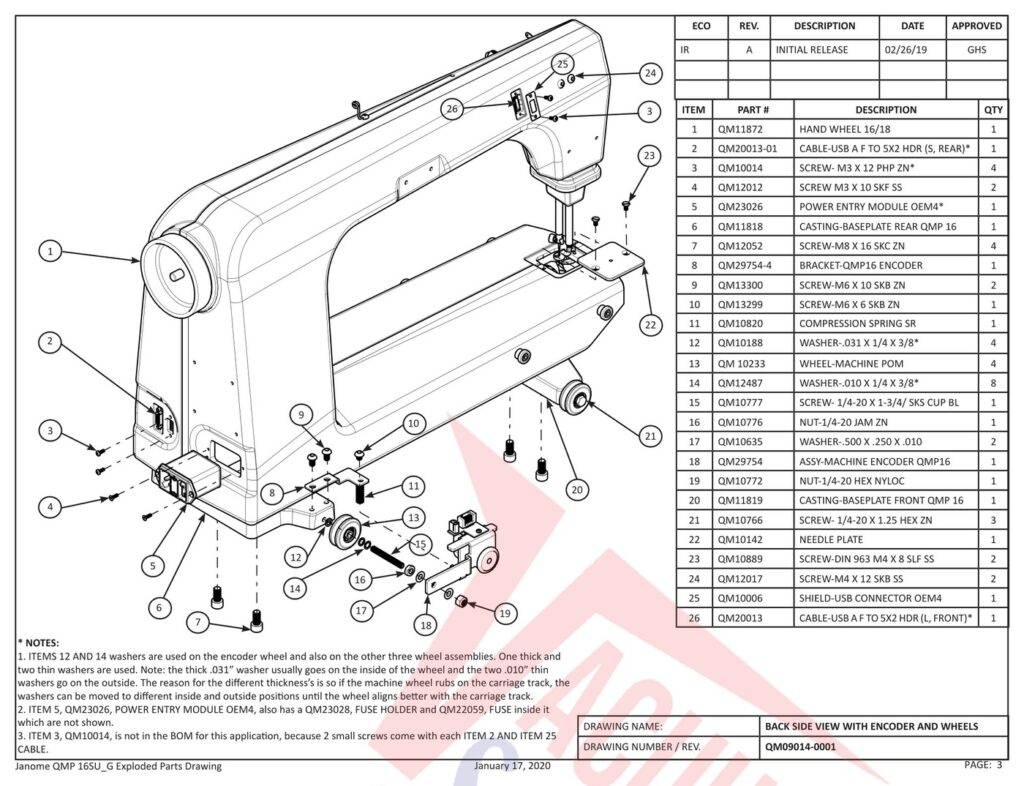

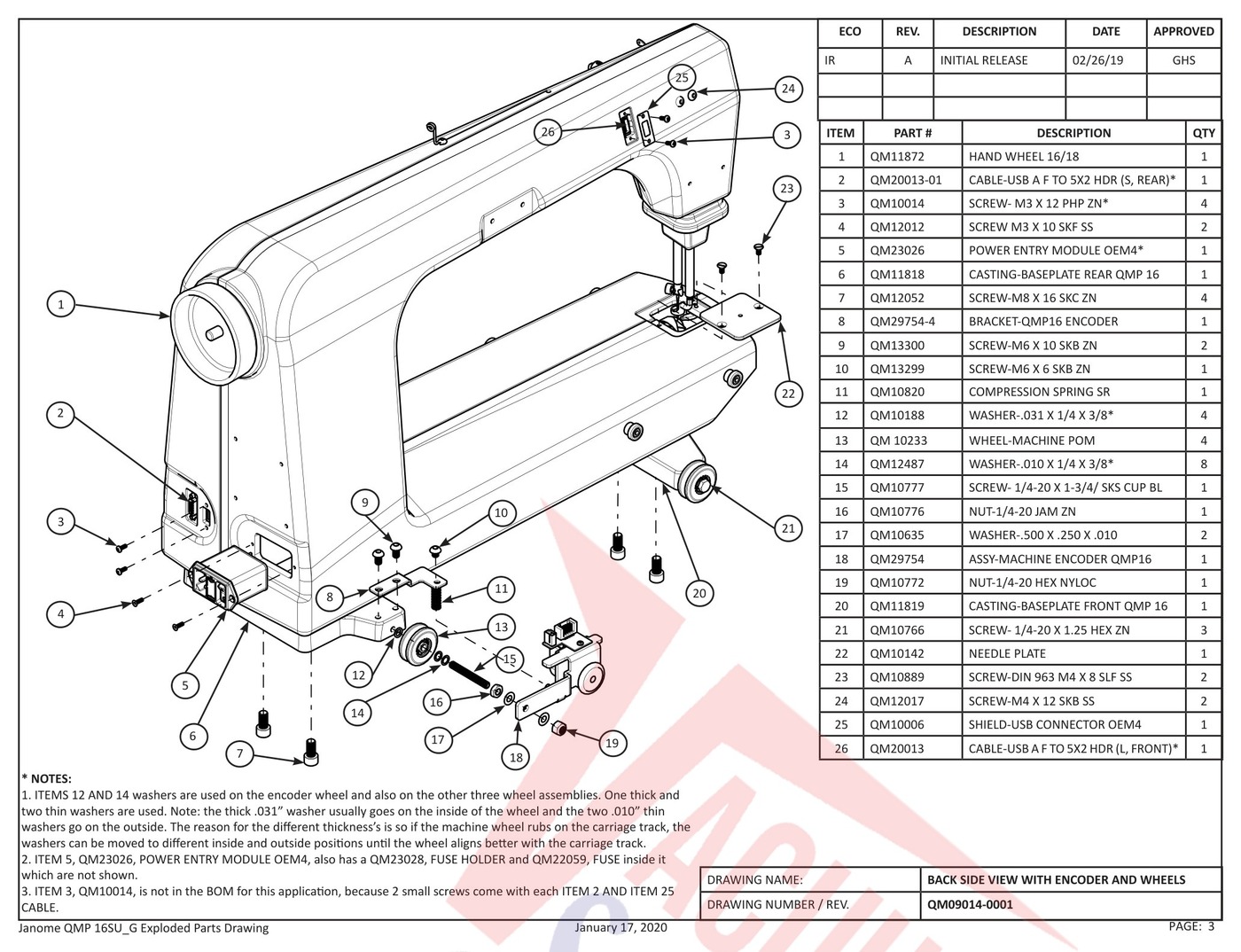

| # | Part image | Description | SKU | Price |

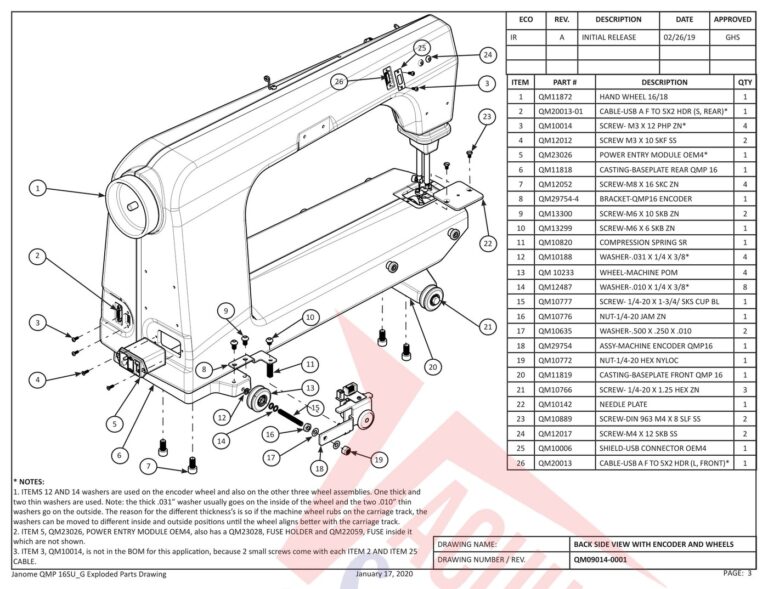

| 1 |  | HAND WHEEL 16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM11872 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Cable-Usb A F To 5X2 (Rear) | QM2001301 | $73.68Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SCREW- M3 X 12 PHP ZN* sewing machine part or accessory For Janome Models: QMPRO16 | QM10014 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SCREW-M3X10 SKF ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM12012 | $0.40Read more |
| 5 | | POWER ENTRY MODULE OEM4 sewing machine part or accessory For Janome Models: QMPROVERSA | QM23026 | $119.13Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Casting-Baseplate Rear Qmp 16 | QM11818 | $91.51Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Screw-M8 X 16 Skc Zn | QM12052 | $4.46Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Bracket-Qmp16 Encoder* | QM297544 | $87.98Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Screw-M6 X 10 Skb Zn* | QM13300 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Screw-M6 X 6 Skb Zn | QM13299 | $3.73Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Compression Spring Sr | QM10820 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | WASHER - .031 X 1/4 X 3/8 sewing machine part or accessory WASHER - .031 X 1/4 X 3/8 | QM10188 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | WHEEL-MACHINE POM | QM 10233 | Not Available |
| 14 |  | WASHER- .01 X 1/4 X 3/8 sewing machine part or accessory WASHER- .01 X 1/4 X 3/8 | QM12487 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SCREW- 1/4-20 X 1-3/4/ SKS CUP BL sewing machine part or accessory For Janome Models: QMPRO16 | QM10777 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | NUT-1/4-20 JAM ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10776 | $0.92Read more |
| 17 | | WASHER-.500 X .250 X .010 sewing machine part or accessory For Janome Models: QMPRO16 | QM10635 | $5.19Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Assy-Machine Encoder Qmp16 | QM29754 | $364.32Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | NUT-1/4-20 HEX NYLOC sewing machine part or accessory For Janome Models: QMPRO16 | QM10772 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Casting-Baseplate Front Qmp 16 | QM11819 | $86.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SCREW-1/4-20 X 1.25 HEX ZN sewing machine part or accessory SCREW-1/4-20 X 1.25 HEX ZN | QM10766 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | NEEDLE PLATE sewing machine part or accessory For Janome Models: QMPRO16 | QM10142 | $99.28Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | SCREW-M4X8 SLF ZN DIN 963 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10889 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | SCREW-M5 X 12 SKB SS sewing machine part or accessory | QM12017 | $0.80Read more |
| 25 |  | SHIELD-USB CONNECTOR OEM4 sewing machine part or accessory For Janome Models: QMPRO16 | QM10006 | $17.49Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Cable-Usb A F To 5X2 (Front) | QM20013 | $53.74Add to cart Special order: ships in 2 to 4 weeks |

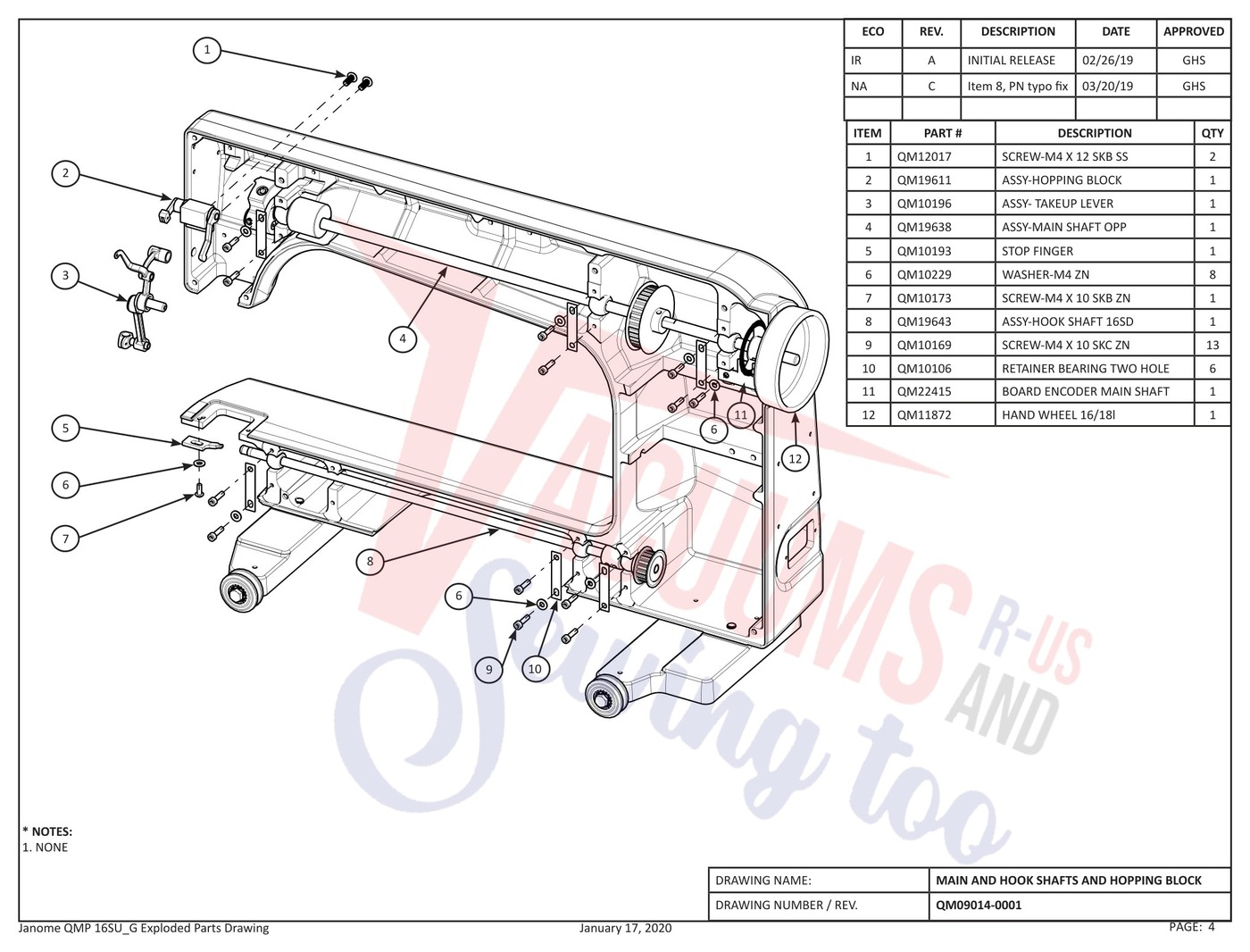

| # | Part image | Description | SKU | Price |
| 1 | | SCREW-M5 X 12 SKB SS sewing machine part or accessory | QM12017 | $0.80Read more |
| 2 | | ASSY-HOPPING BLOCK sewing machine part or accessory For Janome Models: QMPROVERSA | QM19611 | $271.86Read more |
| 3 | | Take Up Lever Assy Rev.A | QM10196 | $496.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Assy-Main Shaft Opp | QM19638 | $406.82Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | STOP FINGER sewing machine part or accessory For Janome Models: QMPROVERSA | QM10193 | $71.95Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-M4 X 10 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10173 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | ASSY-HOOK SHAFT 16SD sewing machine part or accessory For Janome Models: QMPRO16 | QM19643 | $437.18Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SCREW-M4X10 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10169 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | RETAINER BEARING TWO HOLE sewing machine part or accessory For Janome Models: QMPROVERSA | QM10106 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | BOARD-ENCODER MAIN SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM22415 | $72.86Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | HAND WHEEL 16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM11872 | $74.50Add to cart Special order: ships in 2 to 4 weeks |

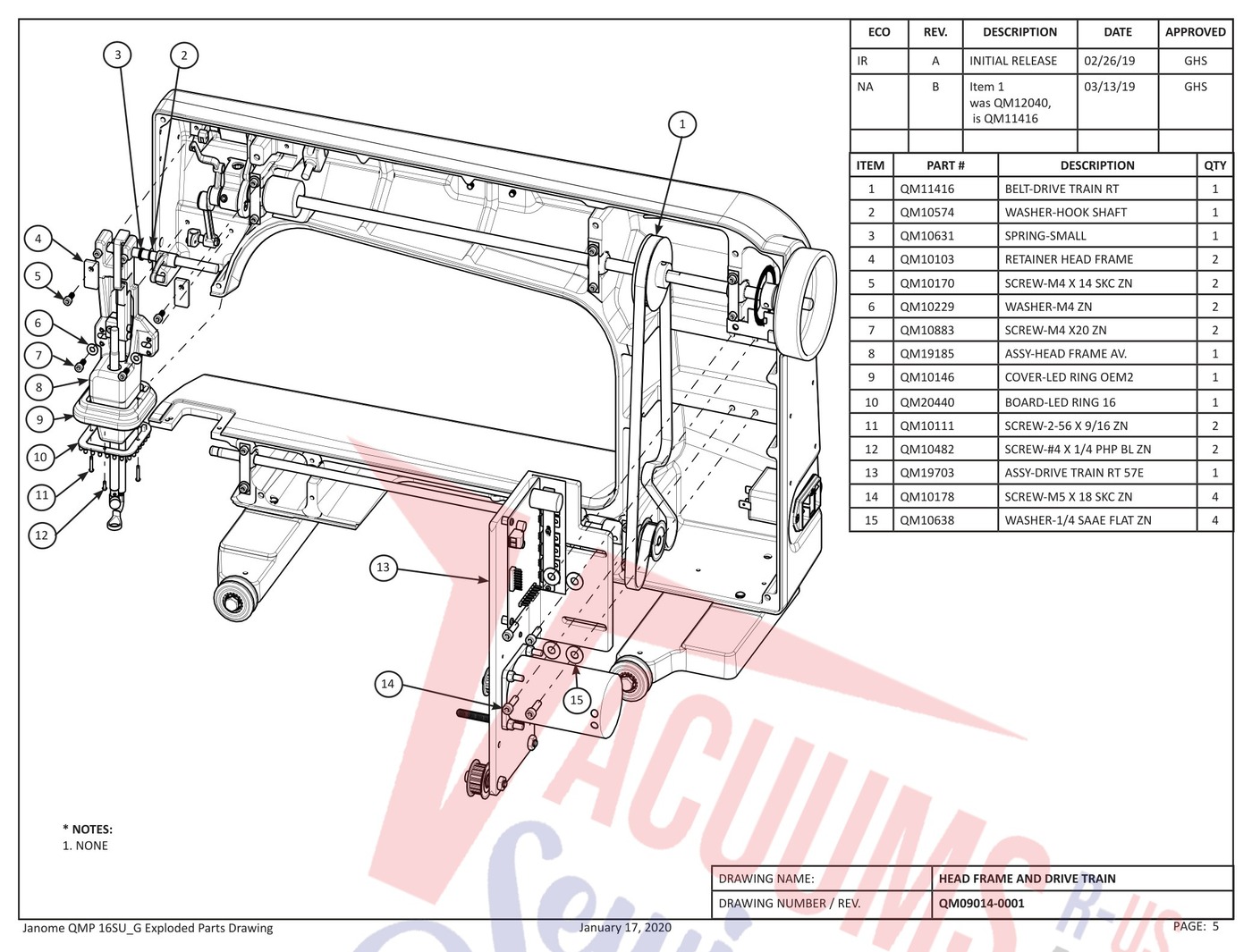

| # | Part image | Description | SKU | Price |
| 1 | | BELT-DRIVE TRAIN RT sewing machine part or accessory For Janome Models: QMPRO16 | QM11416 | $92.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | WASHER-HOOK SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM10574 | $1.40Read more |
| 3 |  | SPRING-SMALL HEAD FRAME sewing machine part or accessory For Janome Models: QMPROVERSA | QM10631 | $3.80Read more |
| 4 |  | RETAINER-HEAD FRAME sewing machine part or accessory For Janome Models: QMPROVERSA | QM10103 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SCREW-M4X14 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10170 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-M4X2O SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10883 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | ASSY-HEAD FRAME 18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM19185 | $619.34Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | COVER-LED RING OEM2 sewing machine part or accessory For Janome Models: QMPRO16 | QM10146 | $36.89Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | BOARD-LED RING 16 sewing machine part or accessory For Janome Models: QMPRO16 | QM20440 | $100.40Read more |
| 11 | No Image | Screw-2-56 X 9/16 Zn | QM10111 | $0.91Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SCREW-#4 X 1/4 PHP BL ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM10482 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Assy-Drive Train Rt 57E | QM19703 | $1,009.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SCREW-M5X18 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10178 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | WASHER-1/4 SAAE FLAT ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM10638 | $7.29Add to cart Special order: ships in 2 to 4 weeks |

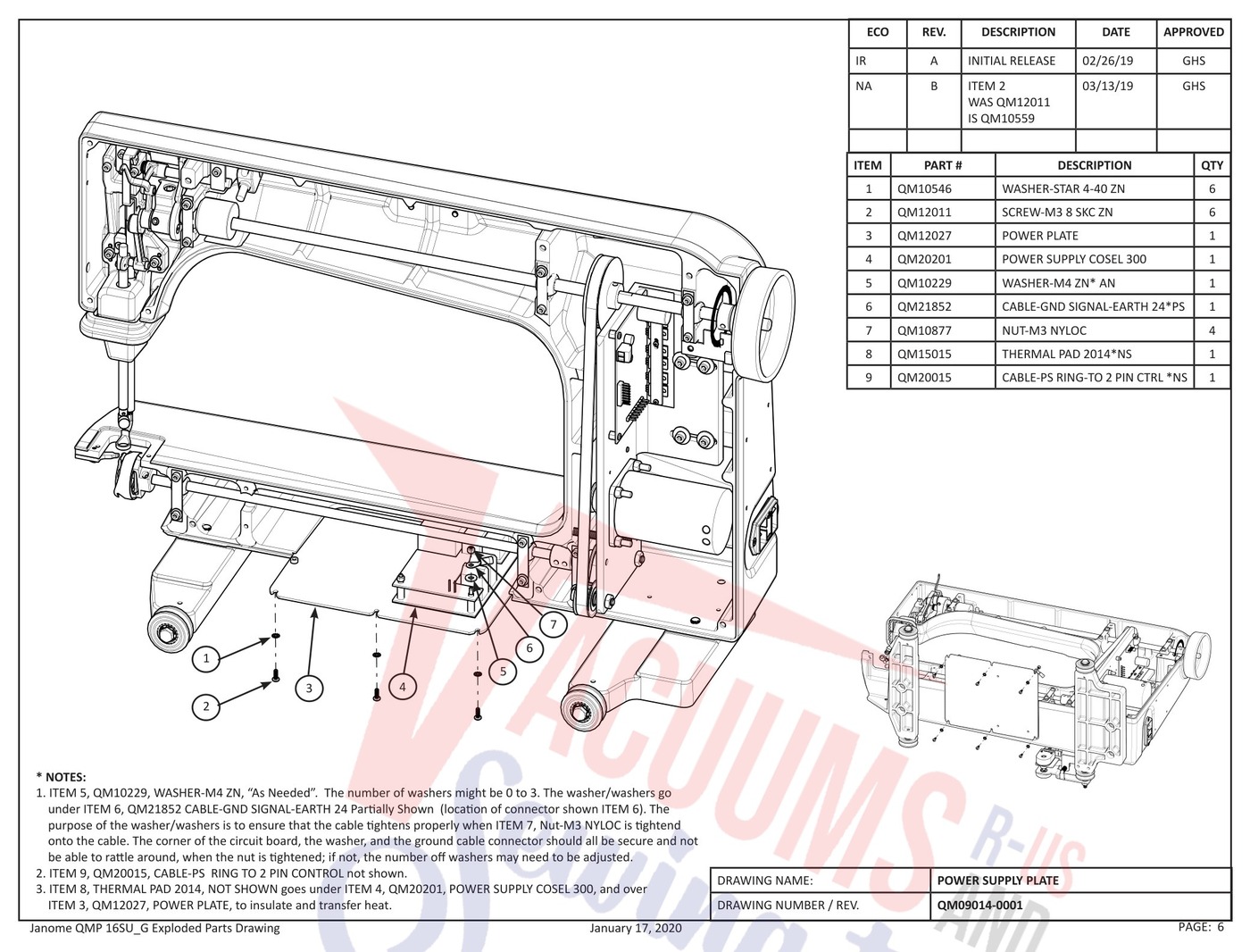

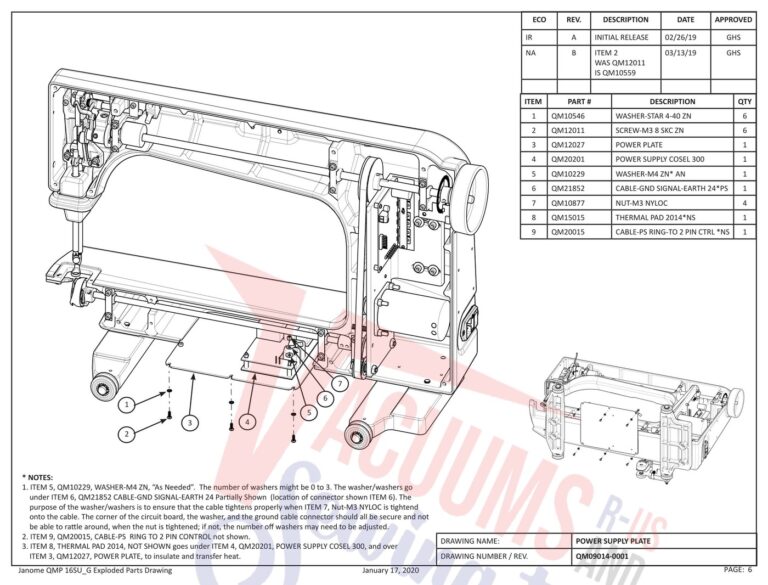

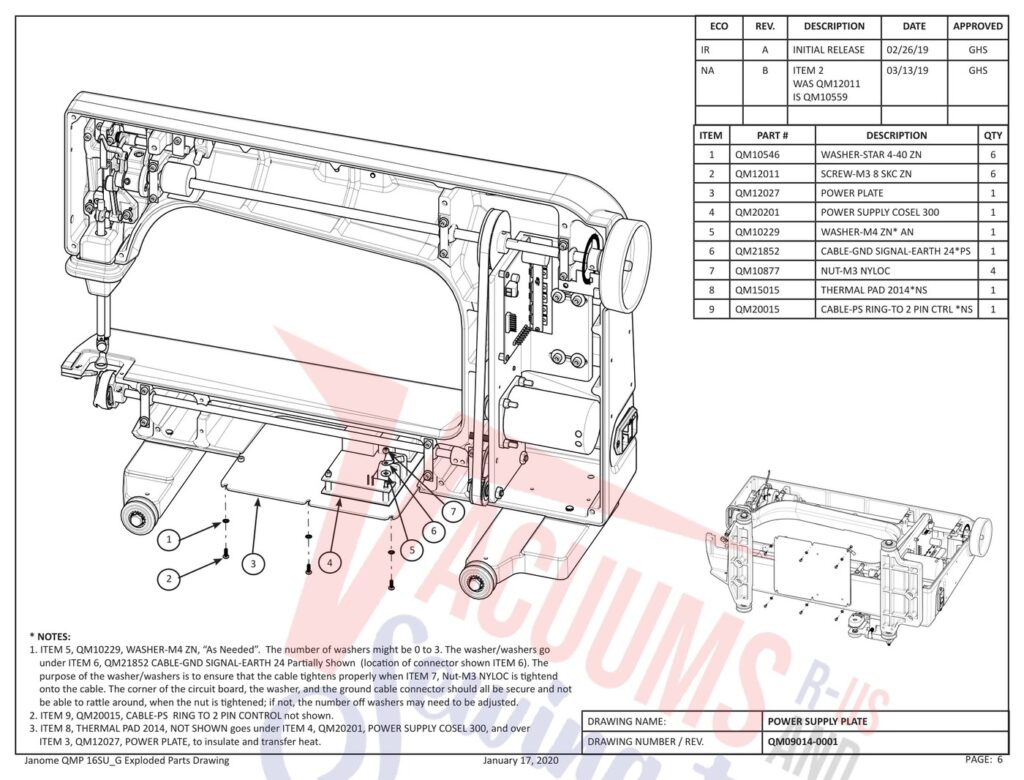

| # | Part image | Description | SKU | Price |
| 1 |  | WASHER-STAR 4-40 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10546 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW-M3 8 SKC ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM12011 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | POWER PLATE sewing machine part or accessory For Janome Models: QMPRO16 | QM12027 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | POWER SUPPLY COSEL 300 sewing machine part or accessory For Janome Models: QMPROVERSA | QM20201 | $850.08Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | CABLE-GND SIGNAL-EARTH 24 sewing machine part or accessory For Janome Models: QMPROVERSA | QM21852 | $20.49Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | NUT-M3 NYLOC sewing machine part or accessory For Janome Models: QMPROVERSA | QM10877 | $1.82Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | THERMAL PAD sewing machine part or accessory For Janome Models: QMPROVERSA | QM15015 | $37.25Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | CABLE-PS RING-TO 2 PIN CTRL *NS sewing machine part or accessory For Janome Models: QMPRO16 | QM20015 | $37.25Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

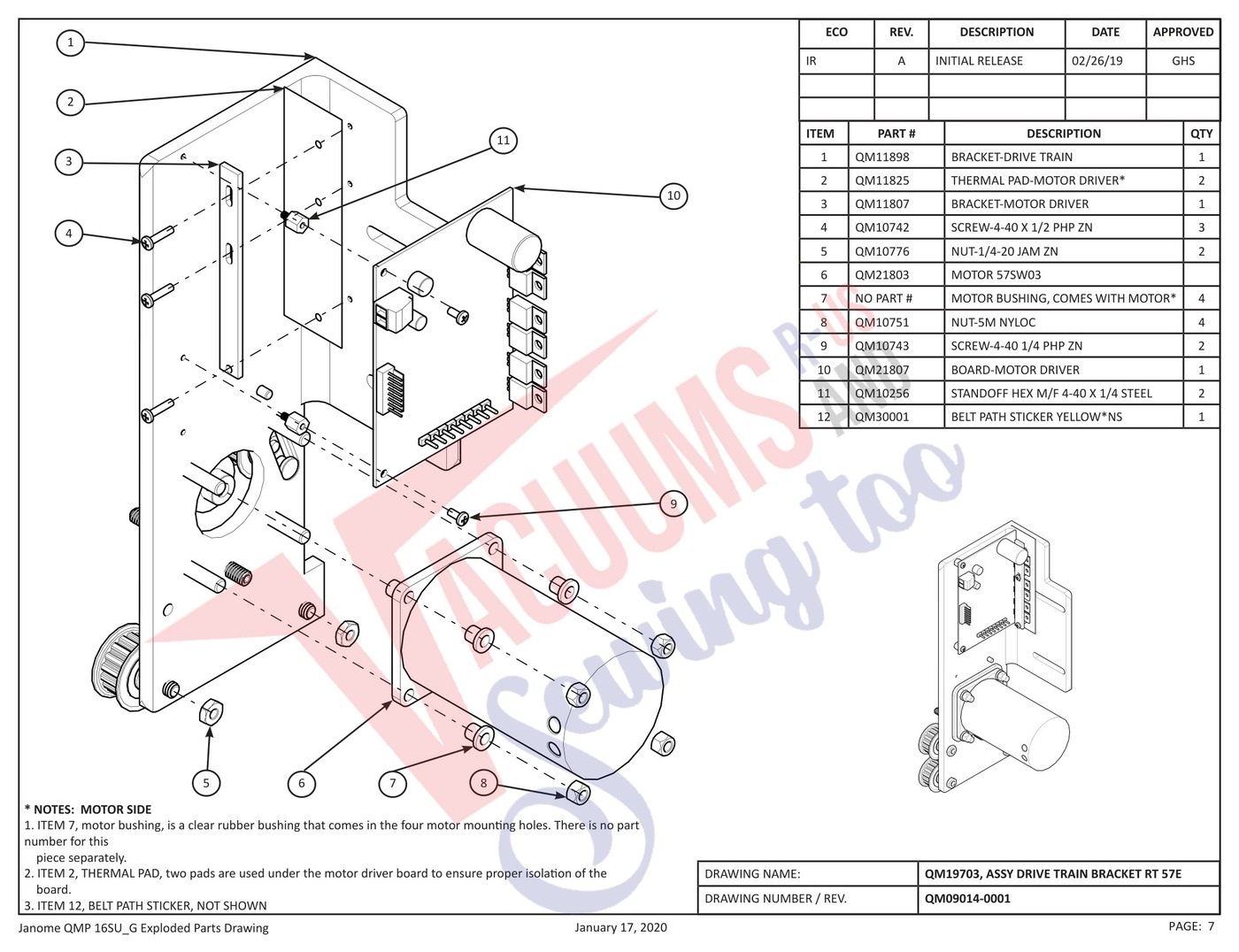

| 1 |  | BRACKET-DRIVE TRAIN sewing machine part or accessory For Janome Models: QMPROVERSA | QM11898 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | THERMAL PAD-MOTOR DRIVER* sewing machine part or accessory For Janome Models: QMPROVERSA | QM11825 | $18.58Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | BRACKET-MOTOR DRIVER sewing machine part or accessory For Janome Models: QMPROVERSA | QM11807 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | SCREW-4-40 X 1/2 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10742 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | NUT-1/4-20 JAM ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10776 | $0.92Read more |
| 6 | | MOTOR 57SW03 sewing machine part or accessory For Janome Models: QMPRO16 | QM21803 | $364.32Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Part Not Listed | BLANK | Not Available |
| 8 | | NUT-M5 NYLOC sewing machine part or accessory For Janome Models: QMPROVERSA | QM10751 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SCREW-4-40 1/4 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10743 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | BOARD-MOTOR DRIVER sewing machine part or accessory For Janome Models: QMPRO16 | QM21807 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | STANDOFF HEX M/F 4-40 X 1/4 STEEL sewing machine part or accessory For Janome Models: QMPROVERSA | QM10256 | $2.40Read more |
| 12 | No Image | Belt Path Sticker Yellow*Ns | QM30001 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

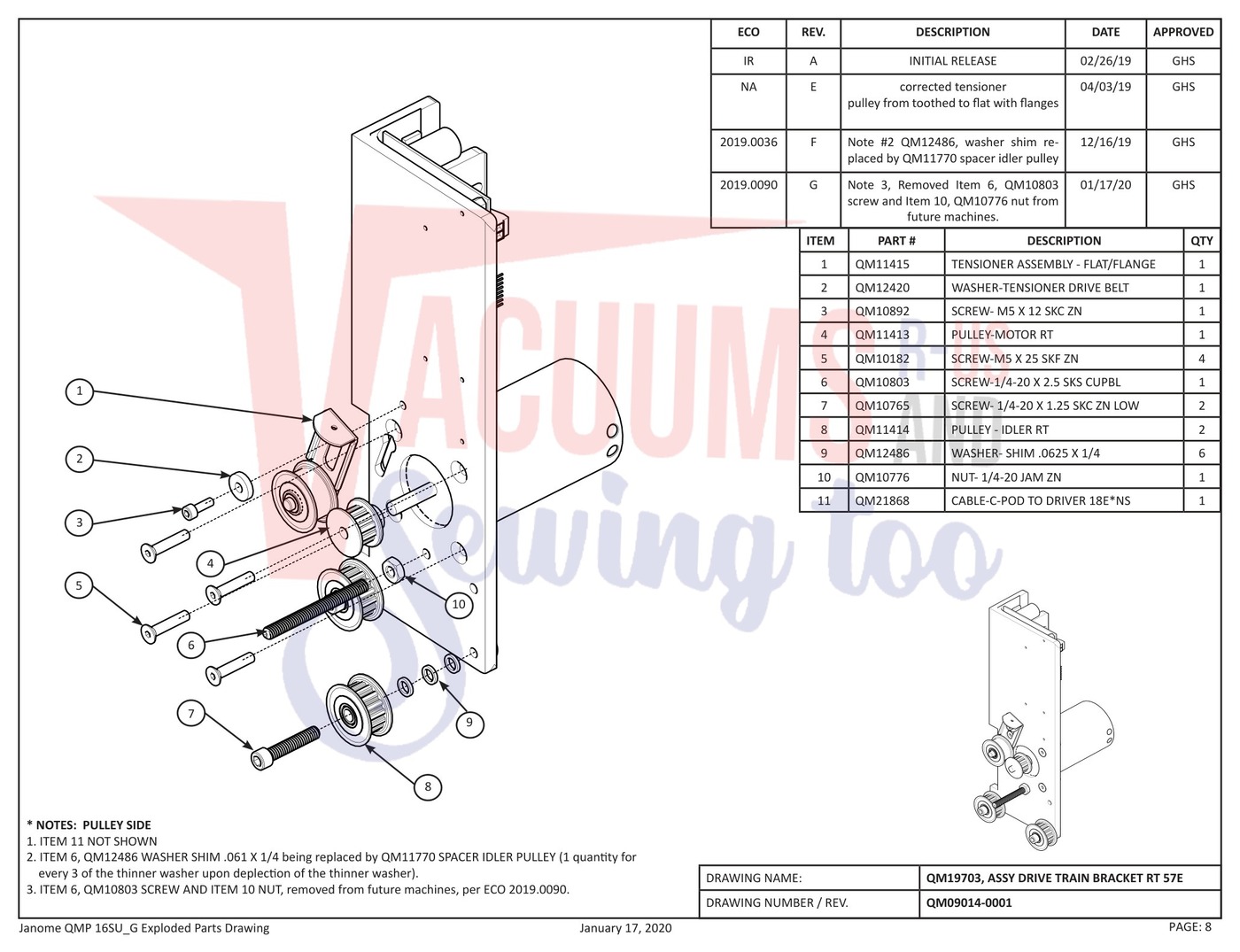

| 1 |  | TENSIONER ASSEMBLY - FLAT/FLANGE sewing machine part or accessory For Janome Models: QMPRO16 | QM11415 | $115.61Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | WASHER-TENSIONER DRIVE BELT sewing machine part or accessory For Janome Models: QMPROVERSA | QM12420 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SCREW-M5 X 12 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10892 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | PULLEY-MOTOR RT sewing machine part or accessory For Janome Models: QMPRO16 | QM11413 | $48.36Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SCREW-M5 X 25 SKF ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10182 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SCREW-1/4-20 X 2.5 SKS CUP BL sewing machine part or accessory For Janome Models: QMPROVERSA | QM10803 | $6.74Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SCREW- 1/4-20 X 1.25 SKC ZN LOW sewing machine part or accessory For Janome Models: QMPROVERSA | QM10765 | $2.64Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | PULLEY - IDLER RT sewing machine part or accessory For Janome Models: QMPRO16 | QM11414 | $121.44Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | WASHER- SHIM .0625 X 1/4* sewing machine part or accessory For Janome Models: QMPROVERSA | QM12486 | $8.93Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | NUT-1/4-20 JAM ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10776 | $0.92Read more |
| 11 | | CABLE-C-POD TO DRIVER 18E*NS sewing machine part or accessory For Janome Models: QMPROVERSA | QM21868 | $89.38Add to cart Special order: ships in 2 to 4 weeks |

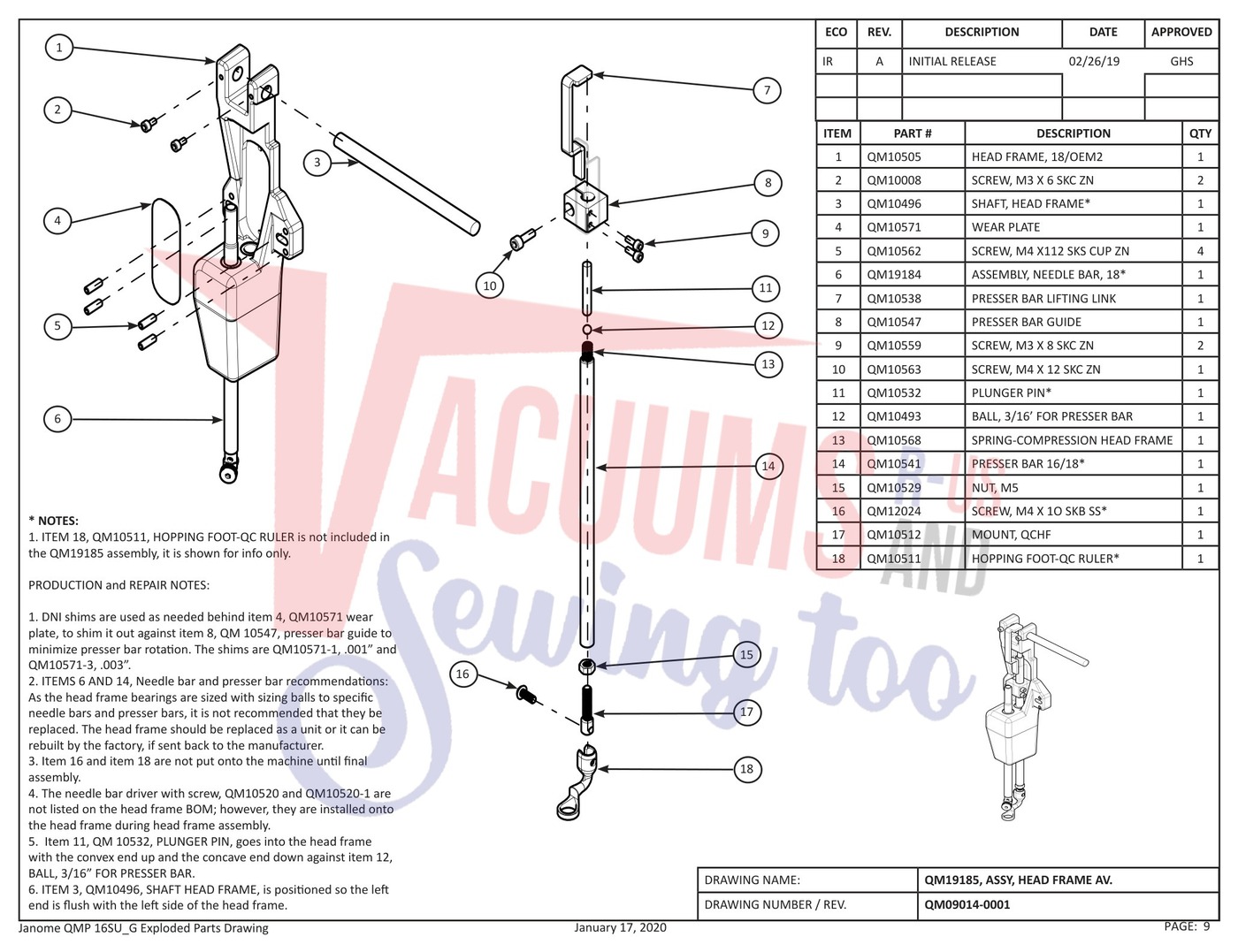

| # | Part image | Description | SKU | Price |
| 1 |  | HEAD FRAME, 18/OEM2 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10505 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SCREW, M3 X 6 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10008 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SHAFT, HEAD FRAME* sewing machine part or accessory For Janome Models: QMPROVERSA | QM10496 | $62.21Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WEAR PLATE sewing machine part or accessory For Janome Models: QMPROVERSA | QM10571 | $18.22Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SCREW, M4 X112 SKS CUP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10562 | $0.23Read more |
| 6 | | ASSEMBLY, NEEDLE BAR, 18* sewing machine part or accessory For Janome Models: QMPROVERSA | QM19184 | $170.02Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | PRESSER BAR LIFTING LINK sewing machine part or accessory For Janome Models: QMPROVERSA | QM10538 | $27.87Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | PRESSER BAR GUIDE sewing machine part or accessory For Janome Models: QMPROVERSA | QM10547 | $48.36Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SCREW-M3X8 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10559 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SCREW, M4 X 12 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10563 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PLUNGER PIN* sewing machine part or accessory For Janome Models: QMPROVERSA | QM10532 | $86.34Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | BALL, 3/16’ FOR PRESSER BAR sewing machine part or accessory For Janome Models: QMPROVERSA | QM10493 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SPRING-COMPRESSION HEAD FRAME sewing machine part or accessory For Janome Models: QMPROVERSA | QM10568 | $6.28Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | PRESSER BAR 16/18* sewing machine part or accessory For Janome Models: QMPROVERSA | QM10541 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | NUT, M5 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10529 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | SCREW - M4 X 10 SKB SS | QM12024 | Not Available |
| 17 |  | MOUNT, QCHF sewing machine part or accessory For Janome Models: QMPROVERSA | QM10512 | $17.48Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | HOPPING FOOT-QC RULER* sewing machine part or accessory For Janome Models: QMPROVERSA | QM10511 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
