Schematic and parts book for Janome QMPRO-STITCHER V5 QMPRO-STITCHER V5. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

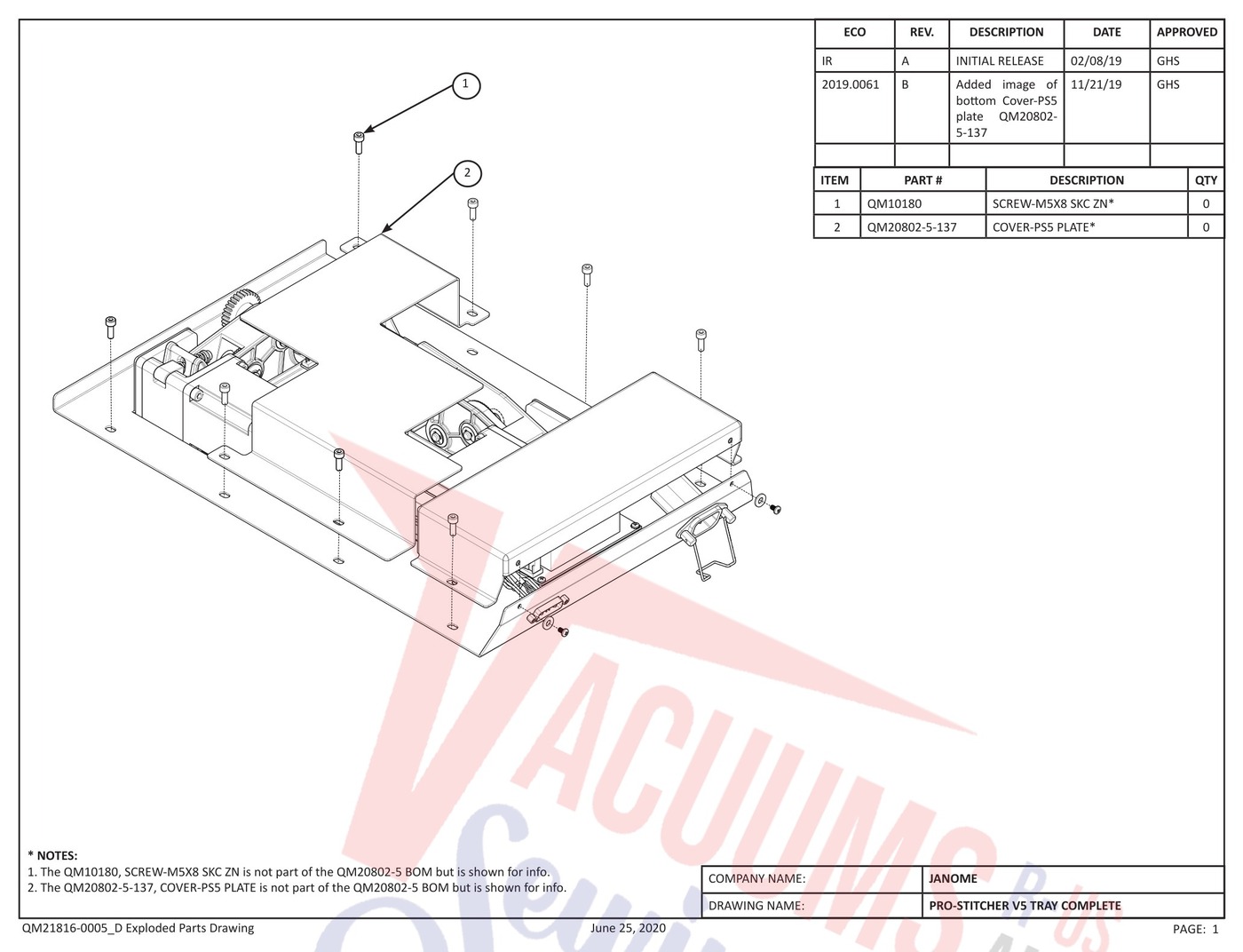

| # | Part image | Description | SKU | Price |
| 1 |  | SCREW-M5X8 SKC ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10180 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | COVER PS5 PLATE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-5-137 | $94.40Add to cart Special order: ships in 2 to 4 weeks |

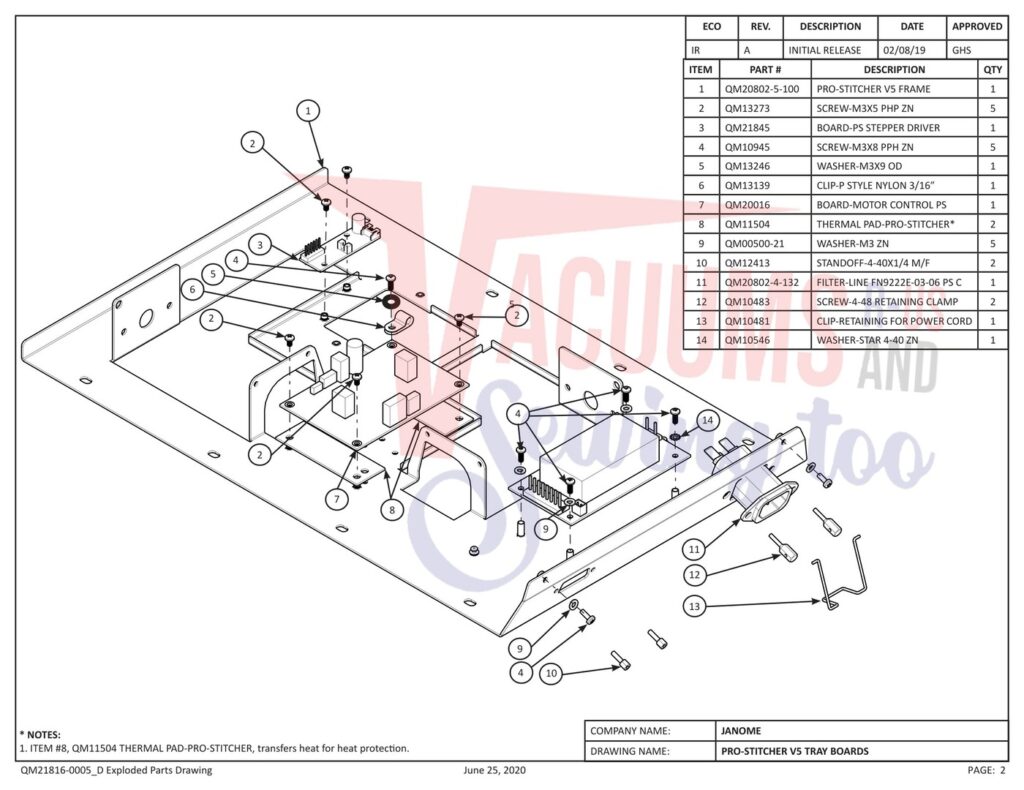

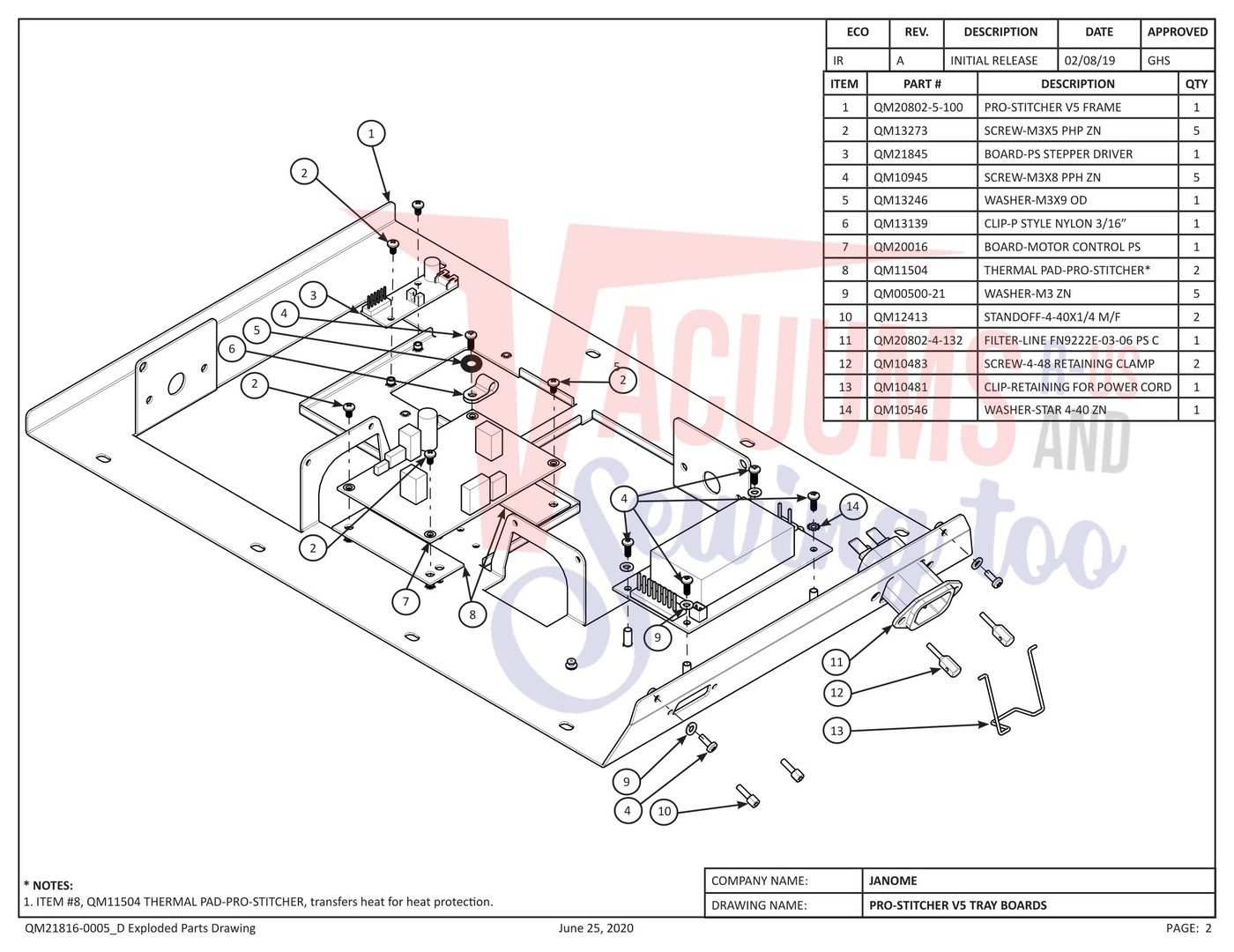

| # | Part image | Description | SKU | Price |
| 1 | | PRO-STITCHER V5 FRAME sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-5-100 | $360.40Read more |
| 2 | | SCREW-M3X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13273 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | BOARD-PS STEPPER DRIVER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM21845 | $182.16Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M3X8 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10945 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER-M3X9 OD sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13246 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | CLIP-P STYLE NYLON 3/16” sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13139 | $1.00Read more |
| 7 |  | BOARD-MOTOR CONTROL PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20016 | $1,535.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | WASHER M3 sewing machine part or accessory For Janome Models: QM00512 | QM00500-21 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | STANDOFF-4-40X1/4 M/F sewing machine part or accessory For Janome Models: QMPROVERSA | QM12413 | $5.19Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | FILTER-LINE FN9222E-03-06 PS C sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-132 | $84.43Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SCREW-4-48 RETAINING CLAMP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10483 | $16.39Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | CLIP-RETAINING FOR POWER CORD sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10481 | $19.86Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | WASHER-STAR 4-40 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10546 | $7.29Add to cart Special order: ships in 2 to 4 weeks |

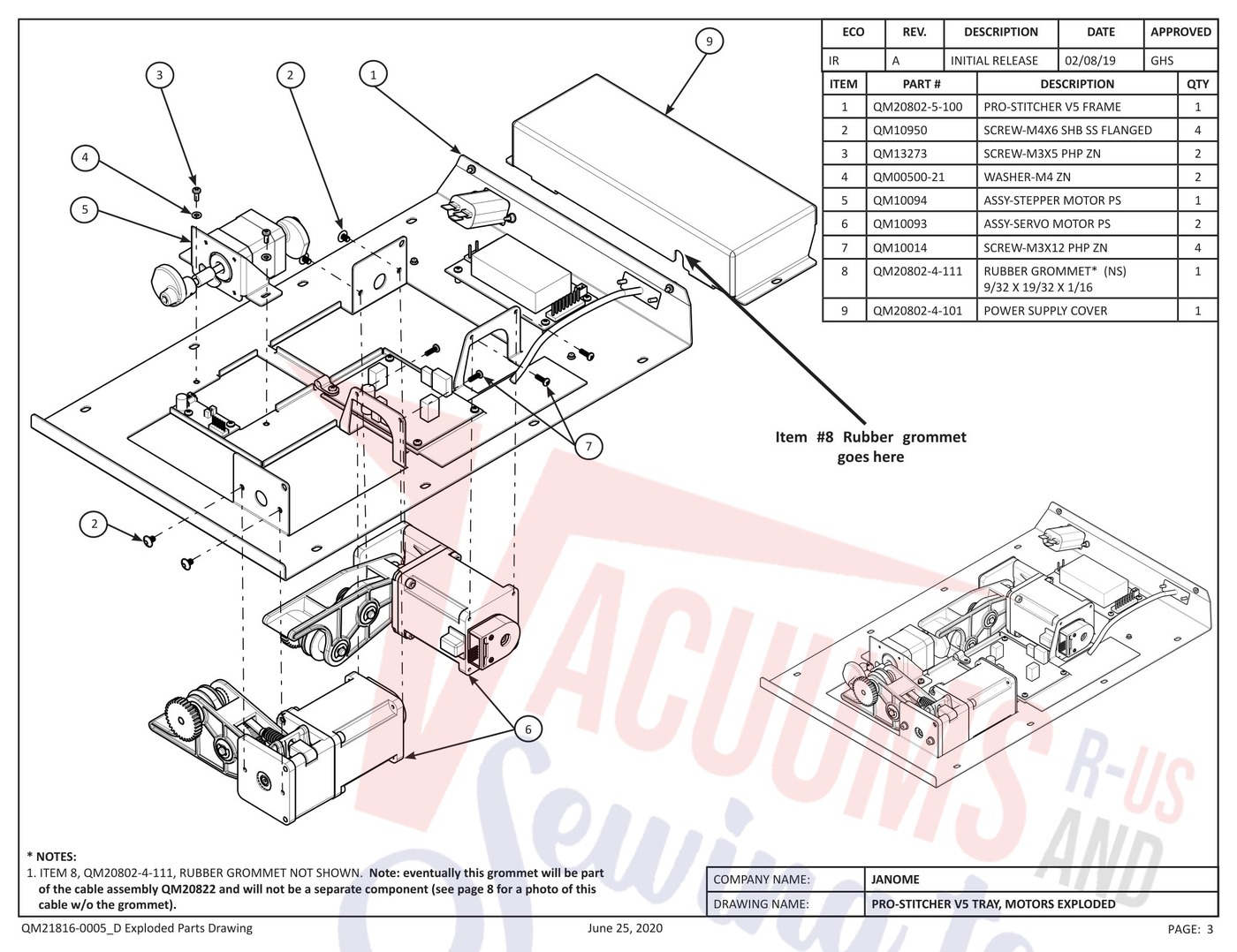

| # | Part image | Description | SKU | Price |
| 1 | | PRO-STITCHER V5 FRAME sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-5-100 | $360.40Read more |
| 2 | | SCREW-M4X6 SHB SS FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10950 | $8.05Read more |
| 3 | | SCREW-M3X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13273 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER M3 sewing machine part or accessory For Janome Models: QM00512 | QM00500-21 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | ASSY-STEPPER MOTOR PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10094 | $89.80Read more |
| 6 | | ASSY-SERVO MOTOR PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10093 | $1,887.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW- M3 X 12 PHP ZN* sewing machine part or accessory For Janome Models: QMPRO16 | QM10014 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | RUBBER GROMMET* (NS) 9/32 X 19/32 X 1/16 sewing machine part or accessory For Janome Models: QMP... | QM20802-4-111 | $0.00Read more |
| 9 |  | POWER SUPPLY COVER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-101 | $133.58Add to cart Special order: ships in 2 to 4 weeks |

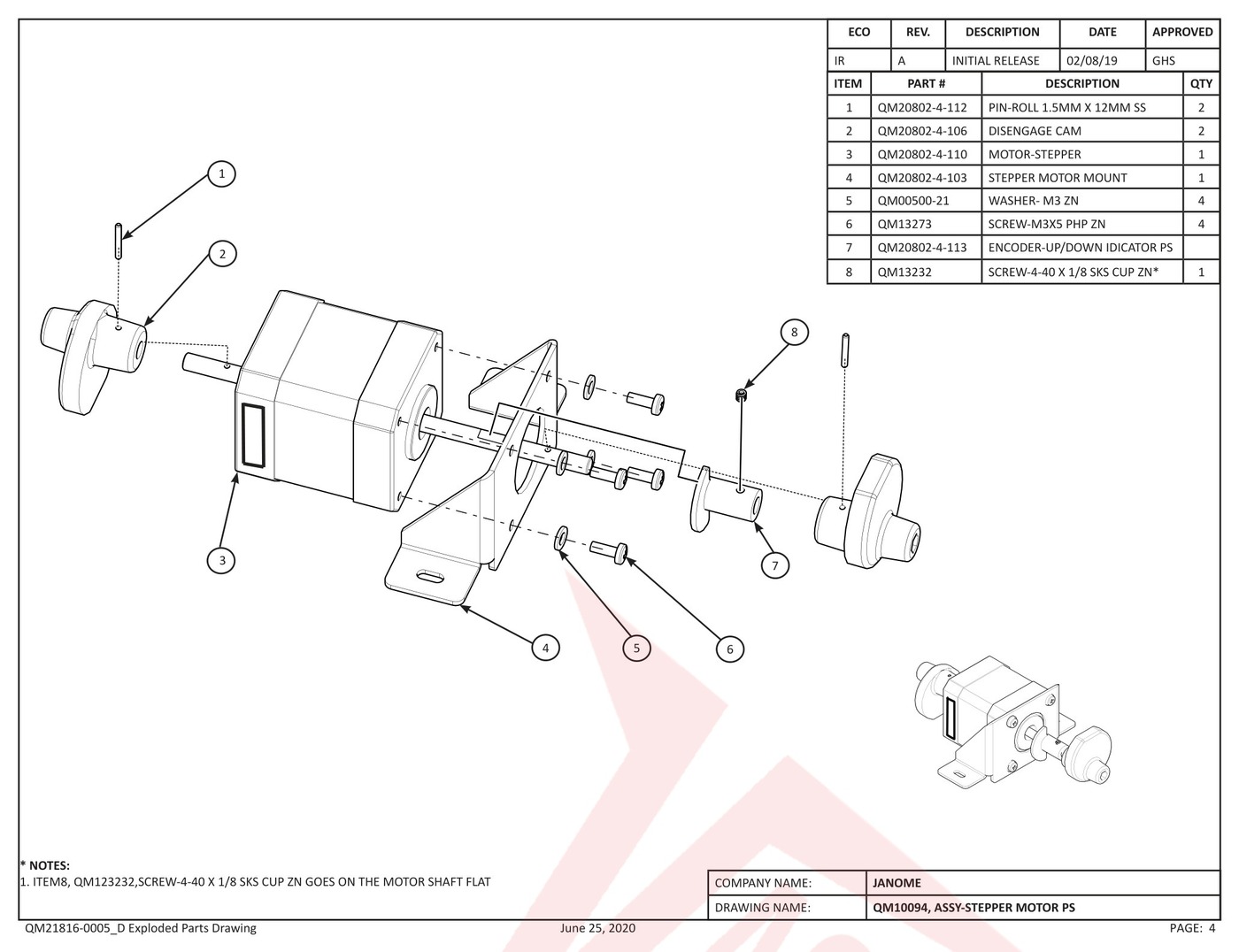

| # | Part image | Description | SKU | Price |
| 1 |  | PIN-ROLL 1.5MM X 12MM SS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-112 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | DISENGAGE CAM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-106 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | MOTOR-STEPPER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-110 | $57.60Read more |
| 4 |  | STEPPER MOTOR MOUNT sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-103 | $64.55Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | WASHER M3 sewing machine part or accessory For Janome Models: QM00512 | QM00500-21 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SCREW-M3X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13273 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | ENCODER-UP/DOWN INDICATOR PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-113 | $65.12Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SCREW-4-40 X 1/8 SKS CUP ZN* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13232 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

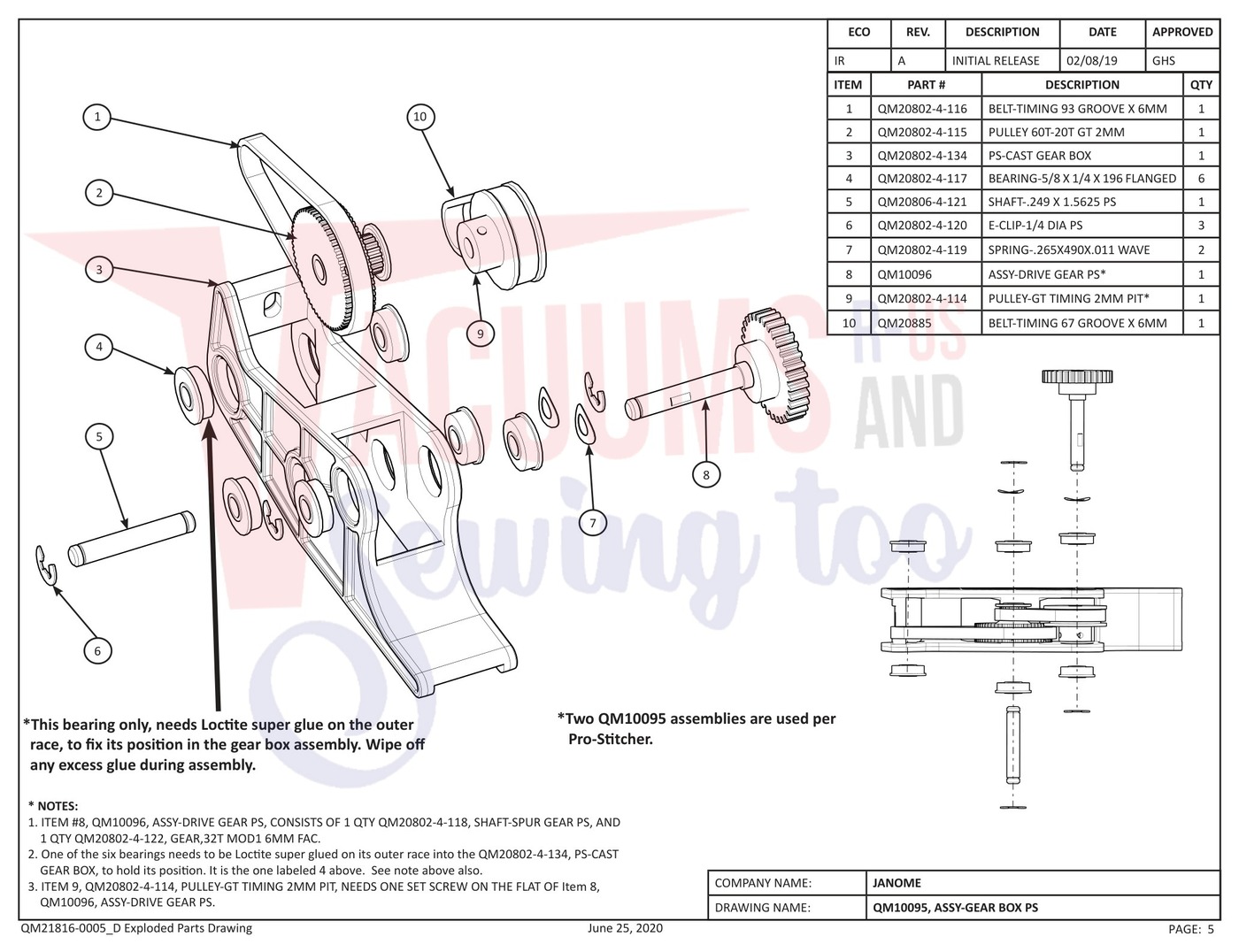

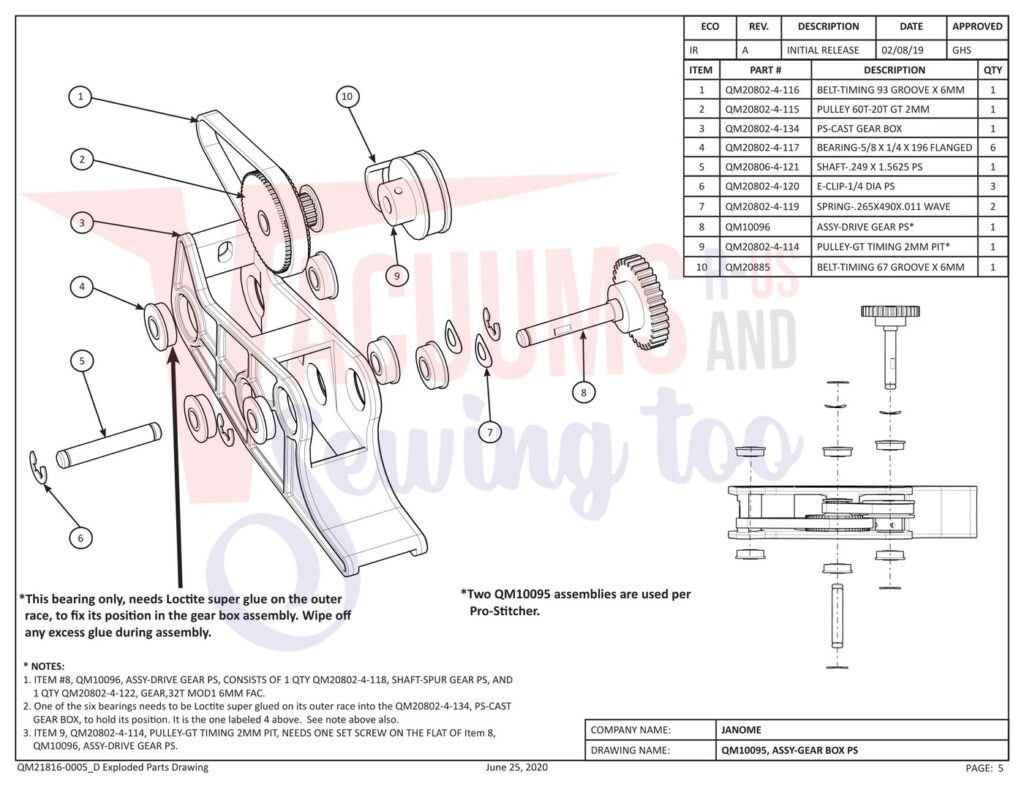

| # | Part image | Description | SKU | Price |
| 1 |  | BELT-TIMING 93 GROOVE X 6MM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-116 | $29.78Read more |
| 2 |  | PULLEY 60T-20T GT 2MM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-115 | $99.28Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PS-CAST GEAR BOX sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-134 | $47.20Read more |
| 4 |  | BEARING-5/8 X 1/4 X 196 FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-117 | $64.58Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Shaft-.249X1.5625 Ps | QM208024121 | $52.83Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | E-CLIP-1/4 DIA PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-120 | $0.60Read more |
| 7 |  | SPRING-.265X490X.011 WAVE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-119 | $19.86Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | ASSY-DRIVE GEAR PS* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10096 | $120.77Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PULLEY-GT TIMING 2MM PIT* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-114 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | BELT-TIMING 67 GROOVE X 6MM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20885 | $44.72Add to cart Special order: ships in 2 to 4 weeks |

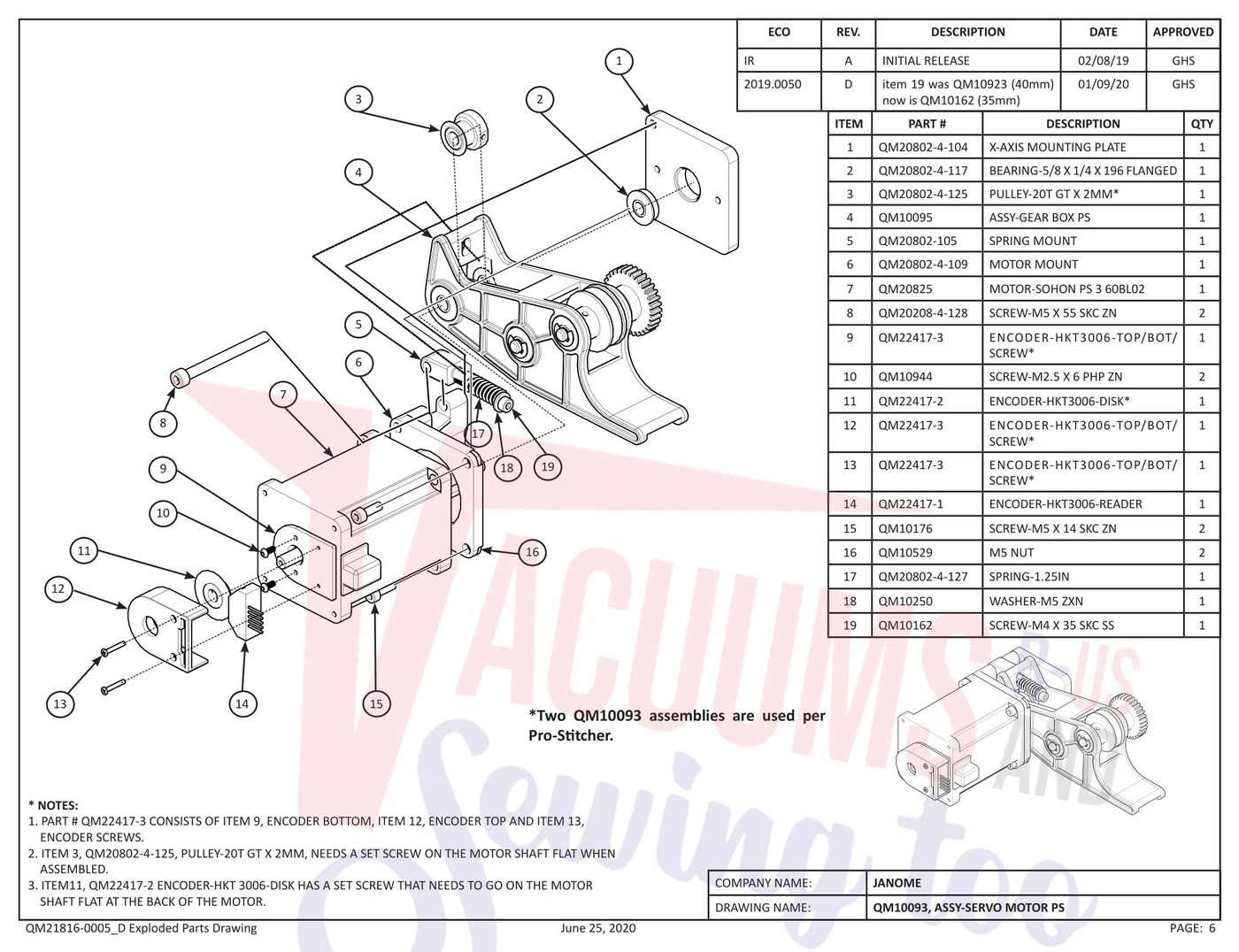

| # | Part image | Description | SKU | Price |
| 1 |  | X-AXIS MOUNTING PLATE sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-104 | $7.01Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | BEARING-5/8 X 1/4 X 196 FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-117 | $64.58Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | PULLEY-20T GT X 2MM* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-125 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | ASSY-GEAR BOX PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10095 | $836.40Read more |
| 5 |  | Spring Mount | QM208024105 | $9.93Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | MOTOR MOUNT sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-109 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | MOTOR-SOHON PS 3 60BL02 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20825 | $626.20Read more |
| 8 |  | SCREW, M5 X 55 SKC ZN sewing machine part or accessory For Janome Models: QMPRO20 | QM20802-4-128 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SCREW-M2.5 X 6 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10944 | $0.40Read more |
| 11 |  | ENCODER HKT3006-DISK sewing machine part or accessory For Janome Models: QMPRO16 | QM22417-2 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Encoder Hkt3006-Case | QM224173 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | ENCODER HKT3006-READER sewing machine part or accessory For Janome Models: QMPRO16 | QM22417-1 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SCREW, M5 X 14 SKC ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM10176 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | NUT, M5 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10529 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SPRING-1.25IN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-127 | $22.31Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | WASHER M5 sewing machine part or accessory For Janome Models: QM00512 | QM10250 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SCREW-M4 X 35 SKC SS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10162 | $2.60Read more |

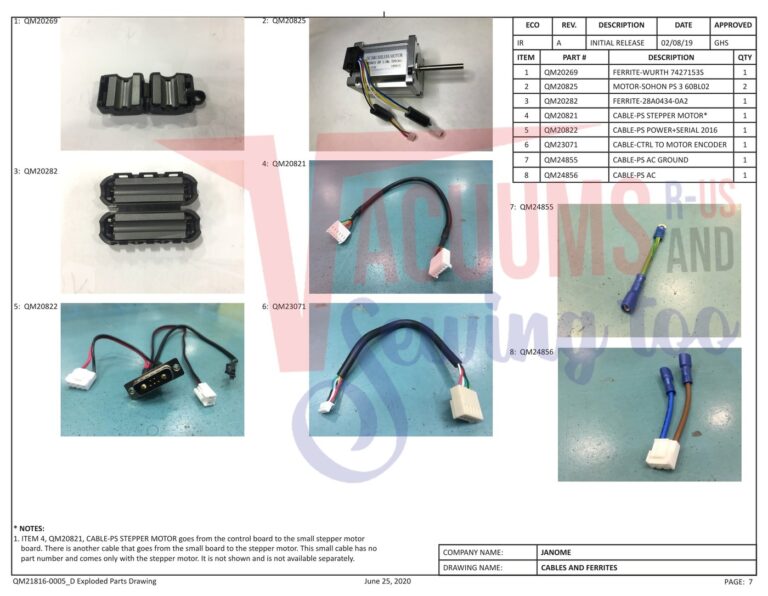

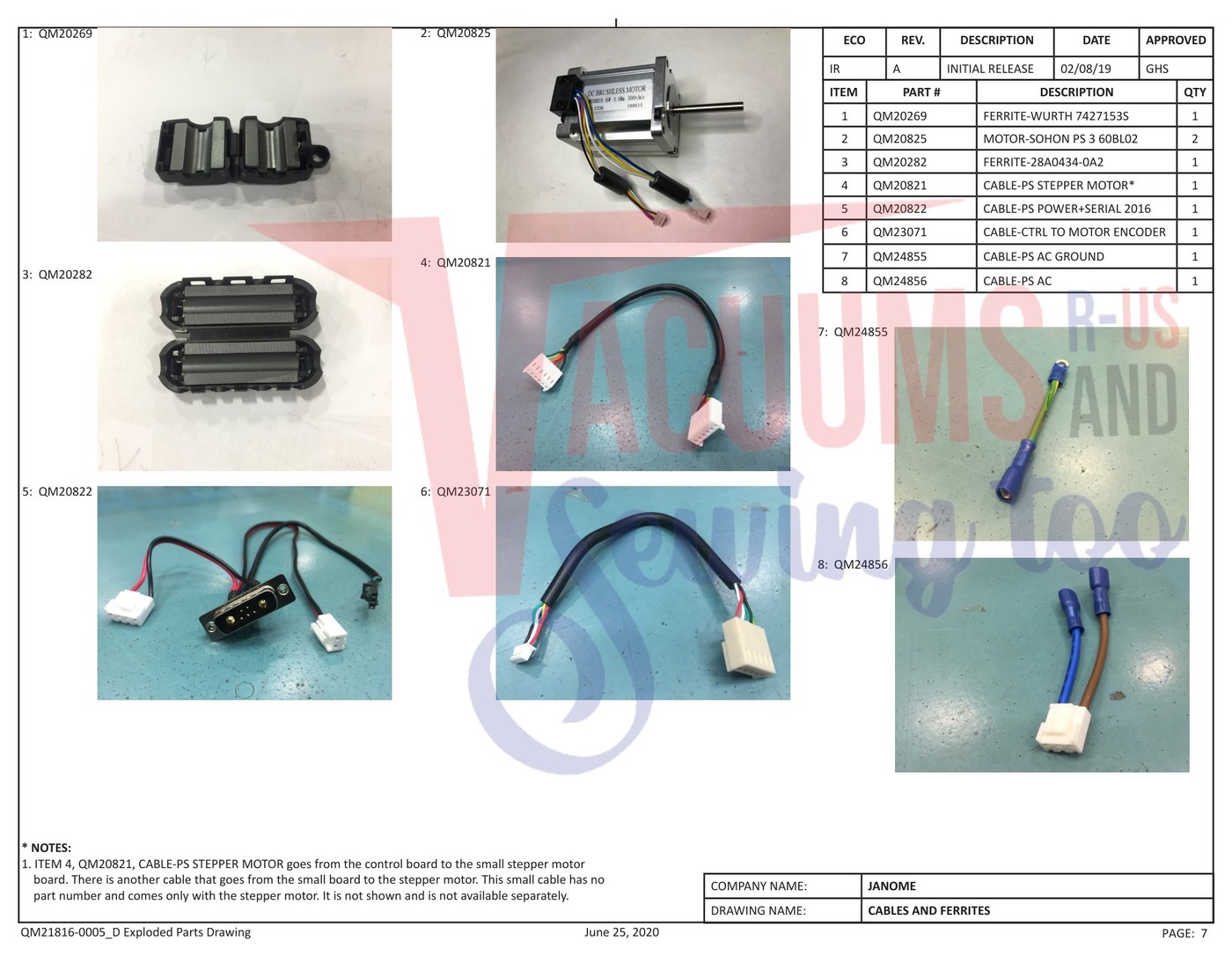

| # | Part image | Description | SKU | Price |
| 1 | | FERRITE-WURTH 7427153S sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20269 | $19.78Read more |
| 2 | | MOTOR-SOHON PS 3 60BL02 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20825 | $626.20Read more |
| 3 | | FERRITE-28A0434-0A2 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20282 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | CABLE-PS STEPPER MOTOR* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20821 | $21.60Read more |
| 5 | | CABLE-PS POWER+SERIAL 2016 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20822 | $107.40Read more |
| 6 | | CABLE-CTRL TO MOTOR ENCODER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM23071 | $21.60Read more |
| 7 |  | CABLE-PS AC GROUND sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24855 | $9.93Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | CABLE-PS AC sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24856 | $40.99Add to cart Special order: ships in 2 to 4 weeks |

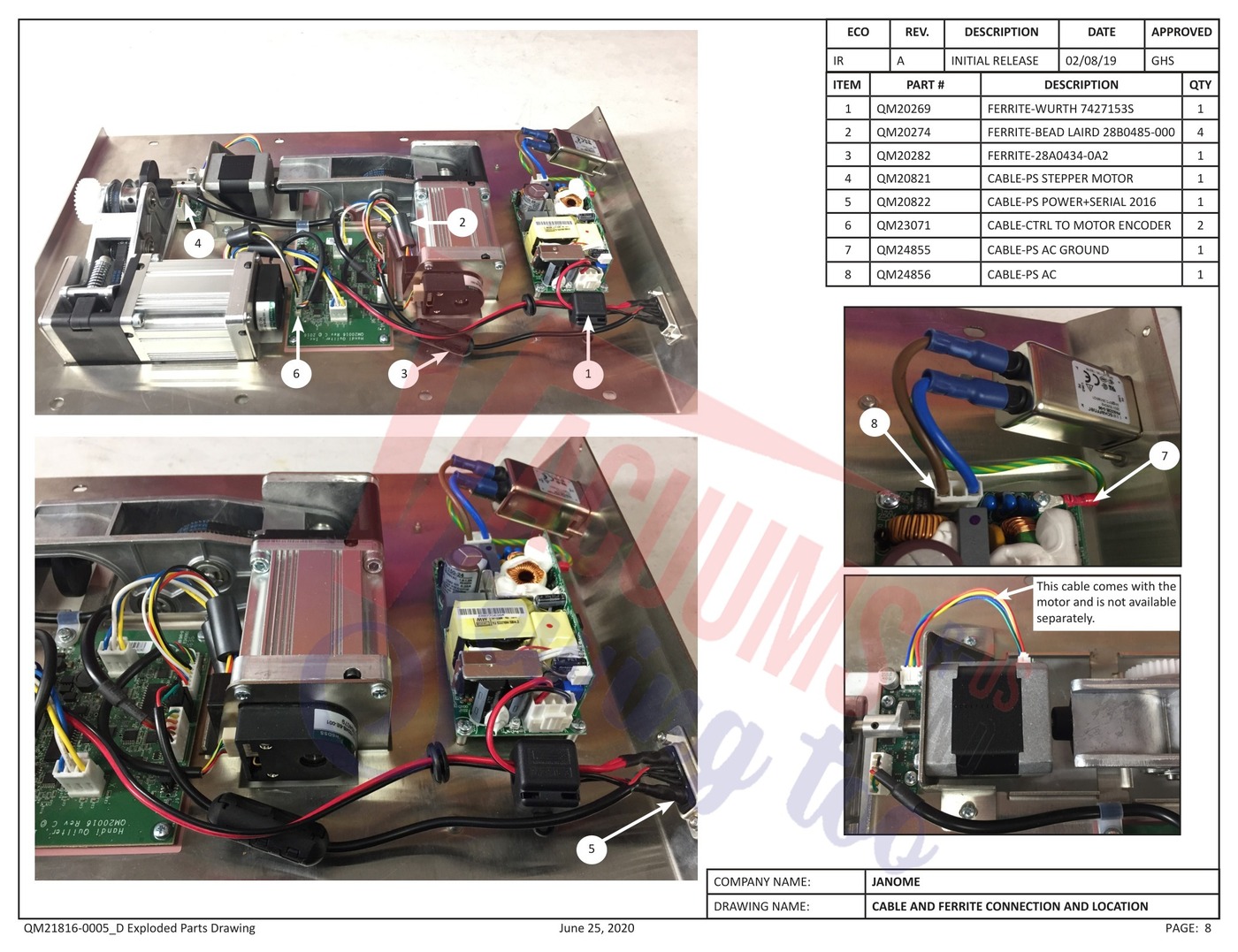

| # | Part image | Description | SKU | Price |
| 1 | | FERRITE-WURTH 7427153S sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20269 | $19.78Read more |
| 2 | | FERRITE-BEAD LAIRD 28B0485-000 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20274 | $2.99Read more |
| 3 | | FERRITE-28A0434-0A2 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20282 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | CABLE-PS STEPPER MOTOR* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20821 | $21.60Read more |
| 5 | | CABLE-PS POWER+SERIAL 2016 sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20822 | $107.40Read more |
| 6 | | CABLE-CTRL TO MOTOR ENCODER sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM23071 | $21.60Read more |
| 7 | | CABLE-PS AC GROUND sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24855 | $9.93Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | CABLE-PS AC sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM24856 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
