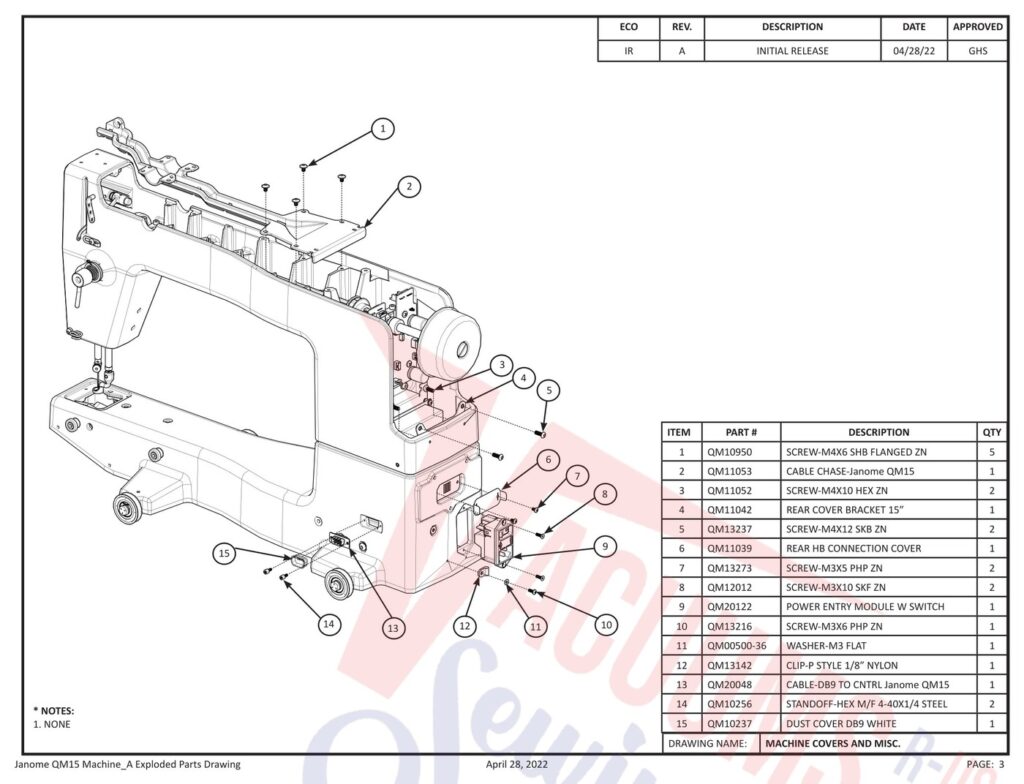

Schematic and parts book for Janome QM15, Quiltmaker 15 QM15, Quiltmaker 15. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

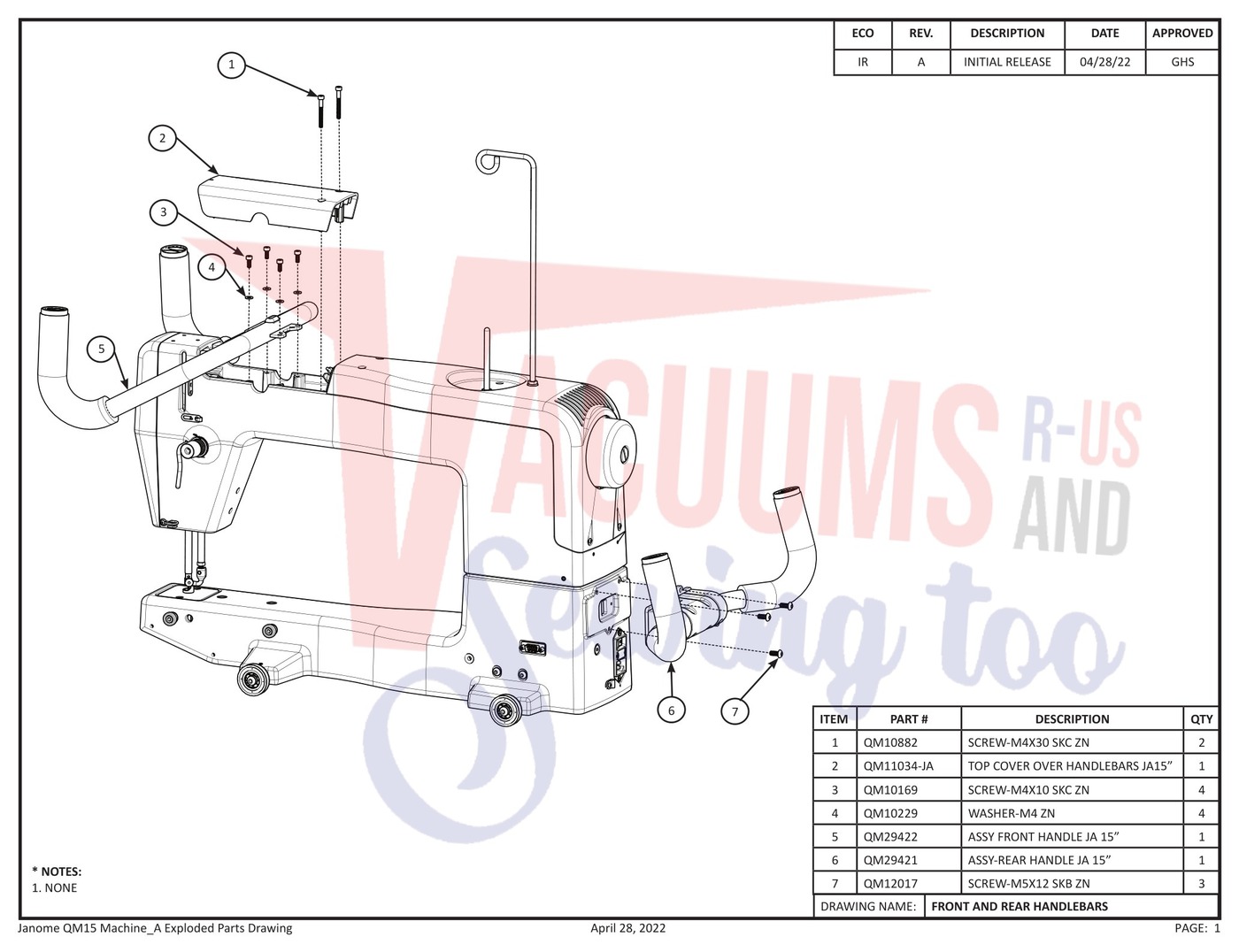

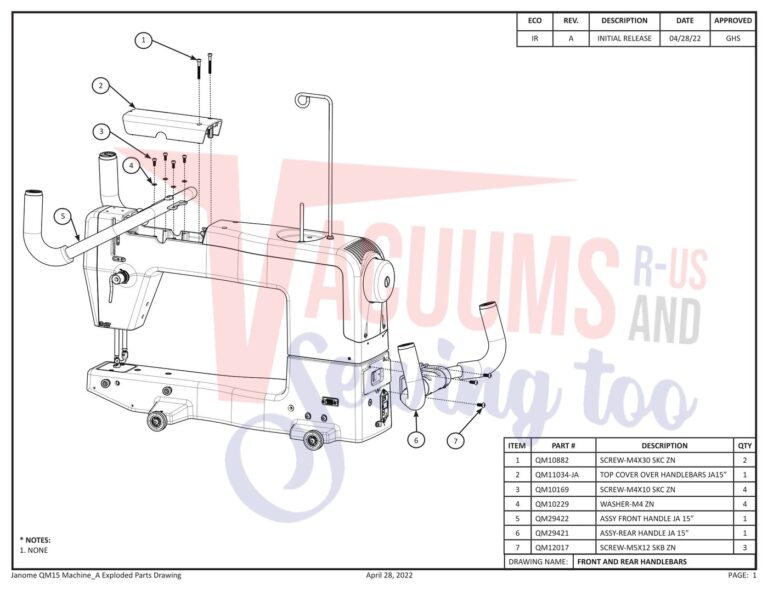

| # | Part image | Description | SKU | Price |
| 1 |  | SCREW- M4 X 30 SKC SS sewing machine part or accessory For Janome Models: QMPROVERSA | QM10882 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | TOP COVER OVER HANDLEBARS JA 15” sewing machine part or accessory For Janome Models: QM15 SRV | QM11034-JA | $70.95Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SCREW-M4X10 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10169 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | ASSY FRONT HANDLE JA 15” sewing machine part or accessory For Janome Models: QM15 SRV | QM29422 | $425.04Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | ASSY-REAR HANDLE JA 15” sewing machine part or accessory For Janome Models: QM15 SRV | QM29421 | $576.84Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SCREW-M5 X 12 SKB SS sewing machine part or accessory | QM12017 | $0.80Read more |

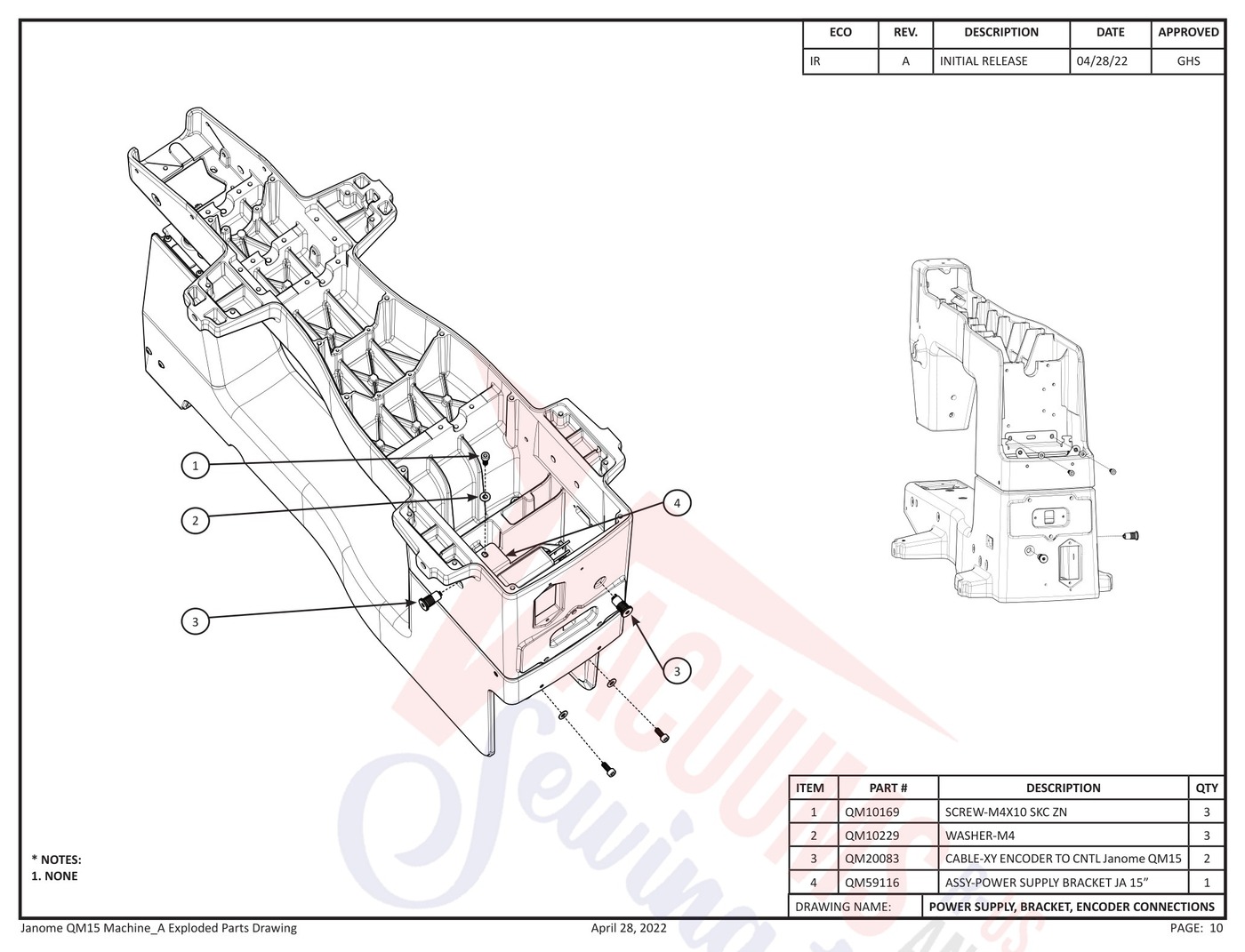

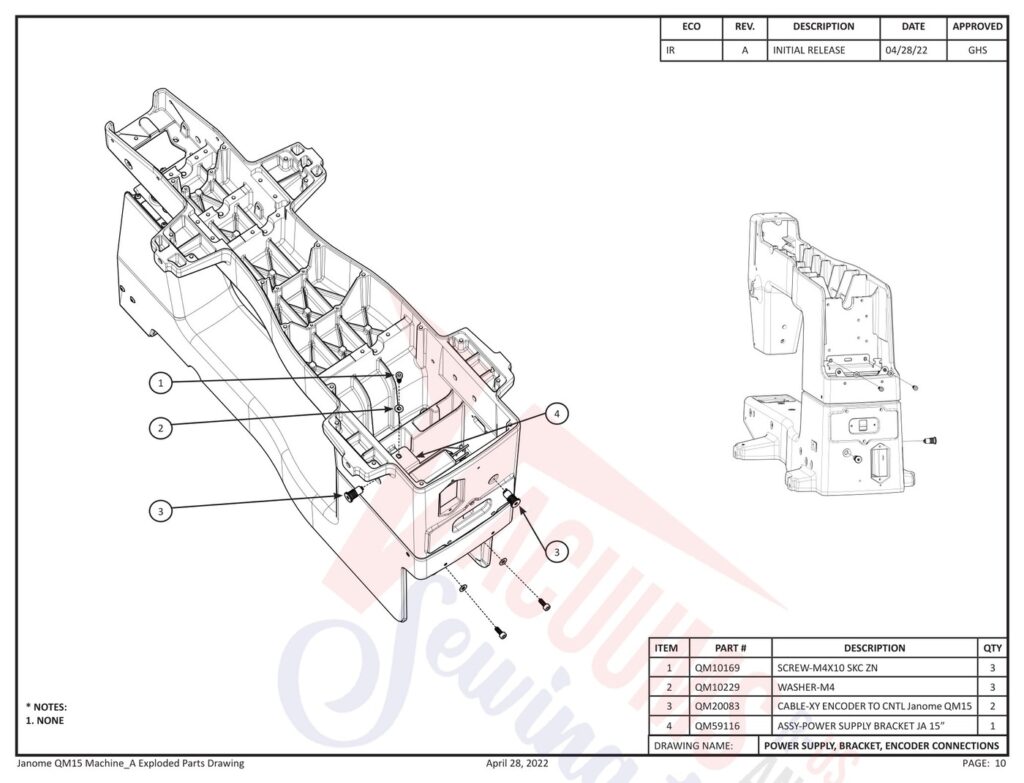

| # | Part image | Description | SKU | Price |
| 1 | | SCREW-M4X10 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10169 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | CABLE-XY ENCODER TO CNTL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20083 | $35.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | ASSY-POWER SUPPLY BRCKT JA 15” | QM59116 | Not Available |

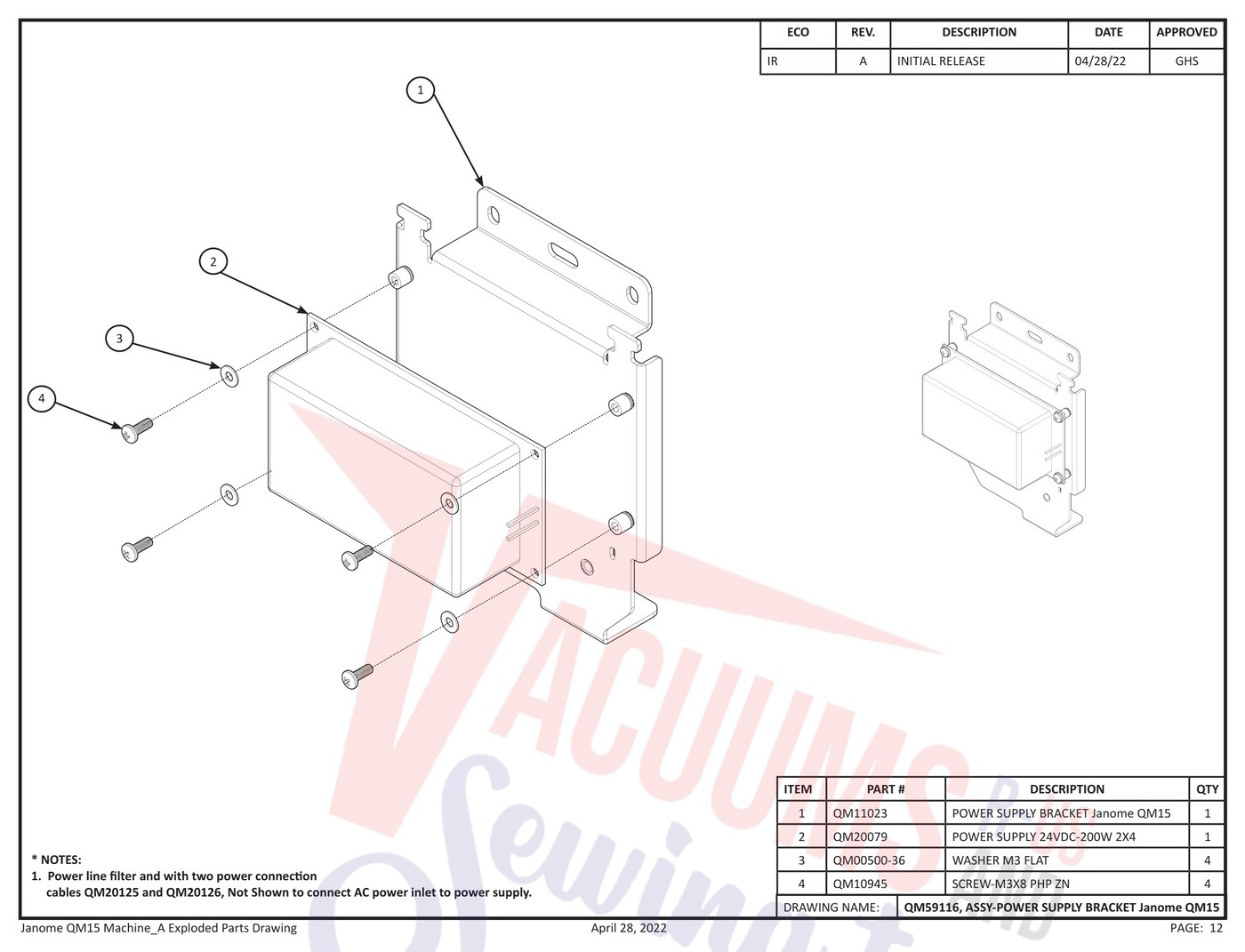

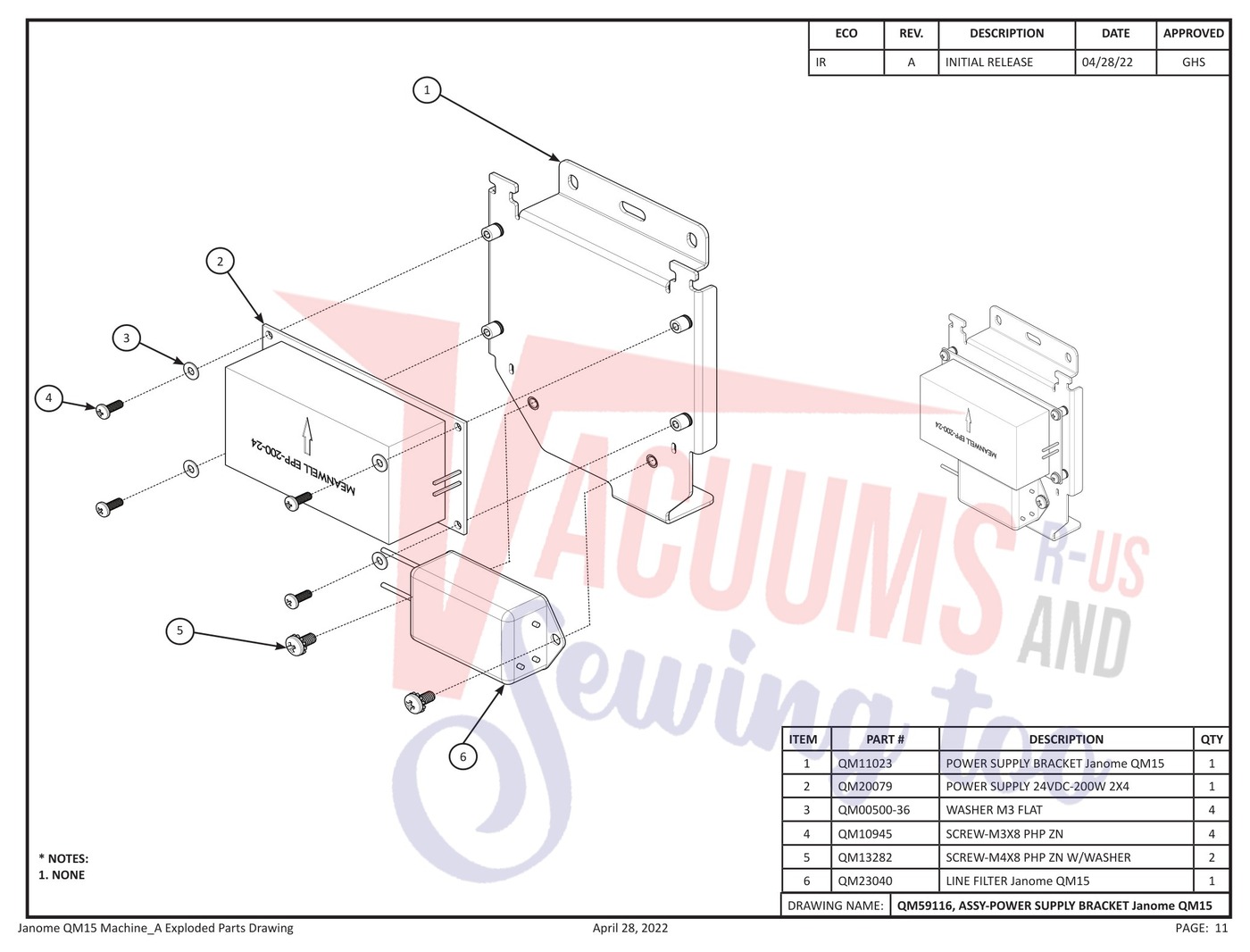

| # | Part image | Description | SKU | Price |
| 1 | | POWER SUPPLY BRACKET Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11023 | $63.30Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | POWER SUPPLY 24VDC-200W 2X4 sewing machine part or accessory For Janome Models: QM15 SRV | QM20079 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M3X8 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10945 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SCREW, M4 X 8 PHP ZN W/WASHER sewing machine part or accessory For Janome Models: AQSD-16 | QM13282 | $1.46Add to cart Special order: ships in 2 to 4 weeks |

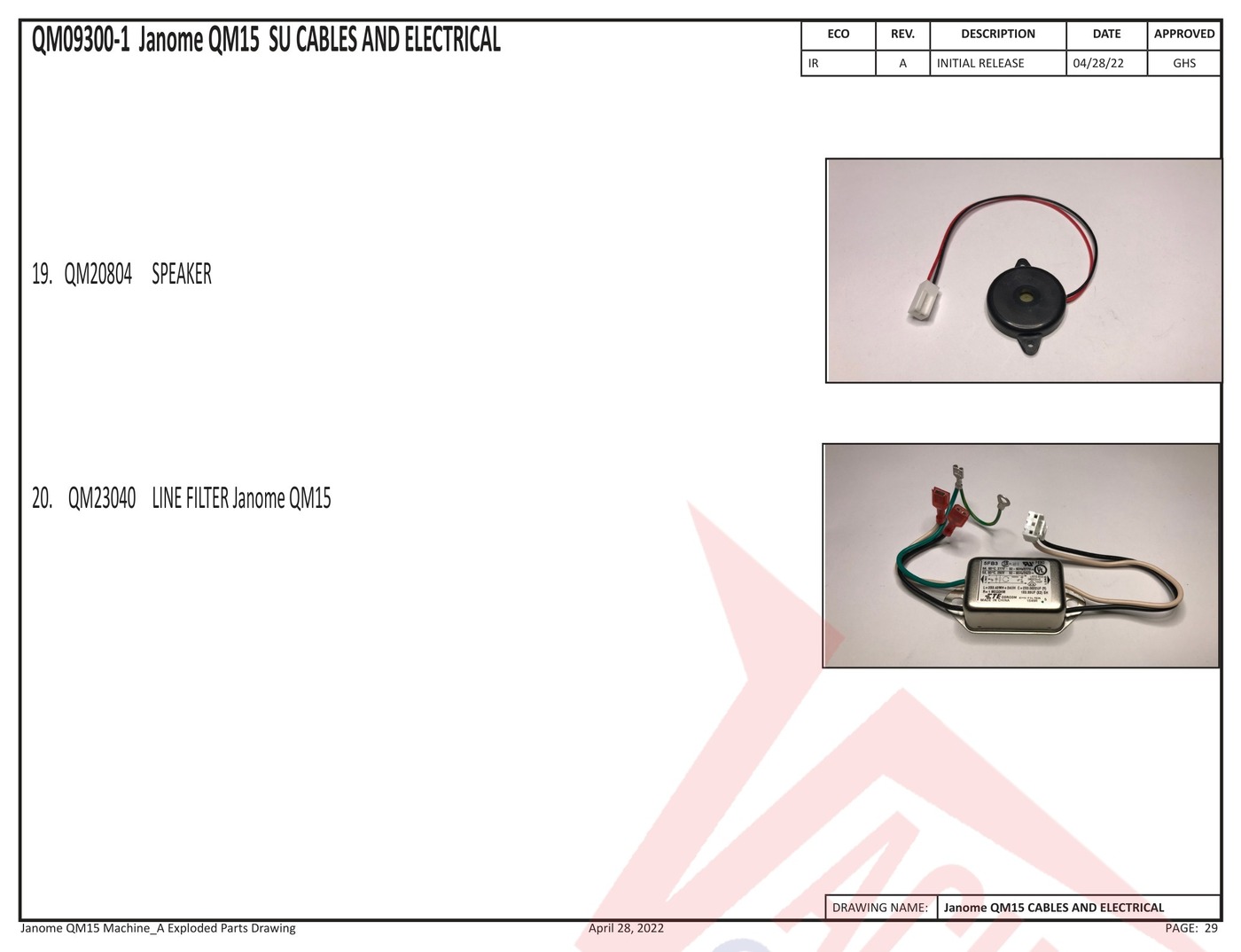

| 6 | | LINE FILTER Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM23040 | $84.70Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | POWER SUPPLY BRACKET Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11023 | $63.30Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | POWER SUPPLY 24VDC-200W 2X4 sewing machine part or accessory For Janome Models: QM15 SRV | QM20079 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M3X8 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10945 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

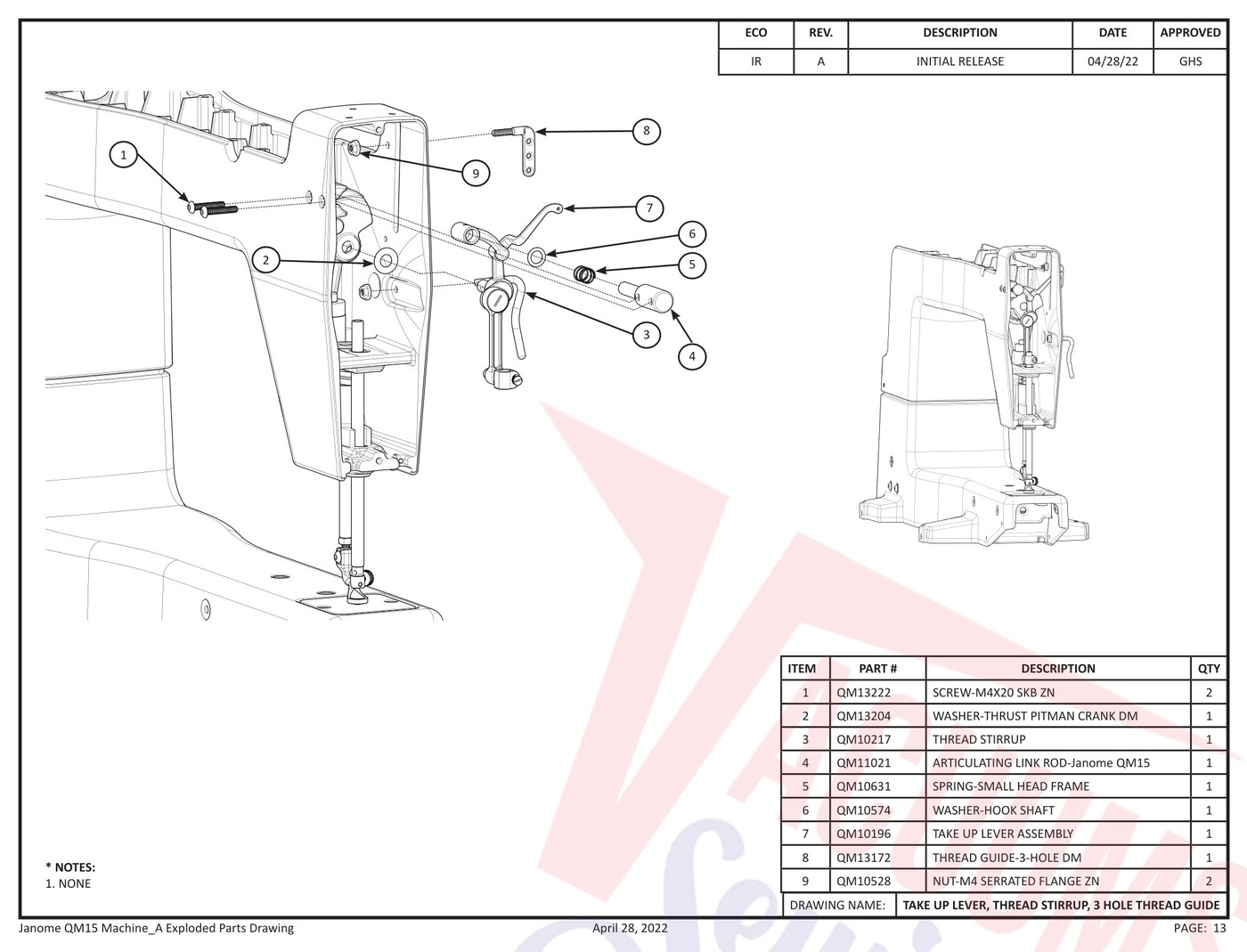

| # | Part image | Description | SKU | Price |
| 1 | | SCREW-M4X20 SKB ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM13222 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | WASHER-THRUST PITMAN CRANK DM sewing machine part or accessory For Janome Models: QM15 SRV | QM13204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | THREAD STIRRUP sewing machine part or accessory For Janome Models: QMPROVERSA | QM10217 | $11.40Read more |
| 4 | | ARTICULATING LINK ROD-Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11021 | $76.87Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SPRING-SMALL HEAD FRAME sewing machine part or accessory For Janome Models: QMPROVERSA | QM10631 | $3.80Read more |
| 6 |  | WASHER-HOOK SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM10574 | $1.40Read more |
| 7 |  | Take Up Lever Assy Rev.A | QM10196 | $496.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | THREAD GUIDE-THREE HOLE DM sewing machine part or accessory For Janome Models: QM15 SRV | QM13172 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | NUT-M4 SERRATED FLANGE ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10528 | $7.29Add to cart Special order: ships in 2 to 4 weeks |

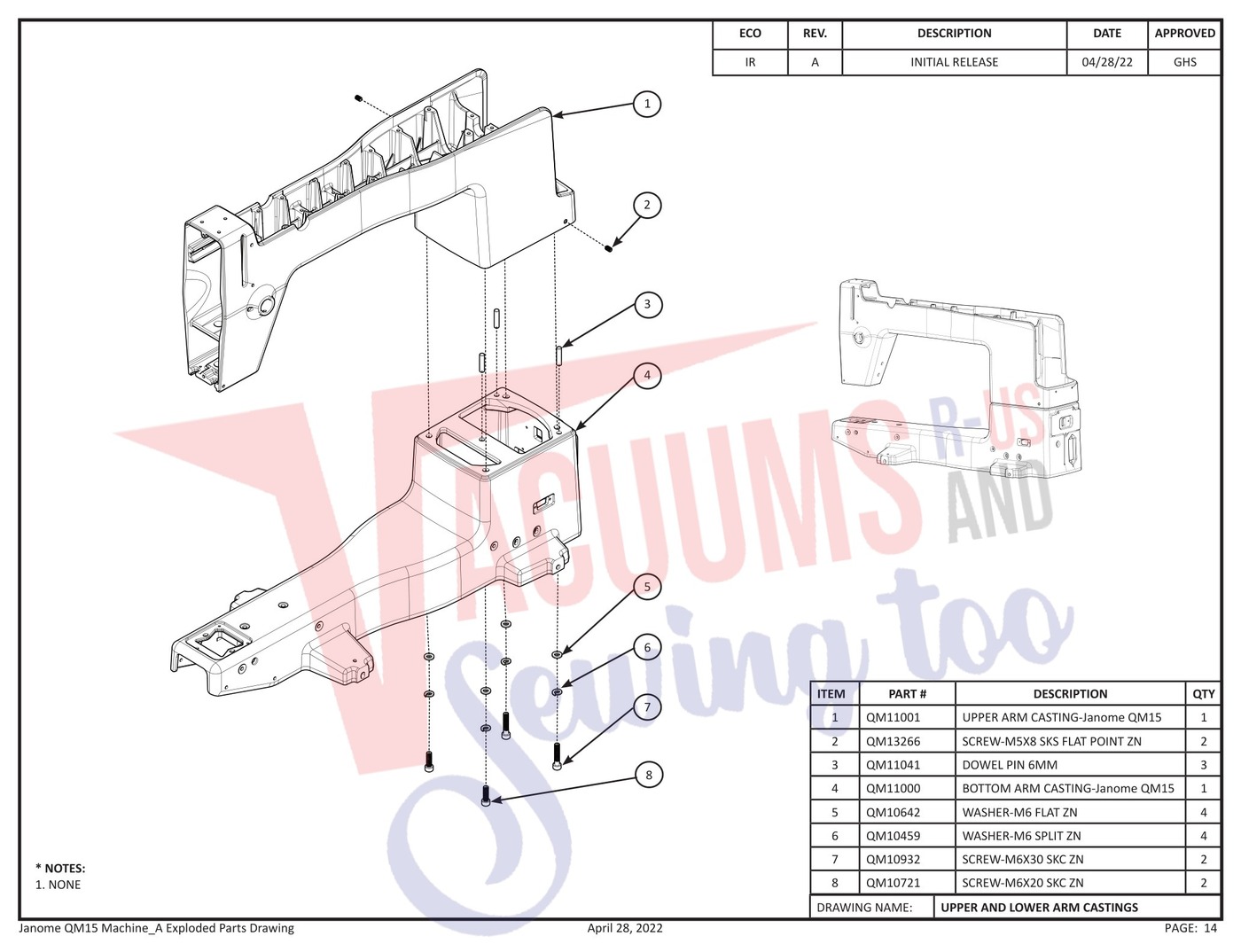

| # | Part image | Description | SKU | Price |
| 1 | | UPPER ARM CASTING-Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11001 | $900.60Read more |
| 2 | | SCREW-M5X8 SKS FLAT ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM13266 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | DOWEL PIN 6MM sewing machine part or accessory For Janome Models: QM15 SRV | QM11041 | $15.48Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | BOTTOM ARM CASTING-Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11000 | $600.40Read more |
| 5 | | WASHER-M6X12X1.5 ZN* sewing machine part or accessory For Janome Models: QMPRO20 Front Handlebars | QM10642 | $3.64Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER-M6 SPLIT ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10459 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SCREW-M6X30 SKC ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10932 | $13.39Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SCREW M6 X 20 SKC ZN sewing machine part or accessory For Elna Models: EL920 | QM10721 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

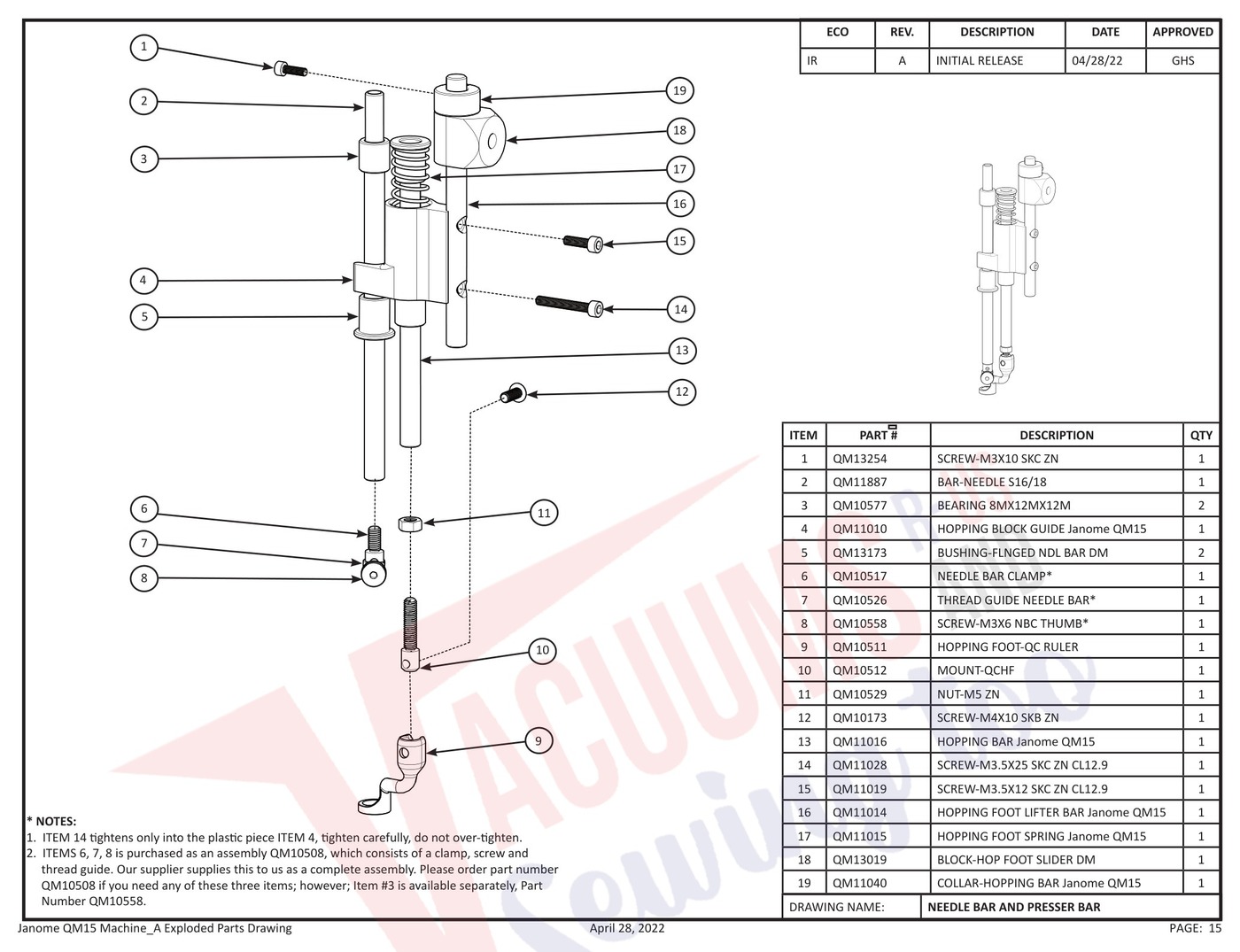

| 1 | | SCREW, M3X10 SKC ZN sewing machine part or accessory For Janome Models: QMPRO20 Front Handlebars | QM13254 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | NEEDLE BAR, S16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM11887 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SLEEVED BEARING sewing machine part or accessory For Janome Models: QM18 SRV | QM10577 | $7.82Read more |
| 4 | | HOPPING BLOCK GUIDE Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11010 | $81.88Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | BUSHING-FLNGED NDL BAR DM sewing machine part or accessory For Janome Models: QM15 SRV | QM13173 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | CLAMP NEEDLE BAR sewing machine part or accessory | QM10517 | $52.10Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | NEEDLE BAR THREAD GUIDE sewing machine part or accessory | QM10526 | $33.52Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SCREW M3 X .5 X 6MM NBC sewing machine part or accessory | QM10558 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | HOPPING FOOT-QC RULER* sewing machine part or accessory For Janome Models: QMPROVERSA | QM10511 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | MOUNT, QCHF sewing machine part or accessory For Janome Models: QMPROVERSA | QM10512 | $17.48Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | NUT, M5 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10529 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SCREW-M4 X 10 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10173 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | HOPPING BAR Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11016 | $82.82Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SCREW-M3.5X25MM SKC ZN CL 12.9 sewing machine part or accessory For Janome Models: QM15 SRV | QM11028 | $26.14Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SCREW-M3.5X12 SKC ZN CL12.9 sewing machine part or accessory For Janome Models: QM15 SRV | QM11019 | $15.40Read more |
| 16 | | HOPPING FOOT LIFTER BAR Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11014 | $82.64Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | HOPPING FOOT SPRING Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11015 | $17.67Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | BLOCK-HOP FOOT SLIDER DM sewing machine part or accessory For Janome Models: QM15 SRV | QM13019 | $41.90Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | COLLAR-HOPPING BAR Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11040 | $12.40Read more |

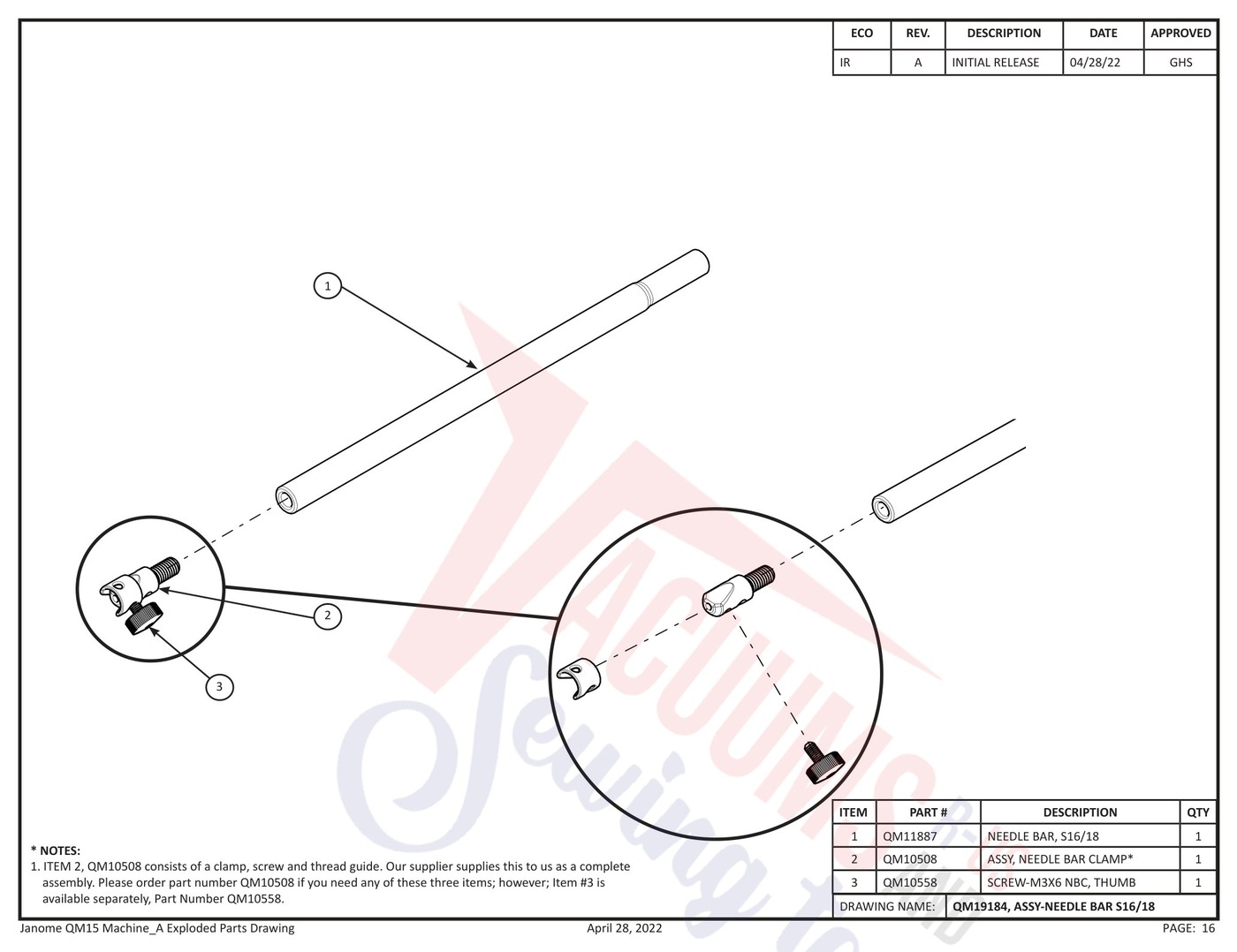

| # | Part image | Description | SKU | Price |
| 1 | | NEEDLE BAR, S16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM11887 | $69.52Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | ASSY-NEEBLE BAR CLAMP sewing machine part or accessory ASSY-NEEBLE BAR CLAMP | QM10508 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SCREW M3 X .5 X 6MM NBC sewing machine part or accessory | QM10558 | $11.20Add to cart Special order: ships in 2 to 4 weeks |

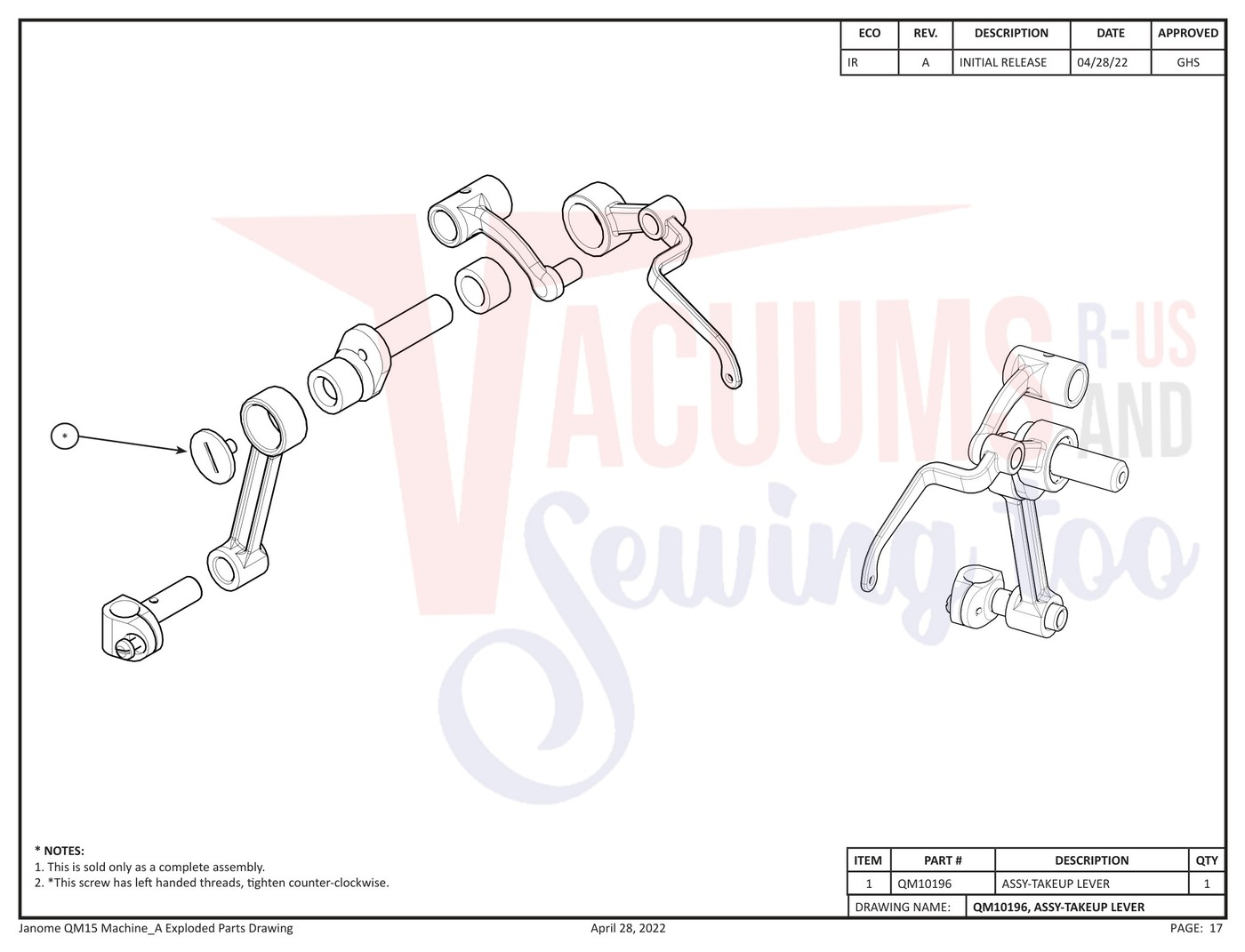

| # | Part image | Description | SKU | Price |
| 1 | | Take Up Lever Assy Rev.A | QM10196 | $496.20Add to cart Special order: ships in 2 to 4 weeks |

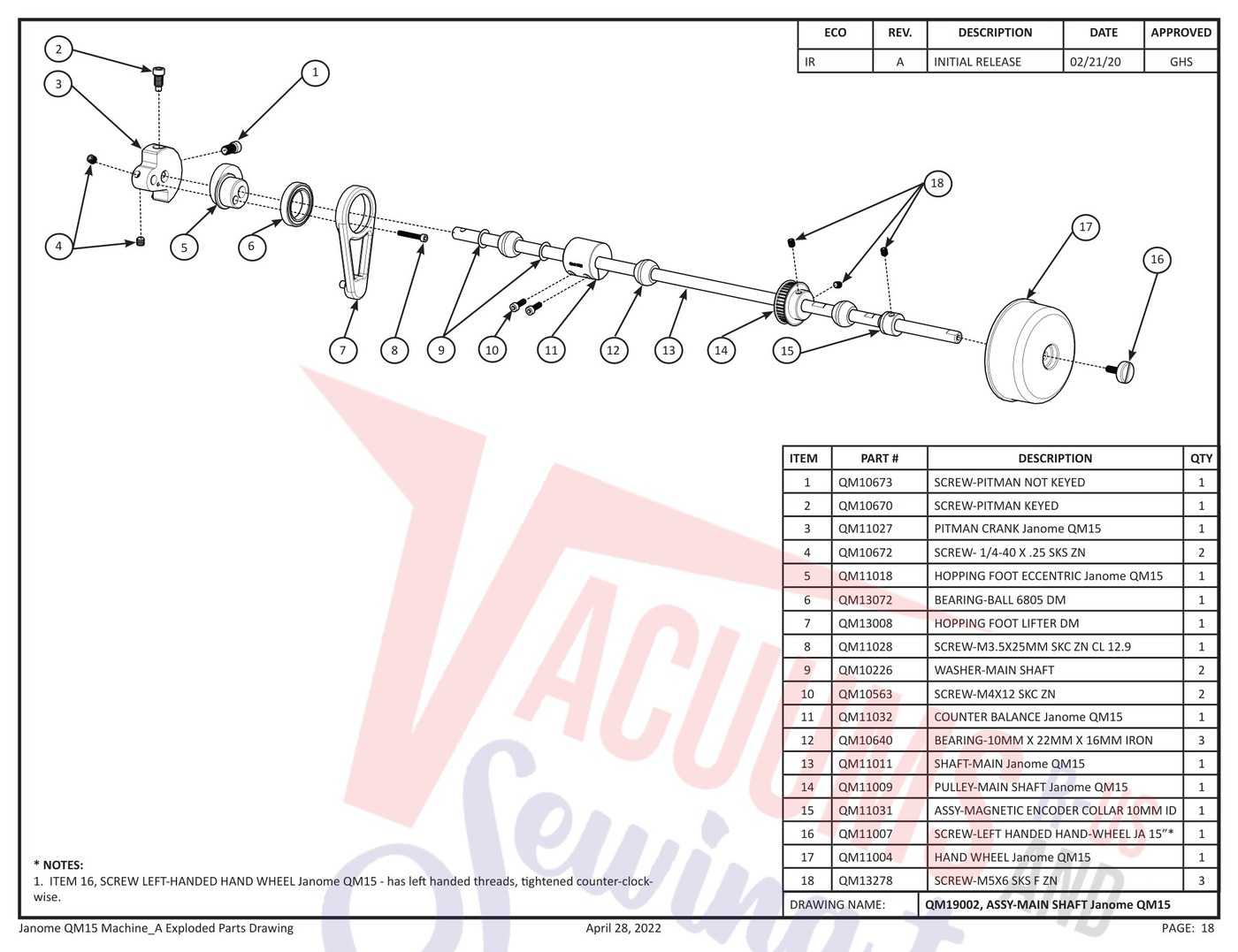

| # | Part image | Description | SKU | Price |
| 1 |  | SCREW-PITMAN NOT KEYED sewing machine part or accessory For Janome Models: QMPROVERSA | QM10673 | $16.94Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW-PITMAN KEYED sewing machine part or accessory For Janome Models: QMPROVERSA | QM10670 | $14.48Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PITMAN CRANK Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11027 | $57.29Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW- 1/4-40 X .25 SKS ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10672 | $1.37Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | HOPPING FOOT ECCENTRIC Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11018 | $72.20Read more |
| 6 | | BEARING-BALL 6805 DM sewing machine part or accessory For Janome Models: QM15 SRV | QM13072 | $104.26Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | HOPPING FOOT LIFTER DM sewing machine part or accessory For Janome Models: QM15 SRV | QM13008 | $89.71Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SCREW-M3.5X25MM SKC ZN CL 12.9 sewing machine part or accessory For Janome Models: QM15 SRV | QM11028 | $26.14Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | WASHER-MAIN SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM10226 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SCREW, M4 X 12 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10563 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | COUNTER BALANCE Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11032 | $83.98Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | BEARING-10MM X 22MM X 16MM IRON sewing machine part or accessory For Janome Models: QMPROVERSA | QM10640 | $36.89Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | SHAFT-MAIN Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11011 | $89.35Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | PULLEY-MAIN SHAFT Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11009 | $90.81Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | ASSY-MAGNETIC ENCODER COLLAR 10MM ID sewing machine part or accessory For Janome Models: QM15 SRV | QM11031 | $34.97Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | HAND-WHEEL SCREW 15” sewing machine part or accessory For Janome Models: QM15 SRV | QM11007 | $25.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | HAND WHEEL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11004 | $33.70Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | SCREW-M5X6 SKS F ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM13278 | $1.40Add to cart Special order: ships in 2 to 4 weeks |

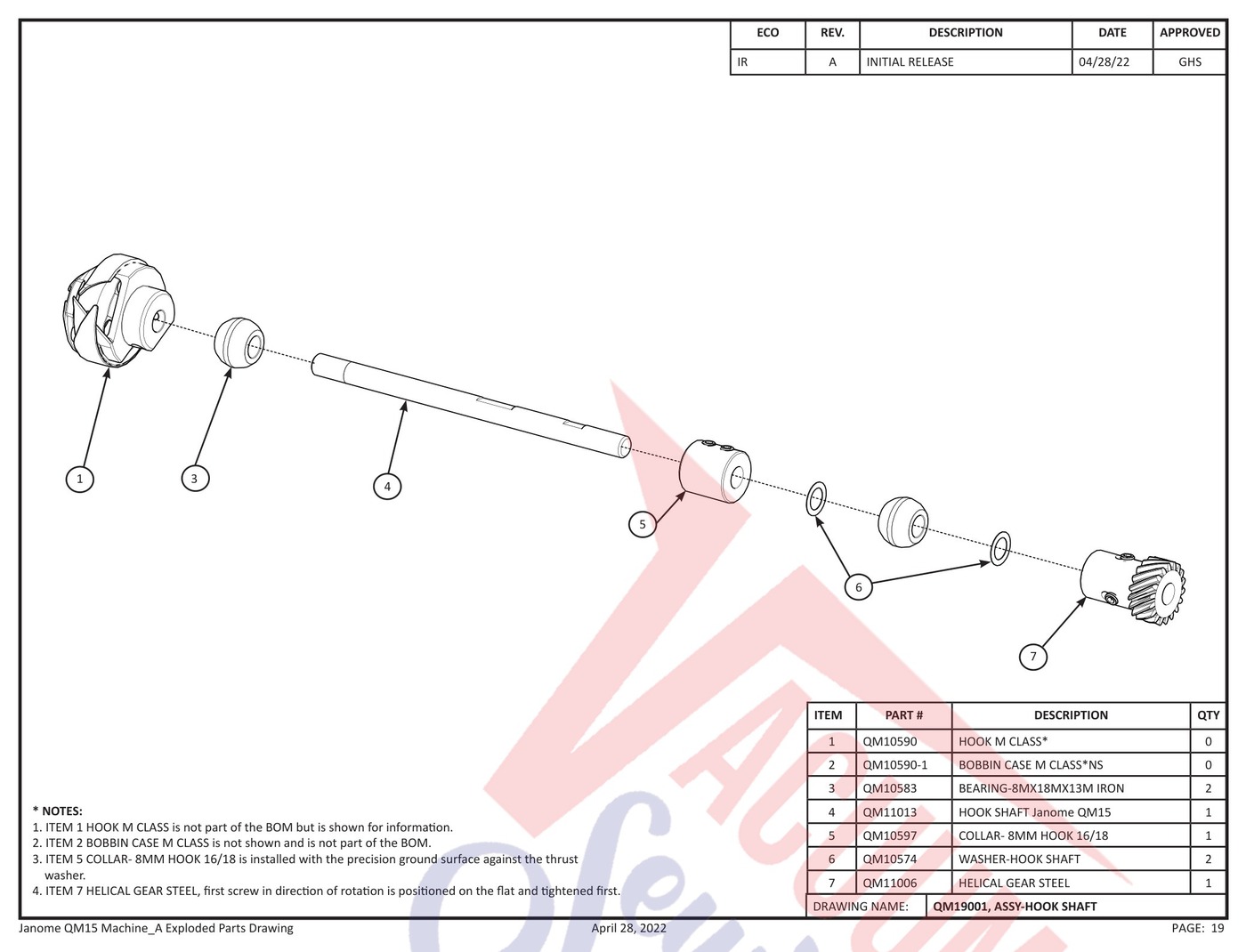

| # | Part image | Description | SKU | Price |
| 1 | No Image | Hook M Class | QM10590 | $364.32Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | BOBBIN CASE M CLASS*NS sewing machine part or accessory For Janome Models: QM15 SRV | QM10590-1 | $79.42Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | BEARING-8MM X 18MM X 13MM IRON sewing machine part or accessory For Janome Models: QMPROVERSA | QM10583 | $22.68Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | HOOK SHAFT Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11013 | $73.59Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | COLLAR-8MM HOOK 16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10597 | $27.69Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER-HOOK SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM10574 | $1.40Read more |
| 7 | | HELICAL GEAR STEEL sewing machine part or accessory For Janome Models: QM15 SRV | QM11006 | $74.44Add to cart Special order: ships in 2 to 4 weeks |

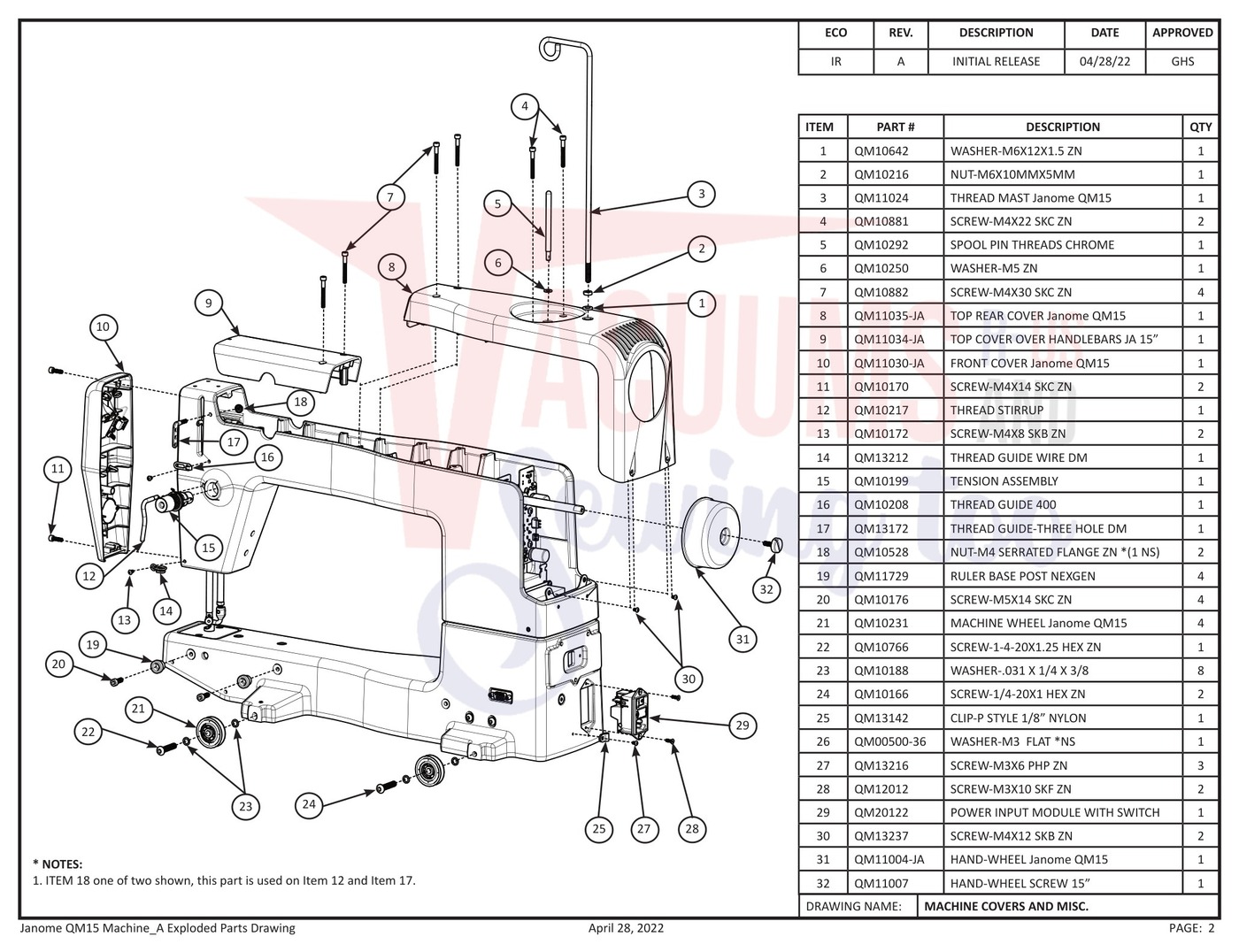

| # | Part image | Description | SKU | Price |
| 1 | | WASHER-M6X12X1.5 ZN* sewing machine part or accessory For Janome Models: QMPRO20 Front Handlebars | QM10642 | $3.64Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | NUT-M6X10MMX5MM sewing machine part or accessory For Janome Models: QM15 SRV | QM10216 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | THREAD MAST Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11024 | $41.17Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M4X22 SKC ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10881 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SPOOL PIN THREADS CHROME sewing machine part or accessory For Janome Models: QM15 SRV | QM10292 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER M5 sewing machine part or accessory For Janome Models: QM00512 | QM10250 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW- M4 X 30 SKC SS sewing machine part or accessory For Janome Models: QMPROVERSA | QM10882 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | TOP REAR COVER Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11035-JA | $98.31Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | TOP COVER OVER HANDLEBARS JA 15” sewing machine part or accessory For Janome Models: QM15 SRV | QM11034-JA | $70.95Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | FRONT COVER Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11030-JA | $52.92Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SCREW-M4X14 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10170 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | THREAD STIRRUP sewing machine part or accessory For Janome Models: QMPROVERSA | QM10217 | $11.40Read more |
| 13 | | SCREW-M4X8 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10172 | $0.40Read more |
| 14 | | THREAD GUIDE WIRE DM sewing machine part or accessory For Janome Models: QMPROVERSA | QM13212 | $30.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | TENSION ASSEMBLY sewing machine part or accessory TENSION ASSEMBLY | QM10199 | $114.15Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | THREAD GUIDE 400 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10208 | $18.04Read more |
| 17 | | THREAD GUIDE-THREE HOLE DM sewing machine part or accessory For Janome Models: QM15 SRV | QM13172 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | NUT-M4 SERRATED FLANGE ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10528 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | RULER BASE POST sewing machine part or accessory For Janome Models: QMPRO16 | QM11729 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SCREW, M5 X 14 SKC ZN sewing machine part or accessory For Janome Models: QMPRO16 | QM10176 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | MACHINE WHEEL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM10231 | $14.94Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SCREW-1/4-20 X 1.25 HEX ZN sewing machine part or accessory SCREW-1/4-20 X 1.25 HEX ZN | QM10766 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | WASHER - .031 X 1/4 X 3/8 sewing machine part or accessory WASHER - .031 X 1/4 X 3/8 | QM10188 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | SCREW-1/4-20X1 HEX ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10166 | $1.18Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | CLIP-P STYLE 1/8” NYLON sewing machine part or accessory For Janome Models: QM15 SRV | QM13142 | $1.91Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SCREW-M3X6 PHP ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM13216 | $0.20Read more |
| 28 |  | SCREW-M3X10 SKF ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM12012 | $0.40Read more |
| 29 | | POWER ENTRY MODULE W SWITCH sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20122 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Janome/Elna SCREW-M4 X 12 BUTTON HEAD For: QF01502-JA | QM13237 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | HAND-WHEEL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11004-JA | $34.61Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | HAND-WHEEL SCREW 15” sewing machine part or accessory For Janome Models: QM15 SRV | QM11007 | $25.20Add to cart Special order: ships in 2 to 4 weeks |

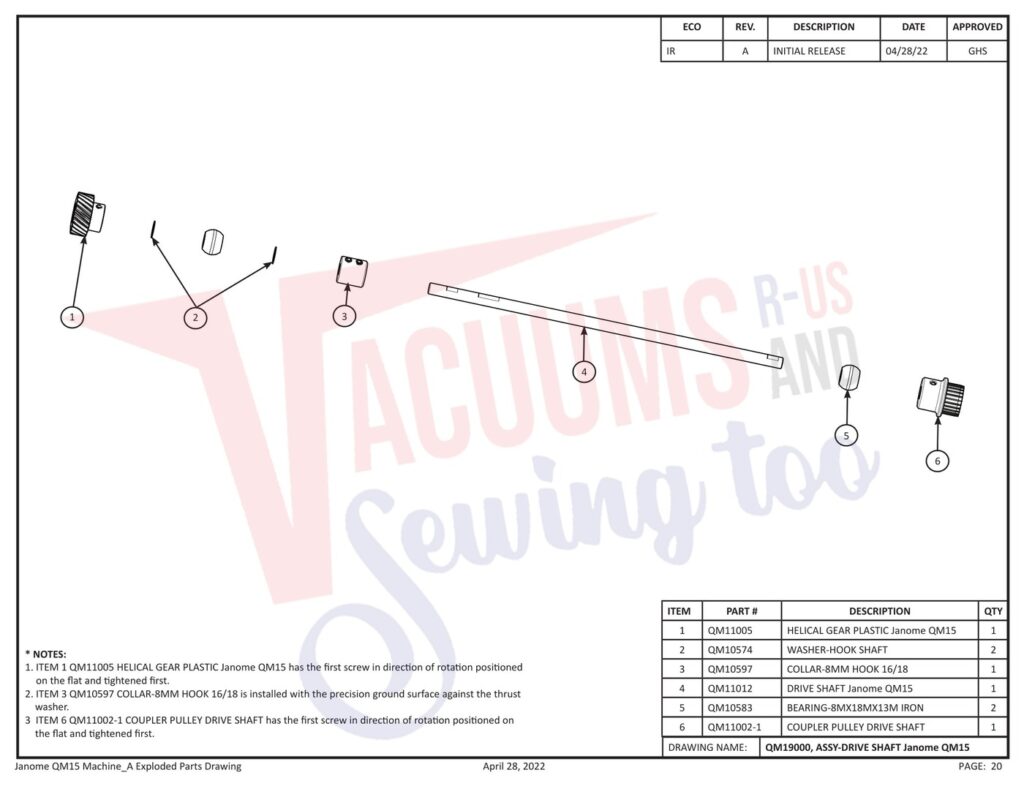

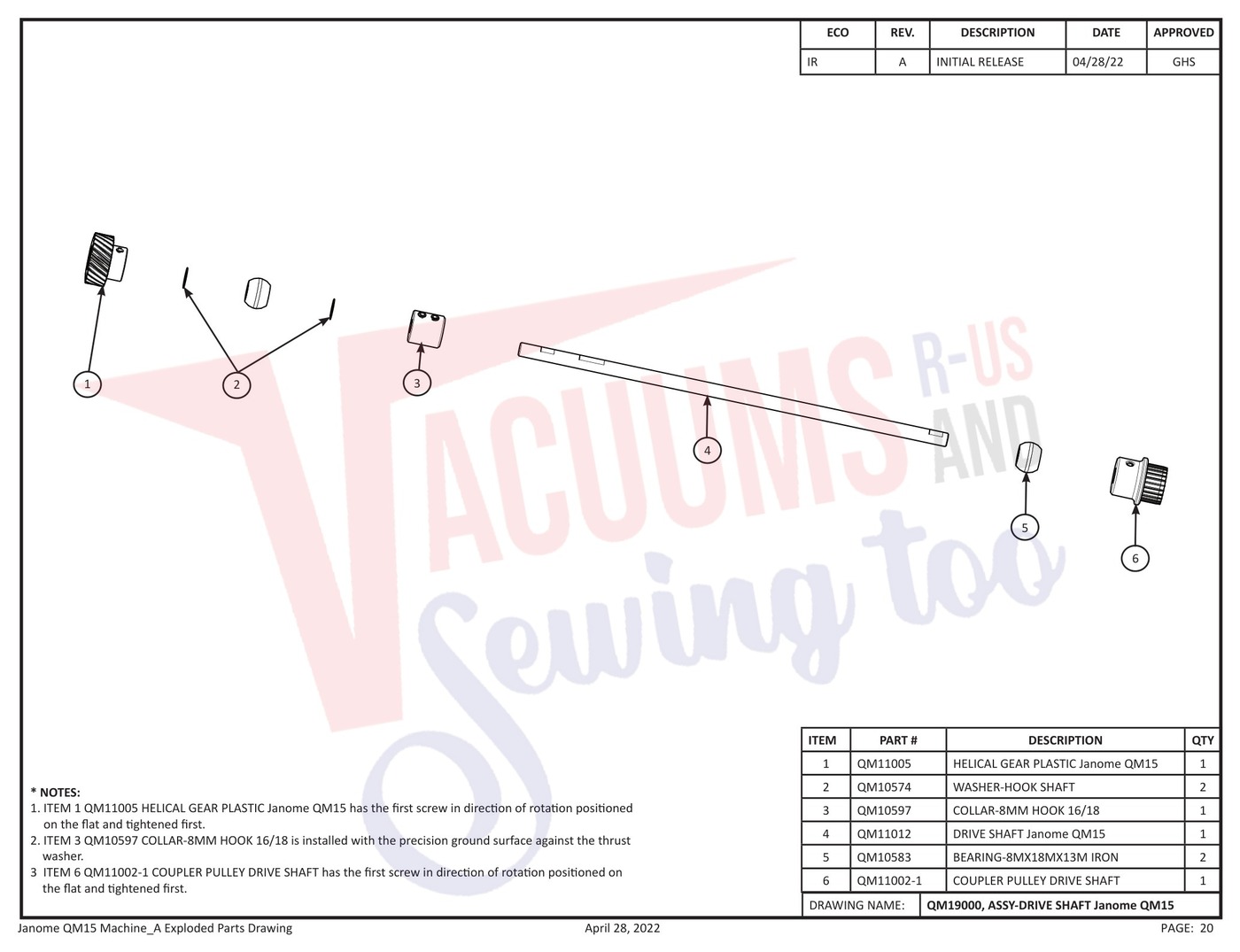

| # | Part image | Description | SKU | Price |
| 1 | | HELICAL GEAR PLASTIC Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11005 | $70.80Read more |
| 2 | | WASHER-HOOK SHAFT sewing machine part or accessory For Janome Models: QMPROVERSA | QM10574 | $1.40Read more |
| 3 | | COLLAR-8MM HOOK 16/18 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10597 | $27.69Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | DRIVE SHAFT Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11012 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | BEARING-8MM X 18MM X 13MM IRON sewing machine part or accessory For Janome Models: QMPROVERSA | QM10583 | $22.68Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | COUPLER PULLEY DRIVE SHAFT sewing machine part or accessory For Janome Models: QM15 SRV | QM11002-1 | $22.31Read more |
| # | Part image | Description | SKU | Price |

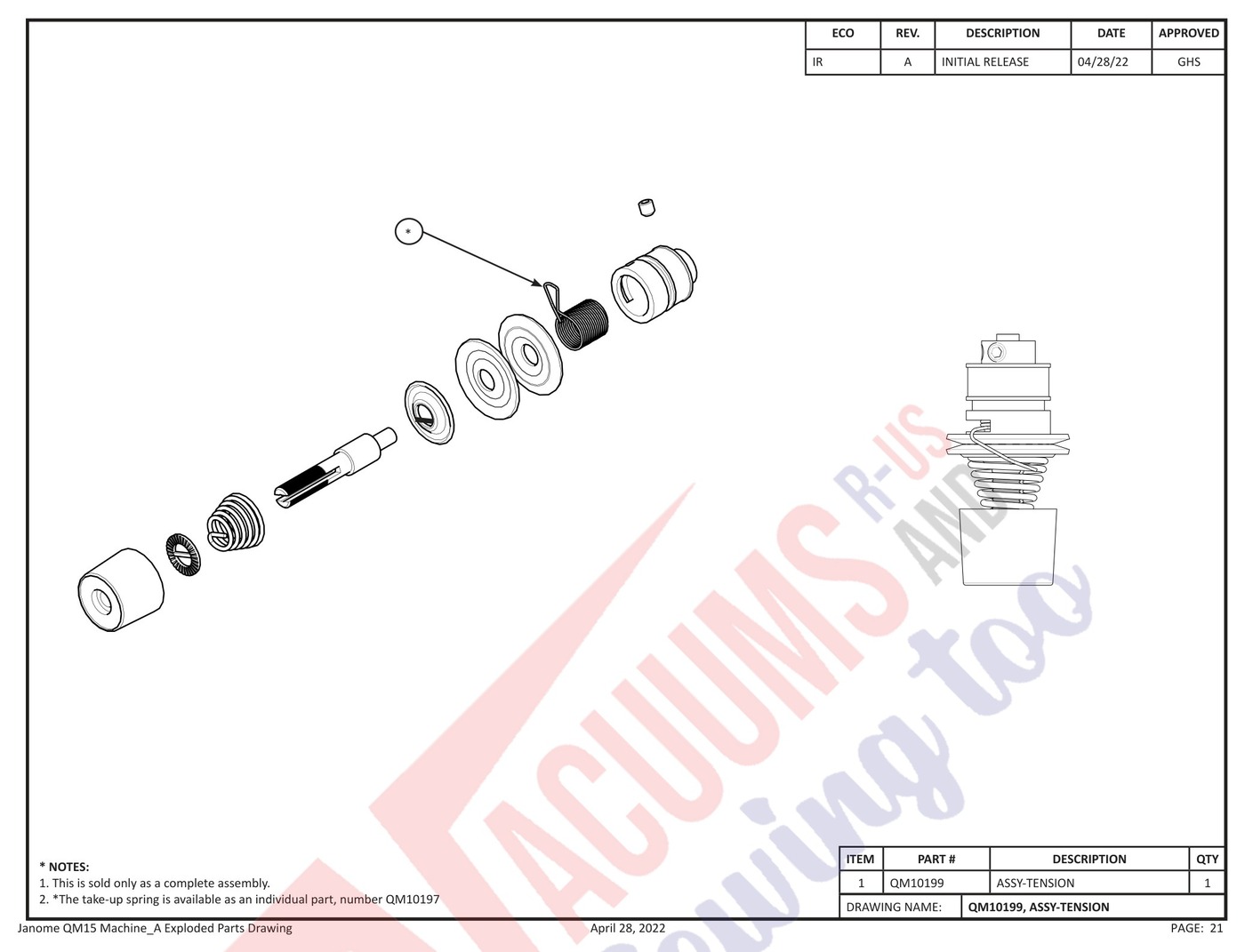

| 1 | | TENSION ASSEMBLY sewing machine part or accessory TENSION ASSEMBLY | QM10199 | $114.15Add to cart Special order: ships in 2 to 4 weeks |

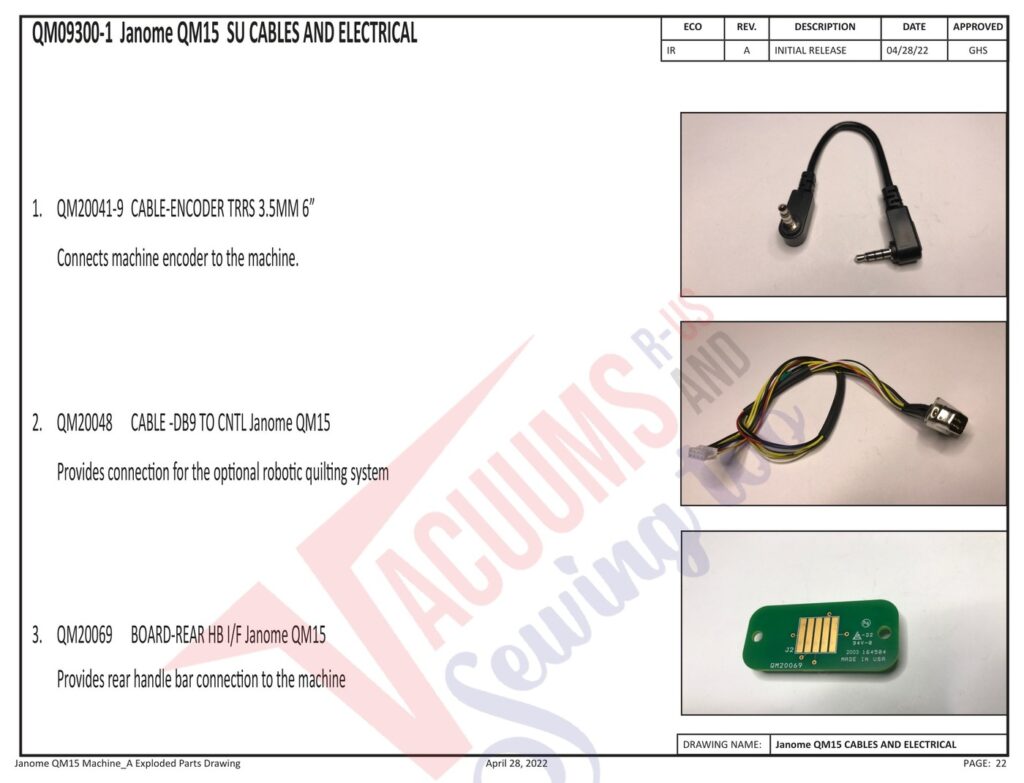

| # | Part image | Description | SKU | Price |

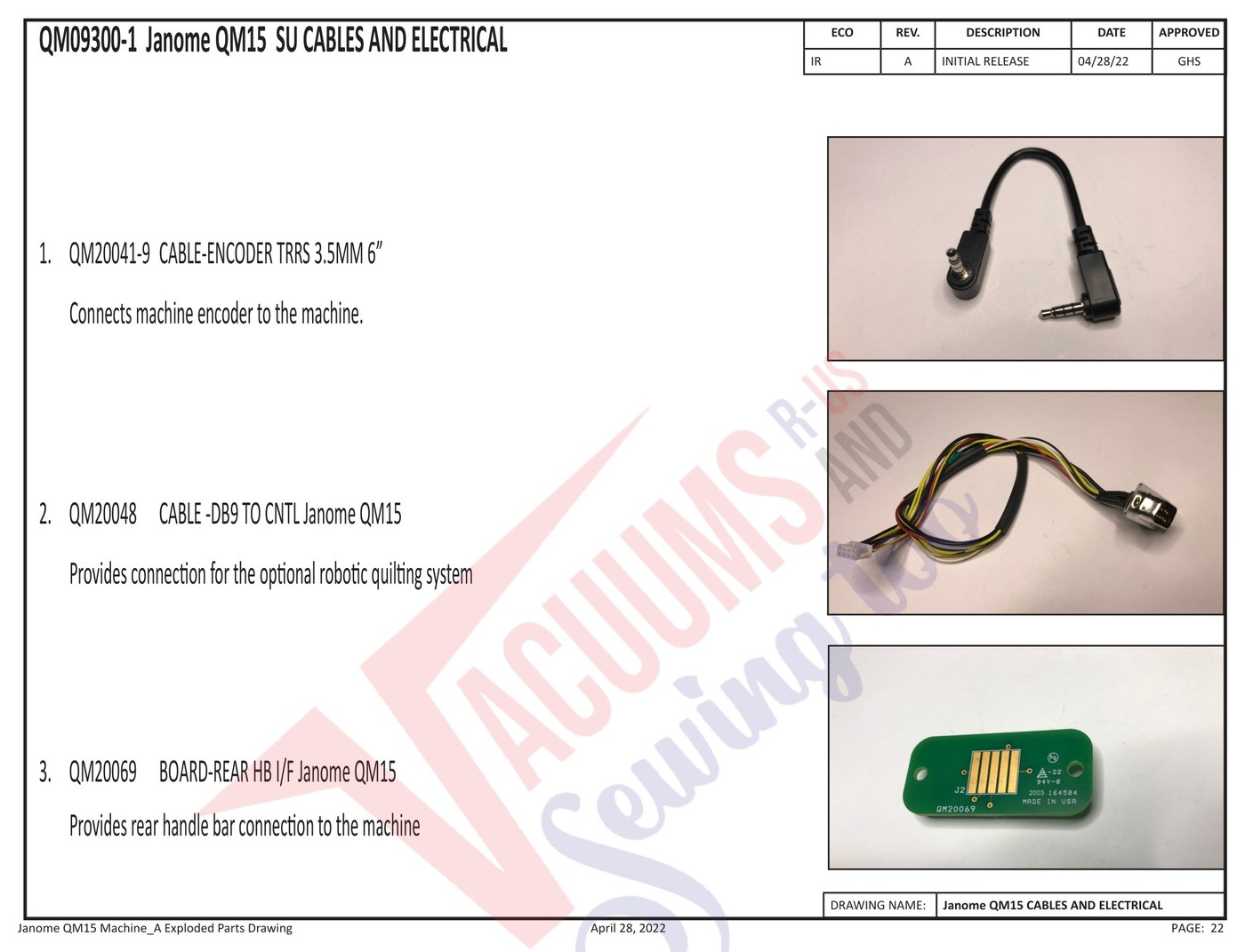

| 1 | | CABLE-ENCODER TRRS 3.5MM 6” sewing machine part or accessory For Janome Models: QM15 SRV | QM20041-9 | $32.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CABLE-DB9 TO CNTRL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20048 | $32.61Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | BOARD-REAR HB I/F Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20069 | $22.60Add to cart Special order: ships in 2 to 4 weeks |

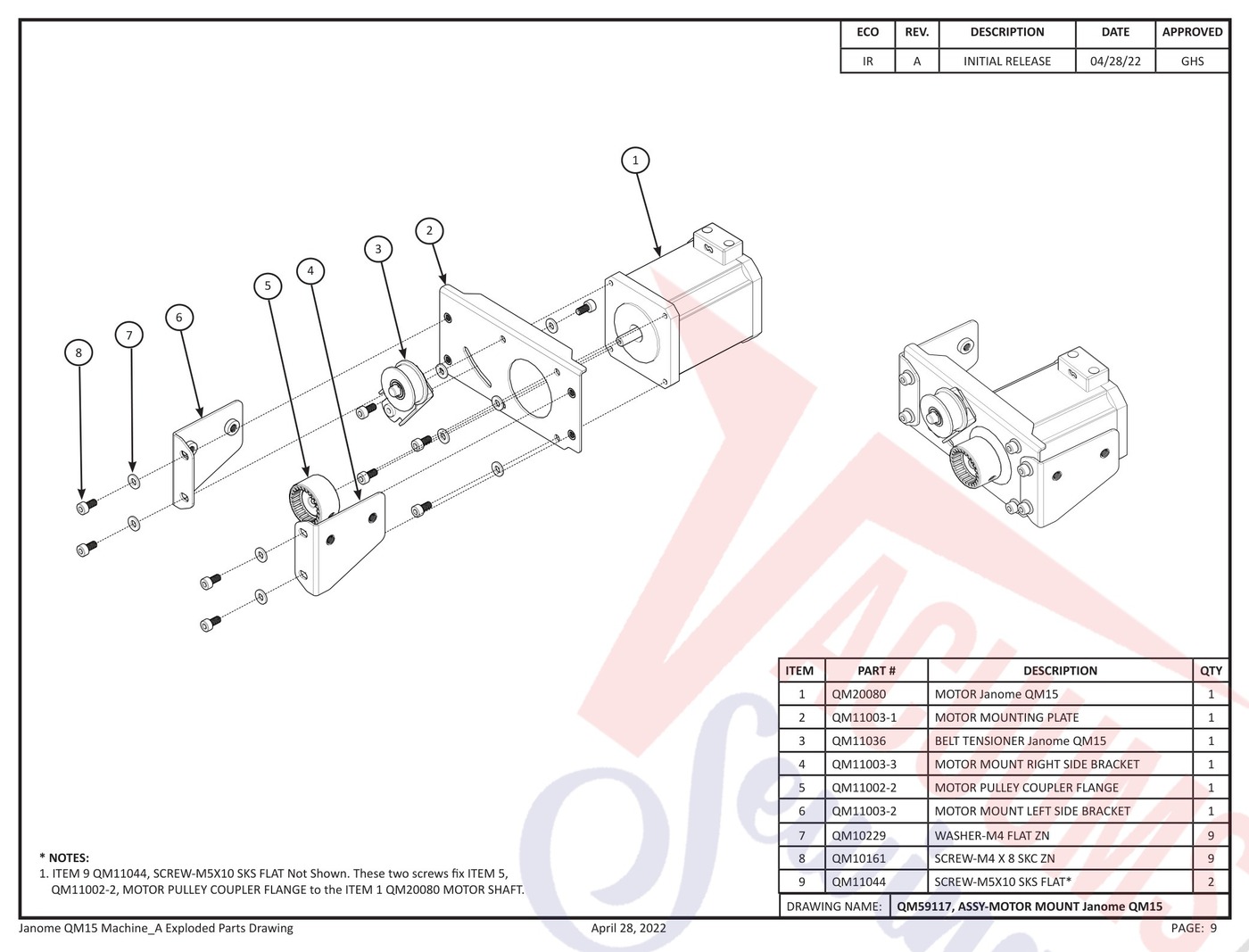

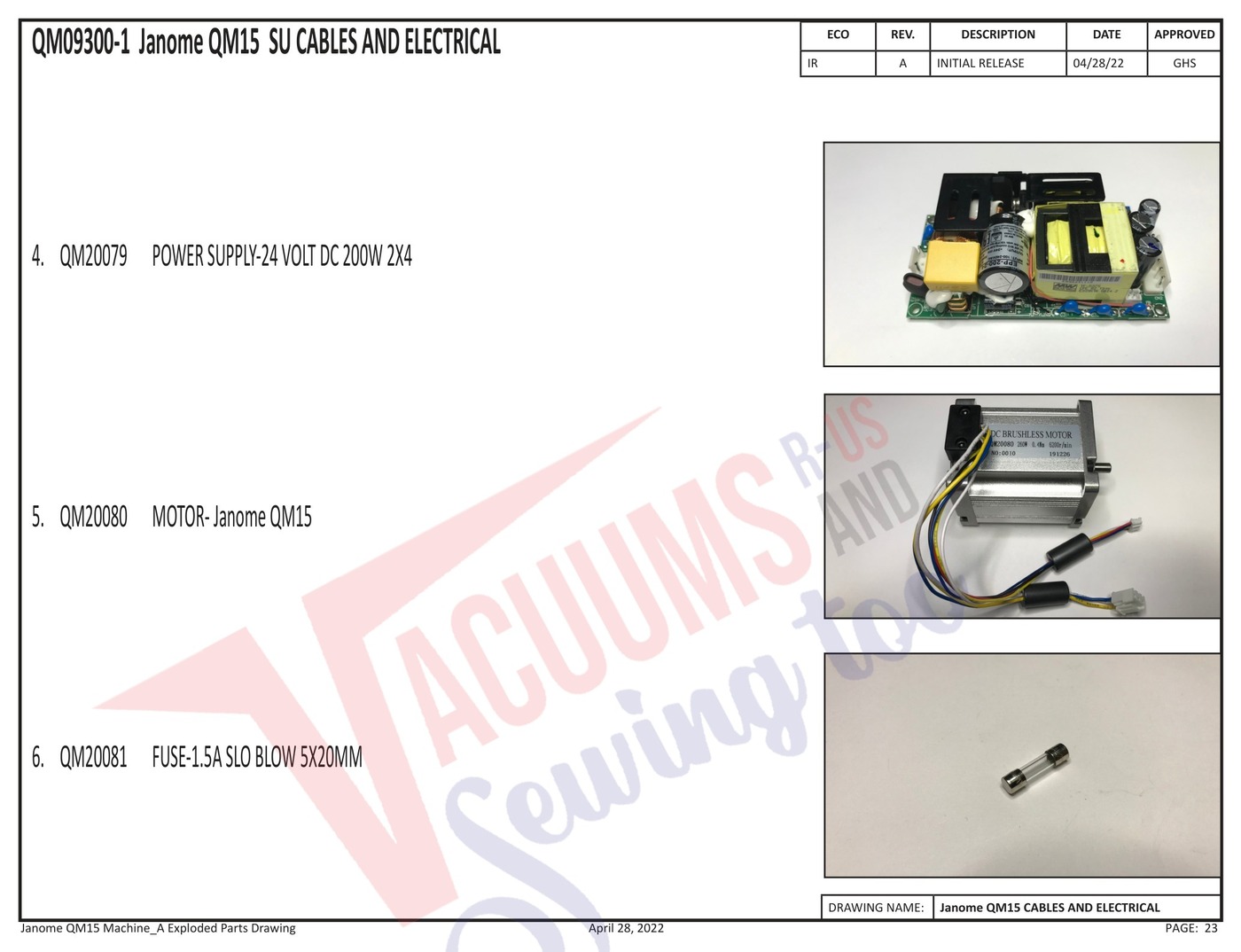

| # | Part image | Description | SKU | Price |
| 1 | | POWER SUPPLY 24VDC-200W 2X4 sewing machine part or accessory For Janome Models: QM15 SRV | QM20079 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | MOTOR Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20080 | $437.18Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | FUSE-1.6A SLO BLOW 5X20MM sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20081 | $2.28Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

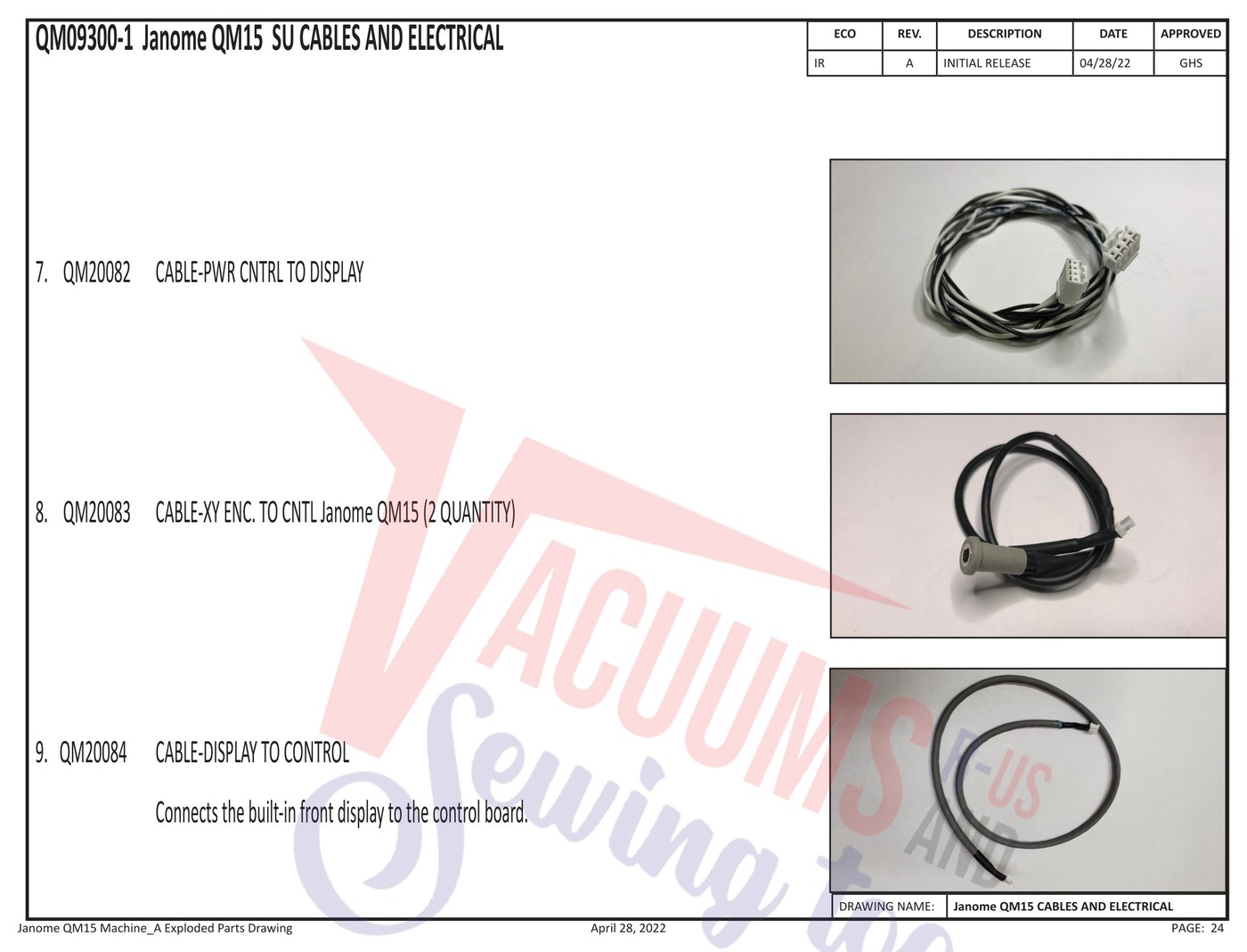

| 1 | | CABLE-PWR CNTRL TO DISPLAY sewing machine part or accessory For Janome Models: QM15 SRV | QM20082 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CABLE-XY ENCODER TO CNTL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20083 | $35.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | CABLE-DISPLAY TO CONTROL sewing machine part or accessory For Janome Models: QM15 SRV | QM20084 | $34.88Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

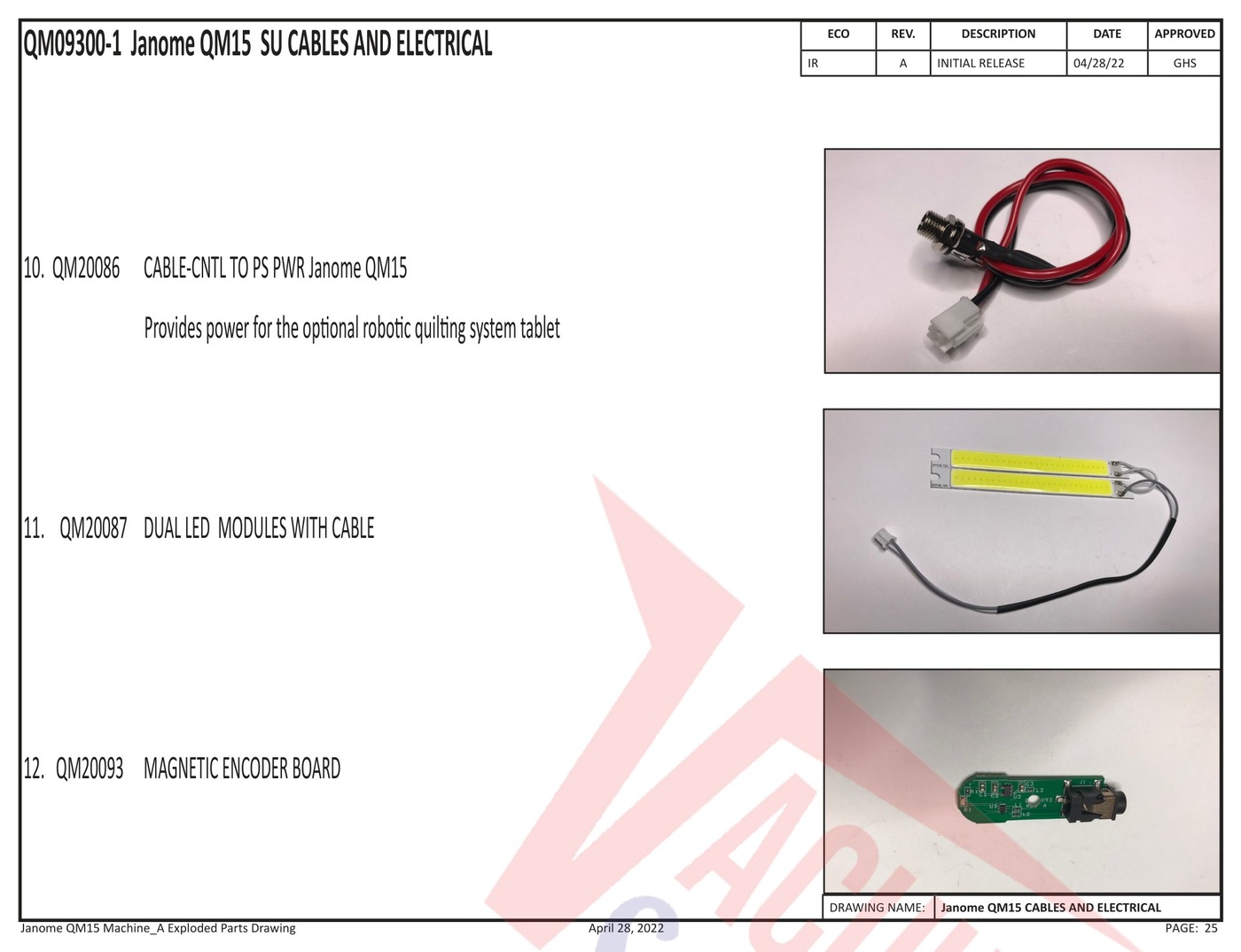

| 1 | | CABLE-CNTL TO PS PWR Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20086 | $22.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | DUAL LED MODULES WITH CABLE sewing machine part or accessory For Janome Models: QM15 SRV | QM20087 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | MAGNETIC ENCODER BOARD sewing machine part or accessory For Janome Models: QM15 SRV | QM20093 | $79.42Add to cart Special order: ships in 2 to 4 weeks |

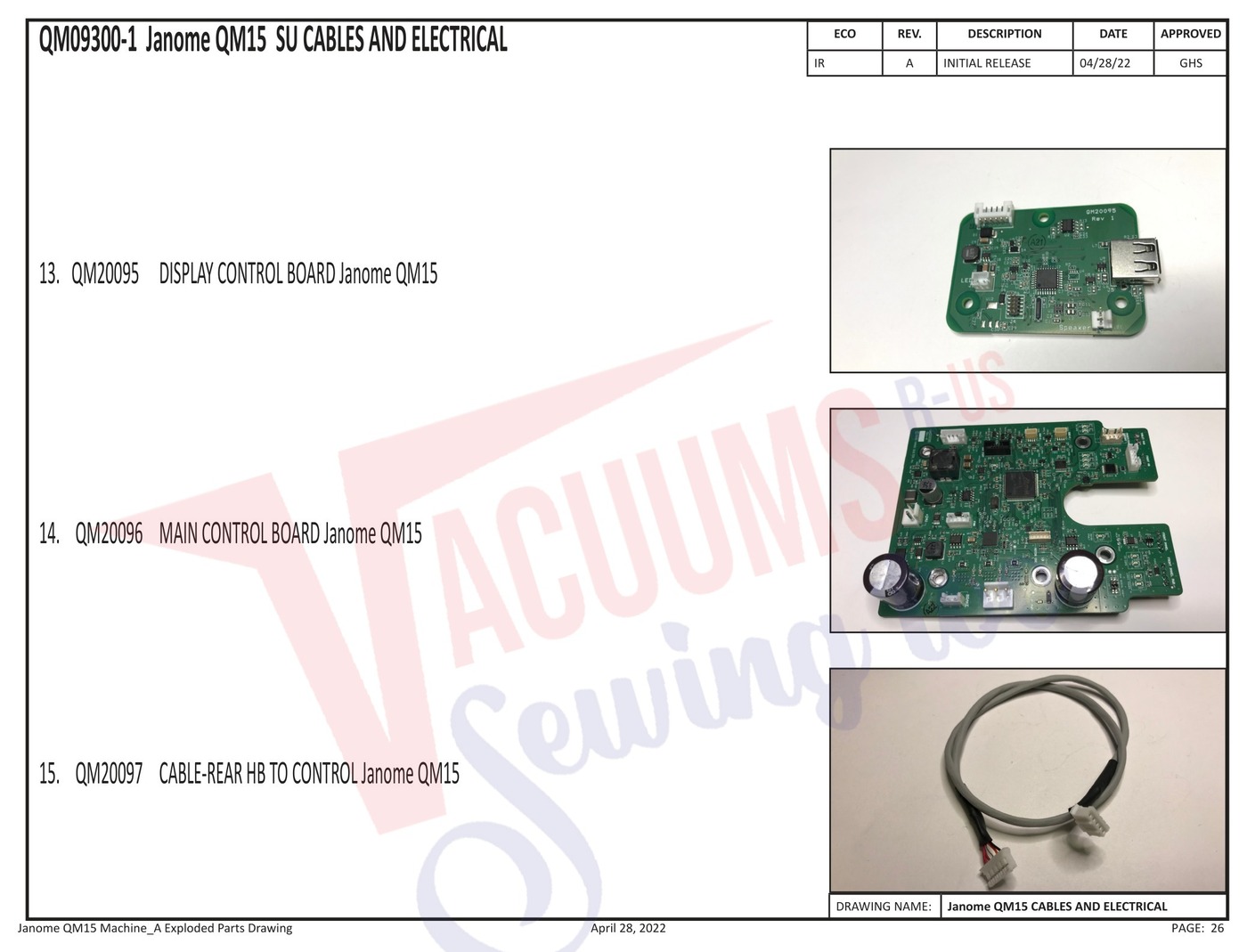

| # | Part image | Description | SKU | Price |
| 1 | | DISPLAY CONTROL BOARD Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20095 | $273.24Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | MAIN CONTROL BOARD Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20096 | $667.92Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | CABLE-REAR HB TO CONTROL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20097 | $29.42Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

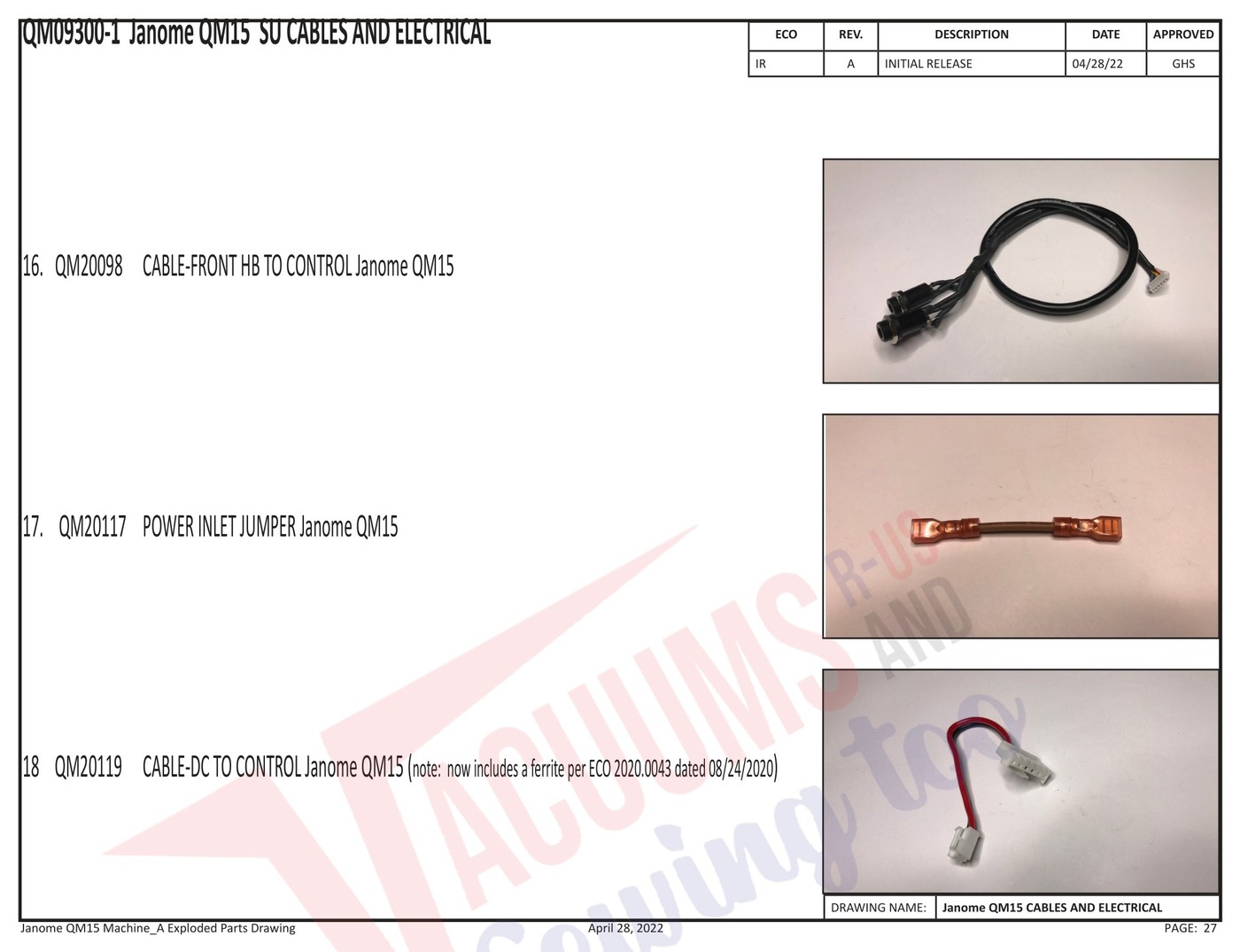

| 1 | | CABLE-FRONT HB TO CONTROL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20098 | $55.83Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | POWER INPUT JUMPER MOXIE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20117 | $9.11Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | CABLE-DC TO CONTROL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20119 | $24.59Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

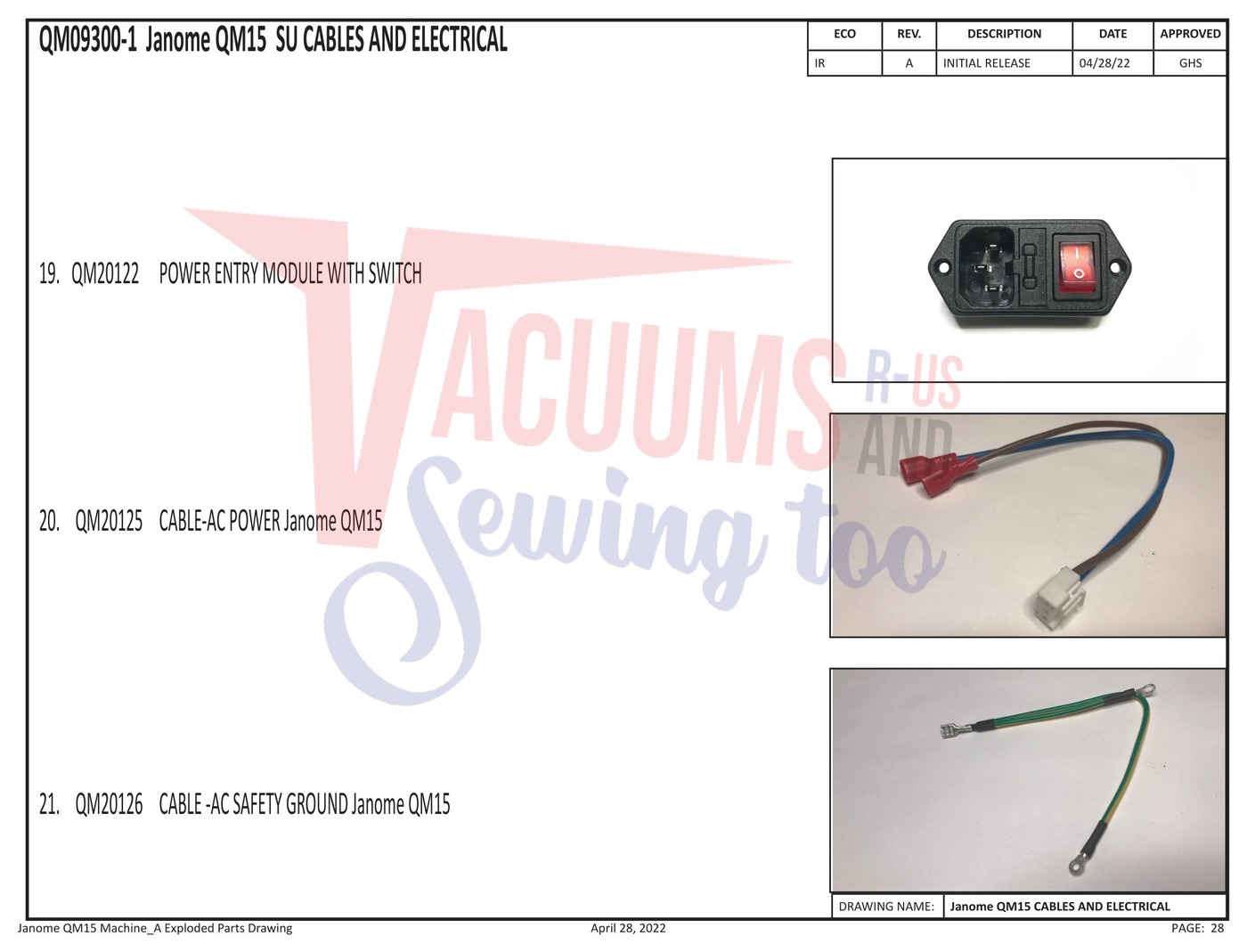

| 1 | | POWER ENTRY MODULE W SWITCH sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20122 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CABLE-AC POWER Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20125 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | CABLE -AC SAFETY GROUND Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20126 | $11.80Read more |
| # | Part image | Description | SKU | Price |
| 1 |  | SPEAKER sewing machine part or accessory For Janome Models: AQSD-16 | QM20804 | $17.12Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | LINE FILTER Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM23040 | $84.70Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

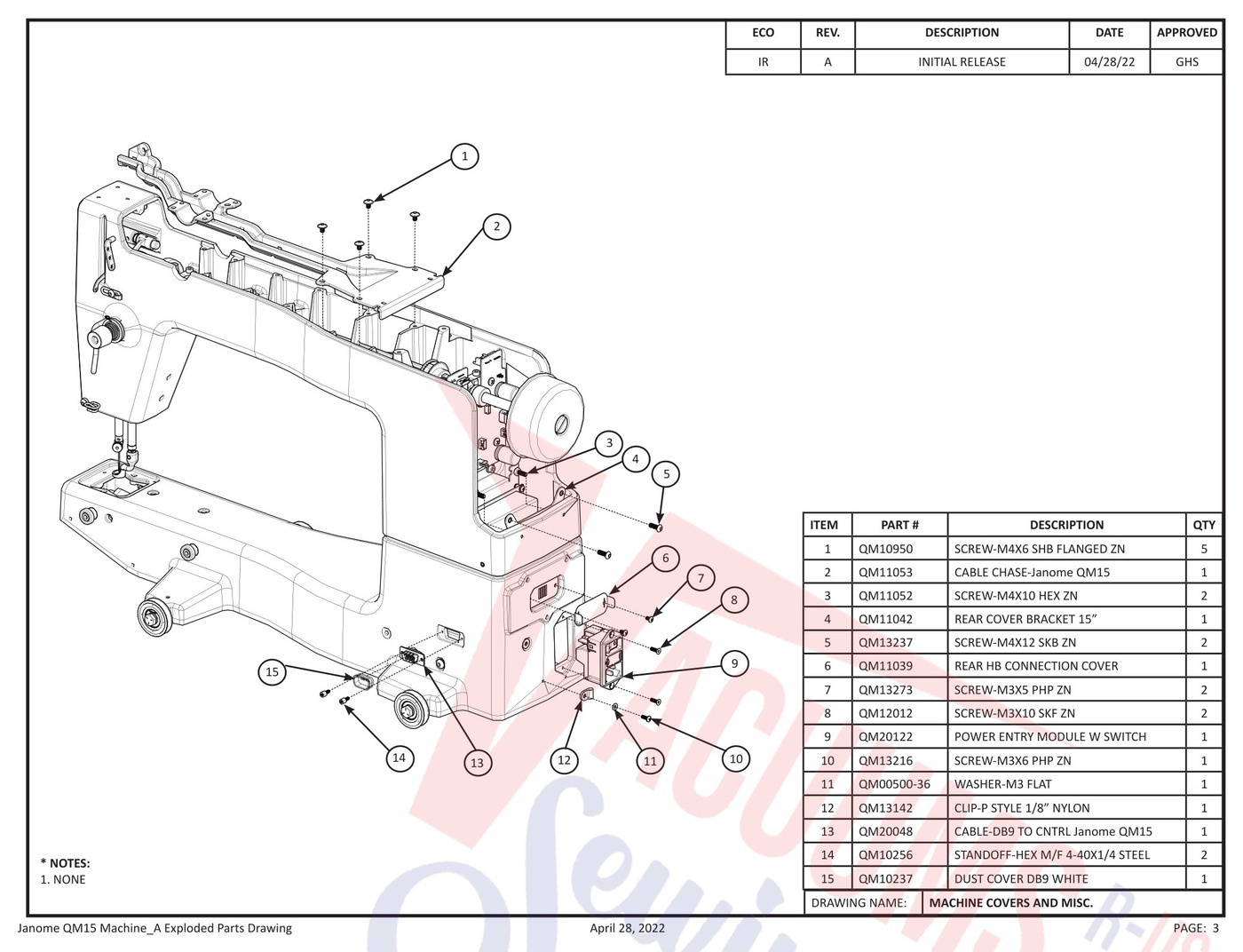

| 1 | | SCREW-M4X6 SHB SS FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10950 | $8.05Read more |
| 2 | | CABLE CHASE-Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11053 | $36.00Read more |
| 3 | Not Available | SCREW-M4X10 HEX ZN | QM11052 | Not Available |
| 4 | | REAR COVER BRACKET 15” sewing machine part or accessory For Janome Models: QM15 SRV | QM11042 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Genuine Janome/Elna SCREW-M4 X 12 BUTTON HEAD For: QF01502-JA | QM13237 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | REAR HB CONNECTION COVER sewing machine part or accessory For Janome Models: QM15 SRV | QM11039 | $10.38Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-M3X5 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13273 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SCREW-M3X10 SKF ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM12012 | $0.40Read more |
| 9 | | POWER ENTRY MODULE W SWITCH sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20122 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SCREW-M3X6 PHP ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM13216 | $0.20Read more |
| 11 | | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | CLIP-P STYLE 1/8” NYLON sewing machine part or accessory For Janome Models: QM15 SRV | QM13142 | $1.91Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | CABLE-DB9 TO CNTRL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20048 | $32.61Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | STANDOFF HEX M/F 4-40 X 1/4 STEEL sewing machine part or accessory For Janome Models: QMPROVERSA | QM10256 | $2.40Read more |
| 15 | | DUST COVER DB9 WHITE sewing machine part or accessory For Janome Models: QM15 SRV | QM10237 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

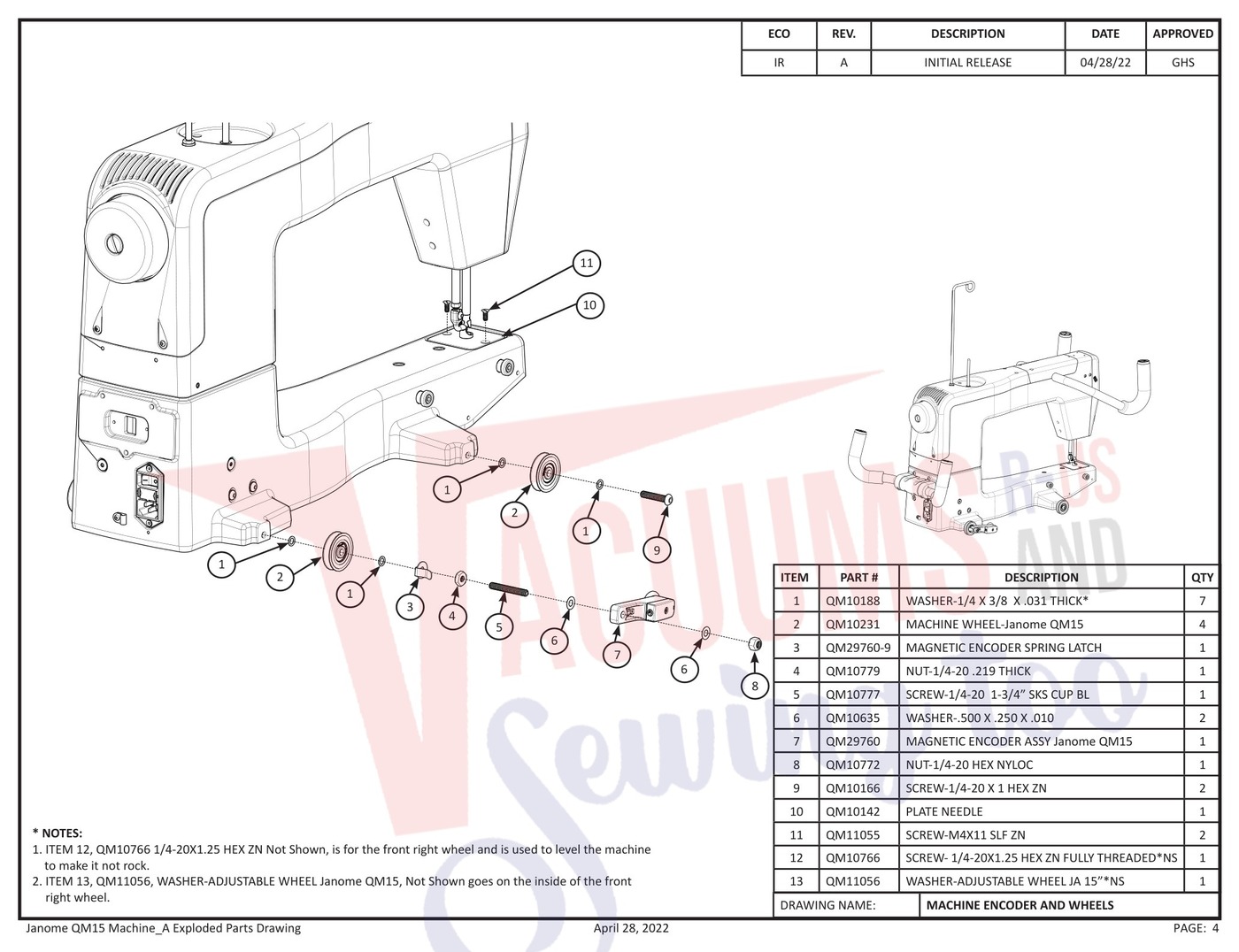

| 1 | | WASHER - .031 X 1/4 X 3/8 sewing machine part or accessory WASHER - .031 X 1/4 X 3/8 | QM10188 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | MACHINE WHEEL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM10231 | $14.94Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | MAGNETIC ENCODER SPRING LATCH sewing machine part or accessory For Janome Models: QM18 SRV | QM29760-9 | $14.94Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | NUT-1/4-20 .219 THICK sewing machine part or accessory For Janome Models: QM15 SRV | QM10779 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SCREW- 1/4-20 X 1-3/4/ SKS CUP BL sewing machine part or accessory For Janome Models: QMPRO16 | QM10777 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER-.500 X .250 X .010 sewing machine part or accessory For Janome Models: QMPRO16 | QM10635 | $5.19Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Magnetic Encoder Assy | QM29760 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | NUT-1/4-20 HEX NYLOC sewing machine part or accessory For Janome Models: QMPRO16 | QM10772 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SCREW-1/4-20X1 HEX ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10166 | $1.18Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | NEEDLE PLATE sewing machine part or accessory For Janome Models: QMPRO16 | QM10142 | $99.28Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SCREW-M4X11 SLF ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM11055 | $2.28Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SCREW-1/4-20 X 1.25 HEX ZN sewing machine part or accessory SCREW-1/4-20 X 1.25 HEX ZN | QM10766 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | WASHER-ADJUSTABLE WHEEL JA 15”*NS sewing machine part or accessory For Janome Models: QM15 SRV | QM11056 | $13.66Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

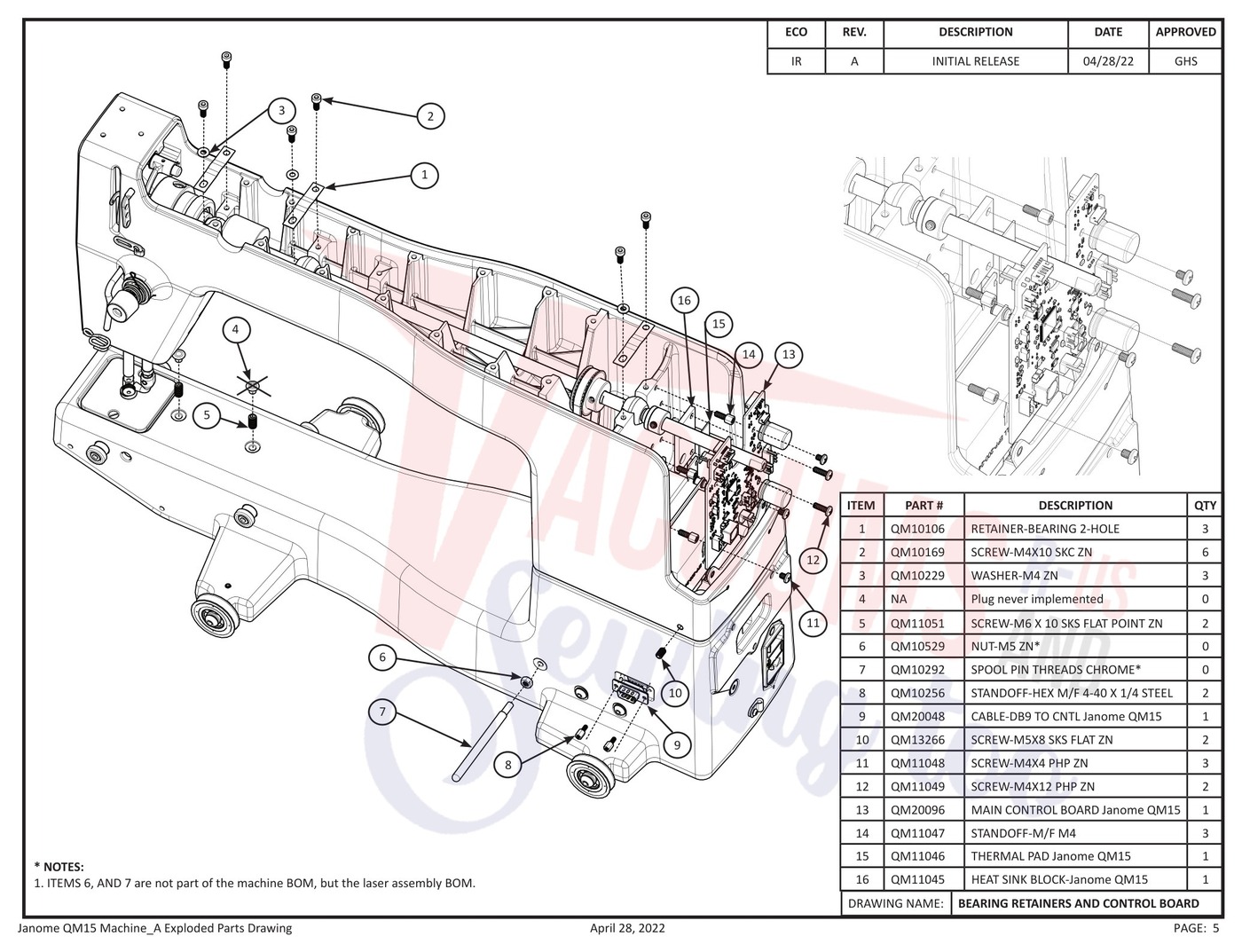

| 1 |  | RETAINER BEARING TWO HOLE sewing machine part or accessory For Janome Models: QMPROVERSA | QM10106 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SCREW-M4X10 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10169 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Part Not Listed | BLANK | Not Available |
| 5 | | SCREW-M6 X 10 SKS FLAT POINT ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM11051 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | NUT, M5 sewing machine part or accessory For Janome Models: QMPROVERSA | QM10529 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SPOOL PIN THREADS CHROME sewing machine part or accessory For Janome Models: QM15 SRV | QM10292 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | STANDOFF HEX M/F 4-40 X 1/4 STEEL sewing machine part or accessory For Janome Models: QMPROVERSA | QM10256 | $2.40Read more |
| 9 | | CABLE-DB9 TO CNTRL Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20048 | $32.61Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SCREW-M5X8 SKS FLAT ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM13266 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SCREW-M4X4 PHP ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM11048 | $2.09Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SCREW-M4X12 PHP ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM11049 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | MAIN CONTROL BOARD Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20096 | $667.92Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | STANDOFF-M/F M4 sewing machine part or accessory For Janome Models: QM15 SRV | QM11047 | $5.80Read more |
| 15 | | THERMAL PAD Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11046 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | HEAT SINK BLOCK-Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11045 | $145.73Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

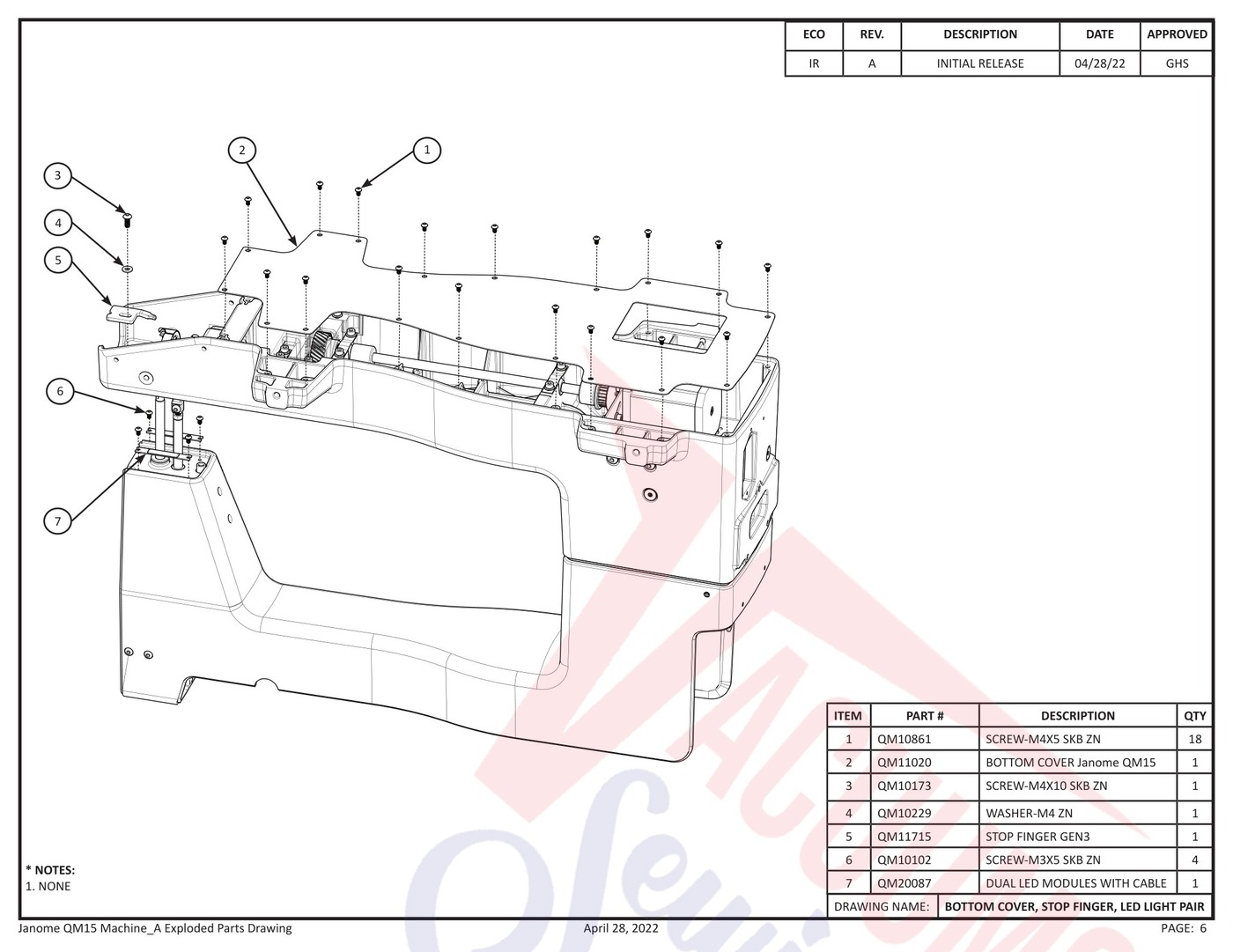

| 1 | | SCREW-M4X5 SKB ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10861 | $3.73Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | BOTTOM COVER Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11020 | $178.70Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SCREW-M4 X 10 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10173 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | STOP FINGER GEN3 sewing machine part or accessory For Janome Models: QM15 SRV | QM11715 | $76.93Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SCREW-M3X5 SKB ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10102 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | DUAL LED MODULES WITH CABLE sewing machine part or accessory For Janome Models: QM15 SRV | QM20087 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

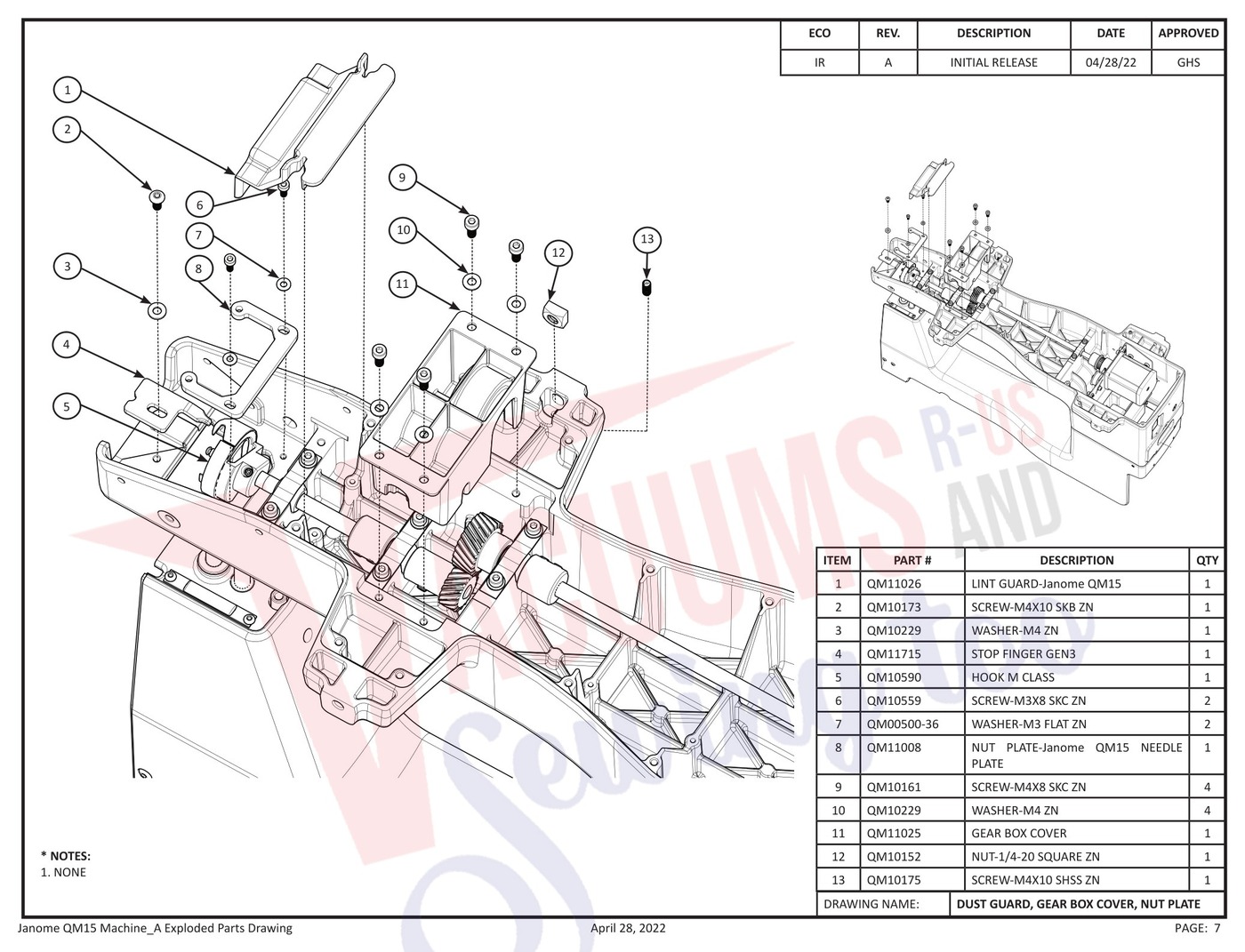

| 1 | | LINT GUARD-Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11026 | $11.48Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SCREW-M4 X 10 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10173 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | STOP FINGER GEN3 sewing machine part or accessory For Janome Models: QM15 SRV | QM11715 | $76.93Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Hook M Class | QM10590 | $364.32Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SCREW-M3X8 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10559 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | NUT PLATE-Janome QM15 NEEDLE PLATE sewing machine part or accessory For Janome Models: QM15 SRV | QM11008 | $32.97Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Screw-M4x8 SKC ZN sewing machine part or accessory For Janome Models: QT09015 | QM10161 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | GEAR BOX COVER sewing machine part or accessory For Janome Models: QM15 SRV | QM11025 | $3.73Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | NUT-1/4-20 SQUARE ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10152 | $4.46Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | SCREW-M4X10 SHSS ZN sewing machine part or accessory For Janome Models: QM15 SRV | QM10175 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | SCREW-M4X10 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10169 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | RETAINER BEARING TWO HOLE sewing machine part or accessory For Janome Models: QMPROVERSA | QM10106 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | ASSY-HOOK SHAFT Janome QM15 | QM19001 | Not Available |
| 5 | Not Available | ASSY- DRIVE SHAFT Janome QM15 | QM19000 | Not Available |
| 6 | | WASHER M5 sewing machine part or accessory For Janome Models: QM00512 | QM10250 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-M5 X 12 SKB SS sewing machine part or accessory | QM12017 | $0.80Read more |
| 8 | | TIMING BELT - 15” MACHINE sewing machine part or accessory For Janome Models: QM15 SRV | QM11033 | $58.84Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | ASSY-MOTOR MOUNT Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM59117 | $48.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

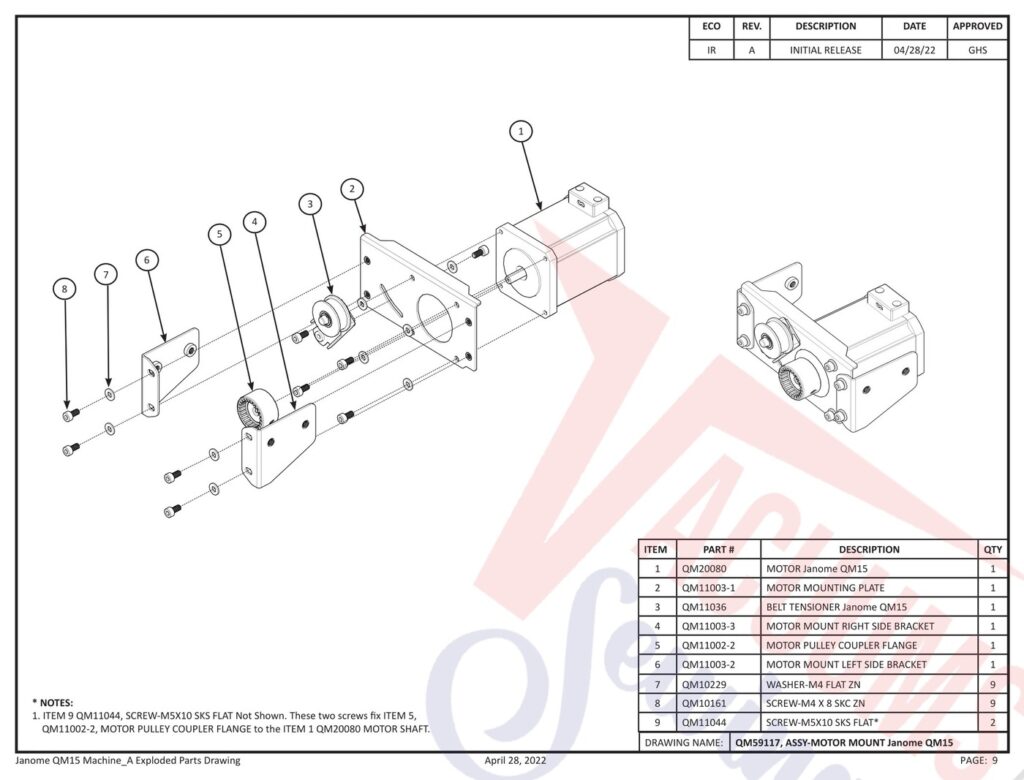

| 1 | | MOTOR Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM20080 | $437.18Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | MOTOR MOUNTING PLATE sewing machine part or accessory For Janome Models: QM15 SRV | QM11003-1 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | BELT TENSIONER Janome QM15 sewing machine part or accessory For Janome Models: QM15 SRV | QM11036 | $89.50Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | MOTOR MOUNT RIGHT SIDE BRACKET sewing machine part or accessory For Janome Models: QM15 SRV | QM11003-3 | $18.58Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | MOTOR PULLEY COUPLER FLANGE sewing machine part or accessory For Janome Models: QM15 SRV | QM11002-2 | $32.20Read more |
| 6 | | MOTOR MOUNT LEFT SIDE BRACKET sewing machine part or accessory For Janome Models: QM15 SRV | QM11003-2 | $18.58Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Screw-M4x8 SKC ZN sewing machine part or accessory For Janome Models: QT09015 | QM10161 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SCREW-M5X10 SKS FLAT* sewing machine part or accessory For Janome Models: QM15 SRV | QM11044 | $0.80Read more |
Report errors on this page HERE
