Schematic and parts book for Janome PROSTITCHER-LITE 15, Prostitcher lite 15 PROSTITCHER-LITE 15, Prostitcher lite 15. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

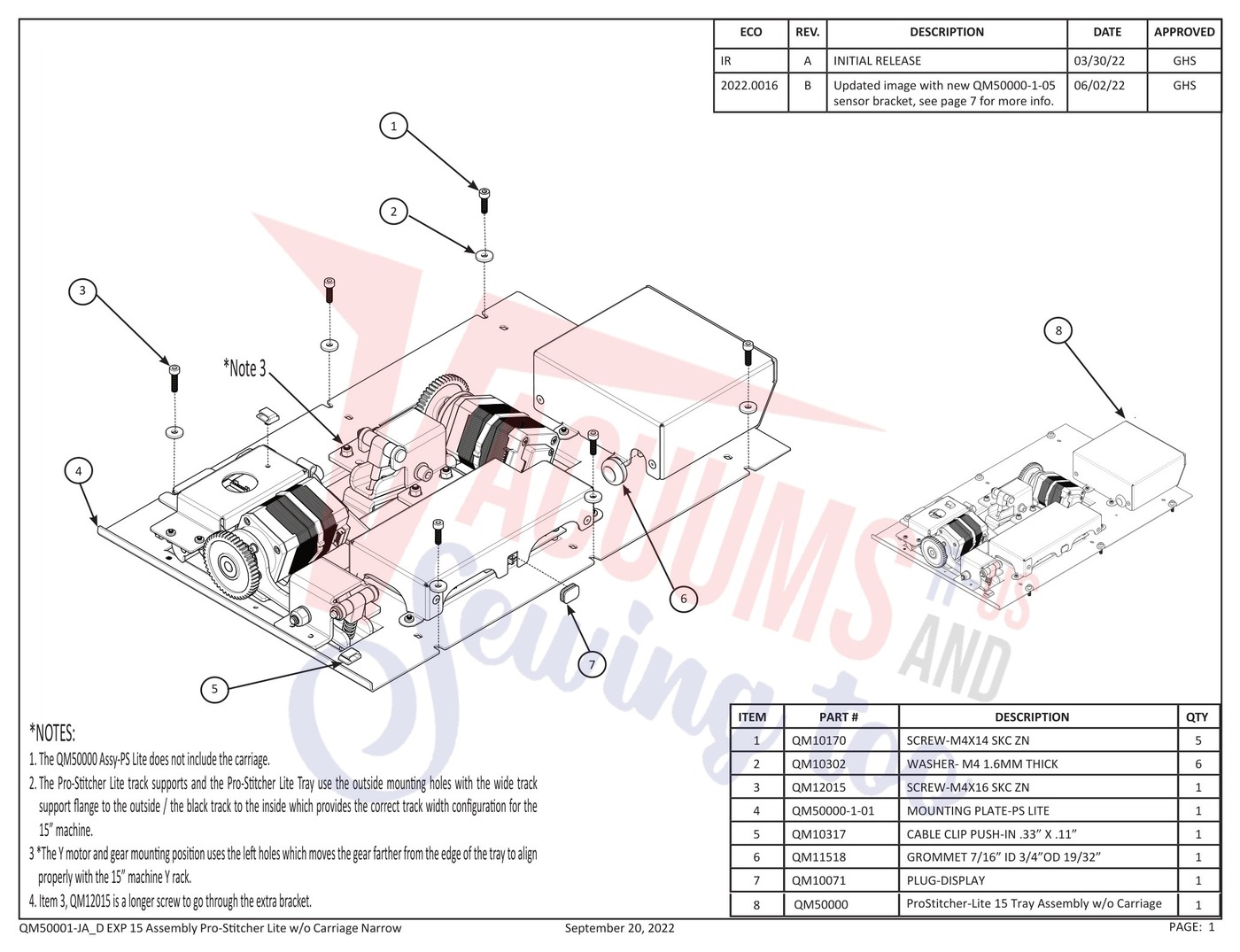

| # | Part image | Description | SKU | Price |
| 1 |  | SCREW-M4X14 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10170 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | WASHER- M4 1.6MM THICK sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SCREW- M4 X 16 SKC SS sewing machine part or accessory For Janome Models: QMPRO16 | QM12015 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | MOUNTING PLATE-PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-1-01 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | CABLE CLIP PUSH-IN .33” X .11” sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10317 | $5.06Read more |
| 6 | | GROMMET-7/16 ID 3/4 O 19/32 IN sewing machine part or accessory For Janome Models: QMPRO20 Front ... | QM11518 | $4.80Read more |
| 7 | | PLUG-DISPLAY sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM10071 | $10.19Read more |
| 8 | No Image | Ps Lite Tray Asse W/O Carriage | QM50000 | $6,679.20Add to cart Special order: ships in 2 to 4 weeks |

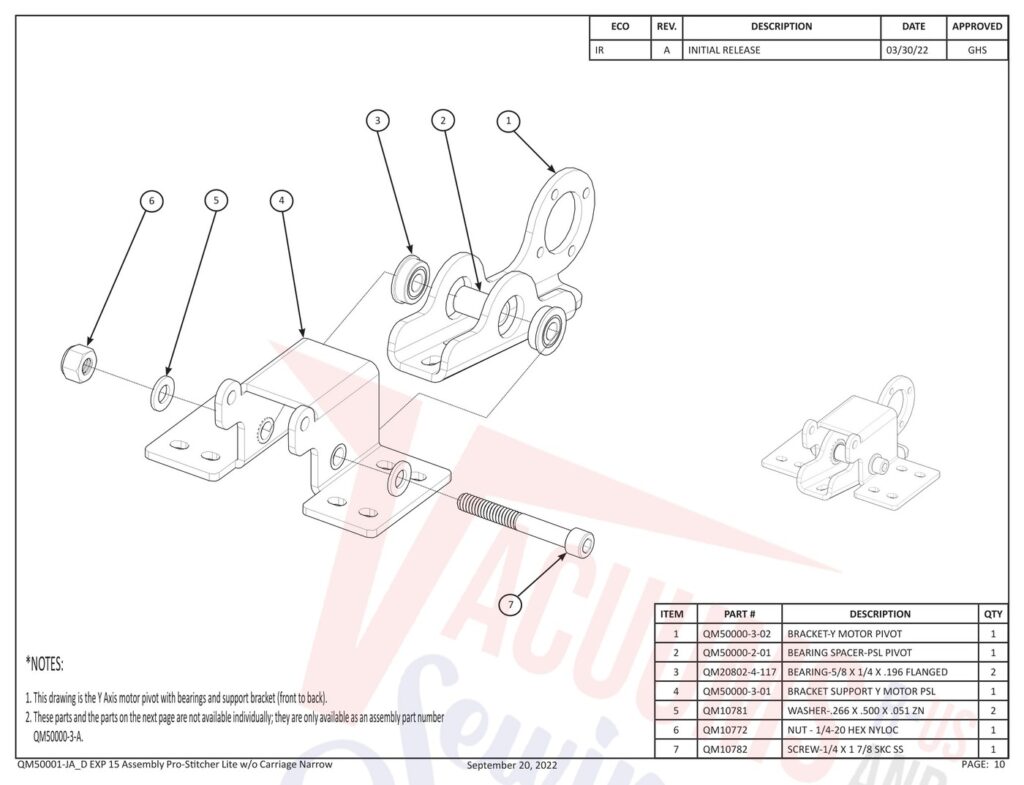

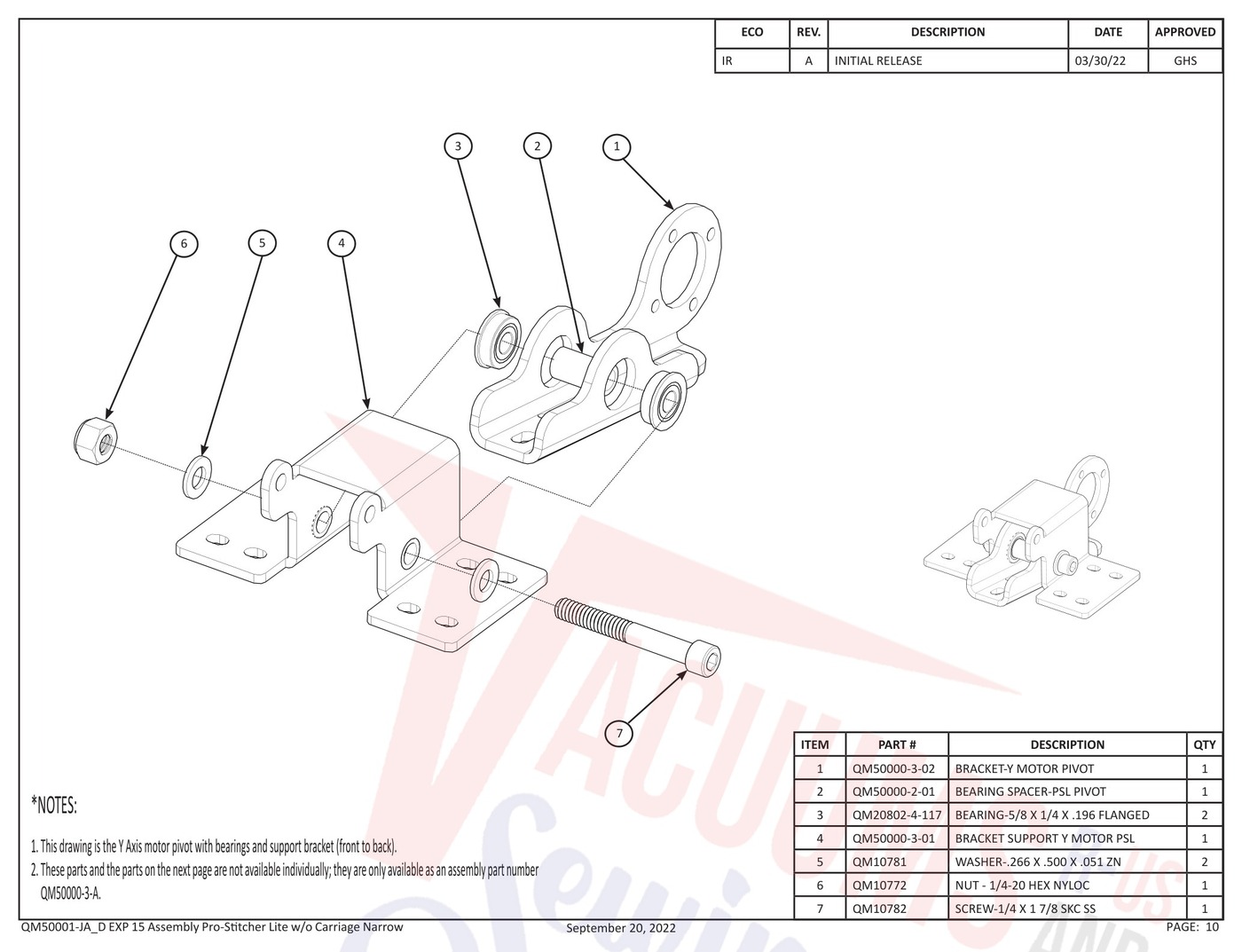

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BRACKET-Y MOTOR PIVOT | QM50000-3-02 | Not Available |
| 2 | | BEARING SPACER-PSL PIVOT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-01 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | BEARING-5/8 X 1/4 X 196 FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-117 | $64.58Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | BRACKET SUPPORT Y MOTOR PSL | QM50000-3-01 | Not Available |
| 5 | | WASHER-.266 X .500 X .051 ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10781 | $0.00Read more |
| 6 | | NUT-1/4-20 HEX NYLOC sewing machine part or accessory For Janome Models: QMPRO16 | QM10772 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-1/4 X 1 7/8 SKC SS sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10782 | $0.00Read more |

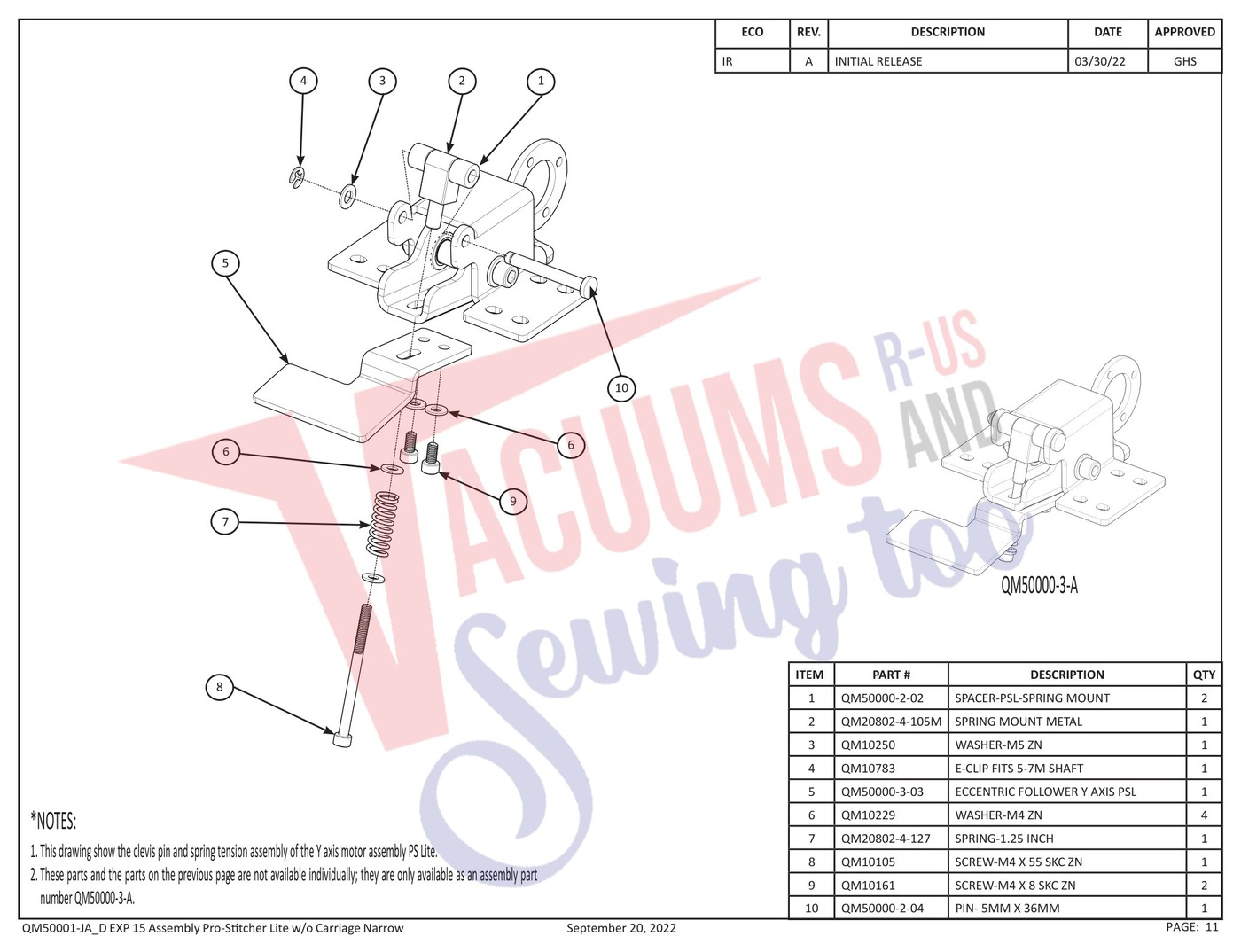

| # | Part image | Description | SKU | Price |
| 1 | | SPACER-PSL-SPRING MOUNT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-02 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SPRING MOUNT METAL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20802-4-105M | $9.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | WASHER M5 sewing machine part or accessory For Janome Models: QM00512 | QM10250 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | E-CLIP FITS 5-7M SHAFT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10783 | $0.00Read more |
| 5 | | ECCENTRIC FOLLOWER Y AXIS PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-3-03 | $51.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SPRING-1.25IN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-127 | $22.31Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | SCREW-M4 X 55 SKC ZN | QM10105 | Not Available |
| 9 | | Screw-M4x8 SKC ZN sewing machine part or accessory For Janome Models: QT09015 | QM10161 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | PIN- 5MM X 36MM sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-04 | $9.20Add to cart Special order: ships in 2 to 4 weeks |

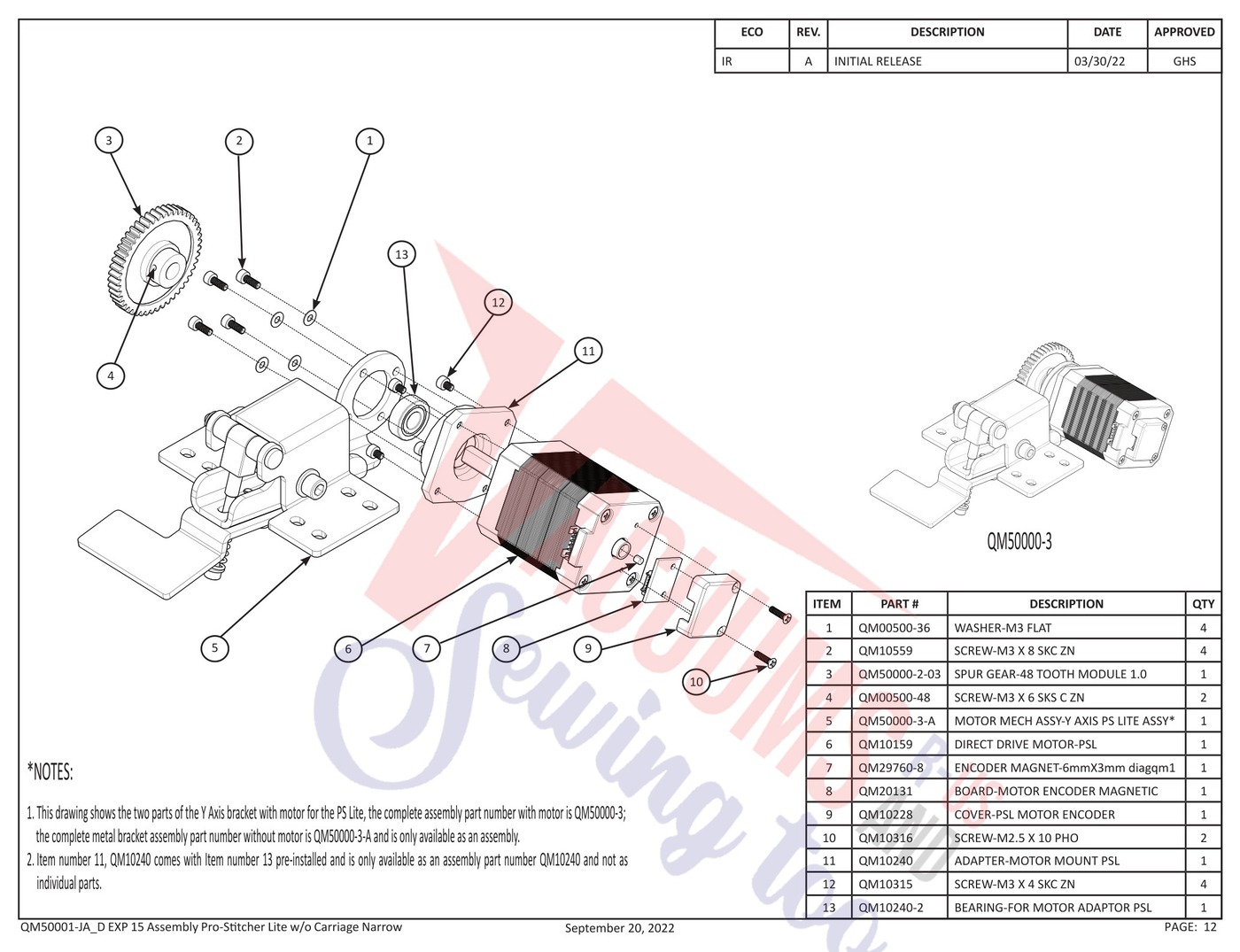

| # | Part image | Description | SKU | Price |
| 1 |  | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW-M3X8 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10559 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SPUR GEAR-48 TOOTH MODULE 1.0 sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-03 | $42.00Read more |
| 4 | | SCREW-M3X4 SKS C ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-48 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | MOTOR MECH ASSY-Y AXIS PS LITE ASSY* sewing machine part or accessory For Janome Models: PROSTITC... | QM50000-3-A | $364.32Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | DIRECT DRIVE MOTOR-PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10159 | $248.95Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ENCODER MAGNET-6mmX3mm diagqm1 sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM29760-8 | $2.60Read more |
| 8 | | BOARD-MOTOR ENCODER MAGNETIC sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20131 | $79.42Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | COVER-PSL MOTOR ENCODER sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10228 | $7.40Read more |
| 10 | | SCREW-M2.5 X 10 PHO sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10316 | $0.60Read more |
| 11 | | ADAPTER-MOTOR MOUNT PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10240 | $74.20Read more |
| 12 | | SCREW-M3 X 4 SKC ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10315 | $1.20Read more |
| 13 | | BEARING-FOR MOTOR ADAPTOR PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10240-2 | $0.00Read more |

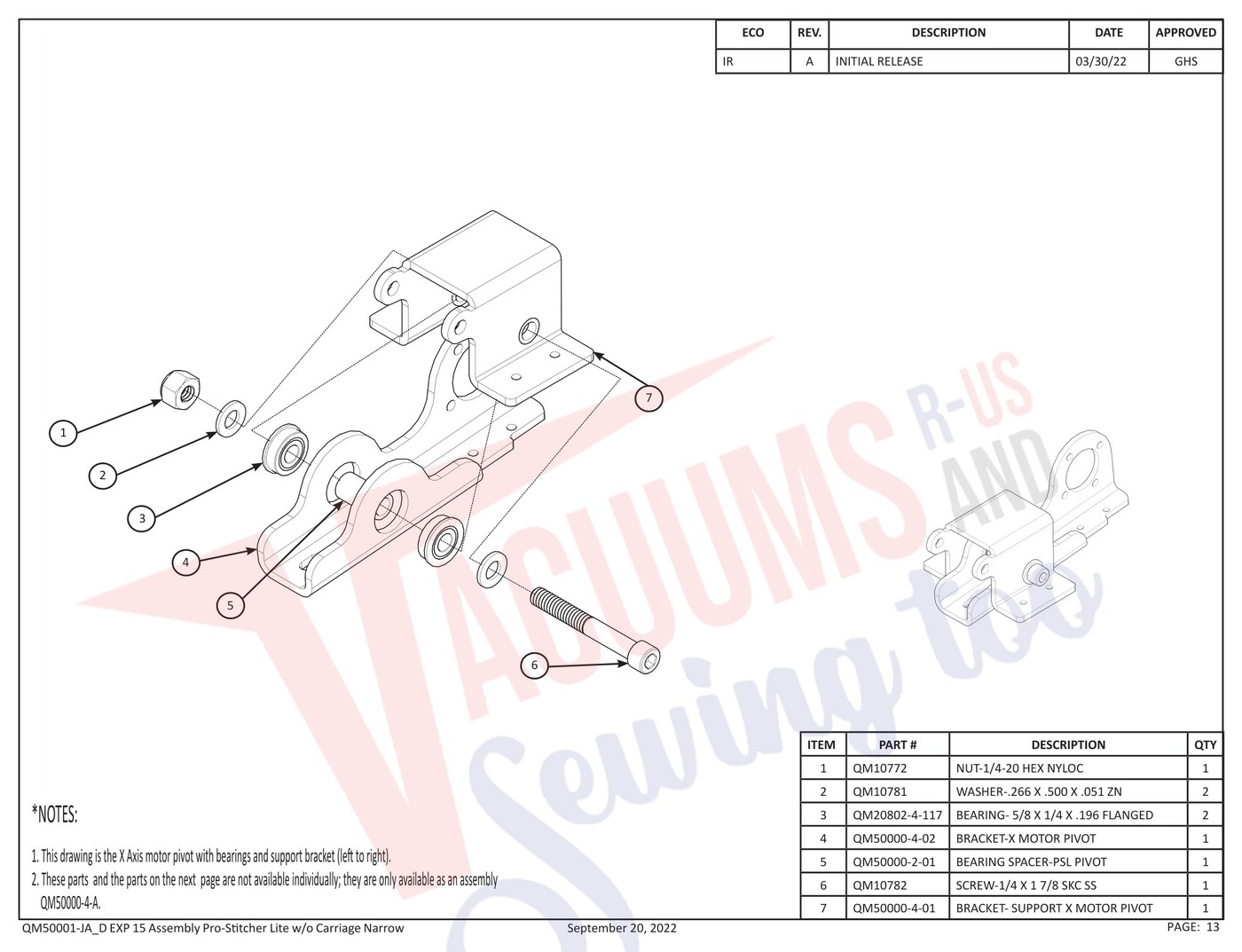

| # | Part image | Description | SKU | Price |
| 1 | | NUT-1/4-20 HEX NYLOC sewing machine part or accessory For Janome Models: QMPRO16 | QM10772 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | WASHER-.266 X .500 X .051 ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10781 | $0.00Read more |
| 3 | | BEARING-5/8 X 1/4 X 196 FLANGED sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-117 | $64.58Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | BRACKET-X MOTOR PIVOT | QM50000-4-02 | Not Available |
| 5 | | BEARING SPACER-PSL PIVOT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-01 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SCREW-1/4 X 1 7/8 SKC SS sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10782 | $0.00Read more |
| 7 | Not Available | BRACKET- SUPPORT X MOTOR PIVOT | QM50000-4-01 | Not Available |

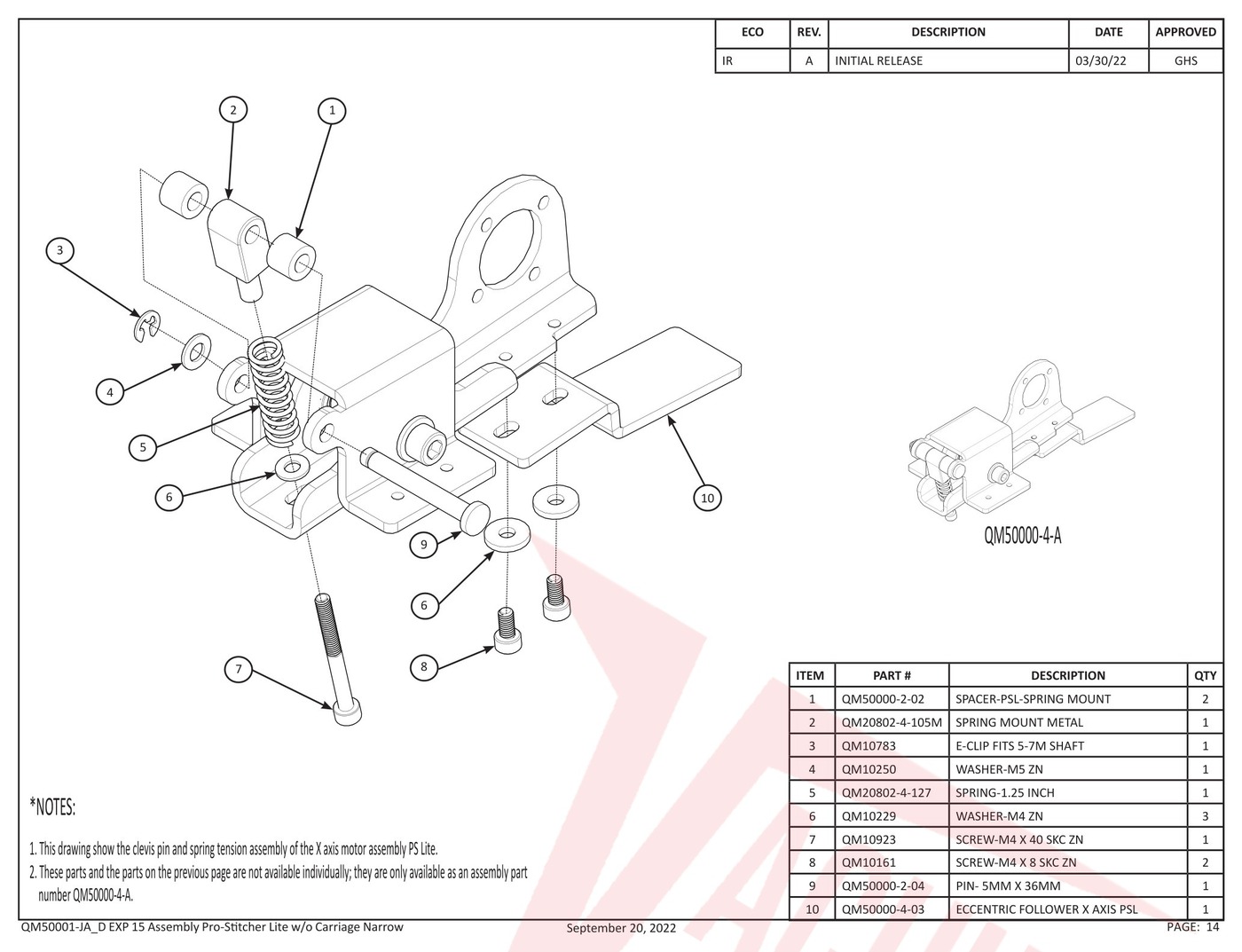

| # | Part image | Description | SKU | Price |
| 1 | | SPACER-PSL-SPRING MOUNT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-02 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SPRING MOUNT METAL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20802-4-105M | $9.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | E-CLIP FITS 5-7M SHAFT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10783 | $0.00Read more |
| 4 | | WASHER M5 sewing machine part or accessory For Janome Models: QM00512 | QM10250 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SPRING-1.25IN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-127 | $22.31Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-M4 X 40 SKC ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10923 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Screw-M4x8 SKC ZN sewing machine part or accessory For Janome Models: QT09015 | QM10161 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | PIN- 5MM X 36MM sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-04 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | ECCENTRIC FOLLOWER X AXIS PSL | QM50000-4-03 | Not Available |

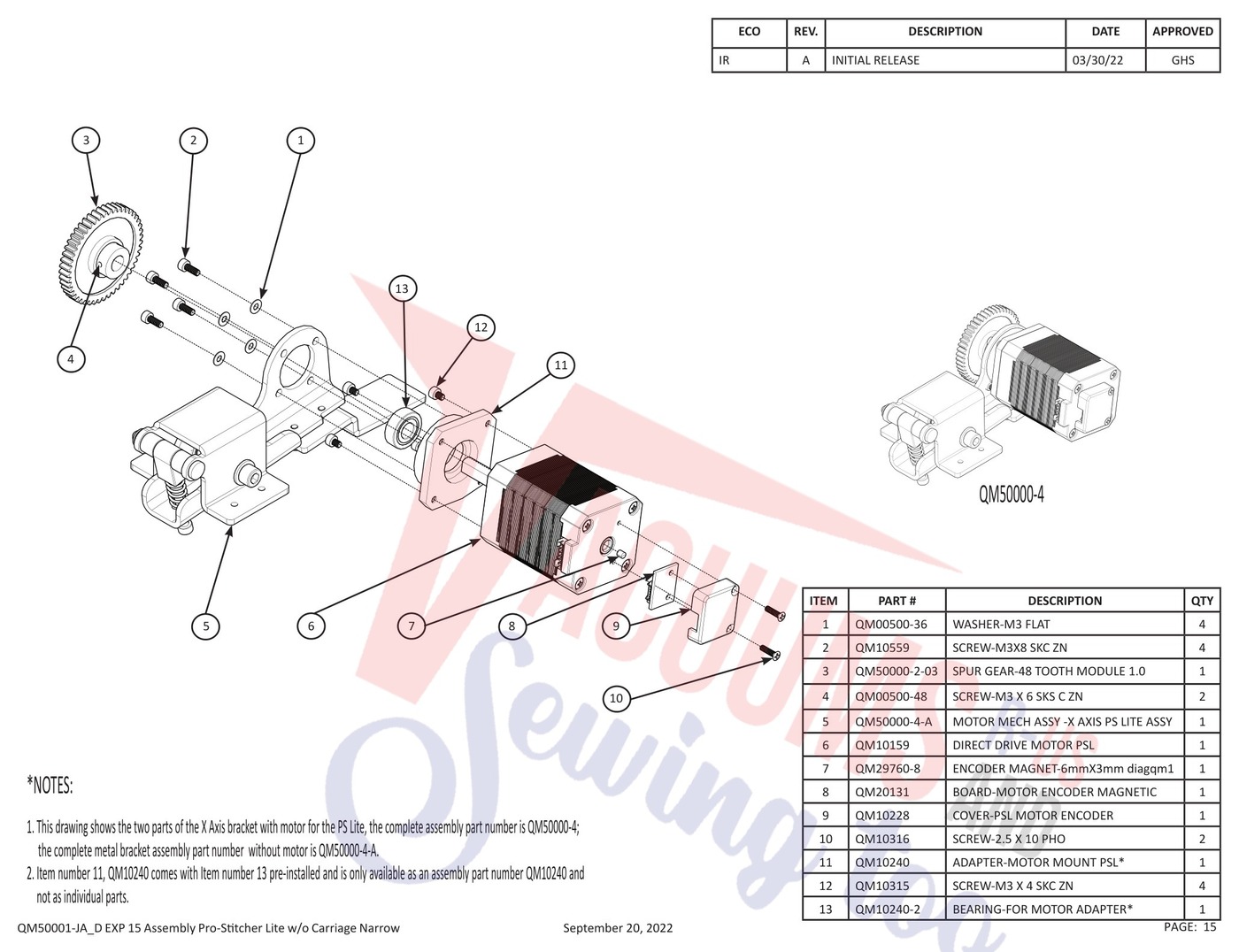

| # | Part image | Description | SKU | Price |
| 1 | | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SCREW-M3X8 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10559 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SPUR GEAR-48 TOOTH MODULE 1.0 sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-2-03 | $42.00Read more |
| 4 | | SCREW-M3X4 SKS C ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-48 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | MOTOR MECH ASSY -X AXIS PS LITE ASSY sewing machine part or accessory For Janome Models: PROSTITC... | QM50000-4-A | $364.32Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | DIRECT DRIVE MOTOR-PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10159 | $248.95Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ENCODER MAGNET-6mmX3mm diagqm1 sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM29760-8 | $2.60Read more |
| 8 | | BOARD-MOTOR ENCODER MAGNETIC sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20131 | $79.42Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | COVER-PSL MOTOR ENCODER sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10228 | $7.40Read more |
| 10 | | SCREW-M2.5 X 10 PHO sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10316 | $0.60Read more |
| 11 | | ADAPTER-MOTOR MOUNT PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10240 | $74.20Read more |
| 12 | | SCREW-M3 X 4 SKC ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10315 | $1.20Read more |
| 13 | | BEARING-FOR MOTOR ADAPTOR PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10240-2 | $0.00Read more |

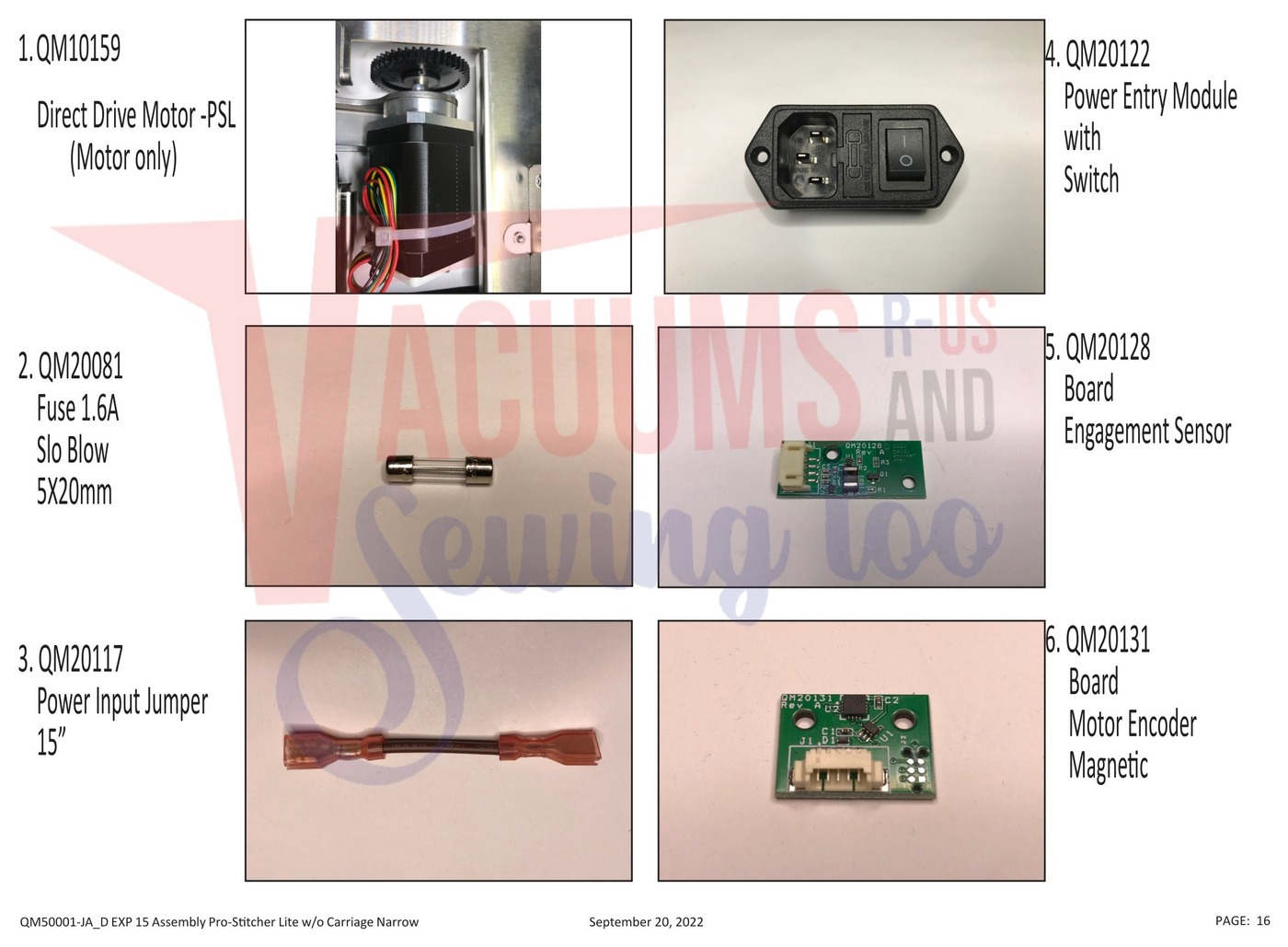

| # | Part image | Description | SKU | Price |
| 1 | | DIRECT DRIVE MOTOR-PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10159 | $248.95Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | FUSE-1.6A SLO BLOW 5X20MM sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20081 | $2.28Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | POWER INPUT JUMPER MOXIE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20117 | $9.11Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | POWER ENTRY MODULE W SWITCH sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20122 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | BOARD-ENGAGEMENT SENSOR sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20128 | $74.44Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | BOARD-MOTOR ENCODER MAGNETIC sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20131 | $79.42Add to cart Special order: ships in 2 to 4 weeks |

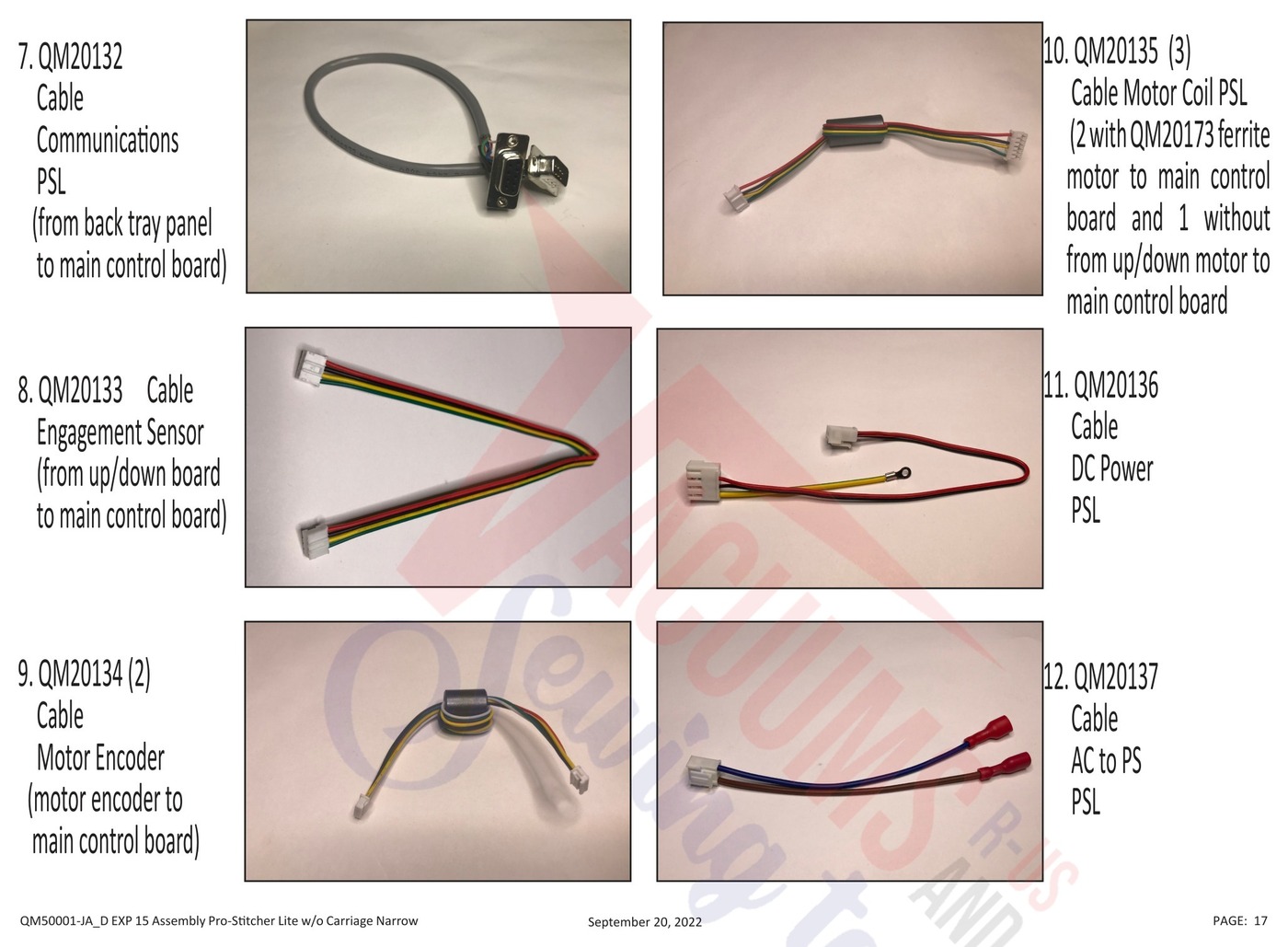

| # | Part image | Description | SKU | Price |
| 1 | | CABLE-COMMUNICATION PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20132 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CABLE-ENGAGEMENT SENSOR sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20133 | $18.67Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | CABLE-MOTOR ENCODER PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20134 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | CABLE-MOTOR COIL PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20135 | $33.52Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | CABLE -DC POWER PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20136 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | CABLE-AC TO PS PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20137 | $33.52Add to cart Special order: ships in 2 to 4 weeks |

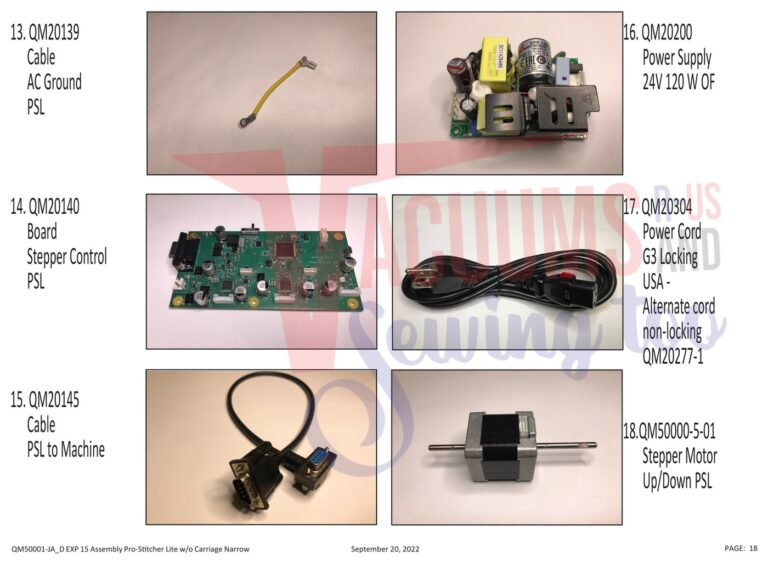

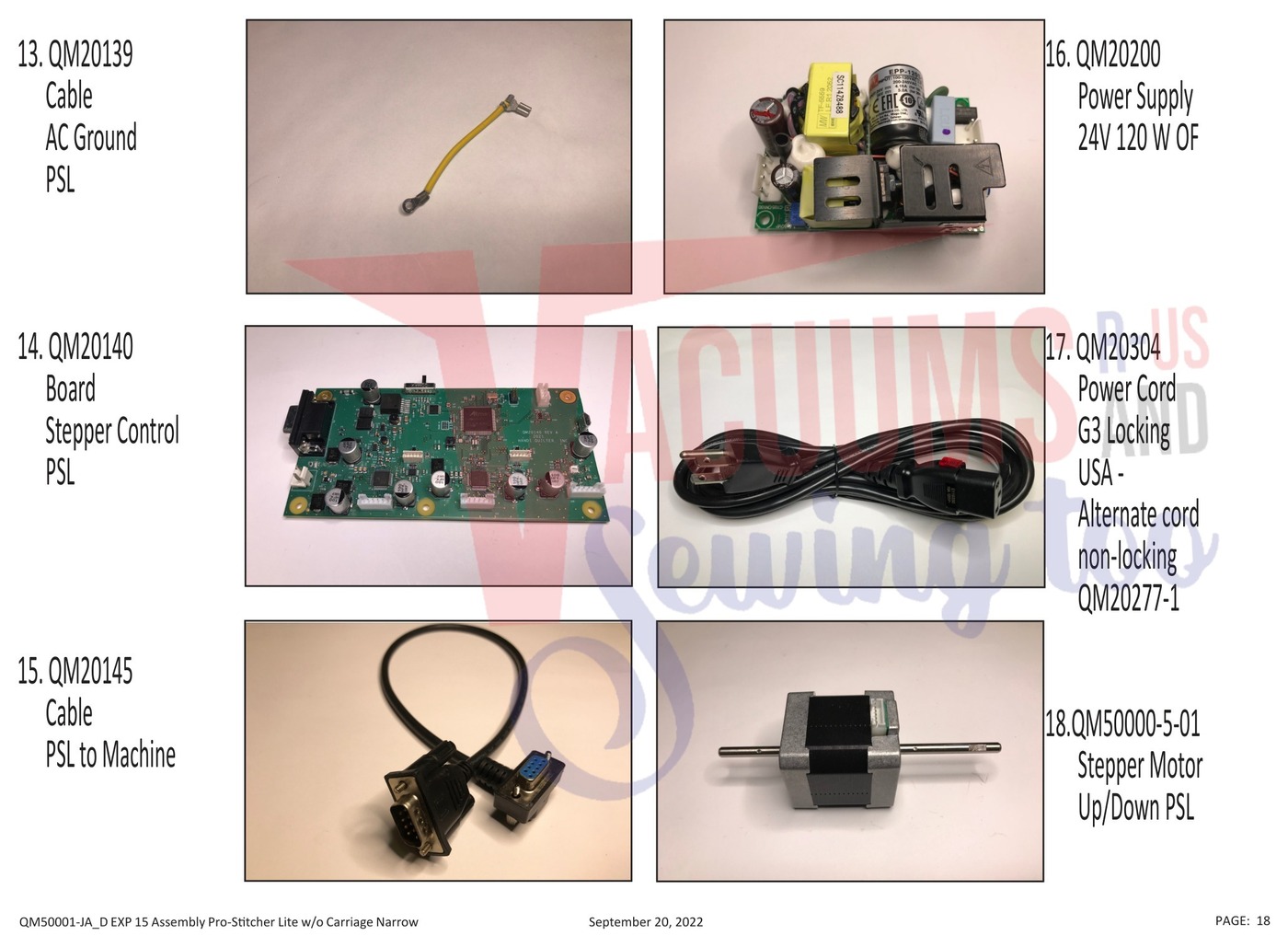

| # | Part image | Description | SKU | Price |
| 1 | | CABLE-AC GROUND PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20139 | $14.94Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | BOARD-STEPPER CONTROL PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20140 | $1,275.12Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | CABLE-PS LITE TO MACHINE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20145 | $52.10Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | POWER SUPPLY-24V 120W OF sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20200 | $394.68Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | POWER CORD G3 LOCKING USA sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20304 | $89.35Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | STEPPER MOTOR -UP/DOWN PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-5-01 | $121.44Add to cart Special order: ships in 2 to 4 weeks |

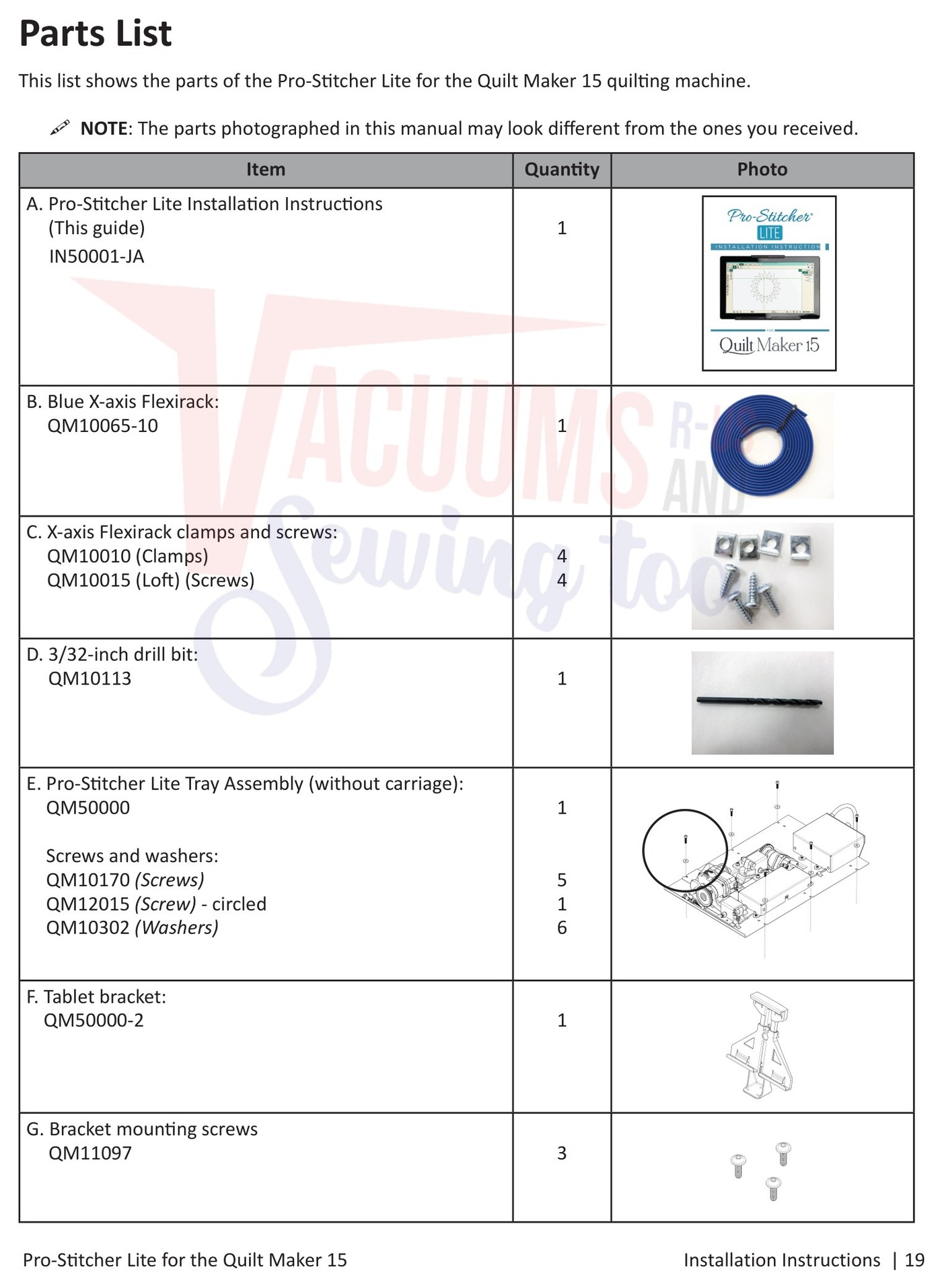

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Inst-PS Lite QM15 Loft | IN50001-JA | Not Available |
| 2 | Not Available | Blue X-axis Flexirack | QM10065-10 | Not Available |
| 3 | | PS FLEXIRACK CLAMP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10010 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW #6 X 1/2 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10015 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | 3/32-inch drill bit sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10113 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Ps Lite Tray Asse W/O Carriage | QM50000 | $6,679.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SCREW-M4X14 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10170 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SCREW- M4 X 16 SKC SS sewing machine part or accessory For Janome Models: QMPRO16 | QM12015 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | WASHER- M4 1.6MM THICK sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Tablet Bracket | QM500002 | $99.28Read more |
| 11 | | Bracket mounting screws sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM11097 | $10.72Read more |

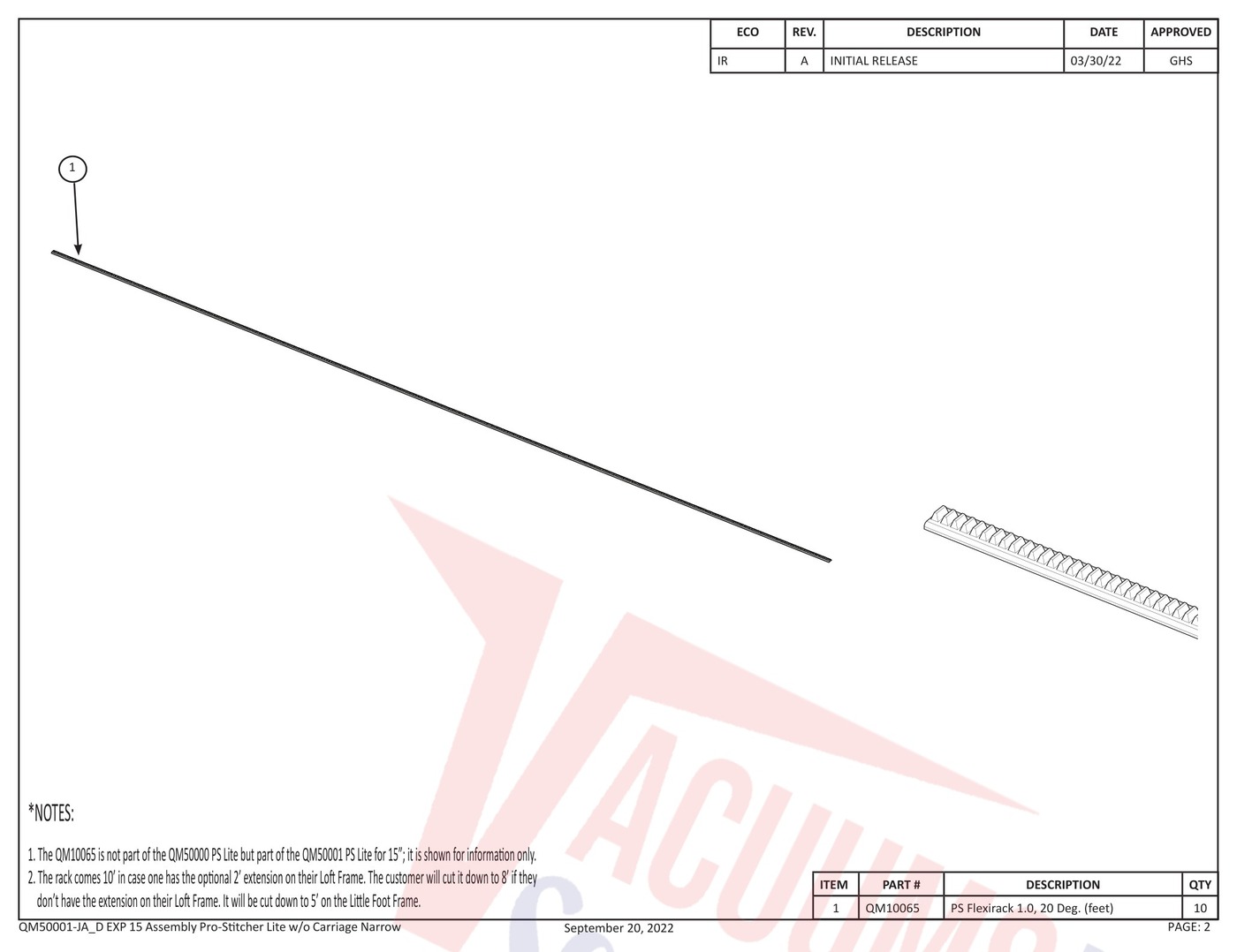

| # | Part image | Description | SKU | Price |
| 1 | Not Available | PS FLEXIRACK 1.0, 20 DEG | QM10065 | Not Available |
| # | Part image | Description | SKU | Price |

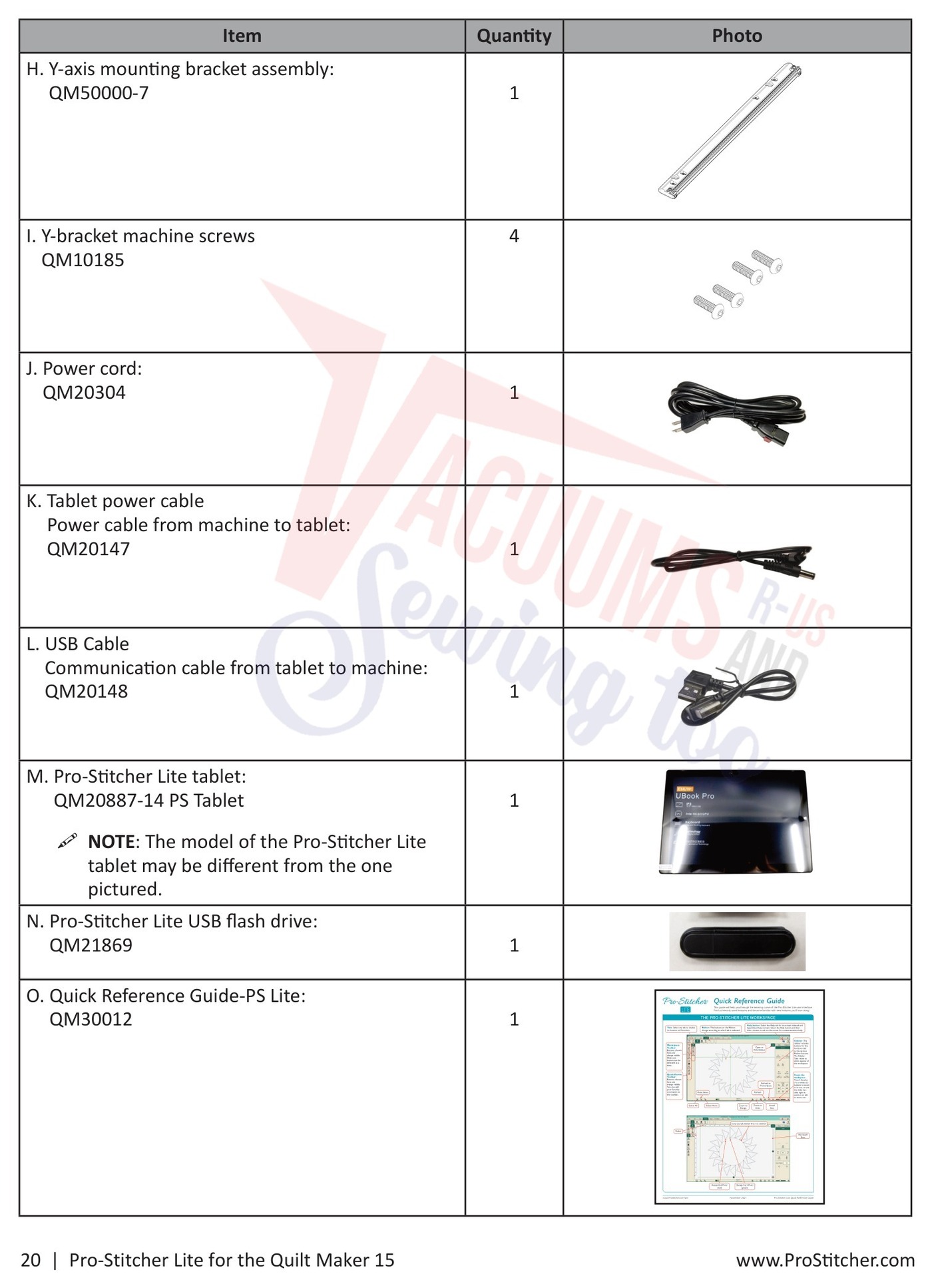

| 1 | | Y-axis mounting bracket assembly sewing machine part or accessory For Janome Models: Pro-Stitcher... | QM50000-7 | $255.02Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | SCREW-M4X14 SKB ZN*(15”) sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM10185 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | POWER CORD G3 LOCKING USA sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20304 | $89.35Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Power cable from machine to tablet sewing machine part or accessory For Janome Models: Pro-Stitch... | QM20147 | $18.67Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Comm Cable Tablet To Machine | QM20148 | $18.67Read more |
| 6 | | Pro-Stitcher Lite tablet sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM20887-14 | $5,360.44Read more |
| 7 |  | USB Flash drive (Janome) sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM21869 | $119.13Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Quick Reference Guide-PS Lite sewing machine part or accessory For Janome Models: Pro-Stitcher Li... | QM30012 | $24.52Read more |

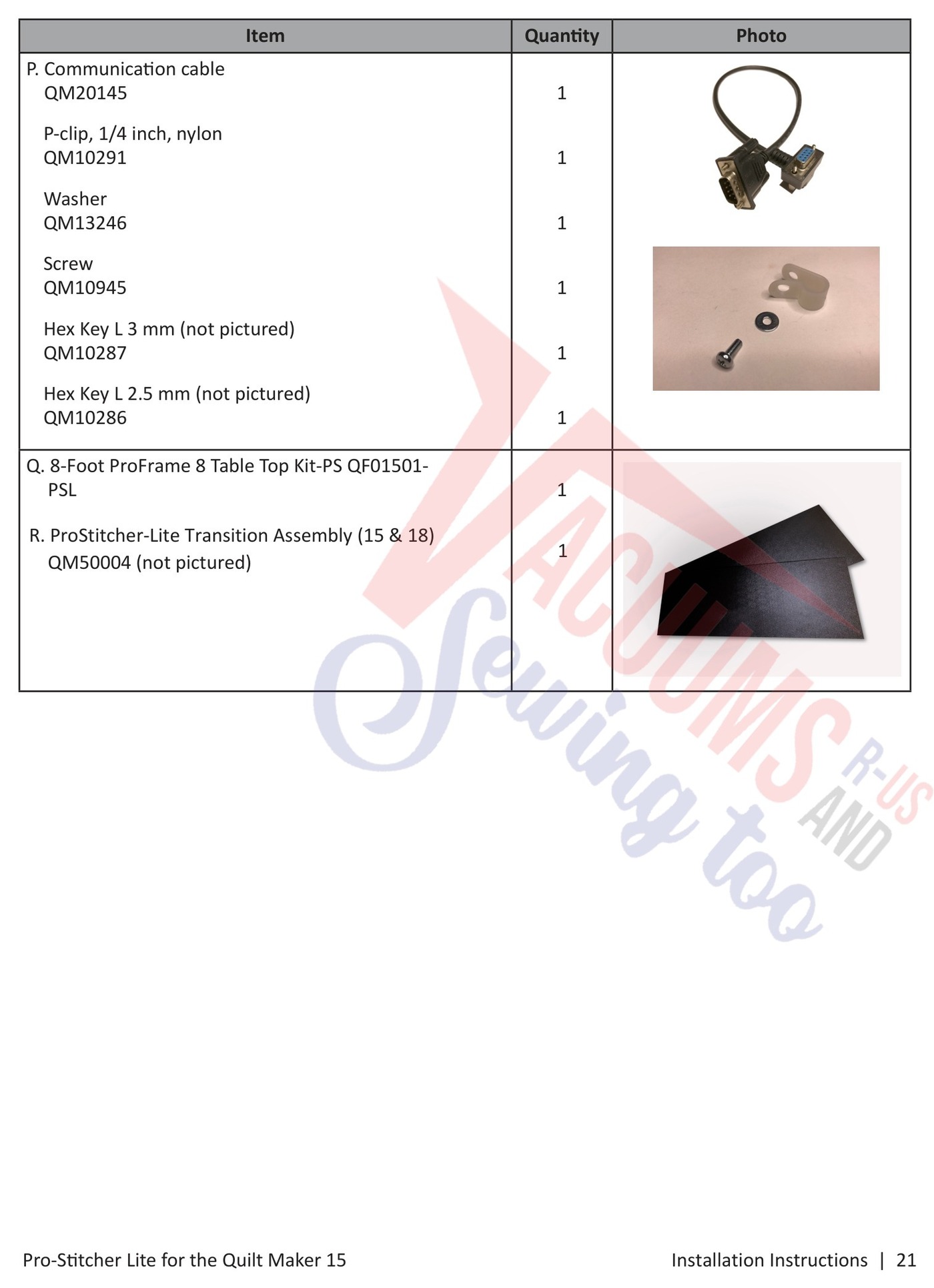

| # | Part image | Description | SKU | Price |
| 1 | | CABLE-PS LITE TO MACHINE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20145 | $52.10Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CLIP-P STYLE 1/4” NYLON sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM10291 | $3.73Read more |
| 3 | | WASHER-M3X9 OD sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13246 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M3X8 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10945 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | HEX KEY L 3MM sewing machine part or accessory For Janome Models: AQSD-16 | QM10287 | $1.91Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hex Key L 2.5Mm | QM10286 | $3.19Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | 8' Proframe 8 Table Top Kit-Ps | QF01501PSL | $394.68Read more |
| 8 | | Transition Box PSL w/wire tie sewing machine part or accessory For Janome Models: Pro-Stitcher Li... | QM50004 | $244.60Read more |

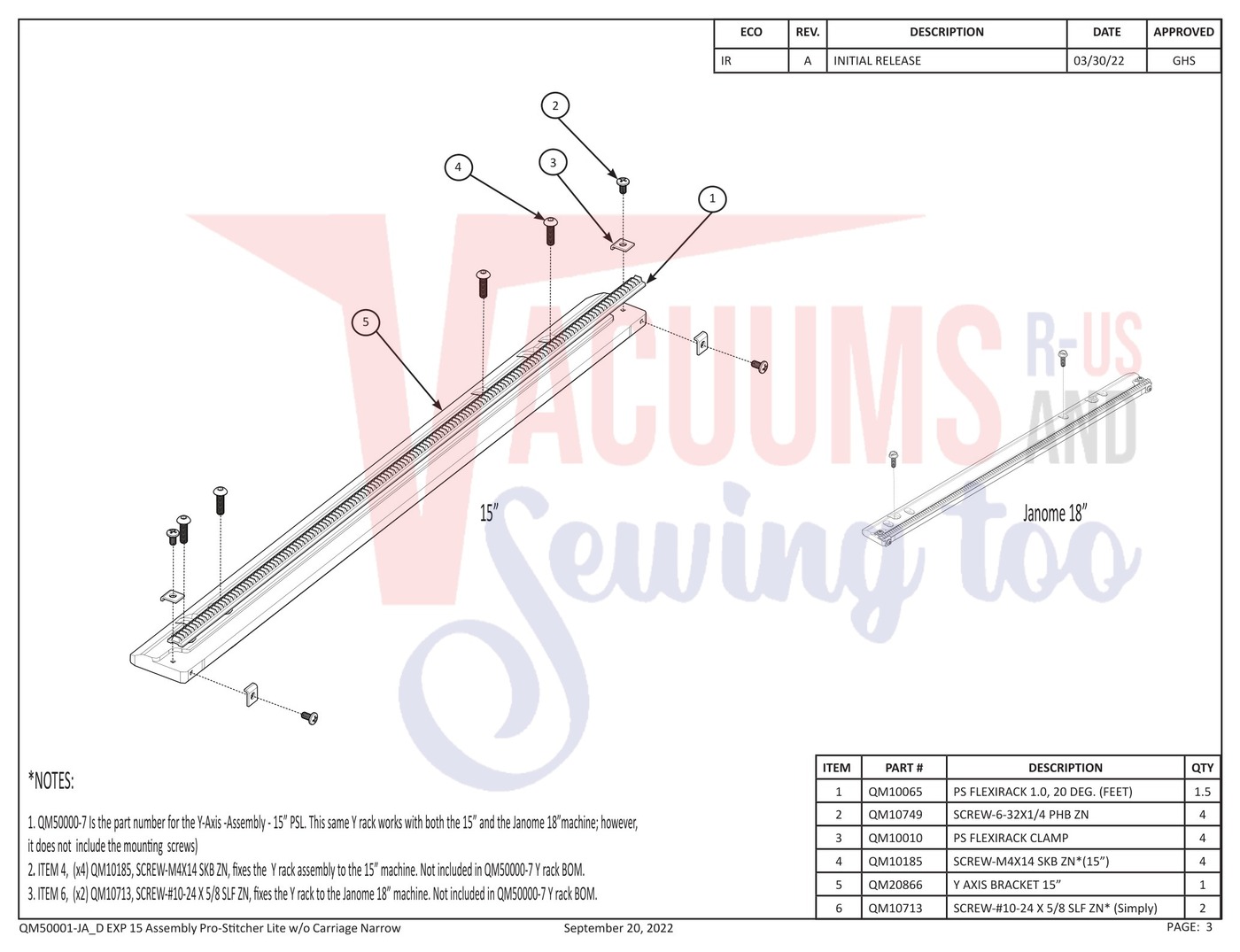

| # | Part image | Description | SKU | Price |
| 1 | Not Available | PS FLEXIRACK 1.0, 20 DEG | QM10065 | Not Available |
| 2 |  | SCREW-6-32X1/4 PHP ZN sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10749 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PS FLEXIRACK CLAMP sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM10010 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M4X14 SKB ZN*(15”) sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM10185 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | BRACKET Y AXIS PS 16/18/20 sewing machine part or accessory For Janome Models: QMPSTITCHER-20, Pr... | QM20862 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SCREW-#10-24 X 5/8 SLF ZN* sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10713 | $3.01Add to cart Special order: ships in 2 to 4 weeks |

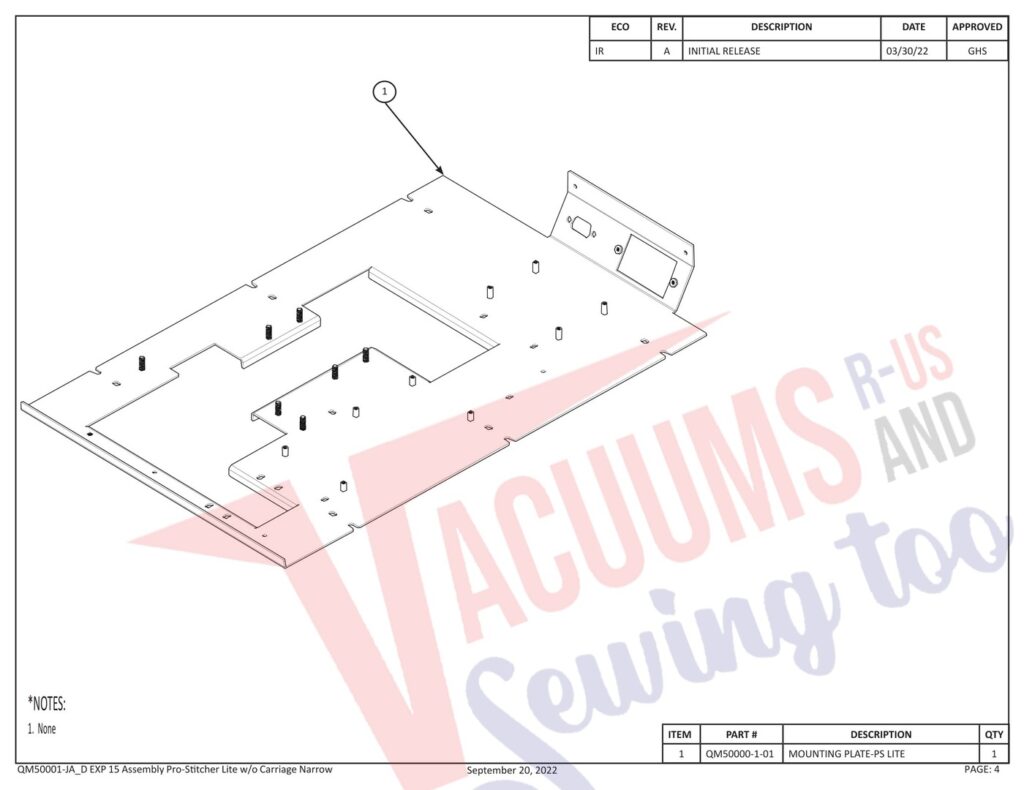

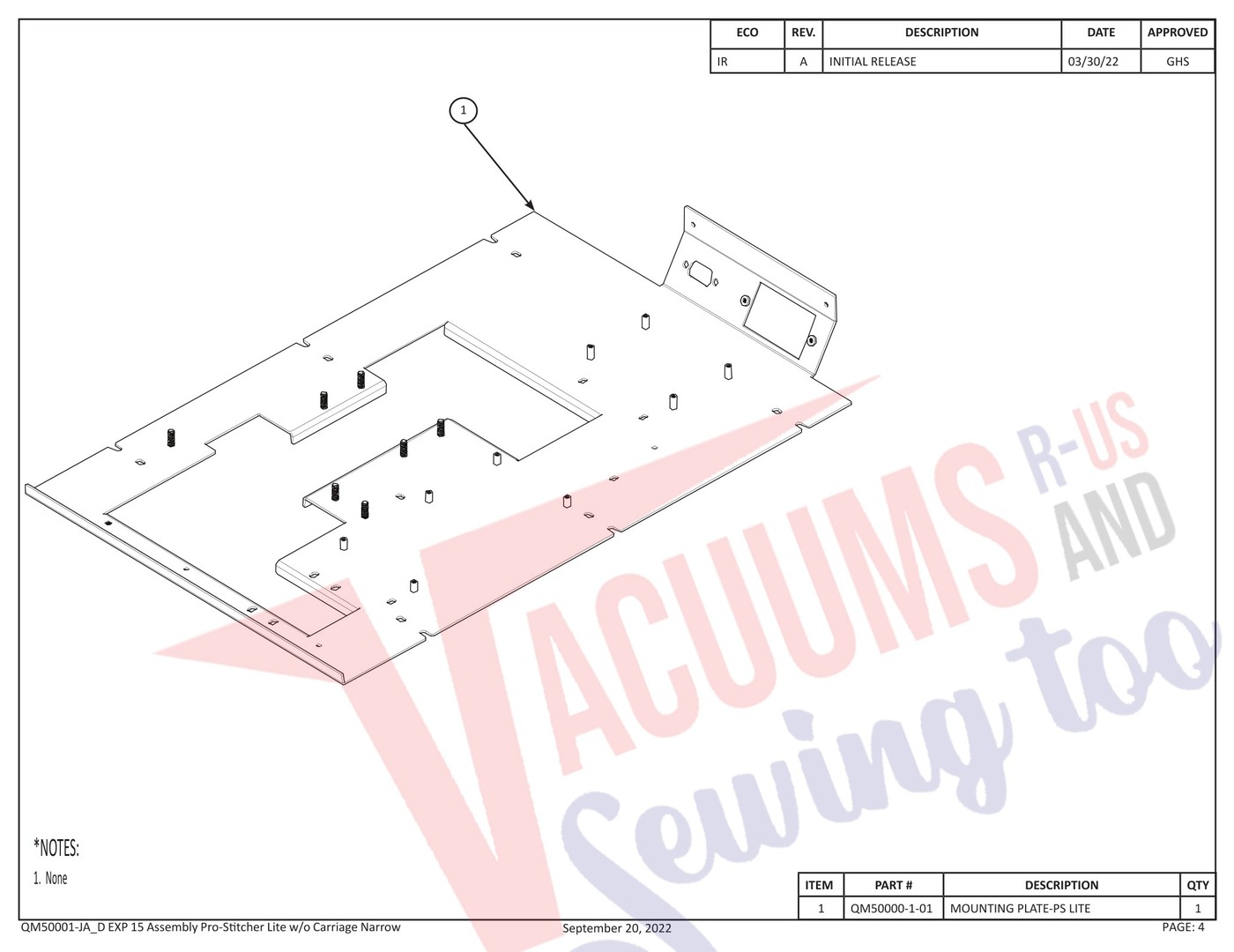

| # | Part image | Description | SKU | Price |
| 1 | | MOUNTING PLATE-PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-1-01 | $303.60Add to cart Special order: ships in 2 to 4 weeks |

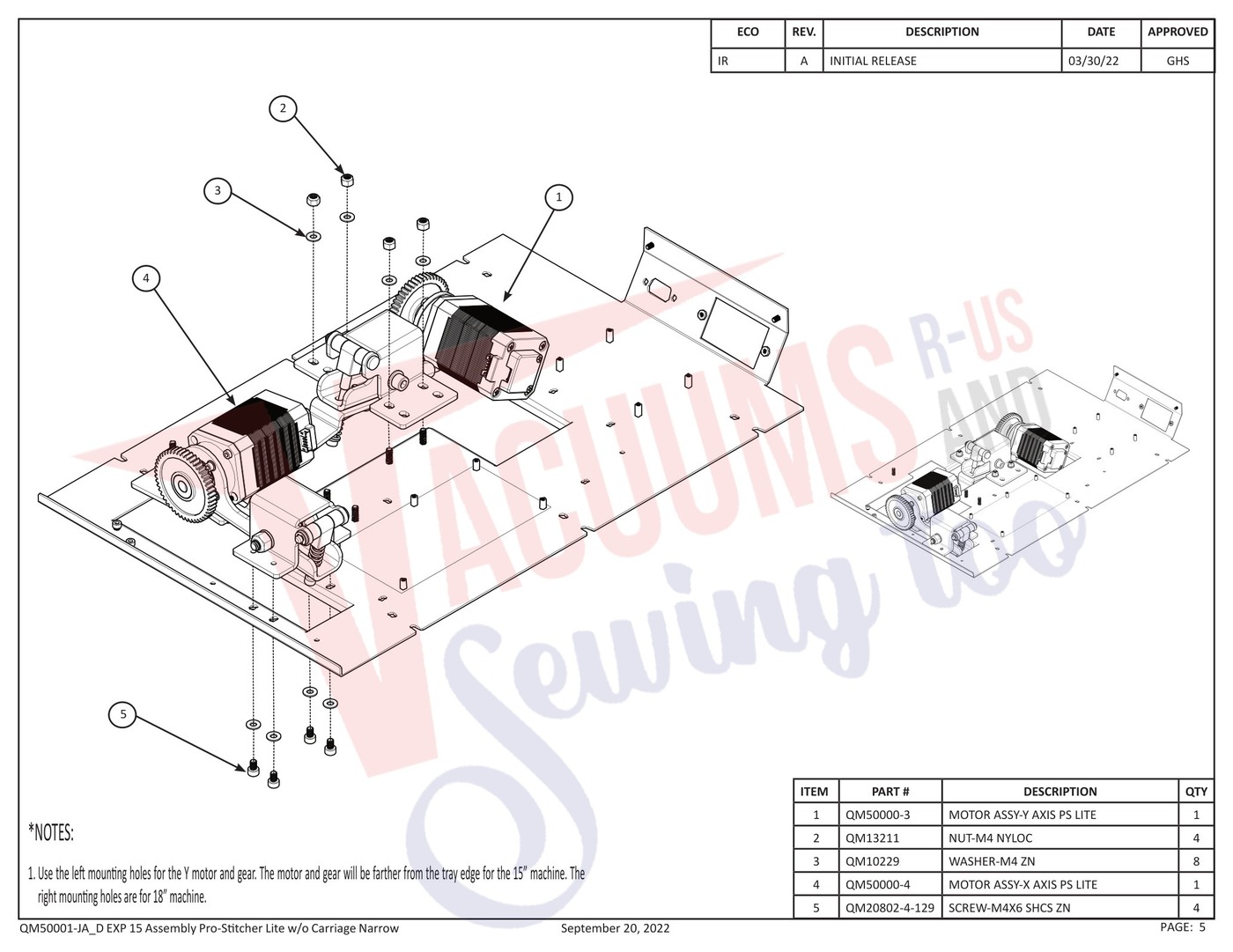

| # | Part image | Description | SKU | Price |
| 1 | Not Available | MOTOR ASSY-Y AXIS PS LITE | QM50000-3 | Not Available |
| 2 | | NUT-M4 NYLOC sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM13211 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | MOTOR ASSY-X AXIS PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-4 | $0.00Read more |
| 5 |  | Screw-M4x6 SHCS ZN sewing machine part or accessory For Janome Models: QT09015 | QM20802-4-129 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

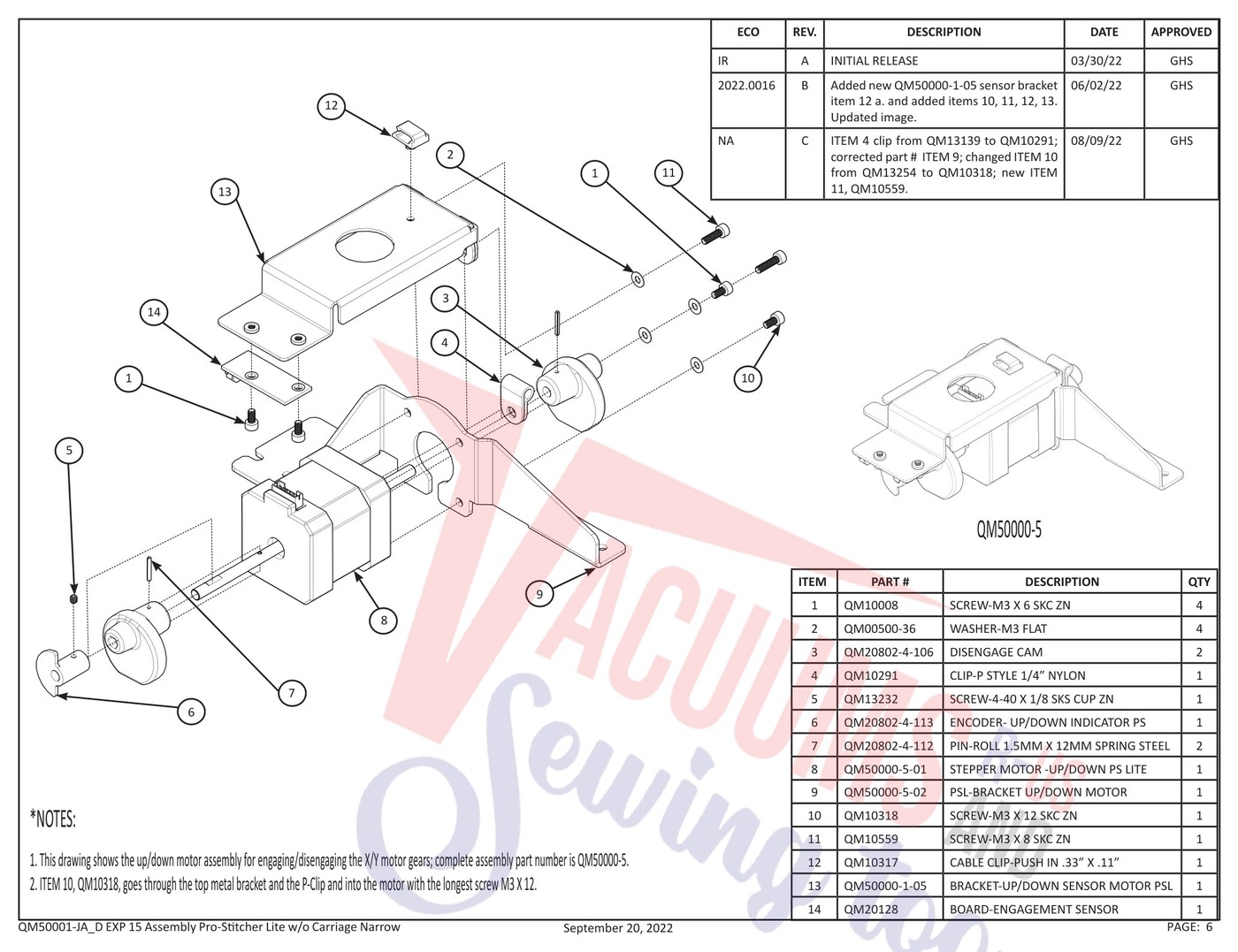

| # | Part image | Description | SKU | Price |
| 1 | | SCREW, M3 X 6 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10008 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | WASHER-M3 FLAT sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM00500-36 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | DISENGAGE CAM sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-106 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | CLIP-P STYLE 1/4” NYLON sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM10291 | $3.73Read more |
| 5 |  | SCREW-4-40 X 1/8 SKS CUP ZN* sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM13232 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | ENCODER-UP/DOWN INDICATOR PS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-113 | $65.12Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | PIN-ROLL 1.5MM X 12MM SS sewing machine part or accessory For Janome Models: QMPSTITCHER-20 | QM20802-4-112 | $2.73Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | STEPPER MOTOR -UP/DOWN PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-5-01 | $121.44Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | PSL-BRACKET UP/DOWN MOTOR sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM50000-5-02 | $76.44Read more |
| 10 | | SCREW-M3 X 12 SKC ZN sewing machine part or accessory For Janome Models: Pro-Stitcher Lite 15 | QM10318 | $1.61Read more |
| 11 | | SCREW-M3X8 SKC ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10559 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | CABLE CLIP PUSH-IN .33” X .11” sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10317 | $5.06Read more |
| 13 | | BRACKET-UP/DOWN SENSOR MOTOR PSL sewing machine part or accessory For Janome Models: Pro-Stitcher... | QM50000-1-05 | $83.90Read more |
| 14 | | BOARD-ENGAGEMENT SENSOR sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20128 | $74.44Add to cart Special order: ships in 2 to 4 weeks |

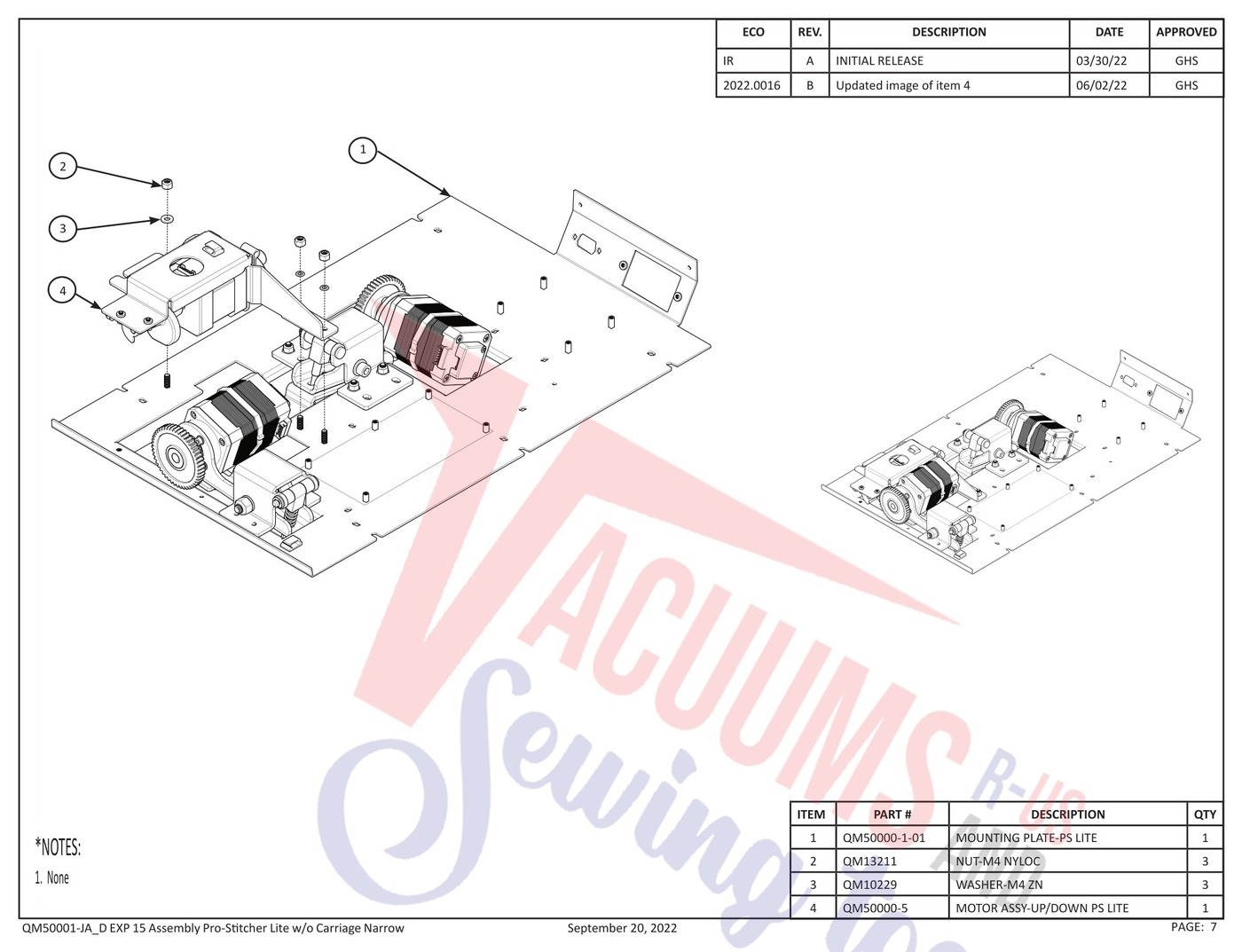

| # | Part image | Description | SKU | Price |
| 1 | | MOUNTING PLATE-PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-1-01 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | NUT-M4 NYLOC sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM13211 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | MOTOR ASSY-UP/DOWN PS LITE | QM50000-5 | Not Available |

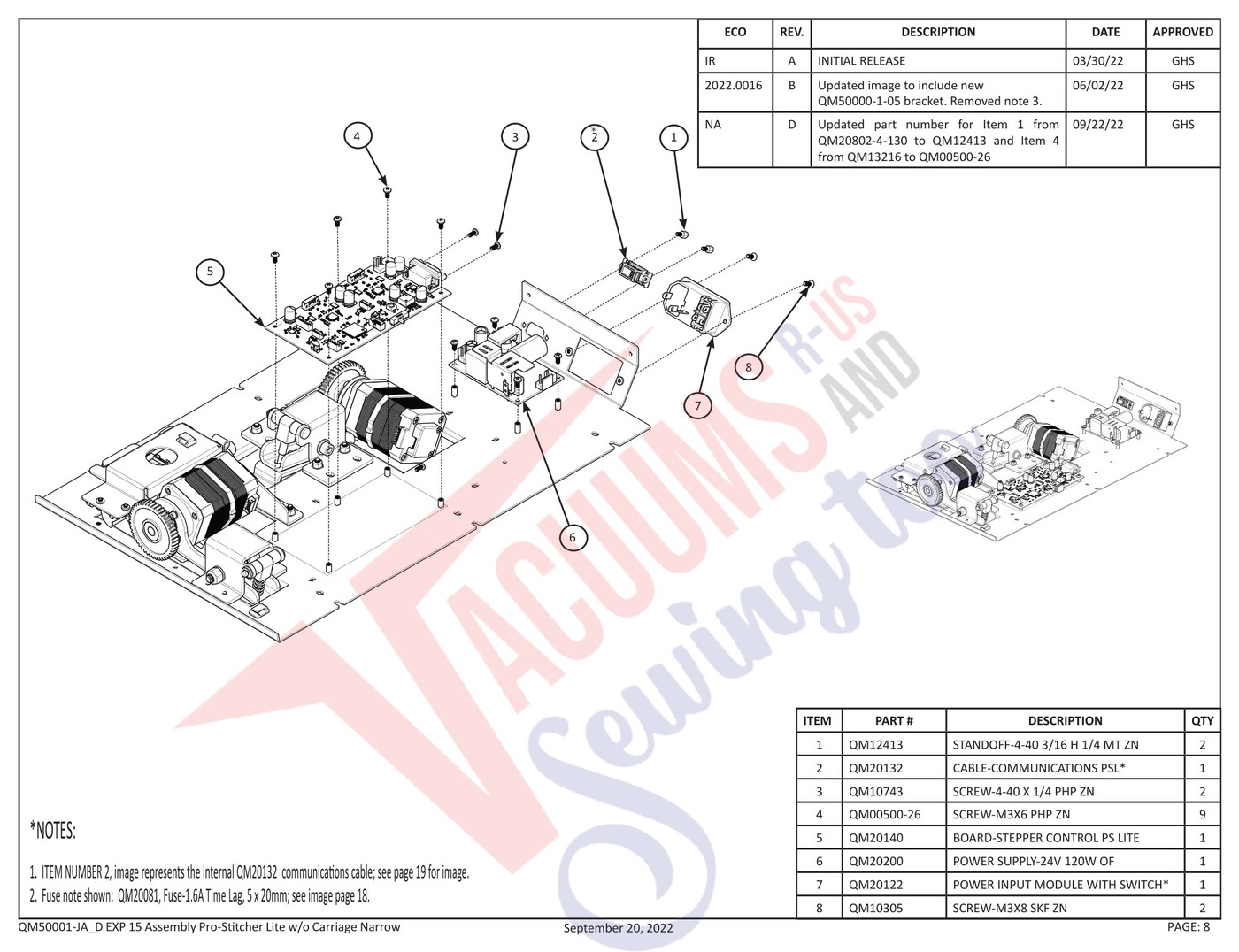

| # | Part image | Description | SKU | Price |
| 1 |  | STANDOFF-4-40X1/4 M/F sewing machine part or accessory For Janome Models: QMPROVERSA | QM12413 | $5.19Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CABLE-COMMUNICATION PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20132 | $44.72Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SCREW-4-40 1/4 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10743 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SCREW-M3X6 PHP ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM00500-26 | $7.29Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | BOARD-STEPPER CONTROL PS LITE sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20140 | $1,275.12Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | POWER SUPPLY-24V 120W OF sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20200 | $394.68Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | POWER ENTRY MODULE W SWITCH sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM20122 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SCREW-M3X8 SKF ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10305 | $1.46Add to cart Special order: ships in 2 to 4 weeks |

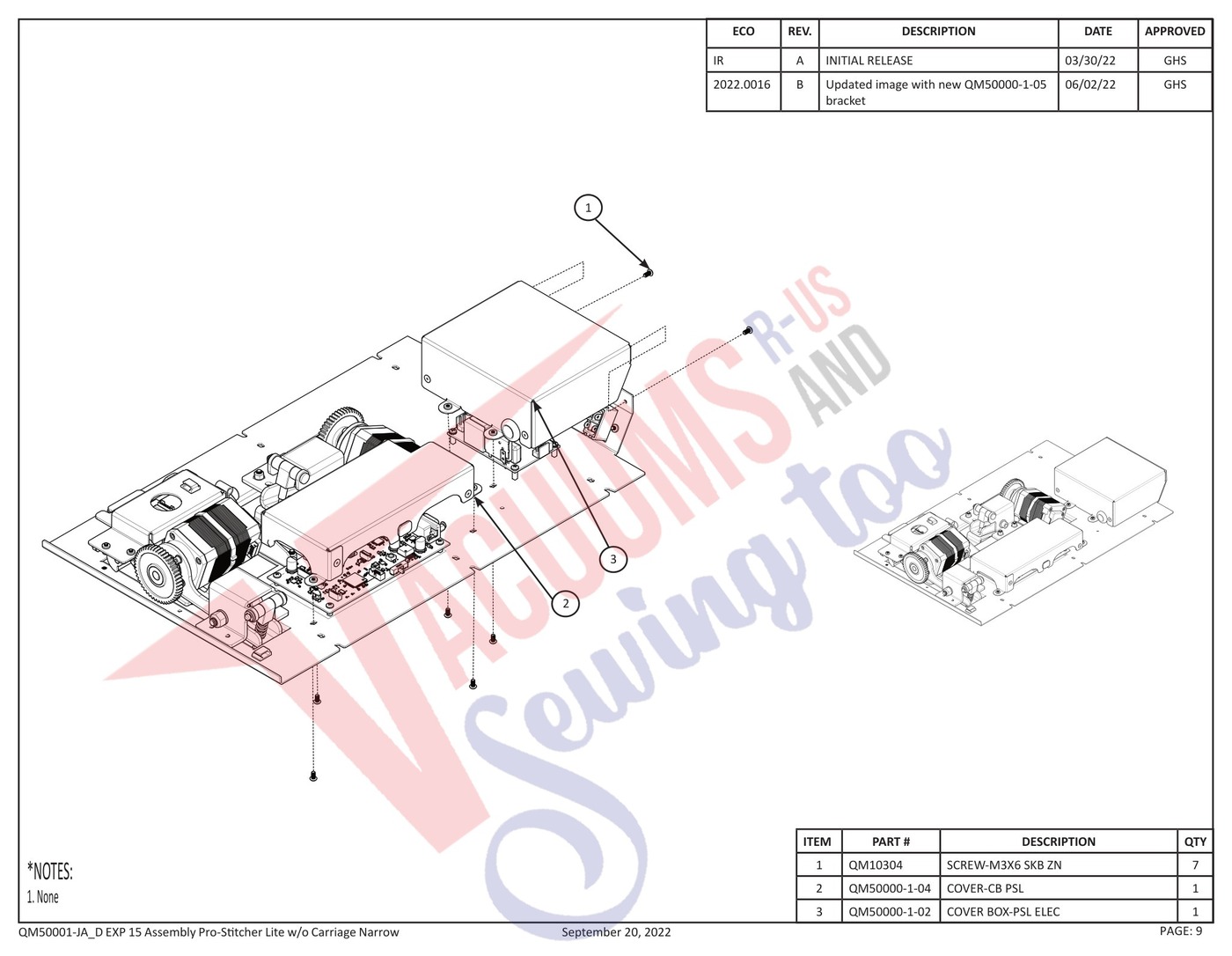

| # | Part image | Description | SKU | Price |
| 1 | | SCREW-M3X6 SKB ZN sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM10304 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | COVER-CB PSL sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-1-04 | $133.58Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | COVER BOX-PSL ELEC sewing machine part or accessory For Janome Models: PROSTITCHER-LITE | QM50000-1-02 | $107.40Read more |
Report errors on this page HERE
