Schematic and parts book for Janome PROFRAME12 V2 PROFRAME12 V2. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | R Rear Pole Side Arm Assembly | QF093411002 | $291.46Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Right Connecting Arm | QF09341102 | $212.52Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | R Front Pole Side Arm Assembly | QF09341120 | $170.02Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

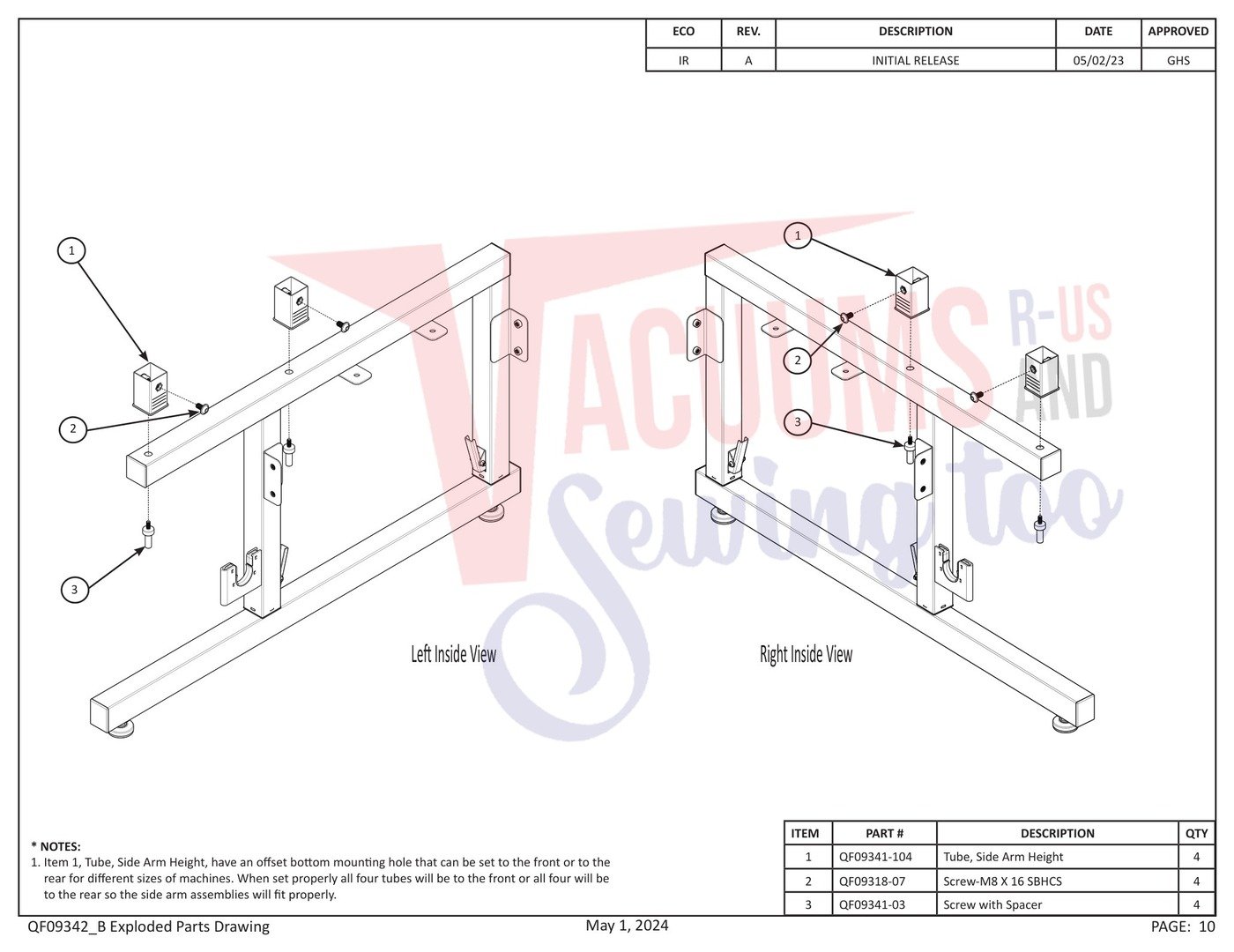

| 1 | No Image | Tube, Side Arm Height | QF09341104 | $89.35Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Screw-M6 With Spacer | QF0934103 | $13.21Add to cart Special order: ships in 2 to 4 weeks |

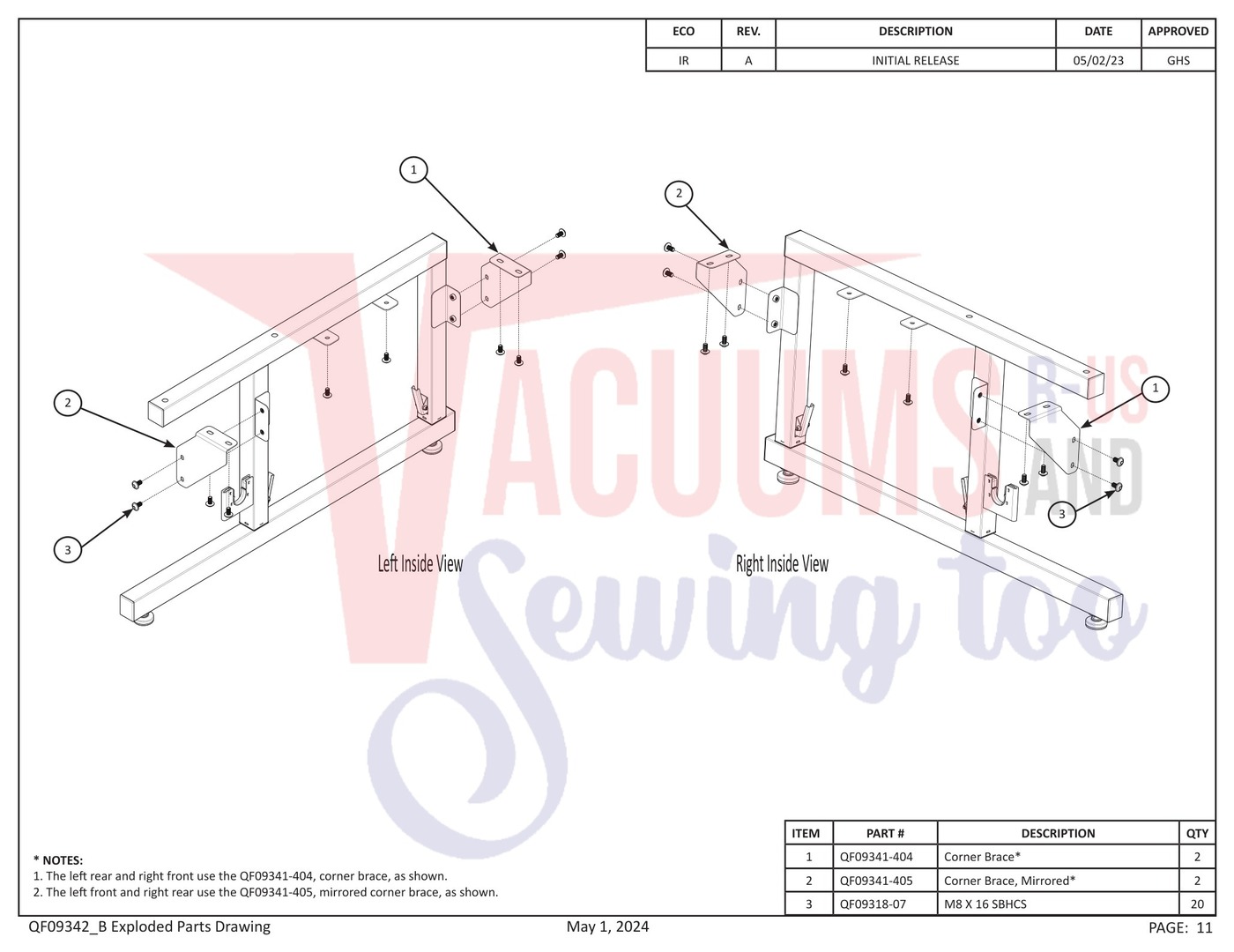

| # | Part image | Description | SKU | Price |
| 1 | No Image | Corner Brace | QF09341404 | $89.35Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Corner Brace, Mirrored | QF09341405 | $89.35Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

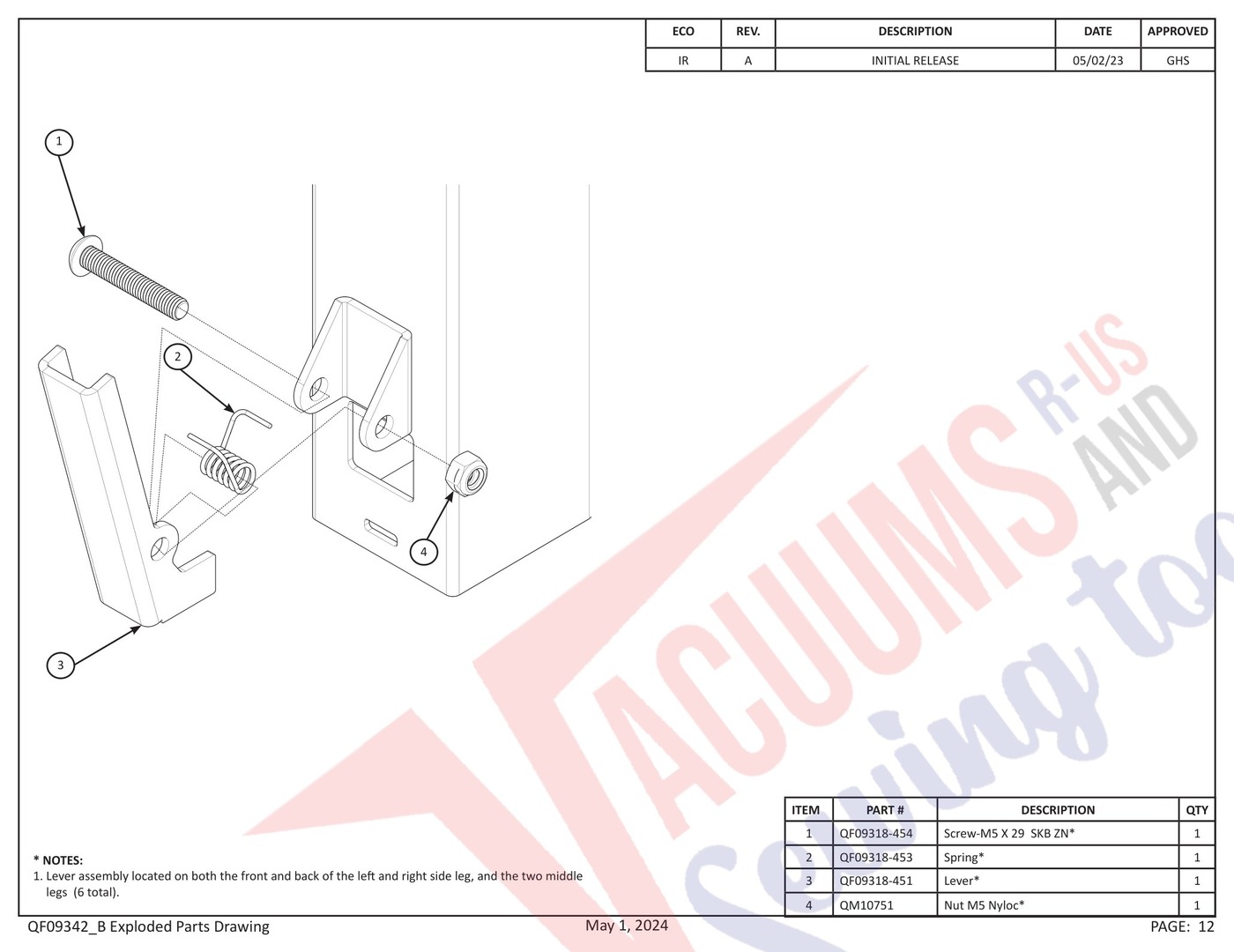

| 1 | No Image | Screw-M5 X 29 Skb Zn | QF09318454 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Spring | QF09318453 | $1.27Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Lever | QF09318451 | $12.67Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | NUT-M5 NYLOC sewing machine part or accessory For Janome Models: QMPROVERSA | QM10751 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

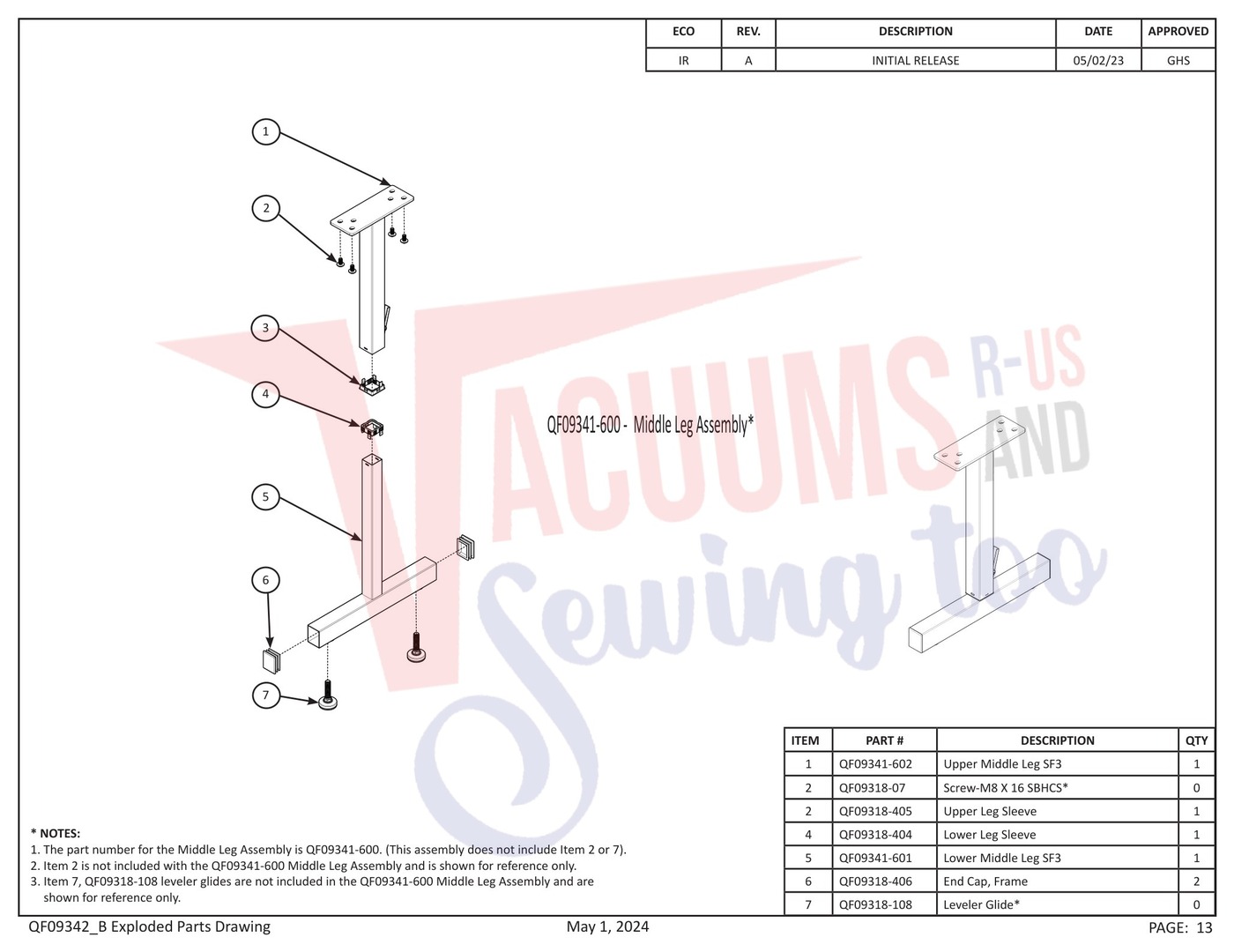

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Upper Middle Leg SF3 | QF09341-602 | Not Available |
| 2 | | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Upper Leg Sleeve | QF09318405 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Lower Leg Sleeve | QF09318404 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Lower Middle Leg SF3 | QF09341-601 | Not Available |
| 6 | No Image | End Cap | QF09318406 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | LEVELING GLIDE sewing machine part or accessory QF09318-108 LEVELING GLIDE | QF09318-108 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

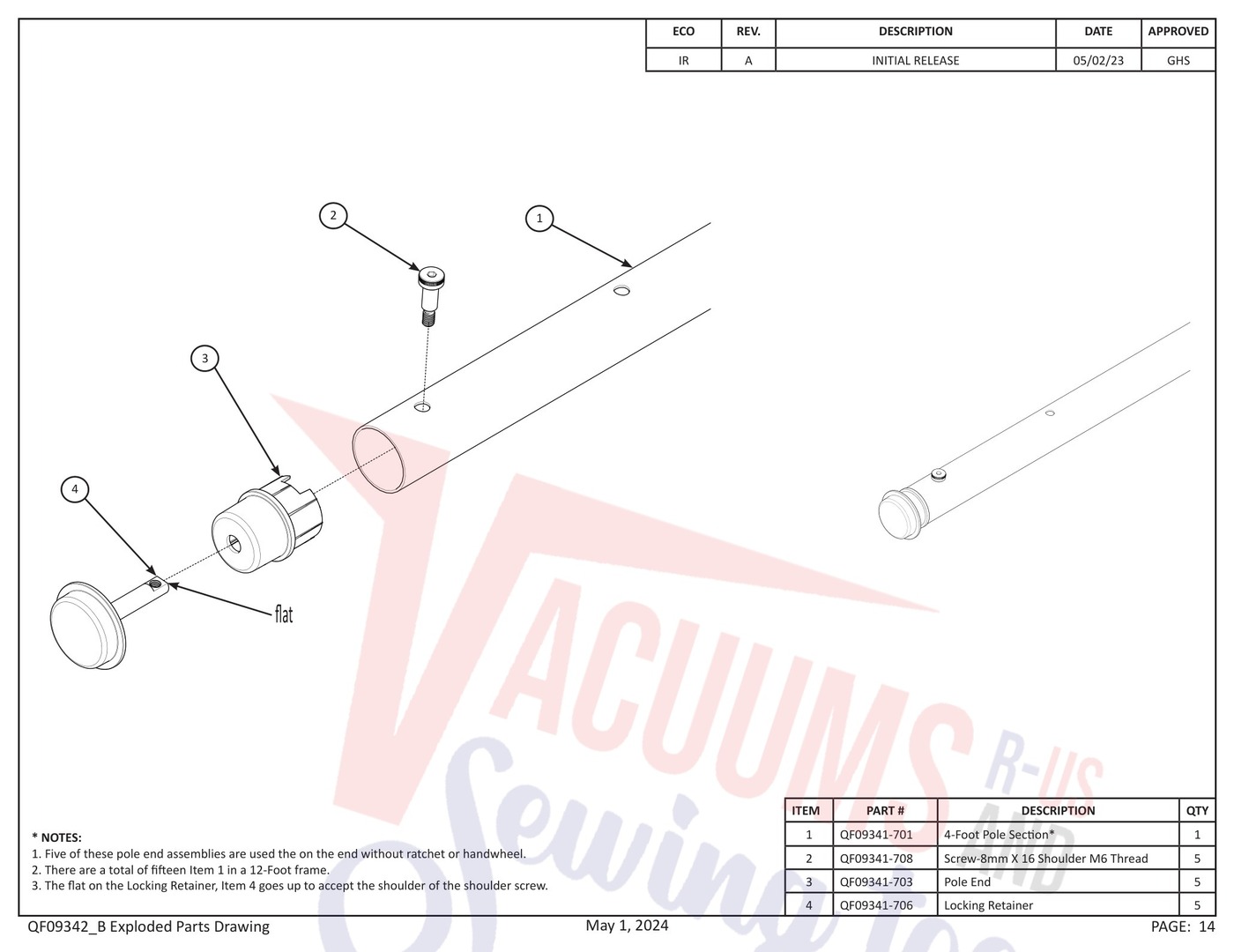

| 1 | No Image | 4-Foot Pole Section | QF09341701 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Screw-8Mmx16 Shlder M6 Thread | QF09341708 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Pole End | QF09341703 | $17.85Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Locking Retainer | QF09341706 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

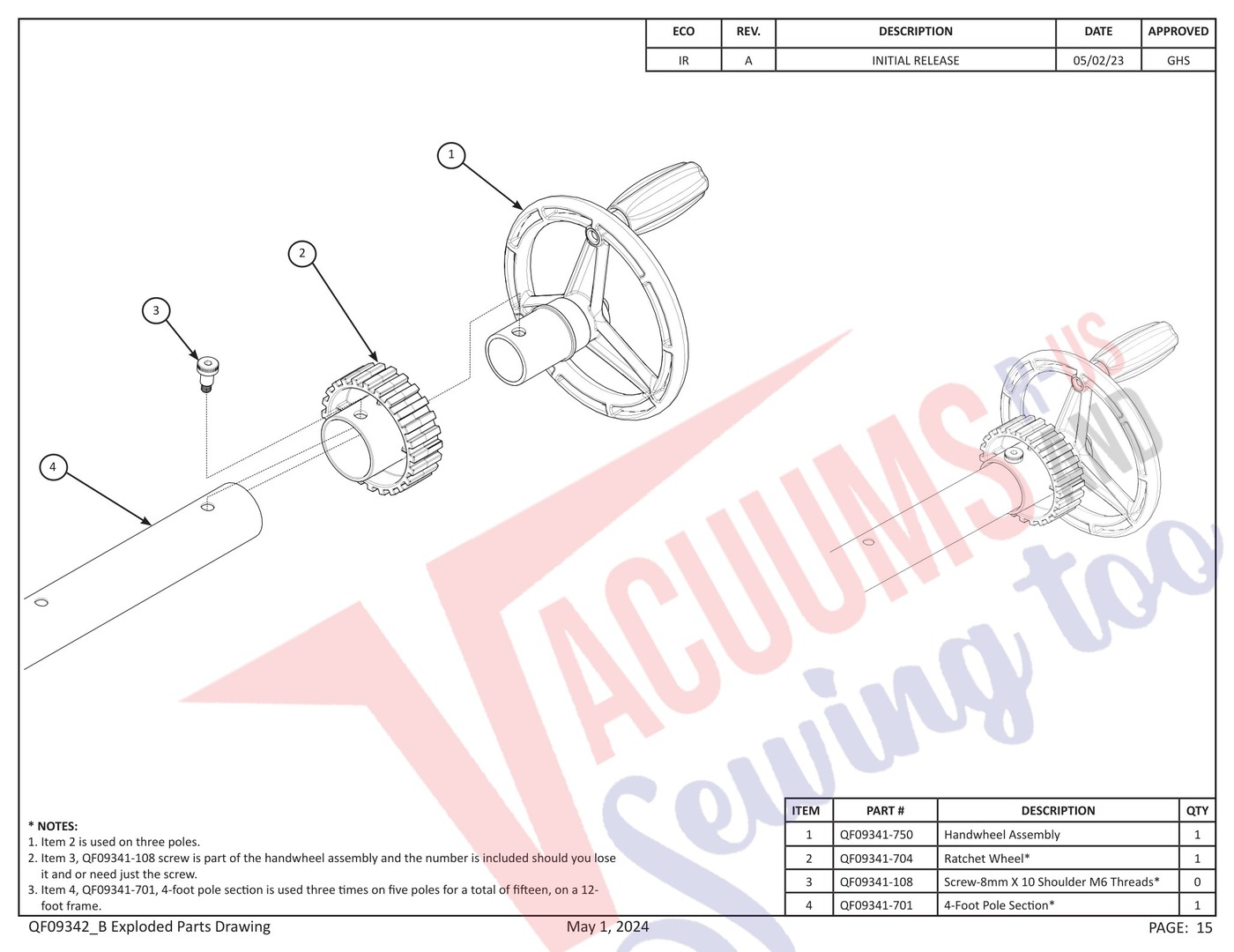

| 1 | Not Available | Handwheel Assembly | QF09341-750 | Not Available |
| 2 | No Image | Ratchet Wheel | QF09341704 | $43.90Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Screw-8Mmx10Mm Shlder M6 Thrd | QF09341108 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | 4-Foot Pole Section | QF09341701 | $151.80Add to cart Special order: ships in 2 to 4 weeks |

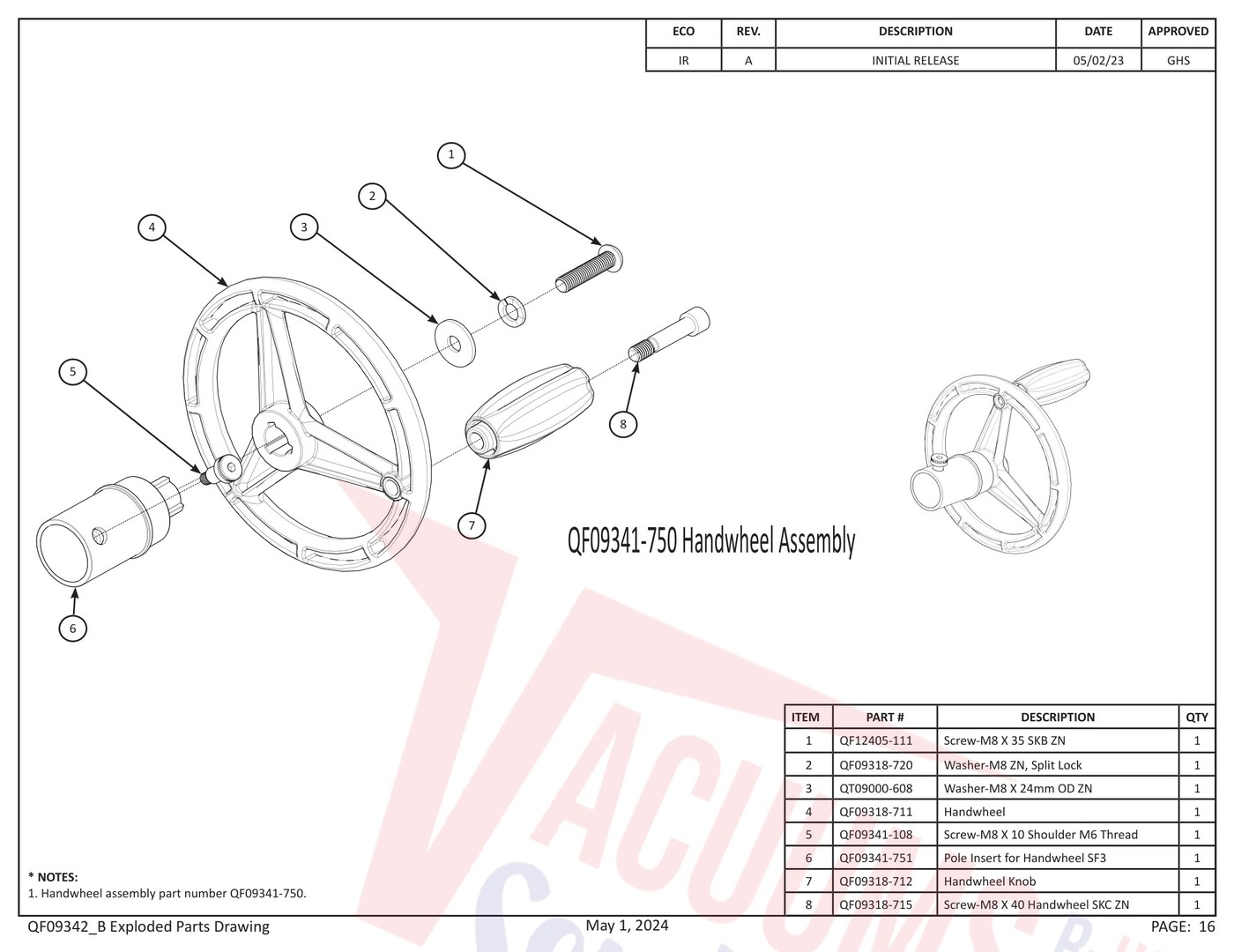

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw-M8 X 35 Skb Zn | QF12405111 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Washer-M8 ZN, Split Lock | QF09318-720 | Not Available |
| 3 | No Image | Washer-M8 X 24Mm Od Zn | QT09000608 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hand Wheel | QF09318711 | $24.86Read more |
| 5 | No Image | Screw-8Mmx10Mm Shlder M6 Thrd | QF09341108 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Pole Insert for Handwheel SF3 | QF09341-751 | Not Available |
| 7 |  | Hand Wheel Knob | QF09318712 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Knob Bolt | QF09318715 | $1.46Add to cart Special order: ships in 2 to 4 weeks |

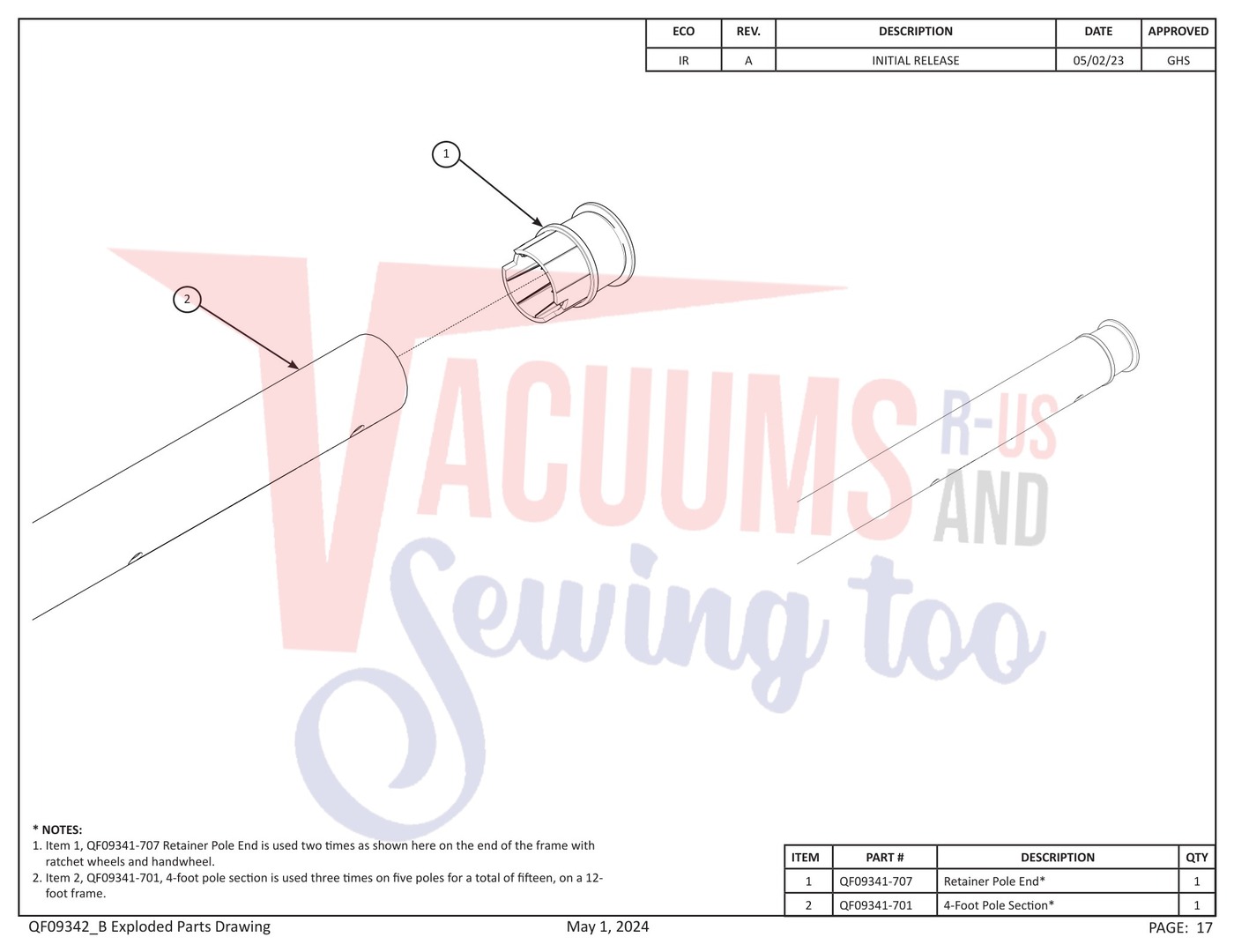

| # | Part image | Description | SKU | Price |
| 1 | No Image | Retainer Pole End | QF09341707 | $11.57Read more |
| 2 | No Image | 4-Foot Pole Section | QF09341701 | $151.80Add to cart Special order: ships in 2 to 4 weeks |

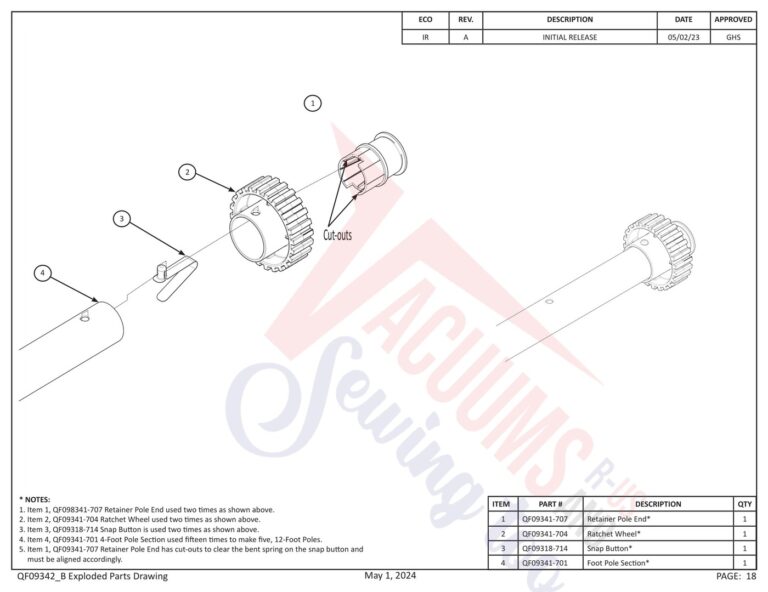

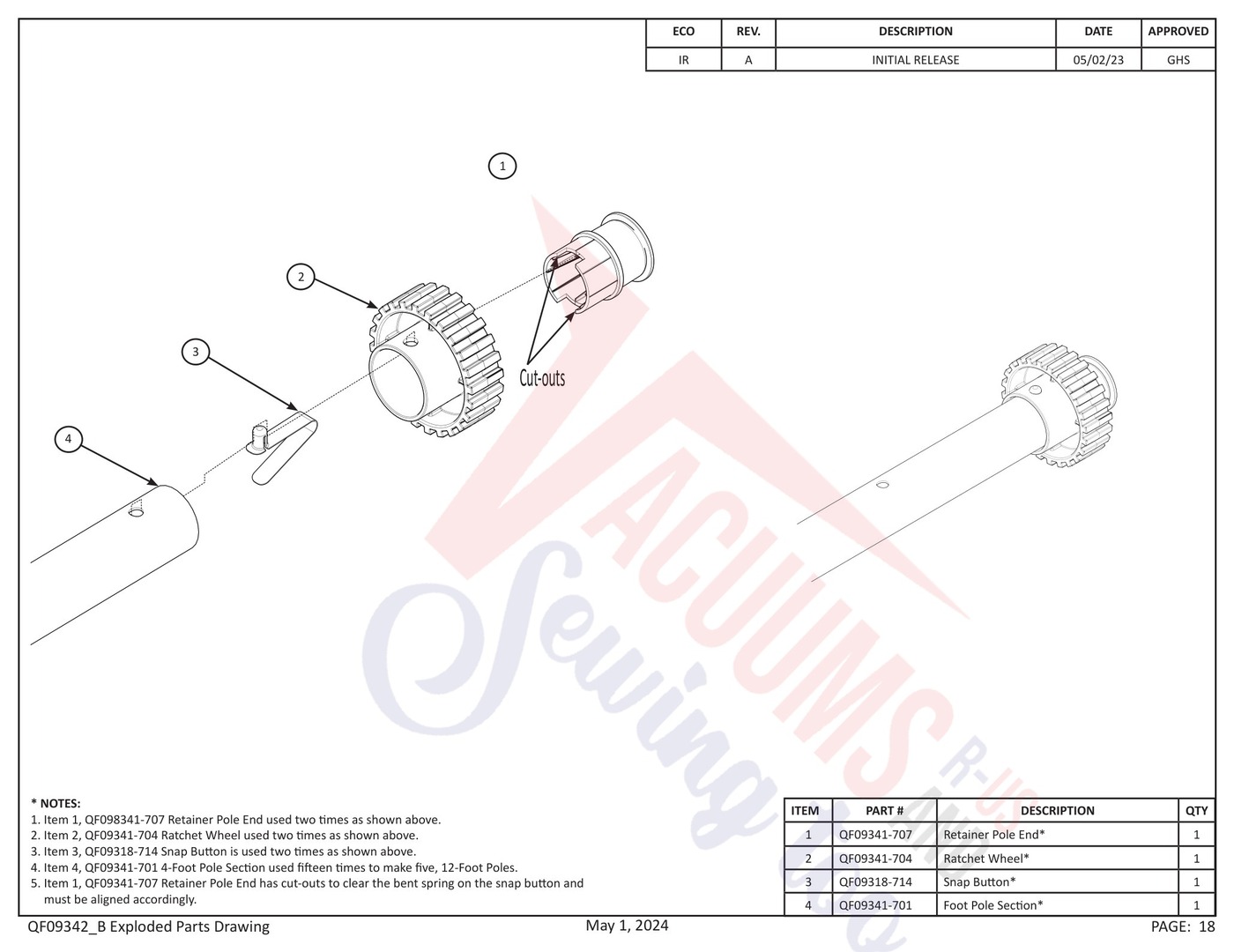

| # | Part image | Description | SKU | Price |
| 1 | No Image | Retainer Pole End | QF09341707 | $11.57Read more |
| 2 | No Image | Ratchet Wheel | QF09341704 | $43.90Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | STEEL SNAPPING BUTTON/LOCKING CLIP sewing machine part or accessory QF09318-714 STEEL SNAPPING BU... | QF09318-714 | $1.09Read more |
| 4 | No Image | 4-Foot Pole Section | QF09341701 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

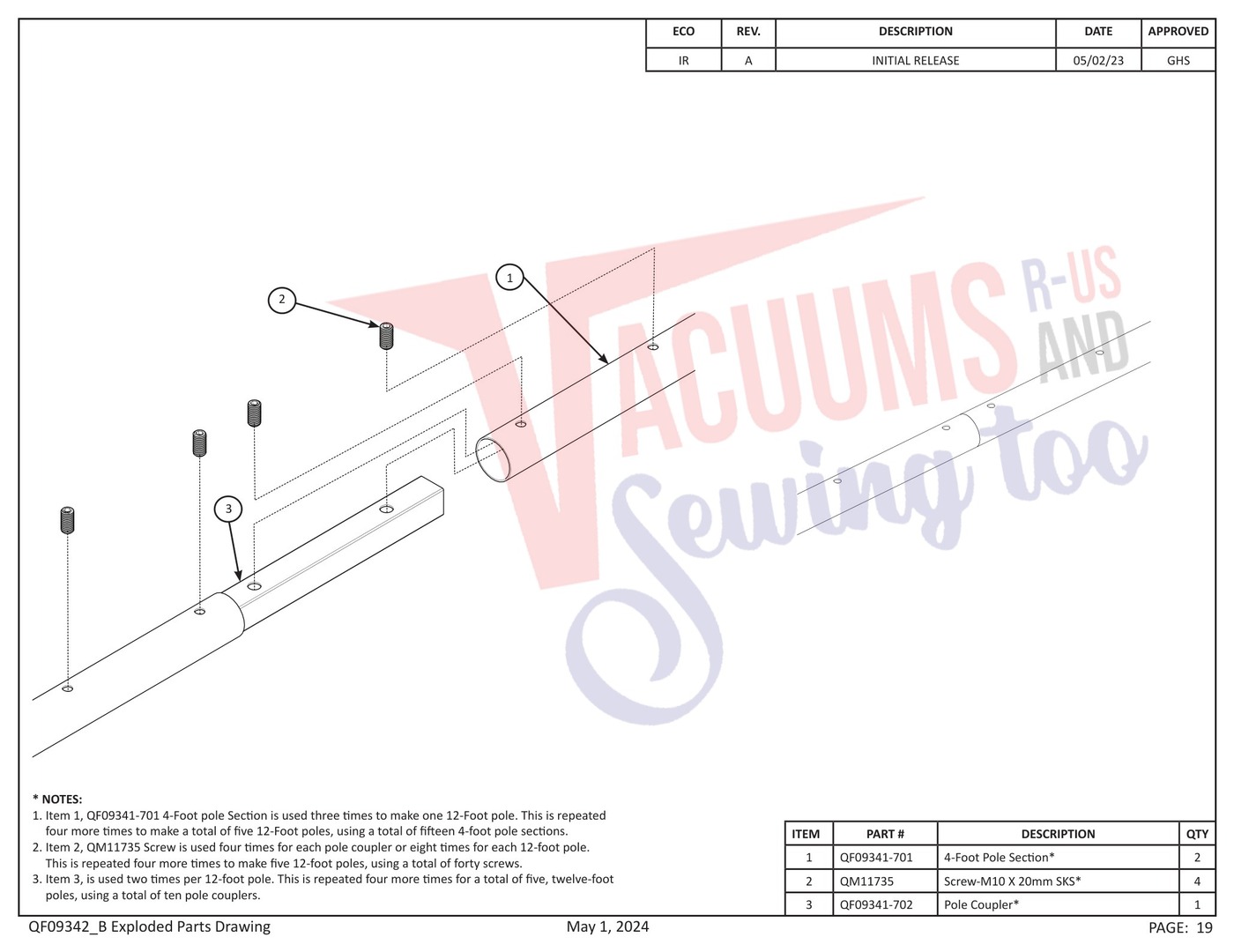

| 1 | No Image | 4-Foot Pole Section | QF09341701 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW, M10 X 20 SKS FLAT ZN* sewing machine part or accessory For Janome Models: QMPRO20 | QM11735 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Pole Coupler | QF09341702 | $39.44Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 |  | RATCHET STOP MOUNT sewing machine part or accessory QF09318-202 RATCHET STOP MOUNT | QF09318-202 | $4.19Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | RATCHET STOP HOLDER sewing machine part or accessory QF09318-205 RATCHET STOP HOLDER | QF09318-205 | $0.92Read more |
| 3 |  | RATCHET STOP BUSHING sewing machine part or accessory QF09318-201 RATCHET STOP BUSHING | QF09318-201 | $3.37Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | RATCHET STOP BUSHING sewing machine part or accessory QF09318-201 RATCHET STOP BUSHING | QF09318-201 | $3.37Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SCREW-M6 X 45 W/16.5MM SWH sewing machine part or accessory QF09318-204 SCREW-M6 X 45 W/16.5MM SWH | QF09318-204 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER, M4 ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10229 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Nut-M4 Acorn | QF09341-111 | Not Available |
| 8 | | SCREW-M4 X 10 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10173 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | No Image | 5Mm Hex Driver Tool | QM40415 | $89.38Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | 5Mm Hex L Tool | QM10289 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hex Key Handle 4Mm | QF09318112 | $19.86Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna ALLEN WRENCH 3mm QF09318-111 ALLEN WRENCH 3mm | QF09318-111 | $14.94Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | 16mm Wrench | QM40230 | Not Available |
| 6 |  | Bungee Clamp With 6' Cord | QF09318110 | $27.32Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Bungee Grab Assemb (Set Of 2) | HG10003 | $84.48Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Leader Super Set 11.5’ | QF09558 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | 12' Velcro Strip (Set Of 3) | QF00669 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Track Alignment Kit | QF00100 | $1.82Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Retain-Lock Track Extrusionsf3 | QF09341113 | $56.56Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Bungee Grab Assemb Mount Plate | No Part # | Not Available |
| 2 | | KNOB-ADJUSTMENT HB JANOME20 sewing machine part or accessory For Janome Models: QMPRO20 Front Han... | QM11780 | $28.23Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Screw-8Mmx10Mm Shlder M6 Thrd | QF09341108 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Screw-M4 X 25 PHF ZN | QF10050 | Not Available |
| 5 | No Image | Bungee Grab Assemb (Set Of 2) | HG10003 | $84.48Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | No Image | L Rear Pole Side Arm Assembly | QF093412002 | $303.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Left Connecting Arm | QF09341202 | $212.52Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | L Front Pole Side Arm Assembly | QF09341220 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 |  | Screw-M6 X 18 W/16Mm Swh | QF09318206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Ratchet Mount No Threads | QF09318222 | $3.28Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | RATCHET STOP MOUNT sewing machine part or accessory QF09318-202 RATCHET STOP MOUNT | QF09318-202 | $4.19Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Bungee Grab Assemb (Set Of 2) | HG10003 | $84.48Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Screw-M4 X 25 PHF ZN | QF10050 | Not Available |
| 6 | | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Screw-8Mmx10Mm Shlder M6 Thrd | QF09341108 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | KNOB-ADJUSTMENT HB JANOME20 sewing machine part or accessory For Janome Models: QMPRO20 Front Han... | QM11780 | $28.23Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Rail Bearing Sf3 | QF09341106 | $20.13Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Cradle - Push In Sf3 | QF09341107 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Bungee Grab Assemb Mount Plate | No Part # | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | | TRACK SUPPORT sewing machine part or accessory QF09318-02 TRACK SUPPORT | QF09318-02 | $72.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Table Frame SF3 | QF09341-301 | Not Available |
| 3 | No Image | Table Top | QF09318302 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Screw-M6 With Spacer | QF0934103 | $13.21Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 |  | Track Insert for Qmpro Frame (2pcs) sewing machine part or accessory Track Insert for Qmpro Frame... | QF09318-04 | $86.89Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Retain-Lock Track Extrusionsf3 | QF09341113 | $56.56Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Table Frame w/ Plastic Top | QF09341-300 | Not Available |
| 4 | | TRACK SUPPORT sewing machine part or accessory QF09318-02 TRACK SUPPORT | QF09318-02 | $72.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Screw-M6 With Spacer | QF0934103 | $13.21Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Screw-M5 X 8 Sbhcs | QF09318304 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Screw-M8 X 16 Sks | QM0934105 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Track Support Coupler | QM0931803 | $13.21Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Table Frame Coupler | QM0934104 | $73.68Add to cart Special order: ships in 2 to 4 weeks |

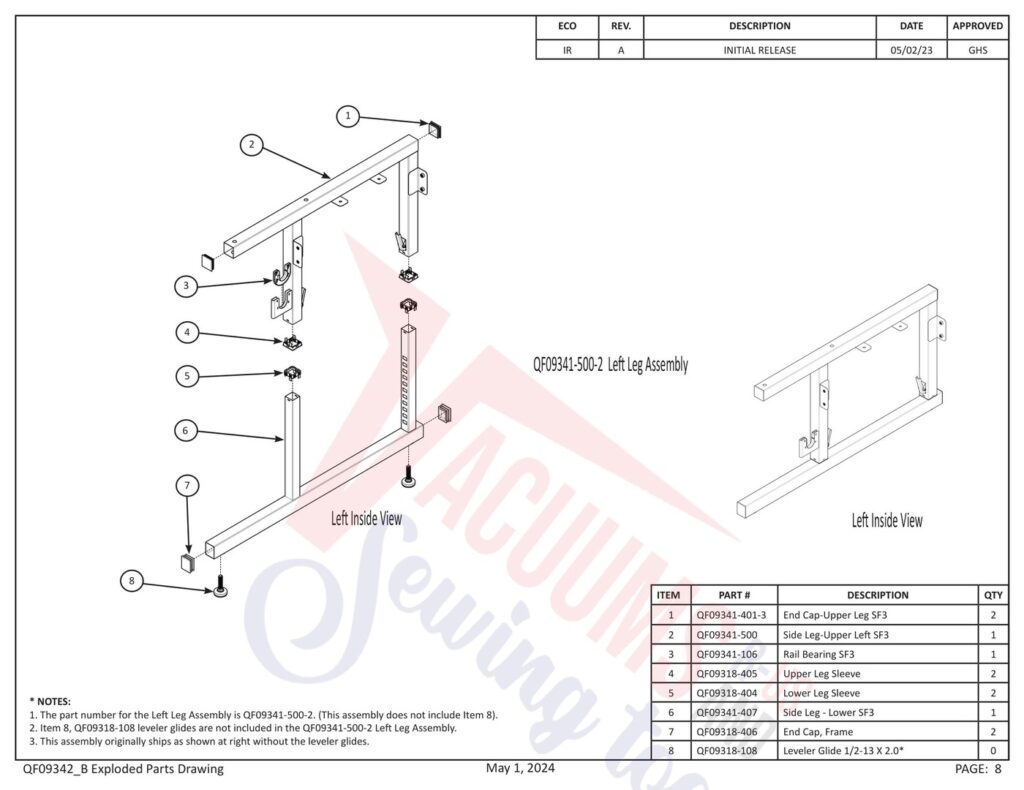

| # | Part image | Description | SKU | Price |

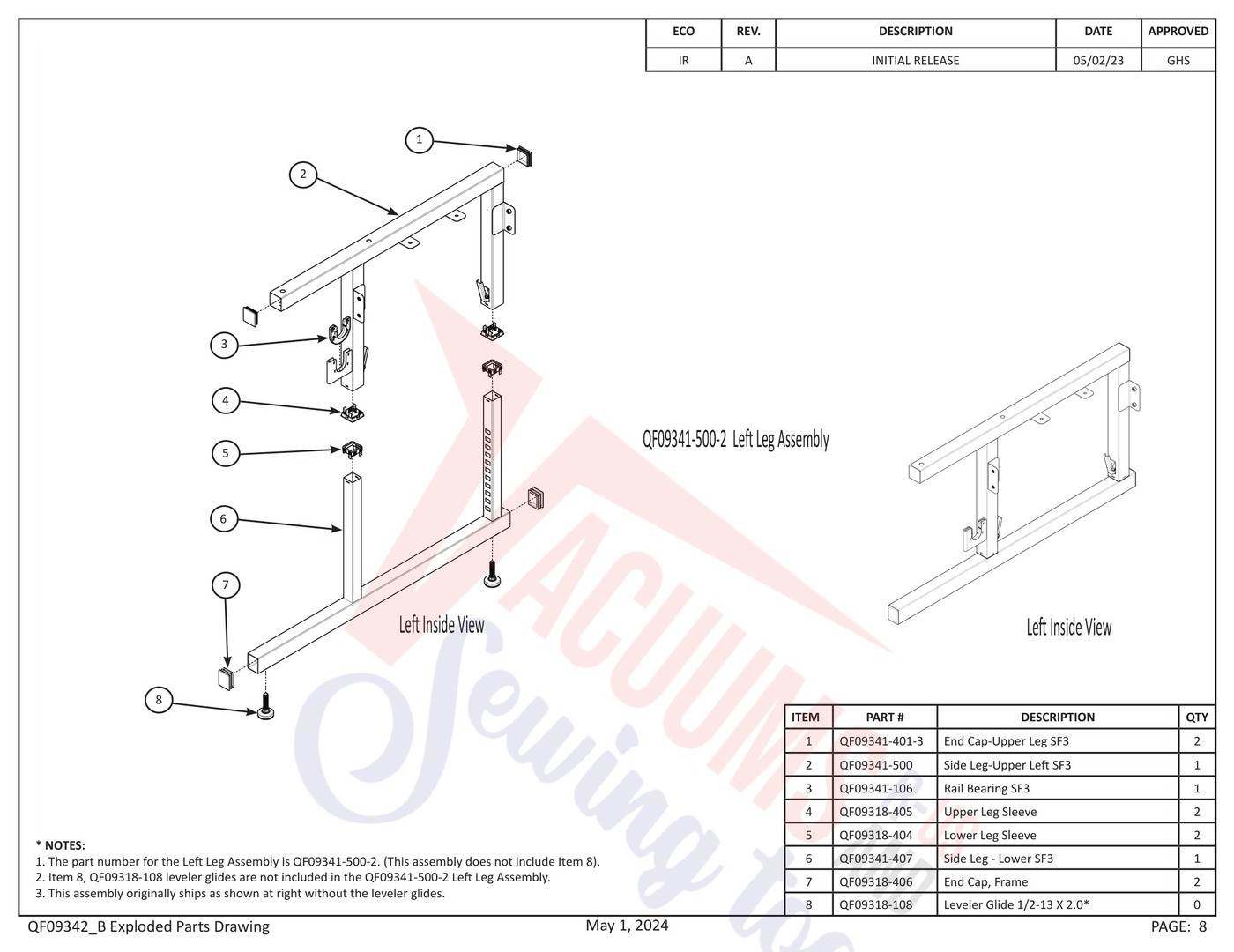

| 1 | Not Available | End Cap-Upper Leg SF3 | QF09341-401-3 | Not Available |
| 2 | Not Available | Side Leg-Upper Left SF3 | QF09341-500 | Not Available |
| 3 | No Image | Rail Bearing Sf3 | QF09341106 | $20.13Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Upper Leg Sleeve | QF09318405 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Lower Leg Sleeve | QF09318404 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Side Leg - Lower SF3 | QF09341-407 | Not Available |
| 7 | No Image | End Cap | QF09318406 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | LEVELING GLIDE sewing machine part or accessory QF09318-108 LEVELING GLIDE | QF09318-108 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

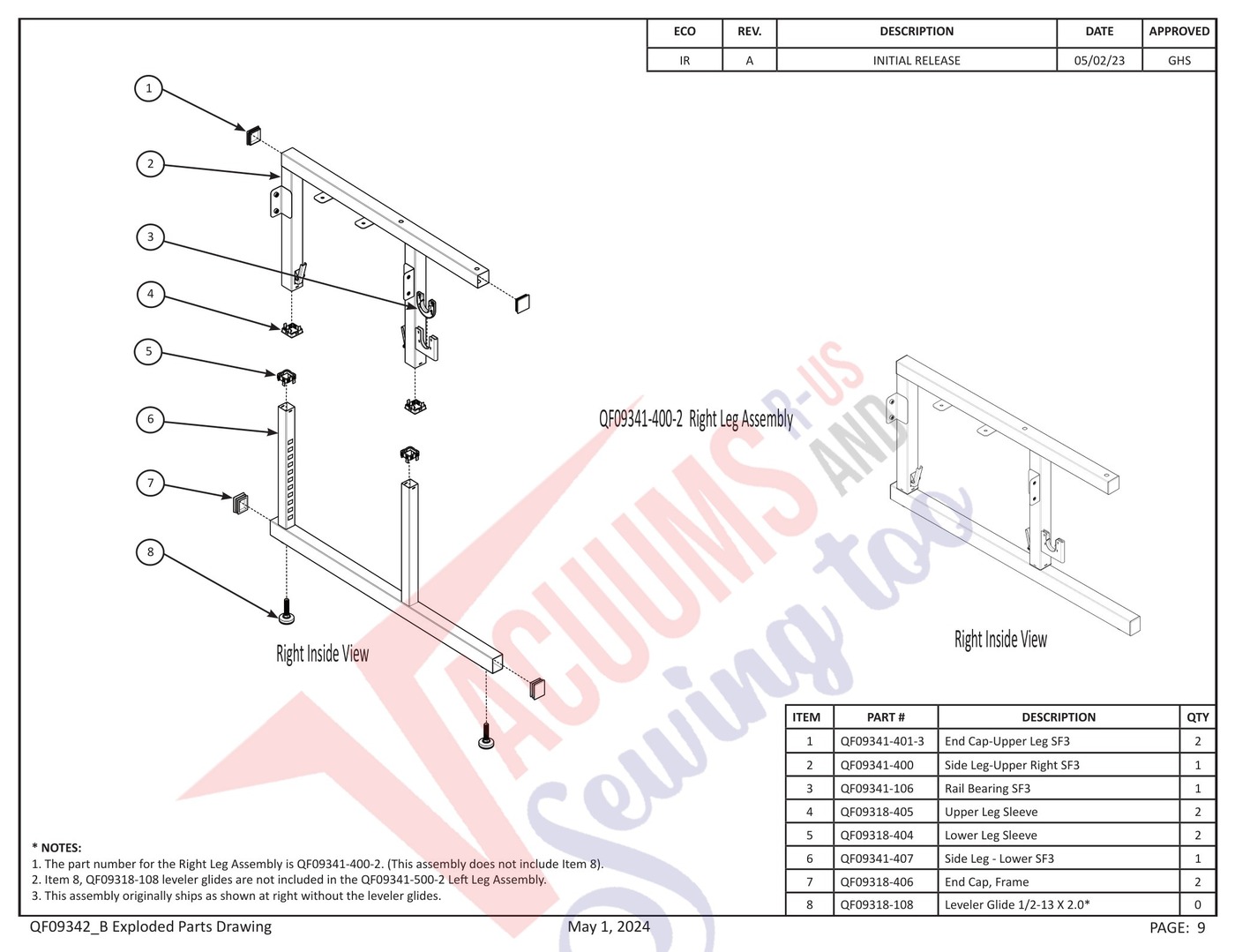

| 1 | Not Available | End Cap-Upper Leg SF3 | QF09341-401-3 | Not Available |
| 2 | Not Available | Side Leg-Upper Right SF3 | QF09341-400 | Not Available |
| 3 | No Image | Rail Bearing Sf3 | QF09341106 | $20.13Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Upper Leg Sleeve | QF09318405 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Lower Leg Sleeve | QF09318404 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Side Leg - Lower SF3 | QF09341-407 | Not Available |
| 7 | No Image | End Cap | QF09318406 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | LEVELING GLIDE sewing machine part or accessory QF09318-108 LEVELING GLIDE | QF09318-108 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
