Schematic and parts book for Janome PROFRAME10 & 12, PROFRAME10, PROFRAME12 PROFRAME10 & 12, PROFRAME10, PROFRAME12. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

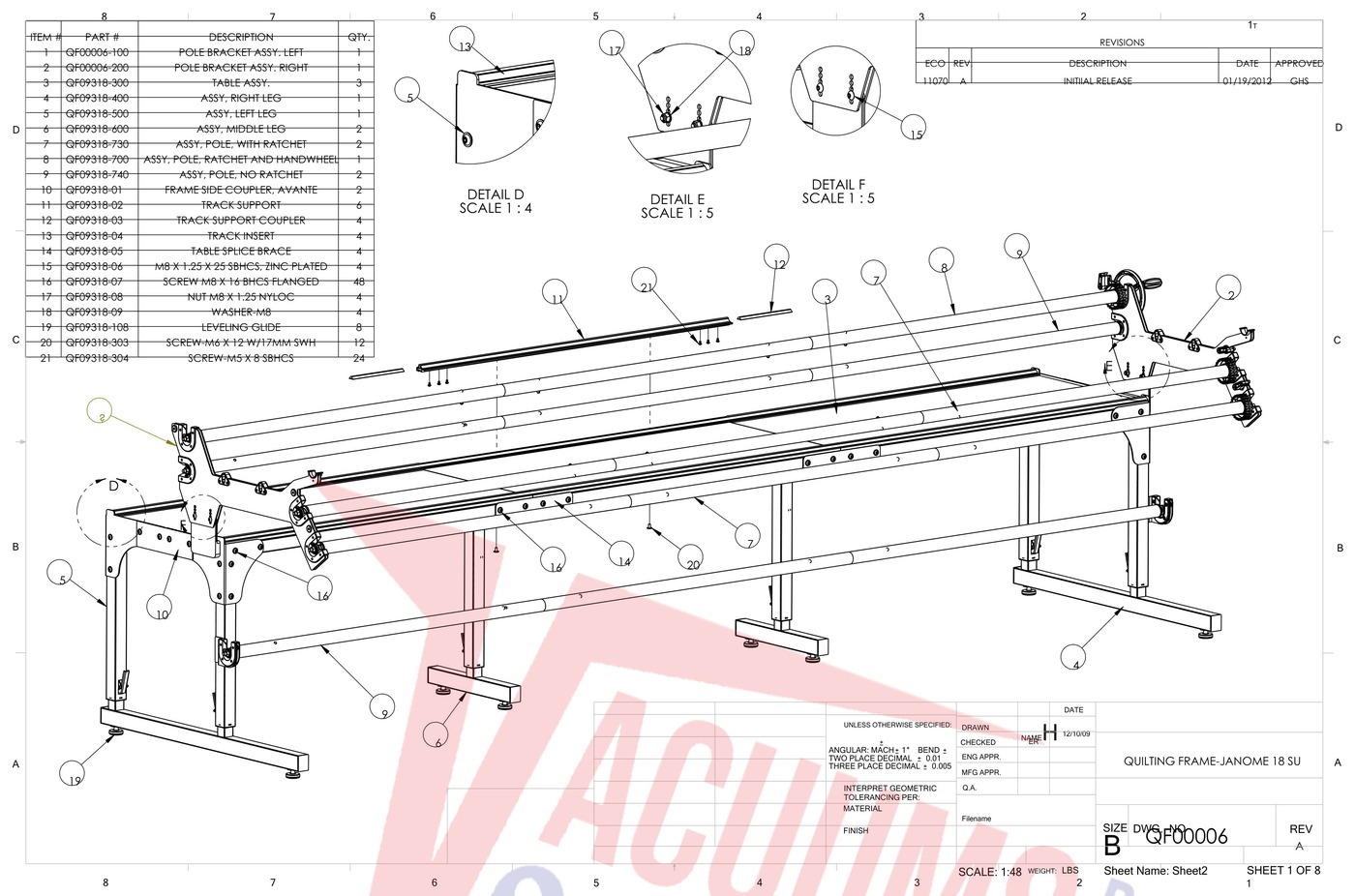

| # | Part image | Description | SKU | Price |
| 1 | No Image | Pole Bracket Assy. Left | QF00006100 | $168.20Read more |
| 2 | No Image | Pole Bracket Assy. Right | QF00006200 | $168.20Read more |
| 3 | Not Available | TABLE ASSY. | QF09318-300 | Not Available |
| 4 | Not Available | ASSY RIGHT LEG | QF09318-400 | Not Available |
| 5 | Not Available | ASSY LEFT LEG | QF09318-500 | Not Available |
| 6 | No Image | Assy, Middle Leg | QF09318600 | $151.80Read more |
| 7 | Not Available | ASSY POLE WITH RATCHET | QF09318-730 | Not Available |
| 8 | Not Available | ASSY POLE RATCHET & HW | QF09318-700 | Not Available |
| 9 | Not Available | ASSY POLE NO RATCHET | QF09318-740 | Not Available |
| 10 |  | FRAME SIDE COUPLER sewing machine part or accessory QF09318-01 FRAME SIDE COUPLER | QF09318-01 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | TRACK SUPPORT sewing machine part or accessory QF09318-02 TRACK SUPPORT | QF09318-02 | $72.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Track Support Coupler | QF0931803 | $7.47Read more |
| 13 |  | Track Insert for Qmpro Frame (2pcs) sewing machine part or accessory Track Insert for Qmpro Frame... | QF09318-04 | $86.89Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | TABLE SPLICE BRACE sewing machine part or accessory QF09318-05 TABLE SPLICE BRACE | QF09318-05 | $55.83Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | M8 X 1.25 X 25 SBHCS ZINC PLATED sewing machine part or accessory QF09318-06 M8 X 1.25 X 25 SBHC... | QF09318-06 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Nut M8 X 1.25 Nyloc | QF0931808 | $2.00Read more |
| 18 |  | Washer-M8 | QF0931809 | $0.73Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | LEVELING GLIDE sewing machine part or accessory QF09318-108 LEVELING GLIDE | QF09318-108 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Screw-M6 X 12 W/17Mm Swh | QF09318303 | $1.09Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Screw-M5 X 8 Sbhcs | QF09318304 | $4.55Add to cart Special order: ships in 2 to 4 weeks |

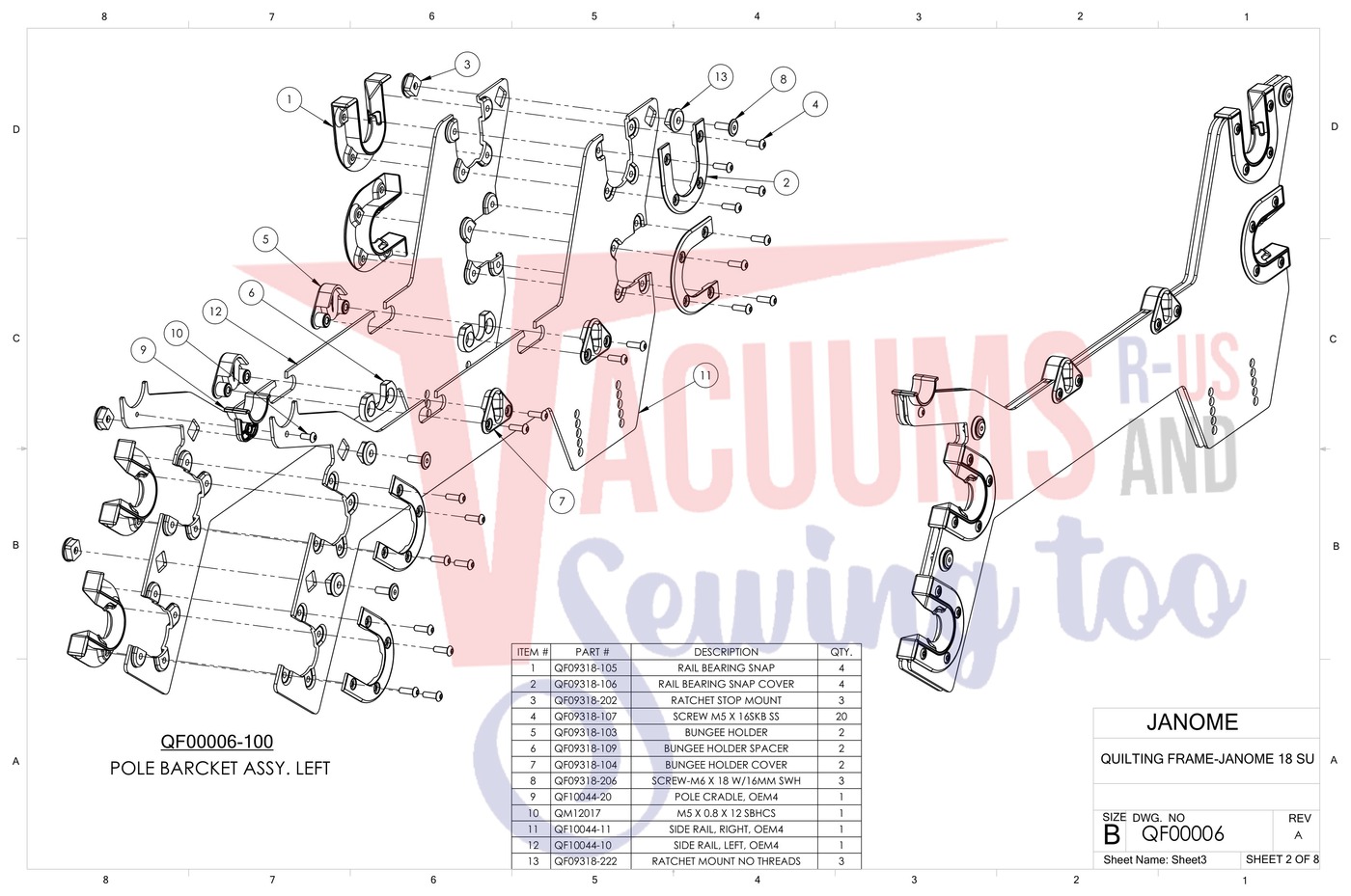

| # | Part image | Description | SKU | Price |
| 1 | | RAIL BEARING SNAP sewing machine part or accessory QF09318-105 RAIL BEARING SNAP | QF09318-105 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | RAIL BEARING SNAP COVER sewing machine part or accessory QF09318-106 RAIL BEARING SNAP COVER | QF09318-106 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | RATCHET STOP MOUNT sewing machine part or accessory QF09318-202 RATCHET STOP MOUNT | QF09318-202 | $4.19Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Screw M5 X 16Skb Ss | QF09318107 | $1.82Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | BUNGEE HOLDER sewing machine part or accessory QF09318-103 BUNGEE HOLDER | QF09318-103 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Bungee Holder Spacer | QF09318109 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | BUNGEE HOLDER COVER sewing machine part or accessory QF09318-104 BUNGEE HOLDER COVER | QF09318-104 | $3.73Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Screw-M6 X 18 W/16Mm Swh | QF09318206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Pole Cradle Oem4 | QF1004420 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SCREW-M5 X 12 SKB SS sewing machine part or accessory | QM12017 | $0.80Read more |
| 11 | Not Available | Side Rail, Right, OEM4 | QF10044-11 | Not Available |
| 12 | Not Available | SIDE RAIL LEFT OEM4 | QF10044-10 | Not Available |
| 13 |  | Ratchet Mount No Threads | QF09318222 | $3.28Add to cart Special order: ships in 2 to 4 weeks |

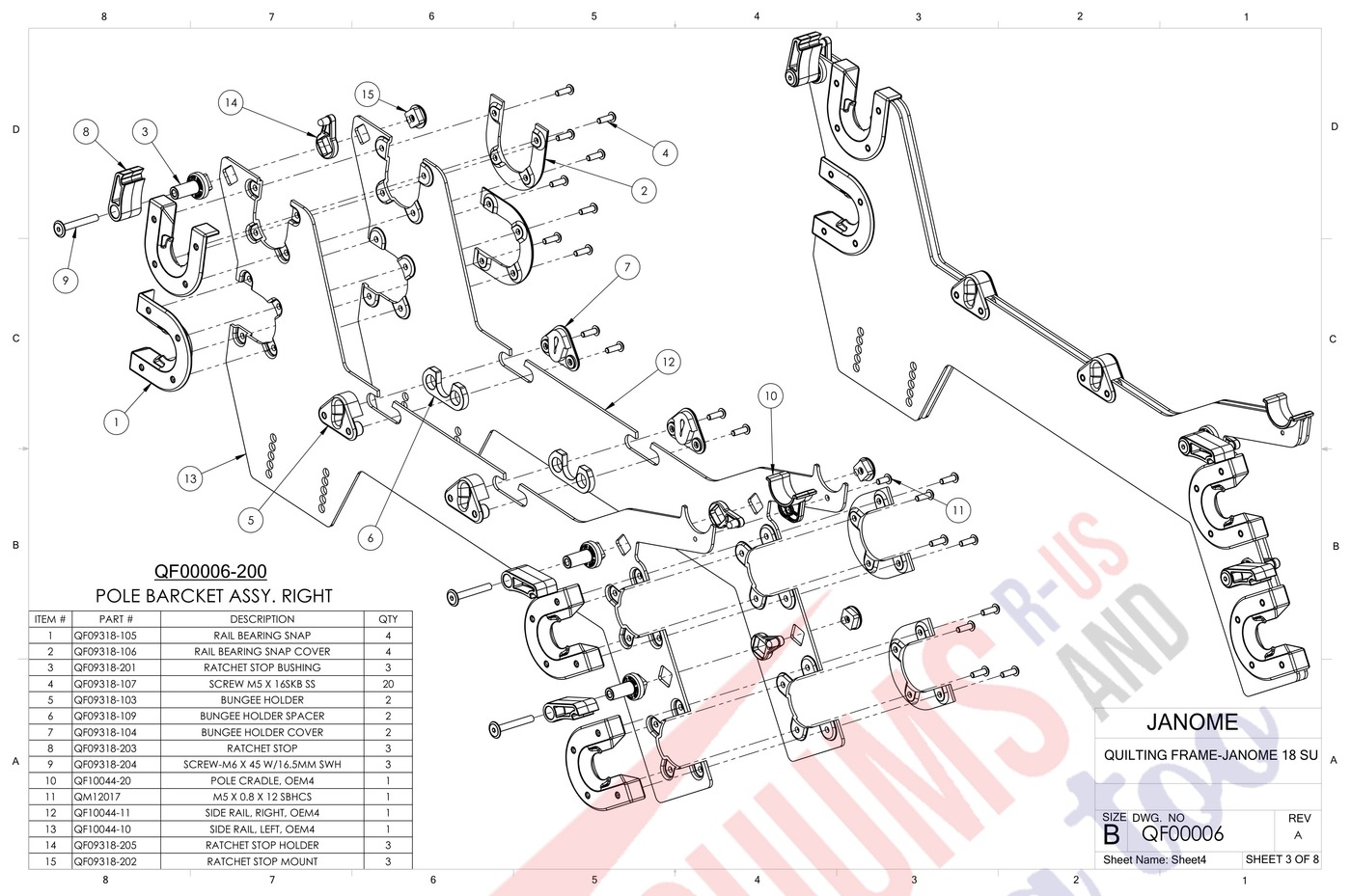

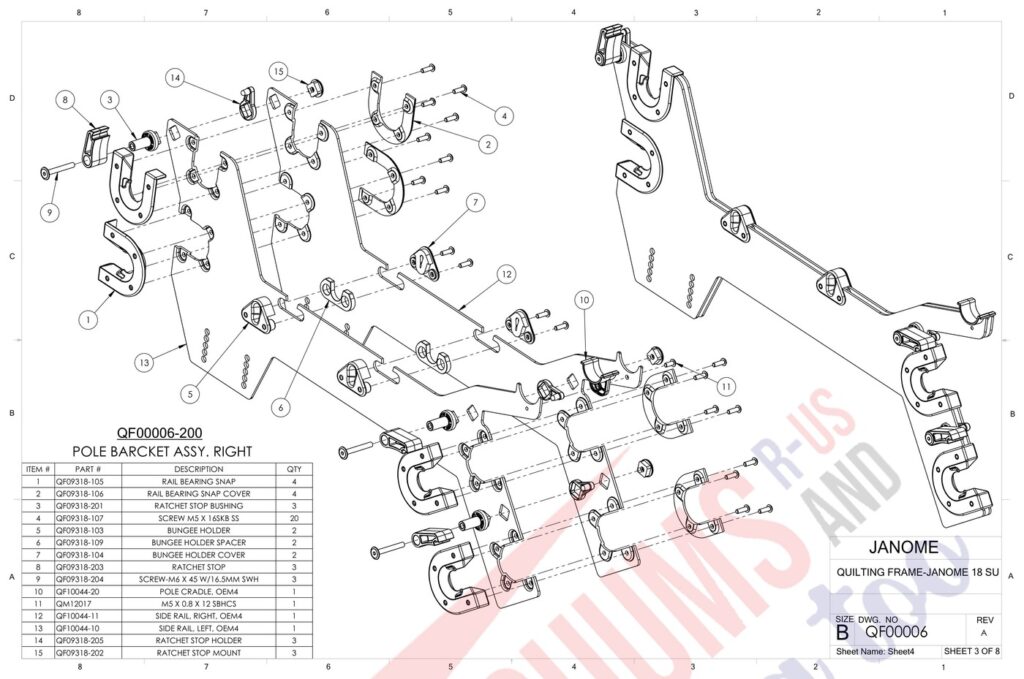

| # | Part image | Description | SKU | Price |
| 1 | | RAIL BEARING SNAP sewing machine part or accessory QF09318-105 RAIL BEARING SNAP | QF09318-105 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | RAIL BEARING SNAP COVER sewing machine part or accessory QF09318-106 RAIL BEARING SNAP COVER | QF09318-106 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | RATCHET STOP BUSHING sewing machine part or accessory QF09318-201 RATCHET STOP BUSHING | QF09318-201 | $3.37Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Screw M5 X 16Skb Ss | QF09318107 | $1.82Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | BUNGEE HOLDER sewing machine part or accessory QF09318-103 BUNGEE HOLDER | QF09318-103 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Bungee Holder Spacer | QF09318109 | $2.46Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | BUNGEE HOLDER COVER sewing machine part or accessory QF09318-104 BUNGEE HOLDER COVER | QF09318-104 | $3.73Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | RATCHET STOP sewing machine part or accessory QF09318-203 RATCHET STOP | QF09318-203 | $1.20Read more |
| 9 | | SCREW-M6 X 45 W/16.5MM SWH sewing machine part or accessory QF09318-204 SCREW-M6 X 45 W/16.5MM SWH | QF09318-204 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Pole Cradle Oem4 | QF1004420 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SCREW-M5 X 12 SKB SS sewing machine part or accessory | QM12017 | $0.80Read more |
| 12 | Not Available | Side Rail, Right, OEM4 | QF10044-11 | Not Available |
| 13 | Not Available | SIDE RAIL LEFT OEM4 | QF10044-10 | Not Available |
| 14 | | RATCHET STOP HOLDER sewing machine part or accessory QF09318-205 RATCHET STOP HOLDER | QF09318-205 | $0.92Read more |
| 15 | | RATCHET STOP MOUNT sewing machine part or accessory QF09318-202 RATCHET STOP MOUNT | QF09318-202 | $4.19Add to cart Special order: ships in 2 to 4 weeks |

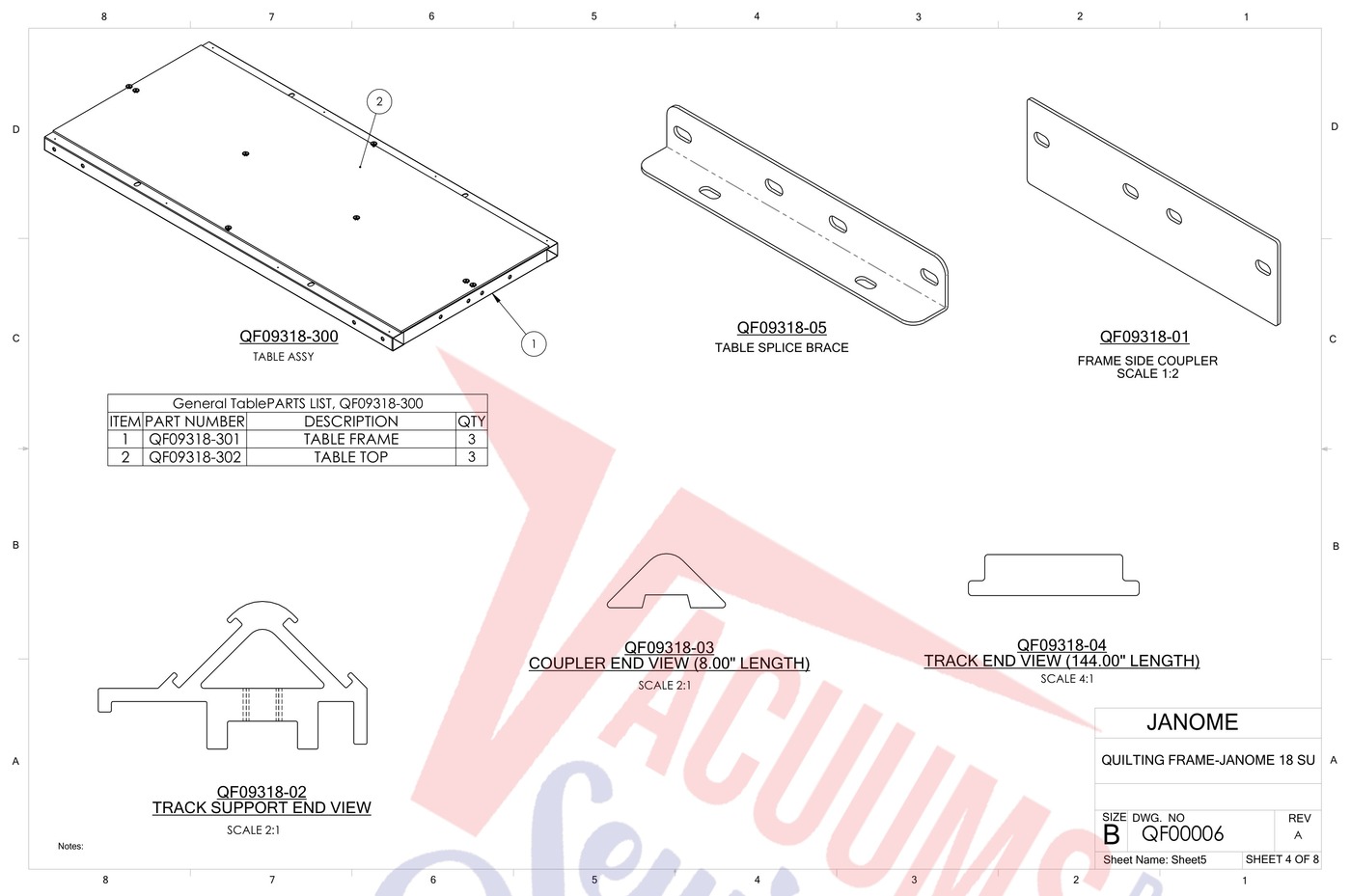

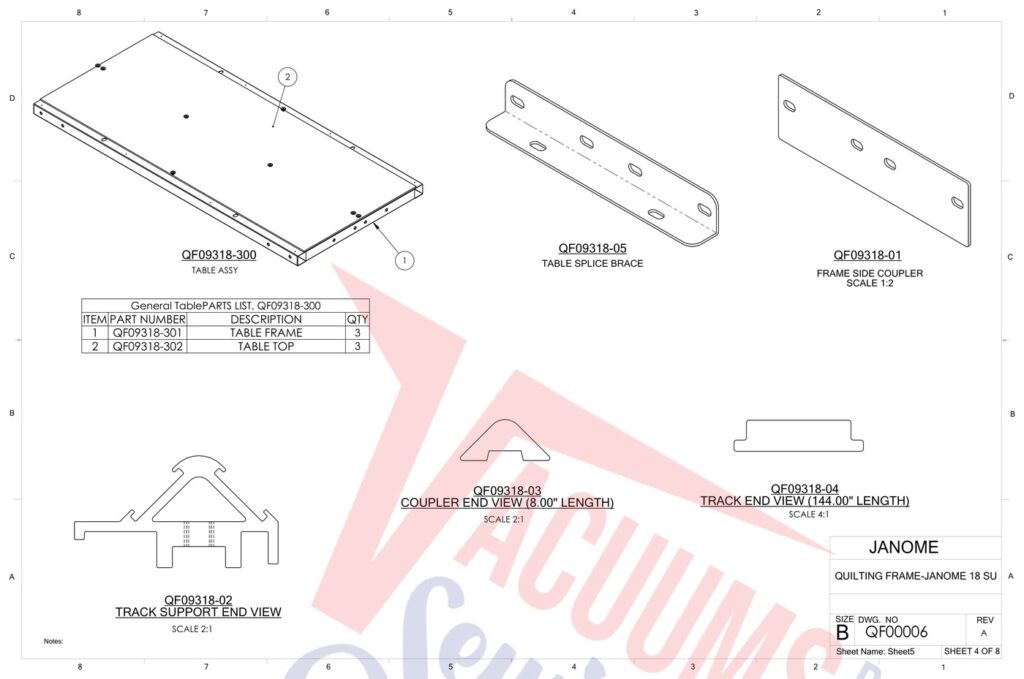

| # | Part image | Description | SKU | Price |
| 1 | Not Available | TABLE ASSY. | QF09318-300 | Not Available |
| 2 | No Image | Table Frame | QF09318301 | $85.40Read more |
| 3 | No Image | Table Top | QF09318302 | $151.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | TABLE SPLICE BRACE sewing machine part or accessory QF09318-05 TABLE SPLICE BRACE | QF09318-05 | $55.83Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | FRAME SIDE COUPLER sewing machine part or accessory QF09318-01 FRAME SIDE COUPLER | QF09318-01 | $29.78Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | TRACK SUPPORT sewing machine part or accessory QF09318-02 TRACK SUPPORT | QF09318-02 | $72.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Track Support Coupler | QF0931803 | $7.47Read more |
| 8 | | Track Insert for Qmpro Frame (2pcs) sewing machine part or accessory Track Insert for Qmpro Frame... | QF09318-04 | $86.89Add to cart Special order: ships in 2 to 4 weeks |

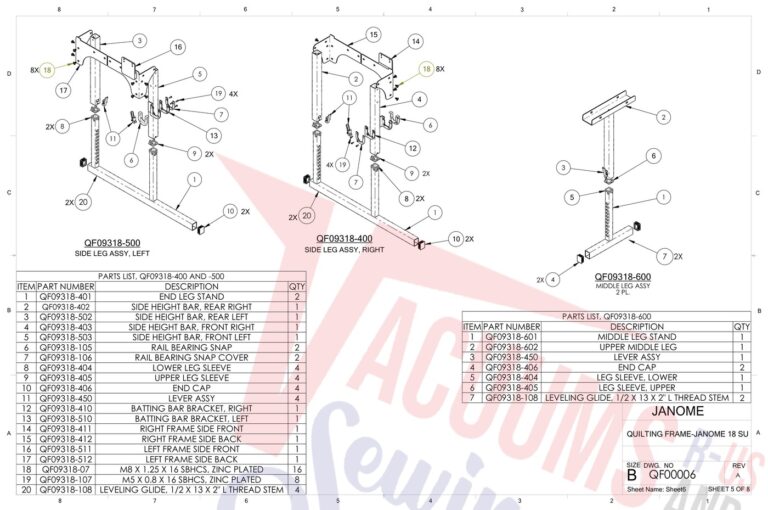

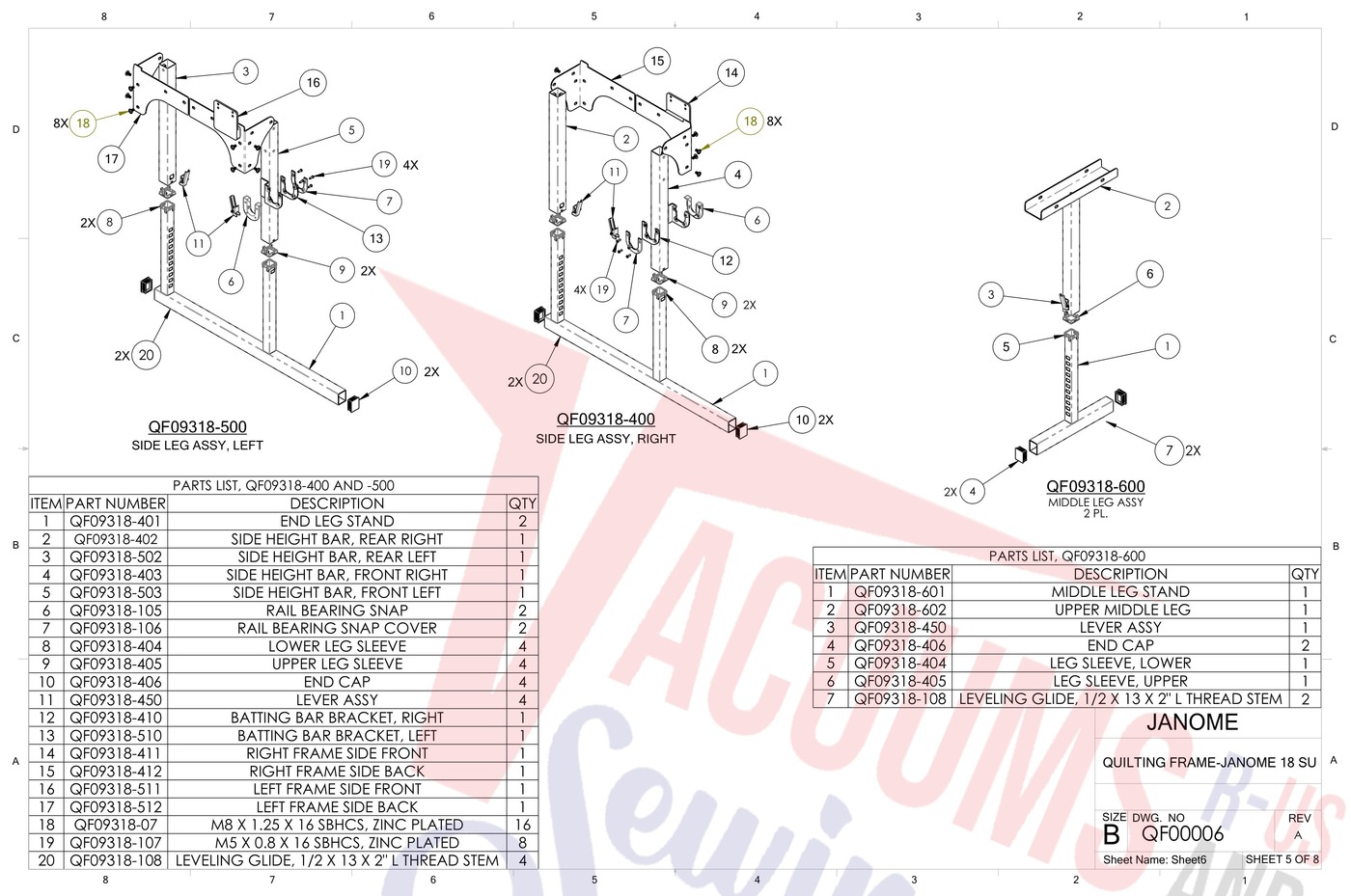

| # | Part image | Description | SKU | Price |
| 1 | No Image | End Leg Stand | QF09318401 | $104.26Read more |
| 2 | No Image | Side Height Bar, Rear Right | QF09318402 | $52.10Read more |
| 3 | No Image | Side Height Bar, Rear Left | QF09318502 | $60.72Read more |
| 4 | No Image | Side Height Bar, Front Right | QF09318403 | $89.35Read more |
| 5 | No Image | Side Height Bar, Front Left | QF09318503 | $27.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | RAIL BEARING SNAP sewing machine part or accessory QF09318-105 RAIL BEARING SNAP | QF09318-105 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | RAIL BEARING SNAP COVER sewing machine part or accessory QF09318-106 RAIL BEARING SNAP COVER | QF09318-106 | $5.01Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Lower Leg Sleeve | QF09318404 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Upper Leg Sleeve | QF09318405 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | End Cap | QF09318406 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Lever Assy | QF09318-450 | Not Available |
| 12 | Not Available | Batting Bar Bracket, Right | QF09318-410 | Not Available |
| 13 | Not Available | Batting Bar Bracket, Left | QF09318-510 | Not Available |
| 14 |  | RIGHT FRAME SIDE FRONT sewing machine part or accessory QF09318-411 RIGHT FRAME SIDE FRONT | QF09318-411 | $47.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | RIGHT FRAME SIDE BACK sewing machine part or accessory QF09318-412 RIGHT FRAME SIDE BACK | QF09318-412 | $29.44Read more |
| 16 |  | LEFT FRAME SIDE FRONT sewing machine part or accessory QF09318-511 LEFT FRAME SIDE FRONT | QF09318-511 | $47.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | LEFT FRAME SIDE BACK sewing machine part or accessory QF09318-512 LEFT FRAME SIDE BACK | QF09318-512 | $25.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Screw M5 X 16Skb Ss | QF09318107 | $1.82Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | LEVELING GLIDE sewing machine part or accessory QF09318-108 LEVELING GLIDE | QF09318-108 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | MIDDLE LEG STAND | QF09318-601 | Not Available |
| 22 | Not Available | UPPER MIDDLE LEG | QF09318-602 | Not Available |
| 23 | Not Available | Lever Assy | QF09318-450 | Not Available |
| 24 | No Image | End Cap | QF09318406 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Lower Leg Sleeve | QF09318404 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Upper Leg Sleeve | QF09318405 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | LEVELING GLIDE sewing machine part or accessory QF09318-108 LEVELING GLIDE | QF09318-108 | $3.60Add to cart Special order: ships in 2 to 4 weeks |

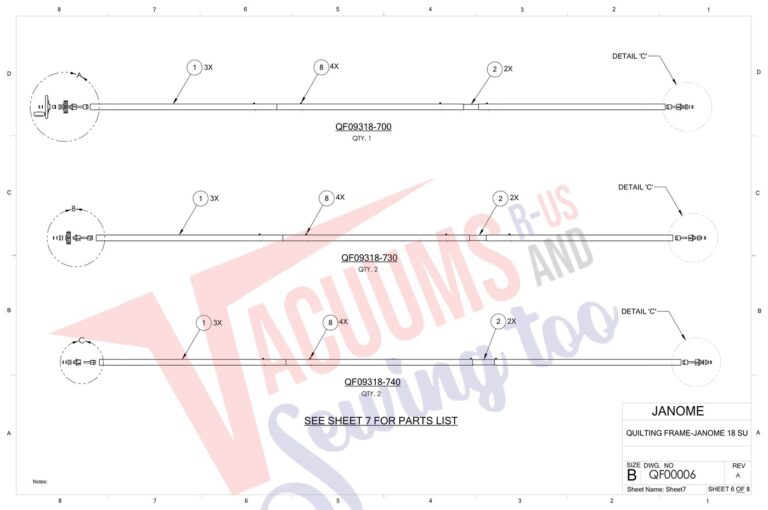

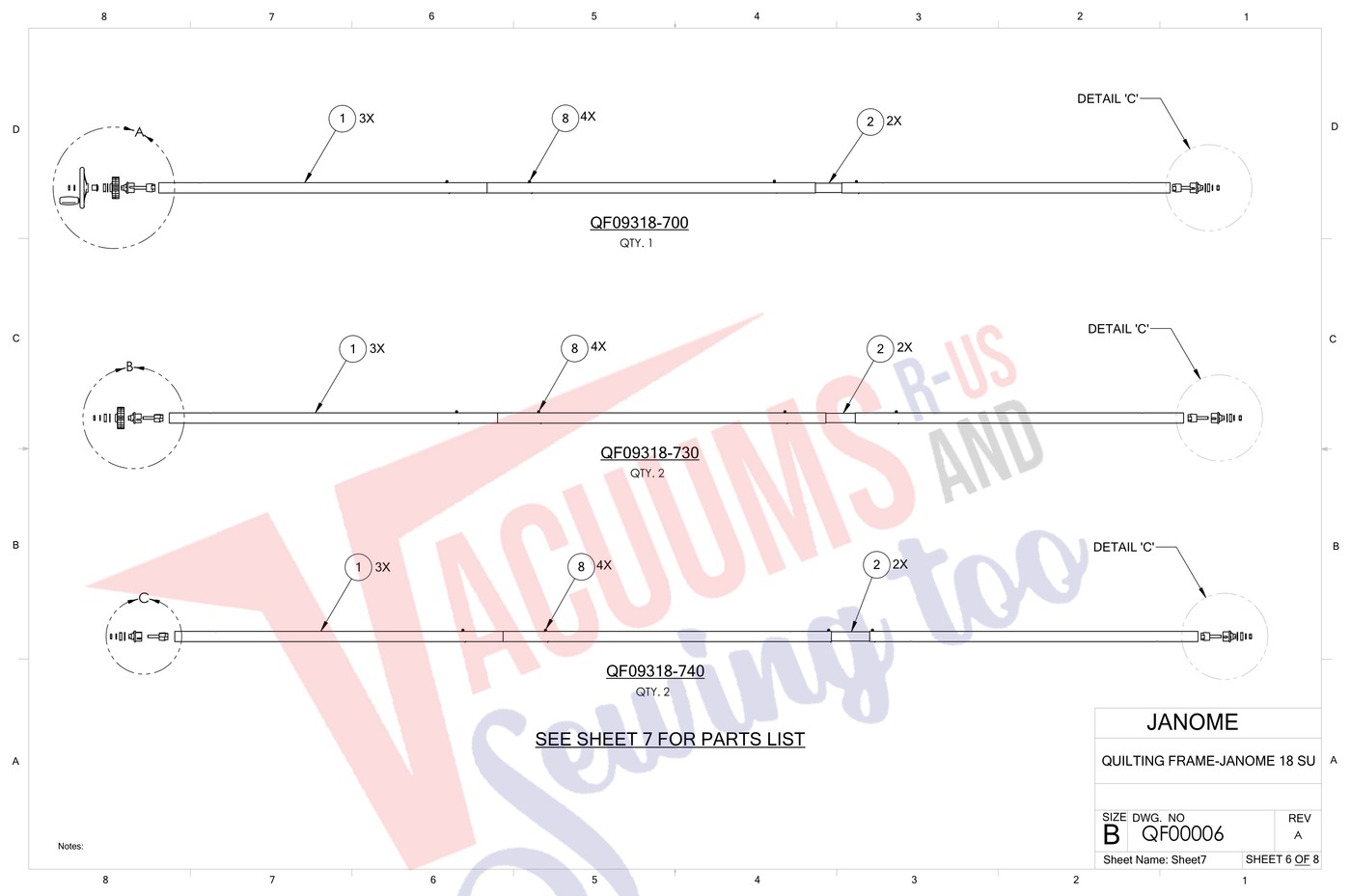

| # | Part image | Description | SKU | Price |
| 1 | Not Available | ASSY POLE RATCHET & HW | QF09318-700 | Not Available |
| 2 | Not Available | ASSY POLE WITH RATCHET | QF09318-730 | Not Available |
| 3 | Not Available | ASSY POLE NO RATCHET | QF09318-740 | Not Available |

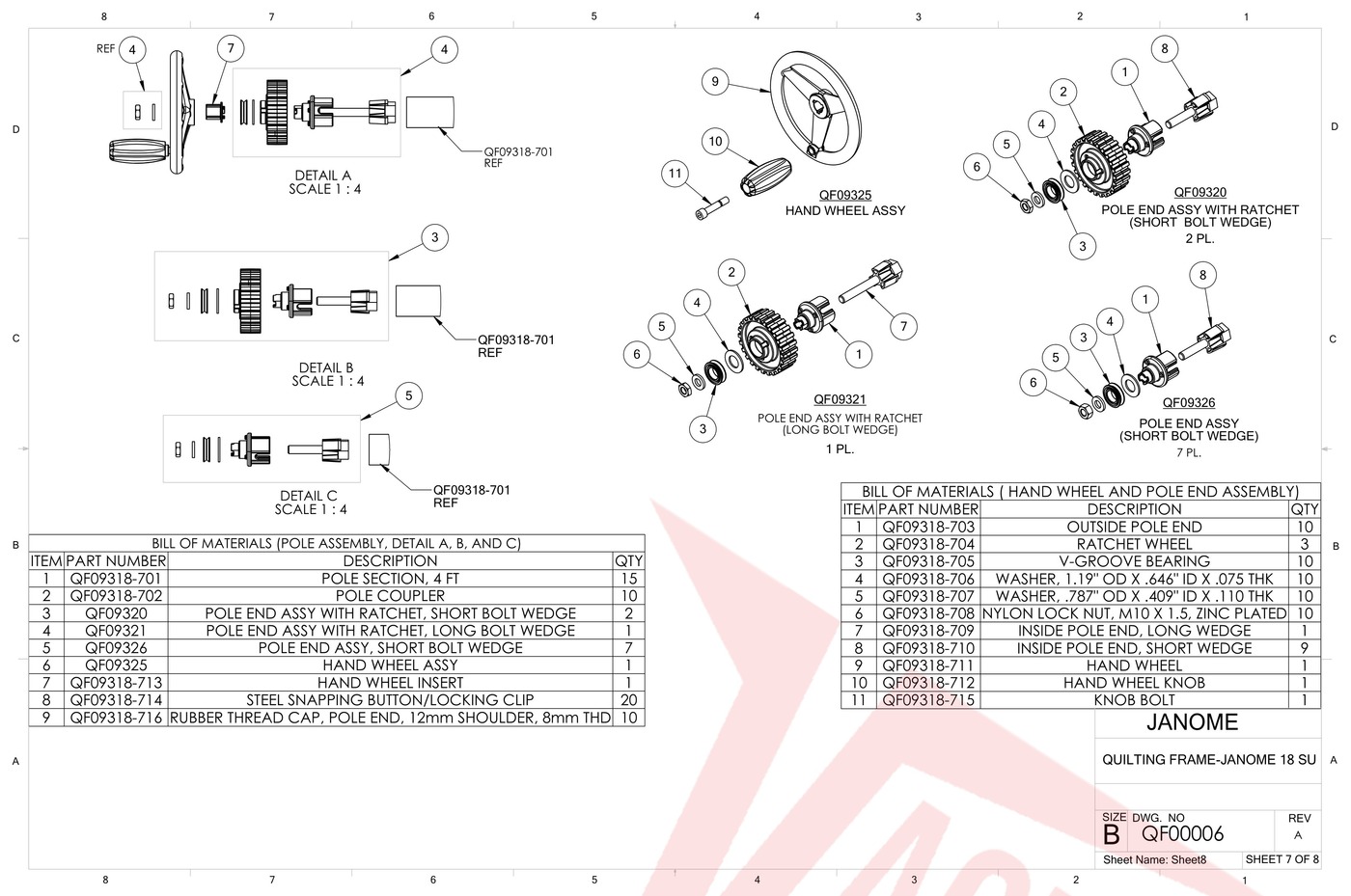

| # | Part image | Description | SKU | Price |
| 1 | No Image | Pole Section, 4 Ft | QF09318701 | $69.95Read more |
| 2 |  | Pole Coupler | QF09318702 | $59.57Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Pole End Assy W/Ratchet | QF09320 | $8.60Read more |
| 4 |  | Pole End Assembly With Rachet | QF09321 | $37.25Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Pole End Assy, Short Bolt | QF09326 | $18.58Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hand Wheel Assembly | QF09325 | $48.27Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | HAND WHEEL INSERT sewing machine part or accessory QF09318-713 HAND WHEEL INSERT | QF09318-713 | $5.56Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | STEEL SNAPPING BUTTON/LOCKING CLIP sewing machine part or accessory QF09318-714 STEEL SNAPPING BU... | QF09318-714 | $1.09Read more |
| 9 | No Image | Rubber Thread Cap, Pole End | QF09318716 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | OUTSIDE POLE END sewing machine part or accessory QF09318-703 OUTSIDE POLE END | QF09318-703 | $7.47Add to cart |
| 11 |  | Ratchet Wheel | QF09318704 | $22.31Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | V-GROOVE BEARING sewing machine part or accessory QF09318-705 V-GROOVE BEARING | QF09318-705 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Washer, 1.19" Odx | QF09318706 | $0.46Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Washer, .787" Odx | QF09318707 | $1.82Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Nylon Lock Nut, M10 X 1.5 | QF09318708 | $4.55Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Inside Pole End, Long Wedge | QF09318709 | $7.47Read more |
| 17 |  | Inside Pole End, Short Wedge | QF09318710 | $7.47Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Hand Wheel | QF09318711 | $24.86Read more |
| 19 |  | Hand Wheel Knob | QF09318712 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Knob Bolt | QF09318715 | $1.46Add to cart Special order: ships in 2 to 4 weeks |

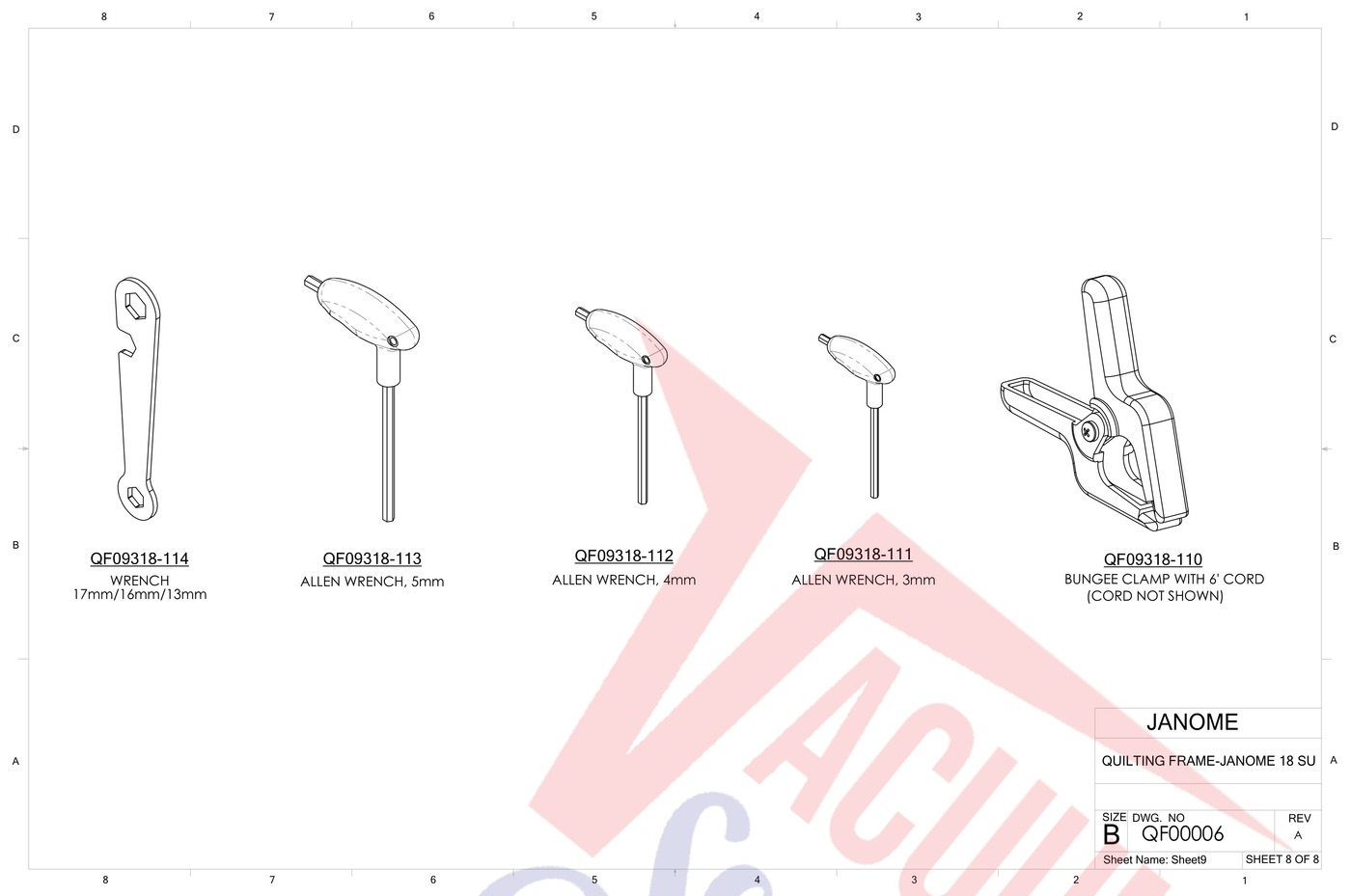

| # | Part image | Description | SKU | Price |
| 1 |  | Open End Wrench 17/13Mm | QF09318114 | $22.31Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna ALLEN WRENCH 5mm QF09318-113 ALLEN WRENCH 5mm | QF09318-113 | $24.86Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hex Key Handle 4Mm | QF09318112 | $19.86Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna ALLEN WRENCH 3mm QF09318-111 ALLEN WRENCH 3mm | QF09318-111 | $14.94Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Bungee Clamp With 6' Cord | QF09318110 | $27.32Add to cart Special order: ships in 2 to 4 weeks |
