Schematic and parts book for Janome NH40 NH40. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

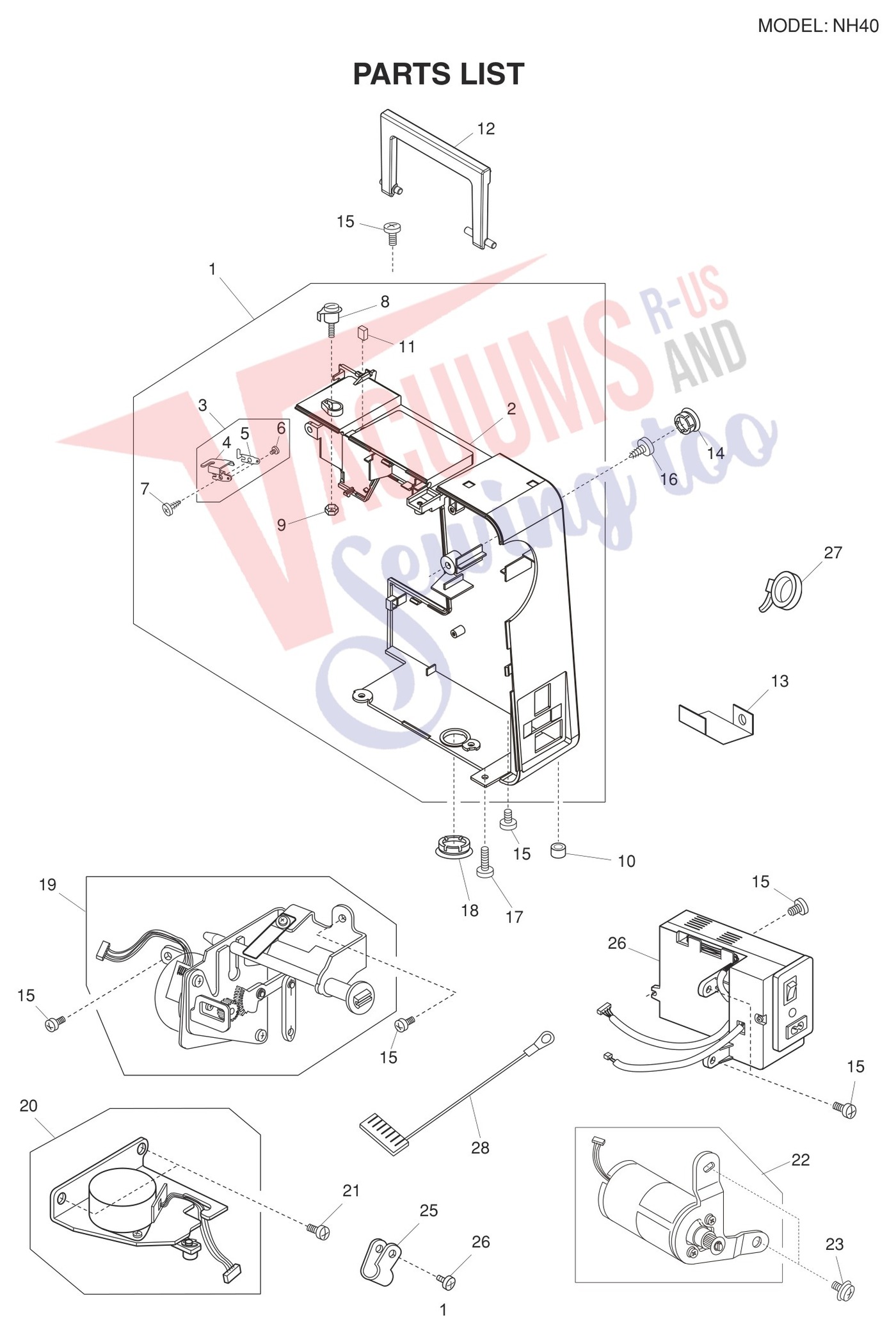

| # | Part image | Description | SKU | Price |
| 1 |  | Rear cover (unit) sewing machine part or accessory For Janome Models: NH40 | 806614016 | $45.80Read more |
| 2 | | Rear cover sewing machine part or accessory For Janome Models: NH40 | 806050203 | $35.20Read more |
| 3 |  | THREAD GUIDE PLATE UNIT 660 sewing machine part or accessory For Janome Models: 662, AQS2009, JEM... | 660618001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Thread guide plate sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/6... | 660046002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Pretension spring sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/66... | 660047003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set screw 3x6(B) sewing machine part or accessory For Janome Models: 6147, 662, CE2200, JEM GOLD ... | 000107905 | $0.60Read more |
| 8 | | THREAD GUIDE (UNIT) sewing machine part or accessory | 730501022 | $3.22Read more |
| 9 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Rubber foot sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806002004 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Felt sewing machine part or accessory For Janome Models: AQS2009, Jem Gold III, Jem Gold Plus, My... | 660077002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Handle | 809051008 | Not Available |
| 13 | | Flame retardant insulating paper sewing machine part or accessory For Janome Models: NH40 | 806078001 | $1.80Read more |
| 14 | | Cap sewing machine part or accessory For Janome Models: 1017, 639, 639B, AQS2009, HARMONY 1017, H... | 733003202 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SPOOL PIN SCREW 4X10 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900XP, ... | 000103510 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set screw 4x14 sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, A... | 000198604 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Cap sewing machine part or accessory For Janome Models: NH40 | 745033703 | $0.92Read more |
| 19 | | Stepping motor (Feed) (unit) sewing machine part or accessory For Janome Models: NH40 | 806620004 | $81.40Read more |
| 20 | | Stepping motor (unit) sewing machine part or accessory For Janome Models: NH40 | 806621005 | $68.80Read more |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | DC motor sewing machine part or accessory For Janome Models: NH40 | 806622006 | $64.80Read more |
| 23 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Nylon clip acc-2.5 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 000188601 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | SWITCHING REGULATOR UNIT JP720/760 sewing machine part or accessory For Janome Models: AQS2009, J... | 806505002 | $94.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Cord sewing machine part or accessory For Janome Models: NH40 | 806523006 | $2.40Read more |
| # | Part image | Description | SKU | Price |

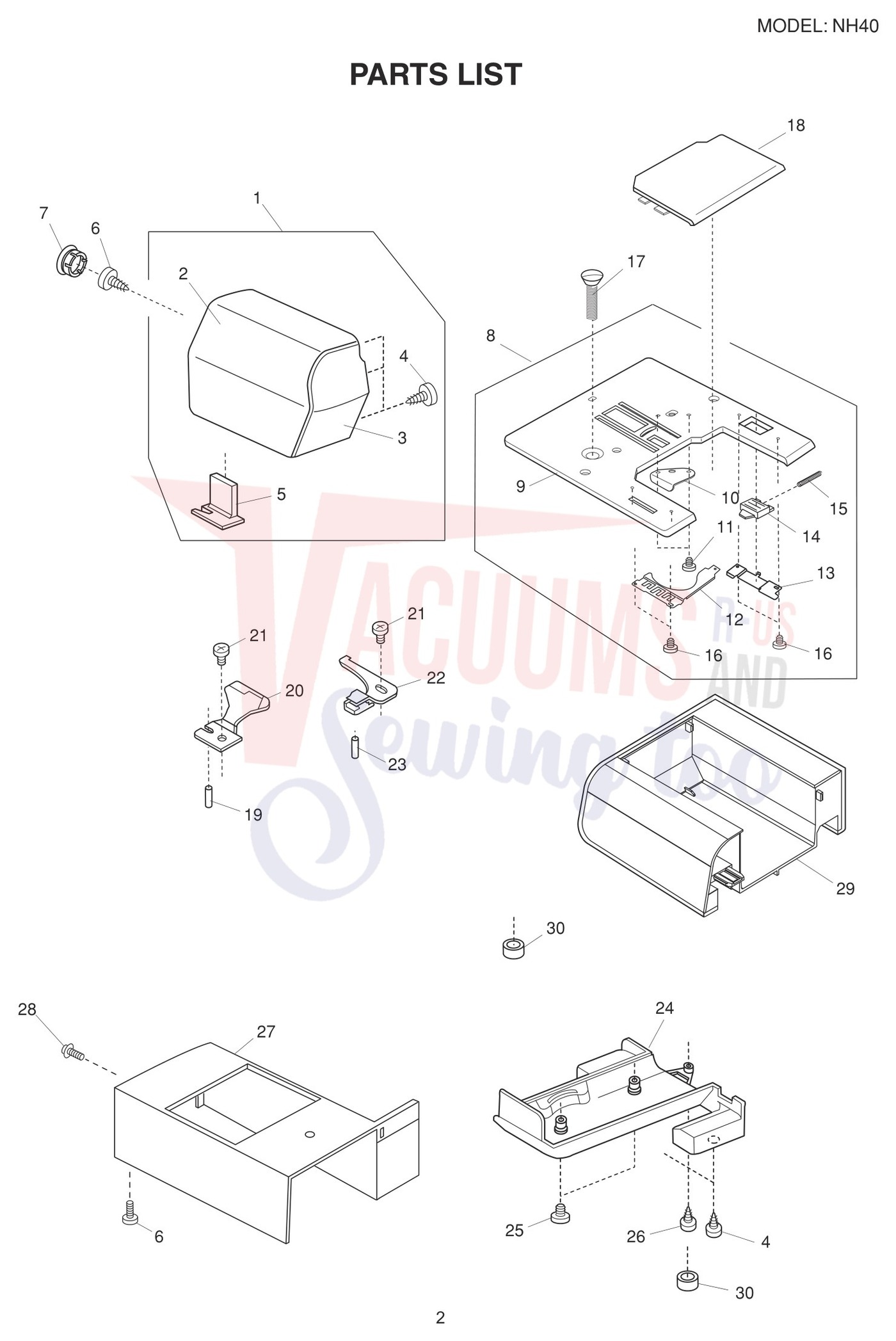

| 1 | | Face cover (unit) sewing machine part or accessory For Janome Models: NH40 | 806616018 | $31.00Read more |
| 2 | | Face cover (1) sewing machine part or accessory For Janome Models: NH40 | 806056106 | $16.20Read more |
| 3 | | Face cover (2) sewing machine part or accessory For Janome Models: NH40 | 806057200 | $13.00Read more |
| 4 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Cap sewing machine part or accessory For Janome Models: NH40 | 745033703 | $0.92Read more |
| 8 |  | Needle plate unit sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 751603307 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Needle Plate | 653179209 | Not Available |
| 10 | | Bobbin holder stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 659, 66... | 654078004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | BOBBIN HOLD PLATE SPRING sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 832235010 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 662, 7061NX... | 000122504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bobbin case stopper(left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827011001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 733... | 000122700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Bed cover sewing machine part or accessory For Janome Models: NH40 | 806052009 | $8.40Read more |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set screw 4x14 sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, A... | 000198604 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Free arm cover sewing machine part or accessory For Janome Models: NH40 | 806053000 | $6.80Read more |
| 28 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Extension table (unit) sewing machine part or accessory For Janome Models: NH40 | 806615006 | $35.60Read more |
| 30 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |

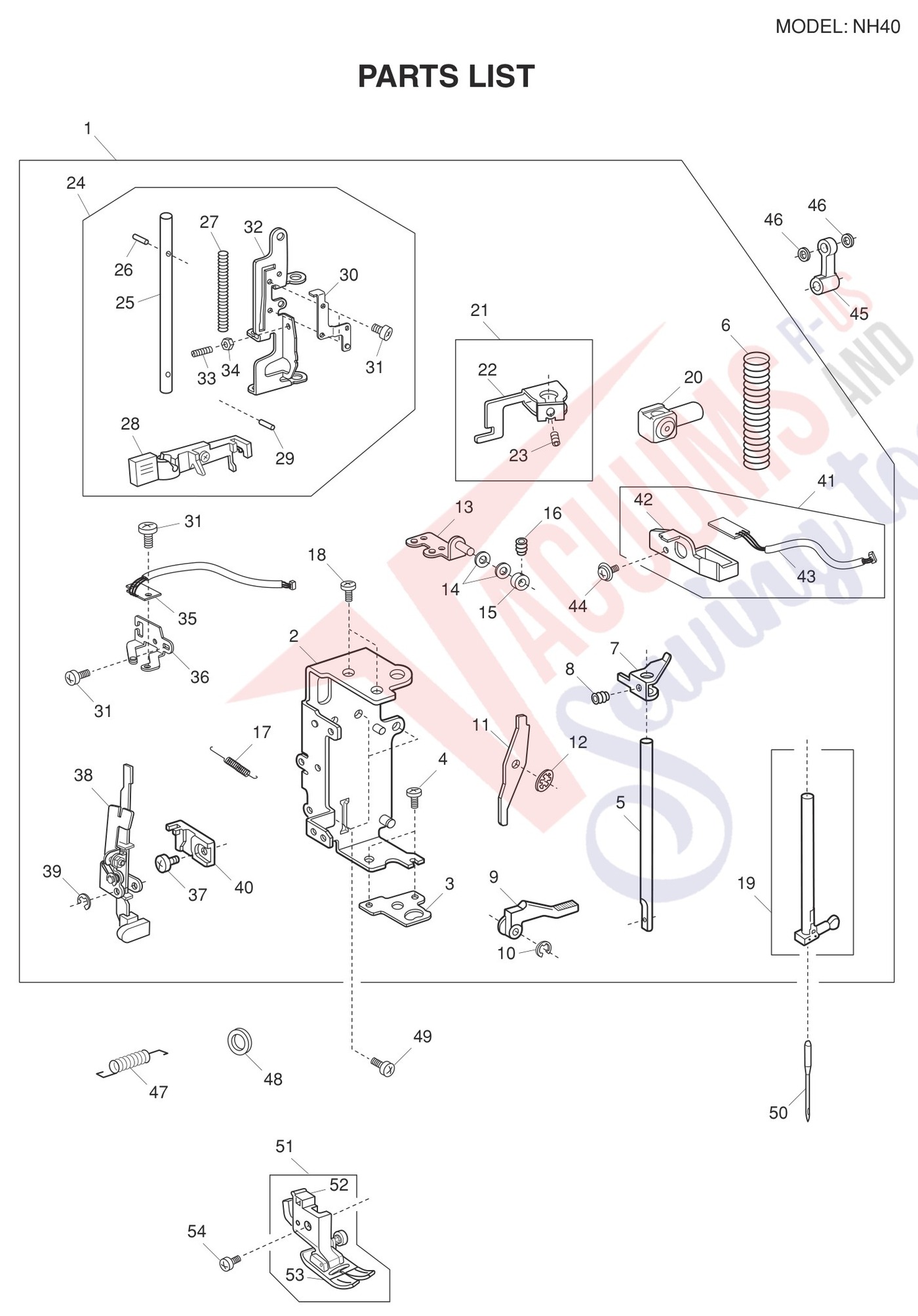

| # | Part image | Description | SKU | Price |
| 1 | | Presser bar plate (unit) sewing machine part or accessory For Janome Models: NH40 | 806624008 | $96.80Read more |
| 2 | | Presser bar plate unit sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806005007 | $9.40Read more |
| 3 | Not Available | Needle drop positioning plate | 660105103 | Not Available |
| 4 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Presser bar sewing machine part or accessory For Janome Models: JEM GOLD 2/661, Jem Gold III, Jem... | 660104009 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | PRESSER BAR SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735027002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Presser foot lifter | 735029015 | Not Available |
| 10 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Tension release lever sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 639012003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Supporter adjusting plate sewing machine part or accessory For Janome Models: AQS2009, JP720, JP7... | 660068000 | $1.61Read more |
| 14 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Ring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 63... | 650136009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Supporter spring (2) sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128,... | 639110002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Needle bar unit sewing machine part or accessory For Janome Models: AQS2009, JEM GOLD 2/661, Jem ... | 660620109 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | NEEDLE BAR CONNECTING STUD sewing machine part or accessory For Janome Models: AQS2009, DC4030, H... | 639516002 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Thread base plate (unit) sewing machine part or accessory For Janome Models: Jem Gold Plus, MC770... | 807607008 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Threader position set plate sewing machine part or accessory For Janome Models: SEWIST780DC | 807018006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Needle threader (unit) sewing machine part or accessory For Janome Models: NH40 | 660654009 | $27.40Read more |
| 25 | | Threader shaft sewing machine part or accessory For Elna Models: ELSTAR | 660100108 | $1.20Read more |
| 26 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Threader spring | 806040004 | Not Available |
| 28 |  | Needle threader supp. unit sewing machine part or accessory For Janome Models: 2139N, AQS2009, HT... | 639643009 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Zigzag rod guide | 660065018 | Not Available |
| 31 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Needle bar supporter sewing machine part or accessory For Janome Models: AQS2009, Jem Gold Plus, ... | 660064202 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Circuit board EI (unit) sewing machine part or accessory For Janome Models: NH40 | 843502901 | $12.40Read more |
| 36 | | Sensor bracket sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806006008 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | BH lever unit sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 843625303 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 40 |  | Buttonhole Lever Guide | 830057021 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Printed circuit board L (unit) sewing machine part or accessory For Janome Models: NH40 | 806623007 | $24.00Read more |
| 42 | | L board cover sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806032003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Printed circuit board L (unit) sewing machine part or accessory For Janome Models: NH40 | 806522005 | $24.15Read more |
| 44 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | NEEDLE BAR CRANK ROD FOR 639 sewing machine part or accessory For Janome Models: 1017, 1117S, 312... | 639016007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | WASHER FT-80 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 4045LX, 4045... | 000036902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Supporter spring sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806008000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Washer FT40 sewing machine part or accessory For Janome Models: AQS2009, MC200E, Necchi EC100 | 000037800 | $0.60Read more |
| 49 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |

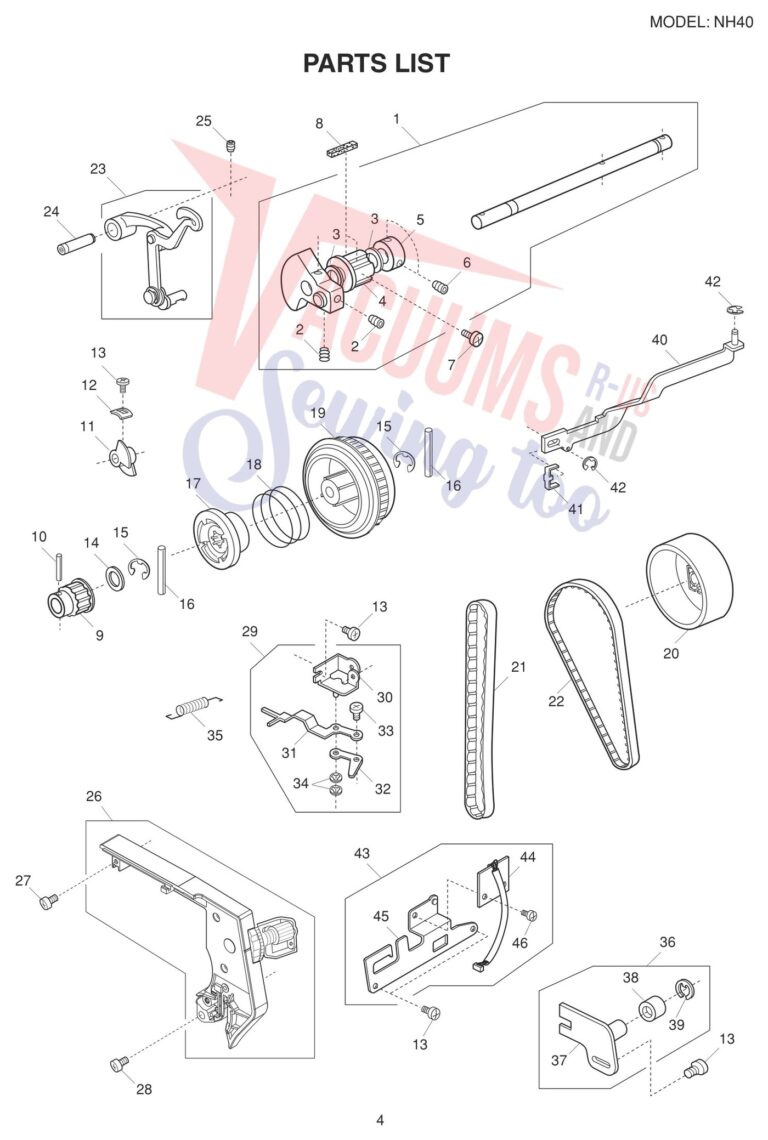

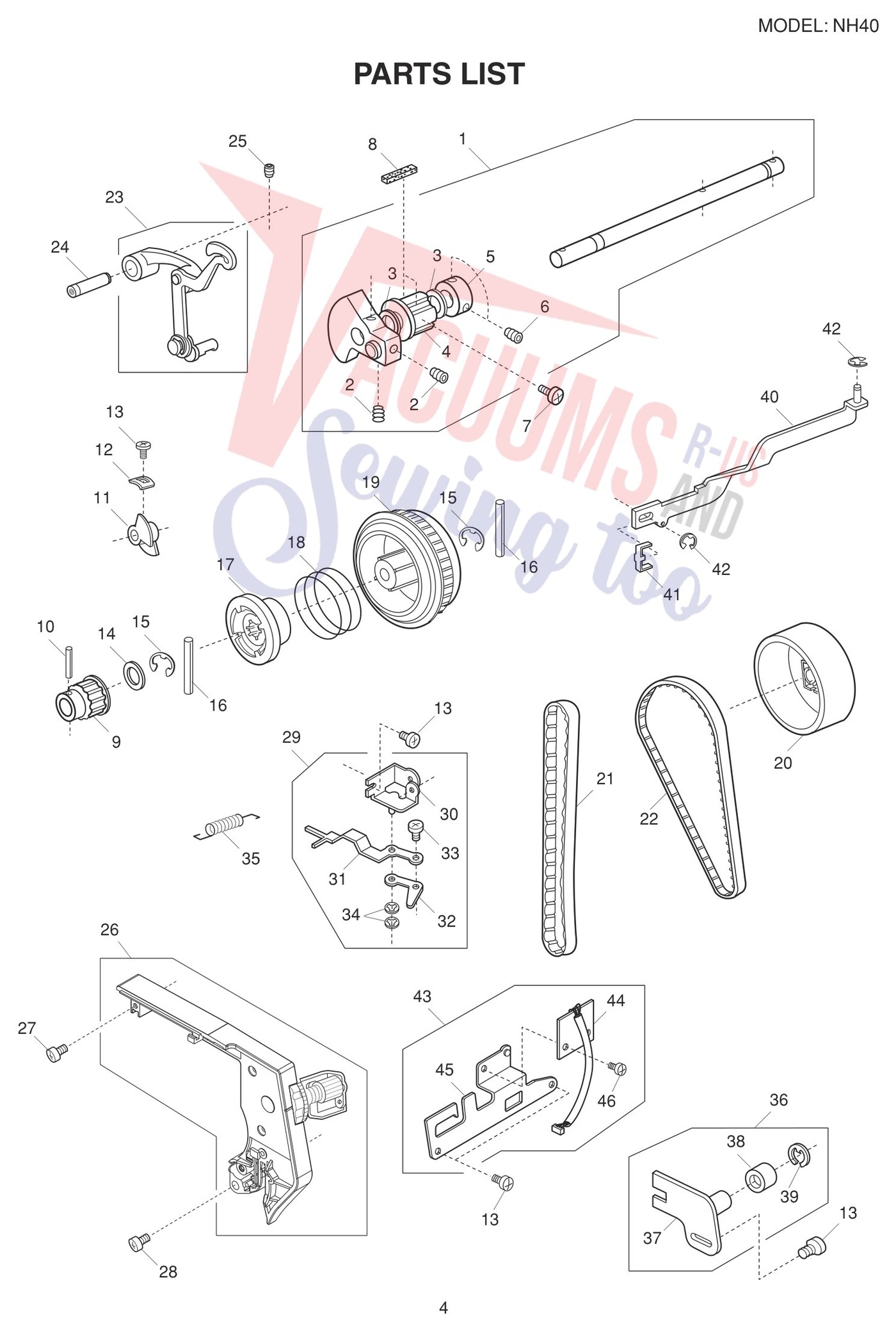

| # | Part image | Description | SKU | Price |
| 1 |  | Upper shaft unit sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 661616105 | $19.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Washer sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 20... | 000036717 | $0.80Read more |
| 4 | | Bushing sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, Jem Gol... | 829042007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Upper shaft timing gear sewing machine part or accessory For Janome Models: AQS2009, JEM GOLD 2/6... | 660103008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: AQS2009, JP720, JP76... | 806010005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Felt sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 662, AQS2009, HELLO K... | 639119001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Clutch ring sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 661020003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Clutch spring sewing machine part or accessory For Janome Models: 3160QDC, AQS2009, JP720, JP760,... | 661024007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Belt wheel sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 661019009 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Hand wheel sewing machine part or accessory For Janome Models: NH40 | 806059109 | $3.80Read more |
| 21 | | Synchro-belt sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S ... | 660017015 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Motor belt sewing machine part or accessory For Janome Models: 7318, AQS2009, JEM GOLD 2/661, Jem... | 653139023 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4... | 660510013 | $19.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Thread take-up lever pin (unit) sewing machine part or accessory For Janome Models: HD1000BE | 647040108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Thread tension (unit) sewing machine part or accessory For Janome Models: NH40 | 806516017 | $31.40Read more |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Tension mounting plate (unit) sewing machine part or accessory For Janome Models: AQS2009, JEM GO... | 661603006 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Tension mounting plate sewing machine part or accessory For Janome Models: AQS2009, JEM GOLD 2/66... | 661004001 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Thread release arm sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/6... | 639024008 | $1.61Read more |
| 32 | | Tension release arm sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/... | 639025009 | $0.92Read more |
| 33 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B, 66... | 639026000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | IDLER UNIT 660 sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, ... | 660609009 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Idler base sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, Jem ... | 660018005 | $1.40Read more |
| 38 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Zigzag rod sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806021009 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Zigzag rod plate sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639... | 639098003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 43 | | Upper shaft sensor unit sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806609007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Circuit board P sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 843505502 | $18.80Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Upper shaft sensor set plate sewing machine part or accessory For Janome Models: AQS2009, JP720, ... | 806031002 | $2.20Read more |
| 46 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

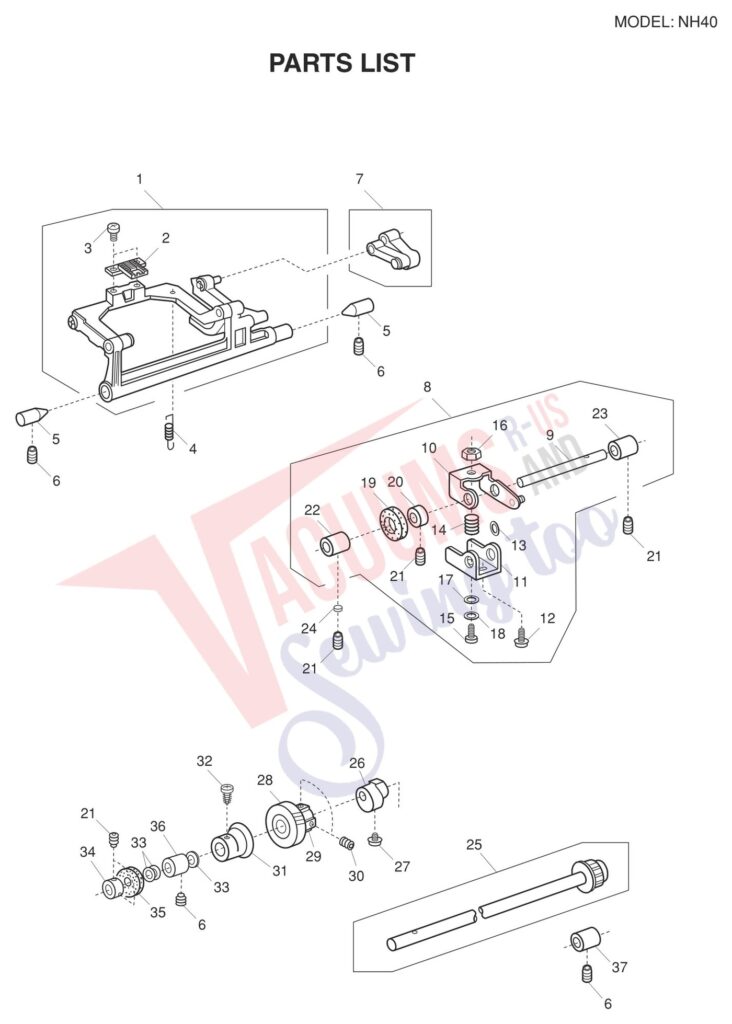

| 1 |  | FEED ROCK SHAFT UNIT ME-4014 sewing machine part or accessory For Janome Models: 509, 521, 525S, ... | 751666009 | $36.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG FOR 4014 sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 662, ... | 653193003 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

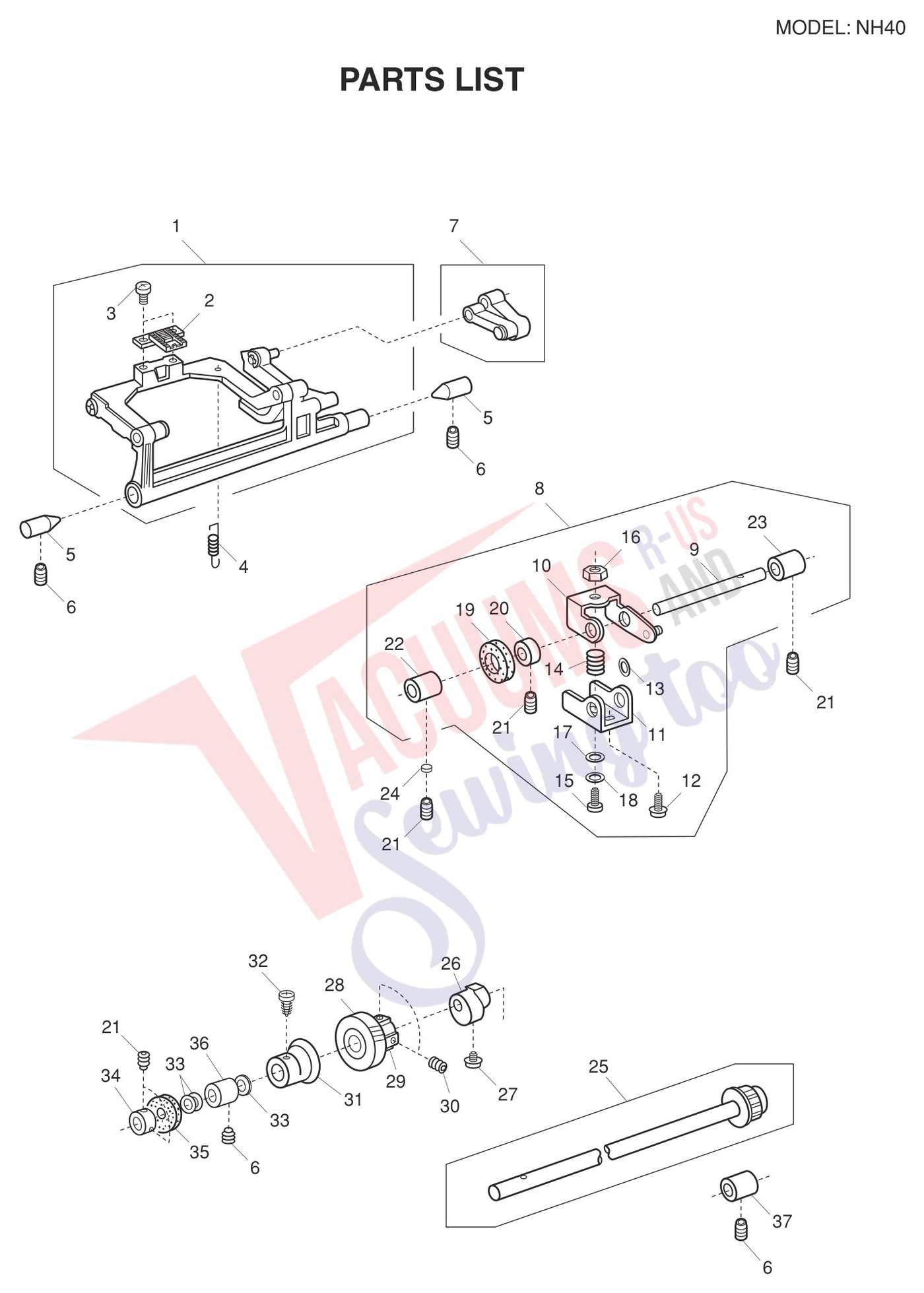

| 5 | | Straight pin sewing machine part or accessory For Janome Models: 662, 712T, AQS2009, JEM GOLD 2/6... | 749024002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Feed shaft unit sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806604002 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed shaft sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 660023106 | $3.20Read more |
| 10 | | Feed arm (1) sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806011006 | $2.00Read more |
| 11 |  | Feed arm (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 70... | 825261002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SET SCREW 3X12 7000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045N... | 000115906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spring washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 6... | 810207004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | BH feed adjusting spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 589040002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed arm screw sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 827086007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Washer 5.2x8x0.25 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1200D, 1200D,... | 000036407 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Lower shaft (unit) sewing machine part or accessory For Janome Models: 660 Jem Gold | 660610003 | $9.20Read more |
| 26 | | FEED LIFT CAM 5000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 751148000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Lower gear sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF5812, MC2160... | 508023008 | $1.80Read more |
| 29 | | Ring sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100, Mystyle100 HF8050, ... | 508020005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | FEED LIFT CAM 4014 sewing machine part or accessory For Janome Models: 662, CE2200, JEM GOLD/660,... | 650077001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Tapping screw 3x12S sewing machine part or accessory For Models: , Necchi TM8 | 000121606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |

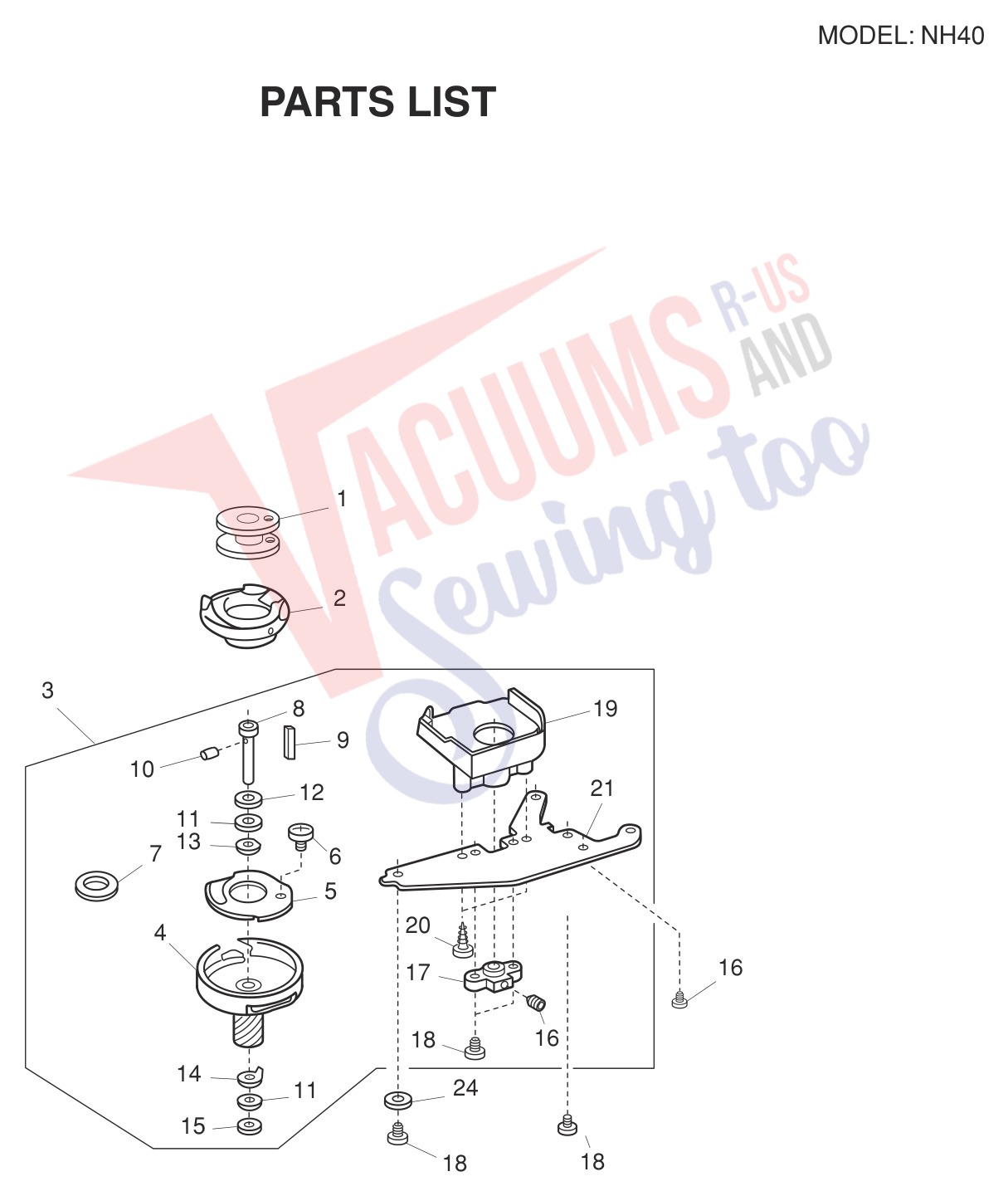

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 2 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hook race (unit) sewing machine part or accessory For Elna Models: ELSTAR | 660655022 | $60.00Read more |
| 4 | | Hook body (unit) sewing machine part or accessory For Elna Models: ELSTAR | 508514001 | $31.00Read more |
| 5 | | Hook bottom plate sewing machine part or accessory Hook bottom plate | 508137006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Washer sewing machine part or accessory For Janome Models: 4300QDC-B | 508118001 | $0.40Read more |
| 13 | | Magnet set plate sewing machine part or accessory For Janome Models: 4300QDC-B | 508139008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 17 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Hook bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 50... | 823106002 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

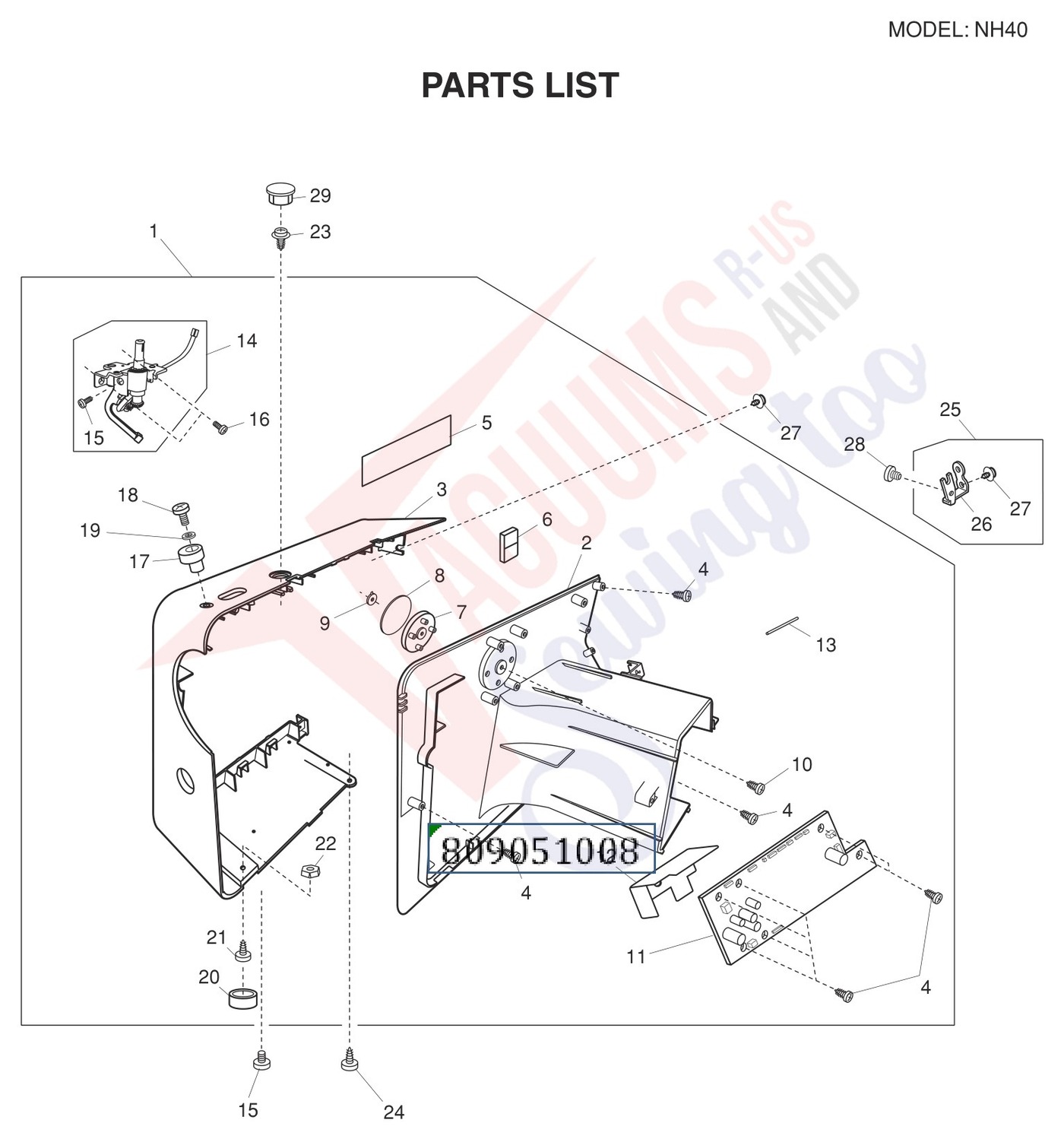

| # | Part image | Description | SKU | Price |
| 1 | | Front cover (unit) sewing machine part or accessory For Janome Models: NH40 | 806617019 | $220.20Read more |
| 2 | | Front cover (1) sewing machine part or accessory For Janome Models: NH40 | 806061207 | $37.60Read more |
| 3 | | Front cover (2) sewing machine part or accessory For Janome Models: NH40 | 806062105 | $29.20Read more |
| 4 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Ornamental panel sewing machine part or accessory For Janome Models: NH40 | 806063106 | $3.20Read more |
| 6 | | Button sewing machine part or accessory For Janome Models: NH40 | 806064200 | $2.20Read more |
| 7 |  | Indicator window sewing machine part or accessory For Janome Models: NQM2016 | 806066006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Button supporter sewing machine part or accessory For Janome Models: NH40 | 806067100 | $0.60Read more |
| 9 |  | Setscrew 3x16 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 000109000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Printed circuit board A | 806720108 | Not Available |
| 11 | | Flame retardant insulating paper sewing machine part or accessory For Janome Models: NH40 | 806077000 | $4.80Read more |
| 12 | | Thread guide sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806029007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Bobbin winder (unit) sewing machine part or accessory For Janome Models: NH40 | 806618009 | $35.60Read more |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Tapping screw 4x10 (B) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 7034D... | 000198305 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128... | 652016101 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Setscrew 4x10 | 000134406 | Not Available |
| 23 | | Set screw 4x14 sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, A... | 000198604 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Front cover set plate (unit) | 806612003 | Not Available |
| 25 | | Front cover set plate sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806030001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Cap sewing machine part or accessory For Janome Models: NH40 | 745033703 | $0.92Read more |

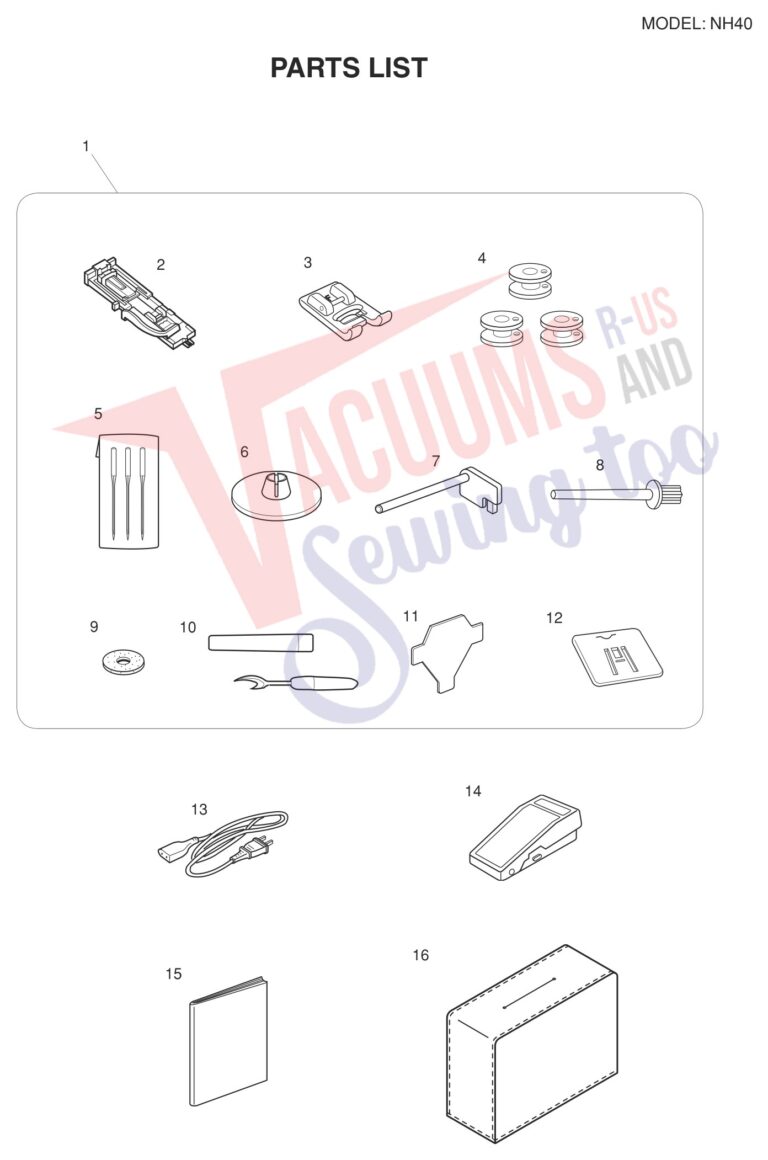

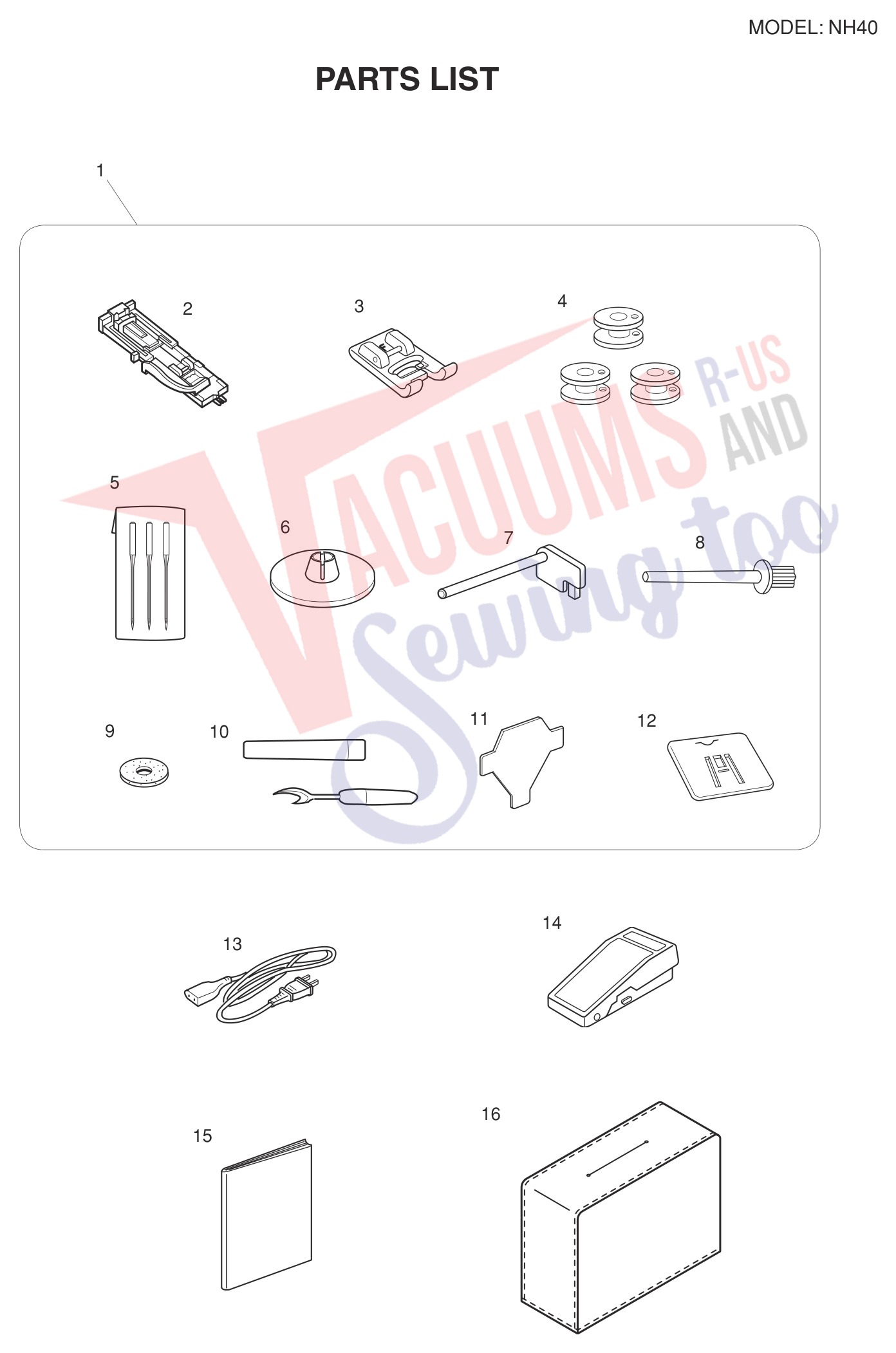

| # | Part image | Description | SKU | Price |
| 1 | | Accessory (unit) sewing machine part or accessory For Janome Models: NH40 | 806876007 | $41.60Read more |
| 2 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 5 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Spool holder (large) sewing machine part or accessory For Janome Models: NH40 | 822020709 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Spool pin sewing machine part or accessory For Janome Models: NH40 | 806074007 | $1.80Read more |
| 8 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 9 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Darning Plate sewing machine part or accessory For Janome Models: NH2014LE | 653801104 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Foot control sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | C-1036 | $53.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Compatible alternateFoot Control Pedal for Janome and Elna - Use with: 3160QDC HF8050, MC2160QDC, JNH1860, JNH720, JP... More Product Details | C1036 | $57.99Add to cart |
| 15 | | Instruction book sewing machine part or accessory For Janome Models: NH40 | 806800310 | $15.29Read more |
| 16 | | Cover sewing machine part or accessory For Janome Models: JEM GOLD 2/661, Jem Gold III, Mystyle10... | 661802007 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
