Schematic and parts book for Janome JW5622 JW5622. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

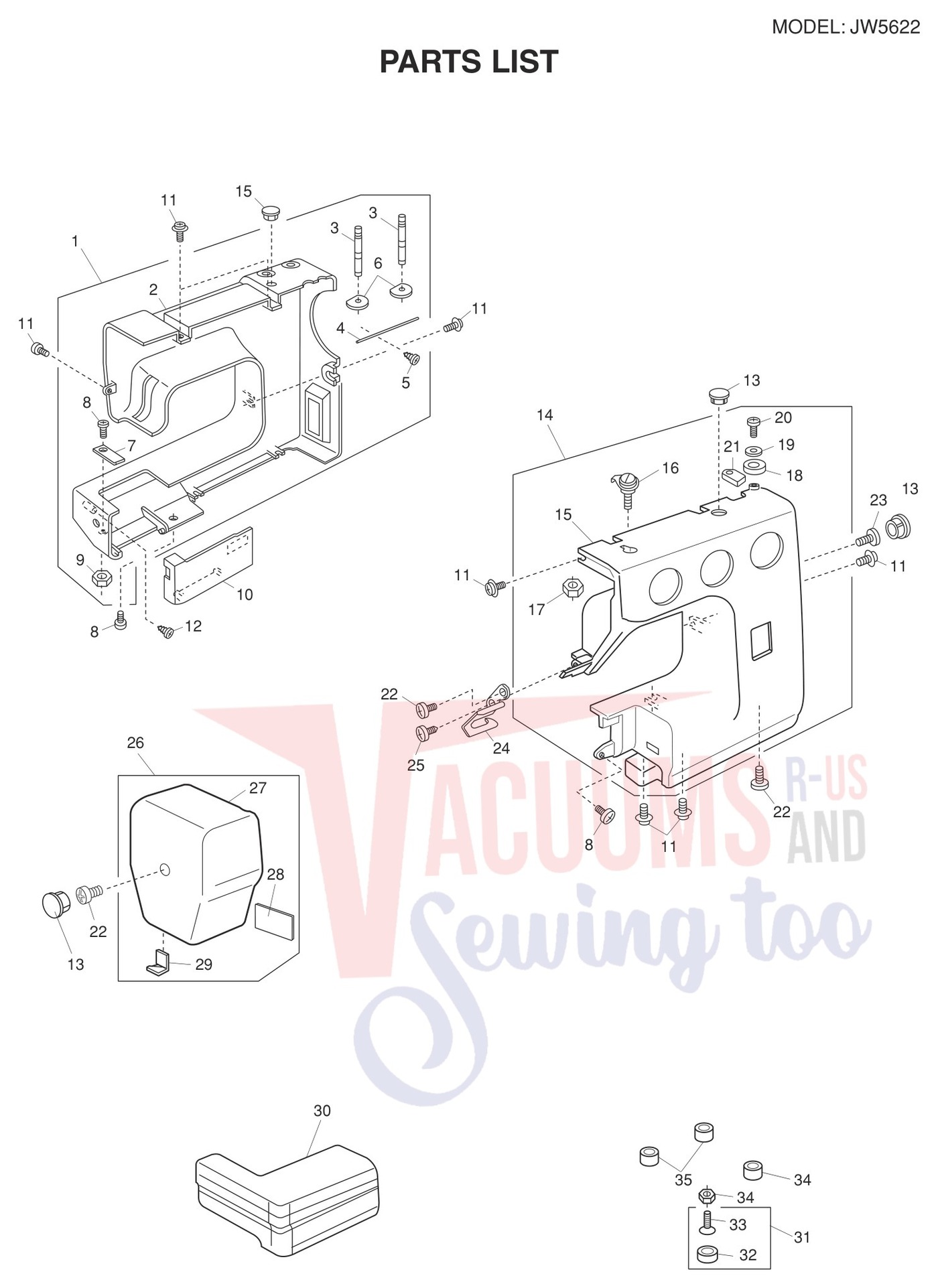

| # | Part image | Description | SKU | Price |
| 1 |  | REAR COVER (UNIT) sewing machine part or accessory For Janome Models: JW5622 SRV | 305601034 | $24.20Read more |
| 2 | Not Available | REAR COVER | 305001902 | Not Available |
| 3 |  | Spool Pin sewing machine part or accessory 2212, 2206, Elna sew fun | 652205109 | $2.20Read more |
| 4 | | SPOOL PIN SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 736007009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Spool pin spring base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735013005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | BED LID FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 739004005 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | FRONT COVER (UNIT) sewing machine part or accessory For Janome Models: JW5622 SRV | 305608167 | $19.80Read more |
| 15 | Not Available | FRONT COVER | 305012227 | Not Available |
| 16 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bobbin Winder Stopper Screw sewing machine part or accessory For Janome Models: 2003P, 2018S, 203... | 000103107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Nut sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2040, 2041, 2041LX, 2041NX... | 843014004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Thread guide plate sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 745031000 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | +PAN TAP TIGHT SCREW 3X8-6 312 sewing machine part or accessory For Janome Models: 2003P, 2018S, ... | 000107307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | FACE PLATE (UNIT) | 305602127 | Not Available |
| 27 | Not Available | FACE PLATE | 305003203 | Not Available |
| 28 |  | Sticker sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 2003P, 2041, 2041LX,... | 724025006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | EXTENSION TABLE sewing machine part or accessory For Janome Models: JW5622 SRV | 305002006 | $11.80Read more |
| 31 | | Rubber base (unit) sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735616200 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Flat screw 5 x 18 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040,... | 000097901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |

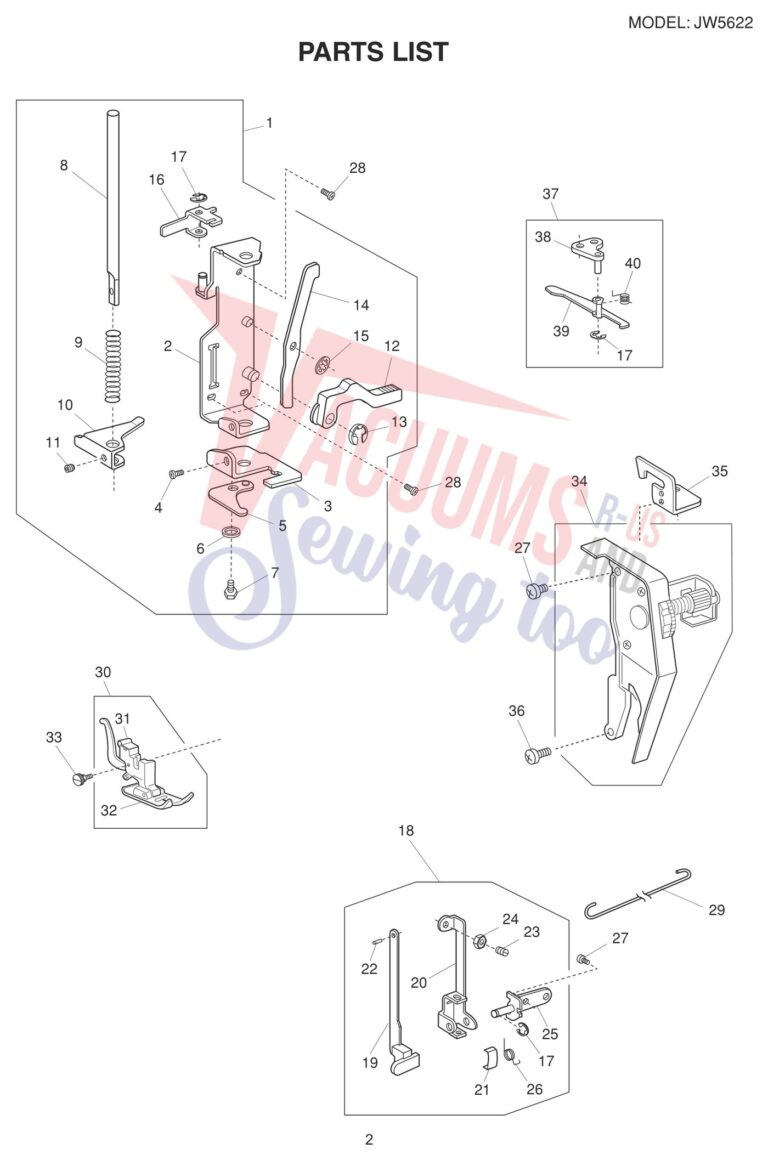

| # | Part image | Description | SKU | Price |

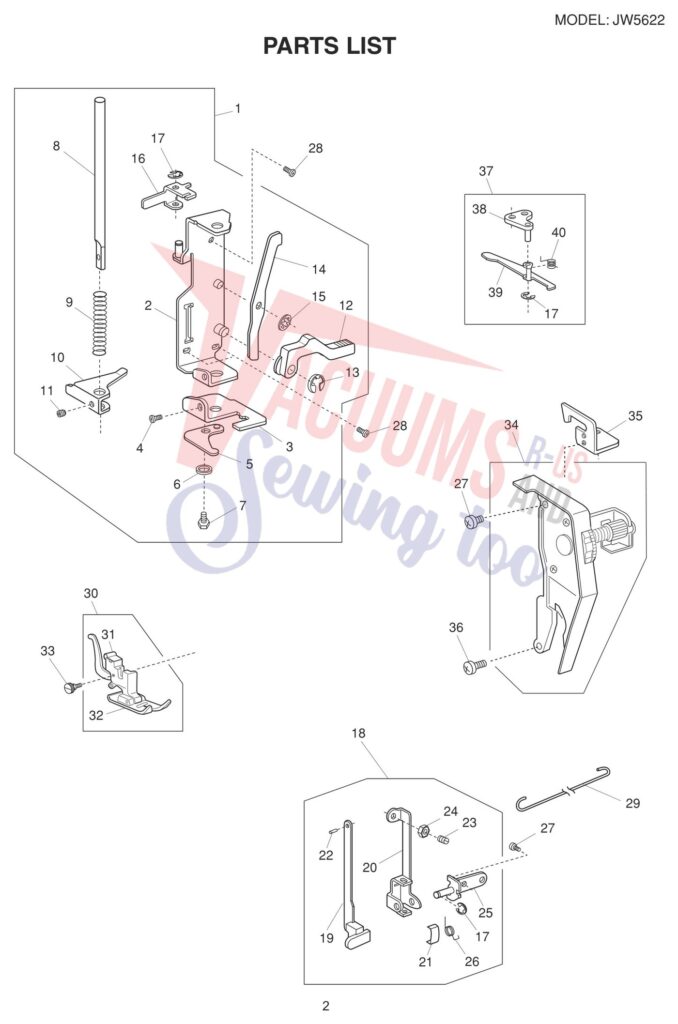

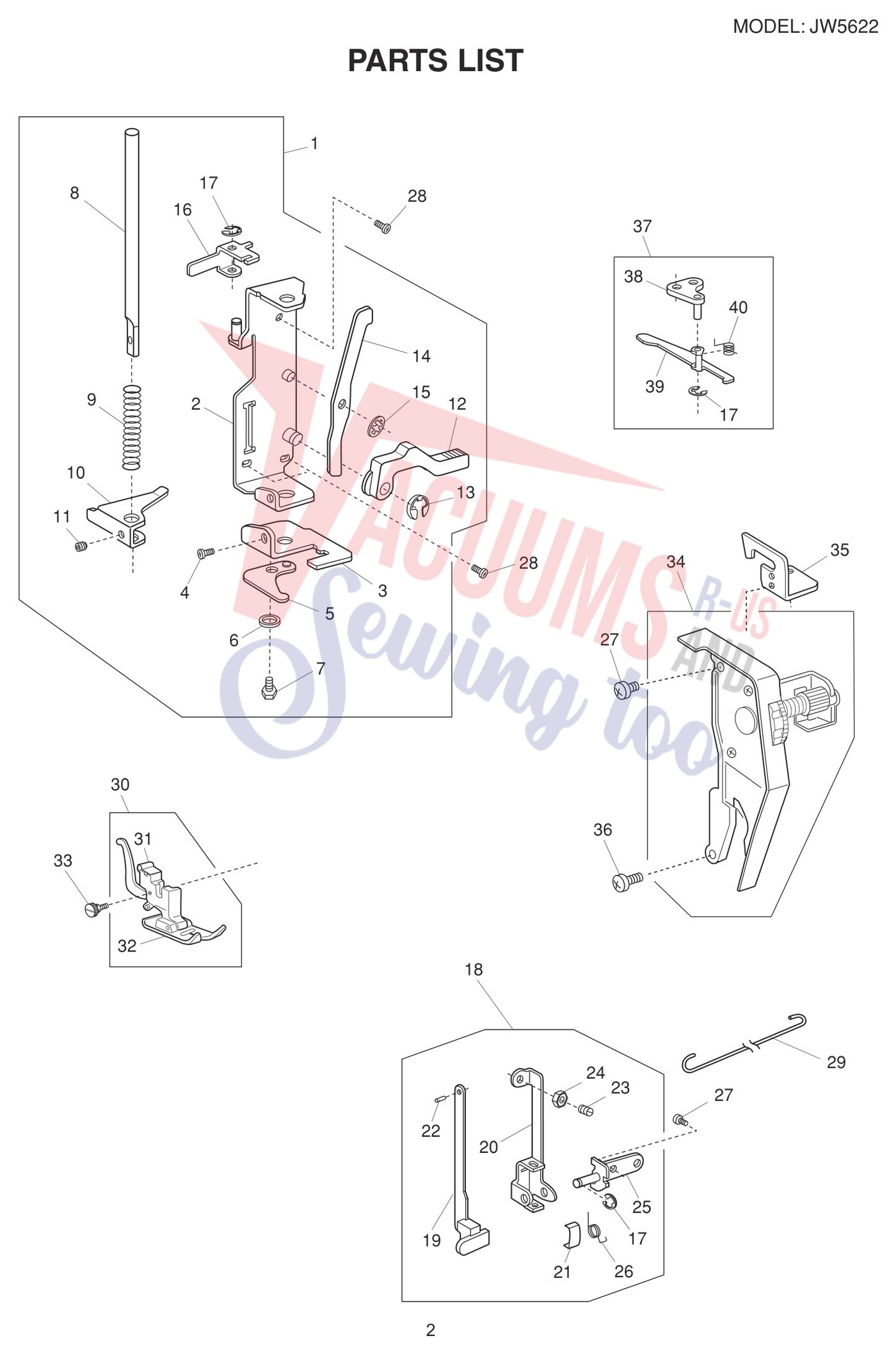

| 1 |  | Presser bar base plate (unit) sewing machine part or accessory For Janome Models: 2222 | 308611106 | $22.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Presser bar base plate sewing machine part or accessory | 308060001 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Needle drop adjusting plate sewing machine part or accessory For Janome Models: 2018S, 2039SN, 20... | 735222009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | NEEDLE BAR SUPPORTER STOPPER sewing machine part or accessory For Janome Models: 2003P, 2018S, 20... | 735025000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | 7 mm Hexagon Bolt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000138307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | PRESSER BAR sewing machine part or accessory For Janome Models: 2003P, 2018S, 2049LX, 2049SX, 211... | 735026001 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PRESSER BAR SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735027002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 13 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | TENSION RELEASE LEVER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735030008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | BH ADJUSTING LEVER sewing machine part or accessory | 740051001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 18 |  | BH LEVER UNIT RX18S sewing machine part or accessory For Janome Models: HF2022, JF1004, JF1022, Q... | 740617001 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | BH lever (unit) sewing machine part or accessory For Janome Models: | 753629109 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | BH LEVER SUPPORTER sewing machine part or accessory | 740047004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Friction spring sewing machine part or accessory For Janome Models: HF2022, HF4045LX, HF5024, JD1... | 753027008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | SPRING PIN FOR 4123 3123 sewing machine part or accessory For Janome Models: 2041, 2041LX, 2041NX... | 000023009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | SET SCREW 4 X 10 sewing machine part or accessory | 000113306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | BASE PLATE sewing machine part or accessory | 740048005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | BH LEVER SPRING sewing machine part or accessory | 740049006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | BH STEP UP ROD sewing machine part or accessory | 740052002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Presser foot (unit) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA106, L1... | 301612003 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Presser Foot Holder (5mm front load) sewing machine part or accessory For Janome Models: HD-1000,... | 611510000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Zigzag foot (unit) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA106, L10... | 301505002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | TENSION ASSEMBLY (UNIT) sewing machine part or accessory For Janome Models: JW5622 SRV | 305501077 | $26.80Read more |
| 35 |  | Top cover thread guide sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 739016000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Tension release arm (unit) sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139... | 739605002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Thread release base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 211... | 739017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Thread release arm sewing machine part or accessory For Janome Models: 2003P, 2041, 2041LX, 2041N... | 739018002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Tension release spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 739019003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

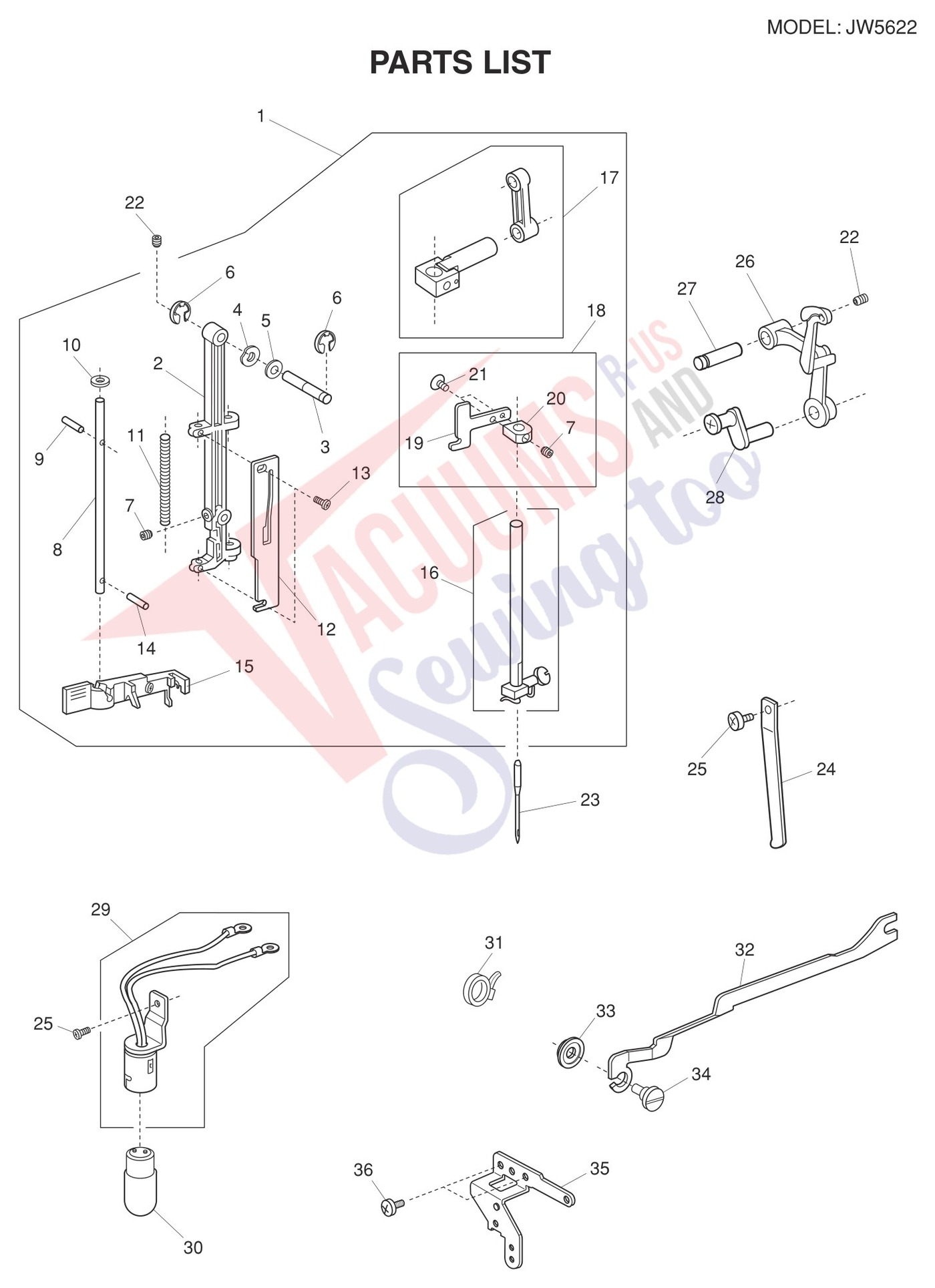

| 1 | | Needle bar supporter sewing machine part or accessory , Necchi EV7 | 301032106 | $6.80Read more |
| 2 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | THREADER SHAFT sewing machine part or accessory | 301034005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SPRING sewing machine part or accessory | 734094007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | THREADER GUIDE PLATE sewing machine part or accessory | 735196003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle threader supp. unit sewing machine part or accessory For Janome Models: 2139N, AQS2009, HT... | 639643009 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle bar unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD180... | 730503116 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Needle bar connecting stud (unit) sewing machine part or accessory For Elna Models: EL1000 | 311502000 | $16.20Read more |
| 17 |  | THREAD BASE PLATE UNIT sewing machine part or accessory | 735628009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | THREADER SET PLATE sewing machine part or accessory | 735197004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Threader positioning holder sewing machine part or accessory For Janome Models: HF3000, HF8077, H... | 734102009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 22 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Thread take-up lever pin (unit) sewing machine part or accessory For Janome Models: HD1000BE | 647040108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1... | 735504008 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Lamp socket (unit) (120 v) sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041... | 647513015 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Light Bulb sewing machine part or accessory For Janome Models: 1000CP, 104, 106, 108, 110, 1100D,... | 000009803 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | ZIG ZAG ROD sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2118S, 2139N, 2139... | 735119002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Face plate set plate sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 214... | 740007105 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

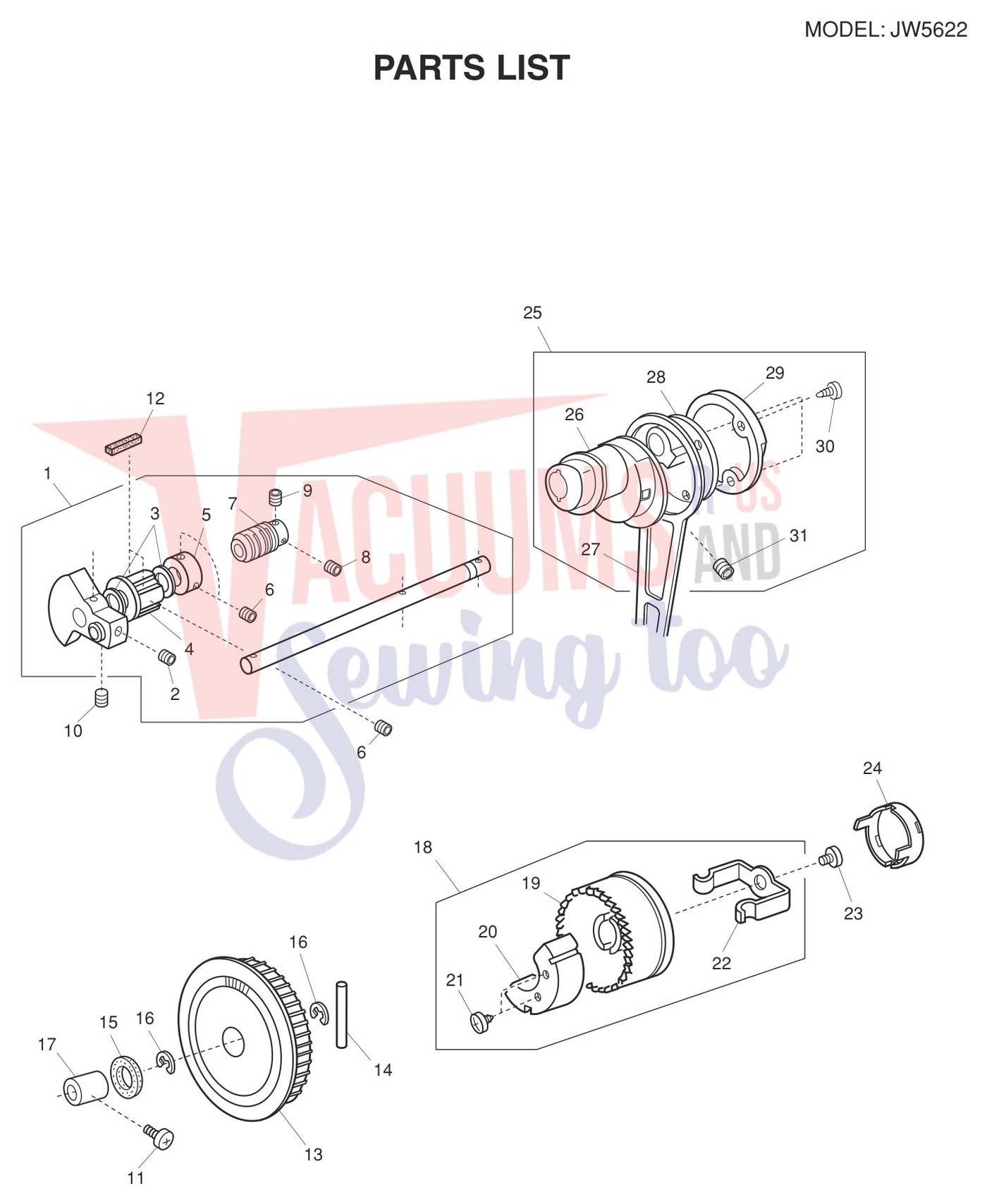

| # | Part image | Description | SKU | Price |
| 1 | | Upper shaft (unit) sewing machine part or accessory For Janome Models: 2206 V2 | 304607303 | $19.60Read more |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Washer sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 20... | 000036717 | $0.80Read more |
| 4 |  | Upper shaft front bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 732025001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 | Not Available | Worm | 749011109 | Not Available |
| 8 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 234D, ... | 000112501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Setscrew sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041, 20... | 761052007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | BELT WHEEL FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 743019006 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | PIN 4X40 sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 2041, 2... | 000023803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 743029009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | UPPER SHAFT REAR BUSHING S650 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 732003003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | HANDWHEEL (UNIT) sewing machine part or accessory For Janome Models: JW5622 SRV | 743630331 | $9.60Read more |
| 19 | | HANDWHEEL sewing machine part or accessory For Janome Models: JW5622 SRV | 639097426 | $6.00Read more |
| 20 |  | Balance weight sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 743030003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | CLUTCH SPRING sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039... | 639113016 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | CLUTCH CAP | 739101014 | Not Available |
| 25 |  | Crank rod (unit) sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304609006 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Feed cam sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304042005 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Crank rod sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 743011008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Crank cam sewing machine part or accessory For Elna Models: EL1000 | 304044007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Crank cam plate sewing machine part or accessory For Janome Models: 2212, 2206, Necchi EV7 | 304043006 | $0.00Read more |
| 30 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

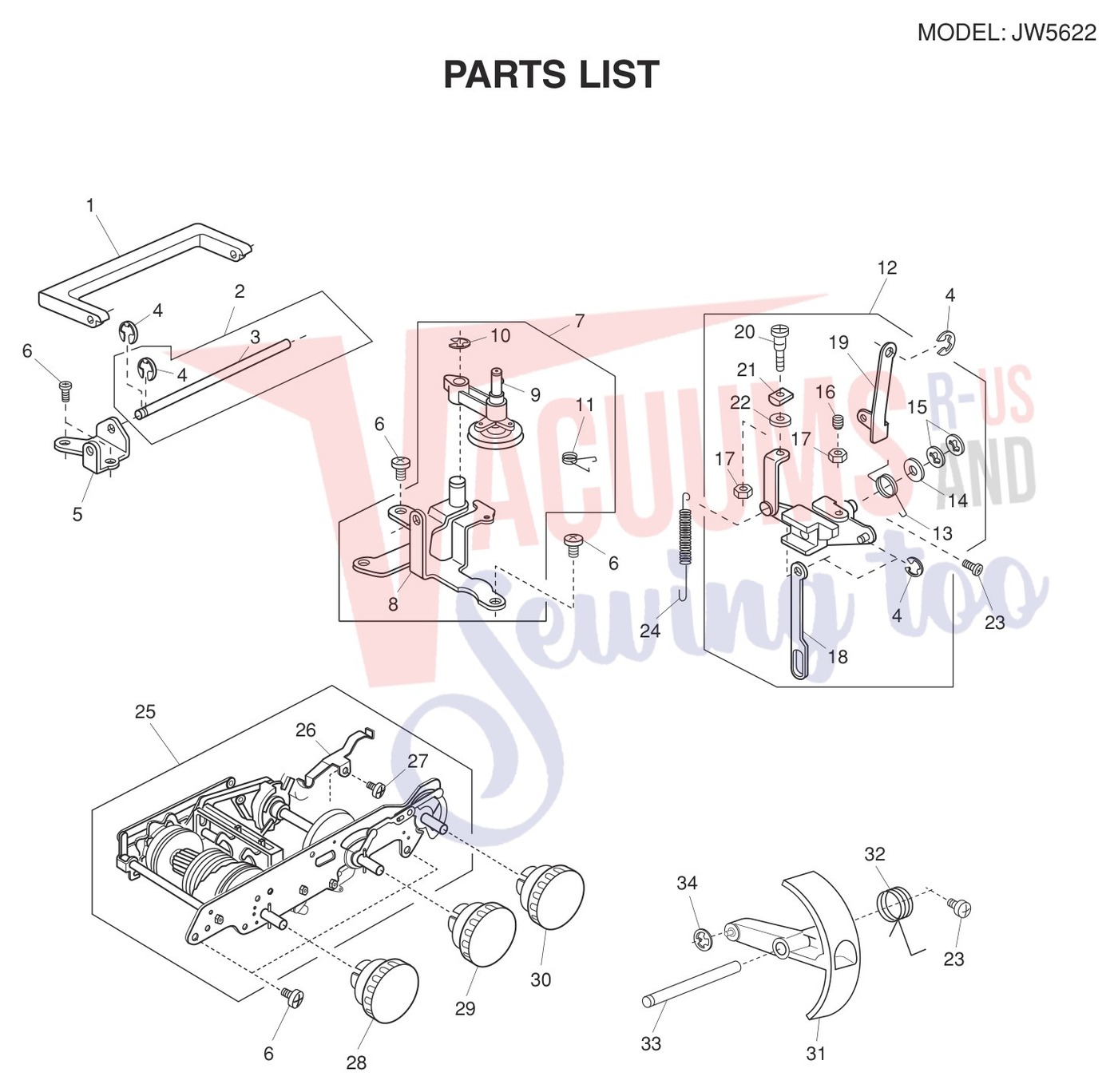

| # | Part image | Description | SKU | Price |
| 1 |  | Handle sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139N, 2139S, 2149SX, FM... | 735017308 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Carrying handle shaft unit sewing machine part or accessory For Janome Models: FM725, JS1008LE, X... | 740624001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Handle shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041... | 740011009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 5 | | Handle supporter sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 740010008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Bobbin Winder Base Plate-1800 Series sewing machine part or accessory For Janome Models: 2003P, 2... | 740602209 | $19.20Read more |
| 8 | | Bobbin winder base plate sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 740003101 | $4.60Read more |
| 9 | | Bobbin winder arm unit sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 735501005 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Bobbin winder arm spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 740042009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Feed regulator (unit) sewing machine part or accessory For Janome Models: 0012212 | 736604105 | $14.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | FEED REGULATOR BODY SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039... | 735077007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed regulating rod sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041... | 739020007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Reverse link sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2041, 2041LX, 204... | 745052007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | SS ADJUSTING SCREW sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 735074004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SS ROD BLOCK sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041NX, 20... | 735076006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | ZIGZAG MECHANISM (UNIT) sewing machine part or accessory For Janome Models: JW5622 SRV | 305607007 | $61.40Read more |
| 26 | | Index spring sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041NX, 20... | 737011009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | SELECTOR DIAL (PATTERN) sewing machine part or accessory For Janome Models: JW5622 SRV | 305011846 | $1.00Read more |
| 29 | | SELECTOR DIAL (STITCH LENGTH) sewing machine part or accessory For Janome Models: JW5622 SRV | 305010557 | $1.00Read more |
| 30 | | SELECTOR DIAL (ZIGZAG WIDTH) sewing machine part or accessory For Janome Models: JW5622 SRV | 305011857 | $1.00Read more |
| 31 | | R BUTTON sewing machine part or accessory For Janome Models: JW5622 SRV | 305008002 | $1.80Read more |
| 32 | | R button spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 739063002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | REVERSE BUTTON HINGE PIN sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 736015000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

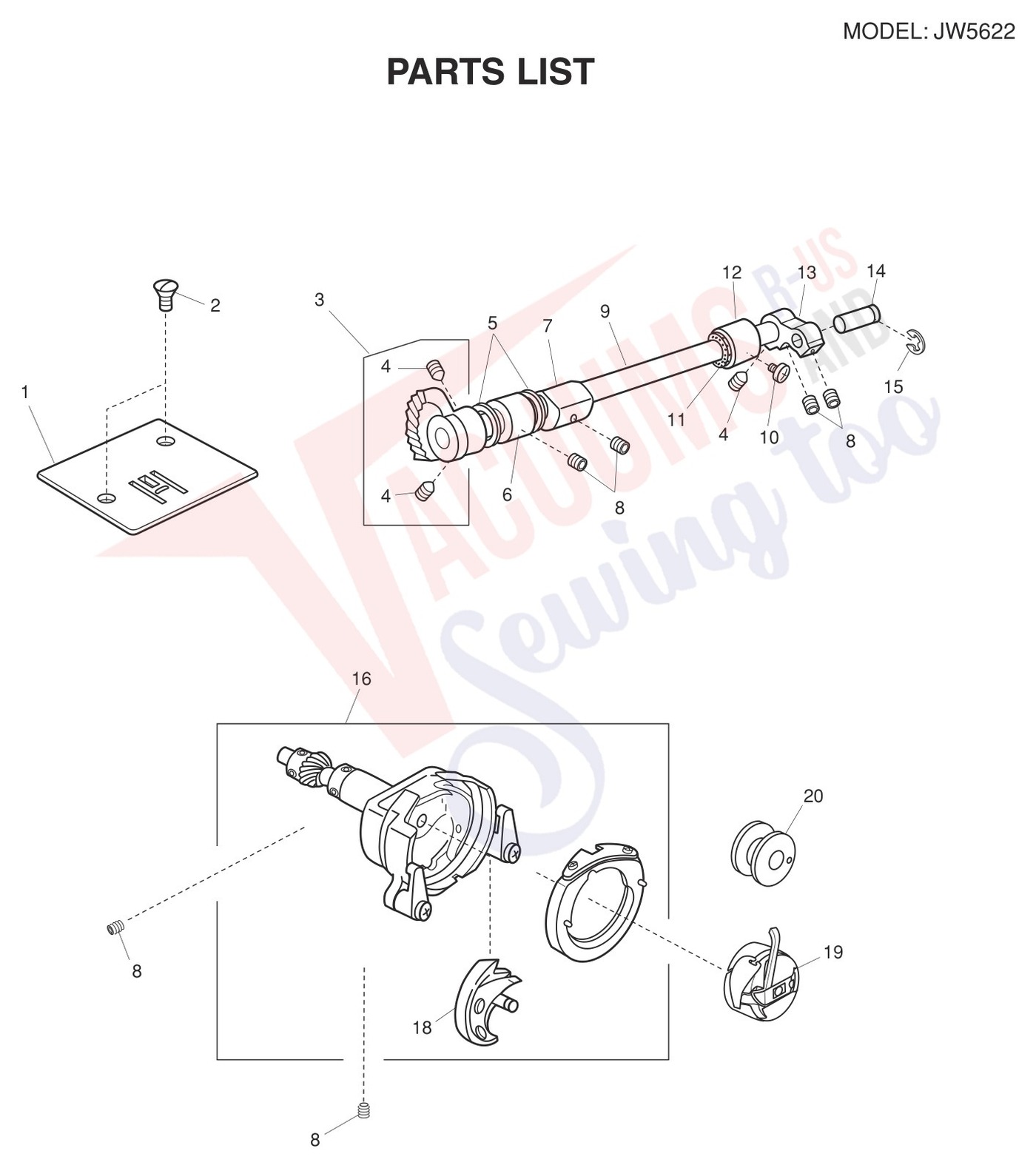

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 204... | 744004001 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Lower shaft gear sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2... | 735950003 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735233003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Feed lifting cam sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2... | 735061008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 9 |  | LOWER SHAFT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041L... | 735236006 | $55.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735234004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Lower shaft crank arm sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 203... | 639036003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2041, ... | 639037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SHUTTLE BODY UNIT FOR JF1004 sewing machine part or accessory For Janome Models: 1017, 1117S, 200... | 735610101 | $111.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Plastic bobbin | 102261000 | Not Available |

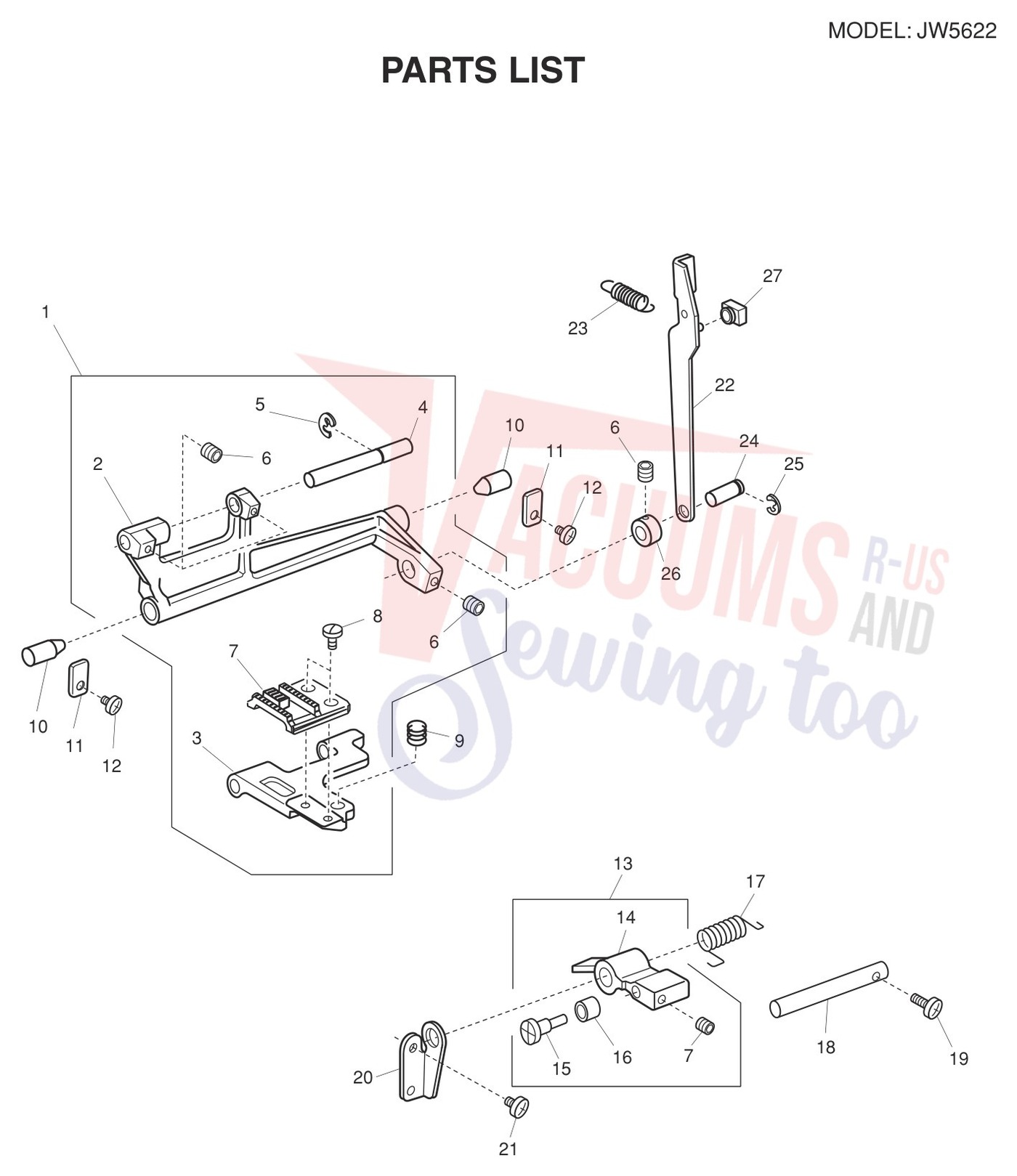

| # | Part image | Description | SKU | Price |
| 1 |  | FEED ROCK SHAFT UNIT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 20... | 735612000 | $48.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Elna Models: EL1000 | 735078008 | $7.40Read more |
| 3 |  | Feed bar sewing machine part or accessory For Elna Models: EL1000 | 735079009 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 735080003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Feed Dog sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, ... | 735081004 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 735082005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed bar spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 735083006 | $0.60Read more |
| 10 |  | FEED ROCK SHAFT CENTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 735084007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | UPPER SHAFT CTR HOLDING PLATE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 735085008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Feed lifting arm (unit) sewing machine part or accessory For Janome Models: JS1008LE, Necchi EV7 | 301608006 | $4.80Read more |
| 14 |  | Feed lifting arm sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2041S, 2041S ... | 301027005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed lifting pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 735087000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Feed lifting roller sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735088001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | FEED LIFTING SPRING sewing machine part or accessory For Janome Models: 2003P, HF1012, JA1504-151... | 735089002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed lifting shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735090006 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Feed lifting shaft holder sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 739022009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | FEED ROD FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 743012009 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | FEED ROD SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 743013000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Feed rock shaft connecting pin sewing machine part or accessory For Janome Models: 2212, 2206, Ne... | 735071104 | $0.00Read more |
| 25 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 735276008 | $1.40Read more |
| 27 |  | Feed Slide Block sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2... | 102141003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |

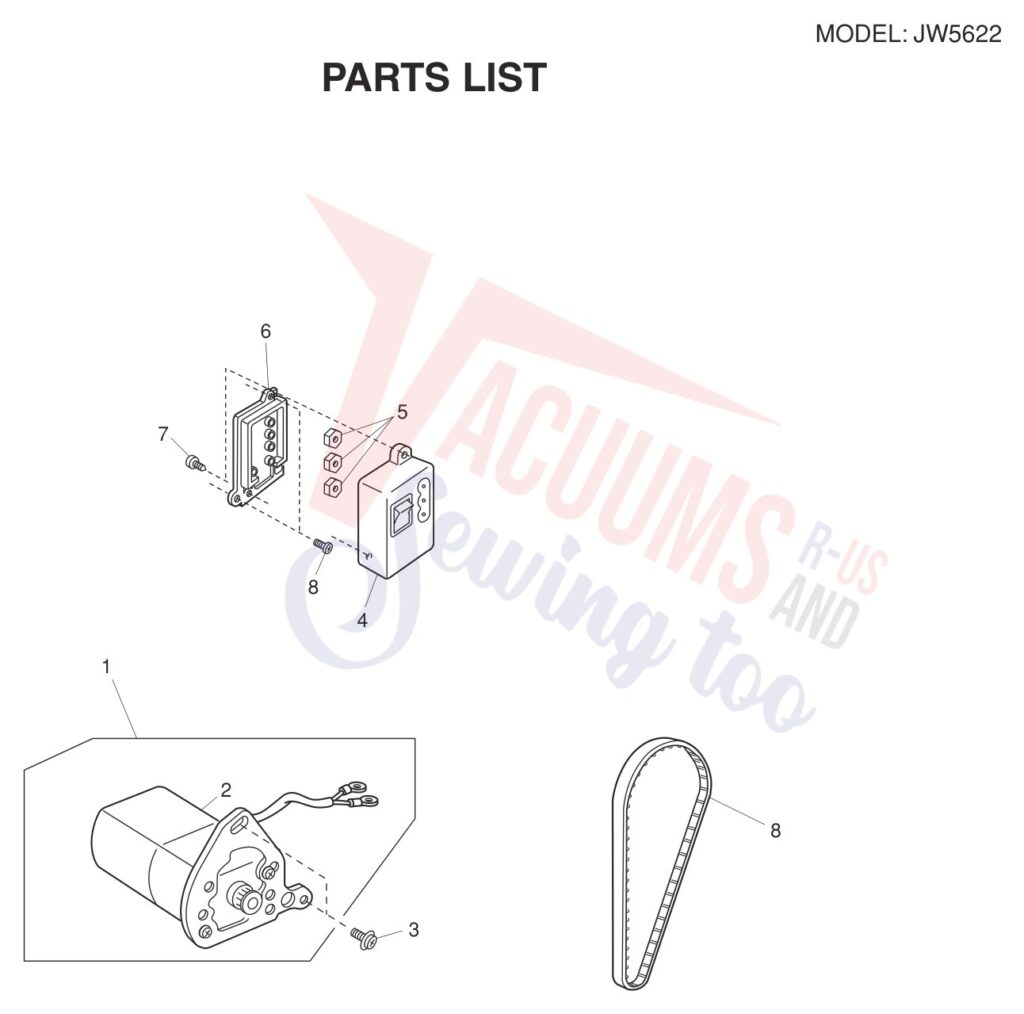

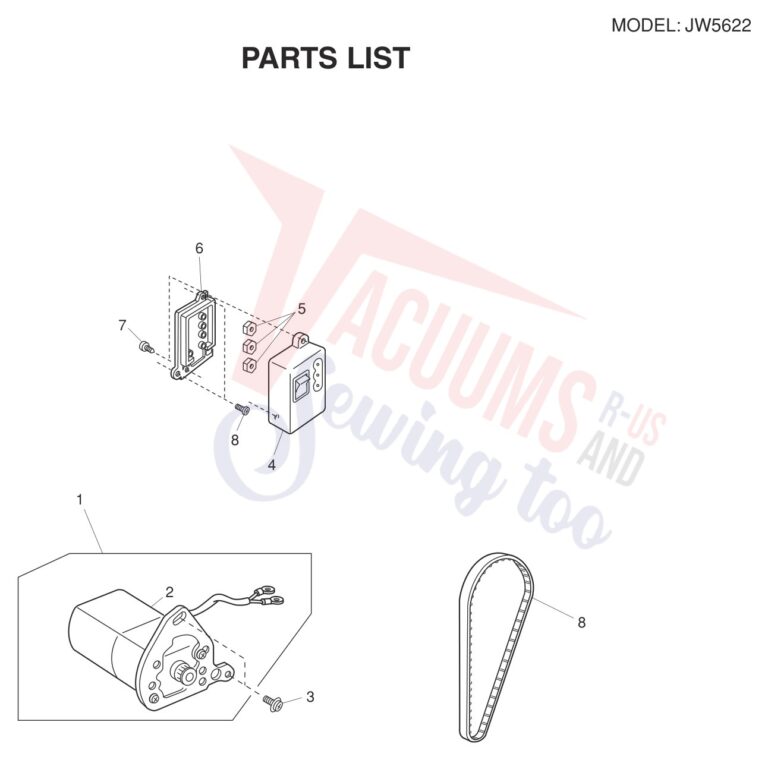

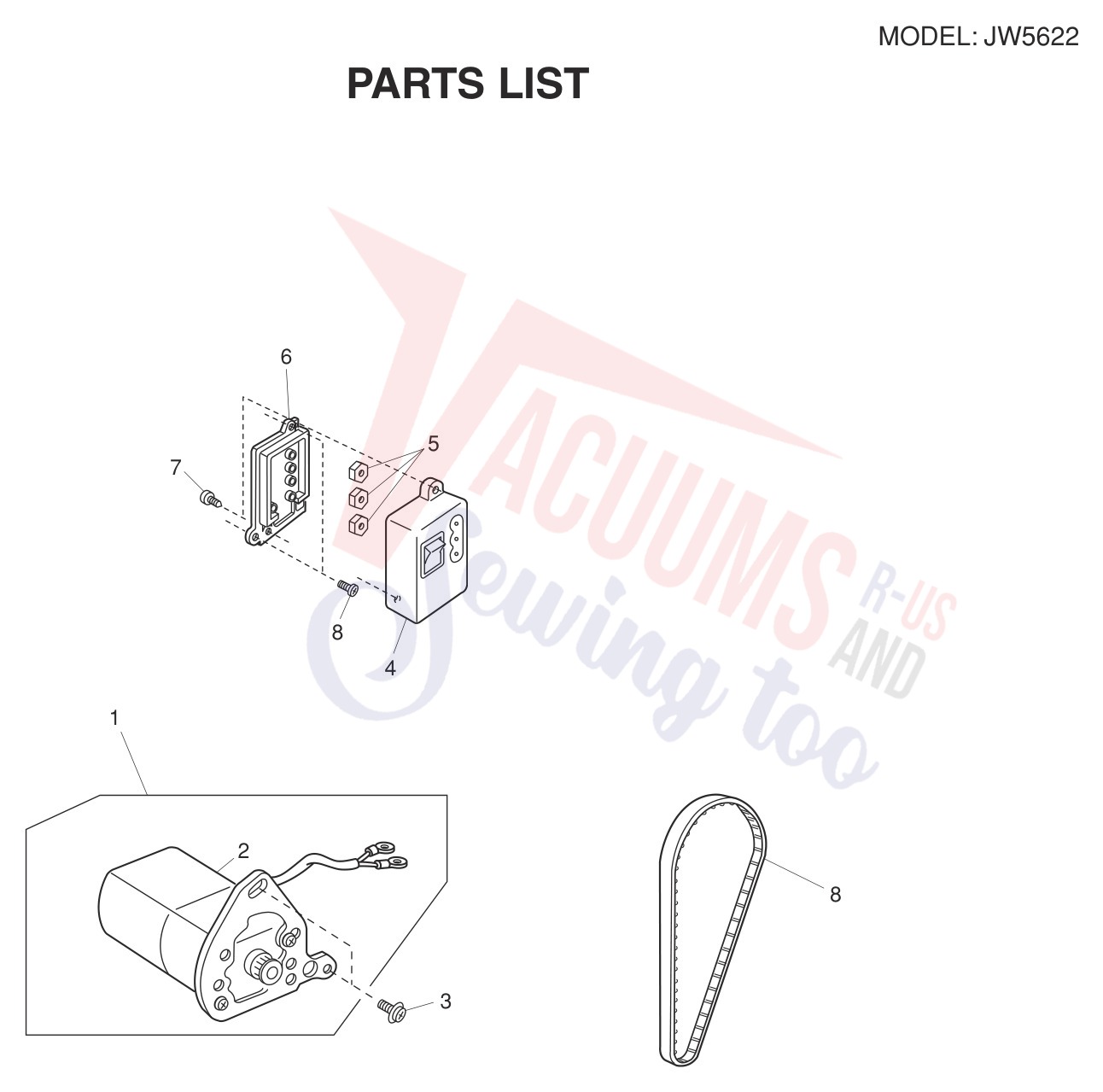

| # | Part image | Description | SKU | Price |
| 1 | | Motor (unit) sewing machine part or accessory For Elna Models: EL920 | 743670001 | $79.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Machine socket unit sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 204... | 739505403 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Socket Lid sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041N... | 739037007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Motor Belt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX... | 650166008 | $10.00Add to cart Special order: ships in 2 to 4 weeks |

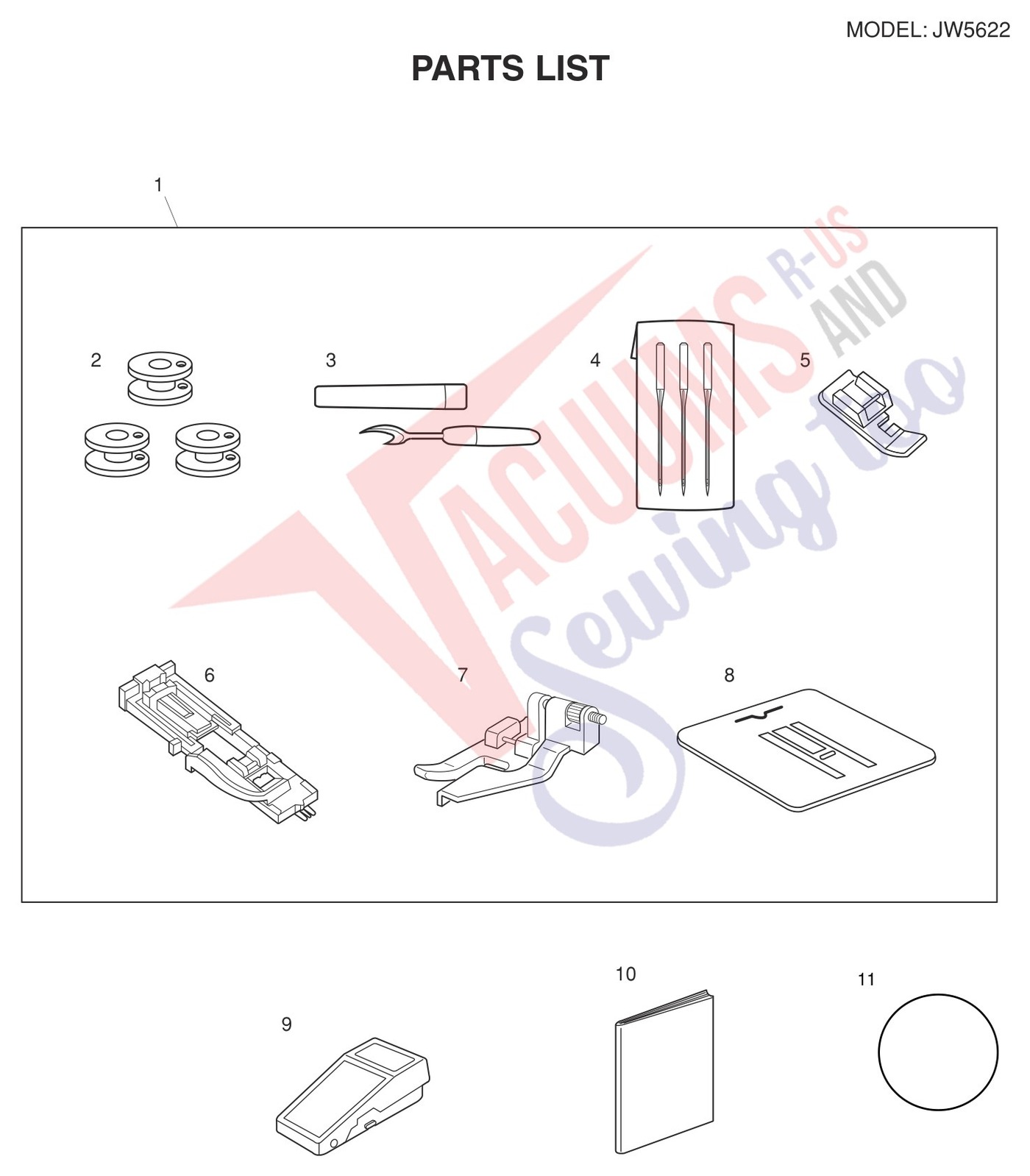

| # | Part image | Description | SKU | Price |
| 1 |  | ACCESSORY SET (UNIT) sewing machine part or accessory For Janome Models: JW5622 SRV | 305870508 | $39.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 3 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Zipper Foot (front load) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA10... | 611406002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Automatic Buttonhole Foot R (5mm) sewing machine part or accessory For Janome Models: 2041, 2041L... | 740801004 | $21.90Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Blind Stitch Hem Foot (5mm) sewing machine part or accessory For Janome Models: HD-1000, JA104, J... | 611411000 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Genuine Janome/Elna DARNING PLATE 639 & JA1508 For: 2003P, Necchi EV7, Necchi EV7 | 735801008 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 10 | Not Available | INSTRUCTION BOOK | 305800138 | Not Available |
| 11 |  | Dvd | 305807009 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
