Schematic and parts book for Janome JS1004 JS1004. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

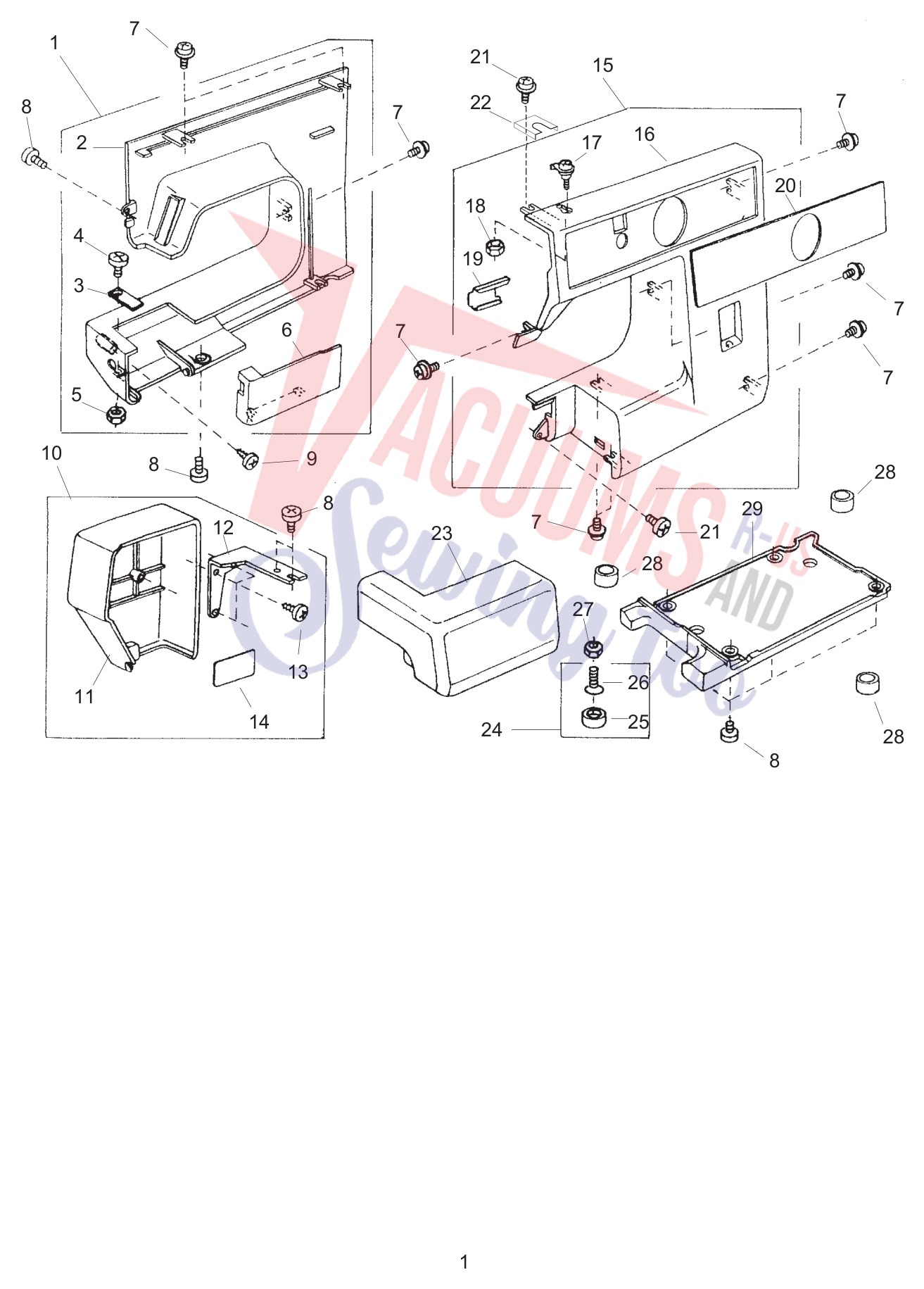

| 1 |  | Rear cover (unit) sewing machine part or accessory For Janome Models: JS1004 SRV | 739601008 | $23.23Read more |
| 2 | | Rear cover sewing machine part or accessory For Janome Models: JS1004 SRV | 739002003 | $15.20Read more |
| 3 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | BED LID FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 739004005 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Face plate (unit) sewing machine part or accessory For Janome Models: JS1004 SRV | 739603309 | $11.50Read more |
| 11 | | Face plate sewing machine part or accessory For Janome Models: JS1004 SRV | 739011005 | $6.80Read more |
| 12 | | Face plate set plate sewing machine part or accessory For Janome Models: JS1004 SRV | 739012006 | $2.00Read more |
| 13 | Not Available | Setscrew 3x12-2V | 000075109 | Not Available |
| 14 | | Face plate sticker sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, ... | 366076000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Front Panel JS1004 sewing machine part or accessory For Janome Models: JS1004 | 739607808 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Front cover sewing machine part or accessory For Janome Models: JS1004 SRV | 739033612 | $19.80Read more |
| 17 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | THREAD GUIDE PLATE sewing machine part or accessory For Janome Models: JA1504-1512, JS1004, JS1008LE | 735123009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Pattern indicator panel sewing machine part or accessory For Janome Models: JS1004 SRV | 739080005 | $8.80Read more |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Front cover set plate sewing machine part or accessory For Janome Models: JS1004 SRV | 739065004 | $20.60Read more |
| 23 |  | ACCESSORY BOX FOR JS1004 sewing machine part or accessory For Janome Models: JS1004 | 739079001 | $19.60Read more |
| 24 | | Rubber base (unit) sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735616200 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Flat screw 5 x 18 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040,... | 000097901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Genuine Janome/Elna Base plate For: 2003P, JF1004, JF1022, JS1004 | 739005006 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

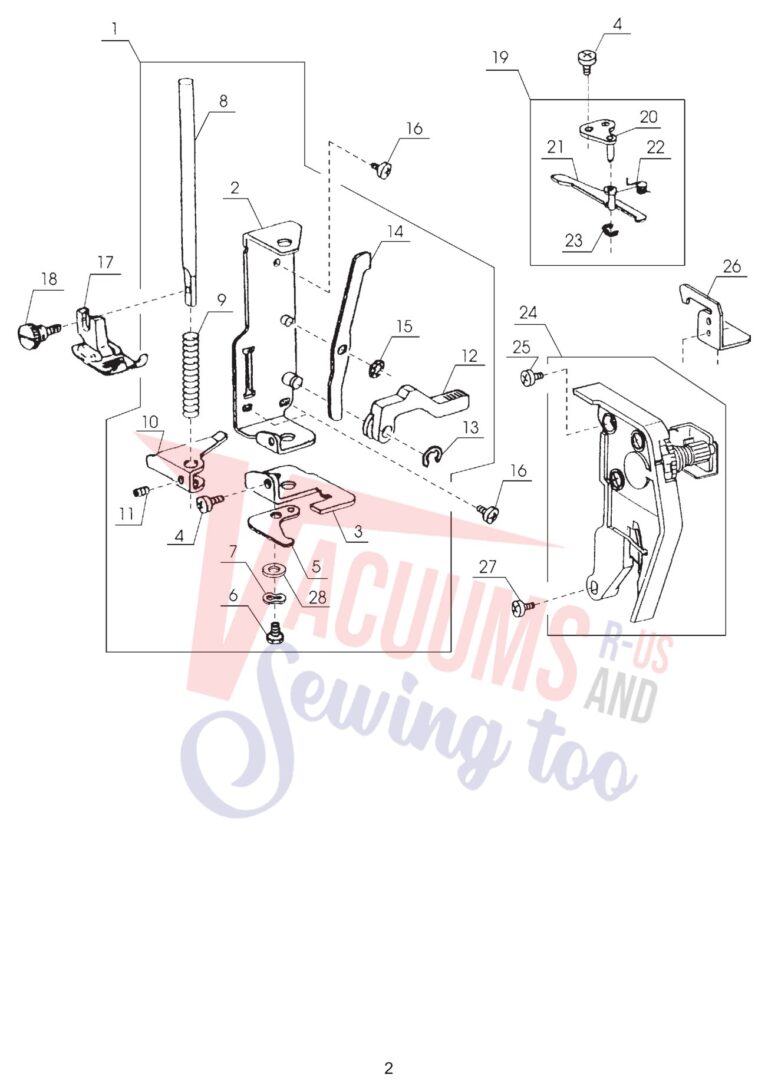

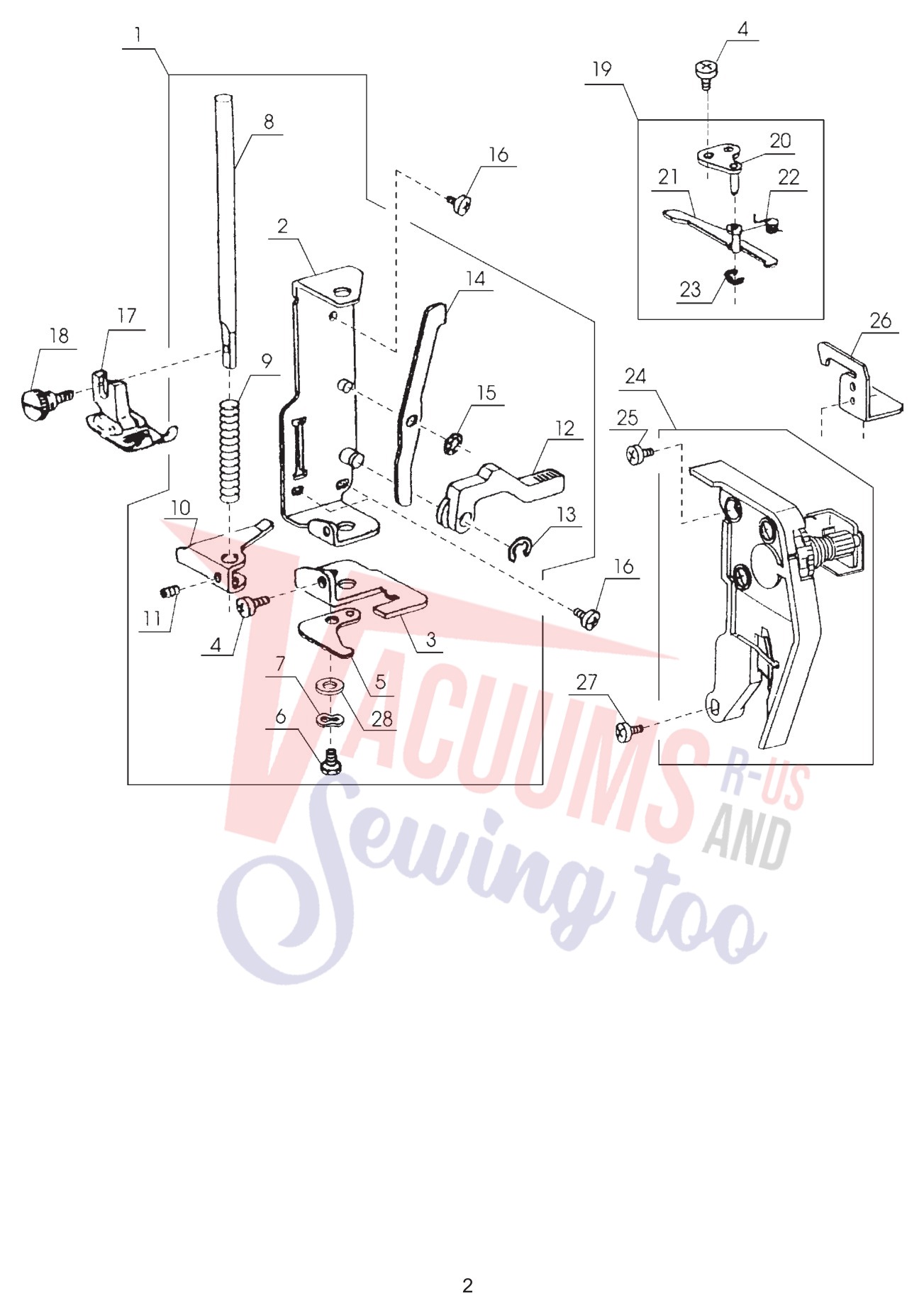

| 1 |  | PRESSER BAR BASE PLATE UNIT sewing machine part or accessory For Janome Models: 2003P, 2049LX, 20... | 735604009 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | PRESSER BAR BASE PLATE sewing machine part or accessory For Janome Models: 2003P, 2041NX, 2041S, ... | 735023008 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | NEEDLE DROP ADJUSTING PLATE sewing machine part or accessory For Janome Models: 2003P, 2041S, 204... | 735024009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | NEEDLE BAR SUPPORTER STOPPER sewing machine part or accessory For Janome Models: 2003P, 2018S, 20... | 735025000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | 7 mm Hexagon Bolt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000138307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | WASHER CORRUGATING 4/9 8 7 75 sewing machine part or accessory For Janome Models: 2003P, 3160QDC... | 000116103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | PRESSER BAR sewing machine part or accessory For Janome Models: 2003P, 2018S, 2049LX, 2049SX, 211... | 735026001 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PRESSER BAR SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735027002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 13 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | TENSION RELEASE LEVER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735030008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Zig Zag Foot Unit (5mm low shank) sewing machine part or accessory For Janome Models: HD-1000, JA... | 735503018 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Tension release arm (unit) sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139... | 739605002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Thread release base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 211... | 739017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Thread release arm sewing machine part or accessory For Janome Models: 2003P, 2041, 2041LX, 2041N... | 739018002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

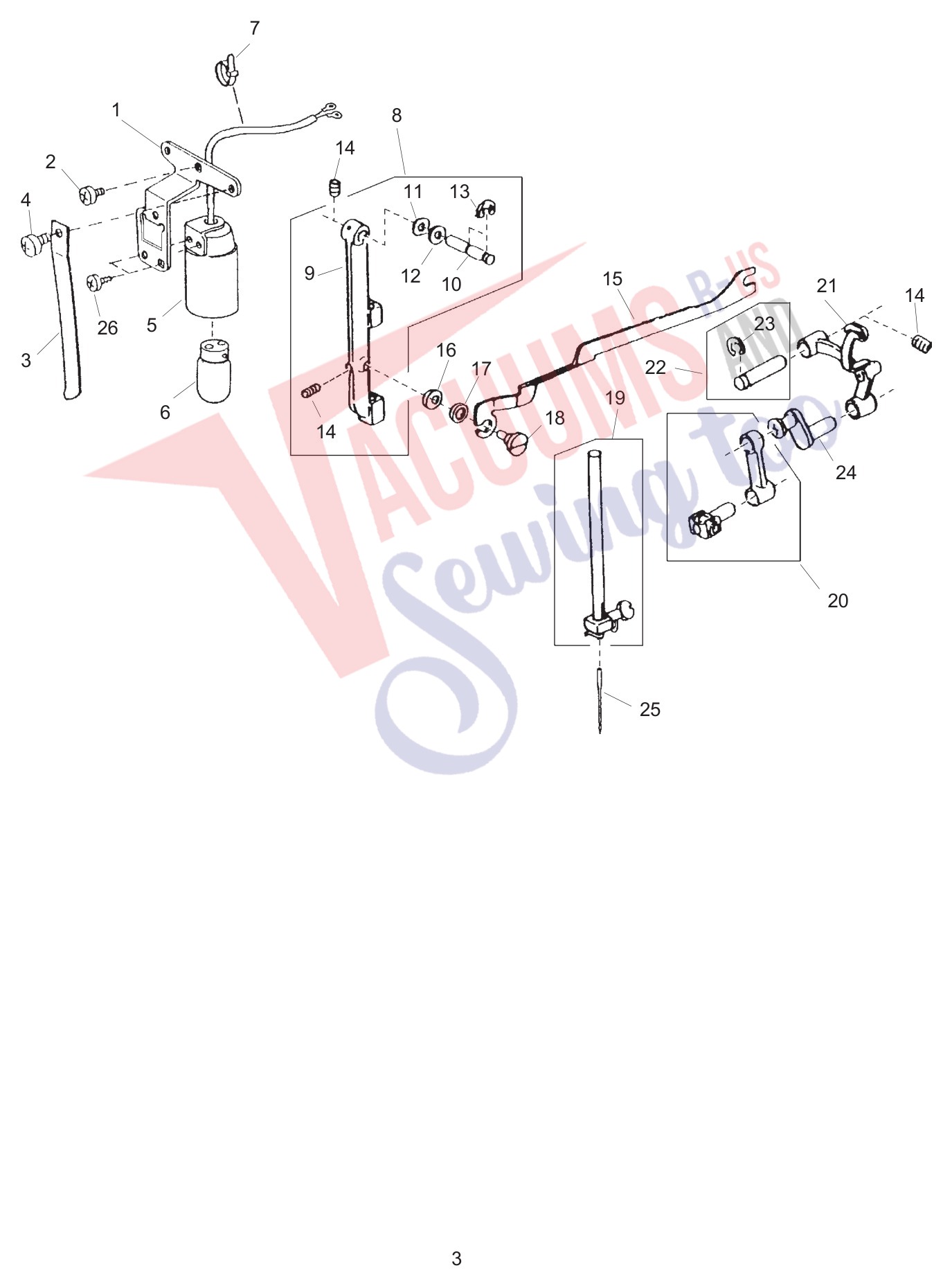

| 1 | | Face plate base plate sewing machine part or accessory For Janome Models: JS1004 SRV | 739068007 | $2.40Read more |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Lamp socket (unit) sewing machine part or accessory For Elna Models: EL920 | 647510207 | $5.40Read more |
| 6 |  | Light Bulb sewing machine part or accessory For Janome Models: 1000CP, 104, 106, 108, 110, 1100D,... | 000009803 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: 2003P, 2041S, HF1... | 735605103 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Needle bar supporter sewing machine part or accessory For Janome Models: 2003P, 2018S, 2041NX, 20... | 735032000 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 15 |  | ZIG ZAG ROD sewing machine part or accessory For Janome Models: 2018S, 2039SN, 2118S, 2139N, 2139... | 735119002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | WASHER PLAIN | 670258000 | Not Available |
| 17 | Not Available | WASHER PLAIN | 678044005 | Not Available |
| 18 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle bar unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD180... | 730503116 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | NEEDLE BAR CONN. STUD UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA... | 680504005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Take-up lever sup. pin unit sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, ... | 731511006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: HF1012, HF2022, JA1... | 735504008 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

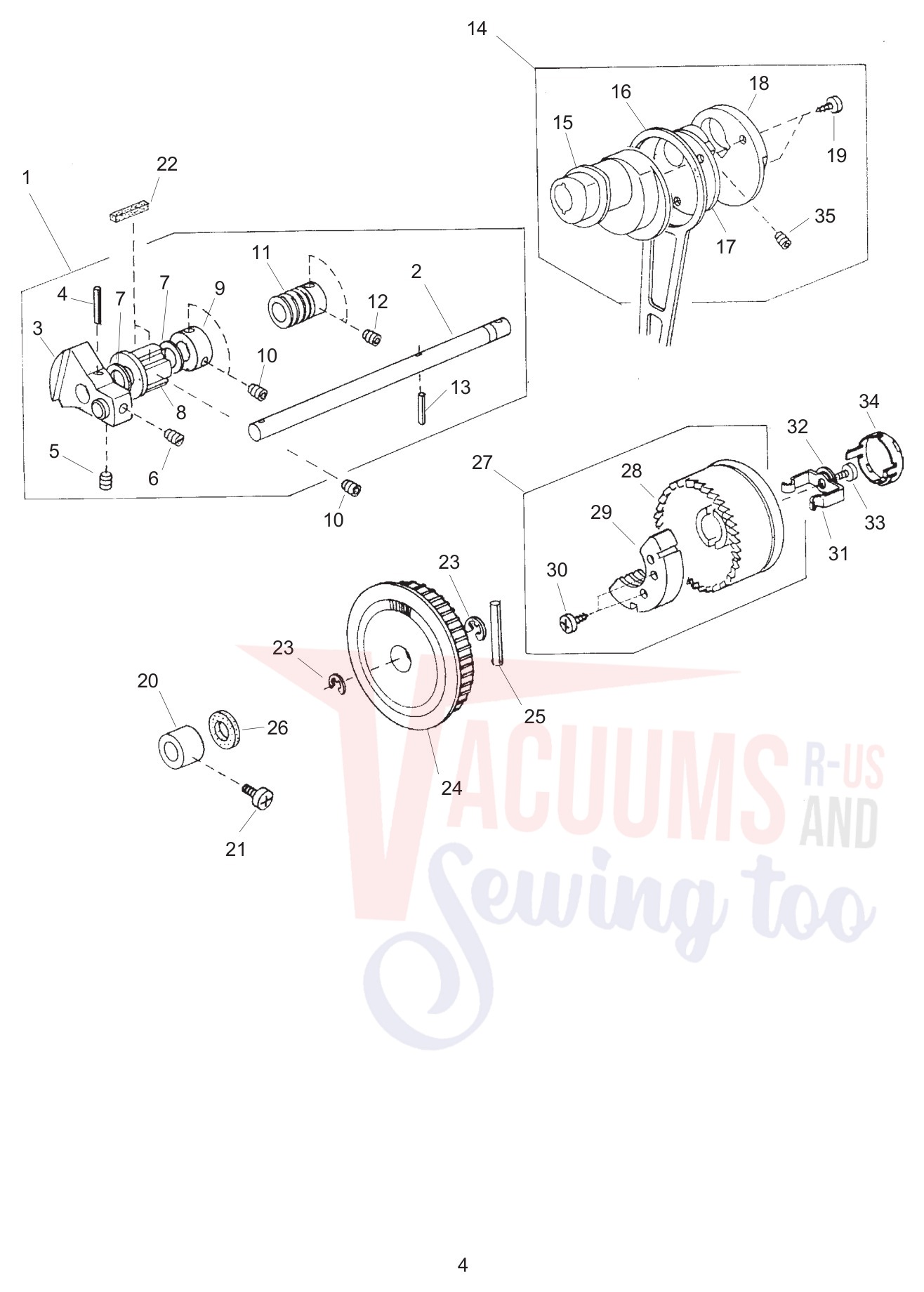

| 1 |  | UPPER SHAFT UNIT FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2039SN, 20... | 743603003 | $48.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Upper shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041L... | 743007001 | $7.60Read more |
| 3 |  | Take-up lever crank sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 743008002 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring pin 4x22 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 000021708 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Setscrew sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041, 20... | 761052007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 20... | 000036717 | $0.80Read more |
| 8 |  | Upper shaft front bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 732025001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 11 |  | Worm sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041S, 2041S & 2141S,... | 751146008 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Hexagon Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 553245008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Spring pin 2x14 sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 20... | 000003601 | $0.60Read more |
| 14 |  | CRANK ROD UNIT FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039S... | 743604004 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | FEED CAM FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 743010007 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Crank rod sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 743011008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Crank cam sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 639033000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Crank cam plate sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 639102012 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Tapping screw 3x14b sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 000150501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | UPPER SHAFT REAR BUSHING S650 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 732003003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | BELT WHEEL FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 743019006 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | PIN 4X40 sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 2041, 2... | 000023803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 743029009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | BALANCE WHEEL UNIT FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, JF1004, ... | 743606006 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Balance wheel sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139S, 2149SX, 62... | 639097024 | $5.80Add to cart |
| 29 |  | Balance weight sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 743030003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | CLUTCH SPRING sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039... | 639113016 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Clutch Cap sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 4618LE, 4623... | 650070509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

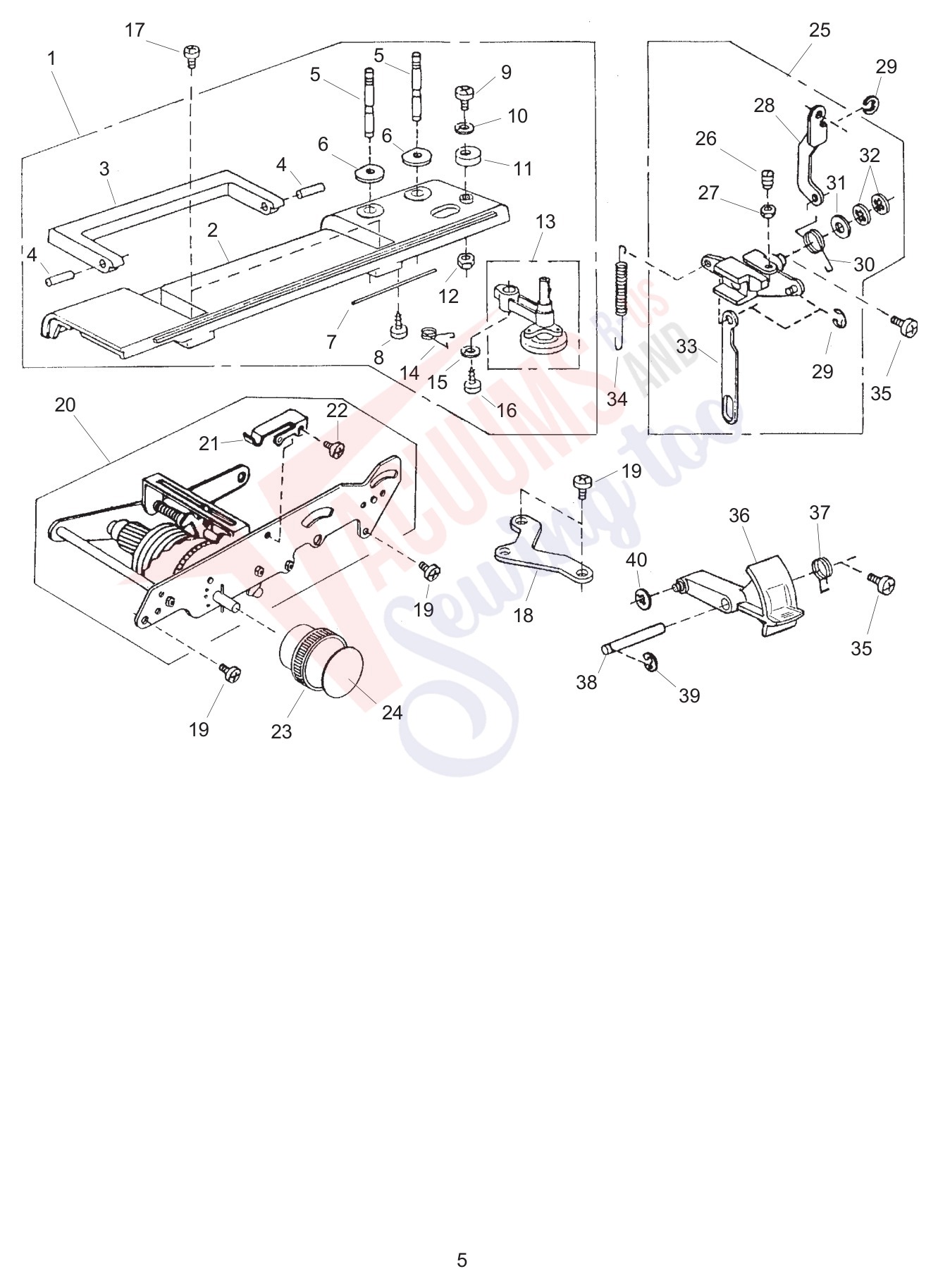

| 1 | Not Available | Top Cover Complete JS1004 | 739602205 | Not Available |
| 2 | | Top cover sewing machine part or accessory For Janome Models: JS1004 SRV | 739009000 | $7.40Read more |
| 3 |  | Handle sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139N, 2139S, 2149SX, FM... | 735017308 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Handle supporter shaft sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 104, ... | 730015002 | $0.69Read more |
| 5 |  | Spool Pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 652205006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Spool pin spring base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735013005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SPOOL PIN SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 736007009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Bobbin Winder Stopper Screw sewing machine part or accessory For Janome Models: 2003P, 2018S, 203... | 000103107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Bobbin winder arm unit sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 735501005 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | BOBBIN WINDER ARM SPRING sewing machine part or accessory For Janome Models: 712T, JA1504-1512, J... | 735015007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SPOOL PIN SCREW 4X10 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900XP, ... | 000103510 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Top cover set plate sewing machine part or accessory For Janome Models: JS1004 SRV | 739010004 | $1.40Read more |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | ZZ MECHANISM UNIT FOR JF1004 sewing machine part or accessory For Janome Models: JD1803, JF1004, ... | 740615009 | $84.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | INDEX SPRING sewing machine part or accessory | 735145007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | DIAL sewing machine part or accessory For Janome Models: JD1803, JD1803, JD1803, JD1814, JD1818, ... | 740017005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Pattern Indicating Plate sewing machine part or accessory For Janome Models: JS1004 | 743020206 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | FEED REGULATOR UNIT FOR JF1004 | 736607016 | Not Available |
| 26 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Feed regulating rod sewing machine part or accessory For Janome Models: 2206, Necchi EV7 | 740096008 | $0.00Read more |
| 29 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 30 |  | FEED REGULATOR BODY SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039... | 735077007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | REVERSE LINK sewing machine part or accessory | 730045001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | R button sewing machine part or accessory For Janome Models: JS1004, JS1008LE | 739066005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | R button spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 739063002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | REVERSE BUTTON HINGE PIN sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN... | 736015000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

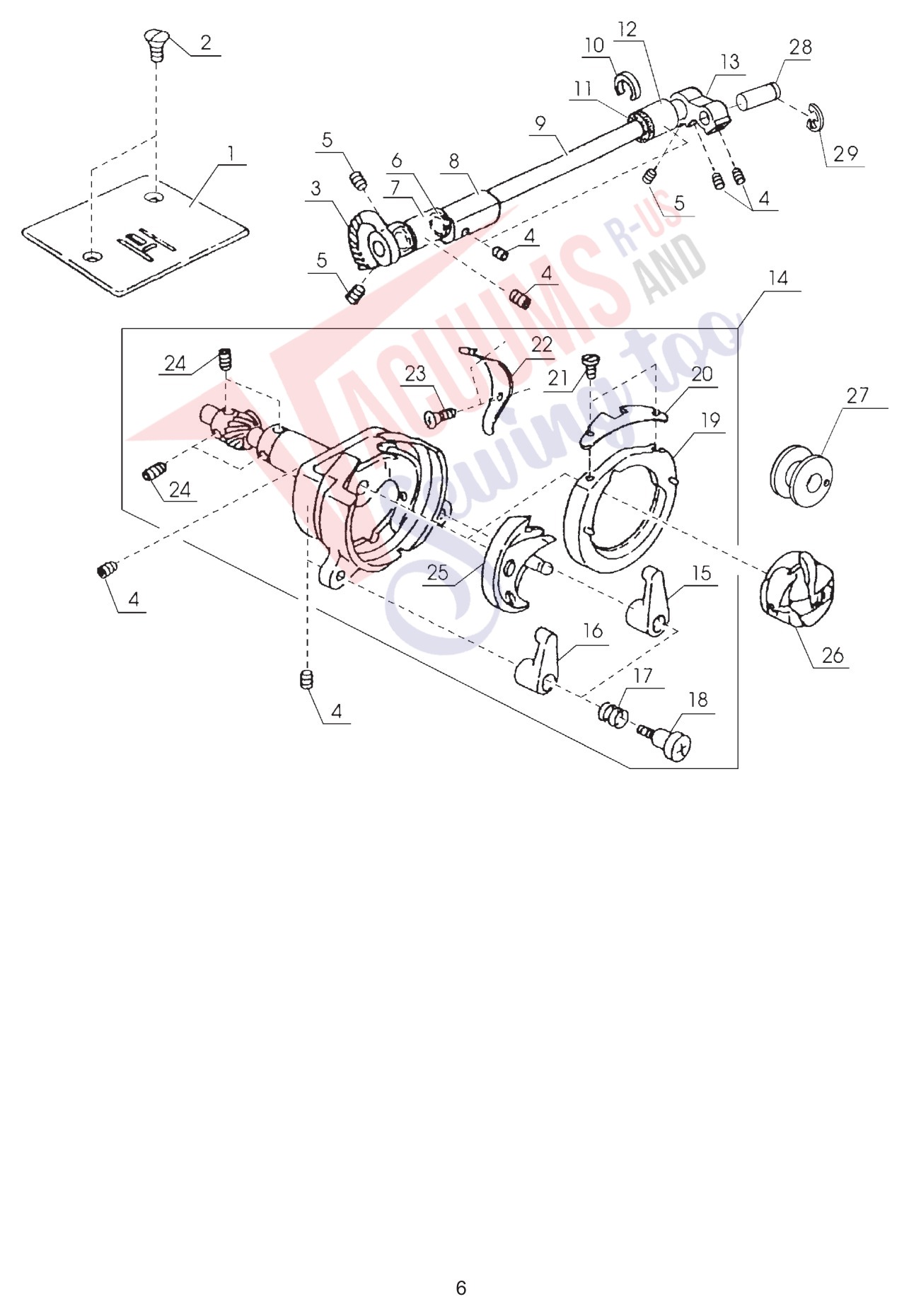

| 1 | Not Available | Needle Plate | 739008009 | Not Available |
| 2 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | LOWER SHAFT GEAR sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD18... | 735951004 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 5 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735233003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Feed lifting cam sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2... | 735061008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | LOWER SHAFT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041L... | 735236006 | $55.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Felt set ring | 735239009 | Not Available |
| 11 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Bushing sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 735234004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Lower shaft crank arm sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 203... | 639036003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | SHUTTLE BODY UNIT FOR JF1004 sewing machine part or accessory For Janome Models: 1017, 1117S, 200... | 735610101 | $111.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Shuttle race ring clasp right sewing machine part or accessory For Janome Models: 104, 106, 108, ... | 605065006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | HOOK SUPPORTER RING SET-DISCON sewing machine part or accessory For Janome Models: 104, 106, 108,... | 605066007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Shuttle race ring clasp spring sewing machine part or accessory For Janome Models: 2003P, 2018S, ... | 639108007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Hinge screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S,... | 673290003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | RACE RING sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 553168006 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Race Cover Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 601801000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SHUTTLE RACE SPRING SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, ... | 102100000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Shuttle Driver Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670286007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SHUTTLE DRIVER SP SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 102202003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Hexagon Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 553245008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 28 | | Pin sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2041, ... | 639037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

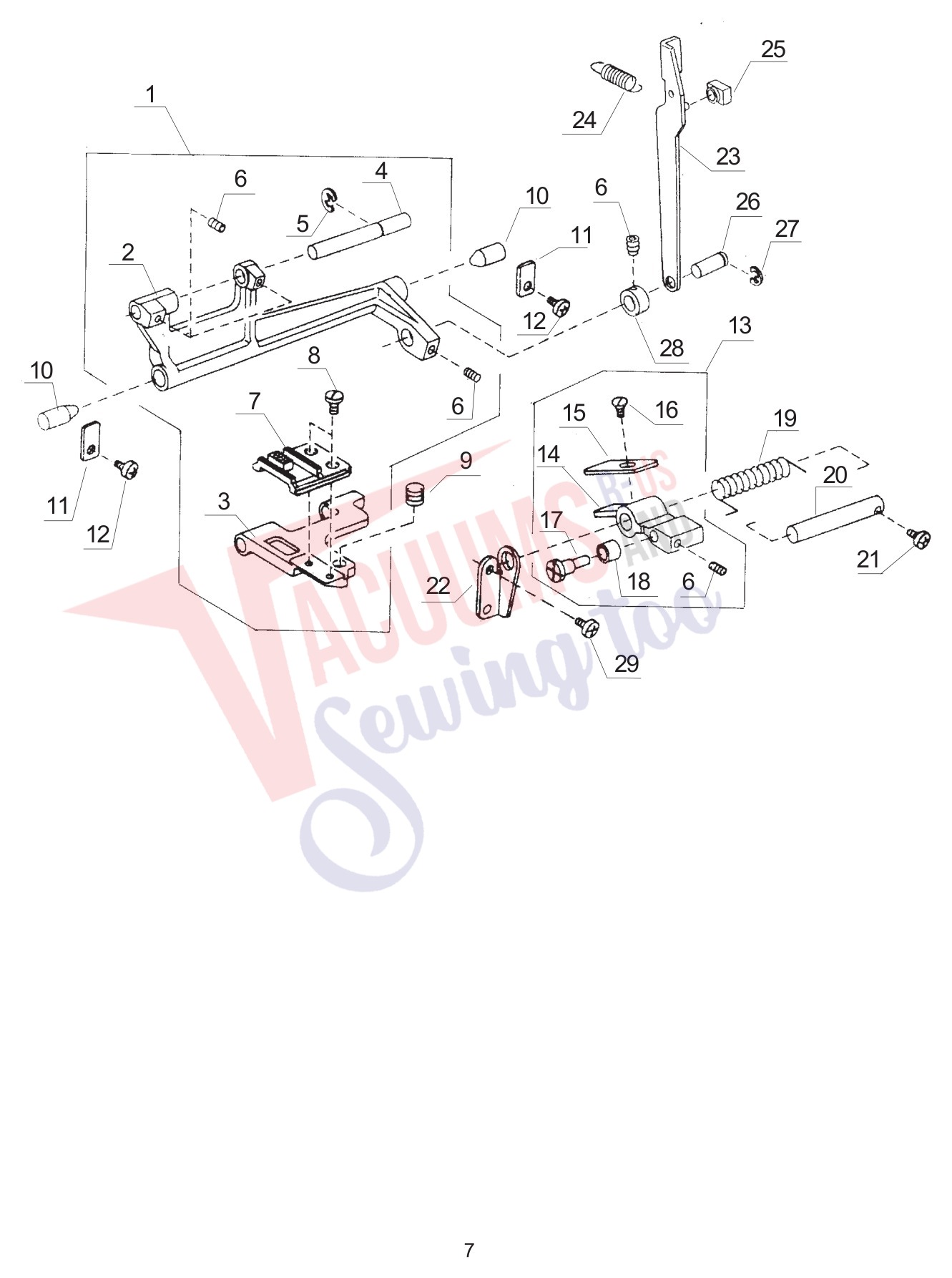

| 1 |  | FEED ROCK SHAFT UNIT sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 20... | 735612000 | $48.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Elna Models: EL1000 | 735078008 | $7.40Read more |
| 3 |  | Feed bar sewing machine part or accessory For Elna Models: EL1000 | 735079009 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 20... | 735080003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Feed Dog sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, ... | 735081004 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 735082005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed bar spring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2... | 735083006 | $0.60Read more |
| 10 |  | FEED ROCK SHAFT CENTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 735084007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | UPPER SHAFT CTR HOLDING PLATE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 735085008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | FEED LIFTING ARM UNIT sewing machine part or accessory For Janome Models: 2003P, JA1504-1512, JD1... | 735613001 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | FEED LIFTING ROCK SHAFT CRANK sewing machine part or accessory | 735086009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SLIDING PLATE sewing machine part or accessory | 605030002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | FLAT HEAD SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P... | 365032001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Feed lifting pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 735087000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed lifting roller sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735088001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | FEED LIFTING SPRING sewing machine part or accessory For Janome Models: 2003P, HF1012, JA1504-151... | 735089002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Feed lifting shaft sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041... | 735090006 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Setscrew 4x12 sewing machine part or accessory For Janome Models: 2003P, 625E, DE5018, DE5024, DE... | 000097200 | $0.60Read more |
| # | Part image | Description | SKU | Price |

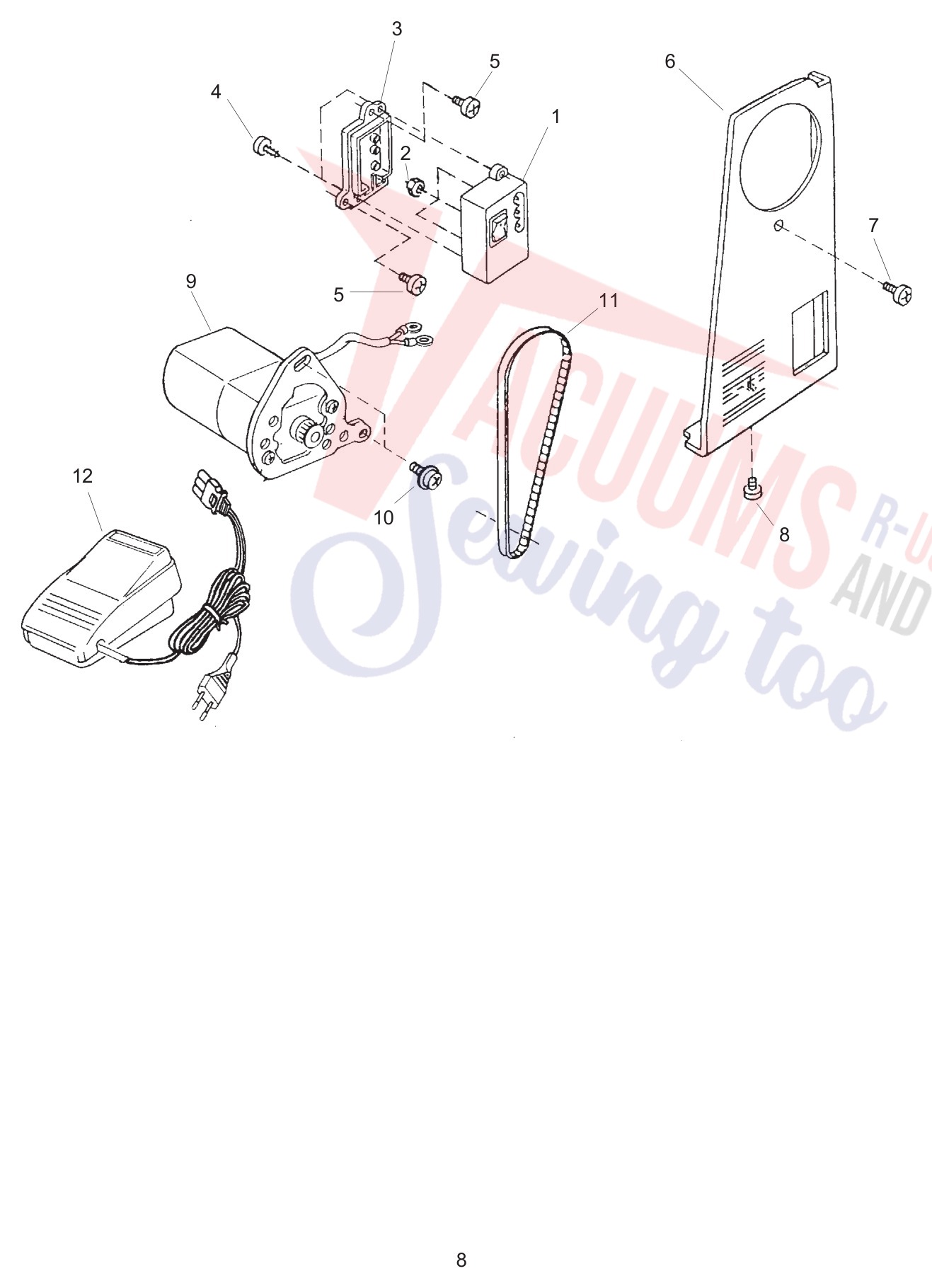

| 1 |  | MACHINE SOCKET UNIT sewing machine part or accessory For Janome Models: JF1004, JF1022, JS1004, M... | 739505001 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Socket Lid sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041N... | 739037007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Belt Cover for JS1004 sewing machine part or accessory For Janome Models: JS1004 | 739035201 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | DC Motor Unit 120v | 014170108 | Not Available |
| 10 |  | Setscrew 5x12 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 204... | 000201209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Motor Belt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX... | 650166008 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| # | Part image | Description | SKU | Price |

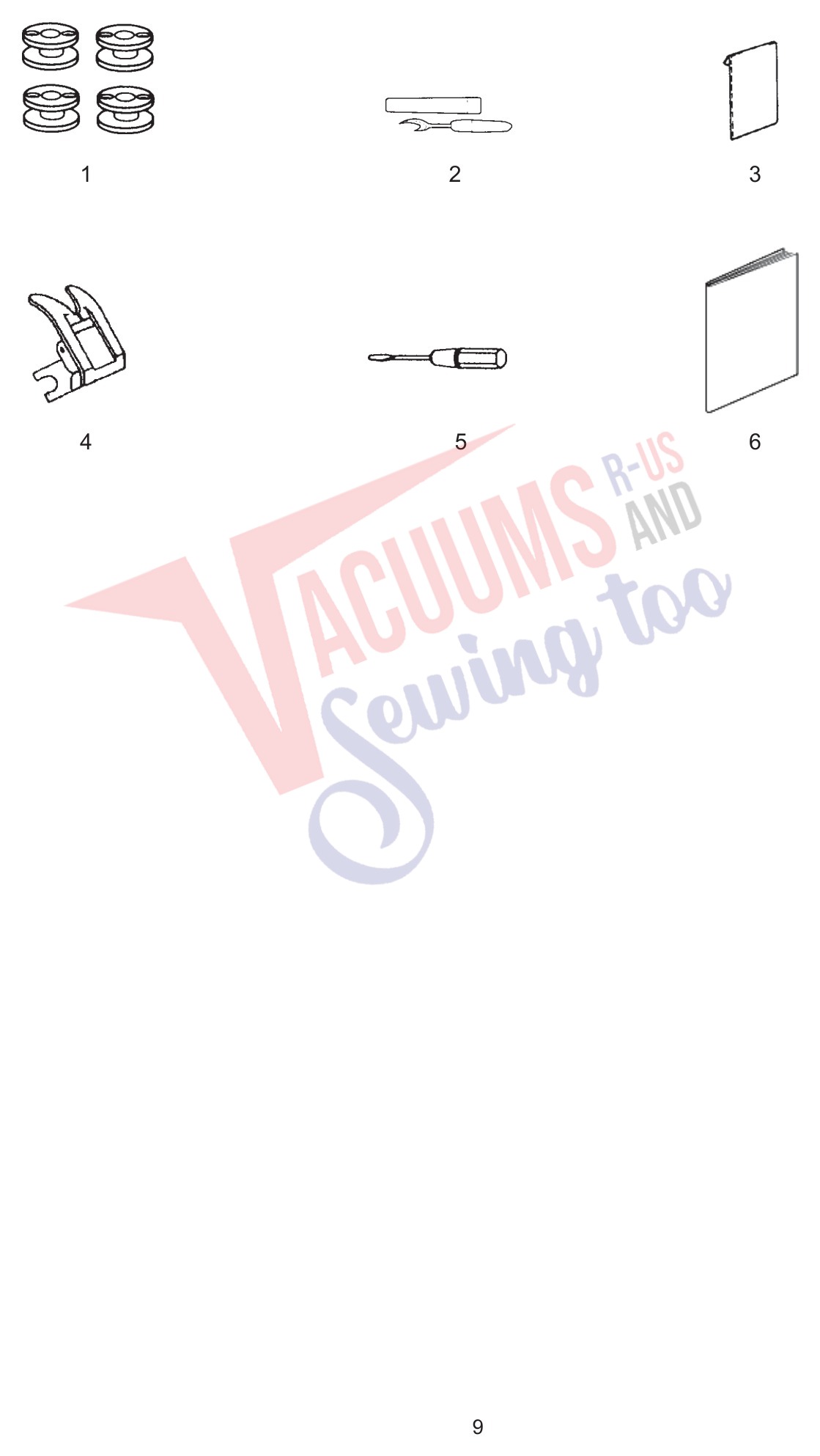

| 1 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 2 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Buttonhole Foot (sliding 5mm, front load) sewing machine part or accessory For Janome Models: HD-... | 731805000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Instruction Book JS1004 sewing machine part or accessory For Janome Models: JS1004 | 739809008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
