Schematic and parts book for Janome HD9QCP HD9QCP. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

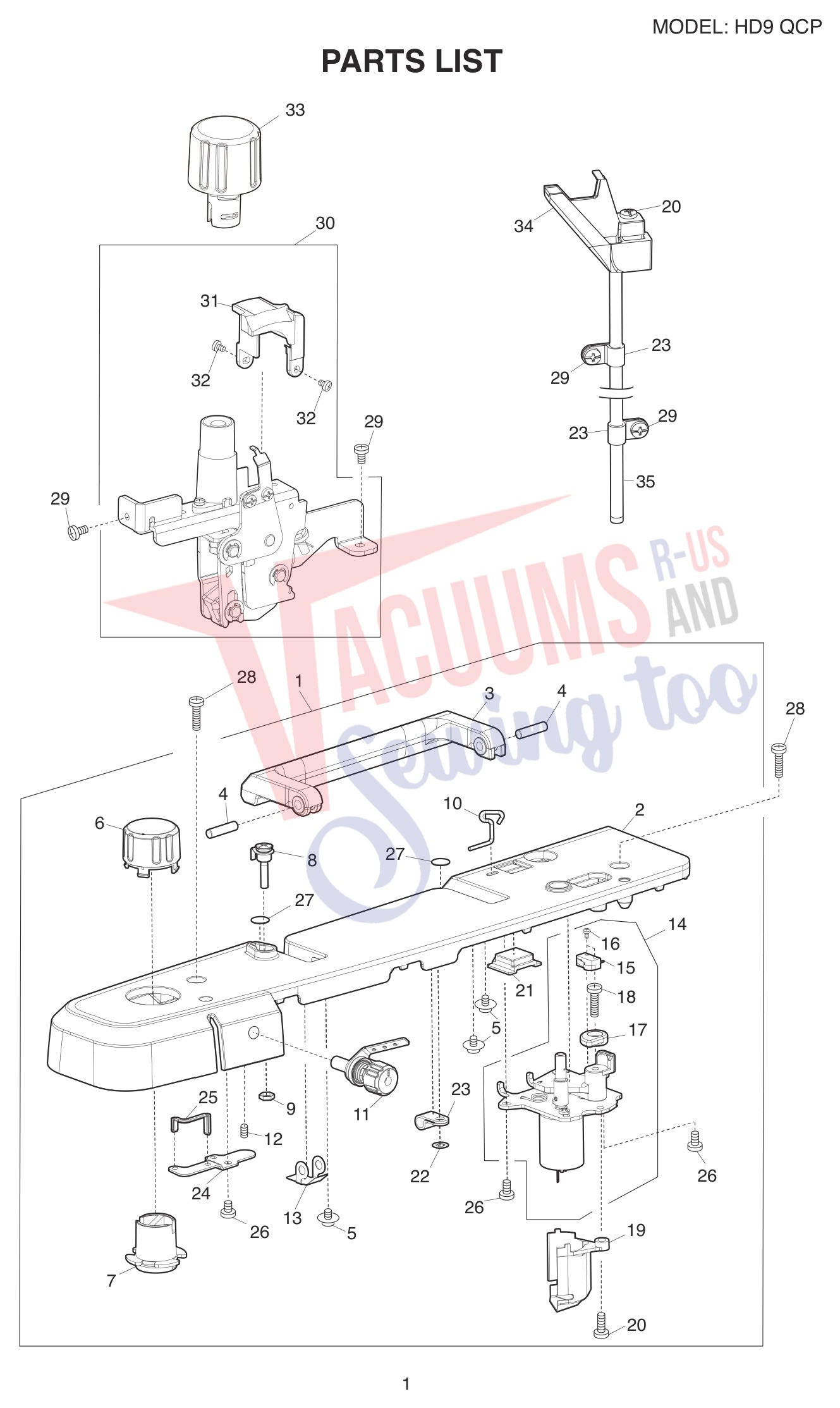

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Top cover (unit) | 768603000 | Not Available |
| 2 | Not Available | Top cover | 768009A01 | Not Available |
| 3 | Not Available | Carrying handle | 768011005 | Not Available |
| 4 |  | Pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC6... | 846016005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Foot pressure indicator dial | 768012006 | Not Available |
| 7 | Not Available | Ft press adjust dial stopper | 768013007 | Not Available |
| 8 | | Thread guide (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DB... | 767639002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Thread guide sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 846021003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Pre-tension (unit) | 767514022 | Not Available |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Handle spring | 846227012 | Not Available |
| 14 | Not Available | Bobbin winder (unit) | 768605002 | Not Available |
| 15 | | Micro switch sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 846514101 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew TP 2x8 sewing machine part or accessory For Janome Models: HD9 | 000078700 | $0.20Read more |
| 17 | | Bobbin winder stopper sewing machine part or accessory For Janome Models: MB-4, Necchi EX30, MC15... | 846177108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Bobbin winder motor cover | 768162002 | Not Available |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Press ft ht indicator window | 768017001 | Not Available |
| 22 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Nylon Clip Acc-2 | 000188405 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Oil wick fixing plate | 768016000 | Not Available |
| 25 |  | Oil wick sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC... | 763033204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Felt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767211004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Float set plate (unit) | 768617007 | Not Available |
| 31 | Not Available | Presser foot height indicator | 768058A01 | Not Available |
| 32 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Floating dial | 768059005 | Not Available |
| 34 | Not Available | Top cover oiling guide | 768115000 | Not Available |
| 35 | Not Available | Silicon tube | 000278115 | Not Available |

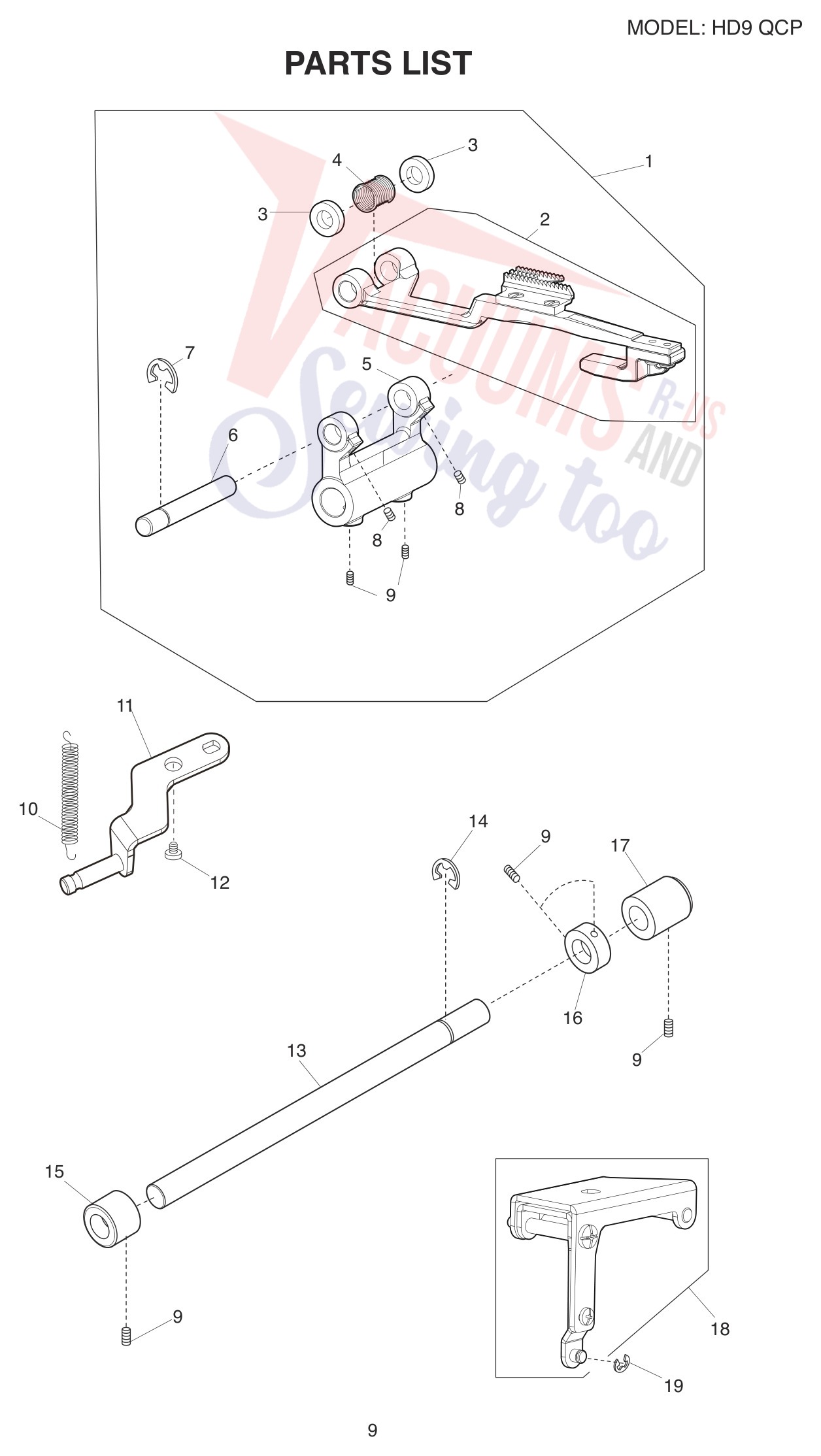

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Feed regulator (unit) | 767663108 | Not Available |
| 2 |  | Feed adjusting sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 767100009 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set screw 5*16 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000218106 | $0.60Read more |
| 4 | | Pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767101000 | $0.60Read more |
| 5 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Feed bar link sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 767102001 | $3.80Read more |
| 7 | | Feed ring pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 767106005 | $0.80Read more |
| 8 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 9 | | Plain washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 767157001 | $0.60Read more |
| 10 | Not Available | Feed cam (unit) | 768628001 | Not Available |
| 11 | | Feed regulator arm sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767107006 | $3.80Read more |
| 12 | | Pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767159003 | $0.80Read more |
| 13 | Not Available | Feed adjusting shaft | 768104006 | Not Available |
| 14 |  | Bushing sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC,... | 767099004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Bushing (front) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767097002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Feed regulator spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767111003 | $2.80Read more |
| 18 | | Lower shaft ring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 639095103 | $1.61Read more |
| 19 | | Feed regulator shaft arm sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 767112004 | $5.00Read more |
| 20 | Not Available | Thread cut driving base (unit) | 768631007 | Not Available |
| 21 | Not Available | Driving arm base plate | 768116001 | Not Available |
| 22 | Not Available | Driving arm | 768117002 | Not Available |
| 23 | Not Available | Link | 768118003 | Not Available |
| 24 | Not Available | Driving arm pin | 767253008 | Not Available |
| 25 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Cam spring sewing machine part or accessory For Janome Models: HD9 | 767274005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | WASHER THRUST FT70 9 8 7 7500 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1... | 000036108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Driving lever | 768119004 | Not Available |
| 29 | Not Available | Thread drawing arm | 768121009 | Not Available |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Spring | 768136007 | Not Available |
| 32 | Not Available | Guard plate | 768122000 | Not Available |
| 33 | | BINDING HEAD SMALL SCREW 3.5X6 sewing machine part or accessory For Janome Models: 134D, 1600P, 1... | 000103004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Thread tension release arm | 767246008 | Not Available |
| 35 | Not Available | Thread cutter link | 768123001 | Not Available |
| 36 | | Hinge screw (3) sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767248000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | NUT 5001 3123 sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC, 234... | 000061102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | Link | 768120008 | Not Available |
| 40 | Not Available | Wire joint | 767238007 | Not Available |
| 41 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | Not Available | Limiter plate | 767289003 | Not Available |
| 43 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | Thread cutter button (unit) | 768630006 | Not Available |
| 45 | Not Available | Button (2) | 768113A01 | Not Available |
| 46 | Not Available | Button holder | 768114009 | Not Available |
| 47 | | Printed circuit board UD (unit) sewing machine part or accessory For Janome Models: HD9 | 753511107 | $5.80Read more |
| 48 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | Not Available | Thread cutter solenoid (unit) | 768633009 | Not Available |
| 50 | Not Available | Set plate | 768128006 | Not Available |

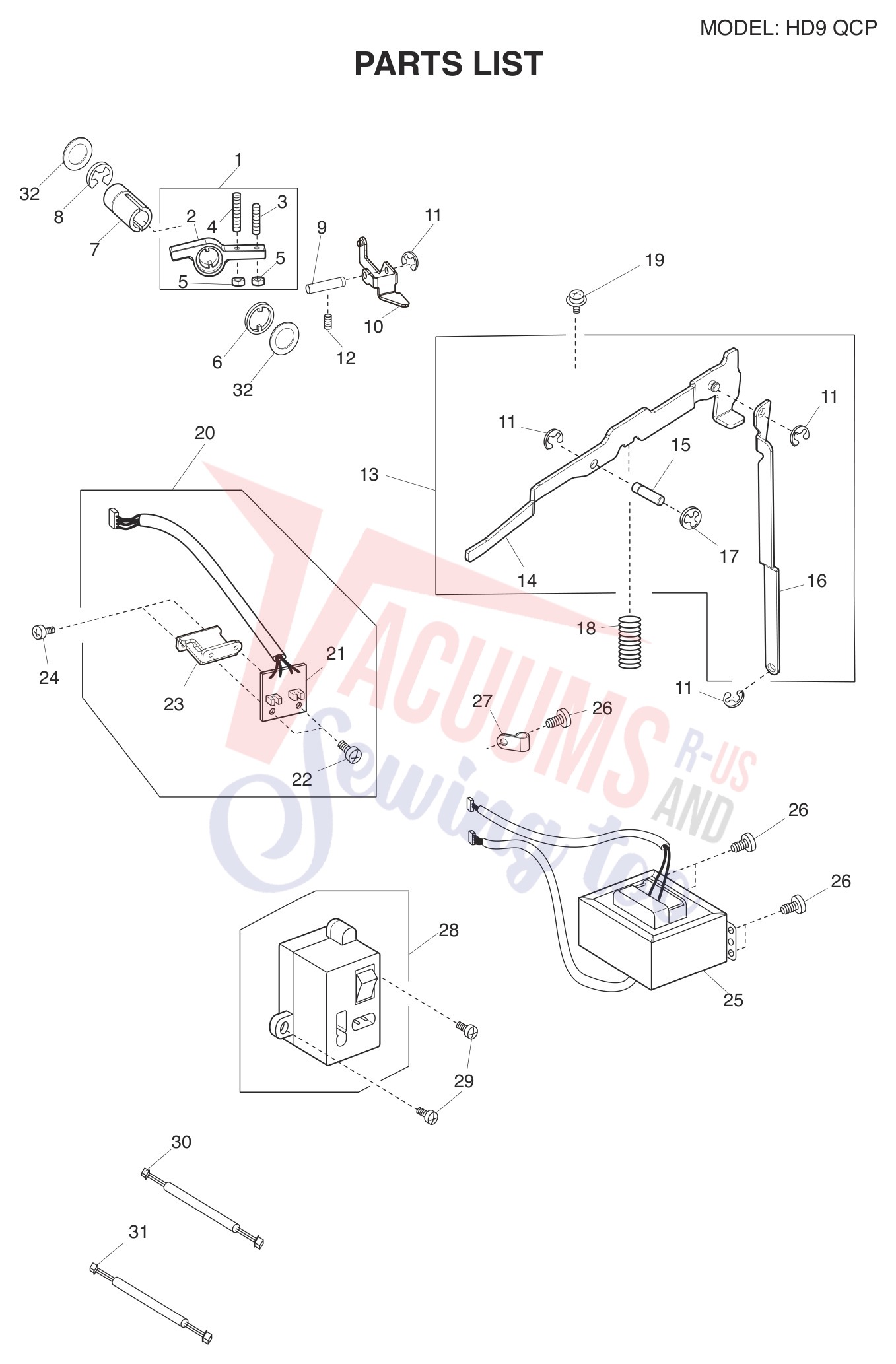

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Knee lifter lever (1) (unit) | 768615005 | Not Available |
| 2 | Not Available | Knee lifter lever (1) | 768042005 | Not Available |
| 3 | | Hexagon socket screw 5*20 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 000196107 | $1.80Read more |
| 4 | | Hexagonal socket screw sewing machine part or accessory For Janome Models: MC6500P, MC6600P, Necc... | 000178505 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Stopper sewing machine part or accessory For Janome Models: 1600P-QC | 767352008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Knee lifter shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767058001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Snap ring E-10 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000030009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Shaft | 767059002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Knee lifter lever (2) | 768043006 | Not Available |
| 11 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Knee lifter lever (3) (unit) | 768616006 | Not Available |
| 14 | Not Available | Knee lifter lever (3) | 768044007 | Not Available |
| 15 | Not Available | Knee lifter lever shaft | 767062101 | Not Available |
| 16 | Not Available | Presser foot lifter rod | 768045008 | Not Available |
| 17 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Knee lifter lever spring | 768159006 | Not Available |
| 19 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Upper shaft sensor (unit) | 767631107 | Not Available |
| 21 | Not Available | Printed circuit board P (unit) | 843505041 | Not Available |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Sensor fixing plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DB... | 767131009 | $2.00Read more |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Transformer (unit) (US, Can) | 767533016 | Not Available |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Nylon Clip Acc-2 | 000188405 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Machine socket unit (US, Can) | 767660404 | Not Available |
| 29 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Relay harness (motor) | 768512001 | Not Available |
| 31 | Not Available | Relay harness (sensor) | 768515004 | Not Available |
| 32 | | WASHER sewing machine part or accessory | 000037501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

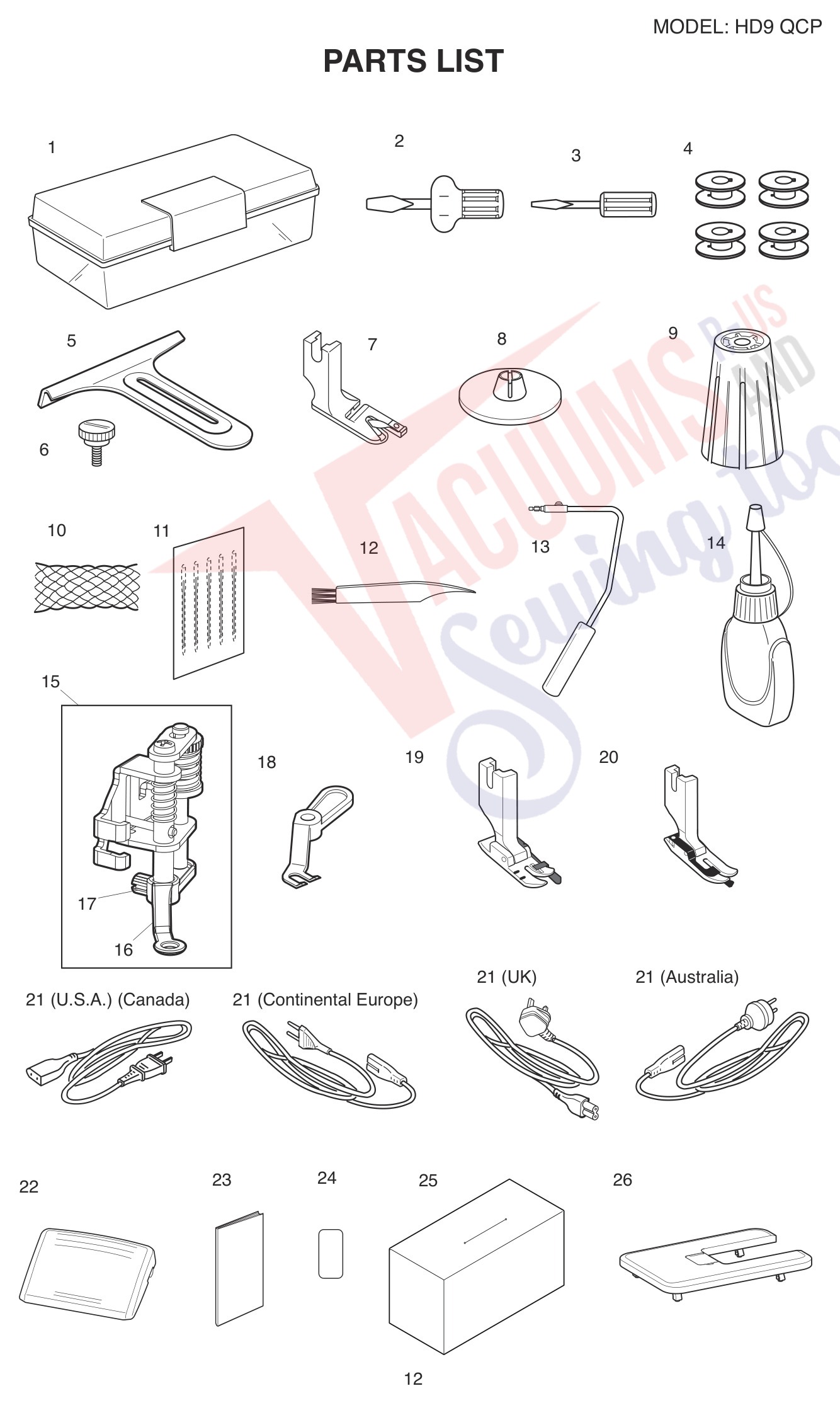

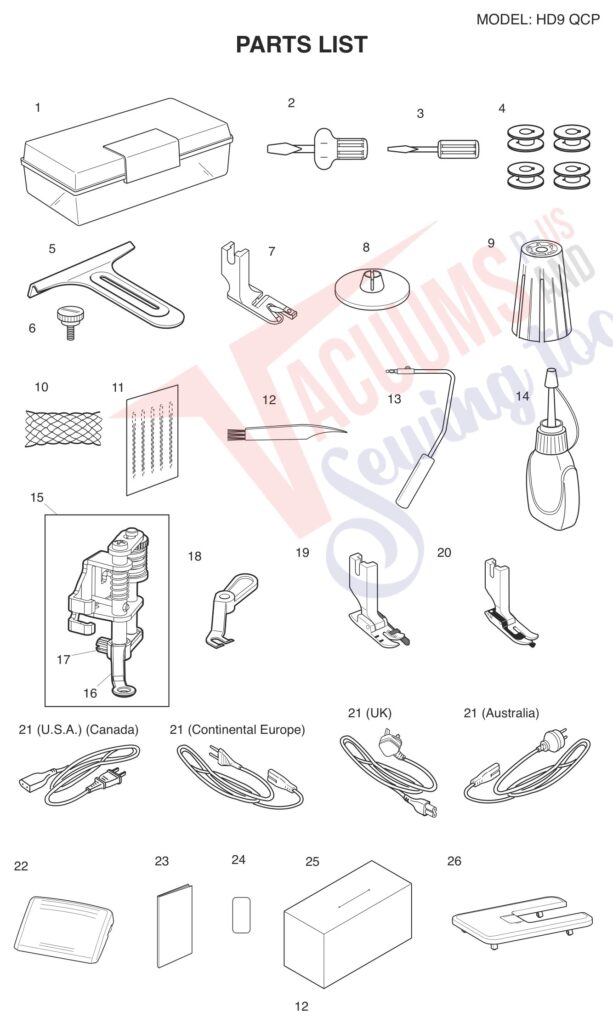

| # | Part image | Description | SKU | Price |
| 1 | | EMPTY ACCESSORY BOX WHITE sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 16... | 366401400 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 3 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | HD9 Bobbin for V2 sewing machine part or accessory HD9 Bobbin for V2 - Please check your machine ... | 767860107 | $8.79Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Cloth guide Cloth guide unit, (screw not included). Works with any Janome top... | 200100801 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Thumb Screw For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC10000, MC10001, MC... | 825252000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Hemmer Foot (high shank-industrial) sewing machine part or accessory For Janome Models: 763, 806,... | 761172004 | $25.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Genuine Janome/Elna SPOOL HOLDER 784223002 For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P... | 784223105 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Genuine Janome/Elna Spool Net For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 624806006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Needle set sewing machine part or accessory For Janome Models: HD9 | 767859000 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Knee lifter sewing machine part or accessory For Janome Models: MC7700QCP, MC8900 Horizon , MC820... | 846417011 | $57.40Read more |
| 14 | Not Available | Oil | 770816201 | Not Available |
| 15 | Not Available | Free motion quilting ft holder | 767433129 | Not Available |
| 16 | Not Available | Closed‑toe foot | 202002303 | Not Available |
| 17 | Not Available | Quilting Foot Screw | 202001704 | Not Available |
| 18 |  | Genuine Janome/Elna Open-toe foot H/S Open-toe quilting foot Use with: High Shanking 7mm machines... | 202002406 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | 1/4" Seam Ft (loose/high spd) | 767820002 | Not Available |
| 20 | Not Available | Ditch quilting foot | 767824006 | Not Available |
| 21 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Foot control (unit) HD9 sewing machine part or accessory Foot control (unit) HD9 | 043170201 | $91.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Instruct bk (US, Can, UK, Aus) | 768800009 | Not Available |
| 24 |  | Thread guide sticker sewing machine part or accessory For Janome Models: HD9 | 101631A01 | $1.00Add to cart |
| 25 | Not Available | Cover | 767805609 | Not Available |
| 26 | Not Available | Extra wide table | 499702915 | Not Available |
| # | Part image | Description | SKU | Price |

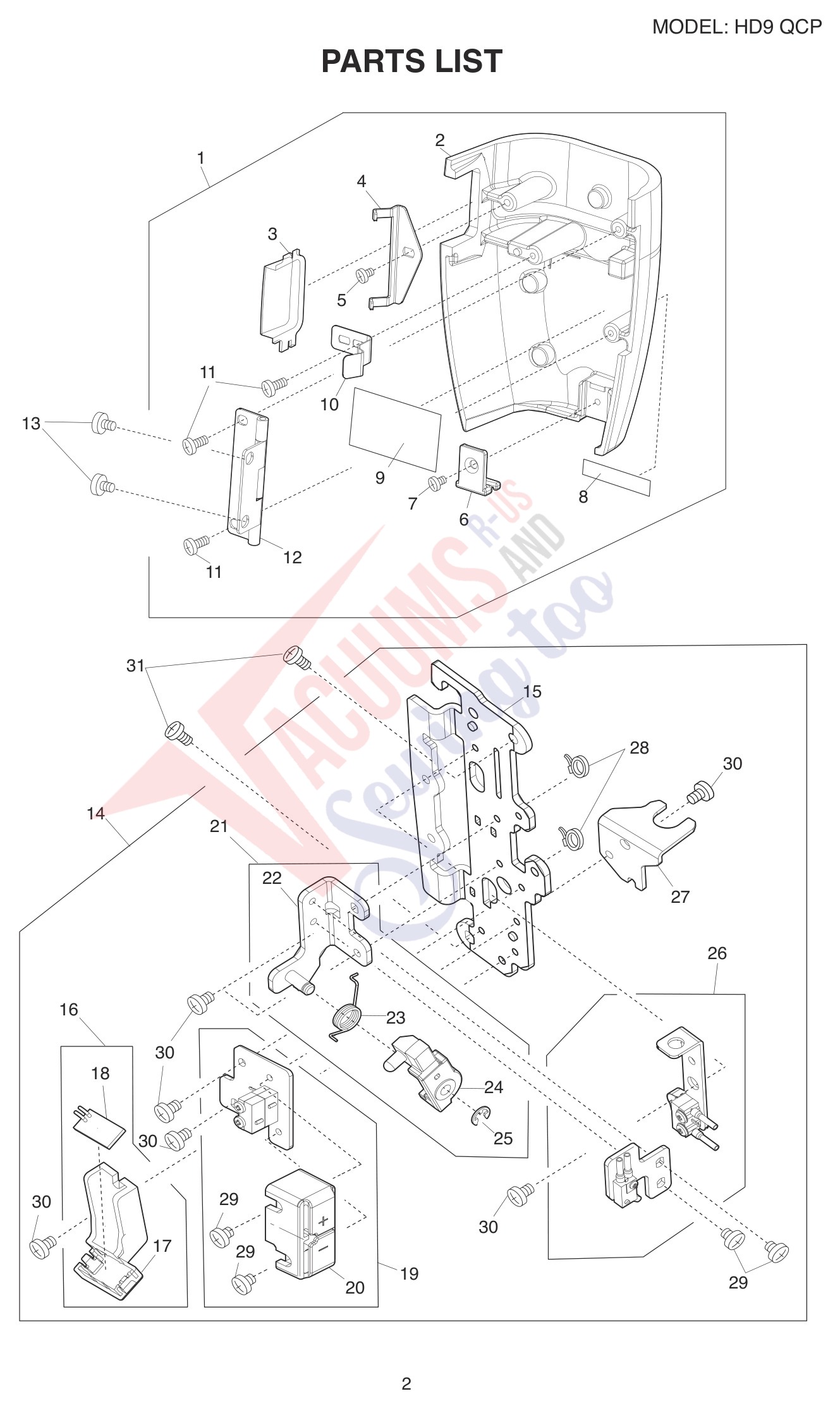

| 1 | Not Available | Face plate (unit) (US, Can) | 768602009 | Not Available |
| 2 | Not Available | Face plate | 768007101 | Not Available |
| 3 | Not Available | Foot pressure indicator window | 768008A01 | Not Available |
| 4 | Not Available | Foot pressure plate | 768010004 | Not Available |
| 5 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Thread cutter unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 840602109 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Setscrew sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC... | 000095105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Side cover spring sewing machine part or accessory For Elna Models: EL864 | 787163002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SETSCREW 3X10 sewing machine part or accessory For Janome Models: MC11000 Special Edition Clothse... | 000080428 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Face plate hinge (unit) sewing machine part or accessory For Janome Models: SKS3AE | 843545010 | $3.38Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Front bracket (unit) | 768610000 | Not Available |
| 15 | Not Available | Front bracket | 768029006 | Not Available |
| 16 | Not Available | LED cover (unit) | 768611001 | Not Available |
| 17 | Not Available | LED cover | 768030000 | Not Available |
| 18 | Not Available | Print circuit board L2 | 865526035 | Not Available |
| 19 | Not Available | LED brightness adj switch unit | 768612002 | Not Available |
| 20 | Not Available | LED bright adj switch cover | 768032002 | Not Available |
| 21 | Not Available | Face cover sensor plate (unit) | 768637003 | Not Available |
| 22 | Not Available | Face cover sensor plate | 768151008 | Not Available |
| 23 | Not Available | Spring | 768158005 | Not Available |
| 24 | Not Available | Face cover sensor switch arm | 768153000 | Not Available |
| 25 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 26 | Not Available | Sensor switch (unit) | 768648007 | Not Available |
| 27 | | Set plate sewing machine part or accessory For Janome Models: HD9 | 767224000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

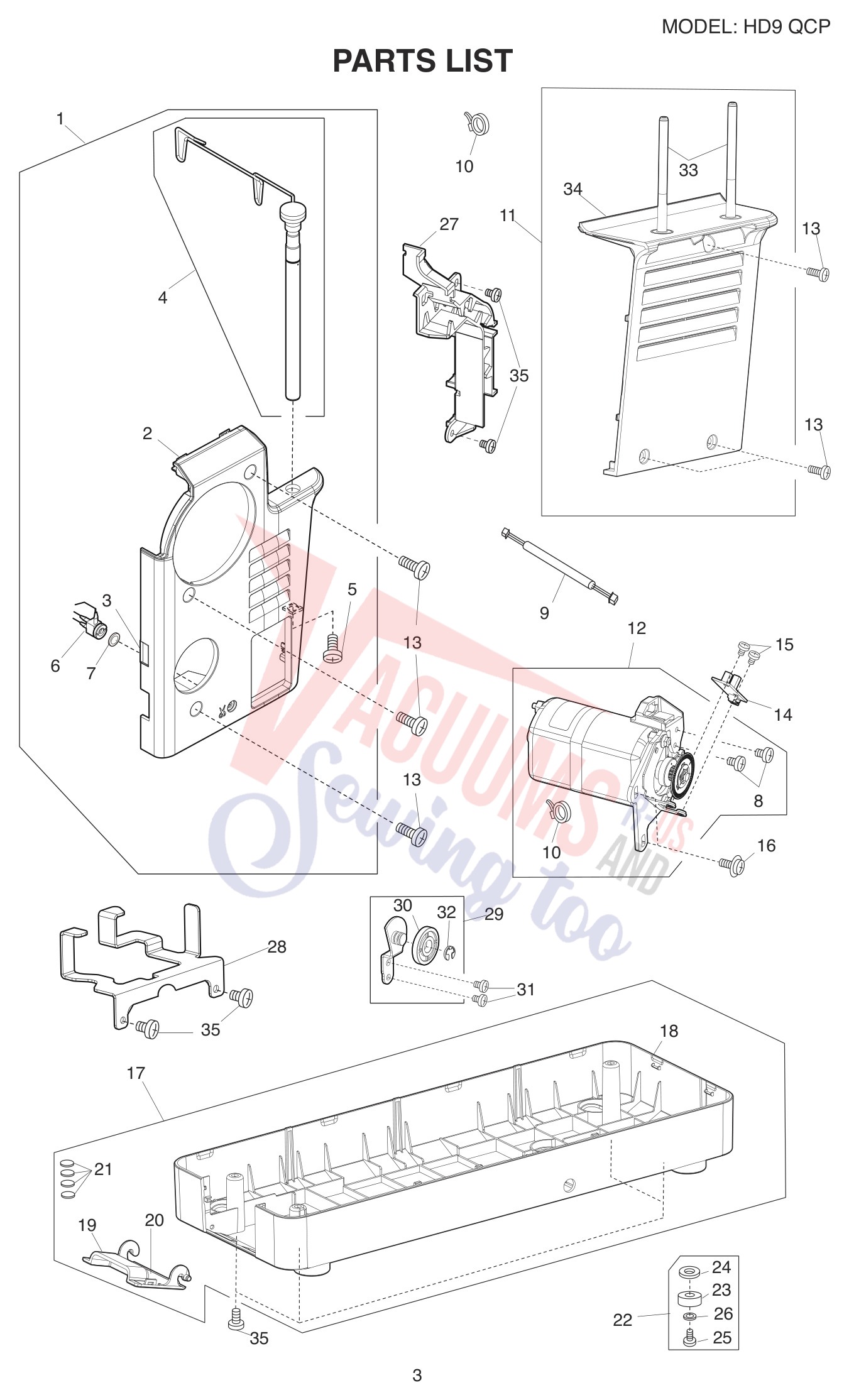

| 1 | Not Available | Belt cover (unit) | 768607004 | Not Available |
| 2 | Not Available | Belt cover | 768020007 | Not Available |
| 3 | Not Available | Stitch length window | 767014304 | Not Available |
| 4 |  | Thread guide unit sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767636009 | $22.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Jack cord (unit) sewing machine part or accessory For Janome Models: HD9 | 767589006 | $12.12Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer 4 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1200D, 1200D, 1600P, 1... | 000071024 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Cord | 767590103 | Not Available |
| 10 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Motor cover (unit) | 768606003 | Not Available |
| 12 | Not Available | Motor (unit) (U.S.A.) (Canada) | 768646005 | Not Available |
| 13 | | SET SCREW 4X12 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000170507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Print circuit board MS (unit) | 768513002 | Not Available |
| 15 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Base (unit) (U.S.A.) (Canada) | 768608005 | Not Available |
| 18 | Not Available | Base | 768022009 | Not Available |
| 19 | Not Available | Hook cover | 768023000 | Not Available |
| 20 | | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Felt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767211004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Bed rubber foot (unit) sewing machine part or accessory For Janome Models: 1600P-QC | 767643102 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Rubber foot sewing machine part or accessory 797363016 Rubber foot | 797363016 | $3.13Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 785260004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Hinge screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P... | 784169010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 000070300 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Cord guide | 768019003 | Not Available |
| 28 | Not Available | Cord guide | 768139011 | Not Available |
| 29 | Not Available | Roller (unit) | 768641000 | Not Available |
| 30 | Not Available | Roller | 768157004 | Not Available |
| 31 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Spool pin | 869400403 | Not Available |
| 34 | Not Available | Motor cover | 768018002 | Not Available |
| 35 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

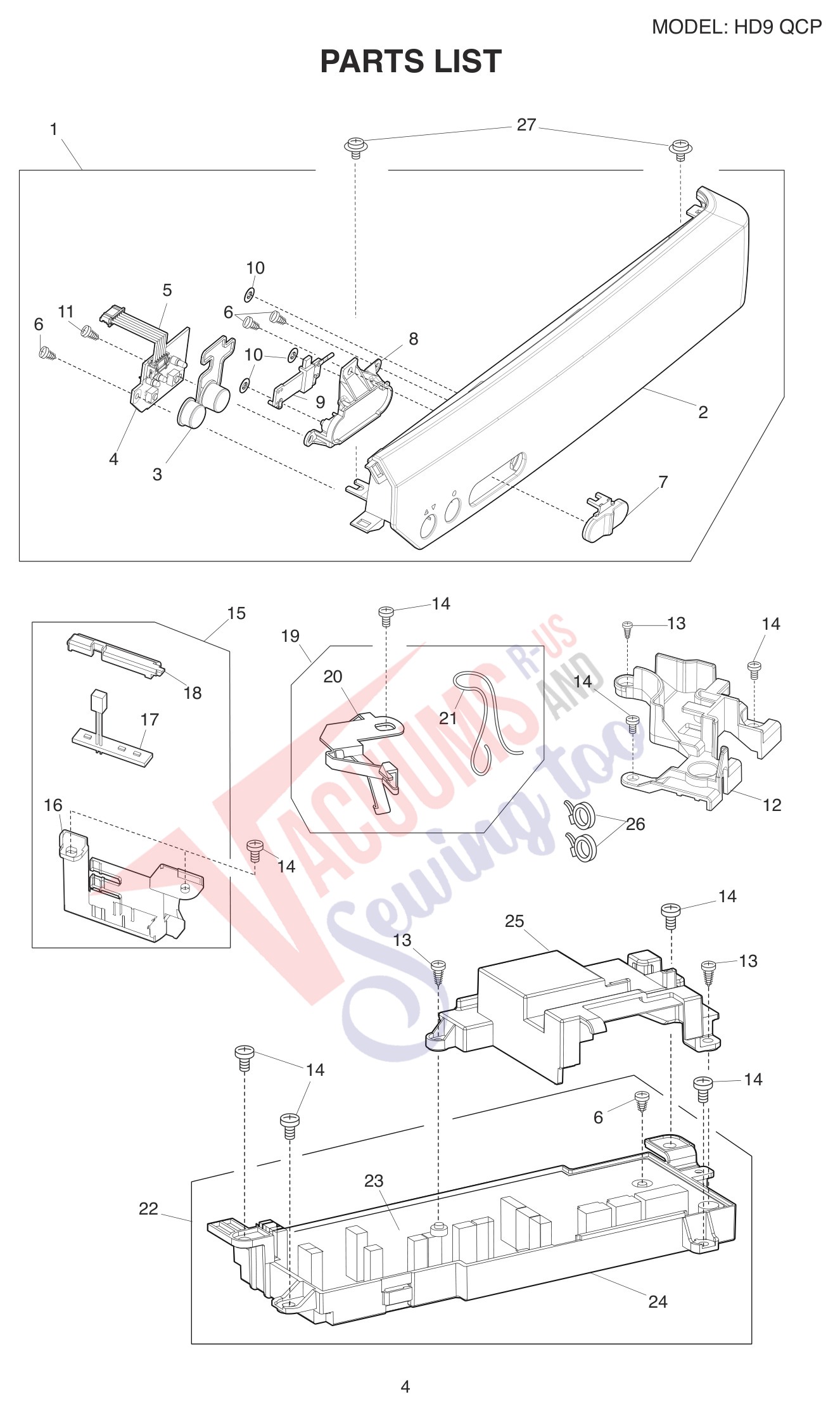

| 1 | Not Available | Ornamental plate (unit) | 768601008 | Not Available |
| 2 | Not Available | Ornamental plate | 768003A01 | Not Available |
| 3 | Not Available | Button 1 | 768004A01 | Not Available |
| 4 | Not Available | Printed circuit board F (unit) | 768501007 | Not Available |
| 5 | Not Available | Relay harness | 768502008 | Not Available |
| 6 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Speed control slider | 768005006 | Not Available |
| 8 | Not Available | Speed control slider guide | 768006007 | Not Available |
| 9 | | Slide volum sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767516002 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Cord guide (2) | 768143007 | Not Available |
| 13 | Not Available | Setscrew 3x12-2V | 000075109 | Not Available |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Arm lamp cover (unit) | 768636002 | Not Available |
| 16 | Not Available | Arm lamp cover | 768140004 | Not Available |
| 17 | | Printed circuit board L1 (unit) (blue connector) sewing machine part or accessory For Janome Mode... | 867504206 | $24.29Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Arm lamp cap | 768149003 | Not Available |
| 19 |  | Oil wick fixing plate (2) (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P... | 767612009 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Oil wich fixing plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 767153007 | $2.00Read more |
| 21 | | Oil wick sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P... | 763033020 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | A Board(unit) (US,Can) | 768651106 | Not Available |
| 23 | Not Available | A Board (US,Can) | 768643002 | Not Available |
| 24 | Not Available | A Board case (lower) | 768141005 | Not Available |
| 25 | Not Available | A Board case (upper) | 768142006 | Not Available |
| 26 | Not Available | Cord binder | 000053101 | Not Available |
| 27 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

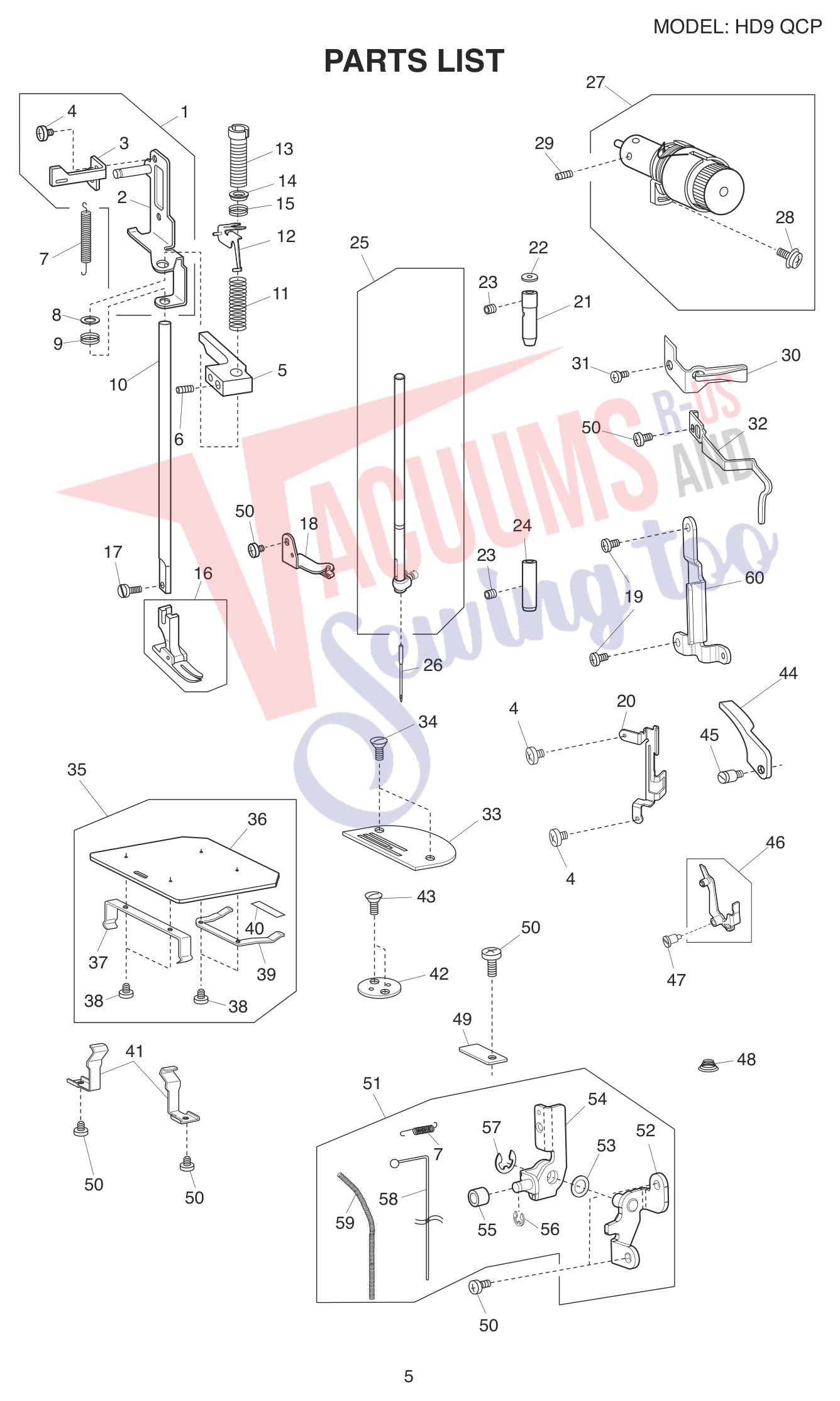

| 1 |  | Presser bar lifter sewing machine part or accessory For Janome Models: 1600P-QC | 767669001 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Presser bar lifter | 767026103 | Not Available |
| 3 | Not Available | Presser foot sensor plate | 767303004 | Not Available |
| 4 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Presser bar bracket | 767027012 | Not Available |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 |  | Spring sewing machine part or accessory For Janome Models: 1600P-QC | 767222008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Spring | 767225001 | Not Available |
| 10 | Not Available | Presser bar | 768027004 | Not Available |
| 11 | | Presser bar spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767029003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Foot pressure indicator | 768028108 | Not Available |
| 13 | | Presser regulating screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 160... | 767031008 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Spacer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767173003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Presser bar sub-spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P... | 767172002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Presser Foot Unit (industrial high shank) sewing machine part or accessory For Janome Models: 763... | 762505003 | $27.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 763048109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Arm thread guide (lower) sewing machine part or accessory For Janome Models: 1600P, 1600P-QC | 767039006 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Needle threader guide plate | 768038008 | Not Available |
| 21 |  | Needle Bar Bushing (Upper) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 767041001 | $23.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Felt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767042002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Needle Bar Bushing (Lower) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 767091006 | $22.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Needle bar (unit) | 767641052 | Not Available |
| 26 | Not Available | Needle HLx5-14 | 767401047 | Not Available |
| 27 | Not Available | Thread tension (unit) | 767502902 | Not Available |
| 28 |  | Tapping setscrew 3x4 sewing machine part or accessory For Janome Models: 134D, 204D, 4048/8048/HF... | 000114709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Arm thread guide | 768041004 | Not Available |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Thread tension plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-D... | 767056009 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Needle plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600... | 767281108 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 102053007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Hook cover plate (unit) sewing machine part or accessory For Janome Models: 1600P-QC | 767609106 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Bobbin Cover Plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767018009 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Hook cover plate spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600... | 767019000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Hook cover plate supporter spring sewing machine part or accessory For Janome Models: 1600P, 1600... | 767020004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Sticker | 767220006 | Not Available |
| 41 | | Hook cover plate retainer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 767017008 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Attachment mount sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, ... | 767021005 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Presser bar lifter sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767171001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Hinge screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P... | 846033008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | Thread tens release lvr (unit) | 767650216 | Not Available |
| 47 |  | Hinge screw sewing machine part or accessory For Janome Models: MC350E, MC6500P, MC6600P, Necchi ... | 846220004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Thread tension release spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 761045007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Plate sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767233002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

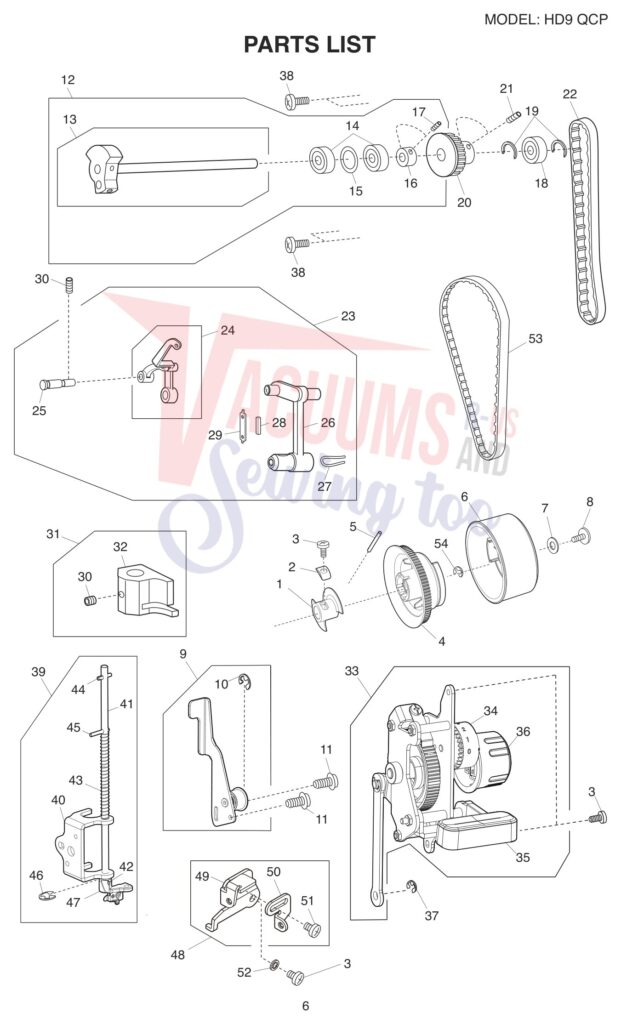

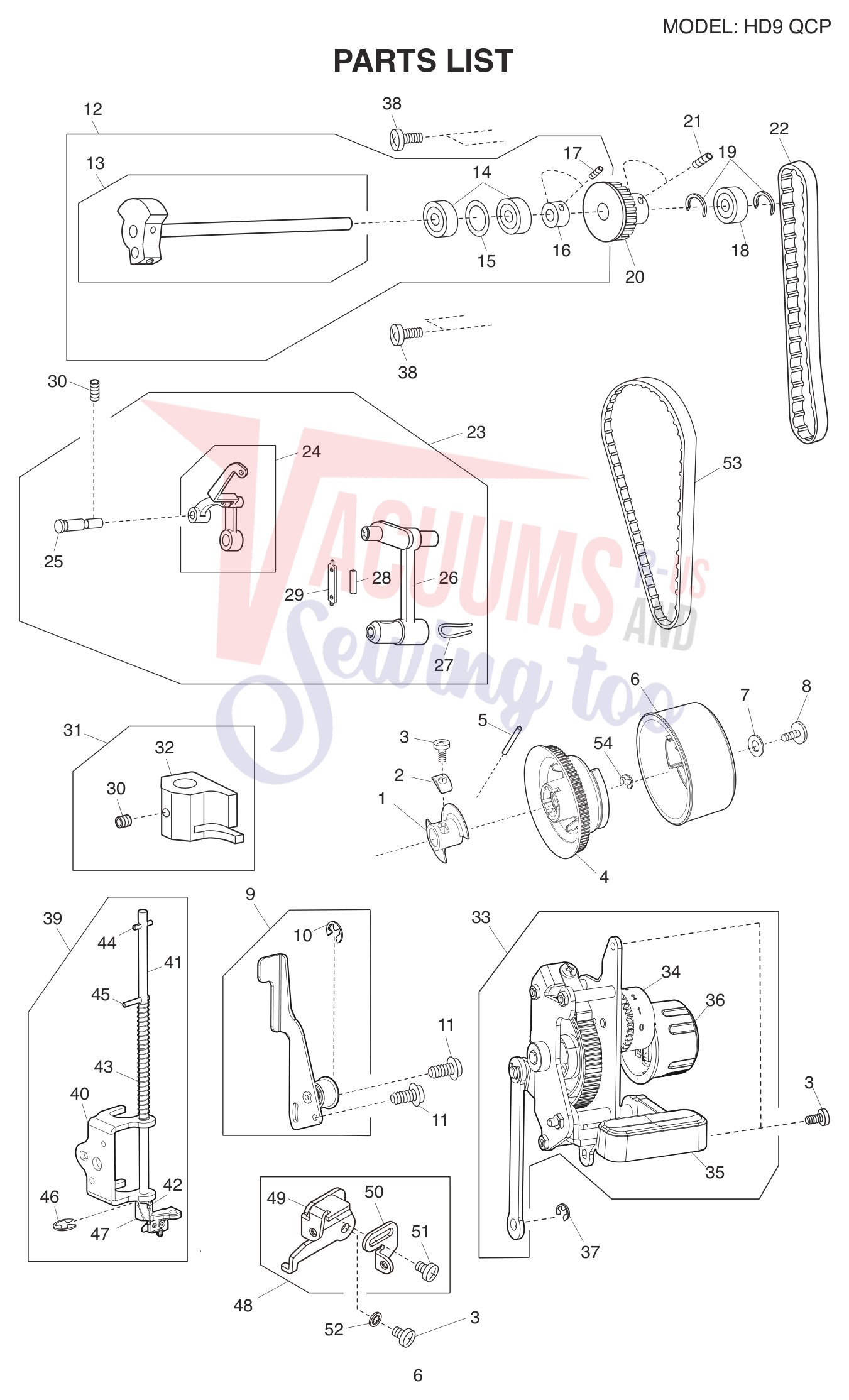

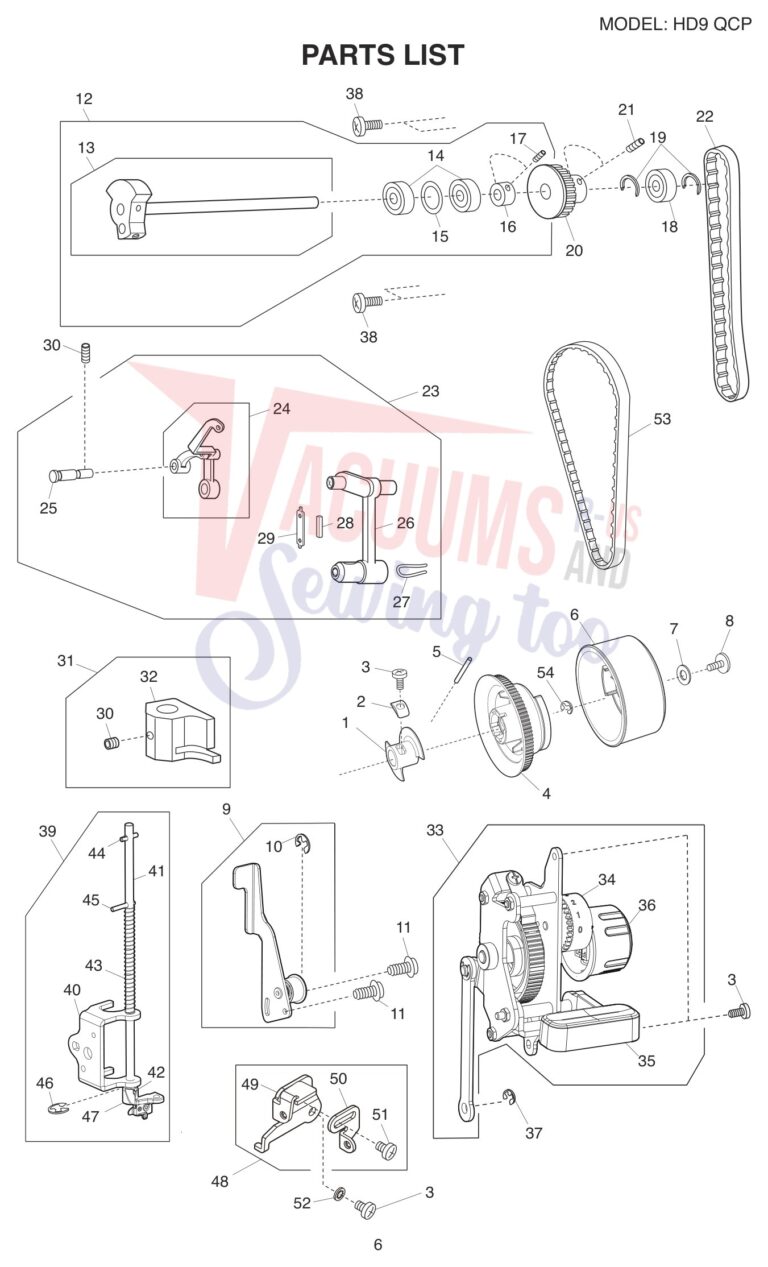

| 1 | Not Available | Upper shaft shield plate | 768062001 | Not Available |
| 2 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Belt wheel | 768649008 | Not Available |
| 5 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Handwheel | 768064003 | Not Available |
| 7 | | Washer sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1600... | 556047007 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SET SCREW sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1... | 618070004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Idler (unit) | 768618008 | Not Available |
| 10 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Upper shaft (whole unit) | 767697101 | Not Available |
| 13 | Not Available | Upper shaft (unit) | 767617107 | Not Available |
| 14 | Not Available | Ball bearing | 767304108 | Not Available |
| 15 | Not Available | Spacer | 767227003 | Not Available |
| 16 |  | Ring | 767077006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 18 |  | Ball bearing 6901ZZ sewing machine part or accessory For Janome Models: Skyline S5 | 767178101 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Snap ring 5103-46 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 000032702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Upper shaft timing gear sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600... | 767070009 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Timing belt | 768060102 | Not Available |
| 23 | | Take up lever (unit) sewing machine part or accessory For Janome Models: 1600P-QC | 767682000 | $70.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Thread take-up lever (UNIT) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, ... | 767503006 | $41.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Thread take up lever shaft sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 761091008 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Needle bar crank (unit) sewing machine part or accessory For Janome Models: HD9 | 767529008 | $23.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Oil wick sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 763033400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Needle Threader Set Base Unit sewing machine part or accessory For Janome Models: 1600P, 1600P-QC | 767634007 | $5.80Read more |
| 32 |  | Needle threader positionng bse sewing machine part or accessory For Janome Models: 1600P, 1600P-QC | 767043003 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Feed adjusting base (unit) | 768629002 | Not Available |
| 34 | Not Available | Indicator drum | 768108A01 | Not Available |
| 35 | Not Available | Reverse stitch lever | 768111A01 | Not Available |
| 36 | Not Available | Stitch length dial | 768112007 | Not Available |
| 37 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | Needle threader (unit) | 768614004 | Not Available |
| 40 | Not Available | Needle threader plate | 768035005 | Not Available |
| 41 | Not Available | Needle threader shaft | 768036006 | Not Available |
| 42 | Not Available | SPRING PIN-DISCONTINUED | 000004808 | Not Available |
| 43 | Not Available | Needle threader spring | 768037007 | Not Available |
| 44 | | Pin E 2x10 - CH sewing machine part or accessory For Janome Models: 1600P, 1600P-QC | 000125208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | Not Available | Pin G 2x14 - CH | 000125404 | Not Available |
| 46 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 47 |  | NEEDLE THREADER GUIDE PLATE FOR 1600P sewing machine part or accessory For Janome Models: 1600P, ... | 767633006 | $12.20Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Thread guide (unit) sewing machine part or accessory For Janome Models: HD9 | 767553001 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | Not Available | Thread guide plate | 767362001 | Not Available |
| 50 | Not Available | Tension arm | 767363002 | Not Available |
| # | Part image | Description | SKU | Price |

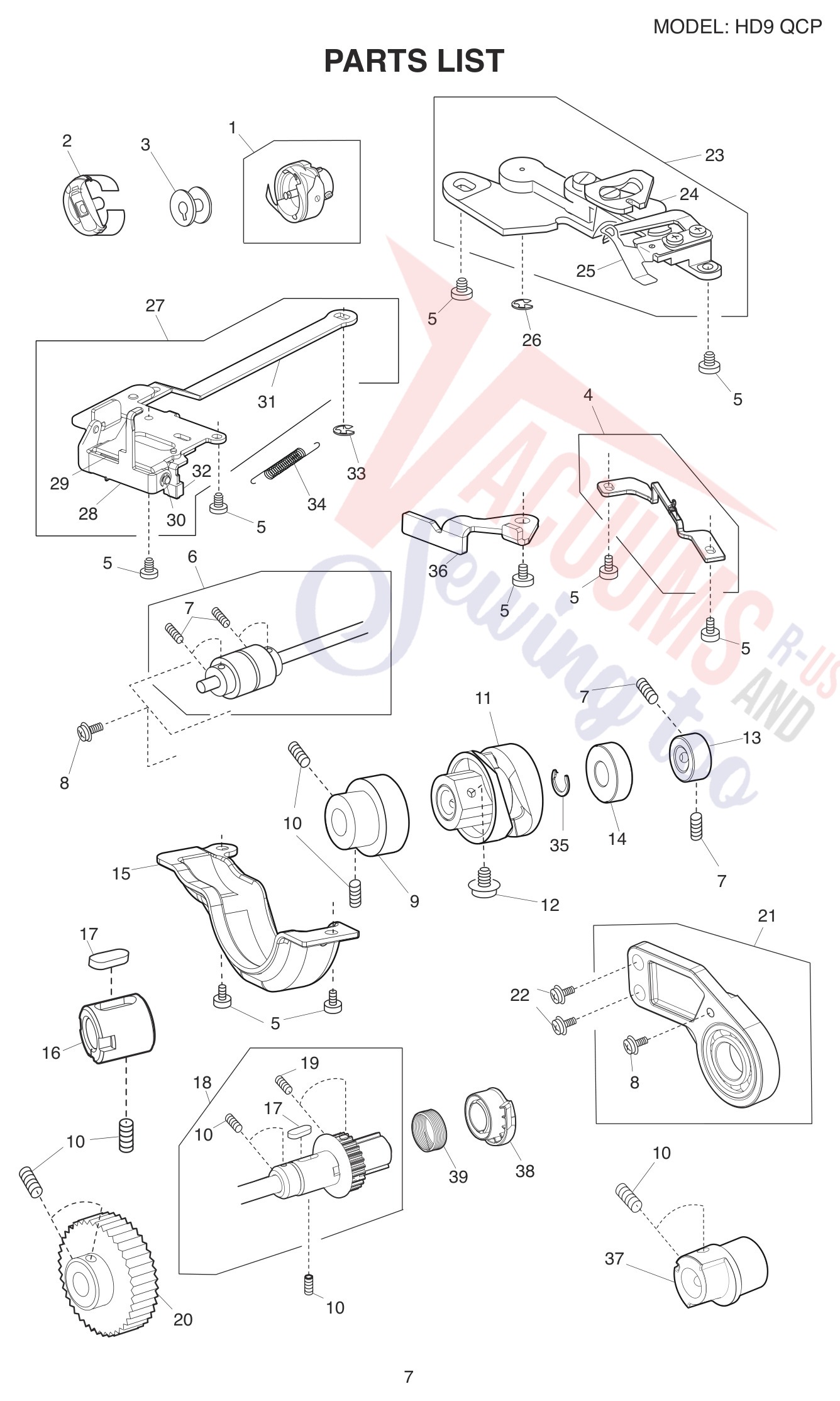

| 1 | | HD9 Hook race (unit) V2 sewing machine part or accessory Hook race for HD9 (V2) - Please make sur... | 767594004 | $280.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HD9 Bobbin case (unit) V2 sewing machine part or accessory HD9 Bobbin case (unit) V2 - Please mak... | 767595005 | $84.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | HD9 Bobbin for V2 sewing machine part or accessory HD9 Bobbin for V2 - Please check your machine ... | 767860107 | $8.79Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Hook race stopper (unit) | 768619009 | Not Available |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Hook race shaft (unit) | 767698308 | Not Available |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Hook race gear | 768068007 | Not Available |
| 10 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 11 | Not Available | Thread cutter cam | 768517006 | Not Available |
| 12 |  | Setscrew TP 3x14 sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC, ... | 000114606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Ball bearing | 767182108 | Not Available |
| 15 | Not Available | Gear cover | 768069008 | Not Available |
| 16 |  | Lower shaft front bushing sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 16... | 767085007 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Felt sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767067003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Lower shaft (unit) | 768620003 | Not Available |
| 19 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Lower shaft gear | 768072004 | Not Available |
| 21 | Not Available | Lower shaft supporter (unit) | 768627000 | Not Available |
| 22 | | Tapping screw 4x12 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 11... | 000114802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | AUTO THREAD CUTTER UNIT sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 160... | 767657006 | $132.20Read more |
| 24 | | THREAD CUTTER BLADE sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767264002 | $33.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | THREAD GUIDE PLATE sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767266004 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Thread drawing lever (unit) | 768635001 | Not Available |
| 28 | Not Available | Thread drawing lever | 768132003 | Not Available |
| 29 | Not Available | Spring | 768133004 | Not Available |
| 30 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 31 | Not Available | Link | 768134005 | Not Available |
| 32 | | Cushion 3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC | 767259004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Spring | 768137008 | Not Available |
| 35 | | Crescent ring sewing machine part or accessory For Janome Models: MB-4, MC200E, MB4N | 000032403 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Wire stopper | 768138009 | Not Available |
| 37 | Not Available | Feed lifting cam | 768073005 | Not Available |
| 38 | Not Available | Thread cutter cam | 768074006 | Not Available |
| 39 | Not Available | Thread cutter spring | 768075007 | Not Available |
| # | Part image | Description | SKU | Price |

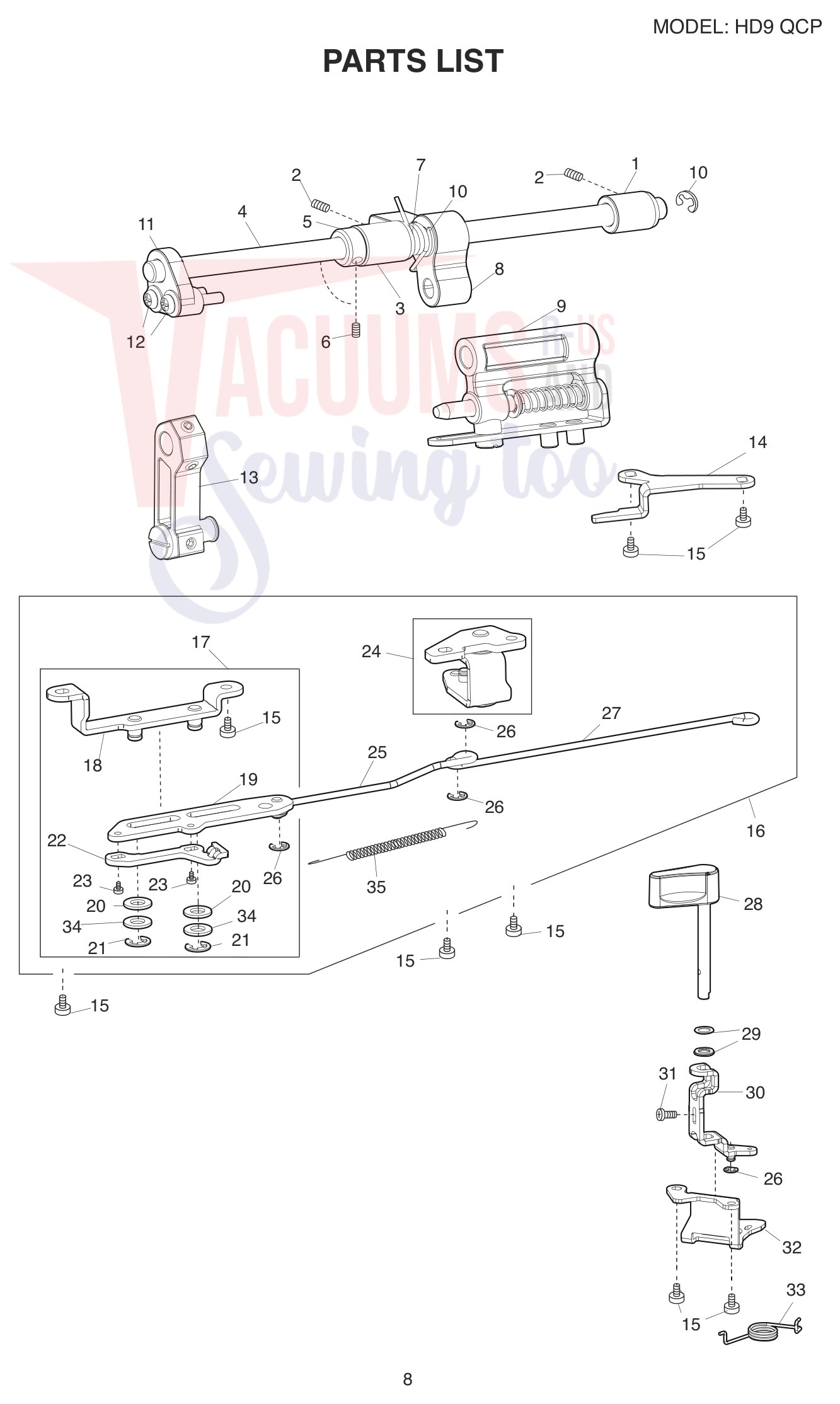

| 1 | Not Available | Feed lifting shaft bushing | 768077009 | Not Available |
| 2 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 3 |  | Bearing sewing machine part or accessory For Janome Models: 1100D, 1200D | 797035005 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Feed lifting shaft | 768076008 | Not Available |
| 5 |  | Looper Shaft Ring | 792048006 | $1.40Read more |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Feed lifting link spring | 768079001 | Not Available |
| 8 | Not Available | Feed lifting link | 768080005 | Not Available |
| 9 | Not Available | Feed liftlink connect blk unit | 768622005 | Not Available |
| 10 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Feed lifting shaft supportor | 768084009 | Not Available |
| 12 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Feed base link (unit) | 768621004 | Not Available |
| 14 | Not Available | Slide link supportor | 768085000 | Not Available |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Drop feed lever link (unit) | 768623006 | Not Available |
| 17 | Not Available | Drop feed lever link base unit | 768624007 | Not Available |
| 18 | Not Available | Drop feed lever link base | 768086001 | Not Available |
| 19 | Not Available | Drop feed lever link plate | 768087002 | Not Available |
| 20 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Feed dog drop lever regulator | 768088003 | Not Available |
| 23 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | FD drop lvr connect arm (unit) | 768625008 | Not Available |
| 25 | Not Available | Rod | 768091009 | Not Available |
| 26 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 27 | Not Available | Connecting rod | 768092000 | Not Available |
| 28 | Not Available | Drop feed lever | 768094002 | Not Available |
| 29 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Drop feed lever handle plate | 768095003 | Not Available |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Drop feed lever control plate | 768096004 | Not Available |
| 33 | Not Available | Drop feed lever spring | 768097005 | Not Available |
| 34 | | Washer 6 sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive | 000073107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | Not Available | Drop feed lever link spring | 768163003 | Not Available |
| # | Part image | Description | SKU | Price |

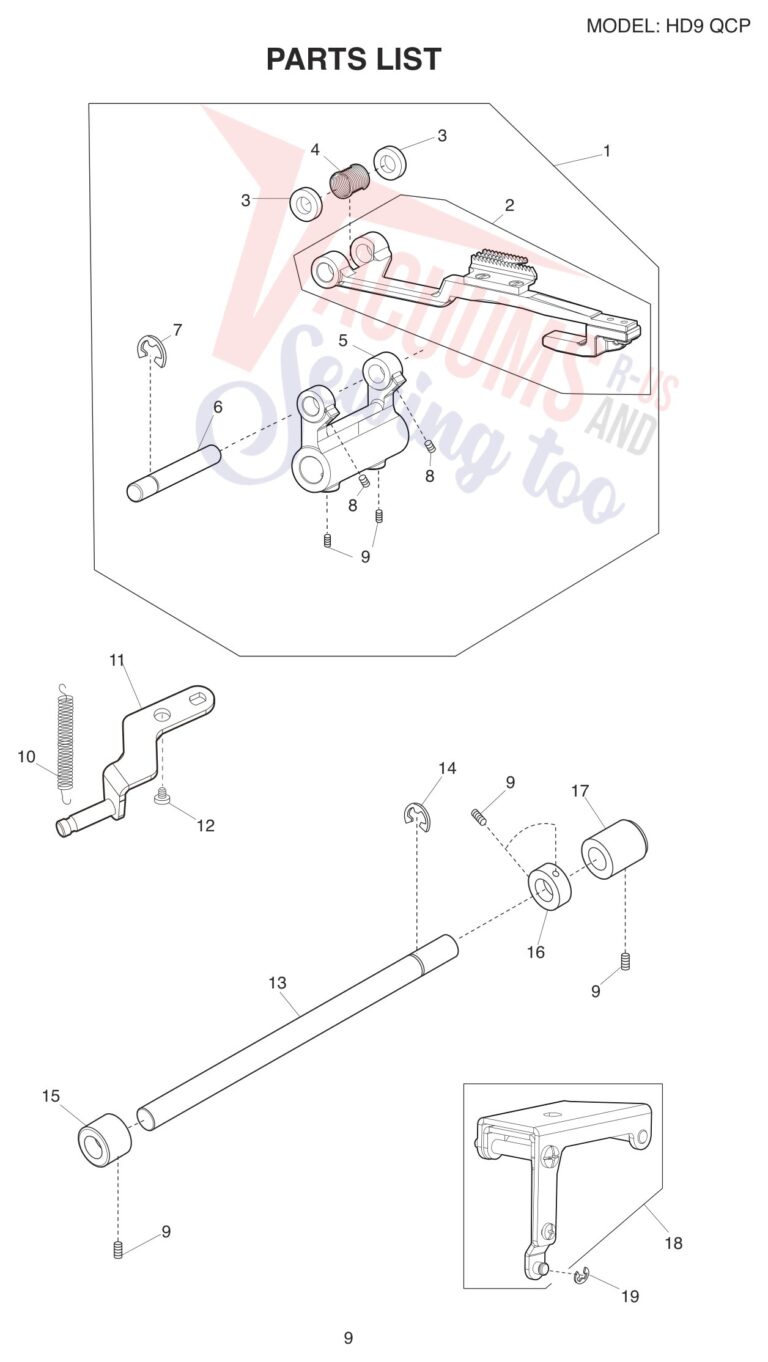

| 1 | Not Available | Feed base (unit) (1) | 768639005 | Not Available |
| 2 | Not Available | Feed base (unit) (2) | 768650002 | Not Available |
| 3 |  | FELT (2)-9/8/7-7500/6/5500/412 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 822063003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Felt hodler spring sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX... | 767212005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Genuine Janome/Elna Feed rock shaft For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC | 767094009 | $8.05Read more |
| 6 | | Feed rock arm pin sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 767095000 | $1.00Read more |
| 7 | | Ring E sewing machine part or accessory For Janome Models: MB-4, MB4N | 000002817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 10 | Not Available | Feed base spring | 768099007 | Not Available |
| 11 | Not Available | Spring attach plate | 768100002 | Not Available |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Feed rock shaft | 768101003 | Not Available |
| 14 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Bushing (front) sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1... | 767097002 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Bushing sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC,... | 767099004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Thread cutter rod | 768632008 | Not Available |
| 19 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
