Schematic and parts book for Janome HD5000BE HD5000BE. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

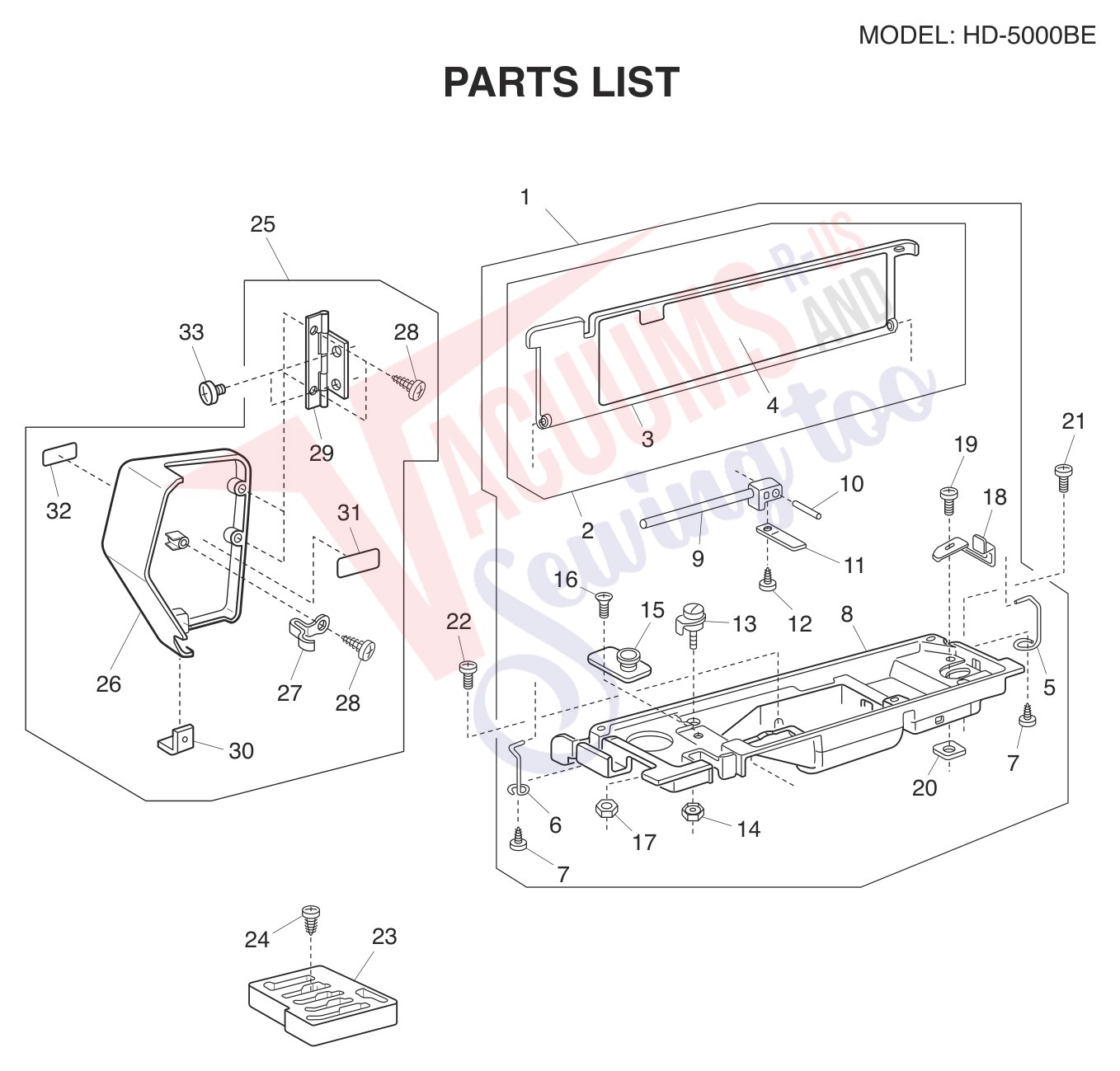

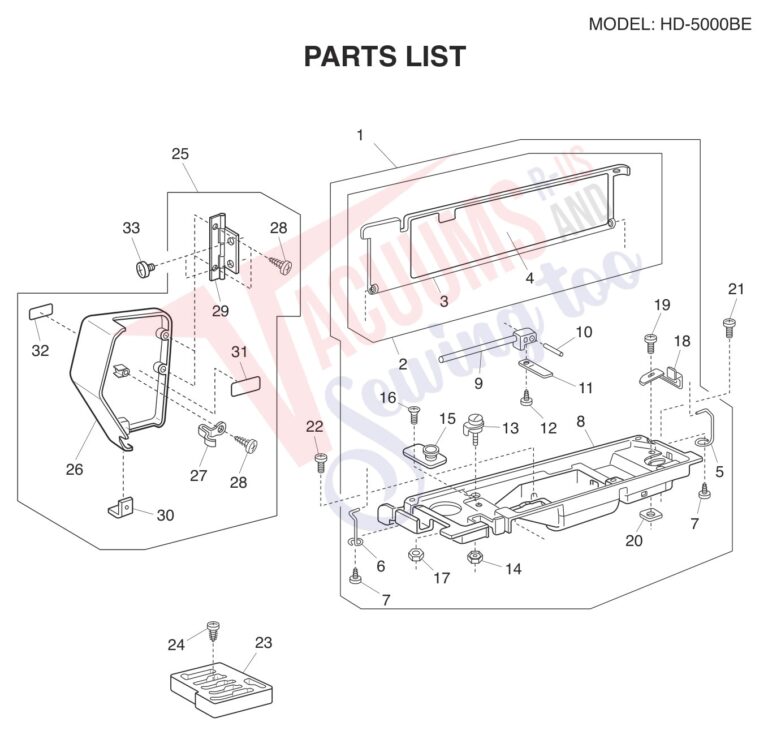

| # | Part image | Description | SKU | Price |
| 1 | No Image | Top Cover (Whole Unit) | 753604083 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Top cover (unit) | 753605084 | Not Available |
| 3 |  | Top cover sewing machine part or accessory For Janome Models: HD3000BE | 753012103 | $7.20Read more |
| 4 |  | Flip Top Panel for DE 5124 sewing machine part or accessory For Janome Models: DE5018, DE5024, DE... | 757003000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hinge rod (right) sewing machine part or accessory For Janome Models: | 753014002 | $1.15Read more |
| 6 | | Hinge rod (left) sewing machine part or accessory For Janome Models: | 753129001 | $1.15Read more |
| 7 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Top cover body sewing machine part or accessory For Janome Models: HD3000BE | 753015209 | $14.72Read more |
| 9 | | Spool pin sewing machine part or accessory For Janome Models: HD3000BE | 822016702 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | PIN 8000/7-7500/6000/4000/4123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822017002 | $1.00Read more |
| 11 |  | SPOOL PIN SPRING 8000 7500 700 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822018003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | + PAN HEAD TAP-8 7 6 4 3123 55 sewing machine part or accessory For Janome Models: 1100D, 1100D, ... | 000107318 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | TOP COVER THREAD GUIDE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC... | 753502002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Flat Head Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5... | 693093006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Nut sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147, 626... | 000062701 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 687022005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | BINDING HEAD SM.SCREW DISCONTI sewing machine part or accessory For Janome Models: 134D, 334, 434... | 000066727 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Square Nut sewing machine part or accessory For Janome Models: 134D, 334, 434D, 434DR, 4618LE, 46... | 630005006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SET SCREW 4X12 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000170507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Foot Container | 754044107 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SET SCREW sewing machine part or accessory For Janome Models: MC4800, MC4800QC, MC4900, ML3023, M... | 000120214 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | Face Cover (Unit) | 757602463 | $21.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Face cover | 757004A01 | Not Available |
| 27 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 360, 380 & 381, AQS2009... | 731067002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Indicator Dram (Unit) | 757612503 | $36.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Indicator dram | 757025B01 | Not Available |
| 3 | Not Available | Indicator dram | 757025B02 | Not Available |
| 4 | | Indicator dram cap sewing machine part or accessory For Janome Models: HD5000 SRV | 757026009 | $0.92Read more |
| 5 | Not Available | Dram shaft | 757027000 | Not Available |
| 6 | Not Available | Gear | 757028001 | Not Available |
| 7 | Not Available | Dram supporter plate (front) | 757029002 | Not Available |
| 8 | Not Available | Dram supporter plate (rear) | 757030006 | Not Available |
| 9 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Gear plate | 757051003 | Not Available |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Front Cover (Unit) | 757613261 | $67.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Front cover | 757031B01 | Not Available |
| 15 | Not Available | Pattern indication plate | 757032A01 | Not Available |
| 16 | Not Available | Slide button | 757033021 | Not Available |
| 17 | Not Available | Button frame | 757034103 | Not Available |
| 18 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Thread supporting plate sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, ... | 753125007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Front cover base plate (front) sewing machine part or accessory For Janome Models: | 753108004 | $1.38Read more |
| 21 | | Front cover base plate (rear) sewing machine part or accessory For Janome Models: | 753109005 | $0.92Read more |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | SET SCREW 3X4-9 7 7500 5500 41 sewing machine part or accessory For Janome Models: 134D, 203, 234... | 000115401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Arm thread guide sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 52... | 753126008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set screw sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, DE5018,... | 000092917 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

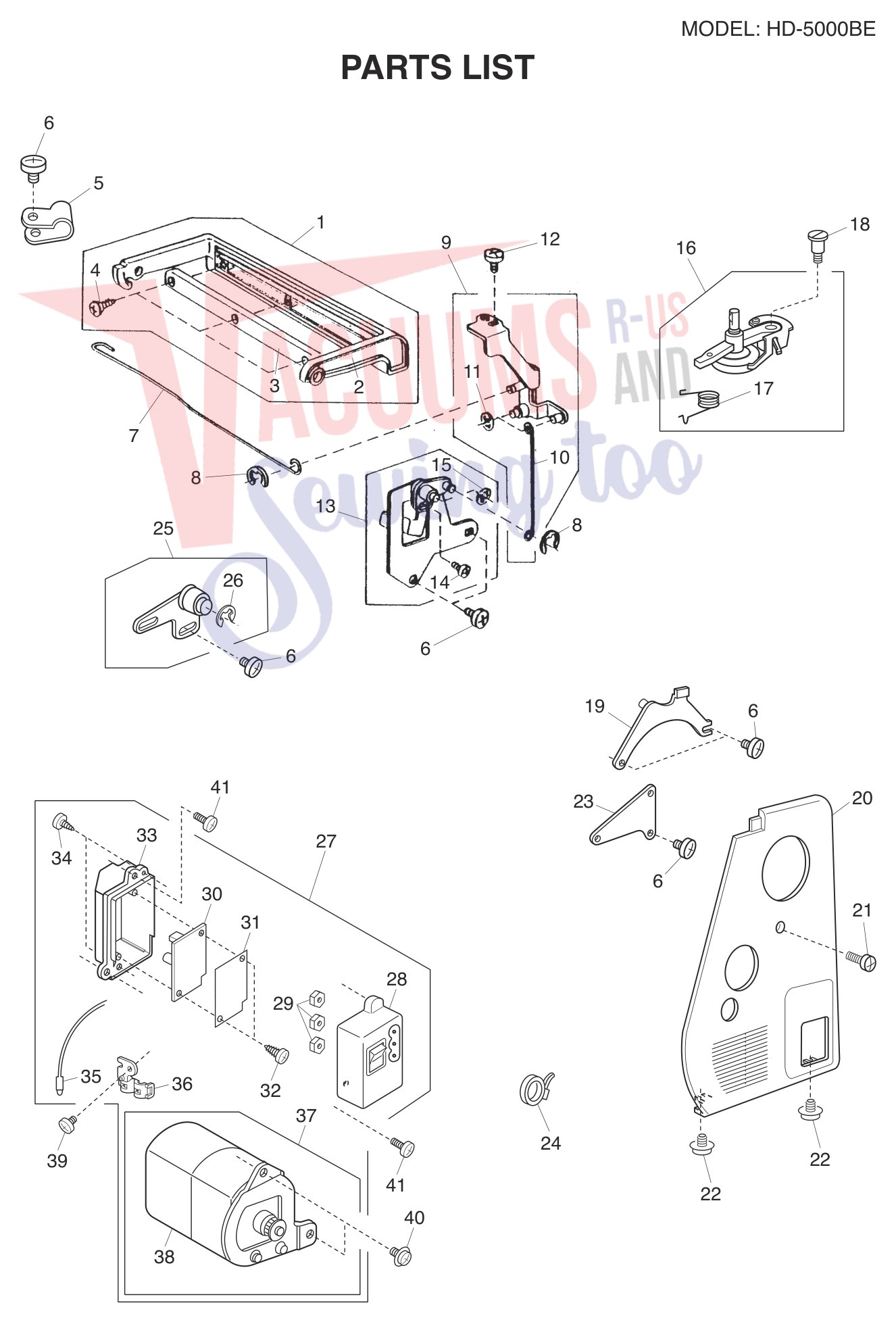

| # | Part image | Description | SKU | Price |
| 1 | | Carrying handle (unit) sewing machine part or accessory For Janome Models: HD3000BE | 753620100 | $15.80Read more |
| 2 | | Carrying handle sewing machine part or accessory For Janome Models: HD3000BE | 753121106 | $6.60Read more |
| 3 | | Carrying handle plate sewing machine part or accessory For Janome Models: | 753122004 | $2.60Read more |
| 4 | | Flat screw 3 x 8 (B) sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE... | 000120502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Nylon Clip Acc-2 | 000188405 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | BH DRAG ROD 3123R 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, ... | 753098000 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 9 | | Drag rod link holder plate (unit) sewing machine part or accessory For Janome Models: HD5000 SRV | 753643006 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | BH drag rod (2) sewing machine part or accessory For Janome Models: | 753099012 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | STOP UP LEVER (UNIT) 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 614... | 753614008 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Bobbin winder (unit) sewing machine part or accessory For Janome Models: HD3000 (V2) | 757628007 | $14.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | HINGE SCREW 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 686063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | CARRYING HANDLE SUPPORTERPLATE sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 753120002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Belt Cover | 757035207 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | BELT COVER SETTING PLATE 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE,... | 753116005 | $2.60Read more |
| 24 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Idler Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 61... | 753619003 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Machine socket (whole unit) sewing machine part or accessory For Janome Models: 001HD3000 (V2) | 753680005 | $96.60Read more |
| 28 |  | Machine socket unit sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 204... | 739505403 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Printed circuit board C (unit) sewing machine part or accessory For Janome Models: SEWIST500 (V2) | 508512009 | $10.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Insulating paper sewing machine part or accessory For Janome Models: SEWIST500 (V2) | 508134003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Machine Socket Cover | 303092007 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | LED (unit) sewing machine part or accessory For Janome Models: SEWIST500 (V2) | 508515105 | $7.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | LED holder sewing machine part or accessory For Elna Models: EL864 | 508143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Motor (unit) sewing machine part or accessory For Janome Models: | M-1069 | $55.80Read more |
| 38 | Not Available | Motor | M-1069A | Not Available |
| 39 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

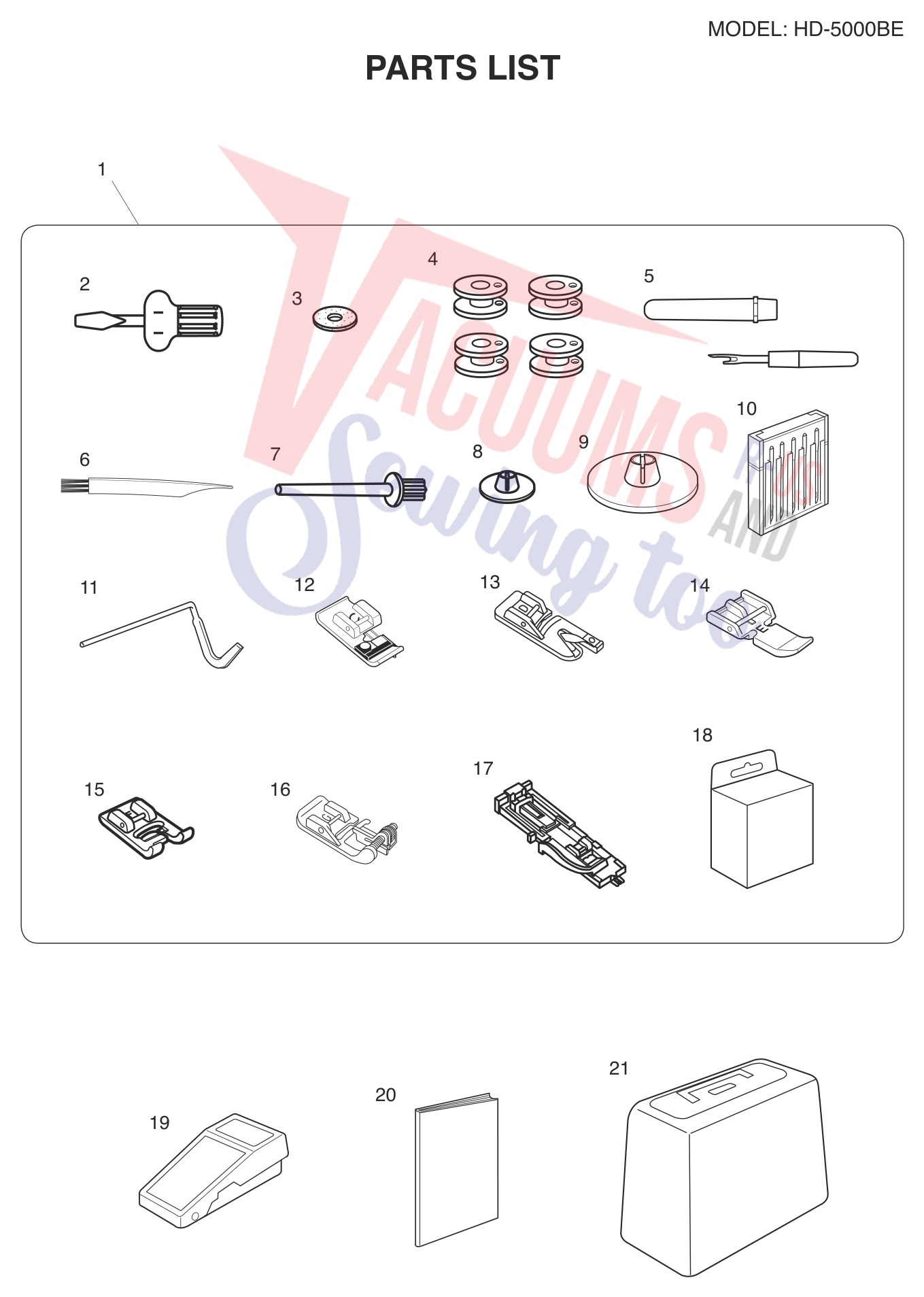

| # | Part image | Description | SKU | Price |
| 1 | No Image | Accessory Set | 757870707 | $104.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 3 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 8 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | QUILTER BAR-LARGE sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 5... | 802422002 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Overlock Foot C (top load) | 820804019 | Not Available |
| 13 |  | Rolled Hemmer Foot for Janome | 820809014 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Zipper Foot (new 7mm top load) sewing machine part or accessory metal zipper for 7mm and 5mm mode... | 808852003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Satin stitch foot F sewing machine part or accessory For Janome Models: MC11000 Special Edition, ... | 822804129 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Quilting Attachment Kit for Janome | 200100007 | $104.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 20 | No Image | Instruction Book (English) | 757800946 | $11.19Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Cover | 476703605 | $60.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

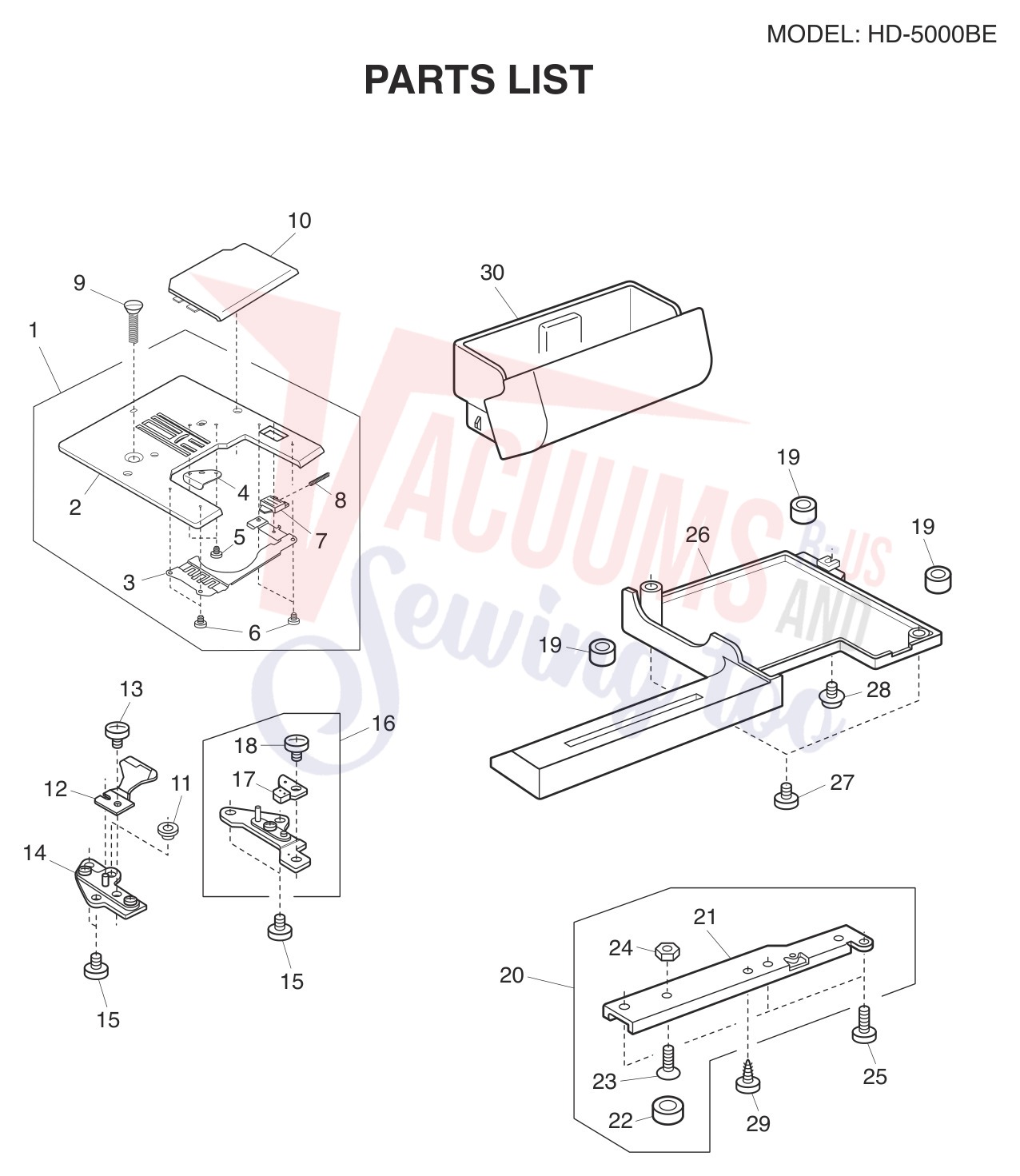

| 1 | | Needle Plate (Unit) for HD3000 sewing machine part or accessory Needle Plate (Unit) for HD3000 | 754636308 | $22.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle plate sewing machine part or accessory For Janome Models: | 754052108 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hook cover plate supporter sewing machine part or accessory For Janome Models: SEWIST500 (V2) | 751374007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Bobbin holder stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 659, 66... | 654078004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | BOBBIN HOLDER STOPPER (LEFT) sewing machine part or accessory For Janome Models: 4618LE, 4623LE, ... | 822011109 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle Plate (L) Support Unit | 650602001 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | + PAN TAP TIGHT SCREW 4X6-6 31 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 000107503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Needle Plate Support Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 614... | 650603002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Arm Leg Unit | 753641004 | Not Available |
| 21 |  | Arm Sole for Model 3023 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 753002007 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, 659, CE2200, ... | 000097303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Base sewing machine part or accessory For Janome Models: HD3000BE | 753003101 | $17.25Read more |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Set Screw 4mm x 12mm | 000075604 | Not Available |
| 30 | No Image | Extension Table (Unit) | 757501106 | $17.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

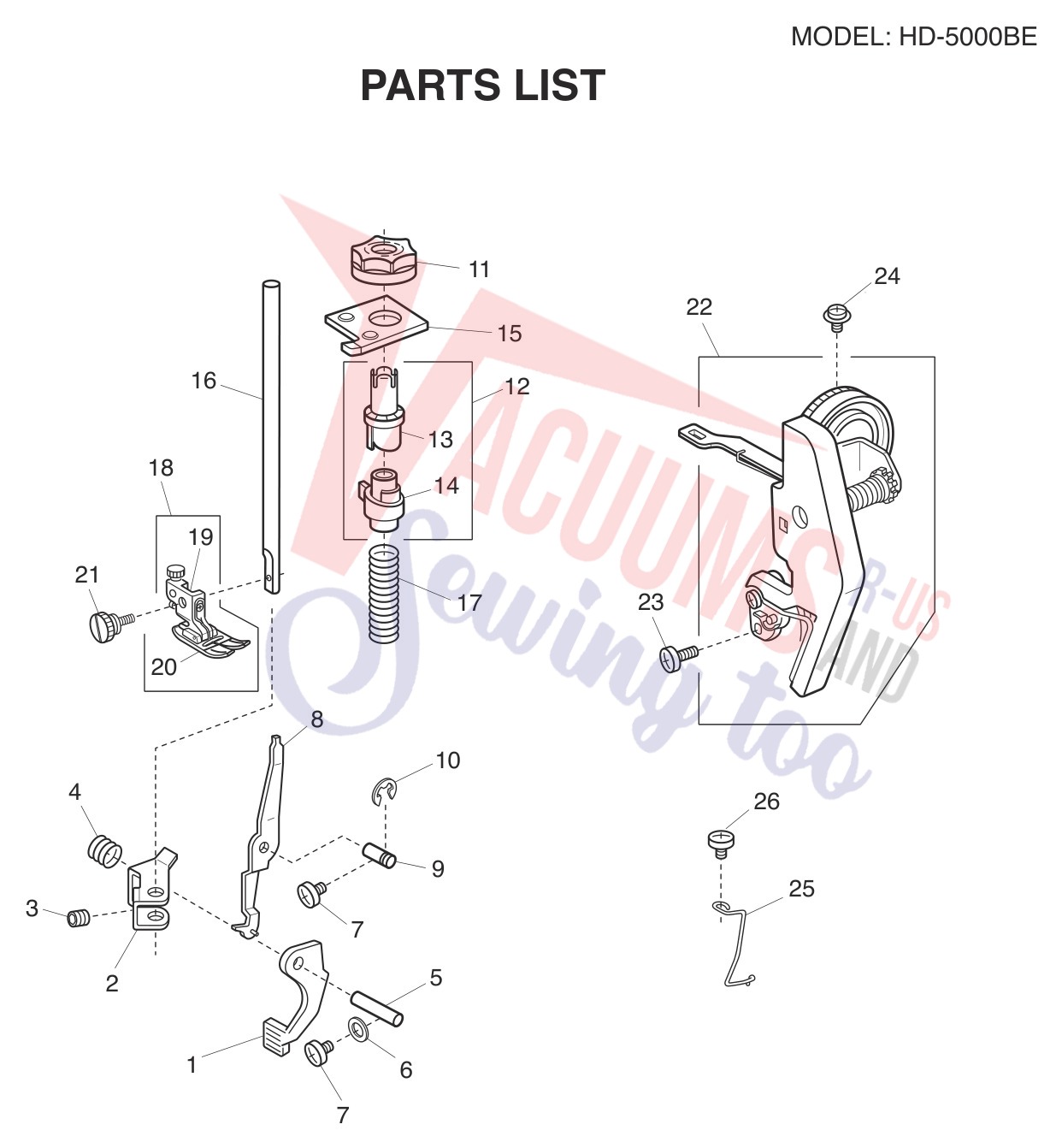

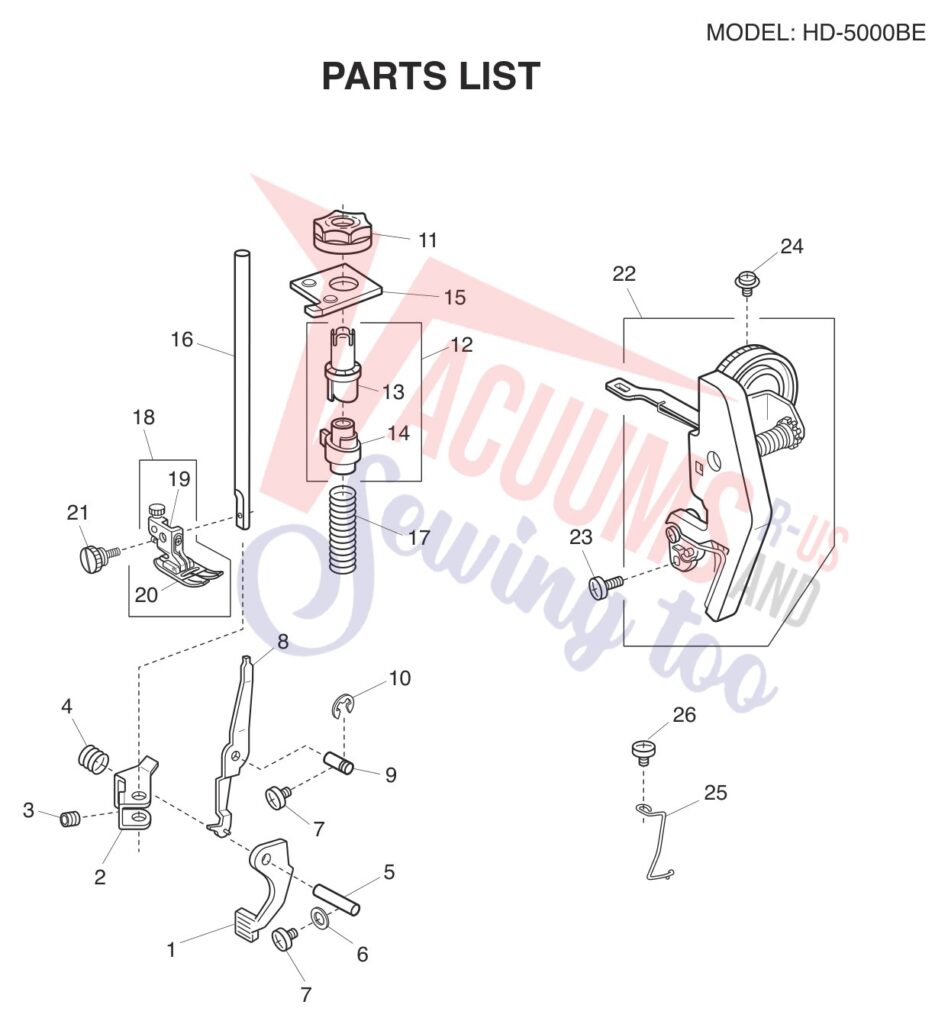

| 1 | | PRESSER FOOT LIFTER 639 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 652145007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | PRESSER BAR BRACKET 7500 5500 sewing machine part or accessory For Janome Models: 4618LE, 4623LE,... | 686074009 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Washer sewing machine part or accessory For Janome Models: 3160QDC, 405, 415, 419S, 423S, 712T, D... | 000072302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Thread tension release lever sewing machine part or accessory For Janome Models: | 652146008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Thread tension release lvr pin sewing machine part or accessory For Models: , MC8900 Horizon , ... | 652042003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Presser dial sewing machine part or accessory For Janome Models: | 822065201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Presser adjusting cam (unit) sewing machine part or accessory For Janome Models: HD3000BE | 753682007 | $10.60Read more |
| 13 |  | PRESSER ADJUSTING CAM(1)7500 7 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 686027007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | PRESSER ADJUSTING CAM(2)7 7500 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 686028008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | CAM SUPPORTER 7500 7000 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, ... | 824009007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Presser Bar for Memory Craft 6000, 5500 and 5001 sewing machine part or accessory For Janome Mode... | 102801008 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | PRESSER BAR SPRING | 815023009 | Not Available |
| 18 |  | Zig Zag Foot Unit (7mm top load low shank) sewing machine part or accessory For Janome Models: 20... | 829515006 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Standard Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC... | 804509000 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Thread Tension (Unit) | 757502107 | $38.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | ARM THREAD GUIDE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 52... | 652137006 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

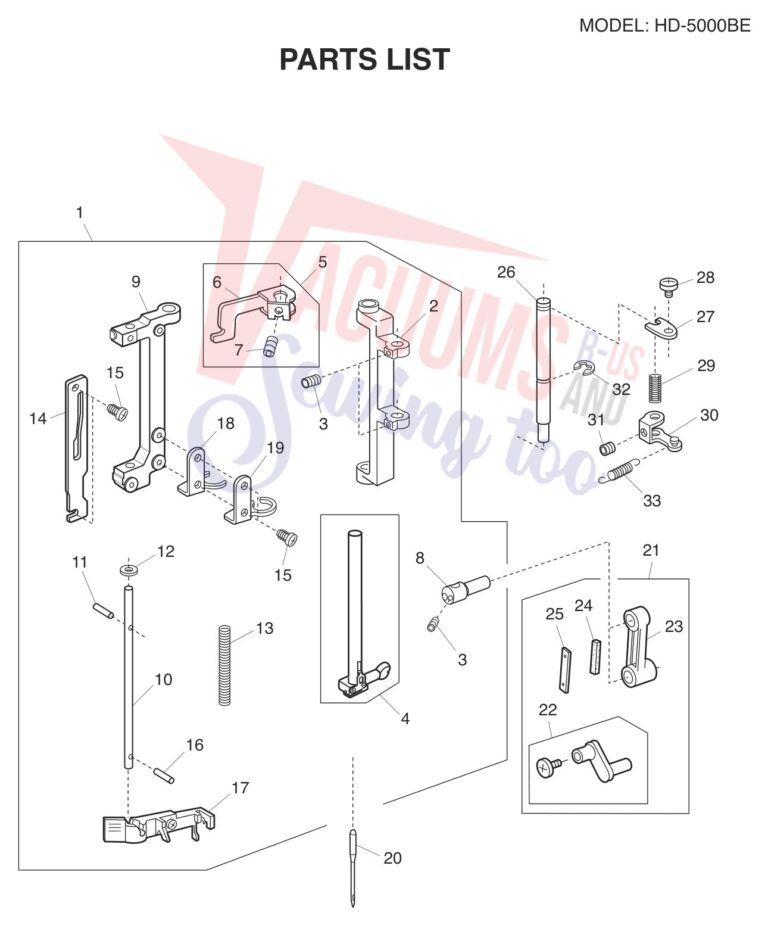

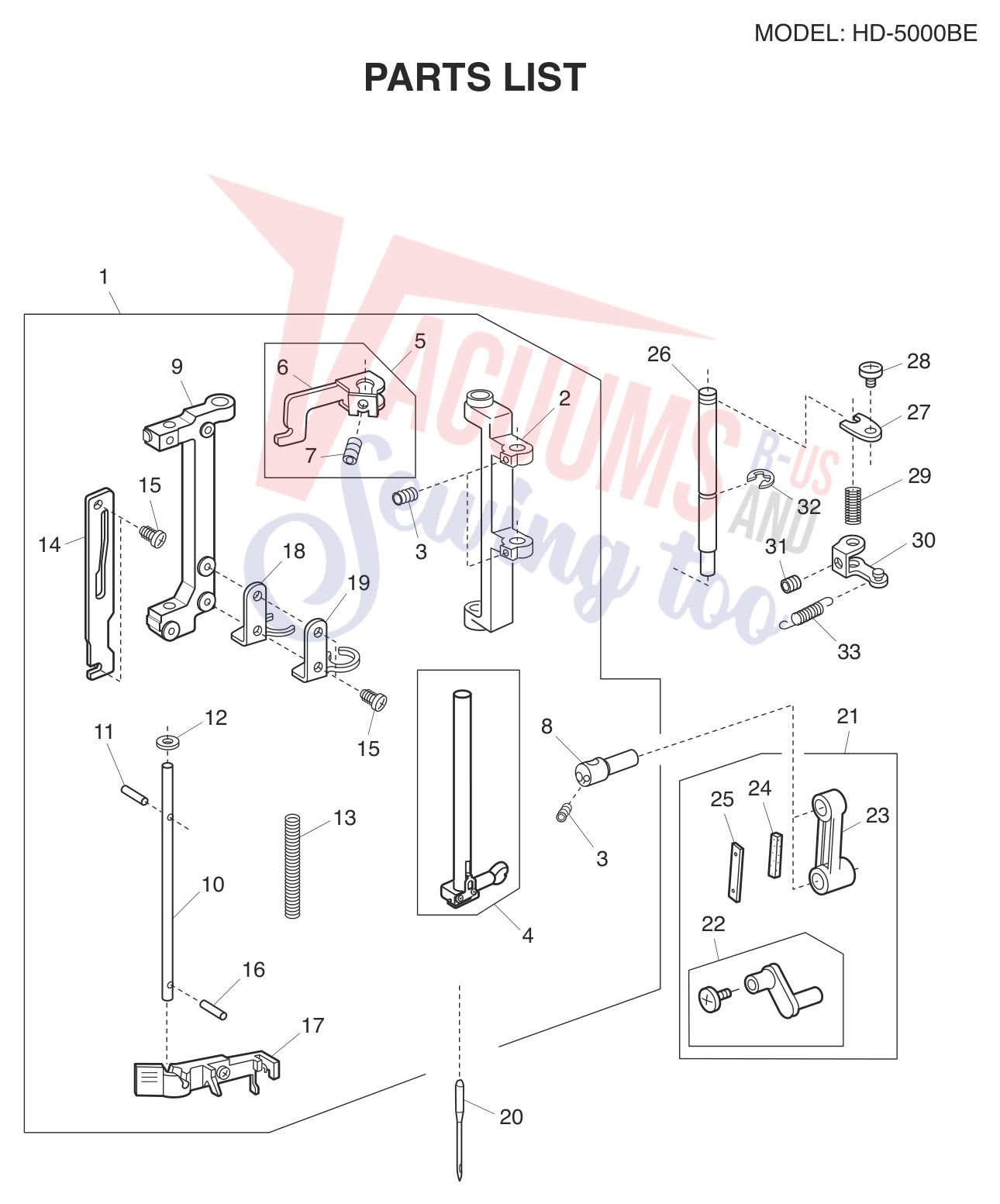

| # | Part image | Description | SKU | Price |
| 1 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: HD3000 (V2) | 753669101 | $55.80Read more |
| 2 |  | NEEDLE BAR SUPPORTER sewing machine part or accessory For Janome Models: 525S, 6147, 625E, DE5018... | 751014006 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Needle bar (unit) sewing machine part or accessory For Janome Models: HD3000 (V2) | 751630004 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Threader positiong set PLT UNT | 807607019 | Not Available |
| 6 |  | Threader positioning set plate sewing machine part or accessory For Janome Models: Sewist500 | 807018109 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | NEEDLE BAR CONN. STUD ME4018 sewing machine part or accessory For Janome Models: 521, 525S, 6147,... | 751047008 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Threader frame sewing machine part or accessory For Janome Models: HD3000 (V2) | 751017009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Threader Shaft sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC350E, MC... | 755066005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Threader shaft spring sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, ... | 827091005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Threader guide plate sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, D... | 653036029 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Needle threader plate (unit) sewing machine part or accessory For Janome Models: DC2019 | 639643102 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Threader frame spring sewing machine part or accessory For Janome Models: HD3000 (V2) | 751101001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Threader frame (lower) sewing machine part or accessory For Janome Models: HD3000 (V2) | 751019001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Needle bar crank unit sewing machine part or accessory For Janome Models: MC6500P, MC6600P, Sewis... | 846615000 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Needle bar crank rod sewing machine part or accessory 650039001 Needle bar crank rod | 650039001 | $4.00Read more |
| 24 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | NEEDLE BAR SUPPORTER SHAFT sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 50... | 650033005 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | SUPPORTER SHAFT SET PLATE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509... | 650034006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Needle Bar Supporter Shaft Spring sewing machine part or accessory For Janome Models: 4618LE, 462... | 650036008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | ZIGZAG WIDTH CRANK sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, ... | 650035007 | $1.20Read more |
| 31 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Needle Bar Supporter Spring sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 686085003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

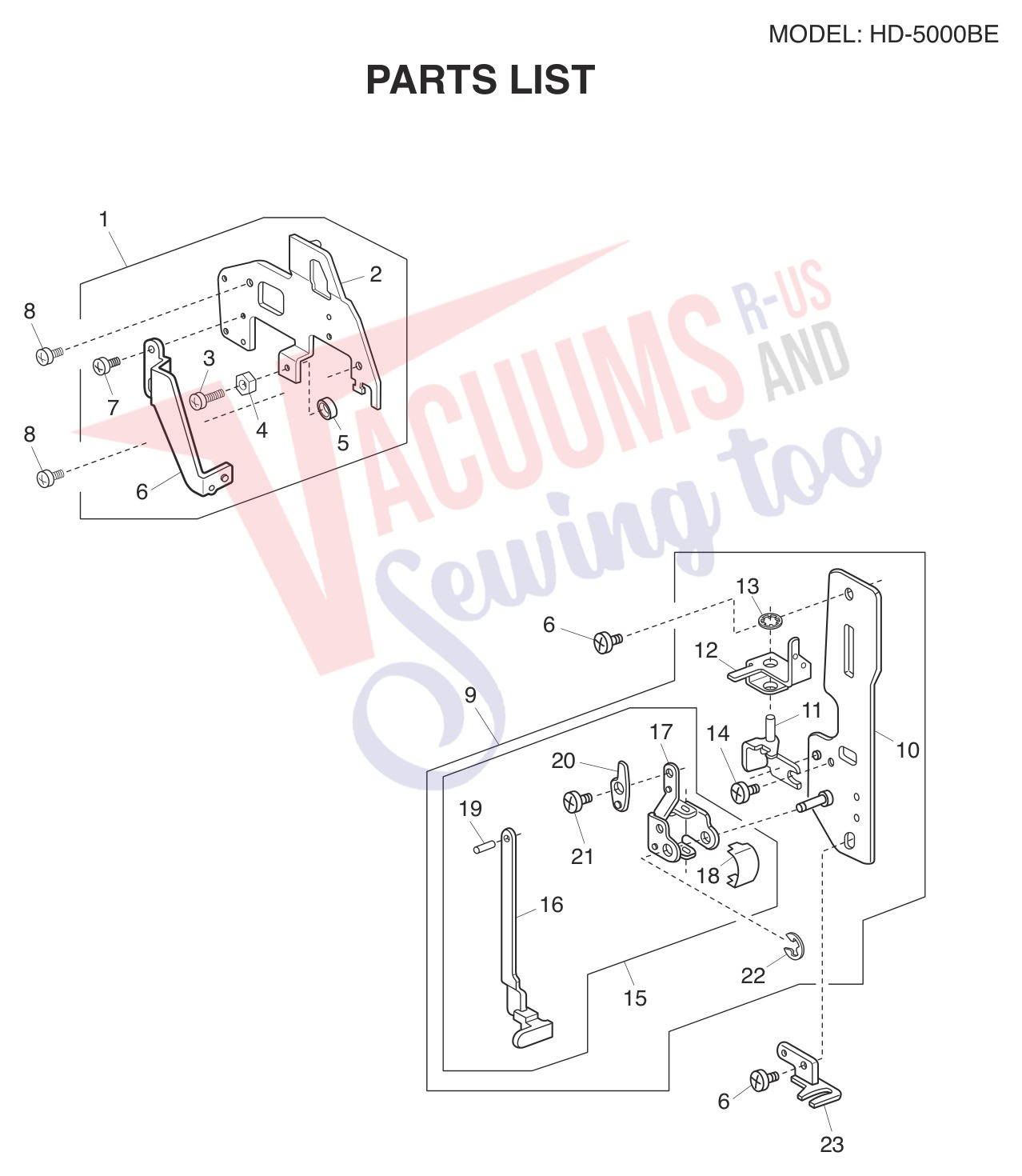

| # | Part image | Description | SKU | Price |
| 1 | No Image | Face Plate Base (Unit) | 757603109 | $15.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Face plate base | 757005105 | Not Available |
| 3 | | Setscrew 4x12 sewing machine part or accessory For Janome Models: 2003P, 625E, DE5018, DE5024, DE... | 000097200 | $0.60Read more |
| 4 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Supporter Stopper | 685042005 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | LED set plate arm sewing machine part or accessory For Janome Models: 001HD3000 (V2) | 753274002 | $2.76Read more |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | BH LEVER PLATE UNIT -DE sewing machine part or accessory For Janome Models: DE5018, DE5024, DE512... | 757604007 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Front Base Plate | 757008005 | $3.80Read more |
| 11 | | Drag rod link (front) holder sewing machine part or accessory For Janome Models: | 753023015 | $1.15Read more |
| 12 | | Drag rod link (front) sewing machine part or accessory For Janome Models: | 753210000 | $0.92Read more |
| 13 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | BUTTONHOLE LEVER sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5018... | 753626003 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | BH lever (unit) sewing machine part or accessory For Janome Models: | 753629109 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | BH lever supporter sewing machine part or accessory For Janome Models: | 753247006 | $2.99Read more |
| 18 |  | Friction spring sewing machine part or accessory For Janome Models: HF2022, HF4045LX, HF5024, JD1... | 753027008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SPRING PIN FOR 4123 3123 sewing machine part or accessory For Janome Models: 2041, 2041LX, 2041NX... | 000023009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bh lever adjusting plate sewing machine part or accessory For Janome Models: 4623LE, 525S, 6147, ... | 753029000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Setscrew 3 x 3.5 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 525S, 625E, ... | 652203004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | THREAD GUIDE FOR DE5124 sewing machine part or accessory For Janome Models: DE5018, DE5024, DE512... | 757007004 | $6.00Add to cart Special order: ships in 2 to 4 weeks |

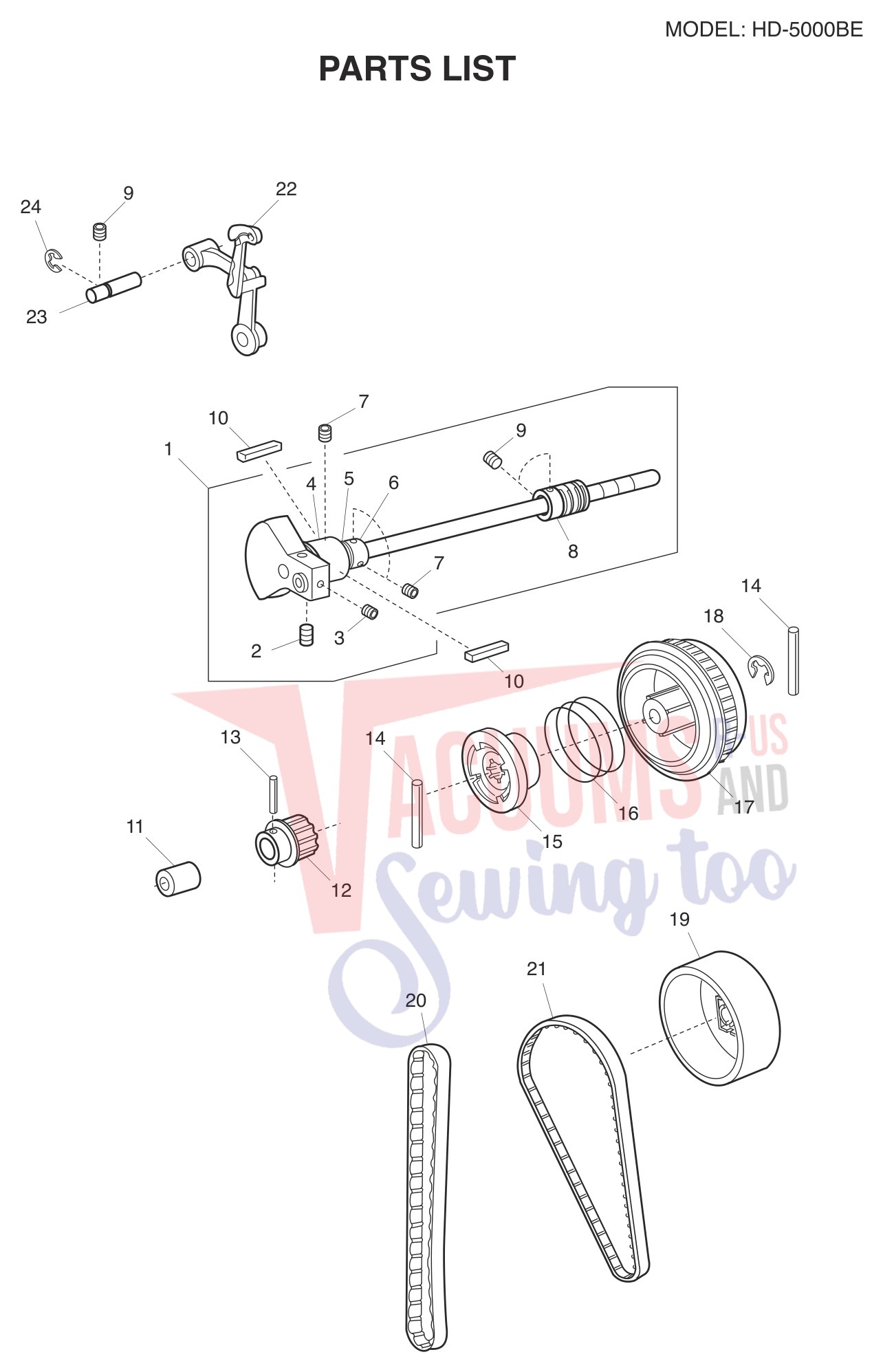

| # | Part image | Description | SKU | Price |
| 1 | | Upper shaft (unit) sewing machine part or accessory For Janome Models: HD3000 (V2) | 757627006 | $32.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Bushing sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, Jem Gol... | 829042007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 8 | | Worm sewing machine part or accessory For Janome Models: HD3000 (V2) | 757072000 | $5.06Read more |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 12 |  | Upper shaft timing gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4... | 756017004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Clutch ring sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 661020003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Belt wheel sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 661019009 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Handwheel sewing machine part or accessory For Janome Models: HD3000BE | 844077606 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Timing belt sewing machine part or accessory For Janome Models: 7318, MC200E, Necchi EC100 | 650071016 | $5.80Read more |
| 21 |  | Motor Belt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX... | 650166008 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

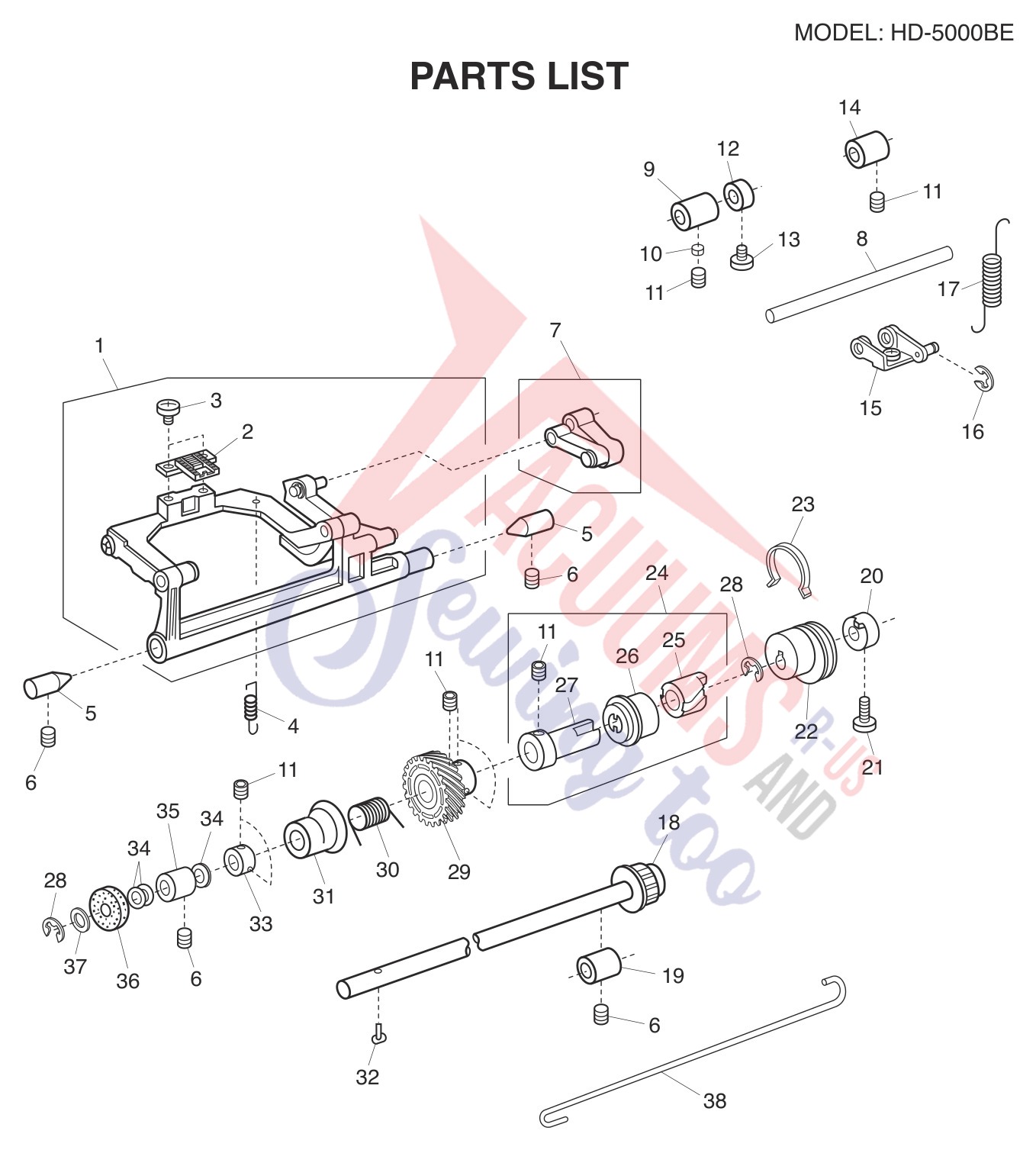

| # | Part image | Description | SKU | Price |
| 1 |  | Feed shaft (unit) sewing machine part or accessory For Janome Models: | 751640306 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4618LE... | 840005003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | FEED REG. SHAFT 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE... | 650091001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Feed regulating arm (unit) sewing machine part or accessory For Janome Models: | 652607002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 17 | | REGULATOR SPRING 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, D... | 753033007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | LOWER SHAFT UNIT 639 sewing machine part or accessory For Janome Models: DE5018, DE5024, DE5124, ... | 686613109 | $11.04Read more |
| 19 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | FEED CAM RING sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC,... | 650074008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Tapping screw 3x12S sewing machine part or accessory For Models: , Necchi TM8 | 000121606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Feed Cam sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147... | 625120105 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SPRING sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147, ... | 627207000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Reverse Feed Ring (Unit) | 755656008 | $20.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | REVERSE FEED RING (1 sewing machine part or accessory For Janome Models: 6019QC, 6125QC, DE5018, ... | 756019006 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | REVERSE FEED RING (2) sewing machine part or accessory For Janome Models: DE5018, DE5024, DE5124,... | 756020000 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Ring | 756021104 | Not Available |
| 28 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Lower shaft washer sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive,... | 858177002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Feed Shift Rod | 650101005 | Not Available |

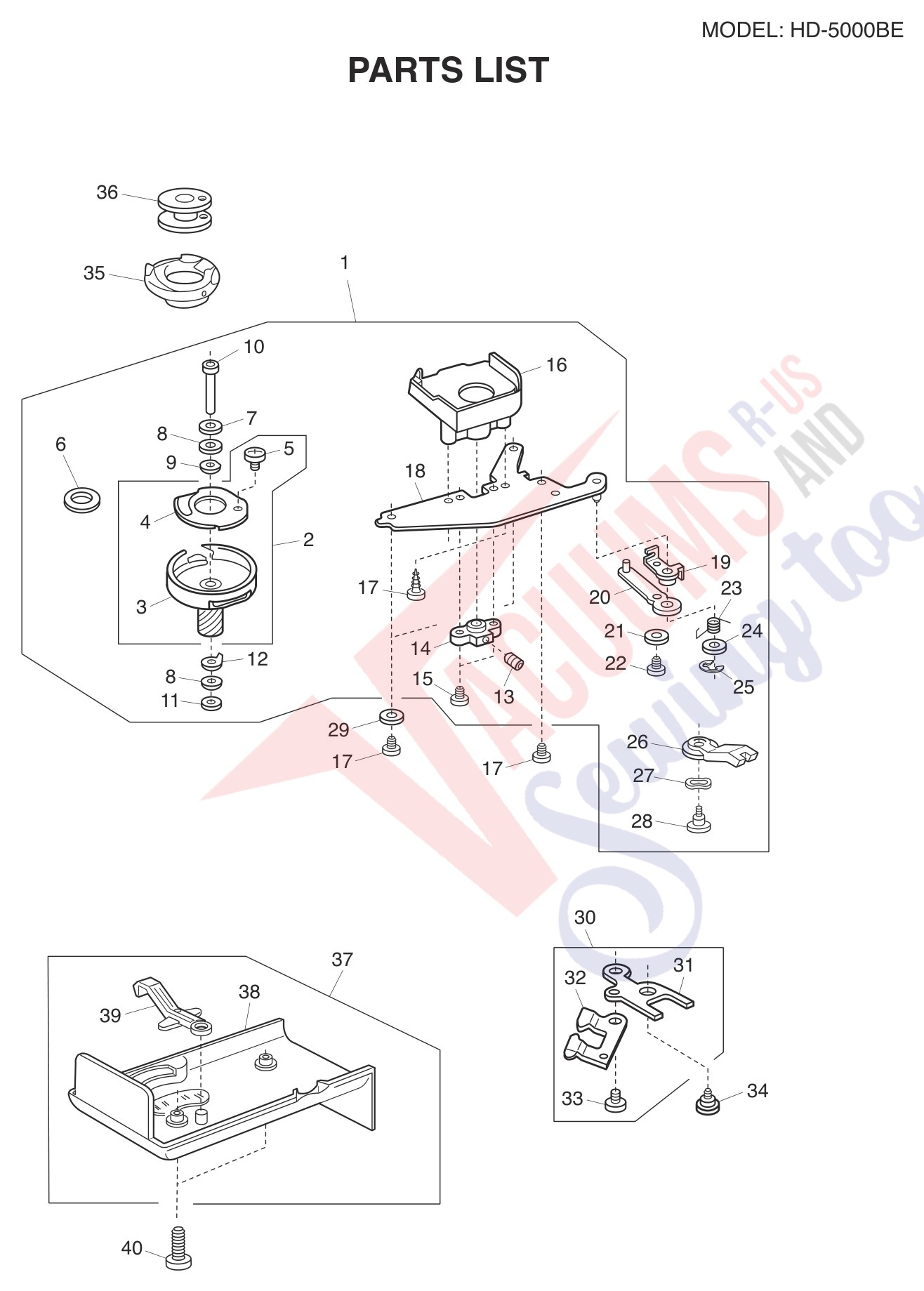

| # | Part image | Description | SKU | Price |
| 1 | No Image | Hook Race (Unit) | 756630504 | $69.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Hook body (unit) sewing machine part or accessory For Janome Models: NQM2016 | 660536004 | $34.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hook body (unit) sewing machine part or accessory For Elna Models: ELSTAR | 508514001 | $31.00Read more |
| 4 | | Hook bottom plate sewing machine part or accessory Hook bottom plate | 508137006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer sewing machine part or accessory For Janome Models: 4300QDC-B | 508118001 | $0.40Read more |
| 8 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Magnet set plate sewing machine part or accessory For Janome Models: 4300QDC-B | 508139008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Hook race shaft | 820123202 | Not Available |
| 11 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 14 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Hook race set plate | 756022013 | Not Available |
| 19 | No Image | Feed Transforming Crank | 650097007 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Feed Shift Plate | 650098008 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | WASHER PLAIN 4-5001 4123 sewing machine part or accessory For Janome Models: 4623LE, 659, DE5018... | 000070218 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | FEED SHIFT SPRING 4123 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 650099009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Washer sewing machine part or accessory For Janome Models: | 650023002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 26 | | BH LEVER -DE sewing machine part or accessory For Janome Models: DE5024, DE5124, HF5024 | 757010000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Wave washer 6 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 334, 434D, ... | 000116206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Hinge Screw | 756029009 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | SHIFT ARM UNIT sewing machine part or accessory For Janome Models: DE5018, DE5024, DE5124, HF5024... | 756609009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Shift arm (1) sewing machine part or accessory For Janome Models: HD5000 SRV | 756025005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Shift arm (2) sewing machine part or accessory For Janome Models: HD5000 SRV | 756026006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Hinge Screw | 756027007 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | Bed Cover (Unit) | 757601200 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Bed cover | 757001204 | Not Available |
| 39 | | Drop feed lever sewing machine part or accessory For Janome Models: HD3000BE | 753005011 | $0.92Read more |
| 40 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

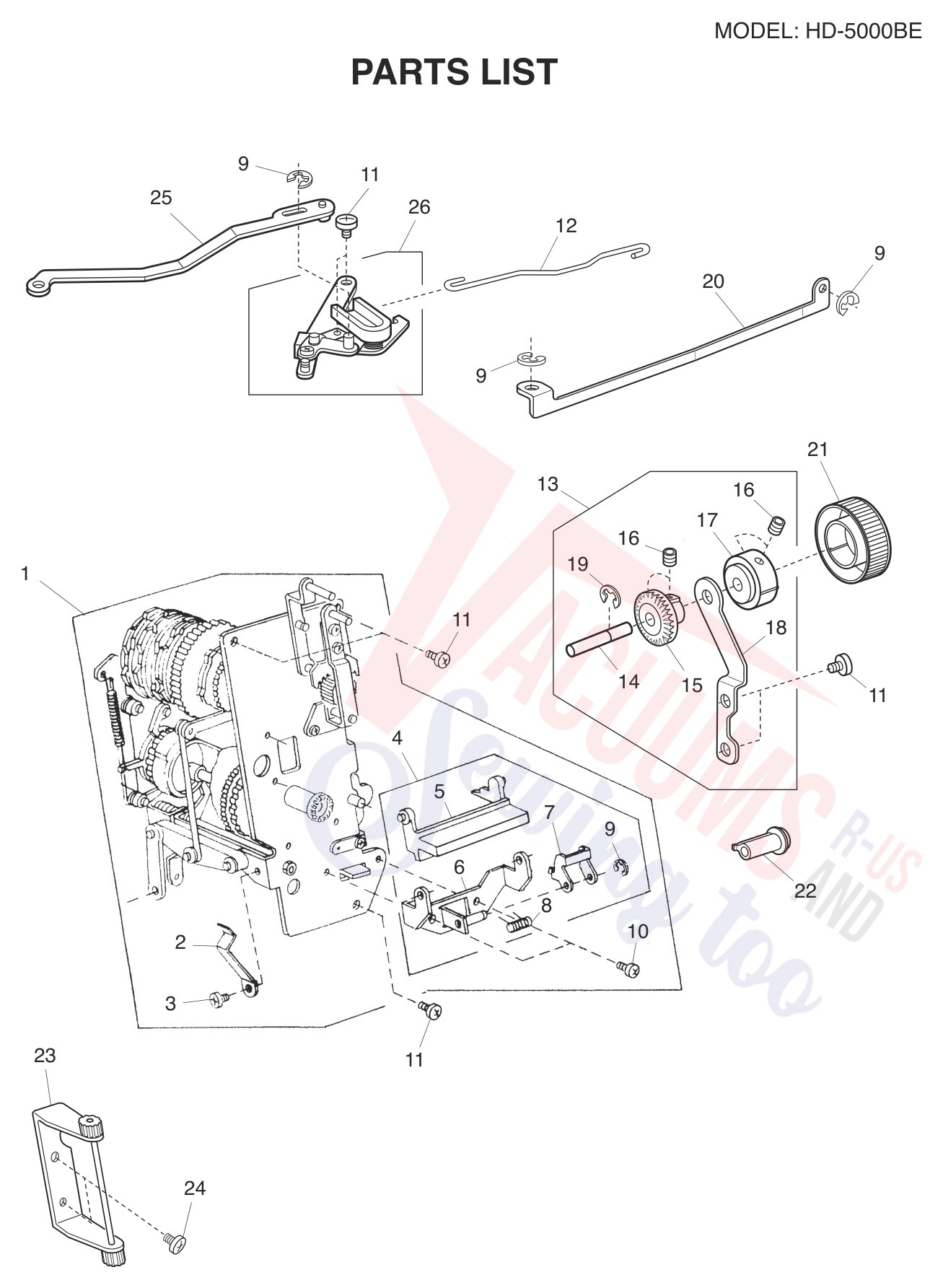

| # | Part image | Description | SKU | Price |
| 1 | No Image | Cam Block (Unit) | 757608137 | $166.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Pattern selector index spring sewing machine part or accessory For Janome Models: HD5000 SRV | 754021005 | $1.61Read more |
| 3 | | Setscrew 3 x 3.5 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 525S, 625E, ... | 652203004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Reverse Button (Unit) | 757610028 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Reverse Button | 757019021 | $2.00Read more |
| 6 | | Reverse button supporter sewing machine part or accessory For Janome Models: | 753046003 | $2.99Read more |
| 7 | | Reverse arm (2) sewing machine part or accessory For Janome Models: | 753150001 | $1.61Read more |
| 8 | | Reverse button spring sewing machine part or accessory For Janome Models: | 753147005 | $0.46Read more |
| 9 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 10 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | ZZ WIDTH ROD 2018E 3123 sewing machine part or accessory For Janome Models: 4618LE, DE5018, DE502... | 650155004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Pattern Select Dial Shaft Unit | 753647136 | $15.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Pattern selector dial shaft sewing machine part or accessory For Janome Models: | 753203114 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Dial gear sewing machine part or accessory For Janome Models: | 753082104 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Pattern selector dial shaft sewing machine part or accessory For Janome Models: | 753202009 | $3.20Read more |
| 18 | | Dial set plate sewing machine part or accessory For Janome Models: HD3000 (V2) | 753279007 | $2.76Read more |
| 19 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | ZZ ROD -DE sewing machine part or accessory For Janome Models: DE5018, DE5024, DE5124, HF5024 | 757045004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Pattern Selector Dial | 757024018 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | SS control dial sewing machine part or accessory For Janome Models: HD3000BE | 650162602 | $0.69Read more |
| 23 |  | CONNECTING BASE PLATE UNIT -DE sewing machine part or accessory For Janome Models: DE5018, DE5024... | 757611007 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | ZZ WIDTH FRONT ROD sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE50... | 650156005 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | ZIGZAG ARM UNIT sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5018,... | 686618104 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
