Schematic and parts book for Janome HD4 HD4. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

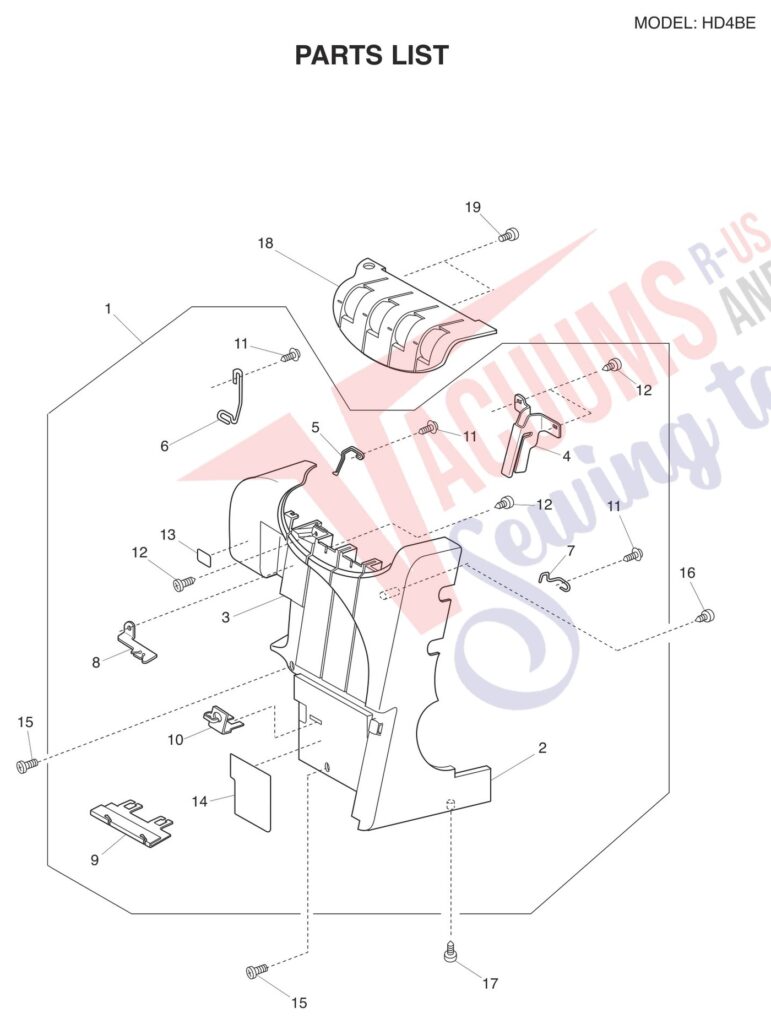

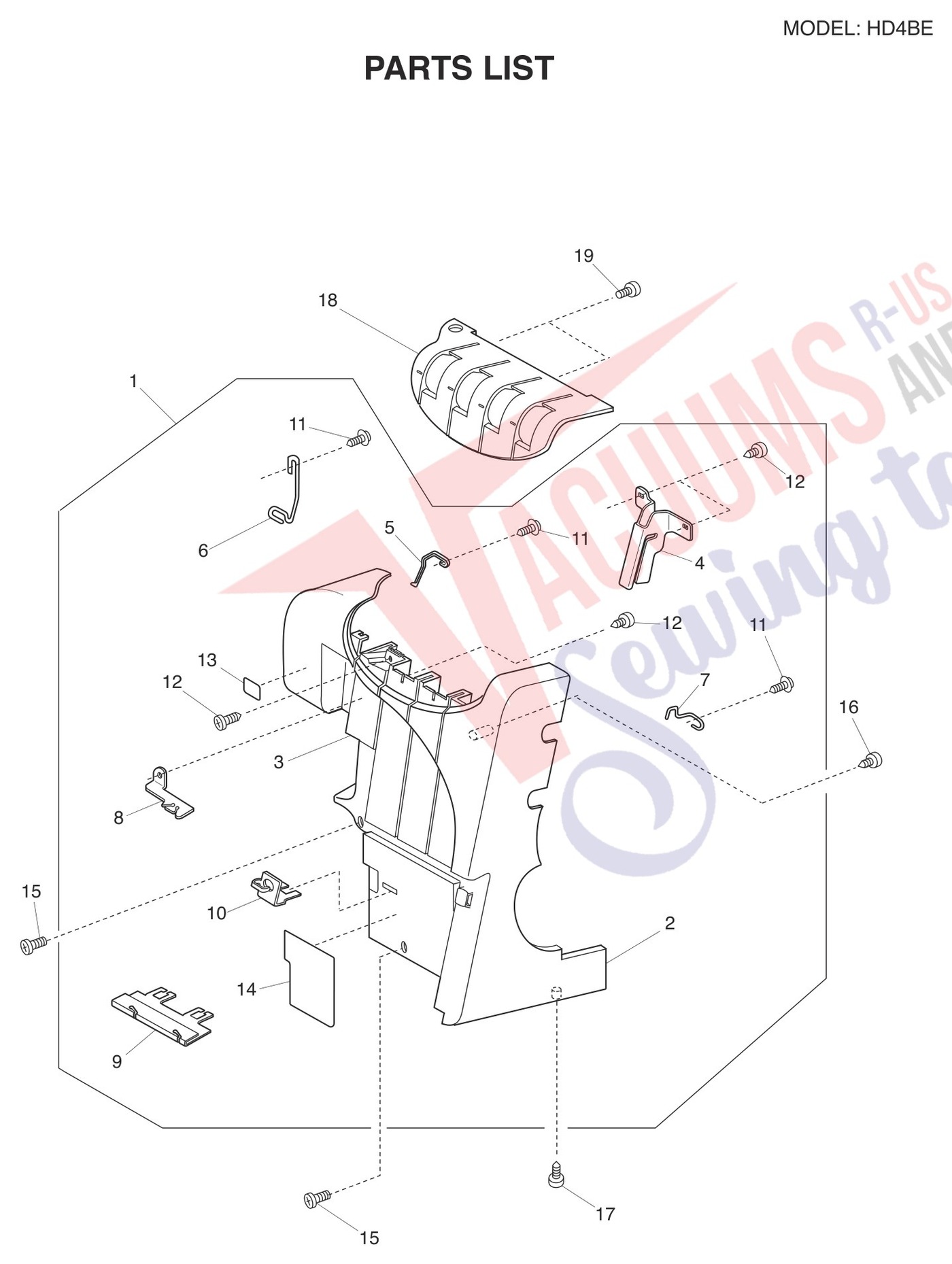

| # | Part image | Description | SKU | Price |
| 1 | No Image | Front Cover (Unit) | 793603662 | $82.90Read more |
| 2 | Not Available | Front cover | 793004B02 | Not Available |
| 3 | No Image | Thread Guide Cover | 793005107 | $3.17Read more |
| 4 |  | thread take-up lever cover sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D... | 788059007 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Thread guide (R) sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D, 734D, 74... | 788060001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Needle thread guide (L) sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 788115002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Needle thread guide sewing machine part or accessory For Janome Models: 644D, 734D, 744D, HF504D,... | 788107001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle thread guide sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D, 734D,... | 788063004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Looper thread guide sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 787132002 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | UPPER LOOPER THREAD GUIDE sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D,... | 787131001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Sticker sewing machine part or accessory For Elna Models: EL664P | 888261007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Sticker | 793006005 | $2.60Read more |
| 15 | | Setscrew 4x8 sewing machine part or accessory For Janome Models: 1000CPX, 204D, 434DR, 644D, 7034... | 000081016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Tapping screw 4x10 (B) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 7034D... | 000198305 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Top Cover | 793007198 | $17.00Read more |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

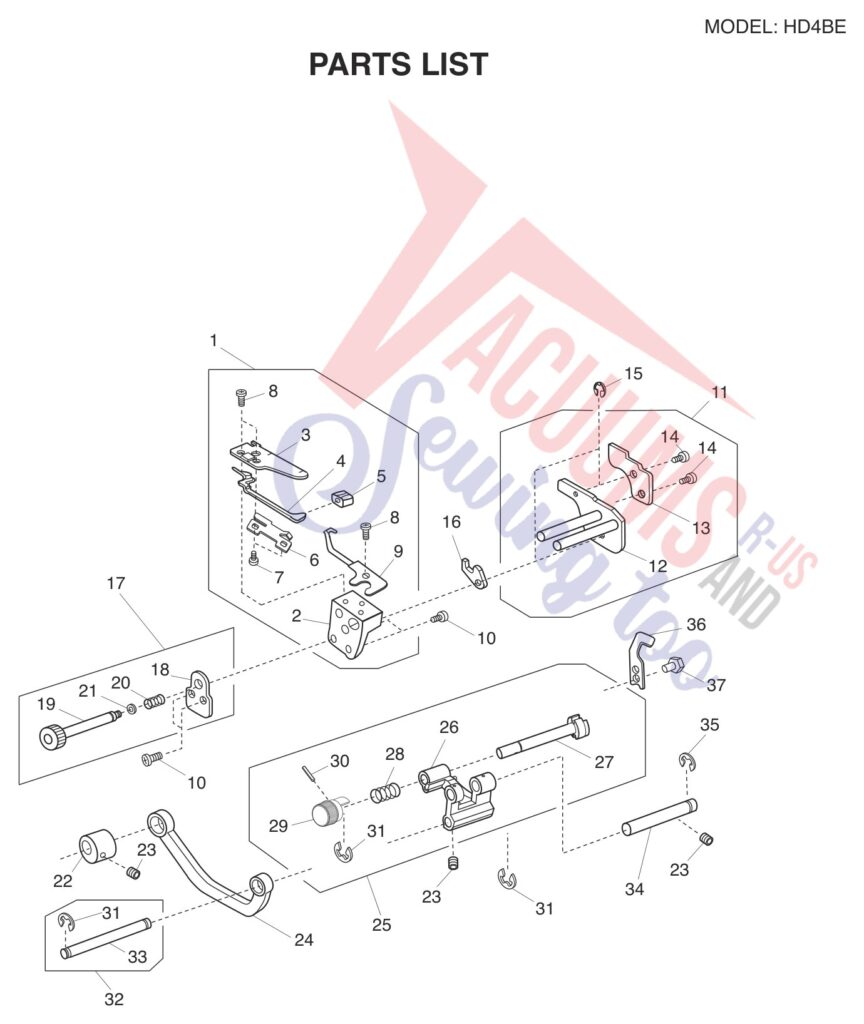

| # | Part image | Description | SKU | Price |

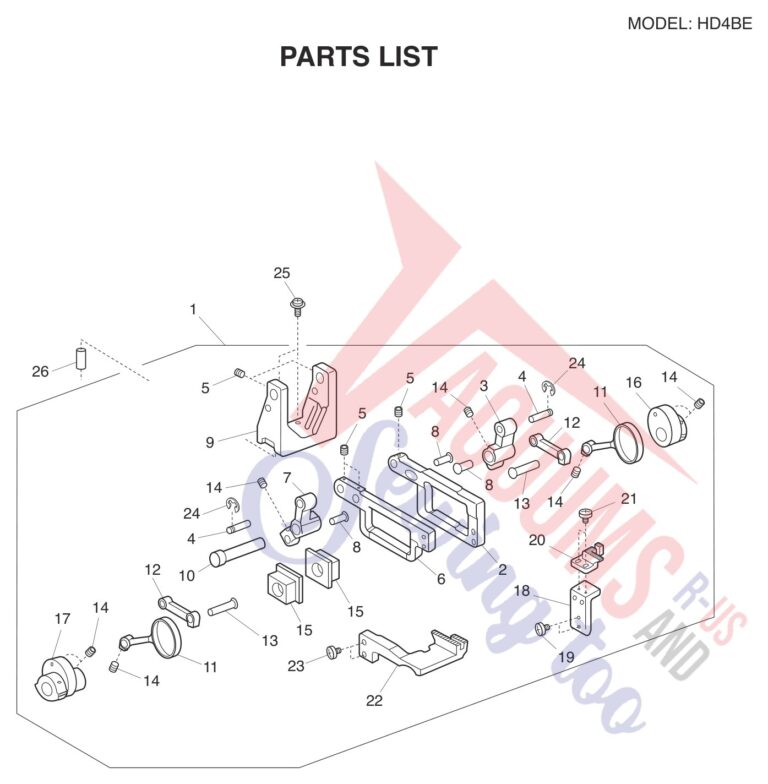

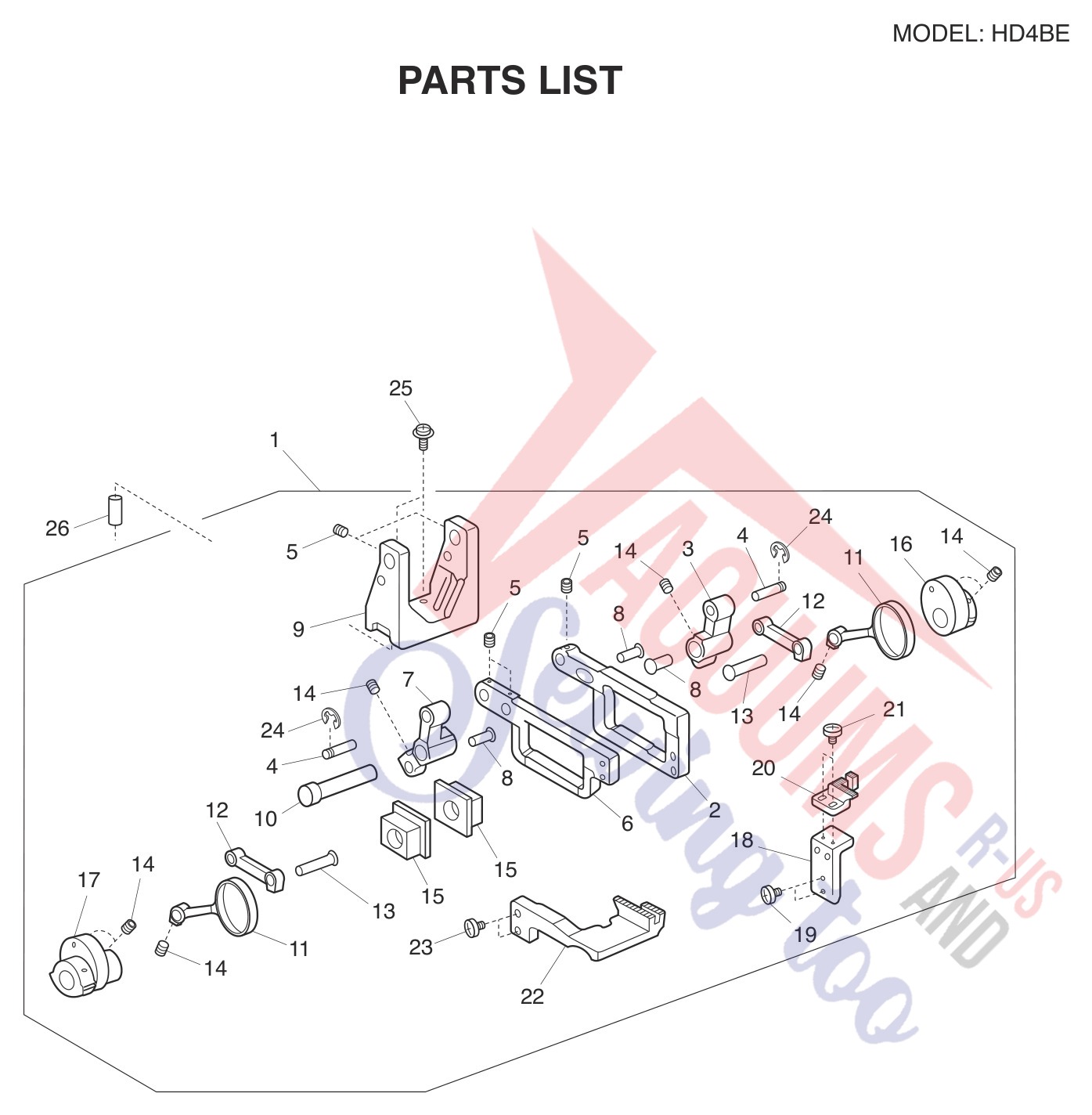

| 1 | No Image | Feed Adjuster (Unit) | 792606190 | $69.06Read more |
| 2 | | Set plate sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, HF9102D HF79... | 792012001 | $8.60Read more |
| 3 | | Feed rod sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, HF9102D HF793... | 792013002 | $2.20Read more |
| 4 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Adjustable screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 204... | 785224006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Differential Rod | 792014003 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | S. length adj. cam sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, HF9... | 792015004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Dif. adj. cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 7034D... | 788036008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | S. Length Dial | 792016C01 | $7.81Read more |
| 11 | No Image | Dif. Dial | 792016C02 | $7.81Read more |
| 12 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Dial Cap | 787262127 | $0.74Read more |
| 14 | | Spring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 204D, 434DR, ... | 787263003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Differential spring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, ... | 787259006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | M. feed con. arm unit sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, ... | 792605007 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Main Feed Con. Arm | 792040008 | $4.60Read more |
| 19 |  | Feed con. plate sewing machine part or accessory For Janome Models: 434DR, 534D, 7034D HF7933, Ne... | 787266006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Dif transfer arm sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 70... | 788031003 | $1.20Read more |
| 21 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 22 | | Spring sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, HF9102D HF7933,... | 792011000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Sub feed con. arm sewing machine part or accessory For Janome Models: 7034D HF7933, Necchi S34 | 788032107 | $3.00Add to cart Special order: ships in 2 to 4 weeks |

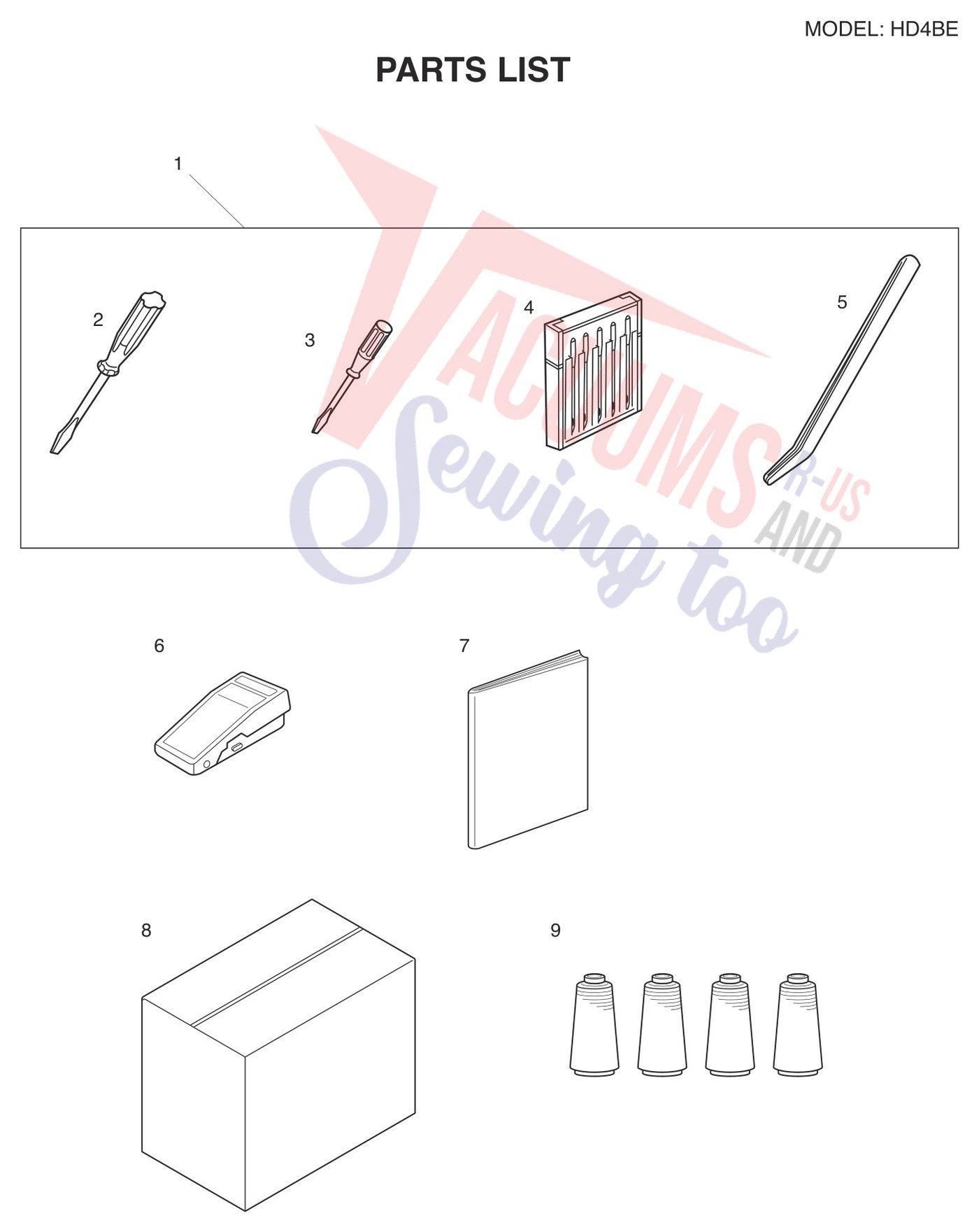

| # | Part image | Description | SKU | Price |
| 1 | | Accessories (unit) sewing machine part or accessory For Janome Models: 0018933D | 793870101 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW DRIVER LARGE FOR MYLOCK sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 784810002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Screw driver (small) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 7034D, ... | 792030005 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Assorted Needle Set HAx1SP sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D... | 784860100 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Tweezers sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 203, ... | 624801001 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 7 | No Image | Instruction Manual | 793800513 | $20.80Read more |
| 8 |  | Vinyl dust cover sewing machine part or accessory For Janome Models: 104DNH, 134D, 203, 204D,234,... | 785808103 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Thread #60 200m sewing machine part or accessory For Janome Models: 9002D SRV | 777812002 | $6.80Read more |

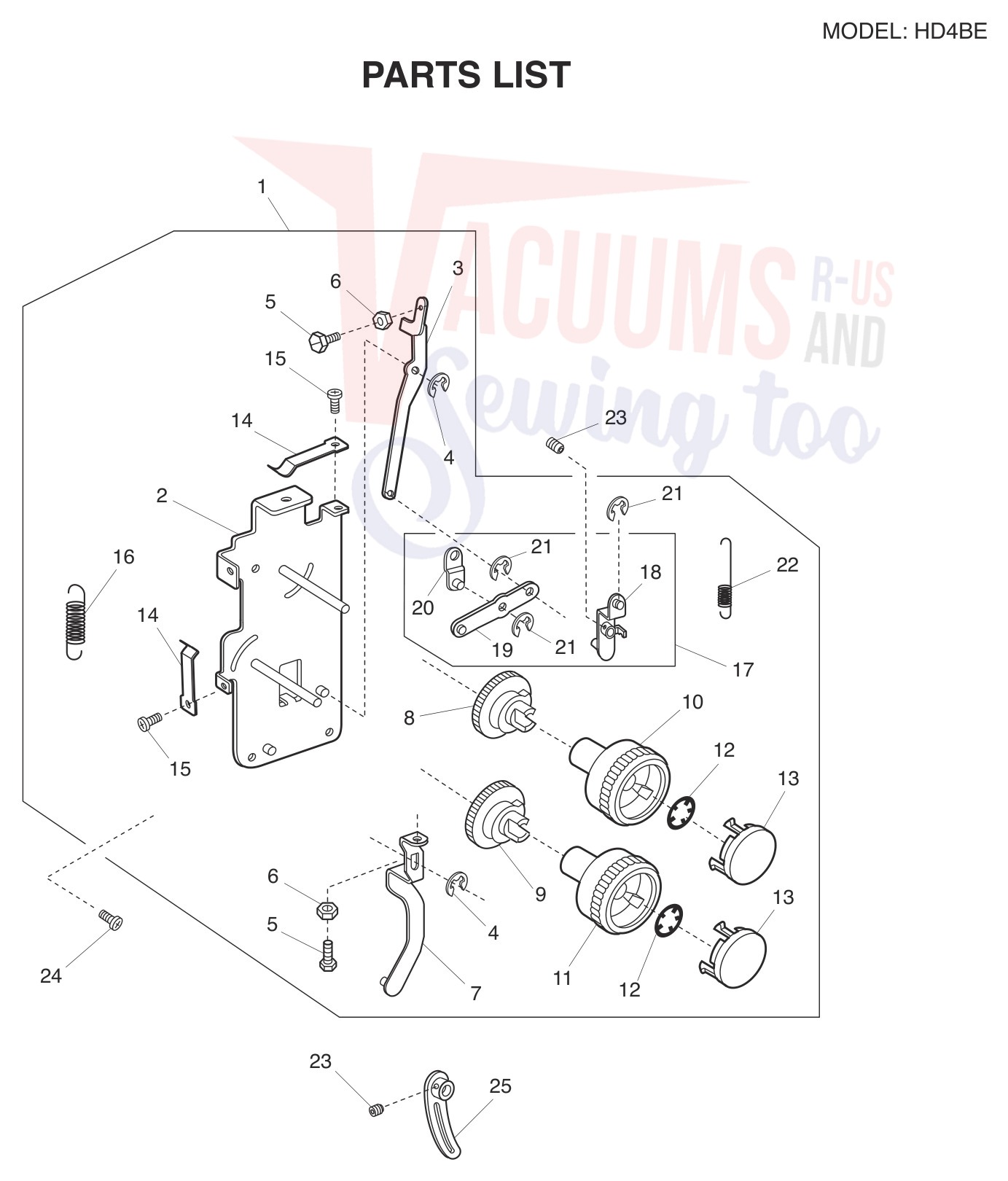

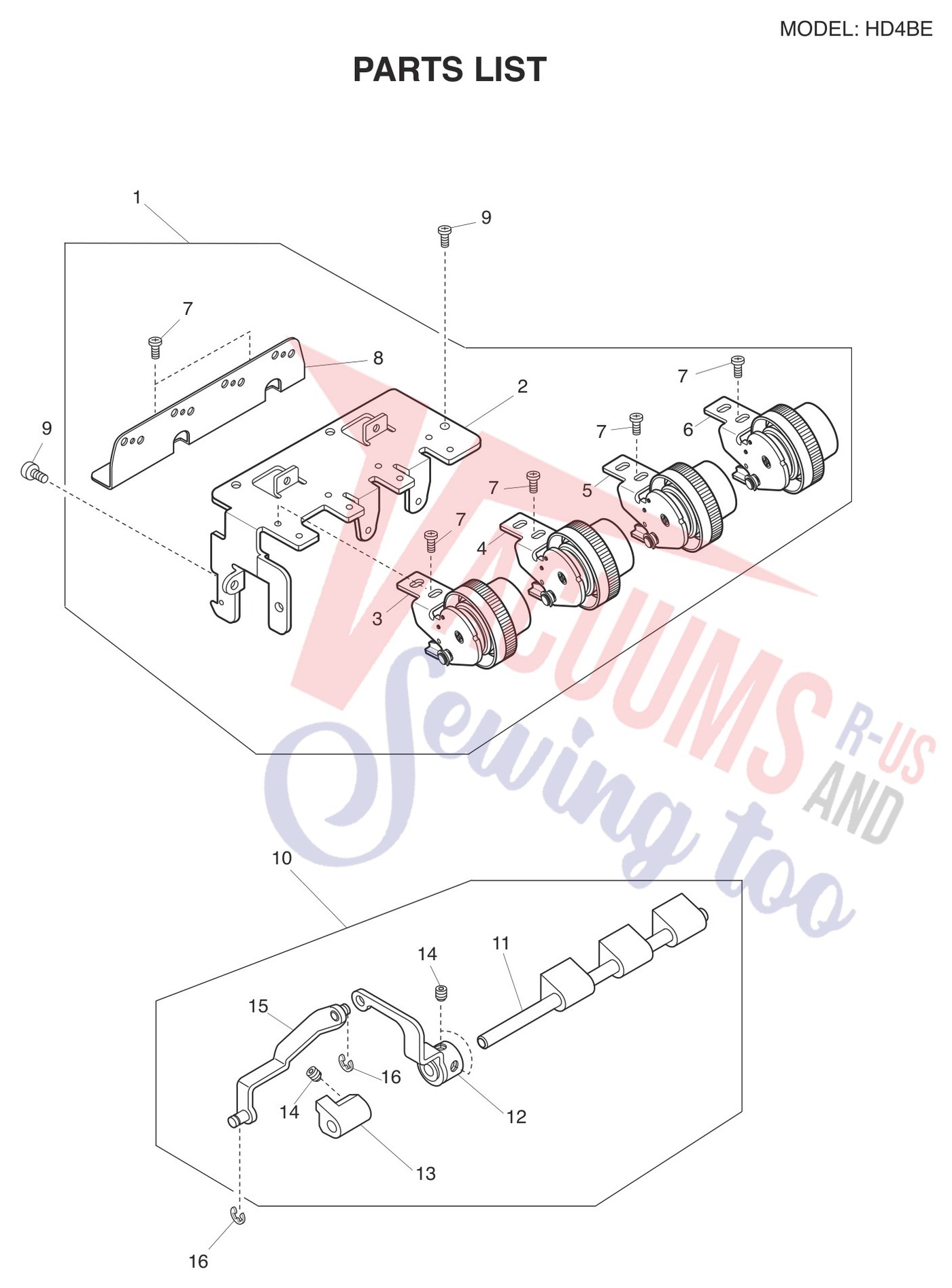

| # | Part image | Description | SKU | Price |
| 1 | | Thread tension set plate unit sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 793602041 | $75.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Tread Tension Set Plate | 793002001 | $7.60Read more |
| 3 |  | Left needle thread tension unt sewing machine part or accessory For Janome Models: HF7933, Necchi... | 788503023 | $23.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Right needle thread tension un sewing machine part or accessory For Janome Models: HF7933, Necchi... | 788504024 | $23.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Upper looper thread tension un sewing machine part or accessory For Janome Models: HF7933, Necchi... | 788505025 | $23.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Lower looper thread tension un sewing machine part or accessory For Janome Models: HF7933, Necchi... | 788506026 | $21.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Tread Guide | 793003002 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Thread tension rls shaft unit sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 793611009 | $61.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Thread tension release shaft sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 793127003 | $0.00Read more |
| 12 |  | Thread tension release lever sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 788055003 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Cam ring sewing machine part or accessory For Janome Models: 1110DX, 434DR, 634D, 644D, 734D, 744... | 788056004 | $1.84Read more |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Thread Tension Release Link | 788089006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |

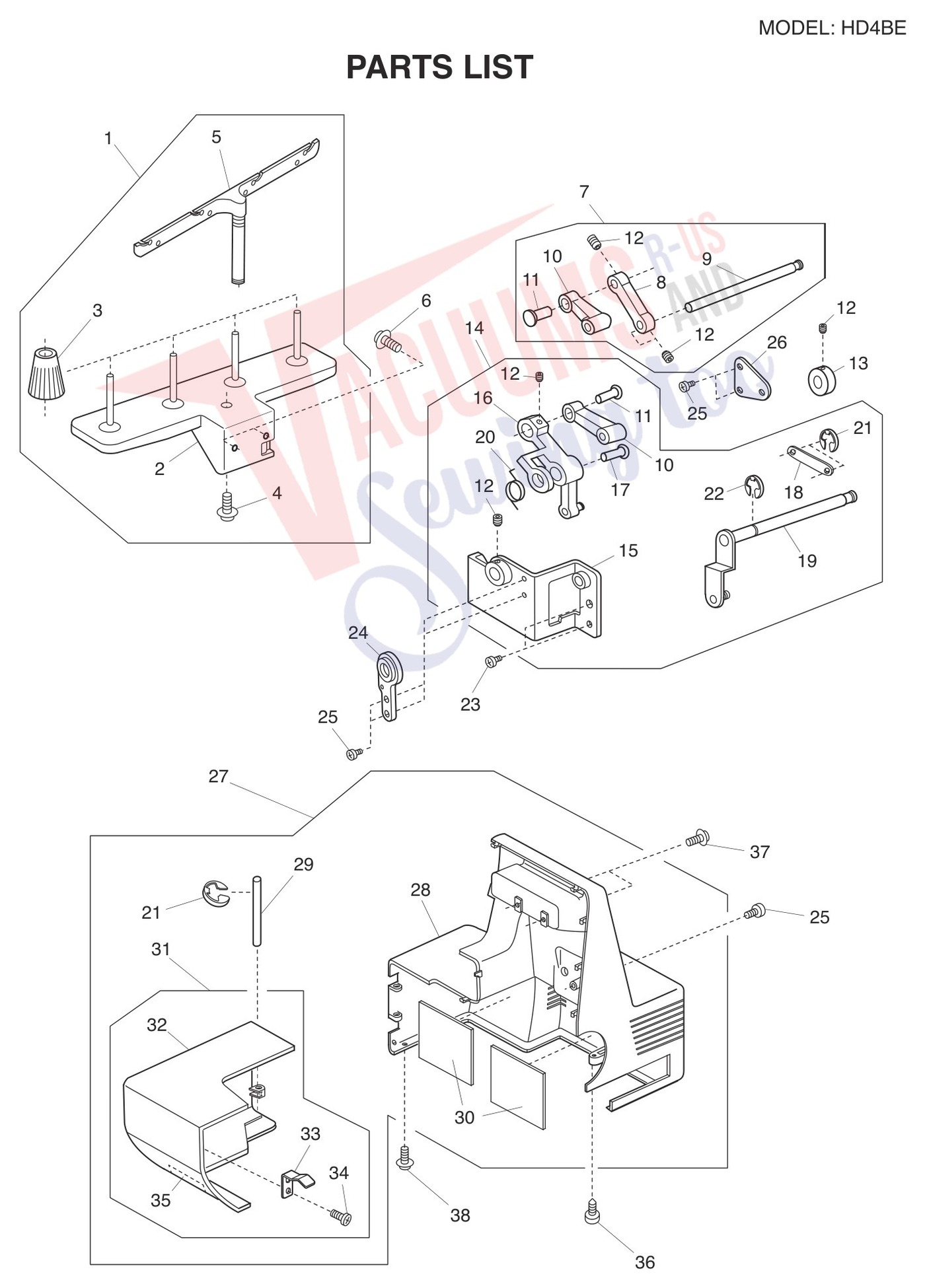

| # | Part image | Description | SKU | Price |
| 1 | No Image | Spool Stand (Unit) | 789606307 | $35.06Read more |
| 2 | No Image | Spool Stand | 777011209 | $9.19Read more |
| 3 | No Image | Spool Holder | 784223208 | $1.16Read more |
| 4 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Thread Guide Bar (Unit) | 789607308 | $10.98Read more |
| 6 | | Setscrew 4 x 12 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, AQS2009, H... | 000109103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Main feed con. arm unit sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 4... | 787637002 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Main feed con. arm 2 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434D... | 787197005 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Main feed con. shaft sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434D... | 787198006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Feed link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534... | 787067005 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Feed connecting pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR... | 787195003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Ring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 63... | 650136009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Feed adjusting base (unit) sewing machine part or accessory For Janome Models: 8002D | 792611202 | $35.60Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Feed adjusting base sewing machine part or accessory For Janome Models: 8002D | 793119002 | $10.60Read more |
| 16 |  | Sub feed connecting arm 3 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D,... | 787194002 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Feed rock shaft connecting pin sewing machine part or accessory For Janome Models: 2212, 2206, Ne... | 735071104 | $0.00Read more |
| 18 |  | Feed con arm link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, ... | 787081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | S. feed con arm shaft sewing machine part or accessory For Janome Models: 8002D | 792034401 | $5.00Read more |
| 20 | | Spring sewing machine part or accessory For Janome Models: 8002D | 798059008 | $0.60Read more |
| 21 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 22 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Main shaft supporter sewing machine part or accessory | 793118001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | ARM HOLER 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR,... | 787077008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Rear Cover (Unit) | 792615376 | $72.76Read more |
| 28 | Not Available | Rear cover | 792022B02 | Not Available |
| 29 | | Side cover shaft sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, HF910... | 792024006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Rubber sheet sewing machine part or accessory For Janome Models: 7034D, 744D, HF3434D, HF9102D HF... | 794110006 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Side Cover (Unit) | 792608804 | $21.86Read more |
| 32 | No Image | Side Cover | 792023016 | $13.09Read more |
| 33 | | Side cover spring sewing machine part or accessory For Elna Models: EL864 | 787163002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Caution sticker sewing machine part or accessory For Elna Models: EL864 | 100970003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Tapping screw 4x10 (B) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 7034D... | 000198305 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | TP screw 4x8 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, ... | 000115618 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

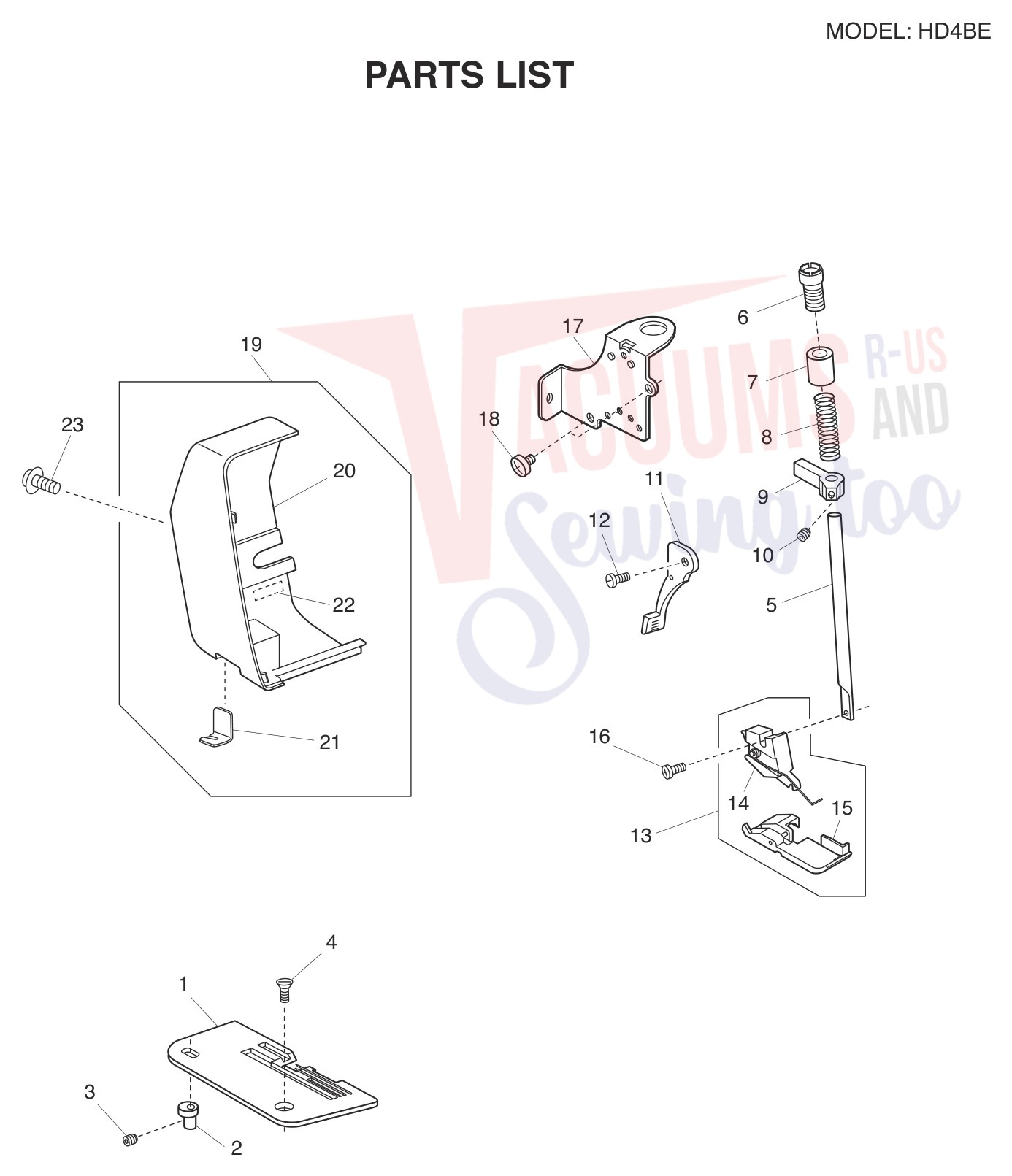

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D, 644D,... | 788601000 | $38.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Eccentric Pin | 789100007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | PRESSER BAR 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434D... | 787019002 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Pressure adjusting screw sewing machine part or accessory For Models: , Necchi S34 | 777013108 | $1.80Read more |
| 7 |  | Presser Bar Bushing (Upper) | 777002001 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SRRING FOR 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR... | 787020006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Presser Bar Bracket | 789117007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 11 | No Image | Presser Foot Lifter | 650032015 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | HINGE SCREW 5001 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134... | 810431009 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Presser Foot (Unit) | 788501010 | $23.97Read more |
| 14 | | Foot holder sewing machine part or accessory For Janome Models: HD4 | 787541101 | $12.67Read more |
| 15 |  | Standard Presser Foot sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 63... | 788502000 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Lamp socket set plate sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 789105002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | Face Plate (Unit) | 793601501 | $13.52Read more |
| 20 | No Image | Face Plate | 793001033 | $8.24Read more |
| 21 | | Thread cutter (unit) sewing machine part or accessory For Janome Models: HD4 | 840602604 | $2.75Read more |
| 22 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

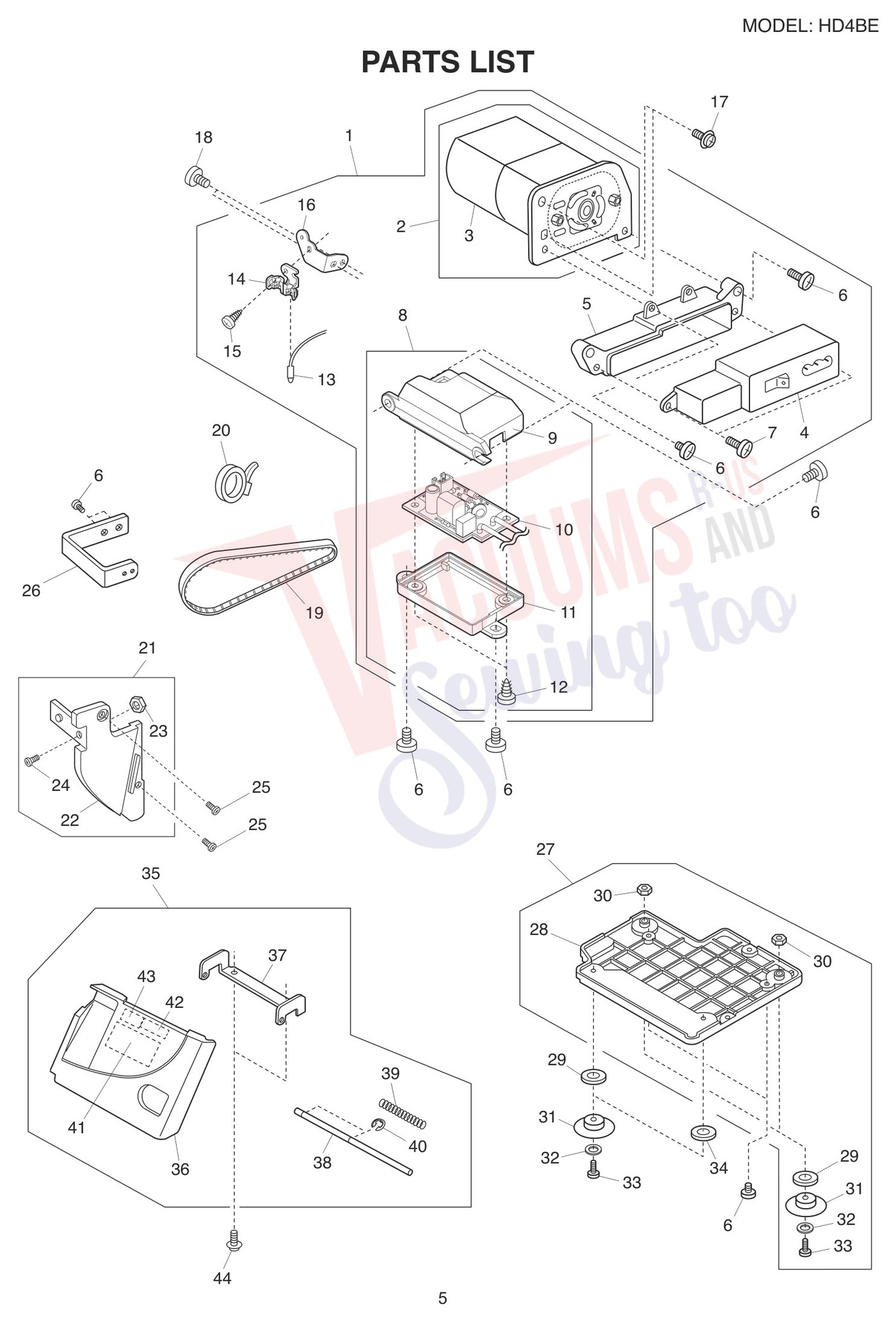

| # | Part image | Description | SKU | Price |
| 1 | No Image | Machine Socket (Whole Unit) | 791604265 | $149.95Read more |
| 2 | | Motor unit (Canada) sewing machine part or accessory For Elna Models: EL664P | 792617208 | $60.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Motor sewing machine part or accessory For Janome Models: 8002D | 793502006 | $63.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Machine Socket (Unit) | 777504400 | $31.57Read more |
| 5 |  | Machine Socket Cover sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 434D... | 784128028 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Printed circuit board C case (unit) (U.S.A.) (Canada) sewing machine part or accessory 795651007 ... | 795651007 | $29.00Read more |
| 9 | | Printed circuit board C case sewing machine part or accessory For Janome Models: 001CP3000P | 795181012 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Printed circuit board C (U.S.A.) (Canada) sewing machine part or accessory 508512205 Printed circ... | 508512205 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Printed circuit board C case cover sewing machine part or accessory 795182002 Printed circuit boa... | 795182002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | LED (unit) sewing machine part or accessory For Janome Models: 8002D | 508515404 | $9.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | LED holder sewing machine part or accessory For Elna Models: EL864 | 508143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | LED set plate sewing machine part or accessory For Janome Models: 8002D | 791121001 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Timing belt sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 793125001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Looper Cover Guide (Unit) | 792610108 | $2.85Read more |
| 22 | Not Available | Looper cover guide | 792029104 | Not Available |
| 23 | | NUT sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, 626... | 000062402 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SPOOL PIN SCREW 4X10 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900XP, ... | 000103510 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | L. cover guide supporter sewing machine part or accessory For Janome Models: 434D, 534, 534D, 703... | 787153009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Base Plate (Unit) | 789610083 | $22.07Read more |
| 28 | No Image | Base Plate | 789034205 | $12.25Read more |
| 29 |  | Washer (2) sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 434D, 434DR, 5... | 787204006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Serger Cushion sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB,... | 784135006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 000070300 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Rubber foot setscrew | 784169009 | Not Available |
| 34 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 785260004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Looper Cover (Unit) | 793604641 | $38.23Read more |
| 36 | Not Available | Looper cover | 793008B02 | Not Available |
| 37 | | Looper cover supporter sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 793009008 | $0.00Read more |
| 38 | No Image | Looper Cover Shaft | 792027009 | $1.00Read more |
| 39 | No Image | Looper Cover Spring | 792028000 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 41 | | STITCH CHART sewing machine part or accessory For Janome Models: 204D, 644D, 7034D, 734D, 744D, 9... | 789028000 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

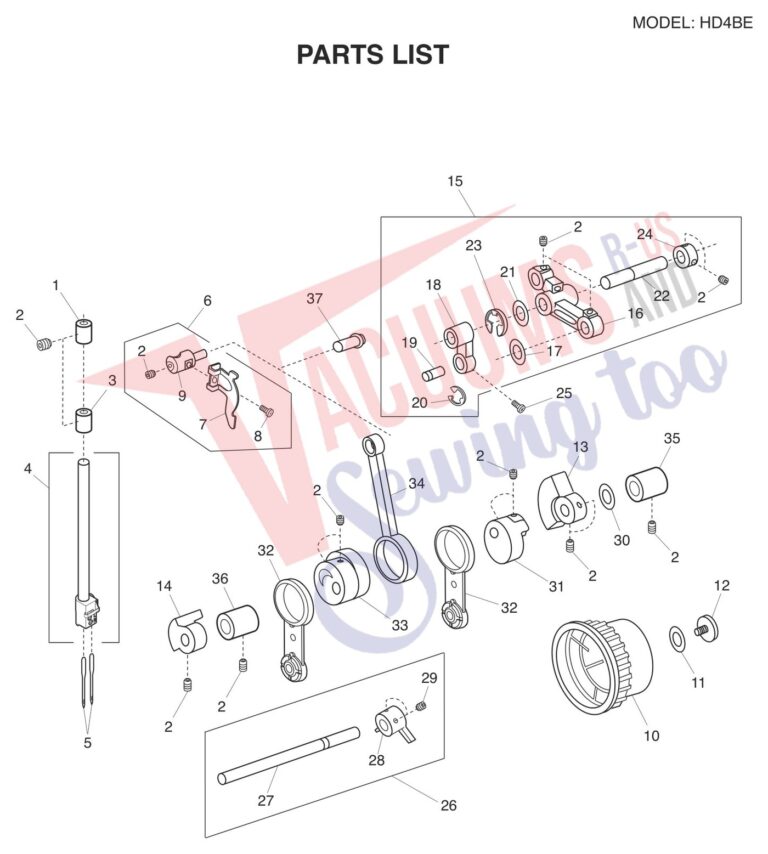

| 1 | | Needle bar upper bushing sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 2... | 784027004 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Needle Bar Lower Bushing | 784028005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | needle bar unit sewing machine part or accessory For Janome Models: 7034D, 734D, 744D, 9002D, HF3... | 792601003 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Needle HAx1 SP-14 sewing machine part or accessory For Elna Models: EL664P | 784157015 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Take-up lever (unit) sewing machine part or accessory For Janome Models: HD4 | 788629004 | $15.55Read more |
| 7 |  | Thread Take-Up Lever | 788004007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | CONNECTING STUD sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D... | 784024001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Handwheel | 793102161 | $9.08Read more |
| 11 | | Washer sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1600... | 556047007 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SET SCREW sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1... | 618070004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Balance weight (right) sewing machine part or accessory For Janome Models: 7034D, HF3434D HF7933,... | 787176101 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Left balance weight (left) sewing machine part or accessory For Janome Models: 1110DX, 7034D, 900... | 792037002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle bar crank unit sewing machine part or accessory For Janome Models: 644D, 7034D, 734D, 744D... | 789612007 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Needle Bar Crank | 789104001 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Washer sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 000039905 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Needle Bar Link | 789007003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Link pin sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D, 334, ... | 784022009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle Bar Crank Shaft | 789008004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | THRUST STOPPER COMBI 222 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 203... | 624245001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Main Shaft Unit | 792619015 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Main Shaft | 789001007 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Balance Weight | 792041021 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 30 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Upper Looper Cam | 787004107 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Looper Cam Ring Unit | 792951001 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Needle bar cam sewing machine part or accessory For Elna Models: EL664P | 793121007 | $9.80Read more |
| 34 | | Needle bar crank rod sewing machine part or accessory | 793120006 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 36 | | Bushing sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 234D, 334, 434D, 4... | 784009000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Needle bar balancer pin unit sewing machine part or accessory For Janome Models: 7034D, HF3434D H... | 793606001 | $0.80Read more |
| # | Part image | Description | SKU | Price |

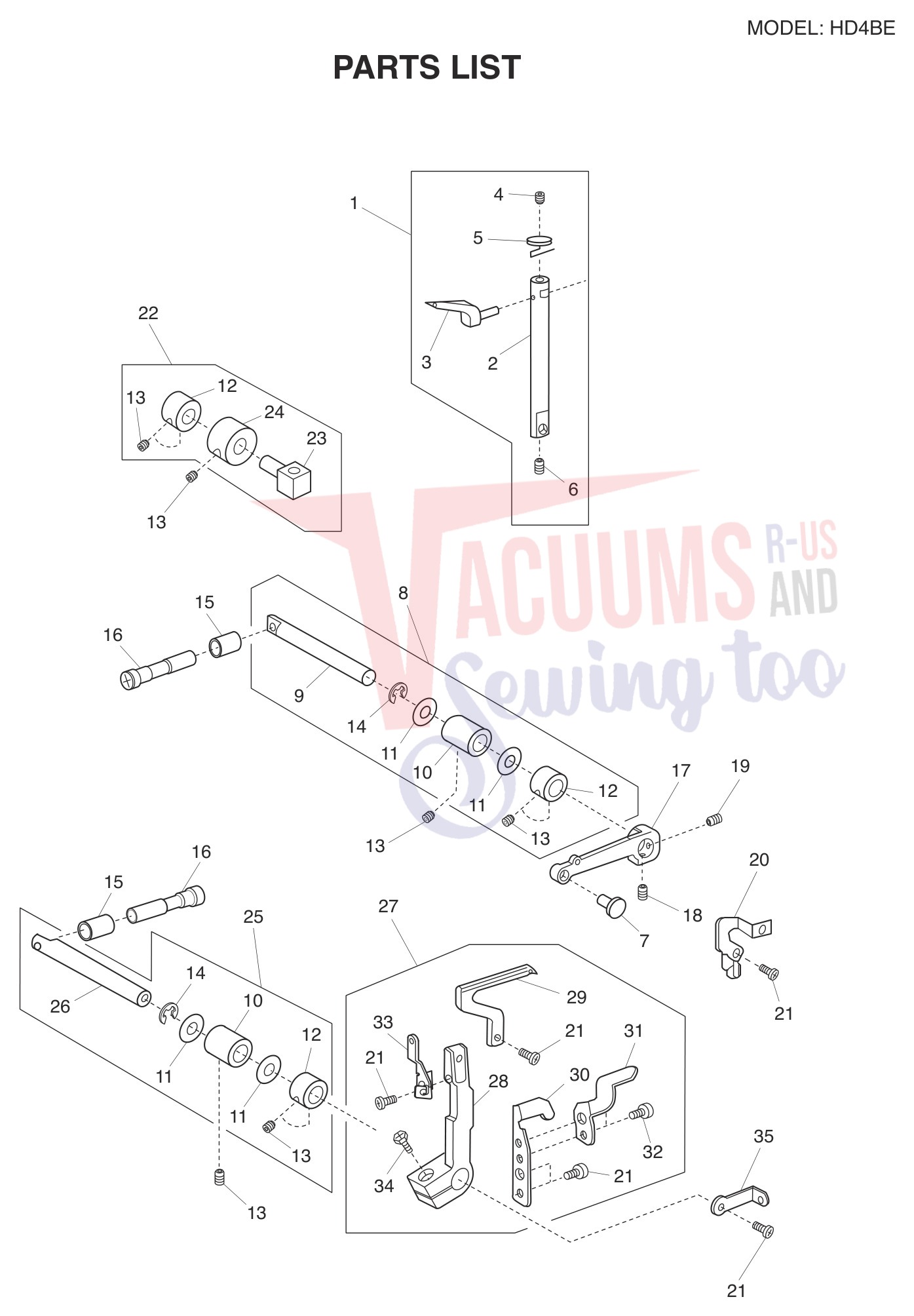

| 1 |  | UPPER LOOPER SHAFT 434/434D sewing machine part or accessory For Janome Models: 204D, 434D, 434DR... | 787618007 | $41.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Upper looper shaft sewing machine part or accessory For Janome Models: 204D, 434D, 434DR, 534, 53... | 787111005 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Upper looper sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 634D, 644D, ... | 784076019 | $51.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 234D, ... | 000112501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Upper Looper Thread Guide for Sergers sewing machine part or accessory For Janome Models: 1110DX,... | 784077009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagonal socket screw 3x6 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 120... | 000177205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Upper looper pin sewing machine part or accessory For Janome Models: 644D, 7034D, 734D, 744D, HF3... | 789116006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Upper looper crank shaft (unit) sewing machine part or accessory For Elna Models: EL864 | 792633004 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Upper Looper Crank Shaft | 787105006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Bushing | 787104005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Looper Shaft Ring | 792048006 | $1.40Read more |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Crank Spacer | 787107101 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Crank setscrew sewing machine part or accessory For Janome Models: 792PG SRV | 787108010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Upper Looper Drive Arm sewing machine part or accessory For Janome Models: 1110DX, 644D, 7034D, 7... | 789112002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 19 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower looper thread guide sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D,... | 788038000 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | U. looper shaft guide unit sewing machine part or accessory For Janome Models: 1110DX, 7034D, 734... | 792614009 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Upper Looper Shaft Guide | 792038003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Bushing | 792039004 | $1.20Read more |
| 25 | | L. looper crank shaft (unit) sewing machine part or accessory For Janome Models: 8002D | 792634005 | $3.80Read more |
| 26 | | L. looper crank shaft sewing machine part or accessory For Janome Models: 134D, 204D, 434D, 434DR... | 787116000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Lower looper unit sewing machine part or accessory For Janome Models: 134D, 204D, 7034D, 9002D, H... | 785610036 | $69.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Lower Looper Drive Arm sewing machine part or accessory For Janome Models: 134D, 204D, 234D, 334,... | 785024004 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Lower looper sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 634D, 644D, ... | 784083606 | $25.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | rear needle guard sewing machine part or accessory For Janome Models: 134D, 204D, 434DR, 534, 534... | 787383000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Front Needle Guard sewing machine part or accessory For Janome Models: 1110DX, 204D, 234D, 334, 4... | 785023003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Hexagonal socket screw 3x4 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D... | 000099006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | L. looper thread guide (3) sewing machine part or accessory For Janome Models: 134D, 204D, 434D, ... | 784085206 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Hexagon Bolt sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000138008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Lower looper thread guide sewing machine part or accessory For Janome Models: 134D, 204D, 434D, 4... | 785010203 | $5.20Read more |
| # | Part image | Description | SKU | Price |
| 1 | | Chaining finger bracket unit sewing machine part or accessory For Janome Models: 7034D, 9002D, HF... | 792613008 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Chaining finger bracket sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, ... | 788015001 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Chaining finger set plate sewing machine part or accessory For Janome Models: 644D, 7034D, 9002D,... | 789106003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Chaining finger sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D, 64... | 788017003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | NEEDLE PLATE SETTING KNOB sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D,... | 787041003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Chaining finger spring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 6... | 788018004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Setscrew 2x4-2 sewing machine part or accessory For Janome Models: 644D, 7034D, 734D, 744D, 9002D... | 000074603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Fixed Needle Guard for MyLock 634D sewing machine part or accessory For Janome Models: 1110DX, 20... | 788019005 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Lower knife unit sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, HF910... | 792603005 | $28.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Lower knife set plate sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, ... | 792005001 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Lower Knife for MyLock Sergers (634D) sewing machine part or accessory For Janome Models: 1110DX,... | 788013009 | $41.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SET SCREW 4X6 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 434D, 434DR... | 000102221 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Nut sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D, 7034D, 9002D, ... | 788021000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Lower knife guide shaft unit sewing machine part or accessory For Janome Models: 7034D, HF3434D H... | 792622000 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Guide plate sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 5... | 787046008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Lower Knife Operating Shaft | 792007003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Spring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, ... | 787048000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Upper knife drive cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 703... | 788008001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Upper knife connecting rod sewing machine part or accessory For Janome Models: 204D, 7034D, 9002D... | 789009005 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Upper knife drive arm (unit) sewing machine part or accessory For Janome Models: 8002D | 793613414 | $32.00Read more |
| 26 | | Upper knife drive arm sewing machine part or accessory For Janome Models: 792PG SRV | 793105407 | $11.20Read more |
| 27 | | Upper knife supporter sewing machine part or accessory For Janome Models: 8002D | 793510007 | $8.80Read more |
| 28 | | Spring sewing machine part or accessory For Janome Models: 8002D | 793124000 | $0.40Read more |
| 29 | | Upper knife knob sewing machine part or accessory For Janome Models: 8002D | 793130009 | $1.40Read more |
| 30 |  | Spring pin 2x12 sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, ... | 000022802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Link pin (unit) sewing machine part or accessory For Janome Models: 634D (V2) | 793615003 | $2.00Read more |
| 33 | | Link pin sewing machine part or accessory For Janome Models: 634D (V2) | 793129005 | $1.20Read more |
| 34 | | Upper knife driving shaft sewing machine part or accessory For Janome Models: 8002D | 787022101 | $1.80Read more |
| 35 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | UPPER KNIFE 6002 sewing machine part or accessory For Janome Models: 204D, 7034D, 9002D, HF3434D,... | 788127007 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Hexagon Bolt (7mm) sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 2... | 624303008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Feed bar unit sewing machine part or accessory For Janome Models: 7034D, 9002D, HF3434D, HF9102D ... | 792604006 | $67.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | MAIN FEED BAR FOR 634D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 6... | 788022001 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Main feed bar drive arm sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 4... | 787054009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Pin sewing machine part or accessory For Janome Models: 8002D | 787224002 | $0.80Read more |
| 5 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Sub feed bar sewing machine part or accessory For Elna Models: EL664P | 788024003 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Sub feed drive arm sewing machine part or accessory For Janome Models: 1110DX, 434DR, 534D, 634D,... | 787212007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 634... | 787059004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Feed bar base sewing machine part or accessory For Elna Models: EL664P | 787305008 | $11.20Read more |
| 10 |  | Feed driving arm pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 534... | 787306009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed bar link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534,... | 787065003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Feed rocking link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, ... | 787066004 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 634... | 787068006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Block sewing machine part or accessory For Janome Models: 7034D, 734D, 744D, 9002D, HF3434D, HF91... | 792008004 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Main feed drive cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR... | 787072003 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Sub Feed Drive Cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR,... | 787073004 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | MAIN FEED DOG BRACKET sewing machine part or accessory For Janome Models: 1110DX, 434DR, 634D, 64... | 788023002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Setscrew 3.5x10 sewing machine part or accessory For Janome Models: 1110DX, 204D, 644D, 7034D, 90... | 000068811 | $0.60Read more |
| 20 | | MAIN FEED DOG 634D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D,... | 788027006 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SUB FEED DOG sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 7034D,... | 789018007 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | 4X20 5001 sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D, 334,... | 000104201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Pin sewing machine part or accessory For Janome Models: 7034D, HF3434D, MC350E, MC8000 HF7933, Ne... | 000005304 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
