Schematic and parts book for Janome HD2200 HD2200. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

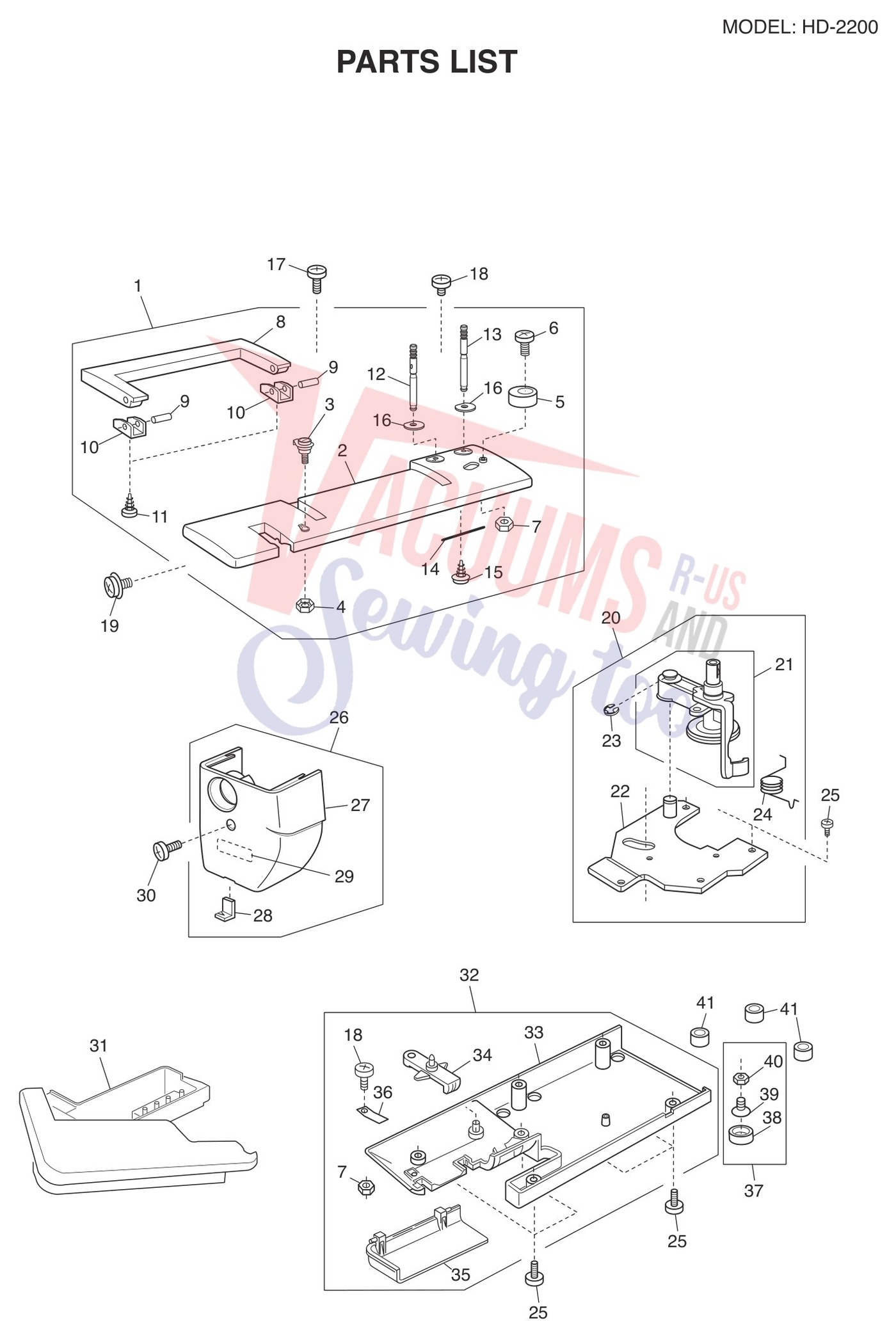

| # | Part image | Description | SKU | Price |
| 1 | No Image | Top Cover (Unit) | 312602509 | $34.80Read more |
| 2 | No Image | Top Cover | 312005A06 | $13.60Read more |
| 3 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SET SCREW FOR SERGER sewing machine part or accessory For Janome Models: 203, 2040, 204D, 234D, 3... | 000101817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Handle sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303010001 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Handle supporter shaft sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 104, ... | 730015002 | $0.69Read more |
| 10 | | Handle supporter plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730016003 | $1.15Read more |
| 11 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Spool Pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 652302004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spool Pin sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX,... | 652205006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | SPOOL PIN SPRING sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, ... | 736007009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Setscrew 3x10 sewing machine part or accessory For Janome Models: 1110DX, 334, 4045LX, 4045NX, 41... | 000149002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Spool pin spring base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735013005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Setscrew 5X20 | 000166706 | $0.40Read more |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Bobbin Winder (Unit) | 312606008 | $23.20Read more |
| 21 | No Image | Bobbin Winder Arm (Unit) | 312501002 | $11.40Read more |
| 22 | No Image | Bobbin Winder Plate | 303012106 | $4.00Read more |
| 23 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Bobbin Winder Arm Spring | 312015004 | $0.40Read more |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Face Plate (Unit) | 312603038 | $16.00Read more |
| 27 | No Image | Face Plate | 312007A02 | $11.60Read more |
| 28 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Extension Table (Unit) | 303501093 | $24.80Read more |
| 32 | No Image | Base (Unit) | 303601407 | $25.20Read more |
| 33 |  | Base sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303003001 | $6.80Read more |
| 34 | | Drop lever sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 738060006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Bed lid sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303005003 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | Rubber Foot (Unit) | 303640006 | $4.20Read more |
| 38 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Set screw 5x25 sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, MC... | 000097808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |

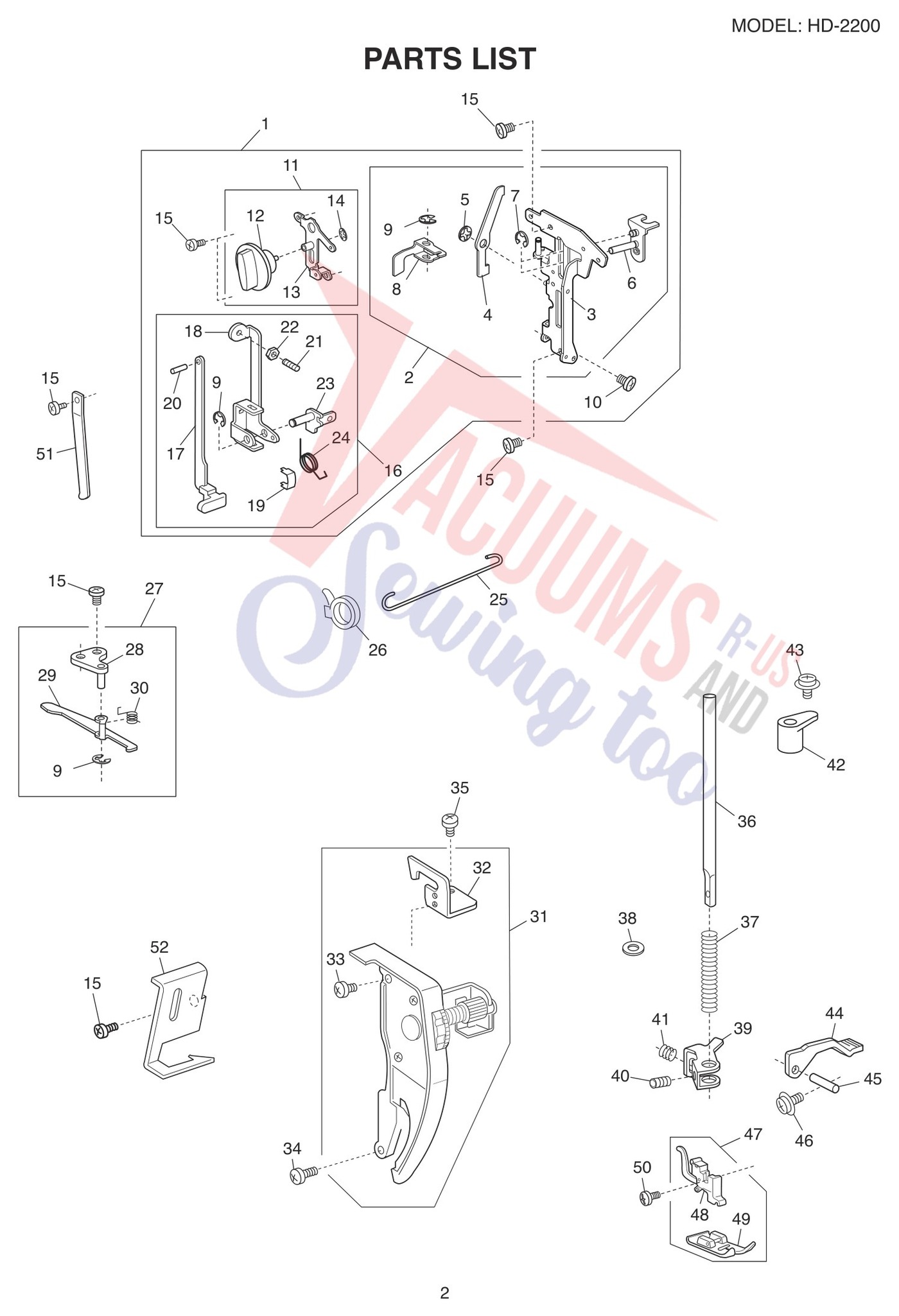

| # | Part image | Description | SKU | Price |
| 1 | No Image | Front Bracket (Whole Unit) | 312607205 | $49.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Front Bracket (Unit) | 312608206 | $27.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Front Bracket | 312012115 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Tension release lever sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303019000 | $1.00Read more |
| 5 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Presser foot pressure adjusting plate sewing machine part or accessory For Janome Models: HD1400 SRV | 303062008 | $3.20Read more |
| 7 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | BH adjusting lever sewing machine part or accessory For Janome Models: HD2200 SRV | 722009008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 10 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Pressure adjusting dial (unit) sewing machine part or accessory For Janome Models: HD1400 SRV | 303623003 | $5.20Read more |
| 12 | | Pressure adjusting dial sewing machine part or accessory For Janome Models: HD1400 SRV | 501010001 | $1.40Read more |
| 13 | | Face cover set plate sewing machine part or accessory For Janome Models: HD1400 SRV | 303021108 | $3.40Read more |
| 14 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | BH LEVER UNIT RX18S sewing machine part or accessory For Janome Models: HF2022, JF1004, JF1022, Q... | 740617001 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | BH lever (unit) sewing machine part or accessory For Janome Models: | 753629109 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | BH LEVER SUPPORTER sewing machine part or accessory | 740047004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Friction spring sewing machine part or accessory For Janome Models: HF2022, HF4045LX, HF5024, JD1... | 753027008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SPRING PIN FOR 4123 3123 sewing machine part or accessory For Janome Models: 2041, 2041LX, 2041NX... | 000023009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SET SCREW 4 X 10 sewing machine part or accessory | 000113306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | BASE PLATE sewing machine part or accessory | 740048005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | BH LEVER SPRING sewing machine part or accessory | 740049006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | BH STEP UP ROD sewing machine part or accessory | 740052002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Thread release arm unit sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303620000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Thread release base sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 211... | 739017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Thread release arm sewing machine part or accessory For Janome Models: 2003P, 2041, 2041LX, 2041N... | 739018002 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Thread release spring sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303070009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Tension Regulator (Unit) | 312502003 | $34.60Read more |
| 32 |  | Top cover thread guide sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, ... | 739016000 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Presser Bar | 303017019 | $5.20Read more |
| 37 |  | Presser bar spring sewing machine part or accessory For Janome Models: 419S, 423S, 509, 521, 525S... | 826006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | WASHER 9000 8000 DISCONTINUED sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 102061008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | PRESSER BAR BRACKET 6000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822069009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Pressure regulator spring sewing machine part or accessory For Janome Models: | 749060000 | $0.23Read more |
| 42 |  | Presser Bar Bushing | 652104004 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Presser Bar Lifter Lever sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822071004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Presser Foot Complete (5mm front load low shank) sewing machine part or accessory For Janome Mode... | 611520003 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Presser Foot Holder (5mm front load) sewing machine part or accessory For Janome Models: HD-1000,... | 611510000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Presser Foot (5mm low shank front load) sewing machine part or accessory For Janome Models: HD-10... | 611511001 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 50 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

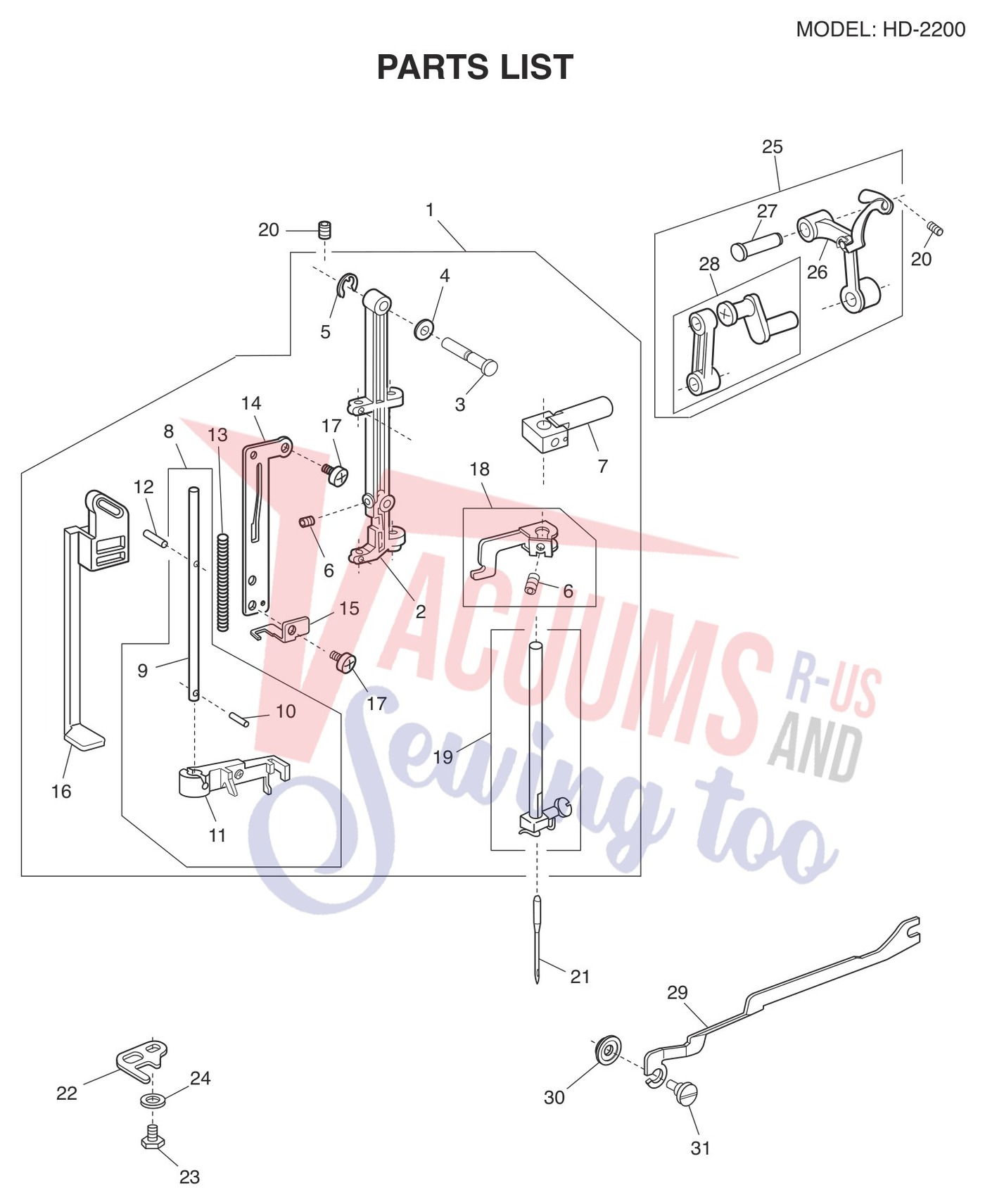

| # | Part image | Description | SKU | Price |
| 1 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: HD1400 SRV | 303604008 | $62.60Read more |
| 2 |  | Needle bar supporter sewing machine part or accessory For Janome Models: 415, 419S, 423S | 303020107 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Needle bar connecting stud (unit) sewing machine part or accessory For Janome Models: 550E | 301504104 | $6.00Read more |
| 8 |  | Needle threader shaft (unit) sewing machine part or accessory For Janome Models: | 303605009 | $12.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle threader shaft sewing machine part or accessory For Janome Models: | 303016007 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Needle Threader Plate for Janome Elna babylock kenmore necchi viking Bernina sewing machines #755... | 755643002 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Needle threader spring sewing machine part or accessory For Janome Models: HD1000BE | 840035002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle threader guide plate sewing machine part or accessory For Janome Models: | 303064000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Needle threader lever support sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 840037004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Needle threader lever sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 404... | 840034001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Thread base plate (unit) sewing machine part or accessory For Janome Models: Jem Gold Plus, MC770... | 807607008 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle bar unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD180... | 730503116 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 21 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle bar supporter stopper sewing machine part or accessory For Janome Models: 104, 106, 108, 1... | 680036001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread take-up lever (whole unit) sewing machine part or accessory For Janome Models: HD1000BE V2... | 726615108 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Thread take-up lever pin (unit) sewing machine part or accessory For Janome Models: HD1000BE | 647040108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Needle bar crank pin (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 726618101 | $10.80Read more |
| 29 | | Zigzag rod sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, RX18-RX22 | 722033001 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |

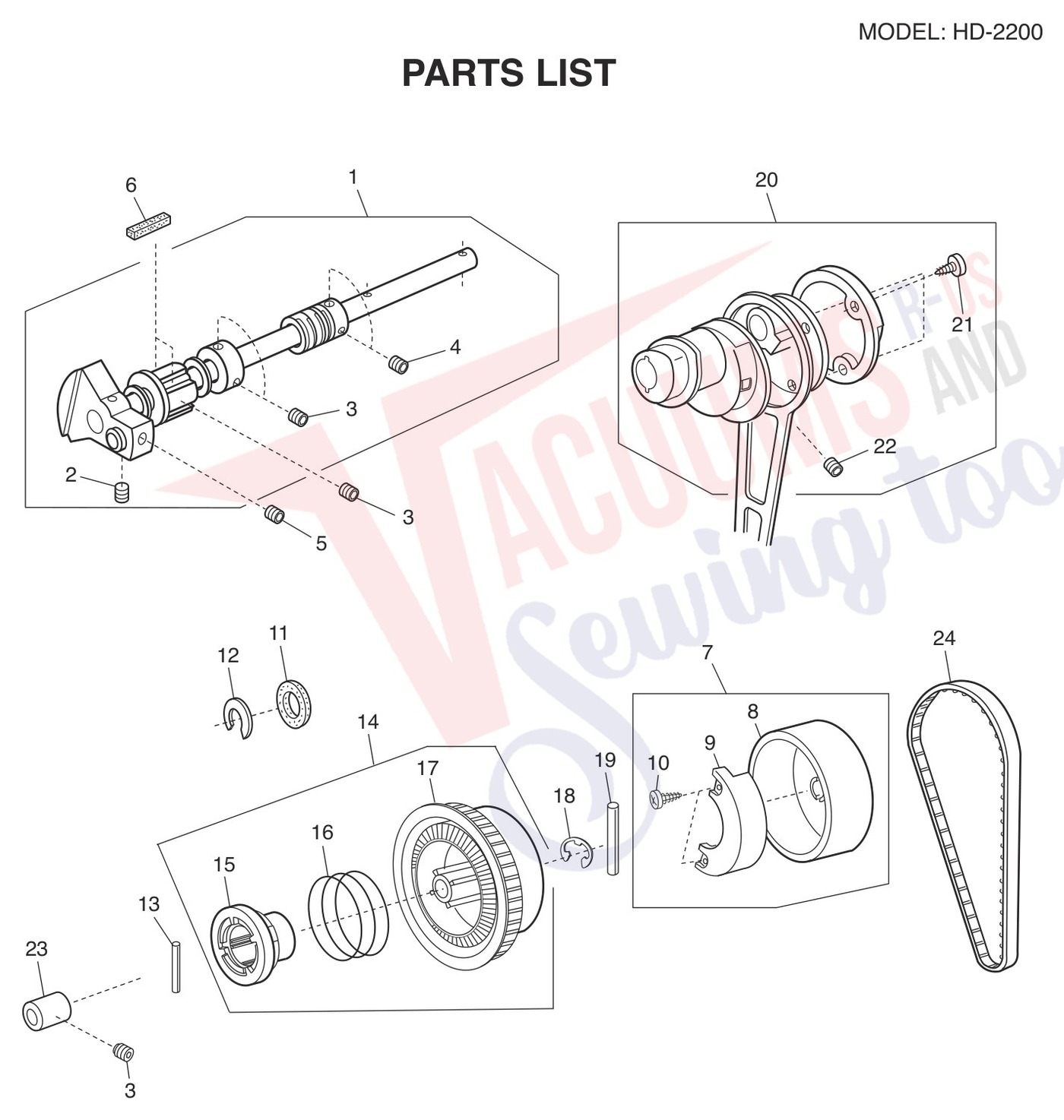

| # | Part image | Description | SKU | Price |
| 1 | No Image | Upper Shaft (Unit) | 312609012 | $35.20Read more |
| 2 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 4 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Handwheel (Unit) | 303645001 | $18.00Read more |
| 8 | No Image | Handwheel | 303026055 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Balance Weight | 303093008 | $5.60Read more |
| 10 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 743029009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Felt holder sewing machine part or accessory For Janome Models: 1522PG | 310069007 | $0.40Read more |
| 13 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Belt Wheel (Unit) | 303641007 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | belt wheel sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, MC200E, MC30... | 303025009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | PIN 4X40 sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 2041, 2... | 000023803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Crank Rod (Unit) | 726606003 | $18.40Read more |
| 21 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | UPPER SHAFT REAR BUSHING S650 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2... | 732003003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Timing Belt | 738046109 | $5.00Read more |

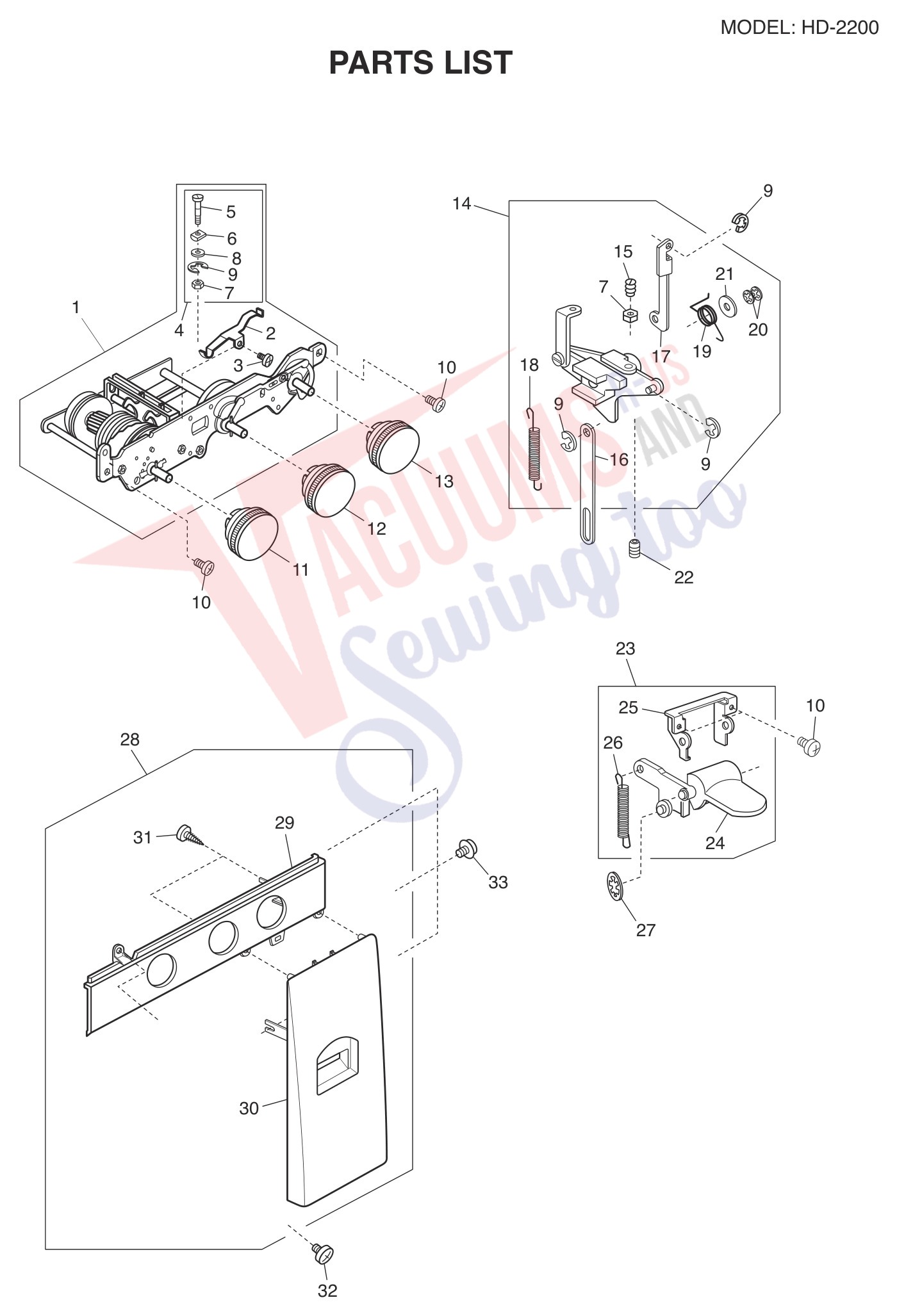

| # | Part image | Description | SKU | Price |
| 1 | No Image | Zigzag Mechanism (Unit) | 312612100 | $106.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Index spring sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041NX, 20... | 737011009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Ss Adjusting Screw (Unit) | 303644000 | $4.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SS ADJUSTING SCREW sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 735074004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SS ROD BLOCK sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041NX, 20... | 735076006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Pattern Selector Dial | 306108A69 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Stitch Length Dial | 306107A68 | $7.60Read more |
| 13 | No Image | Zigzag Width Dial | 306108A68 | $6.00Read more |
| 14 | No Image | Feed Regulator (Unit) | 303610409 | $46.60Read more |
| 15 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Rod | 731034000 | Not Available |
| 17 | | Feed regulator rod sewing machine part or accessory For Janome Models: HD1400 SRV | 735075005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | Feed regulating body spring | 803134007 | Not Available |
| 20 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 23 | No Image | Reverse Lever (Unit) | 303611020 | $6.00Read more |
| 24 | No Image | Reverse Lever | 726014008 | $2.20Read more |
| 25 | Not Available | Lever supporter | 303031008 | Not Available |
| 26 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 405, 415, 419S, 42... | 731033009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Front Cover (Unit) | 312601140 | $29.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Front Panel | 312003A23 | $8.60Read more |
| 30 | No Image | Front Cover | 312004N02 | $27.80Read more |
| 31 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

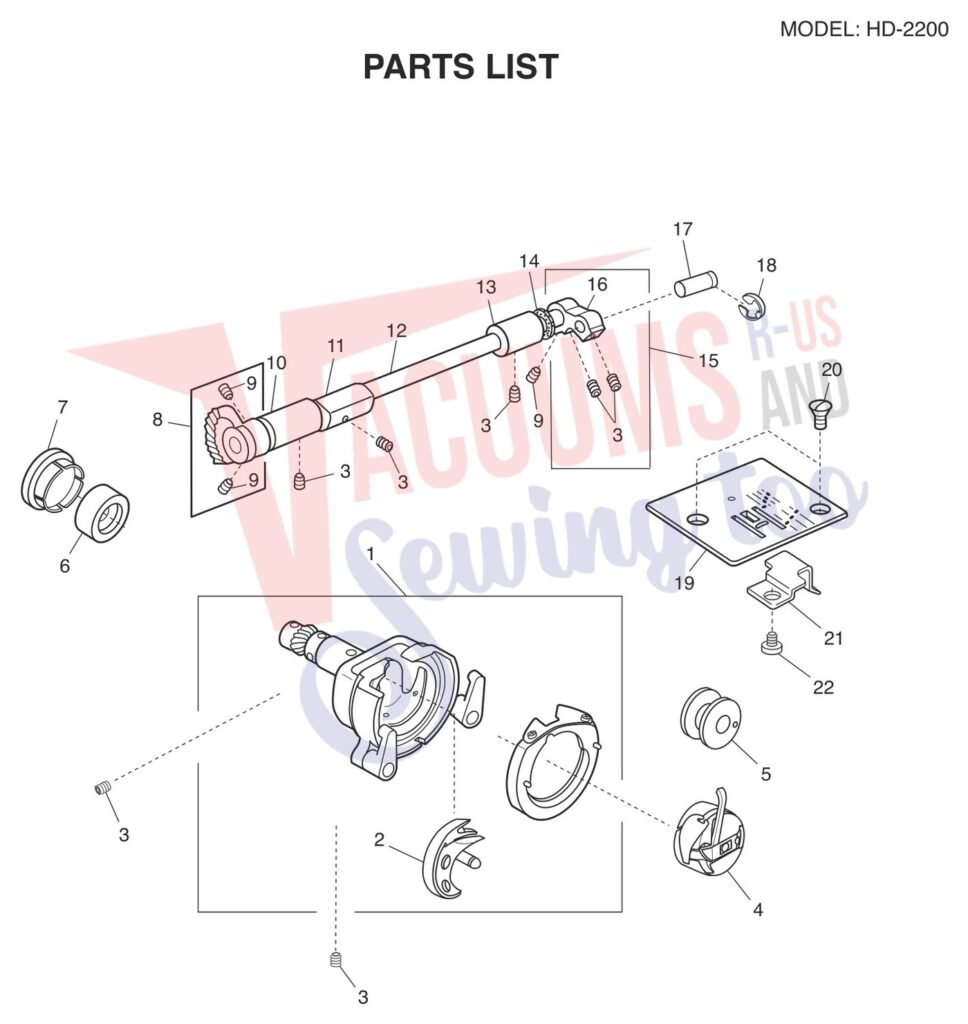

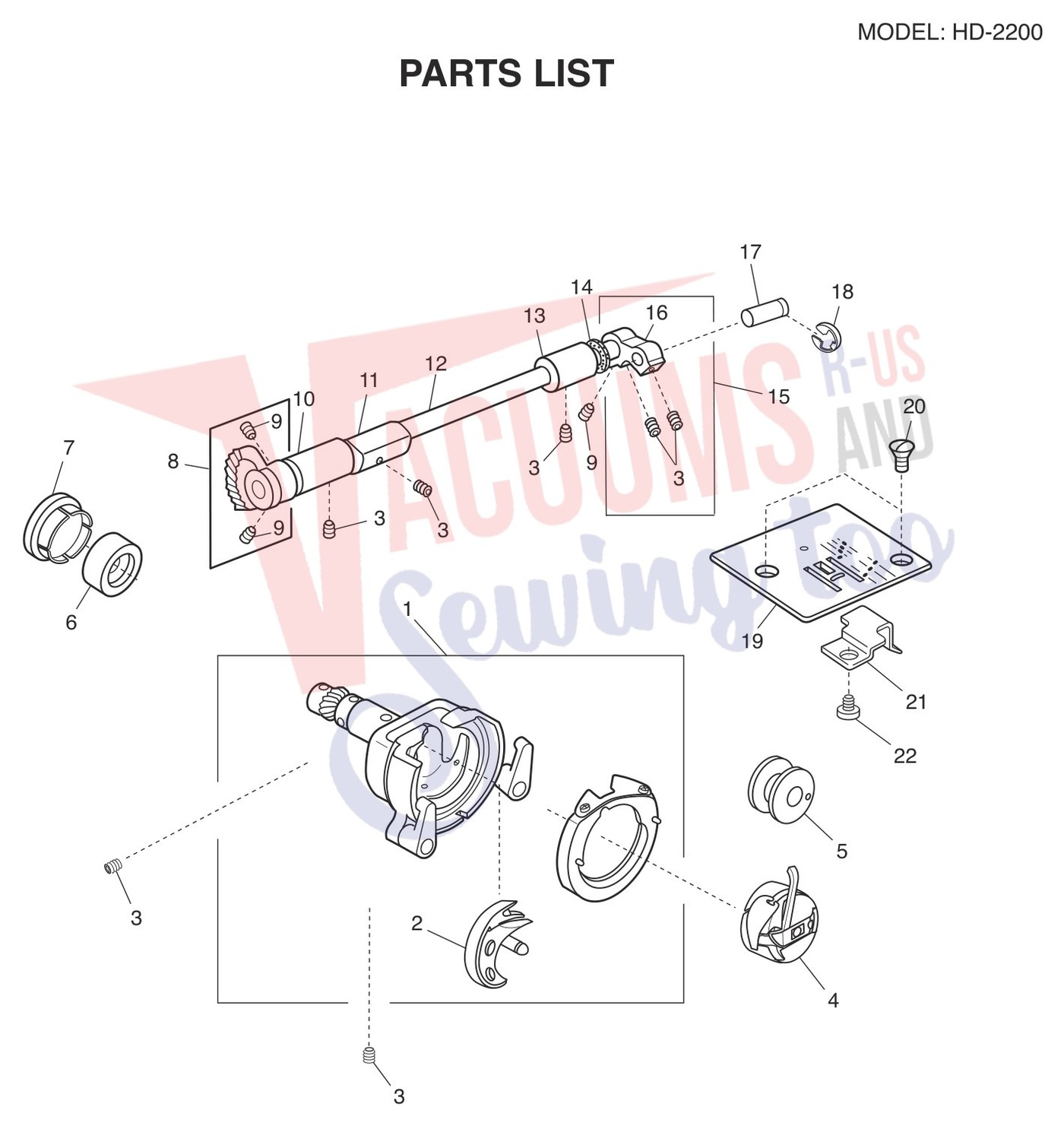

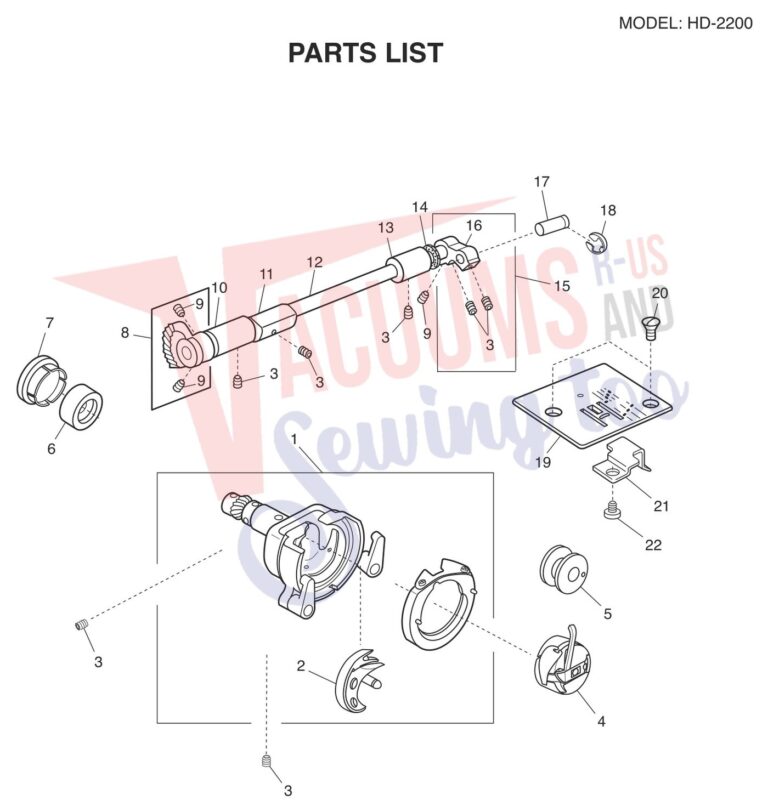

| 1 |  | Shuttle Race Body Unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 640603104 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 4 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 6 | | Cam shaft bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 38... | 640018003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Cap | 626045407 | Not Available |
| 8 | | Lower shaft gear sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 726616006 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Lower shaft bushing sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, ... | 738024008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Feed lifting cam sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380... | 647043008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Lower shaft sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 647142905 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Lower shaft bushing (rear) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 640038009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Felt | 722034002 | Not Available |
| 15 | No Image | Lower Shaft Crank (Unit) | 726617007 | $7.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Lower Shaft Crank | 726013007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Pin sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2041, ... | 639037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle Plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &am... | 730027007 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Gear box upper lid sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 3... | 730107002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

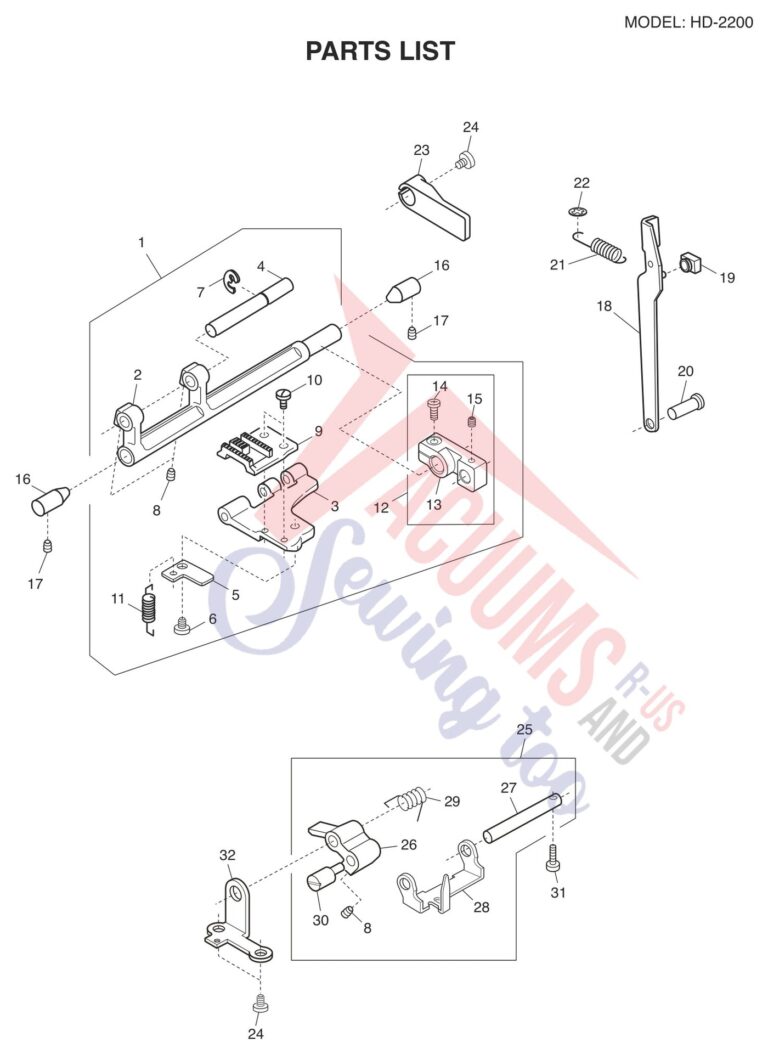

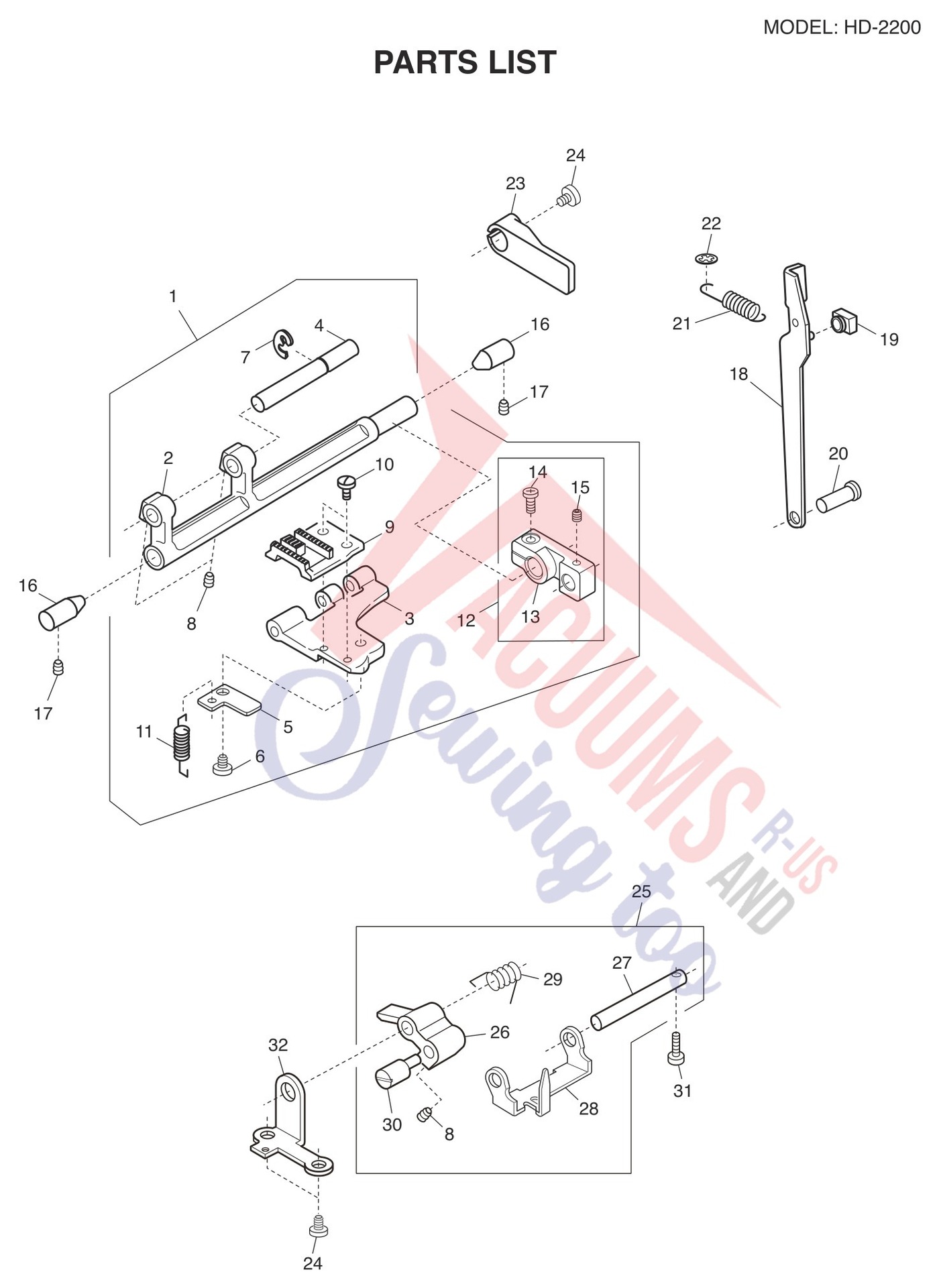

| 1 |  | FEED ROCK SHAFT COMP. UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 730611004 | $30.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 730057006 | $6.60Read more |
| 3 |  | Feed bar sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 3... | 647066007 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 647134007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Sliding plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 648019008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set screw (black) sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 41... | 102021202 | $0.60Read more |
| 7 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Feed dog sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S,... | 730184003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set screw sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S... | 730183002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed bar spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 672042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Feed rock shaft arm (unit) | 303637000 | Not Available |
| 13 | Not Available | Feed rock shaft arm | 303091006 | Not Available |
| 14 | | Setscrew 4x12 sewing machine part or accessory For Janome Models: 2003P, 625E, DE5018, DE5024, DE... | 000097200 | $0.60Read more |
| 15 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 18 |  | FEED ROD FOR JF1004 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 743012009 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Feed Slide Block sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2... | 102141003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Feed rock shaft connecting pin sewing machine part or accessory For Janome Models: 2212, 2206, Ne... | 735071104 | $0.00Read more |
| 21 | No Image | Spring | 726032002 | $0.40Read more |
| 22 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Stopper | 726033003 | $0.80Read more |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Feed lifting arm unit sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303612009 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Feed lifting arm sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 738028013 | $3.00Read more |
| 27 | Not Available | Feed lifting arm spring | 735090109 | Not Available |
| 28 | | Drop selector sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 303069005 | $2.20Read more |
| 29 |  | Drop feed selector spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 730061003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Eccentric pin sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415, 4... | 730063016 | $1.61Read more |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Feed lifting arm supporter | 303033000 | Not Available |
| # | Part image | Description | SKU | Price |

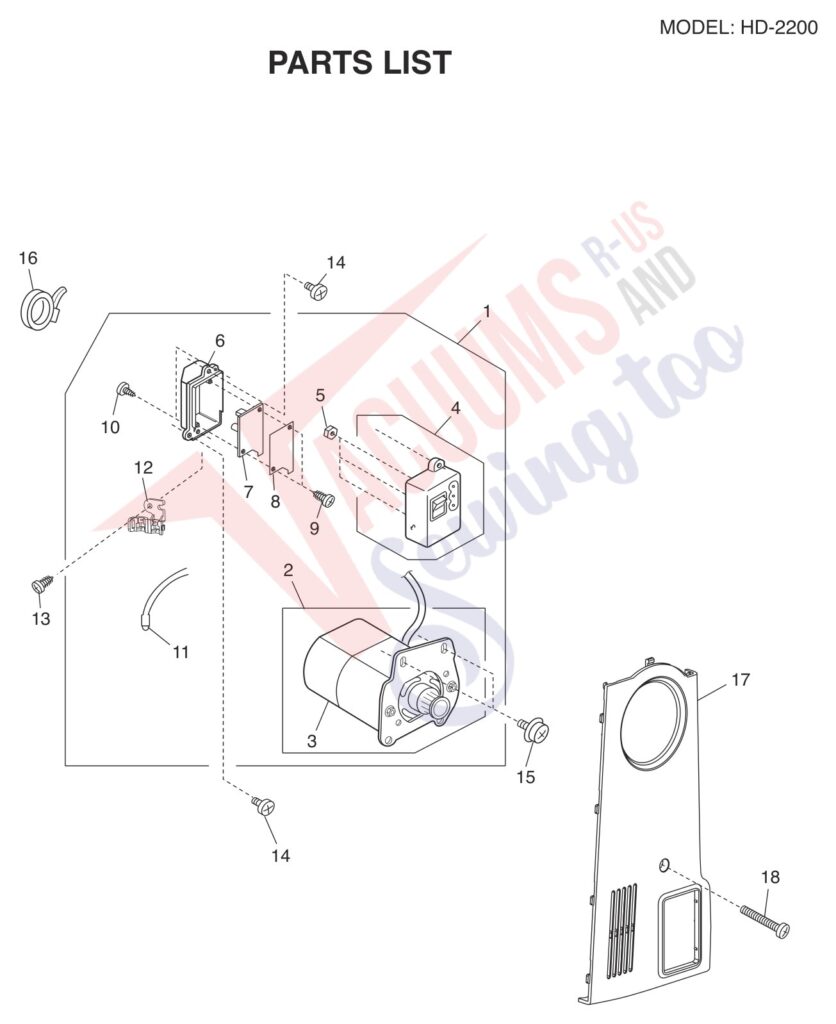

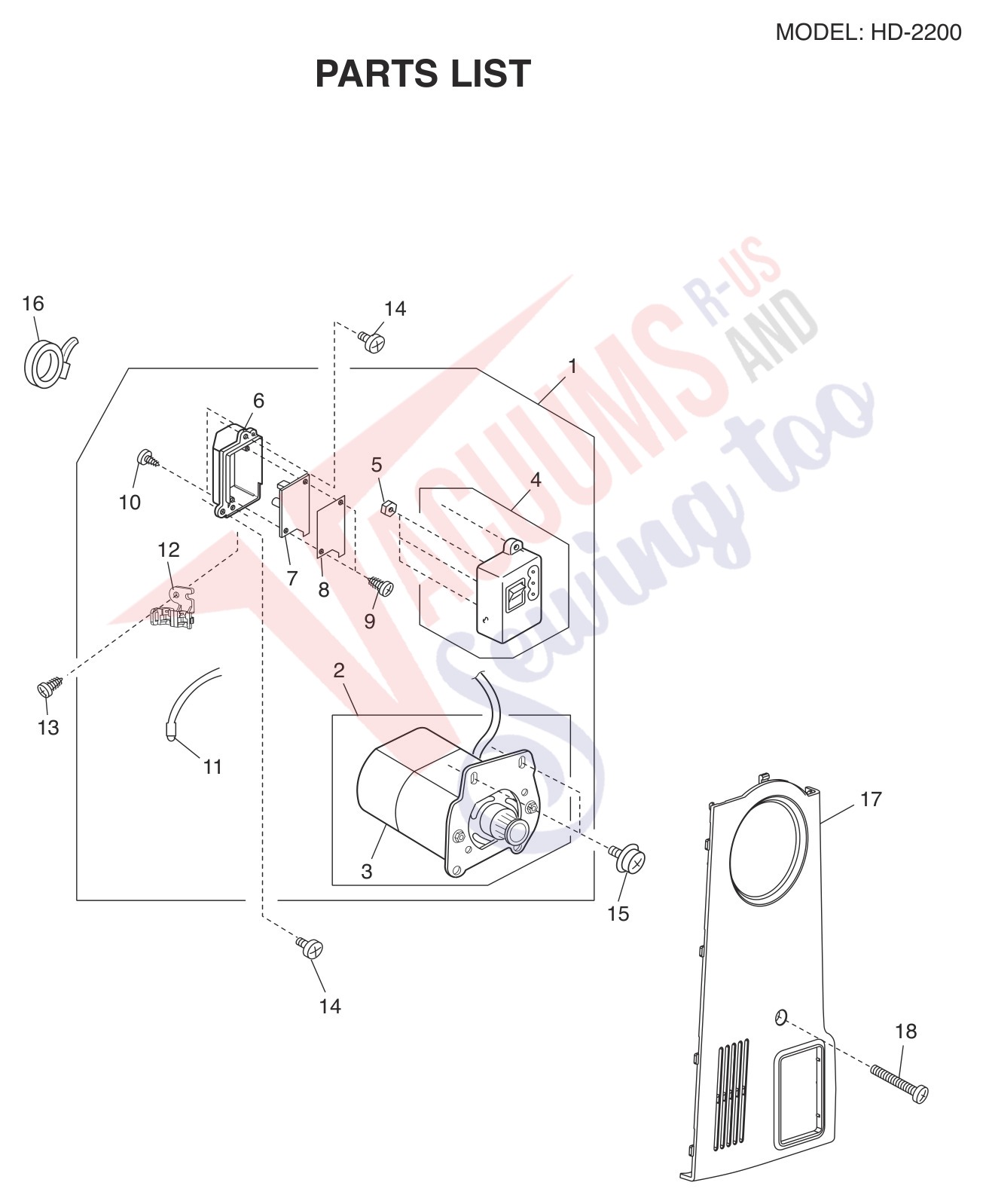

| 1 | No Image | Motor (Whole Unit) | 312631002 | $53.00Read more |
| 2 | No Image | Motor (Unit) | 303676001 | $62.40Read more |
| 3 | | Motor with pulley sewing machine part or accessory For Janome Models: 2222 V2 | 016612000 | $72.80Read more |
| 4 | | Machine socket (unit) sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 739505702 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Machine Socket Cover | 303092007 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Printed circuit board C (unit) sewing machine part or accessory For Janome Models: SEWIST500 (V2) | 508512009 | $10.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Insulating paper sewing machine part or accessory For Janome Models: SEWIST500 (V2) | 508134003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Led Light | 508515301 | $5.60Read more |
| 12 |  | LED holder sewing machine part or accessory For Elna Models: EL864 | 508143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Belt Cover | 312006002 | $9.20Read more |
| 18 | | +-bind small screw 3x16 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 000106801 | $0.60Read more |
| # | Part image | Description | SKU | Price |

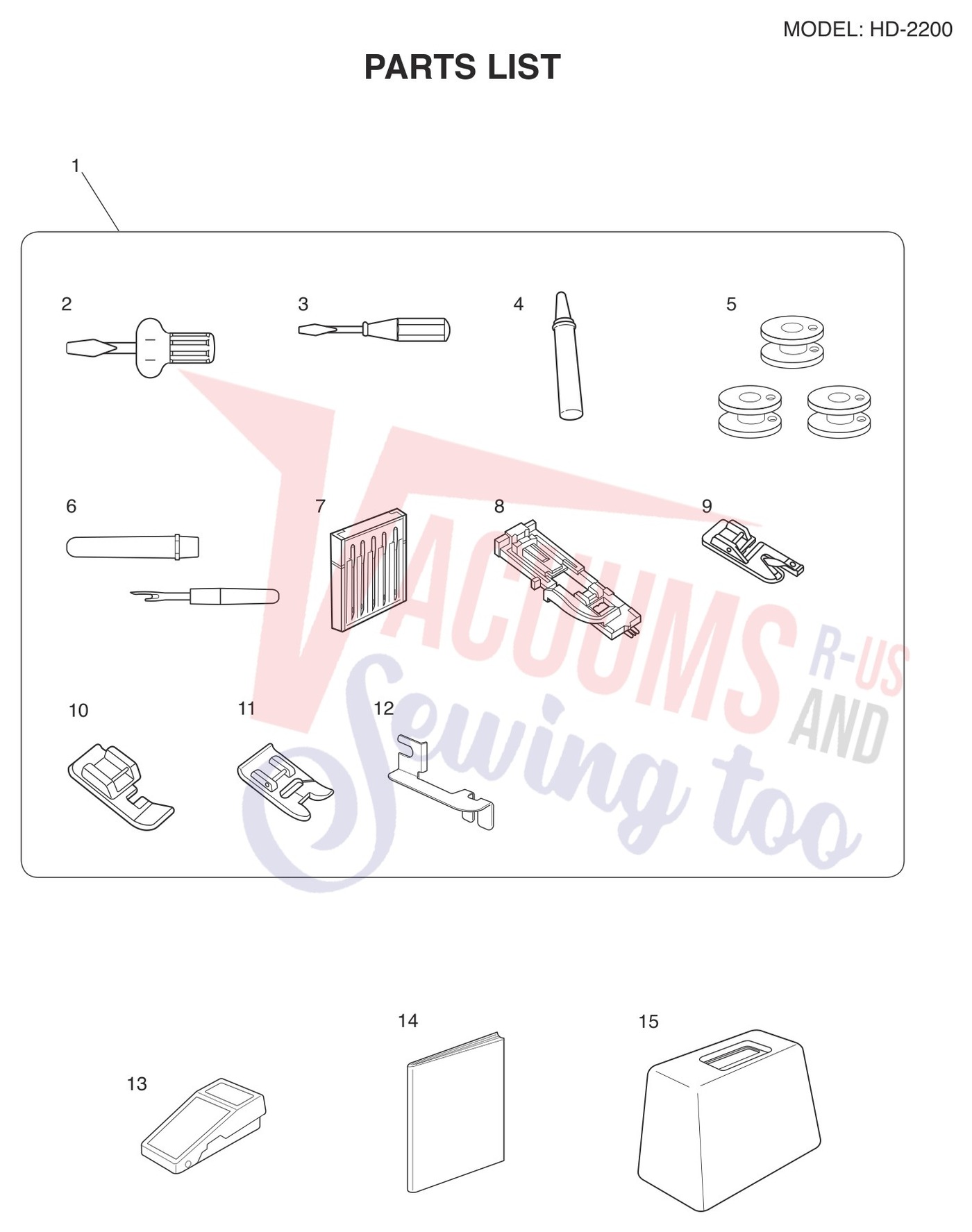

| 1 | No Image | Accessory Set | 312870005 | $30.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 3 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Oil sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1110DX, 360, 3... | 741814003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 6 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Automatic Buttonhole Foot R (5mm) sewing machine part or accessory For Janome Models: 2041, 2041L... | 740801004 | $21.90Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hemmer Foot (5mm) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA106, L108... | 743815000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Zipper Foot (front load) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA10... | 611406002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Satin stitch foot sewing machine part or accessory For Janome Models: 1522PG | 743816001 | $14.55Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | BLIND HEM GUIDE LEFT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 380... | 674401002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 14 | No Image | Instruction Manual | 312800314 | $11.37Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Resin Carrying Case sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S | 488701002 | $37.20Read more |
Report errors on this page HERE
