Schematic and parts book for Janome HD1000BE V2 HD1000BE V2. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

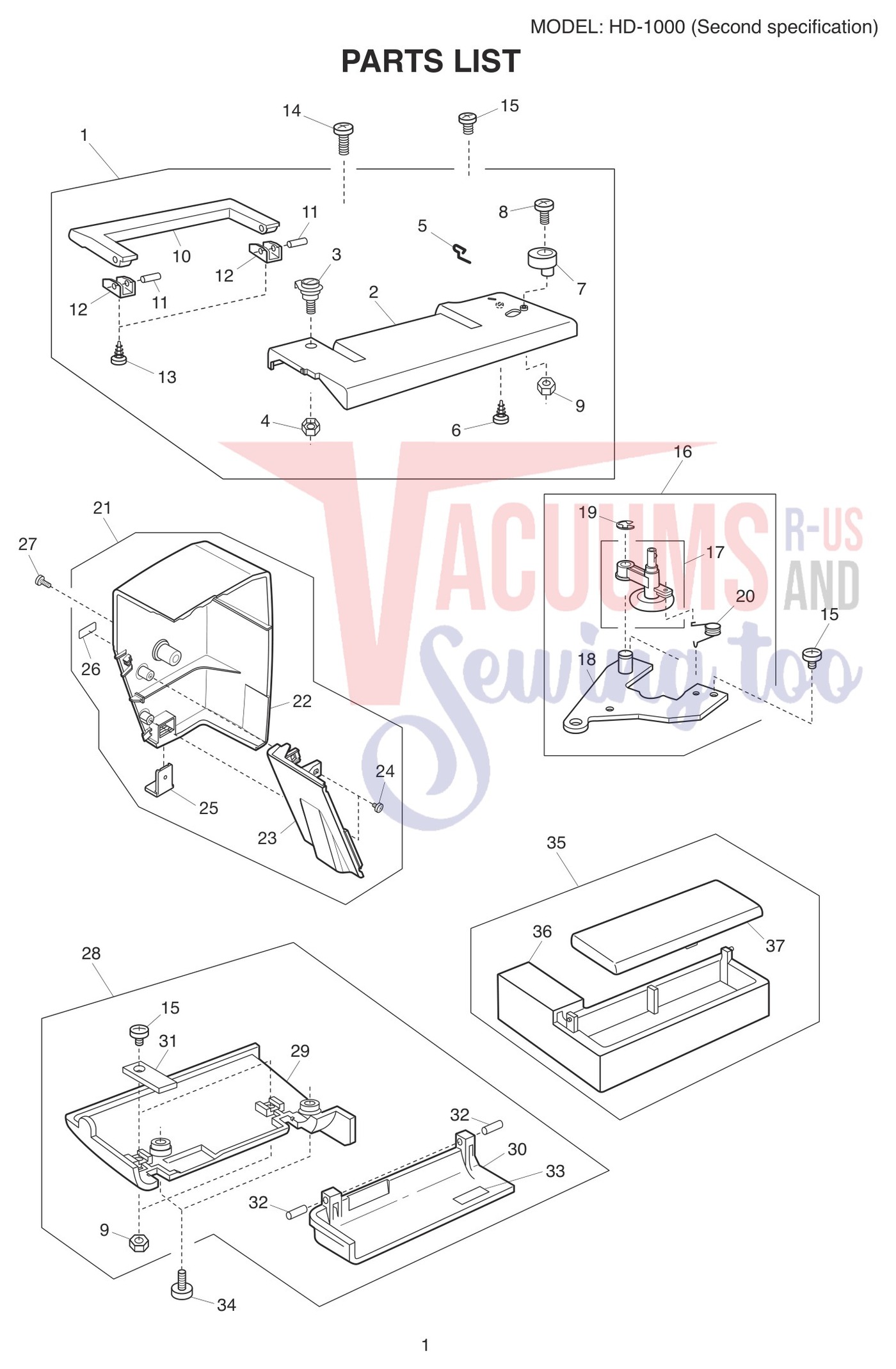

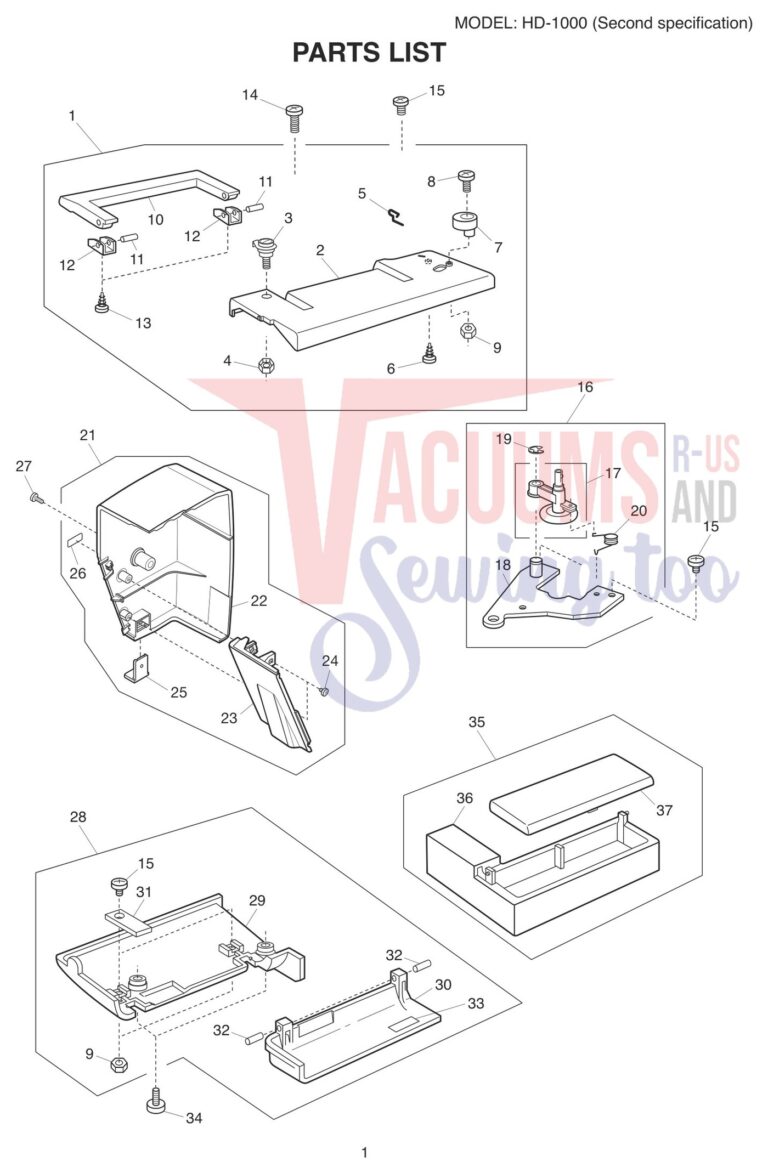

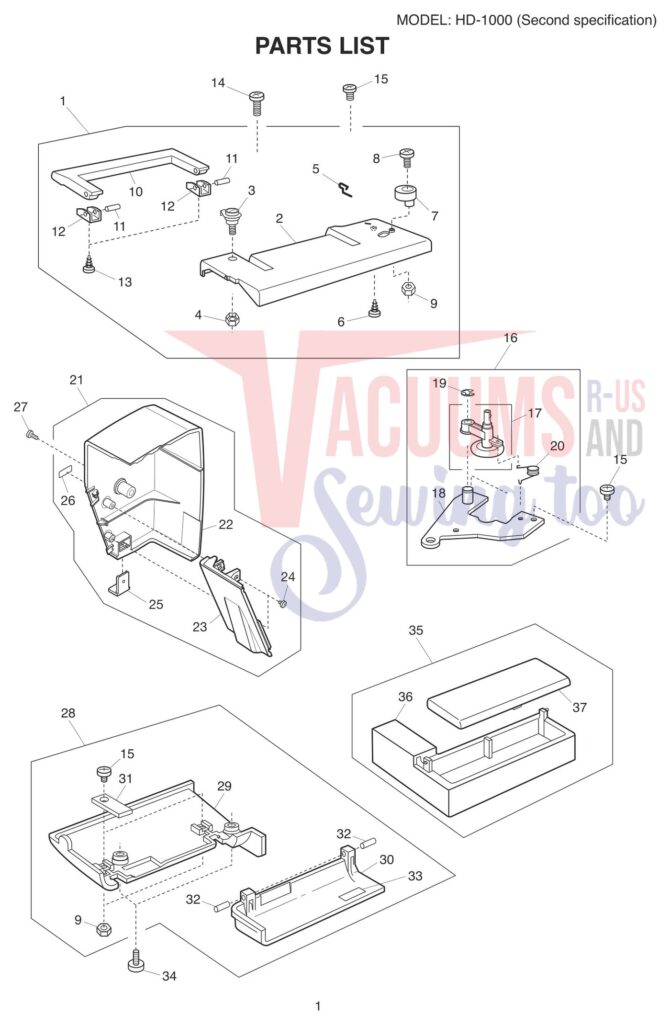

| # | Part image | Description | SKU | Price |
| 1 |  | Top cover (unit) sewing machine part or accessory For Janome Models: HD1000BE | 721609403 | $32.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Top cover | 731097A01 | Not Available |
| 3 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | TOP COVER THRD GUIDE L-SERIES sewing machine part or accessory For Janome Models: 104, 106, 108, ... | 731004001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Setscrew 3x16 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 000109000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Handle sewing machine part or accessory For Janome Models: HD1000BE | 731005301 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Handle supporter shaft sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 104, ... | 730015002 | $0.69Read more |
| 12 | | Handle supporter plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730016003 | $1.15Read more |
| 13 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | BOBBIN WINDER UNIT RX18S(73060 sewing machine part or accessory For Janome Models: 360, 380 &... | 730604107 | $16.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Bobbin winder arm (unit) sewing machine part or accessory For Janome Models: 360, TB12 | 730502104 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Bobbin winder set plate | 730018108 | Not Available |
| 19 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Bobbin Winder Spring for L-Series Machines sewing machine part or accessory For Janome Models: 10... | 730019006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Face plate (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721622608 | $17.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Face plate sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721206A01 | $14.60Read more |
| 23 | | Face plate panel sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721207016 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Setscrew 4x18 sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 000166500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Bed cover (unit) sewing machine part or accessory For Janome Models: HD1000BE | 730601012 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Bed cover | 730004503 | Not Available |
| 30 | Not Available | Bed lid | 730005504 | Not Available |
| 31 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 730006000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Spring pin 2.5x10 (K) | 000021409 | Not Available |
| 33 |  | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Extension table (unit) sewing machine part or accessory For Janome Models: HD1000BE | 731502303 | $18.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | Extension table | 731050301 | Not Available |
| 37 | Not Available | Extension table lid | 731051302 | Not Available |
| # | Part image | Description | SKU | Price |

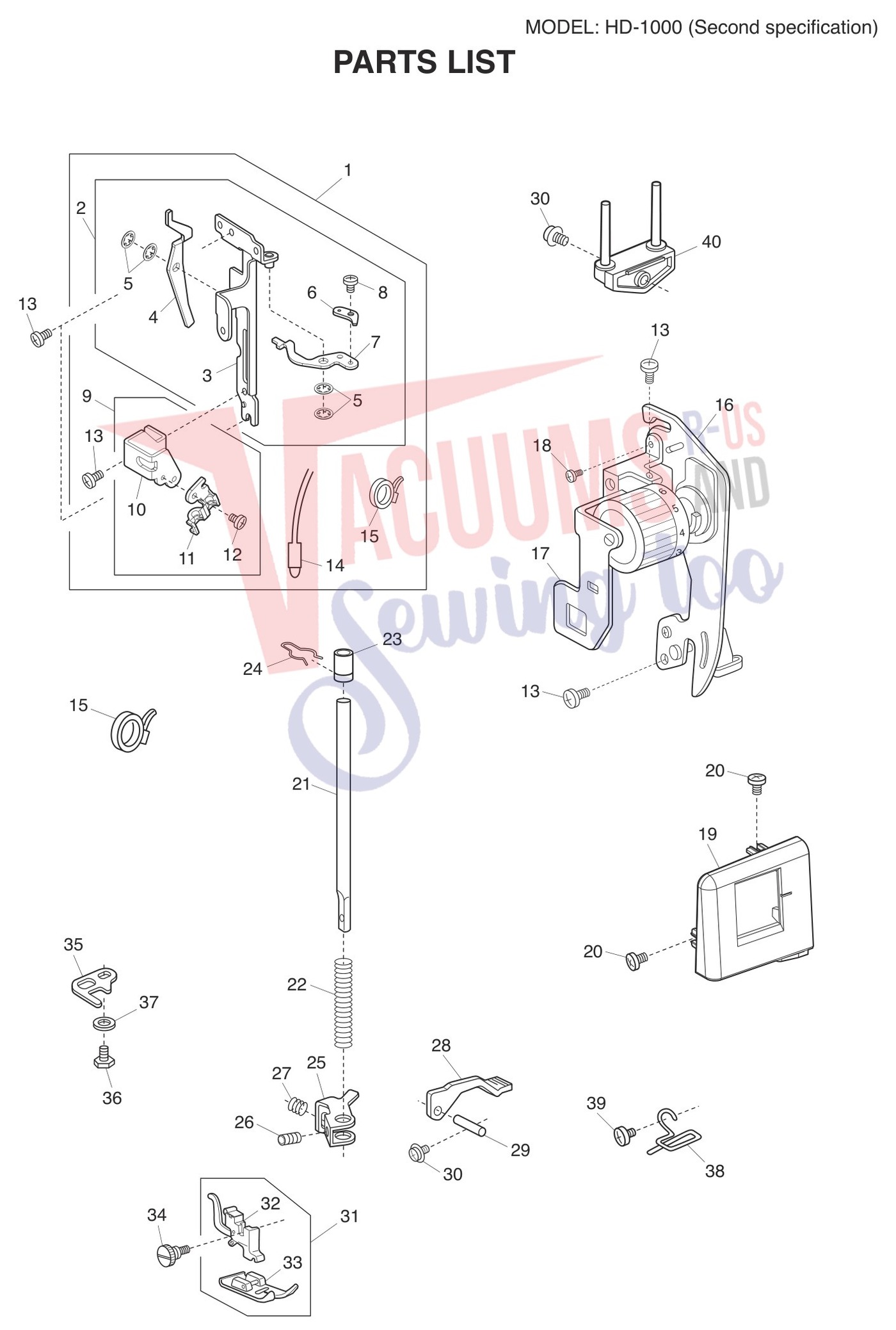

| 1 | | Front bracket (whole unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721626107 | $31.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | FRONT BRACKET UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, S-650 | 731636008 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Front bracket sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731099003 | $5.75Read more |
| 4 | Not Available | Thread tension release lever | 730029009 | Not Available |
| 5 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Thread tension release plate 1 | 730030003 | Not Available |
| 7 | Not Available | Thread tension release plate 2 | 730031004 | Not Available |
| 8 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | LED set plate (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721621009 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | LED set plate sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721205003 | $3.68Read more |
| 11 |  | LED holder sewing machine part or accessory For Elna Models: EL864 | 508143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 234D... | 000101116 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | LED UNIT FOR 2000CPX sewing machine part or accessory LED UNIT FOR 2000CPX | 508515208 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Thread tension (unit) sewing machine part or accessory For Janome Models: L-344, TB12, L108, L109... | 721502519 | $24.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Thread tension set plate sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721009108 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | + FLAT HEAD SMALL SCREW 3X6-60 sewing machine part or accessory For Janome Models: MC6000, SR2000... | 000102508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Front cover sewing machine part or accessory For Janome Models: HD1000BE | 721010401 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Tapping setscrew 3x4 sewing machine part or accessory For Janome Models: 134D, 204D, 4048/8048/HF... | 000114709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Presser bar sewing machine part or accessory For Janome Models: | 303017008 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Presser bar spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 730026006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Presser bar bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040,... | 802021007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SNAP RETAINER sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 802022008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | PRESSER BAR BRACKET 6000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822069009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Pressure regulator spring sewing machine part or accessory For Janome Models: | 749060000 | $0.23Read more |
| 28 |  | Presser Bar Lifter Lever sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 822071004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Presser Foot Complete (5mm front load low shank) sewing machine part or accessory For Janome Mode... | 611520003 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Presser Foot Holder (5mm front load) sewing machine part or accessory For Janome Models: HD-1000,... | 611510000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Presser Foot (5mm low shank front load) sewing machine part or accessory For Janome Models: HD-10... | 611511001 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Thumb Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 360, 3... | 647112009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Needle bar supporter stopper sewing machine part or accessory For Janome Models: 104, 106, 108, 1... | 680036001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Thread Guide for School Model S-650 sewing machine part or accessory For Janome Models: 104, 106,... | 731009006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | + PAN HEAD-6000-5001-DISCONTIN | 000100300 | Not Available |
| 40 | | Spool stand sewing machine part or accessory For Janome Models: HD1000BE | 731006405 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

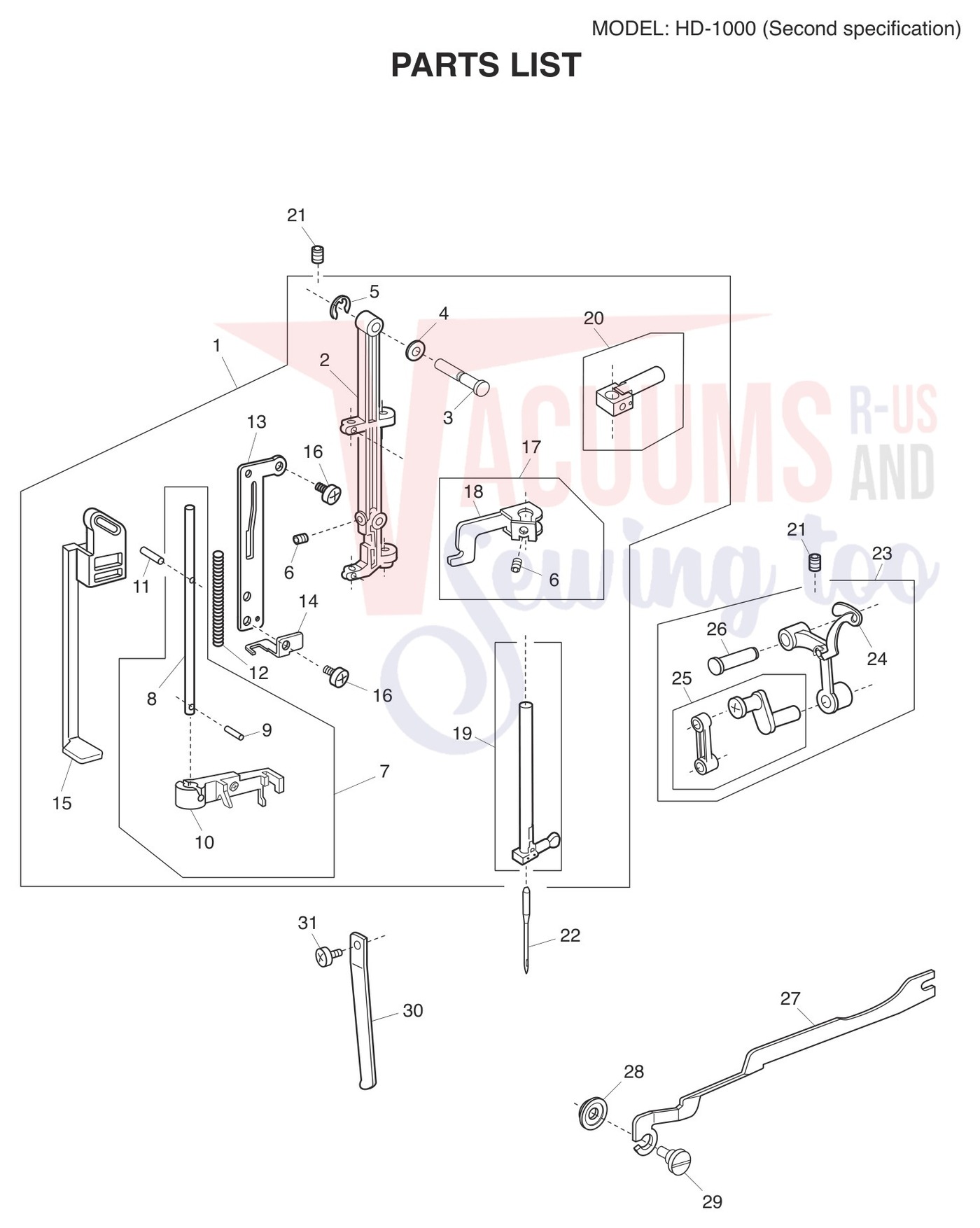

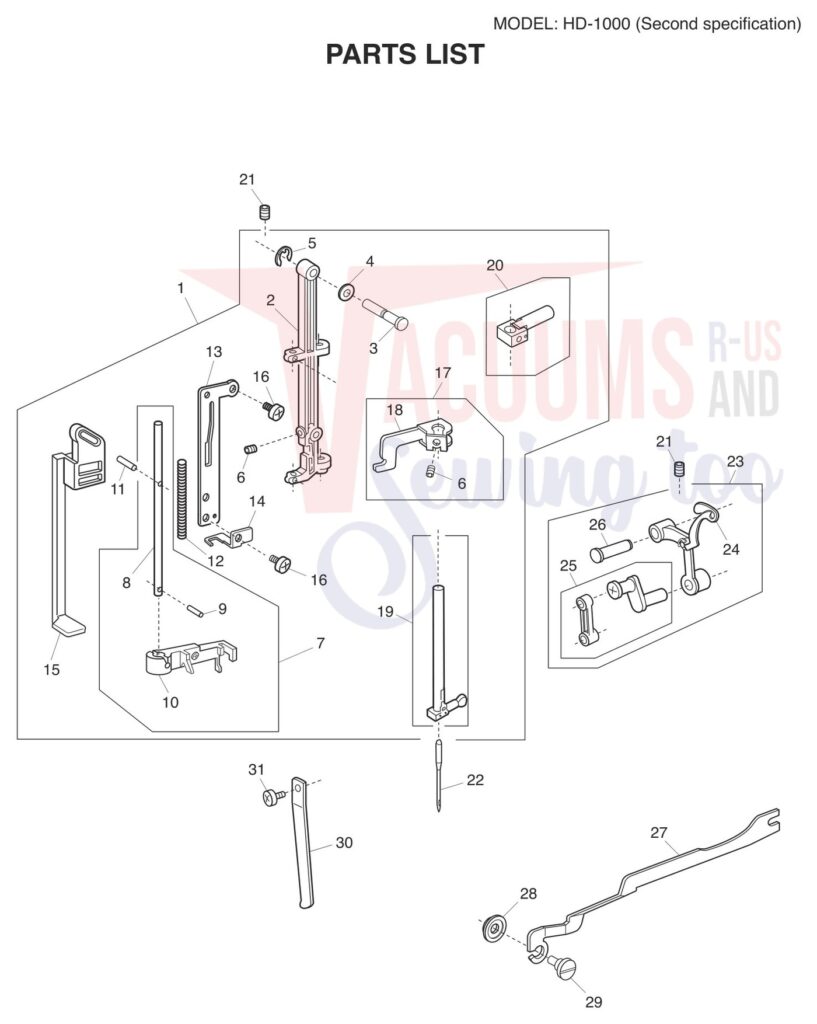

| 1 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: | 303604101 | $22.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle bar supporter sewing machine part or accessory For Janome Models: 415, 419S, 423S | 303020107 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Needle threader shaft (unit) sewing machine part or accessory For Janome Models: | 303605009 | $12.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle threader shaft sewing machine part or accessory For Janome Models: | 303016007 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle Threader Plate for Janome Elna babylock kenmore necchi viking Bernina sewing machines #755... | 755643002 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Needle threader spring sewing machine part or accessory For Janome Models: HD1000BE | 840035002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Needle threader guide plate sewing machine part or accessory For Janome Models: | 303064000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle threader lever support sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 840037004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle threader lever sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 404... | 840034001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Thread base plate (unit) sewing machine part or accessory For Janome Models: Jem Gold Plus, MC770... | 807607008 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Threader position set plate sewing machine part or accessory For Janome Models: SEWIST780DC | 807018006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle bar unit sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD180... | 730503116 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle bar connecting stud (unit) sewing machine part or accessory For Janome Models: 550E | 301504104 | $6.00Read more |
| 21 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 22 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thread take-up lever (whole unit) sewing machine part or accessory For Janome Models: HD1000BE V2... | 726615108 | $26.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Thread take-up lever sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, ... | 625506109 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Needle bar crank pin (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 726618101 | $10.80Read more |
| 26 | | Thread take-up lever pin (unit) sewing machine part or accessory For Janome Models: HD1000BE | 647040108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Zigzag rod sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 730023003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Zigzag rod sewing machine part or accessory For Janome Models: HF1012, HF2022, JD1803, JD1803, JD... | 748021006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Needle bar supporter spring sewing machine part or accessory For Janome Models: HF1012, HF2022, J... | 730024004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

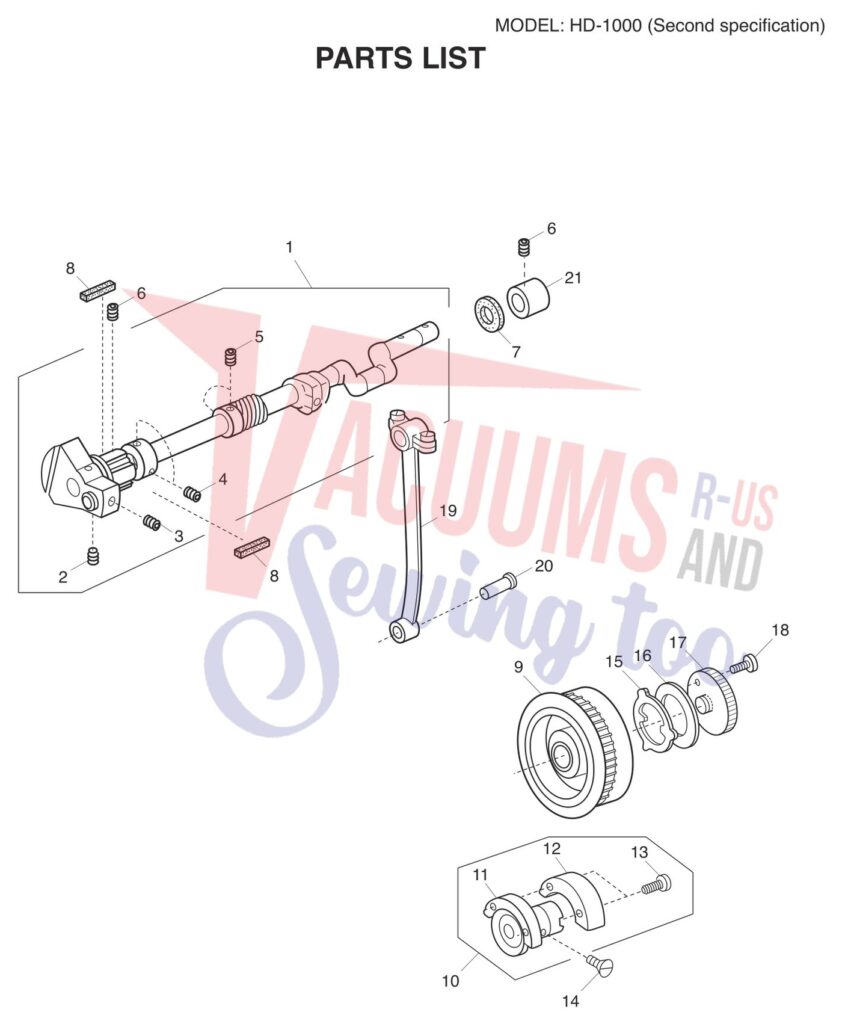

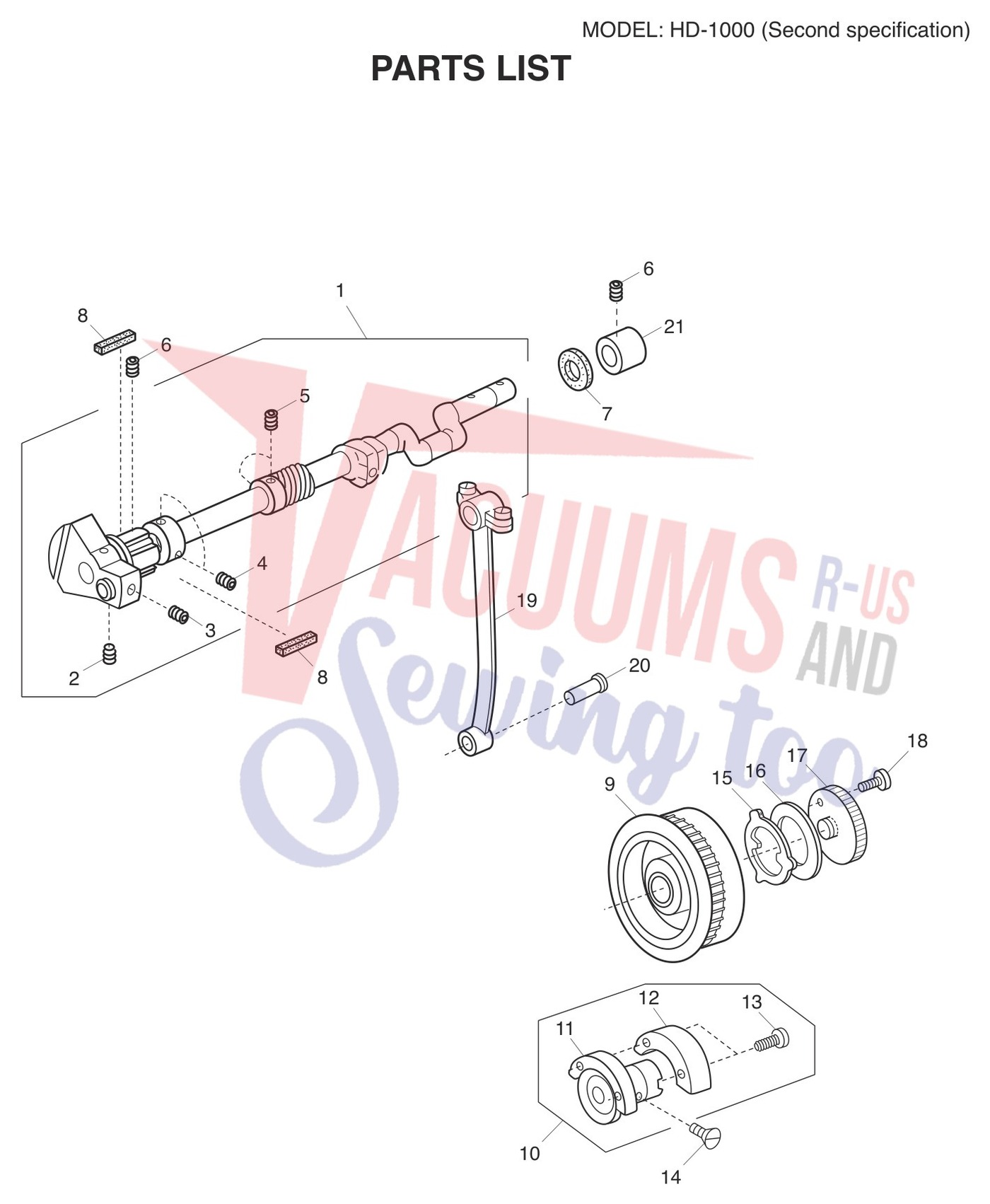

| # | Part image | Description | SKU | Price |
| 1 | | Upper shaft (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731604029 | $59.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 5 |  | Hexagon Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, ... | 553245008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Felt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2041... | 731312005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Handwheel | 730036504 | Not Available |
| 10 | | Handwheel bushing (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731674008 | $21.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | BALANCE WHEEL BUSHING sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360... | 730037000 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | BALANCE WEIGHT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 640008000 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Setscrew 3x12 | 000105202 | Not Available |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & ... | 671106005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | WASHER STOP MOTION sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, ... | 102076006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | WASHER | 647037009 | Not Available |
| 17 |  | STOP MOTION LARGE SCREW sewing machine part or accessory For Janome Models: 360, 380 & 381, 4... | 647036400 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Setscrew sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 3... | 102078101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Crank rod unit sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, NH1612, ... | 738634007 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Foot rock shaft connecting pin sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 735071207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Upper shaft rear bushing | 671021005 | Not Available |

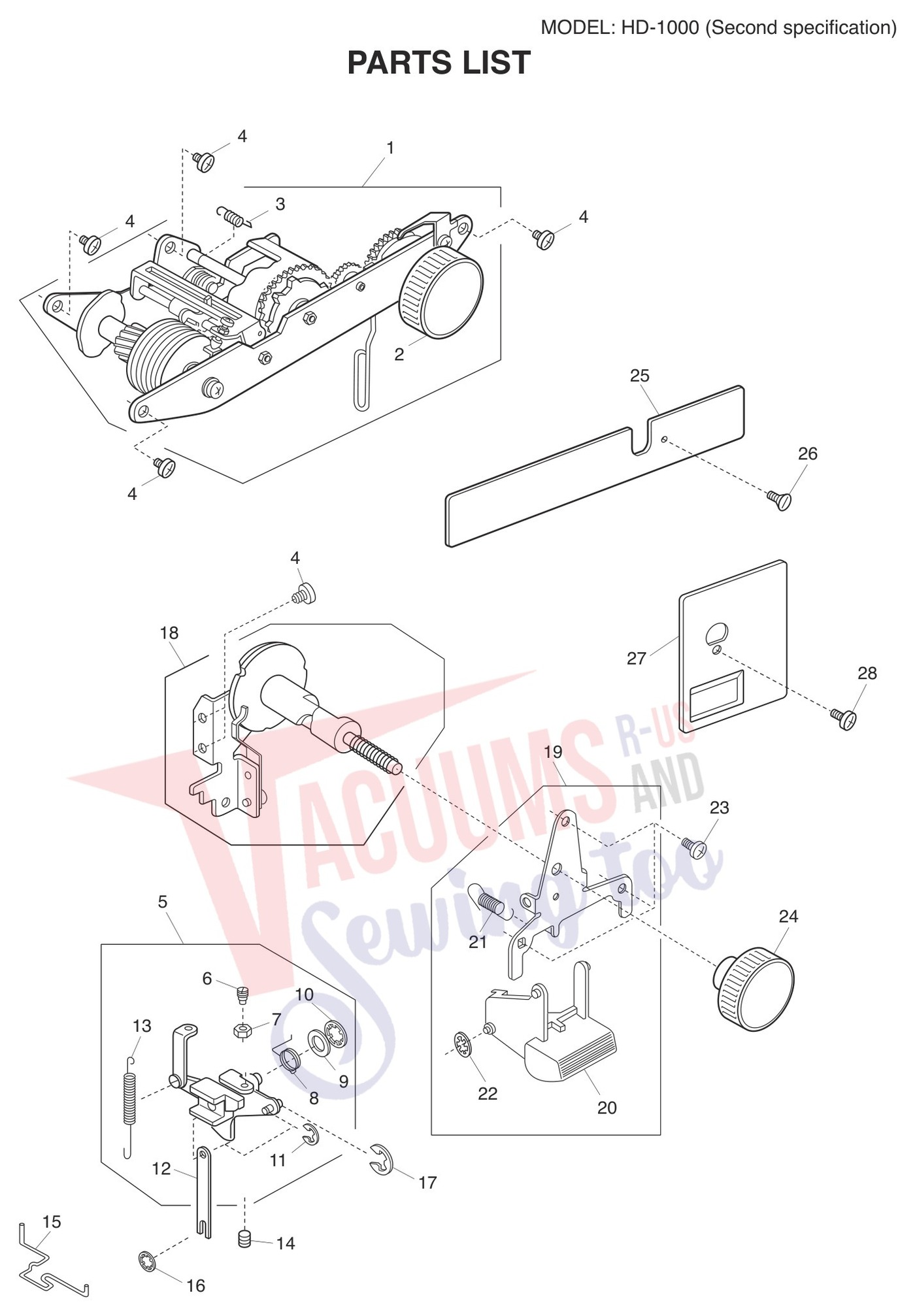

| # | Part image | Description | SKU | Price |
| 1 | | Zigzag mechanism (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731662058 | $65.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Pattern selector dial (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731663152 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Spring | 730092003 | Not Available |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Feed regulator (unit) sewing machine part or accessory For Janome Models: L-344, TB12 | 731645103 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Feed regulating body spring | 803134007 | Not Available |
| 9 |  | Plain washer sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039S... | 735073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Snap ring CS-6 sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P, 1600P-DB, ... | 000013800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 12 | | Reverse rod sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721012001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Feed Regulator Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 200... | 670100006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 15 |  | HOOK sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 381, ... | 730041007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SNAP RING 5D sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 | 000000309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed regulating cam (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731677104 | $15.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Reverse button (unit) sewing machine part or accessory For Janome Models: HD1000BE | 721606503 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Reverse button sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721014302 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 405, 415, 419S, 42... | 731033009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Feed dial (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731658121 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Ornamental plate sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721203A02 | $9.66Read more |
| 26 | | FLAT HEAD SET SCREW DISCONTINU sewing machine part or accessory | 000069214 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Feed front cover sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721017A02 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

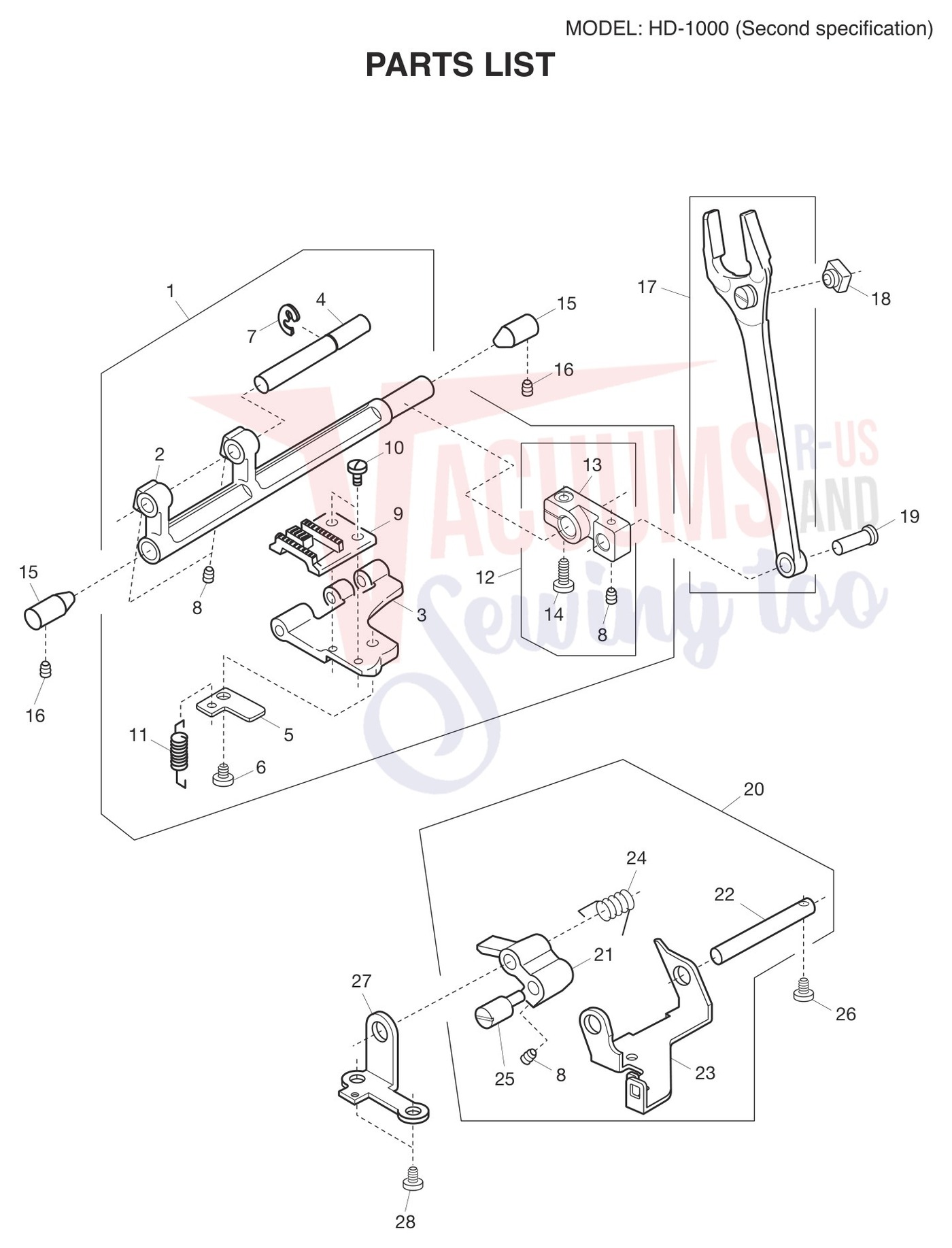

| 1 |  | FEED ROCK SHAFT COMP. UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 730611004 | $30.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Feed rock shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 730057006 | $6.60Read more |
| 3 |  | Feed bar sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 3... | 647066007 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Feed bar shaft sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &... | 647134007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Sliding plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 648019008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set screw (black) sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 41... | 102021202 | $0.60Read more |
| 7 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Feed dog sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S,... | 730184003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set screw sewing machine part or accessory For Janome Models: 380 & 381, 405, 415, 419S, 423S... | 730183002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed bar spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 ... | 672042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Feed rock shaft arm (unit) | 303637000 | Not Available |
| 13 | Not Available | Feed rock shaft arm | 303091006 | Not Available |
| 14 | | Setscrew 4x12 sewing machine part or accessory For Janome Models: 2003P, 625E, DE5018, DE5024, DE... | 000097200 | $0.60Read more |
| 15 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 17 | | Fork rod (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 303638001 | $10.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Feed Slide Block sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2... | 102141003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Feed rock shaft connecting pin sewing machine part or accessory For Janome Models: 2212, 2206, Ne... | 735071104 | $0.00Read more |
| 20 |  | FEED LIFTING ARM UNIT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360... | 730612005 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Feed lifting arm sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 738028013 | $3.00Read more |
| 22 | Not Available | Feed lifting arm spring | 735090109 | Not Available |
| 23 | Not Available | Drop feed selecting plate | 730059008 | Not Available |
| 24 |  | Drop feed selector spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 730061003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Eccentric pin sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, 415, 4... | 730063016 | $1.61Read more |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Feed lifting arm shaft holder | 730064006 | Not Available |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

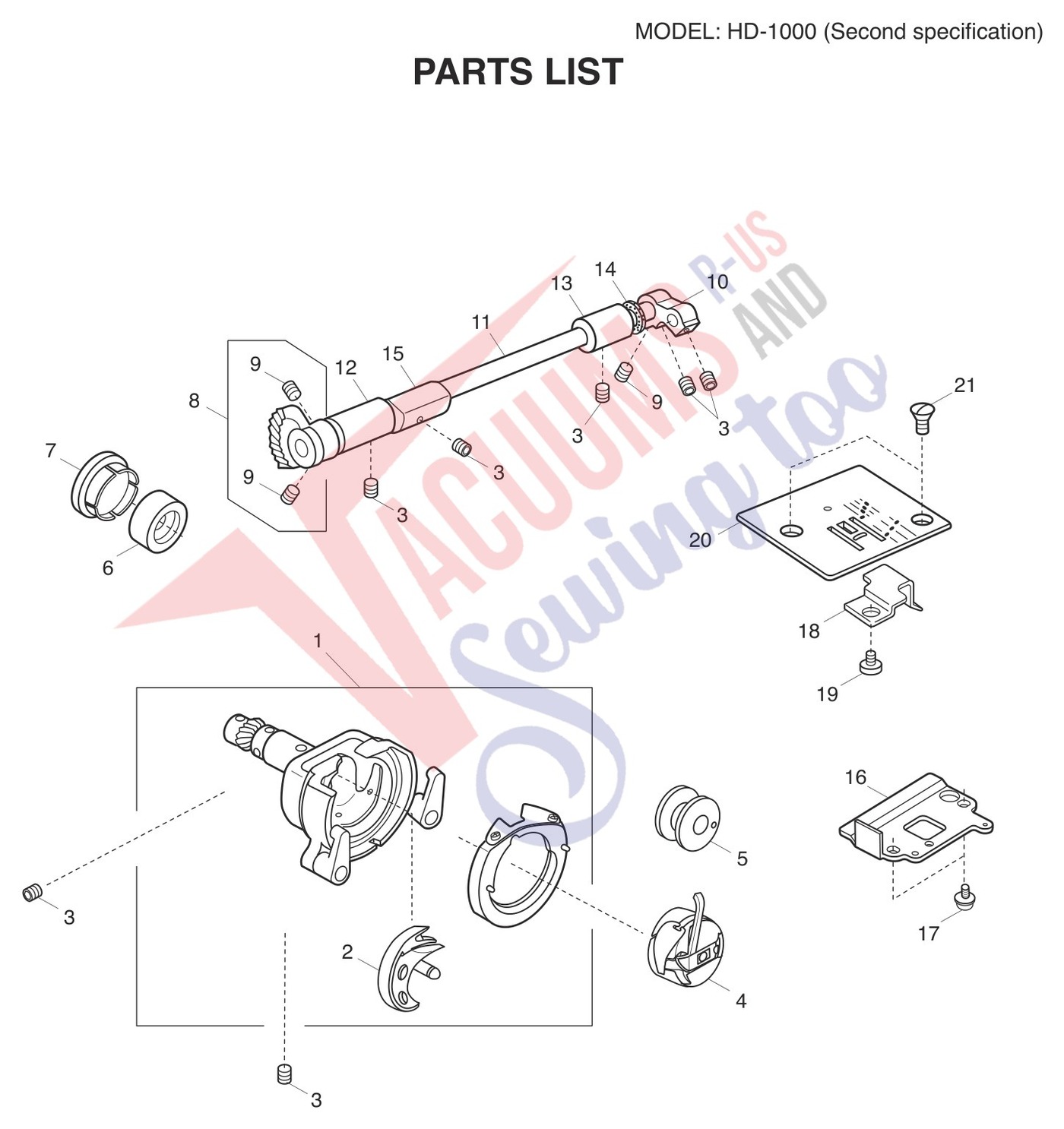

| 1 |  | Shuttle Race Body Unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 640603104 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Shuttle Hook sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S... | 532096007 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 4 |  | Bobbin Case/ Holder for Front Loading Machines sewing machine part or accessory For Janome Models... | 647515006 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 6 | | Cam shaft bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 38... | 640018003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Cap sewing machine part or accessory For Janome Models: HD1000BE | 626045603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Lower shaft gear sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 726616006 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 1... | 000110107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Lower shaft arm | 738023007 | Not Available |
| 11 | | Lower shaft sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 647142905 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Lower shaft bushing sewing machine part or accessory For Janome Models: 360, 380 & 381, 405, ... | 738024008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Lower shaft bushing (rear) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 640038009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed lifting cam sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380... | 647043008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Gear box rear cover | 730109004 | Not Available |
| 17 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Gear box upper lid sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 3... | 730107002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle Plate sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &am... | 730027007 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

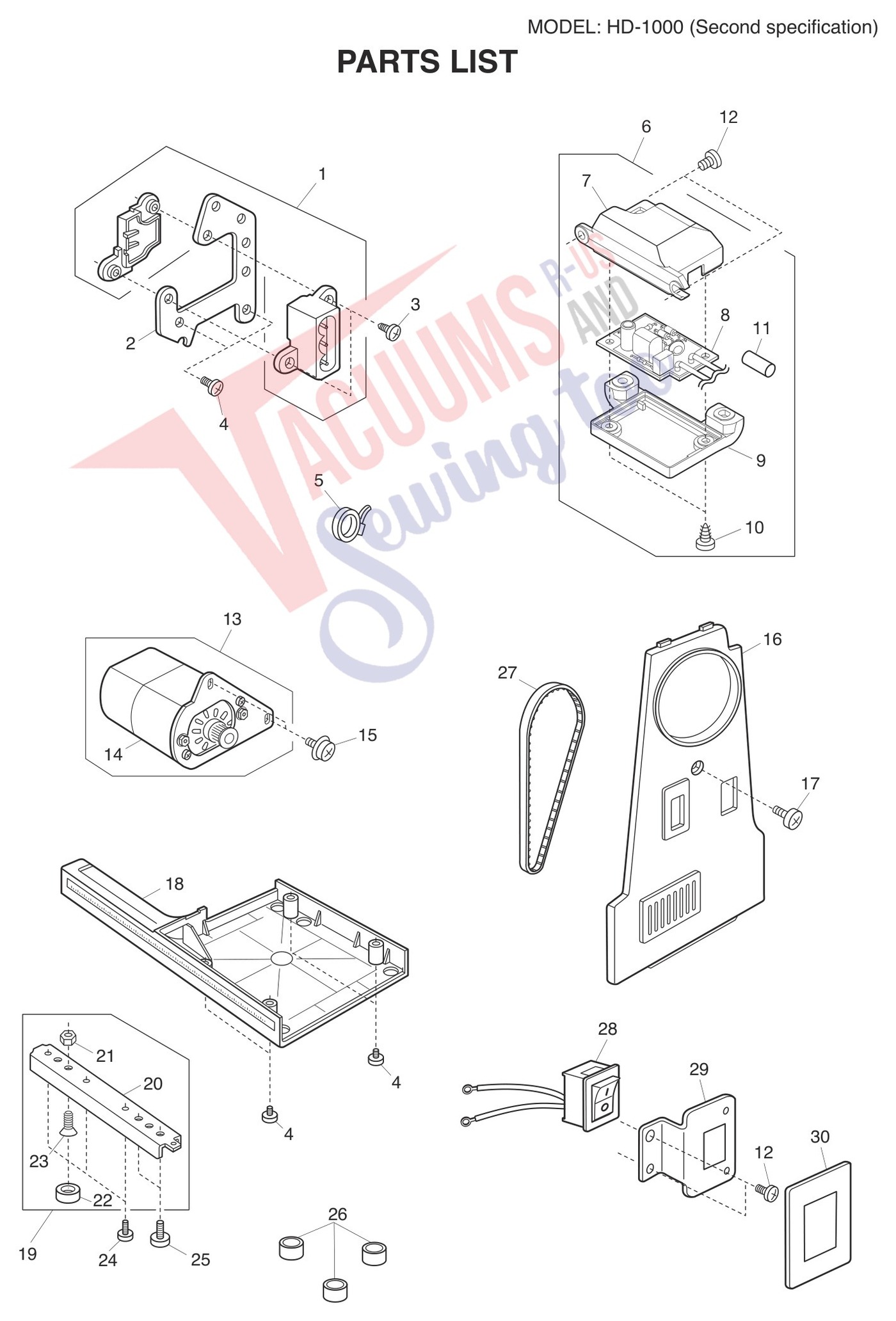

| 1 |  | Socket for Model 639 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 4612... | 731515000 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Machine socket set plate | 731380107 | Not Available |
| 3 |  | SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 000121400 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | C board case (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721624105 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Printed circuit board C case sewing machine part or accessory For Janome Models: 001CP3000P | 795181012 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Printed circuit board C (unit) sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 508512010 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | C board case cover sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 721204002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Tube sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 798065007 | $184.80Read more |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Motor assembly (unit) including bracket sewing machine part or accessory For Janome Models: HD100... | 721676009 | $78.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Belt cover sewing machine part or accessory For Janome Models: HD1000BE | 731161306 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Base sewing machine part or accessory For Janome Models: HD1000BE | 730010A01 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Arm leg (unit) | 731668009 | Not Available |
| 19 | | BRACKET FOR L-372 BASE sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 36... | 730008002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set screw 5x25 sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, MC... | 000097808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Timing belt sewing machine part or accessory For Janome Models: HD1000BE | 624093013 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | ON/OFF SWITCH ASSEMBLY UNIT sewing machine part or accessory For Janome Models: 4612TM, HARMONY 1... | 639511018 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Switch set plate sewing machine part or accessory For Janome Models: 4612TM, L-344, L-393, TB12 | 731379000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Indicator plate sewing machine part or accessory For Janome Models: 4612TM, L-344, TB12 | 731381005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

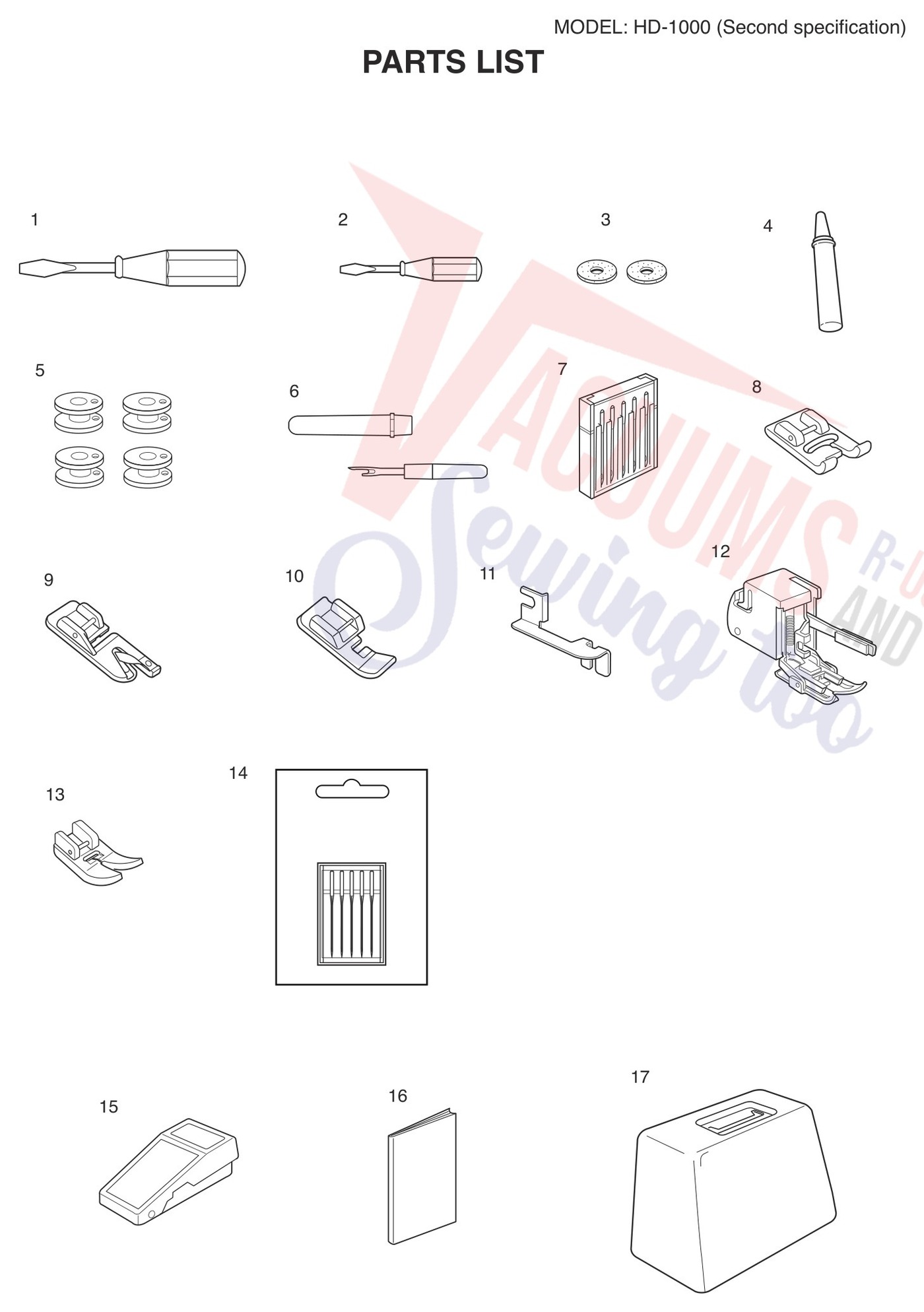

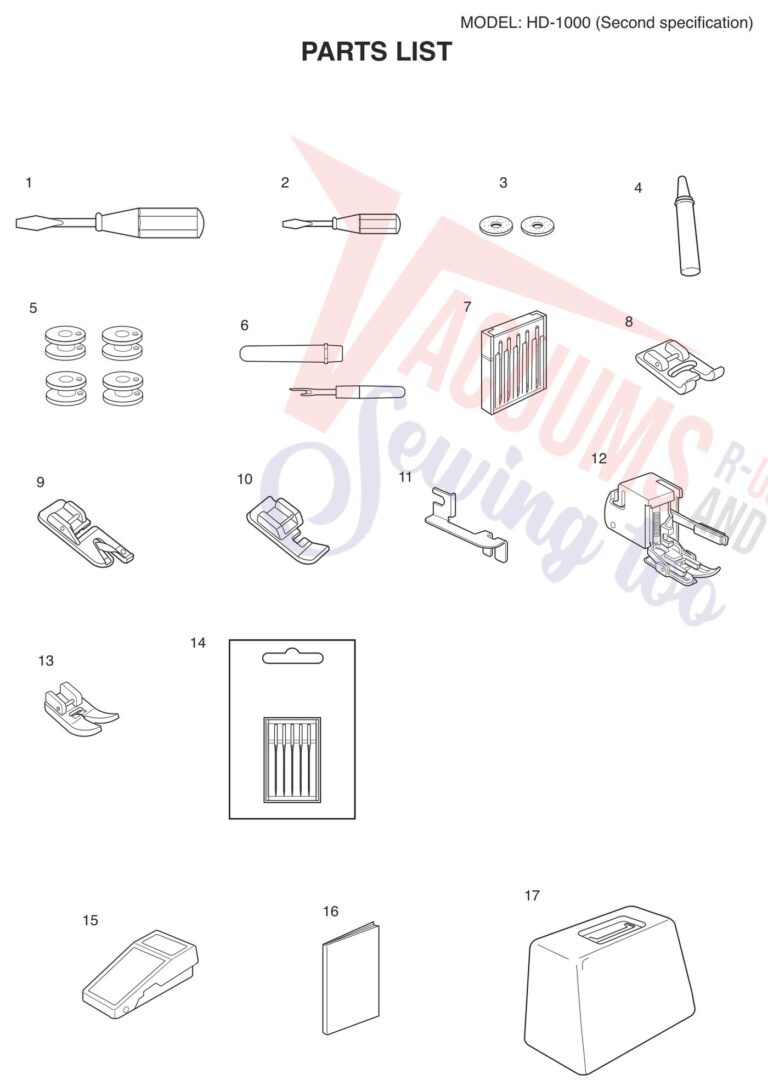

| 1 | Not Available | Large screw driver | 647802003 | Not Available |
| 2 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Oil sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1110DX, 360, 3... | 741814003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 6 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Buttonhole foot sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2118S, 21... | 737801015 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hemmer Foot (5mm) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA106, L108... | 743815000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Zipper Foot (front load) sewing machine part or accessory For Janome Models: HD-1000, JA104, JA10... | 611406002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | BLIND HEM GUIDE LEFT sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 380... | 674401002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Even feed foot sewing machine part or accessory For Janome Models: HD1000BE | 214509003 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Ultraglide foot sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 940250008 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Leather needle sewing machine part or accessory For Janome Models: HD1000BE | 731424001 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 16 | | Instruction manual sewing machine part or accessory For Janome Models: HD1000BE V2 SRV | 731801006 | $15.85Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Cover sewing machine part or accessory For Janome Models: HD1000BE | 465722204 | $35.20Read more |
Report errors on this page HERE
