Schematic and parts book for Janome DS3500 DS3500. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

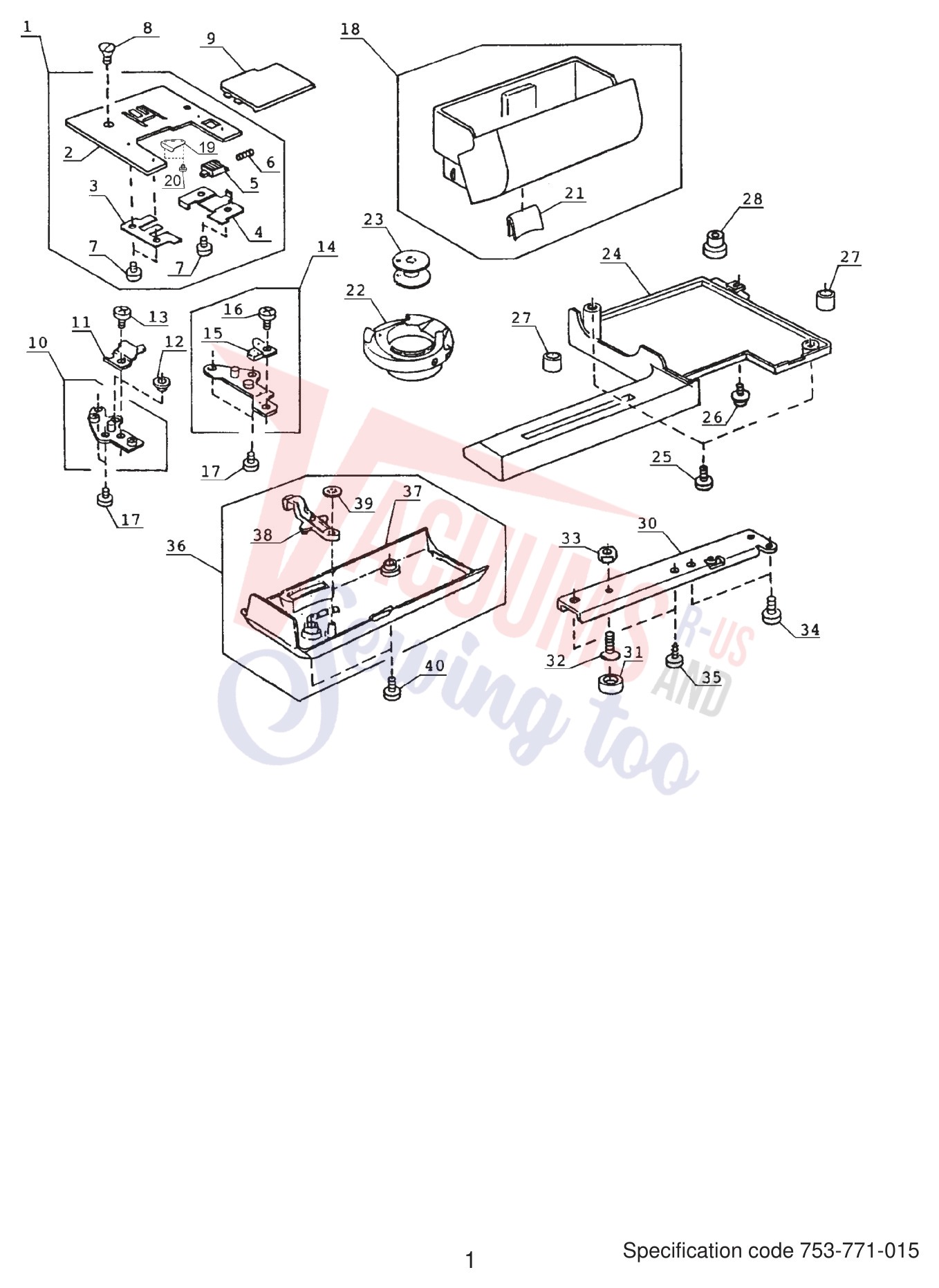

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate sewing machine part or accessory For Janome Models: 4618LE, 4623LE, DE5018, DE5024, ... | 754636102 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle plate sewing machine part or accessory For Janome Models: | 754052108 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Slide plate holder (left) sewing machine part or accessory For Janome Models: 4618LE | 825014008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle Plate (L) Support Unit | 650602001 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | BOBBIN HOLDER STOPPER (LEFT) sewing machine part or accessory For Janome Models: 4618LE, 4623LE, ... | 822011109 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Needle Plate Support Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 614... | 650603002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | + PAN TAP TIGHT SCREW 4X6-6 31 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 000107503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Extension Table (Accessory Box) sewing machine part or accessory For Janome Models: 4618LE, 4623L... | 753526002 | $19.80Read more |
| 19 | | Bobbin holder stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 659, 66... | 654078004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Extension table spring sewing machine part or accessory For Janome Models: HD3000 | 686010007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Base Cover Unit | 753003019 | Not Available |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cushion for MX 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, CE2... | 735003002 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Part Not Listed | BLANK | Not Available |
| 30 |  | Arm Sole for Model 3023 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 753002007 | $11.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, 659, CE2200, ... | 000097303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Nut sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DBX, 160... | 000061319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | Not Available | Set Screw 4mm x 12mm | 000075604 | Not Available |
| 36 |  | BED COVER UNIT 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS3... | 753601002 | $10.40Read more |
| 37 | | Bed cover sewing machine part or accessory For Janome Models: | 652005107 | $5.40Read more |
| 38 | | DROP LEVER 4123 4000 3123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 753005000 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

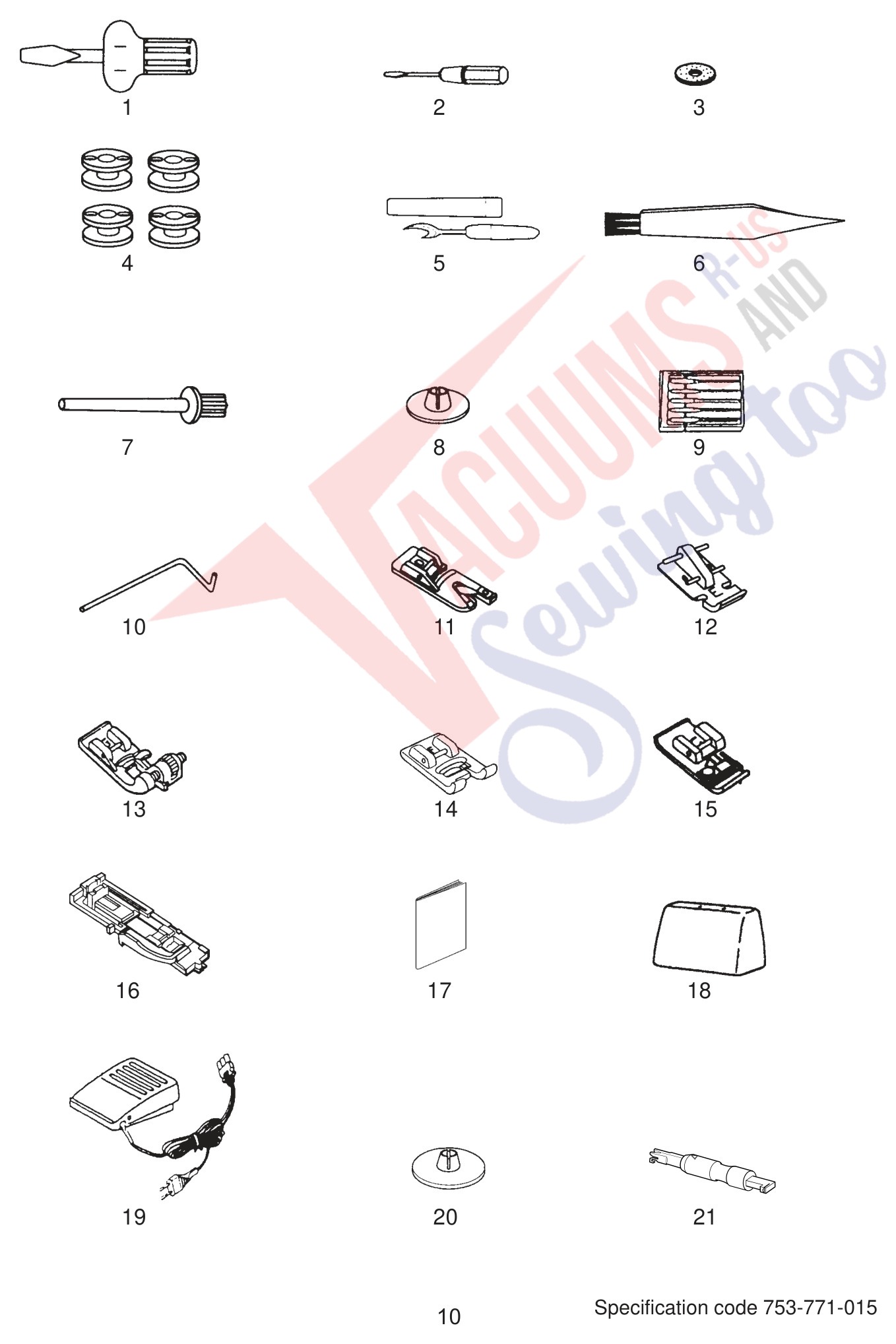

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 2 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 5 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 8 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Quilting guide sewing machine part or accessory For Janome Models: 4618LE | 804422002 | $2.80Read more |
| 11 |  | Rolled Hemmer Foot for Janome | 820809014 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Buttonhole Foot B - Transparent - High Shank & Low Shank 7mm also Low Shank 5mm sewing machin... | 820801016 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Overlock Foot C (top load) | 820804019 | Not Available |
| 16 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Instruction Book | 753800047 | $14.99Read more |
| 18 | No Image | Hard Resin Cover | 476701201 | $63.20Read more |
| 19 |  | Foot Controller with cord sewing machine part or accessory For Janome Models: 1110DX, 134D, 4618L... | 033870207 | $83.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Needle threader set sewing machine part or accessory For Janome Models: | 200276005 | $5.00Add to cart Special order: ships in 2 to 4 weeks |

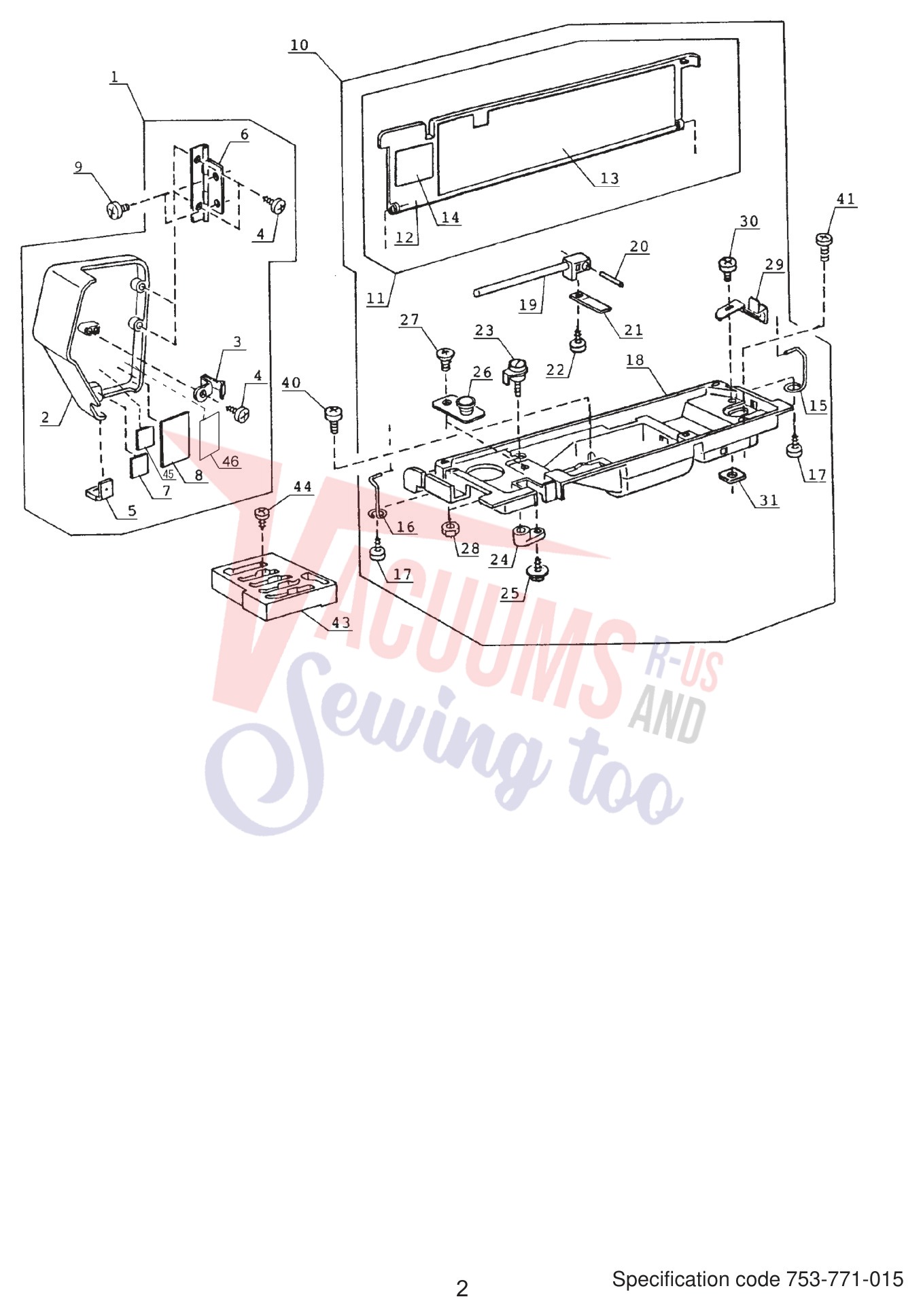

| # | Part image | Description | SKU | Price |
| 1 | No Image | Face Plate (Unit) | 753606122 | $22.40Read more |
| 2 | | Face plate sewing machine part or accessory For Janome Models: DS3500 SRV | 753017005 | $10.81Read more |
| 3 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS350... | 650025004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Blinding Head T Screw 3mm x 8mm | 000076502 | Not Available |
| 5 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Reflex sticker (1) sewing machine part or accessory For Janome Models: | 724024005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Sticker sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 2003P, 2041, 2041LX,... | 724025006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Top Cover Complete (Unit) | 753604016 | $28.20Read more |
| 11 | Not Available | Top cover (unit) | 753605017 | Not Available |
| 12 | | TOP COVER LID FOR 3015 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 753012000 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Flip-Top Sew Instruction Panel | 753259001 | $4.60Read more |
| 14 | Not Available | BH sticker | 753154004 | Not Available |
| 15 | | Hinge rod (right) sewing machine part or accessory For Janome Models: | 753014002 | $1.15Read more |
| 16 | | Hinge rod (left) sewing machine part or accessory For Janome Models: | 753129001 | $1.15Read more |
| 17 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | .TOP COVER BODY 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE... | 753015003 | $24.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SPOOL PIN sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 614... | 822016609 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | PIN 8000/7-7500/6000/4000/4123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822017002 | $1.00Read more |
| 21 |  | SPOOL PIN SPRING 8000 7500 700 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822018003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | + PAN HEAD TAP-8 7 6 4 3123 55 sewing machine part or accessory For Janome Models: 1100D, 1100D, ... | 000107318 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | TENSION GUIDE BRACKET:7500 700 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822021009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Setscrew 3x10 sewing machine part or accessory For Janome Models: 1110DX, 334, 4045LX, 4045NX, 41... | 000149002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | TOP COVER THREAD GUIDE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC... | 753502002 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Flat Head Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5... | 693093006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Nut sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147, 626... | 000062701 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 687022005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | BINDING HEAD SM.SCREW DISCONTI sewing machine part or accessory For Janome Models: 134D, 334, 434... | 000066727 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Square Nut sewing machine part or accessory For Janome Models: 134D, 334, 434D, 434DR, 4618LE, 46... | 630005006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Part Not Listed | BLANK | Not Available |
| 33 | Not Available | Part Not Listed | BLANK | Not Available |
| 34 | Not Available | Part Not Listed | BLANK | Not Available |
| 35 | Not Available | Part Not Listed | BLANK | Not Available |
| 36 | Not Available | Part Not Listed | BLANK | Not Available |
| 37 | Not Available | Part Not Listed | BLANK | Not Available |
| 38 | Not Available | Part Not Listed | BLANK | Not Available |
| 39 | Not Available | Part Not Listed | BLANK | Not Available |
| 40 | | SET SCREW 4X12 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 16... | 000170507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Foot container sewing machine part or accessory For Janome Models: | 686016302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | SET SCREW sewing machine part or accessory For Janome Models: MC4800, MC4800QC, MC4900, ML3023, M... | 000120214 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Sticker sewing machine part or accessory For Janome Models: 106, 108, 110, 2018S, 2041, 2041LX, 2... | 100411104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 |  | Lamp Socket Holder sewing machine part or accessory For Janome Models: 4618LE, 4623LE, DS3500, ML... | 753019007 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Supporter Stopper | 685042005 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Setscrew 4x35 sewing machine part or accessory For Janome Models: | 000104809 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | HAND SUPPORT PLATE 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, ... | 686059008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Part Not Listed | BLANK | Not Available |
| 9 | Not Available | Part Not Listed | BLANK | Not Available |
| 10 | Not Available | Part Not Listed | BLANK | Not Available |
| 11 | Not Available | Front base plate (unit) | 753625013 | Not Available |
| 12 | | Front base plate sewing machine part or accessory For Janome Models: | 753022014 | $3.91Read more |
| 13 | | Drag rod link (front) holder sewing machine part or accessory For Janome Models: | 753023015 | $1.15Read more |
| 14 | | Drag rod link (front) sewing machine part or accessory For Janome Models: | 753210000 | $0.92Read more |
| 15 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | BUTTONHOLE LEVER sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5018... | 753626003 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | BH lever (unit) sewing machine part or accessory For Janome Models: | 753629109 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | BH lever supporter sewing machine part or accessory For Janome Models: | 753247006 | $2.99Read more |
| 20 |  | Friction spring sewing machine part or accessory For Janome Models: HF2022, HF4045LX, HF5024, JD1... | 753027008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Part Not Listed | BLANK | Not Available |
| 22 |  | Setscrew 3 x 3.5 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 525S, 625E, ... | 652203004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SPRING PIN FOR 4123 3123 sewing machine part or accessory For Janome Models: 2041, 2041LX, 2041NX... | 000023009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | BH lever adjusting plate sewing machine part or accessory For Janome Models: 4618LE | 753029011 | $0.69Read more |
| 25 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | ARM THREAD GUIDE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 52... | 652137006 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Thread Tension Dial Unit for MX 3123, ML3023 and MS3015 sewing machine part or accessory For Jano... | 753503003 | $27.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | CHECK SPRING CUSHION sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS... | 650043008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Check Spring sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS3500, ML... | 652038006 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | WASHER sewing machine part or accessory | 652039007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | THREAD GUIDE sewing machine part or accessory | 652037005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | SET SCREW 3.5X10 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, D... | 000104304 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | HEXAGON NUIT 3-1-5.5 7500 6 31 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 000060857 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

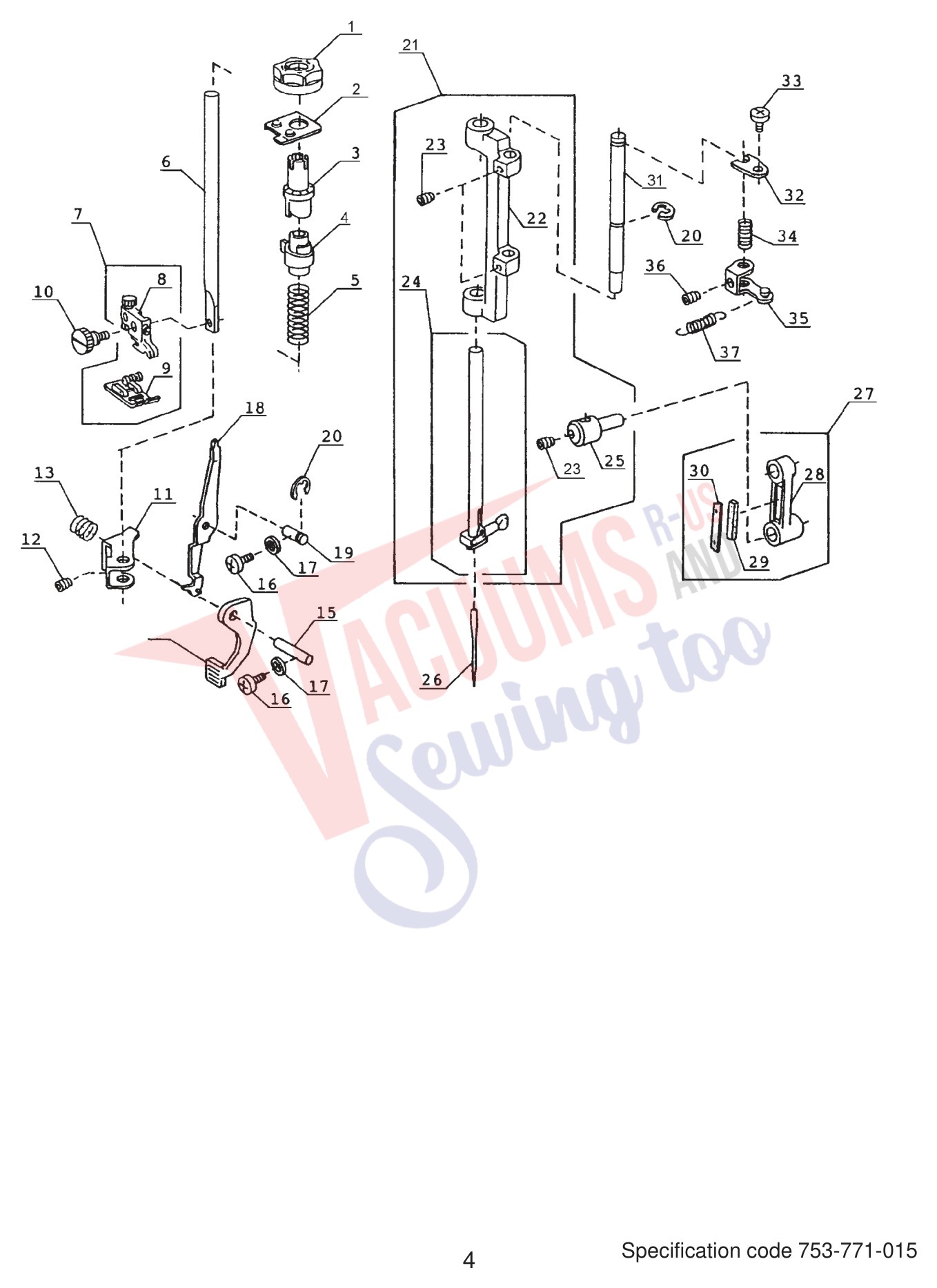

| # | Part image | Description | SKU | Price |
| 1 |  | Presser dial sewing machine part or accessory For Janome Models: | 822065201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | CAM SUPPORTER 7500 7000 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, ... | 824009007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | PRESSER ADJUSTING CAM(1)7500 7 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 686027007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | PRESSER ADJUSTING CAM(2)7 7500 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 686028008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | PRESSER BAR SPRING | 815023009 | Not Available |
| 6 |  | Presser Bar for Memory Craft 6000, 5500 and 5001 sewing machine part or accessory For Janome Mode... | 102801008 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Zig Zag Foot A (top load 7mm) sewing machine part or accessory For Janome Models: MC11000 Special... | 825510032 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Genuine Janome/Elna Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC, 4048, 8... | 660806008 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Presser foot (unit) sewing machine part or accessory For Janome Models: | 825509038 | $20.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Thumb Screw sewing machine part or accessory For Janome Models: 134D, 2018S, 203, 2041, 2041LX, 2... | 763048006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PRESSER BAR BRACKET 7500 5500 sewing machine part or accessory For Janome Models: 4618LE, 4623LE,... | 686074009 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | PRESSER FOOT LIFTER 639 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 652145007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Thread tension release lever sewing machine part or accessory For Janome Models: | 652146008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Thread tension release lvr pin sewing machine part or accessory For Models: , MC8900 Horizon , ... | 652042003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle Bar Supporter Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, COM... | 686611004 | $19.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle Bar Supporter sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521... | 650038000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | NEEDLE BAR UNIT 7500 6000 5500 | 822658XXX | Not Available |
| 25 | Not Available | NEEDLE BAR CONN. STUD 3123 | 650100004 | Not Available |
| 26 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Genuine Janome/Elna NEEDLE BAR CRANK ROD 3123 For: 4618LE, 4623LE, COMBI-DX502, DS3500, DX2015,... | 686612005 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Needle Bar Crank Rod | 625226009 | Not Available |
| 29 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | NEEDLE BAR SUPPORTER SHAFT sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 50... | 650033005 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | SUPPORTER SHAFT SET PLATE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509... | 650034006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Needle Bar Supporter Shaft Spring sewing machine part or accessory For Janome Models: 4618LE, 462... | 650036008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | ZIGZAG WIDTH CRANK sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, ... | 650035007 | $1.20Read more |
| 36 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Needle Bar Supporter Spring sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 686085003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

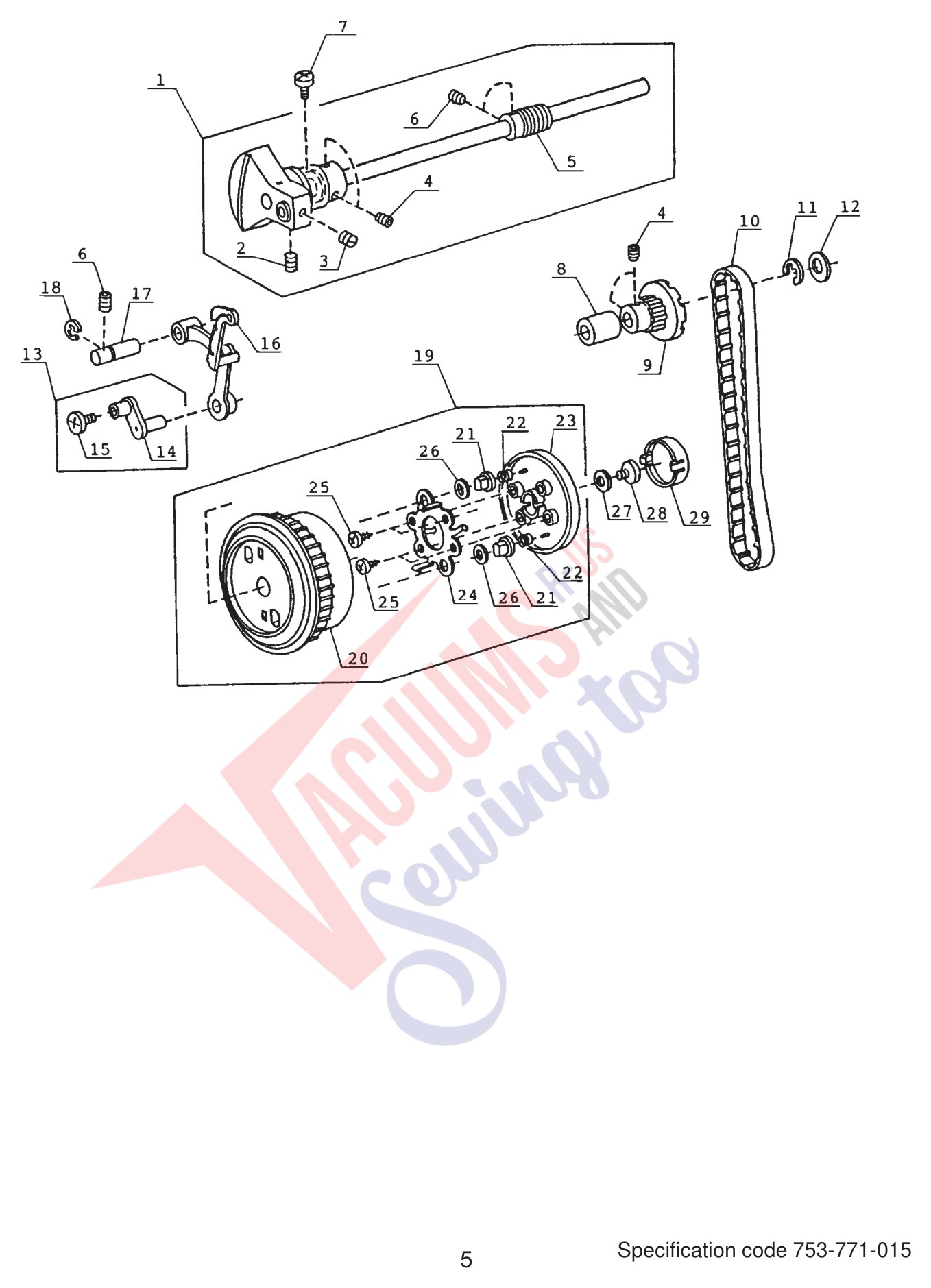

| 1 | | UPPER SHAFT UNIT 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, D... | 686623009 | $24.20Read more |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | PRESSER BRACKET SET SCREW sewing machine part or accessory For Janome Models: 104, 106, 108, 110,... | 102063000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 5 | | WORM GEAR sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 614... | 650060001 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW 5X10 DISCONTINUED sewing machine part or accessory For Janome Models: 104, 106, 108, 11... | 000101301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 9 |  | Upper Shaft Timing Pulley (Gear) sewing machine part or accessory For Janome Models: 4618LE, 4623... | 650063004 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | WASHER THRUST FT 100 MC SERI sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 000036706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle bar crank pin sewing machine part or accessory 652143005 Needle bar crank pin | 652143005 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle Bar Crank Pin Knob | 647139002 | $0.40Read more |
| 16 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | BALANCE HAND WHEEL 3023 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE,... | 650609503 | $20.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Handwheel sewing machine part or accessory For Janome Models: | 650064500 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | CLUTCH PIN 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, 80... | 650065006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | CLUTCH PIN SPRING 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 650066007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Clutch knob sewing machine part or accessory For Models: , Necchi FB12 | 650067503 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | CLUTCH SPRING 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147,... | 650068009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | +PAN TAP TIGHT SCREW 3X8-6 312 sewing machine part or accessory For Janome Models: 2003P, 2018S, ... | 000107307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | WASHER 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, 808A, ... | 650174009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | CAM SHAFT SET SCREW LID SCREW sewing machine part or accessory For Janome Models: 4618LE, 4623LE,... | 810346006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Clutch Cap sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 4618LE, 4623... | 650070509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

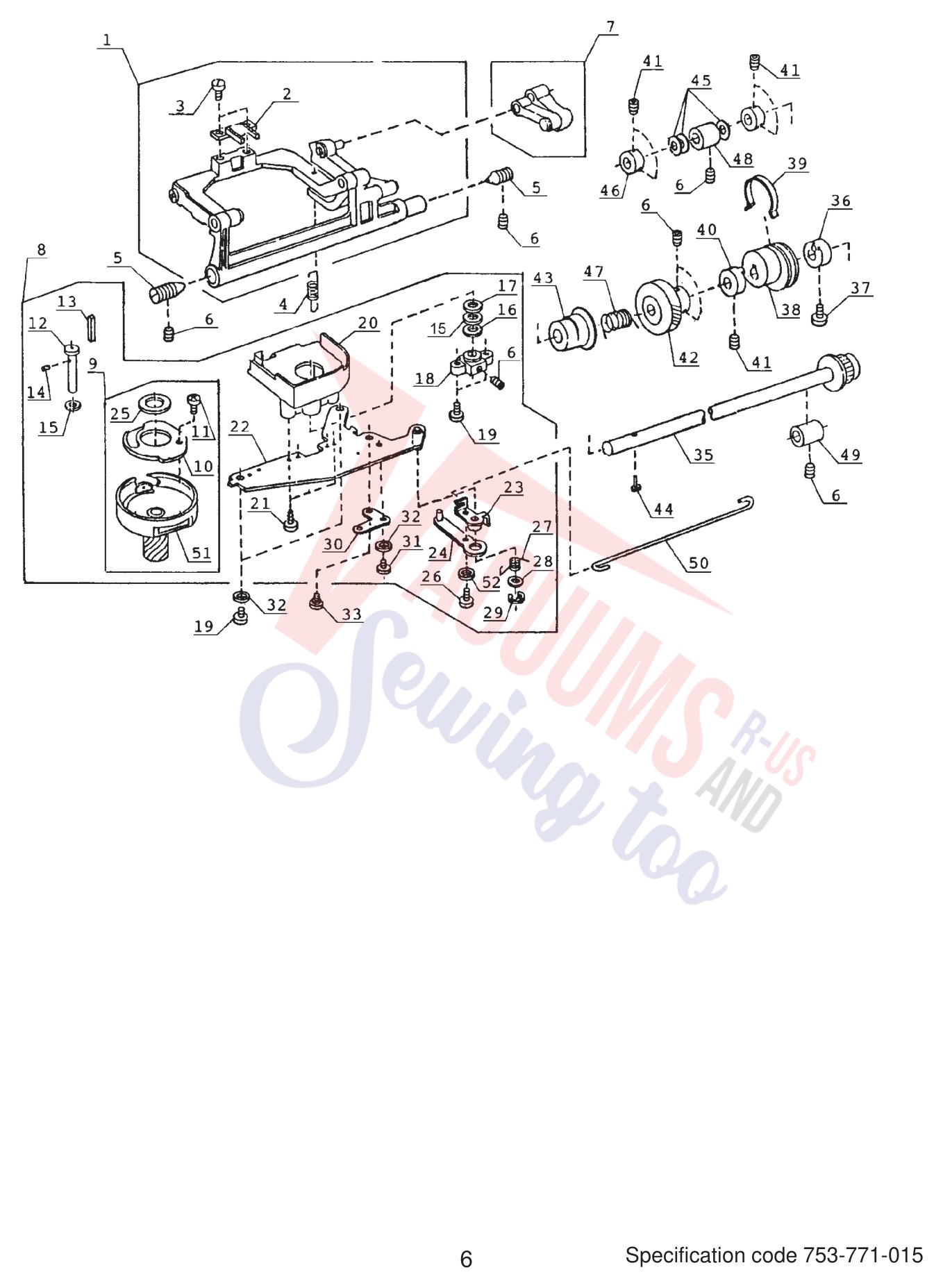

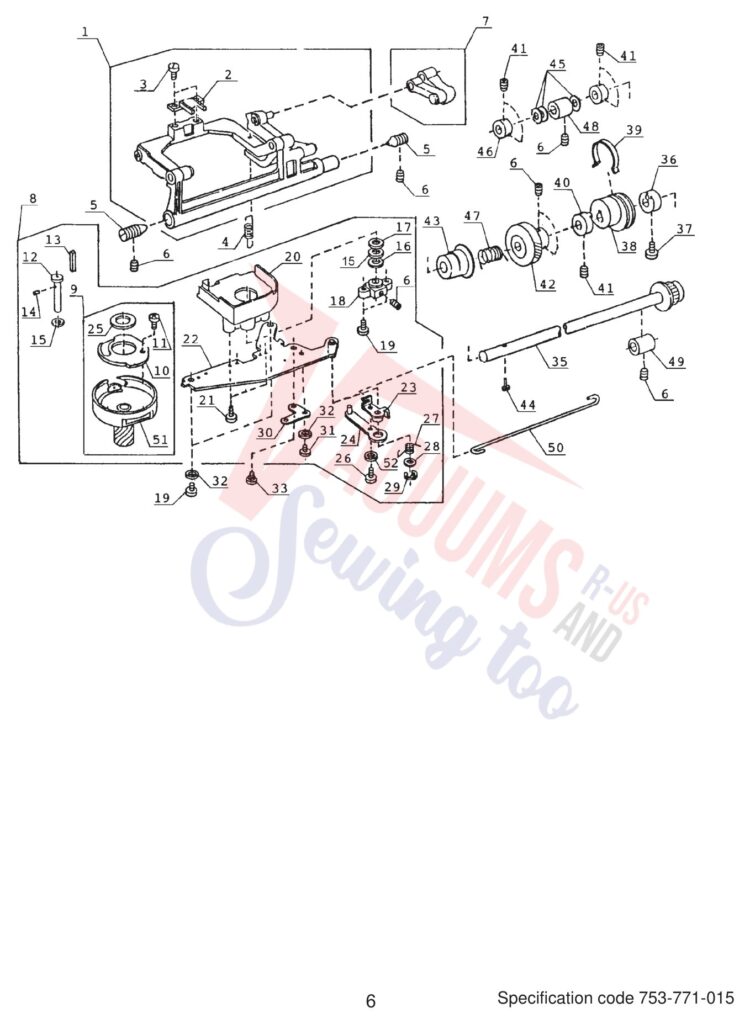

| 1 | | FEED SHAFT UNIT sewing machine part or accessory For Janome Models: 4618LE, 4623LE, DE5018, DE502... | 751640100 | $29.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4618LE... | 840005003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW sewing machine part or accessory For Janome Models: 4618LE, 6147, CE2200, COMBI-DX502, ... | 614025002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hook complete (unit) sewing machine part or accessory For Janome Models: 4618LE | 650614017 | $42.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Pre-owned Hook Unit for Janome PN 652623004 | 652623004 | $57.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Hook Race Bottom Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/... | 627191000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Hook gear cover sewing machine part or accessory For Janome Models: | 650095005 | $1.61Read more |
| 21 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Hook base plate sewing machine part or accessory For Janome Models: | 650096006 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Feed Transforming Crank | 650097007 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Feed Shift Plate | 650098008 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | FEED SHIFT SPRING 4123 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 650099009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Washer sewing machine part or accessory For Janome Models: | 650023002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 30 | | Set plate sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 614... | 650171006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Hinge screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 6... | 650172007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Part Not Listed | BLANK | Not Available |
| 35 |  | LOWER SHAFT UNIT 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 61... | 686613006 | $36.40Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | FEED CAM RING sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC,... | 650074008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Tapping screw 3x12S sewing machine part or accessory For Models: , Necchi TM8 | 000121606 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Feed Cam sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147... | 625120105 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | SPRING sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147, ... | 627207000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | FEED CAM RING 4123 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147... | 625118007 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | Feed Shift Rod | 650101005 | Not Available |
| # | Part image | Description | SKU | Price |

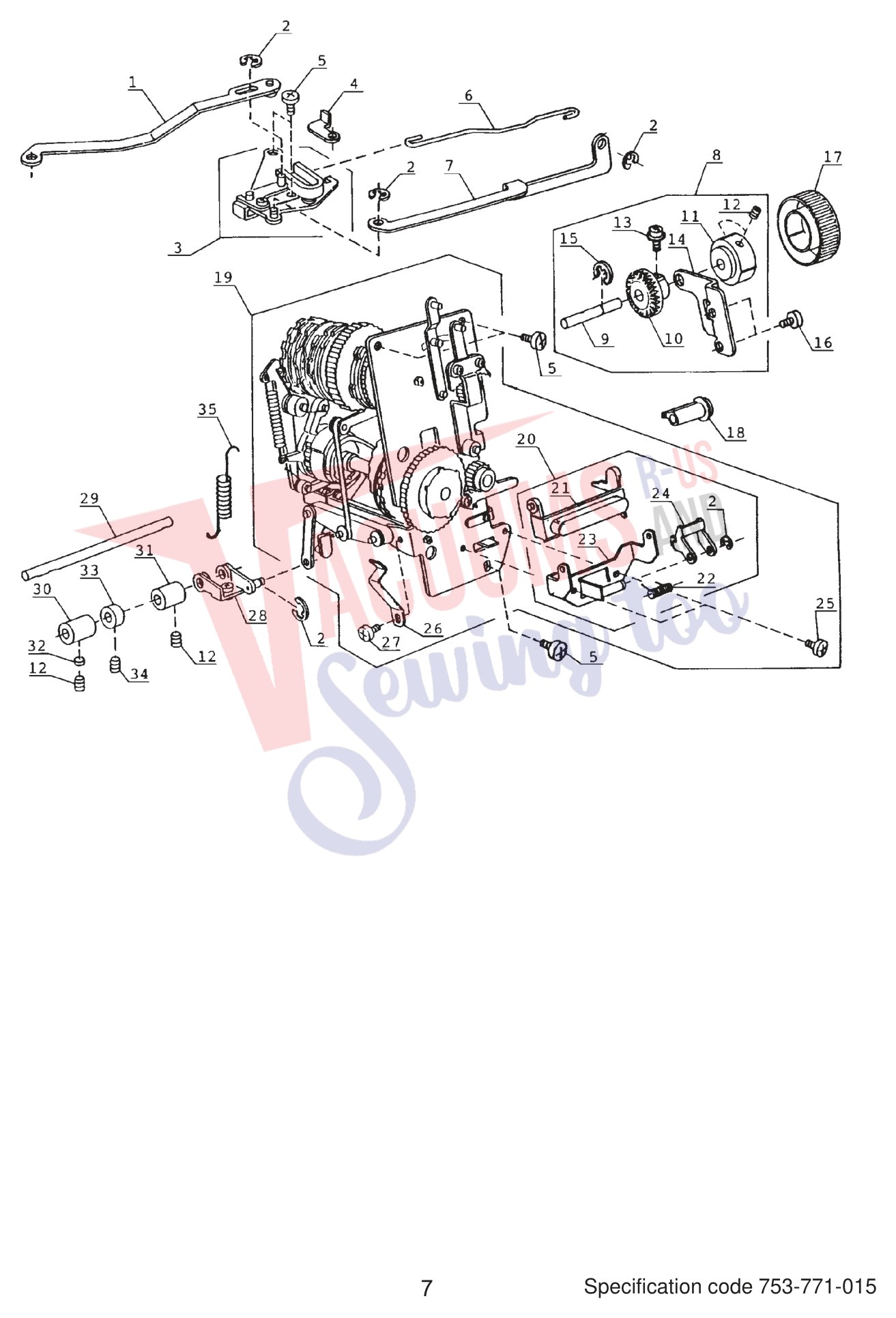

| 1 |  | ZZ WIDTH FRONT ROD sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE50... | 650156005 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 3 | | ZIGZAG ARM UNIT sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5018,... | 686618104 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5018, DE5024,... | 688003003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | ZZ WIDTH ROD 2018E 3123 sewing machine part or accessory For Janome Models: 4618LE, DE5018, DE502... | 650155004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ZZ WIDTH ADJUSTING ROD 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6... | 753084003 | $2.53Read more |
| 8 | | PATTERN SELECTOR DIALSHAFT 312 sewing machine part or accessory For Janome Models: 4618LE, DS3500... | 753647000 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Pattern selector dial shaft sewing machine part or accessory For Janome Models: | 753203114 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Dial gear sewing machine part or accessory For Janome Models: | 753082104 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Pattern selector dial shaft sewing machine part or accessory For Janome Models: | 753202009 | $3.20Read more |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Dial supporter sewing machine part or accessory For Janome Models: 4618LE | 753083002 | $1.38Read more |
| 15 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Pattern Selector Dial | 753201008 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | SS CONTROL DIAL sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, 659, DE... | 650162509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Cam block (unit) sewing machine part or accessory For Janome Models: | 753623000 | $127.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | REVERSE BUTTON 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS3... | 753611005 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Reverse button sewing machine part or accessory For Janome Models: HD3000 | 753047004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Reverse button spring sewing machine part or accessory For Janome Models: | 753147005 | $0.46Read more |
| 23 | | Reverse button supporter sewing machine part or accessory For Janome Models: | 753046003 | $2.99Read more |
| 24 | | Reverse arm (2) sewing machine part or accessory For Janome Models: | 753150001 | $1.61Read more |
| 25 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Pattern selector index spring sewing machine part or accessory For Janome Models: | 753061004 | $1.15Read more |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Feed regulating arm (unit) sewing machine part or accessory For Janome Models: | 652607002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | FEED REG. SHAFT 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE... | 650091001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | REGULATOR SPRING 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, D... | 753033007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

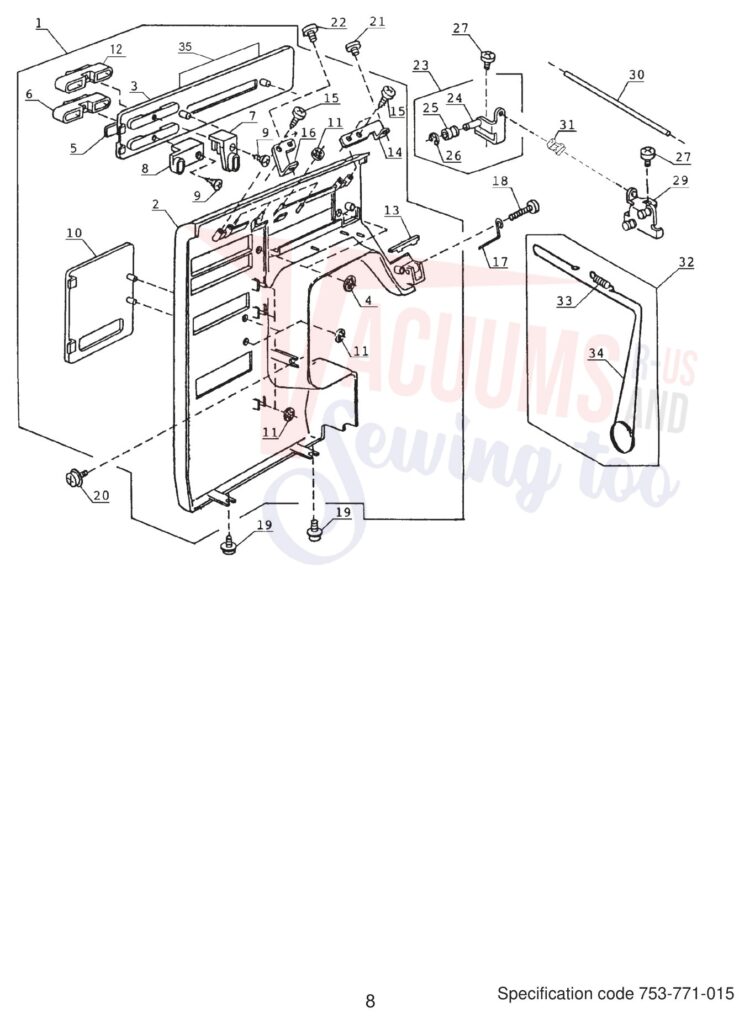

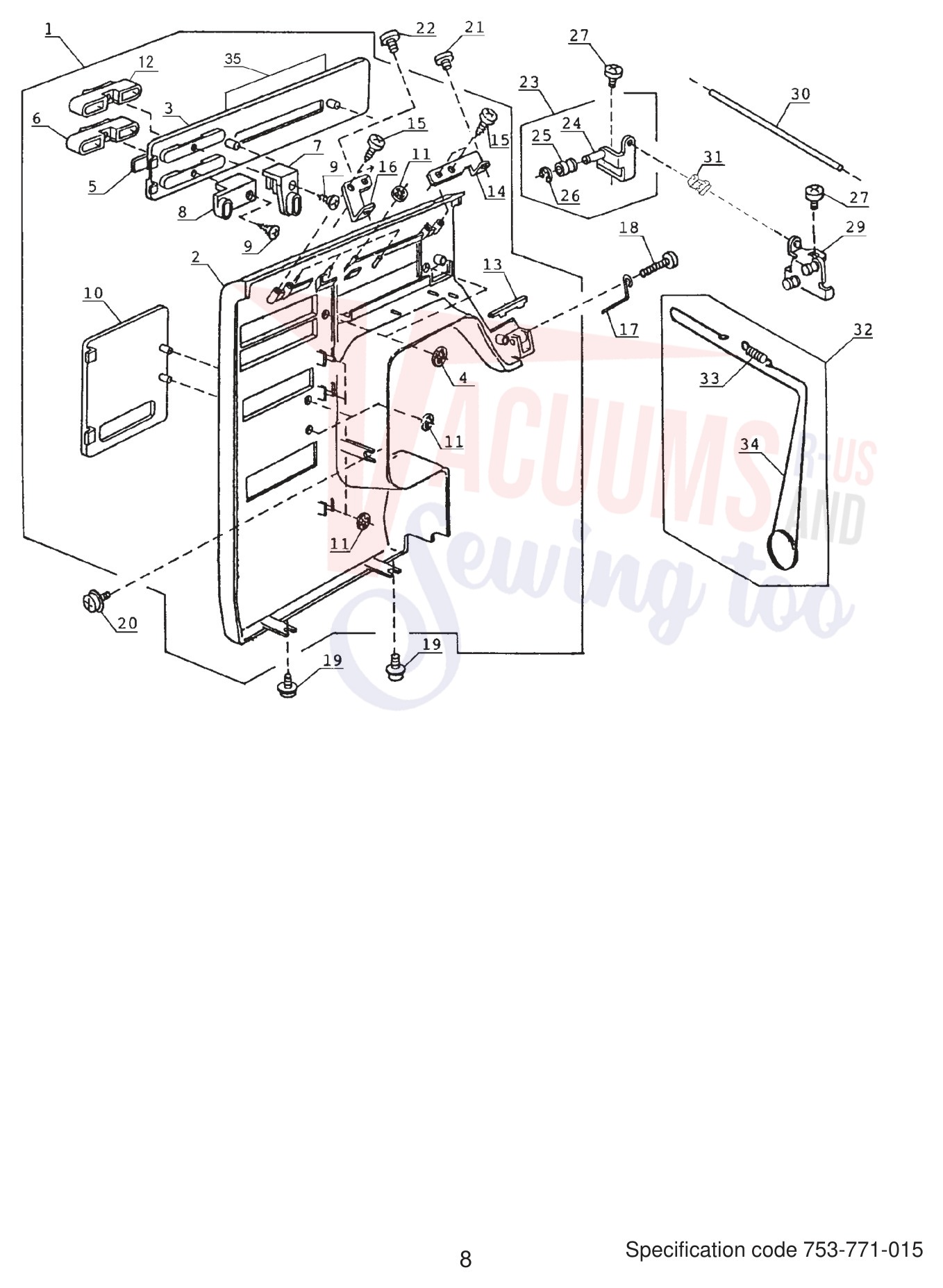

| 1 | No Image | Front Panel (Unit) | 753660054 | $140.20Read more |
| 2 | | Front cover sewing machine part or accessory For Janome Models: | 753100707 | $14.49Read more |
| 3 | Not Available | Plate | 753225617 | Not Available |
| 4 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Band plate sewing machine part or accessory For Janome Models: 4618LE | 753158009 | $8.20Read more |
| 6 | Not Available | Slide button (stitch width) | 753227516 | Not Available |
| 7 | | ZZ ADJUSTING SLIDER MX3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, DS... | 753104011 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | FEED ADJUSTING SLIDER FOR 4618 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 753105012 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Setscrew 2.3x5 sewing machine part or accessory For Janome Models: | 000163105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | R button frame | 753156971 | Not Available |
| 11 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Cord (unit) sewing machine part or accessory For Janome Models: | 753529005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Thread supporting plate sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, ... | 753125007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Front cover base plate (front) sewing machine part or accessory For Janome Models: | 753108004 | $1.38Read more |
| 15 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Front cover base plate (rear) sewing machine part or accessory For Janome Models: | 753109005 | $0.92Read more |
| 17 | | Arm thread guide sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 52... | 753126008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Setscrew 3.5x30 | 000093608 | Not Available |
| 19 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Indicator guide holdr frnt unt sewing machine part or accessory For Janome Models: | 753616103 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Indicator guide holder (front) sewing machine part or accessory For Janome Models: | 753209006 | $1.20Read more |
| 25 | | Guide roller sewing machine part or accessory For Janome Models: | 753208005 | $0.80Read more |
| 26 | | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Part Not Listed | BLANK | Not Available |
| 29 |  | INDICATOR GUIDE HOLDER (REAR) sewing machine part or accessory For Janome Models: 4618LE, 4623LE,... | 753111000 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Indicator guide sewing machine part or accessory For Janome Models: | 753112104 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | FLEXIBLE CIRCUIT BOARD (UNIT) sewing machine part or accessory For Janome Models: 4618LE, DS3500,... | 753512005 | $21.40Read more |
| 32 |  | Indicator String Unit for Models 3123 and 3023 sewing machine part or accessory For Janome Models... | 753618002 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Insicator string spring sewing machine part or accessory For Janome Models: | 818033001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Indicator string | 753113002 | Not Available |
| 35 | No Image | Ornamental Plate | 753226607 | $26.20Read more |
| 36 | Not Available | Slide button (stitch length) | 753227527 | Not Available |

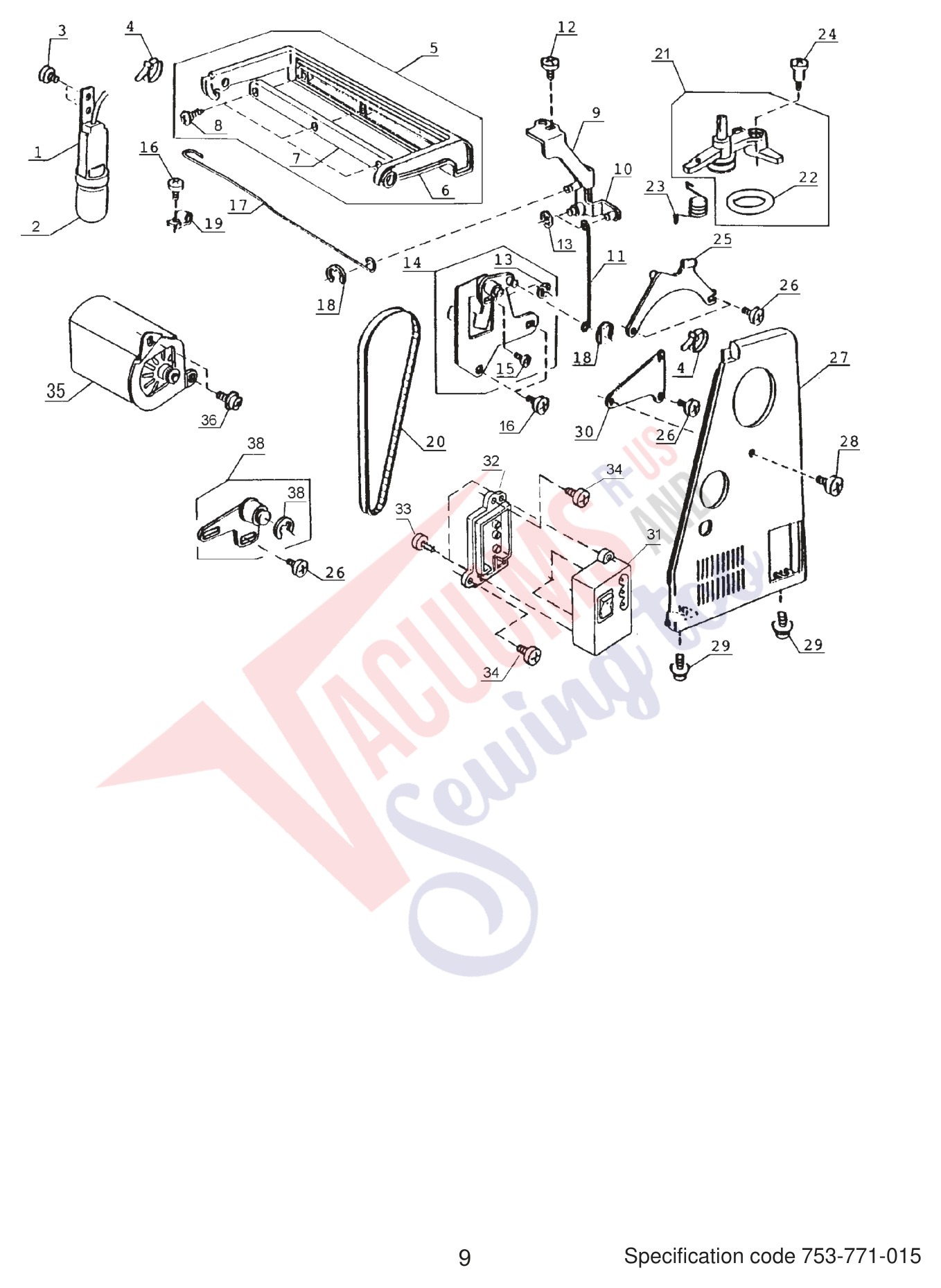

| # | Part image | Description | SKU | Price |
| 1 | | Lamp socket (unit) sewing machine part or accessory For Janome Models: 4618LE | 655690403 | $5.00Read more |
| 2 |  | Threaded Light Bulb sewing machine part or accessory For Janome Models: 108, 1117S, 1200D, 203, 2... | 000008606 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Handle Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE5018, DE5... | 753620007 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Carrying handle sewing machine part or accessory For Janome Models: | 753121003 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Carrying handle plate sewing machine part or accessory For Janome Models: | 753122004 | $2.60Read more |
| 8 | | Flat screw 3 x 8 (B) sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DE... | 000120502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | DRAG ROD LINK HOLDER PLATE 312 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 753117006 | $6.44Read more |
| 10 | | DRAG ROD LINK 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS35... | 753118007 | $3.00Read more |
| 11 | | BH DRAG ROD (2)3123 sewing machine part or accessory For Janome Models: 4618LE, DS3500, ML3023 | 753099001 | $0.80Read more |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | STOP UP LEVER (UNIT) 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 614... | 753614008 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | BH DRAG ROD 3123R 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, ... | 753098000 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 19 |  | Nylon Clip Acc-2 | 000188405 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Motor Belt sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX... | 650166008 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Bobbin Winder sewing machine part or accessory For Janome Models: 4618LE, CE2200, DE5018, DE5024,... | 653508005 | $19.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Bobbin Winder Tire Ring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 3... | 365076007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | HINGE SCREW 5500 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, C... | 686063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | CARRYING HANDLE SUPPORTERPLATE sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 753120002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Belt Cover for Model MX3123 sewing machine part or accessory For Janome Models: 4618LE, 6147, DS3... | 753115004 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | SET SCREW 4 X 16-3123 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-... | 000101806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | BELT COVER SETTING PLATE 3123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE,... | 753116005 | $2.60Read more |
| 31 |  | Machine Socket S-3015 sewing machine part or accessory Machine Socket S-3015 | 687584103 | $49.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | MACHINE SOCKET COVER FOR 2014 sewing machine part or accessory For Janome Models: 4618LE, DS3500,... | 686072007 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | SET SCR sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 & 38... | 000101208 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Dc Motor Unit 120V | M1050 | $74.80Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Idler Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 61... | 753619003 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
