Schematic and parts book for Janome DC5100 DC5100. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

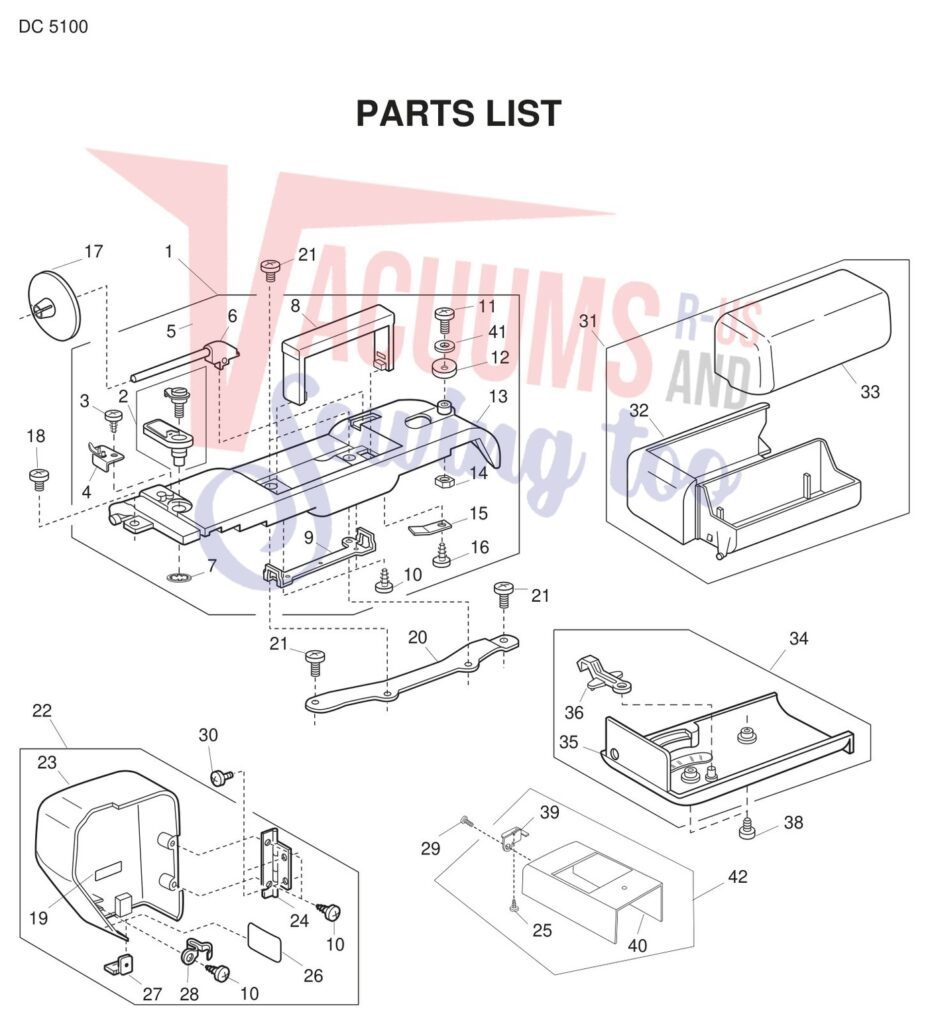

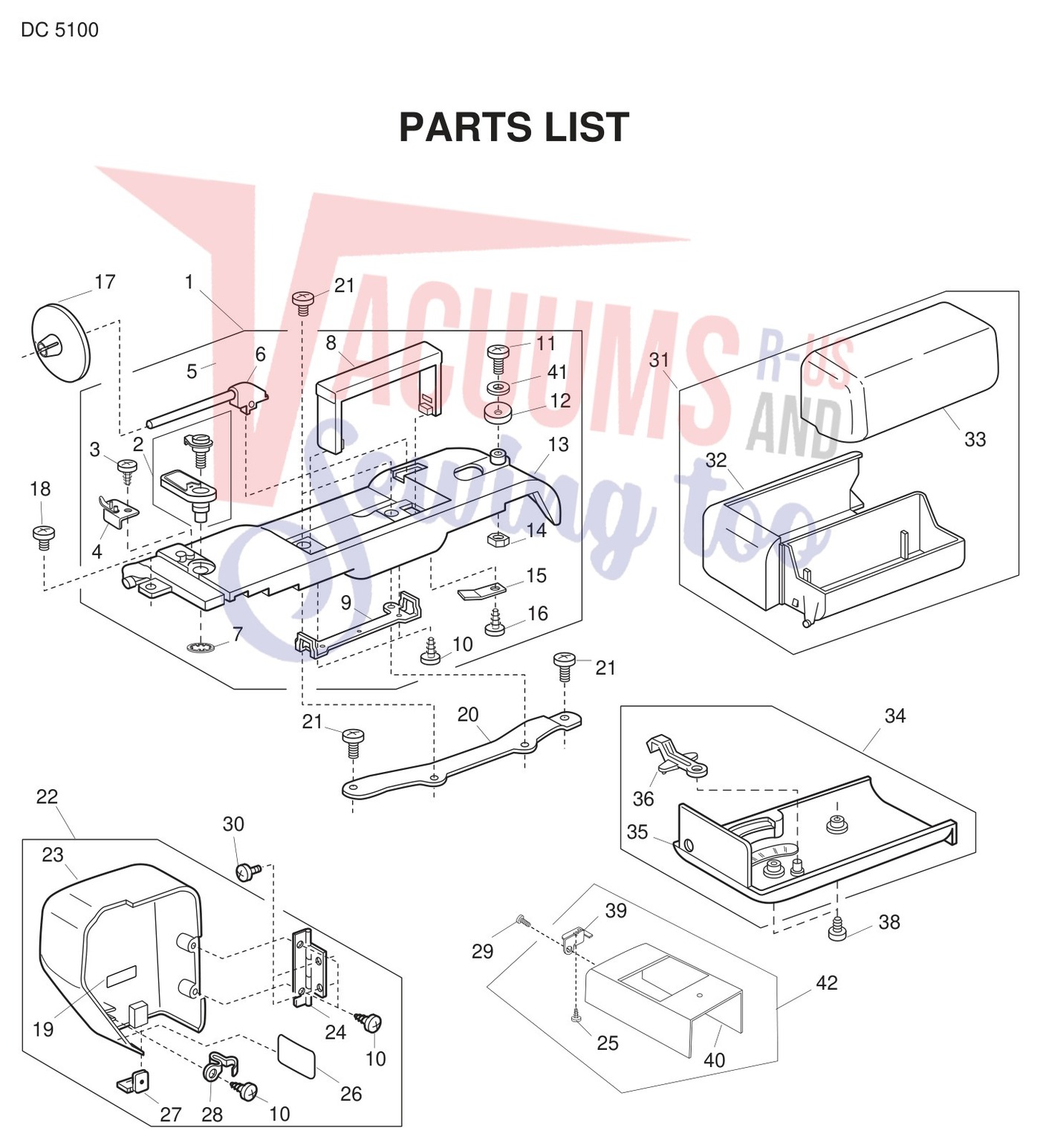

| # | Part image | Description | SKU | Price |
| 1 |  | Top cover (unit) sewing machine part or accessory For Janome Models: DC5100 | 828603205 | $22.00Read more |
| 2 |  | Thread guide sewing machine part or accessory For Janome Models: 2040, 3022, 509, 521, 525S, 625E... | 650503702 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Top cover thread guide unit sewing machine part or accessory For Janome Models: 2040, 3022, 4045L... | 827503005 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | PIN 8000/7-7500/6000/4000/4123 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822017002 | $1.00Read more |
| 6 |  | Spool Pin for MC4000 sewing machine part or accessory For Janome Models: 659, HF3000, MC2400, MC3... | 724206106 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Handle | 827014107 | Not Available |
| 9 | | Handle bracket sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8077,... | 827015005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Bobbin Winder Stopper Screw sewing machine part or accessory For Janome Models: 2003P, 2018S, 203... | 000103107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Top cover sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008 , DC2012 | 828008031 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Spool pin spring sewing machine part or accessory For Janome Models: 659, HF3000, MC2400, MC3000,... | 724207004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | + PAN HEAD TAP-8 7 6 4 3123 55 sewing machine part or accessory For Janome Models: 1100D, 1100D, ... | 000107318 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Top Cover Set Plate | 827016109 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Face plate unit sewing machine part or accessory For Janome Models: AQS2009, HT2008 , DC2012 | 842602035 | $41.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Face plate sewing machine part or accessory For Janome Models: DC5100 | 842002604 | $8.20Read more |
| 24 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Reflector sticker sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 827099003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 360, 380 & 381, AQS2009... | 731067002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | SET SCREW 4 X 6 DISCONTINUED sewing machine part or accessory For Janome Models: AQS2009, CE2200,... | 000077503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Extension table unit sewing machine part or accessory For Janome Models: AQS2009, HT2008 , DC2012 | 842501000 | $32.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Extension table sewing machine part or accessory For Janome Models: HT2008 , DC2012 | 842016003 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Extension cover sewing machine part or accessory For Janome Models: HT2008 , DC2012 | 842017004 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | BED COVER (UNIT) sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT200... | 827602108 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Bed cover sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC48... | 827004104 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | DROP LEVER 4123 4000 3123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 753005000 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | FREE ARM COVER FIXING PLATE sewing machine part or accessory For Janome Models: 659, 7330, AQS200... | 756004008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Free arm cover sewing machine part or accessory For Janome Models: 659, 7330, AQS2009, HF8077, HT... | 659001001 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | FREE ARM COVER UNIT 659 sewing machine part or accessory For Janome Models: 659, 7330, AQS2009, H... | 659601007 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

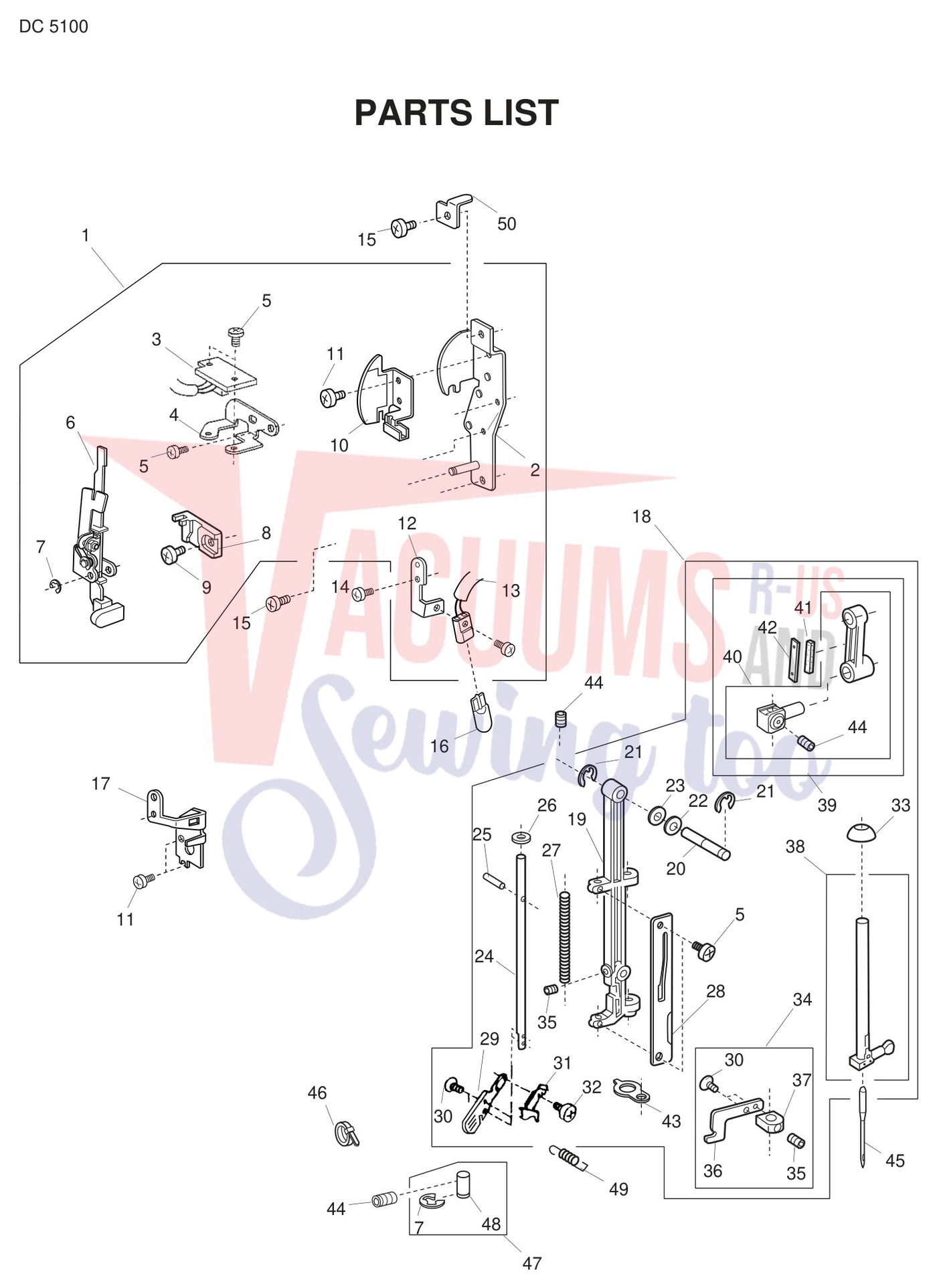

| 1 | | Front set plate unit sewing machine part or accessory For Janome Models: AQS2009, HT2008 , DC2012 | 843623208 | $77.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Front base plate sewing machine part or accessory For Elna Models: EL540S | 827028012 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Circuit board EI unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/H... | 843502004 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Sensor bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 843009006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Buttonhole lever unit sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 40... | 843625004 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 8 |  | BH lever guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 830057010 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Cord guide plate sewing machine part or accessory For Elna Models: EL540S | 827029013 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Setscrew 3 x 3.5 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 525S, 625E, ... | 652203004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Lamp set plate (2) sewing machine part or accessory For Elna Models: EL540S | 843055007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Lamp socket unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 843508000 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set screw 2x8 sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 6125Q... | 000102900 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Light Bulb-Wedge Base 12V 5W sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 000026002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Lamp set plate sewing machine part or accessory For Janome Models: AQS2009, DC4030, HT2008, MC520... | 843038004 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: | 827609301 | $78.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle bar supporter sewing machine part or accessory For Janome Models: AQS2009, HF3000, HT2008,... | 827026009 | $13.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Threader shaft sewing machine part or accessory For Janome Models: | 734093017 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Threader shaft spring sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, ... | 827091005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Threader guide plate sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, D... | 653036029 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Threader Lever for Memory Craft 5000 sewing machine part or accessory For Janome Models: 2039SN, ... | 834015007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Threader Plate sewing machine part or accessory For Janome Models: HF3000, HF5024, Jem Gold Plus,... | 734515009 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Set screw for attaching the threader plate. sewing machine part or accessory For Janome Models: 2... | 000105501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Curved washer sewing machine part or accessory For Janome Models: HF8077, HT2008, MC3500, MC4400,... | 827098002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Threader Set Plate Unit | 734625003 | Not Available |
| 35 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Threader positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 734101008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Threader positioning holder sewing machine part or accessory For Janome Models: HF3000, HF8077, H... | 734102009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Needle bar unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 653503103 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | sewing machine part or accessory For Janome Models: DC4030, HF8077, MC5200, TB30 , DC2012 | 843652000 | $19.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | NEEDLE BAR CONNECTING STUD sewing machine part or accessory For Janome Models: AQS2009, DC4030, H... | 639516002 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Supporter guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 829027006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Needle sewing machine part or accessory 647814031 Needle | 647814031 | $1.60Read more |
| 46 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Supporter guide plate pin unit sewing machine part or accessory For Janome Models: 2040, 3022, 70... | 842625001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Supporter guide pin sewing machine part or accessory 827083004 Supporter guide pin | 827083004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Supporter spring sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF807... | 756063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Presser bar bush holder sewing machine part or accessory For Janome Models: DC4030, HF3000, MC240... | 827106004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

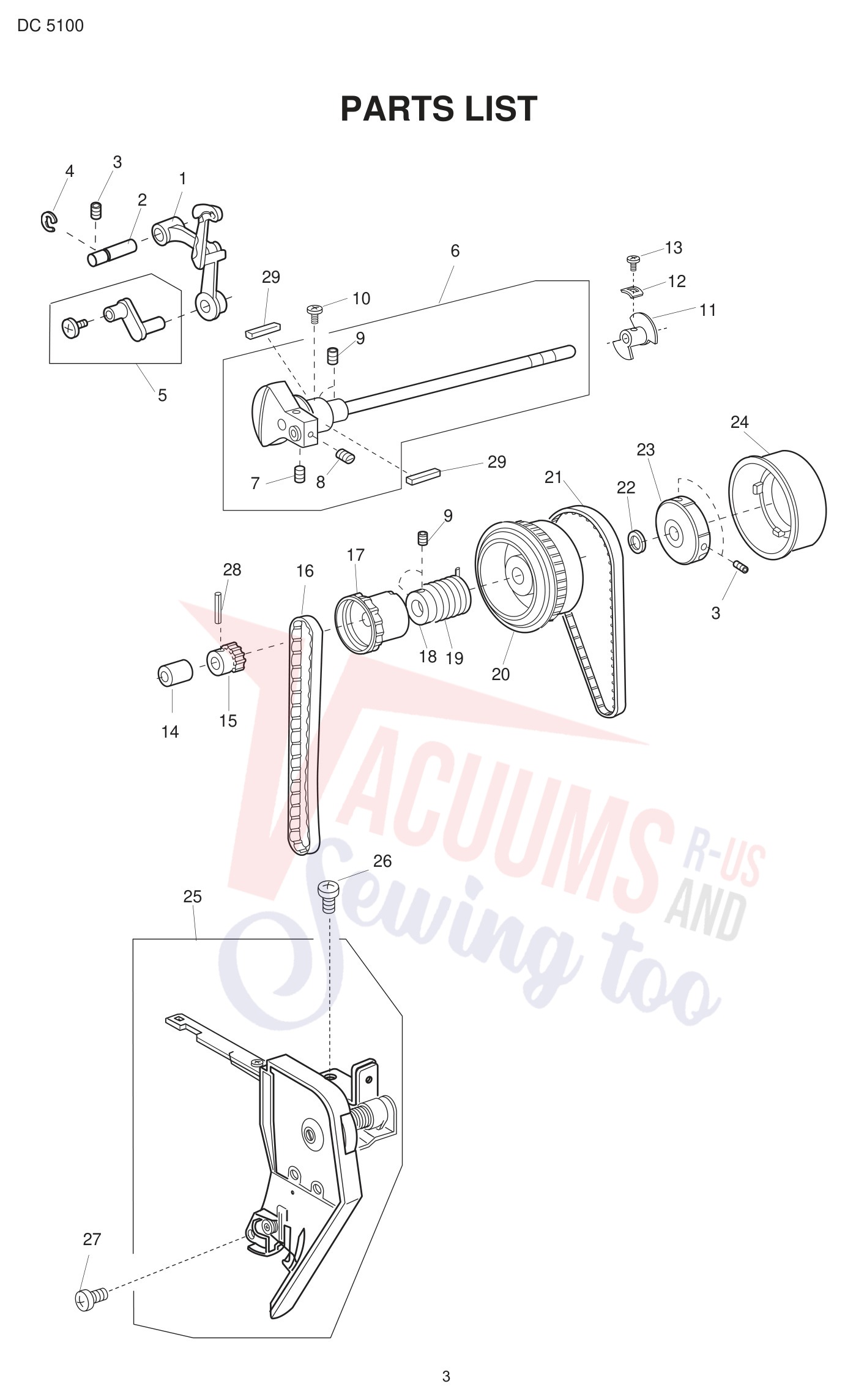

| # | Part image | Description | SKU | Price |
| 1 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Upper shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 827518508 | $35.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2... | 102073003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041, 20... | 761052007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 10 | | Setscrew 5x8 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041... | 000172602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 2040, 3022, 7061NX, ... | 830095010 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 15 |  | Upper shaft timing gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4... | 756017004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | DECLUTCH RELEASE RING 9000 400 sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 653055002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | CLUTCH RING 9000 4000 4123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 653056003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Clutch Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 653057004 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | BELT WHEEL-9000 8000 4000 4123 sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 653058005 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Motor Belt 20in for Janome Machines #653139012 | 653139012 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Balance Wheel Base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 830286009 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Handwheel sewing machine part or accessory For Janome Models: | 653061908 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Thread tension unit sewing machine part or accessory | 842511302 | $47.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

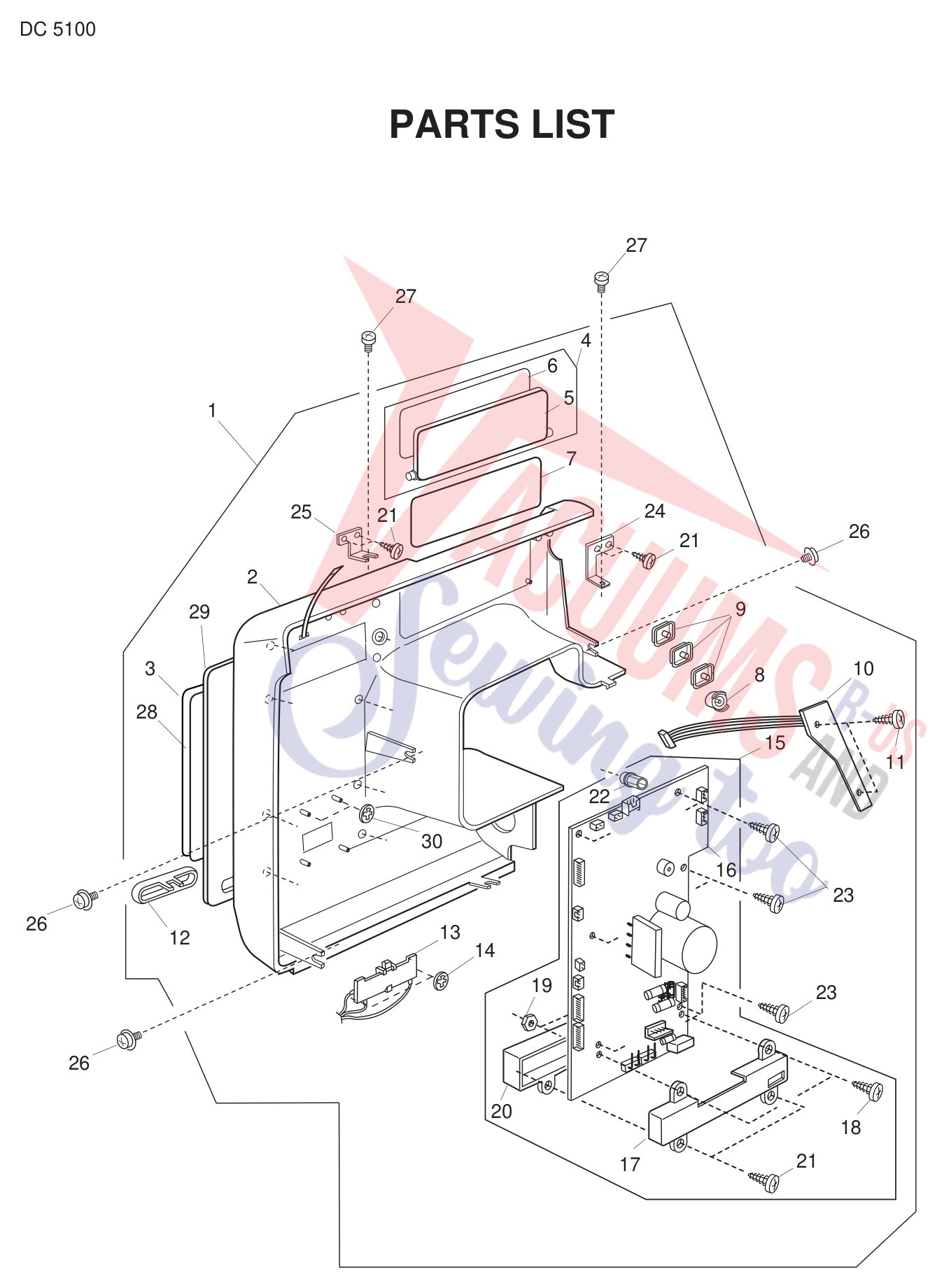

| # | Part image | Description | SKU | Price |
| 1 |  | Front cover (unit) sewing machine part or accessory For Janome Models: | 842630803 | $494.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Front cover sewing machine part or accessory For Janome Models: | 842047380 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Touch panel (unit) sewing machine part or accessory For Janome Models: MC5100 | 842510002 | $98.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Chart board panel (unit) sewing machine part or accessory For Janome Models: | 842606501 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Chart Board | 842007001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Chart board (1) sewing machine part or accessory For Janome Models: DC5100 | 842069001 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Chart board (2) sewing machine part or accessory For Janome Models: | 842070005 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Button | 842048211 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | Button | 842049005 | $1.00Read more |
| 10 |  | Print board F (unit) sewing machine part or accessory For Janome Models: | 842512004 | $21.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Slide Lever | 842060002 | $1.40Read more |
| 13 | | Slide volume (unit) sewing machine part or accessory For Janome Models: 7330, AQS2009, DC3018, DC... | 653507211 | $20.60Read more |
| 14 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | A BOARD COMPLETE UNIT sewing machine part or accessory MC5100 | 842631000 | $531.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Printed circuit board A (unit) sewing machine part or accessory For Janome Models: | 842515203 | $614.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Case sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 73... | 843021107 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Nut sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6019QC, 6125QC, 6147, 626... | 000062701 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Board A case cover sewing machine part or accessory For Elna Models: EL540S | 843020106 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Screen Brightness Adjust Dial | 842071006 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Front cover set plate (front) sewing machine part or accessory For Janome Models: 7330, AQS2009, ... | 842014001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Front Cover FixingPlate MC4800 sewing machine part or accessory For Janome Models: 7330, AQS2009,... | 841019003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Touch panel sheet sewing machine part or accessory For Janome Models: MC5100 | 842104009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Operation panel sewing machine part or accessory For Janome Models: | 842067124 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

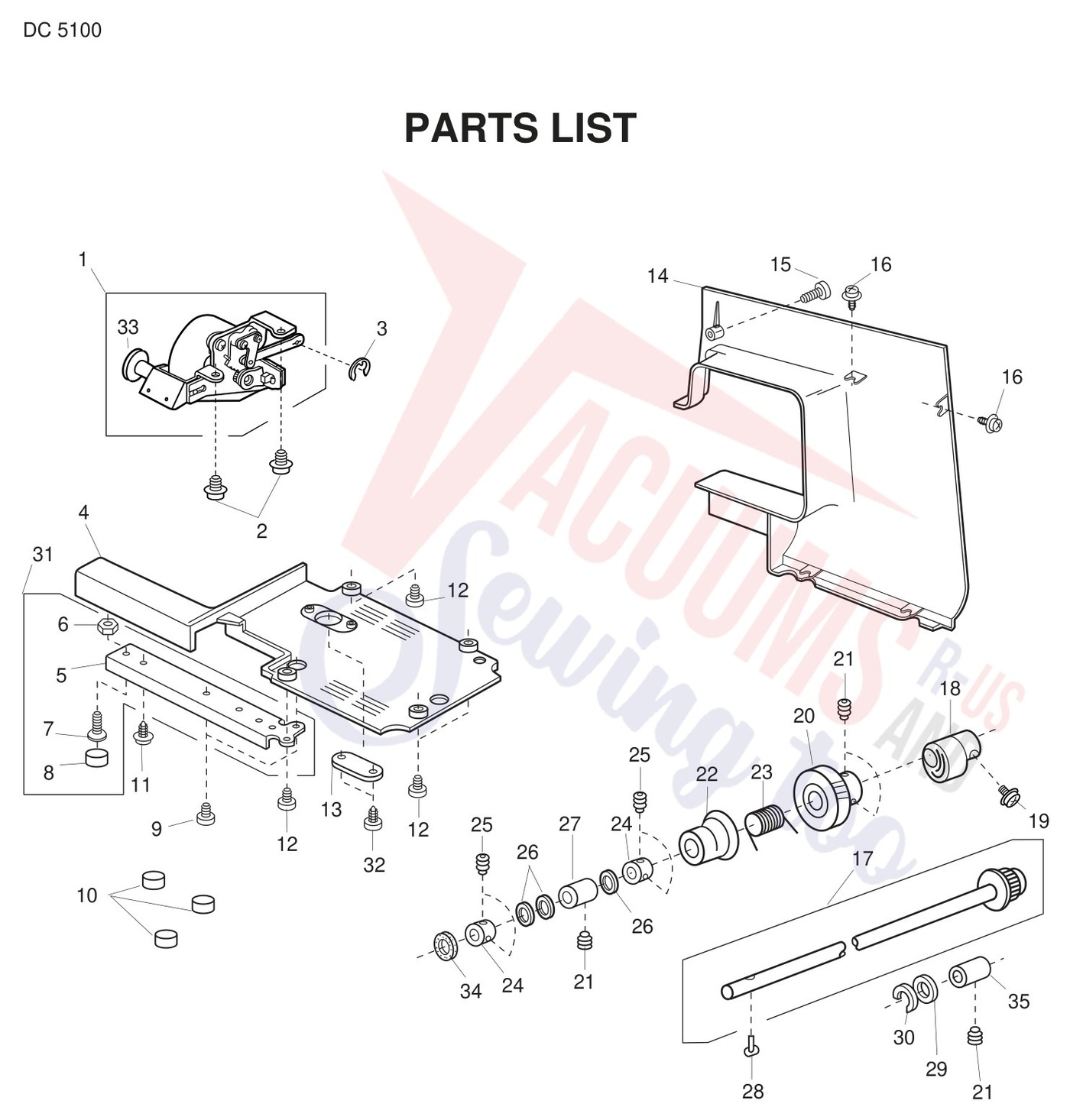

| # | Part image | Description | SKU | Price |
| 1 | | FEED STEPPING MOTOR sewing machine part or accessory For Janome Models: 2040, 3022, 7330, AQS2009... | 843606102 | $63.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 4 |  | BASE 4000 sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8077, HT20... | 827003000 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Arm leg sewing machine part or accessory For Janome Models: DC5100 | 828069007 | $6.80Read more |
| 6 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Flat screw 5 x 18 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040,... | 000097901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | BASE COVER PLATE 7500 7000 550 sewing machine part or accessory For Janome Models: 7330, AQS2009,... | 824058001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Rear cover sewing machine part or accessory For Janome Models: MC5200, MO200 | 842001108 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Lower shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 751612206 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | FEED LIFT CAM 5000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 751148000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Lower shaft gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4119 (QU... | 650955002 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 22 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Arm leg (unit) sewing machine part or accessory For Janome Models: DC5100 | 828613002 | $6.00Read more |
| 32 | | + PAN HEAD TAP-8 7 6 4 3123 55 sewing machine part or accessory For Janome Models: 1100D, 1100D, ... | 000107318 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Ss Control Dial | 827046005 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |

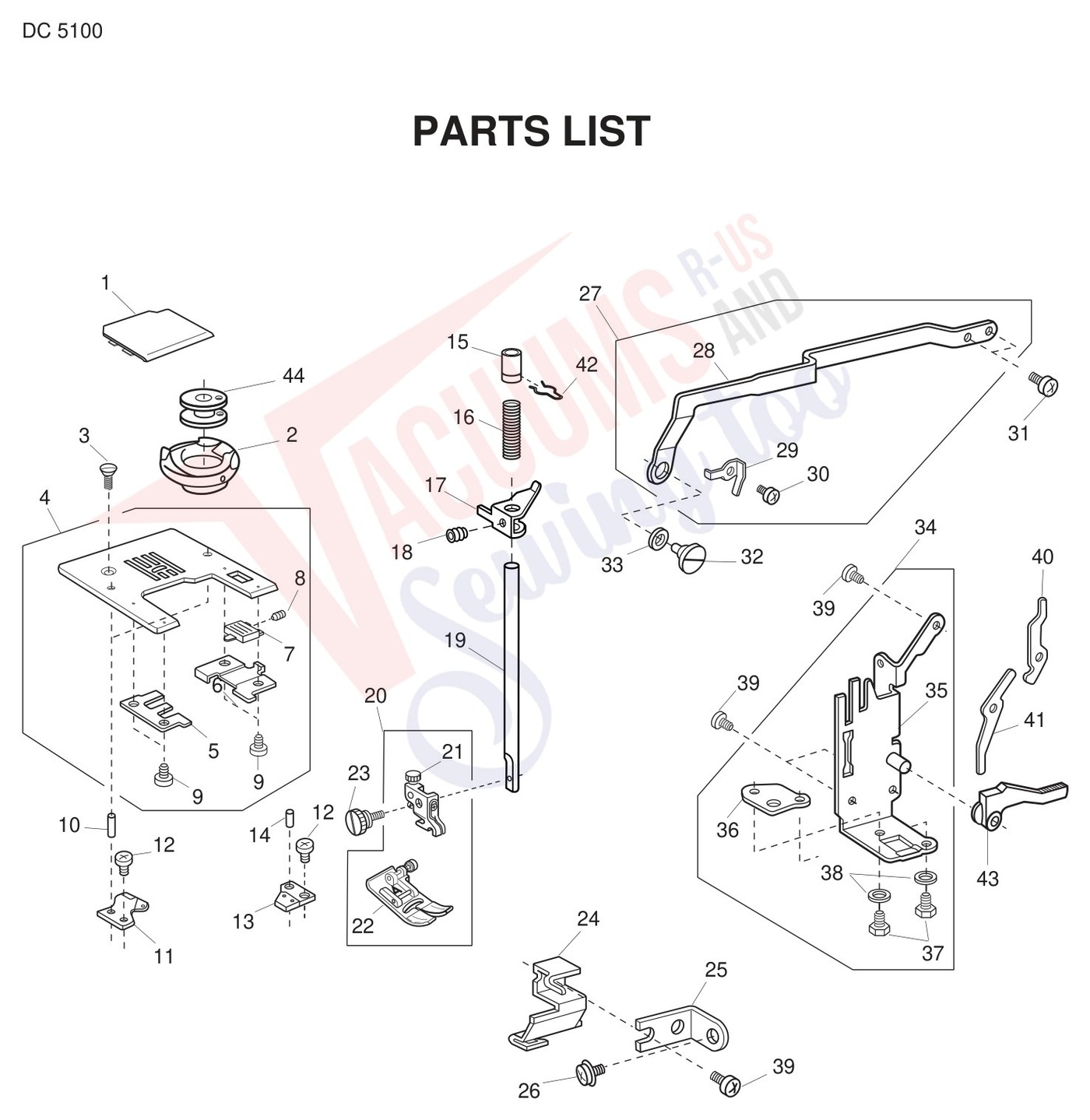

| # | Part image | Description | SKU | Price |
| 1 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Bobbin holder sewing machine part or accessory For Janome Models: DC2010 | 627569209 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Needle Plate Unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 756604107 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Slide plate holder (left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 752005007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 662, 7061NX... | 000122504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Bobbin case stopper(left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827011001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 733... | 000122700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Presser bar bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040,... | 802021007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Presser bar spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 730026006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Presser bar sewing machine part or accessory For Janome Models: | 651013002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Presser foot (unit) sewing machine part or accessory For Janome Models: DC5100 | 842505004 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Presser Foot Holder (low shank 5mm) sewing machine part or accessory Presser Foot Holder. This is... | 823504004 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Knob Screw sewing machine part or accessory For Janome Models: 659, 808A, MC4400, MC4800, MC4800Q... | 753199002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | ARM THREAD GUIDE sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 827036002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Front cover bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8... | 827037003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Zigzag rod unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827622012 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Zigzag rod sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 827055018 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Zigzag Width Rod Spring | 827088009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, ... | 653037008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Presser bar base unit sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061N... | 827608012 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Presser base plate sewing machine part or accessory For Elna Models: EL540S | 827020014 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Presser bar positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 827082003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Plain washer 4 sewing machine part or accessory For Janome Models: 134D, 2040, 3022, 334, 4048/80... | 000070908 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Tension release lever (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827023006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Tension release lever (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827022005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | SNAP RETAINER sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 802022008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 44 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |

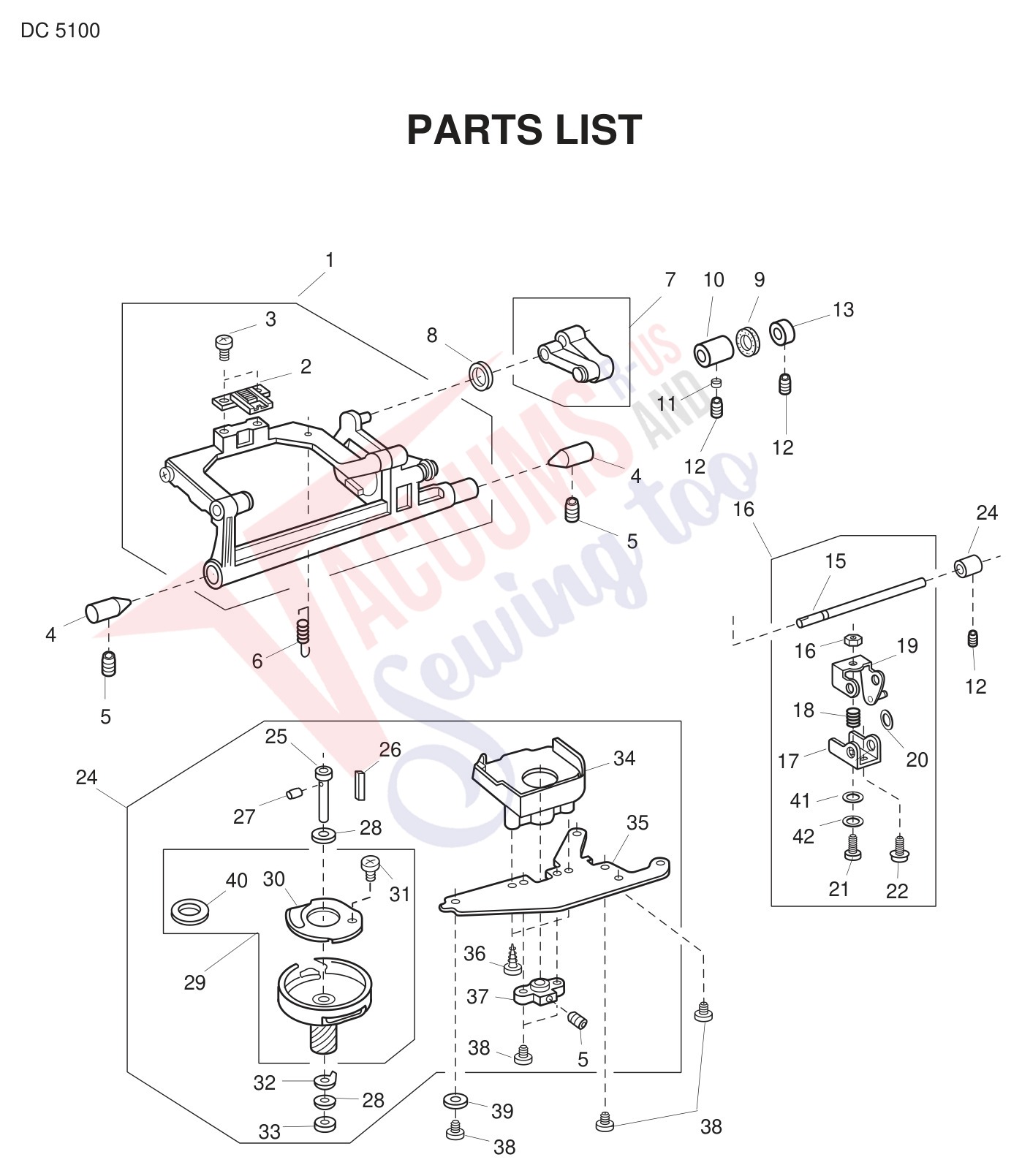

| # | Part image | Description | SKU | Price |
| 1 | | Feed shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 834527100 | $35.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4618LE... | 840005003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 6 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | FEED SHAFT UNIT FOR MC 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/... | 840603007 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 840006004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Feed arm (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 70... | 825261002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | BH feed adjusting spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 589040002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Feed arm (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 70... | 827043105 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Spring washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 6... | 810207004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Feed arm screw sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 827086007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | SET SCREW 3X12 7000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045N... | 000115906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Hook unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061N... | 827614033 | $83.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Hook Race Unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650623008 | $66.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Hook Race Bottom Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/... | 627191000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Hook bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 50... | 823106002 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Washer 5.2x8x0.25 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1200D, 1200D,... | 000036407 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

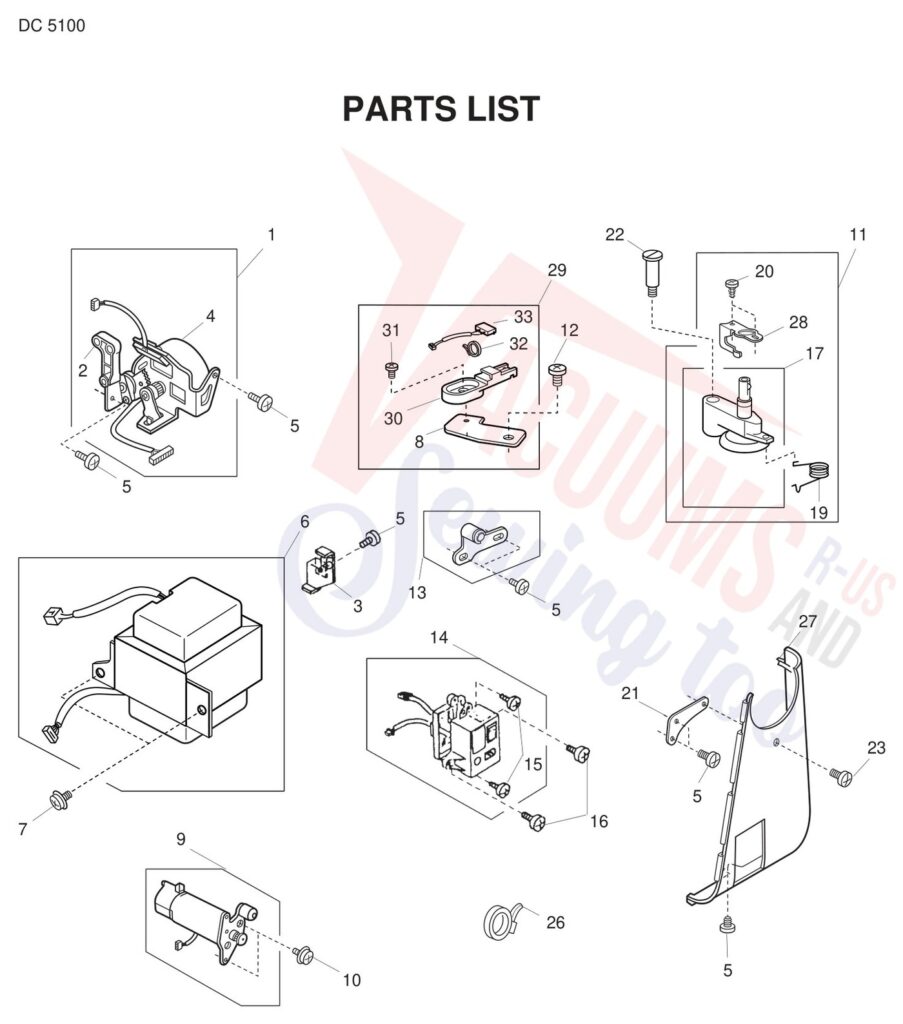

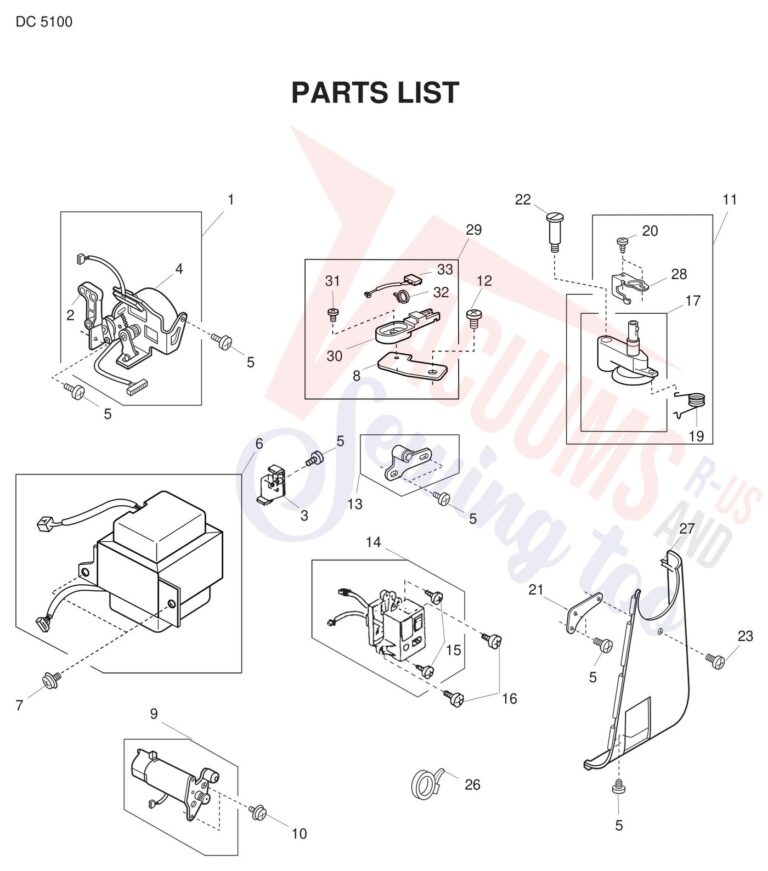

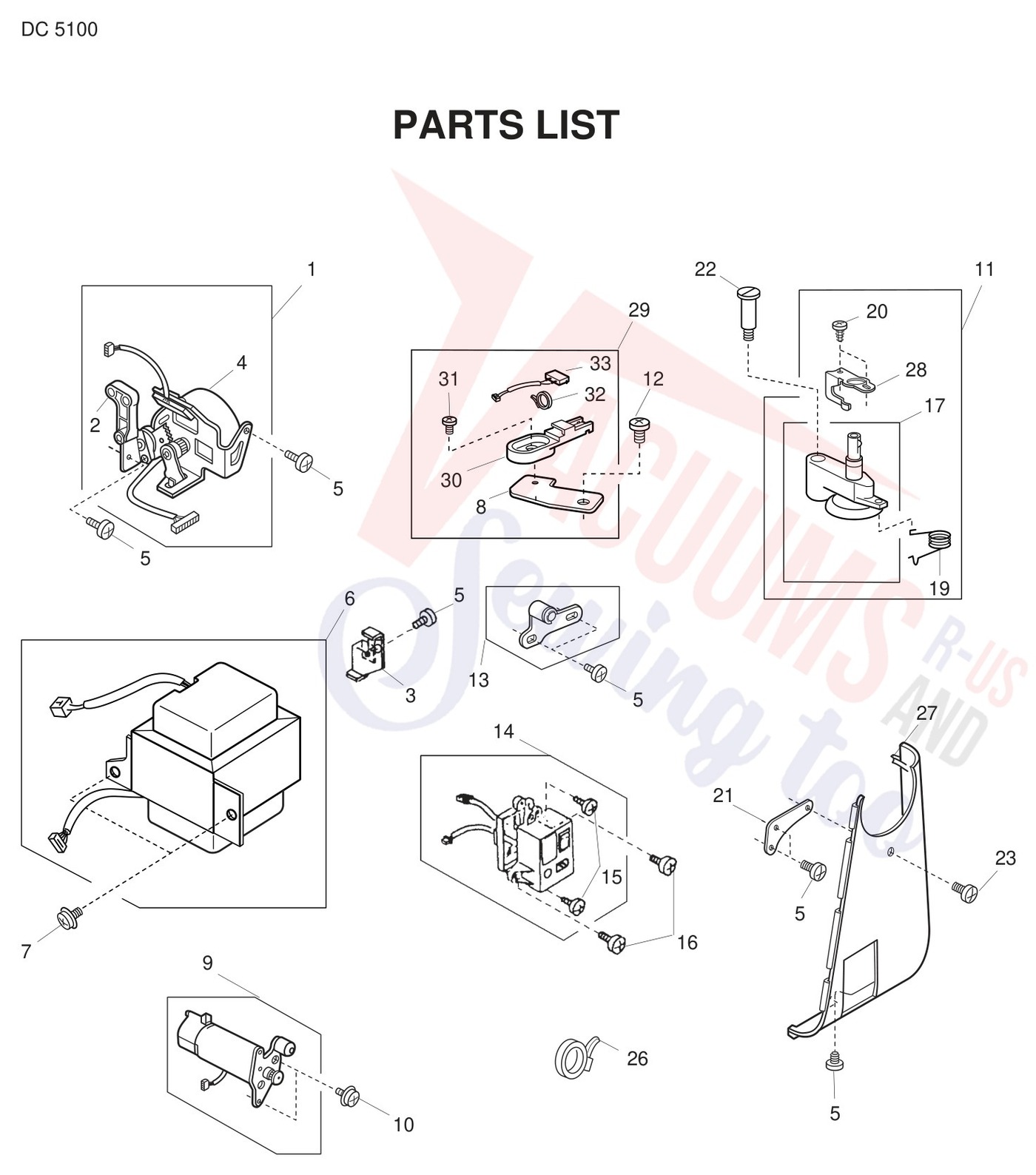

| # | Part image | Description | SKU | Price |
| 1 |  | Stepping Motor sewing machine part or accessory For Janome Models: 7330, AQS2009, DC3018, DC3050,... | 843608104 | $77.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Connecting arm sewing machine part or accessory For Janome Models: DC5100 | 827054006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Transformer supporter sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061N... | 829020009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Printed circuit board p unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 843505007 | $19.80Read more |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Transformer (unit) sewing machine part or accessory For Janome Models: | 843512306 | $130.20Read more |
| 7 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Transformer supporter sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061N... | 829020009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Motor (unit) sewing machine part or accessory For Janome Models: DC5100 | 843615300 | $124.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Bobbin winder (unit) sewing machine part or accessory For Janome Models: 7330, AQS2009, DC2007LE,... | 844628033 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Idler unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 652611009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Machine socket (unit) (120V) sewing machine part or accessory For Janome Models: 7330, AQS2009, H... | 841514601 | $31.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Setscrew 4 x 8 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 7330, HF3000, ... | 000121204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Bobbin Winder Unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 827506008 | $18.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Switch base plate sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT20... | 842066008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Belt cover bracket sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8... | 827085017 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Hinge screw sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509... | 652093009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | De-clutch arm sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 830145005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | DECLUTCH ARM SPRING 9000 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625215005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Belt cover sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC5... | 828064002 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Clutch release plate sewing machine part or accessory For Janome Models: 7330, AQS2009, DC2007LE,... | 844075039 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Switch base plate (Unit) sewing machine part or accessory For Janome Models: 7330, AQS2009, HF807... | 842629005 | $19.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Switch set plate | 827100028 | Not Available |
| 31 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Bobbin Winder Switch sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 753507203 | $6.40Add to cart Special order: ships in 2 to 4 weeks |

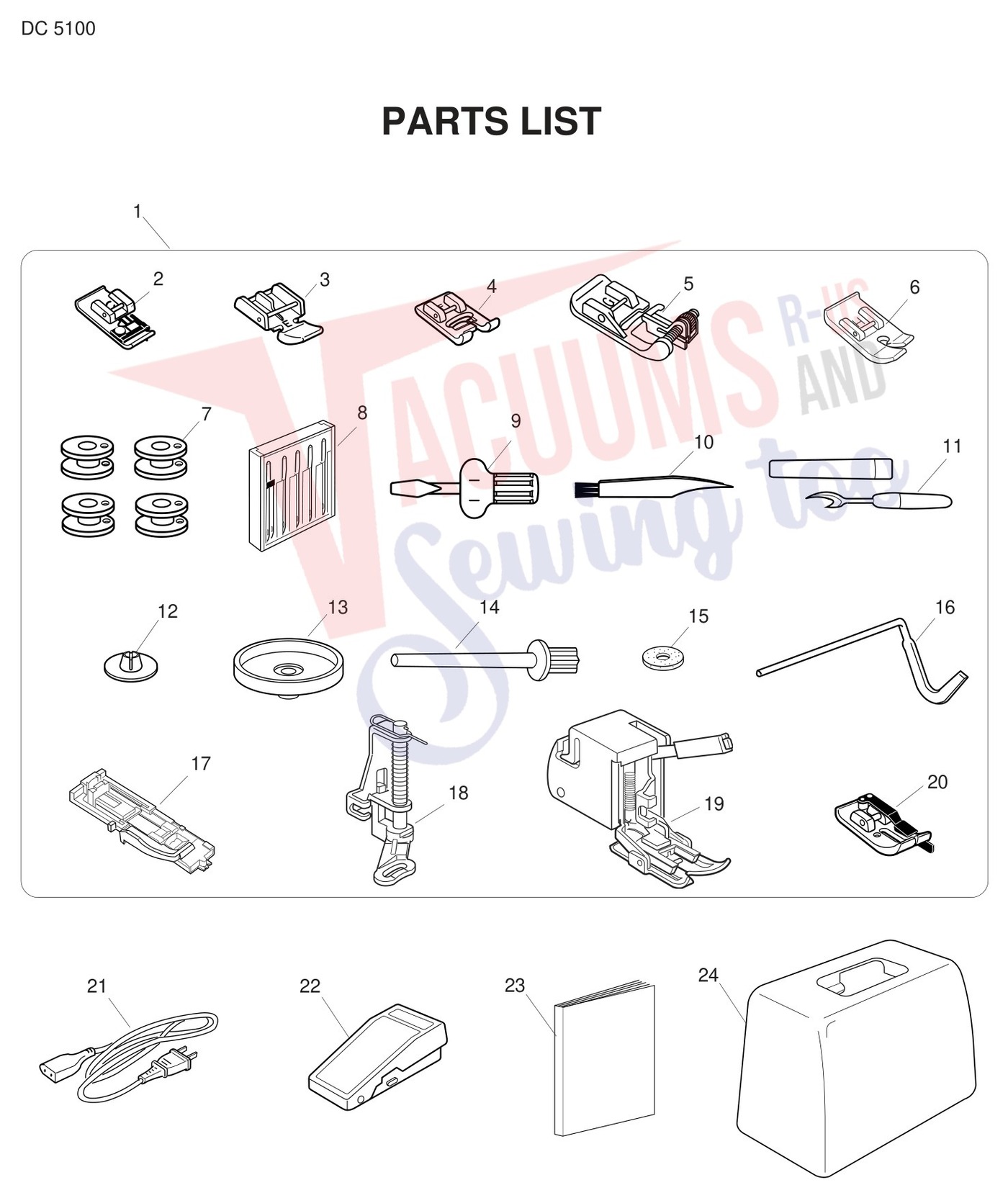

| # | Part image | Description | SKU | Price |
| 1 | No Image | Accessory Set | 842870117 | $69.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Overlock Foot C (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822801001 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Straight Stitch Foot | 823801107 | Not Available |
| 7 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle Set sewing machine part or accessory For Janome Models: All Janome sewing machines (flat b... | 820827007 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 10 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | SPOOL HOLDER RECEIVING BASE sewing machine part or accessory For Janome Models: 2040, 3022, 3160Q... | 829803004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 15 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | QUILTER BAR-LARGE sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 5... | 802422002 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | DARNING FOOT FOR EMBROIDERY 60 | 822820006 | Not Available |
| 19 |  | Even foot sewing machine part or accessory For Janome Models: DC201, DC2011, DC2012, DC2013, DC20... | 214508002 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | 1/4˝ Seam foot sewing machine part or accessory 200008037 1/4˝ Seam foot SKS3 | 200008037 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Foot control sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | C-1036 | $53.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Compatible alternateFoot Control Pedal for Janome and Elna - Use with: 3160QDC HF8050, MC2160QDC, JNH1860, JNH720, JP... More Product Details | C1036 | $57.99Add to cart |
| 23 |  | Instruction book sewing machine part or accessory For Janome Models: | 842800323 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | HARD CASE | 479701118 | Not Available |
Report errors on this page HERE
