Schematic and parts book for Janome DC2019 DC2019. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

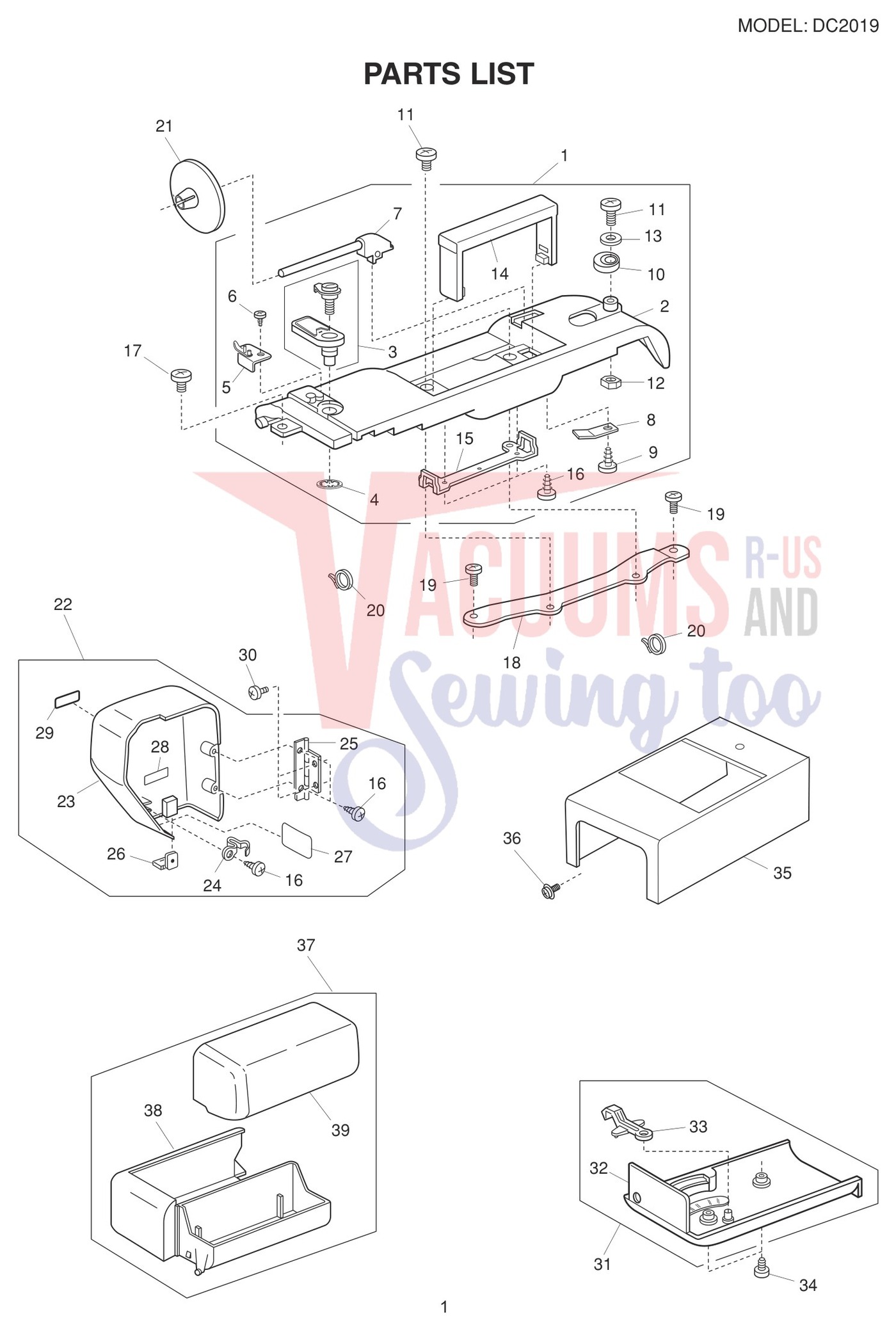

| 1 | No Image | Top Cover (Unit) | 828603010 | $40.40Read more |
| 2 | No Image | Top Cover | 828008A02 | $12.80Read more |
| 3 |  | Thread guide (unit) sewing machine part or accessory For Janome Models: SEWIST780DC | 650503322 | $7.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Top cover thread guide unit sewing machine part or accessory For Janome Models: 2040, 3022, 4045L... | 827503005 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SPOOL PIN sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC52... | 505067005 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SPOOL PIN SPRING 8000 7500 700 sewing machine part or accessory For Janome Models: 4618LE, 4623LE... | 822018003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | + PAN HEAD TAP-8 7 6 4 3123 55 sewing machine part or accessory For Janome Models: 1100D, 1100D, ... | 000107318 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Bobbin Winder Stopper Screw sewing machine part or accessory For Janome Models: 2003P, 2018S, 203... | 000103107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Handle sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8077, HT2008,... | 827014004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Handle bracket sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8077,... | 827015005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Top cover set plate sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT... | 827016017 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Face Plate (Unit) | 842602080 | $28.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Face Plate | 842002A07 | $19.00Read more |
| 24 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 360, 380 & 381, AQS2009... | 731067002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Reflector sticker sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 827099003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Caution sticker (U.S.A.) (Canada) sewing machine part or accessory 100045000 Caution sticker (U.S... | 100045000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Caution sticker (Canada) sewing machine part or accessory 100517008 Caution sticker (Canada) | 100517008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | SET SCREW 4 X 6 DISCONTINUED sewing machine part or accessory For Janome Models: AQS2009, CE2200,... | 000077503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | BED COVER (UNIT) sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT200... | 827602108 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Bed cover sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC48... | 827004104 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | DROP LEVER 4123 4000 3123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 753005000 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Free arm cover sewing machine part or accessory For Janome Models: 659, 7330, AQS2009, HF8077, HT... | 659001001 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Extension table unit sewing machine part or accessory For Janome Models: AQS2009, HT2008 , DC2012 | 842501000 | $32.60Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Extension table sewing machine part or accessory For Janome Models: HT2008 , DC2012 | 842016003 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Extension cover sewing machine part or accessory For Janome Models: HT2008 , DC2012 | 842017004 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

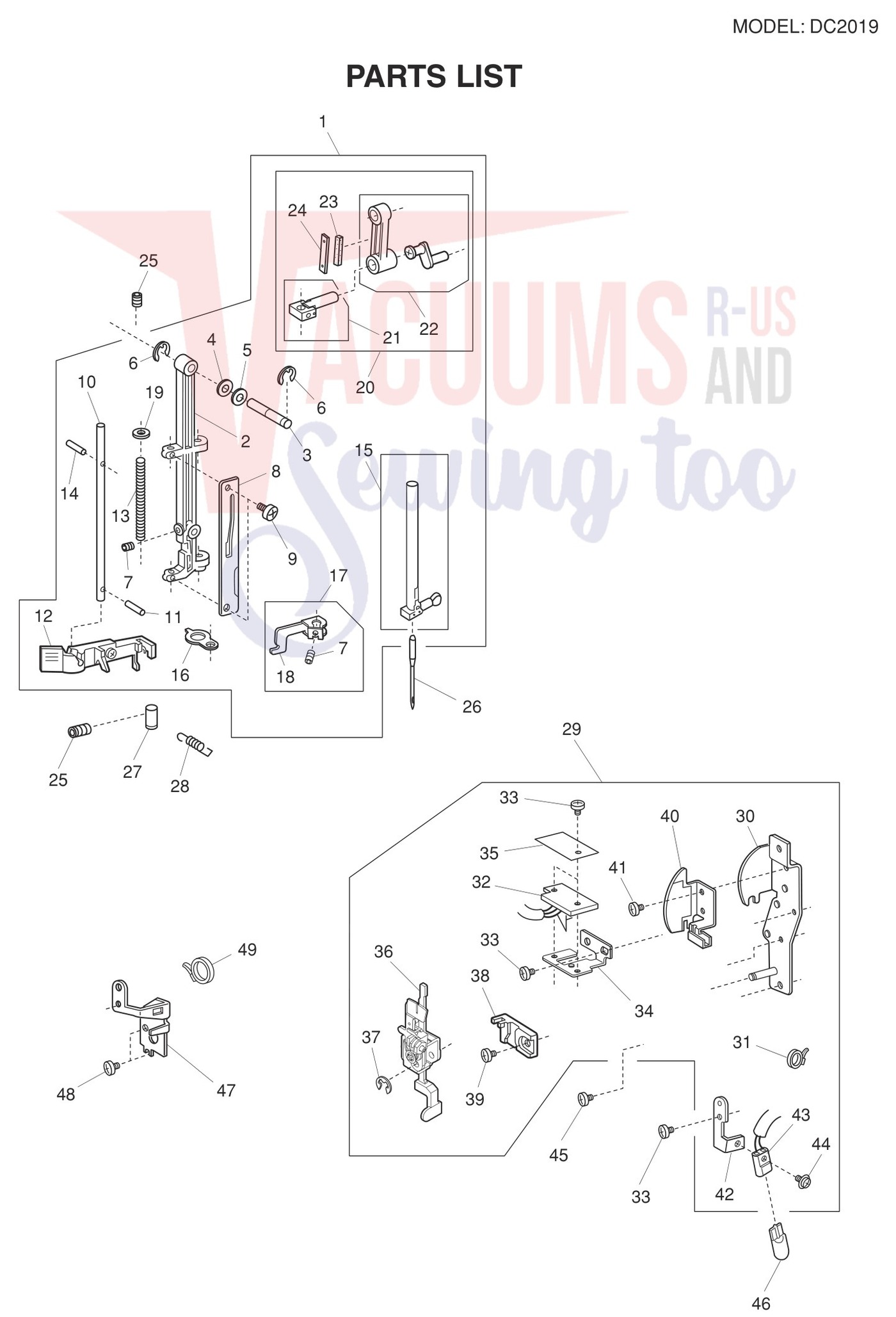

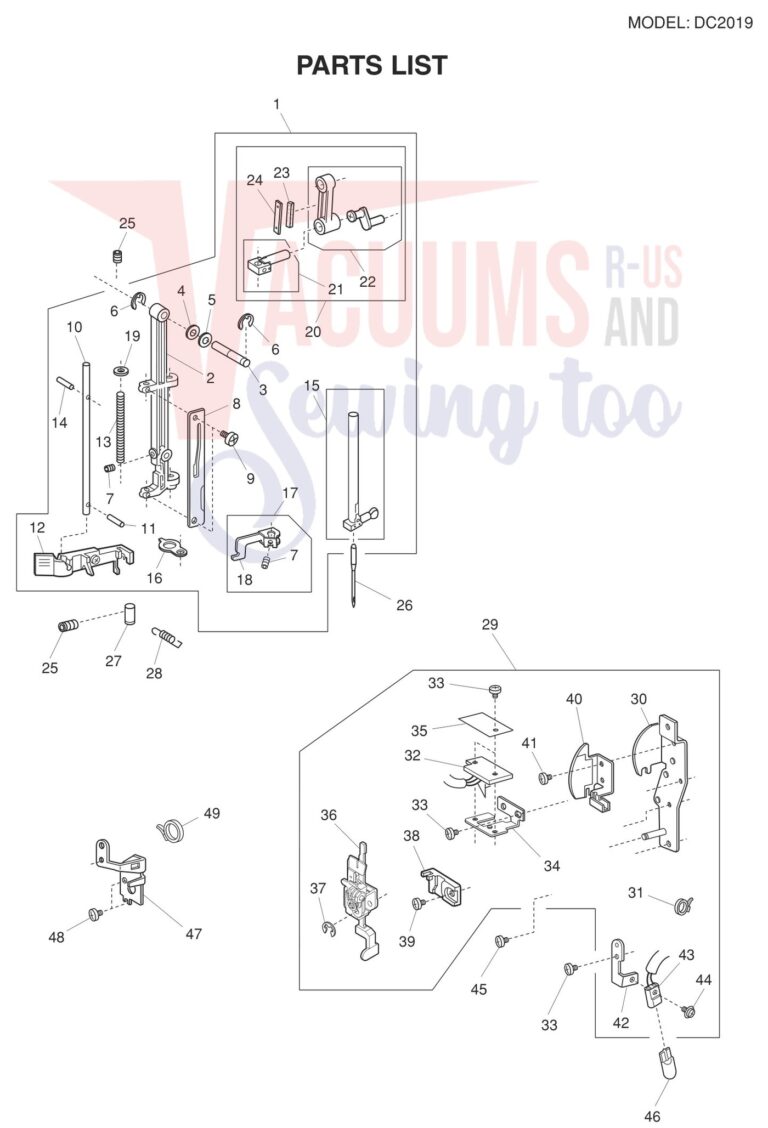

| 1 |  | Needle bar supporter unit sewing machine part or accessory For Janome Models: AQS2009, HT2008 , D... | 843642007 | $59.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle bar supporter sewing machine part or accessory For Janome Models: AQS2009, HF3000, HT2008,... | 827026009 | $13.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Needle bar supporter pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF30... | 730022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Threader guide plate sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, D... | 653036029 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Threader shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 40... | 840036003 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Needle threader plate (unit) sewing machine part or accessory For Janome Models: DC2019 | 639643102 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Threader shaft spring sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, ... | 827091005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle bar unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 653503103 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Supporter guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 829027006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Thread base plate (unit) sewing machine part or accessory For Janome Models: Jem Gold Plus, MC770... | 807607008 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Threader position set plate sewing machine part or accessory For Janome Models: SEWIST780DC | 807018006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Genuine Janome/Elna Needle bar connecting stud (whole unit) For: EL540S | 843652103 | $17.40Read more |
| 21 | | Needle bar connecting stud (unit) sewing machine part or accessory For Janome Models: 550E | 301504104 | $6.00Read more |
| 22 | | Needle bar crank sewing machine part or accessory For Janome Models: DC4030, HF8077, MC5200, TB30... | 843543007 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Supporter guide pin sewing machine part or accessory 827083004 Supporter guide pin | 827083004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Supporter spring sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF807... | 756063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Front Set Plate (Unit) | 843623219 | $48.40Read more |
| 30 |  | Front base plate sewing machine part or accessory For Elna Models: EL540S | 827028012 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Wire binder sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, 509,... | 000053709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Circuit board EI unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/H... | 843502004 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Sensor bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 843009006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Insulation paper sewing machine part or accessory , Necchi EX30, Necchi EX100, Necchi EX60 | 845029008 | $0.50Read more |
| 36 | | Buttonhole lever (unit) sewing machine part or accessory For Janome Models: SEWIST780DC | 808673008 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 38 |  | Buttonhole Lever Guide | 830057021 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Cord guide plate sewing machine part or accessory For Elna Models: EL540S | 827029013 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Setscrew 3 x 3.5 sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 525S, 625E, ... | 652203004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Lamp set plate (2) sewing machine part or accessory For Elna Models: EL540S | 843055007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | LAMP SOCKET (UNIT) sewing machine part or accessory For Janome Models: DC4030, MC4900, TB30 | 843508206 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Light Bulb-Wedge Base 12V 5W sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 000026002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Lamp set plate sewing machine part or accessory For Janome Models: AQS2009, DC4030, HT2008, MC520... | 843038004 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

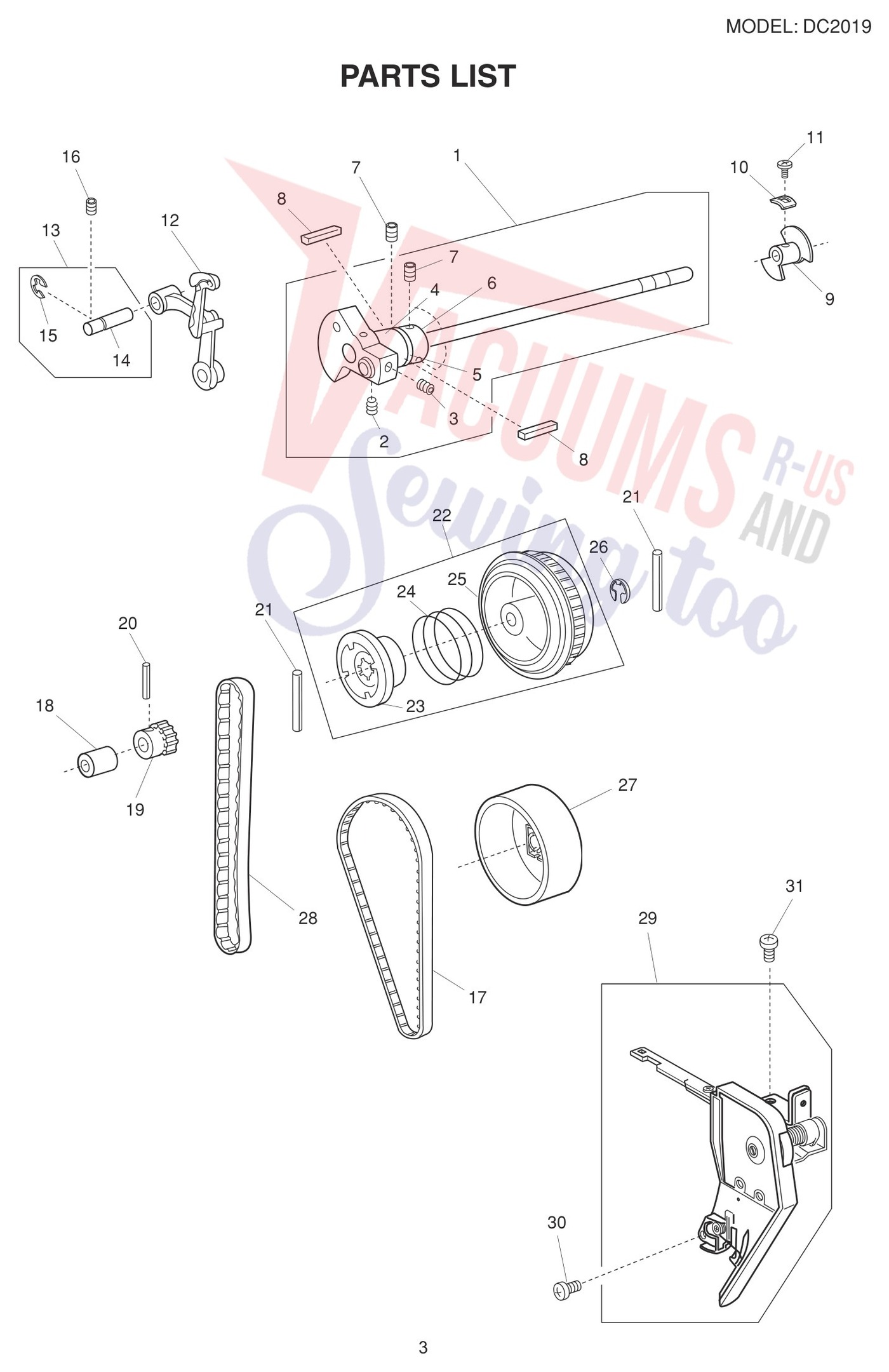

| 1 | | Upper shaft comp. (unit) sewing machine part or accessory For Janome Models: 7330, AQS2009, DC200... | 843643101 | $18.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Bushing sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/661, Jem Gol... | 829042007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1600P, 1600P-DB, 1600P-... | 639095000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 8 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 2040, 3022, 7061NX, ... | 830095010 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Pin Unit sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC300... | 650626001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SNAP RING E-9 8 7 4(000002806) sewing machine part or accessory For Janome Models: 531, 7330, AQS... | 000001702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Motor Belt 20in for Janome Machines #653139012 | 653139012 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 19 |  | Upper shaft timing gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4... | 756017004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Belt wheel (unit) sewing machine part or accessory For Janome Models: SEWIST725 | 844634009 | $10.60Read more |
| 23 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | BELT WHEEL sewing machine part or accessory For Janome Models: 7330, AQS2009, DC2007LE, DC4030, H... | 844050016 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Handwheel | 844077260 | $3.40Read more |
| 28 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Thread Tension (Unit) | 842511025 | $47.40Read more |
| 30 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

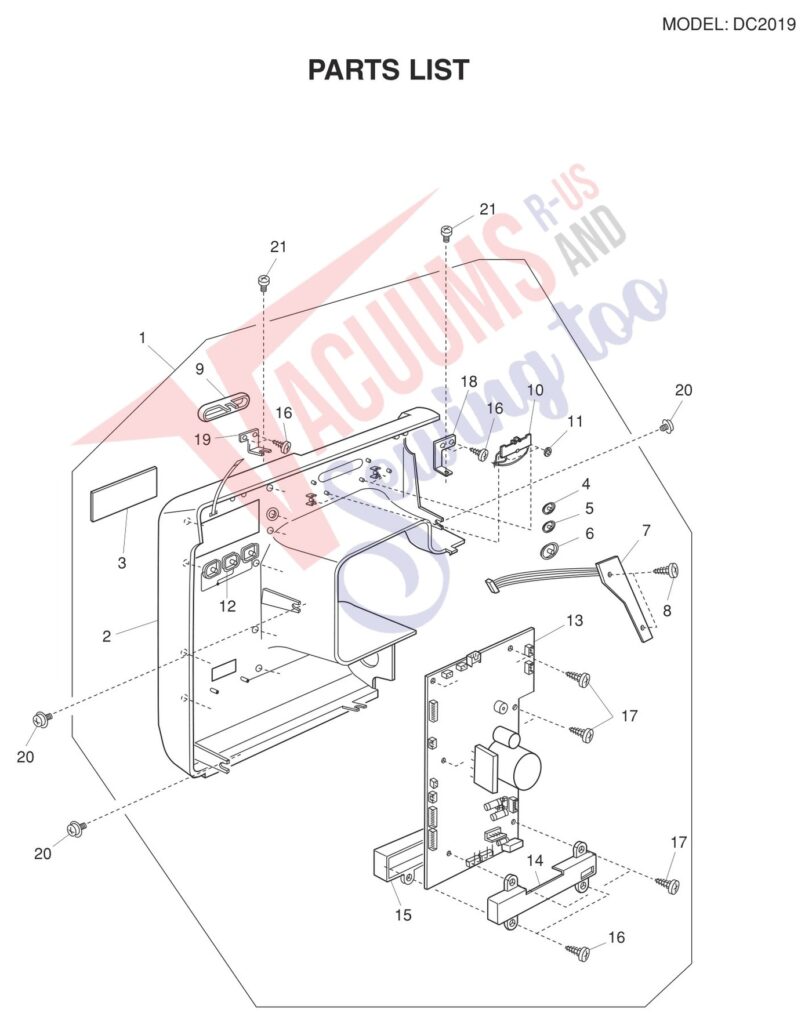

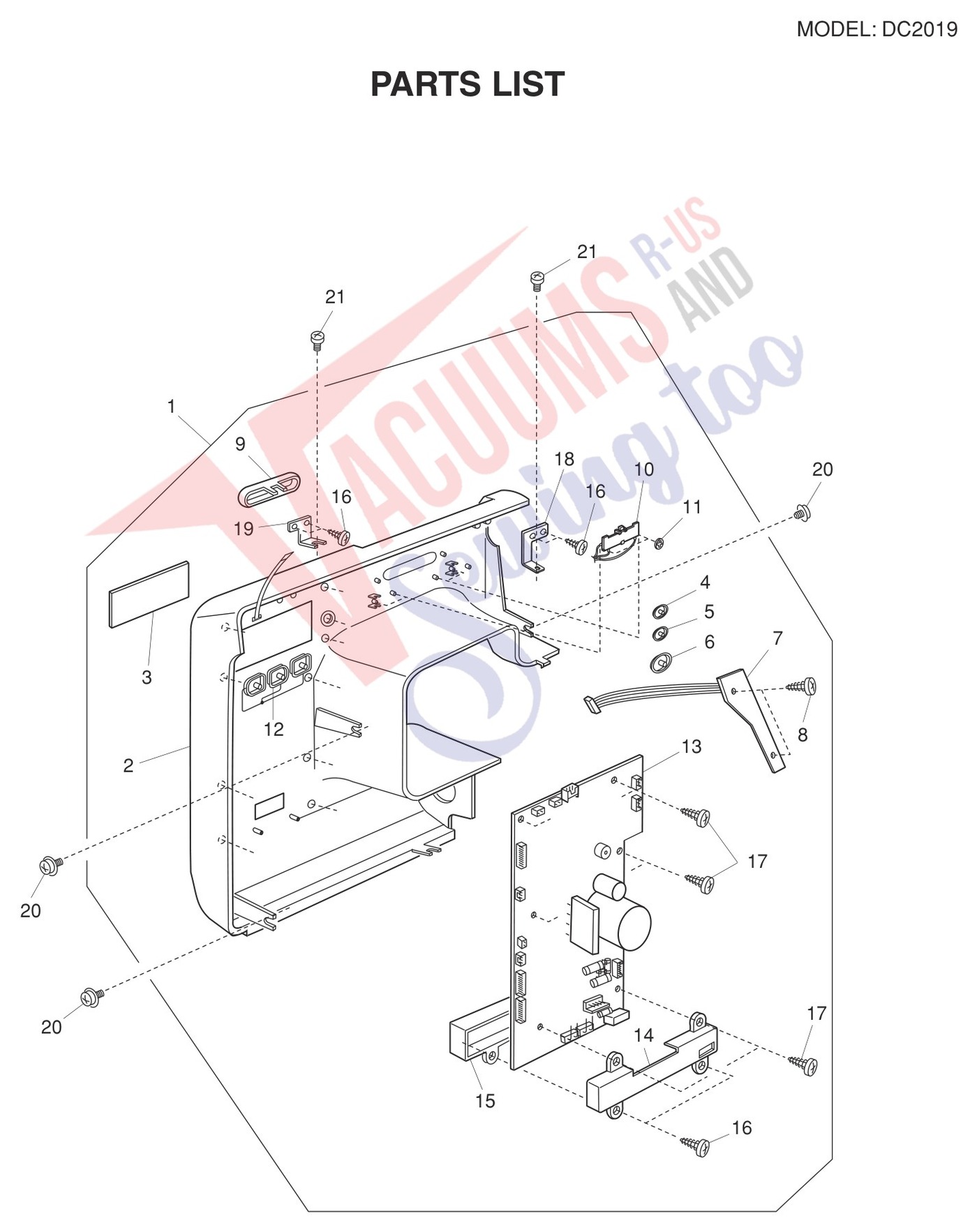

| 1 | No Image | Front Cover (Unit) | 843641464 | $247.20Read more |
| 2 | No Image | Front Cover | 843114A07 | $30.80Read more |
| 3 | No Image | Indicator Window | 842059A08 | $5.00Read more |
| 4 | No Image | Button (1) | 843026A05 | $2.20Read more |
| 5 | No Image | Button (1) | 843026A04 | $2.20Read more |
| 6 | No Image | Button | 842048A05 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Print board F (unit) sewing machine part or accessory For Janome Models: AQS2009, HT2008 , DC2012 | 842512107 | $35.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Speed control lever sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT... | 841017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Slide volume (unit) sewing machine part or accessory For Janome Models: 7330, AQS2009, DC3018, DC... | 653507211 | $20.60Read more |
| 11 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Button (2) | 843166A01 | $3.00Read more |
| 13 |  | Printed circuit board A (unit) sewing machine part or accessory For Janome Models: DC2019 | 843401150 | $241.55Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Case sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 73... | 843021107 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Board A case cover sewing machine part or accessory For Elna Models: EL540S | 843020106 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Front cover set plate (front) sewing machine part or accessory For Janome Models: 7330, AQS2009, ... | 842014001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Front Cover FixingPlate MC4800 sewing machine part or accessory For Janome Models: 7330, AQS2009,... | 841019003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

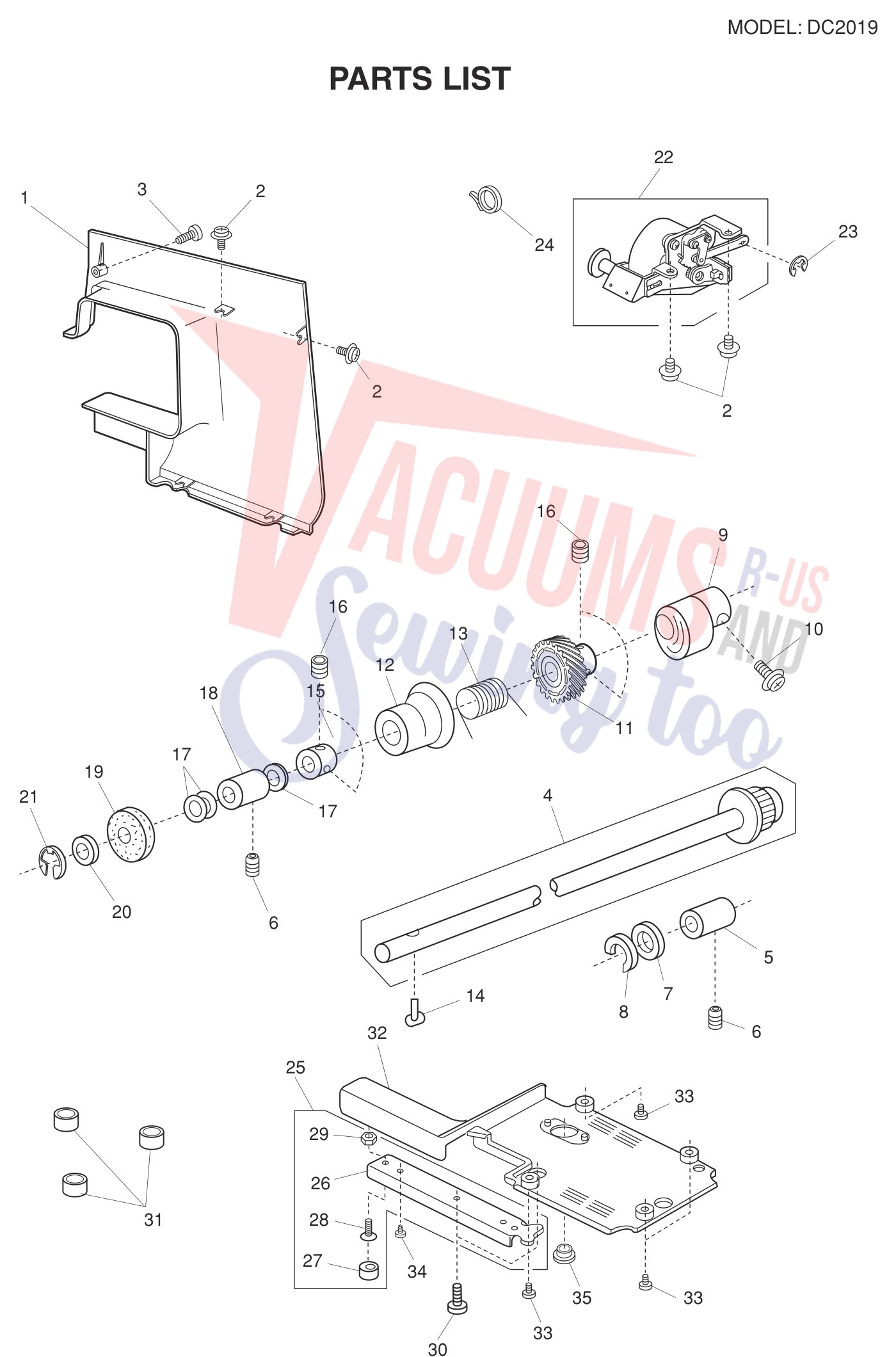

| 1 | | Rear cover sewing machine part or accessory For Janome Models: AQS2009, HT2008 , DC2012 | 842001407 | $27.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Lower shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 751612206 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | FEED LIFT CAM 5000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 751148000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Lower shaft washer sewing machine part or accessory For Janome Models: MC9900 , EL860 eXpressive,... | 858177002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | FEED STEPPING MOTOR sewing machine part or accessory For Janome Models: 2040, 3022, 7330, AQS2009... | 843606102 | $63.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 24 | Not Available | Cord binder | 000053101 | Not Available |
| 25 |  | Leg unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX... | 827601107 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Leg sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, DC2... | 827002102 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Flat screw 5 x 18 sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040,... | 000097901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360... | 000066808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | BASE 4000 sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8077, HT20... | 827003000 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | Not Available | Cap | 626045407 | Not Available |
| # | Part image | Description | SKU | Price |

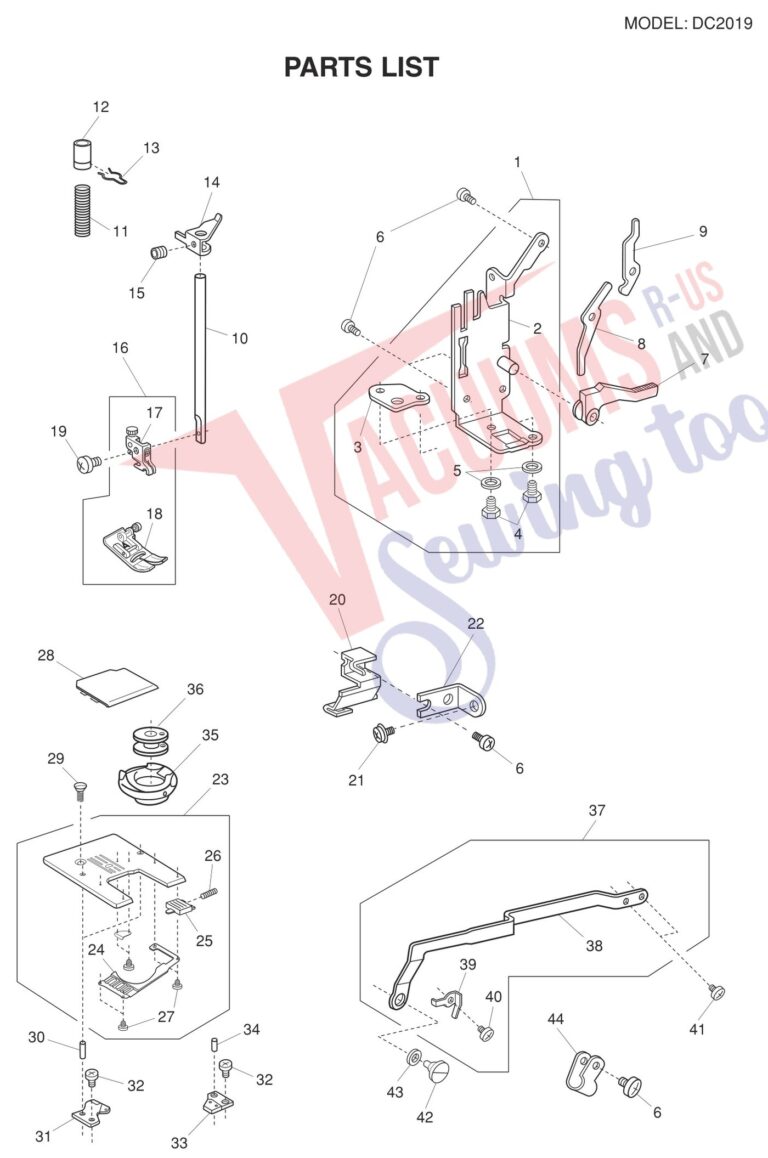

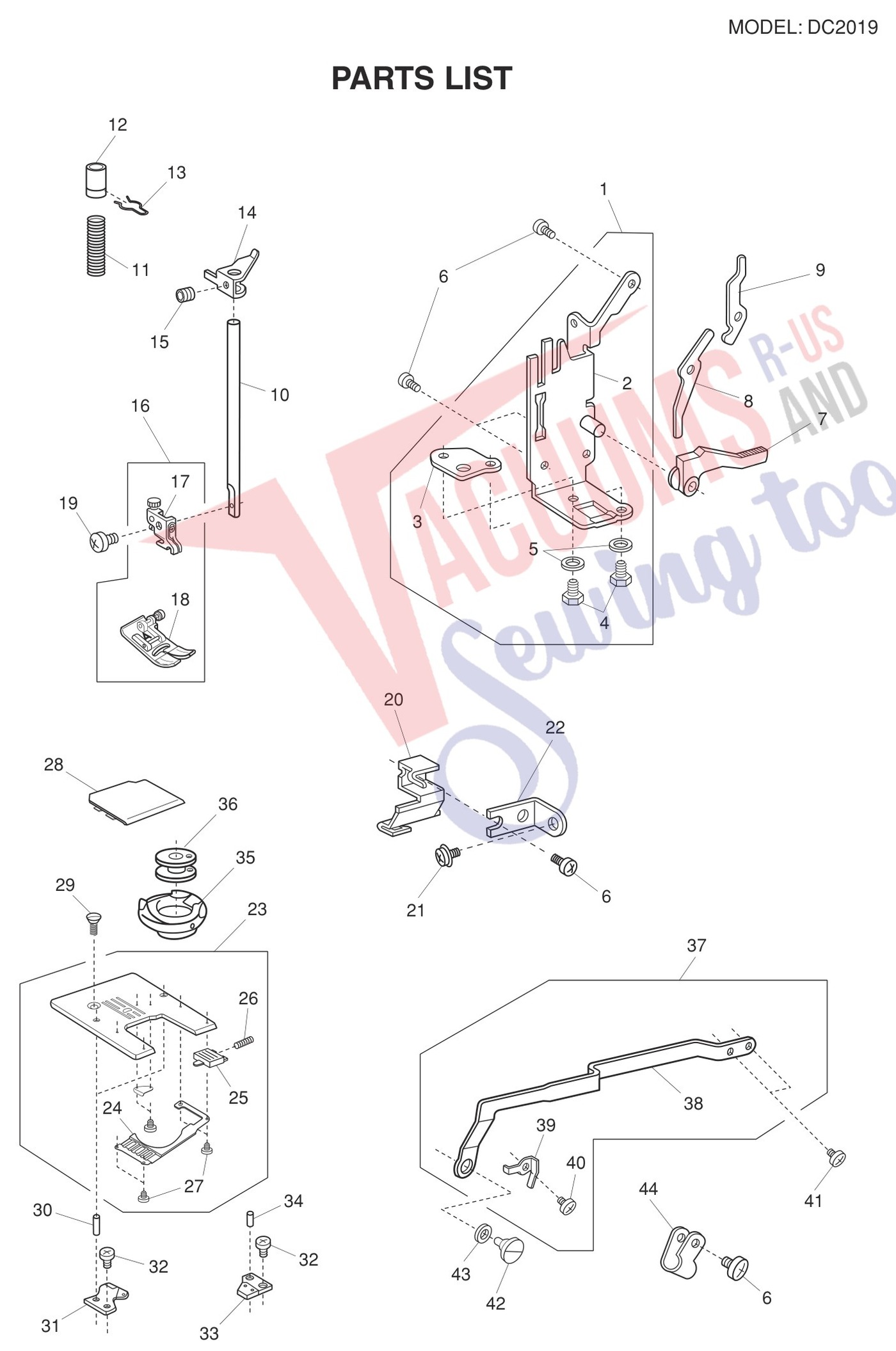

| 1 |  | Presser bar base unit sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061N... | 827608012 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Presser base plate sewing machine part or accessory For Elna Models: EL540S | 827020014 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Presser bar positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 827082003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | BOLT 4X6-4000 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 000066303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Plain washer 4 sewing machine part or accessory For Janome Models: 134D, 2040, 3022, 334, 4048/80... | 000070908 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 8 | | Tension release lever (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827022005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Tension release lever (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827023006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Presser bar sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509... | 827021004 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Presser bar spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 730026006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Presser bar bushing sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040,... | 802021007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SNAP RETAINER sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022,... | 802022008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Zig Zag Foot Unit (7mm top load low shank) sewing machine part or accessory For Janome Models: 20... | 829515006 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Genuine Janome/Elna Standard Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC... | 804509000 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | ARM THREAD GUIDE sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 827036002 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Front cover bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8... | 827037003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Genuine Janome/Elna Needle plate (unit) For: EL540S | 756604509 | $24.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Hook cover plate supporter sewing machine part or accessory For Janome Models: SEWIST500 (V2) | 751374007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 662, 7061NX... | 000122504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Bobbin case stopper(left) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 827011001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, 733... | 000122700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Bobbin holder sewing machine part or accessory For Janome Models: DC2010 | 627569209 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Zigzag rod unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827622012 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Zigzag rod sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 827055018 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Zigzag Width Rod Spring | 827088009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061NX, ... | 653037008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Nylon clip sewing machine part or accessory For Janome Models: 3160QDC, 6125QC, 7330, 888 COMPULO... | 000188209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

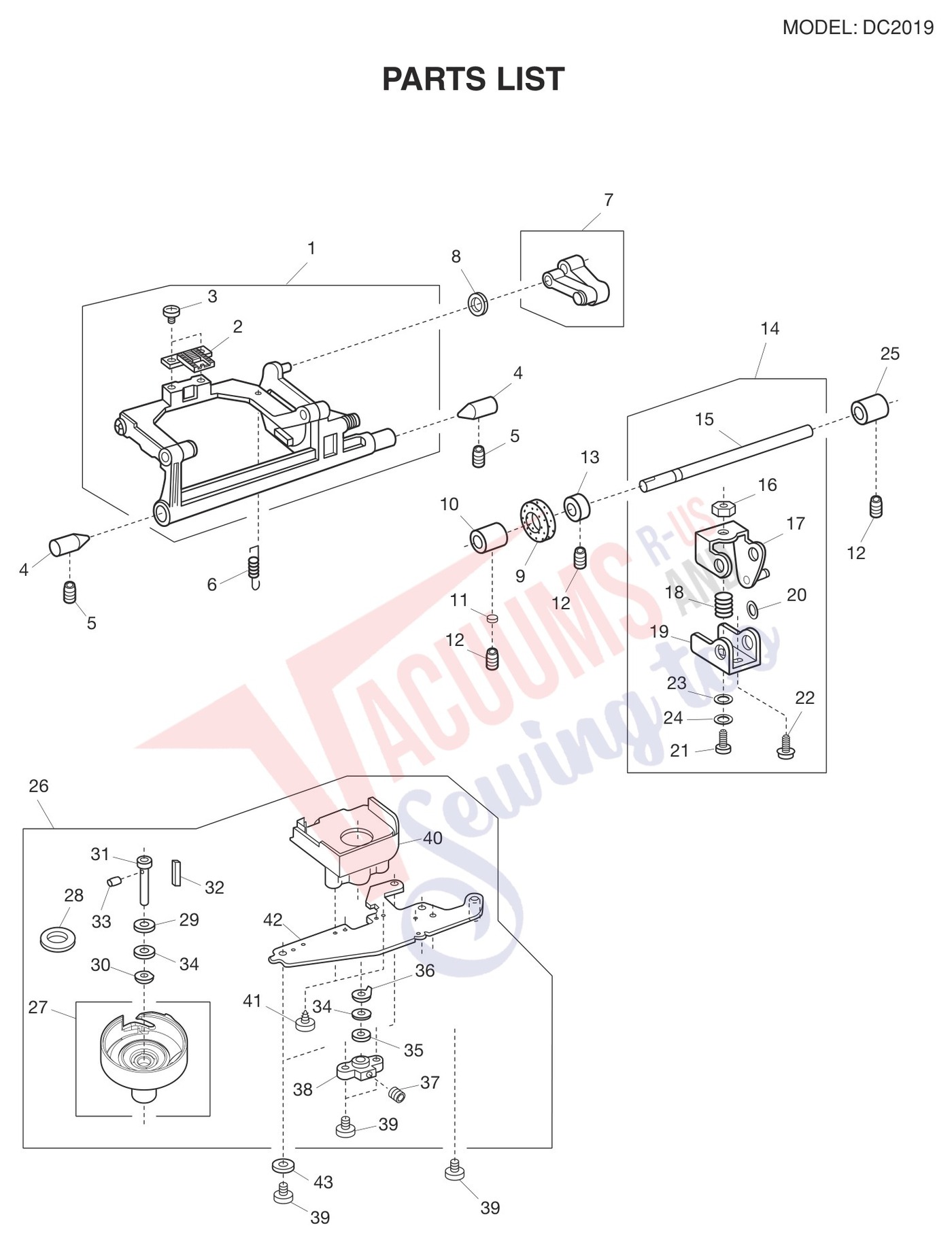

| 1 | | Feed shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 834527100 | $35.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4618LE... | 840005003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 6 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | FEED SHAFT UNIT FOR MC 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/... | 840603007 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 840006004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Feed arm (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 70... | 827043105 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | BH feed adjusting spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 589040002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Feed arm (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 70... | 825261002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Spring washer sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 6... | 810207004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Feed arm screw sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 827086007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | SET SCREW 3X12 7000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045N... | 000115906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Washer 5.2x8x0.25 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1200D, 1200D,... | 000036407 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Genuine Janome/Elna Hook race (unit) For: EL540S | 827614088 | $58.00Read more |
| 27 |  | Hook body (unit) sewing machine part or accessory For Janome Models: NQM2016 | 660536004 | $34.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Washer sewing machine part or accessory For Janome Models: 4300QDC-B | 508118001 | $0.40Read more |
| 30 | | Magnet set plate sewing machine part or accessory For Janome Models: 4300QDC-B | 508139008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 38 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Hook bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 50... | 823106002 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

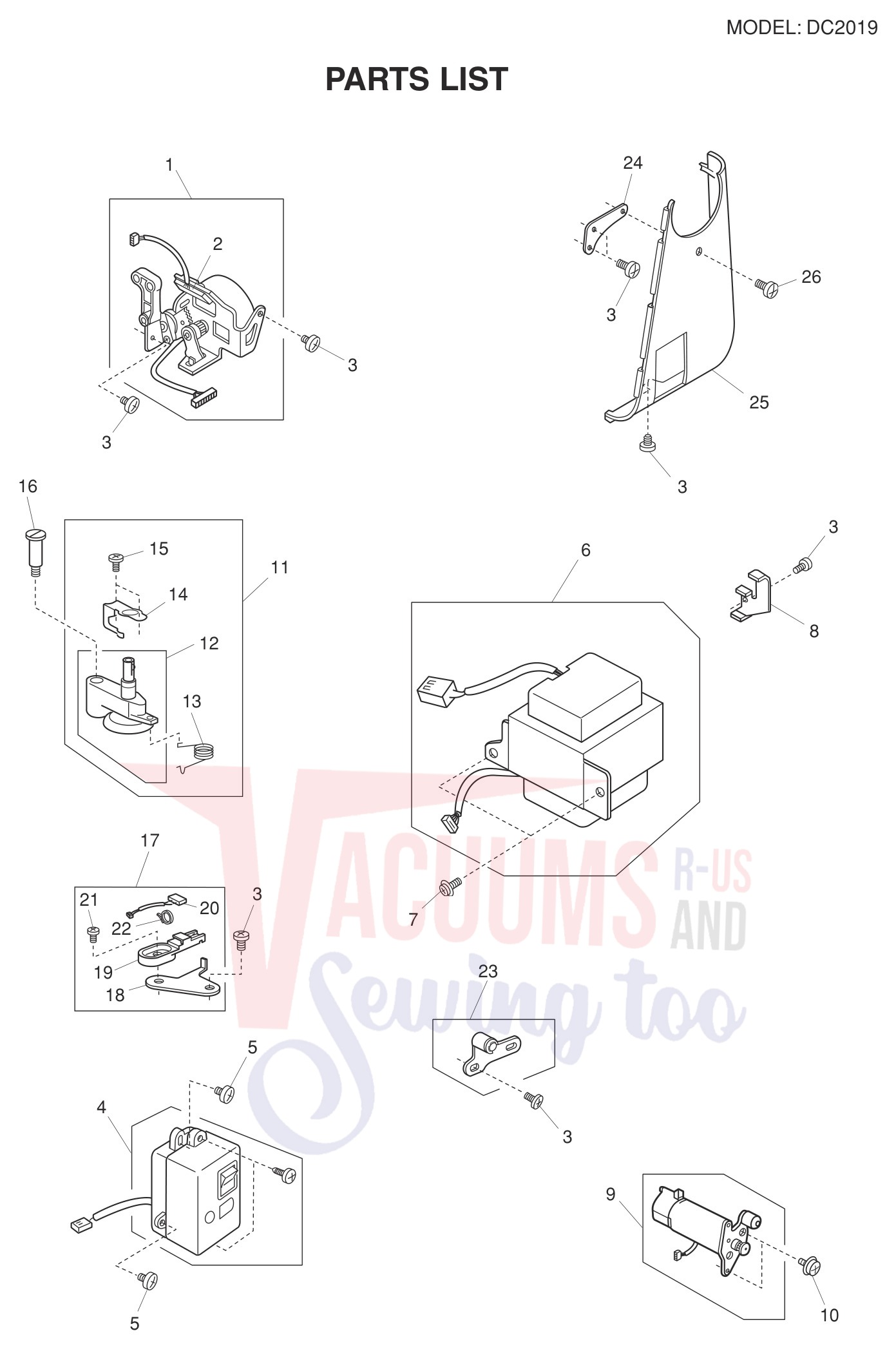

| 1 | | ZZ MOTOR UNIT sewing machine part or accessory | 843608001 | $74.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Printed Circuit Board E2 Unit | 843503005 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Machine sokcet (unit) (120V) sewing machine part or accessory For Janome Models: 2040, 3022, 7061... | 841514405 | $27.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Transformer unit for 120V sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 843512007 | $60.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Transformer supporter sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061N... | 829020009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | DC motor unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 843615001 | $82.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Bobbin winder (unit) sewing machine part or accessory For Janome Models: 7330, AQS2009, DC2007LE,... | 844628033 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Bobbin Winder sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 659, 7318... | 652506000 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Clutch release plate sewing machine part or accessory For Janome Models: 7330, AQS2009, DC2007LE,... | 844075039 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Hinge screw sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509... | 652093009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Switch base plate (Unit) sewing machine part or accessory For Janome Models: 7330, AQS2009, HF807... | 842629005 | $19.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Switch base plate sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT20... | 842066008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Bobbin winder switch holder sewing machine part or accessory For Janome Models: 4048/8048/HF8048,... | 827100008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Bobbin Winder Switch sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 753507203 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Idler unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7061... | 652611009 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Belt cover bracket sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF8... | 827085017 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Belt cover sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC5... | 828064002 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1600P, 1600P-DB... | 000104119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Accessory Set sewing machine part or accessory , DC2012 | 843870372 | $102.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Overlock Foot C (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822801001 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Zipper Foot (new 7mm top load) sewing machine part or accessory metal zipper for 7mm and 5mm mode... | 808852003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Satin stitch foot F sewing machine part or accessory For Janome Models: MC11000 Special Edition, ... | 822804129 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Needle Case Unit sewing machine part or accessory For Janome Models: All Janome sewing machines (... | 540401026 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SPOOL HOLDER RECEIVING BASE sewing machine part or accessory For Janome Models: 2040, 3022, 3160Q... | 829803004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 14 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | QUILTER BAR-LARGE sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 5... | 802422002 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Even foot sewing machine part or accessory For Janome Models: DC201, DC2011, DC2012, DC2013, DC20... | 214508002 | $42.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | 1/4˝ Seam foot sewing machine part or accessory 200008037 1/4˝ Seam foot SKS3 | 200008037 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Foot control sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | C-1036 | $53.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Compatible alternateFoot Control Pedal for Janome and Elna - Use with: 3160QDC HF8050, MC2160QDC, JNH1860, JNH720, JP... More Product Details | C1036 | $57.99Add to cart |
| 20 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Instruction Book for DC2011 sewing machine part or accessory , DC2012 | 843801361 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Cover sewing machine part or accessory For Janome Models: DC2014 | 479701303 | $59.20Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
