Schematic and parts book for Janome DC1018 DC1018. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

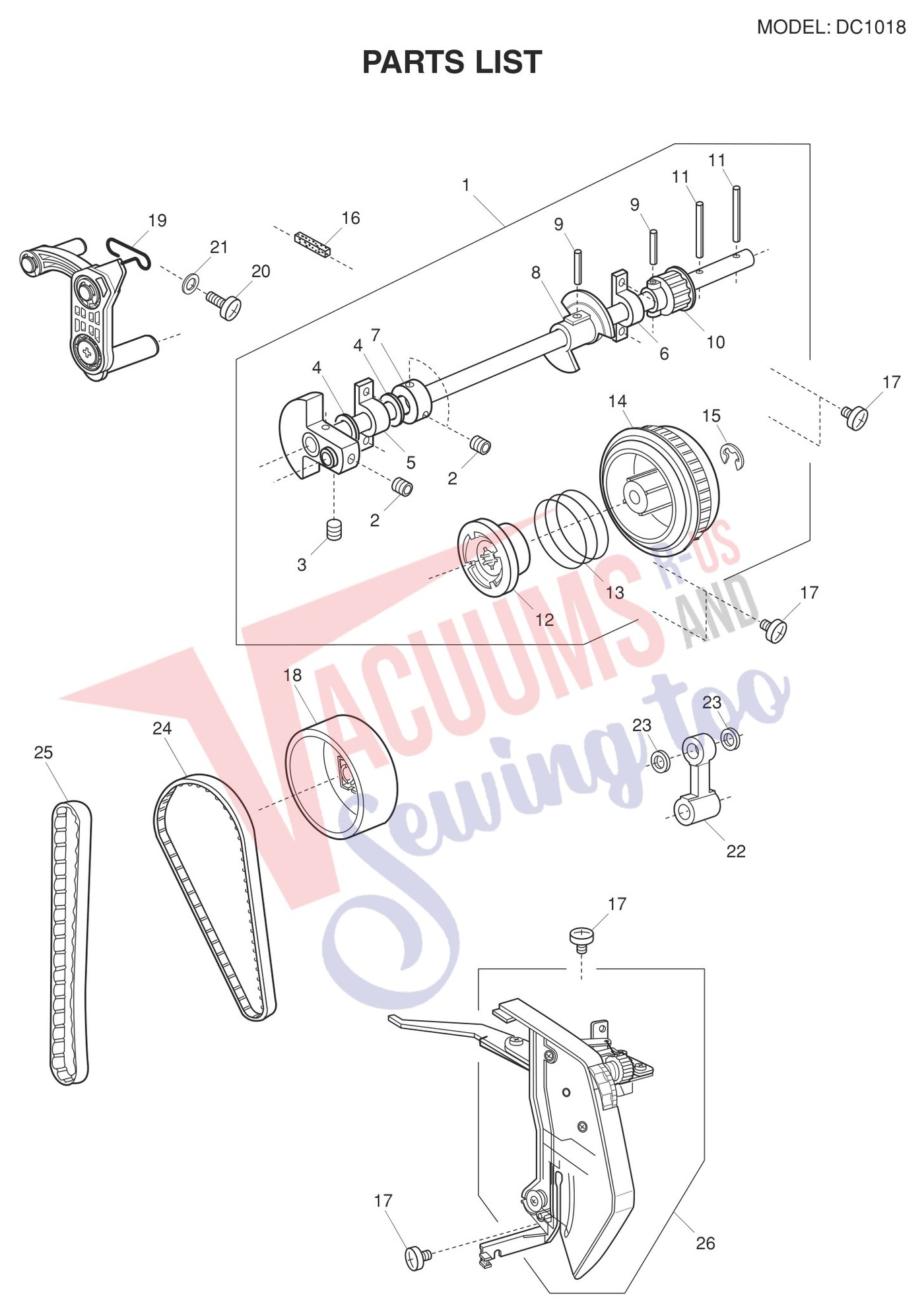

| # | Part image | Description | SKU | Price |
| 1 |  | Upper shaft (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC,... | 808601005 | $38.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Setscrew 4x6 sewing machine part or accessory For Janome Models: 1100D, 1200D, 1200D, 3160QDC, My... | 000112800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Shaft fixing metal sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle1... | 508054008 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Shaft fixing metal sewing machine part or accessory For Janome Models: Mystyle100, Mystyle100 HF5... | 508054101 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Upper shaft shielding plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, M... | 808003001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Clutch spring sewing machine part or accessory For Janome Models: 3160QDC, AQS2009, JP720, JP760,... | 661024007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Belt wheel sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8050, HF5812... | 508055009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Handwheel sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8050, HF5812,... | 508056000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: HF8050 | 508601109 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Washer sewing machine part or accessory For Janome Models: 3160QDC, 405, 415, 419S, 423S, 712T, D... | 000072302 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Needle bar crank rod sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QD... | 808005003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thrust washer sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (... | 000036005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Timing belt sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 808021005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Syncro motor belt sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 808037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Thread tension (unit) sewing machine part or accessory For Janome Models: DC1018 | 808523105 | $41.20Add to cart Special order: ships in 2 to 4 weeks |

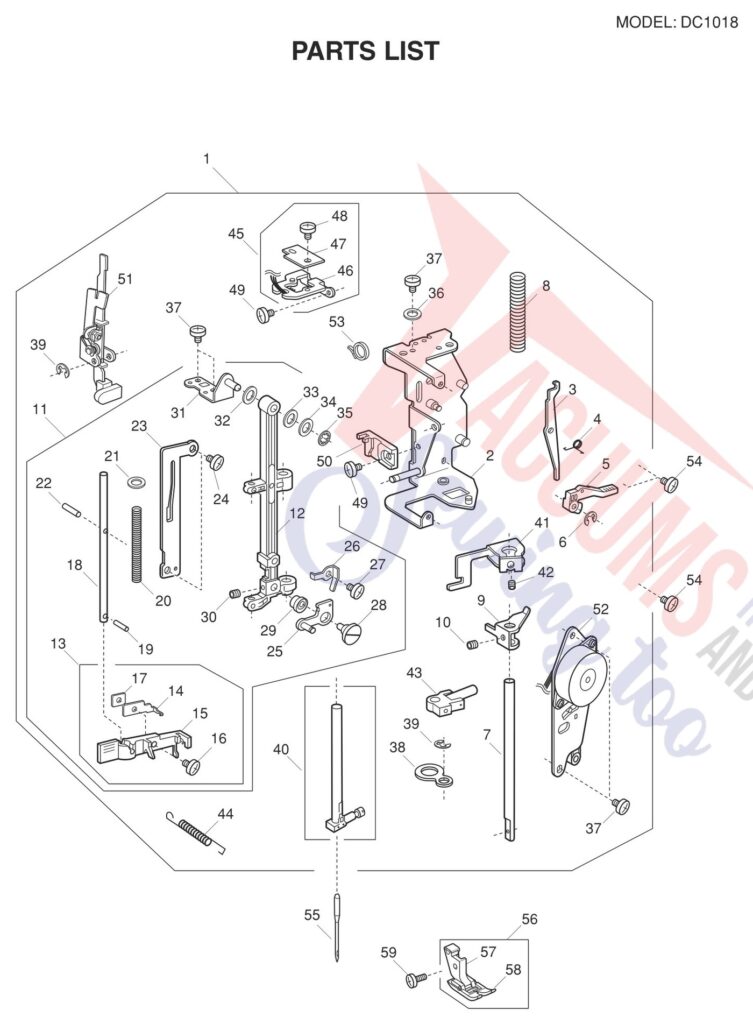

| # | Part image | Description | SKU | Price |

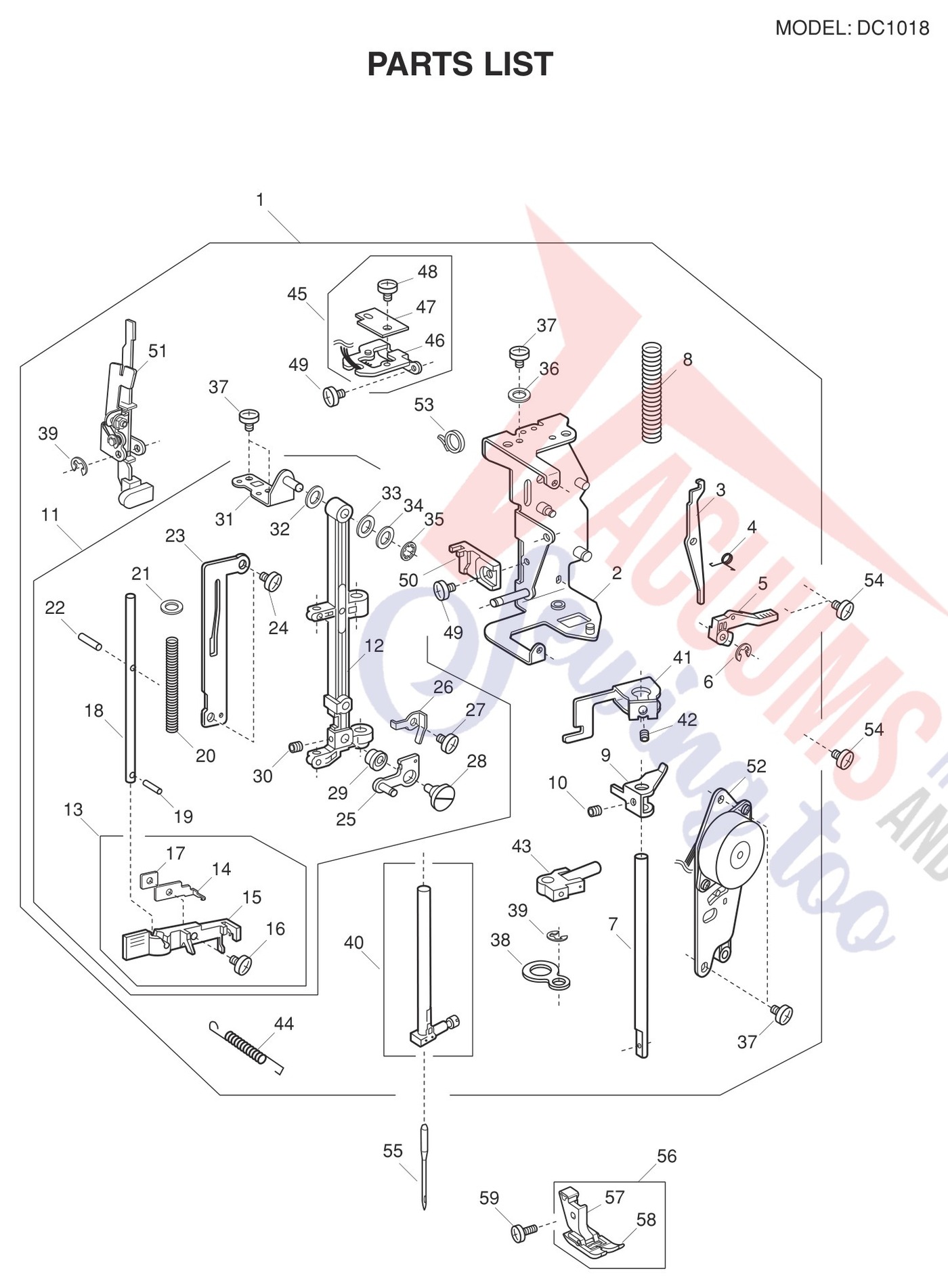

| 1 | | Presser bar base plate (unit) sewing machine part or accessory For Janome Models: HF8050 | 808628008 | $102.20Read more |
| 2 | Not Available | Presser bar base plate | 808006004 | Not Available |
| 3 | | Thread tension release lever sewing machine part or accessory For Janome Models: 3160QDC HF8050, ... | 808007005 | $0.80Read more |
| 4 |  | Thread tension release spring sewing machine part or accessory For Janome Models: 3160QDC, 6019QC... | 503041007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Presser Bar Lifter sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4... | 502024001 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Presser bar sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 508002104 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Presser bar spring sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812,... | 508038006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Presser bar supporter sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8... | 508039007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Needle bar supporter (unit) sewing machine part or accessory For Janome Models: HF8050 | 808624004 | $37.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Needle bar supporter sewing machine part or accessory For Janome Models: HF8050 | 808008109 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Needle threader supp. unit sewing machine part or accessory For Janome Models: 2139N, AQS2009, HT... | 639643009 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Threader Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 40... | 755065004 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Threader guard plate sewing machine part or accessory For Janome Models: HF8050 | 639229005 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Setscrew sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX,... | 755096004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Nut sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 755095003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Threader shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 40... | 840036003 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Threader shaft spring sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, ... | 827091005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Threader guide plate sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, D... | 653036029 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Zigzag width rod sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, J... | 808015006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Zigzag Width Rod Spring | 827088009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Zz rod eccentric pin sewing machine part or accessory For Janome Models: HF1012, HF2022, HF3000, ... | 678084007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Washer sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860, HS... | 808074003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Supporter adjusting plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2... | 808009007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Washer sewing machine part or accessory 673022002 Washer | 673022002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Washer sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2003P, 2018S, 2039... | 000070609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Genuine Janome/Elna Polished plain washer 5 For: 3160QDC, MC10000, MC10001, MC6500P, MC6600P HF... | 000072003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Supporter guide plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160Q... | 808010001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 40 |  | Genuine Janome/Elna Needle bar (unit) For: 3160QDC HF8050, MC2160QDC, JNH1860, HSN 49360 | 508607105 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Threader position set plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, M... | 808011002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Hexagonal socket screw 3x6 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 120... | 000177205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Needle bar connecting stud sewing machine part or accessory For Janome Models: 3160QDC, Mystyle10... | 508509003 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Supporter spring sewing machine part or accessory For Janome Models: 7330, AQS2009, HF3000, HF807... | 756063005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Buttonhole sensor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC21... | 808606000 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Sensor set plate sewing machine part or accessory For Janome Models: 3160QDC, 6260QC HF8050, MC21... | 845002005 | $1.20Read more |
| 47 |  | Printed circuit board E1 unit sewing machine part or accessory For Janome Models: 3160QDC HF8050,... | 843502602 | $12.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Buttonhole Lever Guide | 830057021 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

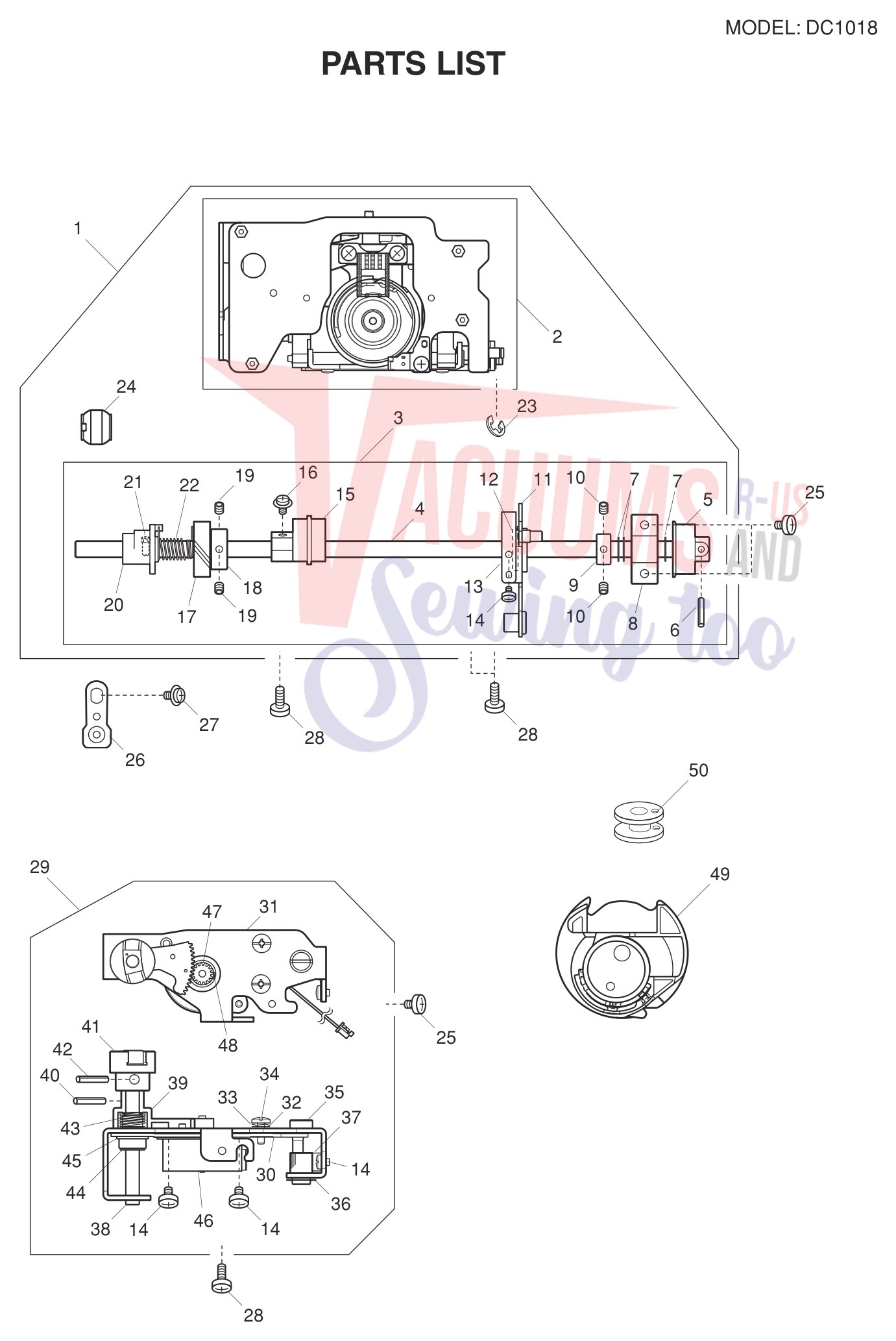

| 1 | | Hook race (whole unit) sewing machine part or accessory For Janome Models: HF8050 | 808635019 | $85.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Hook race (unit) sewing machine part or accessory For Janome Models: HF8050 | 808625005 | $59.80Read more |
| 3 | | Lower shaft (unit) sewing machine part or accessory For Janome Models: HF8050 | 808634018 | $34.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Lower shaft | 808027001 | Not Available |
| 5 | | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Shaft fixing metal sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle1... | 508054008 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Feed fork sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860,... | 808028002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Actuator plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH... | 751150005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Feed fork spring sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, J... | 808026000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Feed cam sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860, ... | 808029003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Lower gear sewing machine part or accessory For Janome Models: HF8050, Necchi EX30, Necchi EX100,... | 808110002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Ring sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100, Mystyle100 HF8050, ... | 508020005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Lower shaft bushing set plate sewing machine part or accessory For Models: , Necchi EX30, Necchi... | 809042005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Feed motor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 808613000 | $79.20Read more |
| 30 | | Feed motor set plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QD... | 808030007 | $2.60Read more |
| 31 |  | Feed regulator shaft supporter sewing machine part or accessory For Janome Models: 3160QDC HF8050... | 808031008 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | WASHER CORRUGATING 4/9 8 7 75 sewing machine part or accessory For Janome Models: 2003P, 3160QDC... | 000116103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Setscrew sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860, ... | 823038002 | $0.60Read more |
| 35 | | Feed regulator shaft sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QD... | 808033000 | $3.20Read more |
| 36 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Feed regulator shaft spring sewing machine part or accessory For Janome Models: 3160QDC HF8050, M... | 808096001 | $0.60Read more |
| 38 | | Feed regulator shaft sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QD... | 808034001 | $1.60Read more |
| 39 | | Feed regulator sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH... | 808035002 | $1.40Read more |
| 40 | | Spring pin 2.5x10 sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 000004004 | $0.60Read more |
| 41 | | Feed regulator (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160Q... | 625508204 | $17.00Read more |
| 42 | | Spring pin 3x14 sewing machine part or accessory For Janome Models: 5300QDC | 000004107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Feed regulator spring sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160Q... | 808094009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | SNAP RING sewing machine part or accessory For Janome Models: 3160QDC, JA1504-1512, JD1803, JD181... | 000013501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | Stepping motor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160Q... | 808509105 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | Gear sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860, HSN ... | 808013004 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 48 |  | 000110406 Hexagonal socket screw 3x4 sewing machine part or accessory For Janome Models: MC2160QD... | 000110406 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 |  | Bobbin Holder Unit for Janome #508638002 | 508638002 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | Plastic bobbin | 102261000 | Not Available |

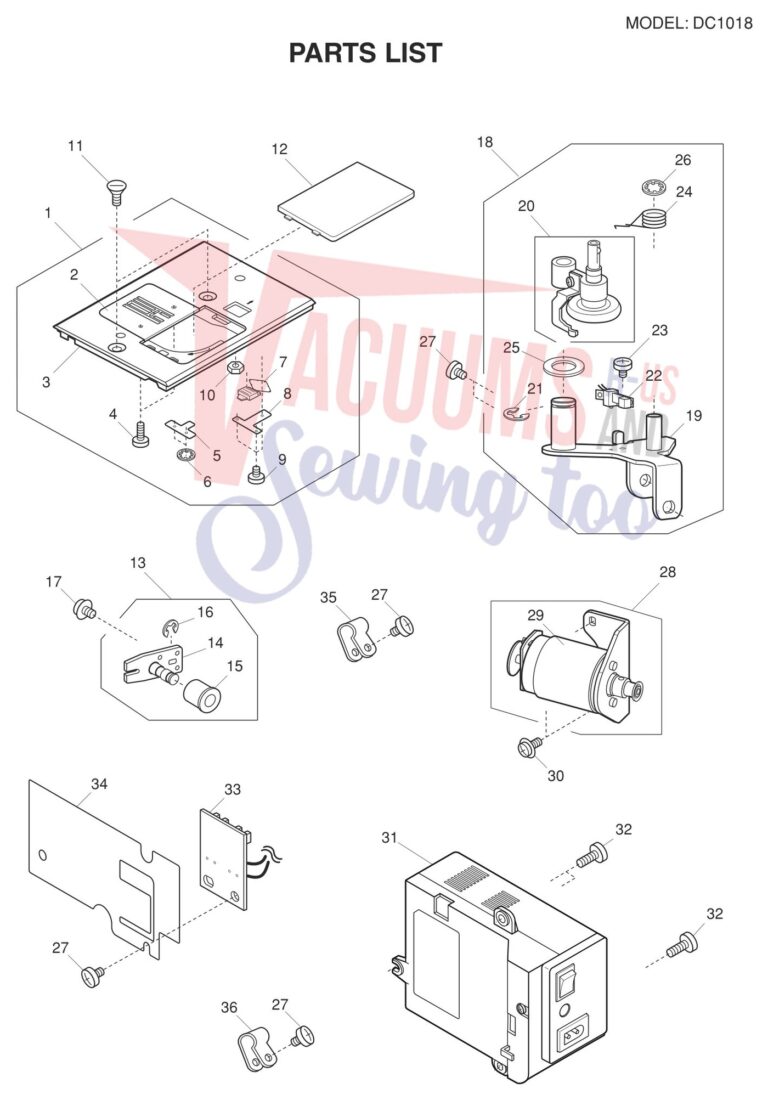

| # | Part image | Description | SKU | Price |

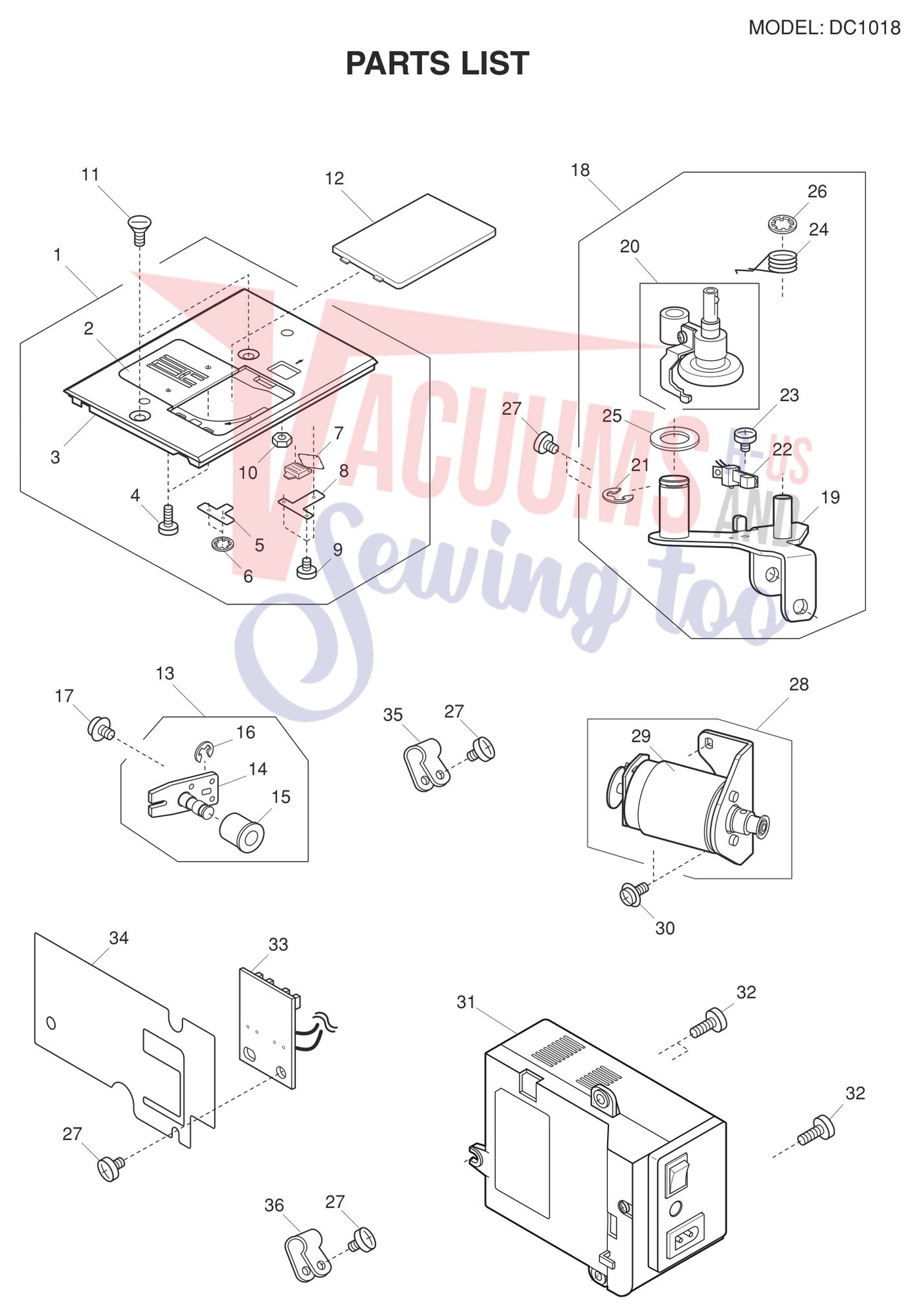

| 1 | | Needle plate (unit) sewing machine part or accessory For Janome Models: JNH1860, MC2160QDC HF8050 | 808626006 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Needle plate sewing machine part or accessory For Janome Models: JW8100 | 808067003 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Support needle plate | 808068004 | Not Available |
| 4 | | Setscrew 2x3.5 sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812, MC2... | 000163703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGH... | 502015009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 000015503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Hook cover plate release buttn sewing machine part or accessory For Janome Models: 4045LX, 4045NX... | 502016000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Supporter plate sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 502202005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Setscrew 1.7x2.5 (B) sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF581... | 000130206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Nut | 508116009 | Not Available |
| 11 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hook cover plate sewing machine part or accessory For Janome Models: MC12000 Horizon, MC11000SE, ... | 846271103 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Compatible alternateJanome Hook Cover Plate More Product Details | 502017104 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Idler (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | 808614001 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Idler set plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808038005 | $1.60Read more |
| 15 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Bobbin winder (unit) | 808627100 | Not Available |
| 19 | Not Available | Bobbin winder set plate | 808039109 | Not Available |
| 20 | | Bobbin winder arm (unit) sewing machine part or accessory For Janome Models: HF8050, HF5812 | 508629000 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Reef switch (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC,... | 856512100 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Setscrew 2.5x5 sewing machine part or accessory For Janome Models: MISS, 3160QDC, MC200E HF8050, ... | 000081706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Spring sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860, HS... | 808040000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Washer sewing machine part or accessory For Janome Models: HF8050 | 000127808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | DC motor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808617004 | $69.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | DC motor (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808502005 | $71.49Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Switching regulator (unit) sewing machine part or accessory For Janome Models: DC1050, HF18750 | 808510006 | $98.40Read more |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Printed circuit board P (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050... | 808504007 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Cord guide sewing machine part or accessory For Janome Models: NQM2016 | 808093101 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Nylon clip sewing machine part or accessory For Janome Models: 3160QDC, 6125QC, 7330, 888 COMPULO... | 000188209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Nylon Clip Acc-2 | 000188405 | $0.80Add to cart Special order: ships in 2 to 4 weeks |

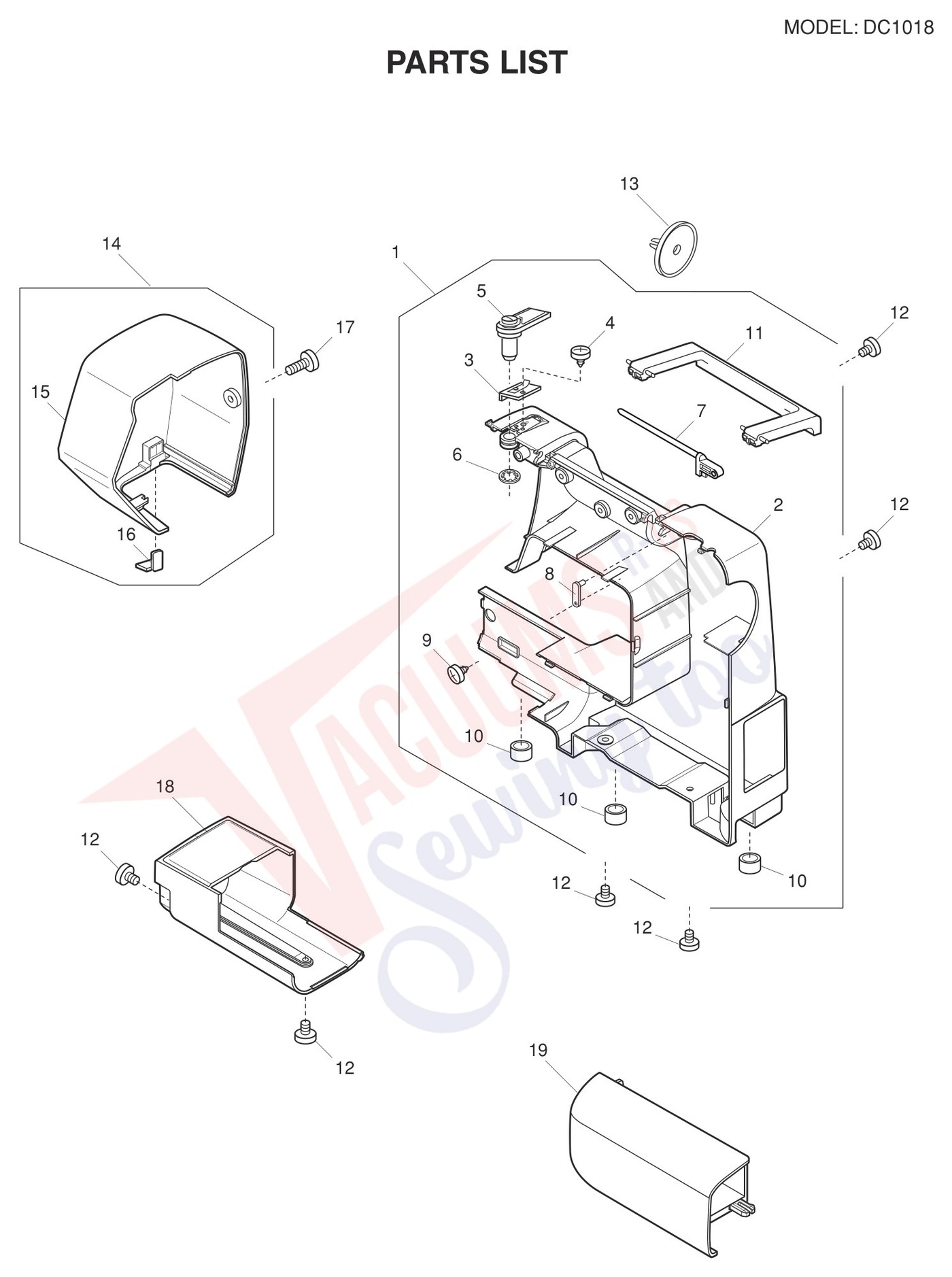

| # | Part image | Description | SKU | Price |
| 1 | | Rear cover (unit) sewing machine part or accessory For Janome Models: DC1018 | 808636700 | $24.20Read more |
| 2 | Not Available | Rear cover | 808084501 | Not Available |
| 3 |  | Top cover thread guide (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050,... | 827503108 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Thread guide (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC... | 650503403 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spool Spin sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUI... | 502007008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spool pin support plate sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045... | 502008009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Carrying Handle sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119... | 502009000 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Face plate (unit) sewing machine part or accessory For Janome Models: DC1018 | 808638078 | $13.80Read more |
| 15 | Not Available | Face plate | 808091073 | Not Available |
| 16 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Free arm cover sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH... | 808061007 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Janome DC1050 Extension Table - 808092007 | 808092007 | $11.40Add to cart Special order: ships in 2 to 4 weeks |

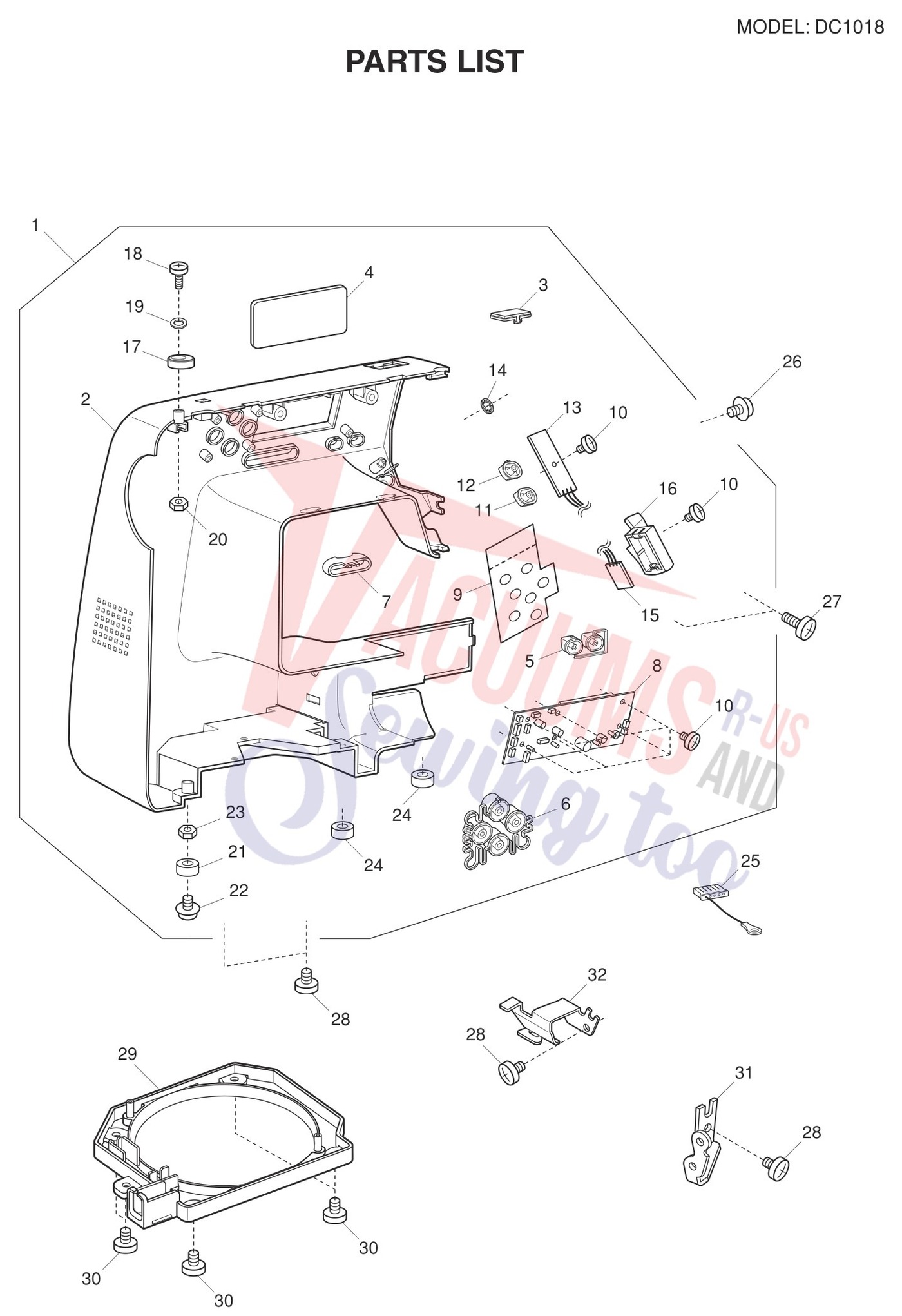

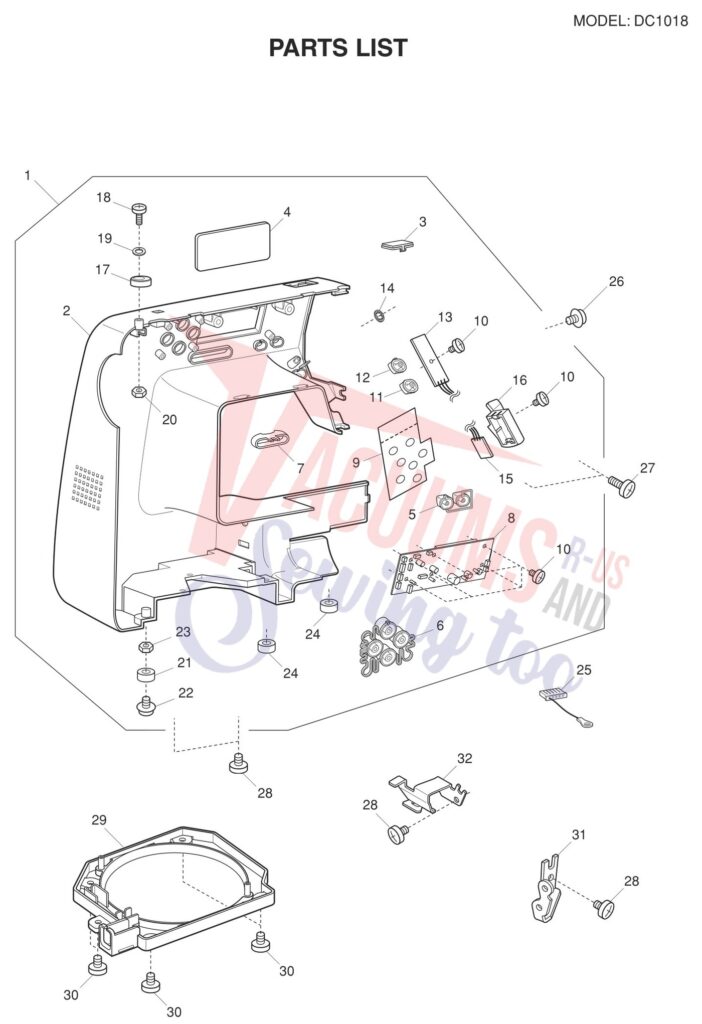

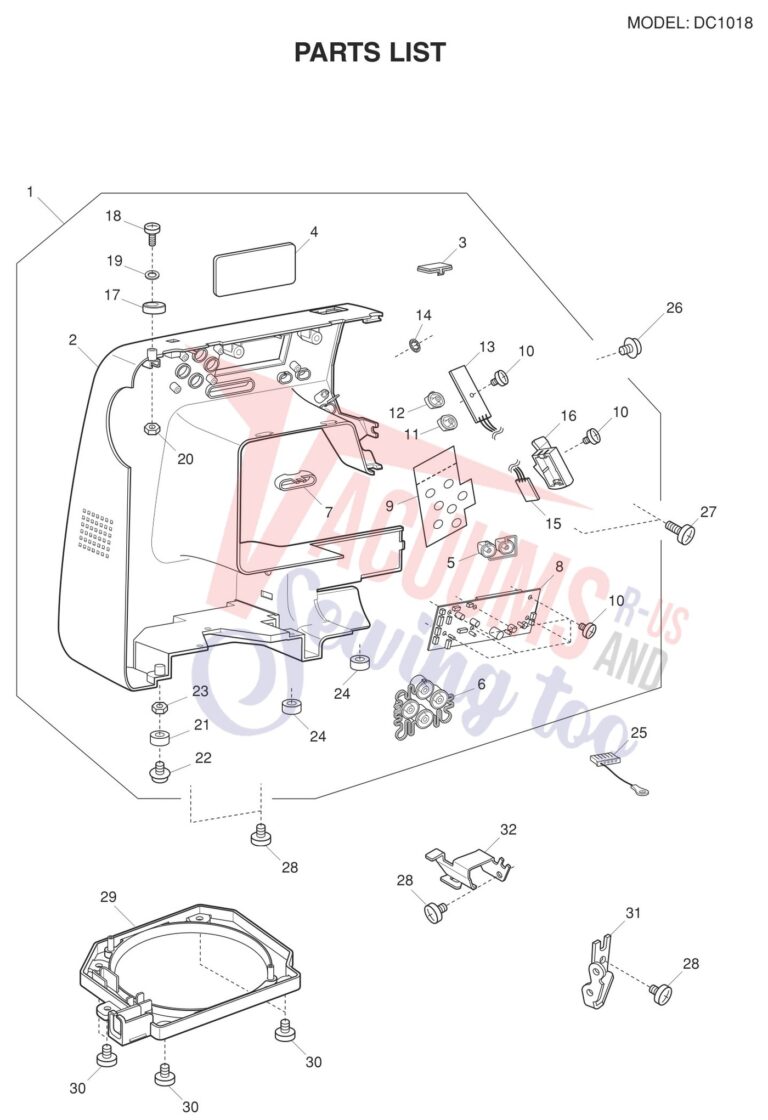

| # | Part image | Description | SKU | Price |
| 1 | | Front cover (unit) sewing machine part or accessory For Janome Models: DC1018 | 808637169 | $177.00Read more |
| 2 | Not Available | Front cover | 808085742 | Not Available |
| 3 |  | Front cover lid sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JN... | 808103002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Panel sewing machine part or accessory For Janome Models: | 808086802 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Button 1 sewing machine part or accessory For Janome Models: | 808087205 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Button 2 sewing machine part or accessory For Janome Models: | 808088206 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Slide volume sewing machine part or accessory For Janome Models: HF8050 | 808089001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Printed circuit board A (unit) sewing machine part or accessory For Janome Models: DC1018 | 808505237 | $123.40Read more |
| 9 | | Flame retardant insulating paper sewing machine part or accessory For Janome Models: 3160QDC-B | 808121006 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Start/stop button sewing machine part or accessory For Janome Models: | 808090304 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Button 4 | 808102207 | Not Available |
| 13 |  | Printed circuit board F (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050... | 808507000 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Printed circuit board L (unit) sewing machine part or accessory For Janome Models: 3160QDC HF8050... | 808506009 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Lamp holder sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 808057000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: T923, TB12, TB30 HF8050, HF5812, MC... | 000101828 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | NUT 5001 3123 sewing machine part or accessory For Janome Models: 1600P, 1600P-DBX, 1600P-QC, 234... | 000061102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Cushion sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041, 2041LX, 2... | 739064003 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Cord (unit) sewing machine part or accessory For Janome Models: DC1018 | 808521000 | $1.80Read more |
| 26 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Setscrew 4x16 (B) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, ... | 000160401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Bed cover sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH1860,... | 808059105 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: SEWMINI AND SEWPETITE HF8050, MC... | 000149312 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Front cover set plate sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 3160... | 639080002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Arm thread guide sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, J... | 808016007 | $3.80Add to cart Special order: ships in 2 to 4 weeks |

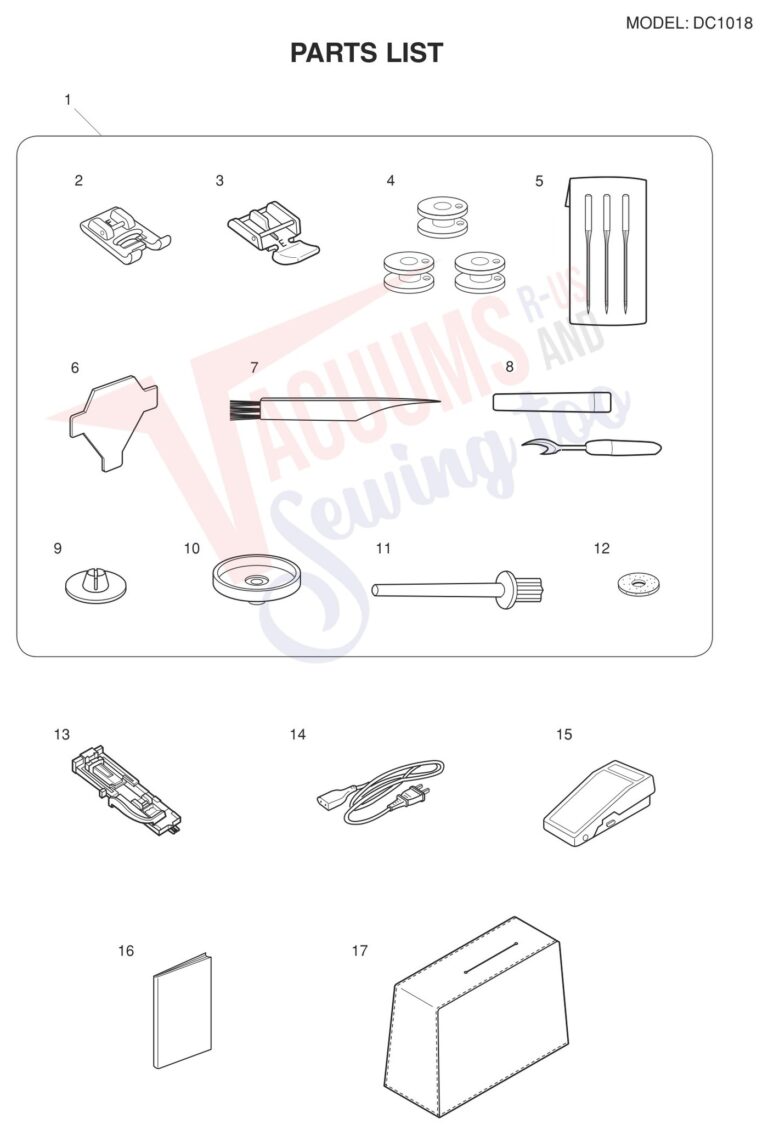

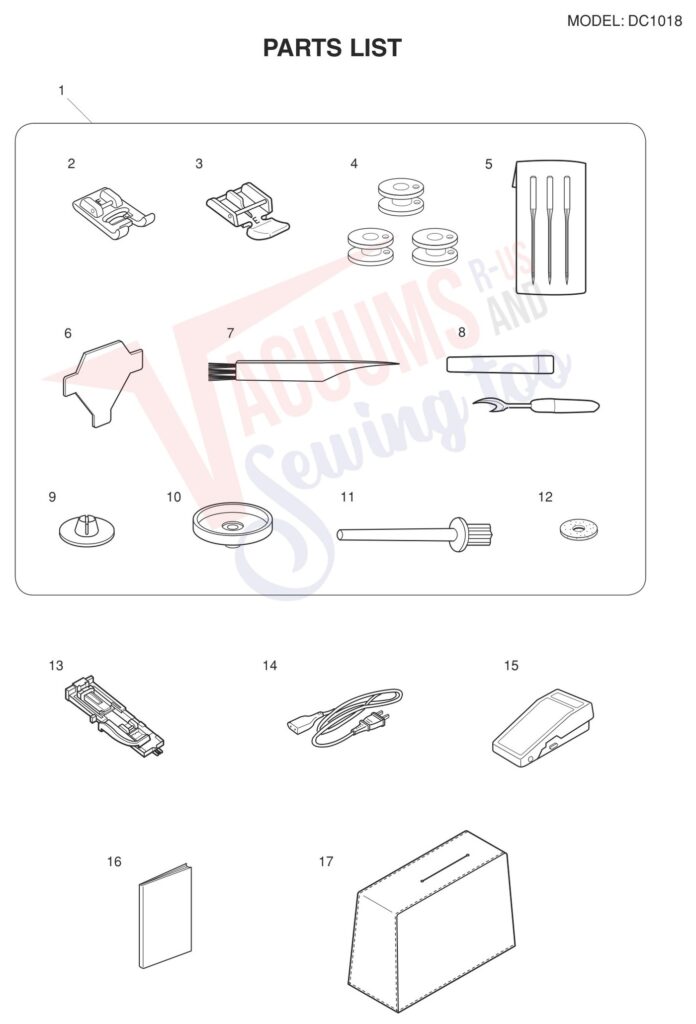

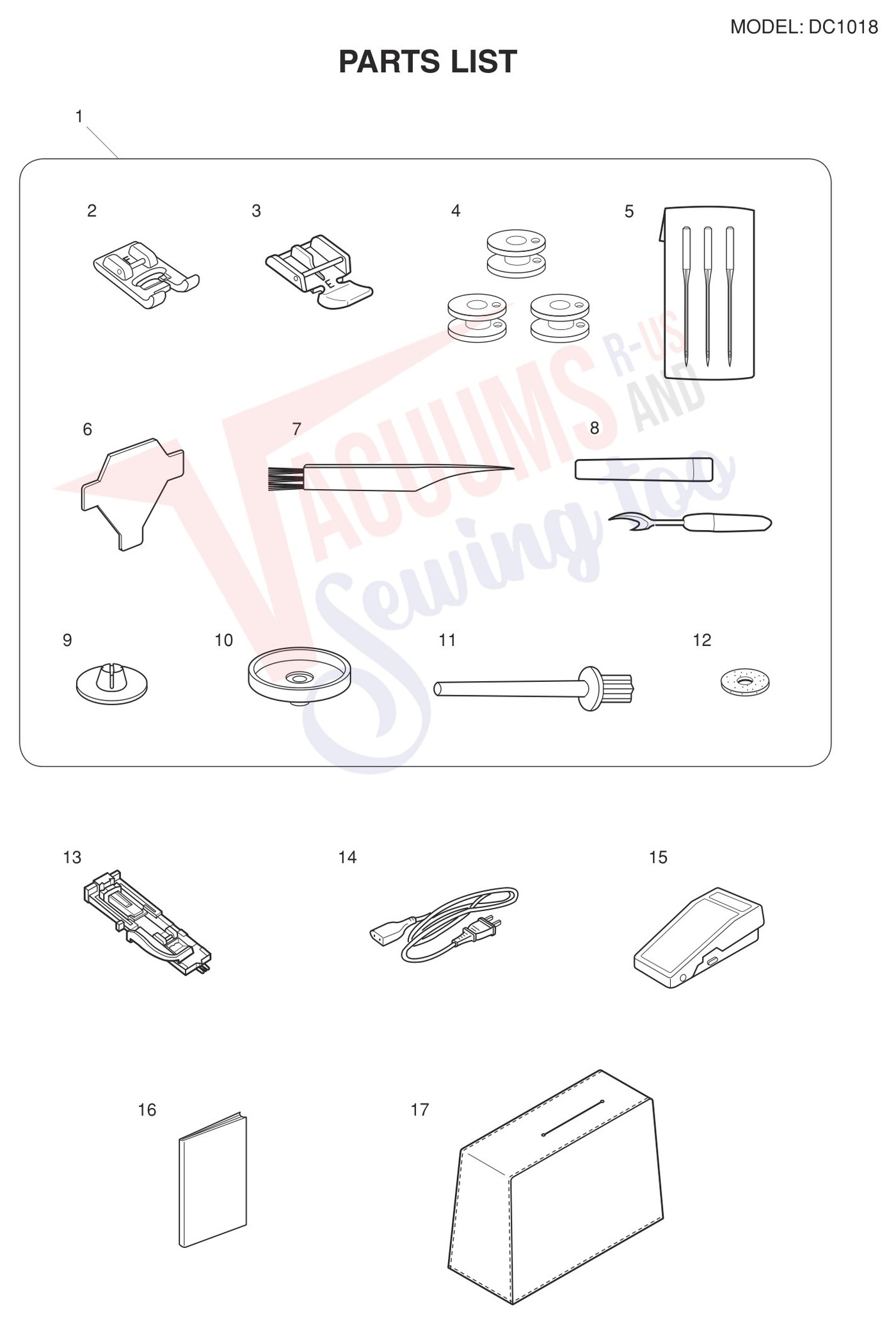

| # | Part image | Description | SKU | Price |
| 1 | | Attachment (unit) sewing machine part or accessory For Janome Models: HF8050 | 808870306 | $39.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 5 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | SPOOL HOLDER RECEIVING BASE sewing machine part or accessory For Janome Models: 2040, 3022, 3160Q... | 829803004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 12 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Sliding Buttonhole Foot R (top load) sewing machine part or accessory For Janome Models: 2040, 30... | 753801004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Power supply cord(JAI) sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 653524100 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Foot control sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH18... | C-1036 | $53.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Compatible alternateFoot Control Pedal for Janome and Elna - Use with: 3160QDC HF8050, MC2160QDC, JNH1860, JNH720, JP... More Product Details | C1036 | $57.99Add to cart |
| 16 | | Instruction book sewing machine part or accessory For Janome Models: DC1018 | 808800925 | $17.71Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Vinyl Dust Cover sewing machine part or accessory For Janome Models: 900, 910, 921, 990, 2040, CE... | 741811000 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
