Schematic and parts book for Janome C30 C30. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

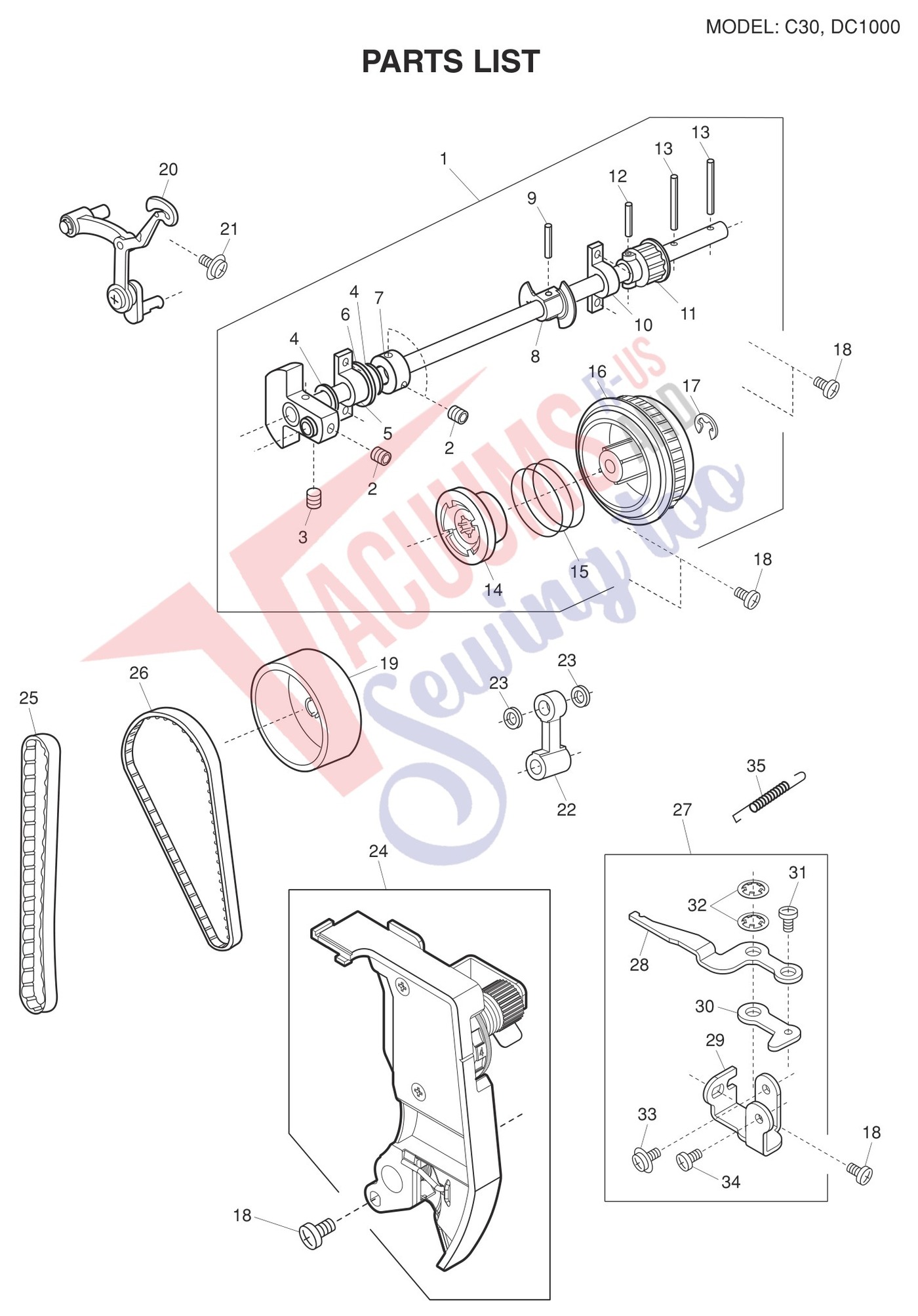

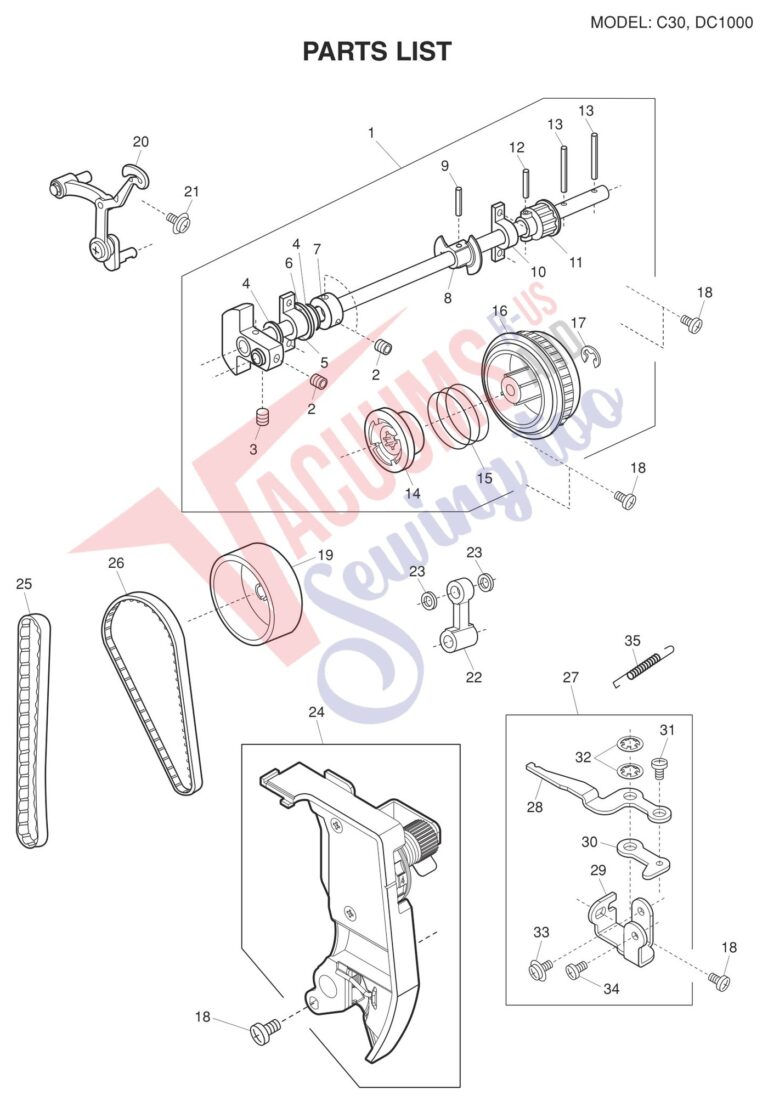

| 1 |  | Upper shaft (unit) sewing machine part or accessory For Elna Models: ELEC30 | 805601006 | $25.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Setscrew 4x6 sewing machine part or accessory For Janome Models: 1100D, 1200D, 1200D, 3160QDC, My... | 000112800 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Shaft supporter plate sewing machine part or accessory For Janome Models: 508120006 Shaft support... | 508120006 | $2.00Read more |
| 6 | | Genuine Janome/Elna Felt For: EL160 | 823110010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Upper shaft shielding plate sewing machine part or accessory For Elna Models: ELEC30 | 805001000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Spring pin 3x14 sewing machine part or accessory For Janome Models: 5300QDC | 000004107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Shaft fixing metal sewing machine part or accessory For Janome Models: Mystyle100, Mystyle100 HF5... | 508054101 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Clutch spring sewing machine part or accessory For Janome Models: 3160QDC, AQS2009, JP720, JP760,... | 661024007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Belt wheel sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8050, HF5812... | 508055009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Handwheel sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8050, HF5812,... | 508056000 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Thread take-up lever (unit) sewing machine part or accessory For Janome Models: Mystyle100 | 508634008 | $22.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Needle bar crank rod sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508017009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Thrust washer sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (... | 000036005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Genuine Janome/Elna Thread tension (unit) For: ELEC30 | 805502006 | $27.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Timing belt (16" length) sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508022007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Motor belt sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 753234011 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Thread tension set plate unit sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508617005 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Thread tension set plate | 508051005 | Not Available |
| 29 | Not Available | Thread tension release arm | 508052006 | Not Available |
| 30 | | Tension release arm sewing machine part or accessory For Janome Models: 662, AQS2009, JEM GOLD 2/... | 639025009 | $0.92Read more |
| 31 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639, 639B, 66... | 639026000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

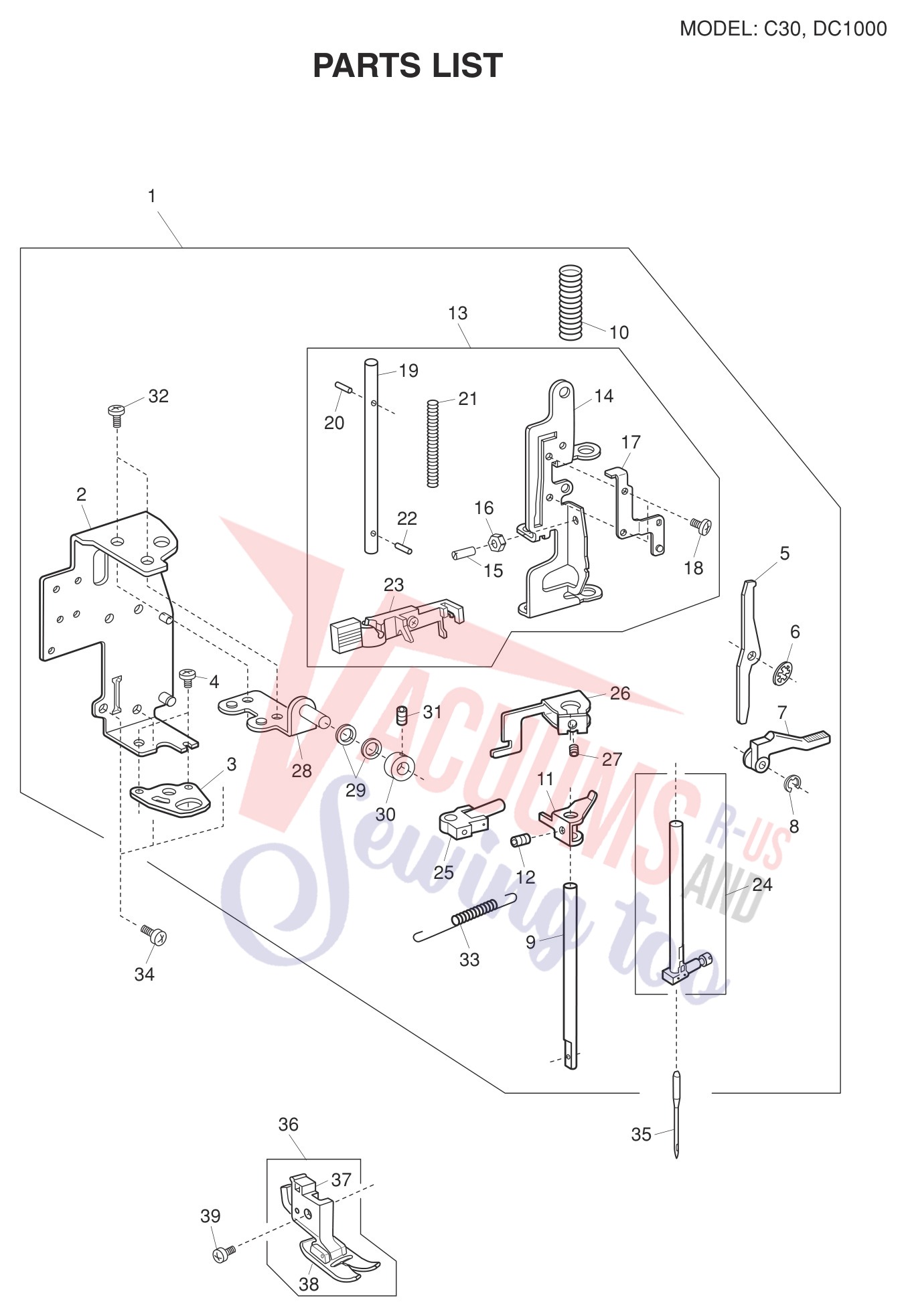

| 1 | | Genuine Janome/Elna Presser bar base plate (unit) For: 00150816 | 508640007 | $62.20Read more |
| 2 | | Presser bar base plate sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508036004 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Needle drop adjusting plate sewing machine part or accessory For Janome Models: Mystyle100, HF5812 | 508037005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | BINDING HD SCREW 3.5 X 5-3123 sewing machine part or accessory For Janome Models: 360, 380 & ... | 000101507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | Thread tension release lever | 508040001 | Not Available |
| 6 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 8 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Genuine Janome/Elna Presser bar For: Mystyle100, HF5812 | 508002001 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Presser bar spring sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812,... | 508038006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Presser bar supporter sewing machine part or accessory For Janome Models: 3160QDC, Mystyle100 HF8... | 508039007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Needle threader (unit) sewing machine part or accessory For Elna Models: ELEC30 | 508641008 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Needle bar supporter | 508041002 | Not Available |
| 15 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Zigzag rod guide sewing machine part or accessory For Janome Models: Jem Gold Plus, JP720, JP760,... | 660065007 | $1.60Read more |
| 18 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Threader shaft sewing machine part or accessory For Elna Models: ELEC30 | 660100201 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Threader spring sewing machine part or accessory For Elna Models: ELEC30 | 508152007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Needle threader supp. unit sewing machine part or accessory For Janome Models: 2139N, AQS2009, HT... | 639643009 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Needle bar (unit) sewing machine part or accessory For Janome Models: Mystyle100, 3160QC, 2160QC,... | 508607002 | $17.60Read more |
| 25 |  | Needle bar connecting stud sewing machine part or accessory For Janome Models: 3160QDC, Mystyle10... | 508509003 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Threader position set plate sewing machine part or accessory For Janome Models: 3160QDC HF8050, M... | 808011002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Supporter adjusting plate sewing machine part or accessory For Janome Models: AQS2009, JP720, JP7... | 660068000 | $1.61Read more |
| 29 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Ring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 63... | 650136009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Supporter spring (2) sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128,... | 639110002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Supporter spring sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639... | 639017008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Presser Foot Unit (low shank top load) sewing machine part or accessory For Janome Models: 2040, ... | 660508007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Genuine Janome/Elna Presser Foot Holder (top load low shank) For: 2040, HF3022, 6260QC, 4048, 8... | 660806008 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Zig Zag Foot(top load 5mm-7mm) sewing machine part or accessory For Janome Models: CE2200, ML3023... | 685502019 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

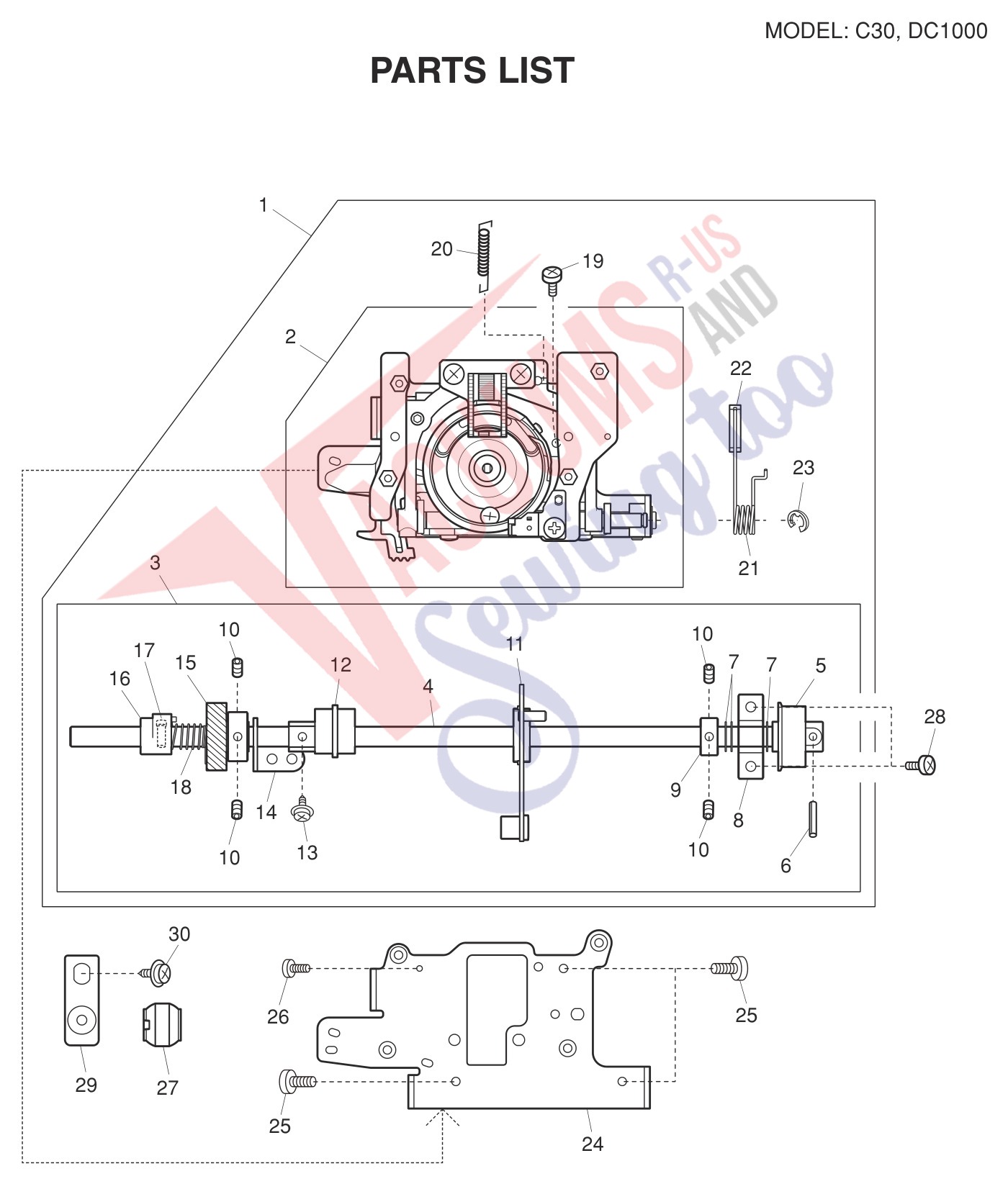

| # | Part image | Description | SKU | Price |
| 1 | | Hook race (whole unit) sewing machine part or accessory For Elna Models: ELEC30 | 508636206 | $68.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Hook race (unit) sewing machine part or accessory For Elna Models: EL160 | 508650000 | $85.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Lower shaft (unit) sewing machine part or accessory For Elna Models: ELEC30 | 508611308 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Lower shaft | 508058002 | Not Available |
| 5 | | Upper shaft gear sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, Mystyle100... | 508021006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Spring pin 3x18 sewing machine part or accessory For Janome Models: 3160QDC, 3160QDC, 4045LX, 404... | 000004200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory For Elna Models: ELEC30 | 508146008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Shaft fixing metal sewing machine part or accessory For Janome Models: Mystyle100, Mystyle100 HF5... | 508054101 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Feed fork (unit) sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508610008 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Feed cam sewing machine part or accessory For Janome Models: HF5812 | 508200001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Lower shaft supporter plate | 508098004 | Not Available |
| 15 |  | Lower shaft gear sewing machine part or accessory For Janome Models: NQM2016 | 808137005 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | FEED LIFTING CAM sewing machine part or accessory For Janome Models: 6019QC, 6125QC, Mystyle100 H... | 503165008 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Feed lifting cam spring | 508113006 | Not Available |
| 19 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Feed base spring sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508063000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Feed fork spring | 508065002 | Not Available |
| 22 |  | Feed fork spring plate sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 751152018 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Hook race supporter plate sewing machine part or accessory For Elna Models: ELEC30 | 508059003 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Setscrew 3x12 sewing machine part or accessory For Janome Models: 203, 234D, 509, 521, 525S, 625E... | 000081500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Lower Shaft Bushing sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, ... | 732034003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Lower Shaft Metal Holder sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 502204007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

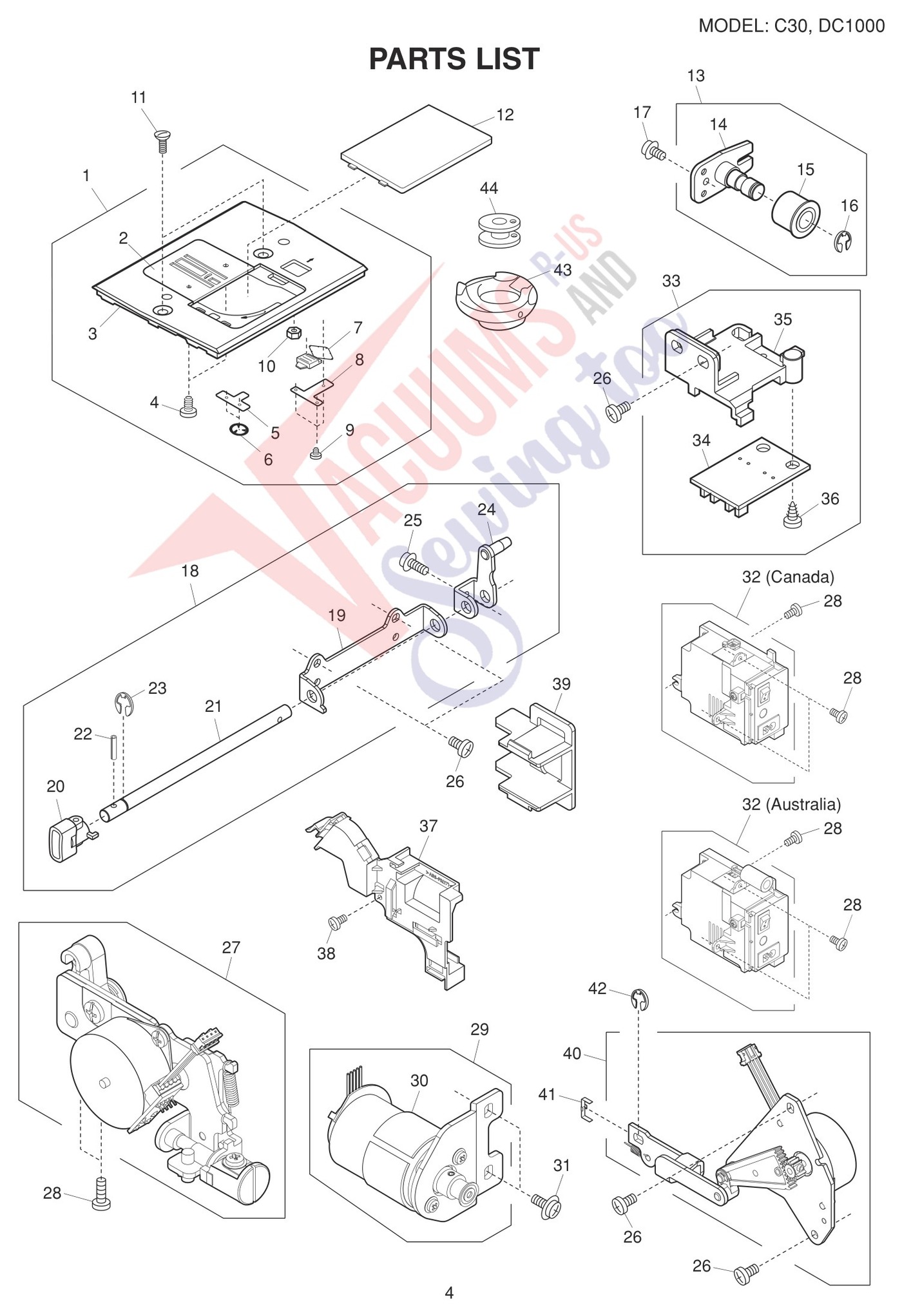

| 1 |  | Needle plate (unit) sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508612000 | $18.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle plate sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508033104 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Support needle plate sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508034002 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Setscrew 2x3.5 sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF5812, MC2... | 000163703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER'S DELIGH... | 502015009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTE... | 000015503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Hook cover plate release buttn sewing machine part or accessory For Janome Models: 4045LX, 4045NX... | 502016000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Supporter plate sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUILTER... | 502202005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Setscrew 1.7x2.5 (B) sewing machine part or accessory For Janome Models: Mystyle100 HF8050, HF581... | 000130206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Nut | 508116009 | Not Available |
| 11 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hook cover plate sewing machine part or accessory For Janome Models: MC12000 Horizon, MC11000SE, ... | 846271103 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Compatible alternateJanome Hook Cover Plate More Product Details | 502017104 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Idler (unit) sewing machine part or accessory For Janome Models: Mystyle100 | 508614002 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Idler set plate sewing machine part or accessory For Elna Models: ELEC30 | 508073003 | $3.00Read more |
| 15 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Feed regulator (unit) sewing machine part or accessory For Elna Models: ELEC30 | 805603008 | $6.90Read more |
| 19 | Not Available | Feed regulator shaft supporter | 508095001 | Not Available |
| 20 | Not Available | Feed regulator | 508067004 | Not Available |
| 21 | | Feed regulator shaft sewing machine part or accessory For Elna Models: ELEC30 | 805006005 | $1.00Read more |
| 22 | | Spring pin 2.5x12 sewing machine part or accessory For Elna Models: ELEC30 | 000021801 | $0.40Read more |
| 23 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Feed regulator arm sewing machine part or accessory For Elna Models: ELEC30 | 805007006 | $2.80Read more |
| 25 | | SET SCREW 3X12 7000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045N... | 000115906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Feed motor (unit) sewing machine part or accessory For Elna Models: ELEC30 | 805604009 | $41.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | DC motor (unit) sewing machine part or accessory For Elna Models: ELEC30 | 805610008 | $62.20Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | DC motor (unit) EX60 sewing machine part or accessory DC motor (unit) EX60 | 808502119 | $67.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Genuine Janome/Elna Switching regulator (unit) For: ELEC30 | 805605000 | $98.40Read more |
| 33 | | Printed circuit board P set plate (unit) sewing machine part or accessory For Elna Models: ELEC30 | 805606001 | $18.20Read more |
| 34 |  | Printed circuit board P (unit) sewing machine part or accessory For Elna Models: ELEC30 | 808504029 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Printed circuit board P set plate sewing machine part or accessory For Elna Models: ELEC30 | 805002001 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Cord guide 1 sewing machine part or accessory For Elna Models: ELEC30 | 805005004 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Cord guide 2 sewing machine part or accessory For Elna Models: ELEC30 | 805029004 | $1.20Read more |
| 40 | | Zigzag width motor (unit) sewing machine part or accessory For Elna Models: ELEC30 | 805602007 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Zigzag rod plate sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 639... | 639098003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 43 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | Plastic bobbin | 102261000 | Not Available |

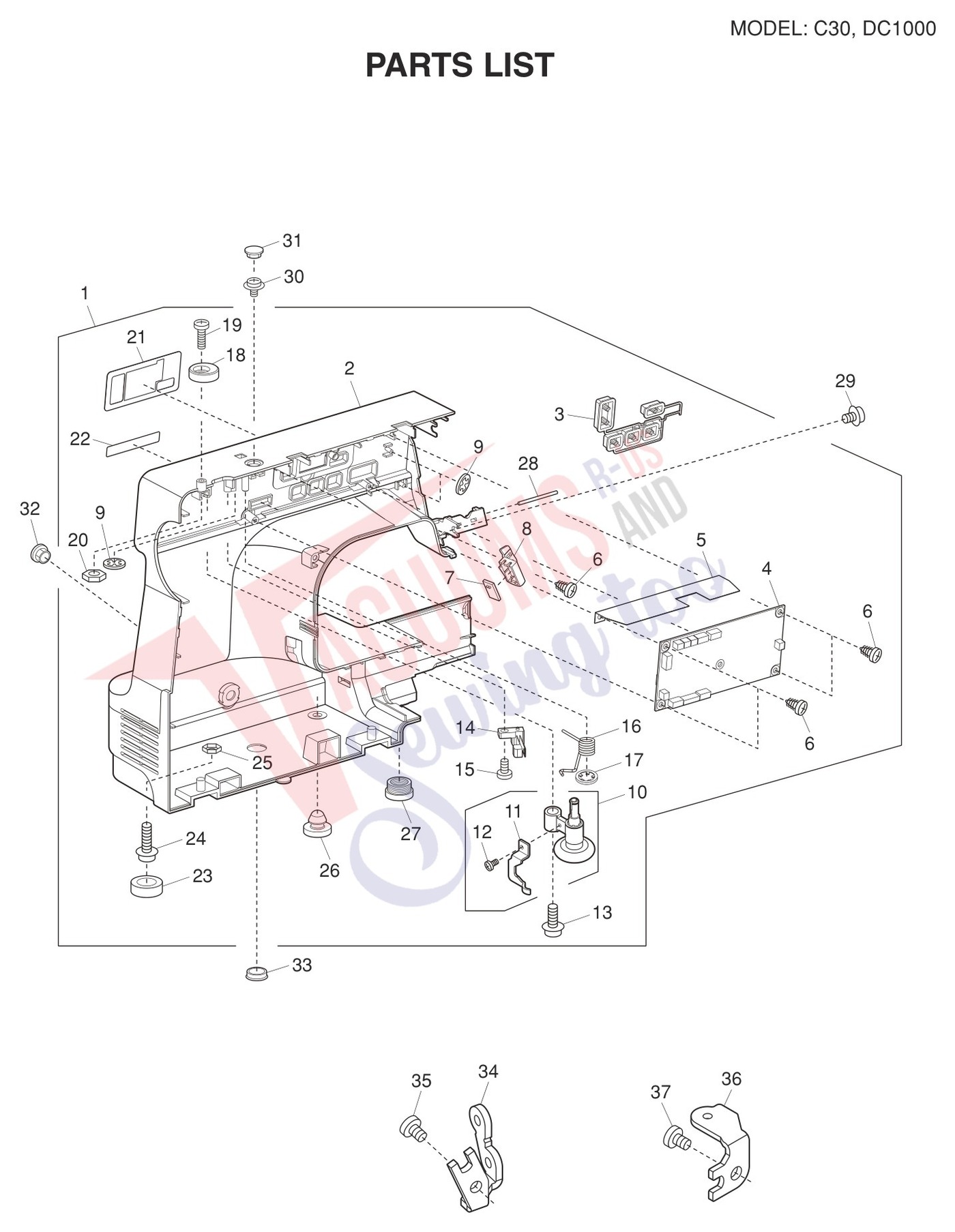

| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Rear cover (unit) For: C30 | 805607002 | $28.80Read more |
| 2 | | Genuine Janome/Elna Rear cover For: C30 | 805016A01 | $16.00Read more |
| 3 | | Felt sewing machine part or accessory For Janome Models: AQS2009, Jem Gold III, Jem Gold Plus, My... | 660077002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | THREAD GUIDE PLATE UNIT 660 sewing machine part or accessory For Janome Models: 662, AQS2009, JEM... | 660618001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | +PAN TAP TIGHT SCREW 3X8-6 312 sewing machine part or accessory For Janome Models: 2003P, 2018S, ... | 000107307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Thread guide plate unit sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2... | 730501011 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Rubber base sewing machine part or accessory For Elna Models: ELEC30 | 525121000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Rubber base sewing machine part or accessory For Elna Models: ELEC30 | 525122001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Genuine Janome/Elna Carrying handle For: Mystyle100 HF5812 | 508028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set screw 3x12 sewing machine part or accessory For Janome Models: Mystyle100, Mystyle100, Sewist... | 000161310 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SET SCREW W/WASHER 4 X 8 sewing machine part or accessory | 000108308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Genuine Janome/Elna Face cover (unit) For: C30 | 805609004 | $6.40Read more |
| 15 | Not Available | Face cover | 805024009 | Not Available |
| 16 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Genuine Janome/Elna Bed cover For: ELEC30 | 805028003 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Genuine Janome/Elna Extension table (unit) For: ELEC30 | 805023008 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Front cover (unit) (U.S.A.) (Canada) For: C30 | 805613001 | $131.00Read more |
| 2 | | Genuine Janome/Elna Front cover (U.S.A.) (Canada) For: C30 | 805017B01 | $15.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Genuine Janome/Elna Button For: C30 | 805019B01 | $2.20Read more |
| 4 | No Image | Printed Circuit Board A (Unit) | 805514115 | $108.34Read more |
| 5 |  | Flame retardant insulating paper sewing machine part or accessory For Elna Models: ELEC30 | 805021006 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Printed circuit board L (unit) sewing machine part or accessory For Elna Models: ELEC30 | 808506205 | $9.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Lamp holder sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC2160QDC, JNH186... | 808057000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Bobbin winder arm (unit) sewing machine part or accessory For Janome Models: HF8050, HF5812 | 508629000 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Genuine Janome/Elna Clutch lever For: HF5812 | 508092008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew 4 x 12 sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, AQS2009, H... | 000109103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Leaf switch (unit) sewing machine part or accessory For Elna Models: ELEC30 | 856501106 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Setscrew 2.6x8 (B) sewing machine part or accessory For Elna Models: ELEC30 | 000120306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Spring sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508030008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SET SCREW FOR SERGER sewing machine part or accessory For Janome Models: 203, 2040, 204D, 234D, 3... | 000101817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Genuine Janome/Elna Ornamental panel For: C30 | 805018A03 | $3.60Read more |
| 22 |  | Genuine Janome/Elna Ornamental panel (2) For: C30 | 805031A01 | $1.80Read more |
| 23 |  | Rubber foot sewing machine part or accessory For Janome Models: 1017, 1117S, 3125, 3128, 3160QDC,... | 639005003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Tapping screw 4x16 sewing machine part or accessory For Janome Models: 1110DX, 3160QDC, 4045LX, 4... | 000201405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Rubber base sewing machine part or accessory For Elna Models: ELEC30 | 525121000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Rubber base sewing machine part or accessory For Elna Models: ELEC30 | 525122001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Thread guide sewing machine part or accessory For Janome Models: AQS2009, JP720, JP760 | 806029007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Tapping setscrew 3x4 sewing machine part or accessory For Janome Models: 134D, 204D, 4048/8048/HF... | 000114709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Genuine Janome/Elna SS adjusting cap For: ELEC30 | 805022007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Cap sewing machine part or accessory 797141201 Cap | 797141201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Front cover set plate sewing machine part or accessory For Janome Models: 1117S, 3125, 3128, 3160... | 639080002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Front cover set plate sewing machine part or accessory For Janome Models: Mystyle100 HF5812 | 508093009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

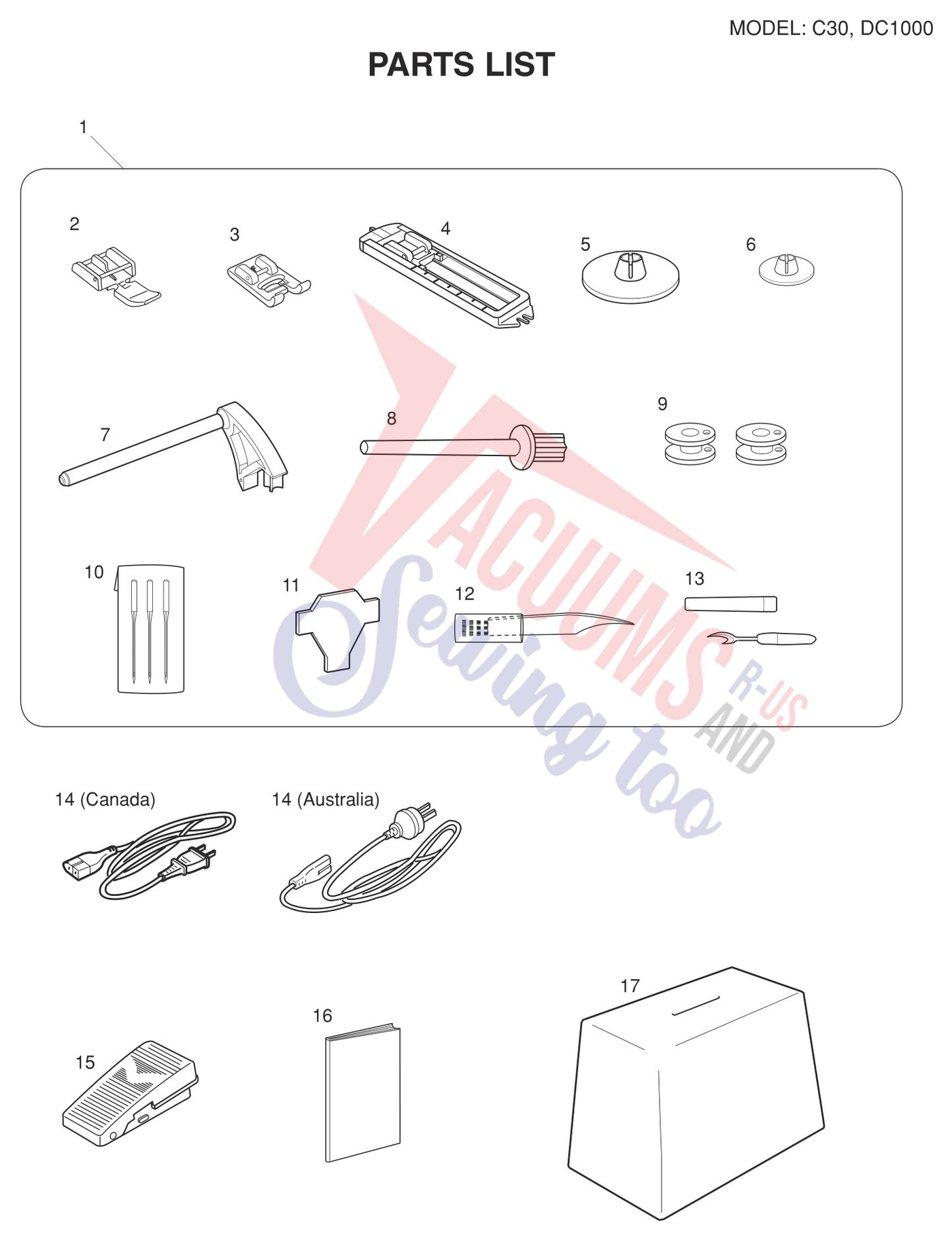

| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Standard accessories For: ELEC30 | 805870019 | $23.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Zipper Foot (new 7mm top load) sewing machine part or accessory metal zipper for 7mm and 5mm mode... | 808852003 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Buttonhole foot sewing machine part or accessory For Janome Models: HF5812, MOD-15/50812 | 508803000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Genuine Janome/Elna SPOOL PIN For: AQS2009, Jem Gold III, Jem Gold Plus, Mystyle100 HF5812, Nec... | 660005010 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 9 | Not Available | Plastic bobbin | 102261000 | Not Available |
| 10 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Lint brush (unit) sewing machine part or accessory For Elna Models: ELEC30 | 739616006 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Power supply cord (U.S.A.) sewing machine part or accessory For Janome Models: 3160QDC HF8050, MC... | 856519004 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Foot control sewing machine part or accessory For Elna Models: ELEC30 | 808550008 | $38.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Genuine Janome/Elna Instruction book (English) For: C30 | 805800018 | $9.98Read more |
| 17 | | Genuine Janome/Elna Cover For: C30 | 743812203 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
