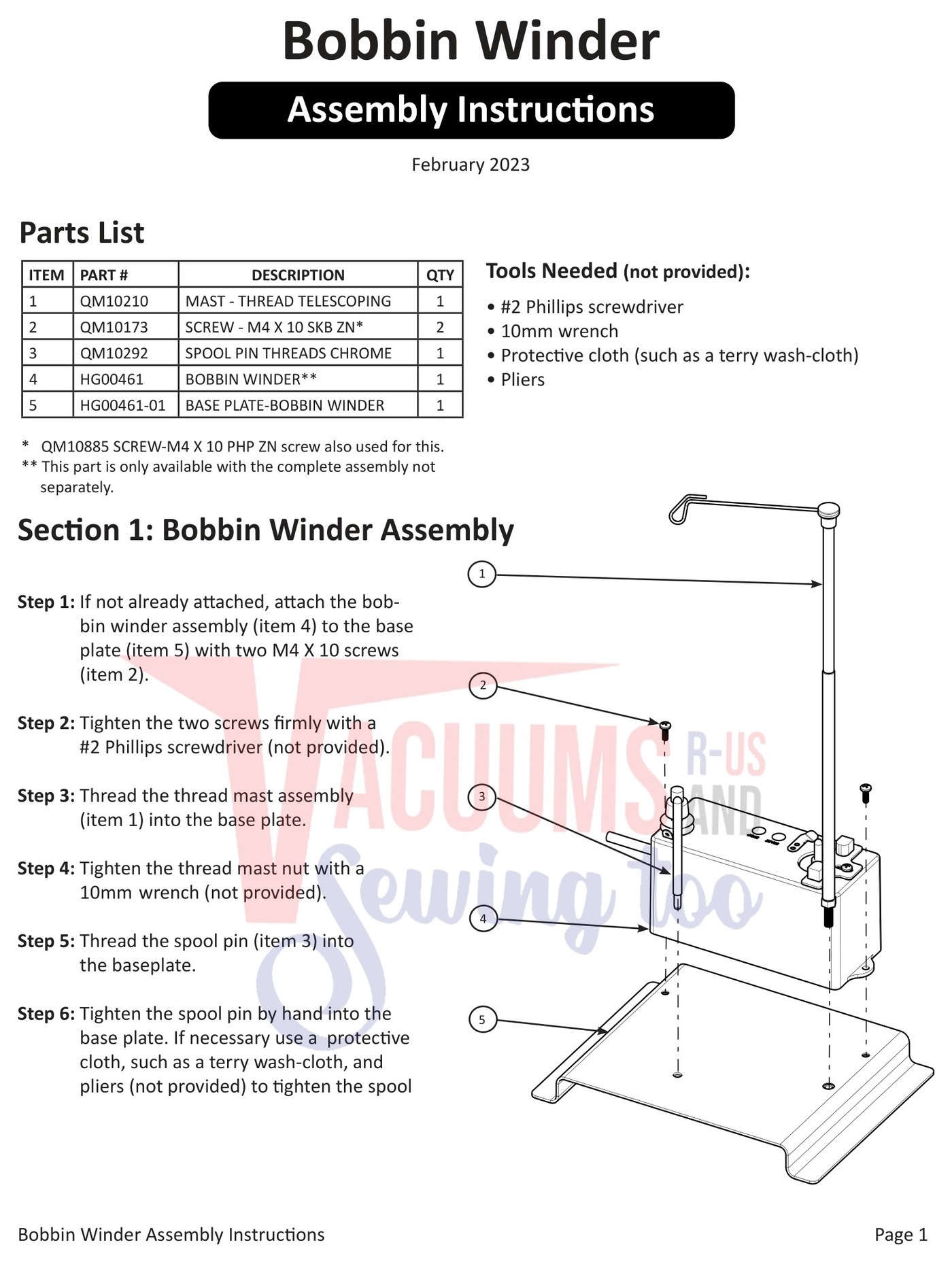

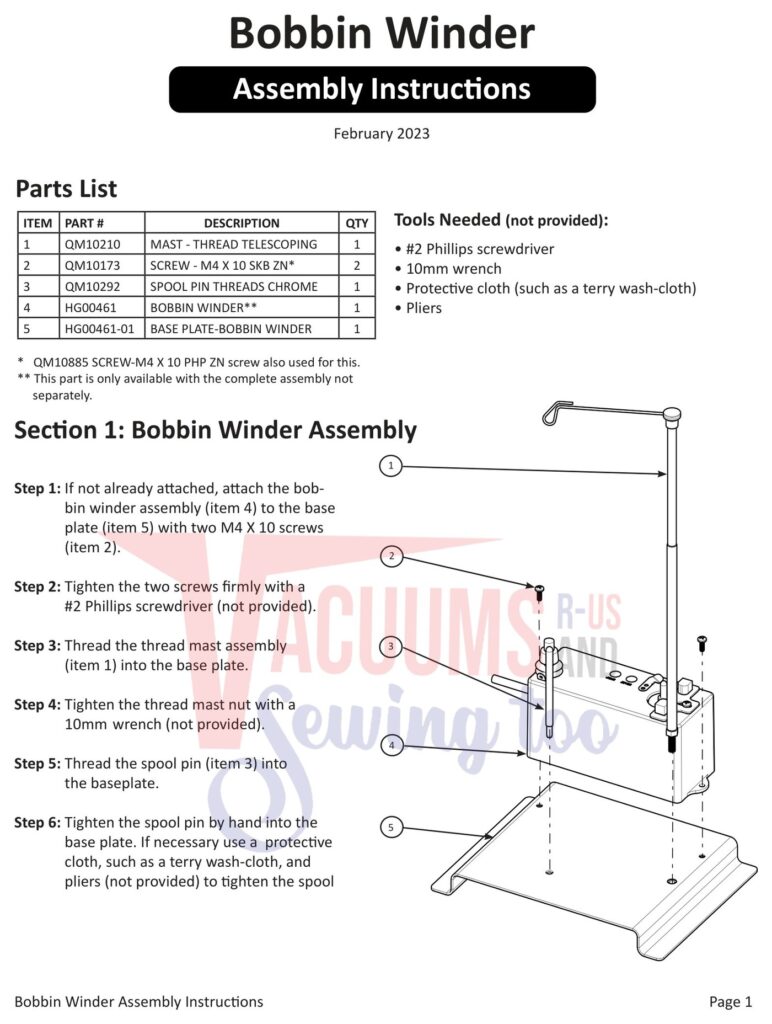

Schematic and parts book for Janome Bobbin Winder QM15/18 Bobbin Winder QM15/18. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Mast - Thread Telescoping | QM10210 | $79.42Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SCREW-M4 X 10 SKB ZN sewing machine part or accessory For Janome Models: QMPROVERSA | QM10173 | $3.01Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SPOOL PIN THREADS CHROME sewing machine part or accessory For Janome Models: QM15 SRV | QM10292 | $12.39Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Qm18 Bobbin Winder | HG00480JA | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | HG00461-01 Base Plate - Bobbin Winder QM15, QM18 sewing machine part or accessory HG00461-01 Base... | HG00461-01 | $90.89Read more |
