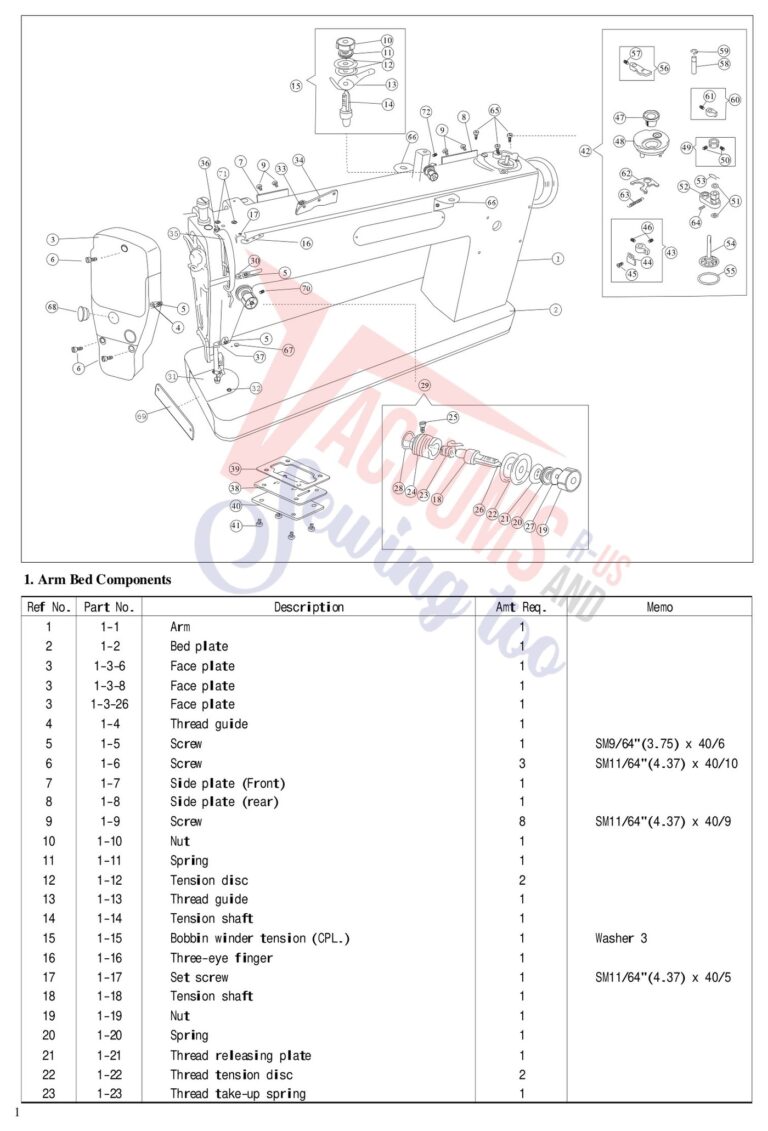

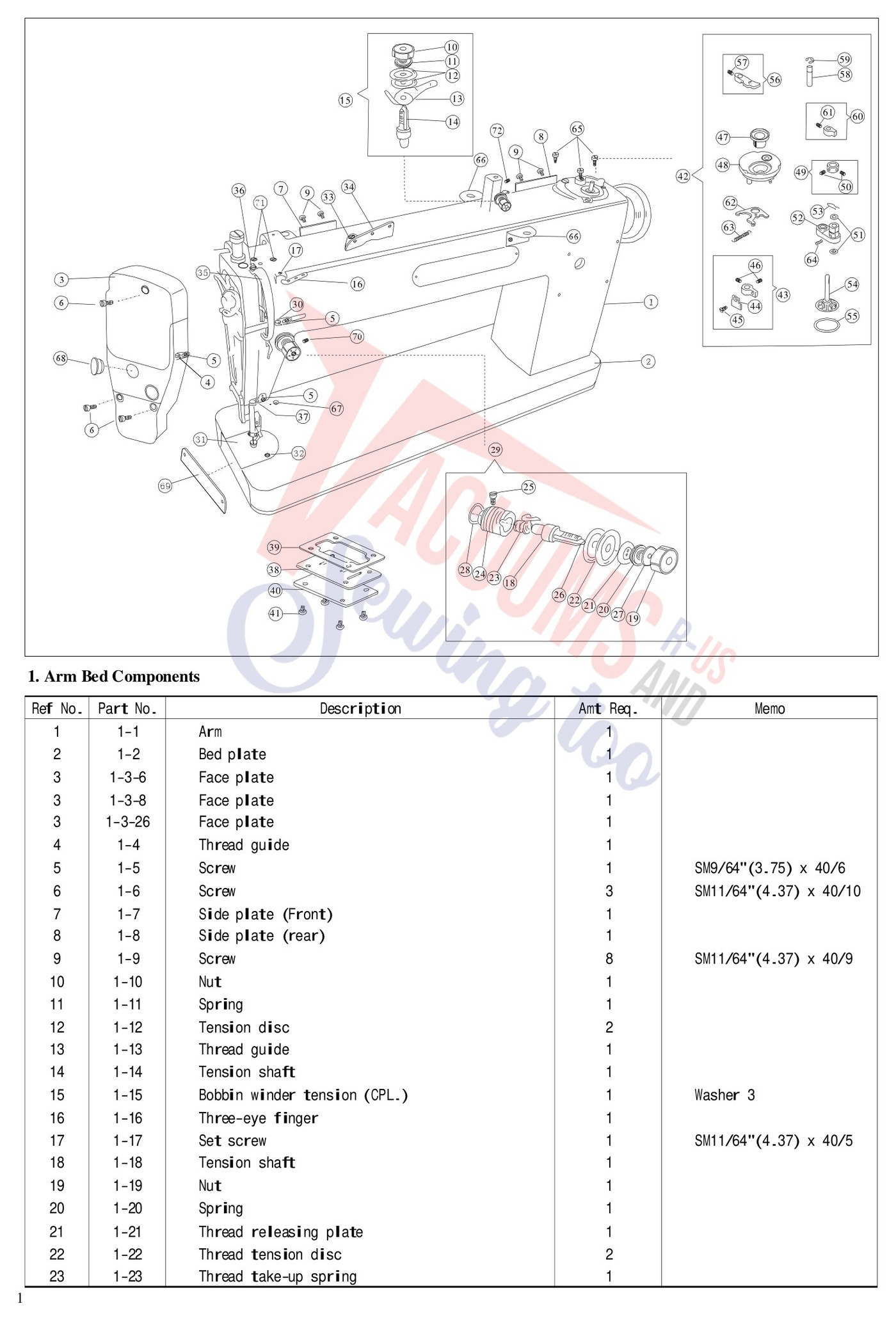

Schematic and parts book for Janome AQ26DX AQ26DX. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Thread guide | 1-4 | Not Available |
| 2 | Not Available | Screw SM 9/64X40/6 FOR tg#6&9 | 1-5 | Not Available |
| 3 | Not Available | Set Screw | 1-6 | Not Available |
| 4 | Not Available | Side plate (Front) | 1-7 | Not Available |
| 5 | Not Available | Side plate (rear) | 1-8 | Not Available |
| 6 | Not Available | Screw SM11/64"(4.37) x 40/9 | 1-9 | Not Available |
| 7 | Not Available | Spring | 1-11 | Not Available |
| 8 | Not Available | Tension disc | 1-12 | Not Available |
| 9 | Not Available | Thread guide | 1-13 | Not Available |
| 10 | Not Available | Tension shaft | 1-14 | Not Available |
| 11 | Not Available | BOBBIN WINDER TENSION COMPLETE | 1-15 | Not Available |
| 12 | Not Available | THREAD GUIDE #2 | 1-16 | Not Available |
| 13 | Not Available | Set screw | 1-17 | Not Available |
| 14 | Not Available | Tension shaft | 1-18 | Not Available |
| 15 | Not Available | Spring | 1-20 | Not Available |
| 16 | Not Available | Thread releasing plate | 1-21 | Not Available |
| 17 | Not Available | Thread tension disc | 1-22 | Not Available |
| 18 | Not Available | CHECK SPRING | 1-23 | Not Available |
| 19 | Not Available | Thread tension adjust bracket | 1-24 | Not Available |
| 20 | Not Available | Screw SM9/64"(3.75) x 40/6 | 1-25 | Not Available |
| 21 | Not Available | Thread releasing pin | 1-26 | Not Available |
| 22 | Not Available | Stopping plate | 1-27 | Not Available |
| 23 | Not Available | O-type ring | 1-28 | Not Available |
| 24 | Not Available | TENSION ASSEMBLY COMPLETE | 1-29 | Not Available |
| 25 | Not Available | THREAD GUIDE #6 | 1-30 | Not Available |
| 26 | Not Available | THROAT PLATE | 1-31 | Not Available |
| 27 | Not Available | Screw for Throat Plate | 1-32 | Not Available |
| 28 | Not Available | THREAD GUIDE #1 SCREW | 1-33 | Not Available |
| 29 | Not Available | THREAD GUIDE #1 | 1-34 | Not Available |
| 30 | Not Available | Thread take-up lever cover | 1-35 | Not Available |
| 31 | Not Available | Screw | 1-36 | Not Available |
| 32 | Not Available | THREAD GUIDE #9 | 1-37 | Not Available |
| 33 | Not Available | Cover Plate w/Gasket & Screws | 1-38 | Not Available |
| 34 | Not Available | Sealing washer | 1-39 | Not Available |
| 35 | Not Available | Screw SM11/64"(4.37) x 40/9 | 1-41 | Not Available |
| 36 | Not Available | BOBBIN WINDER COMPLETE (WHITE) | 1-42 | Not Available |
| 37 | Not Available | BOBBIN WINDER SCREW | 1-65 | Not Available |
| 38 | Not Available | OIL RESERVOIR DIP STICK | 1-67 | Not Available |
| 39 | Not Available | Rubber plug | 1-68 | Not Available |
| 40 | Not Available | Screw SM15/64"x28/10 | 1-70 | Not Available |
| 41 | Not Available | Screw SM9/64"x40/11.5 | 1-71 | Not Available |
| 42 | Not Available | Screw SM11/64x40/5.5 | 1-72 | Not Available |
| # | Part image | Description | SKU | Price |

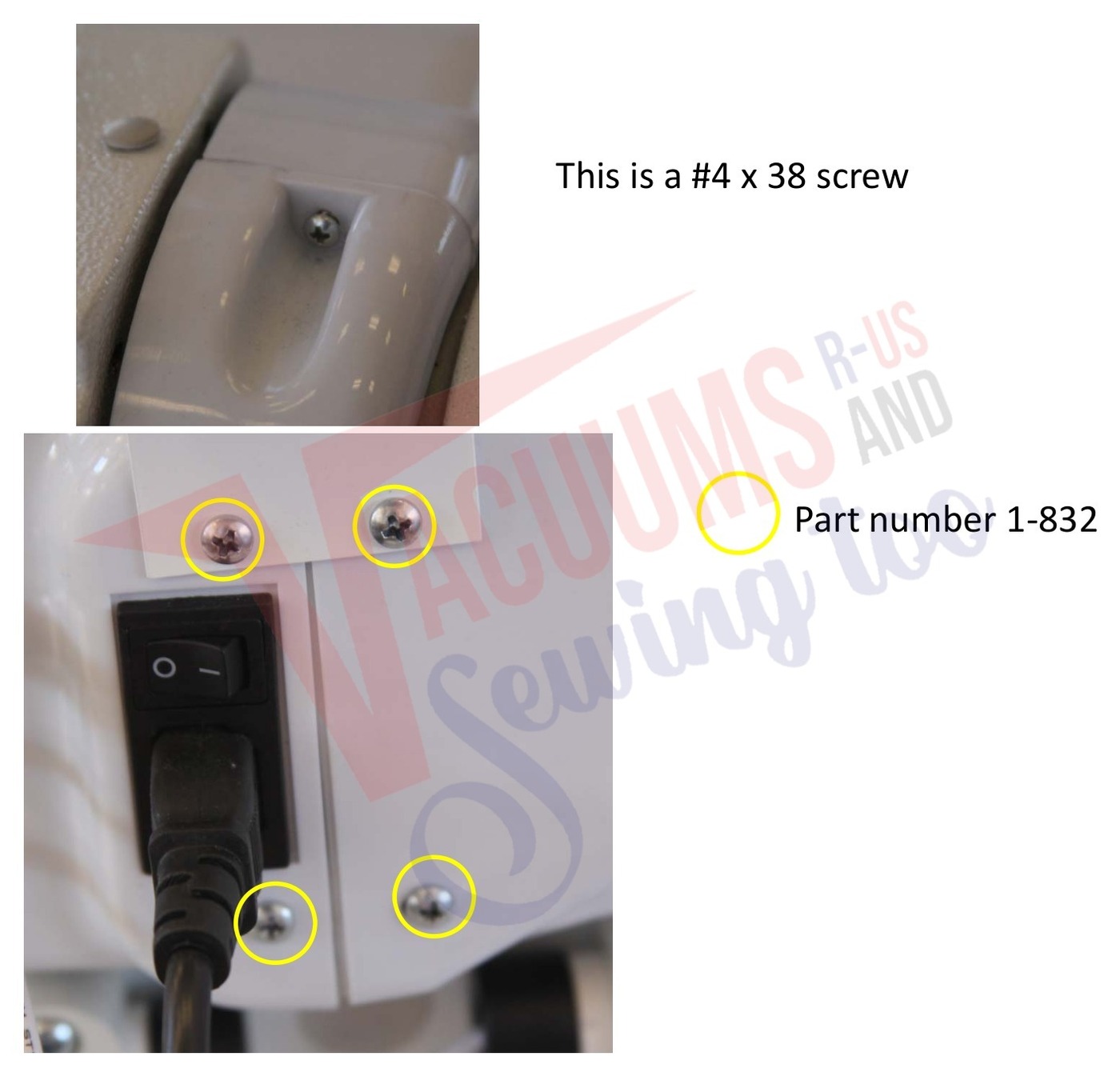

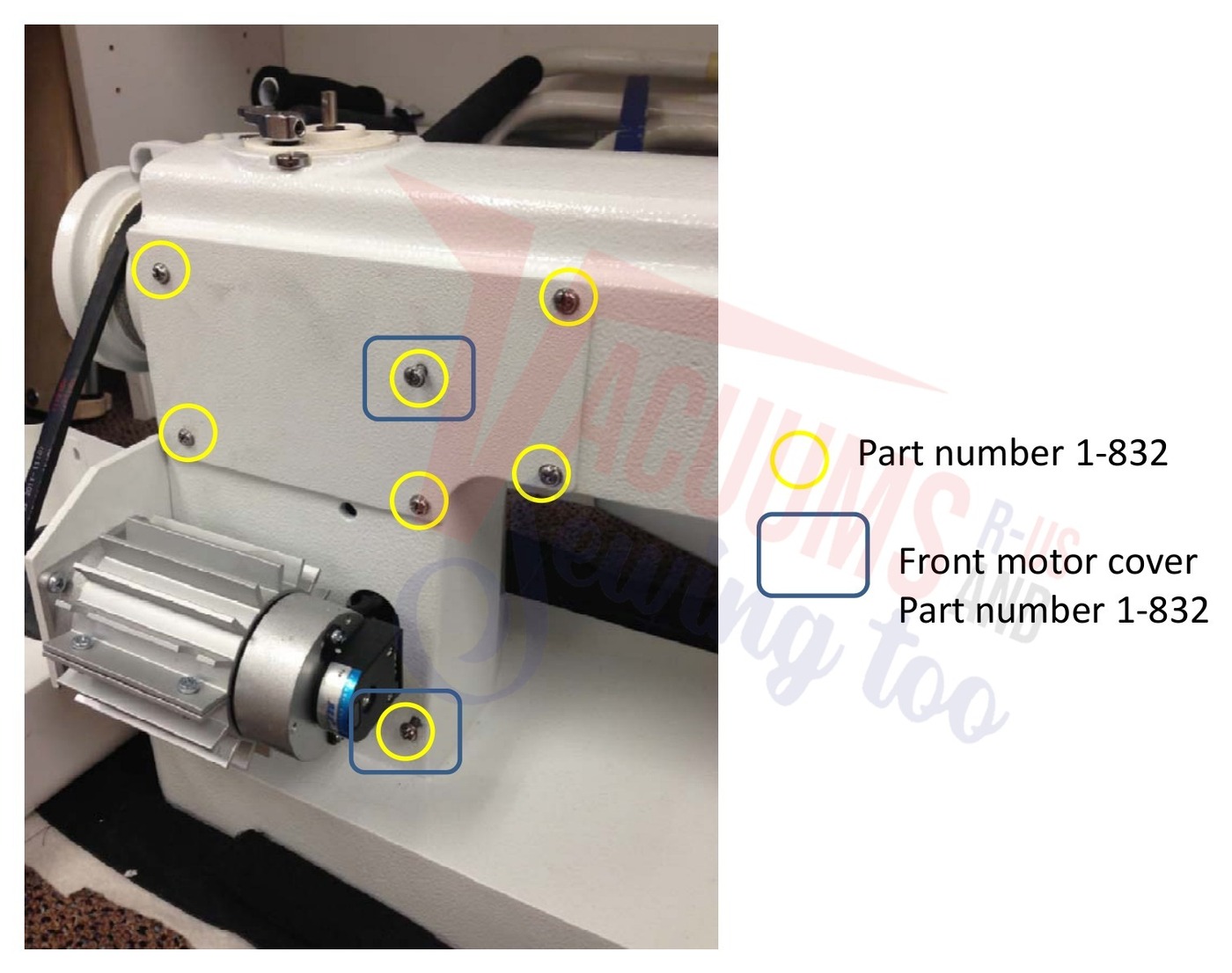

| 1 | Not Available | Screw | 1‐832 | Not Available |
| # | Part image | Description | SKU | Price |

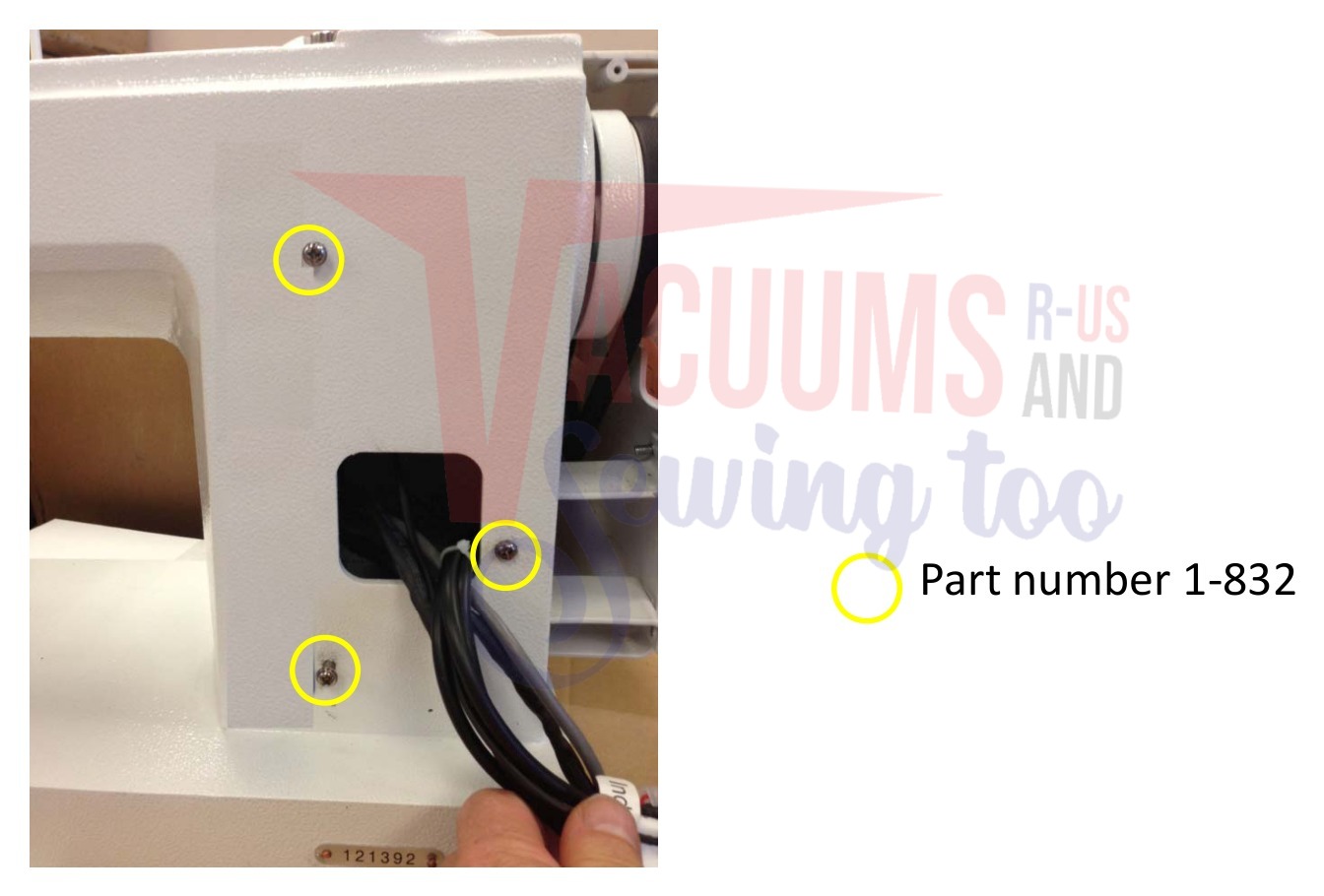

| 1 | Not Available | Screw | 1-832 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Screw | 1-832 | Not Available |
| # | Part image | Description | SKU | Price |

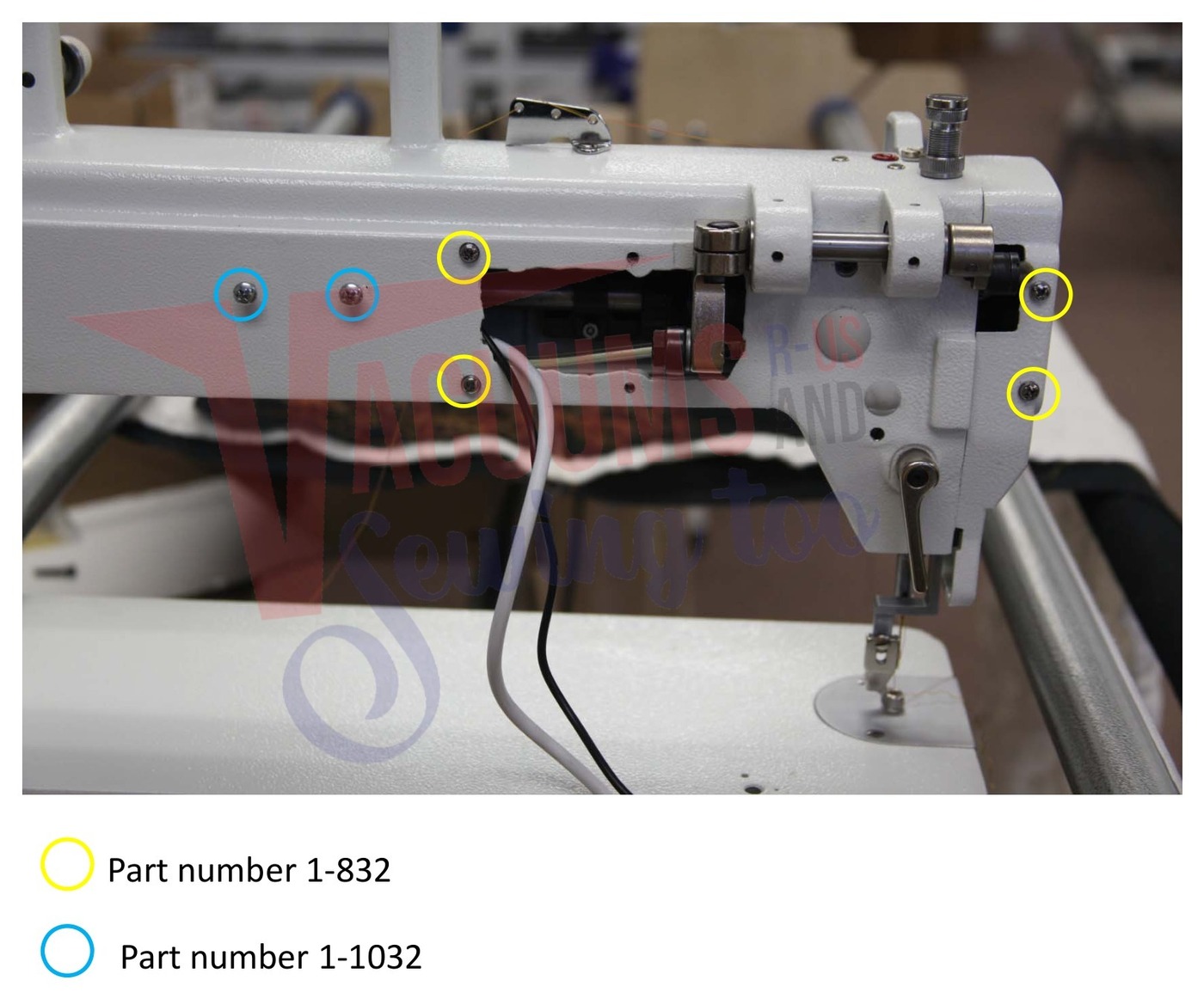

| 1 | Not Available | Screw | 1-832 | Not Available |
| 2 | Not Available | Screw | 1-1032 | Not Available |
| # | Part image | Description | SKU | Price |

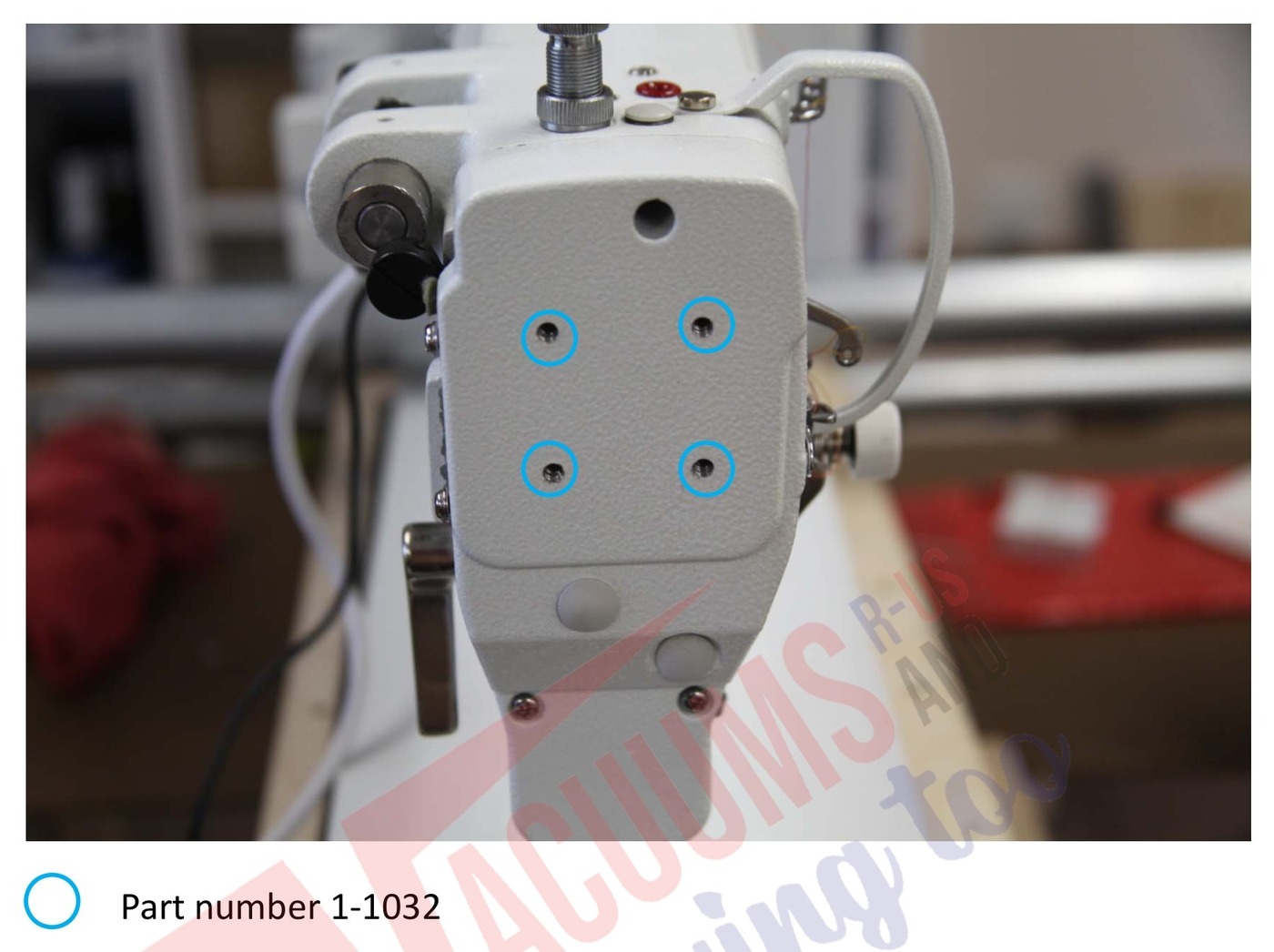

| 1 | Not Available | Screw | 1-1032 | Not Available |
| # | Part image | Description | SKU | Price |

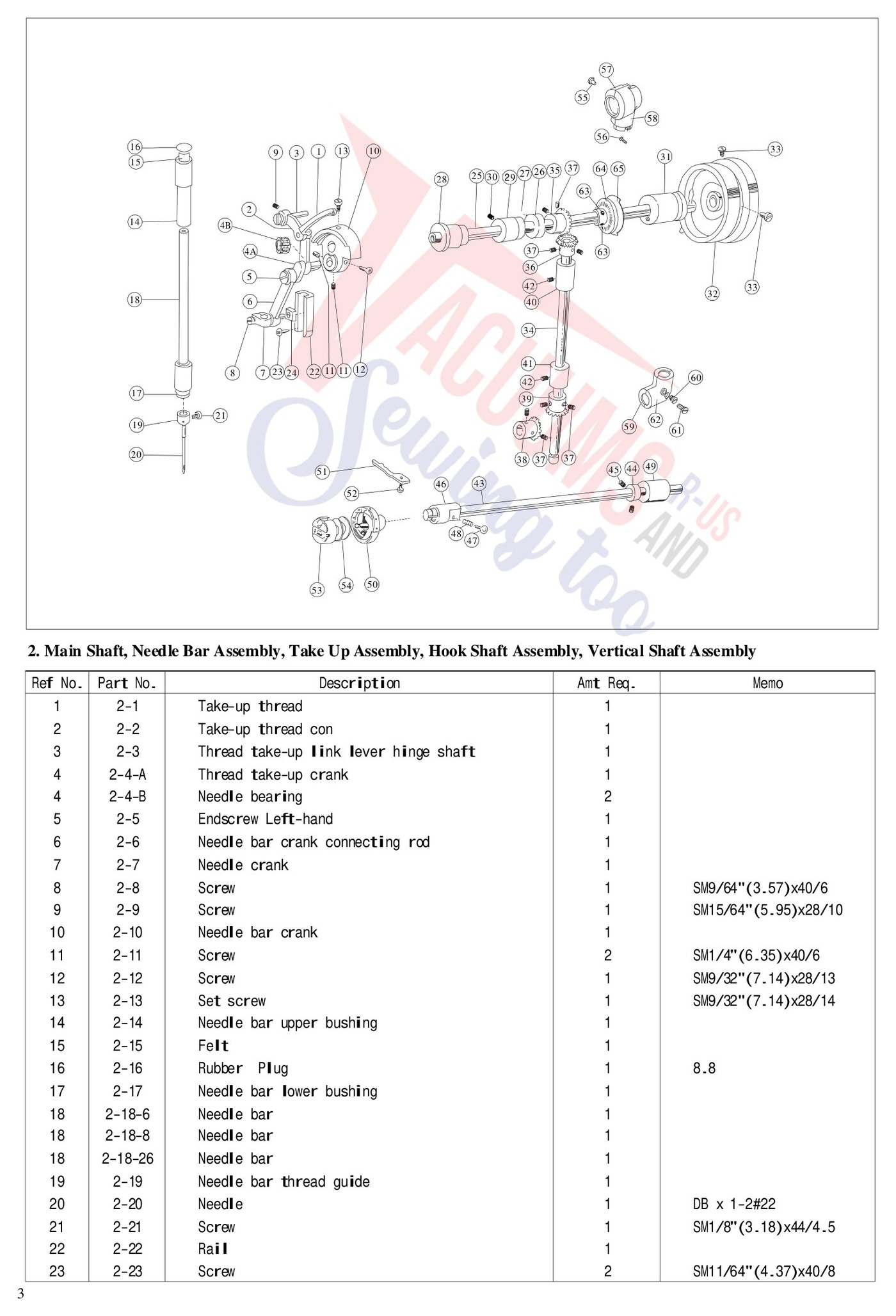

| 1 | Not Available | TAKE UP THREAD COMPLETE | 2-1 | Not Available |
| 2 | Not Available | Take-up thread con | 2-2 | Not Available |
| 3 | Not Available | Take-up link lever hinge shaft | 2-3 | Not Available |
| 4 | Not Available | Thread take-up crank | 2-4-A | Not Available |
| 5 | Not Available | NEEDLE CRANK & SCREW | 2-7 | Not Available |
| 6 | Not Available | Screw SM9/64"(3.57)x40/6 | 2-8 | Not Available |
| 7 | Not Available | Screw SM15/64"(5.95)x28/10 | 2-9 | Not Available |
| 8 | Not Available | Screw SM1/4"(6.35)x40/6 | 2-11 | Not Available |
| 9 | Not Available | Screw SM9/32"(7.14)x28/13 | 2-12 | Not Available |
| 10 | Not Available | Set screw SM9/32"(7.14)x28/14 | 2-13 | Not Available |
| 11 | Not Available | Rubber Plug | 2-16 | Not Available |
| 12 | Not Available | NEEDLE BAR THREAD GUIDE | 2-19 | Not Available |
| 13 | Not Available | NDL SET SCREW | 2-21 | Not Available |
| 14 | Not Available | Rail Gde for Thrd Take Up Lvr | 2-22 | Not Available |
| 15 | Not Available | SCREW FOR RAIL GUIDE | 2-23 | Not Available |
| 16 | Not Available | SLIDING BLOCK | 2-24 | Not Available |
| 17 | Not Available | Screw SM1/4"(6.35)x40/4 | 2-27 | Not Available |
| 18 | Not Available | FRONT BUSHING | 2-28 | Not Available |
| 19 | Not Available | Screw SM15/64"(5.94)x28/10 | 2-30 | Not Available |
| 20 | Not Available | TOP SHAFT BACK BUSHING | 2-31 | Not Available |
| 21 | Not Available | WHITE HAND WHEEL INCLDS 2 2-33 | 2-32 | Not Available |
| 22 | Not Available | SCREW (FOR HAND WHEEL) | 2-33 | Not Available |
| 23 | Not Available | Vertical shaft (AQ26DX) | 2-34-26 | Not Available |
| 24 | Not Available | Vert shaft bev gear (up) Z=18 | 2-36 | Not Available |
| 25 | Not Available | Screw SM1/4"(6.35)x40/7 | 2-37 | Not Available |
| 26 | Not Available | Rock shaft bevel gear Z=21 | 2-38 | Not Available |
| 27 | Not Available | Vert shaft bev gear (low) Z=28 | 2-39 | Not Available |
| 28 | Not Available | Vert shaft bushing (upper) | 2-40 | Not Available |
| 29 | Not Available | Vert shaft bushing (lower) | 2-41 | Not Available |
| 30 | Not Available | Screw SM15/64"x28/10 | 2-42 | Not Available |
| 31 | Not Available | HK DRIVING SHAFT THRUST COLLAR | 2-44 | Not Available |
| 32 | Not Available | Screw | 2-45 | Not Available |
| 33 | Not Available | HK DRVNG SHAFT THRUST CLR-L | 2-46 | Not Available |
| 34 | Not Available | SCREW | 2-47 | Not Available |
| 35 | Not Available | SPRING | 2-48 | Not Available |
| 36 | Not Available | HK DRVNG SHAFT THRUST CLR-R | 2-49 | Not Available |
| 37 | Not Available | HOOK ASSEMBLY | 2-50 | Not Available |
| 38 | Not Available | ROTATING HOOK POSITION FINGER | 2-51 | Not Available |
| 39 | Not Available | Screw SM11/64"(4.37)x40/10 | 2-52 | Not Available |
| 40 | Not Available | BOBBIN CASE | 2-53 | Not Available |
| 41 | Not Available | BOBBINS | 2-54 | Not Available |
| 42 | Not Available | Rubber plug | 2-55 | Not Available |
| 43 | Not Available | Screw | 2-56 | Not Available |
| 44 | Not Available | Bever Gear Cover Upper | 2-58 | Not Available |
| 45 | Not Available | Rubber plug | 2-60 | Not Available |
| 46 | Not Available | Screw | 2-61 | Not Available |
| 47 | Not Available | Bever Gear Cover Lower | 2-62 | Not Available |
| 48 | Not Available | Screw | 2-63 | Not Available |
| 49 | Not Available | BOBBIN WINDER HUB WHEEL | 2-64 | Not Available |
| # | Part image | Description | SKU | Price |

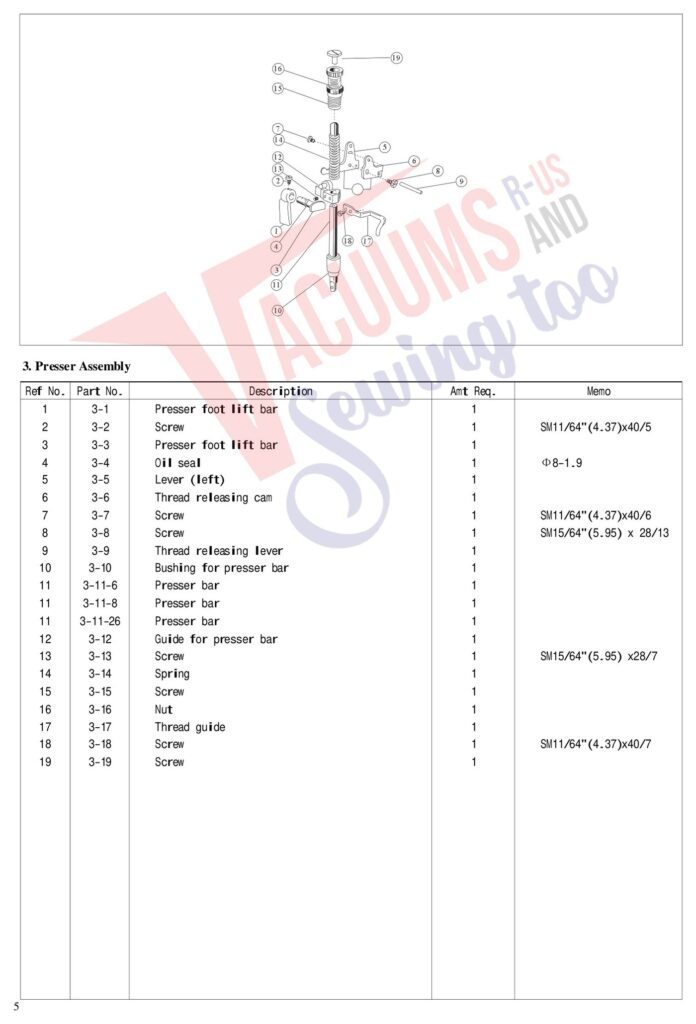

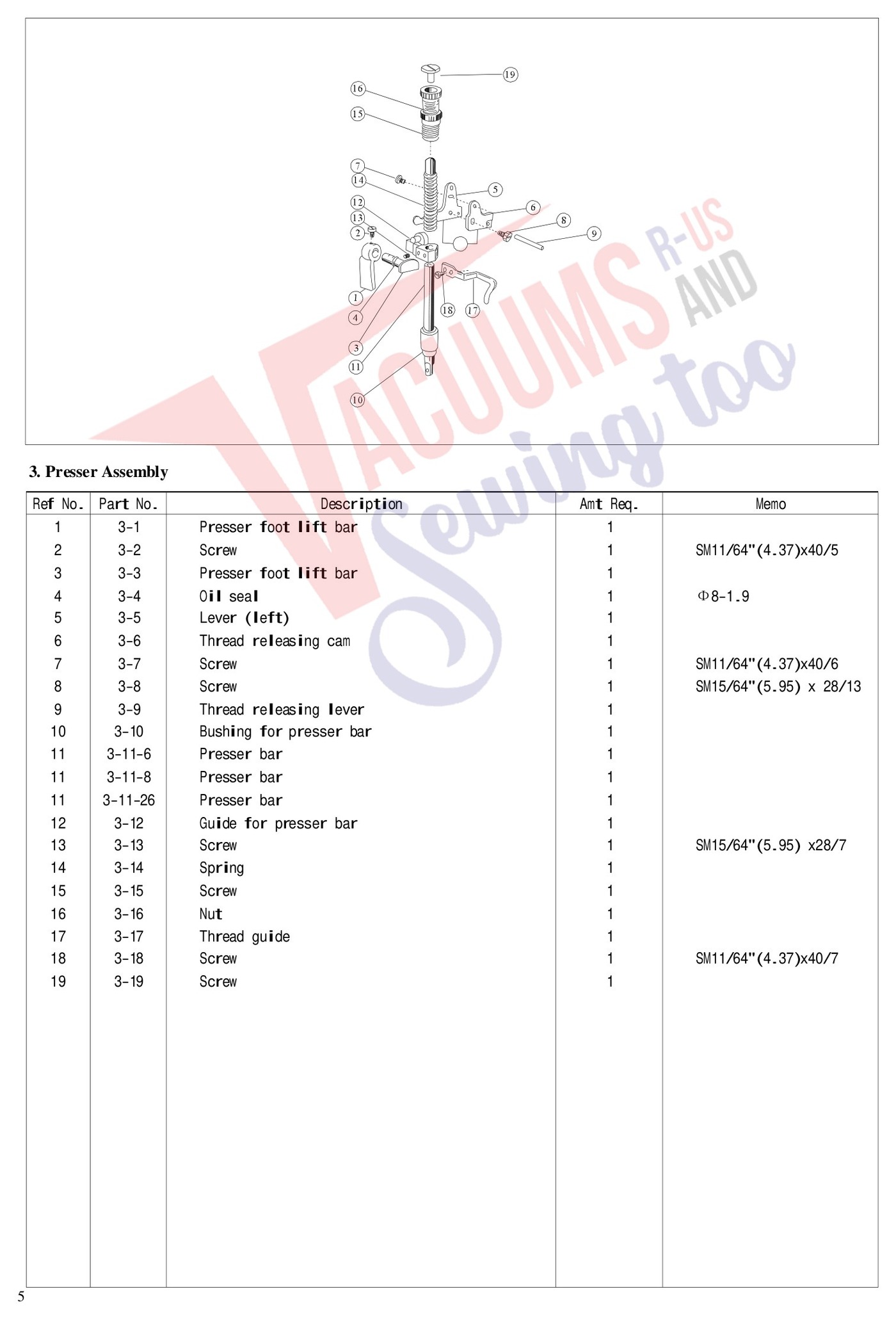

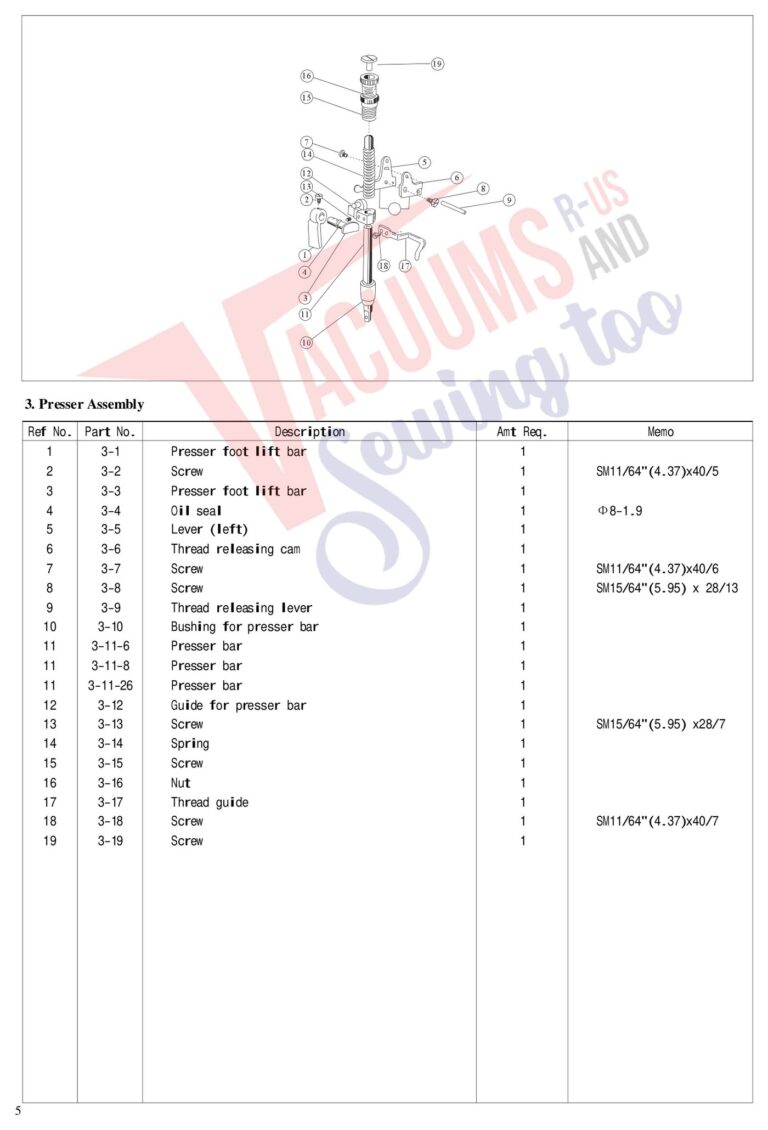

| 1 | Not Available | PRESSER FT LIFT LEVER | 3-1 | Not Available |
| 2 | Not Available | Screw SM11/64"(4.37)x40/5 | 3-2 | Not Available |
| 3 | Not Available | PRESSER FT LIFT LEVER HINGE | 3-3 | Not Available |
| 4 | Not Available | Oil seal 8-1.9 | 3-4 | Not Available |
| 5 | Not Available | LEVER (LEFT) | 3-5 | Not Available |
| 6 | Not Available | THREAD RELEASING CAM | 3-6 | Not Available |
| 7 | Not Available | Screw for Lever Left | 3-7 | Not Available |
| 8 | Not Available | Screw for the Rel Pin | 3-8 | Not Available |
| 9 | Not Available | THREAD RELEASING PIN | 3-9 | Not Available |
| 10 | Not Available | BUSHING FOR PRESSER BAR | 3-10 | Not Available |
| 11 | Not Available | Presser bar (AQ26DX) | 3-11-26 | Not Available |
| 12 | Not Available | GUIDE FOR PRESSER BAR | 3-12 | Not Available |
| 13 | Not Available | Screw | 3-13 | Not Available |
| 14 | Not Available | SPRING | 3-14 | Not Available |
| 15 | Not Available | SCREW & NUT DR PRESSER FT HGHT | 3-15 | Not Available |
| 16 | Not Available | Nut | 3-16 | Not Available |
| 17 | Not Available | THREAD GUIDE #5 | 3-17 | Not Available |
| 18 | Not Available | Screw for TH Guide#5 | 3-18 | Not Available |
| 19 | Not Available | PRESSER CAP SCREW | 3-19 | Not Available |
| # | Part image | Description | SKU | Price |

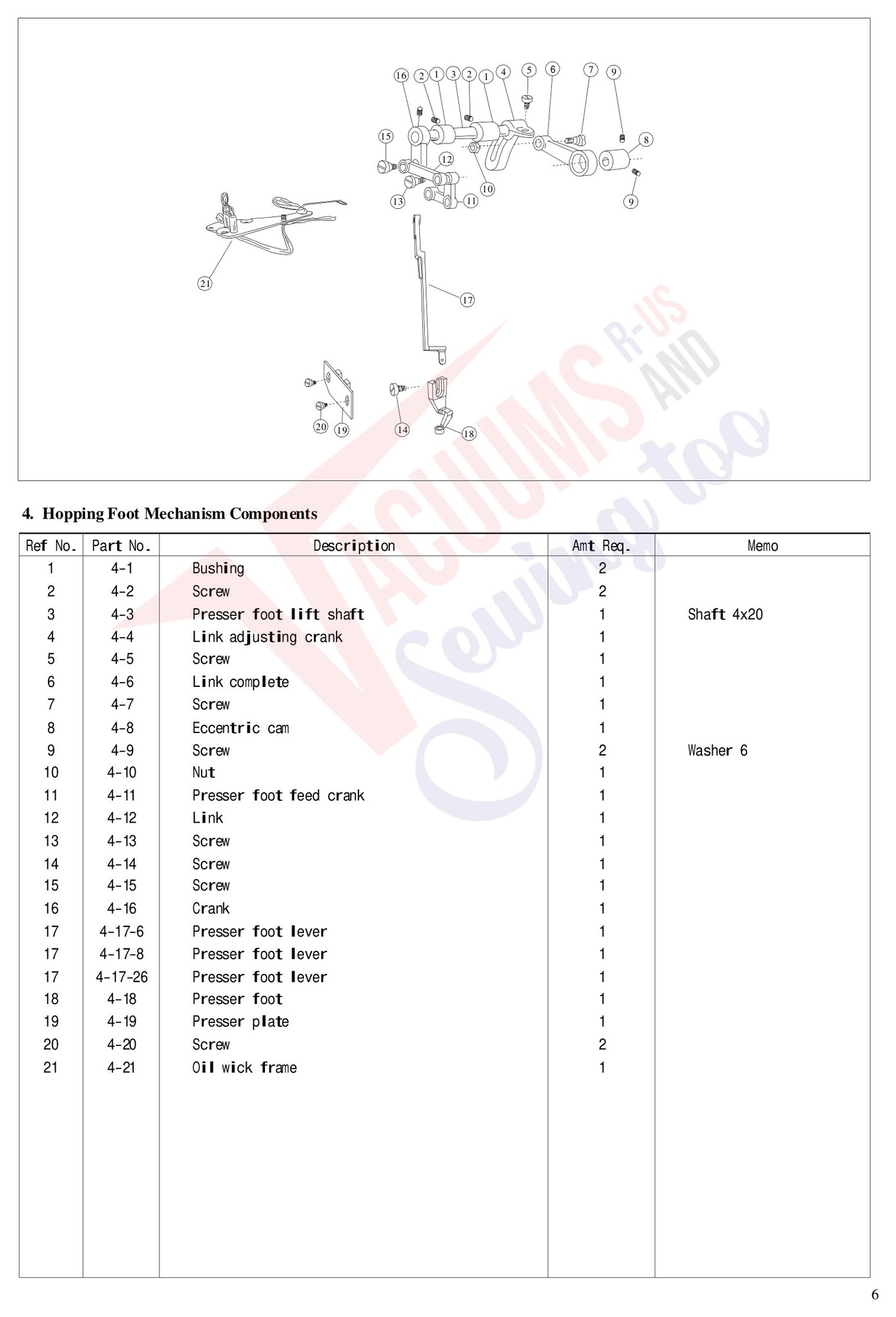

| 1 | Not Available | Bushing | 4-1 | Not Available |
| 2 | Not Available | Screw | 4-2 | Not Available |
| 3 | Not Available | Presser foot lift Shaft 4x20 | 4-3 | Not Available |
| 4 | Not Available | Link adjusting crank | 4-4 | Not Available |
| 5 | Not Available | Screw | 4-5 | Not Available |
| 6 | Not Available | Link complete | 4-6 | Not Available |
| 7 | Not Available | SCREW | 4-7 | Not Available |
| 8 | Not Available | Eccentric cam | 4-8 | Not Available |
| 9 | Not Available | Screw | 4-9 | Not Available |
| 10 | Not Available | NUT | 4-10 | Not Available |
| 11 | Not Available | Presser foot feed crank | 4-11 | Not Available |
| 12 | Not Available | Link | 4-12 | Not Available |
| 13 | Not Available | Screw | 4-13 | Not Available |
| 14 | Not Available | PRESSER FOOT SCREW | 4-14 | Not Available |
| 15 | Not Available | Screw | 4-15 | Not Available |
| 16 | Not Available | Crank | 4-16 | Not Available |
| 17 | Not Available | Presser foot lever (AQ26DX) | 4-17-26 | Not Available |
| 18 | Not Available | STANDARD PRESSER FT | 4-18 | Not Available |
| 19 | Not Available | Presser plate | 4-19 | Not Available |
| 20 | Not Available | Screw | 4-20 | Not Available |
| 21 | Not Available | Oil wick frame | 4-21 | Not Available |
| # | Part image | Description | SKU | Price |

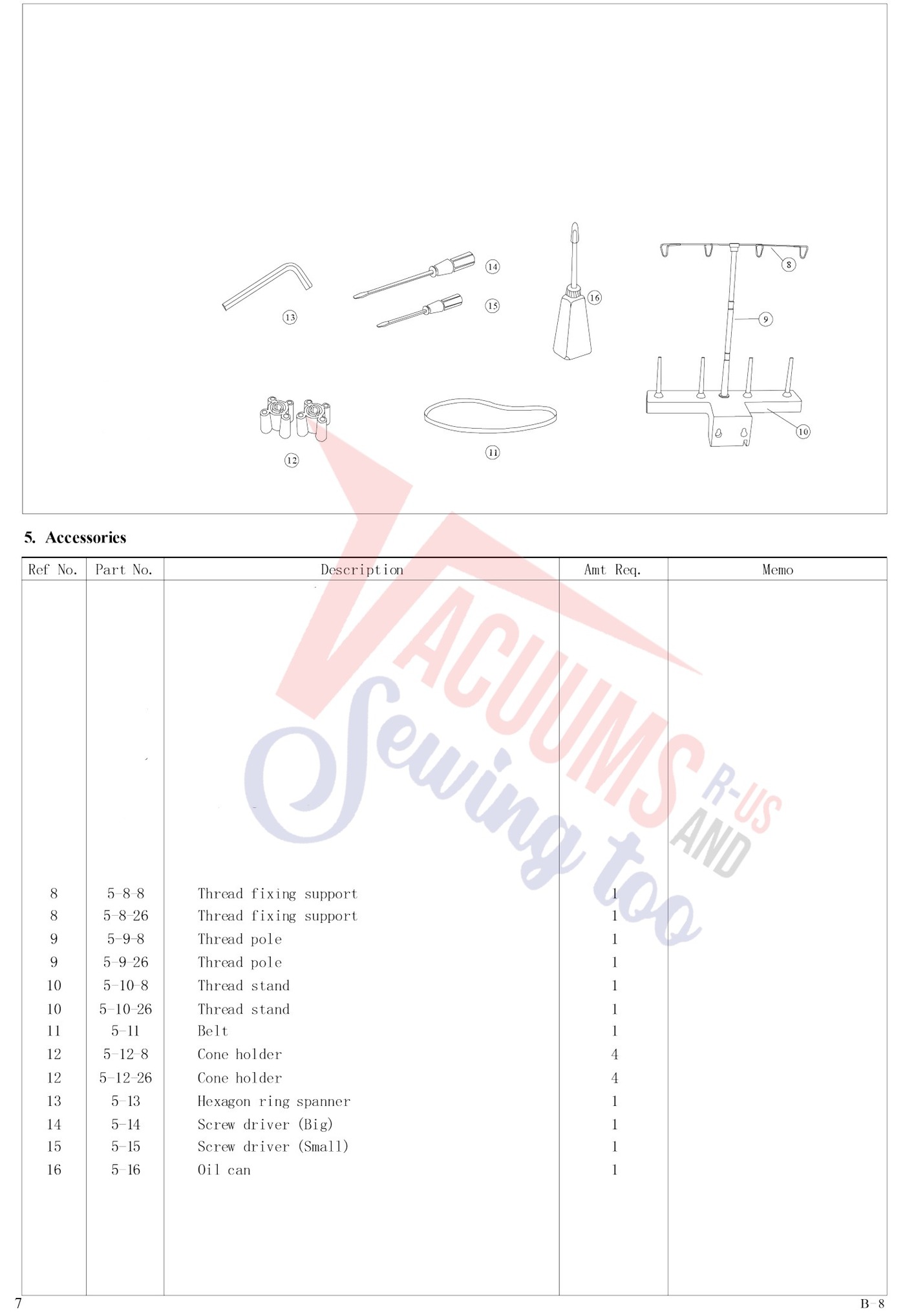

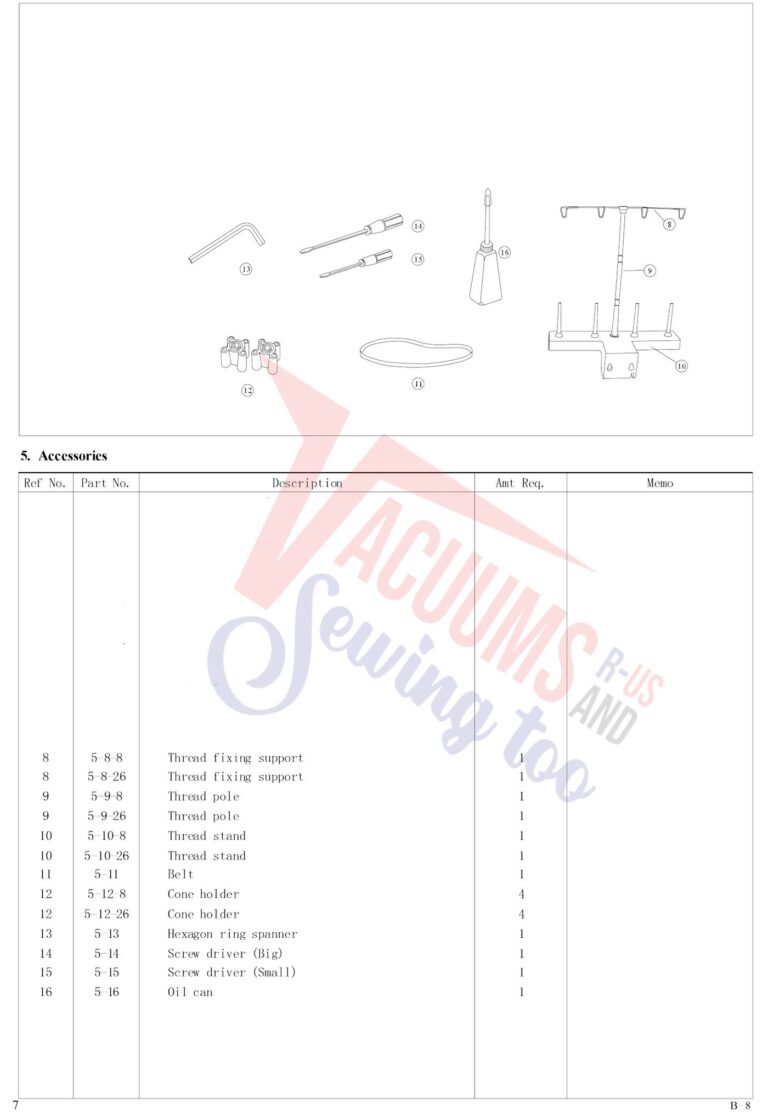

| 1 | Not Available | Thread Fixing Support (AQ26DX) | 5-8-26 | Not Available |
| 2 | Not Available | Thread Pole (AQ26DX) | 5-9-26 | Not Available |
| 3 | Not Available | Thread Stand (AQ26DX) | 5-10-26 | Not Available |
| 4 | Not Available | Belt | 5-11 | Not Available |
| 5 | Not Available | Cone Holder (AQ26DX) | 5-12-26 | Not Available |
| 6 | Not Available | ALLEN WRENCH FOR HANDLEBAR ADJ | 5-13 | Not Available |
| 7 | Not Available | Screw Driver (Big) | 5-14 | Not Available |
| 8 | Not Available | Screw Driver (Small) | 5-15 | Not Available |
| 9 | Not Available | Oil Can | 5-16 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Rear PCB'S Controller Bx W/Ele | Q-105EW001 | Not Available |
| 2 | Not Available | Florescent Light Fixture | Q-105EW003 | Not Available |
| 3 | Not Available | Pulley | AB172 | Not Available |
| 4 | Not Available | 400W Motor | Q-105EW57400 | Not Available |
| 5 | Not Available | Motor Plastic Cover | Q-105EW004 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | 7" LCD Display | Q-110EA164 | Not Available |
| 2 | Not Available | 7" LCD Display Bracket | Q-105AW022 | Not Available |
| 3 | Not Available | Remote External Cable | Q-105AW006 | Not Available |
| 4 | Not Available | Remote Internal Cable | Q-105AW007 | Not Available |
| 5 |  | Lights&Handle Bar Internal Cbl | Q105AW008 | $93.80Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Bar Buttons (Bl/YLW) | Q-105AA009 | Not Available |
| 2 | Not Available | Handle Bar Buttons (White/Red) | Q-105AA010 | Not Available |
| 3 | Not Available | Complete Florescent Front HB | Q-105AA023 | Not Available |
| 4 | Not Available | Index flag/ndle sensor w/cble | Q-105EW014 | Not Available |
| 5 | Not Available | PCB Case Cover with Fan | Q-105AB002 | Not Available |
| 6 | Not Available | Motor Fuse | Q-105EW018 | Not Available |
| 7 | Not Available | Power Fuse | Q-105EW019 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Fluorescent Bulbs | Q-105EW020 | Not Available |
| 2 | Not Available | Foam handles (qty 2) | Q-105EW021 | Not Available |
| 3 | Not Available | WHITE ENCODERS (spring loaded) | Q-130AA004A | Not Available |
Report errors on this page HERE
