Schematic and parts book for Janome 9700 9700. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

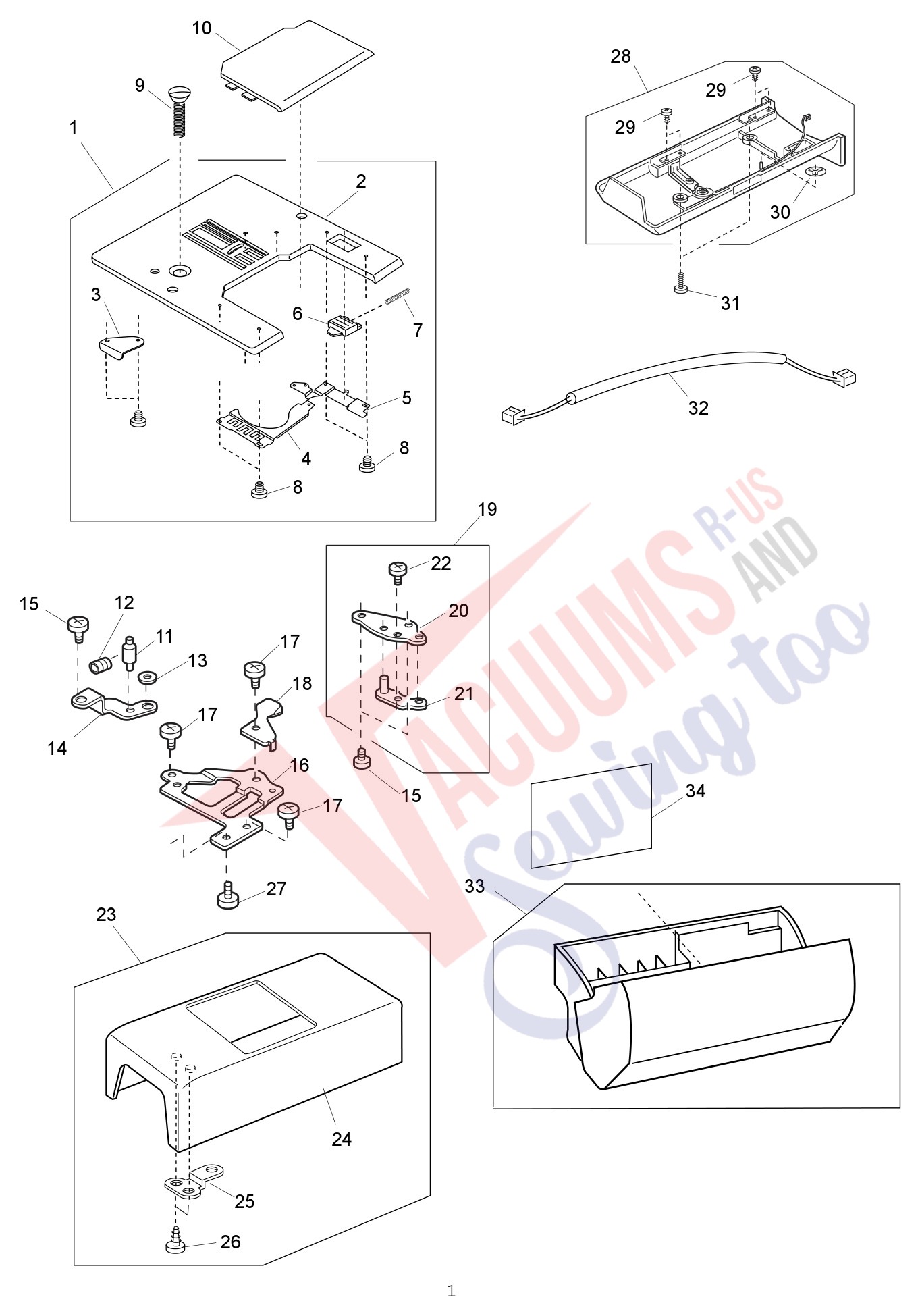

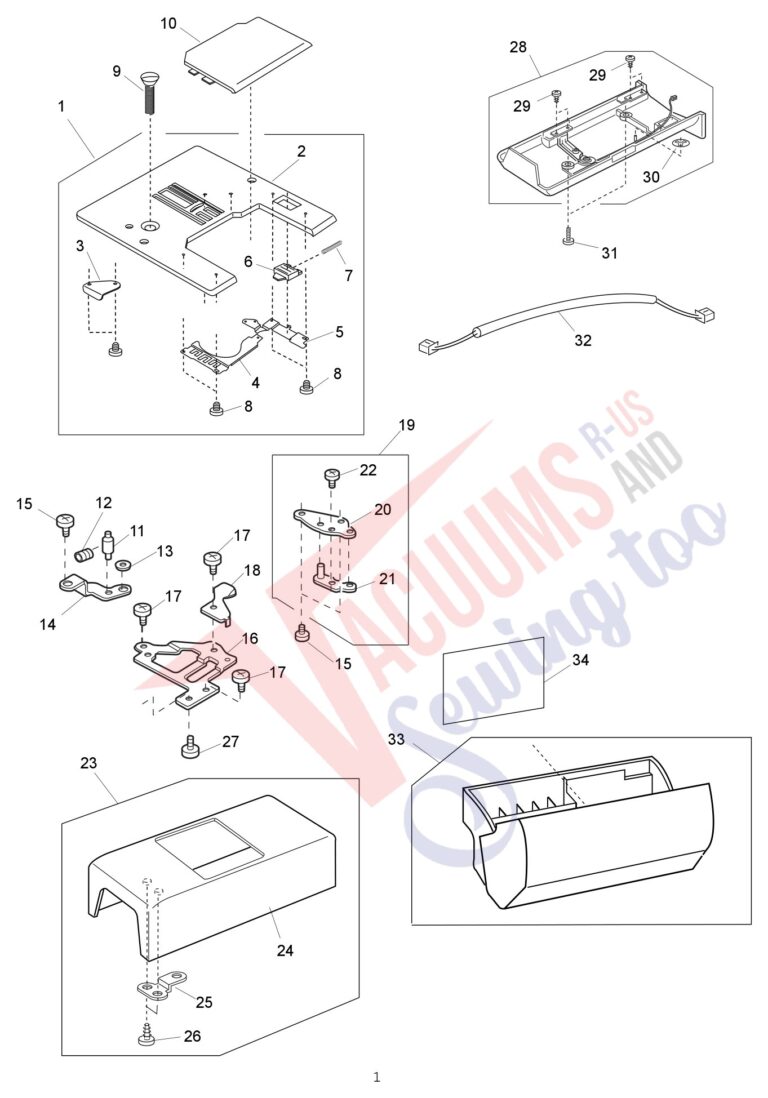

| # | Part image | Description | SKU | Price |
| 1 |  | Needle Plate sewing machine part or accessory Standard Needle Plate Use with: MC9500, MC9700 | 853615013 | $29.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle plate sewing machine part or accessory For Janome Models: 9500 SRV | 851075008 | $13.00Read more |
| 3 | | Bobbin holder stopper sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 659, 66... | 654078004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | BOBBIN HOLD PLATE SPRING sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 832235010 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Hook cover plate supporter(R) sewing machine part or accessory For Janome Models: MC10000, MC1000... | 832012019 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Pan head small screw 2X2.3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 000169709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Needle plate position pin sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 832013009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Needle plate nut holder sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 832014000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Stopper plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC900... | 832165007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Stopper sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 851038009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Needle plate set plate (right) (unit) sewing machine part or accessory For Elna Models: EL820 | 825605013 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle plate set plate (right sewing machine part or accessory For Janome Models: MC10000, MC1000... | 825021019 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Needle plate pos adjust plate | 825022009 | Not Available |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Free arm cover unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 852601105 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Free Arm Cover | 852021105 | $7.80Read more |
| 25 |  | Cover setting plate sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 832003006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Bed cover unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 851501019 | $23.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000S... | 000162805 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Cable (unit) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC8000, MC9500... | 830545009 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Extension table unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853502005 | $30.82Read more |
| 34 | | Genuine Janome/Elna Caution card For: EL820 | 852004010 | $0.60Read more |
| # | Part image | Description | SKU | Price |
| 1 |  | Base Unit sewing machine part or accessory For Janome Models: MC300E, MC300E & 9500 BASE UNIT... | 852617001 | $539.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Rubber Cushion sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 830150003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Adjusting Screw | 820350004 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring | 820351005 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Cushion sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900CP, DX2015, MC100... | 605074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER CS RING 9/8/7 5500 750 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 813123004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Cover sewing machine part or accessory For Janome Models: MC300E, MC300E & 9500 BASE UNIT, MC... | 850146008 | $7.13Read more |
| 8 | | BINDING HEAD SM.SCREW DISCONTI sewing machine part or accessory For Janome Models: 134D, 334, 434... | 000066727 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Base Lid sewing machine part or accessory For Janome Models: MC10001, MC300E, MC300E & 9500 B... | 850151017 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Base Cover sewing machine part or accessory For Janome Models: MC300E, MC300E & 9500 BASE UNI... | 851053103 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set screw 3x4 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 160... | 000101127 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Base lid (1) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC300E... | 832146002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Screw with toothed washer6X35 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 000127107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | CARRIAGE PLATE UNIT FOR 10000 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 850627008 | $39.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Carriage Cover Plate (2) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850169007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Carriage cover lid sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, ... | 850156001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Base lid (3) | 851071004 | Not Available |
| # | Part image | Description | SKU | Price |

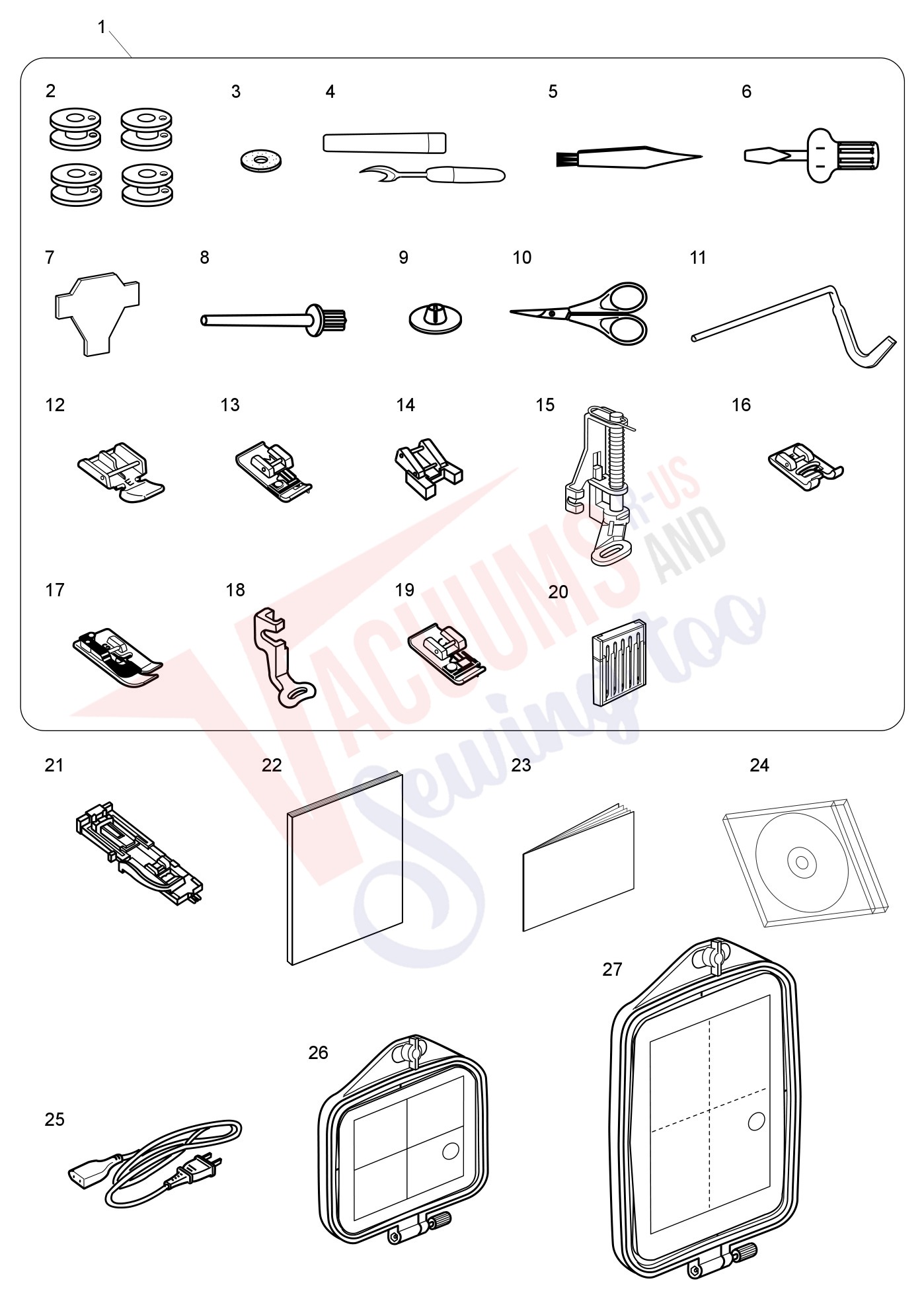

| 1 | | Set of accessories sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853871008 | $38.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna SEAM RIPPER UNIT For: MC10000, MC10001, MC11000, MC11000SE, MC5200, MC5700,... | 560406104 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Triangle Screwdriver sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 653802002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 8 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 9 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Pink Scissors sewing machine part or accessory 3½" pink scissors - comes with most sewing machine... | 803813007 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | QUILTER BAR-LARGE sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 5... | 802422002 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Overedge Foot M (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822808008 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Button Sewing Foot sewing machine part or accessory For Janome Models: MC11000 Special Edition, M... | 802406011 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Darning foot | 830856006 | Not Available |
| 16 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Blind Hem Foot G (7mm) sewing machine part or accessory For Janome Models: MC11000 Special Editio... | 825817009 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Embroidery Foot P (high shank) | 830810053 | Not Available |
| 19 |  | Overlock Foot C (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822801001 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle case unit 820827007 sewing machine part or accessory For Janome Models: MC10000, MC10001, ... | 832832002 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | BUTTONHOLE FOOT FOR HIGH SHANK | 830823118 | Not Available |
| 22 |  | Instruction book (English) sewing machine part or accessory For Janome Models: MC9700 | 857801009 | $93.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Template unit sewing machine part or accessory For Janome Models: MC9700 | 857803001 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Instructional movie (CD) sewing machine part or accessory For Janome Models: MC9700 | 857805003 | $12.99Read more |
| 25 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Embroidery Hoop A (125mm x 110mm) sewing machine part or accessory For Janome Models: MC300E, MC3... | 852807011 | $72.50Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Embroidery Hoop(200mm x 140mm) sewing machine part or accessory For Janome Models: MC10001, MC100... | 850802010 | $85.10Read more |
| # | Part image | Description | SKU | Price |

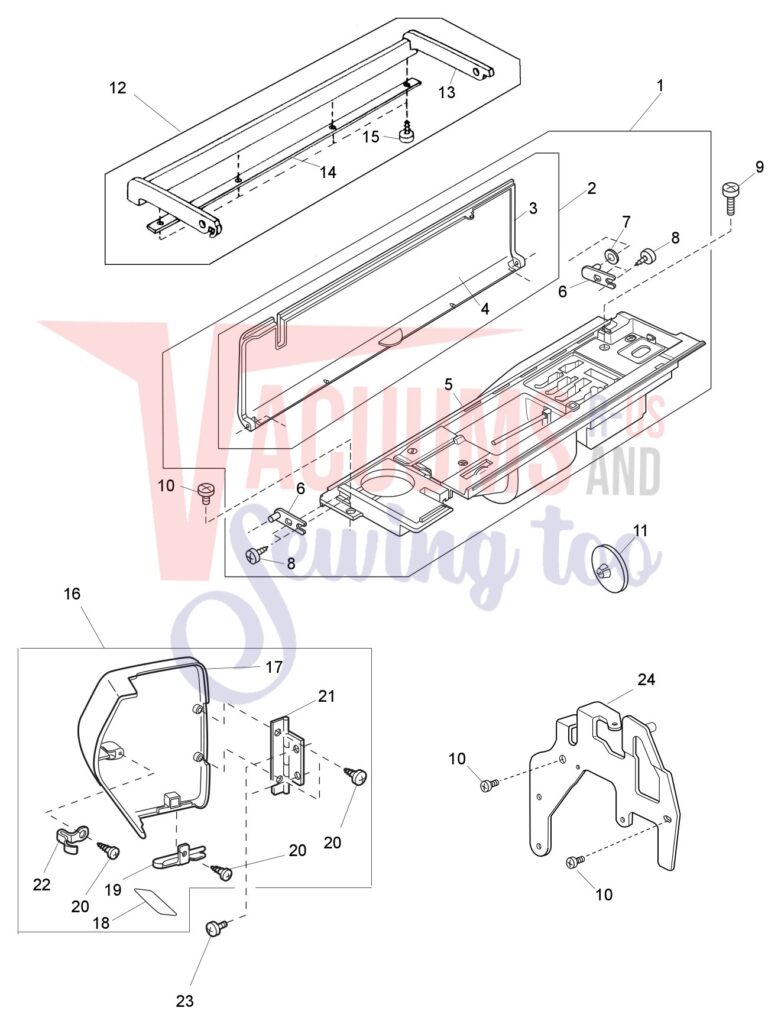

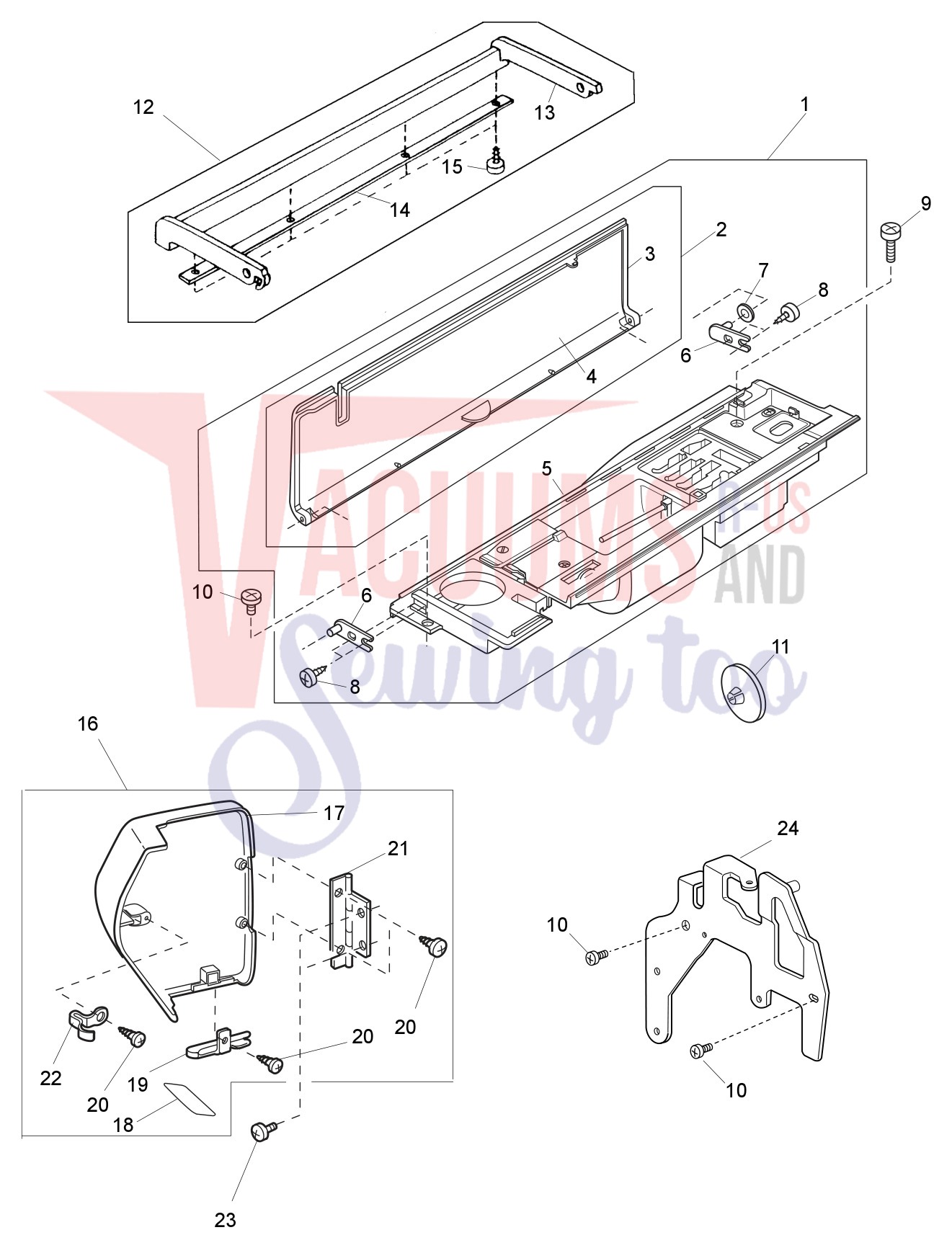

| 1 | | Top cover unit sewing machine part or accessory For Janome Models: MC9700 | 853601304 | $85.79Read more |
| 2 | | Top cover unit sewing machine part or accessory For Janome Models: MC9700 | 853602305 | $38.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Top cover sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853005003 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Reference chart sewing machine part or accessory For Janome Models: MC9700 | 857035004 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Top cover base sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853603007 | $57.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Top cover hinge sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC100... | 830013003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, MC10000, MC100... | 830190005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 000080901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Carrying Handle Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: M... | 850633030 | $39.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Handle sewing machine part or accessory For Janome Models: MC10001, MC9700 | 850009020 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | Reinforcement metal | 850010013 | Not Available |
| 15 | | Set screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9500, MC9700 | 000197809 | $0.40Read more |
| 16 | | Face plate unit sewing machine part or accessory For Janome Models: MC9700 | 857622004 | $36.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Face plate sewing machine part or accessory For Janome Models: MC9700 | 857623005 | $18.00Read more |
| 18 | | Reflector sticker sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF804... | 827099003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Thread Cutter for Memory Craft 9000 sewing machine part or accessory For Janome Models: MB-4, MC1... | 832508006 | $15.42Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Face plate hinge unit sewing machine part or accessory For Janome Models: 360, 380 & 381, 461... | 366501102 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Face Plate Spring sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 6147, DS350... | 650025004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SET SCREW 4 X 6 DISCONTINUED sewing machine part or accessory For Janome Models: AQS2009, CE2200,... | 000077503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Handle base plate (front) sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 834014006 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

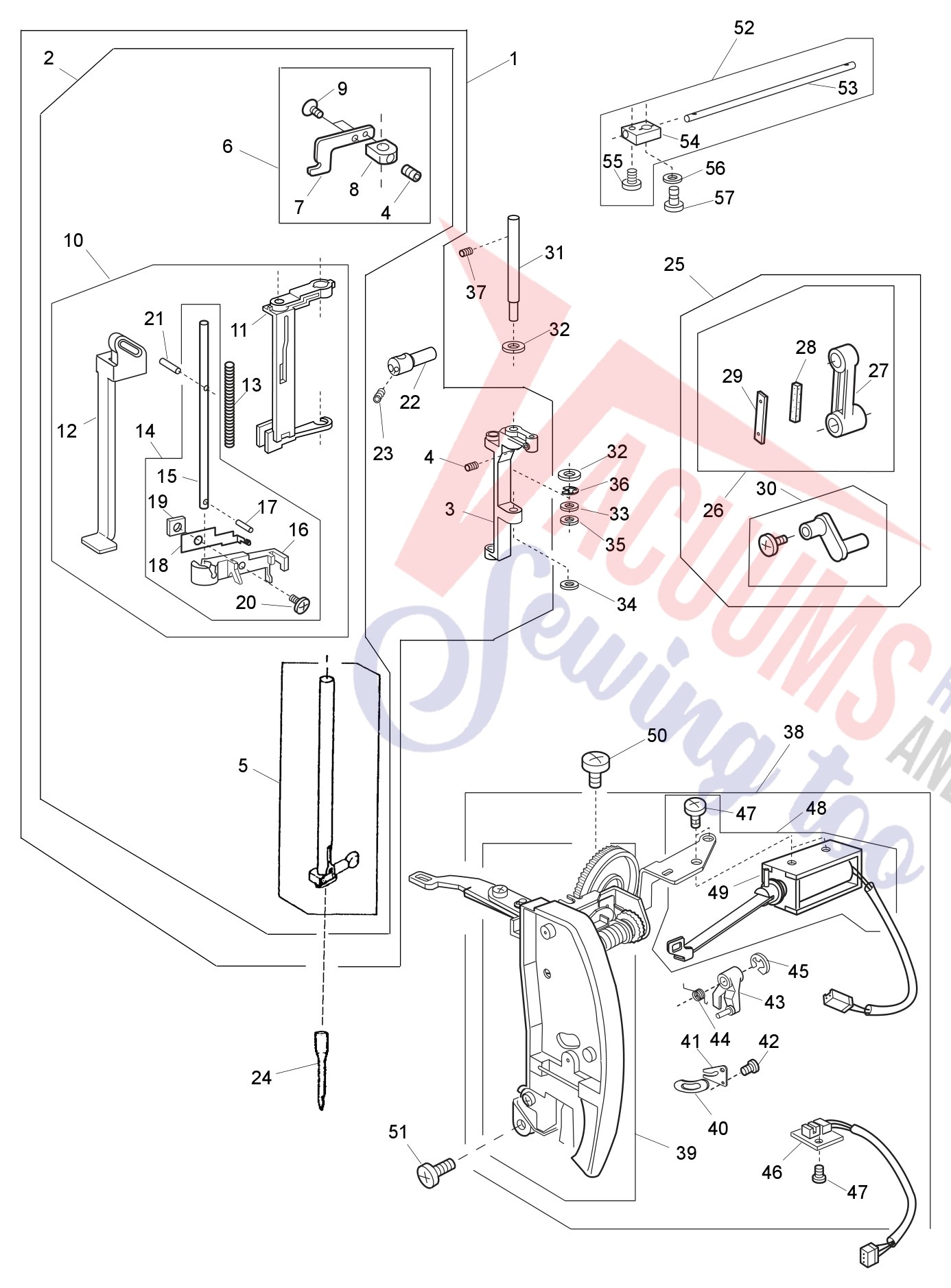

| 1 | | Needle bar supporter unit sewing machine part or accessory For Janome Models: MC9700 | 857601007 | $66.20Read more |
| 2 | | Needle bar supporter sewing machine part or accessory For Janome Models: MC9700 | 857501109 | $75.60Read more |
| 3 | | Needle bar supporter unit sewing machine part or accessory For Janome Models: MC9700 | 857501006 | $62.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Needle bar unit sewing machine part or accessory For Janome Models: MC9700 | 830609404 | $33.12Read more |
| 6 | | Threader guide plate unit sewing machine part or accessory For Janome Models: MC350E, MC9700 | 857602008 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Threader guide plate sewing machine part or accessory For Janome Models: MC350E, MC9700 | 857037006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Threader positioning holder sewing machine part or accessory For Janome Models: 525S, 6147, 625E,... | 751016008 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Needle threader unit sewing machine part or accessory For Janome Models: 525S, 625E, MC9500, MC97... | 853509002 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Frame sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC350E, MC9500, MC9... | 755062001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Threader lever sewing machine part or accessory For Janome Models: 525S, 625E, MC9500, MC9700, Se... | 853026000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Needle threader spring sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC... | 755067006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Threader shaft sewing machine part or accessory For Janome Models: MC9700 | 857603009 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Threader Shaft sewing machine part or accessory For Janome Models: 525S, 625E, MC300E, MC350E, MC... | 755066005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Threader supporter sewing machine part or accessory For Janome Models: MC350E, MC9700 | 857038007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Threader plate sewing machine part or accessory For Janome Models: MC9700 | 857039008 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Nut sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 755095003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Setscrew sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX,... | 755096004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Pin sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 4045NX, 4048... | 000125105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | NEEDLE BAR CONN. STUD ME4018 sewing machine part or accessory For Janome Models: 521, 525S, 6147,... | 751047008 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Needle Bar Crank Unit sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC3... | 850662005 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | NEEDLE BAR CRANK ROD UNIT sewing machine part or accessory For Janome Models: 509, 521, 525S, 614... | 650607006 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Needle bar crank rod sewing machine part or accessory 650039001 Needle bar crank rod | 650039001 | $4.00Read more |
| 28 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | PIN 9000 7500 5500 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000,... | 823018006 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | FELT (2)-9/8/7-7500/6/5500/412 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 822063003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | WASHER THRUST FT70 9 8 7 7500 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1... | 000036108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | WASHER CORRUGATING 7/9 8 7 75 sewing machine part or accessory For Janome Models: MC10000, MC100... | 000116000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Tension unit sewing machine part or accessory For Janome Models: MC9700 | 853604019 | $86.25Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Tension unit sewing machine part or accessory For Janome Models: MC9700 | 853503017 | $44.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Cushion sewing machine part or accessory For Janome Models: MC200E, MC350E, MC9700, Necchi EC100 | 853037004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | CUSHION HOLDER 5700 sewing machine part or accessory For Janome Models: MC9500, MC9700 | 834173004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Thread cutter sensor leverunit sewing machine part or accessory For Janome Models: MC200E, MC300E... | 830660001 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | DECLUTCH LEVER SPRING 8000 sewing machine part or accessory For Janome Models: MC5700, MC8000, MC... | 830049008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | SNAP RING E-2.5 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 1110D... | 000001207 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Printed Circuit Board G1 Unit sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 852502002 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Solenoid unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 834604102 | $39.00Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Solenoid unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 851516109 | $27.60Read more |
| 50 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

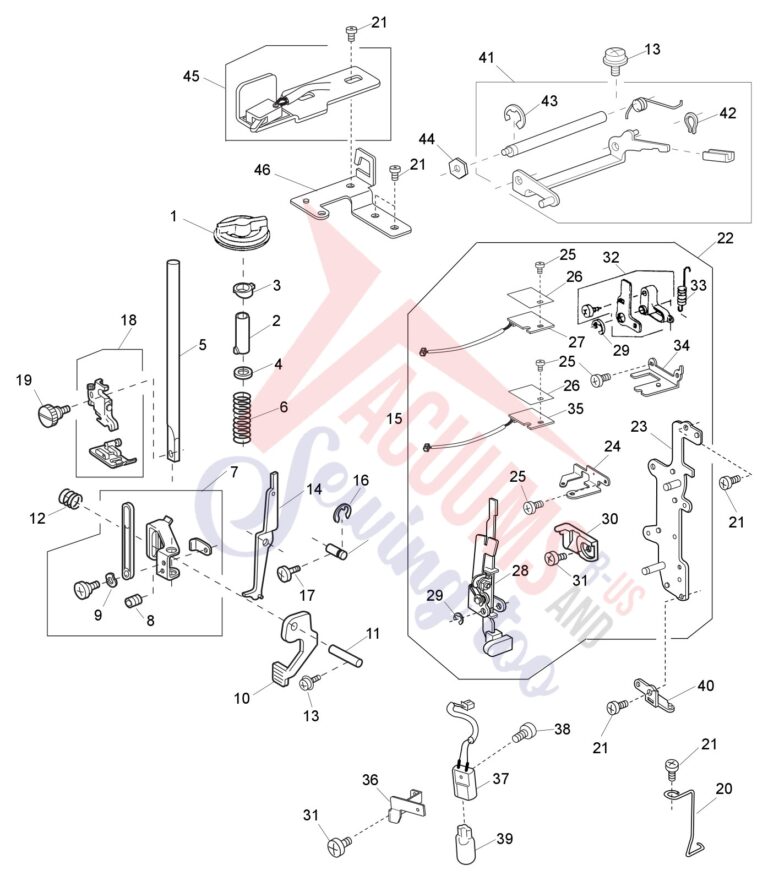

| 1 | | Pressure adjusting dial sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5... | 830026010 | $1.40Read more |
| 2 |  | PRESSER BAR BUSHING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 830027000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | PRESSER ADJUSTING CAM 9000 800 sewing machine part or accessory For Janome Models: MC10000, MC100... | 830028001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER 9000 8000 DISCONTINUED sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 102061008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | PRESSER BAR 9000 8000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 830029002 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | PRESSER BAR SPRING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC10001... | 830030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Presser bar supporter unit sewing machine part or accessory For Janome Models: MC10000, MC300E, M... | 830586024 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Washer sewing machine part or accessory For Janome Models: 405, MC10000, MC10001, MC11000, MC1100... | 000116608 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Presser bar lifter sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC300E... | 830035012 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000115629 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Tension releasing lever sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 830037025 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Thread release lever pin sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 830338007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000081027 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Presser Foot Unit (top load high shank) sewing machine part or accessory For Janome Models: MC110... | 832501009 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Thumb Screw For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC10000, MC10001, MC... | 825252000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Arm thread guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 830039027 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Front Plate Unit for Memory Craft 9500 sewing machine part or accessory For Janome Models: MC9500... | 853605009 | $62.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Front base plate sewing machine part or accessory For Janome Models: 9700 SRV | 853025010 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Sensor base plate sewing machine part or accessory 846044002 Sensor base plate | 846044002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Insulation Sheet | 853028002 | $0.26Read more |
| 27 | | Circuit board G1 sewing machine part or accessory For Janome Models: MC9500, MC9700 | 852502105 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Buttonhole lever sewing machine part or accessory For Janome Models: MC4900, MC5200, MC9500, MC97... | 843625107 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 30 |  | BH lever guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 830057010 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Link sewing machine part or accessory For Janome Models: MC9500, MC9700 | 830661002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Presser shield plate spring sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 830277007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Sensor set plate sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853027001 | $1.20Read more |
| 35 | | Circuit board G1 sewing machine part or accessory For Janome Models: MC9500, MC9700 | 852502208 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Lamp Fixing Plate sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 852039003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Lamp socket unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 501509404 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Set screw 2x8 sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 6125Q... | 000102900 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Light Bulb-Wedge Base 12V 5W sewing machine part or accessory For Janome Models: 1600P, 1600P-DB,... | 000026002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Front cover setting plate (2) sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 851045009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Pressure functioning arm unit sewing machine part or accessory For Janome Models: MC300E, MC350E,... | 830585012 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Presser Bar Lifter Switch Unit sewing machine part or accessory For Janome Models: MC300E, MC350E... | 852621008 | $13.80Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | Pressure lift switch set plate | 853010001 | Not Available |
| # | Part image | Description | SKU | Price |

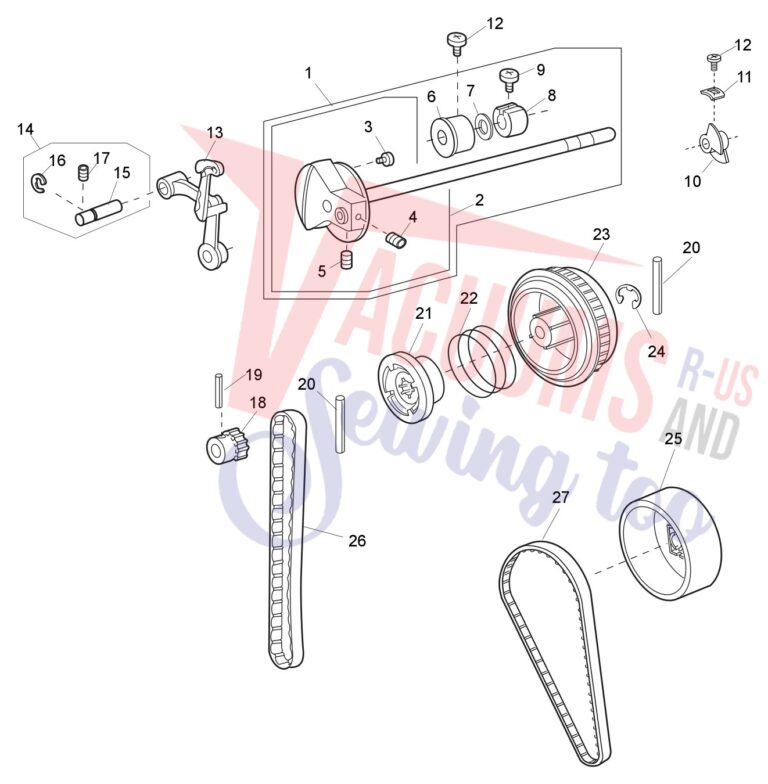

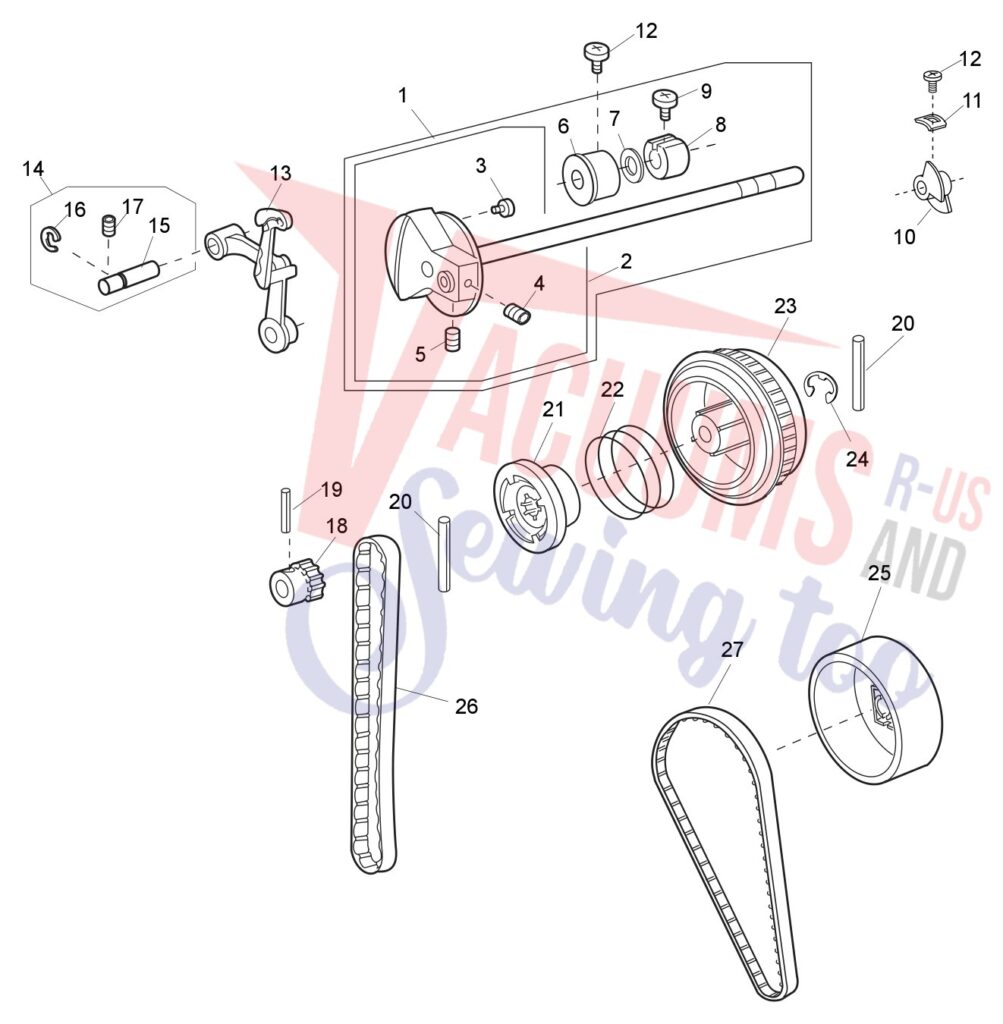

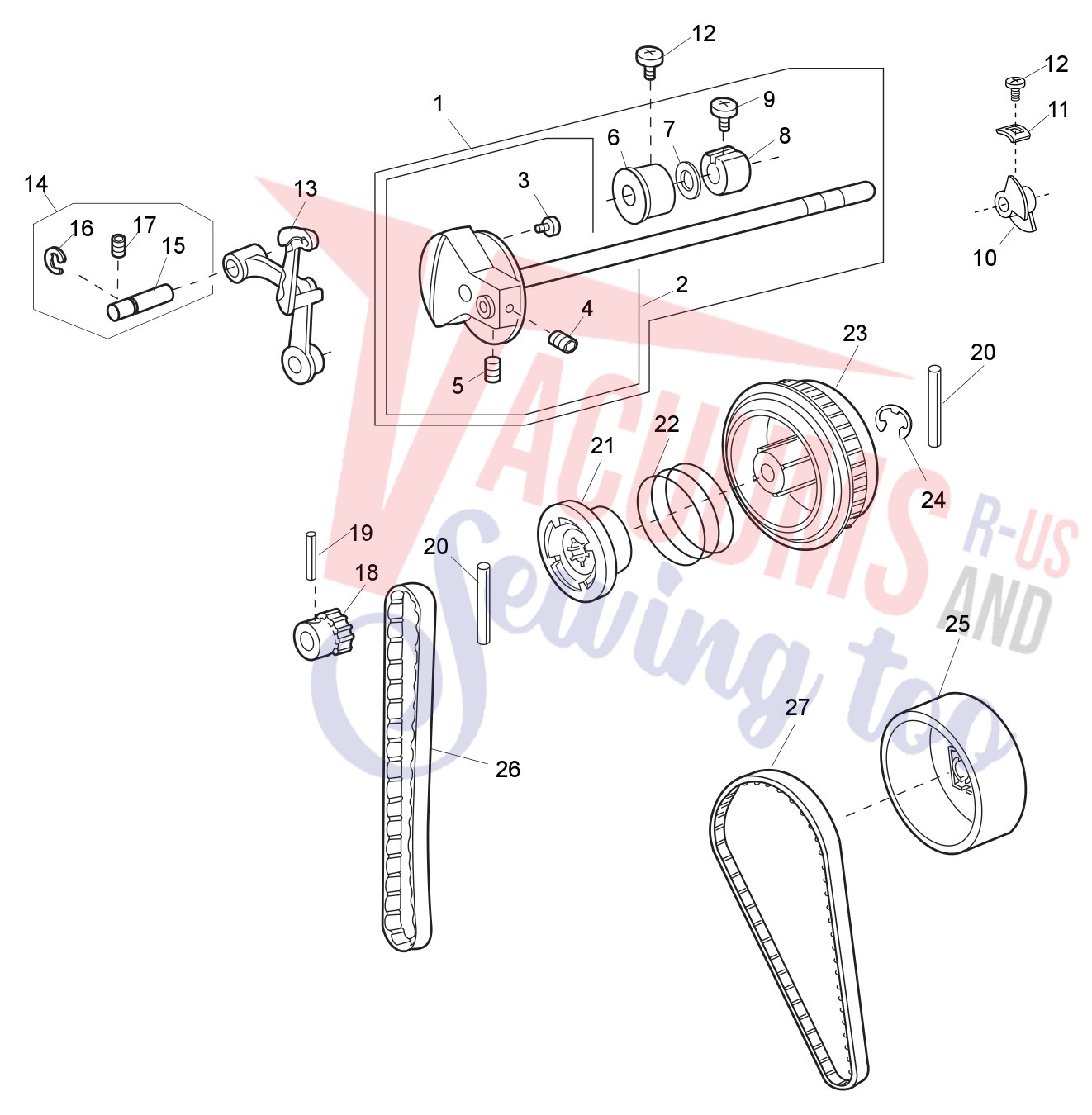

| 1 | | Upper shaft unit sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 852613007 | $28.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Upper shaft unit sewing machine part or accessory For Janome Models: 300E SRV | 852508008 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Upper shaft front bushing sewing machine part or accessory For Janome Models: 300E SRV | 673061003 | $1.56Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | UPPER SHAFT RING 7/7500/5500 sewing machine part or accessory For Janome Models: COMBI-DX502, MC3... | 821025000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 2040, 3022, 7061NX, ... | 830095010 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Pin Unit sewing machine part or accessory For Janome Models: 7330, AQS2009, HF8077, HT2008, MC300... | 650626001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | SNAP RING E-9 8 7 4(000002806) sewing machine part or accessory For Janome Models: 531, 7330, AQS... | 000001702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | UPPER SHAFT TIMING GEAR sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 830341003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SPRING PIN 3X30 sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405,... | 000024206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | clutch ring sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 405, 411... | 502064003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | clutch spring sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 405, 4119 (QUIL... | 502065004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | belt wheel sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, MC200E, MC30... | 303025009 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Hand wheel sewing machine part or accessory For Janome Models: MC9500, MC9700 | 502068203 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Motor Belt for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, MC... | 850165003 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

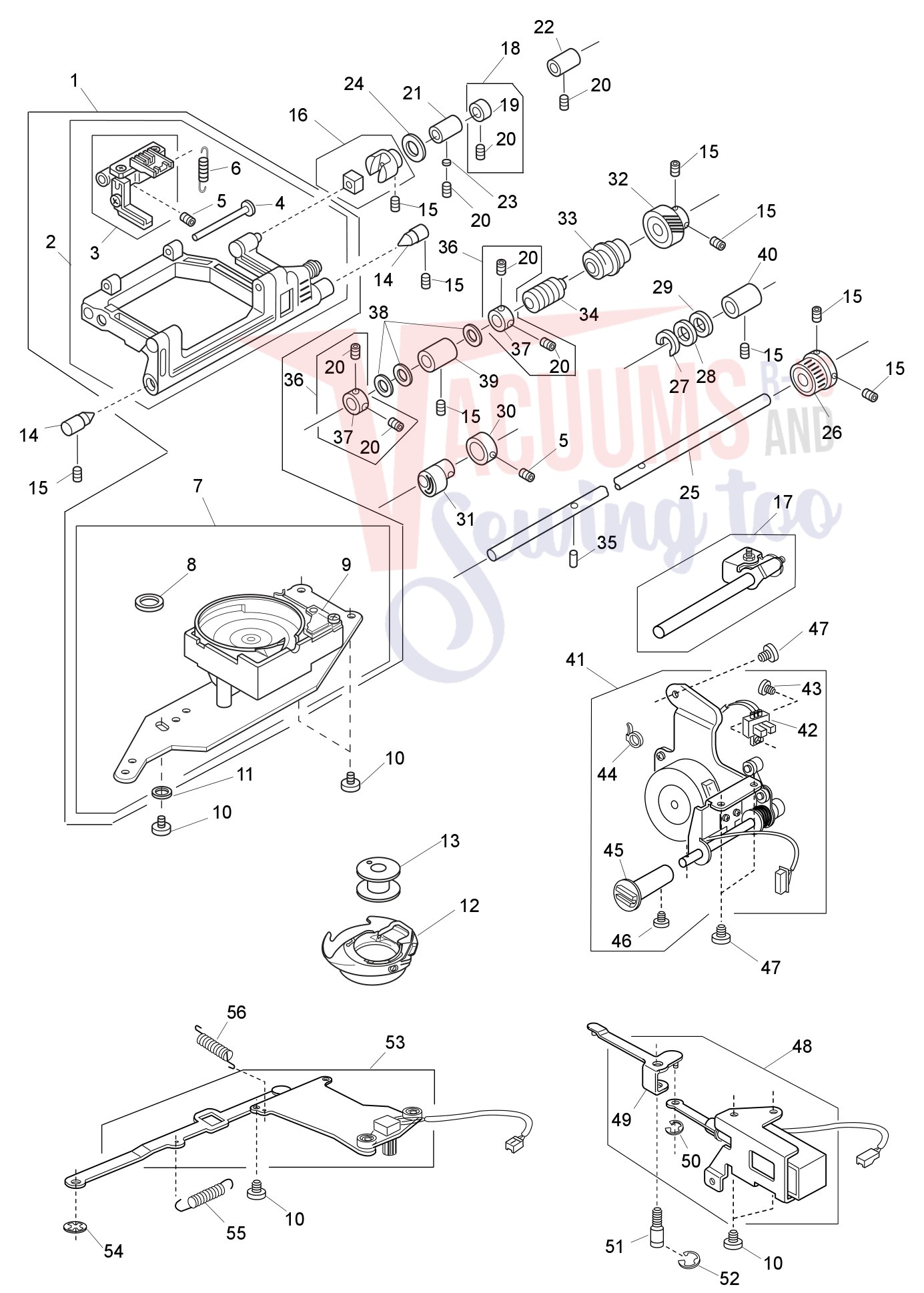

| 1 |  | Feed rock shaft unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853612009 | $152.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Feed rock shaft unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 832633104 | $65.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Feed dog set plate unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 832535105 | $44.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Feed base shaft sewing machine part or accessory 825099007 Feed base shaft | 825099007 | $2.99Read more |
| 5 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Feed Base Spring | 825103005 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Hook race unit sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9500, MC9700 | 832627105 | $79.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Bobbin holder unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 832517204 | $43.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 16 |  | Feed regulator (unit) sewing machine part or accessory 625508008 Feed regulator (unit) | 625508008 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Feed arm unit sewing machine part or accessory For Janome Models: 9500 SRV | 850614105 | $11.80Read more |
| 18 | | Ring unit sewing machine part or accessory For Janome Models: 9500 SRV | 820673006 | $1.80Read more |
| 19 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Lower Shaft for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, M... | 850071001 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | LOWER SHAFT TIMING GEAR 9000/8 sewing machine part or accessory For Janome Models: MC10000, MC100... | 822113009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Ring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5500, MC8000, MC9000... | 810092004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Feed Cam sewing machine part or accessory For Janome Models: MC10000, MC10001, MC8000, MC9000, MC... | 825091102 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Genuine Janome/Elna Feed Lift Cam For: MC10000, MC10001, MC8000, MC9000, MC9500, MC9700 | 825092000 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Feed lifting cam spring sewing machine part or accessory 825093001 Feed lifting cam spring | 825093001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Lower shaft ring (unit) sewing machine part or accessory 820672005 Lower shaft ring (unit) | 820672005 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Feed Stepping Motor for Memory Craft 9500 sewing machine part or accessory For Janome Models: MC9... | 853610007 | $72.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Circuit board G2 sewing machine part or accessory For Janome Models: 9500 SRV | 852511406 | $6.80Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | SET SCREW 3X4-9 7 7500 5500 41 sewing machine part or accessory For Janome Models: 134D, 203, 234... | 000115401 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Feed balance dial sewing machine part or accessory For Janome Models: 9500 SRV | 832087004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 47 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | | Solenoid unit sewing machine part or accessory For Janome Models: MC10001, MC350E, MC9500, MC9700 | 850645013 | $41.20Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Bobbin thread sensor arm sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 850083006 | $3.00Read more |
| 50 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| # | Part image | Description | SKU | Price |

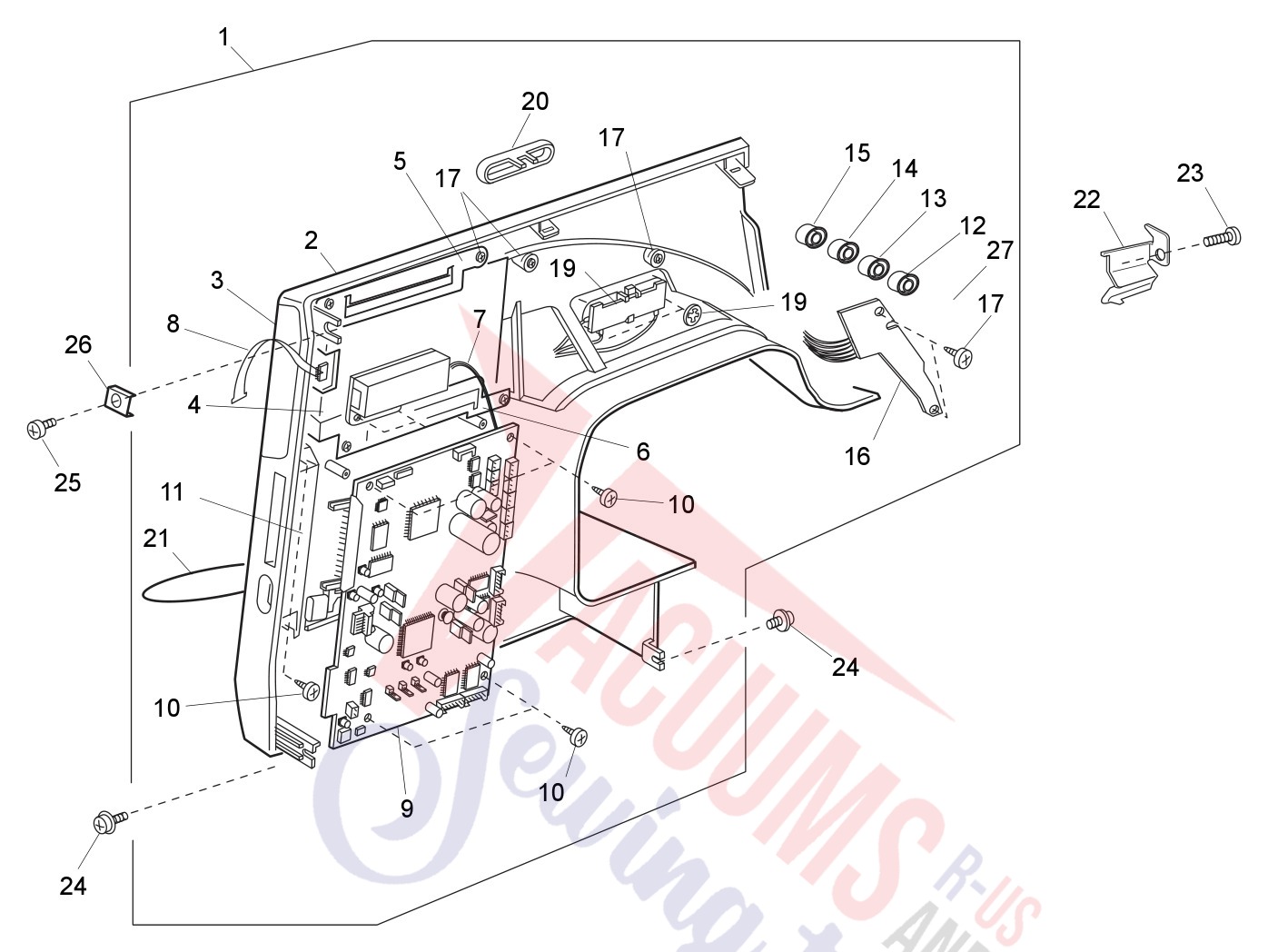

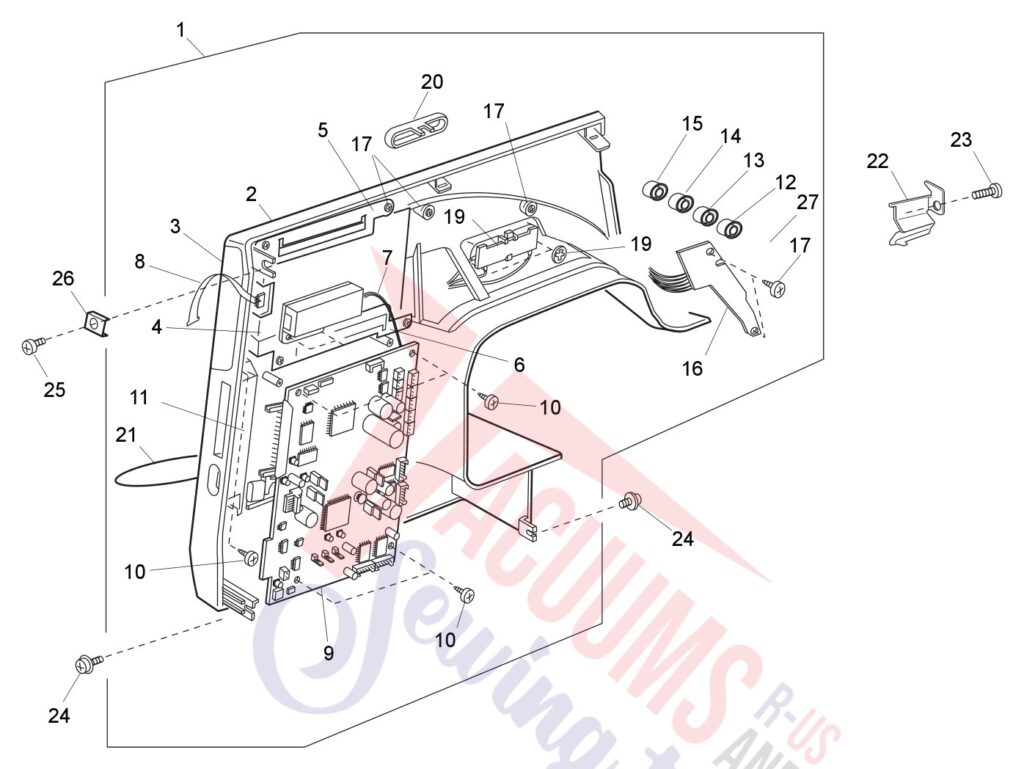

| 1 | | Front cover unit sewing machine part or accessory For Janome Models: MC9700 | 857605001 | $857.80Read more |
| 2 | | Front cover sewing machine part or accessory For Janome Models: MC9700 | 857606002 | $63.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Ornamental plate sewing machine part or accessory For Janome Models: MC9700 | 857030102 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | LCD BOARD FOR MC9700 sewing machine part or accessory For Janome Models: MC9700 | 857607003 | $470.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | LCD attachment plate sewing machine part or accessory For Janome Models: MC9700 | 857033002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | LCD attachment plate unit sewing machine part or accessory For Janome Models: MC9700 | 857609005 | $85.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Inverter harness unit sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300... | 850524004 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | LCD Harness Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852505005 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | A BOARD UNIT FOR MC9700 sewing machine part or accessory For Janome Models: MC9700 | 857610009 | $557.40Read more |
| 10 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Card guide sewing machine part or accessory For Janome Models: MC300E, MC9500, MC9700 | 852019007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Start/Stop Button sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852020104 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Reverse button sewing machine part or accessory For Janome Models: MC9700 | 850059139 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Button (needle up-down) sewing machine part or accessory For Janome Models: MC9700 | 850059232 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Auto lock button sewing machine part or accessory For Janome Models: MC9700 | 850059335 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Circuit Board F for Memory Craft 9500 sewing machine part or accessory For Janome Models: MC9500,... | 853501004 | $22.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Slide Volume sewing machine part or accessory For Janome Models: CE2200, MC9500, MC9700 , MC8200 ... | 653507004 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Speed control lever sewing machine part or accessory For Janome Models: MC9500, MC9700 | 845027109 | $0.80Read more |
| 21 | | Emblem sewing machine part or accessory For Janome Models: MC9700 | 857032001 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Arm thread guide (lower) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 825183010 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SET SCREW 3.5X25-8 9 7 7500 sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 000096508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | Washer sewing machine part or accessory For Janome Models: 350E | 832177002 | $0.92Read more |
| 27 |  | Spring sewing machine part or accessory For Janome Models: MC9700 | 852053003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

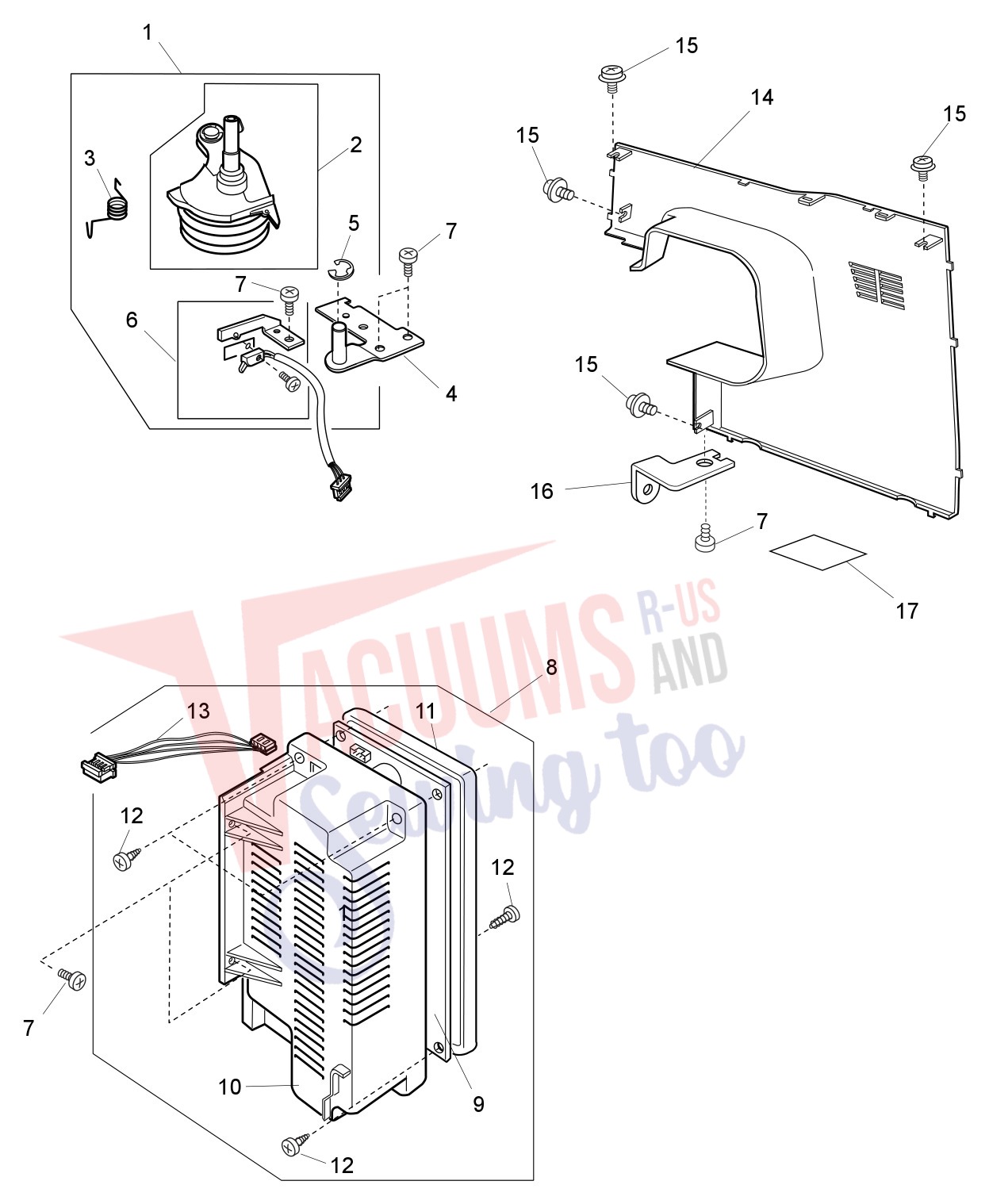

| 1 | | Bobbin winder unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853613000 | $26.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Bobbin winder unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853506009 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Bobbin Winder Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 823119008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Bobbin winder base sewing machine part or accessory For Janome Models: MC9500, MC9700 | 852029103 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Switch sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 852615009 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Switching Power Supply Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, M... | 850628205 | $135.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Switching Power Supply Unit sewing machine part or accessory For Janome Models: MC300E, MC9500, M... | 850541018 | $110.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Swithcing power supply case sewing machine part or accessory For Janome Models: 350E | 850157024 | $14.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Switching power supply cap sewing machine part or accessory For Janome Models: 350E | 850158014 | $11.00Read more |
| 12 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 000119704 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Power Supply Harness Unit sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 850523003 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Rear cover sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853002103 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Rear cover set plate sewing machine part or accessory For Janome Models: 350E | 853021005 | $1.60Read more |
| 17 | Not Available | Carriage sticker | 850201002 | Not Available |

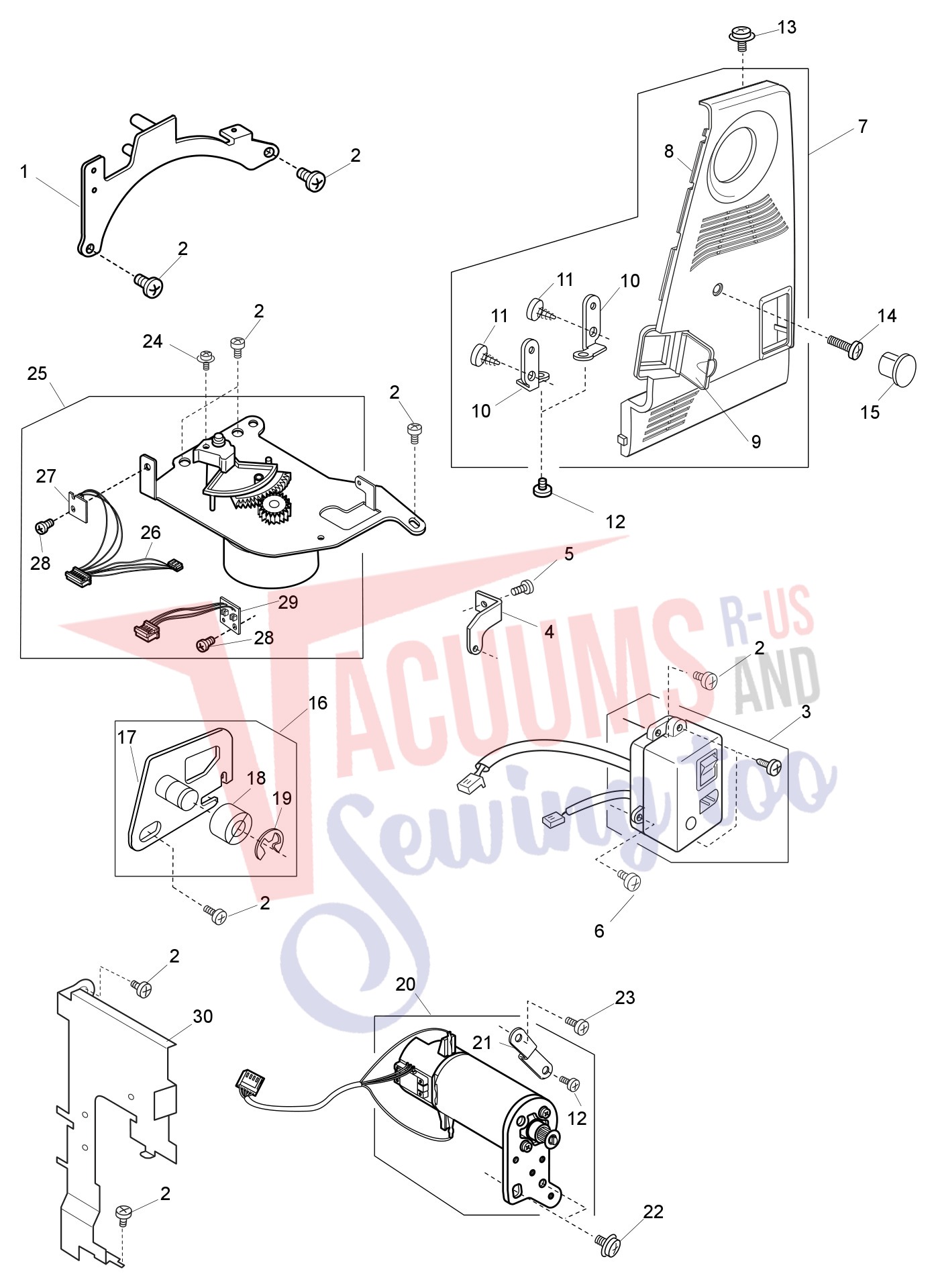

| # | Part image | Description | SKU | Price |
| 1 | | Handle Base Plate (Rear) sewing machine part or accessory For Janome Models: MC300E, MC350E, MC95... | 852032006 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Machine socket unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 845503104 | $35.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Machine Socket Set Plate | 852036000 | $1.60Read more |
| 5 | | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SET SCREW FOR SERGER sewing machine part or accessory For Janome Models: 203, 2040, 204D, 234D, 3... | 000101817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Belt cover unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 853614001 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Belt cover sewing machine part or accessory For Janome Models: MC9500, MC9700 | 852031108 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Cover sewing machine part or accessory For Janome Models: MC350E, MC9500, MC9700 | 853022006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Belt cover setting plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 832099009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Idler Unit sewing machine part or accessory For Janome Models: MC300E, MC350E, MC9500, MC9700 | 851617008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Idler base | 851039000 | Not Available |
| 18 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Motor Unit for Memory Craft 10000 sewing machine part or accessory For Janome Models: MC10000, MC... | 080270218 | $140.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set plate sewing machine part or accessory For Janome Models: 9500 SRV | 850205006 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Zig Zag Stepping Motor for Memory Craft 9500 sewing machine part or accessory For Janome Models: ... | 853611008 | $70.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Motor harness unit sewing machine part or accessory For Janome Models: MC9500, MC9700 | 850506608 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Circuit board G2 sewing machine part or accessory For Janome Models: 9500 SRV | 852511509 | $9.20Read more |
| 28 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Circuit board P sewing machine part or accessory For Janome Models: MC9500, MC9700 | 843505203 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Guide plate sewing machine part or accessory For Janome Models: 9500 SRV | 853023007 | $3.20Read more |
Report errors on this page HERE
