Schematic and parts book for Janome 9000 9000. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

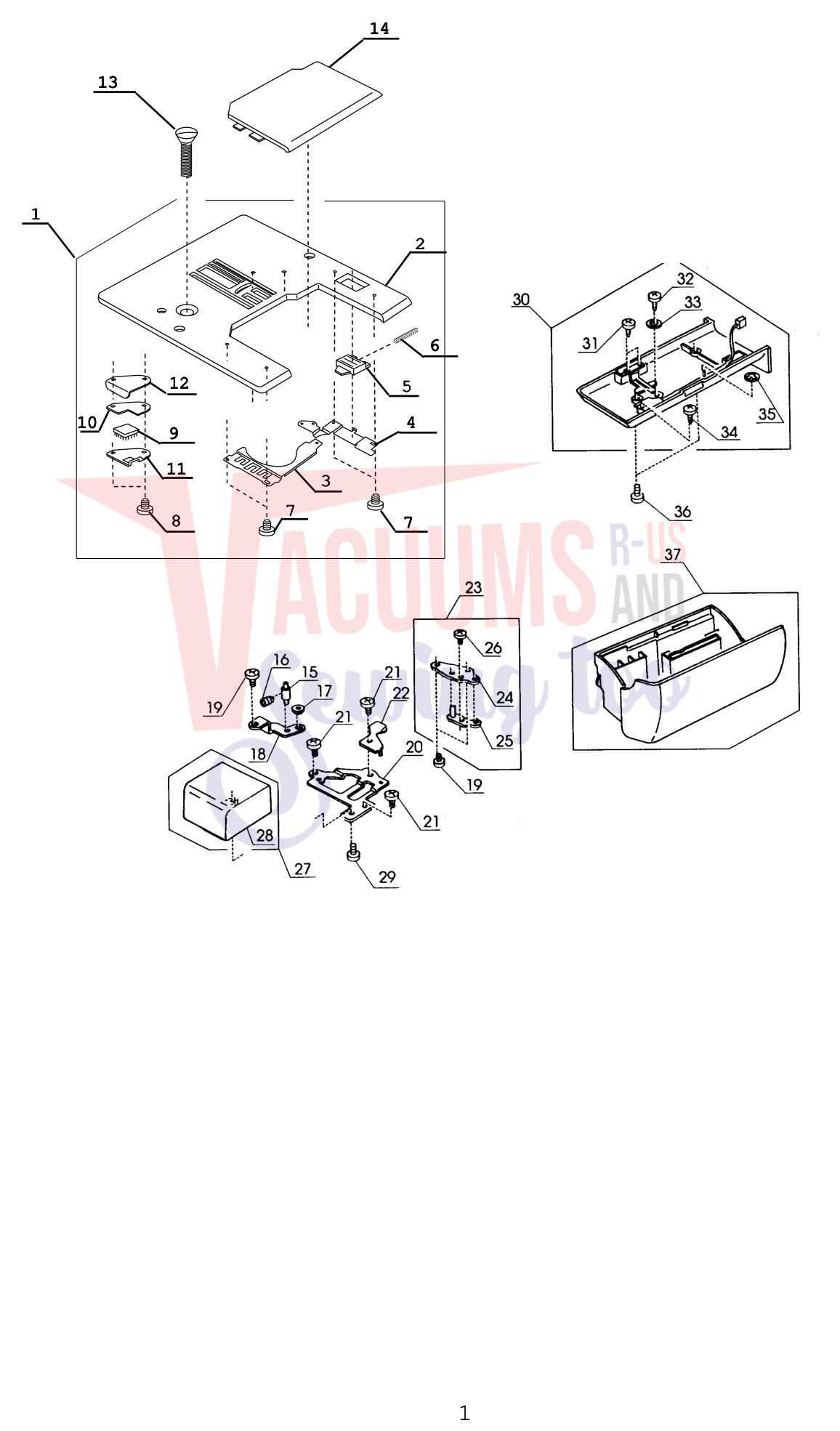

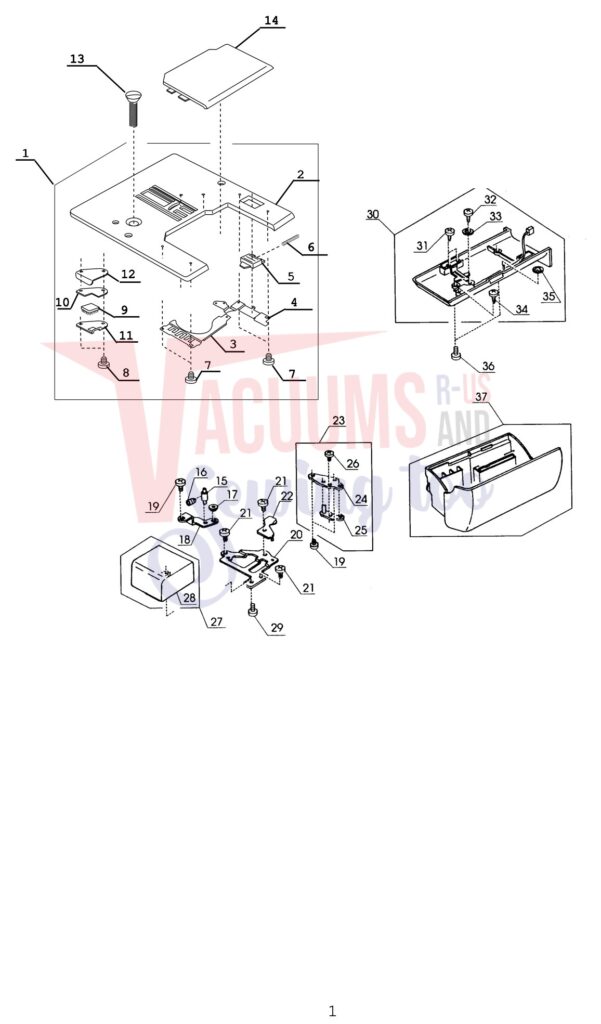

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Needle Plate Unit | 832649011 | Not Available |
| 2 | Not Available | Needle Plate | 832010006 | Not Available |
| 3 | Not Available | Hook cover plate supporter | 825235010 | Not Available |
| 4 |  | Hook cover plate supporter(R) sewing machine part or accessory For Janome Models: MC10000, MC1000... | 832012019 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Pan head small screw 2X2.3 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1... | 000169709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw 2x3.5 sewing machine part or accessory For Janome Models: 10001 SRV | 000096900 | $0.28Read more |
| 9 | Not Available | Tape | 832174009 | Not Available |
| 10 | Not Available | Spacer | 825259100 | Not Available |
| 11 | Not Available | Tape Holder | 825257108 | Not Available |
| 12 | | Bobbin Holder Stopper sewing machine part or accessory For Janome Models: 10001 SRV | 825013007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: COMBI-DX502, MC10000, MC30... | 820390006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Needle plate position pin sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 832013009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Needle plate nut holder sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 832014000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | SET SCREW 4X6-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC8000, MC9000 | 000157003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Stopper plate sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC900... | 832165007 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Stopper | 653001006 | Not Available |
| 23 |  | Needle plate set plate (right) (unit) sewing machine part or accessory For Elna Models: EL820 | 825605013 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Needle plate set plate (right sewing machine part or accessory For Janome Models: MC10000, MC1000... | 825021019 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Needle plate pos adjust plate | 825022009 | Not Available |
| 26 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Bed cover (front) unit sewing machine part or accessory For Janome Models: 9000 SRV | 832570009 | $16.40Read more |
| 28 | Not Available | Bed cover (front) | 832002005 | Not Available |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 6019QC, 6125QC, 6260QC, 659, 712T, ... | 000103705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | BED COVER UNIT FOR 9000 sewing machine part or accessory For Janome Models: MC9000 | 832502000 | $16.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Setscrew | 000121709 | Not Available |
| 32 | | Setscrew 2.6x6 (B) sewing machine part or accessory For Janome Models: 3160QDC, MC5000, MC5700, M... | 000160700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | WASHER POLISHED PLAIN 3-9 8 6 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000070104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Set screw sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000S... | 000162805 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | Extension Box Unit | 832503001 | Not Available |

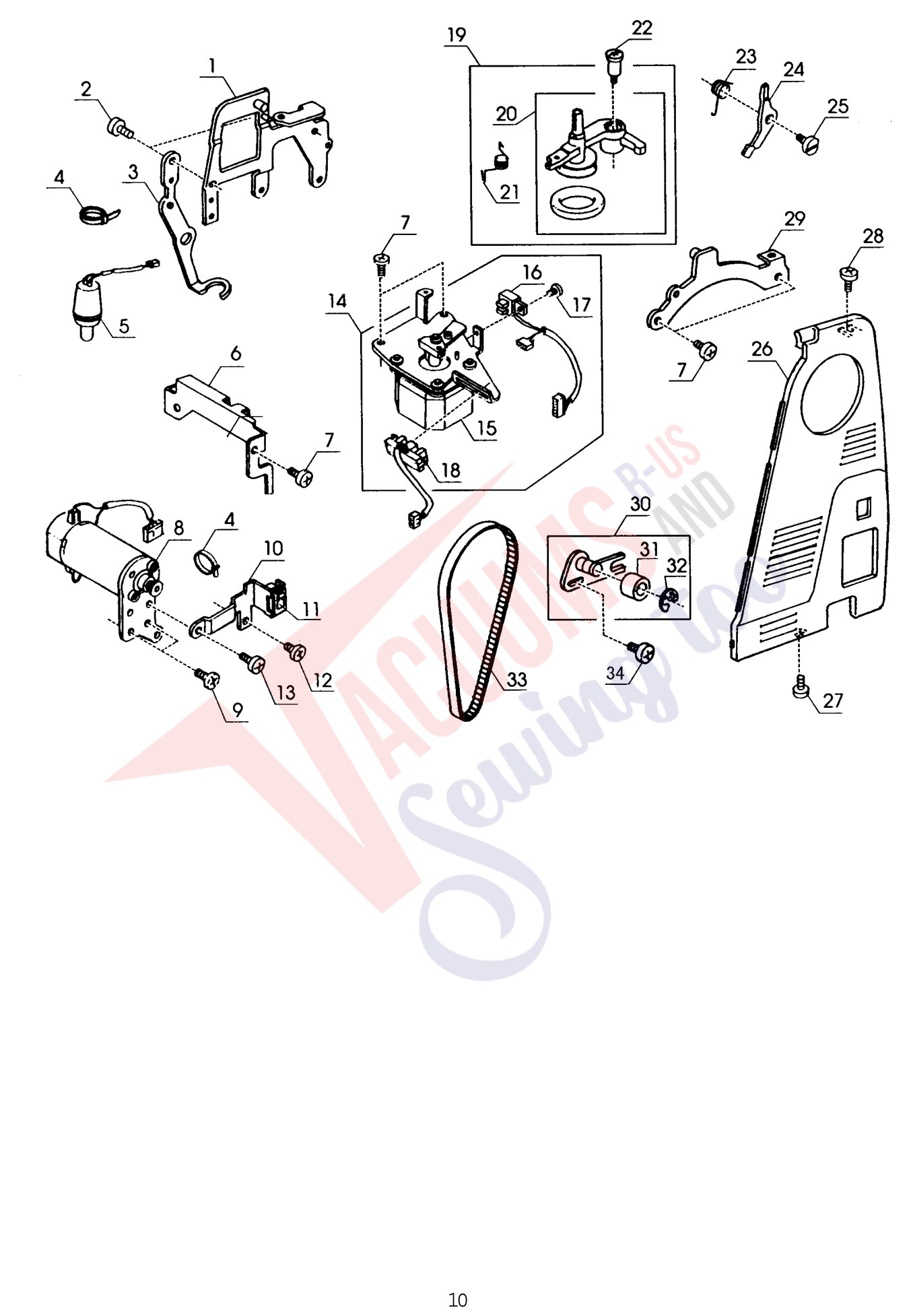

| # | Part image | Description | SKU | Price |
| 1 | | Handle base plate (l) sewing machine part or accessory For Janome Models: 9000 SRV | 832025004 | $7.83Read more |
| 2 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Lamp set plate sewing machine part or accessory For Janome Models: 9000 SRV | 832049004 | $2.14Read more |
| 4 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Light Socket for Memory Craft 9000 sewing machine part or accessory For Janome Models: DE5124, MC... | 830538238 | $36.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Cord guide (3) | 832161003 | Not Available |
| 7 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | MOTOR UNIT 9000/8/5-080270300 sewing machine part or accessory | 080270300 | $133.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Lamp switch fixing plate sewing machine part or accessory For Janome Models: 9000 SRV | 832154003 | $6.43Read more |
| 11 |  | LAMP SWITCH UNIT FOR 9000 sewing machine part or accessory For Janome Models: MC9000 | 832540000 | $8.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set screw sewing machine part or accessory For Janome Models: 8000 SRV | 000172004 | $0.40Read more |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | ZIG ZAG STEPPING MOTOR - 9000 | 832612015 | Not Available |
| 15 | Not Available | Stepping motor unit | 832542002 | Not Available |
| 16 | | Photo Interrupter Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832541001 | $21.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Photo-sensor | 830543007 | Not Available |
| 19 | Not Available | Bobbin Winder Unit | 832626001 | Not Available |
| 20 |  | Bobbin Winder Unit for Memory Craft 8000 sewing machine part or accessory For Janome Models: MC50... | 830528006 | $20.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | SPRING sewing machine part or accessory SPRING | 830273014 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | HINGE SCREW 9000 7500 7000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC... | 825220009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | DECLUTCH ARM SPRING 9000 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625215005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | De-clutch arm sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 830145005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | HINGE SCREW 9000 8K 7500 7K 6K sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 625214004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Belt Cover Unit for Memory Craft 9000 sewing machine part or accessory For Janome Models: MC9000 | 832520107 | $40.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Handle base plate (rear) sewing machine part or accessory For Janome Models: 5000 SRV | 832020009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | IDLER UNIT sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5000, MC5700, ... | 830631014 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Motor Belt | 830276006 | Not Available |

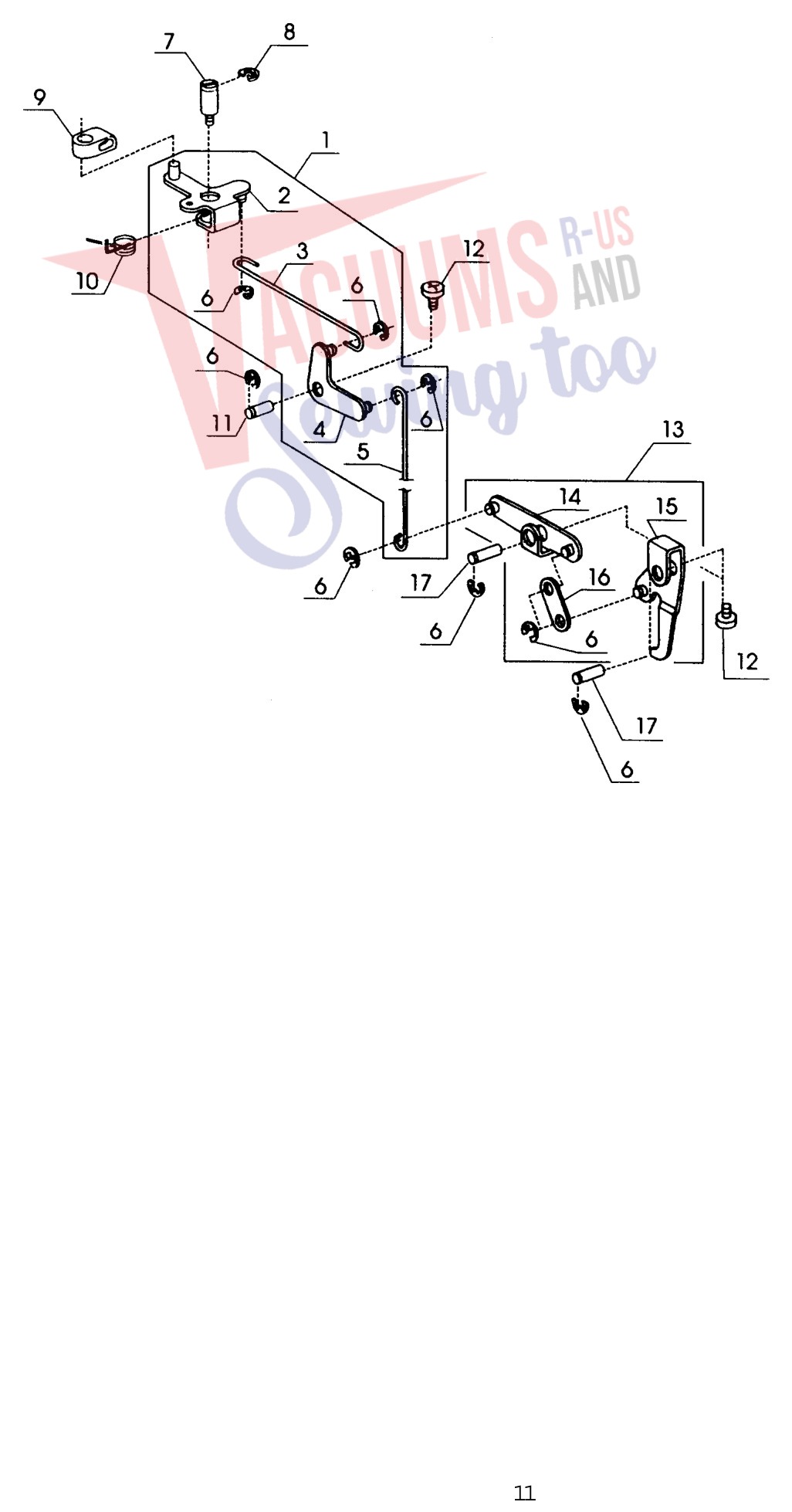

| # | Part image | Description | SKU | Price |
| 1 | | Knee Lifter Link Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832657001 | $17.53Read more |
| 2 | Not Available | Knee Lifter Link (1) | 832210008 | Not Available |
| 3 | | Knee Lifter Rod (1) sewing machine part or accessory For Janome Models: 10001 SRV | 832213001 | $0.75Read more |
| 4 | Not Available | Knee Lifter Link (2) | 832214002 | Not Available |
| 5 | | Knee Lifter Rod (2) sewing machine part or accessory For Janome Models: 10001 SRV | 832215003 | $2.05Read more |
| 6 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Setscrew sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC11000SE... | 832211009 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Knee Lifter Link (5) | 832218006 | Not Available |
| 10 |  | Knee lifter link spring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 832212000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Tension Releasing Lever Pin sewing machine part or accessory For Janome Models: 10001 SRV | 830338100 | $0.84Read more |
| 12 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Knee lifter link (3) unit | 832651005 | Not Available |
| 14 | Not Available | Knee lifter link | 832216004 | Not Available |
| 15 | Not Available | Knee lifter link | 832217005 | Not Available |
| 16 | Not Available | Knee lifter link | 832232006 | Not Available |
| 17 | Not Available | Knee Lifter Link Pin | 832234019 | Not Available |

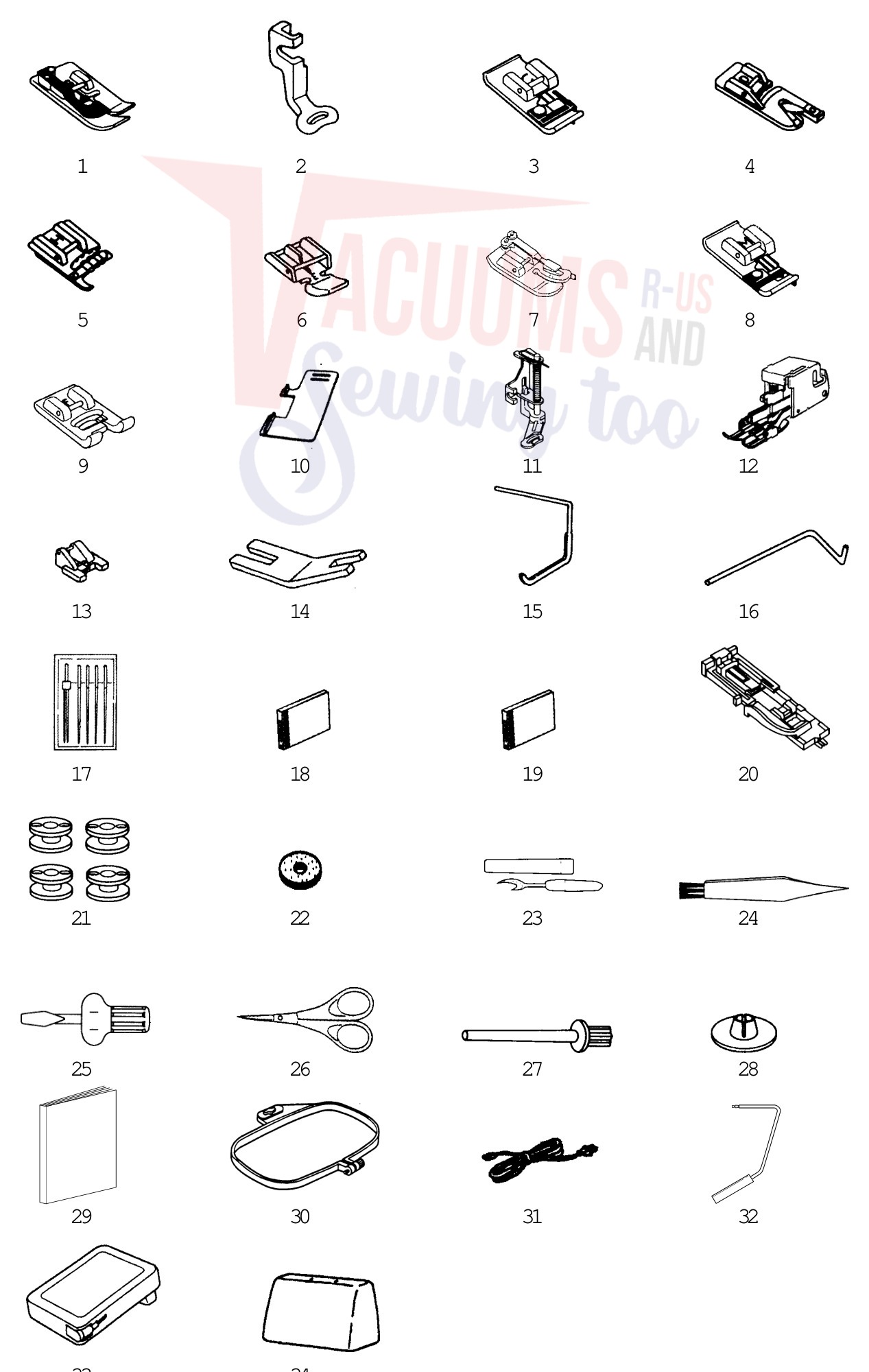

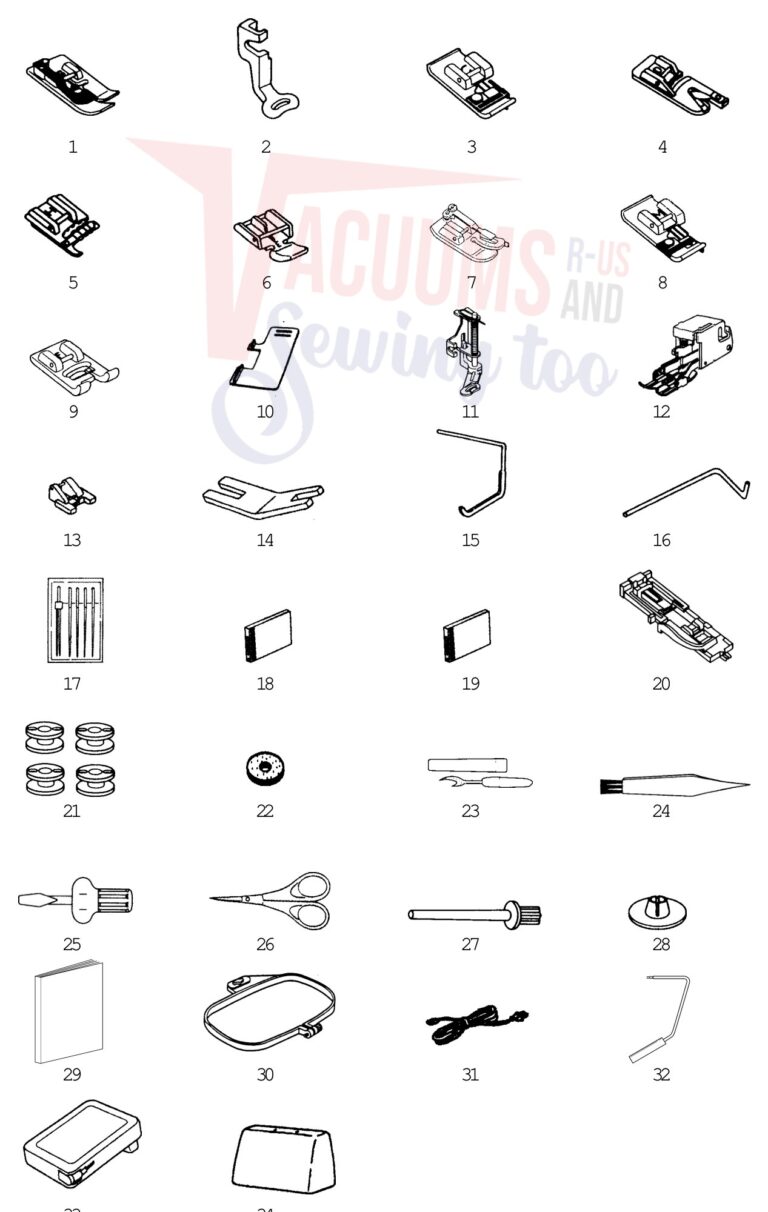

| # | Part image | Description | SKU | Price |
| 1 |  | Blind Hem Foot G (7mm) sewing machine part or accessory For Janome Models: MC11000 Special Editio... | 825817009 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Embroidery Foot P (high shank) | 830810053 | Not Available |
| 3 |  | Overlock Foot C (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822801001 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Rolled Hemmer Foot for Janome | 820809014 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Multi-cord foot H For: EL740 | 820819006 | $11.60Read more |
| 6 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Seam Foot 1/4" sewing machine part or accessory For Janome Models: 2040, MC10000, MC10001, MC1100... | 200008004 | $18.08Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Overedge Foot M (top load) sewing machine part or accessory For Janome Models: MC11000 Special Ed... | 822808008 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Satin Stitch Foot F (top load) sewing machine part or accessory For Janome Models: High Shank and... | 822804118 | $9.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Cloth Guide Unit sewing machine part or accessory Cloth Guide UnitUse with: MC9000, MC10000, MC... | 832810107 | $12.70Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Darning foot | 830856006 | Not Available |
| 12 |  | Even Feed Walking Foot (H/S) sewing machine part or accessory For Janome Models: MC11000 Special ... | 214507001 | $32.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Button Sewing Foot sewing machine part or accessory For Janome Models: MC11000 Special Edition, M... | 802406011 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | BUTTON SEWING SHANK PLATE sewing machine part or accessory For Janome Models: MC10000, MC10001, M... | 832820007 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Quilting Guide for Even Feedft sewing machine part or accessory For Janome Models: 2041LX, 4048/8... | 214015007 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | QUILTER BAR-LARGE sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 4623LE, 5... | 802422002 | $3.50Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Needle case unit 820827007 sewing machine part or accessory For Janome Models: MC10000, MC10001, ... | 832832002 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | MEMORY CARD 101 LETTERS & MONO | 832822102 | Not Available |
| 19 | Not Available | MEMORY CARD 102 ART & QUILTING | 832828005 | Not Available |
| 20 | Not Available | Sliding Buttonhole Foot R | 830823015 | Not Available |
| 21 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Genuine Janome/Elna SEAM RIPPER UNIT For: MC10000, MC10001, MC11000, MC11000SE, MC5200, MC5700,... | 560406104 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 26 |  | Pink Scissors sewing machine part or accessory 3½" pink scissors - comes with most sewing machine... | 803813007 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 28 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Instruction Book For Memory Craft 9000 sewing machine part or accessory For Janome Models: MC9000 | 832823000 | $84.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Embroidery Hoop (125mm x 90mm) sewing machine part or accessory For Janome Models: MC9000, MC8100... | 832825002 | $171.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | POWER SUPPLY CORD sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX,... | 653524007 | $20.06Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | KNEE LIFTER FOR 9000 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC9000 | 832827004 | $65.60Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | FT CONTROLLER 4/8/9K 043271133 | 043271111 | Not Available |
| 34 | Not Available | Resin hard cover | 481701001 | Not Available |

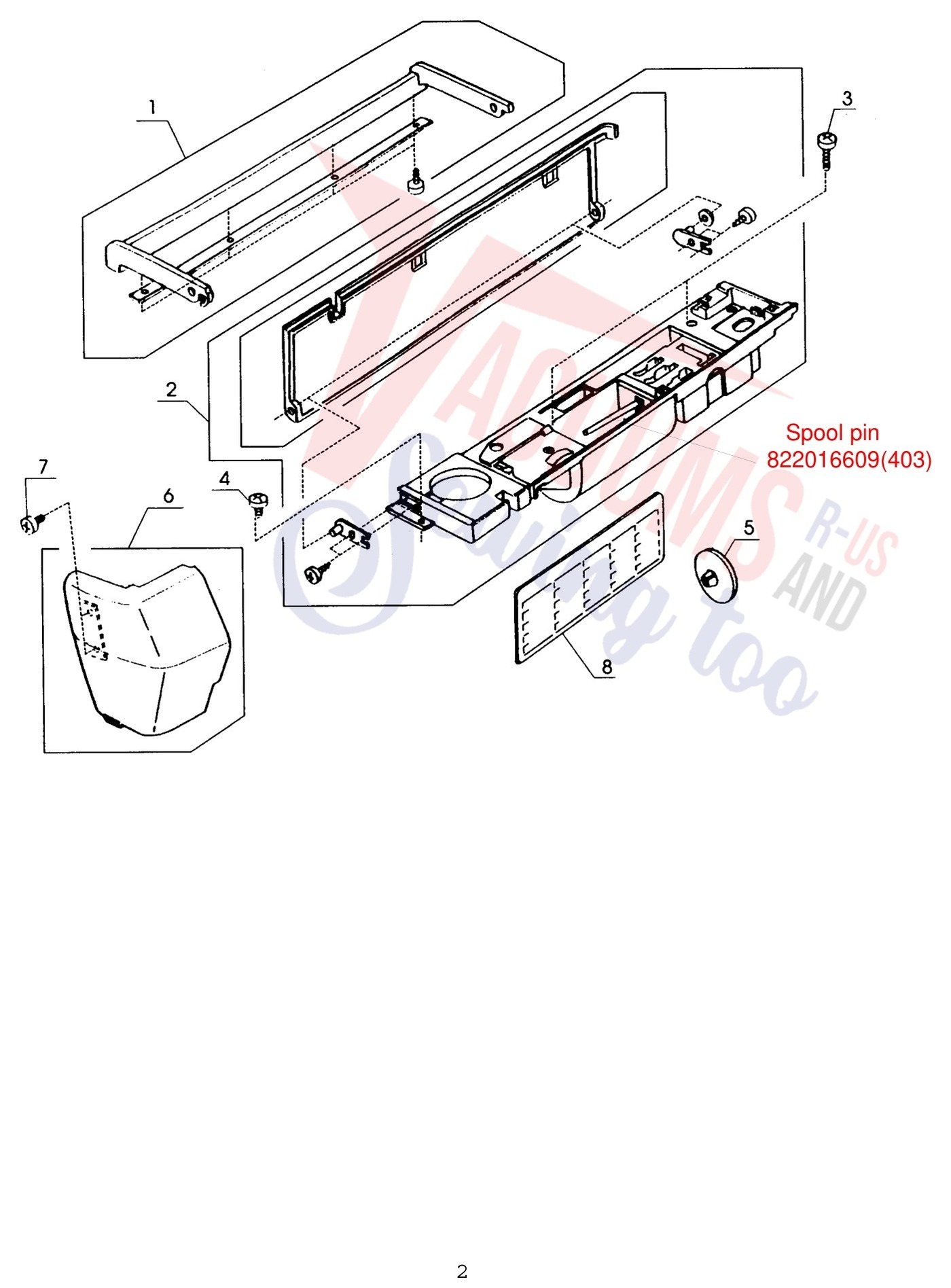

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Carrying Handle | 830527016 | Not Available |
| 2 | | TOP COVER UNIT FOR 9000 sewing machine part or accessory For Janome Models: MC9000 | 832648102 | $102.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: MC5000, MC8000, MC9000 | 000157405 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Spool holder (Large)822020307 sewing machine part or accessory For Janome Models: MC10000, MC300E... | 822020514 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Face Plate Unit for Memory Craft 9000 sewing machine part or accessory For Janome Models: MC9000 | 832507005 | $19.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW 4 X 6 DISCONTINUED sewing machine part or accessory For Janome Models: AQS2009, CE2200,... | 000077503 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | QUICK REFERENCE CHART FOR 9000 sewing machine part or accessory For Janome Models: MC9000 | 832203008 | $47.99Add to cart Special order: ships in 2 to 4 weeks |

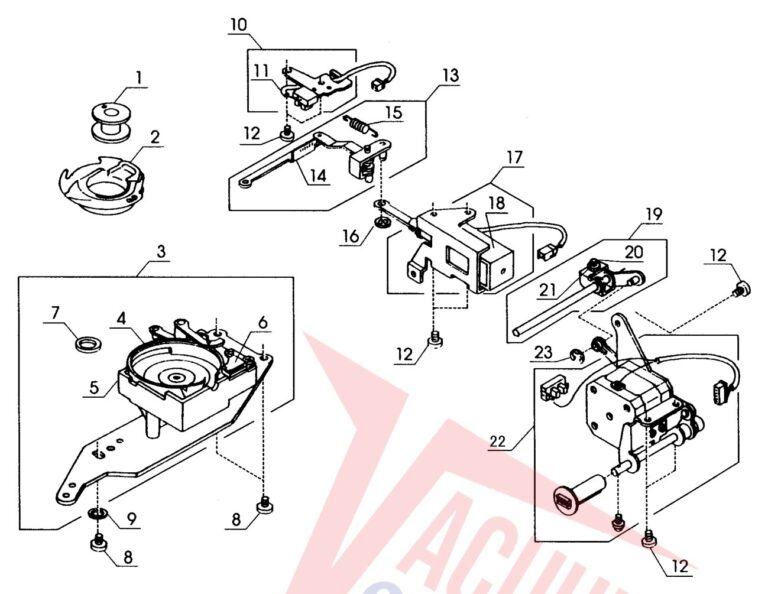

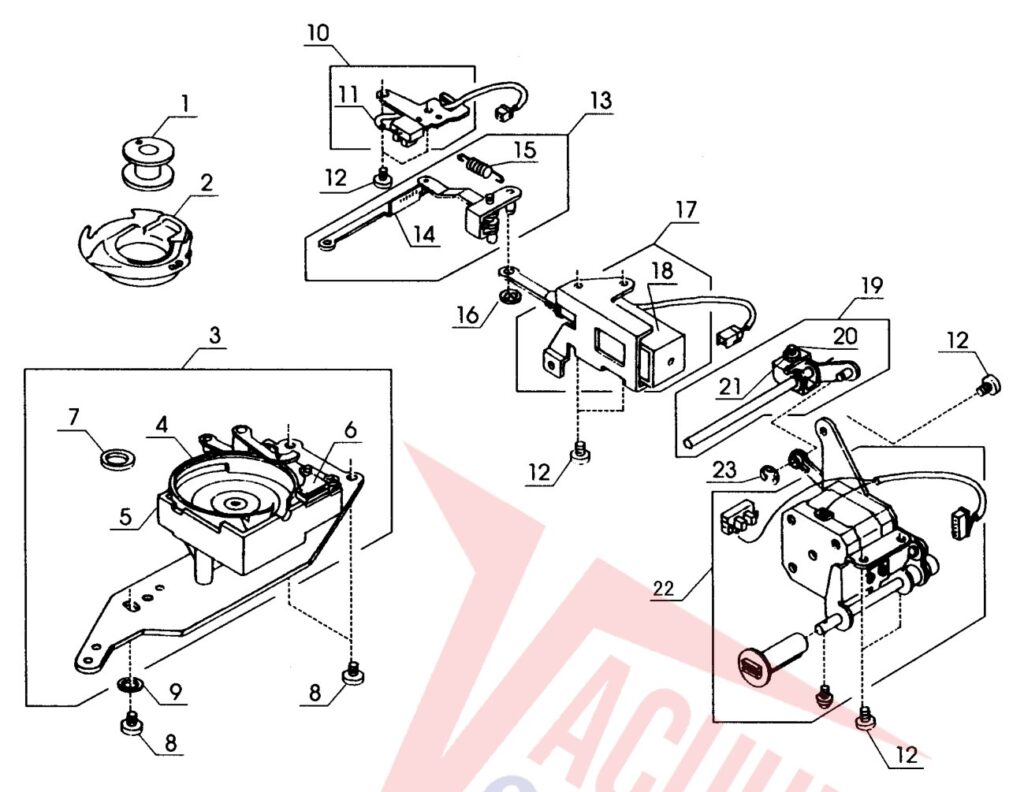

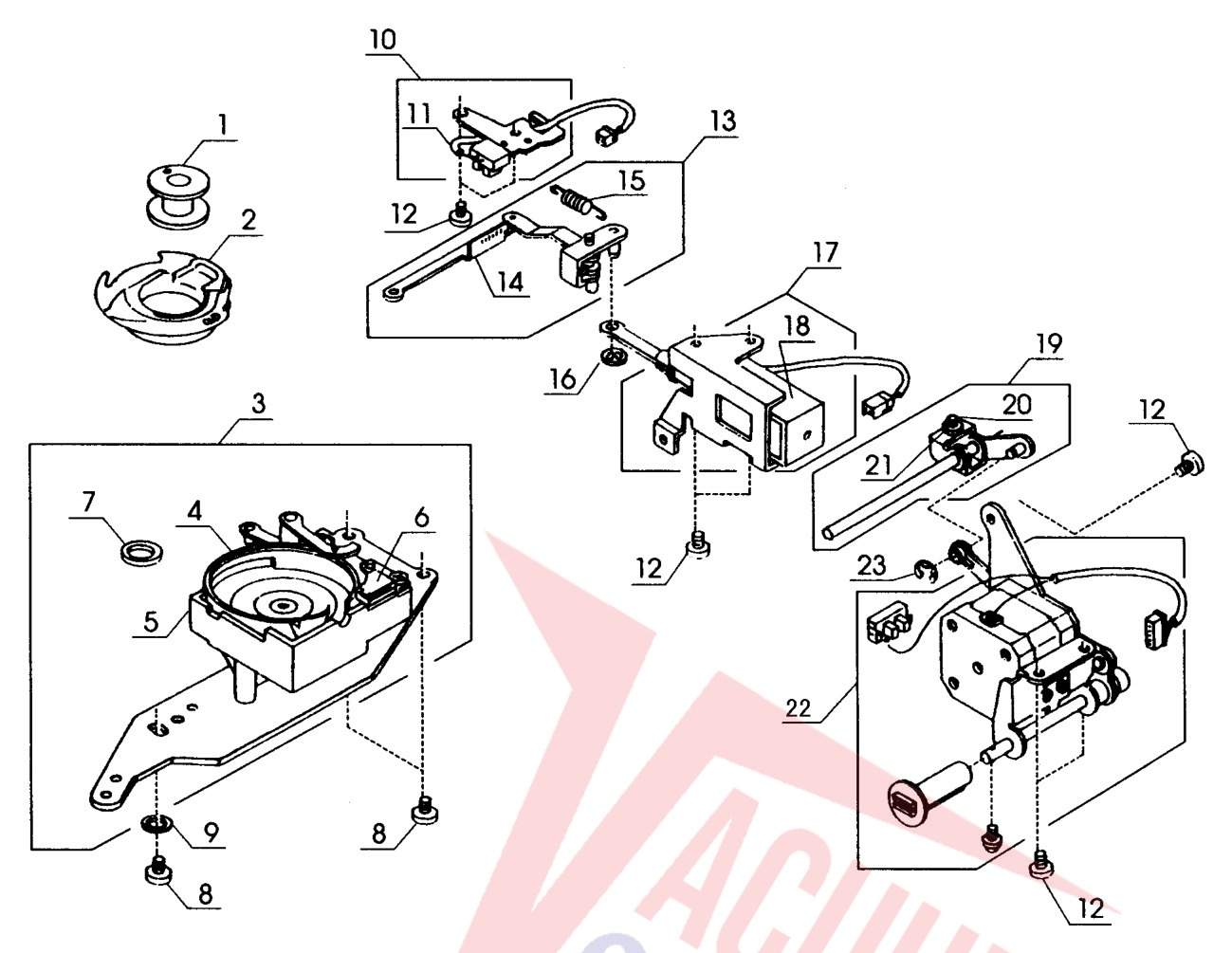

| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Genuine Janome/Elna Bobbin Case (Bobbin Holder) for Memory Craft 9000 and 10000 and 10001 For: ... | 832517112 | $43.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Hook race unit | 832627024 | Not Available |
| 4 | Not Available | Hook Race Unit | 834950014 | Not Available |
| 5 | | Hook Race Cover Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832611106 | $26.29Read more |
| 6 |  | Bobbin Holder Stopper(Right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048... | 627567001 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Sensor set plate unit sewing machine part or accessory For Janome Models: 9000 SRV | 832561007 | $35.70Read more |
| 11 |  | Solenoid unit sewing machine part or accessory For Janome Models: HF8100 SRV | 832537107 | $17.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | SET SCREW 4X8-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC80... | 000157106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Bobbin thread detector rod unit sewing machine part or accessory For Janome Models: 9000 SRV | 832545016 | $13.33Read more |
| 14 | Not Available | bobbin thread shield plate | 832092024 | Not Available |
| 15 | Not Available | Spring | 832093003 | Not Available |
| 16 |  | Snap ring CS-2.4 sewing machine part or accessory For Janome Models: 888 COMPULOCK, MC10000, MC10... | 000013707 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Bobbin thread sensor solenoid | 832613027 | Not Available |
| 18 | Not Available | Solenoid unit | 832519011 | Not Available |
| 19 | Not Available | Feed arm unit | 832610002 | Not Available |
| 20 | Not Available | Feed arm screw | 832266003 | Not Available |
| 21 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Feed stepping motor unit | 832645006 | Not Available |
| 23 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |

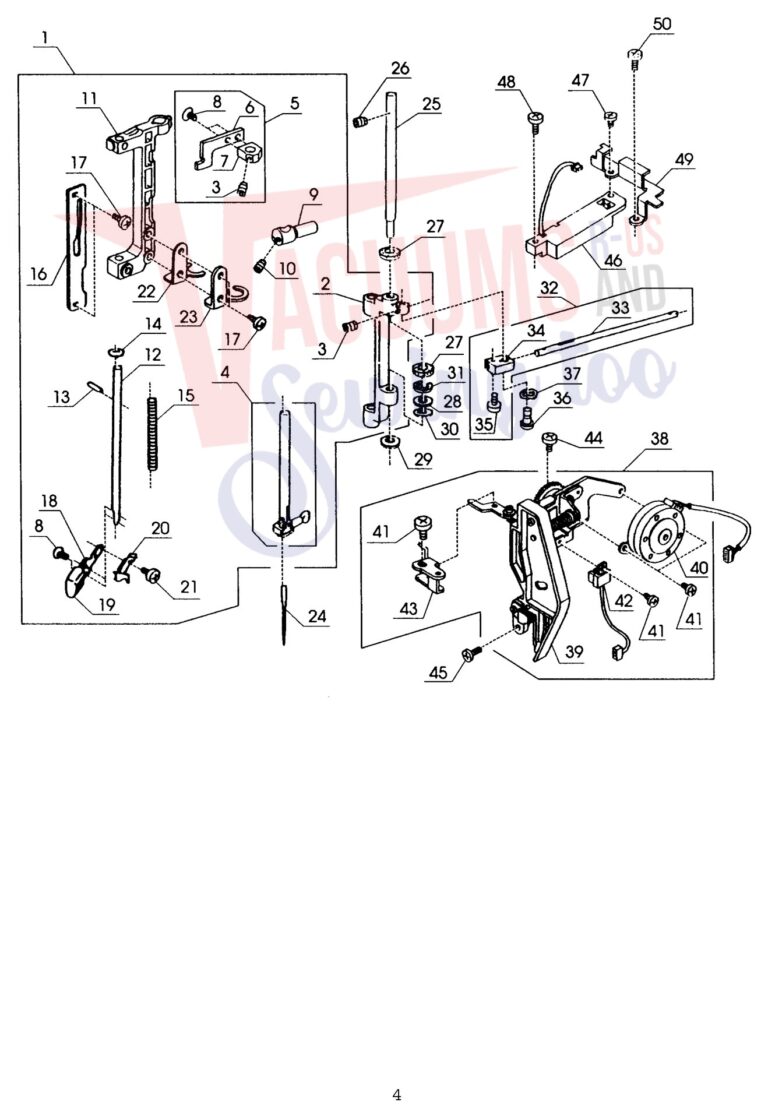

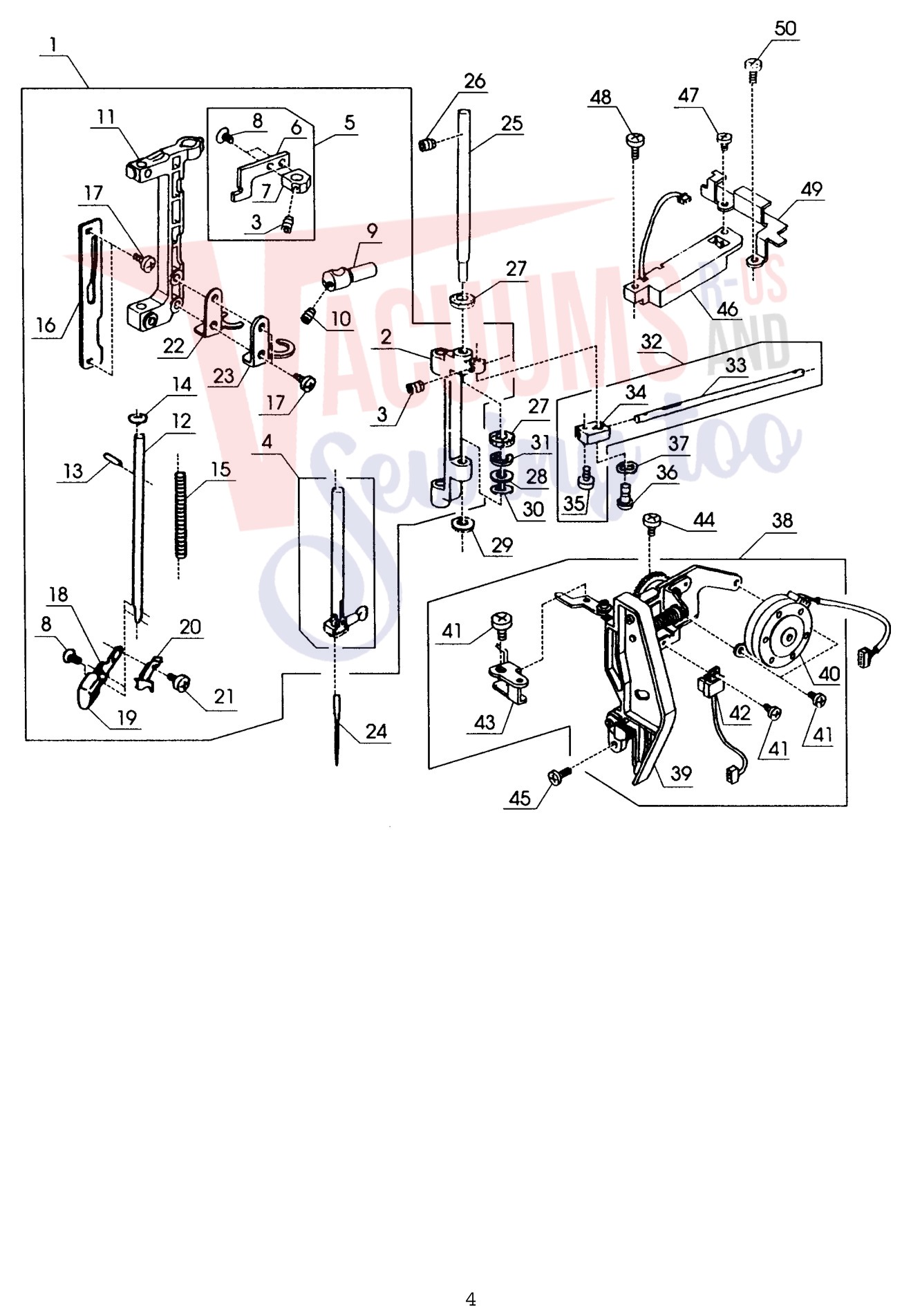

| # | Part image | Description | SKU | Price |
| 1 |  | Needle bar supporter unit sewing machine part or accessory For Janome Models: 9000 SRV | 831601018 | $81.60Read more |
| 2 |  | Needle bar supporter sewing machine part or accessory For Janome Models: 9000 SRV | 831001001 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Needle bar unit sewing machine part or accessory For Janome Models: 8000 SRV | 830609013 | $28.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Thread position set plate sewing machine part or accessory For Janome Models: 525S, 6147, 625E, D... | 751607002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Threader positioning plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 734101008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Threader positioning holder sewing machine part or accessory For Janome Models: 525S, 6147, 625E,... | 751016008 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle Threader Screw sewing machine part or accessory For Janome Models: 2039SN, 2040, 2041, 204... | 000097602 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | NEEDLE BAR CONN. STUD ME4018 sewing machine part or accessory For Janome Models: 521, 525S, 6147,... | 751047008 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Threader frame sewing machine part or accessory For Janome Models: HD3000 (V2) | 751017009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Threader bar sewing machine part or accessory For Janome Models: 5000 SRV | 751018000 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Slotted pin(E)2x14 sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 2041... | 000122906 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Base plate sewing machine part or accessory For Janome Models: HF3000, HF5024, HT2008, MC2400, MC... | 734107004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Threader shaft spring sewing machine part or accessory For Janome Models: 6147, AQS2009, DE5018, ... | 827091005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Threader guide plate sewing machine part or accessory For Janome Models: 5000 SRV | 831009009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Setscrew 3 x 10 (B) sewing machine part or accessory For Janome Models: 1000CPX, 1110DX, 1600P, 1... | 000161206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Threader lever sewing machine part or accessory For Janome Models: 9000 SRV | 831002002 | $1.21Read more |
| 19 |  | Threader Knob sewing machine part or accessory For Janome Models: 6147, 662, AQS2009, CE2200, DE5... | 734097000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Threader Plate sewing machine part or accessory For Janome Models: HF3000, HF5024, Jem Gold Plus,... | 734515009 | $10.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Set screw for attaching the threader plate. sewing machine part or accessory For Janome Models: 2... | 000105501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Threader frame spring sewing machine part or accessory For Janome Models: HD3000 (V2) | 751101001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Threader frame (lower) sewing machine part or accessory For Janome Models: HD3000 (V2) | 751019001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | PIN 9000 7500 5500 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000,... | 823018006 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | FELT (2)-9/8/7-7500/6/5500/412 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 822063003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | WASHER THRUST FT70 9 8 7 7500 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1... | 000036108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | WASHER THRUST FT 50 MC SERIE sewing machine part or accessory For Janome Models: MISS, 1100D, 1... | 000036603 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | WASHER CORRUGATING 7/9 8 7 75 sewing machine part or accessory For Janome Models: MC10000, MC100... | 000116000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | Not Available | Zigzag width rod unit | 832634002 | Not Available |
| 33 | Not Available | Zigzag width rod | 832067019 | Not Available |
| 34 |  | NEEDLE BAR SUPPORTER CONNECTIN sewing machine part or accessory For Janome Models: MC10000, MC100... | 823065008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | SET SCREW 2X8-9 8 7 7500 5500 sewing machine part or accessory For Janome Models: 1600P, 1600P-DB... | 000115308 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | HINGE PIN CONN. ROD SHAFT 9000 sewing machine part or accessory For Janome Models: MC10000, MC100... | 823066009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | WASHER CORRUGATING 4/9 8 7 75 sewing machine part or accessory For Janome Models: 2003P, 3160QDC... | 000116103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Tension Unit | 832564103 | Not Available |
| 39 | Not Available | Thread tension unit | 832509029 | Not Available |
| 40 | | Stepping motor unit sewing machine part or accessory For Janome Models: 9000 SRV | 832510001 | $49.41Read more |
| 41 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Photo Interrupter Unit sewing machine part or accessory For Janome Models: 10001 SRV | 832537004 | $16.40Add to cart Special order: ships in 2 to 4 weeks |
| 43 | Not Available | Thread Tens Rel Plt Knee Lift | 832205011 | Not Available |
| 44 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000172107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | SET SCREW 4X14-9 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC9000 | 000157508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | Inverter Unit | 832531101 | Not Available |
| 47 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 48 | Not Available | Setscrew | 000157704 | Not Available |
| 49 | Not Available | Cord guide (2) | 832160002 | Not Available |
| 50 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

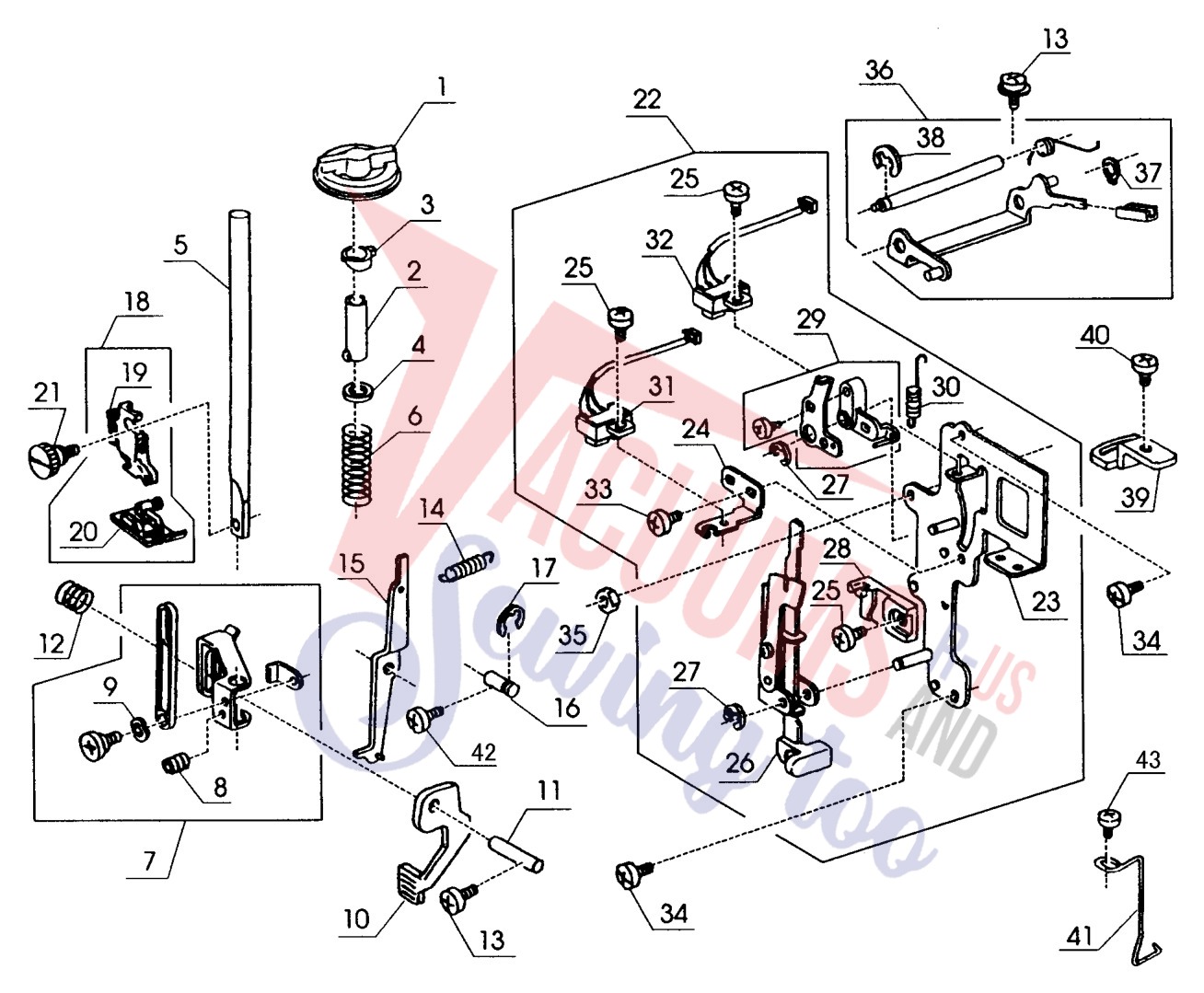

| # | Part image | Description | SKU | Price |
| 1 | | Pressure adjusting dial sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5... | 830026010 | $1.40Read more |
| 2 |  | PRESSER BAR BUSHING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 830027000 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | PRESSER ADJUSTING CAM 9000 800 sewing machine part or accessory For Janome Models: MC10000, MC100... | 830028001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | WASHER 9000 8000 DISCONTINUED sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 102061008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | PRESSER BAR 9000 8000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (Q... | 830029002 | $10.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | PRESSER BAR SPRING 9000 8000 sewing machine part or accessory For Janome Models: MC10000, MC10001... | 830030006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Presser bar supporter unit sewing machine part or accessory For Janome Models: MC10000, MC300E, M... | 830586024 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Washer sewing machine part or accessory For Janome Models: 405, MC10000, MC10001, MC11000, MC1100... | 000116608 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Presser bar lifter sewing machine part or accessory For Janome Models: MC11000, MC11000SE, MC300E... | 830035012 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | PRESSER BAR LIFTER PIN: 9000/8 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 822072005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Darner spring sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 360, 380 &a... | 102222009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000172200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Tension releasing lever spring sewing machine part or accessory For Janome Models: 9000 SRV | 832204009 | $0.37Read more |
| 15 | | Tension releasing lever sewing machine part or accessory For Janome Models: MC10000, MC10001, MC1... | 830037025 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Thread release lever pin sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 830338007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Presser Foot Unit (top load high shank) sewing machine part or accessory For Janome Models: MC110... | 832501009 | $19.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Genuine Janome/Elna Presser Foot Holder (top load high shank 7mm) For: MC11000 Special Edition,... | 830504017 | $24.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Zig Zag Foot A (top load 7mm) for Janome | 832523007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Genuine Janome/Elna Thumb Screw For: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, MC10000, MC10001, MC... | 825252000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Front bracket unit | 832659106 | Not Available |
| 23 | Not Available | Front bracket | 832047013 | Not Available |
| 24 | | Sensor set plate sewing machine part or accessory For Janome Models: 5000 SRV | 831005005 | $0.80Read more |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 1117S, 2003P, 2039SN, 2040,... | 000101105 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | Buttonhole lever unit | 830662003 | Not Available |
| 27 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 28 |  | BH lever guide sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 830057010 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Presser Foot Sensor Rink Unit | 832664001 | Not Available |
| 30 | | Presser shield plate spring sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 830277007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Photo interrupter unit sewing machine part or accessory For Janome Models: 4000 SRV | 830510005 | $16.80Read more |
| 32 |  | Foot Sensor for Memory Craft 9000 and 8000 sewing machine part or accessory For Janome Models: MC... | 830510108 | $16.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | SET SCREW 4X8-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC80... | 000157106 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Presser foot actuator arm unt sewing machine part or accessory For Janome Models: MC10001, MC1100... | 832566024 | $9.80Read more |
| 37 | | Snap ring G-6 sewing machine part or accessory For Janome Models: COMBI-10, HF1012, HF2022, JF100... | 000014605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Threader shaft guide sewing machine part or accessory For Janome Models: 9000 SRV | 831003003 | $2.14Read more |
| 40 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Arm thread guide sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, M... | 830039027 | $2.00Add to cart Special order: ships in 2 to 4 weeks |

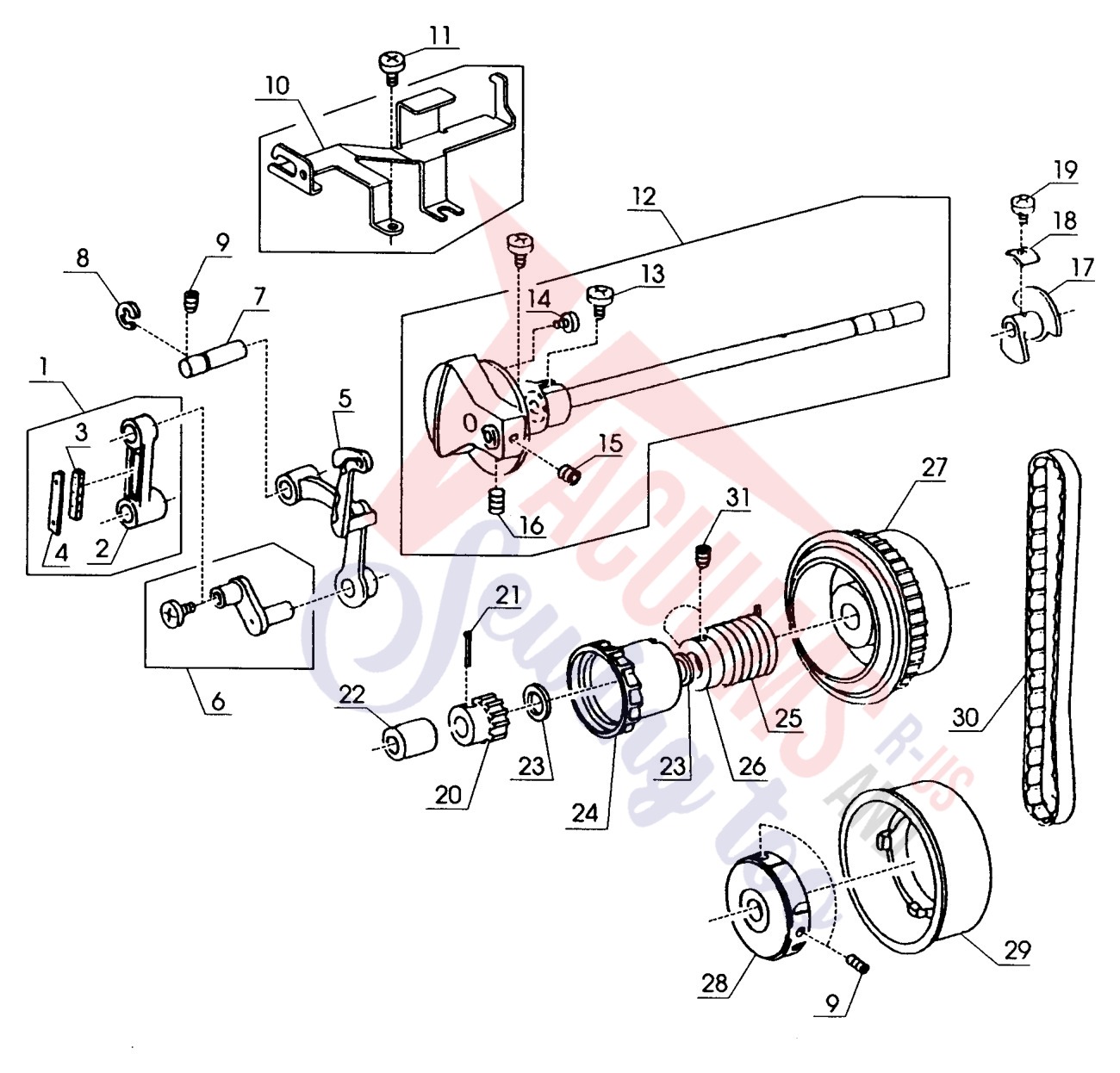

| # | Part image | Description | SKU | Price |
| 1 |  | NEEDLE BAR CRANK ROD UNIT sewing machine part or accessory For Janome Models: 509, 521, 525S, 614... | 650607006 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle bar crank rod sewing machine part or accessory 650039001 Needle bar crank rod | 650039001 | $4.00Read more |
| 3 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SNAP RING E-9 8 7 4(000002806) sewing machine part or accessory For Janome Models: 531, 7330, AQS... | 000001702 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Cord guide (1) | 832226007 | Not Available |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | UPPER SHAFT UNIT FOR 8000/9000 sewing machine part or accessory For Janome Models: MC5700, MC8100... | 832515017 | $19.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Hexagon socket screw 5x4 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119... | 000110901 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | HEXAGON SOCKET SCREW-9000 sewing machine part or accessory For Janome Models: 7330, AQS2009, DC40... | 000111706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Upper shaft shield plate sewing machine part or accessory For Janome Models: 2040, 3022, 7061NX, ... | 830095010 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Washer sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC, ... | 820102009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | UPPER SHAFT TIMING GEAR sewing machine part or accessory For Janome Models: MC10000, MC10001, MC3... | 830341003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Spring pin 3x20 sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC3... | 000004303 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Upper Shaft Rear Metal sewing machine part or accessory For Janome Models: 10001 SRV | 673062015 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | WASHER FOR MC10000 sewing machine part or accessory For Janome Models: 4045LX, 4045NX, 4119 (QUIL... | 000038801 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | DECLUTCH RELEASE RING 9000 400 sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 653055002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Clutch Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 7... | 653057004 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | CLUTCH RING 9000 4000 4123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 653056003 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | BELT WHEEL-9000 8000 4000 4123 sewing machine part or accessory For Janome Models: 2040, 3022, 40... | 653058005 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Balance Wheel Base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 830286009 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Hand wheel sewing machine part or accessory For Janome Models: 4048/8048/HF8048, 7061NX, DC3018, ... | 653061115 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Timing Belt 16.5in for Janome and Kenmore Machines #650071005 | 650071005 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | FEED ROCK SHAFT UNIT -9000 | 832633001 | Not Available |
| 2 | | Feed dog set plate unit sewing machine part or accessory For Janome Models: 9000 SRV | 832535002 | $46.05Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | FEED DOG sewing machine part or accessory For Janome Models: MC9000 | 832071016 | $32.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Feed base shaft sewing machine part or accessory 825099007 Feed base shaft | 825099007 | $2.99Read more |
| 5 |  | Feed Base Spring | 825103005 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Setscrew | 000111047 | Not Available |
| 7 | | CENTER SCREW sewing machine part or accessory | 532030003 | $1.00Read more |
| 8 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 10 |  | Feed regulator (unit) sewing machine part or accessory 625508008 Feed regulator (unit) | 625508008 | $19.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 12 |  | Felt | 823110009 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | RING 8000 9000 7000 7500 sewing machine part or accessory For Janome Models: MC10000, MC8000, MC9000 | 825094002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 25 |  | Feed lifting cam spring sewing machine part or accessory 825093001 Feed lifting cam spring | 825093001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Genuine Janome/Elna Feed Lift Cam For: MC10000, MC10001, MC8000, MC9000, MC9500, MC9700 | 825092000 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Lower shaft gear sewing machine part or accessory 650076000 Lower shaft gear | 650076000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Feed Cam sewing machine part or accessory For Janome Models: MC10000, MC10001, MC8000, MC9000, MC... | 825091102 | $8.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Ring sewing machine part or accessory For Janome Models: MC10000, MC10001, MC5500, MC8000, MC9000... | 810092004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Felt Holder (1) | 822112008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Oil Felt Ring sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 204... | 822070003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | WASHER THRUST FT80 9 8 7 4 31 sewing machine part or accessory For Janome Models: 1117S, 1200D, ... | 000036201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | LOWER SHAFT 8000 sewing machine part or accessory For Janome Models: MC8000 | 830101009 | $25.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | LOWER SHAFT TIMING GEAR 9000/8 sewing machine part or accessory For Janome Models: MC10000, MC100... | 822113009 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

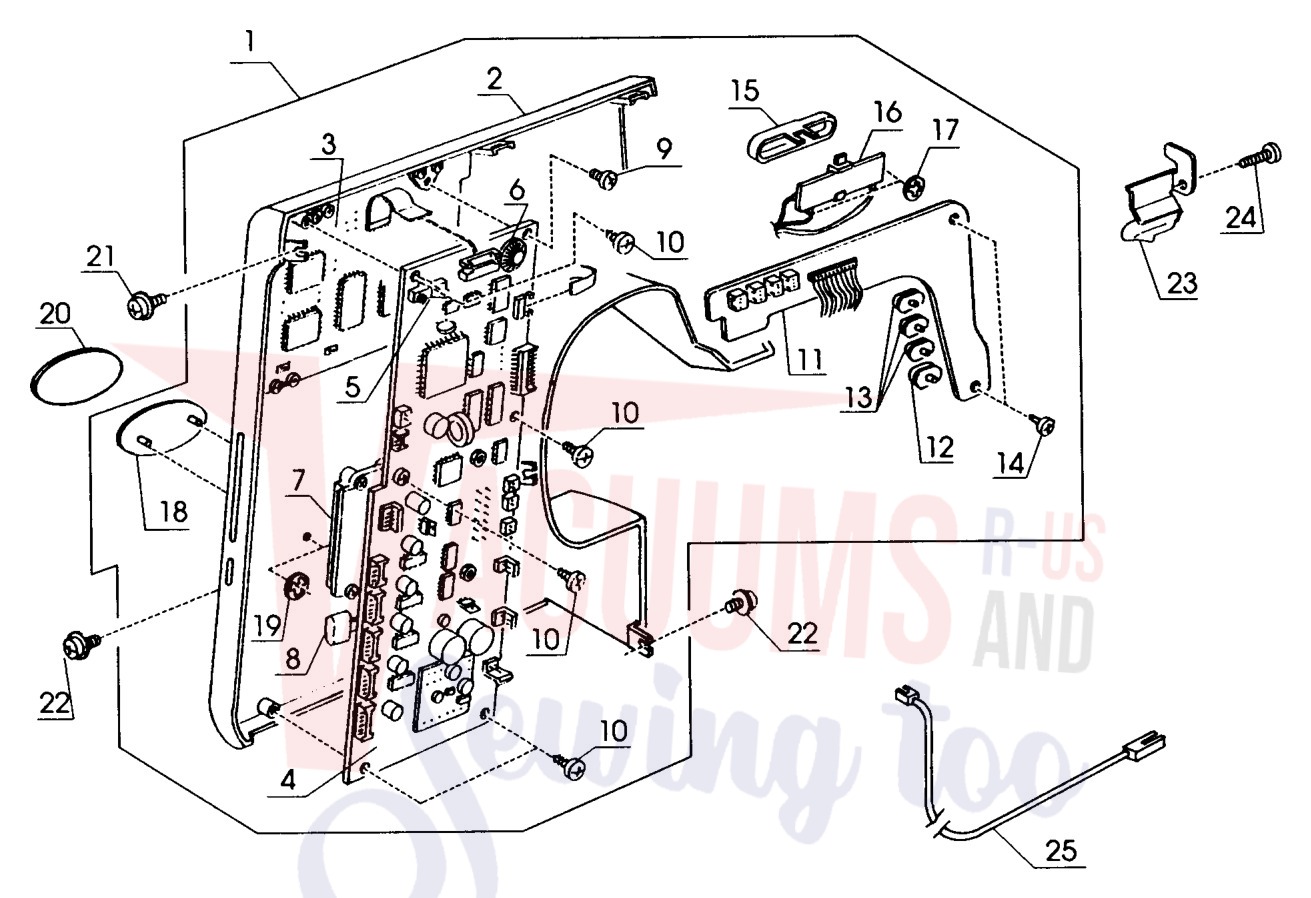

| 1 | Not Available | FRONT PANEL FOR MC9000 | 832606108 | Not Available |
| 2 | | Front Cover for Memory Craft 9000 sewing machine part or accessory Front cover without circuit bo... | 832050226 | $103.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | LCD Frame Unit | 832607006 | Not Available |
| 4 | Not Available | Printed Circuit Board A Unit | 832554111 | Not Available |
| 5 | | Switch cover unit sewing machine part or accessory For Janome Models: 5000 SRV | 832608018 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | LCD adjusting knob | 832053001 | Not Available |
| 7 | | Card guide unit sewing machine part or accessory For Janome Models: 9000 SRV | 832571000 | $21.13Read more |
| 8 | Not Available | Eject button | 830291007 | Not Available |
| 9 | | PAN HEAD SMALL SCREW DISCONTIN sewing machine part or accessory For Janome Models: COMBI-10, MC50... | 000077112 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set screw 3x10-2V sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2041,... | 000076317 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Printed Circuit Board F Unit | 832514005 | Not Available |
| 12 | Not Available | Button (1) | 832061002 | Not Available |
| 13 | Not Available | Button (2) | 832062106 | Not Available |
| 14 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Volume lever | 832064005 | Not Available |
| 16 | | Slide Volume Unit sewing machine part or accessory For Janome Models: 10001 SRV | 653507509 | $11.47Read more |
| 17 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | EMBLEM FRAME sewing machine part or accessory For Janome Models: 888 COMPULOCK, MC10000, MC9000 | 832065006 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | Emblem | 832209015 | Not Available |
| 21 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Arm thread guide (lower) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC... | 825183010 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | SET SCREW 3.5X25-8 9 7 7500 sewing machine part or accessory For Janome Models: MC10000, MC10001,... | 000096508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Cord | 830545102 | Not Available |

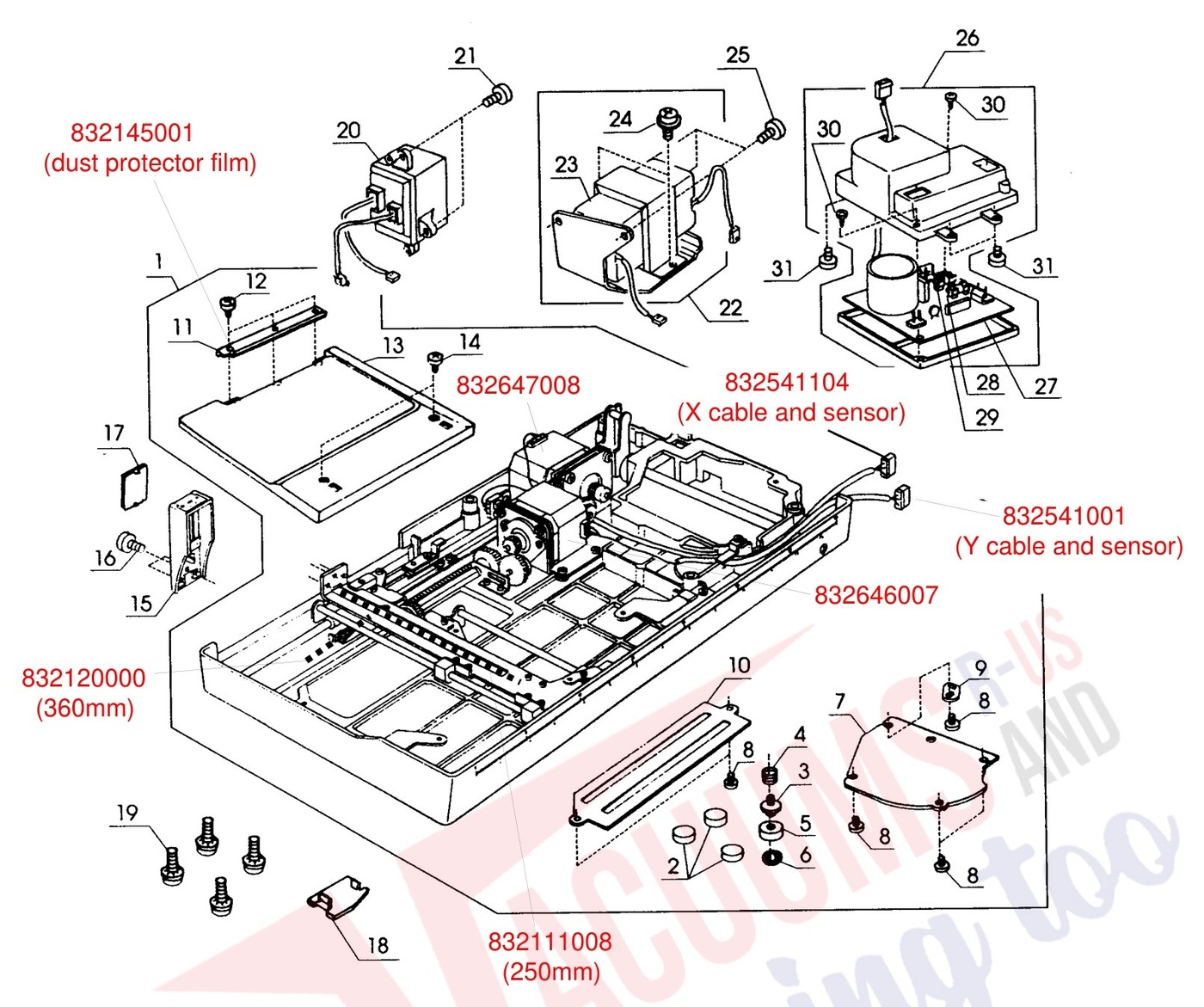

| # | Part image | Description | SKU | Price |
| 1 | | BASE UNIT FOR MC9000 sewing machine part or accessory For Janome Models: MC9000 | 832650015 | $457.80Read more |
| 2 |  | Rubber Cushion sewing machine part or accessory For Janome Models: MC10000, MC10001, MC11000, MC1... | 830150003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Adjusting Screw | 820350004 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring | 820351005 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Cushion sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 900CP, DX2015, MC100... | 605074008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | WASHER CS RING 9/8/7 5500 750 sewing machine part or accessory For Janome Models: DX2015, MC1000... | 813123004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Base lid (2) sewing machine part or accessory For Janome Models: 5000 SRV | 832147014 | $2.20Read more |
| 8 |  | Set Screw for Memory Craft 9000 and 8000 sewing machine part or accessory For Janome Models: MC10... | 830267004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Washer sewing machine part or accessory For Janome Models: 5000 SRV | 832175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Base lid (1) sewing machine part or accessory For Janome Models: MC10000, MC10001, MC300E, MC300E... | 832146002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Carriage window frame unit sewing machine part or accessory For Janome Models: 5000 SRV | 832562008 | $14.20Read more |
| 12 |  | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Base cover unit | 832630008 | Not Available |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: 712T, MC10000, MC10001, MC11000, MC... | 000101426 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | CARRIAGE PLATE UNIT FOR 9000 sewing machine part or accessory For Janome Models: MC9000 | 832555008 | $21.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | PAN HEAD SMALL SCREW DISCONTIN sewing machine part or accessory For Janome Models: COMBI-10, MC50... | 000077112 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | COVER LID FOR MC 9000 (SMALL) sewing machine part or accessory For Janome Models: MC5000, MC5700,... | 832150009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Base Lid Cap for Memory Craft 9000 and 9500 sewing machine part or accessory For Janome Models: M... | 832168000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Screw with toothed washer6X35 sewing machine part or accessory For Janome Models: MC10000, MC1000... | 000127107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | MACHINE SOCKET UNIT FOR 120V | 832575101 | Not Available |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | Transformer unit (US,Can) | 832653018 | Not Available |
| 23 | | TRANSFORMER UNIT FOR 9000 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 832558012 | $99.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Set screw | 000201106 | Not Available |
| 25 | | Setscrew sewing machine part or accessory For Janome Models: 5000 SRV | 000172200 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | C BOARD COMPLETE UNIT sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8100,... | 832625309 | $104.00Read more |
| 27 | | “C” board unit for 120V for U.S.A. sewing machine part or accessory For Janome Models: 5000 SRV | 832557103 | $71.80Read more |
| 28 | | FUSE TSC-2.5A 9000 7500 6000 sewing machine part or accessory For Janome Models: MC3500, MC4400, ... | 000117908 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | 3.00 AMP FUSE FOR8/9000-182801 sewing machine part or accessory For Janome Models: MC9000 | 000182074 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | SET SCREW sewing machine part or accessory For Janome Models: T923, TB30 2212, 2206, Necchi EC100... | 000161309 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | SET SCREW 4X10-9 8 7 7500 sewing machine part or accessory For Janome Models: MC5000, MC5700, MC8... | 000157209 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
Report errors on this page HERE
