Schematic and parts book for Janome 8' Frame 8' Frame. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

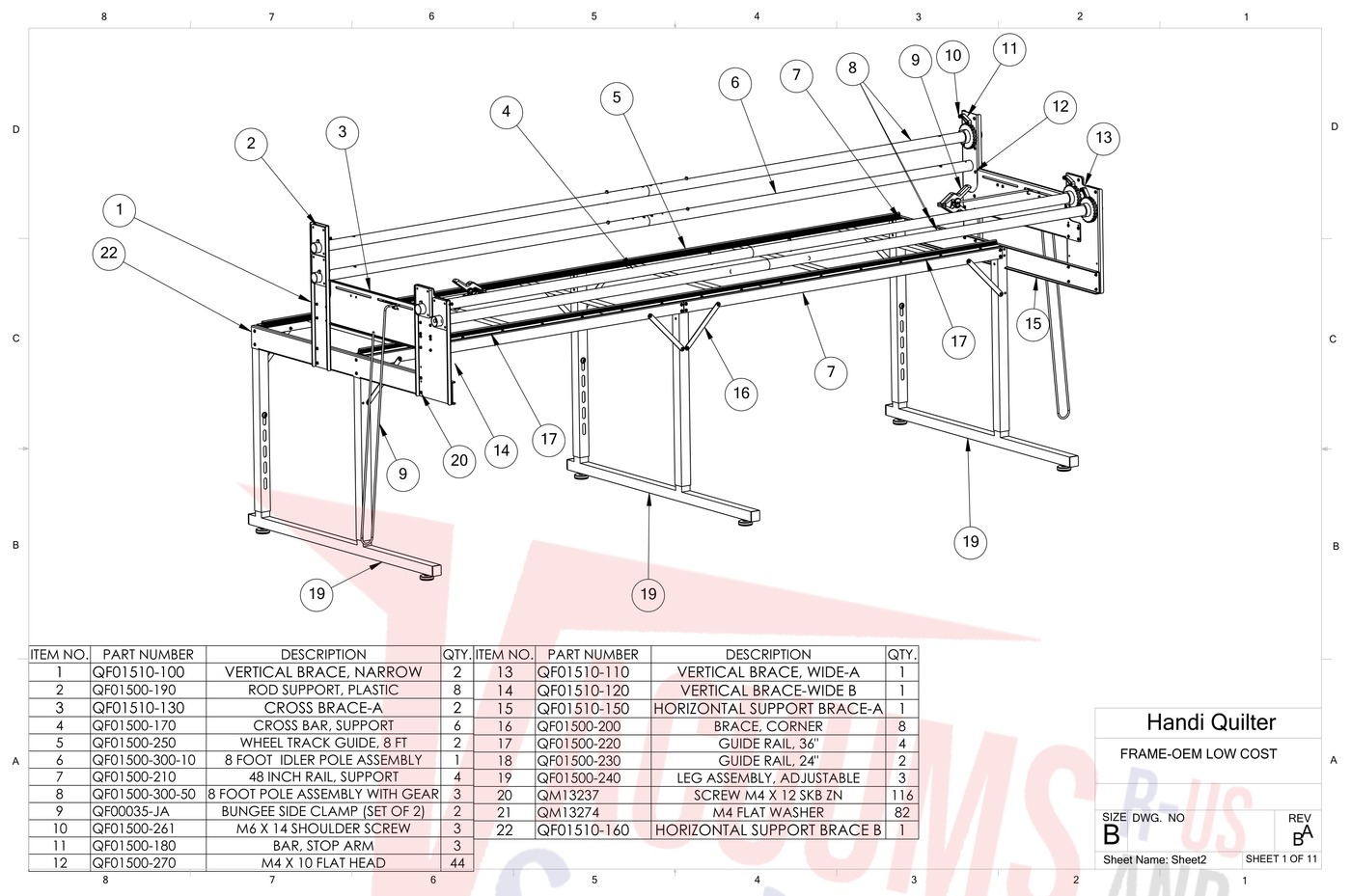

| # | Part image | Description | SKU | Price |
| 1 | Not Available | VERTICAL BRACE, NARROW | QF01510-100 | Not Available |
| 2 |  | Genuine Janome/Elna ROD SUPPORT, PLASTIC For: QF01510-01 | QF01500-190 | $10.40Read more |
| 3 | Not Available | CROSS BRACE-A | QF01510-130 | Not Available |

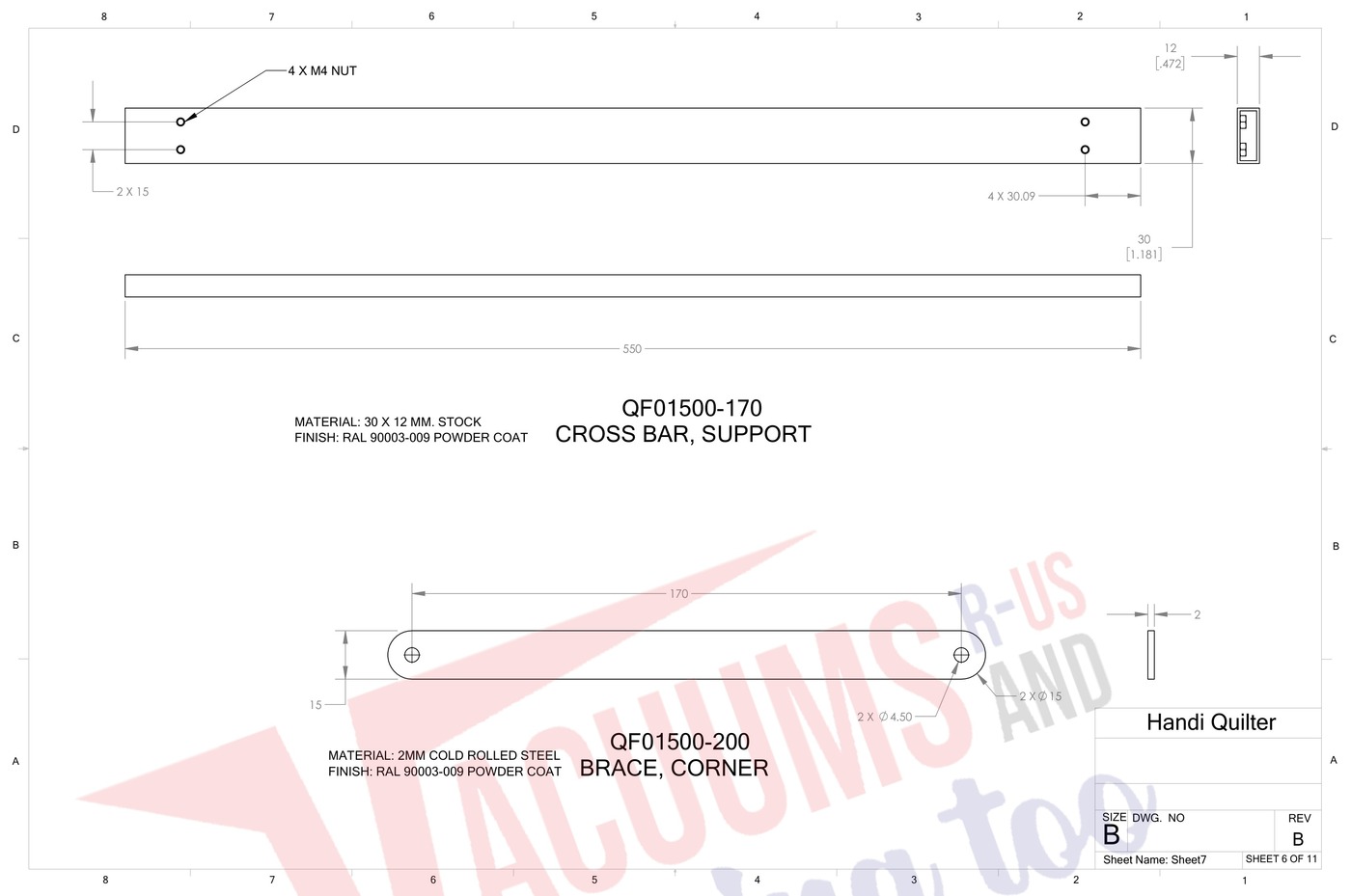

| 4 | | Genuine Janome/Elna CROSS BAR, For: QF01502-JA | QF01500-170 | $48.60Read more |
| 5 | | Genuine Janome/Elna WHEEL TRACK GUIDE, 8 FT For: QF01510-01 | QF01500-250 | $79.97Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | POLE SECTION, SHORT (2’) | QF01500-300-10 | Not Available |
| 7 | | Genuine Janome/Elna 48 INCH RAIL, SUPPORT For: QF01510-01 | QF01500-210 | $173.00Read more |
| 8 | | 8 FOOT POLE ASSEMBLY WITH GEAR sewing machine part or accessory For Janome Models: QF01510-01 | QF01500-300-50 | $171.60Read more |
| 9 | No Image | Bungee Side Clamp (Set Of 2) | QF00035JA | $17.95Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | M6 X 14 SHOULDER SCREW sewing machine part or accessory For Janome Models: QF01510-01 | QF01500-261 | $38.60Read more |
| 11 | | Genuine Janome/Elna BAR, STOP ARM For: QF01510-01 | QF01500-180 | $4.28Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Genuine Janome/Elna SCREW-M4 X 10 FLAT HEAD For: QF01502-JA | QF01500-270 | $1.40Read more |
| 13 | Not Available | VERTICAL BRACE, WIDE-A | QF01510-110 | Not Available |
| 14 | Not Available | VERTICAL BRACE-WIDE B | QF01510-120 | Not Available |
| 15 | Not Available | HORIZONTAL SUPPORT BRACE-A | QF01510-150 | Not Available |
| 16 | | Genuine Janome/Elna BRACE, CORNER For: QF01502-JA | QF01500-200 | $15.66Read more |
| 17 | | Genuine Janome/Elna GUIDE RAIL, 36" For: QF01510-01 | QF01500-220 | $75.14Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Genuine Janome/Elna TRACK SUPPORT 24†For: QF01502-JA | QF01500-230 | $74.50Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | LEG ASSEMBLY, ADJUSTABLE | QF01500-240 | Not Available |
| 20 | | Genuine Janome/Elna SCREW-M4 X 12 BUTTON HEAD For: QF01502-JA | QM13237 | $1.46Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Genuine Janome/Elna WASHER-M4 FLAT ZN For: QF01502-JA | QM13274 | $0.80Read more |
| 22 | Not Available | HORIZONTAL SUPPORT BRACE B | QF01510-160 | Not Available |
| # | Part image | Description | SKU | Price |

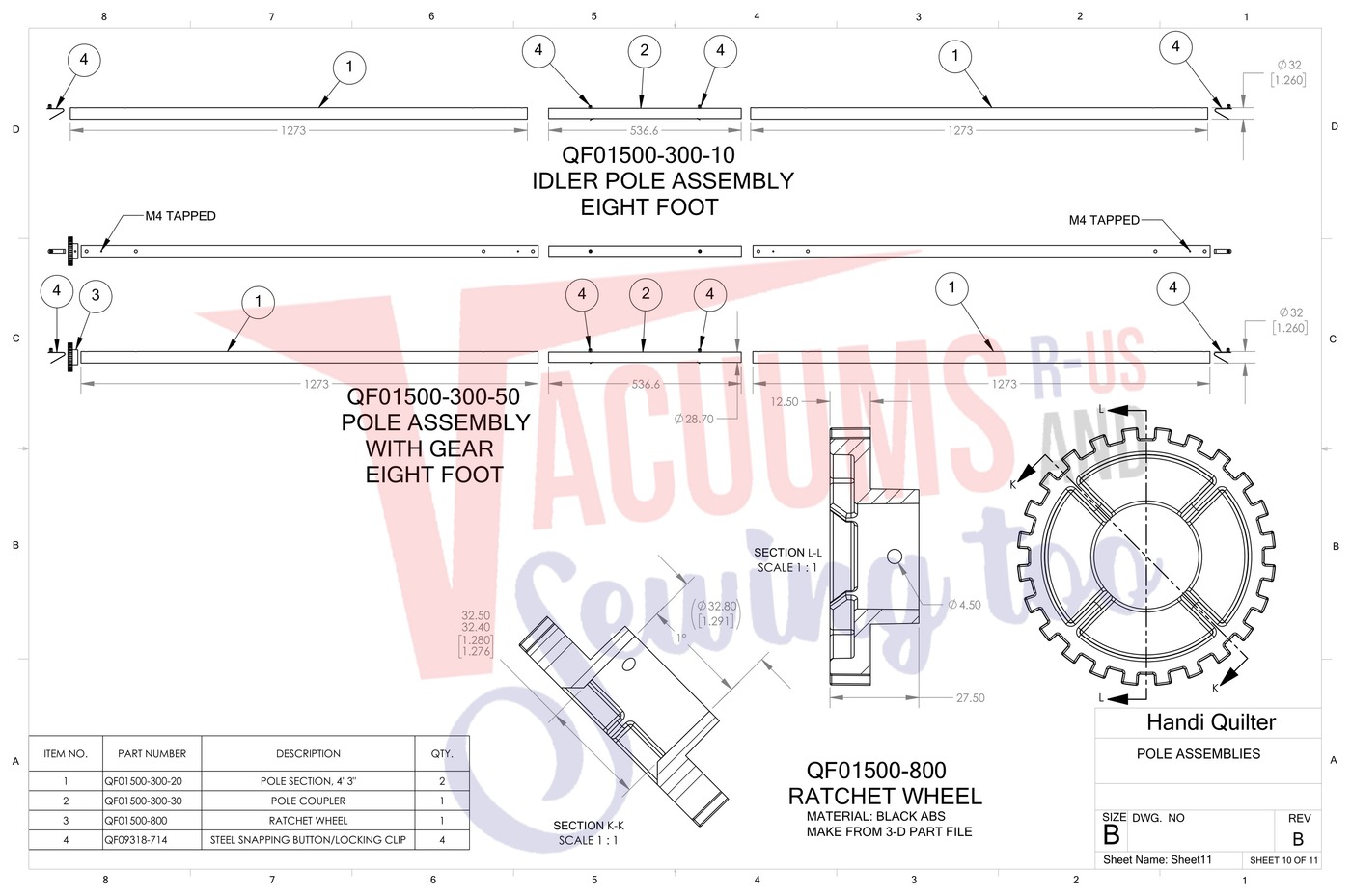

| 1 | Not Available | POLE SECTION, SHORT (2’) | QF01500-300-10 | Not Available |
| 2 | | 8 FOOT POLE ASSEMBLY WITH GEAR sewing machine part or accessory For Janome Models: QF01510-01 | QF01500-300-50 | $171.60Read more |
| 3 | | Genuine Janome/Elna RATCHET WHEEL For: QF01510-01 | QF01500-800 | $5.40Read more |
| 4 | | Genuine Janome/Elna POLE SECTION, 4' 3" For: QF01510-01 | QF01500-300-20 | $0.00Read more |
| 5 | | Genuine Janome/Elna POLE COUPLER For: QF01502-JA | QF01500-300-30 | $74.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | STEEL SNAPPING BUTTON/LOCKING CLIP sewing machine part or accessory QF09318-714 STEEL SNAPPING BU... | QF09318-714 | $1.09Read more |
| # | Part image | Description | SKU | Price |

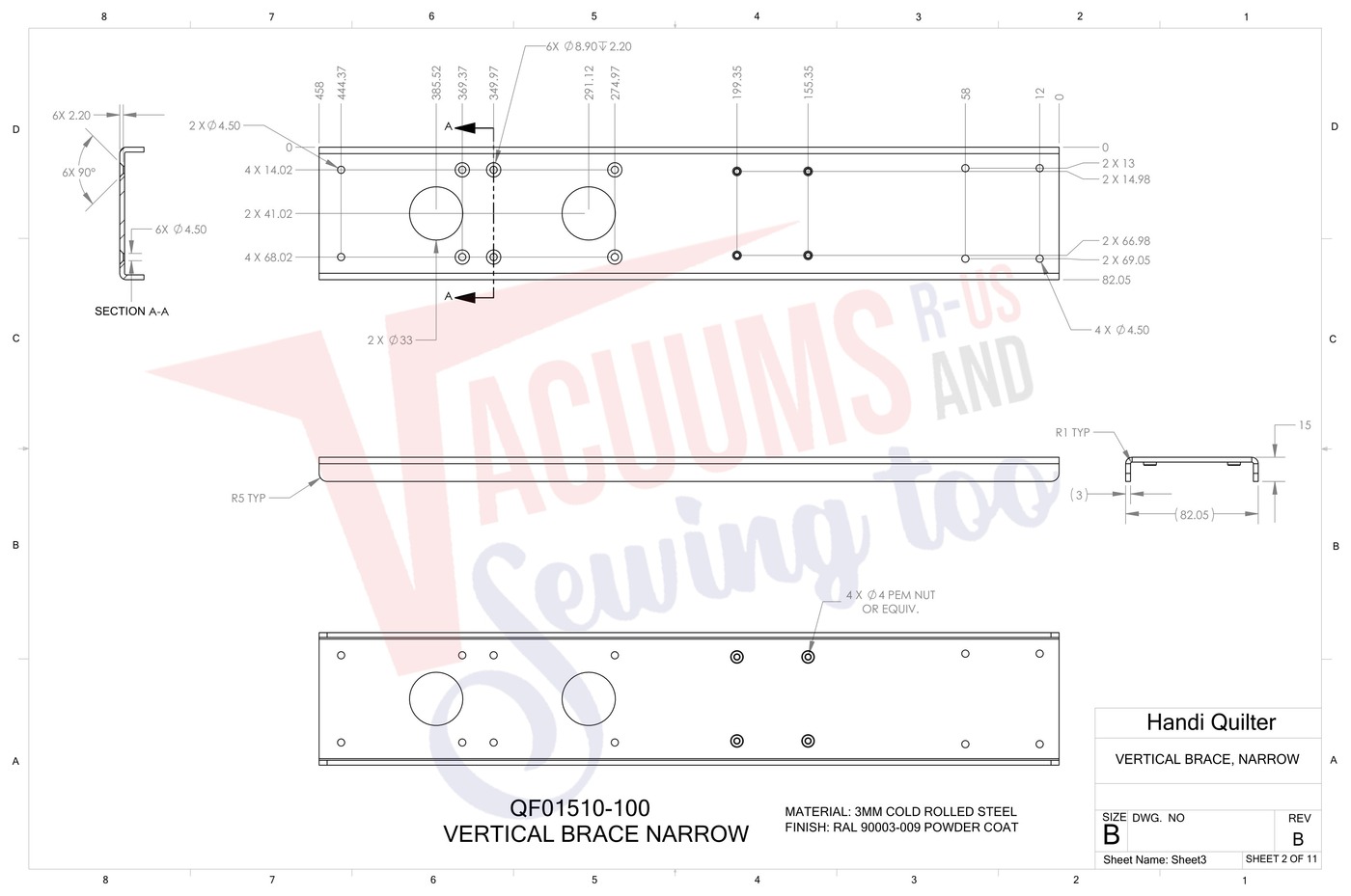

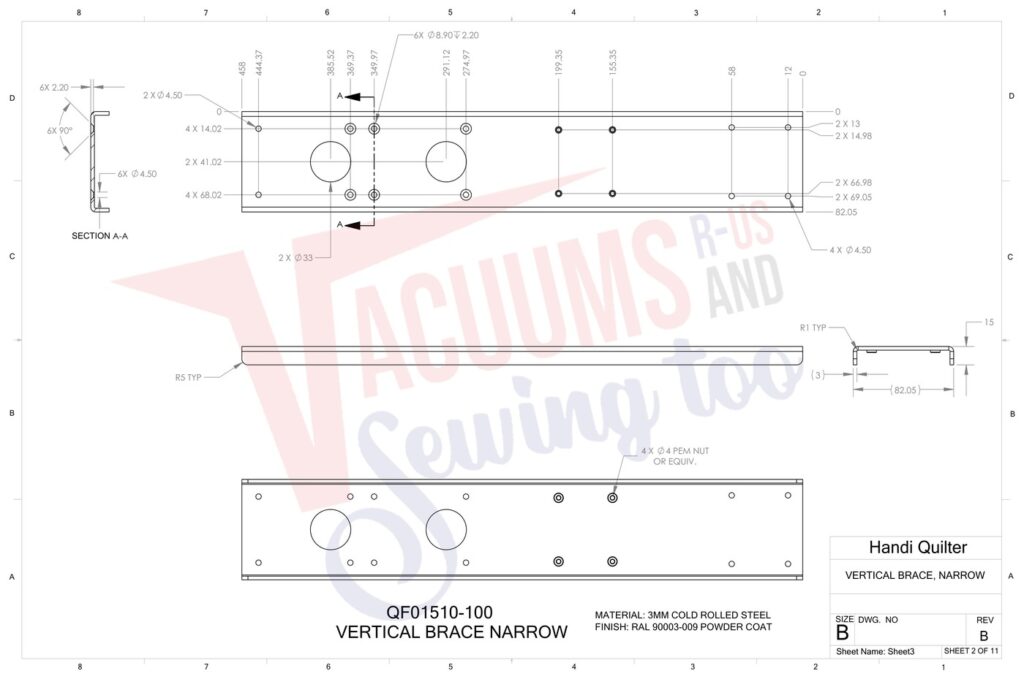

| 1 | Not Available | VERTICAL BRACE, NARROW | QF01510-100 | Not Available |
| # | Part image | Description | SKU | Price |

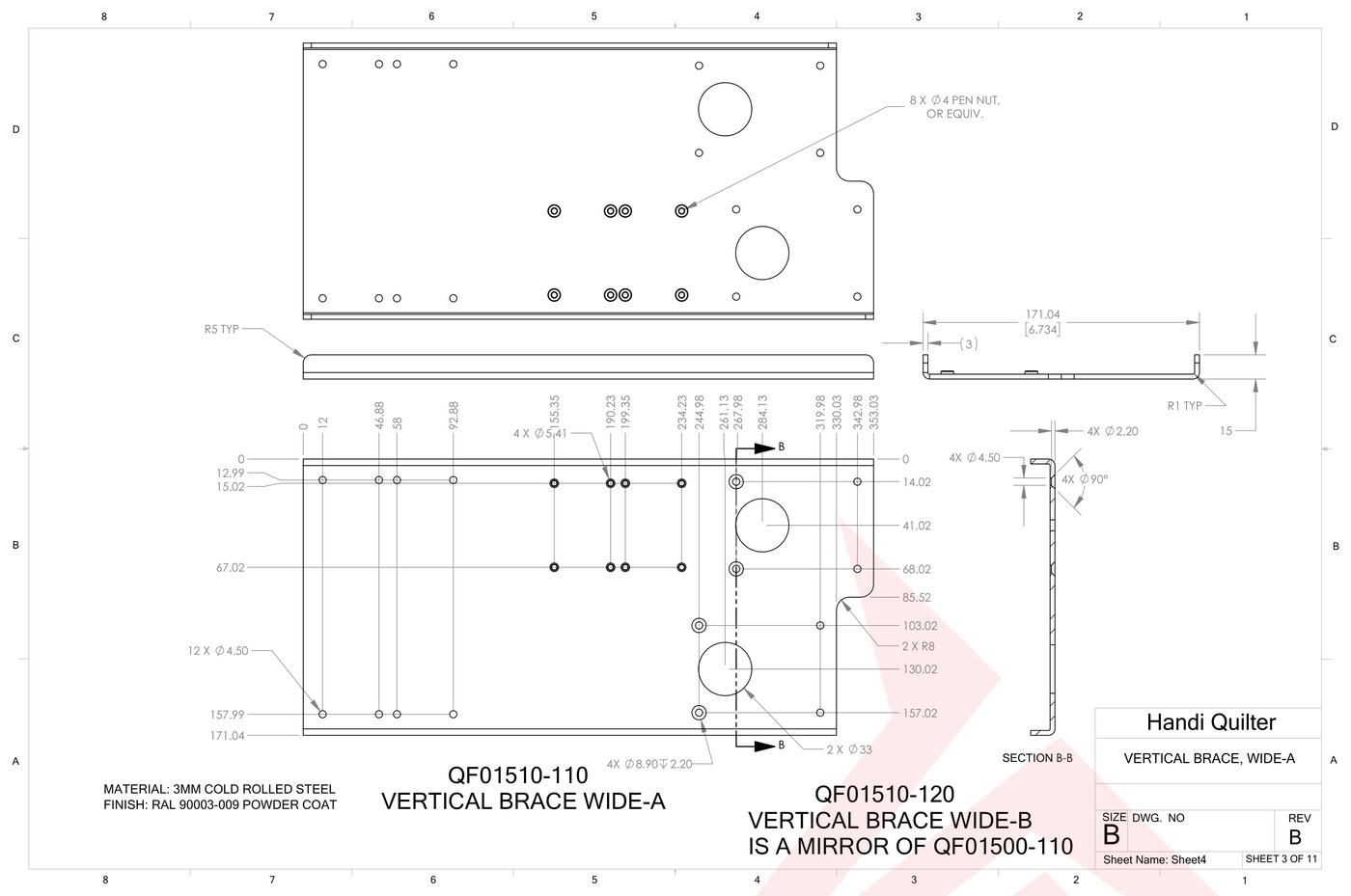

| 1 | Not Available | VERTICAL BRACE, WIDE-A | QF01510-110 | Not Available |
| 2 | Not Available | VERTICAL BRACE-WIDE B | QF01510-120 | Not Available |

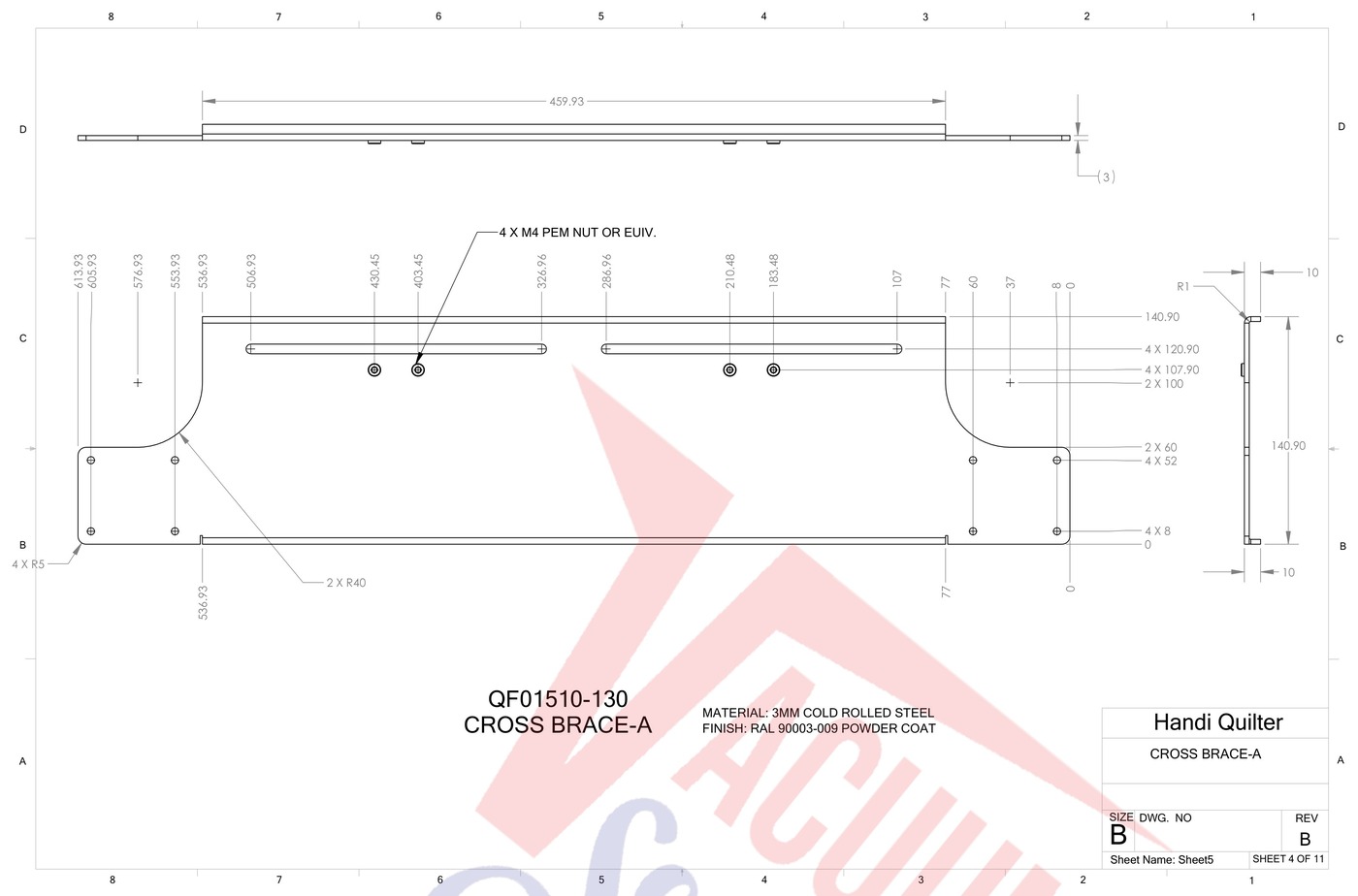

| # | Part image | Description | SKU | Price |
| 1 | Not Available | CROSS BRACE-A | QF01510-130 | Not Available |
| # | Part image | Description | SKU | Price |

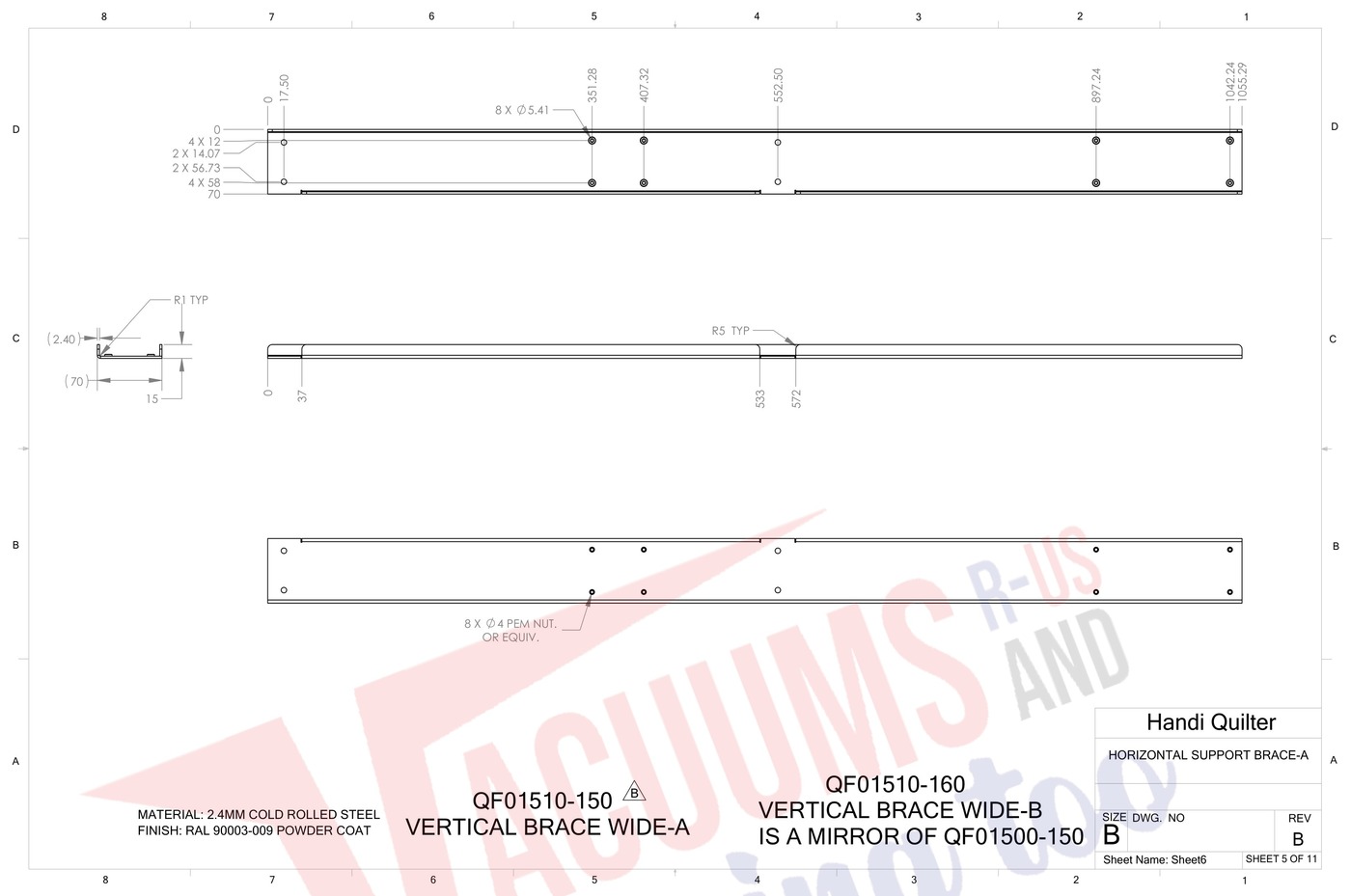

| 1 | Not Available | HORIZONTAL SUPPORT BRACE-A | QF01510-150 | Not Available |
| 2 | Not Available | HORIZONTAL SUPPORT BRACE B | QF01510-160 | Not Available |
| # | Part image | Description | SKU | Price |

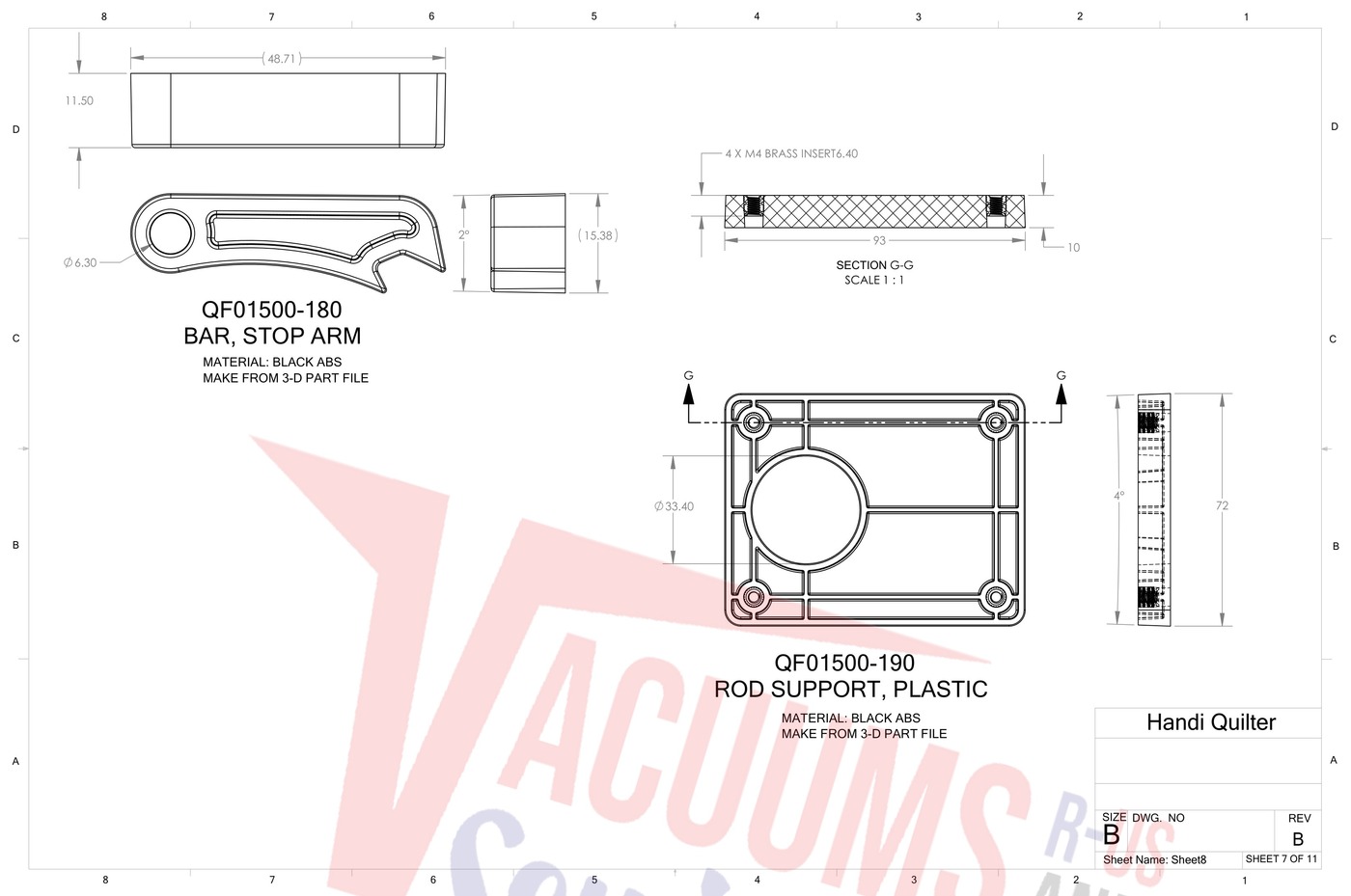

| 1 | | Genuine Janome/Elna BAR, STOP ARM For: QF01510-01 | QF01500-180 | $4.28Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Genuine Janome/Elna ROD SUPPORT, PLASTIC For: QF01510-01 | QF01500-190 | $10.40Read more |

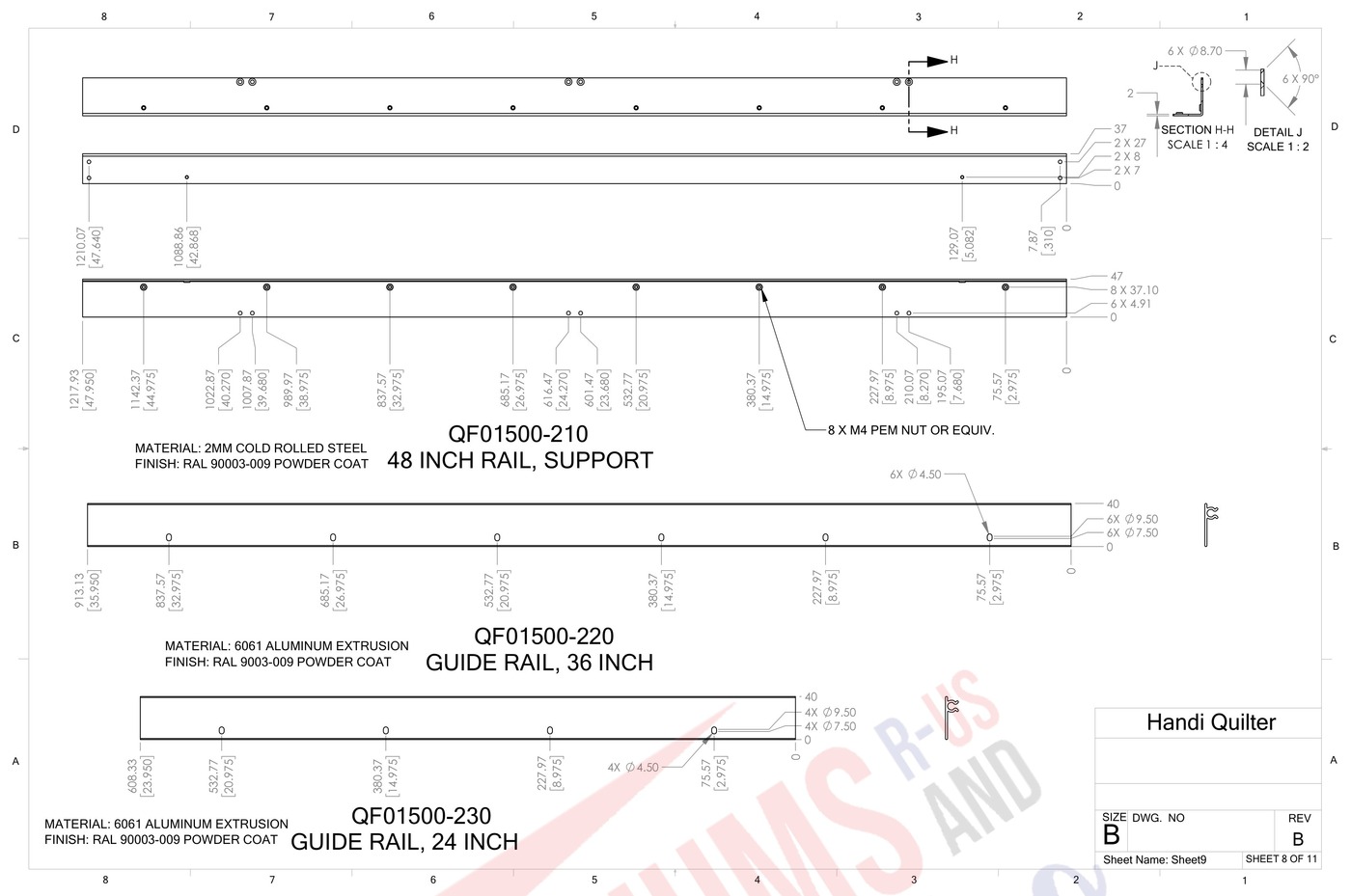

| # | Part image | Description | SKU | Price |
| 1 | | Genuine Janome/Elna 48 INCH RAIL, SUPPORT For: QF01510-01 | QF01500-210 | $173.00Read more |
| 2 | | Genuine Janome/Elna GUIDE RAIL, 36" For: QF01510-01 | QF01500-220 | $75.14Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Genuine Janome/Elna TRACK SUPPORT 24†For: QF01502-JA | QF01500-230 | $74.50Add to cart Special order: ships in 2 to 4 weeks |

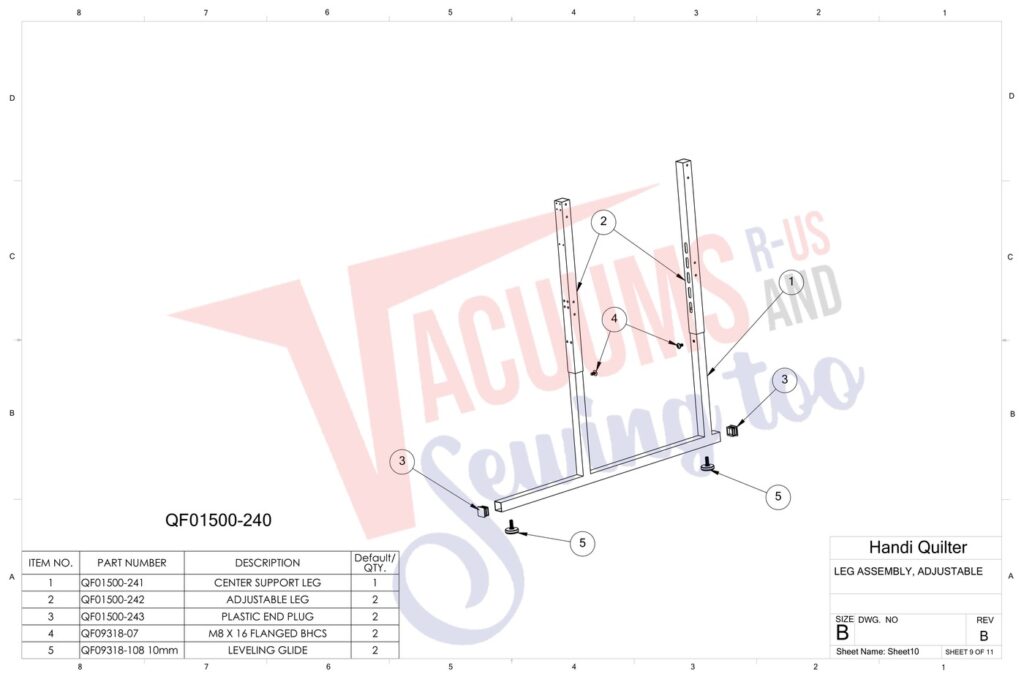

| # | Part image | Description | SKU | Price |

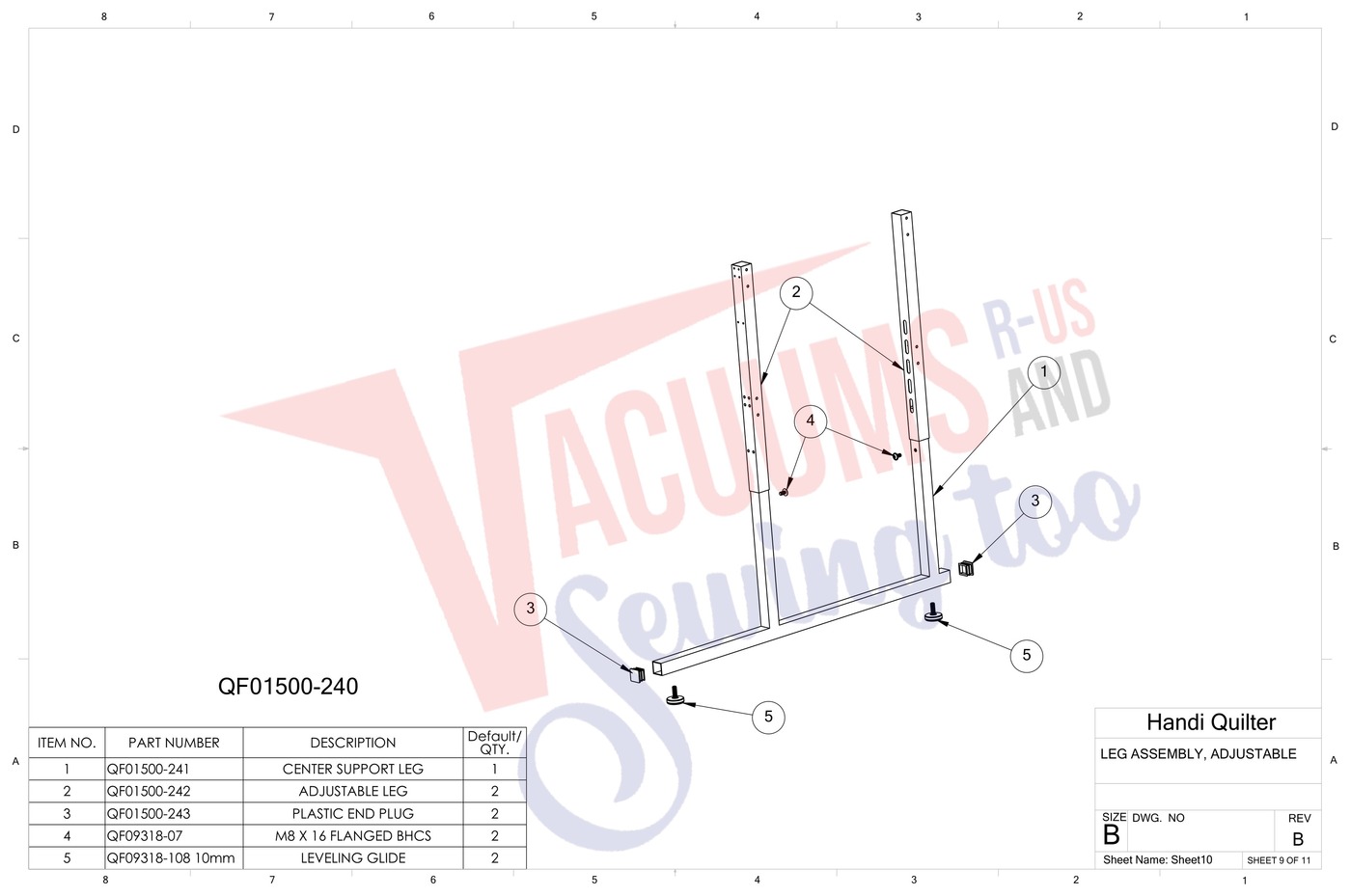

| 1 | | Genuine Janome/Elna LOWER LEG For: QF01502-JA | QF01500-241 | $196.60Read more |
| 2 | | Genuine Janome/Elna UPPER LEG For: QF01502-JA | QF01500-242 | $86.60Read more |
| 3 | | Genuine Janome/Elna LEG CAP, PLASTIC For: QF01502-JA | QF01500-243 | $2.00Read more |
| 4 |  | Genuine Janome/Elna SCREW M8 X 16 BHCS FLANGED QF09318-07 SCREW M8 X 16 BHCS FLANGED | QF09318-07 | $6.47Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | LEVELING GLIDE sewing machine part or accessory QF09318-108 LEVELING GLIDE | QF09318-108 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
