Schematic and parts book for Janome 7318 7318. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

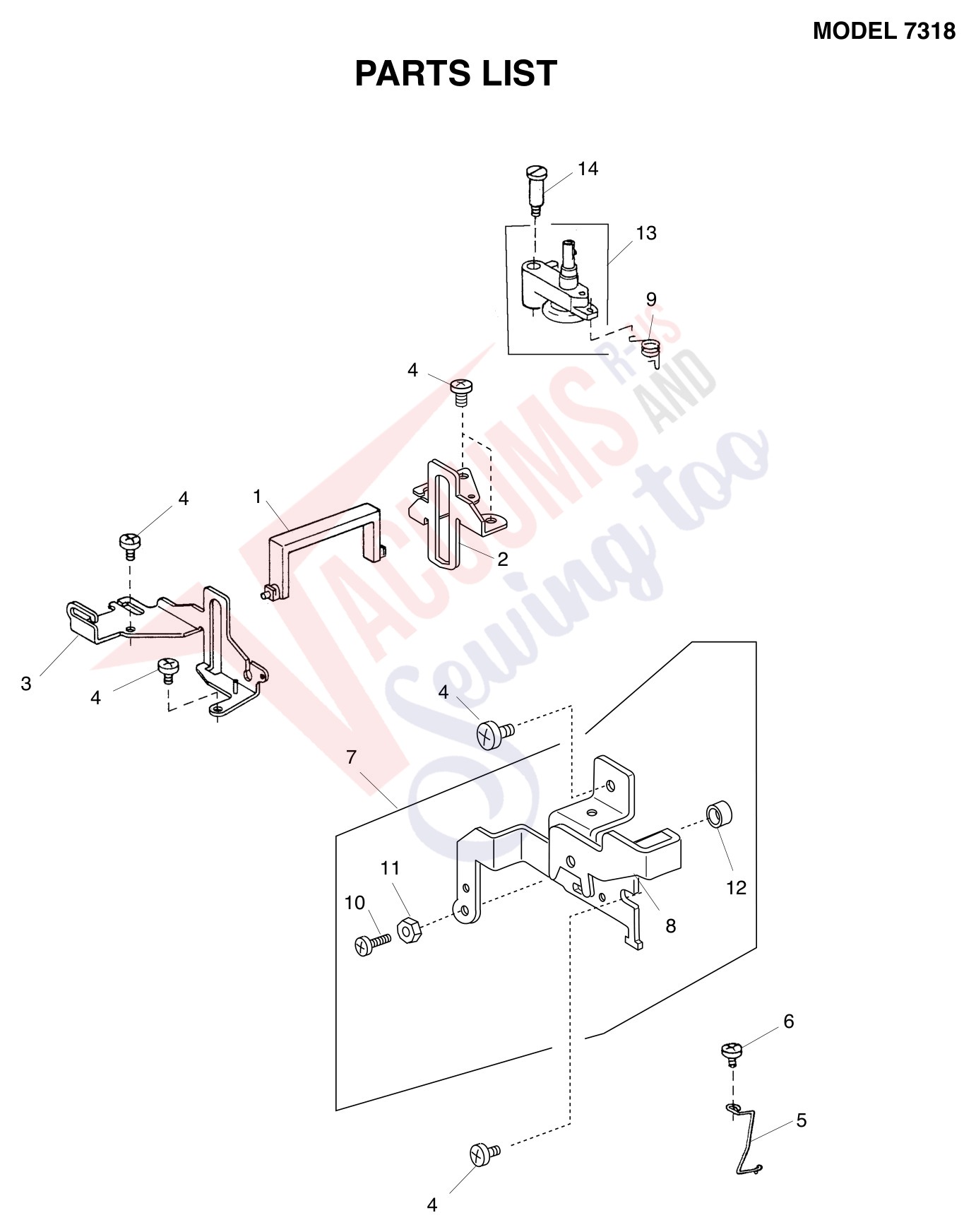

| # | Part image | Description | SKU | Price |
| 1 |  | CARRYING HANDLE sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 751100000 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Handle supporter (Right) | 751150002 | Not Available |
| 3 |  | Handle supporting plate (L) sewing machine part or accessory For Janome Models: 509, 521, 525S, 6... | 751077029 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | ARM THREAD GUIDE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 52... | 652137006 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Face cover set plate unit sewing machine part or accessory For Janome Models: 509, 521, 7318 | 507603005 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set plate for face cover sewing machine part or accessory For Janome Models: 509, 521, 525S, 7318... | 507006002 | $5.40Read more |
| 9 | | Bobbin winder spring sewing machine part or accessory For Janome Models: 625E, 7318, Sewist500 | 659034003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Set screw 4*45 sewing machine part or accessory For Janome Models: 509, 521, 7318 | 000197706 | $0.60Read more |
| 11 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Supporter Stopper | 685042005 | $0.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Bobbin Winder sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 659, 7318... | 652506000 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Hinge screw sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509... | 652093009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

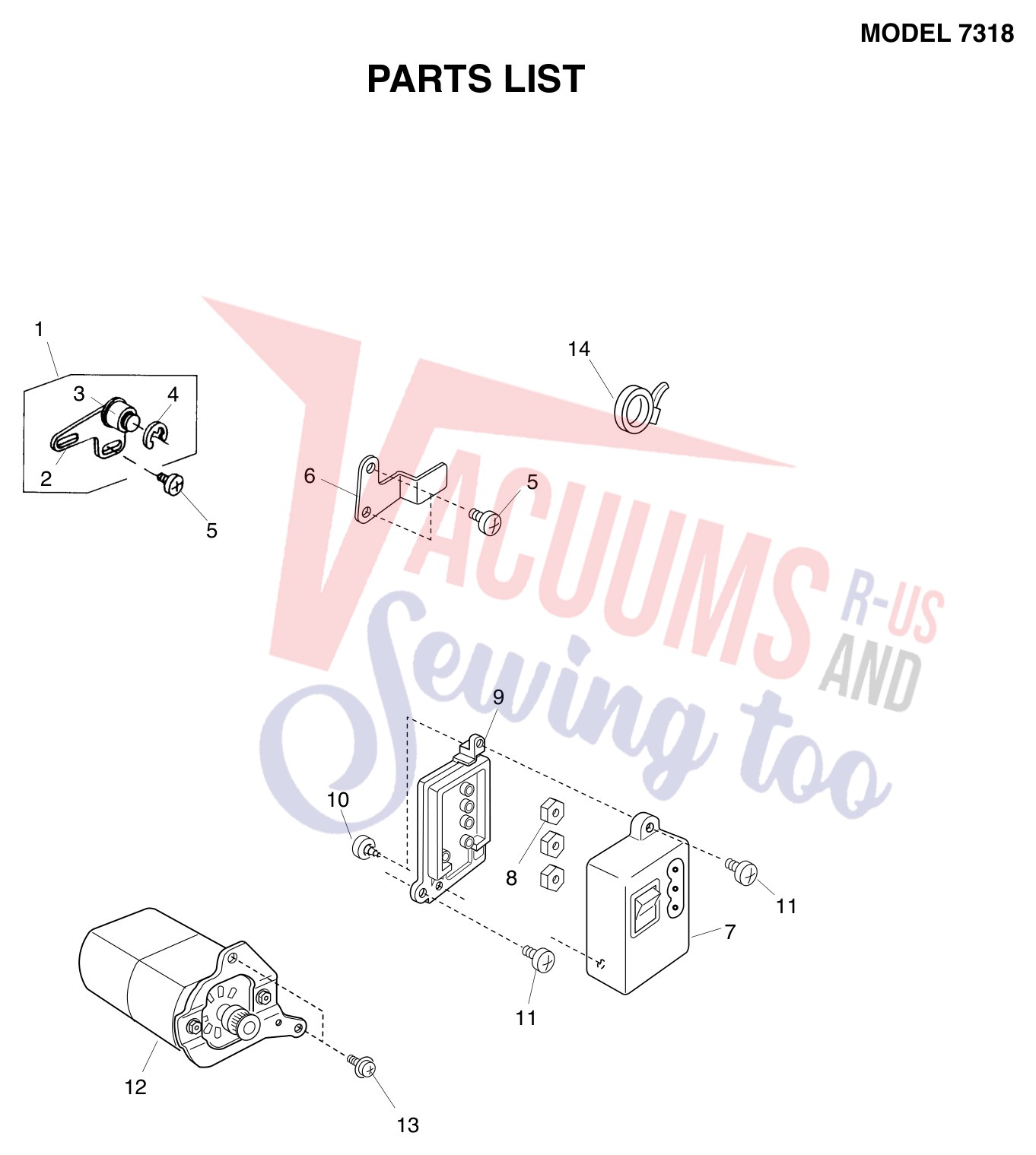

| # | Part image | Description | SKU | Price |
| 1 |  | Idler Unit sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 61... | 753619003 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Idler base sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 659, 7318, M... | 753119008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Idler sewing machine part or accessory For Janome Models: 3160QDC, 4045LX, 4045NX, 4119 (QUILTER'... | 625217100 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Base plate sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, Sewist500 | 507067001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Machine socket unit sewing machine part or accessory For Janome Models: 2039SN, 2041, 2041LX, 204... | 739505403 | $17.20Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Nut sewing machine part or accessory For Janome Models: 2003P, 2039SN, 2041, 2041LX, 2041NX, 2041... | 000060802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Machine socket lid sewing machine part or accessory For Janome Models: 509, 521, 525S, 7318, Sewi... | 505064002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | +PAN HEAD TAP TIGHT SCREW 3X10 sewing machine part or accessory For Janome Models: 1117S, 134D, 2... | 000107802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Motor unit sewing machine part or accessory For Janome Models: 509, 7318 | 505623005 | $76.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Wire binder sewing machine part or accessory For Janome Models: 2118S, 2139N, 2139S, 2149SX, 509,... | 000053709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

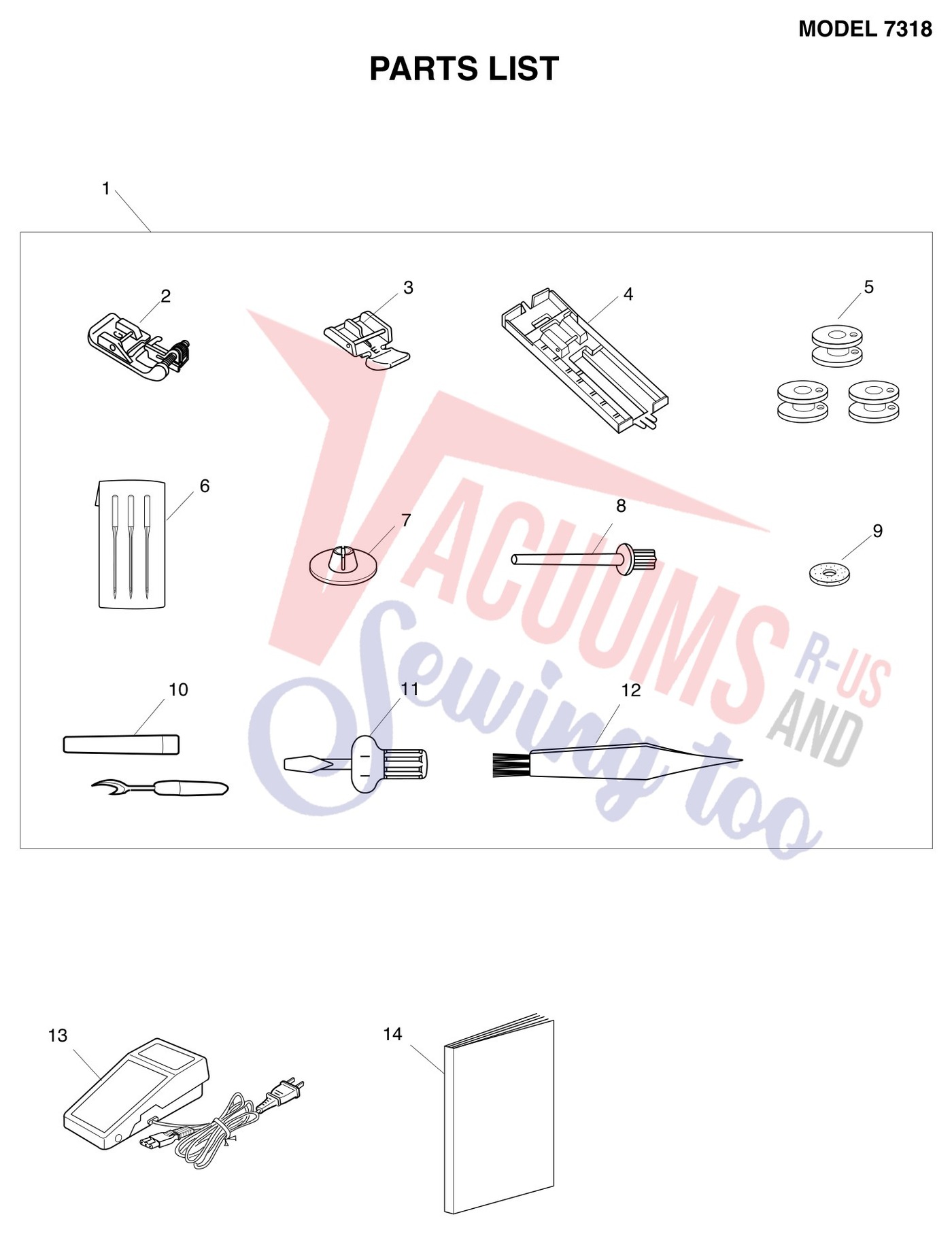

| # | Part image | Description | SKU | Price |
| 1 |  | Accessory set sewing machine part or accessory For Janome Models: 7318 | 507870016 | $42.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Adjustable Blind Hem Foot G 7mm sewing machine part or accessory For Janome Models: MC11000 Speci... | 820817015 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Zipper Foot (top load 7mm) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 829801002 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Compatible alternateZipper Foot, Top Load 7mm for Janome and Elna More Product Details | WP11797 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Sliding BH Foot sewing machine part or accessory For Janome Models: 509, 521, 7318, JEM GOLD 2/66... | 825813016 | $16.58Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Organ needle set #14 sewing machine part or accessory Organ needle set #14Use with: All Janome ... | 639804000 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | SMALL SPOOL HOLDER (WHITE) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QD... | 822019509 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spool Pin for Janome and New Home 3023 MC4000 6019QC JP720 | 625031500 | $1.40Add to cart |
| 9 |  | SPOOL PIN FELT sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117... | 102403109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SEAM RIPPER/BUTTONHOLE OPENER sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 647808009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Screwdriver (LARGE) | 820832005 | Not Available |
| 12 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 14 |  | Instruction book (ENG) sewing machine part or accessory For Janome Models: 7318 | 507800509 | $10.30Add to cart Special order: ships in 2 to 4 weeks |

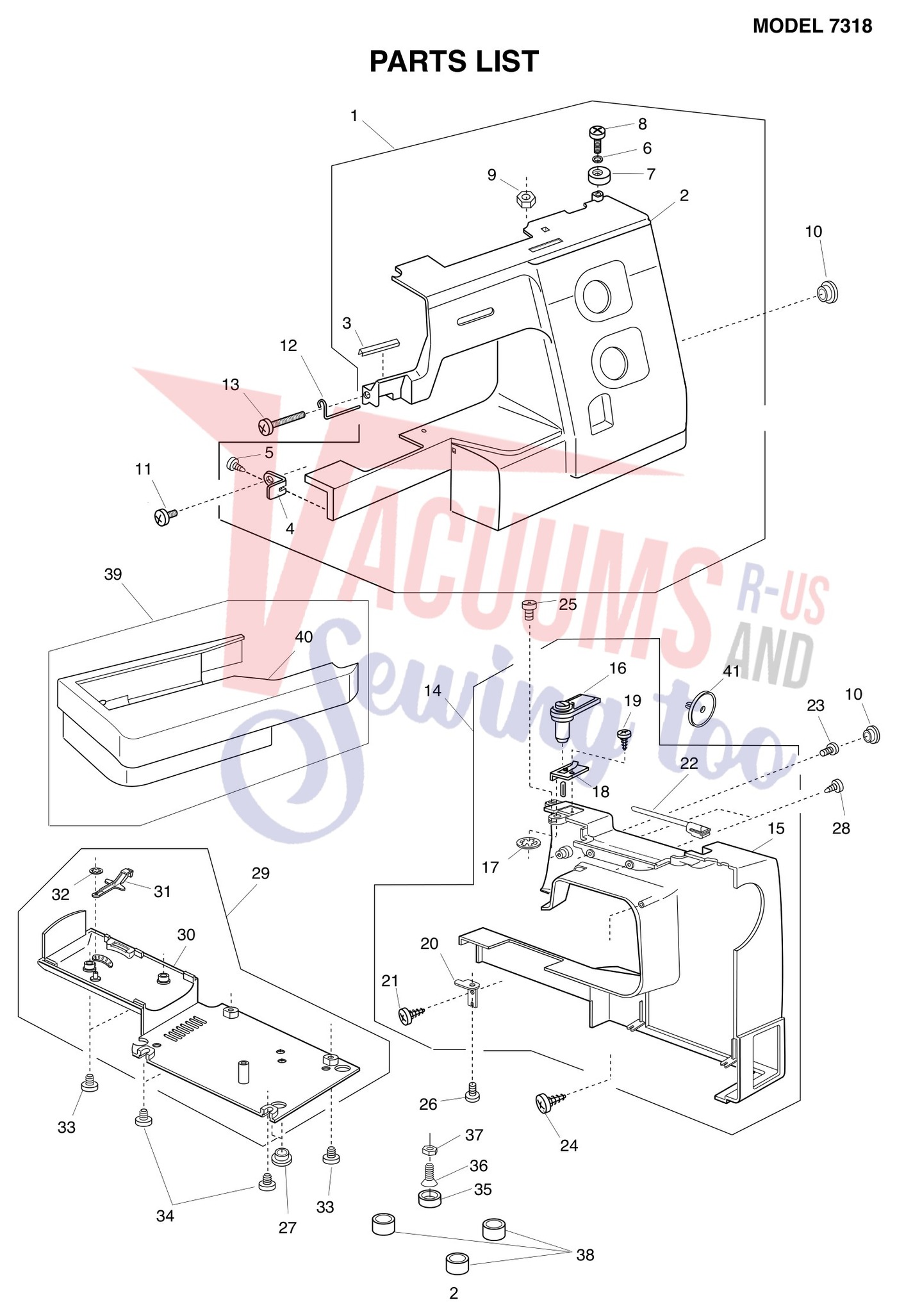

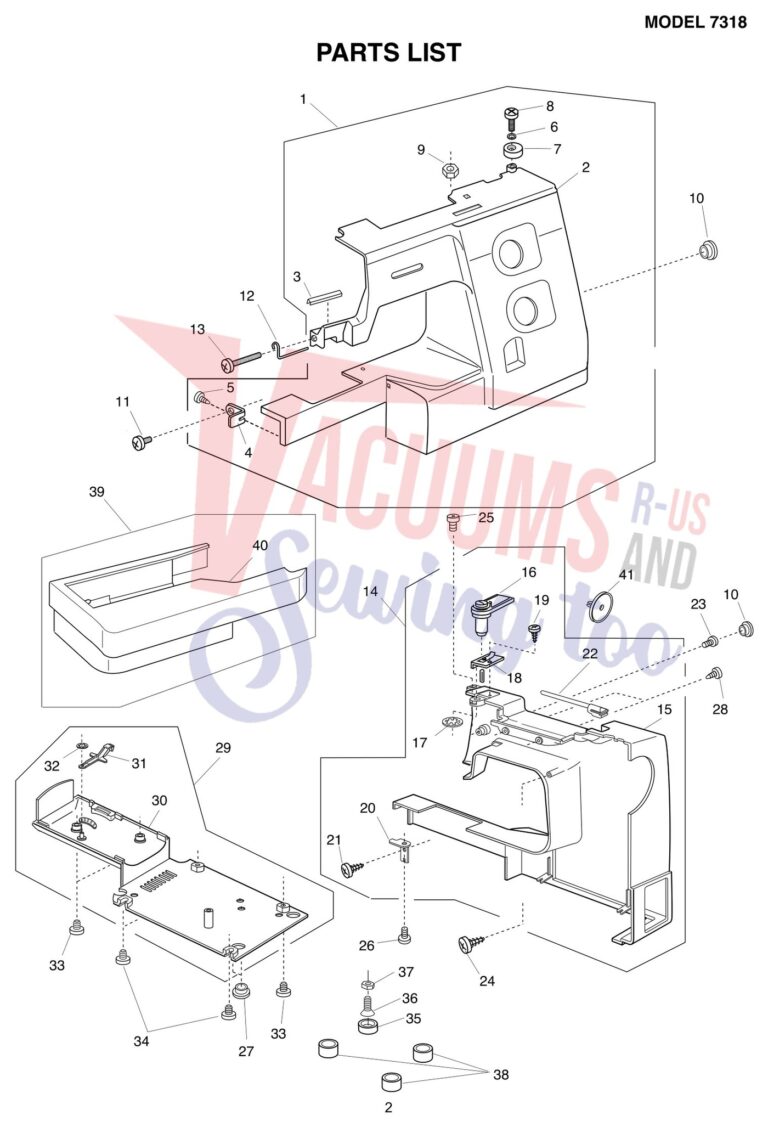

| # | Part image | Description | SKU | Price |
| 1 | | Front cover unit sewing machine part or accessory For Janome Models: 7318 | 507660206 | $63.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Front cover sewing machine part or accessory For Janome Models: 7318 | 507177120 | $26.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Thread supporting plate sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, ... | 753125007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Front cover bracket (lower) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/... | 827069004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Bobbin Winder Stopper sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735016307 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Bobbin Winder Stopper Screw sewing machine part or accessory For Janome Models: 2003P, 2018S, 203... | 000103107 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Arm thread guide sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 52... | 753126008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set screw sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, DE5018,... | 000092917 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Rear cover unit sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, S... | 507631002 | $33.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Rear cover sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, Sewist500 | 507102102 | $21.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Thread guide sewing machine part or accessory For Janome Models: 2040, 3022, 509, 521, 525S, 625E... | 650503702 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Snap ring CS-8 sewing machine part or accessory For Janome Models: 1017, 1117S, 2040, 3022, 3125,... | 000014409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Top cover thread guide unit sewing machine part or accessory For Janome Models: 2040, 3022, 4045L... | 827503005 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Setscrew 2.6 x 5 (B) sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 404... | 000162001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Rear cover bracket sewing machine part or accessory For Janome Models: 2040, 3022, 509, 521, 525S... | 827006003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SET SCREW 3X6 sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521,... | 000161103 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Spool pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, ... | 659067005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | SET SCREW FOR SERGER sewing machine part or accessory For Janome Models: 203, 2040, 204D, 234D, 3... | 000101817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Cap sewing machine part or accessory 745033002 Cap | 745033002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Set screw 3x12 sewing machine part or accessory For Janome Models: Mystyle100, Mystyle100, Sewist... | 000161310 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Base cover (UNIT) sewing machine part or accessory For Janome Models: 509, 521, 525S, 7318, Sewis... | 507601003 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Base cover sewing machine part or accessory For Janome Models: 509, 521, 525S, 7318, Sewist500 | 507001007 | $7.80Read more |
| 31 | | DROP LEVER 4123 4000 3123 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 753005000 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | SNAP RING CS-5 7 6 7500 5500 sewing machine part or accessory For Janome Models: 1000CPX, 1017, 1... | 000013903 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | RUBBER BASE sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2040, 2041,... | 735002001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Set screw 5x25 sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, MC... | 000097808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | HEXAGON NUT 5-3-8 6 5 4 4123 5 sewing machine part or accessory For Janome Models: 1600P, 1600P-D... | 000061412 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Cushion sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 360, ... | 647009002 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | EXTENSION TABLE 521/525S sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 507637008 | $29.40Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Extension table unit sewing machine part or accessory For Janome Models: 509, 625E, 7318, Sewist500 | 507503004 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |

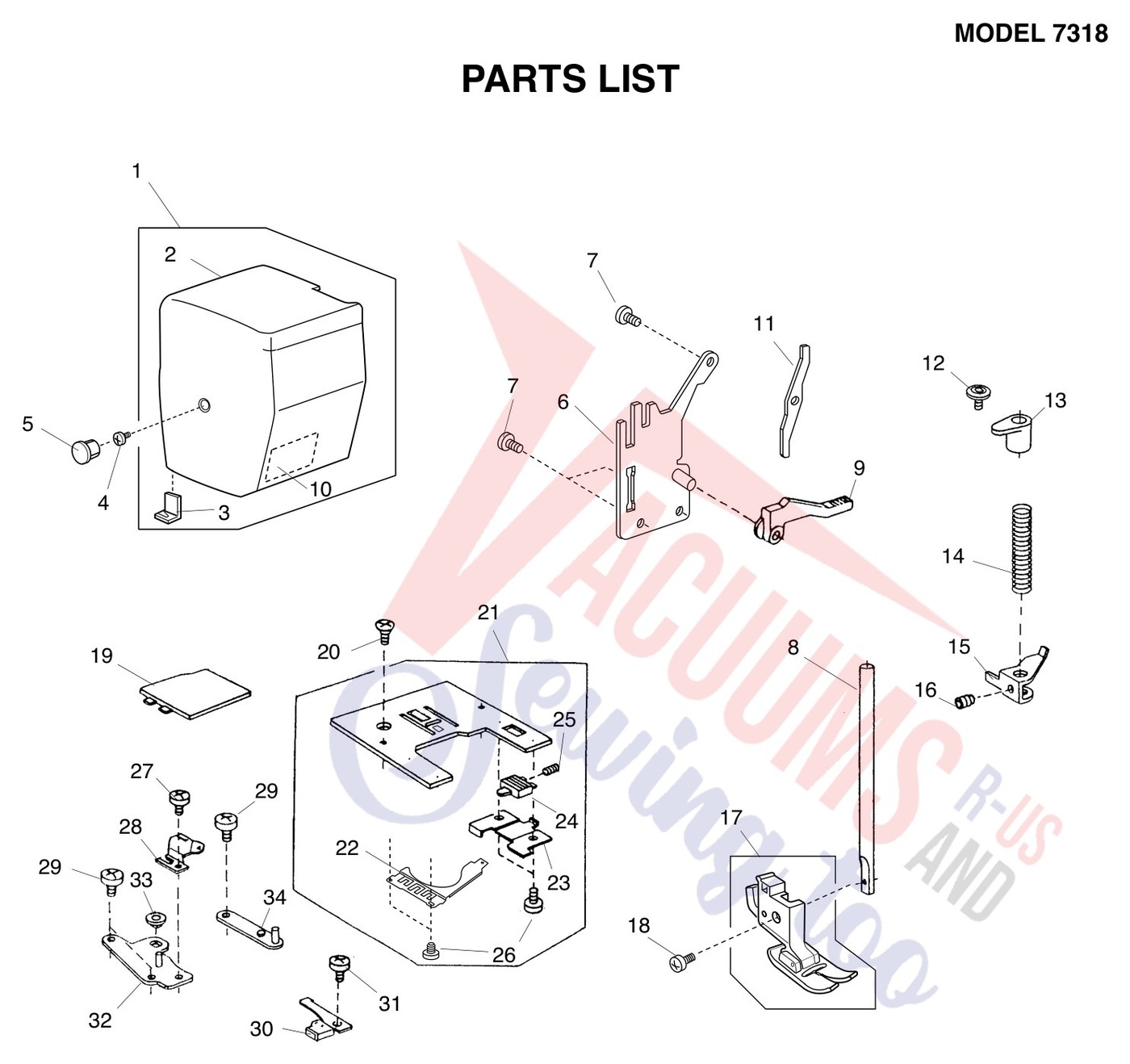

| # | Part image | Description | SKU | Price |
| 1 |  | Face plate unit sewing machine part or accessory For Janome Models: 7318 | 507661001 | $31.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Face plate sewing machine part or accessory For Janome Models: 7318 | 507178109 | $10.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | LID 4123 sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039SN, 2... | 653006101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Presser bar bracket sewing machine part or accessory For Janome Models: 625E, 7318, Sewist500 | 507156008 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Presser bar sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509... | 827021004 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | PRESSER FOOT LIFTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 204... | 735029004 | $2.00Add to cart |
| 10 |  | Sticker sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 2003P, 2041, 2041LX,... | 724025006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Tension release lever sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 6... | 751142004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set screw sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 509, 521, 525... | 000193001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Presser Bar Bushing | 652104004 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | PRESSER BAR SPRING sewing machine part or accessory For Janome Models: 659, 7318, ME4014, NH2014L... | 651014003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | PRESSER BAR SUPPORTER sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 2... | 735028003 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Hexagon socket screw 4x8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, ... | 000111500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Presser Foot Unit (low shank top load) sewing machine part or accessory For Janome Models: 2040, ... | 660508007 | $18.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 2039SN, 2040, ... | 660106001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Slide Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 461... | 750036012 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Needle Plate Set Screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 5... | 820390109 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Needle plate unit sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318,... | 751603400 | $21.40Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | BOBBIN HOLD PLATE SPRING sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 832235010 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Slide plate holder (right) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 825015010 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Slide plate holder block J-N1 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 825016000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Spring sewing machine part or accessory 825017001 Spring | 825017001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | BOBBIN HOLDER STOPPER (LEFT) sewing machine part or accessory For Janome Models: 4618LE, 4623LE, ... | 822011109 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | BOBBIN HOLDER STOPPER (RIGHT) sewing machine part or accessory For Janome Models: 509, 521, 525S,... | 751502006 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Needle plate adjust plate (L) sewing machine part or accessory For Janome Models: 509, 521, 525S,... | 751008007 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Genuine Janome/Elna NUT 9000 8000 7000 7500 6000 5 For: 4618LE, 4623LE, 509, 521, 525S, 6147, 6... | 822314002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Needle plate adjust plate (R) sewing machine part or accessory For Janome Models: 509, 521, 525S,... | 751009008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |

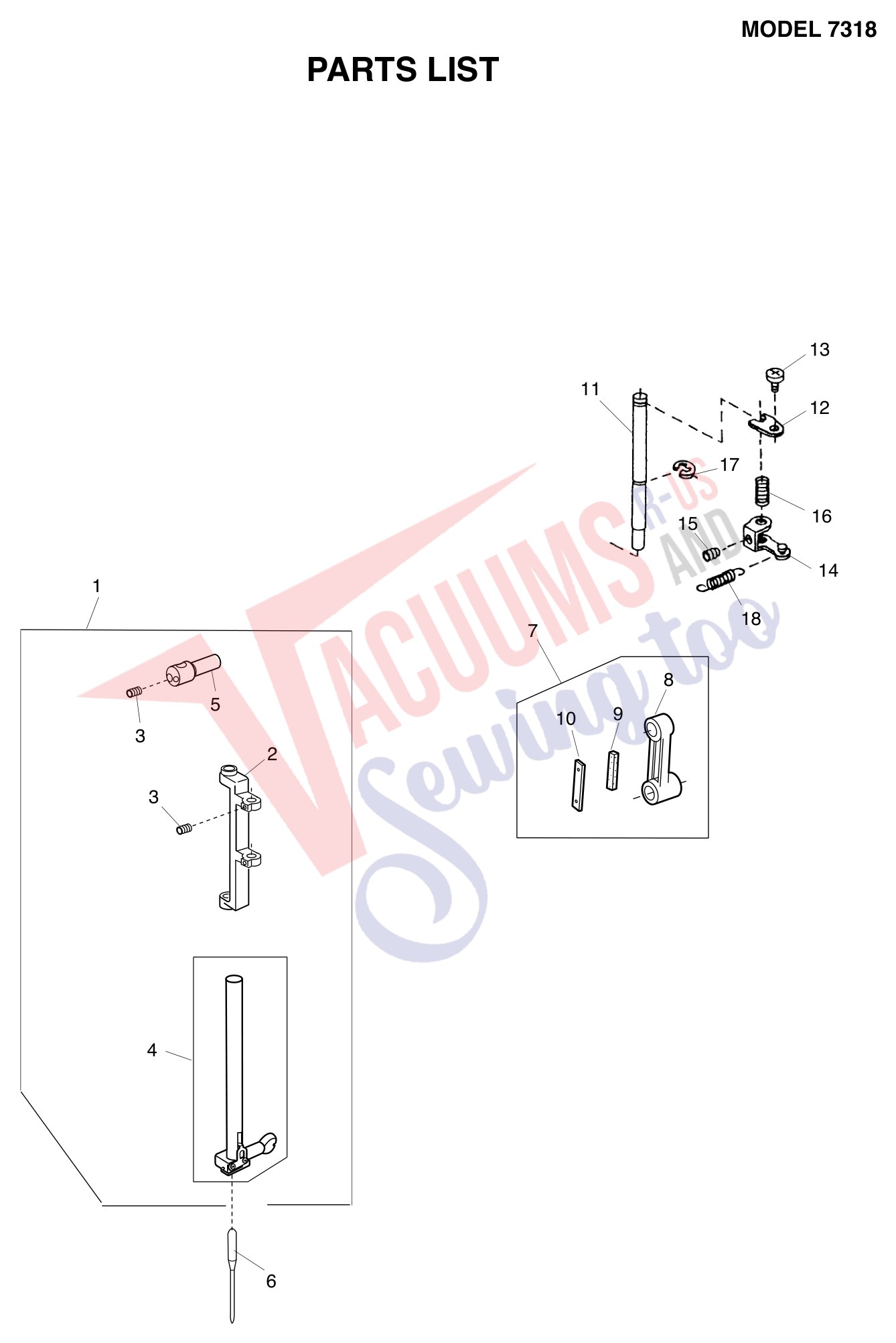

| # | Part image | Description | SKU | Price |
| 1 | | NEEDLE BAR SUPPORTER (UNIT) sewing machine part or accessory For Janome Models: 509, 7318 | 752654007 | $27.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Needle Bar Supporter sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521... | 650038000 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Needle bar unit sewing machine part or accessory For Janome Models: 4045NX, 509, 521, 525S, 625E,... | 751630015 | $14.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | NEEDLE BAR CONN. STUD 3123 | 650100004 | Not Available |
| 6 |  | Needle HAX14(single piece) sewing machine part or accessory For Janome Models: HELLO KITTY 3/4, H... | 102408089 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | NEEDLE BAR CRANK ROD UNIT sewing machine part or accessory For Janome Models: 509, 521, 525S, 614... | 650607006 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle bar crank rod sewing machine part or accessory 650039001 Needle bar crank rod | 650039001 | $4.00Read more |
| 9 |  | Felt sewing machine part or accessory 650040005 Felt | 650040005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Spring | 650041006 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | NEEDLE BAR SUPPORTER SHAFT sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 50... | 650033005 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SUPPORTER SHAFT SET PLATE sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509... | 650034006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | ZIGZAG WIDTH CRANK sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, ... | 650035007 | $1.20Read more |
| 15 |  | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Needle Bar Supporter Shaft Spring sewing machine part or accessory For Janome Models: 4618LE, 462... | 650036008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Supporter spring sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, ... | 507094007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

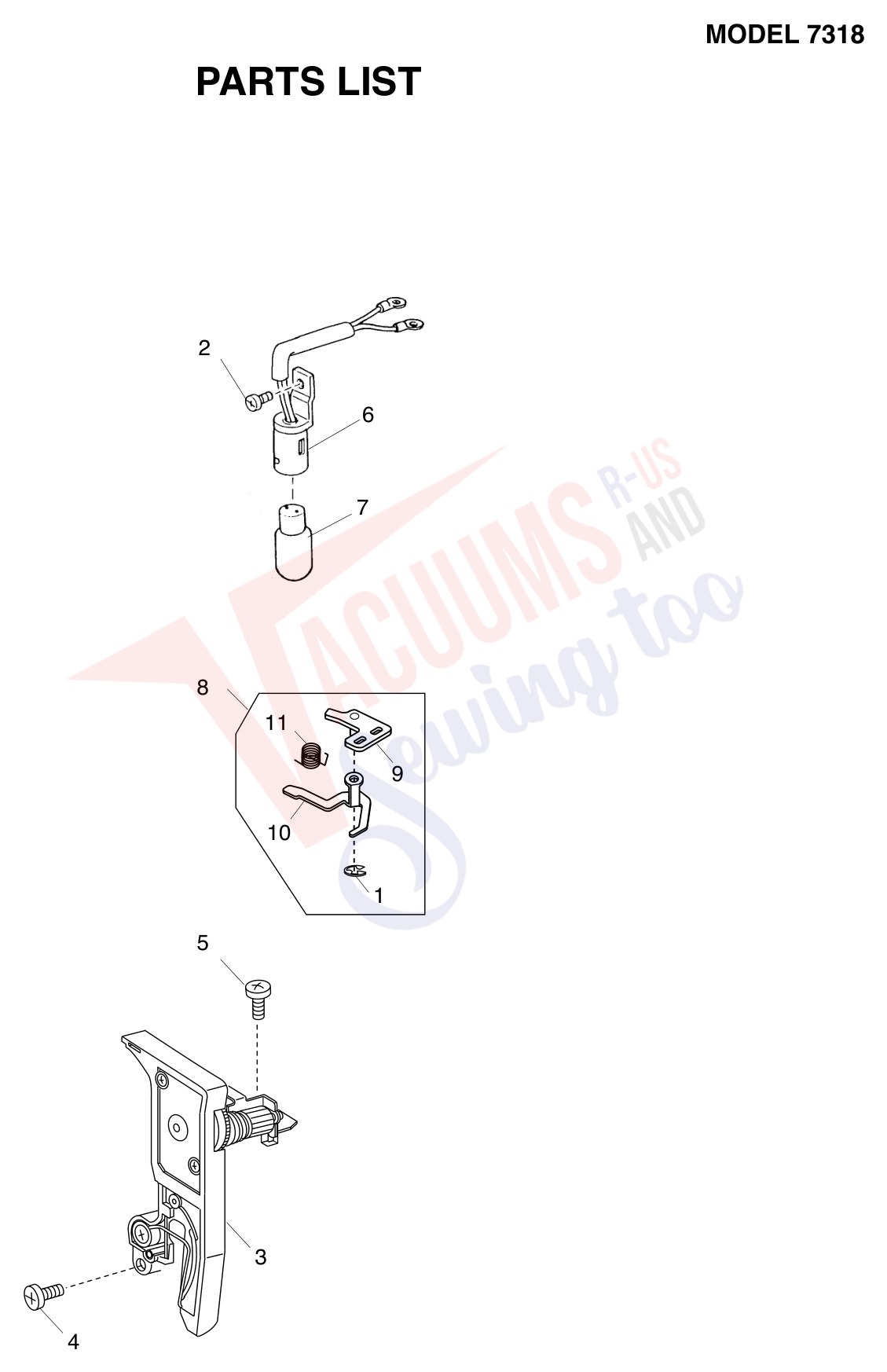

| # | Part image | Description | SKU | Price |
| 1 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Tension regulator unit sewing machine part or accessory For Janome Models: 7318 | 507504108 | $32.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1017, 104, 106, 108, 110, 1... | 000101703 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Light socket unit sewing machine part or accessory For Janome Models: 405, 415, 419S, 423S, 7318 | 647510609 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Light Bulb sewing machine part or accessory For Janome Models: 1000CP, 104, 106, 108, 110, 1100D,... | 000009803 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Tension release arm unit sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 507638009 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Tension release arm base sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E... | 752055002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Tension release arm sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 731... | 751215009 | $1.40Read more |
| 11 |  | Tension release spring sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, ... | 752056003 | $1.00Read more |

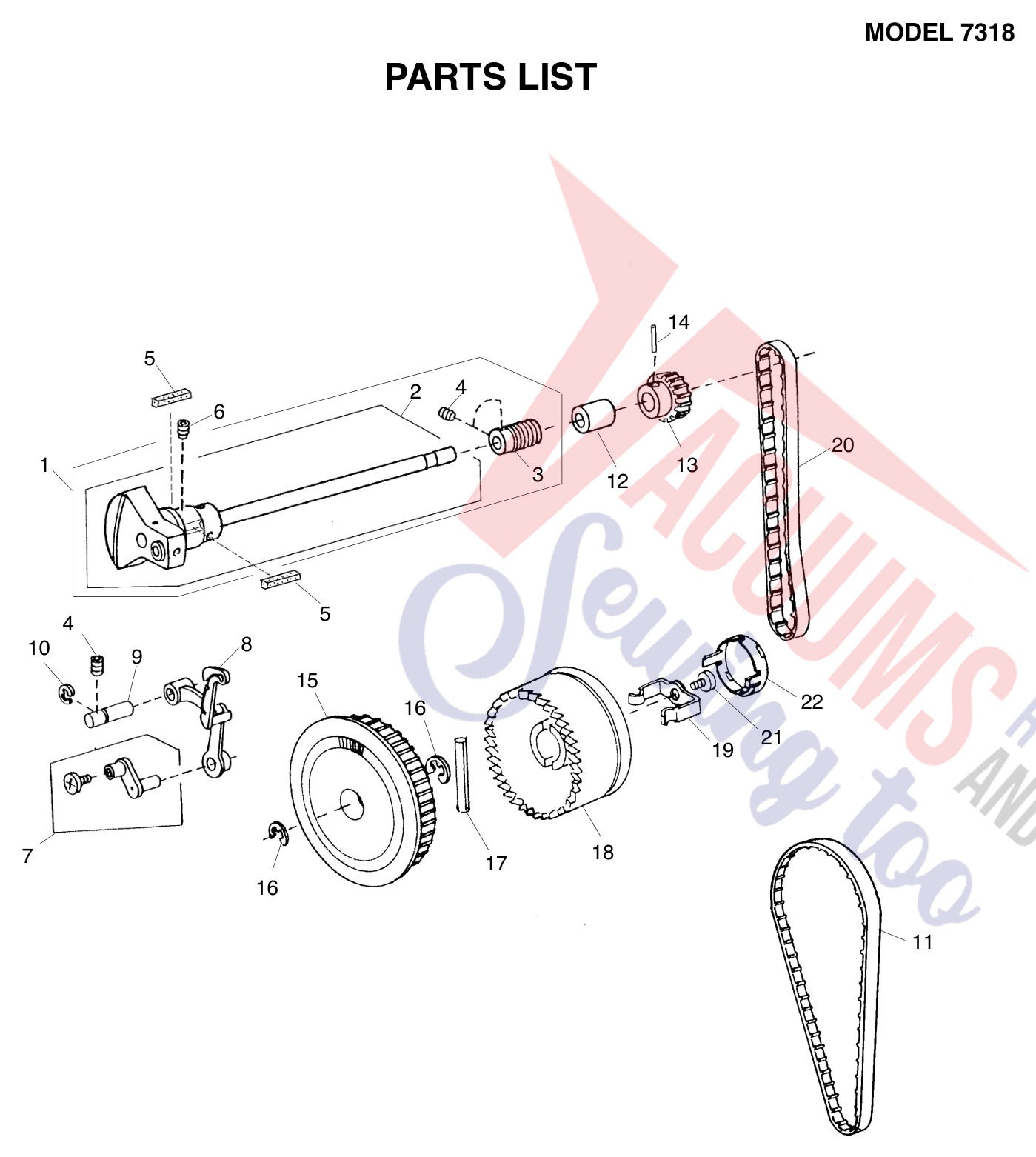

| # | Part image | Description | SKU | Price |
| 1 | | Upper shaft comp. unit sewing machine part or accessory For Janome Models: 509, 521, 525S, 7318 | 756607100 | $25.20Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | UPPER SHAFT COMP. UNIT sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, ... | 756504003 | $20.40Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Worm gear sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, Sewist500 | 507059000 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Felt sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 509, 521, ... | 731384008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 | | NEEDLE BAR CRANK PIN UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 652512009 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | THREAD TAKE UP LEVER UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 820511108 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Thread take-up lever pin sewing machine part or accessory For Janome Models: 2040, 3022, 4048/804... | 650062003 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Snap ring E-6 sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S... | 000002806 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Motor belt sewing machine part or accessory For Janome Models: 7318, AQS2009, JEM GOLD 2/661, Jem... | 653139023 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | UPPER SHAFT BUSHING(RIGHT) | 673062004 | Not Available |
| 13 |  | Upper shaft timing gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4... | 756017004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Spring pin sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 000020501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | BELT WHEEL sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 659, 7318, S... | 756018005 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Snap Ring sewing machine part or accessory For Janome Models: 1017, 1117S, 1600P-QC, 2003P, 2018S... | 000030205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | PIN 4X40 sewing machine part or accessory For Janome Models: 1117S, 2003P, 2018S, 2039SN, 2041, 2... | 000023803 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Balance wheel sewing machine part or accessory For Janome Models: 2003P, 2118S, 2139S, 2149SX, 62... | 639097024 | $5.80Add to cart |
| 19 |  | CLUTCH SPRING sewing machine part or accessory For Janome Models: 1017, 1117S, 2003P, 2018S, 2039... | 639113016 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Timing belt sewing machine part or accessory For Janome Models: 7318, MC200E, Necchi EC100 | 650071016 | $5.80Read more |
| 21 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Clutch Cap sewing machine part or accessory For Janome Models: 2003P, 2018S, 2039SN, 4618LE, 4623... | 650070509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

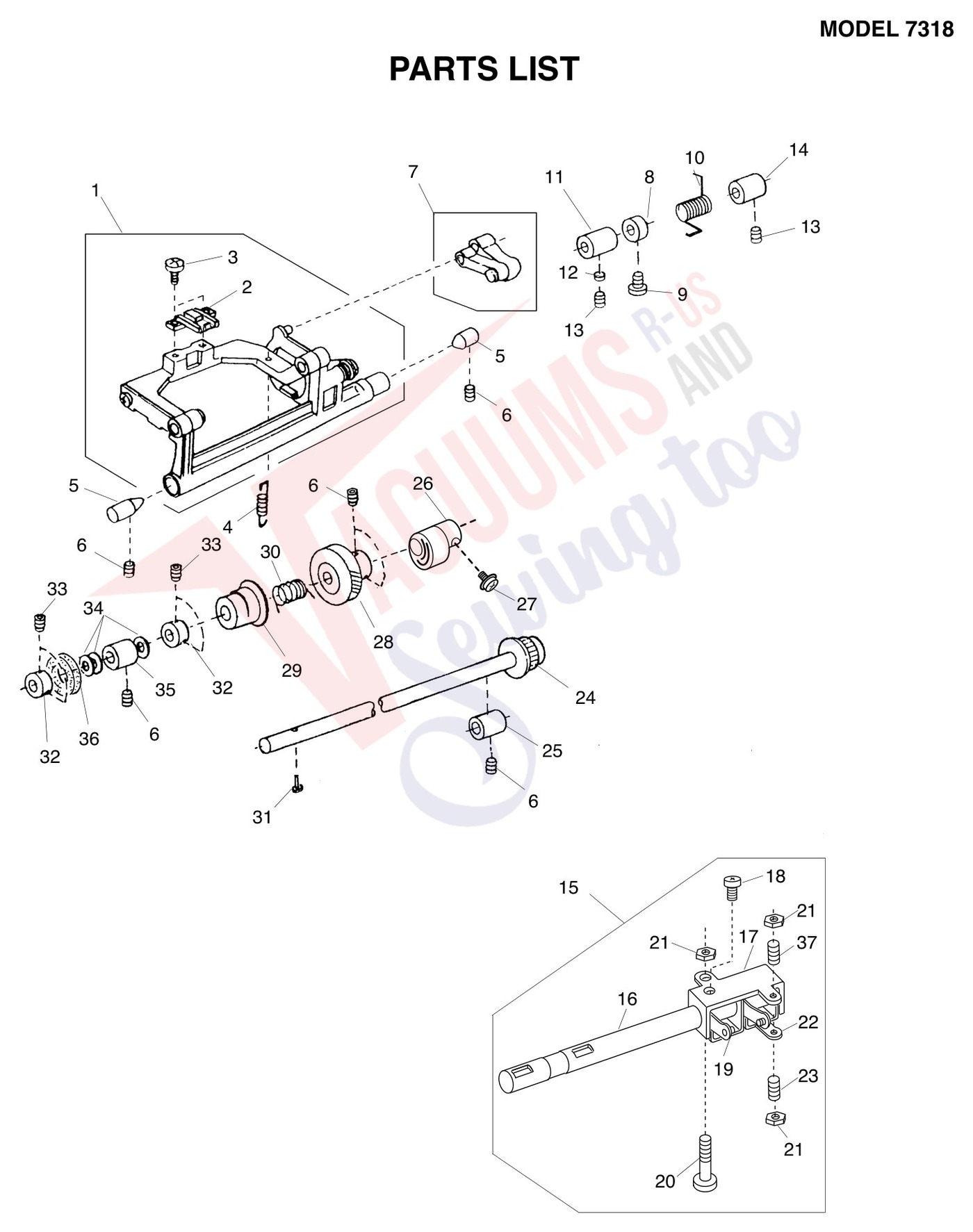

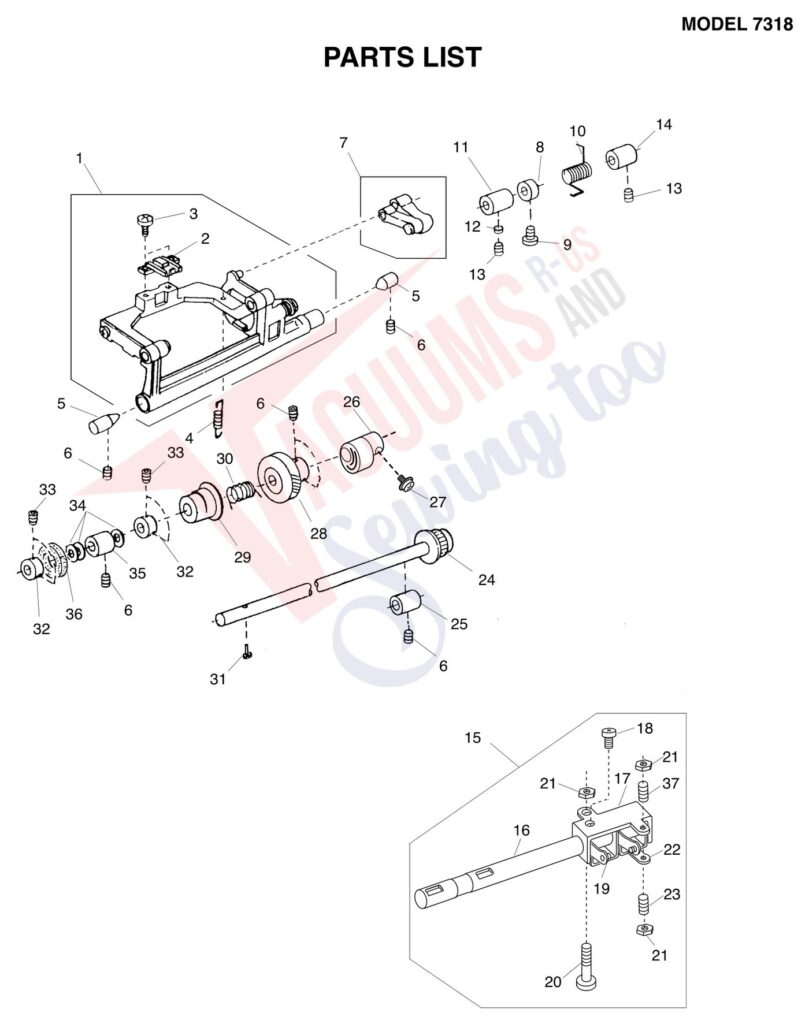

| # | Part image | Description | SKU | Price |
| 1 |  | FEED ROCK SHAFT UNIT ME-4014 sewing machine part or accessory For Janome Models: 509, 521, 525S, ... | 751666009 | $36.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | FEED DOG FOR 4014 sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 662, ... | 653193003 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 2040, 3022, 404... | 000104005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Feed Dog Base Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF... | 650085002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Straight pin sewing machine part or accessory For Janome Models: 2040, 3022, 360, 380 & 381, ... | 738055008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 7 |  | FEED REG. UNIT sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, ... | 650612004 | $6.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Ring | 820387000 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Regulator spring sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, ... | 507095008 | $0.60Read more |
| 11 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Washer sewing machine part or accessory 650175000 Washer | 650175000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Hexagon Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 104, 106, 108, 110... | 000111108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | FEED REG SHAFT BUSHING REAR 9 sewing machine part or accessory For Janome Models: 2040, 3022, 404... | 650092002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Feed regulator plate (UNIT) sewing machine part or accessory For Janome Models: 521, 7318 | 507608103 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Feed shaft sewing machine part or accessory For Janome Models: 509, 521, 525S, 7318, Sewist500 | 507062006 | $2.80Read more |
| 17 | | Feed shaft plate sewing machine part or accessory For Janome Models: 509, 7318, Sewist500 | 507011103 | $1.60Read more |
| 18 |  | Setscrew 3x12 sewing machine part or accessory For Janome Models: 203, 234D, 509, 521, 525S, 625E... | 000081500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Ss control plate sewing machine part or accessory For Janome Models: 521, 7318 | 507064101 | $1.60Read more |
| 20 | | Adjusting spring sewing machine part or accessory For Janome Models: 521, 525S, 7318, Sewist500 | 507087007 | $0.60Read more |
| 21 | | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Feed regulating plate sewing machine part or accessory For Janome Models: 509, 521, 525S, 7318, S... | 507063007 | $1.60Read more |
| 23 |  | Set screw sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1117S, 20... | 648010009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Lower shaft unit sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048... | 751612206 | $11.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Lower Shaft Right Bushing sewing machine part or accessory For Janome Models: 2040, 3022, 4048/80... | 650079003 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | FEED LIFT CAM 5000 sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF80... | 751148000 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | TP SCREW 3X8-9 7 6 7500 3123 sewing machine part or accessory For Janome Models: 134D, 203, 2040,... | 000115009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Lower shaft gear sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4119 (QU... | 650955002 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Feed Lift Cam sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 4... | 753183025 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Feed Lifting Cam Spring sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048... | 686035008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Feed lifting pin sewing machine part or accessory 820161006 Feed lifting pin | 820161006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Lower shaft ring sewing machine part or accessory 820166001 Lower shaft ring | 820166001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | LOWER SHAFT BUSHING (LEFT) sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8... | 650078002 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | Felt sewing machine part or accessory 735143005 Felt | 735143005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Set screw 4*12 sewing machine part or accessory For Janome Models: 521, 525S, 625E, 7318, Mystyle... | 000159201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

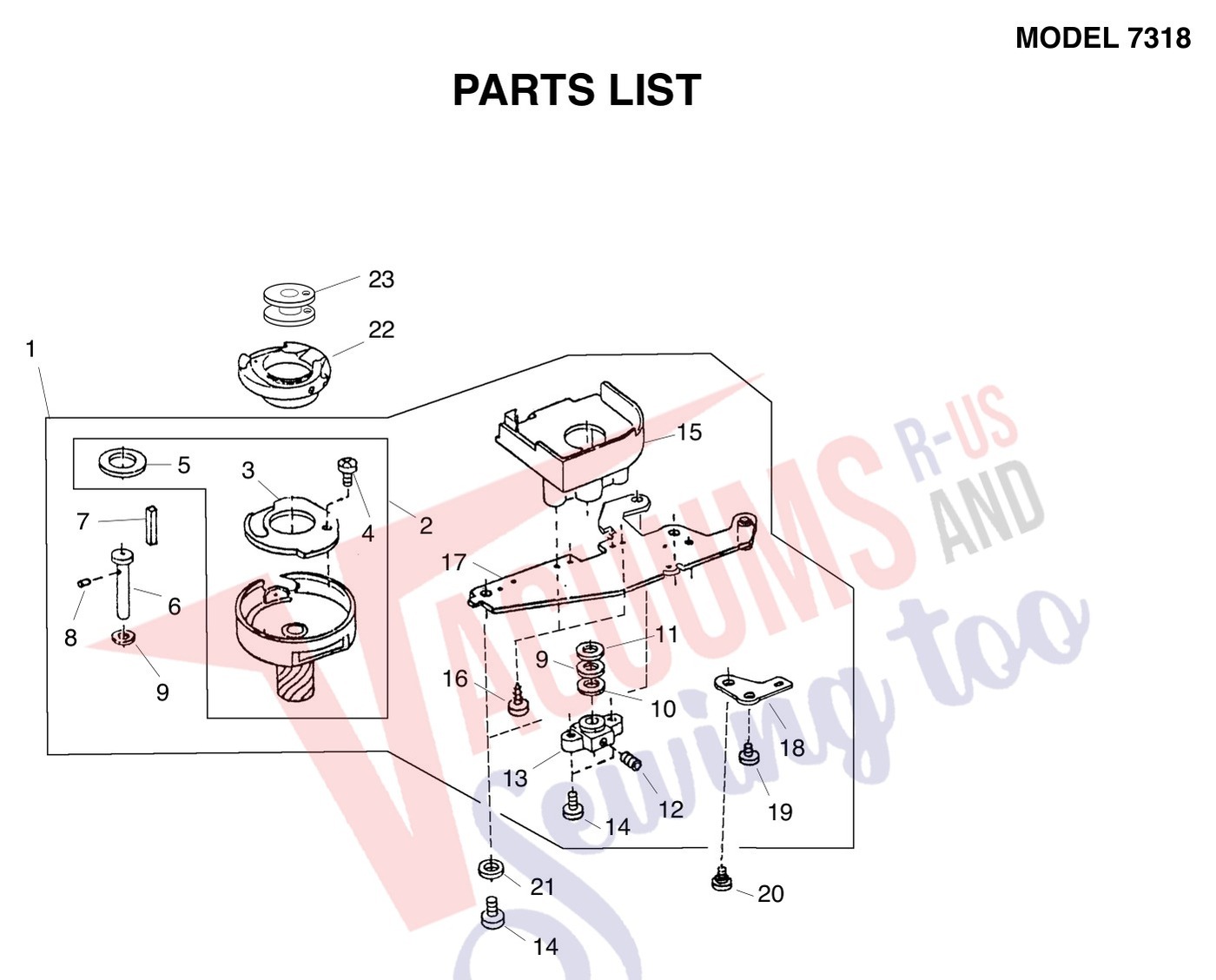

| # | Part image | Description | SKU | Price |
| 1 | | Hook race body unit sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 731... | 827614022 | $80.40Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Pre-owned Hook Unit for Janome PN 652623004 | 652623004 | $57.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hook Race Bottom Plate sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/... | 627191000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw for Race Bottom Plate sewing machine part or accessory For Janome Models: 1000CPX, 1600... | 820374004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Magnet sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8048/... | 627190010 | $5.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hook shaft sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048/8... | 820123006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Oil wick (1) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820124007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Oil wick (2) sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 820125008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | WASHER FOR 3000 sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4... | 000038409 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Plain washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX, 4048... | 625102008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hook shaft washer sewing machine part or accessory For Janome Models: 2040, 3022, 4045LX, 4045NX,... | 627192001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 13 | | Hook shaft base sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 650094004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Hook race cover sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048,... | 827040009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | +PAN HEAD TAP TIGHT SCREW 3X12 sewing machine part or accessory For Janome Models: 104, 106, 108,... | 000107204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Hook bracket sewing machine part or accessory For Janome Models: 2040, 3022, 4048/8048/HF8048, 50... | 823106002 | $5.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Set plate sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 614... | 650171006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Hinge screw sewing machine part or accessory For Janome Models: 4618LE, 4623LE, 509, 521, 525S, 6... | 650172007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Janome Jem Gold Bobbin Holder Unit - 627569106 | 627569106 | $30.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Genuine Janome/Elna Bobbin w/ Rubber For: All Janome top and front load models, EL900 eXpressiv... | 102261103 | $1.20Add to cart Special order: ships in 2 to 4 weeks |

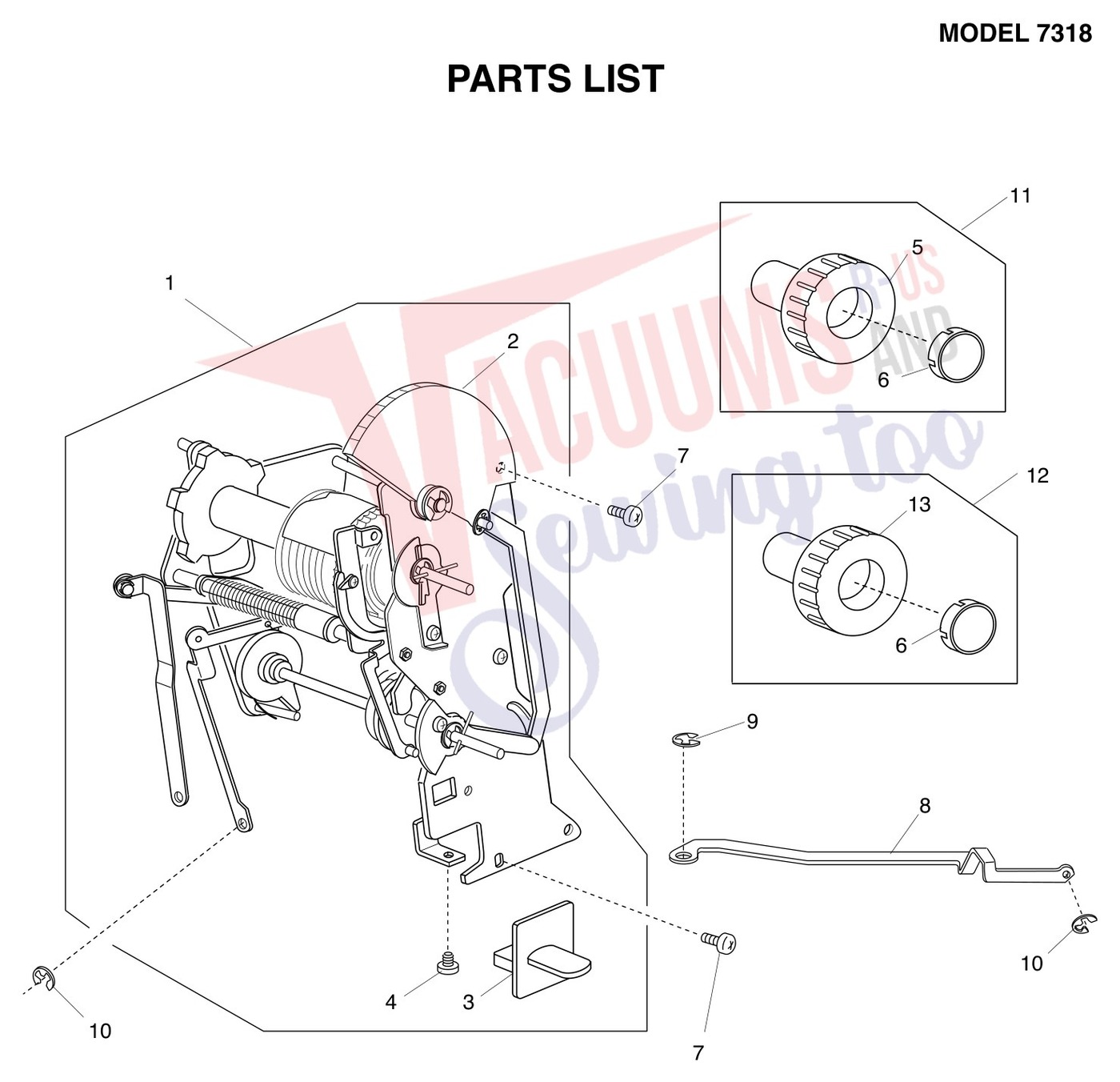

| # | Part image | Description | SKU | Price |
| 1 | | Cam block unit sewing machine part or accessory For Janome Models: 7318 | 507633200 | $124.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Stitch width dial sewing machine part or accessory For Janome Models: 7318 | 507041308 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | R lever sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, Sewist500 | 507109109 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | +PAN TAP TIGHT SCREW 3X8-6 312 sewing machine part or accessory For Janome Models: 2003P, 2018S, ... | 000107307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Pattern selector dial sewing machine part or accessory For Janome Models: 7318 | 507112334 | $3.20Read more |
| 6 | | Cap sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318 | 507113003 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Zigzag rod sewing machine part or accessory For Janome Models: 509, 521, 525S, 625E, 7318, Sewist500 | 507066000 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 11 | | Pattern selector dial unit sewing machine part or accessory For Janome Models: 7318 | 507635154 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Stitch length dial unit sewing machine part or accessory For Janome Models: 7318 | 507635165 | $10.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Stitch length dial sewing machine part or accessory For Janome Models: 7318 | 507112345 | $3.20Read more |
Report errors on this page HERE
