Schematic and parts book for Janome 7312 7312

Compatible with 1 Janome model

7312

Schematic and parts book for Janome 7312 7312. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE

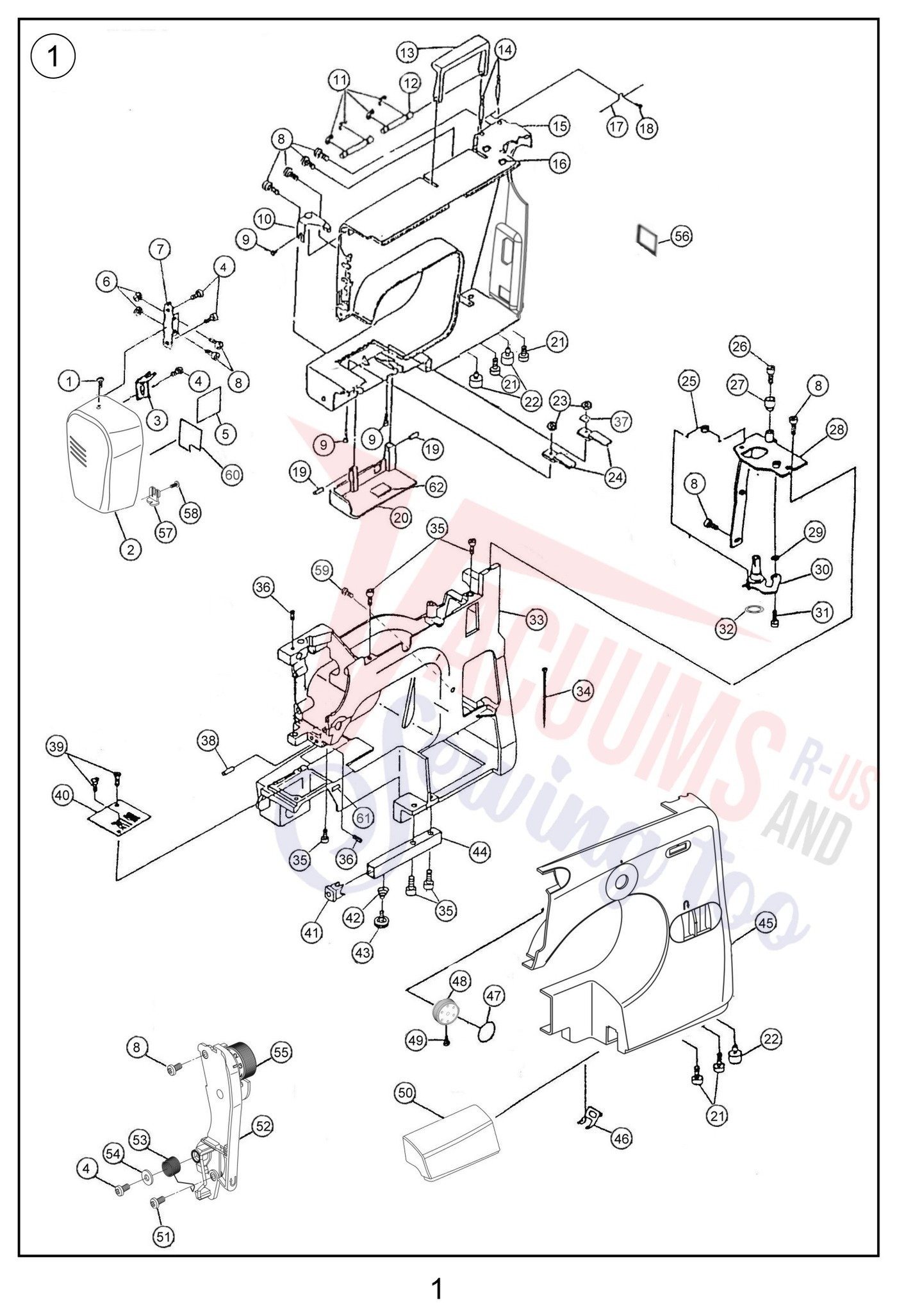

Janome 7312 exploded schematic diagram (page 1)

Click to enlarge

#	Part image	Description	SKU	Price
1		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301185105	$1.00Add to cart Special order: ships in 2 to 4 weeks
2	Not Available	Face plate	Z290011009	Not Available
3		FACE PLATE FIXING PLATE B sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z370221005	$1.00Add to cart Special order: ships in 2 to 4 weeks
4		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z000011912	$1.00Add to cart Special order: ships in 2 to 4 weeks
5		HEAT-SHIELD PLATE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250083101	$1.00Add to cart Special order: ships in 2 to 4 weeks
6		NUT sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301193003	$1.00Add to cart Special order: ships in 2 to 4 weeks
7		FACE PLATE HINGE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z380502004	$1.20Add to cart Special order: ships in 2 to 4 weeks
8		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... More Product Details	Z301008000	$1.00Add to cart Special order: ships in 2 to 4 weeks
9		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z301016001	$1.00Add to cart Special order: ships in 2 to 4 weeks
10		THREAD GUIDE COMP sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z230502006	$1.80Add to cart Special order: ships in 2 to 4 weeks
11		SNAP RING 3D sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z000000103	$1.00Add to cart Special order: ships in 2 to 4 weeks
12		HANDLE PIN sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z270174009	$1.00Add to cart Special order: ships in 2 to 4 weeks
13		Genuine Janome/Elna Handle For: Magnolia 7306, Magnolia 7312, More Product Details	Z353004122	$2.80Add to cart Special order: ships in 2 to 4 weeks
14		SPOOL PIN A sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301027005	$1.00Add to cart Special order: ships in 2 to 4 weeks
15		REAR COVER (120V) sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z290001006	$19.80Add to cart Special order: ships in 2 to 4 weeks
16		ADJUSTING HOLE PLUG(W) sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250125014	$1.00Add to cart Special order: ships in 2 to 4 weeks
17		SPOOL PIN SPRING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z270007000	$1.00Add to cart Special order: ships in 2 to 4 weeks
18		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z000011923	$1.00Add to cart Special order: ships in 2 to 4 weeks
19		SPRING PIN 3*18 sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z000003405	$1.00Add to cart Special order: ships in 2 to 4 weeks
20		Shuttle race cover door sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250031023	$2.00Add to cart Special order: ships in 2 to 4 weeks
21		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312 More Product Details	Z356017002	$1.00Add to cart Special order: ships in 2 to 4 weeks
22		RUBBER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250020007	$1.00Add to cart Special order: ships in 2 to 4 weeks
23		NUT sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z301151009	$1.00Add to cart Special order: ships in 2 to 4 weeks
24		SHUTTLE RACE COVER SPRING PLATE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250032002	$1.00Add to cart Special order: ships in 2 to 4 weeks
25		BOBBIN WINDER SPRING C sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250045008	$1.00Add to cart Special order: ships in 2 to 4 weeks
26		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z353128008	$1.00Add to cart Special order: ships in 2 to 4 weeks
27		BOBBIN WINDER STOPPER sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia... More Product Details	Z380067002	$1.00Add to cart Special order: ships in 2 to 4 weeks
28		BOBBIN WINDER SUPPORTING PLATE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250016000	$3.60Add to cart Special order: ships in 2 to 4 weeks
29		WASHER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z370069003	$1.00Add to cart Special order: ships in 2 to 4 weeks
30		BOBBIN WINDER COMP sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z360501001	$3.00Add to cart Special order: ships in 2 to 4 weeks
31		HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z353125005	$1.00Add to cart Special order: ships in 2 to 4 weeks
32		RUBBER RING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z353030002	$1.00Add to cart Special order: ships in 2 to 4 weeks
33	Not Available	MACHINE BODY	Z250001105	Not Available
34		BAND sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z351047006	$0.60Read more
35		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250087002	$1.00Add to cart Special order: ships in 2 to 4 weeks
36		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... More Product Details	Z301046000	$1.00Add to cart Special order: ships in 2 to 4 weeks
37		WASHER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250218004	$1.00Add to cart Special order: ships in 2 to 4 weeks
38		LEAD SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250013007	$1.00Add to cart Special order: ships in 2 to 4 weeks
39		SET SCREW sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301261003	$1.00Add to cart Special order: ships in 2 to 4 weeks
40		Needle Plate sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250006007	$5.40Add to cart Special order: ships in 2 to 4 weeks
41		AID LEG PLUG(W) sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250025024	$1.00Add to cart Special order: ships in 2 to 4 weeks
42		SPRING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250024001	$1.00Add to cart Special order: ships in 2 to 4 weeks
43		ADJUSTING FOOT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250023000	$1.80Add to cart Special order: ships in 2 to 4 weeks
44		AID LEG(W) sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250022021	$2.80Add to cart Special order: ships in 2 to 4 weeks
45		FRONT COVER (DRAWING) sewing machine part or accessory For Janome Models: 7312 More Product Details	Z290013506	$4.60Add to cart Special order: ships in 2 to 4 weeks
46		PANEL FIXATION sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z353049004	$1.00Add to cart Special order: ships in 2 to 4 weeks
47		SELECT DIAL INDICATED PLATE sewing machine part or accessory For Janome Models: 7312 More Product Details	Z290035102	$1.20Add to cart Special order: ships in 2 to 4 weeks
48		SELECT DIAL sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z290024005	$1.00Add to cart Special order: ships in 2 to 4 weeks
49		HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z370048006	$1.00Add to cart Special order: ships in 2 to 4 weeks
50	Not Available	Extension table	Z290023004	Not Available

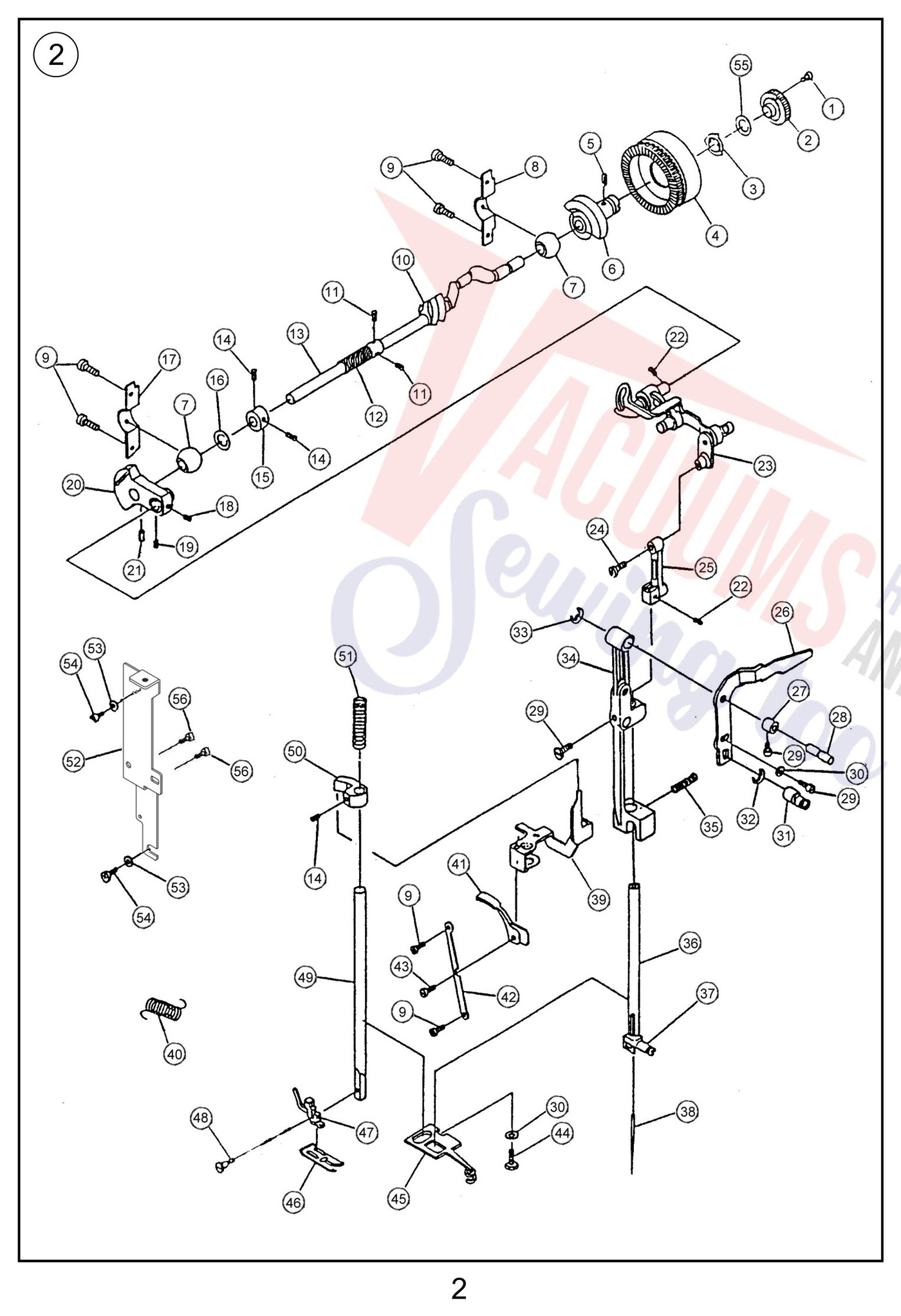

Janome 7312 exploded schematic diagram (page 2)

Click to enlarge

#	Part image	Description	SKU	Price
1		SET SCREW sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301098007	$1.00Add to cart Special order: ships in 2 to 4 weeks
2		STOP MOTION LARGE SCREW(W) sewing machine part or accessory For Janome Models: Magnolia 7306, Mag... More Product Details	Z301097084	$1.80Add to cart Special order: ships in 2 to 4 weeks
3		STOP MOTION WASHER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301096005	$2.20Add to cart Special order: ships in 2 to 4 weeks
4		Hand wheel sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301540098	$6.40Add to cart Special order: ships in 2 to 4 weeks
5		SPRING PIN 3*18 sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z000003405	$1.00Add to cart Special order: ships in 2 to 4 weeks
6		HAND WHEEL BUSHING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250044007	$3.40Add to cart Special order: ships in 2 to 4 weeks
7		FRONT BUSHING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250002003	$1.00Add to cart Special order: ships in 2 to 4 weeks
8		REAR BUSHING BRACKET sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250005006	$1.00Add to cart Special order: ships in 2 to 4 weeks
9		SELECT CAM COMP sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z370504005	$2.00Add to cart Special order: ships in 2 to 4 weeks
10		UPPER SHAFT SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301093002	$1.00Add to cart Special order: ships in 2 to 4 weeks
11		UPPER SHAFT WORM GEAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z303001308	$3.40Add to cart Special order: ships in 2 to 4 weeks
12	Not Available	Part Not Listed	BLANK	Not Available
13		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z301087003	$1.00Add to cart Special order: ships in 2 to 4 weeks
14		COLLAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301340203	$1.20Add to cart Special order: ships in 2 to 4 weeks
15		NYLON WASHER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301086002	$1.00Add to cart Special order: ships in 2 to 4 weeks
16		FRONT BUSHING BRACKET sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250004005	$1.00Add to cart Special order: ships in 2 to 4 weeks
17		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301068008	$1.00Add to cart Special order: ships in 2 to 4 weeks
18		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301084000	$1.00Add to cart Special order: ships in 2 to 4 weeks
19		THREAD TAKE-UP CRANK sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301083009	$2.80Add to cart Special order: ships in 2 to 4 weeks
20		SPRING PIN 4*20 sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z000003508	$0.00Read more
21		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... More Product Details	Z301046000	$1.00Add to cart Special order: ships in 2 to 4 weeks
22		TAKE-UP LEVER CAMP sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301544003	$7.60Add to cart Special order: ships in 2 to 4 weeks
23		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301100003	$1.00Add to cart Special order: ships in 2 to 4 weeks
24		NEEDLE HOLDER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301503000	$4.40Add to cart Special order: ships in 2 to 4 weeks
25		ZIGZAG DRIVING PLATE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301043007	$1.80Add to cart Special order: ships in 2 to 4 weeks
26		COLLAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301250102	$1.00Add to cart Special order: ships in 2 to 4 weeks
27		NEEDLE BAR SUPPORTER SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301042006	$1.00Add to cart Special order: ships in 2 to 4 weeks
28		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z301016001	$1.00Add to cart Special order: ships in 2 to 4 weeks
29		WASHER sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z301245001	$1.00Add to cart Special order: ships in 2 to 4 weeks
30		ECCENTRIC PIN sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301045009	$1.00Add to cart Special order: ships in 2 to 4 weeks
31		SNAP RING 4D sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z000000206	$1.00Add to cart Special order: ships in 2 to 4 weeks
32	Not Available	SNAP RING 5D	Z000000309	Not Available
33		NEEDLE BAR SUPPORTER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250089004	$5.00Add to cart Special order: ships in 2 to 4 weeks
34		SPRING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301047001	$1.00Add to cart Special order: ships in 2 to 4 weeks
35		NEEDLE BAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z260042006	$2.40Add to cart Special order: ships in 2 to 4 weeks
36	Not Available	NEEDLE CLAMP COMP	Z260502009	Not Available
37	Not Available	NEEDLE	Z301244000	Not Available
38		TENSION RELEASE LEVER *A sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z230010002	$1.80Add to cart Special order: ships in 2 to 4 weeks
39		REVERSE BUTTON SPRING sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia... More Product Details	Z370147006	$1.00Add to cart Special order: ships in 2 to 4 weeks
40		PRESSER BAR LIFTER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z370154006	$1.00Add to cart Special order: ships in 2 to 4 weeks
41		PRESSURE BAR LIFTER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250007008	$1.00Add to cart Special order: ships in 2 to 4 weeks
42		HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301070003	$1.40Add to cart Special order: ships in 2 to 4 weeks
43		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301049003	$1.00Add to cart Special order: ships in 2 to 4 weeks
44		NEEDLE BAR STOPPING PLATE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z260028006	$1.00Add to cart Special order: ships in 2 to 4 weeks
45		Z/Z Presser Foot L/S sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia ... More Product Details	Z353012008	$2.20Add to cart Special order: ships in 2 to 4 weeks
46		Presser Foot Unit sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312 More Product Details	Z301522005	$3.00Add to cart Special order: ships in 2 to 4 weeks
47		SET SCREW sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301071004	$1.00Add to cart Special order: ships in 2 to 4 weeks
48		PRESSER BAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301061001	$2.40Add to cart Special order: ships in 2 to 4 weeks
49		GUIDE BRACKET sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301252001	$1.00Add to cart Special order: ships in 2 to 4 weeks
50		SPRING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z290026007	$1.00Add to cart Special order: ships in 2 to 4 weeks

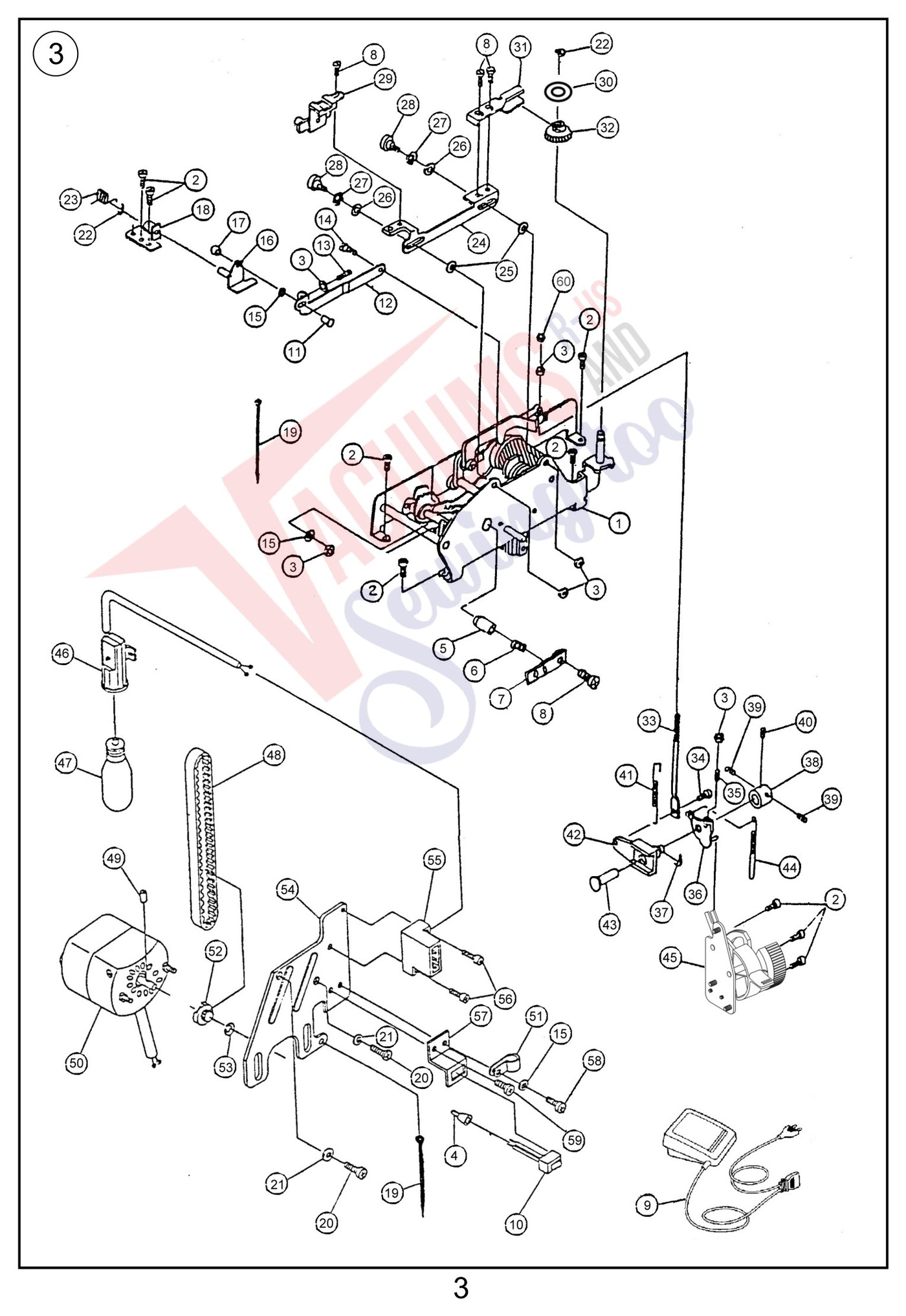

Janome 7312 exploded schematic diagram (page 3)

Click to enlarge

#	Part image	Description	SKU	Price
1		PATTERN CAM COMP sewing machine part or accessory For Janome Models: 7312 More Product Details	Z290606007	$34.40Add to cart Special order: ships in 2 to 4 weeks
2		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... More Product Details	Z301008000	$1.00Add to cart Special order: ships in 2 to 4 weeks
3		NUT sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z301151009	$1.00Add to cart Special order: ships in 2 to 4 weeks
4		CONNECTOR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301354004	$1.00Add to cart Special order: ships in 2 to 4 weeks
5		ANGLE INDEX PIN sewing machine part or accessory For Janome Models: 7312 More Product Details	Z303023007	$1.00Add to cart Special order: ships in 2 to 4 weeks
6		SPRING sewing machine part or accessory For Janome Models: 7312 More Product Details	Z303022006	$1.00Add to cart Special order: ships in 2 to 4 weeks
7		LIMITED PLATE sewing machine part or accessory For Janome Models: 7312 More Product Details	Z353006009	$1.00Add to cart Special order: ships in 2 to 4 weeks
8		SET SCREW sewing machine part or accessory For Janome Models: 7312 More Product Details	Z301185002	$1.00Add to cart Special order: ships in 2 to 4 weeks
9		Foot controller 120V sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250836004	$39.60Add to cart Special order: ships in 2 to 4 weeks
10		SWITCH COMP. (120V) sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7... More Product Details	Z370811008	$4.40Add to cart Special order: ships in 2 to 4 weeks
11		RIVETING PIN sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301212009	$1.00Add to cart Special order: ships in 2 to 4 weeks
12		ZIGZAG CONNECTING ROD sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z303005003	$1.00Add to cart Special order: ships in 2 to 4 weeks
13		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z301196006	$1.00Add to cart Special order: ships in 2 to 4 weeks
14		HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301218005	$1.00Add to cart Special order: ships in 2 to 4 weeks
15		WASHER sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z301245001	$1.00Add to cart Special order: ships in 2 to 4 weeks
16		CONNECTING CRANK sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z354004000	$1.20Add to cart Special order: ships in 2 to 4 weeks
17		SLIDE BLOCK sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301213000	$1.00Add to cart Special order: ships in 2 to 4 weeks
18		ZIGZAG MECHANISM sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250012006	$1.40Add to cart Special order: ships in 2 to 4 weeks
19		BAND sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z351047006	$0.60Read more
20		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301143008	$1.00Add to cart Special order: ships in 2 to 4 weeks
21		SPRING WASHER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z450063008	$1.00Add to cart Special order: ships in 2 to 4 weeks
22		SNAP RING 4D sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z000000206	$1.00Add to cart Special order: ships in 2 to 4 weeks
23		SPRING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301215002	$1.00Add to cart Special order: ships in 2 to 4 weeks
24		ZIGZAG ADJUSTING ROD sewing machine part or accessory For Janome Models: 7312 More Product Details	Z260019004	$1.40Add to cart Special order: ships in 2 to 4 weeks
25		7.5*12 t=0.5 WASHER sewing machine part or accessory For Janome Models: 7312 More Product Details	Z370152004	$1.00Add to cart Special order: ships in 2 to 4 weeks
26		WASHER sewing machine part or accessory For Janome Models: 7312 More Product Details	Z260022000	$1.00Add to cart Special order: ships in 2 to 4 weeks
27		WAVE WASHER sewing machine part or accessory For Janome Models: 7306, 7312, 7312 More Product Details	Z370086006	$1.00Add to cart Special order: ships in 2 to 4 weeks
28		HINGED SCREW sewing machine part or accessory For Janome Models: 7312 More Product Details	Z260021009	$1.00Add to cart Special order: ships in 2 to 4 weeks
29		ZERO ADJUSTING CRAND COMP sewing machine part or accessory For Janome Models: 7312 More Product Details	Z260601009	$1.40Add to cart Special order: ships in 2 to 4 weeks
30		ZIGZAG WIDTH DIAL PANEL sewing machine part or accessory For Janome Models: 7312 More Product Details	Z250127016	$1.00Add to cart Special order: ships in 2 to 4 weeks
31		ZIGZAG ADJUSTING ROD sewing machine part or accessory For Janome Models: 7312 More Product Details	Z230020005	$1.40Add to cart Special order: ships in 2 to 4 weeks
32		ZIGZAG WIDTH DIAL sewing machine part or accessory For Janome Models: 7312 More Product Details	Z250126015	$1.00Add to cart Special order: ships in 2 to 4 weeks
33		STRETCH STITCH ROD sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z303002000	$1.00Add to cart Special order: ships in 2 to 4 weeks
34		HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301154002	$1.00Add to cart Special order: ships in 2 to 4 weeks
35		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301289007	$1.00Add to cart Special order: ships in 2 to 4 weeks
36		ADJUSTING PLATE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250080005	$1.20Add to cart Special order: ships in 2 to 4 weeks
37		SNAP RING 9D sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z000000505	$1.00Add to cart Special order: ships in 2 to 4 weeks
38		COLLAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301153104	$1.00Add to cart Special order: ships in 2 to 4 weeks
39		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... More Product Details	Z301046000	$1.00Add to cart Special order: ships in 2 to 4 weeks
40		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z301087003	$1.00Add to cart Special order: ships in 2 to 4 weeks
41		SPRING sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301155003	$1.00Add to cart Special order: ships in 2 to 4 weeks
42		ADJUSTER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250081109	$2.40Add to cart Special order: ships in 2 to 4 weeks
43		FEED REGULATOR SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301152000	$262.00Add to cart Special order: ships in 2 to 4 weeks
44		SPRING sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z303003001	$1.00Add to cart Special order: ships in 2 to 4 weeks
45		Stitch length dial complete sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z290604005	$3.60Add to cart Special order: ships in 2 to 4 weeks
46		Light cord sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250801000	$5.20Add to cart Special order: ships in 2 to 4 weeks
47		Light bulb 120V (15W) sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia... More Product Details	Z301802105	$6.40Add to cart Special order: ships in 2 to 4 weeks
48	Not Available	TIMING BELT (200XL6MM)	Z301285003	Not Available
49		SPRING PIN 2*14 sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z000003807	$1.00Add to cart Special order: ships in 2 to 4 weeks
50		AC motor 120V (.62A 5000 RPM) sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250835003	$45.20Add to cart Special order: ships in 2 to 4 weeks

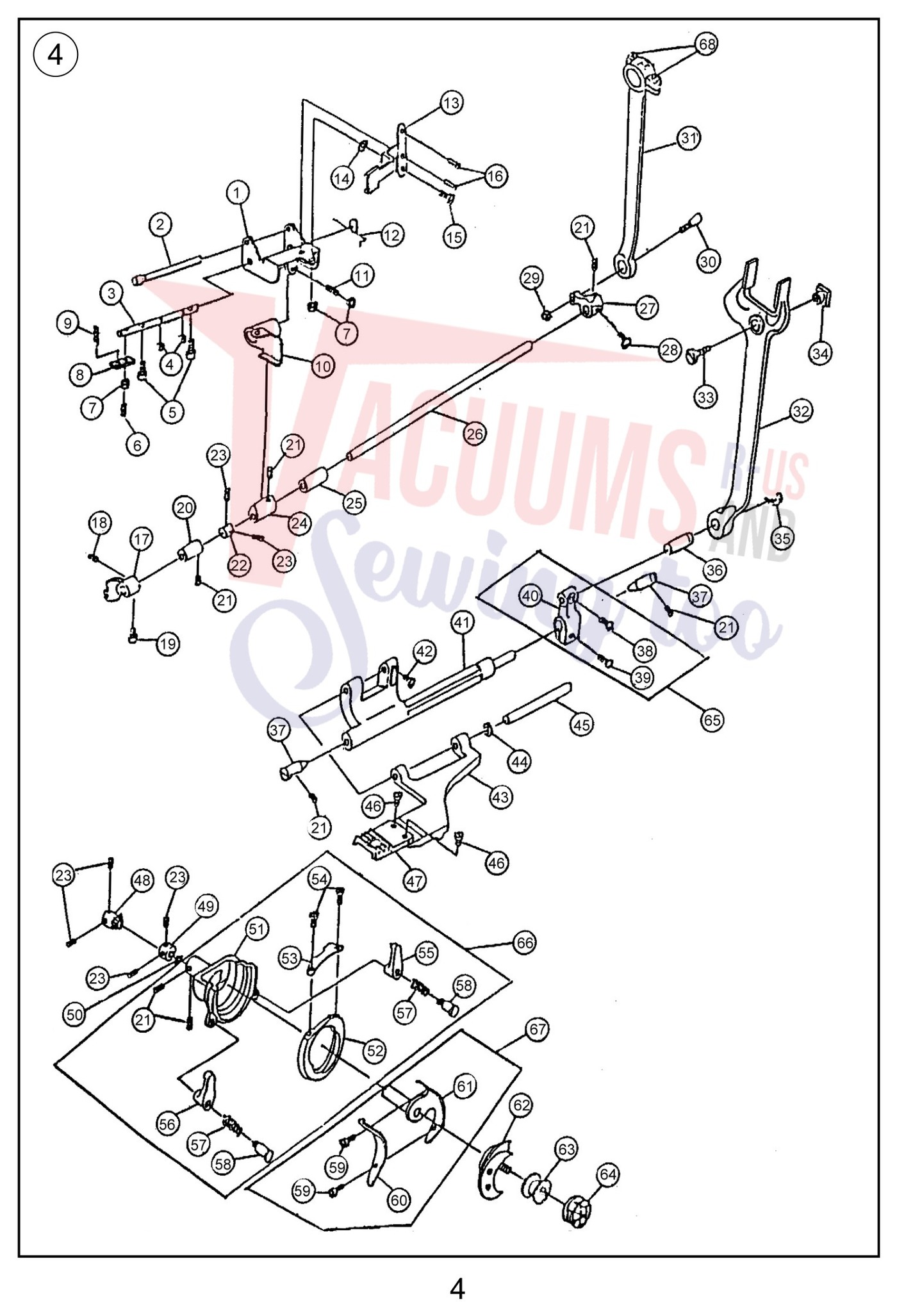

Janome 7312 exploded schematic diagram (page 4)

Click to enlarge

#	Part image	Description	SKU	Price
1		DROP FEED CRANK BODY sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301307002	$1.40Add to cart Special order: ships in 2 to 4 weeks
2		DROP FEED ADJUSTING SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301310008	$1.00Add to cart Special order: ships in 2 to 4 weeks
3		DROP FEED SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z260039000	$1.40Add to cart Special order: ships in 2 to 4 weeks
4	Not Available	SNAP RING 5D	Z000000309	Not Available
5		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z250010004	$0.60Read more
6		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312, 7312 More Product Details	Z301196006	$1.00Add to cart Special order: ships in 2 to 4 weeks
7		NUT sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z301151009	$1.00Add to cart Special order: ships in 2 to 4 weeks
8		SPRING HOLDER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301197007	$1.00Add to cart Special order: ships in 2 to 4 weeks
9		FEED DOG BASE SPRING sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia ... More Product Details	Z301181008	$1.00Add to cart Special order: ships in 2 to 4 weeks
10		DROP FEED STOPPING PLATE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301308003	$1.80Add to cart Special order: ships in 2 to 4 weeks
11		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z370041009	$1.00Add to cart Special order: ships in 2 to 4 weeks
12		SPRING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301195005	$1.00Add to cart Special order: ships in 2 to 4 weeks
13		DROP FEED DRIVING ROD sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z260043007	$1.40Add to cart Special order: ships in 2 to 4 weeks
14		WAVE WASHER sewing machine part or accessory For Janome Models: 7306, 7312, 7312 More Product Details	Z370086006	$1.00Add to cart Special order: ships in 2 to 4 weeks
15		HINGED SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7312 More Product Details	Z355010002	$1.00Add to cart Special order: ships in 2 to 4 weeks
16		SPRING PIN 2.5*8 sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z000003209	$1.00Add to cart Special order: ships in 2 to 4 weeks
17		OSCILLATING SHAFT GEAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301113010	$5.40Add to cart Special order: ships in 2 to 4 weeks
18		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301115001	$1.00Add to cart Special order: ships in 2 to 4 weeks
19		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301114000	$1.00Add to cart Special order: ships in 2 to 4 weeks
20		LOWER SHAFT FRONT BUSHING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301110006	$1.00Add to cart Special order: ships in 2 to 4 weeks
21		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z301087003	$1.00Add to cart Special order: ships in 2 to 4 weeks
22		COLLAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301112101	$1.00Add to cart Special order: ships in 2 to 4 weeks
23		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7306, 7312, 7312,... More Product Details	Z301046000	$1.00Add to cart Special order: ships in 2 to 4 weeks
24		FEED LIFTING CAM sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301182009	$1.00Add to cart Special order: ships in 2 to 4 weeks
25		LOWER SHAFT REAR BUSHING sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301111007	$1.00Add to cart Special order: ships in 2 to 4 weeks
26		LOWER SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301109002	$2.60Add to cart Special order: ships in 2 to 4 weeks
27		LOWER SHAFT BRACKET sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z353014000	$2.00Add to cart Special order: ships in 2 to 4 weeks
28		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z353015001	$1.00Add to cart Special order: ships in 2 to 4 weeks
29		NUT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301107000	$1.00Add to cart Special order: ships in 2 to 4 weeks
30		TAPER SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301106009	$1.00Add to cart Special order: ships in 2 to 4 weeks
31		CRANK ROD COMP sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301512002	$3.60Add to cart Special order: ships in 2 to 4 weeks
32		FORKED ROD sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301145000	$4.20Add to cart Special order: ships in 2 to 4 weeks
33		FORKED ROD SLIDE BLOCK DRAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301146001	$1.00Add to cart Special order: ships in 2 to 4 weeks
34		FORKED ROD SLIDE BLOCK sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301147002	$11.60Add to cart Special order: ships in 2 to 4 weeks
35		SNAP RING 6D sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z000000402	$1.00Add to cart Special order: ships in 2 to 4 weeks
36		CONNECTING PIN sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301179003	$1.00Add to cart Special order: ships in 2 to 4 weeks
37		CENTER PIN B sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301241007	$1.00Add to cart Special order: ships in 2 to 4 weeks
38		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301178002	$1.00Add to cart Special order: ships in 2 to 4 weeks
39		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301177001	$1.00Add to cart Special order: ships in 2 to 4 weeks
40		FEED ROCK SHSFT CRANK sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301176000	$2.60Add to cart Special order: ships in 2 to 4 weeks
41		FEED ROCK SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301171005	$4.00Add to cart Special order: ships in 2 to 4 weeks
42		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301131003	$1.00Add to cart Special order: ships in 2 to 4 weeks
43		FEED DOG BASE sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301172006	$2.60Add to cart Special order: ships in 2 to 4 weeks
44		SNAP RING 4D sewing machine part or accessory For Janome Models: 7306, 7306, 7306, 7312, 7312, 7312 More Product Details	Z000000206	$1.00Add to cart Special order: ships in 2 to 4 weeks
45		FEED DOG BASE SHAFT sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301173007	$1.00Add to cart Special order: ships in 2 to 4 weeks
46		SET SCREW sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301175009	$1.00Add to cart Special order: ships in 2 to 4 weeks
47		FEED DOG sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301174008	$2.80Add to cart Special order: ships in 2 to 4 weeks
48		BEVEL GEAR sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301130116	$5.80Add to cart Special order: ships in 2 to 4 weeks
49	Not Available	COLLAR	Z301129101	Not Available
50		NYLON WASHER sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z301128007	$1.00Add to cart Special order: ships in 2 to 4 weeks

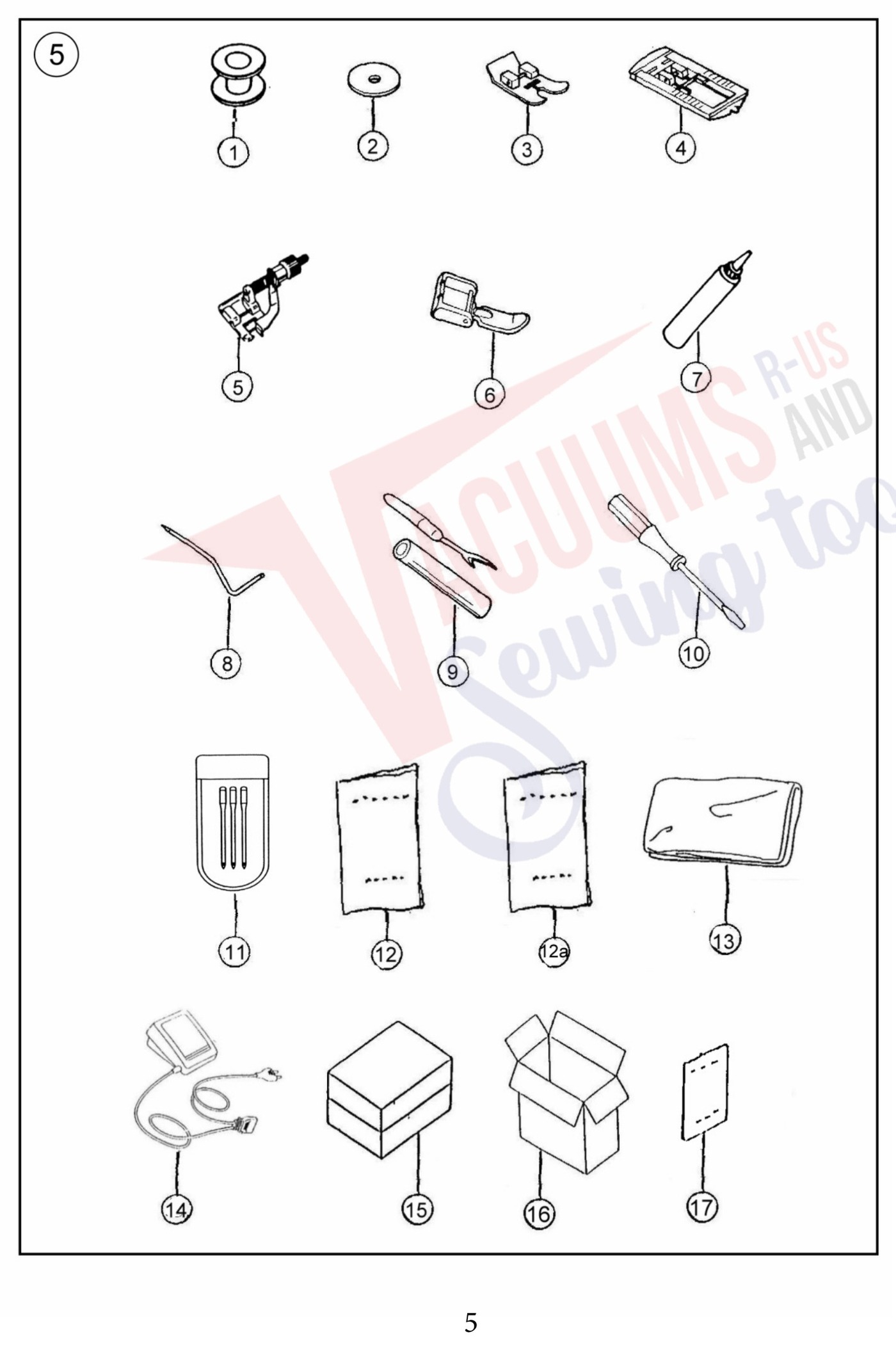

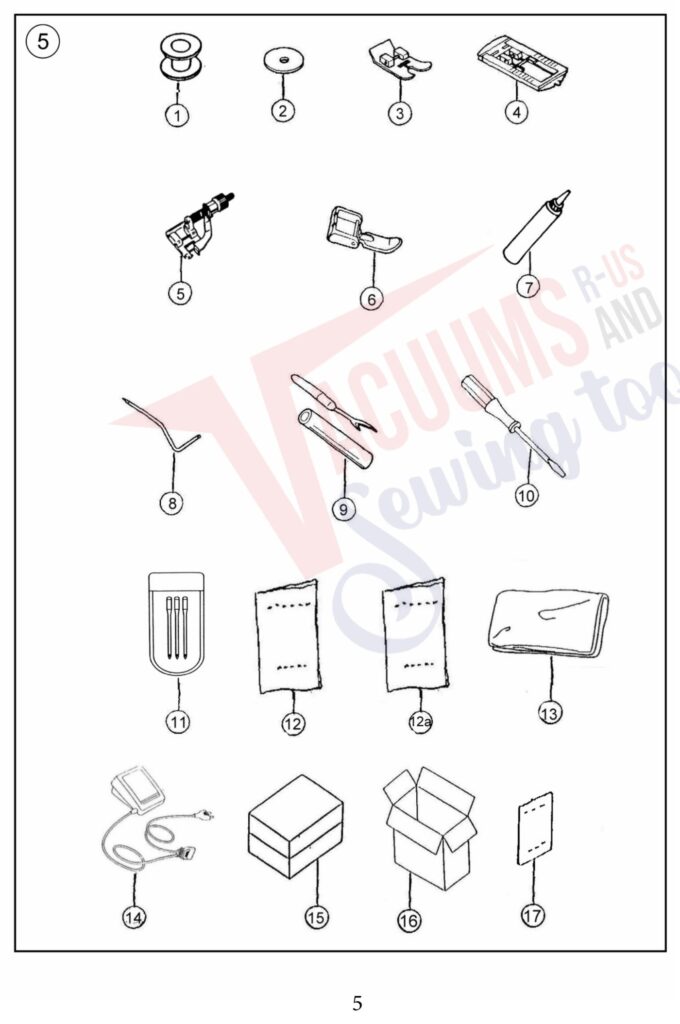

Janome 7312 exploded schematic diagram (page 5)

Click to enlarge

#	Part image	Description	SKU	Price
1	Not Available	Bobbin	Z610081004	Not Available
2		FELT sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301403009	$1.00Add to cart Special order: ships in 2 to 4 weeks
3		Z/Z Presser Foot L/S sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia ... More Product Details	Z353012008	$2.20Add to cart Special order: ships in 2 to 4 weeks
4		Buttonhole foot sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312 More Product Details	Z303401003	$1.40Add to cart Special order: ships in 2 to 4 weeks
5		Blind Hem Foot (5mm) sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia ... More Product Details	Z353431007	$2.40Add to cart Special order: ships in 2 to 4 weeks
6		Zipper Foot sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312 More Product Details	Z301438003	$5.20Add to cart Special order: ships in 2 to 4 weeks
7		OIL KETTLE sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z353409006	$1.00Add to cart Special order: ships in 2 to 4 weeks
8		Quilting Guide sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312 More Product Details	Z301434009	$1.00Add to cart Special order: ships in 2 to 4 weeks
9		BUTTONHOLE KNIFE sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z303403005	$1.00Add to cart Special order: ships in 2 to 4 weeks
10		SCREW DRIVER sewing machine part or accessory For Janome Models: Magnolia 7306, Magnolia 7312, More Product Details	Z301440008	$1.20Add to cart Special order: ships in 2 to 4 weeks
11		NEEDLE BAG sewing machine part or accessory For Janome Models: 7306, 7312 More Product Details	Z270660029	$11.99Add to cart Special order: ships in 2 to 4 weeks
12	Not Available	INSTRUCTION MANUAL (English)	Z290406005	Not Available
13		INSTRUCTION MANUAL (Spanish) sewing machine part or accessory For Janome Models: 7312 More Product Details	Z290417009	$7.99Add to cart Special order: ships in 2 to 4 weeks
14	Not Available	Vinyl Dust Cover	Z353435001	Not Available
15		CONTROLLER COMP (120V FDM) sewing machine part or accessory For Janome Models: 7312 More Product Details	Z250436004	$45.54Read more
16	Not Available	POLYFOAM COMP.	Z290404003	Not Available
17	Not Available	CARTON(AMERICA)	Z292701009-1	Not Available

Report errors on this page HERE

Schematic and parts book for Janome 7312 7312

Compatible with 1 Janome model

Shop

Parts & Supplies

Service & Help

Company

Your cart (items: 0)
