Schematic and parts book for Janome 504D 504D. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides replacement parts and accessories for vacuum cleaners, sewing machines, and other small appliances for repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Front cover unit | 791602001 | Not Available |
| 2 | Not Available | Front cover | 791002108 | Not Available |
| 3 |  | Sticker sewing machine part or accessory For Elna Models: EL664P | 888261007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | UPPER LOOPER THREAD GUIDE sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D,... | 787131001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Looper thread guide sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 787132002 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Needle thread guide sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D, 734D,... | 788063004 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | thread take-up lever cover sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D... | 788059007 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Thread guide (R) sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D, 734D, 74... | 788060001 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle thread guide (L) sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 788115002 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Needle thread guide sewing machine part or accessory For Janome Models: 644D, 734D, 744D, HF504D,... | 788107001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Sticker | 791003006 | $4.22Read more |
| 13 |  | PANEL SET PLATE (R1) sewing machine part or accessory 788105009 PANEL SET PLATE (R1) | 788105009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Janome/Elna BINDING HEAD SMALL SCREW 4X8-6 For: 1110DX, 203, 204D, 4045LX, 4045NX, 4119... | 000103417 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Thread guide cover | 791004100 | Not Available |
| 17 | No Image | Chaining Finger Bracket Unit | 790604000 | $0.00Read more |
| 18 |  | Chaining Finger Unit for MyLock 634D sewing machine part or accessory For Janome Models: 1110DX, ... | 788605004 | $8.80Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | CHAINING FINGER SET PLATE sewing machine part or accessory For Janome Models: 1110DX SRV | 788016002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Chaining finger sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D, 64... | 788017003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | NEEDLE PLATE SETTING KNOB sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D,... | 787041003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Chaining finger spring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 6... | 788018004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Setscrew | 820373003 | $0.20Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Set Screw | 000168926 | $0.32Read more |
| 25 |  | Fixed Needle Guard for MyLock 644D sewing machine part or accessory For Janome Models: 644D, HF504D | 790007007 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Thread tension set plate unit | 783612004 | Not Available |
| 2 | | LEFT NEEDLE TENSION UNIT 634D sewing machine part or accessory For Janome Models: 634D, 644D, 734... | 788503001 | $17.80Read more |
| 3 | | Right needle thread dial sewing machine part or accessory 788504002 Right needle thread tension d... | 788504002 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Upper looper thread tension dial (unit) (634D) sewing machine part or accessory For Janome Models... | 788505003 | $15.60Read more |
| 5 | | LOWER LOOPER TENSION UNIT/634D sewing machine part or accessory For Janome Models: 634D, 644D, 73... | 788506004 | $17.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | THREAD TENSION DIAL SET PLATE sewing machine part or accessory For Janome Models: 1110DX SRV | 788049004 | $6.40Read more |
| 8 |  | Tension thread guide plate sewing machine part or accessory For Janome Models: 634D (V2) | 787129006 | $3.80Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | THREAD TENSION REL. SHAFT 634D sewing machine part or accessory For Janome Models: 1110DX, 434DR,... | 788613005 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Thread tension release shaft sewing machine part or accessory For Janome Models: 1110DX, 434DR, 6... | 788054002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Cam ring sewing machine part or accessory For Janome Models: 1110DX, 434DR, 634D, 644D, 734D, 744... | 788056004 | $1.84Read more |
| 14 |  | Thread tension release lever sewing machine part or accessory For Janome Models: HF7933, Necchi S34 | 788055003 | $0.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | Cam ring (2) | 788095005 | Not Available |
| 16 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Thread Tension Release Link | 788089006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Accessory unit | 791801107 | Not Available |
| 2 |  | Accessory Box for MyLock 504D sewing machine part or accessory For Janome Models: 644D, HF504D | 787805003 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | SCREW DRIVER LARGE FOR MYLOCK sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 784810002 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Genuine Janome/Elna Small screw driver For: 104, 106, 108, 110, 1110DX, 134D, 1600P, 1600P-DB, ... | 647803004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Tweezers sewing machine part or accessory For Janome Models: MB7 | 888804008 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Genuine Janome/Elna Spool Net For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-Q... | 624806006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Genuine Janome/Elna LARGE SPOOL HOLDER For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX... | 822020503 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Genuine Janome/Elna Lint Brush For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P-DBX, 1600P-... | 802424004 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Assorted Needle Set HAx1SP sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D... | 784860100 | $8.10Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle threader sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 644D, 734D, ... | 200254502 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Instruction Book (E/F/S) | 791810004 | $20.49Read more |
| 12 |  | Waste Chip Box | 791006102 | $7.40Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Thread #60 200m sewing machine part or accessory For Janome Models: 9002D SRV | 777812002 | $6.80Read more |
| 14 |  | Elna and Janome Foot Control and Power Cord | C1028 | $49.99Add to cart |
| 15 | No Image | Video Tape (Pal) | 791811005 | $28.72Read more |
| 16 | | Oil sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1110DX, 360, 3... | 741814003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Vinyl Dust Cover sewing machine part or accessory For Janome Models: 634D, 644D, HF504D, ML303 | 785808000 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Blind Stitch Foot | 200203104 | Not Available |
| 2 |  | Genuine Janome/Elna Taping Foot B with Tape Reel
Comes in Red and White Box, branded Janome For:... | 200204208 | $37.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Cording Foot A sewing machine part or accessory For Janome Models: Use with: 1110DX, 204D, 434DR,... | 200207108 | $31.99Read more |
| 4 | Not Available | Cording Foot B | 200208109 | Not Available |
| 5 | Not Available | Beading Attachment | 200214108 | Not Available |
| 6 | Not Available | Gathering Attachment | 200217101 | Not Available |
| 7 | Not Available | Elastic Attachment | 200218102 | Not Available |
| 8 | Not Available | Cloth Guide | 200216100 | Not Available |
| 9 |  | 1/8 Piping Foot sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D, 64... | 200219103 | $21.90Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | 3/16 Piping Foot | 200220107 | Not Available |
| 11 |  | Gathering Foot | 200248101 | $41.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 |  | UPPER LOOPER SHAFT 434/434D sewing machine part or accessory For Janome Models: 204D, 434D, 434DR... | 787618007 | $41.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Upper looper shaft sewing machine part or accessory For Janome Models: 204D, 434D, 434DR, 534, 53... | 787111005 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Upper looper sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 634D, 644D, ... | 784076019 | $51.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw (2.0 mm) sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 234D, ... | 000112501 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Upper Looper Thread Guide for Sergers sewing machine part or accessory For Janome Models: 1110DX,... | 784077009 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Hexagonal socket screw 3x6 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 120... | 000177205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Upper Looper Pin Unit sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434... | 787632007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | UPPER LOOPER PIN sewing machine part or accessory For Janome Models: 1110DX SRV | 787115009 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | STRING sewing machine part or accessory For Janome Models: 1110DX SRV | 787192000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Upper looper shaft guide unit sewing machine part or accessory For Janome Models: 001634D | 787619008 | $12.80Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Upper looper shaft guide sewing machine part or accessory For Janome Models: 001634D | 787112006 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Bushing sewing machine part or accessory For Janome Models: 001634D | 787113007 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | RING FOR 434D sewing machine part or accessory For Janome Models: 1000CP, 1110DX, 434D, 434DR, 53... | 787106007 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Bushing | 787104005 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Upper Looper Crank Shaft | 787105006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | CRANK SPACER sewing machine part or accessory For Janome Models: 134D, 204D, 434D, 434DR, 534, 53... | 787107008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Hinge Screw 234D 634D 888 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D,... | 787108009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Lower looper (unit) sewing machine part or accessory For Elna Models: ELES4 | 788610208 | $23.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | LOWER LOOPER DRIVE ARM 634D sewing machine part or accessory For Janome Models: 1110DX, 634D, 644... | 785024107 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Lower looper sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 634D, 644D, ... | 784083606 | $25.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Rear Needle Guard for MyLock 644D and 634D sewing machine part or accessory For Janome Models: 11... | 788042007 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | FRONT NEEDLE GUARD sewing machine part or accessory | 790008008 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Hexagonal socket screw 3x4 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D... | 000099006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 | | UPPER LOOPER DRIVE ARM 634D/43 sewing machine part or accessory For Janome Models: 204D, 434D, 43... | 787109000 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Hexagon Bolt sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000138008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Lower looper thread guide sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D,... | 788038000 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Setscrew 4 x 8 sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D, 888 COMPUL... | 000101415 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | THREAD GUIDE SUPPORT FOR 644D sewing machine part or accessory For Janome Models: 644D, HF504D | 790605001 | $19.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 32 |  | HINGE SCREW (2) sewing machine part or accessory | 788048003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | LOWER LOOPER SPRING sewing machine part or accessory | 790012005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Looper thread guide sewing machine part or accessory For Janome Models: 504D | 790011107 | $5.91Read more |
| 35 |  | Hinge screw (1) sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D, 734D, 744... | 788047002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Looper thread guide sewing machine part or accessory For Janome Models: 504D | 790010106 | $6.55Read more |
| 37 |  | THREAD GUIDE SUPPORTER sewing machine part or accessory | 790009009 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

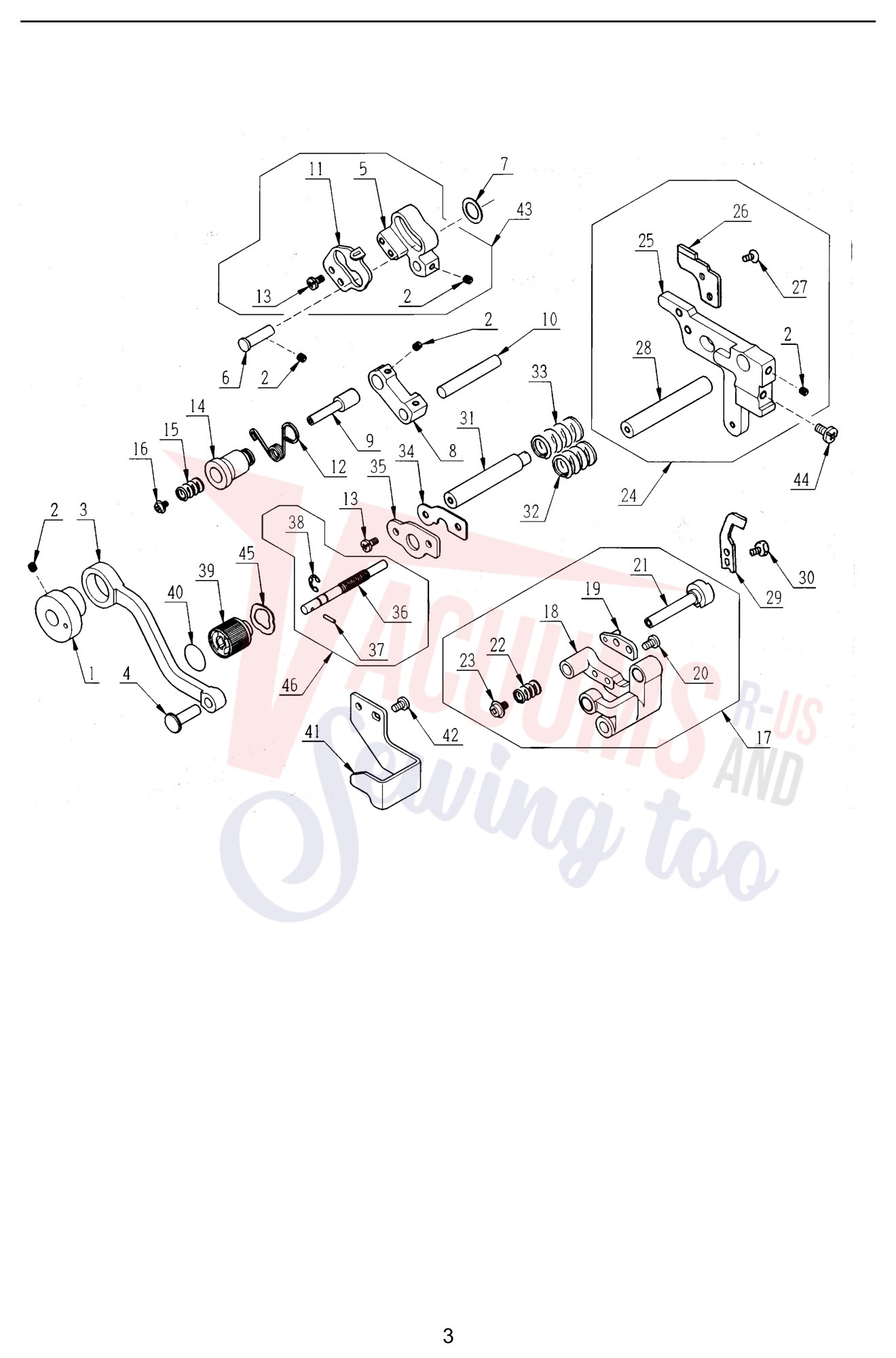

| 1 | | Upper knife drive cam sewing machine part or accessory For Janome Models: 504D | 888040008 | $9.72Read more |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | UPPER KNIFE ROD sewing machine part or accessory For Janome Models: 644D, HF504D | 790002002 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Pin sewing machine part or accessory For Janome Models: 204D, 644D, 734D, 744D, 888 COMPULOCK, HF... | 888100007 | $1.00Read more |
| 5 |  | UPPER KNIFE BRACKET sewing machine part or accessory 888042000 UPPER KNIFE BRACKET | 888042000 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | PIN sewing machine part or accessory | 888043001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer 8x0.5 sewing machine part or accessory For Janome Models: 2040, 3022, 3160QDC, 4045LX, 404... | 000038502 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Upper knife rink sewing machine part or accessory For Janome Models: 504D | 888044002 | $3.27Read more |
| 9 | | Upper knife pin sewing machine part or accessory For Janome Models: 504D | 888045003 | $2.64Read more |
| 10 | | Upper knife rink pin sewing machine part or accessory For Janome Models: 504D | 888046004 | $1.27Read more |
| 11 | | Plate sewing machine part or accessory For Janome Models: 504D | 888047005 | $1.90Read more |
| 12 | | UPPER KNIFE SPRING sewing machine part or accessory | 888065009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Genuine Janome/Elna BINDING HEAD SMALL SCREW 4X8-6 For: 1110DX, 203, 204D, 4045LX, 4045NX, 4119... | 000103417 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | UPPER KNIFE KNOB sewing machine part or accessory | 888048006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Spring sewing machine part or accessory For Janome Models: 504D | 888049007 | $0.32Read more |
| 16 |  | Tapping setscrew 3x4 sewing machine part or accessory For Janome Models: 134D, 204D, 4048/8048/HF... | 000114709 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Upper knife drive arm unit sewing machine part or accessory For Janome Models: 504D | 790601007 | $30.00Read more |
| 18 |  | UPPER KNIFE DRIVE ARM sewing machine part or accessory | 790003003 | $13.60Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | UPPER KNIFE GUIDE sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 23... | 784041004 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Setscrew | 810220106 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Upper knife supporter | 888054005 | Not Available |
| 22 | | Spring sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D, 334, 43... | 784043006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | LOWER KNIFE BASE FOR 644D sewing machine part or accessory For Janome Models: 644D, HF504D | 790602008 | $27.60Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | LOWER KNIFE BRACKET sewing machine part or accessory | 790004004 | $11.60Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Lower Knife Bp-1 3434D/7933 | 202138000 | $38.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SET SCREW 4X6 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 434D, 434DR... | 000102221 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Upper knife shaft sewing machine part or accessory For Janome Models: 504D | 888058009 | $2.11Read more |
| 29 |  | UPPER KNIFE ROD 644D sewing machine part or accessory For Janome Models: 644D, HF504D | 790005005 | $15.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Hexagon Bolt (7mm) sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 2... | 624303008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Lower knife bracket sewing machine part or accessory For Janome Models: 504D | 888059000 | $8.24Read more |
| 32 | | SPRING (R) sewing machine part or accessory | 790022008 | $0.60Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Spring sewing machine part or accessory For Janome Models: 644D, 734D, 744D, 888 COMPULOCK, HF504D | 888231008 | $0.60Read more |
| 34 | | Guide plate sewing machine part or accessory For Janome Models: 504D | 888061005 | $1.16Read more |
| 35 | | Supportplate sewing machine part or accessory For Janome Models: 504D | 888062006 | $1.27Read more |
| 36 | | Lower knife pin sewing machine part or accessory For Janome Models: 504D | 790006006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Pin 2x8 sewing machine part or accessory For Janome Models: 2040, 2139N, 3022, 3160QDC, 4045LX, 4... | 000003508 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | SNAP RING E-4 9 6 4 5500 5001 sewing machine part or accessory For Janome Models: 1017, 104, 106,... | 000002507 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Lower Knife Setting Knob sewing machine part or accessory For Janome Models: 644D, 888 COMPULOCK,... | 888064008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 40 | | Sticker sewing machine part or accessory For Janome Models: 644D, 734D, 744D, 888 COMPULOCK, HF504D | 888207005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | SETTING PLATE sewing machine part or accessory | 790017000 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | UPPER KNIFE BRACKET sewing machine part or accessory | 888662002 | $6.40Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Setscrew 4x8 sewing machine part or accessory For Janome Models: 1000CPX, 204D, 434DR, 644D, 7034... | 000081016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Washer sewing machine part or accessory For Janome Models: 644D, 734D, 744D, 888 COMPULOCK, HF504D | 000116701 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | LOWER KNIFE PIN UNIT sewing machine part or accessory | 790603009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

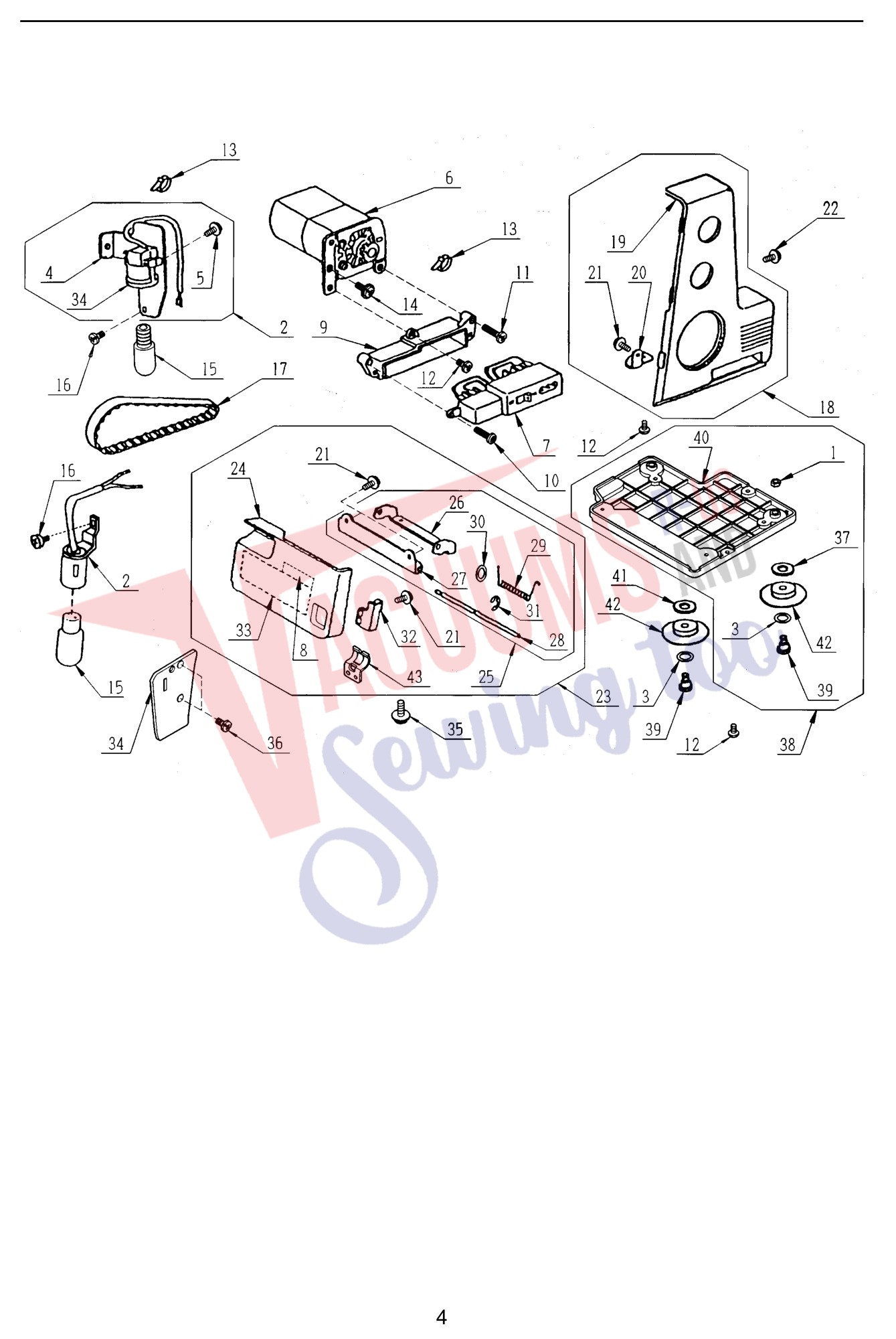

| 1 |  | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | MACHINE SOCKET UNIT 434/434D sewing machine part or accessory For Janome Models: 1000CP, 1110DX, ... | 787510008 | $39.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 000070300 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Lamp Socket Set Plate sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434... | 787026002 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | SET SCREW-9 7 4 3123 4123 5500 Skyline S5 sewing machine part or accessory For Janome Models: 100... | 000120203 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | MOTOR UNIT sewing machine part or accessory For Janome Models: 1110DX SRV | M-1049A | $53.20Read more |
| 7 |  | Machine Socket Unit sewing machine part or accessory For Janome Models: 1000CP, 7034D, 734D, 744D... | 777504101 | $18.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Machine Socket Cover sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 434D... | 784128028 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | TAPPING SCREW sewing machine part or accessory For Janome Models: 1017, 1110DX, 134D, 2003P, 2018... | 000121905 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | SET SCREW 3.5X8 sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1... | 000104108 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | MOTOR SET SCREW 2018E 5X10-7 7 sewing machine part or accessory For Janome Models: 1017, 104, 106... | 000115504 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Light Bulb sewing machine part or accessory For Janome Models: 1000CP, 104, 106, 108, 110, 1100D,... | 000009803 | $4.40Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Motor Belt for Sergers sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204... | 784124002 | $11.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Belt Cover Unit sewing machine part or accessory For Janome Models: 644D, HF504D | 787660004 | $14.40Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Belt cover sewing machine part or accessory For Janome Models: 504D | 787310109 | $14.05Read more |
| 20 | | Belt cover set plate sewing machine part or accessory For Janome Models: 634D (V2) | 787158004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | TP screw 4x8 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, ... | 000115618 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Looper cover unit (U.S.A.) | 791603002 | Not Available |
| 24 | No Image | Looper Cover | 791005101 | $6.76Read more |
| 25 | | Looper cover hinge unit sewing machine part or accessory For Janome Models: 504D | 787626101 | $12.14Read more |
| 26 | | LOOPER COVER SUPPORTER sewing machine part or accessory For Janome Models: 1110DX SRV | 787151007 | $2.60Read more |
| 27 | No Image | Looper Cover Hinge | 788117004 | $2.85Read more |
| 28 | | LOOPER COVER HINGE PIN sewing machine part or accessory For Janome Models: 1110DX SRV | 784121010 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | LOOPER COVER HINGE SPRING sewing machine part or accessory For Janome Models: 1110DX SRV | 784122000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 1117S, 134D, 1600P, 1600P-DB, ... | 000071013 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 32 |  | STOPPER sewing machine part or accessory | 787304007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | STITCH CHART sewing machine part or accessory For Janome Models: 204D, 644D, 7034D, 734D, 744D, 9... | 789028000 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Looper cover guide sewing machine part or accessory For Janome Models: 504D | 790016009 | $2.11Read more |
| 35 | | TP SET SCREW 4 X 6-8 6 4 3123 sewing machine part or accessory For Janome Models: 1017, 1110DX, 1... | 000115205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Set Screw sewing machine part or accessory For Janome Models: MC4900, MC5000, MC5700, MC8000, MC8... | 000078320 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Washer (2) sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 434D, 434DR, 5... | 787204006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | BOTTOM PLATE UNIT 204D sewing machine part or accessory For Janome Models: 644D, 9002D, HF504D, H... | 789610005 | $15.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | Rubber foot setscrew | 784169009 | Not Available |
| 40 | | Base plate sewing machine part or accessory For Janome Models: 9002D SRV | 789025007 | $7.40Read more |
| 41 | | Washer sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600P-D... | 785260004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | Serger Cushion sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB,... | 784135006 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 43 | | Holder sewing machine part or accessory For Janome Models: 504D | 790014007 | $1.27Read more |
| # | Part image | Description | SKU | Price |
| 1 | | Needle bar upper bushing sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 2... | 784027004 | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Needle Bar Lower Bushing | 784028005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | NEEDLE BAR UNIT 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, ... | 787606002 | $17.80Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | NEEDLE BAR sewing machine part or accessory For Janome Models: 1110DX SRV | 787015008 | $11.20Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | SPRING PINS sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D, 33... | 000022307 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | NEEDLE CLAMP UNIT sewing machine part or accessory | 785557001 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle Clamp sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 334, 434D, 4... | 785004020 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Needle Clamp Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 234D, ... | 785008024 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle Clamp Screw (Sergers) sewing machine part or accessory For Janome Models: 1110DX, 134D, 20... | 785026017 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Thread Guide sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 234D, 334, 4... | 785009003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Needle HAx1 SP-14 sewing machine part or accessory For Elna Models: EL664P | 784157015 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | CONNECTING STUD sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D... | 784024001 | $4.60Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Thread Take-Up Lever | 788004007 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | SET SCREW 3X6-9 8 6 4 3123 750 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000078319 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | FELT (1) sewing machine part or accessory For Janome Models: 1110DX SRV | 787027003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Oil wick sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC... | 763033204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Snap ring E-7 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, ... | 000002909 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | BALANCE WEIGHT sewing machine part or accessory | 784167007 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Needle bar balance weight pin sewing machine part or accessory For Janome Models: 001634D | 787346001 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Needle bar balance weight sewing machine part or accessory For Janome Models: 001634D | 787347002 | $3.40Read more |
| 22 |  | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | NEEDLE BAR CRANK UNIT sewing machine part or accessory | 789603005 | $13.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | NEEDLE BAR CRANK sewing machine part or accessory For Janome Models: 1110DX SRV | 787021007 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Needle Bar Link | 789007003 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Needle Bar Crank Shaft | 789008004 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | SET SCREW sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1... | 618070004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | THRUST STOPPER COMBI 222 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 203... | 624245001 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Link pin sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D, 334, ... | 784022009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Needle bar balance weight unit sewing machine part or accessory For Janome Models: 001634D | 787686006 | $5.80Read more |
| 31 |  | Bushing | 789002008 | $3.20Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Looper cam ring unit sewing machine part or accessory For Janome Models: 734D SRV | 784602102 | $21.40Read more |
| 33 | | Needle bar cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 7034... | 787007100 | $9.60Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Needle bar crank rod sewing machine part or accessory For Janome Models: 734D SRV | 789004000 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Upper Looper Cam | 787004107 | $5.40Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Balance weight sewing machine part or accessory For Janome Models: 204D | 888012001 | $3.38Read more |
| 37 |  | Upper shaft ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134... | 619006002 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Bushing | 789003009 | $5.60Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | Main shaft unit sewing machine part or accessory For Janome Models: 204D | 789601003 | $10.00Read more |
| 40 | No Image | Main Shaft | 789001007 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | HAND WHEEL 888 sewing machine part or accessory For Janome Models: 134D, 204D, 644D, 888 COMPULOC... | 784019302 | $7.60Read more |
| 42 | | Washer sewing machine part or accessory For Janome Models: 134D, 1600P, 1600P-DB, 1600P-DBX, 1600... | 556047007 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 43 |  | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 44 |  | Washer sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1110DX, 2040... | 000038605 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |

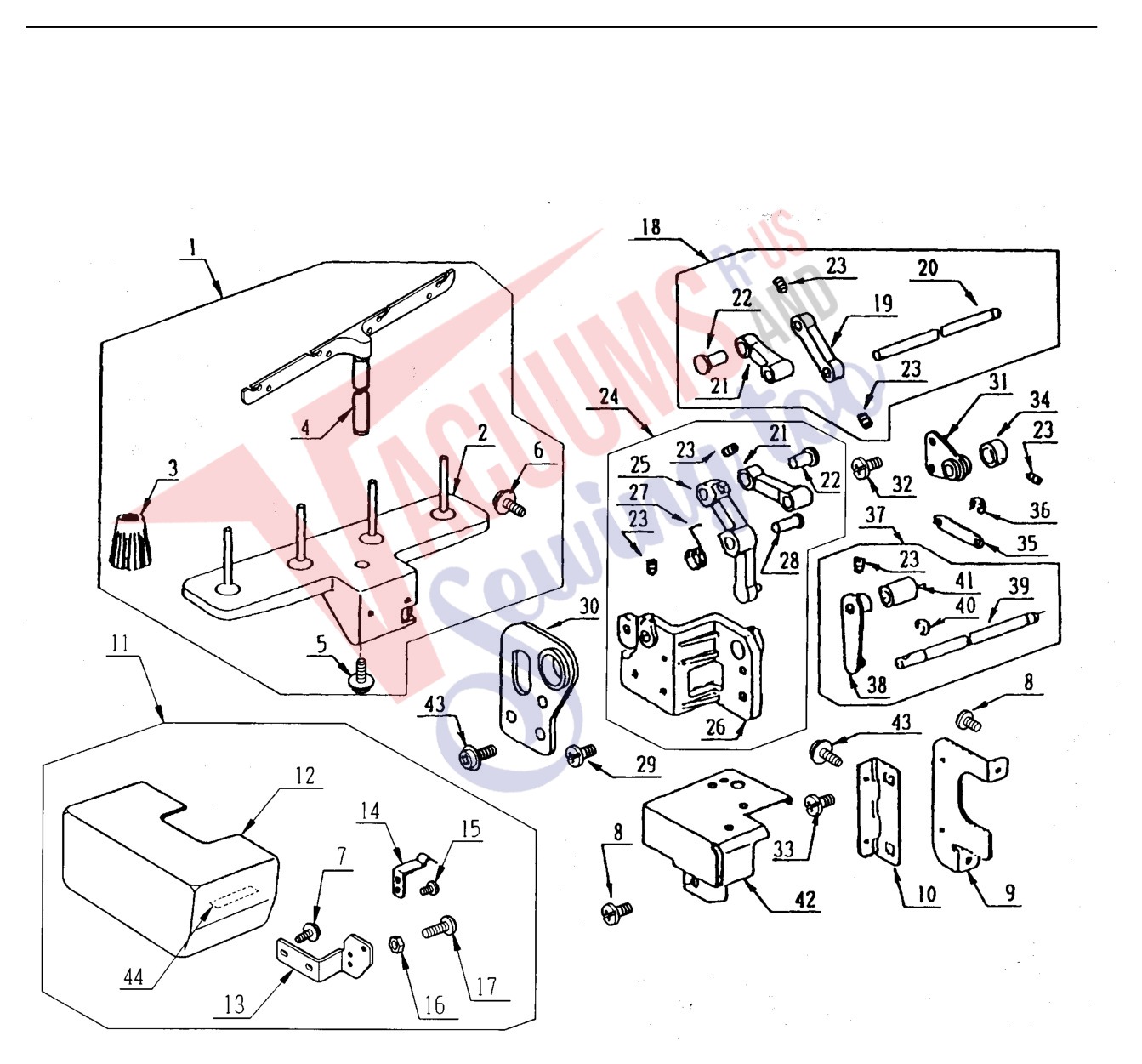

| 1 | | THREAD STAND 6002 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 204D, 644D... | 789606008 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | THREAD STAND 6002 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 134D, 204D... | 777011003 | $47.00Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Genuine Janome/Elna SPOOL HOLDER 784223002 For: 1000CP, 1000CPX, 1110DX, 1600P, 1600P-DB, 1600P... | 784223105 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | THREAD GUIDE STAND UNIT 204D sewing machine part or accessory For Janome Models: 1000CP, 1000CPX,... | 789607009 | $23.60Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Tapping screw 4x12 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1100D, 11... | 000114802 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | HINGE 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534... | 787165004 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Side Cover Hinge Unit sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434... | 787507002 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Side Plate Unit | 790608107 | $10.00Read more |
| 12 | | Side cover sewing machine part or accessory For Janome Models: 504D | 790018012 | $17.64Read more |
| 13 |  | SIDE COVER SPRING BASE sewing machine part or accessory | 790019002 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Side cover spring sewing machine part or accessory For Elna Models: EL864 | 787163002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Genuine Janome/Elna +-BINDING HEAD SML SCREW 3X5-9 For: 104, 106, 108, 110, 1110DX, 134D, 1600P... | 000103808 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | ADJUSTING NUT sewing machine part or accessory For Janome Models: 1110DX SRV | 000160009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | SETSCREW sewing machine part or accessory For Janome Models: 1110DX SRV | 000104902 | $0.80Read more |
| 18 |  | Main feed con. arm unit sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 4... | 787637002 | $7.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Main feed con. arm 2 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434D... | 787197005 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Main feed con. shaft sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434D... | 787198006 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Feed link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534... | 787067005 | $1.60Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Feed connecting pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR... | 787195003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Feed Regulator Unit sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 534D... | 787656007 | $19.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Sub feed connecting arm 3 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D,... | 787194002 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | FEED REGULATOR sewing machine part or accessory For Janome Models: 1110DX SRV | 787074005 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Spring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 534D, 634D, 644D,... | 787301004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | Con. arm pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534D,... | 787076007 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1110DX, 1117S, ... | 000103509 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Main shaft set plate (C) sewing machine part or accessory For Janome Models: 204D | 787354002 | $3.00Read more |
| 31 |  | ARM HOLER 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR,... | 787077008 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Set Screw sewing machine part or accessory For Janome Models: 1017, 1110DX, 1117S, 134D, 2003P, 2... | 810220003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Ring sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 63... | 650136009 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Feed con arm link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, ... | 787081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 37 |  | MAIN FEED CONNECTING ARM (B) UNIT sewing machine part or accessory For Janome Models: 1110DX SRV | 787655109 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | MAIN FEED CONNECTING ARM (2) sewing machine part or accessory For Janome Models: 1110DX SRV | 787193001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 39 | | SUB FEED CONNECTING ARM (B) sewing machine part or accessory For Janome Models: 1110DX SRV | 787270003 | $1.80Read more |
| 40 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Feed shaft bushing (front) sewing machine part or accessory 625144002 Feed shaft bushing (front) | 625144002 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Feed bar cover sewing machine part or accessory For Janome Models: 204D | 789020002 | $3.40Read more |
| 43 | | TP screw 4x8 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, ... | 000115618 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Caution sticker (UL) sewing machine part or accessory For Janome Models: 1600P-QC, 204D, 2139N, 4... | 830312016 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | | Face plate unit sewing machine part or accessory For Janome Models: 504D | 791601000 | $13.09Read more |
| 2 | No Image | Face Plate | 791001004 | $2.96Read more |
| 3 |  | Thread Cutter Unit sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 1... | 840602006 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1117S, 134D, 203, 204D, 211... | 000115607 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | STICKER 434/434D sewing machine part or accessory For Janome Models: 1110DX, 434D, 434DR, 634D, 6... | 787031000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Set Screw 4x10 MOTOR-9 8 4 41 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX... | 000115700 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Needle Plate sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D, 644D,... | 788601000 | $38.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Needle Plate Eccentric Pin sewing machine part or accessory For Janome Models: 203, 204D, 234D, 3... | 784004005 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Needle Plate Screw sewing machine part or accessory For Janome Models: MC200E, MC2400, MC3000, MC... | 681009101 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Top cover sewing machine part or accessory For Janome Models: 644D, HF504D | 788113206 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Sticker sewing machine part or accessory For Janome Models: 106, 108, 110, 2018S, 2041, 2041LX, 2... | 100411104 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Wire tie band skb-1m sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110... | 000053008 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Rear cover unit sewing machine part or accessory For Janome Models: 204D | 787648109 | $21.44Read more |
| 16 | | Rear cover sewing machine part or accessory For Janome Models: 204D | 787293208 | $18.48Read more |
| 17 | | Finger Guard sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, ... | 787173005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | BACK COVER SET PLATE sewing machine part or accessory For Janome Models: 1110DX SRV | 787174006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Setscrew 3x8 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134D, 2... | 000149301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Back cover set plate sewing machine part or accessory For Janome Models: 204D, 644D, 7034D, HF343... | 787294106 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | Presser Foot Lifter | 650032015 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | HINGE SCREW 5001 sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 134... | 810431009 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Presser adjusting screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 4... | 777013005 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | PRESSER ADJUSTING SCREW BRACKET sewing machine part or accessory For Janome Models: 1110DX SRV | 788005008 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | SET SCREW 4 X 16 sewing machine part or accessory For Janome Models: 1110DX, 204D, 4045LX, 4045NX... | 000104706 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Presser Bar Bushing (Upper) | 777002001 | $0.80Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | SRRING FOR 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR... | 787020006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | PRESSER BAR GUIDE BRACKET sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 11... | 724118007 | $7.60Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Hexagon Screw (2.5 mm) sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017,... | 000111304 | $1.00Read more |
| 30 |  | PRESSER BAR 434/434D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434D... | 787019002 | $9.80Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Presser foot unit sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D, ... | 788501009 | $17.30Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Presser Foot Holder sewing machine part or accessory For Janome Models: 104D, 134D, 203, 234, 234... | 787541008 | $10.40Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Standard Presser Foot sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 63... | 788502000 | $24.20Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Thumb Screw sewing machine part or accessory For Janome Models: 134D, 2018S, 203, 2041, 2041LX, 2... | 763048006 | $1.80Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | TP screw 4x8 sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, ... | 000115618 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | OIL CASE UNIT sewing machine part or accessory For Janome Models: 204D, 644D, HF504D | 789602004 | $5.20Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Oil case sewing machine part or accessory For Janome Models: 204D | 789005001 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | Felt sewing machine part or accessory For Janome Models: 204D | 789006002 | $1.00Read more |
| 39 | | Strings sewing machine part or accessory For Janome Models: 204D | 763033307 | $0.74Read more |
| 40 | | Oil wick sewing machine part or accessory For Janome Models: 1600P, 1600P-DB, 1600P-DBX, 1600P-QC... | 763033204 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | SNAP RING CS-4 9 8 4 6 3123 sewing machine part or accessory For Janome Models: 1200D, 134D, 1600... | 000014007 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Genuine Janome/Elna BINDING HEAD SMALL SCREW 4X8-6 For: 1110DX, 203, 204D, 4045LX, 4045NX, 4119... | 000103417 | $1.00Add to cart Special order: ships in 2 to 4 weeks |

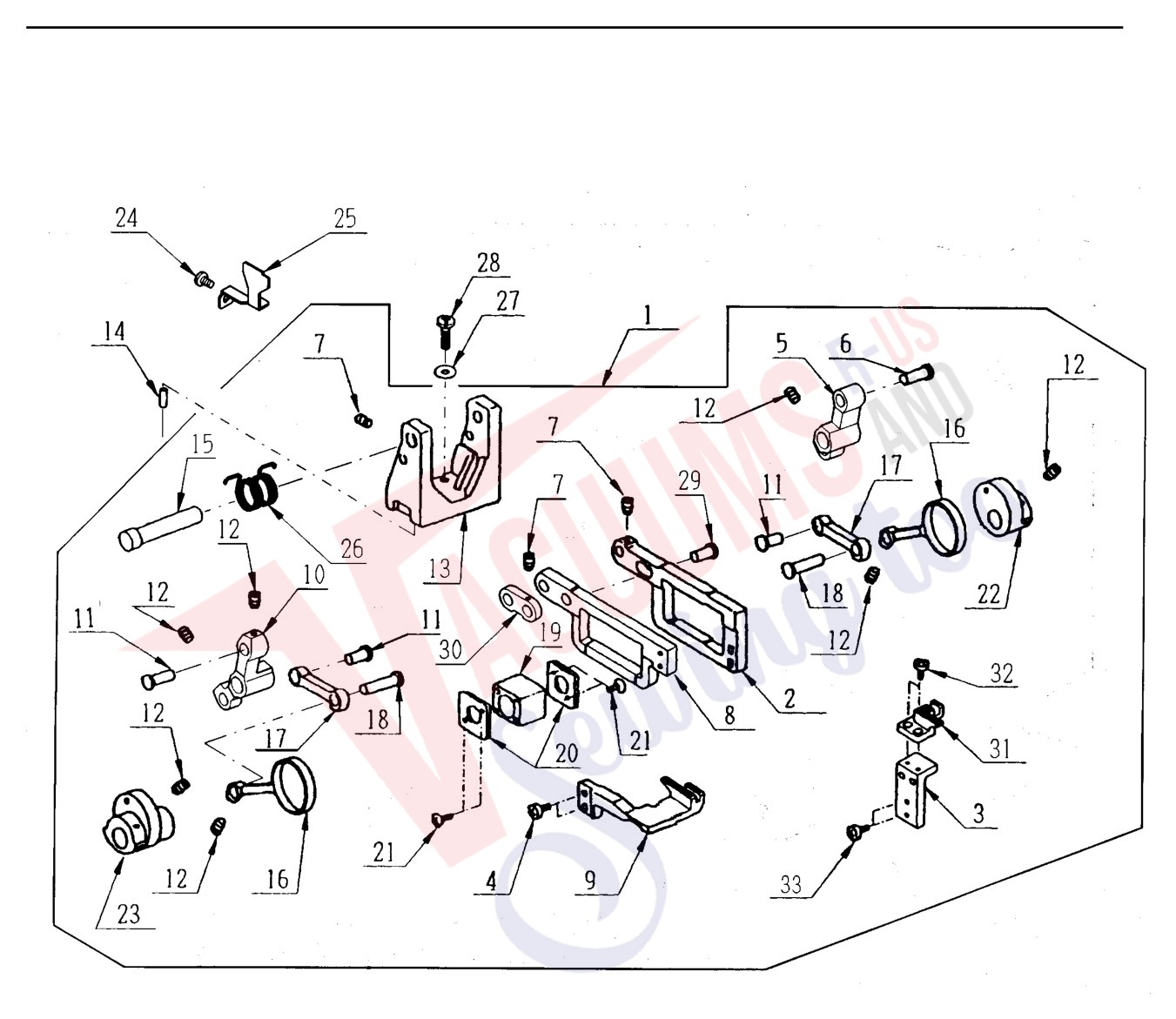

| # | Part image | Description | SKU | Price |
| 1 | | Feed bar unit sewing machine part or accessory For Janome Models: 204D | 789604006 | $89.40Read more |
| 2 |  | MAIN FEED BAR FOR 634D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 6... | 788022001 | $16.80Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | MAIN FEED DOG BRACKET sewing machine part or accessory For Janome Models: 1110DX, 434DR, 634D, 64... | 788023002 | $2.80Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | 4X20 5001 sewing machine part or accessory For Janome Models: 1110DX, 134D, 203, 204D, 234D, 334,... | 000104201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Main feed bar drive arm sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 4... | 787054009 | $2.60Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Pin | 789013002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | SET SCREW-9 8 7 4 7500 4123 55 sewing machine part or accessory For Janome Models: 1110DX, 134D, ... | 000111902 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | SUB FEED BAR sewing machine part or accessory | 789011000 | $9.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | SUB FEED DOG sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 7034D,... | 789018007 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | SUB FEED DRIVE ARM sewing machine part or accessory | 789010009 | $4.20Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 634... | 787059004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Feed bar bracket sewing machine part or accessory For Janome Models: 204D | 787305101 | $21.54Read more |
| 14 | | Pin sewing machine part or accessory For Janome Models: 9002D SRV | 000122803 | $0.60Read more |
| 15 |  | Feed driving arm pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 534... | 787306009 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 | | Feed bar link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534,... | 787065003 | $3.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Feed rocking link sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, ... | 787066004 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Pin sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, 534, 534D, 634... | 787068006 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | BLOCK sewing machine part or accessory 789016005 BLOCK | 789016005 | $3.40Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | SET PLATE sewing machine part or accessory For Janome Models: 1110DX SRV | 787071002 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | SCREW 2.6X5 | 787189004 | Not Available |
| 22 |  | Main feed drive cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR... | 787072003 | $3.60Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Sub Feed Drive Cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR,... | 787073004 | $8.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1000CPX, 1017, 104... | 000101404 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set plate sewing machine part or accessory For Janome Models: 204D | 789019008 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | DRIVE ARM SPRING sewing machine part or accessory | 789015004 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | WASHER-PLAIN 4-9 8 7 4 4123 31 sewing machine part or accessory For Janome Models: 1000CPX, 1017,... | 000070506 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 28 | | SET SCREW FOR SERGER sewing machine part or accessory For Janome Models: 203, 2040, 204D, 234D, 3... | 000101817 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Pin sewing machine part or accessory For Janome Models: 204D, 644D, 734D, 744D, 888 COMPULOCK, HF... | 888100007 | $1.00Read more |
| 30 |  | SUB FEED LINK sewing machine part or accessory 789012001 SUB FEED LINK | 789012001 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | MAIN FEED DOG 634D sewing machine part or accessory For Janome Models: 1110DX, 204D, 434DR, 634D,... | 788027006 | $13.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 |  | Set Screw sewing machine part or accessory For Janome Models: 1110DX, 134D, 1600P, 1600P-DB, 1600... | 000066705 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Setscrew 3.5x10 sewing machine part or accessory For Janome Models: 1110DX, 204D, 644D, 7034D, 90... | 000068811 | $0.60Read more |
| # | Part image | Description | SKU | Price |
| 1 | | Feed adjusting unit sewing machine part or accessory For Janome Models: 204D | 788621202 | $55.76Read more |
| 2 |  | FRAME (BD) sewing machine part or accessory | 788101005 | $7.20Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Feed adjuster arm sewing machine part or accessory For Janome Models: 634D (V2) | 787089003 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | BASE PLATE sewing machine part or accessory For Janome Models: 1110DX SRV | 785156006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Feed regulating screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 134D, ... | 652056000 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | ADJUSTABLE LOCK NUT 9 8 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000160102 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | WasherFT60 sewing machine part or accessory For Janome Models: 1100D, 1100D, 1110DX, 1200D, 1200D... | 000036500 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 8 | | Snap ring 5 sewing machine part or accessory For Janome Models: MISS, 1100D, 1100D, 1100D, 1110DX... | 000001609 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Differential feed adjuster arm sewing machine part or accessory For Janome Models: 634D (V2) | 787264004 | $2.20Add to cart Special order: ships in 2 to 4 weeks |
| 10 | | Adjustable screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 204... | 785224006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Hinge screw sewing machine part or accessory For Janome Models: 634D (V2) | 785286006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Set plate sewing machine part or accessory For Janome Models: 634D (V2) | 785222004 | $0.80Read more |
| 13 | | Feed Adjuster Cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 434D, 434DR, ... | 787091008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 14 | | Dif. adj. cam sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 7034D... | 788036008 | $2.40Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Dial Shaft sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 334, 434D, 434... | 785218007 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Wave washer 6 sewing machine part or accessory For Janome Models: 1110DX, 134D, 204D, 334, 434D, ... | 000116206 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Stitch Length Dial | 787261193 | $3.17Read more |
| 18 | | Differential feed dial sewing machine part or accessory For Janome Models: 204D | 787261126 | $3.91Read more |
| 19 | | Nut sewing machine part or accessory For Janome Models: 1017, 104, 106, 108, 110, 1110DX, 1117S, ... | 000061205 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Dial cap sewing machine part or accessory For Janome Models: 134D, 204D, 534, 534D, 644D, 7034D, ... | 787262301 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 21 | | Spring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, 204D, 434DR, ... | 787263003 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SET SCREW 4X6 5500 4123 4 3123 sewing machine part or accessory For Janome Models: 1000CP, 1000CP... | 000081119 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Link sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 734D, 744D, HF... | 788037009 | $1.40Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | Snap ring CS-3 sewing machine part or accessory For Janome Models: 1100D, 1110DX, 1200D, 1200D, 1... | 000014306 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Set Screw sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000081005 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Feed rod sewing machine part or accessory For Janome Models: 634D (V2) | 787102003 | $2.00Add to cart Special order: ships in 2 to 4 weeks |
| 27 | | Snap Ring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1017, 104, 106, 10... | 000002105 | $1.00Add to cart |
| 28 |  | Differential spring sewing machine part or accessory For Janome Models: 1000CP, 1000CPX, 1110DX, ... | 787259006 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 29 | | Main feed connecting arm (unit) sewing machine part or accessory For Janome Models: 634D (V2) | 788607006 | $8.60Read more |
| 30 | | Main feed connecting arm sewing machine part or accessory For Janome Models: 634D (V2) | 788029008 | $4.40Read more |
| 31 | | Set Screw sewing machine part or accessory For Janome Models: 104, 106, 108, 110, 1100D, 1100D, 1... | 000111201 | $1.00Add to cart Special order: ships in 2 to 4 weeks |
| 32 | | Feed con. plate sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 734... | 788030002 | $1.20Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | Dif transfer arm sewing machine part or accessory For Janome Models: 1110DX, 204D, 634D, 644D, 70... | 788031003 | $1.20Read more |
| 34 | | Sub feed con. arm sewing machine part or accessory For Janome Models: 1110DX, 634D, 644D, 888 COM... | 788032004 | $3.40Read more |
Report errors on this page HERE
